ELECTRONIC

DUAL MODE(CDMA+AMPS)
PORTABLE TELEPHONE

SCH-870

2

ABC

3

END/

DEF

5

JKL

6

MNO

4

GHI

8

TUV

9

WXYZ

7

PQRS

0

OPER

1

. '

SEND

MENU

OK /

Manual

DUAL MODE TELEPHONE

CONTENTS

1. Specification

2. Nam Programming

3. Test Commands & Test Procedure List

4. Test Procedure

5. Exploded View & its Parts List

6. Electrical Parts List

7. Block Diagram

8. PCB Diagram

9. Schematic Diagrams

SERVICE

Samsung Electronics Co.,Ltd. Dec. 00

Pinted in Korea.

Code No.: GH68-01765A

ELECTRONICS

2. Nam Programming

LCD Display

Key in

Function

menu + 60,626 -selects NAM programming

NAM program

1

-choose ‘Setup NAM1’

1:Setup NAM1

2:Setup NAM2

NAM1

Phone #

-directory number

1234567890

Phone number

-to change, enter new one.

OK

-store it.

NAM1

Directory #

-directory number

1234567890

Phone number

-to change, enter new one.

OK

-store it.

NAM1

Activate PRL

-PRL status

No

< or >

-to activate PRL, press < or >

OK

-store it.

NAM1

Anlg HomeSID

System ID for home, current ststus is displayed.

4369

ID number

-to change, enter new one.

OK

-store it.

NAM1

Dgtl HomeSID

System ID for home, current ststus is displayed.

4369

ID number

-to change, enter new one.

OK

-store it.

NAM1

More Prog.?

General NAM setup

Yes 835235 -to change, press < or >

OK -store it

Samsung Electronics

2-1

NAM program

1

Choose ‘ General’

1. General

2. Setup NAM1

3. Setup NAM2

General

ESN

-Electronic Serial Number of the phone is displayed

B0000000

OK

-Press OK, to view next status item.

General

CAI version

-Common Air Interface version is displayed

3

OK

-Press OK, to view next status item.

General

VOC Select

SO_VOIC_EVRC < or > -to change Vocoder rate, press < or >

OK

- store it

General

SCM

-Station Class Mark displays the power class,

01101010

transmission, slotted class, dual mode.

OK

-Press OK, to view next status item.

General

Service Code

Service code, current ststus is displayed

835235 6-digit code -to change, enter new code.

OK

-store it

General

Lock Code

Lock code, current ststus is displayed

0000

4-digit code

-to change, enter new code.

OK

-store it

General

Slot Mode

Slot mode. ‘Yes’ indicates the slot mode.

Yes

< or >

-changes the status.

OK

-store it.

General

Slot Index

Slot mode index. The higher, the longer sleeping time

2

0-7

-to change, enter new one.

OK

-store it.

General

Roundup Timer

Roundup Timer.

No

< or >

-to change the status.

OK

-store it.

2-2

Samsung Electronics

LCD Display

Key in

Function

NAM program

3

choose ‘Setup NAM2’

1. General

2. Setup NAM1

3. Setup NAM2

NAM2 Digital

IMSI_MCC

IMSI Moble Country Code, current code is displayed.

000

number

-to change, enter new one.

OK

-store it.

NAM2 Digital

IMSI_MNC

IMSI Mobile Network Code, current code is displayed.

00

number

-to change, enter new one.

OK

-store it.

NAM2 Digital

Phone #

-Phone number

1234567890

Phone number

-to change, enter new one.

OK

-store it.

NAM2 Digital

Directory #

-directory number

1234567890

Phone number

-to change, enter new one.

OK

-store it.

NAM2 Digital

Home SID 01

1st CDMA Home system ID, current status is displayed

1700 Phone number -to change, enter new one.

OK

-store it.

NAM2 Digital

Home NID 01

1st CDMA Home Network ID, current status is displayed

1 Phone number -to change, enter new one.

OK

-store it.

NAM2 Digital

Home SID 02

2nd CDMA Home system ID, current status is displayed

1700 Phone number -to change, enter new one.

OK

-store it.

NAM2 Digital

Home NID 02

2nd CDMA Home Network ID, current status is displayed

2 Phone number -to change, enter new one.

OK

-store it.

————— repeated to SID 20 & NID 20——————————

NAM2 Digital

Lockout SID01

1st lock system ID,current status is displayed.

0

ID number

-to change, enter new one.

OK

-store it.

Samsung Electronics

2-3

LCD Display

Key in

Function

NAM2 Digital

Lockout SID02

2nd lock system ID,current status is displayed.

0

ID number

-to change, enter new one.

OK

-store it.

—————- repeated to Lockout SID10————————————-

NAM2 Digital

CDMA Home SID

CDMA Home system ID, current status is displayed

Yes

< or >

-changes the status.

OK

-store it.

NAM2 Digital

CDMA fSID

CDMA foreign SID, current status is displayed.

Yes

< or >

-changes the system.

OK

-store it.

NAM2 Digital

CDMA fNID

CDMA foreign NID, current status is displayed.

Yes

< or >

-changes the system.

OK

-store it.

NAM2 Digital

CDMA ACCOLC

CDMA Access Overload Class, current status is displayed.

6

class number

-to change, enter new one.

OK

-store it.

NAM2 Analog

Phone #

-Phone number

1234567890

Phone number

-to change, enter new one.

OK

-store it.

NAM2 Analog

Directory #

-directory number

1234567890

Phone number

-to change, enter new one.

OK

-store it.

NAM2 Analog

Home SID

Analog Home system ID, current status is displayed

1

Phone number

-to change, enter new one.

OK

-store it.

NAM2 Analog

Auto Reg

Auto Registration, current status is displayed

Yes

< or >

-changes the status.

OK

-store it.

NAM2 Analog

ACCOLC

Analog Access Overload Class, current status is displayed.

6

class number

-to change, enter new one.

OK

-store it

2-4

Samsung Electronics

LCD Display

Key in

Function

3. Test Commands & Test Procedure List

3-1 Test Command Table

To change the phone from normal mode to test mode, you should enter the following keys :
Press [*759#813580]

Command No

Command SW Name

Description

01(1F,0,0)

02(3F,0,0)

04(1D,0,1)

07(81,0,0)

08(82,0,0)

09(83,4,0)

10(84,1,0)

11(85,0,0)

12(86,0,0)

13(87,0,0)

14(88,0,0)

15(89,10)

16(8F,0,0)

17(90,0,0)
18(92,20)

20(9E,3,0)

21(9C,5,0)

22(91,96,96)

23(95,3,4)

24(9F,7,8)

25(92,0,0)

26(93,0,0)

27(96,0,0)

28(97,0,0)

30(9D,15,0)
31(00,1,0)

32(A0,1,0)

33(A1,0,0)

34(A2,0,0)

37(A5,3,0)

38(A6,3,0)

39(A7,3,0)

40(A7,3,0)

41(A9,3,0)

42(AA,1,0)

43(AB,0,0)

44(B0,0,0)
45(B1,0,0)

46(B2,0,0)

47(B3,3,0)

T_SUSPEND_I

T_RESTART_I

T_GET_MODE_I

T_CARRIERON_I

T_CARRIEROFF_I

T_LOADSYN_I

T_PWRLEVEL_I

T_RXMUTE_I

T_RXUNMUTE_I

T_TXMUTE_I

T_TXUNMUTE_I

T_VOC_ESEC_I

T_STON_I

T_STOFF_I

T_LCD_CONTRAST_I

T_LNA_GAIN_WR_I

T_TEST_SYS_I

T_SNDNAM_I1)

T_SNDVERSION_I1)

T_SNDESN_I1)

T_BACKLIGHT_ON_I

T_BACKLIGHT_OFF_I

T_DATASVC ON

T_DATASVC OFF

T_PLINE_I
T_AUTOANSWER_I

T_SATON_I*2)

T_SATOFF_I*

T_CDATA_I

T_RXRAS_FLATNESS_I

T_VOC_ENC_OFFSET_I

T_VOC_DEC_OFFSET_I

T_VOC_CDMA_UNITY_GAIN_I

T_VOC_FM_HFRX_UPGAIN_I

T_DTMFON_I2)

T_DTMFOFF_I

T_COMPANDORON_I
T_COMPANDOROF_I

T_FM_VCLINE_I*

T_FM_AUD_GAIN_I

Enter to test menu

Escape from test menu

Get mode CDMA/FM

Turn on the carrier
Turn off the carrier

Load the synthesizer for locking

Change RF power level

Mute rx audio

Unmute rx audio

Mute tx audio

Unmute tx audio

Echo Canceller On/Off

Transmit a continuous Signaling Tone(ST)

Stop transmit a continuous Signaling Tone(ST)

Tune LCD contrast

write LNA gain for IMD test

set test system & Channel

Display & Send NAM Information

Display & Send Software Version

Display & return ESN

Backlight on

Backlight off

Data Service On

Data Service Off

Display and return production date

Enable Auto-answer mode

Enable the transmission of SAT

Disable the transmission of SAT

Continuously send TX Control data

Adjust CDMA RX RAS flatness.

Vocoder ENC offset

Vocoder DEC offset

Vocoder CDMA unity gain

Vocoder FM hfrx upgain

Turn on DTMF

Turn off DTMF

Turn on compandor
Turn off compandor

Enter FM voice state

FM audio gain

Samsung Electronics

3-1

Command No

Command SW Name

Description

48(B4,0,0)

49(B5,0,0)

50(B6,0,4)

52(B9,0,8)

53(BA,3,0)

54(BB,7,8)

55(AC,1,0)

57(BC,0,0)

58(BD,0,0)

59(BE,0,0)

60(BF,3,0)

61(C0,3,0)

62(C1,3,0)

63(C2,3,0)

64(C3,3,0)

65(C4,3,0)

66(C5,3,0)

67(C6,0,6)

68(C8,0,3)

69(C9,0,3)

70(CA,3,0)

71(D1,3,0)

72(D2,3,0)

73(D3,1,0)
75(D5,0,3)

76(D6,3,0)

77(D7,0,3)

79(D9,1,0)

80(DA,0,0)

81(E3,0,0)

82(E4,0,0)

83(E5,0,0)

84(E6,0,0)

85(E7,0,0)

86(E8,0,0)

87(E9,0,0)

88(EA,3,0)

89(EB,3,0)

90(F0,2,0)

92(D4,5,0)

93(F3,4,0)

96(F6,4,0)

97(F2,4,0)

98(F8,3,0)
99(FC,4,0)

T_VIBRATOR_ON_I

T_VIBRATOR_OFF_I

T_BATT_TYPE_I

T_HW_VERSION_I

T_CARRIER_I

T_VOC13K_I

T_EXT_AUDIO_I

T_MIC_ON_I

T_MIC_OFF_I

T_ALLPATH_I
T_FM_TX_GAIN_I2)3)

T_FM_RX_GAIN_I2)3)

T_DTMF_VOL_TX_I2)3)

T_TX_LIMITER_I2)3)

T_FM_SAT_LEVEL_I2)3)

T_FM_FREQ_SGAIN_I2)3)

T_FM_ST_GAIN_I2)3)

T_READ_BATT_I1)

T_VBATT1_I3)

T_VBATT2_I3)

T_WRITE_BATT_I3)3)

T_CDMA_TXADJ_I2)

T_FM_TXADJ_I2)

T_SET_PA_R_I2)

T_READ_RSSI_I3)
T_CDMA_CH_FLATNESS_BP_ON_I

T_READ_TEMP_I

T_BUZZER_ON_I2)

T_BUZZER_OFF_I

T_VOC_PCMLPON_I

T_VOC_PCMLPOFF_I

T_BYPASS_ON_I

T_BYPASS_OFF_I

T_SPEAKER_ON_I

T_SPEAKER_OFF_I

T_FM_LOOP_TEST_I
T_TRK_ADJ_I3)

T_CDTRK_ADJ_I

T_FM_CH_FLATNESS_I

T_TXRAS_ADJ_I

T_RXRAS_ADJ_I

T_CH_FLATNESS_I

T_FM_TX_PWR_I

T_TXRAS_ADJ_BP_ON_I
T_SND_GAIN_I

Activate a vibrator

Inactivate a vibrator

Battery Type

View HW version

Target Carrier option (Change banner)

Target Service option

External Audio Path On/Off

Unmute MIC Path

mute MIC Path

Tune on the all audio path

AMPS Tx Audio Gain Control

AMPS Rx Audio Gain Control

AMPS Tx DTMF Gain Control

AMPS Tx Limiter Gain Control

AMPS Tx SAT level Control

AMPS Tx Master Gain Control

AMPS Tx ST Gain Control

Saved Low battery value read

Set the low battey position in the standby

Set the low battey position in the talking

write a BATT

Sets tx_agc_adj for CDMA mode

Sets tx_agc_adj for AMPS mode

Sets PA R1,R0 range bits

Read a RSSI

Adjust CDMA TX low power RAS flatness

Read a TEMP

Buzzer on

Buzzer off

Turn on to play a PCM LOOP BACK

Turn off to play a PCM LOOP BACK

Set Low power mode

Set High power mode

Turn on the speaker path

Tturn off the speaker path

FM loop back

TRK LOCAL ADJUST

CDMA TRK LOCAL ADJUST

Adjust FM channel flatness

CDMA TX high power RAS table( not adjustable )

CDMA RX RAS table( not adjustable )

Adjust TX high power RAS

Adjust FM Power level 2 ~ 7

CDMA TX low power RAS table( not adjustable)
Mic/Speaker Gain control

3-2

Samsung Electronics

4. Test Procedure

4-1 List of Equipment

- DC Power Supply
- Test Jig
- Test Cable
- CDMA Mobile Station Test Set

HP8924C, HP83236A, CMD-80, etc

- Spectrum Analyzer(include CDMA Test Mode) HP8596E

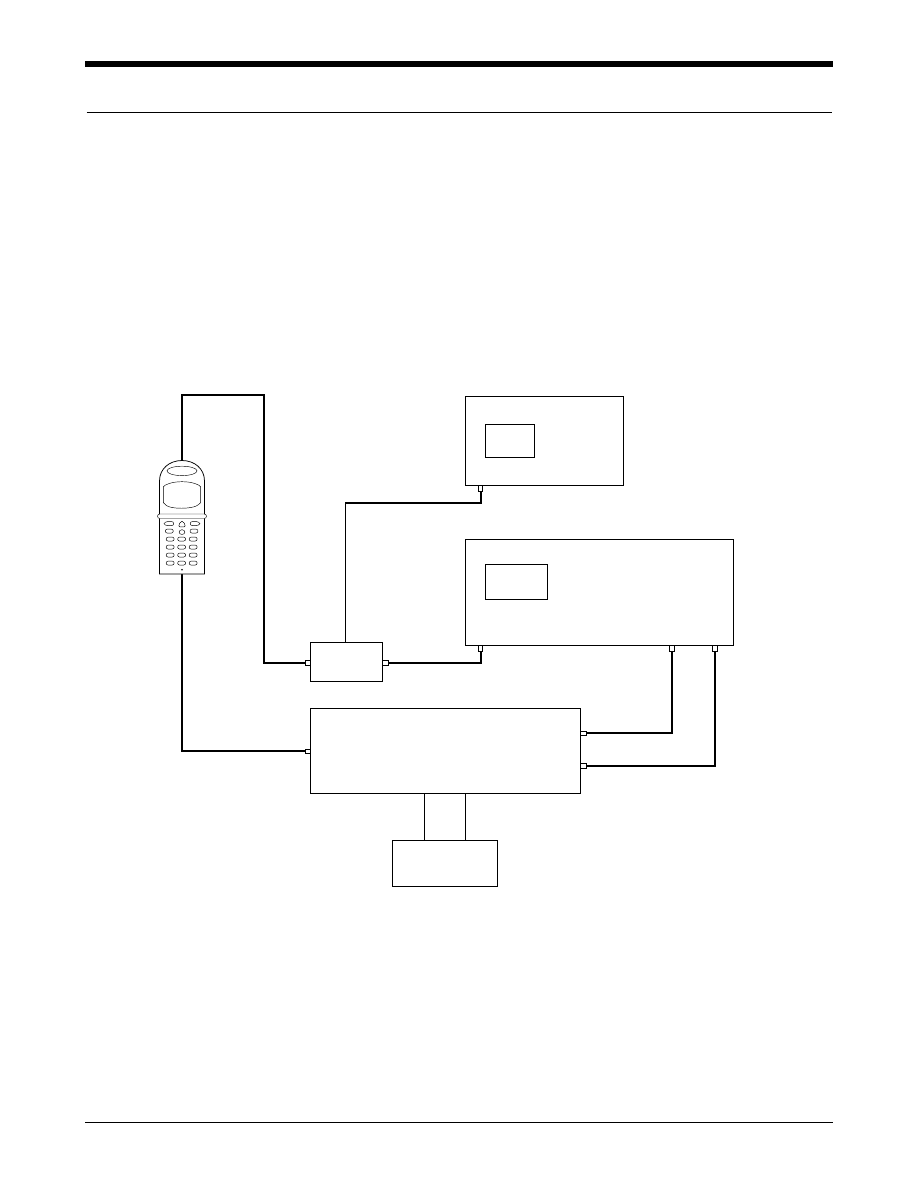

4-2 Configuration of Test

❈ CAUTION : The test jig and data cable has a voltage drop of 0.33V at FM Max power output,

you’d better set the DC power supply to 3.93V for normal test condition.
(Nominal voltage of battery is 3.6V at cellular phone)

Samsung Electronics

4-1

Spectrum Analyzer

RF In

HP8924C

RF

In/Out

Directional

Coupler

Test Jig

To A-Out

To A-In

DC Power Supply

(+3.93V)

Audio

Out

Audio

In

4-3 Test Cable Description for SCH-870

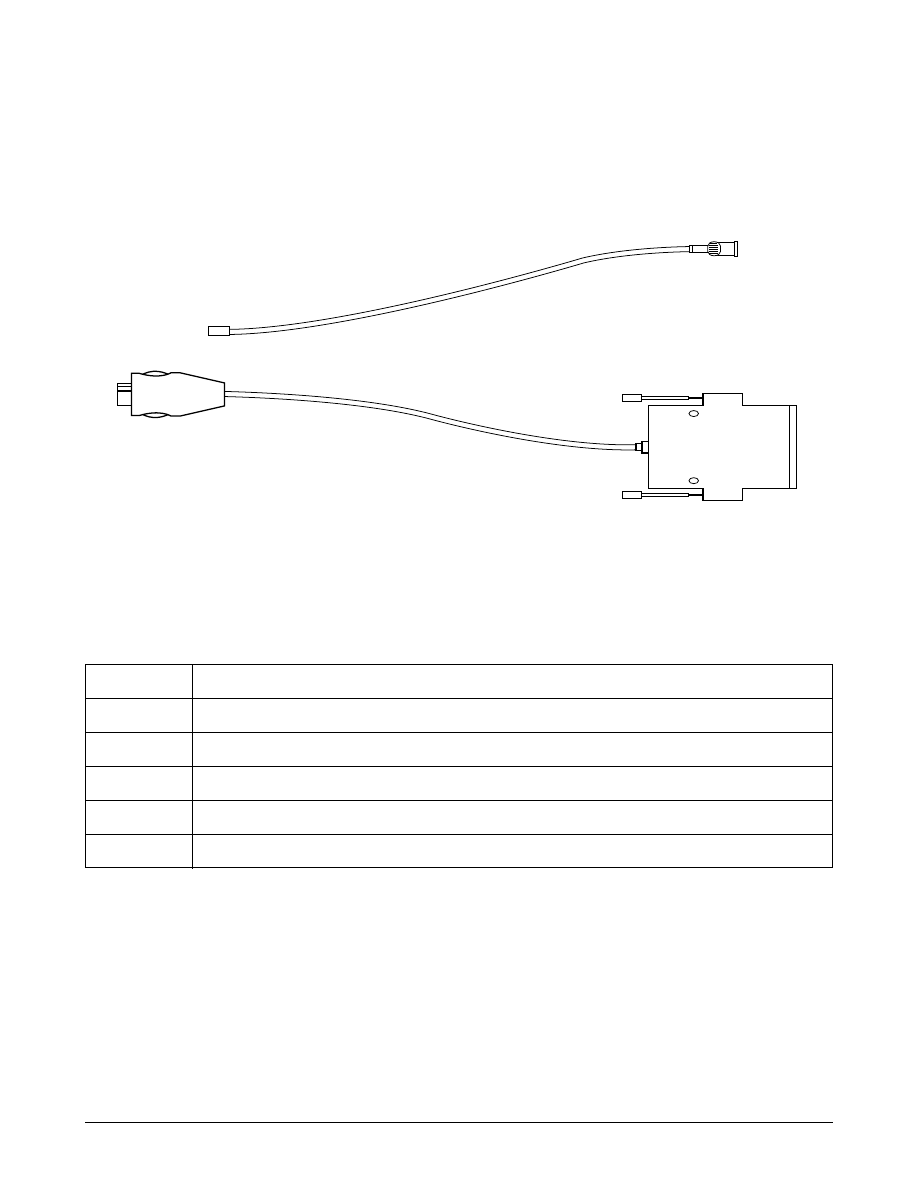

1. Test Cable

2. Test Cable Connections

1

MHC 172

2 RF CABLE 91.4db Loss for CDMA800 and AMPS

3

BNC CONNECTOR (RF)

4 PLUG CONNECT TO SCH-870

5

DATA CABLE

6

Dsub 25PIN CONNECTOR (DATA)

4-2

Samsung Electronics

1

4

5

6

2

3

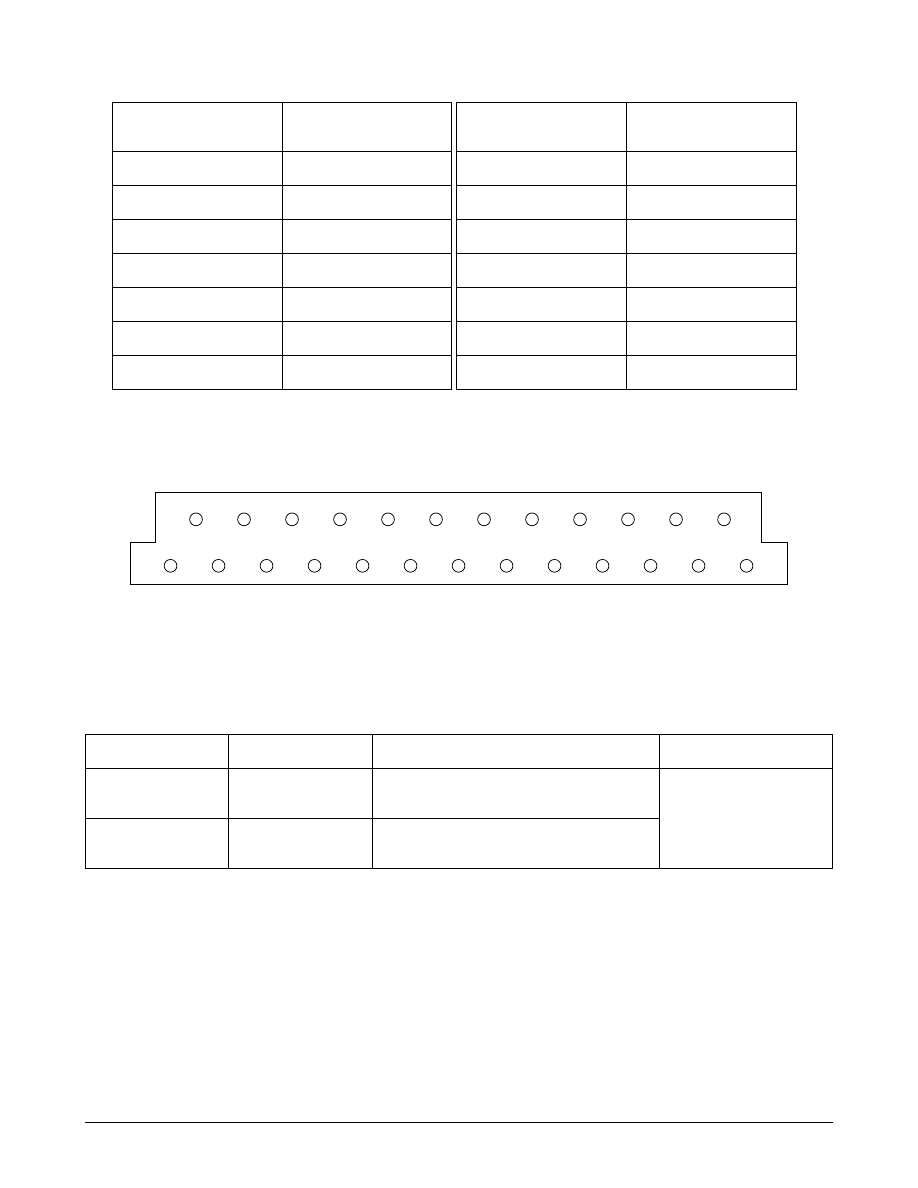

3. Dsub 25 PIN CONNECTOR PIN DESCRIPTION (TEST CABLE 1, BACK SIDE)

DATA

Dsub CONN.

DESCRIPTION

PIN NO.

V_F

12,21

DGND

2, 4, 6, 13, 19

BATT

15, 16, 22

C_F

3,20

TX_AUDIO

5

DP_TX_DATA

7

RX_AUDIO

1

DATA

Dsub CONN.

DESCRIPTION

PIN NO.

DP_RX_DATA

8

HP_PWR

9

RI

10

CD

11

RTS

14

CTS

17

DTR

18

4. CONVERSION TABLE OF FREQUENCY vs CHANNEL

T Y P E

CHANNEL

CONVERSION EQUATION

REMARK

TX 1

≤

N

≤

799

F=0.03 X N + 825.00

N ; CH NUMBER

FREQUENCY

990

≤

N

≤

1023

F=0.03 X (N-1023) + 825.00

F ; FREQUENCY

RX

1

≤

N

≤

799

F=0.03 X N + 870.00

(AMPS/CDMA)

FREQUENCY

990

≤

N

≤

1023

F=0.03 X (N-1023) + 870.00

Samsung Electronics

4-3

14

15

16

17

18

19

20

21

22

23

24

25

1

2

3

4

5

6

7

8

9

10

11

12

13

4-4 Test Procedure

4-4-1 Change to Test Mode

A. To change the phone’s state from Normal Mode to Test Mode, You should enter the following keys.

“* 7 5 9 # 8 1 3 5 8 0”

B. The command “21” is mode and channel change , press “OK” to save.

“10000” or “10001” : AMPS’s Sytem A and Sytem B

“20363”

C. The command “0 1” is Suspend.

D. To finish the Test Mode, You should enter the command “0 2”.

4-4-2 Channel Selection and Tx Power Output Level Control

1.AMPS(FM)

A. Enter to Test Mode (“* 7 5 9 # 8 1 3 5 8 0”).

B. The command “21” is mode and channel change

“10000” or “10001” : AMPS’s Sytem A and Sytem B

C. To finish the Test Mode, You should enter the command “0 2”.

D. “0 1” : Suspend.

E. “4 6” : Vocoder initial to Analog mode.

F. “0 9 0 3 6 3 #” : Set to ‘0363’ channel.

G. “0 7” : Carrier On.

H. “9 7 * * * “ : Output RF power level is set as power level 2

“* * *” means AGC level and AGC level range is from 0 to 511.

I. “1 0 2” : RF Power level control, 2(0~7) means power level .

4-4

Samsung Electronics

Channel number

Mdoe : CDMA

2. CDMA

A. Enter to Test Mode ( “* 7 5 9 # 8 1 3 5 8 0” ).

B. The command “21” is mode and channel change , press “OK” to save.

“20363”

C. To finish the Test Mode, You should enter the command “0 2”.

D. “0 1” : Suspend.

E. “0 9 0 3 6 3 #” : Set to ‘0363’ channel.

F. “0 7” : Carrier On.

G. “3 4” : Spread spectrum to 1.23MHz band width.

H. “8 4” : High Power-mode On

I. “9 6 * * * “ : Output RF power level is set max power

“* * *” means AGC level and AGC level range is from 000 to 511.

Channel number

Mdoe : CDMA

Samsung Electronics

4-5

4-5 Test Procedure

1. AMPS(FM)

TEST ITEMS

PROCEDURE

1. PREPARATION

Set test equipments up.

Confirm that the phone is in the Analog Mode!
( “10000” or “10001” at Test Command “2 0”.)

“* 7 5 9 # 8 1 3 5 8 0” : Enter the Test Mode
“0 1” : Suspend
“4 6” : Initialize Vocoder in Analog mode

If a wrong key would be selected, press “#”, and then enter new command.
To exit the Test Mode at any time, just press [0 2].

2. RF

“0 1” : Suspend.

POWER

“4 6” : Initialize Vocoder in Analog mode.
“0 9 0 3 6 3 #” : Set channel to 363.
“0 7” : Carrier On.
“1 0 2” : RF Power level selection, “2” means one of the power levels (0~7).

Measurement of the Power Output Levels

Level

RF Power

0 ~ 2 + 26.5 dBm + 0.3/-4 dB

3

+ 23 dBm +

2/-4 dB

4

+ 19 dBm + 2/-4 dB

5

+ 15 dBm + 2/-4 dB

6

+ 12 dBm + 2/-4 dB

7

+ 9 dBm + 2/-4 dB

“0 8” : Carrier off

Note 1 : In case of using the antenna cable, compensation for th cable loss should be added

(about 1.5dB).

Note 2 : To prevent phones from being damaged, they must be measured only by calibrated test

equipments.

Warning !
Adjustments without calibrated equipments can cause phones to be heated excessively and
would void the warranty.

3. TX

“0 1” : Suspend.

FREQUENCY

“4 6” : Initialize Vocoder in Analog mode.
“0 9 0 3 6 3 #” : Set channel to 363.
“0 7” : Carrier On.

Measure the TX frequency : 835.89 MHz ± 2.5ppm.

4. VOICE

“0 1” : Suspend.

DEVIATION

“4 6” : Initialize Vocoder in Analog mode.
“0 9 0 3 6 3 #” : Set channel to 363.
“0 7” : Carrier On.
“1 4” : TX Audio unmute.

Set the audio generator output to 1kHz, 3.0Vrms.

Measure the Tx voice deviation by using the HPF of 20Hz and the LPF of 99kHz
(spec : less than ±12kHz).

4-6

Samsung Electronics

TEST ITEMS

PROCEDURE

5. ST DEVIATION

“0 1” : Suspend.
“4 6” : Initialize Vocoder in Analog mode.
“0 9 0 3 6 3 #” : Set channel to 363.
“0 7” : Carrier On.
“1 6” : ST on.
Measure the Tx ST deviation by using the HPF of 50Hz
spec : 8kHz±10%).

“1 7” : ST off.

6. SAT

“0 1” : Suspend.

DEVIATION

“4 6” : Initialize Vocoder in Analog mode.
“0 9 0 3 6 3 #” : Set channel to 363.
“0 7” : Carrier On.
“3 2” : SAT on.
Set the equipment as following.

RF frequency : 880.89MHz
Input RF level

: -80dBm

Modulation frequency : 6kHz
Frequency deviation : 2kHz

Measure the Tx SAT deviation by using the HPF of 50Hz
and the LPF of 6kHz (spec : 2kHz ±10%).

“3 3” : SAT off.

7. WBD

“0 1” : Suspend.

DEVIATION

“4 6” : Initialize Vocoder in Analog mode.
“0 9 0 3 6 3 #” : Set channel to 363.
“0 7” : Carrier On.
“3 4” : WBD on.
Measure the WBD deviation by using the HPF of 50Hz and
the LPF of 20kHz (spec : 8kHz±10%).

8. RX AUDIO

“0 1” : Suspend.
“4 6” : Initialize Vocoder in Analog mode.
“0 9 0 3 6 3 #” : Set channel to 363.
“0 7” : Carrier On.
“1 2” : RX Audio unmute.
Set the equipment as following.

RF frequency

: 880.89MHz

Input RF level : -80dBm
Modulation frequency : 1kHz
Frequency deviation : ±8kHz

Measure audio AC level.

Samsung Electronics

4-7

2. CDMA

TEST ITEMS

PROCEDURE

1. PREPARANCE

Set test equipments up.

Confirm that the phone is in the CDMA Mode.
(“2XXXX” at Test Command “0 2”)

“* 7 5 9 # 8 1 3 5 8 0” : Enter the Test Mode
“0 1” : Suspend
If you select a wrong key, press “#”, then enter new command.
To exit the Test Mode at any time, just press [0 2].

2. FREQUENCY

“0 1” : Suspend.

ACCURACY

“0 9 0 3 6 3 #” : Set channel to 363.
“0 7” : Carrier On.
“9 6” :You can read the number.(the code) and the push the #
“7 1 2 6 0 #” : Set AGC level to the numer of reading(about 188).
Measure the TX frequency : 835.89MHz±300Hz.

3. OCCUPIED CDMA

“0 1” : Suspend.

BANDWIDTH

“0 9 0 3 6 3 #” : Set channel to 363.
“0 7” : Carrier On.
“3 4” : Spread spectrum.
“8 4” : High power mode
“9 6” :You can read the number.(the code) and the push the #
“7 1 2 6 0 #” : Set AGC level to the numer of reading(about 188).
Measure the bandwidth (spec: 1.32MHz).

4. LIMITATIONS ON

“0 1” : Suspend.

EMISSIONS

“0 9 0 3 6 3 #” : Set channel to 363.
“0 7” : Carrier On.
“3 4” : Spread spectrum.
“8 4” : High power mode
“9 6” :You can read the number.(the code) and the push the #
“7 1 2 6 0 #” : Set AGC level to the numer of reading(about 188).

Measure the spurious at F

C

±900kHz, F

C

±1.98MHz, 2F

C

, 3F

C

, 1/2F

C

.

spec : F

C

±900kHz below 42dBc/30kHz

F

C

±1.98MHz below 54dBc/30kHz

Outside Receive Band 43+10log (PY)
PY: Mean Output Power in watts

5. GATED POWER &

Set the service option 2.

TIME

Set the data rate Eighth (1200bps).
Registering: HHP ➝ HP8924C.
Call : HP8924C ➝ HHP.
Measure the Gated Power & Time.
spec : Gated Power - at least 20dB

Gated Time - Rising Time : below 6µs

Falling Time : below 6µs
Burst Time : below 1.25ms

▼

▼

▼

4-8

Samsung Electronics

5. Exploded View & its Parts List

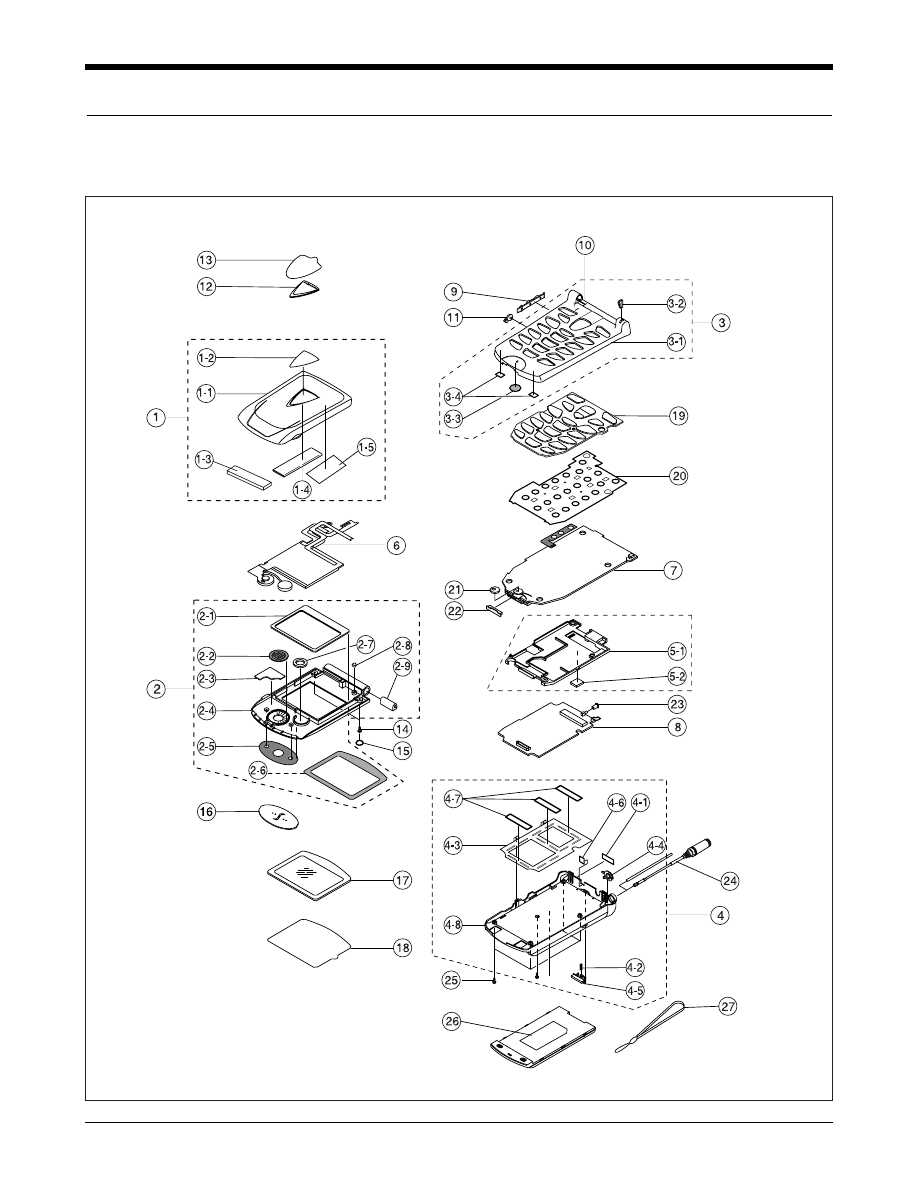

5-1 Main Set Exploded View

Samsung Electronics

5-1

NO

Level

SEC CODE

Description

Remark

1 GH75-00375E MEA-FOLDER UPPER GOLD

1-1 GH72-00670E PMO-FOLDER UPPER SNA
1-2

GH74-10772A

MPR-TAPE DECORATION

SNA

1-3 GH74-00318A MCT-SHIELD GASKET(B) SNA
1-4 GH74-00483A MCT-SHIELD GASKET(C) SNA
1-5 GH74-00510A MPR-TAPE SHIELD(A) SNA

2 GH75-00376D MEC-FOLDER LOWER GOLD

2-1

GH74-00319A

MPR-SPONGE LCD

SNA

2-2

GH74-10777A

MPR-TAPE SPEAKER

SNA

2-3 GH74-00322A MPR-SPONGE EAR PIECE SNA
2-4 GH72-00671D PMO-FOLDER LOWER SNA
2-5 GH74-00671A MPR-TAPE EAR PIECE SNA
2-6

GH74-10775A

MPR-TAPE WINDOW LCD

SNA

2-7

GH74-00304A

MPR-TAPE MOTOR

SNA

2-8

GH70-00036A

ICT-MAGNETIC

SNA

2-9 GH75-00764A MEC-HINGE ASSY SNA

3 GH75-00374D MEC-FRONT COVER GOLD

3-1 GH72-00669D PMO-FRONT COVER SNA
3-2

GH72-41801A

PMO-REFLECTOR LED

SNA

3-3

GH74-00378A

MPR-FRONT GRILL

SNA

3-4

GH74-00440A

MCT-FRONT GASKET

SNA

4

GH75-00377A

MEC-REAR COVER

BLACK

4-1

GH68-30846A

LABEL(R)-QUALCOMM

SNA

4-2 GH70-10516A IRR-SPRING LOCKER MA SNA
4-3

GH71-00010A

NPR-GROUND PLATE

SNA

4-4

GH71-00100A

NPR-BRACKET ANT

SNA

4-5

GH72-00127A

PMO-BATT LOCKER

SNA

4-6

GH72-00673A

PMO-REAR COVER

SNA

4-7

GH74-00027A

MPR-SHIELD TAPE

SNA

4-8

GH74-00377A

MPR-BUZZER GRILL

SNA

5 GH75-00921A MEC-SHIELD COVER

5-1 GH72-01849A PMO-SHIELD COVER SNA
5-2

GH74-00362A

MCT-SHIELD DUPLEX

SNA

6 GH07-00058A ETC-GRAPHIC LCD
7 GH92-00898A PBA MAIN-LOGIC
8 GH92-00899A PBA MAIN-RF
9

GH72-00487A

PMO-KNOB VOLUME

10

GH72-00667A

PMO-HINGE DUMMY

11 GH73-00217A RMO-EAR JACK COVER
12

GH72-00668A

PMO-DECORATION

13 GH74-00084A PPR-DECO BOHO VINYL
14

6001-001300

SCREW-MACHINE

15

GH74-00313A

MPR-SCREW CAP

16

GH72-00672A

PMO-EAR PIECE

17 GH72-00283D PCT-WINDOW LCD
18 GH74-01093A PPR-TAPE WINDOW BOHO
19 GH73-00118A RMO-KEY PAD
20 GH72-00489A PMO-KEYPAD DOME
21

GH73-00218A

RMO-HOLDER MIC

22

GH73-40704A

RMO-CONNECTOR COVER

23

GH73-40705A

RMO-MOBILE CAP

24 GH42-00040A ANTENNA
25 6001-001148 SCREW-MACHINE 4PCS
26 GH43-00095B BATTERY-STD 1000mAh
27

GH75-00223E

MEC-HANGER ROPE

BLACK

5-2 Main Set Parts List

5-2

Samsung Electronics

SEC CODE

LOC NO.

DESCRIPTION

SPEC

REMARK

6001-001148

SCREW-MACHINE

BH,*,M2,L5,ZPC(BLK),SM20C,FDP

6001-001300

SCREW-MACHINE

CH,+,M1.7,L2.5,ZPC(BLK),SWRCH18A,FP

GH41-00066A

PCB-VOLUME

KEY

SCH-8500,POLYIMIDE,-,-,10.3X41.95

GH42-00040A

ANTENNA-SCH8500/850

SCH-8500,824~894/1850~1990Mhz

GH43-00161B

BATTERY-SCH870

BTS870,SCH-870,Li-Ion,1000mAh,-

GH44-00099C

CHARGER-DTC850(MEXC)

DTC850,SCH-850/8500,AC/DC,-

GH68-0015

7F LABEL(P)-COLOR SCH-670,ART,PI9,100G,SIL

GH68-01442A

LABEL(R)-MAIN

SCH-870,POLYESTER,0.05T,37,28,-

GH68-01571A

LABEL(P)-SHIPPING

SCH-870,CRAFT-PAPER

100g,0.1,250

GH68-01651A

MAN(BOOK)-USER

MANUAL

SCH-811i,-,SPANISH,-

GH68-01652A

MAN(CARD)-WARRANTY

CARD SCH-870,-,-,VEZL,-

GH68-11057A

LABEL(P)-MS BAR CODE

SCH-1900,ART,100X155,T0.1,WHT

GH68-30937A

LABEL(R)-BARCODE

BOX

SCH-1011,POLYESTER,61X71,T0.1,

GH68-30963A

LABEL(R)-BAR

CODE

SP-D300,PR,34X6.5,T0.1,WHT

GH71-00073A

NPR-CONTACT

ANT

SCH-8500,C1720S,T0.1,AU

GH71-00169A

NPR-GND

B/D

SCH-850,BEC,0.1,GLD

GH72-00283D

PCT-WINDOW

SAMSUNG

SCH-811,-,BLK,-,-

GH72-00487A

PMO-KNOB

VOLUME

SCH-8500,PC/ELASTOMER,BLK,-,-

GH72-00489A

PPR-KEYPAD

DOME(8500)

SCH-8500,PET+SUS301,WHT,-,-

GH72-01818A

PMO-SHIELD

RING

SCH-880,-,PC,BLK,-,-,-

GH73-00217A

RMO-EAR JACK COVER

SCH-850,URETHAN,-,BLK,60HB

GH73-00218A

RMO-HOLDER

MIC

SCH-850,SI

RUBBER,-,BLK,-

GH73-40704A

RMO-CONNECTOR

COVER

SPH7000,URETAN,18.2X4.0XT5.8,B

GH73-40705A

RMO-MOBILE

CAP

SPH7000,URETHAN,5.2X4.2XT5.0,B

GH74-00449A

MPR-TAPE MIC

SCH-850,FOAM TAPE,PI5.0XT0.5,GRY,-

GH74-01093A

MPR-WINDOW BOHO VINYL

SCH-8500,VINYL,48X41XT0.2,TRP,-

GH74-10526A

MPR-SPONGE

MIC

SH-800,SPONGE,7X7.5X3,BLK,-

GH75-00223E

MEC-HANGER

ROPE

SGH-2300,-,BLK

GH75-00377A

MEC-REAR

COVER

SCH-850,-,BLK

GH68-30846A

LABEL(R)-QUALCOMM

SCH-100F,VINYL,12X6,0.12,TRP

GH70-10516A

IPR-SPRING LOCKER MA

SH-700,STS304,T0.3,-

6. Electrical Parts List

6. Electrical Parts List

6. Electrical Parts List

6. Electrical Parts List

6

6

6

6-

-

-

-1

1

1

1

Samsung Electronics

Samsung Electronics

Samsung Electronics

Samsung Electronics

SEC CODE

LOC NO.

DESCRIPTION

SPEC

REMARK

GH71-00010A

NPR-GROUND

PLATE

SCH-800B,C5210-3/4H,T0.1,-

GH71-00100A

NPR-BRACKET

ANT

SCH-850,C2801S-1/4H,0.5,-

GH72-00127A

PMO-BATT

LOCKER

SGH-800,PC,BLK,-,-

GH72-00673A

PMO-REAR

COVER

SCH-850,PC,BLK,-,-

GH74-00027A

MPR-SHIELD

TAPE

SCH-800B,CLOTH(SHIELD),30X8XT0.1

GH74-00362A

MCT-SHIELD DUPLEX CDMA

SCH-8500,GASKET,5X1.5X7,BLK,-

GH74-00377A

MPR-BUZZER

GRILL

SCH-850,GAUZE,-,BLK,-

GH75-00921A

MEC-SHIELD

COVER(870)

SCH-870,-,PC,-,TRP,-,-

GH72-01849A

PMO-SHIELD COVER

SCH-855,-,PC(LEXAN SP1210R),BLK,-

GH74-00362A

MCT-SHIELD DUPLEX CDMA

SCH-8500,GASKET,5X1.5X7,BLK,-

GH92-00898A

PBA MAIN-SCH880 LOGIC PART SCH-880,PELE-PHONE,ISRL,LOGIC PART

0405-001035 D202

DIODE-VARACTOR

1SV279,15V,3nA,USC,TP

0405-001035 D203

DIODE-VARACTOR

1SV279,15V,3nA,USC,TP

0405-001035 D204

DIODE-VARACTOR

1SV279,15V,3nA,USC,TP

0405-001035 D205

DIODE-VARACTOR

1SV279,15V,3nA,USC,TP

0406-001005 D111

DIODE-TVS

SM05,6V/1mA,300,SOT-23

0406-001084 D102

DIODE-TVS

SMF05,6/-/-V,200W,-

0406-001084 D105

DIODE-TVS

SMF05,6/-/-V,200W,-

0406-001084 D106

DIODE-TVS

SMF05,6/-/-V,200W,-

0406-001084 D107

DIODE-TVS

SMF05,6/-/-V,200W,-

0406-001084 D108

DIODE-TVS

SMF05,6/-/-V,200W,-

0406-001084 D109

DIODE-TVS

SMF05,6/-/-V,200W,-

0407-000115 D110

DIODE-ARRAY

DAN202U,80V,100mA,CA2-3,SC-70,

0409-001016 D201

DIODE-PIN

BAR63-02W,50V,100mA,SCD-80,TP

0501-000162 Q104

TR-SMALL

SIGNAL

2SA1576,PNP,200MW,SOT-323,TP

0501-000218 Q103

TR-SMALL

SIGNAL

2SC4081,NPN,200mW,UMT,TP,180-3

0501-000218 Q151

TR-SMALL

SIGNAL

2SC4081,NPN,200mW,UMT,TP,180-3

0501-002202 Q102,Q111

TR-SMALL

SIGNAL

MMBT2222AWT1,NPN,150mW,SOT-323

0504-000167 Q150

TR-DIGITAL

RN1102,NPN,100MW,10K/10K,SSM,TP

0504-000168 Q101

TR-DIGITAL

RN1104,NPN,100MW,47K/47K,SSM,TP

0504-000168 Q152

TR-DIGITAL

RN1104,NPN,100MW,47K/47K,SSM,TP

0504-000172 Q110

TR-DIGITAL

RN2104,PNP,100MW,47K/47K,SSM,TP

0504-000172 Q153

TR-DIGITAL

RN2104,PNP,100MW,47K/47K,SSM,TP

6

6

6

6-

-

-

-2

2

2

2

Samsung Electronics

Samsung Electronics

Samsung Electronics

Samsung Electronics

SEC CODE

LOC NO.

DESCRIPTION

SPEC

REMARK

0505-001037 U150

FET-SILICON

-,P,-12V,+-2.5A,0.1ohm,1W,TSSO

0601-000355 D101

LED

CHIP,RED,2.0x1.6mm,660nm

0601-001343 LED100 LED

CHIP,Y-GRN,1.1X0.8MM,570NM

0601-001343 LED101 LED

CHIP,Y-GRN,1.1X0.8MM,570NM

0601-001343 LED102 LED

CHIP,Y-GRN,1.1X0.8MM,570NM

0601-001343 LED103 LED

CHIP,Y-GRN,1.1X0.8MM,570NM

0601-001343 LED104 LED

CHIP,Y-GRN,1.1X0.8MM,570NM

0601-001343 LED105 LED

CHIP,Y-GRN,1.1X0.8MM,570NM

0601-001343 LED106 LED

CHIP,Y-GRN,1.1X0.8MM,570NM

0601-001343 LED107 LED

CHIP,Y-GRN,1.1X0.8MM,570NM

0801-000794 U203

IC-CMOS

LOGIC

7S08,AND

GATE,SOT-25,5P,63MIL,

0801-002345 U158

IC-CMOS

LOGIC

7S04FU,INVERTER,SOP,5P,-,-,TP,

0801-002403 U104

IC-CMOS LOGIC

74LCX08,AND GATE,TSSOP,14P,173

1009-001006 SW101

IC-HALL EFFECT S/W

A3210ELH,SC-74A,3P,-,TP,-,-,5V,1MA

1103-001147 U105

IC-EEPROM

24256,256KBIT,SOP,8P,150MIL,-,3V,

1109-001133 U103

IC-ETC.

MEMORY

84VD21194,2MX8/1MX16Bit,BGA,61P

1202-001022 U251

IC-VOLTAGE

COMP.

75W56,SSOP,8P,110MIL,DUAL,7V,C

1203-001767 U153

IC-VOLTAGE

REGULATOR

2988,SOP,8P,118MIL,PLASTIC,3.0V,-,

1203-001850 U154

IC-VOLTAGE

REGULATOR

7082,SOT-23,5P,-,PLASTIC,-2.5/+3.5V

1203-001850 U155

IC-VOLTAGE

REGULATOR

7082,SOT-23,5P,-,PLASTIC,-2.5/+3.5V

1203-002028 U159

IC-VOLTAGE

REGULATOR

7082,SOT-23,5P,63MIL,PLASTIC

1204-001375 U250

IC-ENCODER/DECODER

ST5092TQFPTR,QFP,44P,-,PLASTIC

1204-001581 U201

IC-IF

CIRCUIT

IFR3000-48BCCF-TR,BCC,48P,-,PLASTIC

1204-001582 U202

IC-IF

CIRCUIT

IFT3000-48BCCF-TR,BCC,48P,-,PLASTIC

1205-001883 U101

IC-TRANSCEIVER

MSM3000,BGA,196P,-,PLASTIC,4.6V

1404-001040 TH201

THERMISTOR-NTC

10Kohm,5%,3650K,-,TP

2007-000137 R259

R-CHIP

2Kohm,5%,1/16W,DA,TP,1005

2007-000138 R109

R-CHIP

100ohm,5%,1/16W,DA,TP,1005

2007-000138 R122

R-CHIP

100ohm,5%,1/16W,DA,TP,1005

2007-000138 R124

R-CHIP

100ohm,5%,1/16W,DA,TP,1005

2007-000138 R125

R-CHIP

100ohm,5%,1/16W,DA,TP,1005

2007-000138 R128

R-CHIP

100ohm,5%,1/16W,DA,TP,1005

2007-000138 R129

R-CHIP

100ohm,5%,1/16W,DA,TP,1005

6

6

6

6-

-

-

-3

3

3

3

Samsung Electronics

Samsung Electronics

Samsung Electronics

Samsung Electronics

SEC CODE

LOC NO.

DESCRIPTION

SPEC

REMARK

2007-000138 R131

R-CHIP

100ohm,5%,1/16W,DA,TP,1005

2007-000138 R132

R-CHIP

100ohm,5%,1/16W,DA,TP,1005

2007-000138 R149

R-CHIP

100ohm,5%,1/16W,DA,TP,1005

2007-000138 R209

R-CHIP

100ohm,5%,1/16W,DA,TP,1005

2007-000140 R148

R-CHIP

1Kohm,5%,1/16W,DA,TP,1005

2007-000140 R169

R-CHIP

1Kohm,5%,1/16W,DA,TP,1005

2007-000140 R180

R-CHIP

1Kohm,5%,1/16W,DA,TP,1005

2007-000140 R252

R-CHIP

1Kohm,5%,1/16W,DA,TP,1005

2007-000141 R152

R-CHIP

2.2Kohm,5%,1/16W,DA,TP,1005

2007-000141 R153

R-CHIP

2.2Kohm,5%,1/16W,DA,TP,1005

2007-000141 R190

R-CHIP

2.2Kohm,5%,1/16W,DA,TP,1005

2007-000141 R192

R-CHIP

2.2Kohm,5%,1/16W,DA,TP,1005

2007-000141 R251

R-CHIP

2.2Kohm,5%,1/16W,DA,TP,1005

2007-000143 R110

R-CHIP

4.7Kohm,5%,1/16W,DA,TP,1005

2007-000143 R126

R-CHIP

4.7Kohm,5%,1/16W,DA,TP,1005

2007-000145 R261

R-CHIP

6.2Kohm,5%,1/16W,DA,TP,1005

2007-000147 R142

R-CHIP

8.2Kohm,5%,1/16W,DA,TP,1005

2007-000147 R205

R-CHIP

8.2Kohm,5%,1/16W,DA,TP,1005

2007-000148 R112

R-CHIP

10Kohm,5%,1/16W,DA,TP,1005

2007-000148 R115

R-CHIP

10Kohm,5%,1/16W,DA,TP,1005

2007-000148 R120

R-CHIP

10Kohm,5%,1/16W,DA,TP,1005

2007-000148 R138

R-CHIP

10Kohm,5%,1/16W,DA,TP,1005

2007-000148 R165

R-CHIP

10Kohm,5%,1/16W,DA,TP,1005

2007-000148 R206

R-CHIP

10Kohm,5%,1/16W,DA,TP,1005

2007-000148 R207

R-CHIP

10Kohm,5%,1/16W,DA,TP,1005

2007-000148 R210

R-CHIP

10Kohm,5%,1/16W,DA,TP,1005

2007-000148 R213

R-CHIP

10Kohm,5%,1/16W,DA,TP,1005

2007-000148 R215

R-CHIP

10Kohm,5%,1/16W,DA,TP,1005

2007-000148 R216

R-CHIP

10Kohm,5%,1/16W,DA,TP,1005

2007-000148 R220

R-CHIP

10Kohm,5%,1/16W,DA,TP,1005

2007-000148 R226

R-CHIP

10Kohm,5%,1/16W,DA,TP,1005

2007-000148 R249

R-CHIP

10Kohm,5%,1/16W,DA,TP,1005

2007-000148 R250

R-CHIP

10Kohm,5%,1/16W,DA,TP,1005

6

6

6

6-

-

-

-4

4

4

4

Samsung Electronics

Samsung Electronics

Samsung Electronics

Samsung Electronics

SEC CODE

LOC NO.

DESCRIPTION

SPEC

REMARK

2007-000151 R147

R-CHIP

15Kohm,5%,1/16W,DA,TP,1005

2007-000152 R133

R-CHIP

20Kohm,5%,1/16W,DA,TP,1005

2007-000152 R134

R-CHIP

20Kohm,5%,1/16W,DA,TP,1005

2007-000152 R135

R-CHIP

20Kohm,5%,1/16W,DA,TP,1005

2007-000152 R136

R-CHIP

20Kohm,5%,1/16W,DA,TP,1005

2007-000152 R254

R-CHIP

20Kohm,5%,1/16W,DA,TP,1005

2007-000153 R107

R-CHIP

22Kohm,5%,1/16W,DA,TP,1005

2007-000153 R113

R-CHIP

22Kohm,5%,1/16W,DA,TP,1005

2007-000153 R123

R-CHIP

22Kohm,5%,1/16W,DA,TP,1005

2007-000153 R145

R-CHIP

22Kohm,5%,1/16W,DA,TP,1005

2007-000153 R164

R-CHIP

22Kohm,5%,1/16W,DA,TP,1005

2007-000153 R173

R-CHIP

22Kohm,5%,1/16W,DA,TP,1005

2007-000153 R174

R-CHIP

22Kohm,5%,1/16W,DA,TP,1005

2007-000153 R175

R-CHIP

22Kohm,5%,1/16W,DA,TP,1005

2007-000153 R176

R-CHIP

22Kohm,5%,1/16W,DA,TP,1005

2007-000153 R179

R-CHIP

22Kohm,5%,1/16W,DA,TP,1005

2007-000154 R257

R-CHIP

24Kohm,5%,1/16W,DA,TP,1005

2007-000156 R225

R-CHIP

30Kohm,5%,1/16W,DA,TP,1005

2007-000157 R117

R-CHIP

47Kohm,5%,1/16W,DA,TP,1005

2007-000157 R118

R-CHIP

47Kohm,5%,1/16W,DA,TP,1005

2007-000159 R150

R-CHIP

56Kohm,5%,1/16W,DA,TP,1005

2007-000159 R181

R-CHIP

56Kohm,5%,1/16W,DA,TP,1005

2007-000159 R182

R-CHIP

56Kohm,5%,1/16W,DA,TP,1005

2007-000159 R186

R-CHIP

56Kohm,5%,1/16W,DA,TP,1005

2007-000162 R151

R-CHIP

100Kohm,5%,1/16W,DA,TP,1005

2007-000162 R154

R-CHIP

100Kohm,5%,1/16W,DA,TP,1005

2007-000162 R155

R-CHIP

100Kohm,5%,1/16W,DA,TP,1005

2007-000162 R156

R-CHIP

100Kohm,5%,1/16W,DA,TP,1005

2007-000162 R160

R-CHIP

100Kohm,5%,1/16W,DA,TP,1005

2007-000162 R162

R-CHIP

100Kohm,5%,1/16W,DA,TP,1005

2007-000162 R170

R-CHIP

100Kohm,5%,1/16W,DA,TP,1005

2007-000162 R183

R-CHIP

100Kohm,5%,1/16W,DA,TP,1005

2007-000162 R184

R-CHIP

100Kohm,5%,1/16W,DA,TP,1005

6

6

6

6-

-

-

-5

5

5

5

Samsung Electronics

Samsung Electronics

Samsung Electronics

Samsung Electronics

SEC CODE

LOC NO.

DESCRIPTION

SPEC

REMARK

2007-000163 R256

R-CHIP

120Kohm,5%,1/16W,DA,TP,1005

2007-000164 R253

R-CHIP

150Kohm,5%,1/16W,DA,TP,1005

2007-000165 R157

R-CHIP

200Kohm,5%,1/16W,DA,TP,1005

2007-000170 R262

R-CHIP

1Mohm,5%,1/16W,DA,TP,1005

2007-000172 R230

R-CHIP

10ohm,5%,1/16W,DA,TP,1005

2007-000172 R231

R-CHIP

10ohm,5%,1/16W,DA,TP,1005

2007-000242 R166

R-CHIP

1.5Kohm,5%,1/16W,DA,TP,1005

2007-000932 R114

R-CHIP

470ohm,5%,1/16W,DA,TP,1005

2007-001291 R266

R-CHIP

30ohm,5%,1/16W,DA,TP,1005

2007-001305 R101

R-CHIP

120ohm,5%,1/16W,DA,TP,1005

2007-001319 R221

R-CHIP

1.2Kohm,5%,1/16W,DA,TP,1005

2007-001320 R219

R-CHIP

1.8Kohm,5%,1/16W,DA,TP,1005

2007-001325 R106

R-CHIP

3.3Kohm,5%,1/16W,DA,TP,1005

2007-001333 R255

R-CHIP

18Kohm,5%,1/16W,DA,TP,1005

2007-003010 R104

R-CHIP

20OHM,5%,1/16W,DA,TP,1005

2007-003010 R105

R-CHIP

20OHM,5%,1/16W,DA,TP,1005

2007-003010 R258

R-CHIP

20OHM,5%,1/16W,DA,TP,1005

2007-003019 R218

R-CHIP

430OHM,5%,1/16W,DA,TP,1005

2007-007014 R161

R-CHIP

51KOHM,5%,1/16W,DA,TP,1005

2007-007021 R202

R-CHIP

75KOHM,5%,1/16W,DA,TP,1005

2007-007092 R143

R-CHIP

1.1KOHM,5%,1/16W,DA,TP,1005

2007-007137 R227

R-CHIP

1.2Kohm,1%,1/16W,DA,TP,1005

2007-007142 R127

R-CHIP

10Kohm,1%,1/16W,DA,TP,1005

2007-007142 R187

R-CHIP

10Kohm,1%,1/16W,DA,TP,1005

2007-007142 R193

R-CHIP

10Kohm,1%,1/16W,DA,TP,1005

2007-007142 R194

R-CHIP

10Kohm,1%,1/16W,DA,TP,1005

2007-007142 R214

R-CHIP

10Kohm,1%,1/16W,DA,TP,1005

2007-007142 R217

R-CHIP

10Kohm,1%,1/16W,DA,TP,1005

2007-007142 R222

R-CHIP

10Kohm,1%,1/16W,DA,TP,1005

2007-007309 R223

R-CHIP

12Kohm,1%,1/16W,DA,TP,1005

2007-007311 R102

R-CHIP

22Kohm,1%,1/16W,DA,TP,1005

2007-007311 R201

R-CHIP

22Kohm,1%,1/16W,DA,TP,1005

2007-007318 R103

R-CHIP

1Kohm,1%,1/16W,DA,TP,1005

6

6

6

6-

-

-

-6

6

6

6

Samsung Electronics

Samsung Electronics

Samsung Electronics

Samsung Electronics

SEC CODE

LOC NO.

DESCRIPTION

SPEC

REMARK

2007-007491 R224

R-CHIP

11.3Kohm,1%,1/16W,DA,TP,1005

2007-007588 R208

R-CHIP

1.8Kohm,1%,1/16W,DA,TP,1005

2007-007771 R168

R-CHIP

0OHM,5%,1/16W,DA,TP,1005

2007-007771 R196

R-CHIP

0OHM,5%,1/16W,DA,TP,1005

2007-007771 R211

R-CHIP

0OHM,5%,1/16W,DA,TP,1005

2203-000189 C258

C-CERAMIC,CHIP

100nF,+80-20%,25V,Y5V,TP,1608,

2203-000233 C109

C-CERAMIC,CHIP

0.1nF,5%,50V,NP0,TP,1005

2203-000233 C116

C-CERAMIC,CHIP

0.1nF,5%,50V,NP0,TP,1005

2203-000233 C117

C-CERAMIC,CHIP

0.1nF,5%,50V,NP0,TP,1005

2203-000233 C118

C-CERAMIC,CHIP

0.1nF,5%,50V,NP0,TP,1005

2203-000233 C201

C-CERAMIC,CHIP

0.1nF,5%,50V,NP0,TP,1005

2203-000233 C240

C-CERAMIC,CHIP

0.1nF,5%,50V,NP0,TP,1005

2203-000233 C244

C-CERAMIC,CHIP

0.1nF,5%,50V,NP0,TP,1005

2203-000233 C247

C-CERAMIC,CHIP

0.1nF,5%,50V,NP0,TP,1005

2203-000254 C101

C-CERAMIC,CHIP

10nF,10%,16V,X7R,TP,1005,-

2203-000254 C103

C-CERAMIC,CHIP

10nF,10%,16V,X7R,TP,1005,-

2203-000254 C105

C-CERAMIC,CHIP

10nF,10%,16V,X7R,TP,1005,-

2203-000254 C107

C-CERAMIC,CHIP

10nF,10%,16V,X7R,TP,1005,-

2203-000254 C108

C-CERAMIC,CHIP

10nF,10%,16V,X7R,TP,1005,-

2203-000254 C120

C-CERAMIC,CHIP

10nF,10%,16V,X7R,TP,1005,-

2203-000254 C128

C-CERAMIC,CHIP

10nF,10%,16V,X7R,TP,1005,-

2203-000254 C158

C-CERAMIC,CHIP

10nF,10%,16V,X7R,TP,1005,-

2203-000254 C166

C-CERAMIC,CHIP

10nF,10%,16V,X7R,TP,1005,-

2203-000254 C167

C-CERAMIC,CHIP

10nF,10%,16V,X7R,TP,1005,-

2203-000254 C203

C-CERAMIC,CHIP

10nF,10%,16V,X7R,TP,1005,-

2203-000254 C205

C-CERAMIC,CHIP

10nF,10%,16V,X7R,TP,1005,-

2203-000254 C209

C-CERAMIC,CHIP

10nF,10%,16V,X7R,TP,1005,-

2203-000254 C211

C-CERAMIC,CHIP

10nF,10%,16V,X7R,TP,1005,-

2203-000254 C213

C-CERAMIC,CHIP

10nF,10%,16V,X7R,TP,1005,-

2203-000254 C215

C-CERAMIC,CHIP

10nF,10%,16V,X7R,TP,1005,-

2203-000254 C217

C-CERAMIC,CHIP

10nF,10%,16V,X7R,TP,1005,-

2203-000254 C219

C-CERAMIC,CHIP

10nF,10%,16V,X7R,TP,1005,-

2203-000254 C223

C-CERAMIC,CHIP

10nF,10%,16V,X7R,TP,1005,-

6

6

6

6-

-

-

-7

7

7

7

Samsung Electronics

Samsung Electronics

Samsung Electronics

Samsung Electronics

SEC CODE

LOC NO.

DESCRIPTION

SPEC

REMARK

2203-000254 C234

C-CERAMIC,CHIP

10nF,10%,16V,X7R,TP,1005,-

2203-000254 C253

C-CERAMIC,CHIP

10nF,10%,16V,X7R,TP,1005,-

2203-000254 C263

C-CERAMIC,CHIP

10nF,10%,16V,X7R,TP,1005,-

2203-000254 C298

C-CERAMIC,CHIP

10nF,10%,16V,X7R,TP,1005,-

2203-000386 C179

C-CERAMIC,CHIP

0.015nF,5%,50V,NP0,TP,1005

2203-000386 C231

C-CERAMIC,CHIP

0.015nF,5%,50V,NP0,TP,1005

2203-000386 C232

C-CERAMIC,CHIP

0.015nF,5%,50V,NP0,TP,1005

2203-000386 C282

C-CERAMIC,CHIP

0.015nF,5%,50V,NP0,TP,1005

2203-000386 C283

C-CERAMIC,CHIP

0.015nF,5%,50V,NP0,TP,1005

2203-000386 C284

C-CERAMIC,CHIP

0.015nF,5%,50V,NP0,TP,1005

2203-000386 C285

C-CERAMIC,CHIP

0.015nF,5%,50V,NP0,TP,1005

2203-000386 C286

C-CERAMIC,CHIP

0.015nF,5%,50V,NP0,TP,1005

2203-000386 C287

C-CERAMIC,CHIP

0.015nF,5%,50V,NP0,TP,1005

2203-000386 C288

C-CERAMIC,CHIP

0.015nF,5%,50V,NP0,TP,1005

2203-000386 C289

C-CERAMIC,CHIP

0.015nF,5%,50V,NP0,TP,1005

2203-000386 C290

C-CERAMIC,CHIP

0.015nF,5%,50V,NP0,TP,1005

2203-000386 C291

C-CERAMIC,CHIP

0.015nF,5%,50V,NP0,TP,1005

2203-000386 C292

C-CERAMIC,CHIP

0.015nF,5%,50V,NP0,TP,1005

2203-000386 C293

C-CERAMIC,CHIP

0.015nF,5%,50V,NP0,TP,1005

2203-000386 C295

C-CERAMIC,CHIP

0.015nF,5%,50V,NP0,TP,1005

2203-000425 C202

C-CERAMIC,CHIP

0.018nF,5%,50V,NP0,TP,1005

2203-000438 C151

C-CERAMIC,CHIP

1nF,10%,50V,X7R,TP,1005,-

2203-000438 C174

C-CERAMIC,CHIP

1nF,10%,50V,X7R,TP,1005,-

2203-000438 C176

C-CERAMIC,CHIP

1nF,10%,50V,X7R,TP,1005,-

2203-000438 C177

C-CERAMIC,CHIP

1nF,10%,50V,X7R,TP,1005,-

2203-000438 C178

C-CERAMIC,CHIP

1nF,10%,50V,X7R,TP,1005,-

2203-000438 C180

C-CERAMIC,CHIP

1nF,10%,50V,X7R,TP,1005,-

2203-000438 C204

C-CERAMIC,CHIP

1nF,10%,50V,X7R,TP,1005,-

2203-000438 C206

C-CERAMIC,CHIP

1nF,10%,50V,X7R,TP,1005,-

2203-000438 C210

C-CERAMIC,CHIP

1nF,10%,50V,X7R,TP,1005,-

2203-000438 C212

C-CERAMIC,CHIP

1nF,10%,50V,X7R,TP,1005,-

2203-000438 C214

C-CERAMIC,CHIP

1nF,10%,50V,X7R,TP,1005,-

2203-000438 C216

C-CERAMIC,CHIP

1nF,10%,50V,X7R,TP,1005,-

6

6

6

6-

-

-

-8

8

8

8

Samsung Electronics

Samsung Electronics

Samsung Electronics

Samsung Electronics

SEC CODE

LOC NO.

DESCRIPTION

SPEC

REMARK

2203-000438 C218

C-CERAMIC,CHIP

1nF,10%,50V,X7R,TP,1005,-

2203-000438 C220

C-CERAMIC,CHIP

1nF,10%,50V,X7R,TP,1005,-

2203-000438 C222

C-CERAMIC,CHIP

1nF,10%,50V,X7R,TP,1005,-

2203-000438 C224

C-CERAMIC,CHIP

1nF,10%,50V,X7R,TP,1005,-

2203-000438 C226

C-CERAMIC,CHIP

1nF,10%,50V,X7R,TP,1005,-

2203-000438 C227

C-CERAMIC,CHIP

1nF,10%,50V,X7R,TP,1005,-

2203-000438 C233

C-CERAMIC,CHIP

1nF,10%,50V,X7R,TP,1005,-

2203-000438 C235

C-CERAMIC,CHIP

1nF,10%,50V,X7R,TP,1005,-

2203-000438 C237

C-CERAMIC,CHIP

1nF,10%,50V,X7R,TP,1005,-

2203-000438 C238

C-CERAMIC,CHIP

1nF,10%,50V,X7R,TP,1005,-

2203-000438 C239

C-CERAMIC,CHIP

1nF,10%,50V,X7R,TP,1005,-

2203-000438 C265

C-CERAMIC,CHIP

1nF,10%,50V,X7R,TP,1005,-

2203-000438 C299

C-CERAMIC,CHIP

1nF,10%,50V,X7R,TP,1005,-

2203-000489 C236

C-CERAMIC,CHIP

2.2nF,10%,50V,X7R,TP,1005,-

2203-000679 C143

C-CERAMIC,CHIP

0.027nF,5%,50V,NP0,TP,1005

2203-000679 C144

C-CERAMIC,CHIP

0.027nF,5%,50V,NP0,TP,1005

2203-000812 C207

C-CERAMIC,CHIP

0.033nF,5%,50V,NP0,TP,1005

2203-000836 C243

C-CERAMIC,CHIP

390pF,10%,50V,X7R,TP,1005,-

2203-000885 C228

C-CERAMIC,CHIP

4.7nF,10%,25V,X7R,TP,1005,-

2203-000885 C229

C-CERAMIC,CHIP

4.7nF,10%,25V,X7R,TP,1005,-

2203-000940 C121

C-CERAMIC,CHIP

470pF,10%,50V,X7R,TP,1005,-

2203-000940 C122

C-CERAMIC,CHIP

470pF,10%,50V,X7R,TP,1005,-

2203-000940 C129

C-CERAMIC,CHIP

470pF,10%,50V,X7R,TP,1005,-

2203-001124 C255

C-CERAMIC,CHIP

680pF,10%,50V,X7R,TP,1005,-

2203-001178 C242

C-CERAMIC,CHIP

0.006nF,0.5pF,50V,NP0,TP,1005

2203-001210 C123

C-CERAMIC,CHIP

8.2nF,10%,16V,X7R,TP,1005,-

2203-001210 C124

C-CERAMIC,CHIP

8.2nF,10%,16V,X7R,TP,1005,-

2203-001210 C125

C-CERAMIC,CHIP

8.2nF,10%,16V,X7R,TP,1005,-

2203-001210 C126

C-CERAMIC,CHIP

8.2nF,10%,16V,X7R,TP,1005,-

2203-001405 C260

C-CERAMIC,CHIP

22nF,+80-20%,25V,Y5V,TP,1005

2203-001432 C110

C-CERAMIC,CHIP

47nF,+80-20%,16V,Y5V,TP,1005

2203-001432 C248

C-CERAMIC,CHIP

47nF,+80-20%,16V,Y5V,TP,1005

2203-002494 C251

C-CERAMIC,CHIP

470nF,10%,16V,X7R,TP,2012

6

6

6

6-

-

-

-9

9

9

9

Samsung Electronics

Samsung Electronics

Samsung Electronics

Samsung Electronics

SEC CODE

LOC NO.

DESCRIPTION

SPEC

REMARK

2203-002525 C184

C-CERAMIC,CHIP

0.56nF,10%,50V,X7R,TP,1005

2203-002525 C185

C-CERAMIC,CHIP

0.56nF,10%,50V,X7R,TP,1005

2203-002525 C186

C-CERAMIC,CHIP

0.56nF,10%,50V,X7R,TP,1005

2203-002883 C112

C-CERAMIC,CHIP

33nF,+80-20%,16V,Y5V,TP,1005

2203-005061 C102

C-CERAMIC,CHIP

100nF,+80-20%,16V,Y5V,TP,1005

2203-005061 C104

C-CERAMIC,CHIP

100nF,+80-20%,16V,Y5V,TP,1005

2203-005061 C106

C-CERAMIC,CHIP

100nF,+80-20%,16V,Y5V,TP,1005

2203-005061 C113

C-CERAMIC,CHIP

100nF,+80-20%,16V,Y5V,TP,1005

2203-005061 C119

C-CERAMIC,CHIP

100nF,+80-20%,16V,Y5V,TP,1005

2203-005061 C132

C-CERAMIC,CHIP

100nF,+80-20%,16V,Y5V,TP,1005

2203-005061 C133

C-CERAMIC,CHIP

100nF,+80-20%,16V,Y5V,TP,1005

2203-005061 C155

C-CERAMIC,CHIP

100nF,+80-20%,16V,Y5V,TP,1005

2203-005061 C245

C-CERAMIC,CHIP

100nF,+80-20%,16V,Y5V,TP,1005

2203-005061 C246

C-CERAMIC,CHIP

100nF,+80-20%,16V,Y5V,TP,1005

2203-005061 C254

C-CERAMIC,CHIP

100nF,+80-20%,16V,Y5V,TP,1005

2203-005061 C256

C-CERAMIC,CHIP

100nF,+80-20%,16V,Y5V,TP,1005

2203-005061 C259

C-CERAMIC,CHIP

100nF,+80-20%,16V,Y5V,TP,1005

2203-005061 C266

C-CERAMIC,CHIP

100nF,+80-20%,16V,Y5V,TP,1005

2203-005061 C267

C-CERAMIC,CHIP

100nF,+80-20%,16V,Y5V,TP,1005

2203-005061 C269

C-CERAMIC,CHIP

100nF,+80-20%,16V,Y5V,TP,1005

2203-005061 C273

C-CERAMIC,CHIP

100nF,+80-20%,16V,Y5V,TP,1005

2203-005061 C301

C-CERAMIC,CHIP

100nF,+80-20%,16V,Y5V,TP,1005

2203-005065 C156

C-CERAMIC,CHIP

1000nF,+80-20%,10V,Y5V,TP,1608

2203-005065 C159

C-CERAMIC,CHIP

1000nF,+80-20%,10V,Y5V,TP,1608

2203-005065 C168

C-CERAMIC,CHIP

1000nF,+80-20%,10V,Y5V,TP,1608

2203-005138 C270

C-CERAMIC,CHIP

1.8nF,10%,50V,X7R,TP,1005,-

2203-005138 C271

C-CERAMIC,CHIP

1.8nF,10%,50V,X7R,TP,1005,-

2203-005138 C272

C-CERAMIC,CHIP

1.8nF,10%,50V,X7R,TP,1005,-

2203-005496 C208

C-CERAMIC,CHIP

220nF,+80-20%,10V,Y5V,TP,1005

2203-005496 C230

C-CERAMIC,CHIP

220nF,+80-20%,10V,Y5V,TP,1005

2203-005714 C157

C-CERAMIC,CHIP

4700nF,10%,10V,X5R,TP,3216

2203-005714 C160

C-CERAMIC,CHIP

4700nF,10%,10V,X5R,TP,3216

2203-005714 C161

C-CERAMIC,CHIP

4700nF,10%,10V,X5R,TP,3216

6

6

6

6-

-

-

-10

10

10

10

Samsung Electronics

Samsung Electronics

Samsung Electronics

Samsung Electronics

SEC CODE

LOC NO.

DESCRIPTION

SPEC

REMARK

2404-001088 C153

C-TA,CHIP

2.2uF,20%,6.3V,GP,TP,2012,-

2404-001088 C241

C-TA,CHIP

2.2uF,20%,6.3V,GP,TP,2012,-

2404-001088 C252

C-TA,CHIP

2.2uF,20%,6.3V,GP,TP,2012,-

2404-001088 C264

C-TA,CHIP

2.2uF,20%,6.3V,GP,TP,2012,-

2404-001100 C150

C-TA,CHIP

33uF,20%,6.3V,GP,TP,3719,-

2404-001100 C257

C-TA,CHIP

33uF,20%,6.3V,GP,TP,3719,-

2404-001101 C131

C-TA,CHIP

1uF,20%,16V,GP,TP,2012,-

2404-001105 C162

C-TA,CHIP

10UF,20%,6.3V,GP,TP,2012

2703-000300 L203

INDUCTOR-SMD

1uH,10%,0.8x1.6x0.8mm

2703-000300 L211

INDUCTOR-SMD

1uH,10%,0.8x1.6x0.8mm

2703-001231 L204

INDUCTOR-SMD

10uH,10%,1.6x0.8x0.8mm

2703-001512 L208

INDUCTOR-SMD

27nH,5%,1.8x1.12x1.02mm

2703-001914 L205

INDUCTOR-SMD

180nH,2%,1.6x0.8x0.8mm

2703-001914 L207

INDUCTOR-SMD

180nH,2%,1.6x0.8x0.8mm

2703-001926 L206

INDUCTOR-SMD

27nH,2%,1.6x0.8x0.8mm

2801-003747 OSC102 CRYSTAL-SMD

.032768MHZ,30PPM,28-ACM,9PF,50OHM

2802-001104 OSC101 RESONATOR-CERAMIC

27MHZ,0.5%,TP,2.5X2X1.2

3002-001094 AU101

BUZZER-MAGNETIC

93dB,3.6V,90mA

(MAX),2630Hz,TP

3301-001105 L201

CORE-FERRITE

AB,1.6x0.8x0.8mm,-,-

3301-001105 L202

CORE-FERRITE

AB,1.6x0.8x0.8mm,-,-

3301-001105 L209

CORE-FERRITE

AB,1.6x0.8x0.8mm,-,-

3301-001105 L210

CORE-FERRITE

AB,1.6x0.8x0.8mm,-,-

3301-001105 L212

CORE-FERRITE

AB,1.6x0.8x0.8mm,-,-

3708-001295 CN400

CONNECTOR-FPC/FC/PIC

22P,0.5mm,SMD-A,SN

3710-001510 J401

CONNECTOR-SOCKET

18P,1R,0.5MM,SMD-A,AUF

3711-004367 CN401

CONNECTOR-HEADER

BOX,40P,2R,0.5MM,SMD-S,AUF

3722-001172 J200

JACK-AC

POWER

2P,2.6PI,AU,BLK,NO

GH41-00060A

PCB-LOGIC

SCH-8500,FR-4,-,0.8t,118

X

104mm

GH71-00002A GD101

NPR-GROUNDING

TERMINAL

SCH-510,C1720,T0.1,-

GH71-00002A GD102

NPR-GROUNDING

TERMINAL

SCH-510,C1720,T0.1,-

GH71-00002A GD103

NPR-GROUNDING

TERMINAL

SCH-510,C1720,T0.1,-

GH71-00002A GD104

NPR-GROUNDING

TERMINAL

SCH-510,C1720,T0.1,-

GH71-00002A GD105

NPR-GROUNDING

TERMINAL

SCH-510,C1720,T0.1,-

6

6

6

6-

-

-

-11

11

11

11

Samsung Electronics

Samsung Electronics

Samsung Electronics

Samsung Electronics

SEC CODE

LOC NO.

DESCRIPTION

SPEC

REMARK

GH71-00002A GD106

NPR-GROUNDING

TERMINAL

SCH-510,C1720,T0.1,-

GH71-00002A GD107

NPR-GROUNDING

TERMINAL

SCH-510,C1720,T0.1,-

GH71-00002A GD108

NPR-GROUNDING

TERMINAL

SCH-510,C1720,T0.1,-

GH71-00002A GD109

NPR-GROUNDING

TERMINAL

SCH-510,C1720,T0.1,-

GH71-00002A GD110

NPR-GROUNDING

TERMINAL

SCH-510,C1720,T0.1,-

GH71-00002A GD111

NPR-GROUNDING

TERMINAL

SCH-510,C1720,T0.1,-

GH71-00002A GD112

NPR-GROUNDING

TERMINAL

SCH-510,C1720,T0.1,-

GH92-00899A

PBA MAIN-SCH880 RF PART

SCH-880,PELE-PHONE,ISRL,RF PART,-

0404-001093 D402

DIODE-SCHOTTKY

HSMS-282C,1V,30mA,SOT-323,TP

0409-001001 D301

DIODE-PIN

BAR63-03W,50V,100mA,SOT-23,TP

0501-000218 Q302

TR-SMALL

SIGNAL

2SC4081,NPN,200mW,UMT,TP,180-3

0506-001004 U402

TR-ARRAY

UMC5N,NPN/PNP,2,50V,-,-100mA,3

0803-003010 U405

IC-TTL

4W53,MUX/DEMUX,SOP,8P,110MIL,S

1201-001175 U404

IC-PREAMP

01037,SOP,6P,59MIL,SINGLE,-,PL

1201-001259 U417

IC-POWER

AMP

23124,LCC,8P,-,SINGLE,-,PLASTI

1201-001348 U415

IC-OP

AMP

821,SOT23-5,5P,63MIL,SINGLE,-,

1201-001517 U302

IC-RF

AMP

2361,SOT23-5,5P,-,SINGLE,20dB

1204-001013 U403

IC-MODULATOR

UPC8106T,SOT-23,6P,59MIL,PLASTIC

1205-001773 U303

IC-MIXER

RF2466,MLP,16P,-,PLASTIC,4V,-

1209-001197 U416

IC-PLL

LMX2332LSLB,CSP,20P,-,PLASTIC,

2007-000070 R464

R-CHIP

0ohm,5%,1/16W,DA,TP,1608

2007-000138 R310

R-CHIP

100ohm,5%,1/16W,DA,TP,1005

2007-000138 R322

R-CHIP

100ohm,5%,1/16W,DA,TP,1005

2007-000142 R314

R-CHIP

2.7Kohm,5%,1/16W,DA,TP,1005

2007-000143 R315

R-CHIP

4.7Kohm,5%,1/16W,DA,TP,1005

2007-000169 R429

R-CHIP

510Kohm,5%,1/16W,DA,TP,1005

2007-000172 R459

R-CHIP

10ohm,5%,1/16W,DA,TP,1005

2007-000172 R460

R-CHIP

10ohm,5%,1/16W,DA,TP,1005

2007-000172 R461

R-CHIP

10ohm,5%,1/16W,DA,TP,1005

2007-000172 R462

R-CHIP

10ohm,5%,1/16W,DA,TP,1005

2007-000174 R323

R-CHIP

47ohm,5%,1/16W,DA,TP,1005

2007-000899 R455

R-CHIP

430Kohm,5%,1/16W,DA,TP,1005

2007-000982 R410

R-CHIP

5.6Kohm,5%,1/16W,DA,TP,1005

6

6

6

6-

-

-

-12

12

12

12

Samsung El

Samsung El

Samsung El

Samsung Electronics

ectronics

ectronics

ectronics

SEC CODE

LOC NO.

DESCRIPTION

SPEC

REMARK

2007-001298 R432

R-CHIP

51ohm,5%,1/16W,DA,TP,1005

2007-001301 R309

R-CHIP

68ohm,5%,1/16W,DA,TP,1005

2007-001317 R417

R-CHIP

910ohm,5%,1/16W,DA,TP,1005

2007-001317 R463

R-CHIP

910ohm,5%,1/16W,DA,TP,1005

2007-001320 R434

R-CHIP

1.8Kohm,5%,1/16W,DA,TP,1005

2007-003006 R456

R-CHIP

16OHM,5%,1/16W,DA,TP,1005

2007-003006 R457

R-CHIP

16OHM,5%,1/16W,DA,TP,1005

2007-007001 R416

R-CHIP

3.9KOHM,5%,1/16W,DA,TP,1005

2007-007014 R427

R-CHIP

51KOHM,5%,1/16W,DA,TP,1005

2007-007107 R443

R-CHIP

100Kohm,1%,1/16W,DA,TP,1005

2007-007137 R332

R-CHIP

1.2Kohm,1%,1/16W,DA,TP,1005

2007-007139 R412

R-CHIP

47Kohm,1%,1/16W,DA,TP,1005

2007-007142 R411

R-CHIP

10Kohm,1%,1/16W,DA,TP,1005

2007-007142 R424

R-CHIP

10Kohm,1%,1/16W,DA,TP,1005

2007-007142 R426

R-CHIP

10Kohm,1%,1/16W,DA,TP,1005

2007-007142 R447

R-CHIP

10Kohm,1%,1/16W,DA,TP,1005

2007-007319 R316

R-CHIP

390ohm,1%,1/16W,DA,TP,1005

2007-007698 R458

R-CHIP

5.1Kohm,1%,1/16W,DA,TP,1005

2007-007771 R307

R-CHIP

0OHM,5%,1/16W,DA,TP,1005

2007-007771 R312

R-CHIP

0OHM,5%,1/16W,DA,TP,1005

2007-007771 R318

R-CHIP

0OHM,5%,1/16W,DA,TP,1005

2007-007771 R321

R-CHIP

0OHM,5%,1/16W,DA,TP,1005

2007-007771 R402

R-CHIP

0OHM,5%,1/16W,DA,TP,1005

2007-007771 R425

R-CHIP

0OHM,5%,1/16W,DA,TP,1005

2007-007771 R428

R-CHIP

0OHM,5%,1/16W,DA,TP,1005

2007-007771 R465

R-CHIP

0OHM,5%,1/16W,DA,TP,1005

2007-007771 R466

R-CHIP

0OHM,5%,1/16W,DA,TP,1005

2203-000233 C312

C-CERAMIC,CHIP

0.1nF,5%,50V,NP0,TP,1005

2203-000233 C316

C-CERAMIC,CHIP

0.1nF,5%,50V,NP0,TP,1005

2203-000233 C323

C-CERAMIC,CHIP

0.1nF,5%,50V,NP0,TP,1005

2203-000233 C421

C-CERAMIC,CHIP

0.1nF,5%,50V,NP0,TP,1005

2203-000233 C431

C-CERAMIC,CHIP

0.1nF,5%,50V,NP0,TP,1005

2203-000233 C465

C-CERAMIC,CHIP

0.1nF,5%,50V,NP0,TP,1005

6

6

6

6-

-

-

-13

13

13

13

Samsung Electronics

Samsung Electronics

Samsung Electronics

Samsung Electronics

SEC CODE

LOC NO.

DESCRIPTION

SPEC

REMARK

2203-000233 C466

C-CERAMIC,CHIP

0.1nF,5%,50V,NP0,TP,1005

2203-000233 C467

C-CERAMIC,CHIP

0.1nF,5%,50V,NP0,TP,1005

2203-000233 C468

C-CERAMIC,CHIP

0.1nF,5%,50V,NP0,TP,1005

2203-000233 C469

C-CERAMIC,CHIP

0.1nF,5%,50V,NP0,TP,1005

2203-000233 C470

C-CERAMIC,CHIP

0.1nF,5%,50V,NP0,TP,1005

2203-000233 C471

C-CERAMIC,CHIP

0.1nF,5%,50V,NP0,TP,1005

2203-000233 C472

C-CERAMIC,CHIP

0.1nF,5%,50V,NP0,TP,1005

2203-000233 C473

C-CERAMIC,CHIP

0.1nF,5%,50V,NP0,TP,1005

2203-000233 C474

C-CERAMIC,CHIP

0.1nF,5%,50V,NP0,TP,1005

2203-000254 C314

C-CERAMIC,CHIP

10nF,10%,16V,X7R,TP,1005,-

2203-000254 C315

C-CERAMIC,CHIP

10nF,10%,16V,X7R,TP,1005,-

2203-000254 C338

C-CERAMIC,CHIP

10nF,10%,16V,X7R,TP,1005,-

2203-000254 C339

C-CERAMIC,CHIP

10nF,10%,16V,X7R,TP,1005,-

2203-000254 C349

C-CERAMIC,CHIP

10nF,10%,16V,X7R,TP,1005,-

2203-000254 C353

C-CERAMIC,CHIP

10nF,10%,16V,X7R,TP,1005,-

2203-000254 C355

C-CERAMIC,CHIP

10nF,10%,16V,X7R,TP,1005,-

2203-000254 C374

C-CERAMIC,CHIP

10nF,10%,16V,X7R,TP,1005,-

2203-000254 C377

C-CERAMIC,CHIP

10nF,10%,16V,X7R,TP,1005,-

2203-000254 C402

C-CERAMIC,CHIP

10nF,10%,16V,X7R,TP,1005,-

2203-000254 C416

C-CERAMIC,CHIP

10nF,10%,16V,X7R,TP,1005,-

2203-000254 C429

C-CERAMIC,CHIP

10nF,10%,16V,X7R,TP,1005,-

2203-000254 C451

C-CERAMIC,CHIP

10nF,10%,16V,X7R,TP,1005,-

2203-000254 C460

C-CERAMIC,CHIP

10nF,10%,16V,X7R,TP,1005,-

2203-000254 C464

C-CERAMIC,CHIP

10nF,10%,16V,X7R,TP,1005,-

2203-000254 C485

C-CERAMIC,CHIP

10nF,10%,16V,X7R,TP,1005,-

2203-000254 C486

C-CERAMIC,CHIP

10nF,10%,16V,X7R,TP,1005,-

2203-000254 C487

C-CERAMIC,CHIP

10nF,10%,16V,X7R,TP,1005,-

2203-000278 C341

C-CERAMIC,CHIP

0.01nF,0.5pF,50V,NP0,TP,1005

2203-000278 C488

C-CERAMIC,CHIP

0.01nF,0.5pF,50V,NP0,TP,1005

2203-000330 C318

C-CERAMIC,CHIP

0.012nF,5%,50V,NP0,TP,1005

2203-000330 C430

C-CERAMIC,CHIP

0.012nF,5%,50V,NP0,TP,1005

2203-000438 C317

C-CERAMIC,CHIP

1nF,10%,50V,X7R,TP,1005,-

2203-000438 C322

C-CERAMIC,CHIP

1nF,10%,50V,X7R,TP,1005,-

6

6

6

6-

-

-

-14

14

14

14

Samsung Electronics

Samsung Electronics

Samsung Electronics

Samsung Electronics

SEC CODE

LOC NO.

DESCRIPTION

SPEC

REMARK

2203-000438 C335

C-CERAMIC,CHIP

1nF,10%,50V,X7R,TP,1005,-

2203-000438 C336

C-CERAMIC,CHIP

1nF,10%,50V,X7R,TP,1005,-

2203-000438 C361

C-CERAMIC,CHIP

1nF,10%,50V,X7R,TP,1005,-

2203-000438 C371

C-CERAMIC,CHIP

1nF,10%,50V,X7R,TP,1005,-

2203-000438 C405

C-CERAMIC,CHIP

1nF,10%,50V,X7R,TP,1005,-

2203-000438 C427

C-CERAMIC,CHIP

1nF,10%,50V,X7R,TP,1005,-

2203-000438 C436

C-CERAMIC,CHIP

1nF,10%,50V,X7R,TP,1005,-

2203-000438 C446

C-CERAMIC,CHIP

1nF,10%,50V,X7R,TP,1005,-

2203-000438 C462

C-CERAMIC,CHIP

1nF,10%,50V,X7R,TP,1005,-

2203-000466 C500

C-CERAMIC,CHIP

0.001nF,0.25pF,50V,NP0,TP,1005

2203-000696 C362

C-CERAMIC,CHIP

0.002nF,0.25pF,50V,NP0,TP,1005

2203-000696 C493

C-CERAMIC,CHIP

0.002nF,0.25pF,50V,NP0,TP,1005

2203-000812 C495

C-CERAMIC,CHIP

0.033nF,5%,50V,NP0,TP,1005

2203-000885 C491

C-CERAMIC,CHIP

4.7nF,10%,25V,X7R,TP,1005,-

2203-000885 C492

C-CERAMIC,CHIP

4.7nF,10%,25V,X7R,TP,1005,-

2203-000995 C438

C-CERAMIC,CHIP

0.047nF,5%,50V,NP0,TP,1005

2203-000995 C461

C-CERAMIC,CHIP

0.047nF,5%,50V,NP0,TP,1005

2203-001017 C313

C-CERAMIC,CHIP

0.004nF,0.25pF,50V,NP0,TP,1005

2203-001072 C476

C-CERAMIC,CHIP

0.056nF,5%,50V,NP0,TP,1005

2203-001437 C340

C-CERAMIC,CHIP

5pF,0.25pF,50V,X7R,TP,1005,1.0

2203-002677 C301

C-CERAMIC,CHIP

0.75pF,0.1pF,50V,CH,TP,1005,-

2203-002883 C311

C-CERAMIC,CHIP

33nF,+80-20%,16V,Y5V,TP,1005

2203-002883 C320

C-CERAMIC,CHIP

33nF,+80-20%,16V,Y5V,TP,1005

2203-002883 C334

C-CERAMIC,CHIP

33nF,+80-20%,16V,Y5V,TP,1005

2203-002883 C490

C-CERAMIC,CHIP

33nF,+80-20%,16V,Y5V,TP,1005

2203-002968 C401

C-CERAMIC,CHIP

0.051nF,5%,50V,NP0,TP,1005

2203-002968 C409

C-CERAMIC,CHIP

0.051nF,5%,50V,NP0,TP,1005

2203-002968 C412

C-CERAMIC,CHIP

0.051nF,5%,50V,NP0,TP,1005

2203-002968 C422

C-CERAMIC,CHIP

0.051nF,5%,50V,NP0,TP,1005

2203-002968 C432

C-CERAMIC,CHIP

0.051nF,5%,50V,NP0,TP,1005

2203-005061 C439

C-CERAMIC,CHIP

100nF,+80-20%,16V,Y5V,TP,1005

2203-005061 C481

C-CERAMIC,CHIP

100nF,+80-20%,16V,Y5V,TP,1005

2203-005061 C482

C-CERAMIC,CHIP

100nF,+80-20%,16V,Y5V,TP,1005

6

6

6

6-

-

-

-15

15

15

15

Samsung Electronics

Samsung Electronics

Samsung Electronics

Samsung Electronics

SEC CODE

LOC NO.

DESCRIPTION

SPEC

REMARK

2203-005061 C483

C-CERAMIC,CHIP

100nF,+80-20%,16V,Y5V,TP,1005

2203-005281 C404

C-CERAMIC,CHIP

0.0015nF,0.1pF,50V,NP0,TP,1005

2203-005288 C419

C-CERAMIC,CHIP

0.001nF,0.1pF,50V,NP0,TP,1005

2203-005288 C454

C-CERAMIC,CHIP

0.001nF,0.1pF,50V,NP0,TP,1005

2203-005393 C328

C-CERAMIC,CHIP

0.005nF,0.1pF,50V,NP0,TP,1005

2203-005444 C321

C-CERAMIC,CHIP

0.003nF,0.1pF,50V,NP0,TP,1005

2203-005481 C463

C-CERAMIC,CHIP

47nF,10%,10V,X7R,TP,1005,-

2203-005571 C484

C-CERAMIC,CHIP

10000NF,+80-20%,6.3V,Y5V,TP,2012

2404-000139 C480

C-TA,CHIP

10uF,20%,6.3V,-,TP,3216,-

2404-001086 C327

C-TA,CHIP

4.7uF,20%,6.3V,GP,TP,2012,-

2404-001086 C489

C-TA,CHIP

4.7uF,20%,6.3V,GP,TP,2012,-

2404-001092 C475

C-TA,CHIP

220nF,20%,20V,GP,TP,2012,-

2404-001105 C494

C-TA,CHIP

10UF,20%,6.3V,GP,TP,2012

2404-001105 C498

C-TA,CHIP

10UF,20%,6.3V,GP,TP,2012

2703-000190 L326

INDUCTOR-SMD

330nH,10%,0.8x1.6x0.8mm

2703-000213 L330

INDUCTOR-SMD

470nH,10%,0.8x1.6x0.8mm

2703-000301 L321

INDUCTOR-SMD

2.7uH,10%,0.8x1.6x0.8mm

2703-000301 L325

INDUCTOR-SMD

2.7uH,10%,0.8x1.6x0.8mm

2703-001165 L301

INDUCTOR-SMD

4.7nH,10%,1.6x0.8X0.8mm

2703-001180 L406

INDUCTOR-SMD

15nH,5%,1x0.5x0.5mm

2703-001409 L311

INDUCTOR-SMD

12nH,10%,1x0.5x0.5mm

2703-001595 L416

INDUCTOR-SMD

47nH,5%,1.0x0.5x0.5mm

2703-001595 L417

INDUCTOR-SMD

47nH,5%,1.0x0.5x0.5mm

2703-001673 L332

INDUCTOR-SMD

120nH,5%,1.8x1.12x1.02mm

2703-001694 L320

INDUCTOR-SMD

390nH,10%,2.29x1.73x1.52mm

2703-001726 L313

INDUCTOR-SMD

27nH,5%,1x0.5x0.5mm

2703-001726 L316

INDUCTOR-SMD

27nH,5%,1x0.5x0.5mm

2703-001730 L310

INDUCTOR-SMD

15nH,5%,1x0.5x0.5mm

2703-001730 L419

INDUCTOR-SMD

15nH,5%,1x0.5x0.5mm

2703-001733 L314

INDUCTOR-SMD

8.2nH,5%,1x0.5x0.5mm

2703-001798 L426

INDUCTOR-SMD

2.2NH,0.3NH,1.0X0.5X0.5MM

2703-001868 L401

INDUCTOR-SMD

82NH,5%,1005

2703-001868 L408

INDUCTOR-SMD

82NH,5%,1005

6

6

6

6-

-

-

-16

16

16

16

Samsung Electronics

Samsung Electronics

Samsung Electronics

Samsung Electronics

SEC CODE

LOC NO.

DESCRIPTION

SPEC

REMARK

2703-001914 L324

INDUCTOR-SMD

180nH,2%,1.6x0.8x0.8mm

2703-001916 L402

INDUCTOR-SMD

100nH,2%,1.6x0.8x0.8mm

2703-001918 L322

INDUCTOR-SMD

150nH,2%,1.6x0.8x0.8mm

2806-001200 OSC1

OSCILLATOR-VCO

967MHZ,-,50,TP,3V,8.5MA

2809-001228 U307

OSCILLATOR-VCTCXO

19.68MHZ,2PPM,-,TP,2.8V,2MA

2904-001123 F401

FILTER-SAW

130.38MHz,1.25MHz,-,TP,+-0MHz/8dB

2904-001148 F310

FILTER-SAW

85.38MHz,0.026MHz,+-0.013MHz/1.5dB

2904-001171 F404

FILTER-SAW

836.5MHz,25MHz,+-12.5MHz/2dB,TP

2904-001172 F402

FILTER-SAW

836.5MHz,25MHz,+-12.5MHz/1.5,TP

2904-001193 F309

FILTER-SAW

85.38MHZ,1.8MHZ,0.3MHZ/0.15DB,TP

2904-001259 F306

FILTER-SAW

881.5MHz,25MHz,+-12.5MHz/1.6dB,TP

2909-001119 F408

FILTER-DUPLEXER

881.5MHz,836.5MHz,4/3dB,TP,56dB,40dB

3301-001105 L306

CORE-FERRITE

AB,1.6x0.8x0.8mm,-,-

3301-001105 L323

CORE-FERRITE

AB,1.6x0.8x0.8mm,-,-

3301-001105 L335

CORE-FERRITE

AB,1.6x0.8x0.8mm,-,-

3301-001105 L413

CORE-FERRITE

AB,1.6x0.8x0.8mm,-,-

3301-001105 L414

CORE-FERRITE

AB,1.6x0.8x0.8mm,-,-

3301-001105 L418

CORE-FERRITE

AB,1.6x0.8x0.8mm,-,-

3301-001105 L421

CORE-FERRITE

AB,1.6x0.8x0.8mm,-,-

3301-001105 L422

CORE-FERRITE

AB,1.6x0.8x0.8mm,-,-

3301-001105 L423

CORE-FERRITE

AB,1.6x0.8x0.8mm,-,-

3301-001120 L425

CORE-FERRITE

BEAD

AB,30ohm,2x1.25x0.85mm,3000mA,TP

3705-001163 J1

CONNECTOR-COAXIAL

SMC,JACK,100mohm,50ohm,0.5dB

3710-001535 CN401

CONNECTOR-SOCKET

40P,2R,0.5MM,SMD-S,AUF

4709-001080 U304

RF POWER SPLITTER

2WAY,955-979MHz,12dB,-,TP

4709-001201 F407

FREQ-ISOLATOR

824-849MHz,13dB,0.65dB,1.5

GH41-00132A

PCB-SCH870

SCH-870,FR-4,8L,2.3,0.8T,118x90mm,-

GH

96-00943A UNIT-MIC ASS'Y SCH-870,OBG-15L48-C33A,

GH73-00218A

RMO-HOLDER

MIC

SCH-850,SI

RUBBER,-,BLK,-

GH74-

00376A MPR-SPONGE LOGIC SCH-850,SRS, PORON,7X7X2

0505-001376 U151 FET-SILICON FDC6329L,N/P,8V,2.5A,-,0.7W,SC-74

0505-001376 U156 FET-SILICON FDC6329L,N/P,8V,2.5A,-,0.7W,SC-74

6001-001300

SCREW-MACHINE CH,+,M1.7,L2.5,ZPC(BLK),SWRCH18A,FP

6

6

6

6-

-

-

-17

17

17

17

Samsung Electronics

Samsung Electronics

Samsung Electronics

Samsung Electronics

SEC CODE

LOC NO.

DESCRIPTION

SPEC

REMARK

GH72-00667A

PMO-HINGE DUMMY

SCH-850,PC,TRP,-,-

GH72-00668A

PMO-DECORATION SCH-850,ABS,NTR,-,-

GH72-00672A

PMO-EAR PIECE

SCH-850,PC,BLK,-,-

GH72-10001A

PPR-TAPE WINDOW BOHO

SCH-100,VINYL TAPE,TRP,-,-

GH74-00084A

MPR-DECO BOHO VINYL

SCH-800,VINYL,27X32.5X0.2,TRP,-

2007-000141 R159 R-CHIP 2.2Kohm,5%,1/16W,DA,TP,1005

GH74-00331A

MPR-FPCB SPONGE SPH-A1000,SRS PORON,T1,BLK,-

GH74-00516A

MPR-SPONGE MOTOR

SCH-850,SRS PORON,PI12XT1.0,BLK,-

GH74-00542A

MCT-SHIELD GASKET(D)

SCH-850,GASKET TAPE,8X32XT4,GRY,-

GH74-01094A

MPR-CUSHION LCD

SCH-8500,EVA SPONGE,8X7XT1.5,BLK,-

GH74-01095A

MCT-SHIELD GASKET(F)

SCH-8500,GASKET TAPE,32X8XT1.5

GH74-10526A

MPR-SPONGE MIC

SH-800,SPONGE,7X7.5X3,BLK,-

0505-001376 U157 FET-SILICON FDC6329L,N/P,8V,2.5A,-,0.7W,SC-74

0505-001376 U160 FET-SILICON FDC6329L,N/P,8V,2.5A,-,0.7W,SC-74

GH72-41801A

PMO-REFLECTOR LED SCH-800,ACRYL,M/WHT,-,-

GH74-00378A

MPR-FRONT GRILL

SCH-850,GAUZE,-,BLK,-

GH74-00440A

MCT-FRONT GASKET

SCH-850,GASKET(SHIELD),2X5XT1.5

2007-000159 R158 R-CHIP 56Kohm,5%,1/16W,DA,TP,1005

2007-007142 R191 R-CHIP 10Kohm,1%,1/16W,DA,TP,1005

GH74-00318A

MCT-SHIELD GASKET (B)

SCH-850,GASKET,32X13XT1.5,GRY,-

GH74-00483A

MPR-SHIELD GASKET (C)

SCH-850,GASKET TAPE+SPONGE

GH74-00510A

MPR-TAPE SHIELD(A)

SCH-850,CU TAPE,25X43XT0.05,-,-

GH74-10772A

MPR-TAPE DECORATION

SCH-800,TESA4965,16.9x23xT0.2,

2203-002525 C187 C-CERAMIC,CHIP 0.56nF,10%,50V,X7R,TP,1005

GH70-00036A

ICT-MAGNETIC SCH-850,MAGNETIC,PI3XT2,-

GH07-00058A LCD-SCH-870 UG-12B39-FGHTX-C,SCH-870,-,41,

GH74-00304A

MPR-TAPE MOTOR

SPH-A1100,TAPE,PI11XT0.4,BLK,-

GH74-00319A

MPR-SPONGE LCD

SCH-850,SPONGE,-,BLK,-

GH74-00321A

MPR-TAPE EAR PIECE

SCH-850,FOAM TAPE,5X4XT0.4,BLK,-

GH74-00322A

MPR-SPONGE EAR PIECE

SCH-850,PE SPONGE,8X11XT0.5,BLK,-

GH74-00885A

MPR-TAPE LCD

SCH-880,TAPE,41.2X32XT0.05,TRP,-

GH74-10775A

MPR-TAPE WINDOW LCD

SCH-800,TESA4965,41.5X38XT0.2,

GH74-10777A

MPR-TAPE SPEAKER

SCH-800,TESA4977,PI14.5xT0.5,W

6

6

6

6-

-

-

-18

18

18

18

Samsung Electronics

Samsung Electronics

Samsung Electronics

Samsung Electronics

SEC CODE

LOC NO.

DESCRIPTION

SPEC

REMARK

GH75-00764A

MEC-HINGE ASS`Y

SCH-8500,-,ASS`Y,-,BLK,-,-

GH70-00073A

IPR-HINGE SPRING

SCH-8500,SUS,PI4.9X10,-

GH71-00316A

NPR-HINGE HOUSING

SCH-8500,ZNDC,-,NI PLT,-

GH72-00291A

PMO-SHAFT HINGE

SCH-A100,POM,BLK,-,-

GH72-01863A

PMO-HINGE CAM

SCH-8500,-,POM,BLK,-

GH

07-00058A

ELA ETC-GRAPHIC LCD SCH-850,AIRTOUCH,USA,GRAPHIC LCD

GH99-02352A

PAA MAIN-PACKING ASS'Y

SCH-870,SPRINT,USA,-

GA69-30508A

BAG-PE PE,T0.06,150X300,-

GG69-30517A

BAG-LDPE PELD,T0.06,100X260,SP-RM928

GH69-00284A

CUSHION-CASE MAIN

SCH-8500,PVC,135X195X76.5

GH69-00726A

BOX(P)-UNIT MAIN(XAR)

SCH-870,IVORY300G,-,

GH69-11279A

BOX(P)-MASTER(CH) CHINA,SGH-600,SW-3,530X510X187

GH69-30503A

BAG-STD BATT.

PE,T0.06,70X170,SCH-1011

GH69-30518A

BAG-MANUAL PP,T0.06,125*280,SCH-1011

6

6

6

6-

-

-

-19

19

19

19

Samsung Electronics

Samsung Electronics

Samsung Electronics

Samsung Electronics

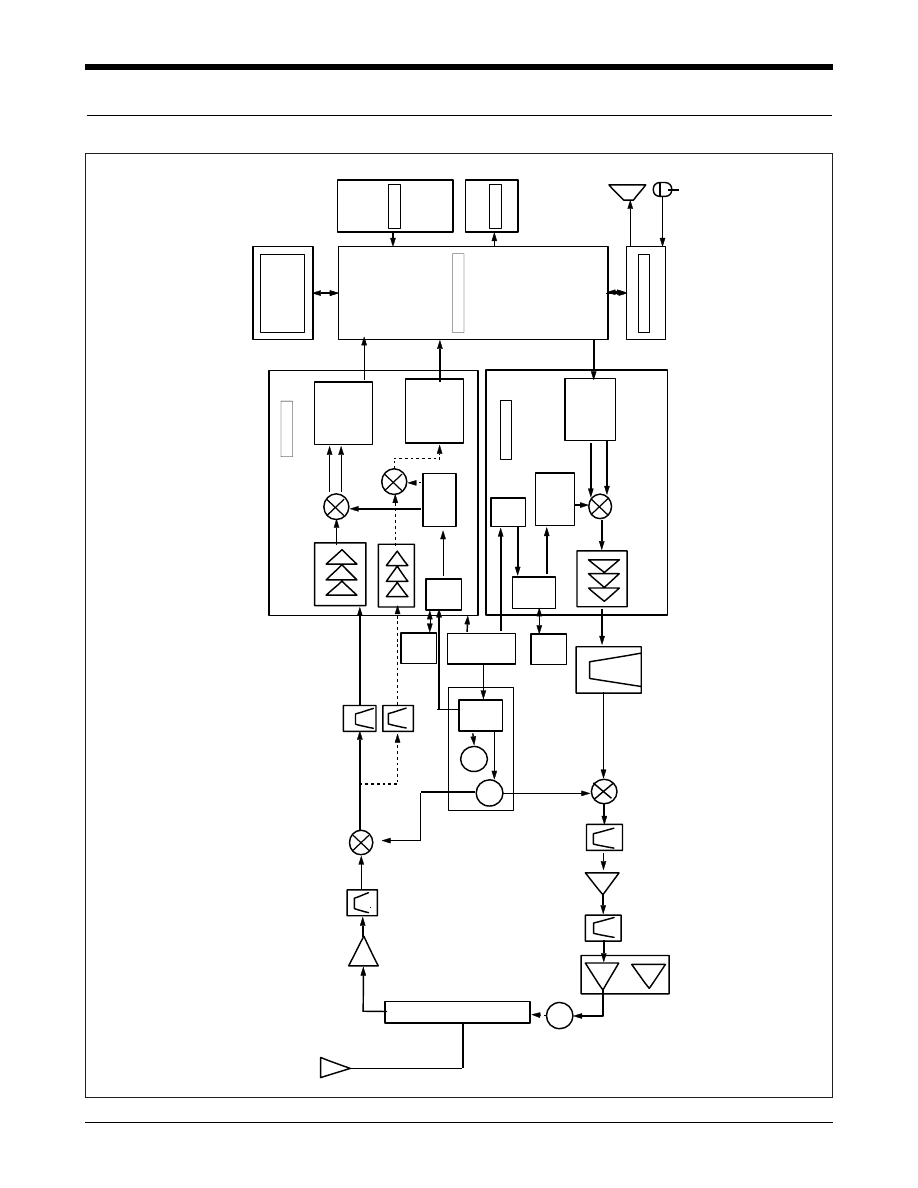

7. Block Diagram

7-1

Samsung Electronics

LN

A

RX

A

G

C

VC

O

A

M

P

S

&

CDM

A

D

U

PL

E

X

ER

PL

L

VC

T

CX

O

TX

A

G

C

A/

D

FI

LT

ER

A/

D

FI

LT

ER

D/

A

F

IL

T

ER

P

L

L

M

S

M3000

C

VC

O

VC

O

DI

VI

DE

2

DI

VI

DE

2

I

I

Q

Q

PA

PA

VC

O

ANT

C

D

M

A

869~

894

M

H

z

A

M

P

S

869~

894

M

H

z

CDM

A

8

5

.38M

H

Z

A

M

P

S

85.

38M

H

Z

C

D

M

A

824

~

849M

H

z

A

M

P

S

824

~

849M

H

z

IFR

3

000

C

D

M

A

AM

P

S

ISO

IFT

300

0

CD

M

A

/A

M

P

S

130.

38M

H

z

DA

P

L

L

m

od

ul

e

RX

A

G

C

CDM

A

AM

P

S

Q/

I

C

D

M

A/

AM

P

S

C

D

M

A/

AM

P

S

C

D

M

A/

AM

P

S

M

e

m

o

ry

[1

6

M

&

4

M

]

Co

d

e

c

Ke

y

p

a

d

LC

D

Rx

tank

Tx

Ta

n

k

P

A

Modu

le

Samsung Electronics

8-1

8. PCB Diagram

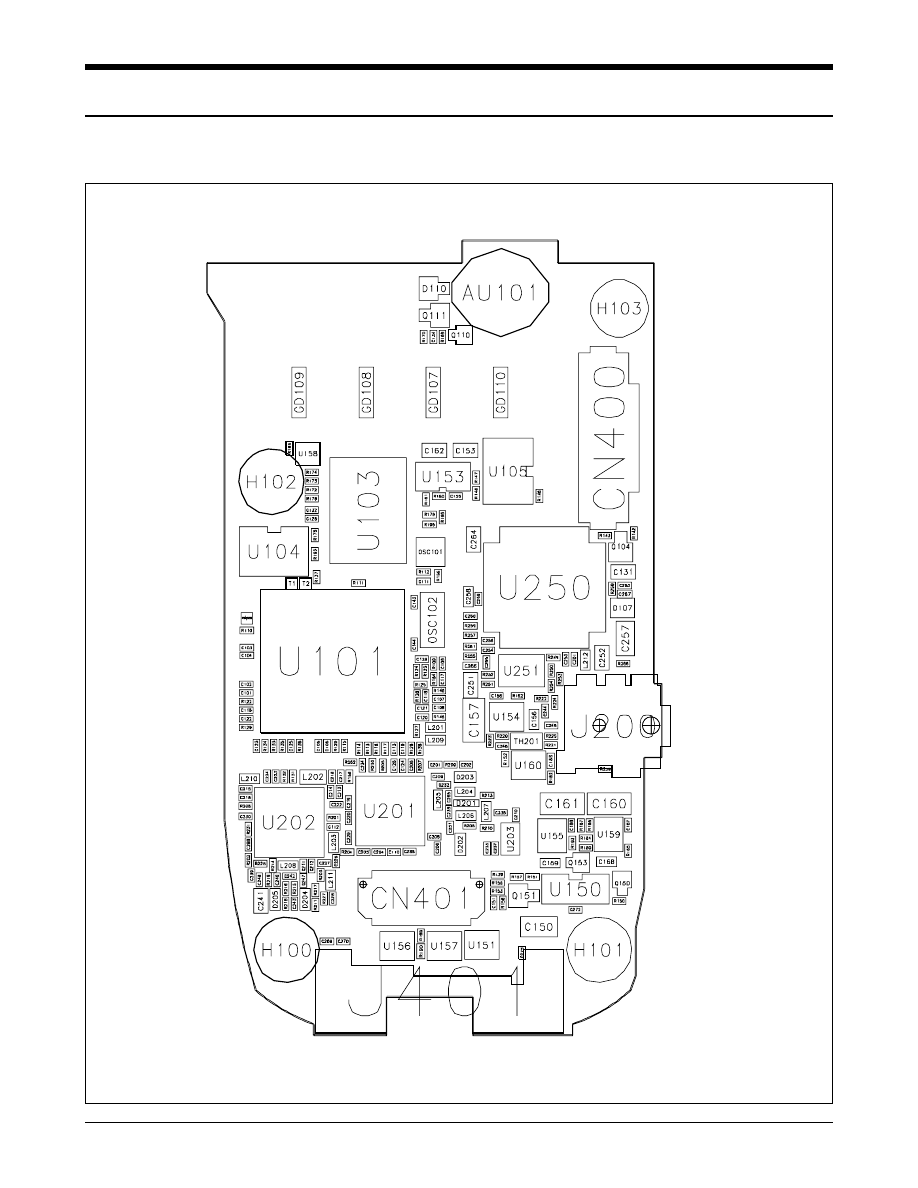

8-1 Logic Top View

8-2

Samsung Electronics

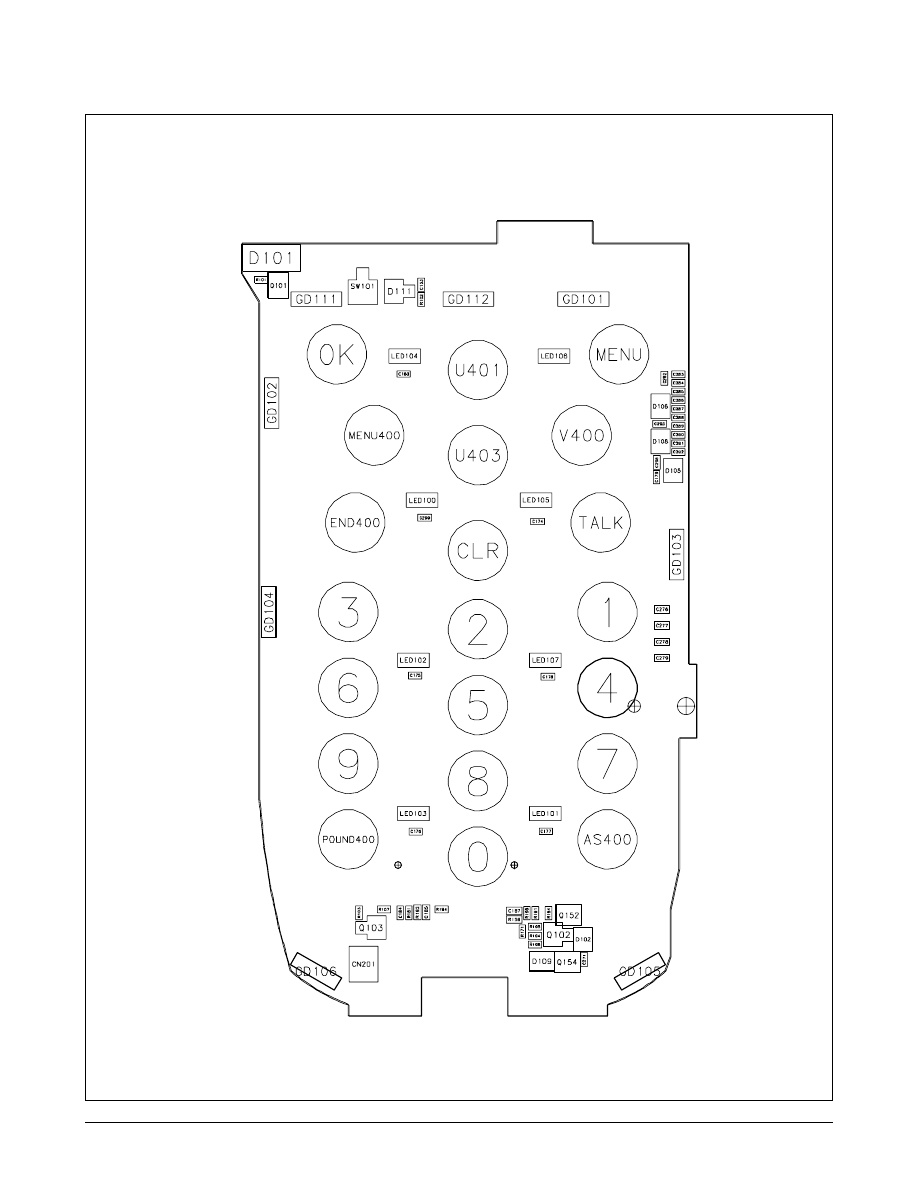

8-2 Logic Bottom View

8-3

Samsung Electronics

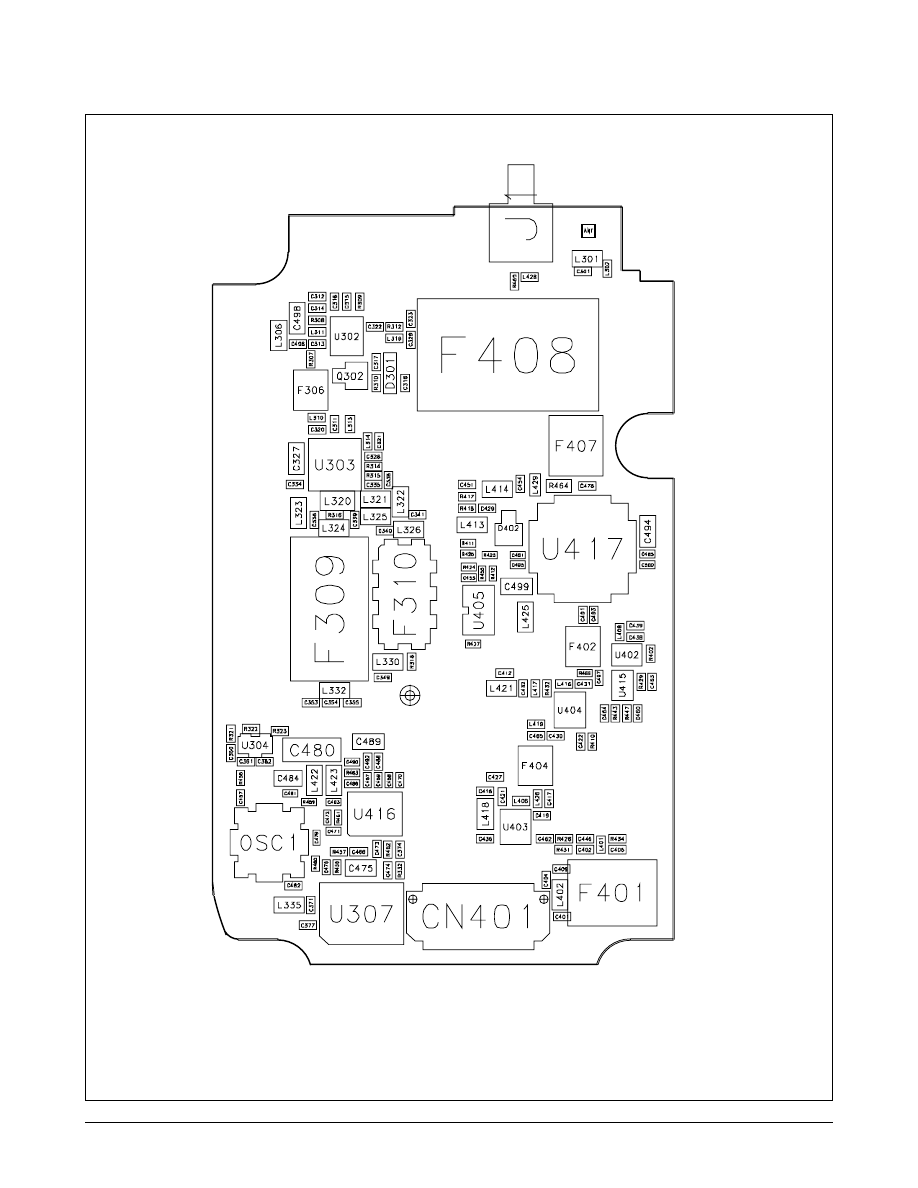

8-3 RF Bottom View

Samsung Electronics

9-1

10NF

C215

10NF

C108

C107
10NF

100PF

C109

10NF

C219

1SV279-TPH3

D205

10NF

C203

1NF

C222

20

R104

C210

NC

R137

1NF

C214
1NF

0

R168

AU101

SMT-801-02A

100NF

C132

100

R109

VDD

3.3K

R106

10K

R213

47NF

C110

4.7K

R126

C102
100NF

8.2NF

C125

30K

C231

22PF

12K

R225

C131
1UF
10V

VDD

R223

R224

11.3K

75K

R202

Q111

MMBT2222AWT1

1

3

2

VAA_L

C133
10NF

1SV279-TPH3

10K

D204

R206

20K

R136

1uH

L203

100PF

C201

1NF

C233

R149

100

R135

20K

2.2UF

1NF

C216

1NF

C204

C241

1.8K

VAA_L

R219

_ROM_CS2

_SLEEP

1D

_TEST

8C

4H

_TX_CLK

18PF

C202

5M

3M

_GP_CS

_HWR

13N

2M

_IDLE

12N

_LWR

12L

_RAM_CS1

_RAM_CS2

11L

_RD

11M

9M

_RESIN

5N

_RFR

_ROM_CS1

14M

14N

VDD3

6K

9E

VDD4

VDD5

9K

10F

VDD6

VDD7

10J

12B

WDOGSTB_PCMSCS

WDOG_EN

10L

XTAL_IN

10M

12P

XTAL_OUT

YAMN1

4M

_CTS

TX_IQDATA0

TX_IQDATA1

3J

2K

TX_IQDATA2

TX_IQDATA3

1K

4J

TX_IQDATA4

TX_IQDATA5

3H

1J

TX_IQDATA6

TX_IQDATA7

2J

5F

VDD0

VDD1

5J

VDD2

6E

SLEEP_XTAL_OUT

4K

SYNTH_LOCK

7C

TCK

2L

TCX0

8A

TDI
TDO

7A

TMODE

4D

TMS

5B

3N

TRK_LO_ADJ

TX_AGC_ADJ

3K

TX_CLK

1H

1L

12A

PCM_DIN

PCM_DOUT

13A

PCM_SYNC

11C

2P

PDM1

3P

PDM2

Q_OFFSET

2D

RESOUT

11P

4N

RINGER

1M

RX_AGC_ADJ

11N

SLEEP_XTAL_IN

2B

3C

MODE1

1A

NC0

NC1

1P

NC2

14A

14P

NC3

PA_ON

4L

12M

PA_ON2

3L

PA_R0

PA_R1

1N

11B

PCM_CLK

10N

3D

I_OFFSET

2A

KEYSENSE0

KEYSENSE1

4C

3B

KEYSENSE2

KEYSENSE3

5E

3A

KEYSENSE4

LCD_CS

10A

LCD_E

13P

13M

LNA_GAIN

LNA_RANGE

2N

MODE0

GPIO4

6C

5A

GPIO5

GPIO6

6D

GPIO7

6A

6B

GPIO8

GPIO9

7D

9P

GPIO_INT0

8M

GPIO_INT1

GPIO_INT2

9L

GPIO_INT3

10P

GPIO_INT4

GPIO21

7L

GPIO22

GPIO23

7M

GPIO24

7N

7P

GPIO25

8N

GPIO26

GPIO27

8L

8P

GPIO28

9N

GPIO29

4A

GPIO3

5K

GPIO30

GPIO11

GPIO12

8D

GPIO13

9A

GPIO14

9B

9C

GPIO15

GPIO16

9D

5P

GPIO17

GPIO18

6L

6M

GPIO19

GPIO2

5D

GPIO20

6N

6P

GND3

6G

6H

GND4

GND5

6J

7E

GND6

GND7

7F

7G

GND8

GND9

7H

GPIO0

5C

4B

GPIO1

7B

GPIO10

8B

GND14

8H

GND15

8J

GND16

GND17

8K

9F

GND18

GND19

9G

6F

GND2

9H

GND20

GND21

9J

10G

GND22

GND23

10H

4P

2E

FM_RX_CLK

4E

FM_RX_IDATA

FM_RX_QDATA

3E

1E

FM_RX_STB

5G

GND0

GND1

5H

7J

GND10

GND11

7K

8E

GND12

GND13

8F

8G

11G

D15

D2

11K

12K

D3

D4

13K

14K

D5

D6

11J

12J

D7

D8

13J

14J

D9

5L

DP_RX_DATA

DP_TX_DATA

C_RX_QDATA0

2F

C_RX_QDATA1

3F

C_RX_QDATA2

C_RX_QDATA3

4F

D0

13L

14L

D1

D10

11H

12H

D11

D12

13H

14H

D13

D14

13G

1B

ADC_ENA_SBST

2C

AUX_PCM_CLK

10B

10D

AUX_PCM_DIN

11A

AUX_PCM_DOUT

10C

AUX_PCM_SYNC

2H

CHIPX8

1G

C_RX_IDATA0

C_RX_IDATA1

2G

3G

C_RX_IDATA2

C_RX_IDATA3

4G

1F

11D

A19

A2

14F

12G

A3

11F

A4

14E

A5

A6

13E

12F

A7

A8

14D

11E

A9

1C

ADC_CLK_SBCK

ADC_DATA_SBDT

14G

13F

A1

A10

13D

12E

A11

A12

14C

10E

A13

A14

13C

12D

A15

A16

14B

13B

A17

A18

12C

20

MSM3000-196PBGA-MT

U101

A0

R132

100

R105

100NF

C245

10K

R226

R169

1K

27PF

1SV279-TPH3

D203

10

9

8

C144

1NF

74LCX08MTCX

U104-3

9

VDDM1

21

VDDM2

VDD

VDD

C226

19

TX_CLK

20

TX_CLK/

4

VCONTROL

6

VDD1
VDD2

23

VDD3

40

VDD4

45
47

VDD5

15

TXD4

16

TXD5

17

TXD6

TXD7

18

TXIF_OUT

2
1

TXIF_OUT/

TXVCO_T1

43
42

TXVCO_T2

31 SBI_EN

33

SBSK_IDLE/

30

SEL1_PA_ON

35

TCXO

11

TXD0

TXD1

12

13

TXD2

TXD3

14

48

GND7

GNDD

10

LOCK_DET

36

37

PD_ISET

PD_OUT

38

RBIAS

8

SBCK_SEL2

34

SBDT_FM/

32

41

FM_MOD

GND1

3

GND2

5
7

GND3
GND4

22
39

GND5
GND6

44

IFT3000-48BCCF-TR

U202

ADC_CLK

26

ADC_DATA

25

ADC_ENABLE

24

ADC_IN1

27

ADC_IN2

28

29

ADC_IN3

DNC

46

R231

10

R142

NC

8.2K

R173

R203

22K

D101

CL-150HR

100

C244
100PF

8.2NF

C124

R122

D110

DAN202UT106

3

1

2

C112

R175

VDD

33NF

10K

22K

100NF

C113

R115

R117

47K

L204

VDD

1uH

D201

BAR63-02W-E6327

R209

100

C116

100PF

C238

1NF

10NF

C223

4.7K

R110

100

R124

47K

R118

10K

VDD_L

R210

R174

22K

R127
10K

1NF

C235

C265

1NF

1.2K

R221

L205
180nH

VAA_L1

VDD

10K

R120

C123
8.2NF

C143

BLM11A102SPT

27PF

VDD

L210

10NF

C101

220NF

C208

10K

R207

T1

PCMSCS

1NF

C220

C103
10NF

2H

2G

_CEF

4B

_LB

3G

_OE

5C

_RESET

4C

_UB

_WE

6B

_WP/ACC

5B

NC8
NC9

9E

RY/_BY

5D

8F

SA

VCCF 5H

6H

VCCS

3F

VSS1
VSS2

9H

_CE1S

6K
10K

NC16

5A

NC2
NC3

6A

10A

NC4
NC5

1B
6D

NC6
NC7

9D
1E

3J
4G

DQ9

NC1

1A

10E

NC10
NC11

1F

10F

NC12

1K

NC13

5K

NC14
NC15

8J
8G

DQ15/A-1

4J

DQ2
DQ3

5G
6G

DQ4
DQ5

7J

DQ6 7F

8H

DQ7
DQ8

9G

CIOF
CIOS

6J

3H

DQ0
DQ1

4F

DQ10

4H
5J

DQ11
DQ12

7H
7G

DQ13
DQ14

2C
3E A4

A5

3D

A6

3C
3B

A7

7B

A8
A9

7D

6C

CE2S

A13

8E

A14

9C

A15

9F

A16

4E

A17
A18

4D
7C A19

2D A2

A3

U103

2F

A0
A1

2E

7E

A10
A11

8B
8C

A12

8D

430

R218

MB84VD2119XA-85

C134
NC

R215
10K

Q102

MMBT2222AWT1

1

3

2

74LCX08MTCX

U104-4

13

12

11

C234

10NF

VAA

R205
8.2K

R217

10K

10NF

C211

S3.6

VDD

R114

470

100

R131

C206
1NF

VDD_L

22K

R107

C217
10NF

20K

R133

100NF

C104

4.7NF

C229

3

1

2

5

4

L208

U203

TC7S08FUTE85L

20K

27nH

100PF

R134

1.2K

R227

C117

2

100PF

C240

Q103

2SC4081BRT106

1

3

C237
1NF

C230

220NF

NTH5G36B103J01TE

TH201

180nH

L207

C213
10NF

GND

2

OUT

VCC

1

VDD

SW101
A3210ELH

3

NC

R204

1

2

3

NC

R195

VDD7

35

VDD8
VDDM

44

D111
SM05

TCXO/N

VCONTROL

7

VDD1

4
6

VDD2

14

VDD3

15

VDD4
VDD5

17

VDD6

20
24

RXVCO_OUT

RXVCO_T1

21

22

RXVCO_T2

32

SBCK_SLEEP/

31

SBDT_FM/
SBI_EN

26

SBST_IDLE/

30

36

TCXO

37

I_OFFSET

Q_OFFSET

27

46

RXID2

RXID3

45

RXQD0

42

41

RXQD1

RXQD2

40

39

RXQD3

25

GND3

8
13

GND4
GND5

16
18

GND6
GND7 19

23

GND8
GND9 34

28

RM_RX_CLK

1

47

FM_RX_IDATA_RXID1

FM_RX_QDATA_RXID0

48

FM_RX_STB

2

29 FM_SLOT

3

GND1

43

GND10

GND2

5

CDMA_IF

11
12

CDMA_IF/

38

CHIPX8

33 DNC

10

FM_IF
FM_IF/

9

C246

100NF

IFR3000-48BCCF-TR

U201

100

R125

100K

R170

10

R230

10K

R216

0

R211

C239

1NF

47NF

C248

C228
4.7NF

R196

0

6PF

C242

L211

1uH

R101

120

10K

R222

74LCX08MTCX

U104-2

4

5

6

2

4

1

C218
1NF

OSC101

CSTCW2700MX03

5

3

6

2.2NF

C236

C120
10NF

C128
10NF

3.6K

R143

U104-1
74LCX08MTCX

7

1

2

14

3

VDD

22PF

C232

22nH

L206

10NF

C298

2SA1576FRT106

Q104

1

3

2

VAA_L2

C209
10NF

R111
NC

10NF

C105

VDD

100NF

C119

R123

22K

NC

C111

C243
390PF

SMF05.TB

D102

2

1

3

4

5

C247
100PF

R214

10K

100

R129

22K

R102

10K

R220

R179

22K

3

2

C118

100PF

DTC144EE/TR

Q101

1

1NF

C224

470PF

C122

VDD

470PF

C129

C106
100NF

22K

R145

1.5K

R166

VAA_L

L209

1M

R262

BLM11A102SPT

1NF

C212

R201
22K

100

R128

R112

10K

VDD

T2

D202
1SV279-TPH3

R208

1.8K

C126
8.2NF

1K

R103

C227

R176

22K

1NF

R138 10K

C205
10NF

VAA

Q110

DTA144EE/TR

2

3

1

VDD

22K

R164

VAA

VAA

BLM11A102SPT

L202

L201

BLM11A102SPT

NC

R172

22K

470PF

C121

OSC102

CC4V-T1 32.768KHz 9pF

R113

A(2)

A(19)
A(18)
A(17)
A(16)
A(15)
A(14)
A(13)
A(12)
A(11)
A(10)

A(1)
A(0)

C-F

AD(12)
AD(11)
AD(10)

AD(1)
AD(0)

C_RX_QDATA(3)

C_RX_QDATA(2)

C_RX_QDATA(1)

C_RX_QDATA(0)

C_RX_IDATA(3)

C_RX_IDATA(2)

C_RX_IDATA(1)

C_RX_IDATA(0)

CHIPX8

ADC_ENA_SBST

ADC_DATA_SBDT

ADC_CLK_SBCK

A(9)
A(8)
A(7)
A(6)
A(5)
A(4)
A(3)

SCAN(0)

FM_RX_STB

C_RX_IDATA(0)

C_RX_IDATA(1)

FM_RX_CLK

AD(9)
AD(8)
AD(7)
AD(6)
AD(5)
AD(4)
AD(3)
AD(2)

AD(15)
AD(14)
AD(13)

CCLK

CI

PS_HOLD

-EAR_DET

EL_EN

MODE_SEL
PAMP_ONP

SCAN(2)

WP

SDA

SCL

CODEC_CS

TCXO_CON

PLL_EN

SCAN(1)

KEY(0)

A(20)

A(21)

-SEND_END

PLL_CLOCK

PLL_DATA

SCAN(6)

SCAN(5)

SCAN(4)

SCAN(3)

PCS_BAND

MOTOR

-RESOUT

PCM_SYNC

PCM_DOUT

PCM_DIN

PCM_CLK

PA_R0

PA_ON

LCD_CS

ON_SW_SENSE

KEY(3)

KEY(2)

KEY(1)

SLEEP-

-RESET

IDLE-

TX_IQDATA(7)

TX_IQDATA(6)

TX_IQDATA(5)

TX_IQDATA(4)

TX_IQDATA(3)

TX_IQDATA(2)

TX_IQDATA(1)

TX_IQDATA(0)

PDM1

V-F

RESOUT

-RESET

-RESOUT

19.68MHZ

RX_IFVCO_OUT

AD(6)
AD(7)
AD(8)
AD(9)

AD(10)
AD(11)
AD(12)
AD(13)
AD(14)
AD(15)

DTR

RI

A(9)
A(10)
A(11)
A(12)
A(13)
A(14)
A(15)
A(16)
A(17)
A(18)
A(19)

CELL_BAND

SLEEP-

CELL_CON

MOTOR

AD(1)
AD(2)
AD(3)
AD(4)
AD(5)

CDMA_IF-

AD(0)

A(21)

RESOUT

WP

A(2)
A(3)
A(4)
A(5)
A(6)
A(7)
A(8)

PCS_BAND

BUZZER

MOTOR_

TX_CLK
TX_CLK-

TX_VCO_T1

TX_VCO_T2

S3.6

V-F

FM_MOD

FM_MOD

PA_ON

TX_VCO_T1
TX_VCO_T2

TX_IQDATA(0:7)

TX_IQDATA(7)
TX_IQDATA(6)
TX_IQDATA(5)
TX_IQDATA(4)
TX_IQDATA(3)
TX_IQDATA(2)
TX_IQDATA(1)
TX_IQDATA(0)

VDD_L

VAA_L1

CHIPX8

C_RX_QDATA(3)
C_RX_QDATA(2)
C_RX_QDATA(1)
C_RX_QDATA(0)

C_RX_IDATA(3)
C_RX_IDATA(2)

C_RX_IDATA(1)

C_RX_IDATA(0)

C_RX_QDATA(0:3)

C_RX_IDATA(0:3)

RX_IFVCO_VT

TX_AGC_ADJ

VDD_L

VAA_L2

VAA_L

CDMA_IF

FM_IF

FM_RX_CLK
FM_RX_STB

SLEEP-

I_OFFSET

Q_OFFSET

ADC_CLK_SBCK

ADC_DATA_SBDT

ADC_ENA_SBST

TCXO_N

RX_AGC_ADJ

VAA_L

CD

LED_ON

WP_E

A(1)

A(20)

A(0)

ADC_CLK_SBCK

ADC_DATA_SBDT

ADC_ENA_SBST

TX_IF
TX_IF-

I_OFFSET

Q_OFFSET

AD(0:15)

SCAN(0:6)

KEY(0:2)

TX_CLK-

TX_CLK

LNA_GAIN_CTL

PDM2

A(0:19)

CTS

DP_TX_DATA

DP_RX_DATA

RTS

CTS

TRK_LO_ADJ

TX_AGC_ADJ

RX_AGC_ADJ

TX_IQDATA(0:7)

C_RX_QDATA(0:3)

C_RX_IDATA(0:3)

CD

9. Schematic Diagrams

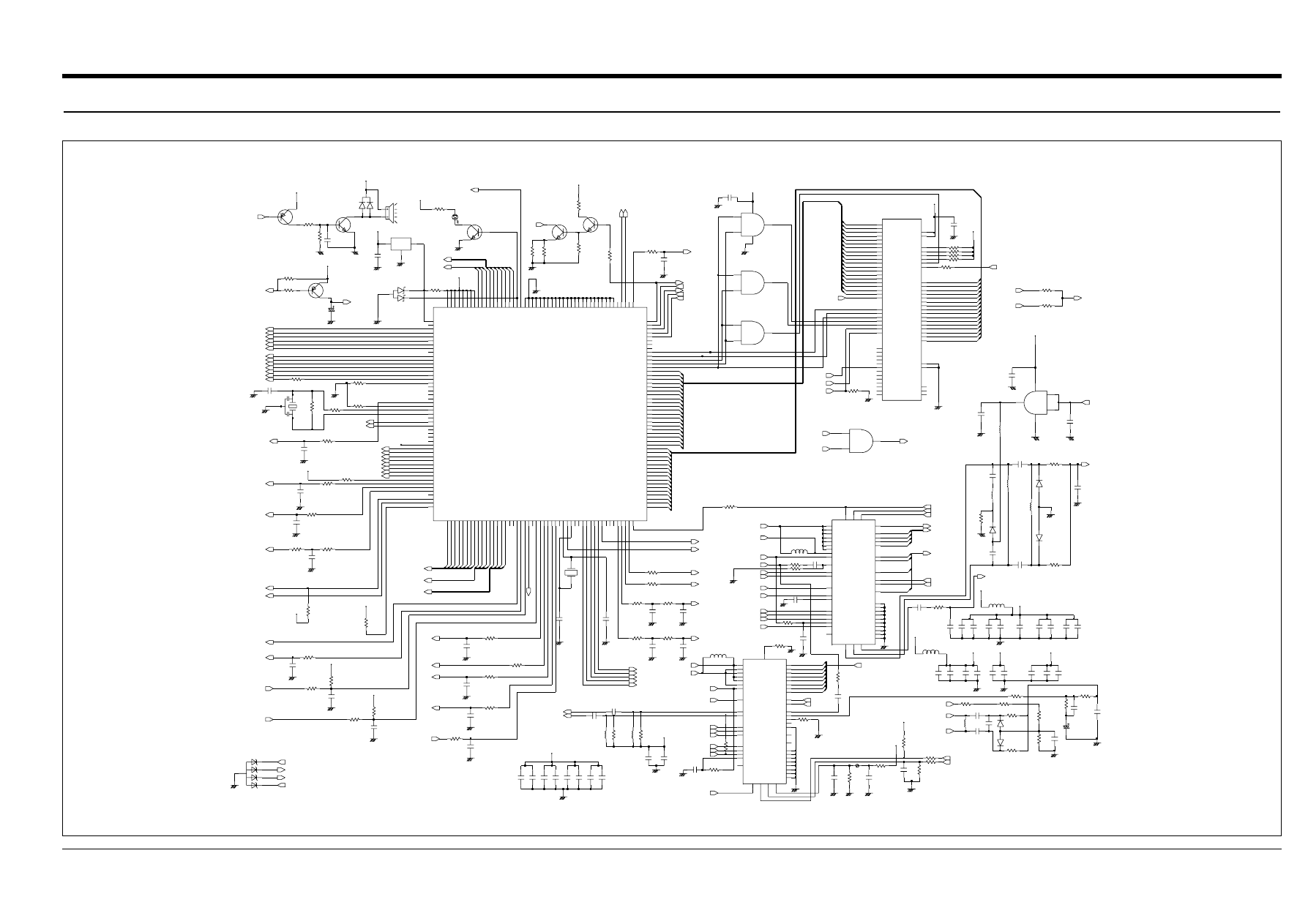

9-1 Logic Circuit Diagram (1)

9-2

Samsung Electronics

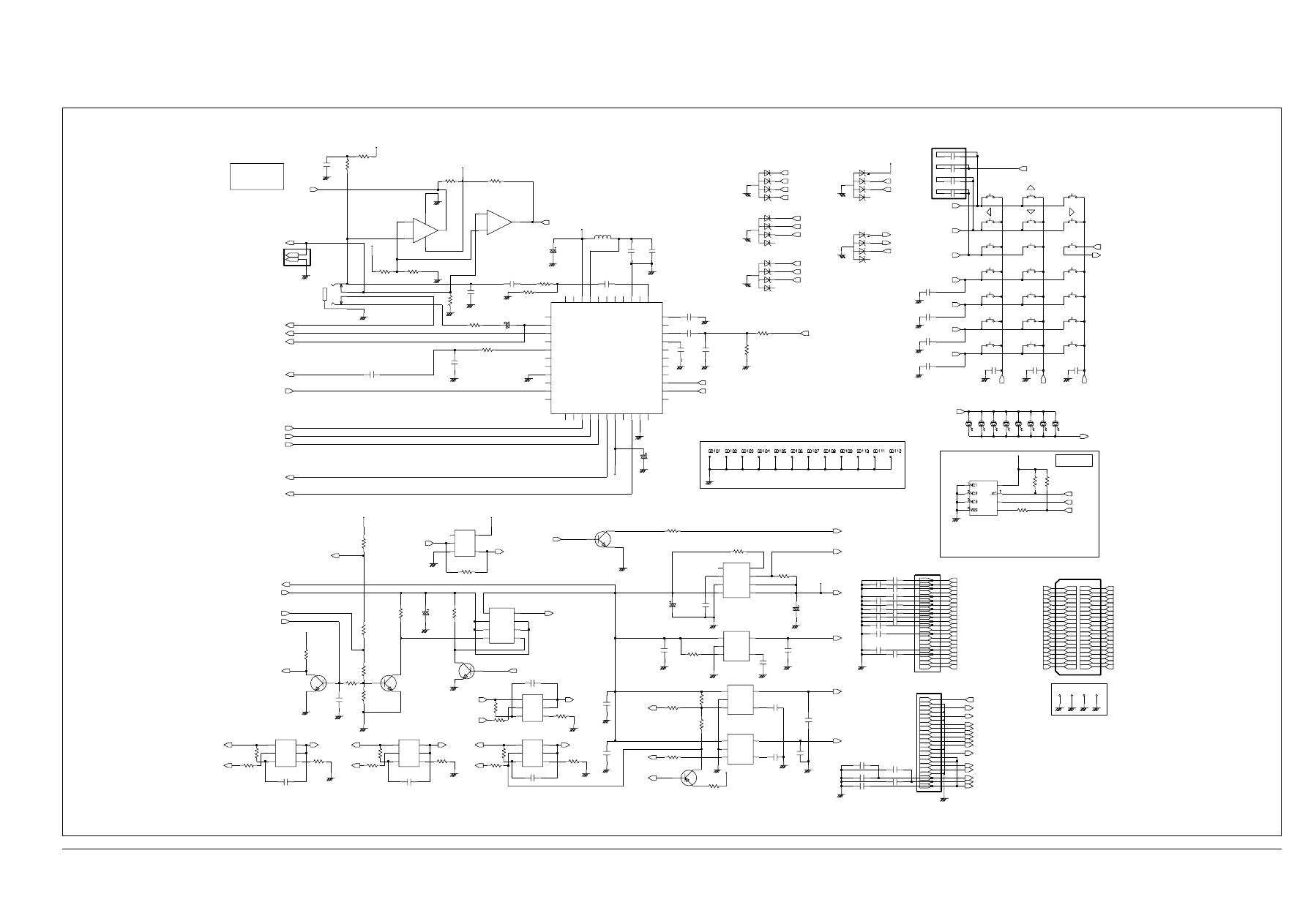

9-2 Logic Circuit Diagram (2)

<< R199 >>

EEPROM

Codec

Microchip ==> open

ATMEL ==> 10K

Power

MIC

FIXING HOLE

35

10NF

C263

32

1UF

C159

H101

R191
10K

C285

15PF

15PF

C179

VDD

3

R160
100K

2

3

6

R1C1

1

R2

VINR1

4

VON/OFF

5

FDC6329L

U156

C1

2

C2

100K

C157
4.7UF

D105

SMF05.TB

2

1

3

4

5

R183

VAA

19

100K,1%

R139

VAA_L

560PF

C187

560PF

C186

IN

2

1

NC

OUT

4

5

VCC

560PF

C185

U158

TC7S04FU(TE85L)

GND

3

_SHDN

R259

2K

1

BYPASS

DELAY

2

3

GND

4

IN

OUT

5

SENSE

6

7

_ERROR

8

1

3

4

5

LP2988AIMMX-3.0

U153

D107

SMF05.TB

2

7

1

2

2

C299
1NF

END/PWR

1

100NF

C259

15PF

C282

7

C256

6.3V

4.7UF

C162

8

100NF

6

2

15PF

C289

1

2

5

1

MENU

1

2

2.2K

R159

10K

R193

1

3

2

R194
10K

Q151
2SC4081BRT106

10

680PF

C255

560PF

C184

LED107

1

2

LED106

VDD

1NF

C180

C283

15PF

15K

R147

R157
200K

R261

4.7UF

C161

1.8NF

C271

6.2K

1

3

4

5

SMF05.TB

D106

2

C252

6.3V

LED103

2.2UF

40

10K

R250

17

1NF

C175

2

4

R180
1K

9

21

R266

3

VIN

1

5

VOUT

2

1

2

30

8

U159

ILC7082AIM5-30

BYP 4

2

GND

ON/OFF

10K

R187

15

10NF

C158

C254
100NF

22

21

13

J401-1

MQ179B-SAA-18P/4

1

1

2

4

C1

3

C2

R1C1

6

R2

1

4

VINR1

5

VON/OFF

3

9

1

2

U157

FDC6329L

2

19

10

C251

470NF

CL-190YG-CD-T

LED100

14

27

#

1

2

1.8NF

C270

1.8NF

C272

H103

6.3V
2.2UF

C153

HSJ1621-019010

J200

1

2

3

4
5

U251-1

TC75W56FU-TE12L

4

3

2

8

1

20

29

100NF

C267

8

1

2

C273

100NF

LED105

17

19

R151
100K

1

2

36

*

1

R252

1K

Q150

DTC114EE/TR

2

3

25

R181

56K

18

R190

4.7UF

2.2K

7

C160

6.3V

2.2UF

C264

H100

LED102

6

26

OK

1

2

16

11

C284

C168
1UF

15PF

VDD

AXK6S40535P

CN401-1

1

R253

5

30

150K

31

23

R184
100K

15PF

C292

1

2

CLR

1

2

TALK

R146

18

NC

14

16

3

C167

10NF

4

6

6

1

2

C295

15PF

R192

2.2K

R152

Q153

DTA144EE/TR

2

3

1

2.2K

28

5

LED101

15PF

C293

R153
2.2K

12

24

14

11

100K

R154

5

VLR-

13

22

NC8

23

NC9

18

VCC

41

VCCA

VCCP

42

3

VFR+

2

VFR-

6

VLR+

40

NC17

43

44

NC18

4

NC2

7

NC3

9

NC4

11

NC5

12

NC6

NC7

37

1

NC1

NC10

27

28

NC11

29

NC12

NC13

32

NC14

35

39

NC15

NC16

26

LO

MCLK

25

34

MIC1+

33

MIC1-

MIC2+

31

MIC2-

30

38

MIC3+

MIC3-

16

CO

19

15

CS-

10

DR

DX

20

FS

24

GND

21

GNDA

36

8

GNDP

33

U250

ST5092TQFPTR

17

BZ

CCLK

14

CI

17

DTC144EE/TR

Q154

1

3

2

100K

VAA

R156

R182

56K

1UF

C156

1NF

C178

100K

R155

15

13

12

VDD

20

6

SCL

SDA 5

VCC 8

U105

M24256-WMN6T

10NF

C253

R2

1

4

VINR1

5

VON/OFF

L212

BLM11A102SPT

2

U151

FDC6329L

2

C1

3

C2

R1C1

6

4

1

13

4

SMF05.TB

D108

2

2

20

100NF

C301

10K

18

R165

8

7

VAA

CN400-1

IL-FPR-22S-HF-E3000

1

2

U251-2
TC75W56FU-TE12L

5

6

7

1

1

22

R258

CN201-1

1

3

2

20

VAA

Q152

DTC144EE/TR

1

22

33UF

C150

6.3V

56K

680

R171

R158

C287

15PF

12

SMF05.TB

2

13

4

1

2

D109

56K

R186

1NF

C177

C176
1NF

15PF

C291

C166

VDD

C290

15PF

24K

10NF

33UF
6.3V

C257

R257

R255
18K

C288

15PF

5

2

C2

3

6

R1C1

1

R2

VINR1

4

VON/OFF

5

38

FDC6329L

U160

C1

C155
100NF

11

R161
330K

R249
10K

GND

2

ON/OFF

3

VIN

1

5

VOUT

13

U155

ILC7082AIM5-30

BYP

4

NC

R163

C260

22NF

1

2

15

VAA

100NF

C258

3

2.2K

R251

S1_1

S1_2

3

7

S2_1

S2_2 6

U150

D1

1

8

D2

G1

4

G2

5

2

16

SI6943DQ

15PF

C286

C269

100NF

2

100K

R162

0

1

56K

R150

C174
1NF

39

C266
100NF

VDD

R185

NC

CN201-2

2

21

H102

37

LED104

34

C151
1NF

9

1K

R148

VOUT

R254

20K

U154

ILC7082AIM5-30

BYP

4

2

GND

ON/OFF

3

VIN

1

5

R256

120K

10

9

PS_HOLD

SCL

WP_E

SDA

SCL

TCXO_CON

CELL_CON

PCS_BAND

PAMP_ONP

C-F

MIC

SCAN(0)

KEY(3)

SCAN(0)

KEY(3)

LCD_CS

RESOUT

A(1)

SPK+

SPK-E

MOTOR_

SPK-E

C-F
V-F

CELL_CON

PCS_BAND

CELL_BAND

PDM2

VRR

VRR_S

SLEEP-

SPK-

SPK+

SCAN(2)

SCAN(1)

TCXO_VAA

VRR_PCS

VAA

SDA

VAA

TCXO_VAA

MODE_SEL

TCXO_CON

VRR_S

VRR_CELL

CELL_BAND

SLEEP-

PCS_BAND

GND

GND

PA_ON

GND
GND

PDM1

LNA_GAIN_CTL

TRK_LO_ADJ

MODE_SEL

GND

PLL_EN

PLL_DATA

PLL_CLOCK

19.68MHZ

GND

VRR_PCS

VRR_CELL

VRR_S

VTT

CDMA_IF

CDMA_IF-

FM_IF
GND

GND

RX_IFVCO_OUT

GND

RX_IFVCO_VT

GND

GND

VTT

GND

TX_IF

PA_R0

TX_IF-

T3.6

T3.6

AD(1)
AD(0)

LED_ON

VBAT

VRR_S

PCS_BAND

IDLE-

SLEEP-

VRR

RESOUT
A(1)
GND
AD(7)

GND
VDD
VDD
SPK+
SPK-
MOTOR_
EL_EN
GND
GND
GND

AD(6)
AD(5)
AD(4)
AD(3)
AD(2)

CTS
DTR

VBAT

KEY(0)

KEY(1)

SCAN(1)

KEY(2)

SCAN(2)

ON_SW

VBAT

SCAN(3)

SCAN(4)

SCAN(5)

SCAN(6)

LCD_CS

PCM_DOUT

RX_AUDIO

RX_AUDIO

C-F

TX_AUDIO

DP_RX_DATA
DP_TX_DATA
HP_PWR
RI
CD
V-F

RTS

-EAR_DET

BUZZER

CCLK

CI

CODEC_CS

PCM_DIN

PCM_SYNC

PCM_CLK

TX_AUDIO

ON_SW

ON_SW_SENSE

HP_PWR

VBAT

S3.6

T3.6

PAMP_ONP

VDD

-RESET

-SEND_END

Samsung Electronics

9-3

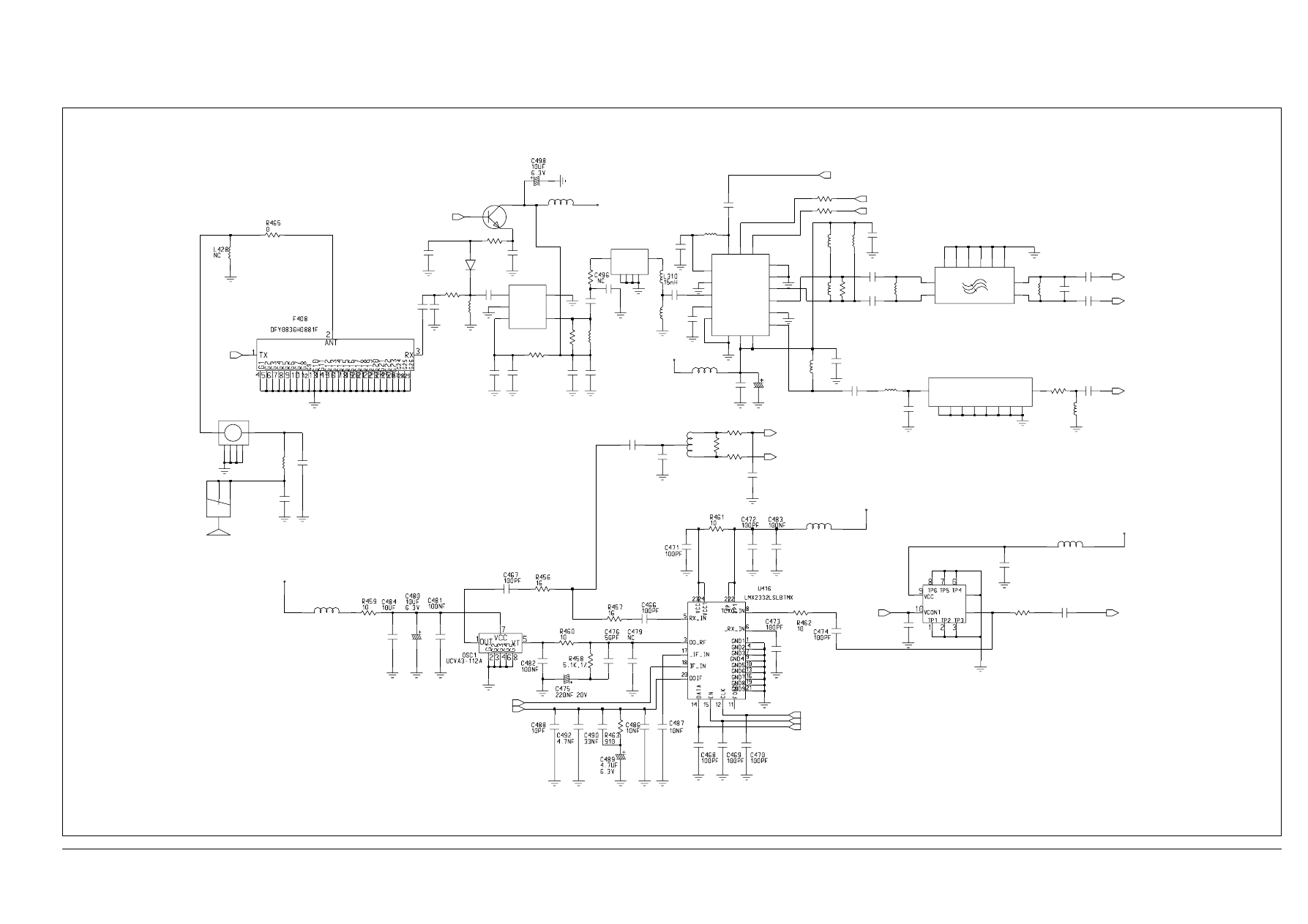

9-3 Receiver Cirquit Diagram

0.75pF

TCO-5660U1(19.68MHz)

H881BH

R315

4.7K

L313
27NH

C355
10NF

C323

100PF

1NF

C335

4PF

C313

BLM11A102SPT

L335

BAR63-03W

D301

C329

NC

NC

L302

VRR

C315
10NF

C317

1NF

3PF

C321

TCXO_VAA

5

F306

G

1

G

3

G

4 6

G

IN

2

OUT

R309
68

L323

BLM11A102SPT

0

R318

10NF

C374

C339

10NF

NC

R308

C301

10NF

C377

12PF

C318

L332

120nH

180nH

L324

U304

STH-01R

4

2

6

VRR

OUT

L311

U307

GND

4

5

12nH

L326
330nH

390,1%

R316

10NF

C353

10PF

C341

NC

C360

R307

C354
NC

0

R312
0

L322

150nH

4

RFOUT

VPD

3

ANT

RF2361TR13

U302

2

GND1

5

GND2

RFIN

1

C340

5PF

VRR_CELL

33NF

C334

C362

1NF

C336

2PF

C311

33NF

R332

1.2K,1%

5PF

C328

27NH

L316

R314

2.7K

100PF

C316

VRR_CELL

L306

Q302

1

3

2

BLM11A102SPT

2SC4081BRT106

L314
8.2nH

L423

L422

BLM11A102SPT

BLM11A102SPT

5

OUT

33NF

C320

2

G2

G3

3

G4

4

6

G5

G6

7

8

G7

G8

9

10 IN

F310

SAFC85.380ME35X-TC11

1

G1

100PF

C312

6.3V

4.7UF

C327

C322

C371

1NF

1NF

L301

4.7nH

R323

47

0

R321

100

R322

G2

4

5

G3

6

G4

IN

1

OUT

2

IN

1

10 IN.R

5

OUT

OUT.R 6

MHC-173

J1

3

G1

TMXL972

F309

G1

2

3

G2

G3

4

7

G4

8

G5

G6

9

2.7uH

L325

L330
470nH

1NF

C361

GND4

10

GND5

14

GND6

17

IF_SALECT

2

4

LO+

5

LO-

MIXER_IN

7

PD

3

11

VCC

15

CDMA+

CDMA-

16

13

FM+

12

FM-

1

GND1

6

GND2

GND3

9

L320

RF2466TR13

U303

8

BYP

390nH

C338

10NF

L321

2.7uH

C314
10NF

10NF

C349

100

R310

RX_IFVCO_VT

TRK_LO_ADJ

CELL_TX_OUT

SLEEP-

CELL_RX_LO

CELL_TX_LO

CELL_RX_LO

RX_IFVCO_OUT

PLL_DATA

PLL_EN

PLL_CLOCK

CDMA_IF

CDMA_IF-

LNA_GAIN_CTL

19.68MHZ

FM_IF

MODE_SEL

9-4

Samsung Electronics

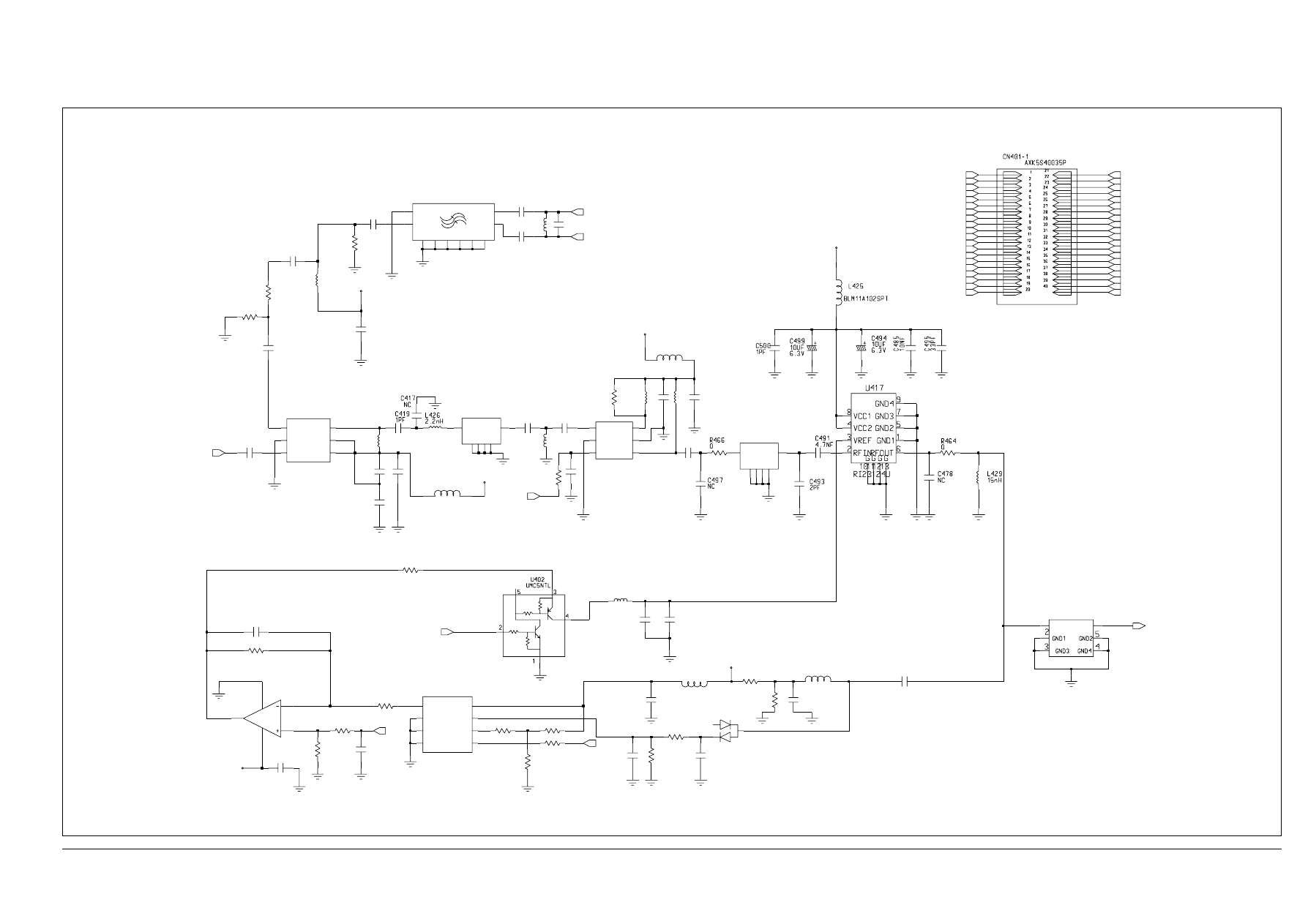

9-4 Transmitter Circuit Diagram

51K

R427

0

R425

VTT

C422

15nH

51PF

L406

L418

BLM11A102SPT

VTT

100PF

C465

C416

10NF

U415
LMV821M7

2

1

3

5

4

R417
910

BLM11A102SPT

L414

L416
47nH

51PF
C409

C404

1.5PF

NC

R431

C405

1NF

100PF

C421

10K,1%

1PF

R424

C454

47nH

L417

L413

R412

47K,1%

BLM11A102SPT

L421

T3.6

C439

100NF

BLM11A102SPT

1NF

C462

1.8K

100K,1%

R443

R434

47NF

C463

51PF

C432

C438
47PF

VTT

L408

82nH

100PF

C431

VTT

10NF

C460

1NF

C427

10NF

C429

3.9K

R416

C436

1NF

LO

3

4

POWER

6

RFOUT

5

VCC

UPC8106T-E3

U403

2

GND

1

IFIN

HSMS-282C-TR

D402

3

2

1

3

G

4

G

6

G

IN

2

OUT

5

NC

D836MH

F402

G

1

C453

VTT

R411

10K,1%

100nH

51

R432

C430

L402

VAGC

1

VDD

12PF

U404

GND1

2

GND2

5

6

IN

OUT

3

4

51PF
C401

GN01037B01SA

510K

R429

C446

1NF

L401

82nH

10K,1%

R447

0

15nH

L419

5.6K

R410

R402

C464

10NF

47PF

C461

3

VEE

VSS

4

U405

TC4W53FU-TE12L

A

5

CH0

7

6

CH1

COM

1

INH

2

VDD

8

G

3 4

G G

6

IN

2

5

OUT

F404

D836LH

1

G

0

R428

10K,1%

R426

10NF

C402

C412
51PF

C451
10NF

430K

R455

7

10

G6

9

IN+

IN-

8

OUT+

3

4 OUT-

6

F401

FB-G039

1

G1

G2

2

5

G3

6

G4

G5

F407

CE053R836DCA

IN

1

OUT

CELL_TX_OUT

TX_IF-
TX_IF
GROUND
PA_R0
PA_ON

GROUND
T3.6
T3.6
VTT
GROUND
GROUND
RX_IFVCO_VT
GROUND
RX_IFVCO_OUT
GROUND
FM_IF
GROUND
CDMA_IF-
CDMA_IF

GROUND

TX_IF

TX_IF-

PDM1

TRK_LO_ADJ

PDM1

GROUND

MODE_SEL

PA_ON

PDM2

CELL_TX_LO

VRR_PCS

VRR

VRR_CELL

PLL_CLOCK

PLL_DATA

GROUND

GROUND

GROUND

TCXO_VAA

PLL_EN

19.68MHZ

CELL_BAND

MODE_SEL

PCS_BAND

SLEEP-

LNA_GAIN_CTL

PDM2
