BMW 325 series 1991

background image

WIRING DIAGRAMS

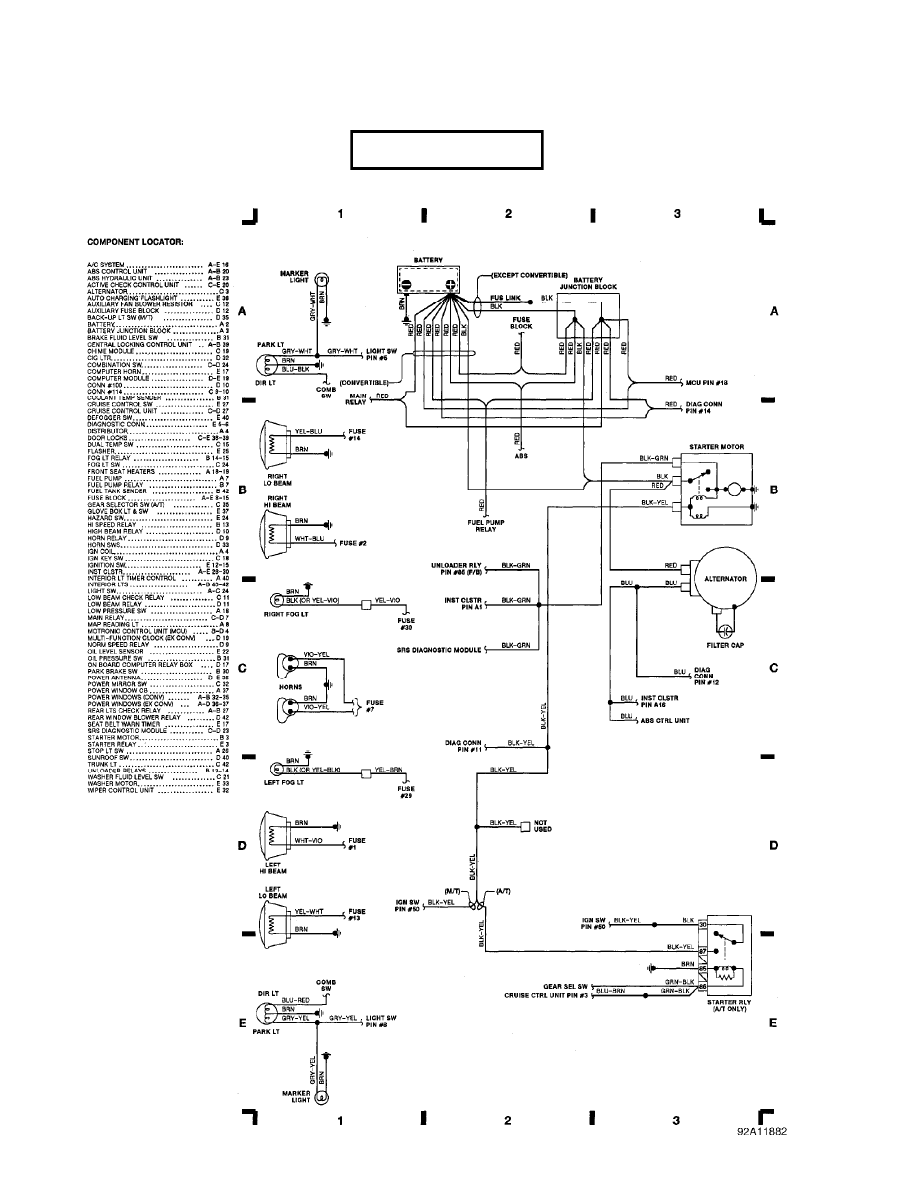

Fig. 1: Engine Compartment & Headlights (Grid 1-3)

1991 BMW 325 Series

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, November 20, 2000 01:28PM

CDR@WP.PL

background image

WIRING DIAGRAMS

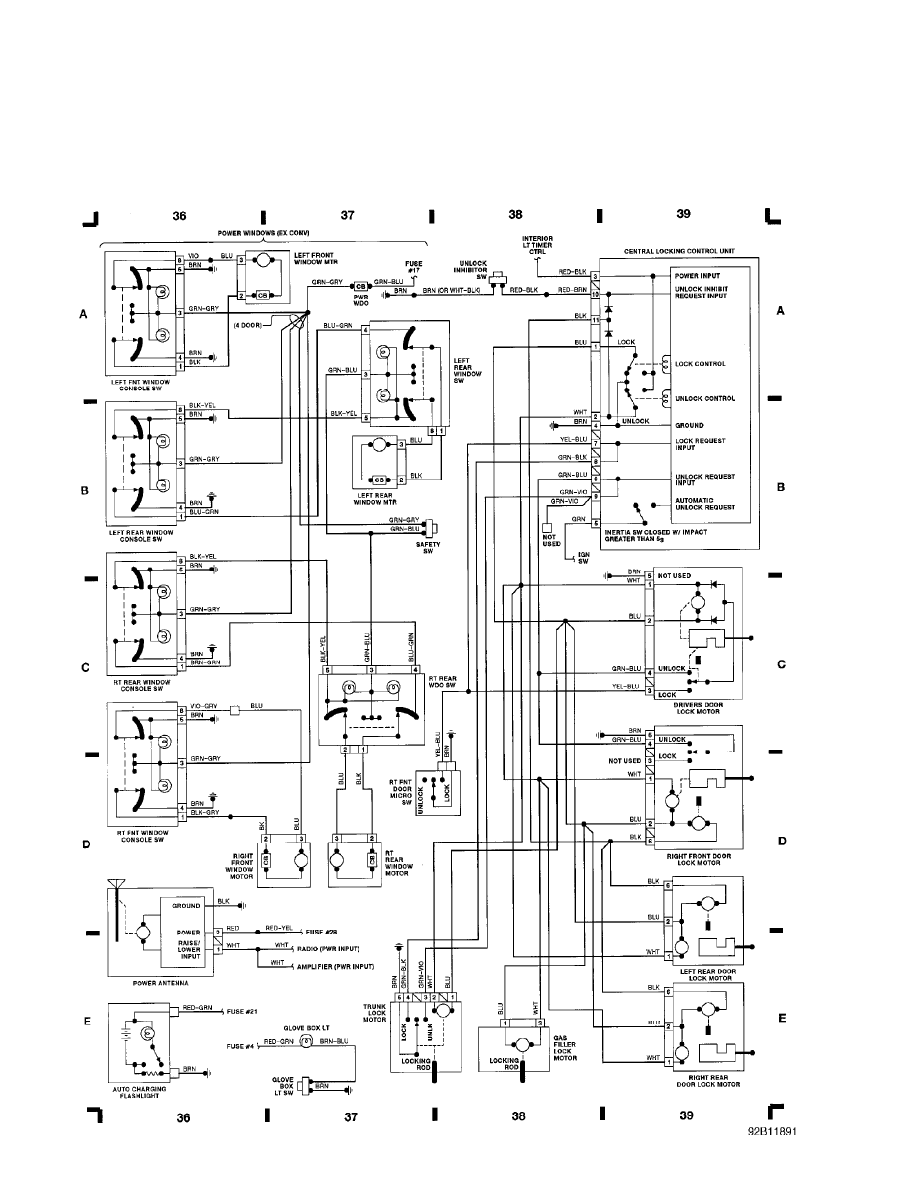

Fig. 10: Power Windows/Door, Cntrl Locking Ctrl (Grid 36-39)

1991 BMW 325 Series

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, November 20, 2000 01:29PM

background image

WIRING DIAGRAMS

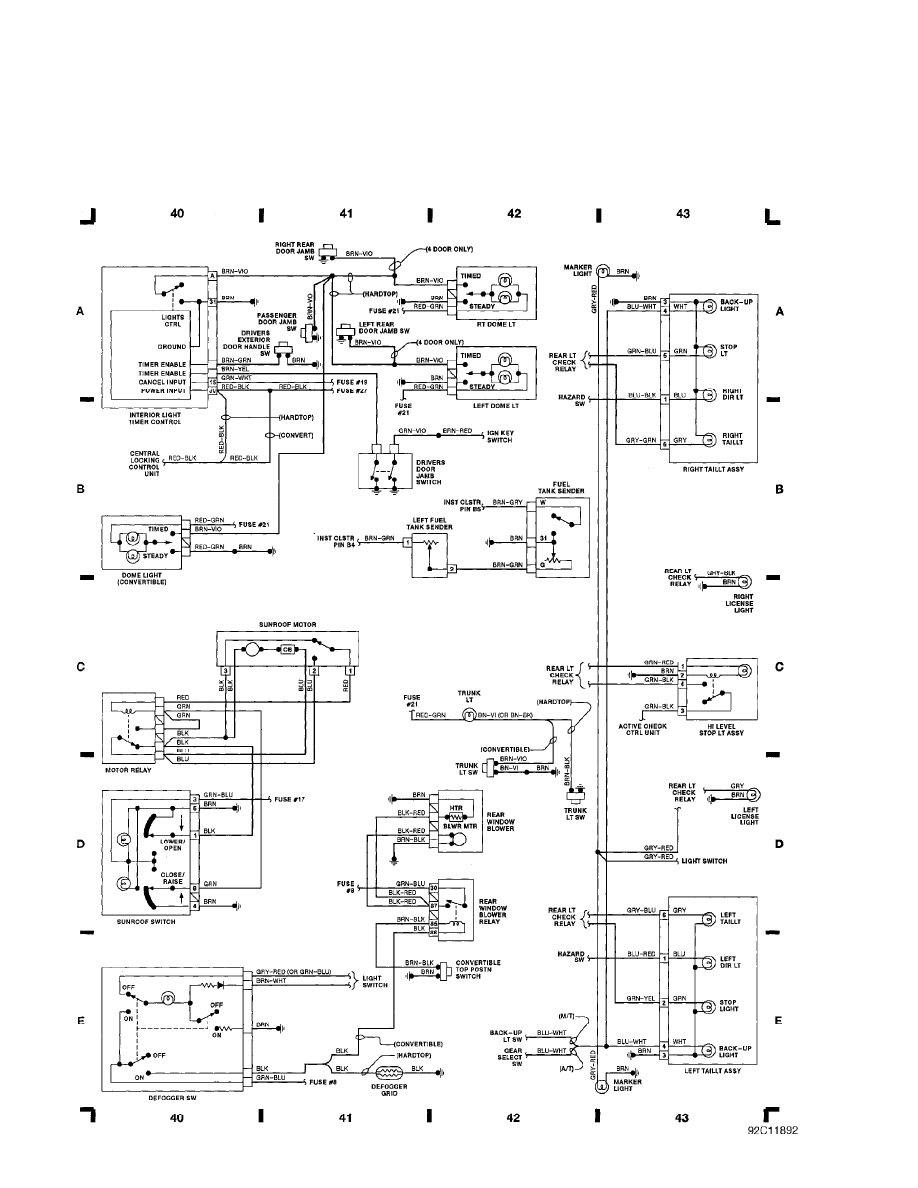

Fig. 11: Passenger Compartment & Taillights (Grid 40-43)

1991 BMW 325 Series

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, November 20, 2000 01:30PM

background image

WIRING DIAGRAMS

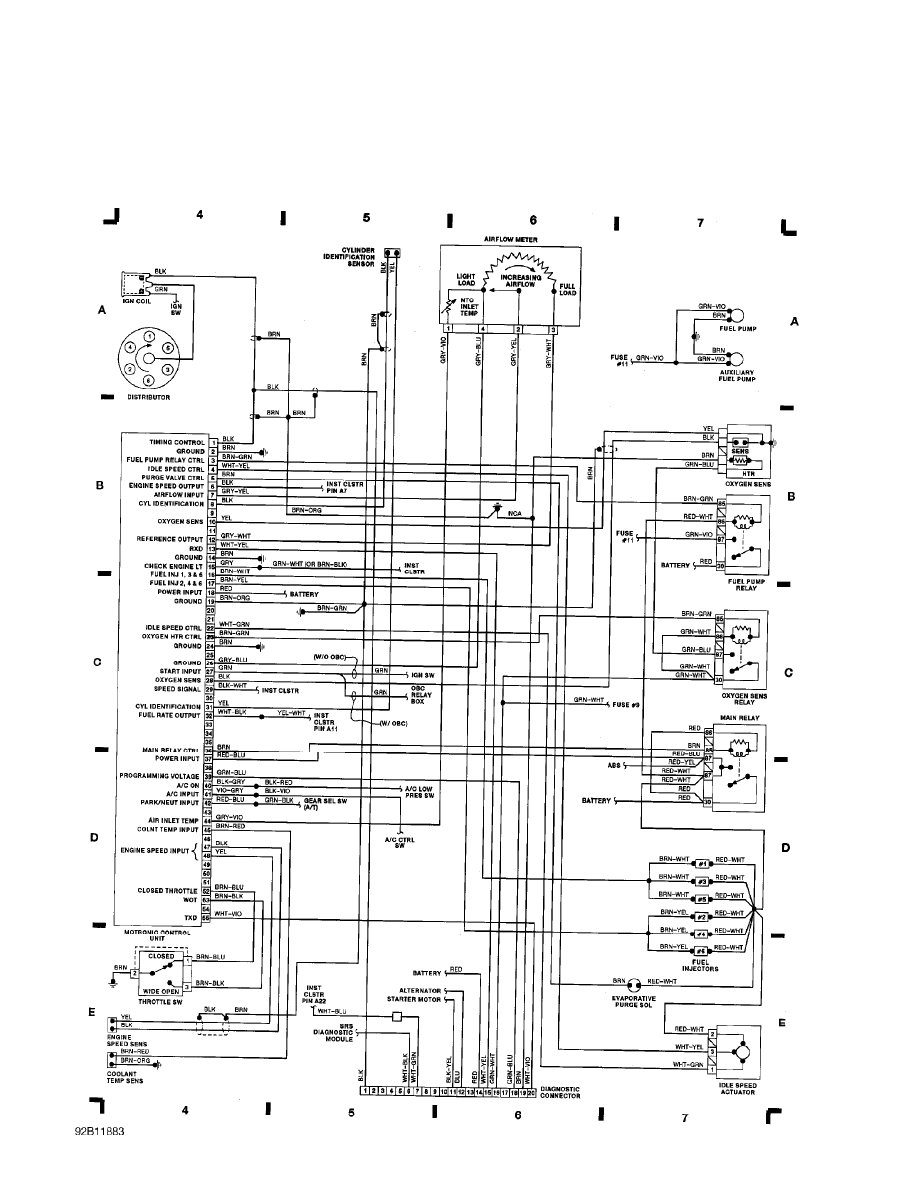

Fig. 2: Computer Engine Control (Grid 4-7)

1991 BMW 325 Series

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, November 20, 2000 01:28PM

background image

WIRING DIAGRAMS

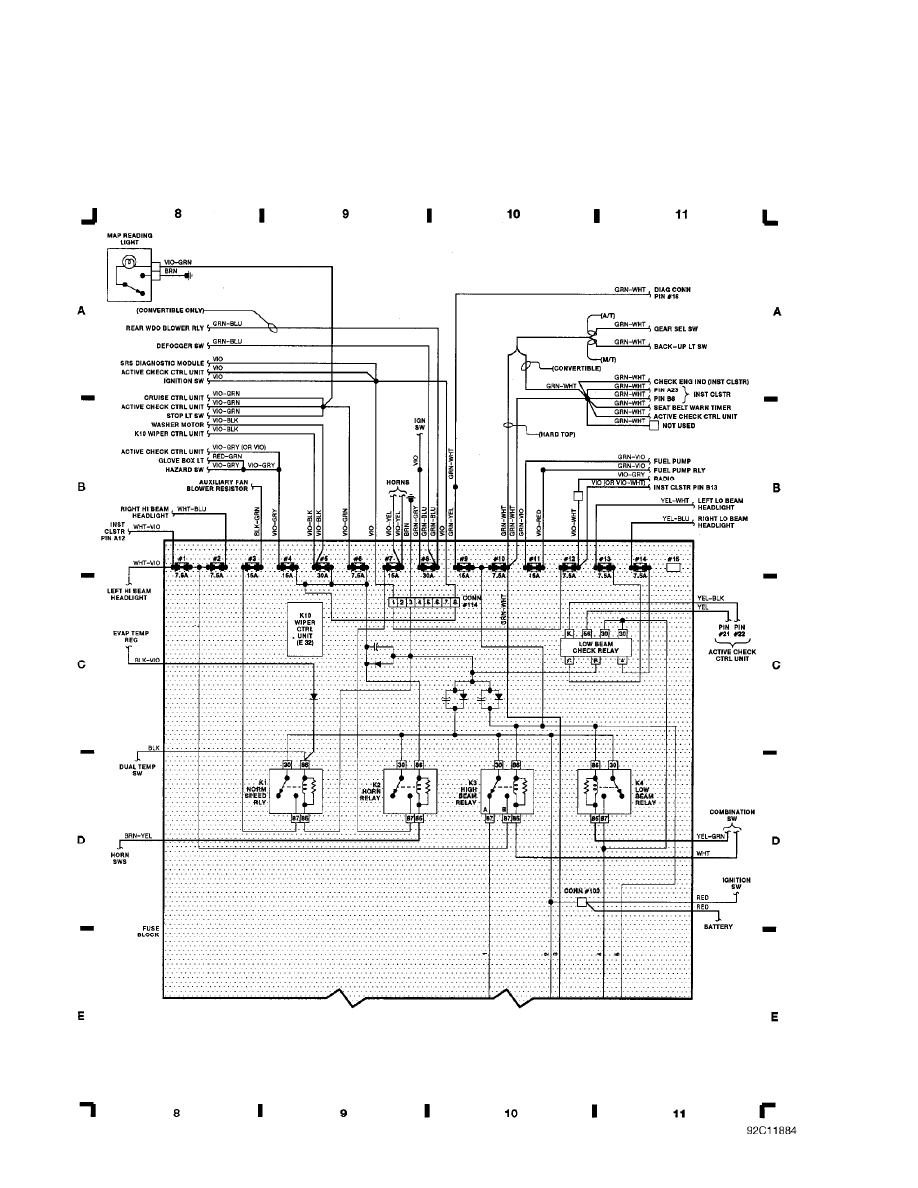

Fig. 3: Fuse Block (Grid 8-11)

1991 BMW 325 Series

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, November 20, 2000 01:28PM

background image

WIRING DIAGRAMS

Fig. 4: Fuse Block (Continued), Ignition Sw (Grid 12-15)

1991 BMW 325 Series

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, November 20, 2000 01:29PM

background image

WIRING DIAGRAMS

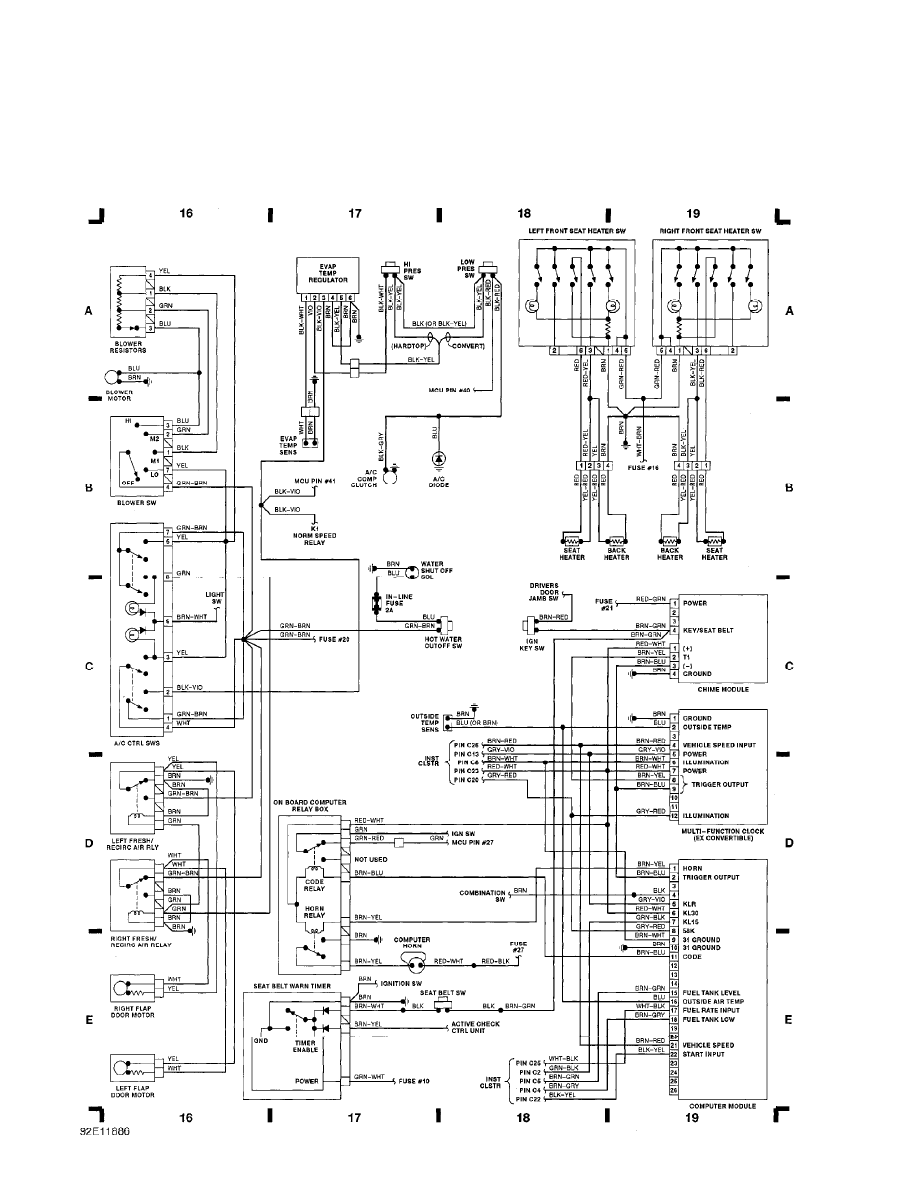

Fig. 5: A/C & Heating and Accessories, Comp Mod (Grid 16-19)

1991 BMW 325 Series

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, November 20, 2000 01:29PM

background image

WIRING DIAGRAMS

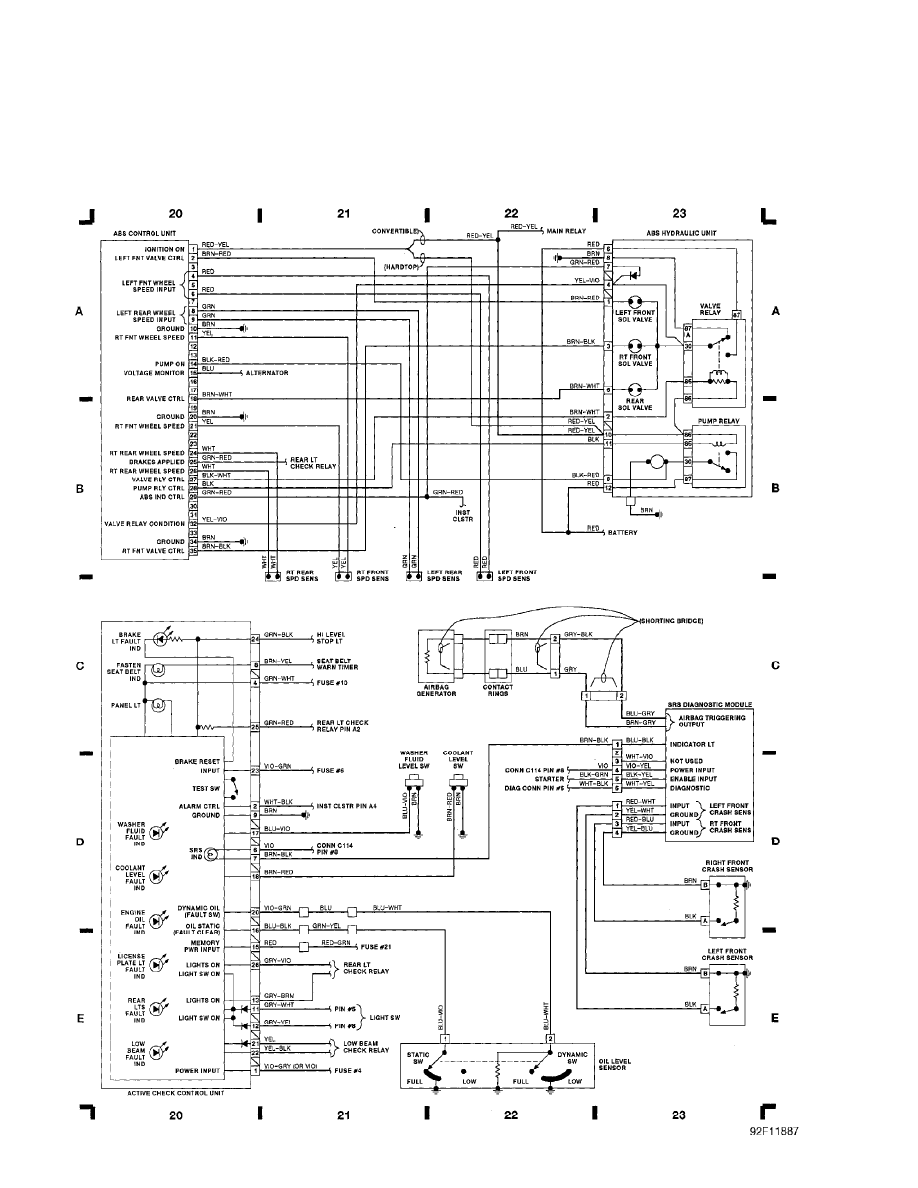

Fig. 6: ABS, SRS, Active Check Ctrl Unit (Grid 20-23)

1991 BMW 325 Series

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, November 20, 2000 01:29PM

background image

WIRING DIAGRAMS

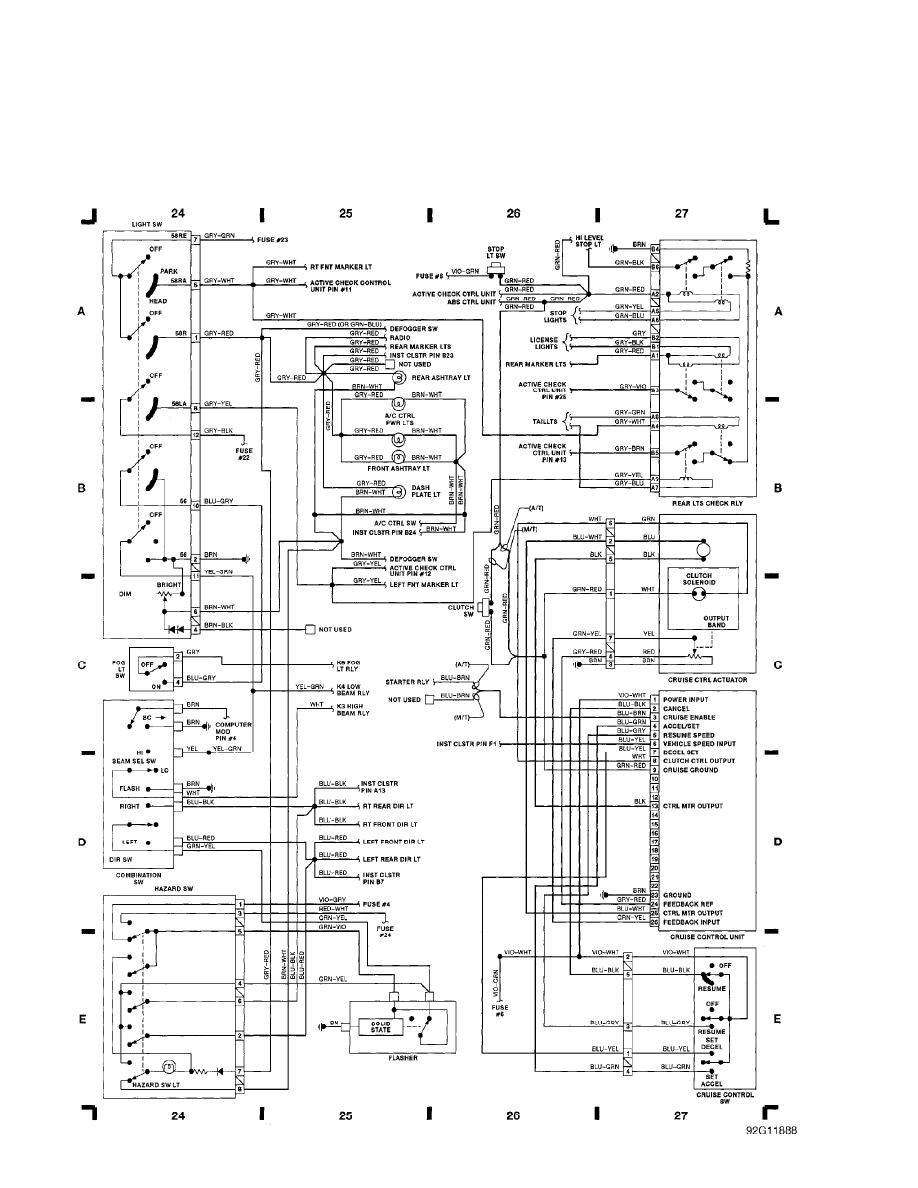

Fig. 7: Comb Sw, Light Sw, Cruise Control (Grid 24-27)

1991 BMW 325 Series

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, November 20, 2000 01:29PM

background image

WIRING DIAGRAMS

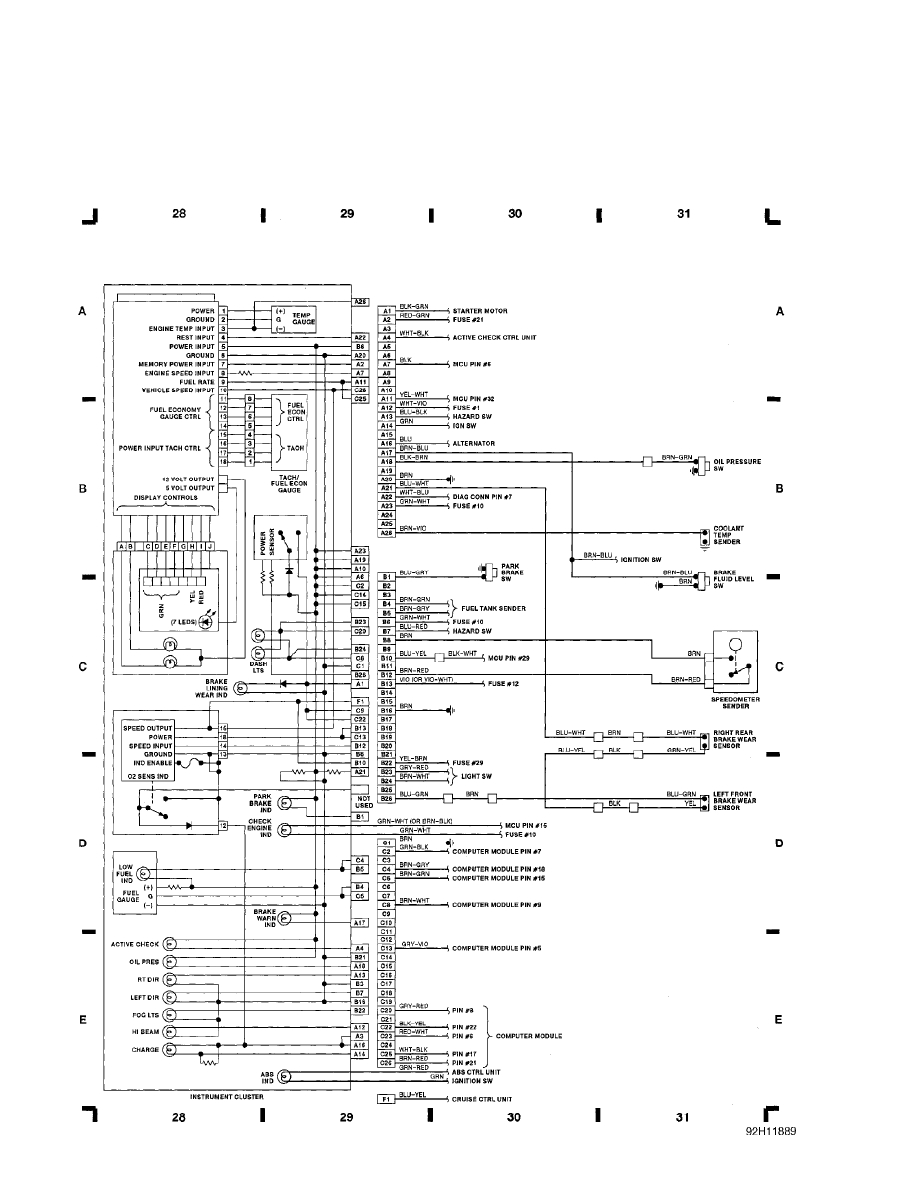

Fig. 8: Instrument Cluster (Grid 28-31)

1991 BMW 325 Series

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, November 20, 2000 01:29PM

background image

WIRING DIAGRAMS

Fig. 9: Power Mir/Window Console Sw, Wiper/Washer (Grid 32-35)

1991 BMW 325 Series

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, November 20, 2000 01:29PM
