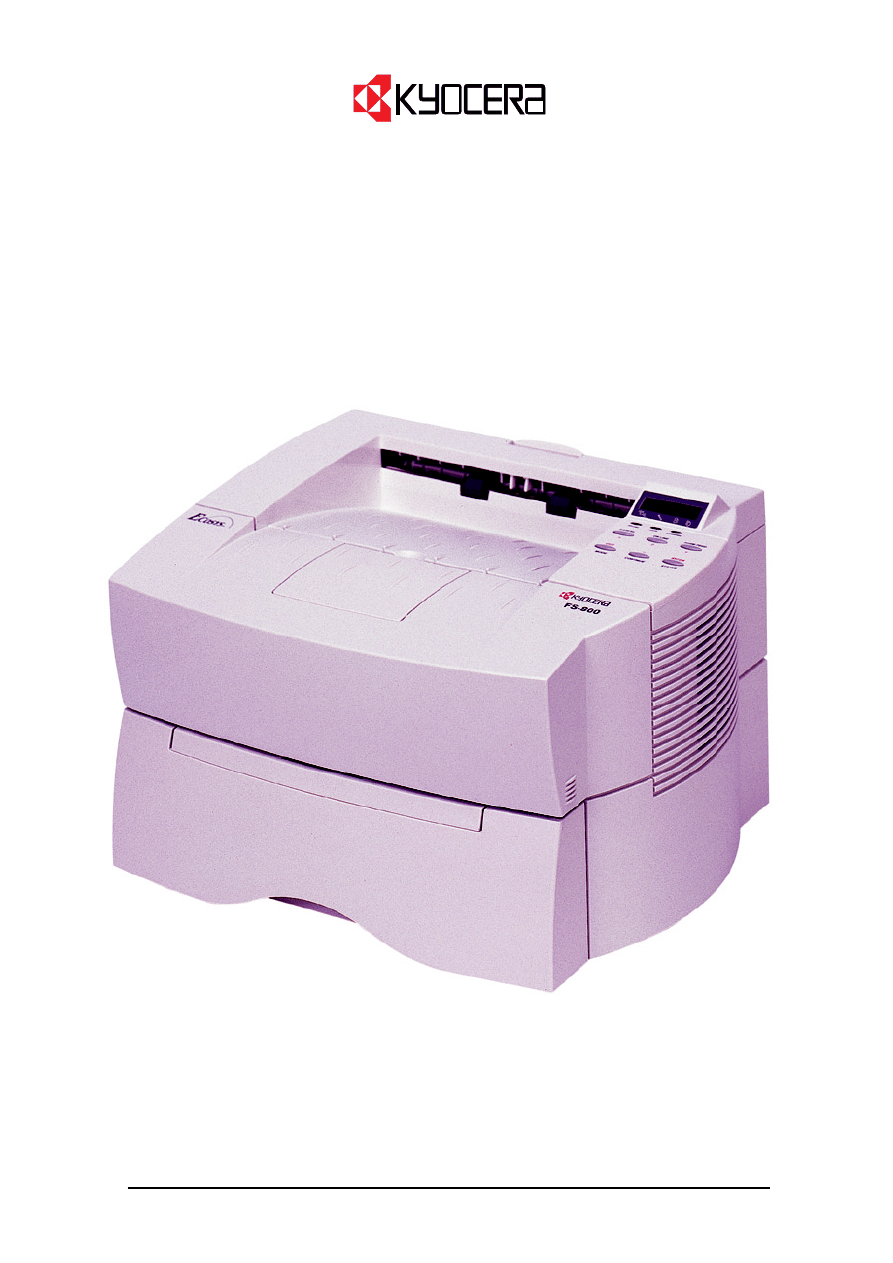

Kyocera FS 800 Parts Manual

background image

08−12−1998

PARTS CATALOGUE

FS−800

PAGE PRINTER

PAGE PRINTER − Parts Catalogue

KYOCERA FS−800

Page 1

background image

FS−800 Parts Catalogue

Table of Contents

Enclosure (Fig.1)

Drive Assy (Fig.3)

Controller (Fig.4)

Processor Unit (Fig.8)

Scanner Unit (Fig.9)

Developer Unit (Fig.10)

Introduction

The figures which follow depict the major assemblies of the printer or option,
broken down into components. Following each figure are the list giving the
following information:

Reference number which corresponds to the parts in the figure

’Ref No.’

Part code which identifies the part

’Part code’

A brief description of the part

’Part description’

Quantity of the part used in the printer or option

’Quantity’

Only the parts highlighted in BOLD should be ordered. All other parts are for
reference only and are not stocked.

Consumables and Maintanence Kits

Toner Kit

TK−16

PAGE PRINTER − Parts Catalogue

KYOCERA FS−800

Page 2

background image

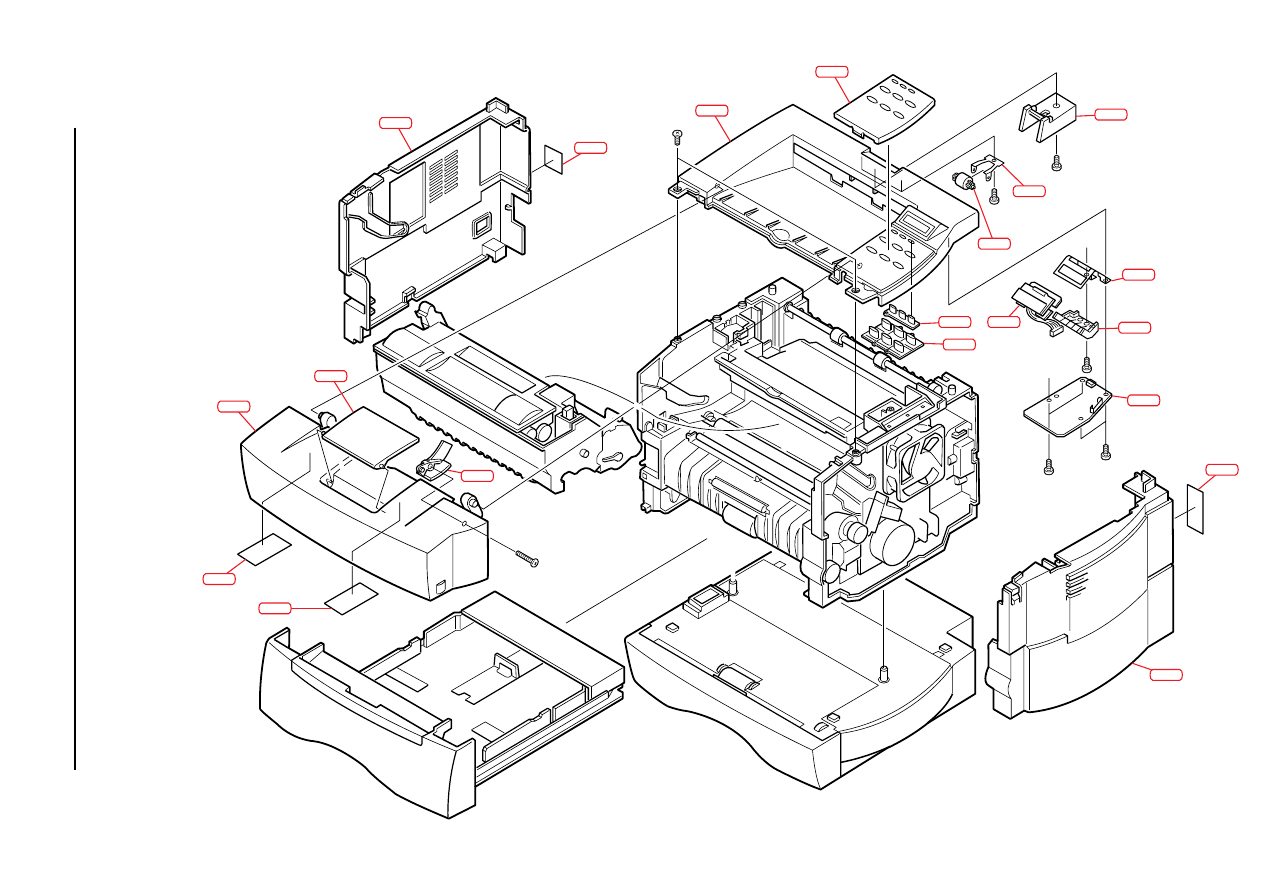

Fig.1 − Enclosure

PAGE PRINTER − Parts Catalogue

KYOCERA FS−800

Page 3

background image

Quantity

Description

Part Code

Ref No.

1

Process Unit 5PLPZ5CAEKE

01−000

1

Scanner Unit 5PLPZ6CAEKE

01−000

1

Cover Right

1

Cover Left

1

Cover Top

1

Lid Top TM (Europe)

1

Lid Top S (USA)

1

Tray Exit FD

1

Panel Top English

1

Panel Top French

1

Panel Top Spanish

1

Panel Top Italian

1

Panel Top German

1

Lens LED

1

Button

1

Roller Pinch

1

BKT Pulley FD

1

Label Diagram

1

Ser No Plate (U)

1

Lever Shutter

1

Label Ser Caution

1

Label Diagram B

1

RID Stocker

1

Holder LCD

1

Cover Panel

1

Panel PWB Assy KP−655

APRCZC2005AH

1

LCD PWB Assy KP−657

APRLCC1001AH

1

Cover Rear Assy

PAGE PRINTER − Parts Catalogue

KYOCERA FS−800

Page 4

background image

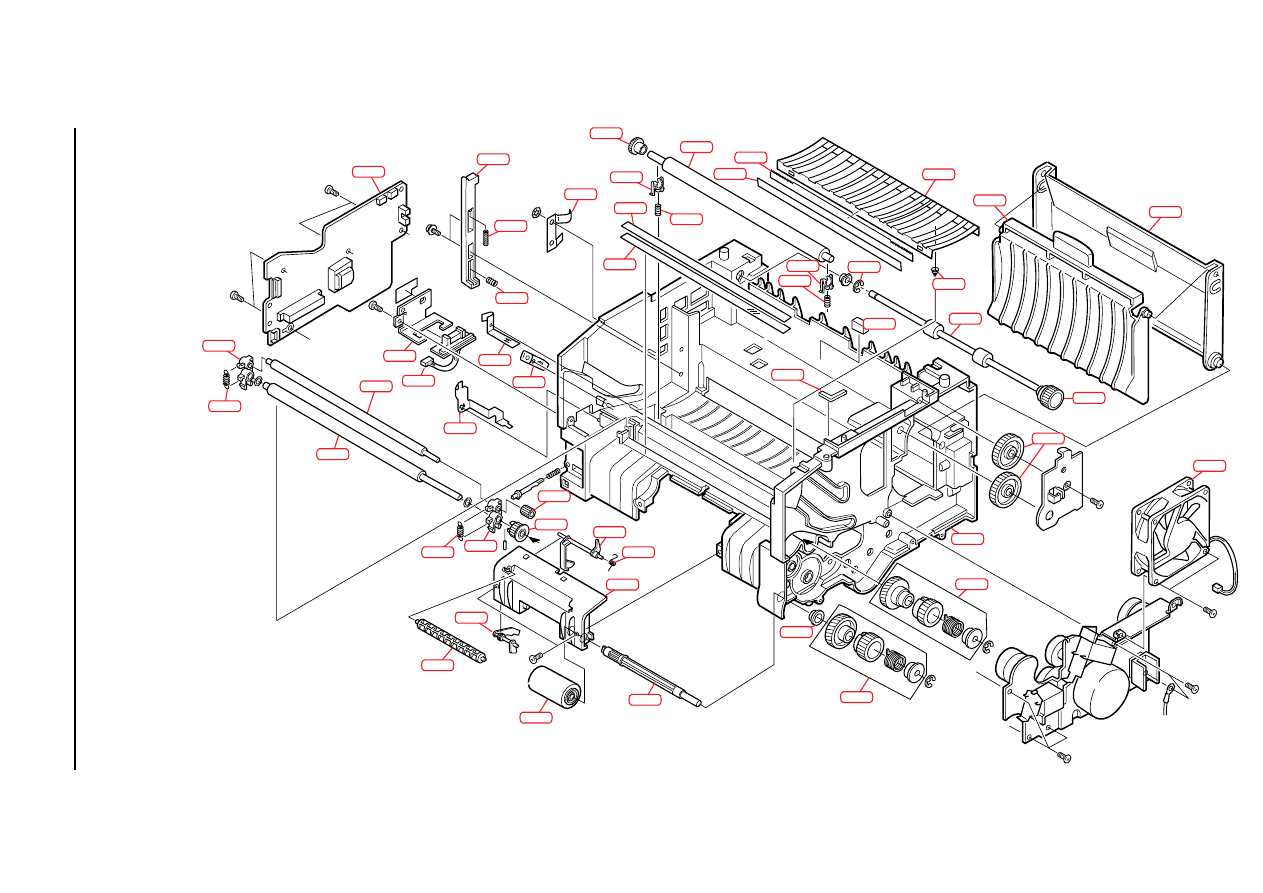

Fig.2 − Frame

PAGE PRINTER − Parts Catalogue

KYOCERA FS−800

Page 5

background image

Quantity

Description

Part Code

Ref No.

1

Frame Base

1

Contact Bias

1

Contact Main

1

Contact Earth Regist

1

Contact Transfer

1

Plate Connector DLP

1

Sheet B Insulator

02−007

1

Rod Interlock

1

Spring Interlock A

1

Spring Interlock B

1

Roller Transfer

1

Gear TC Z18

1

Bush Transfer R

1

Bush Transfer L

1

Spring Transfer L

1

Spring Transfer R

1

Plate Earth Guide

1

Spring Earth

1

Brush Discharger

1

Sheet Regist

1

Sheet Regist B

1

Shaft Feed

1

Clutch Feed

1

Roller Feed Assy

1

Bush Pom

1

Roller Exit

1

Bush Exit

1

Gear Exit Z22

1

Gear Z38

1

Cover Cord

02−030

1

Conn. Cord Assy HV to LSU

02−031

1

Conn. Cord Assy LSU Gnd

02−032

1

Conn. Cord Assy Panel

02−033

1

Conn. Cord Assy

02−034

1

Conn. Cord Assy Developer

1

Roller Regist Low

1

Roller Regist Up

1

Bush Regist Left

1

Bush Regist Right

1

Spring Regist R

1

Gear Regist Z16

1

Gear Regist Z35

1

Clutch Regist

1

Holder Feed

1

Pulley Feed

PAGE PRINTER − Parts Catalogue

KYOCERA FS−800

Page 6

background image

Quantity

Description

Part Code

Ref No.

1

Actuator Feed

1

Actuator Empty

1

Trans Assy

1

Fan Motor

ZNF2401901*01

1

Seal Frame

1

Cord Press

1

Sheet Discharger

PAGE PRINTER − Parts Catalogue

KYOCERA FS−800

Page 7

background image

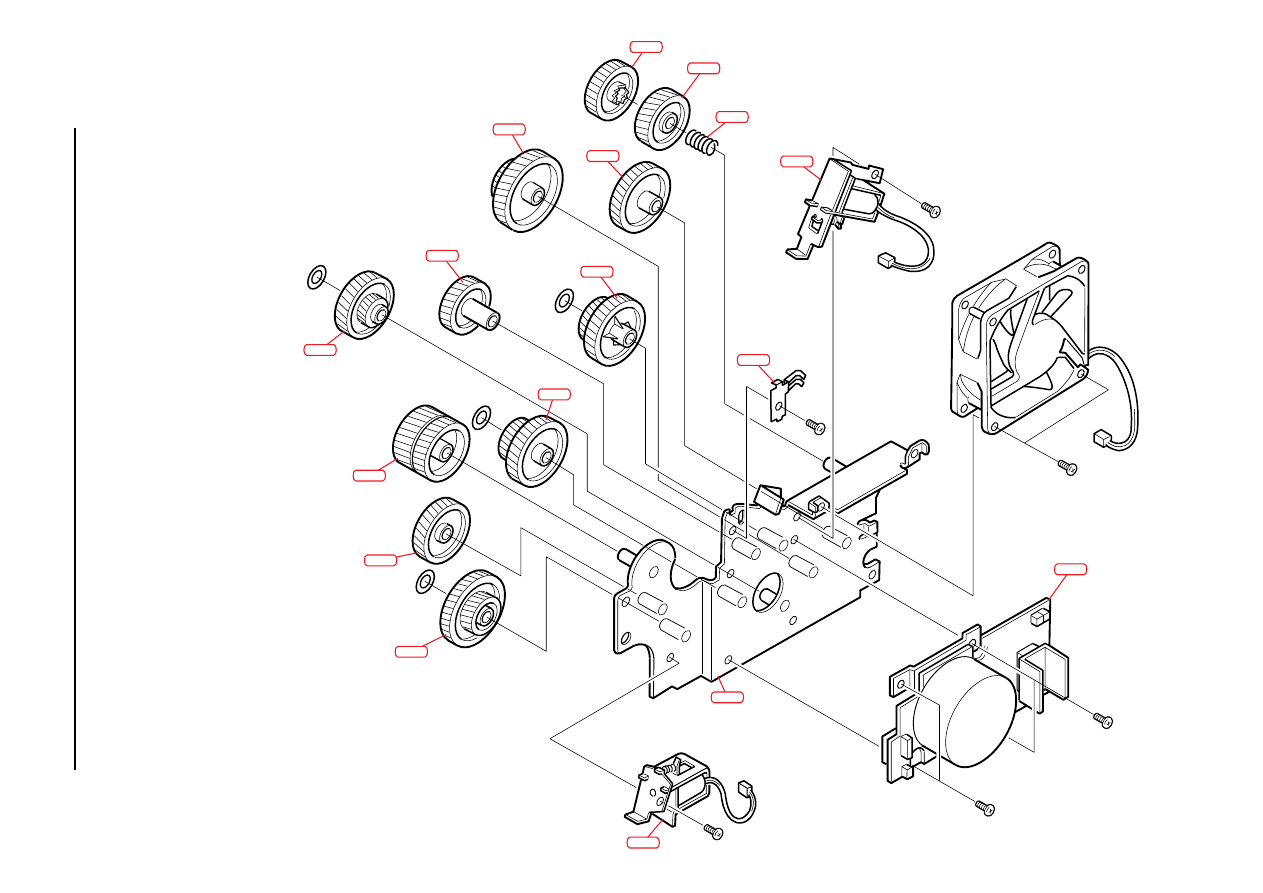

Fig.3 − Drive Assy

PAGE PRINTER − Parts Catalogue

KYOCERA FS−800

Page 8

background image

Quantity

Description

Part Code

Ref No.

1

Drive Assy

1

DRIVE GEAR PACK

03−000

1

Plate Drive

1

Gear Z64H−Z19H

1

Gear Z49H−Z22H

1

Gear Z42H−Z25H

1

Gear Z31H

1

Gear Z42H

1

Gear Free Z32H

1

Gear Free Z32S

1

Gear Z66H−Z27H

1

Gear Z45H−Z24H

1

Gear Z39H

1

Gear Z37H−Z36H

1

Plate Earth Drum

1

Spring Free

1

Free Solenoid Assy

ZSA2402410201

1

Regist Soleniod Assy

ZSA2402410101

1

Main Motor

PAGE PRINTER − Parts Catalogue

KYOCERA FS−800

Page 9

background image

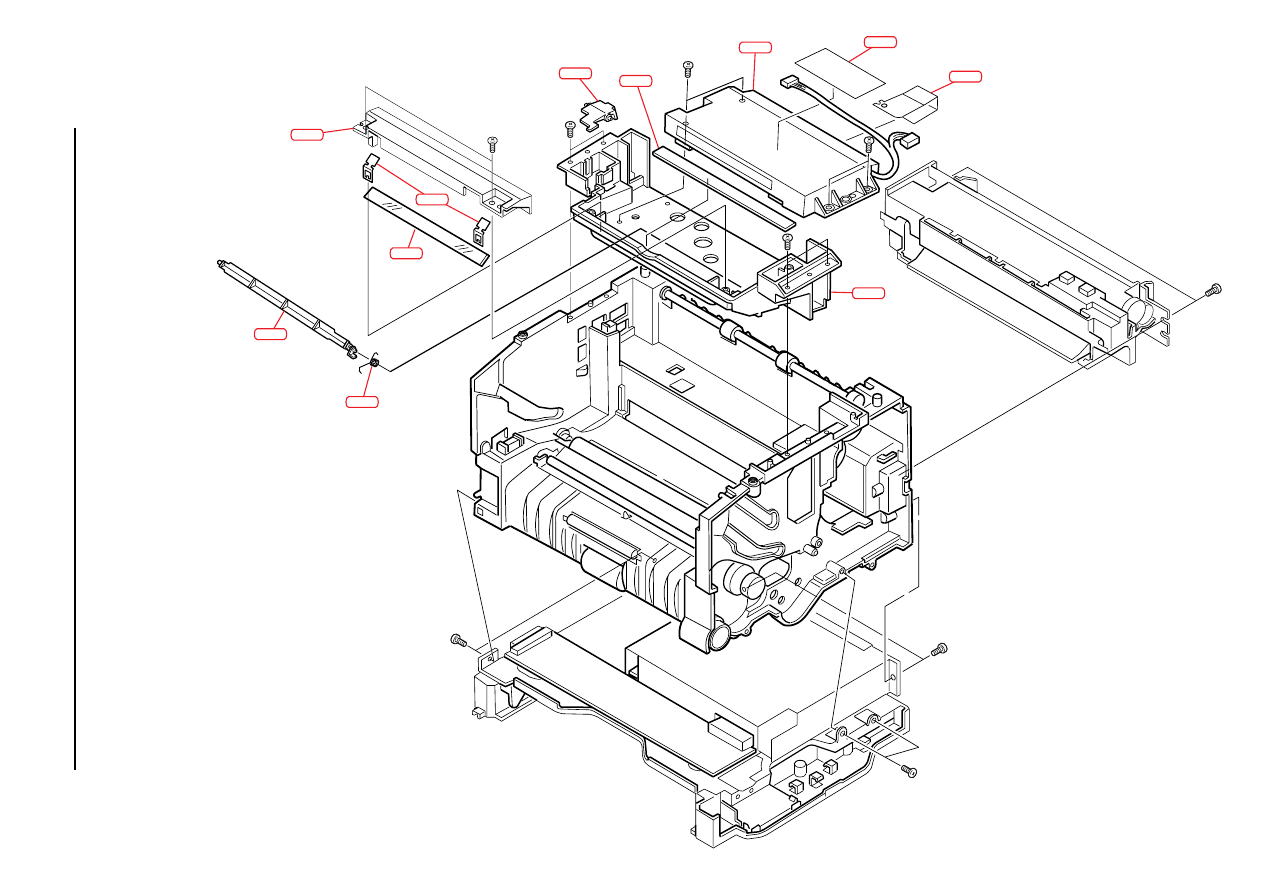

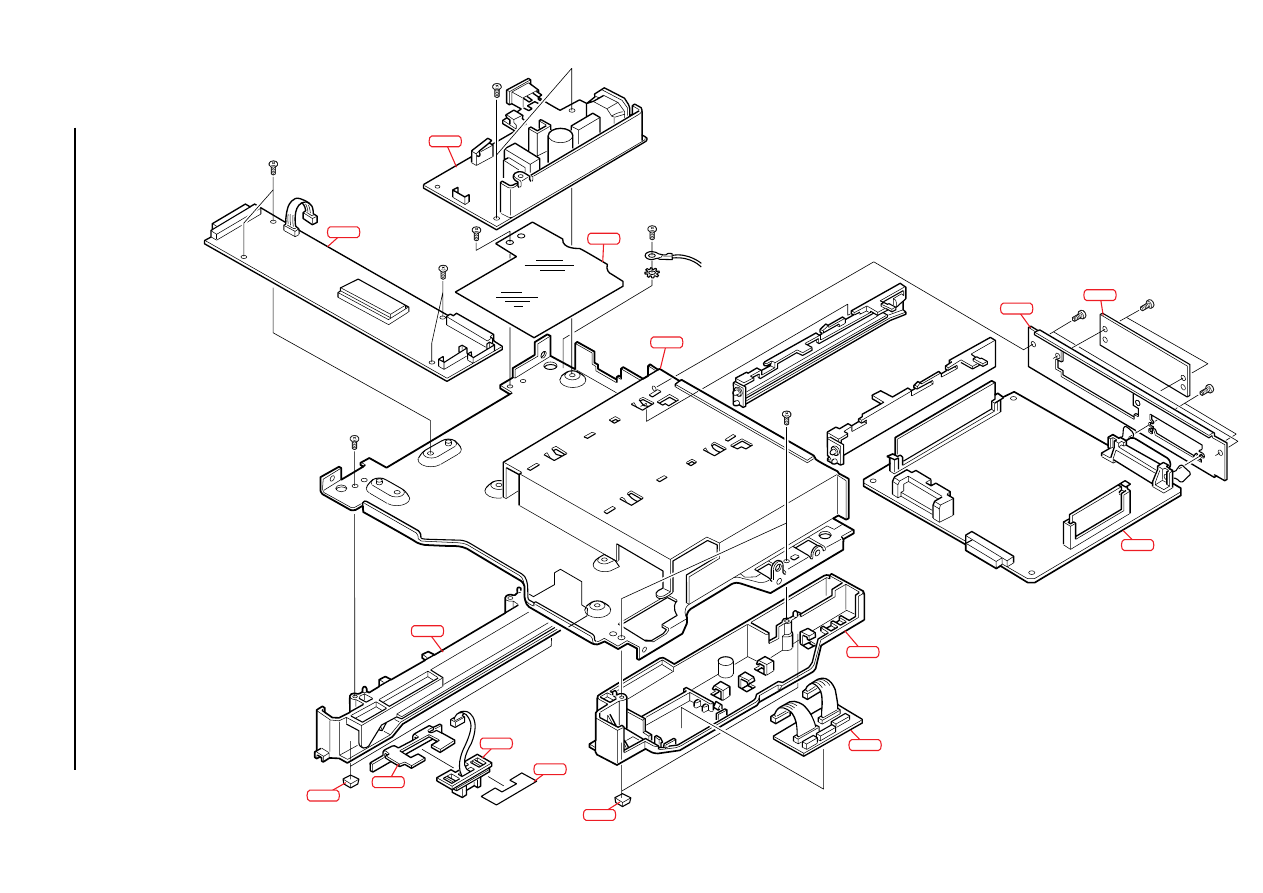

Fig.4 − Controller

PAGE PRINTER − Parts Catalogue

KYOCERA FS−800

Page 10

background image

Quantity

Description

Part Code

Ref No.

1

DIMM PWB Assy KP−610A

APRMEG4019AH

04−000

1

Switching Regulator 230v

1

Switching Regulator 120v

1

Engine PWB Assy KP−651

APRCZC2004AH

1

Main PWB Assy KP−650

APRLGC2018AH

1

Relay PWB Assy KP−653

APRIFC2010AH

1

Guide Cassette Left

1

Guide Cassette Right

1

Plate Connector PF

Conn Cord Assy

1

Foot

1

Box Controller Assy

1

Panel Rear

1

Plate Option

1

Sheet PWB

1

Sheet Connector

1

EMI Gasket

04−017

PAGE PRINTER − Parts Catalogue

KYOCERA FS−800

Page 11

background image

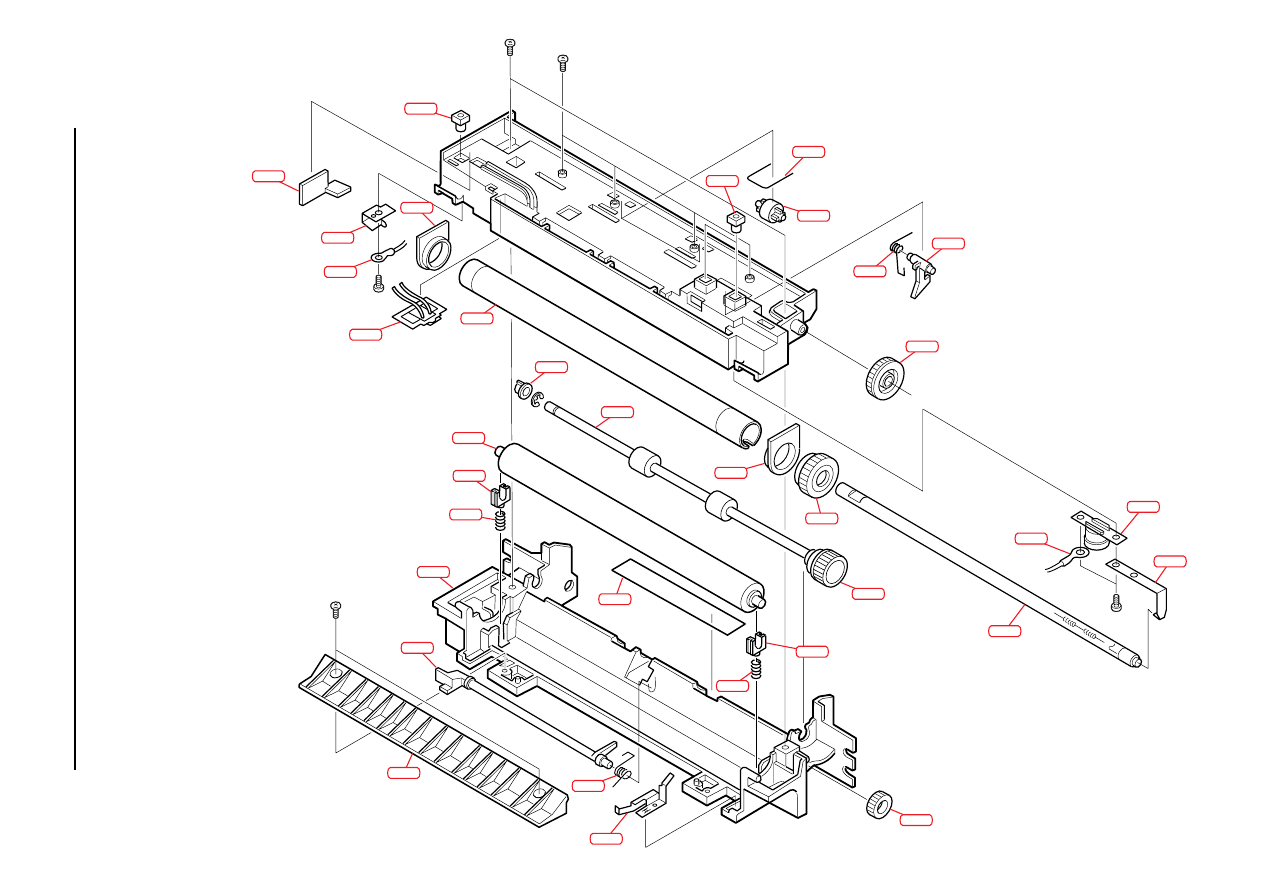

Fig.6 − Fuser

PAGE PRINTER − Parts Catalogue

KYOCERA FS−800

Page 12

background image

Quantity

Description

Part Code

Ref No.

1

Fuser Unit (5PLPPZ3CAEKE)

1

Roller Exit

1

Bush A

1

Paper Chute Fuser

1

Gear Idle Z18

1

Bush FD R

1

Frame Fuser Low

1

Spring Actuator

1

Actuator Fuser

1

Roller Press

1

Spring Fuser

1

Plate Earth Fuser

1

Bush Press

1

Frame Fuser Up

06−013

1

Thermistor Assy

1

Thermo Cut Out

YFFQ14001**01

1

Roller Heat

1

Gear Fuser Z30

1

Lamp Heater 230v

ZPB2411920101

1

Lamp Heater 120v

1

Lamp Heater 100v

1

Spring Separator

1

Separator

1

Spring Exit

1

Holder Lamp L

1

Holder Lamp R

1

Bush Heat L

1

Bush Heat R

1

Gear Fuser

1

Roller Pinch

1

Conn Cord S02211 (240v)

1

Conn Cord S02212 (120v)

1

Support Lamp

1

Nut Fuser

1

Sheet Exit

1

Label Fuser Caution

06−032

PAGE PRINTER − Parts Catalogue

KYOCERA FS−800

Page 13

background image

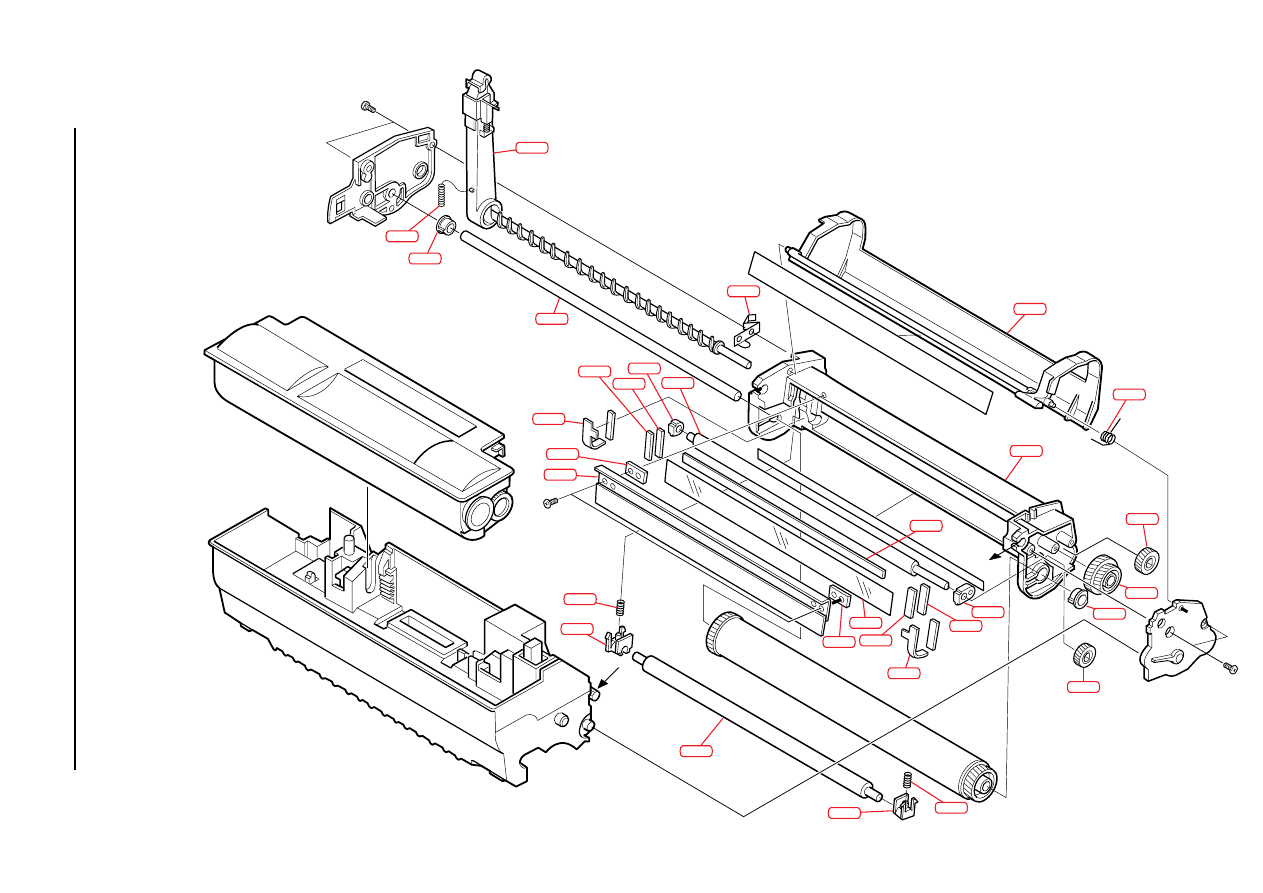

Fig.8 − Processor Unit

PAGE PRINTER − Parts Catalogue

KYOCERA FS−800

Page 14

background image

Quantity

Description

Part Code

Ref No.

1

Processor Unit

Shaft Drum

Spacer Blade

Plate Bias Main

Roller Main

Spring MC

Frame Drum

Gear Idle Z24H−Z30H

Gear Screw Z17H

Gear Sweep Z15H

Bush Sweep Left

Bush Sweep Right

Sheet Drum

Seal Drum Left

Seal Drum Right

Seal Blade Long

Sheet Sweep

Roller Sweep

Bush Main Left

Bush Main Right

Spring Case Belt

Bush A

Cover Drum

Spring Cover Drum

Seal Blade Upper

Seal Blade Lower

Seal Cover Drum

Blade Assy

Case Belt Assy

Case Feed Toner

Roller Belt

Belt Feed Toner

Shutter Case Belt

Spring Shutter

Seal Case Belt

Screw Cleaner

Spring Stopper

Stopper Case Belt

Drum Assy

PAGE PRINTER − Parts Catalogue

KYOCERA FS−800

Page 15

background image

Fig.9 − Scanner Unit

PAGE PRINTER − Parts Catalogue

KYOCERA FS−800

Page 16

background image

Quantity

Description

Part Code

Ref No.

1

Scanner Unit

Mirror Exit

Glass Exit

Shutter Scan

spring Shutter

Frame Middle

Cover Scan

Label Caution

Lever Interlock

Spring Mirror E

Bind T.T. Screw (+)

Earth AC

PAGE PRINTER − Parts Catalogue

KYOCERA FS−800

Page 17

background image

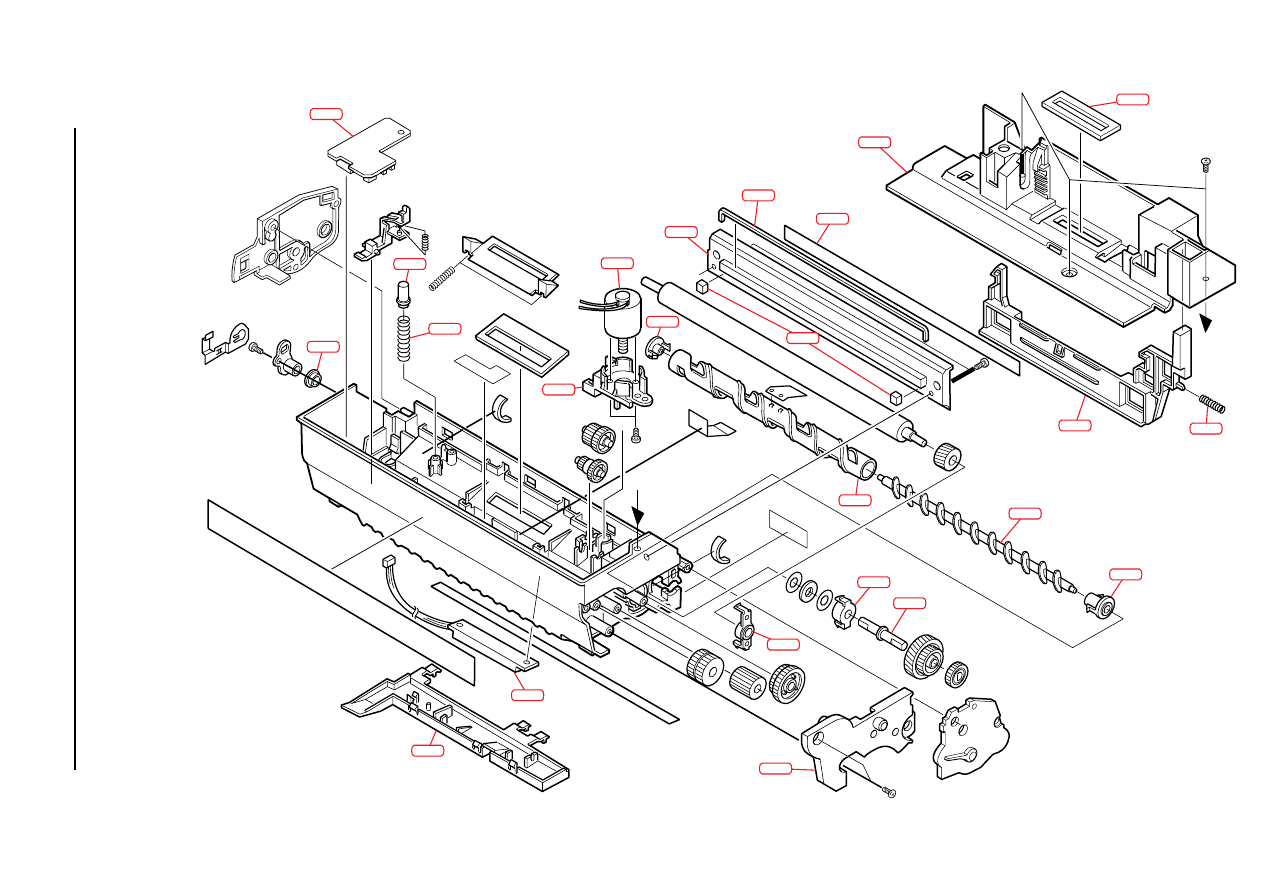

Fig.10 − Developer Unit

PAGE PRINTER − Parts Catalogue

KYOCERA FS−800

Page 18

background image

Quantity

Description

Part Code

Ref No.

1

Processor Unit

Seal Shutter Guide

Spring Lid DLP

Cap DLP

Pin Mixer

Seal Cover Mag

Bush Mixer

Bush Mag L

Bush Mag R

Guide Paper DLP

Toner Sensor

Blade DLP

Seal Blade

Seal Blade Side

Bracket Motor

DC Motor

Conn. Cord S02208

Lid DLP

Lever DLP

Spring Lever

Flange Tube L

Flange Tube R

Tube Mixer

Shaft Mixer

Scaper Sensor

P.W. Board Assy

Cover DLP

DLP Mech Elec Assy

P.W. Board Assy

PAGE PRINTER − Parts Catalogue

KYOCERA FS−800

Page 19
