MITSUBISHI ECLIPSE 1993

SYSTEM WIRING DIAGRAMS

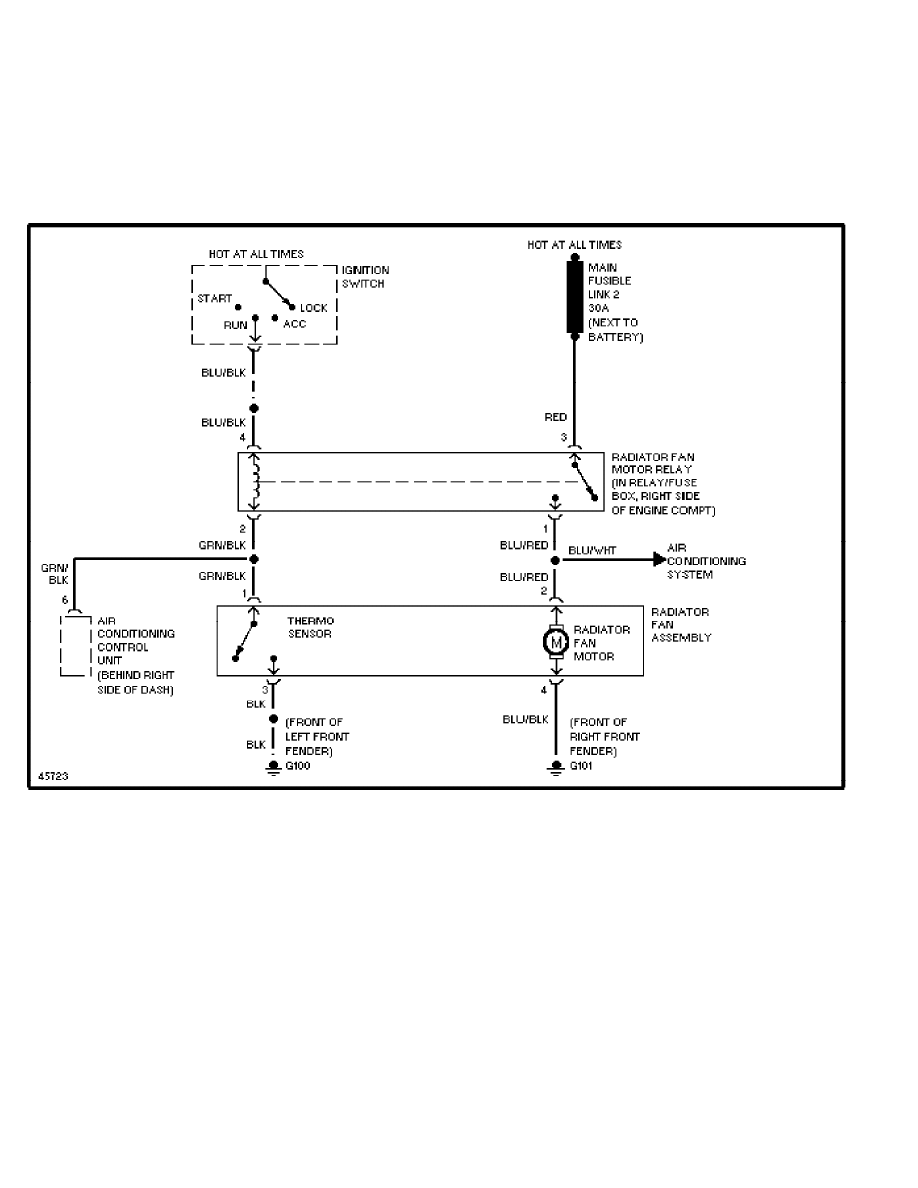

Cooling Fan Circuit

1993 Mitsubishi Eclipse

For x

Thursday, March 17, 2005 09:24AM

SYSTEM WIRING DIAGRAMS

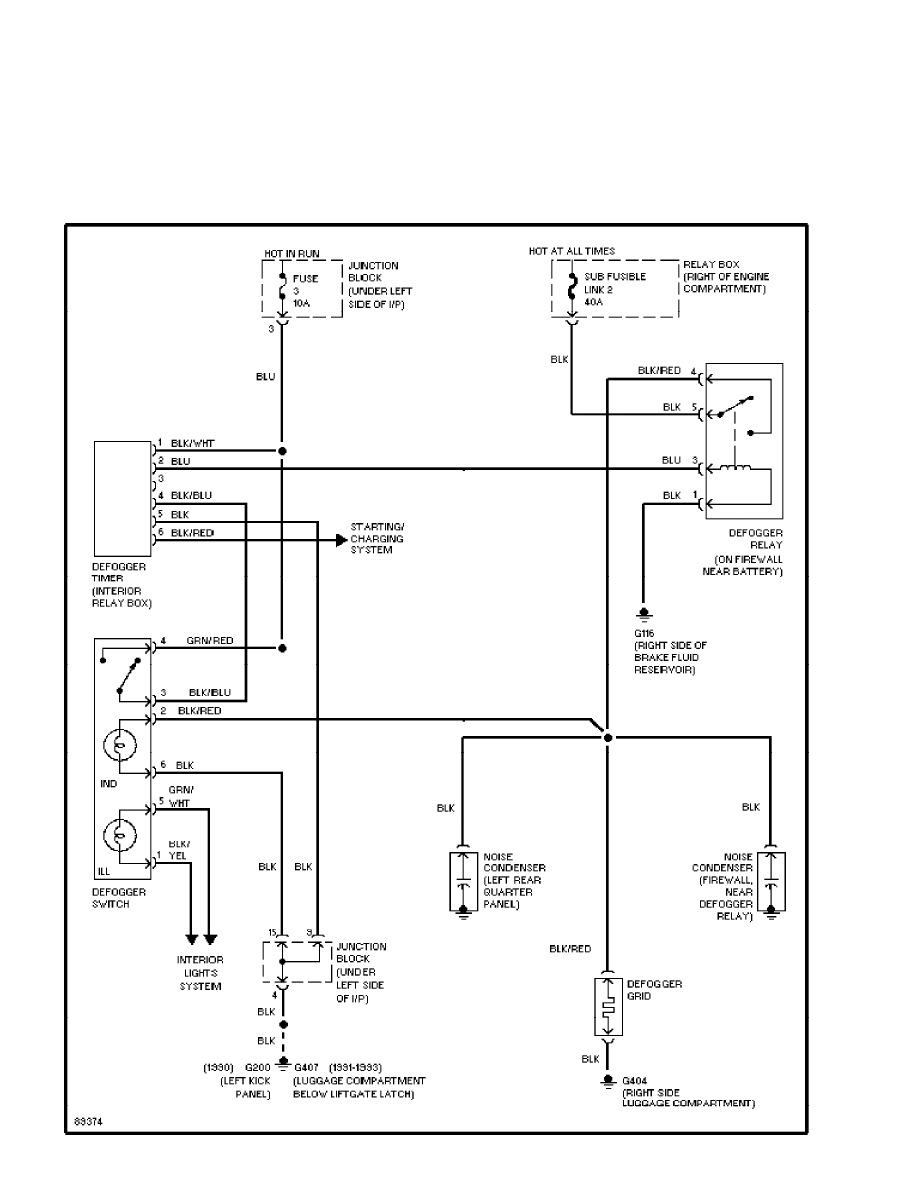

Defogger Circuit (p. 2)

1993 Mitsubishi Eclipse

For x

Thursday, March 17, 2005 09:24AM

SYSTEM WIRING DIAGRAMS

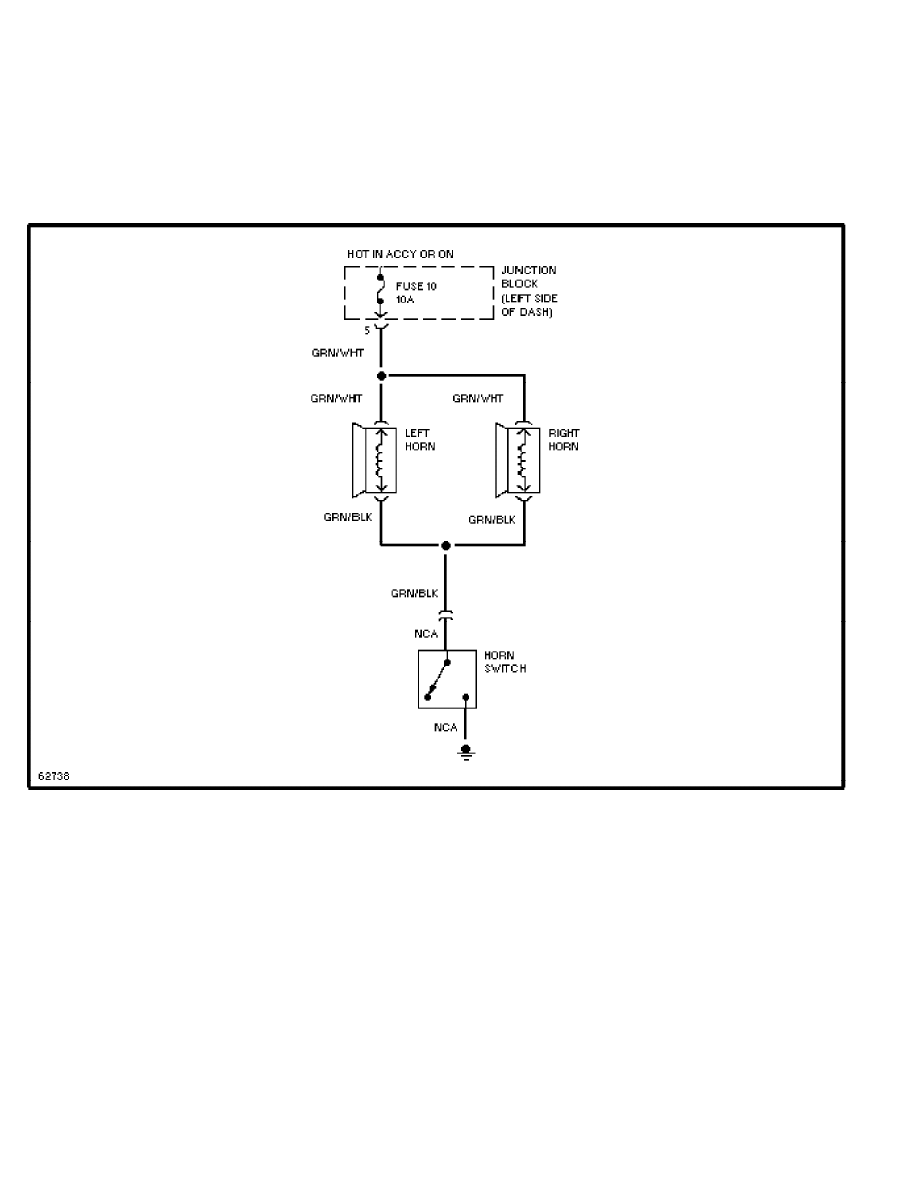

Horn Circuit (p. 3)

1993 Mitsubishi Eclipse

For x

Thursday, March 17, 2005 09:24AM

SYSTEM WIRING DIAGRAMS

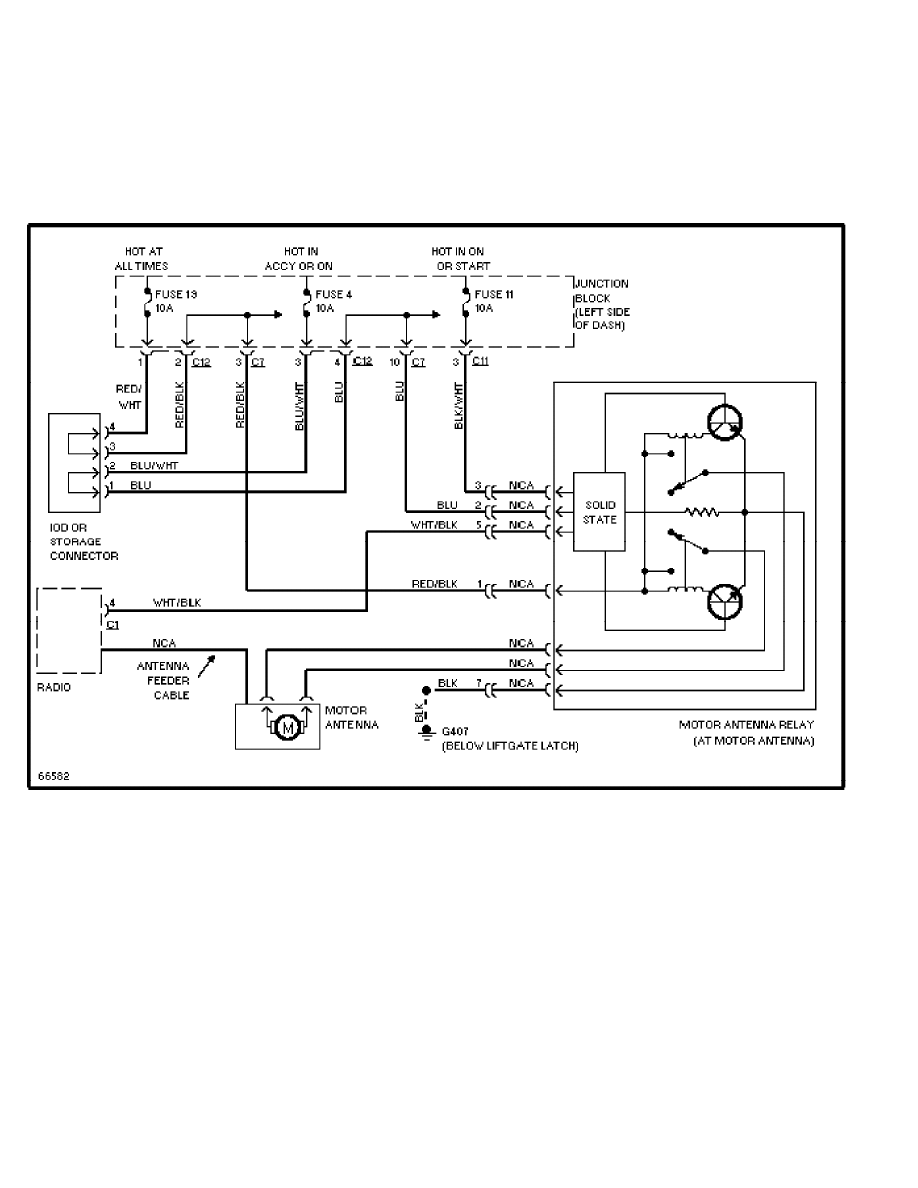

Power Antenna Circuit (p. 4)

1993 Mitsubishi Eclipse

For x

Thursday, March 17, 2005 09:24AM

SYSTEM WIRING DIAGRAMS

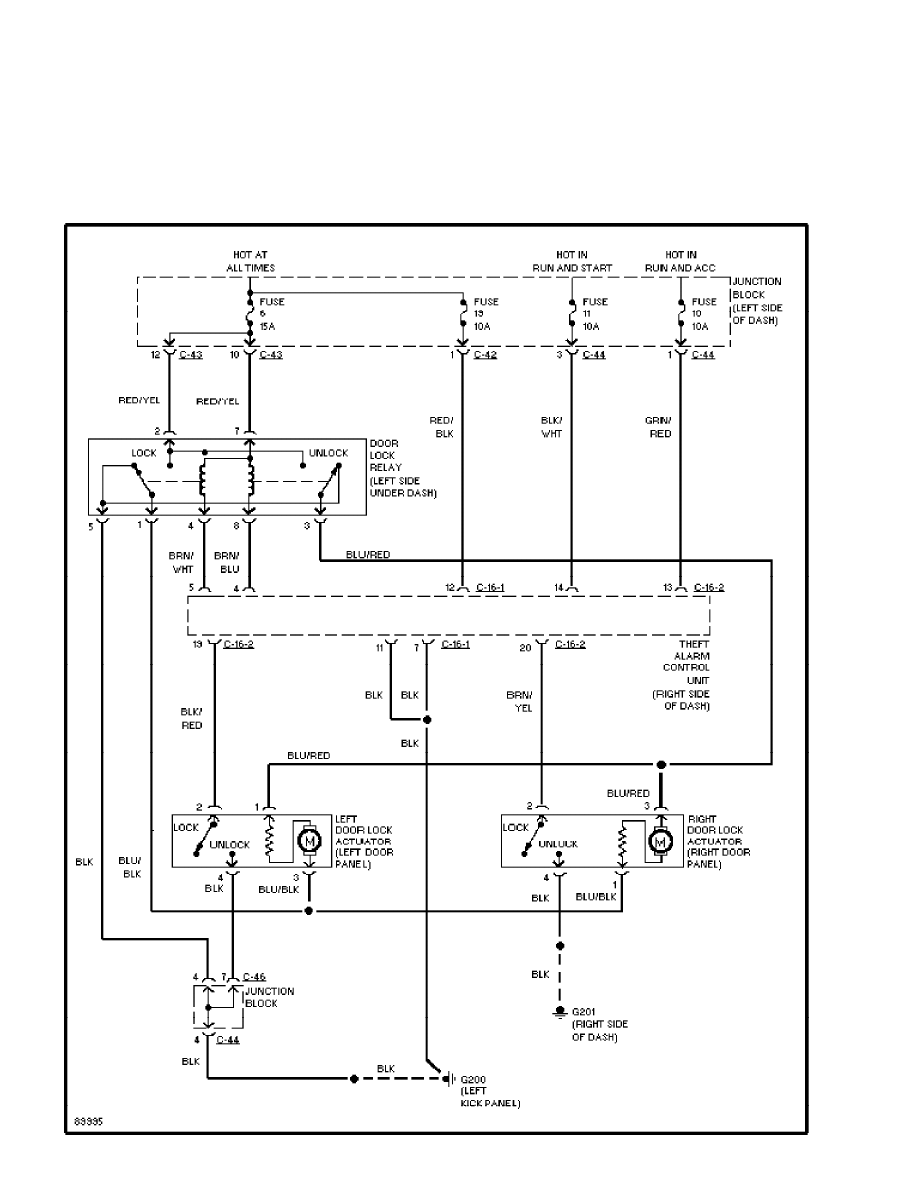

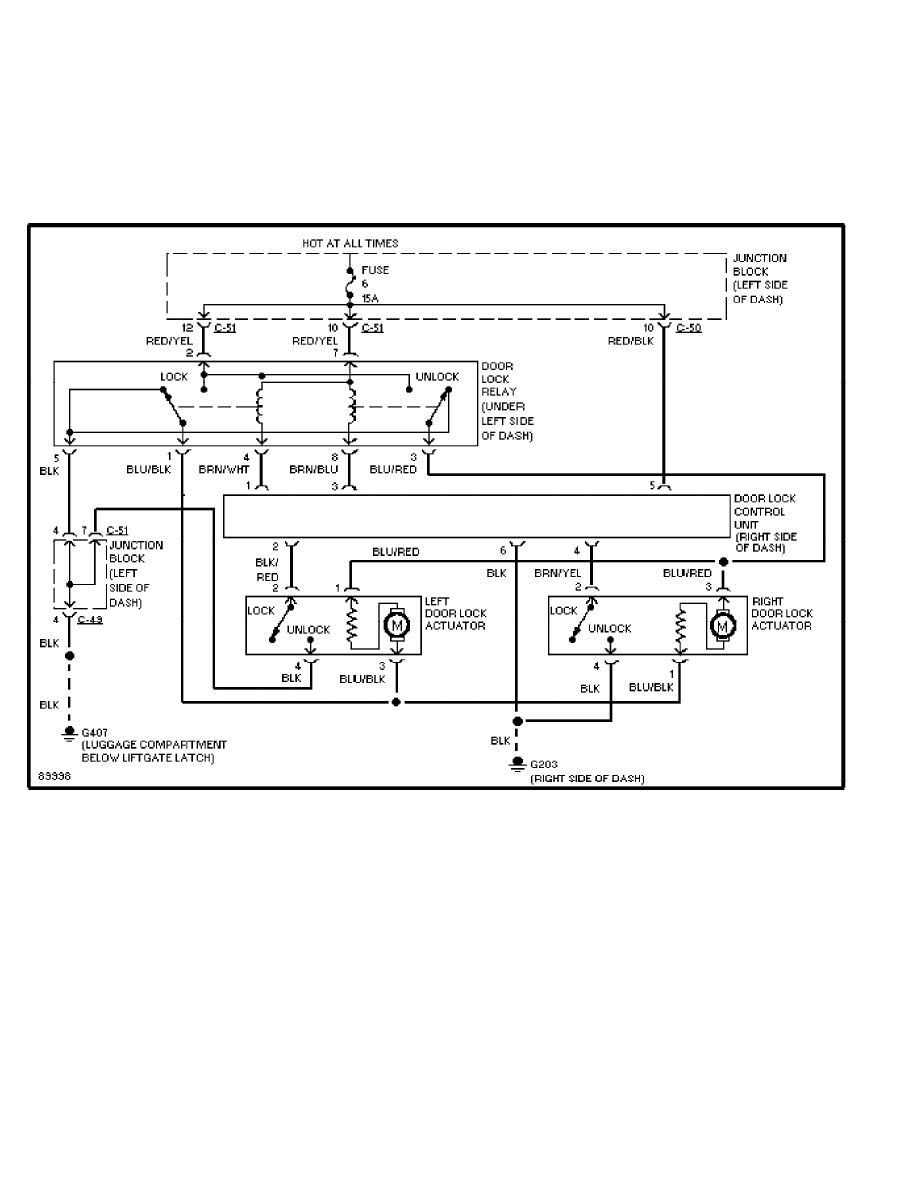

Power Door Lock Circuit, W/ Keyless Entry (p. 5)

1993 Mitsubishi Eclipse

For x

Thursday, March 17, 2005 09:24AM

SYSTEM WIRING DIAGRAMS

Power Door Lock Circuit, W/O Keyless Entry (p. 6)

1993 Mitsubishi Eclipse

For x

Thursday, March 17, 2005 09:24AM

SYSTEM WIRING DIAGRAMS

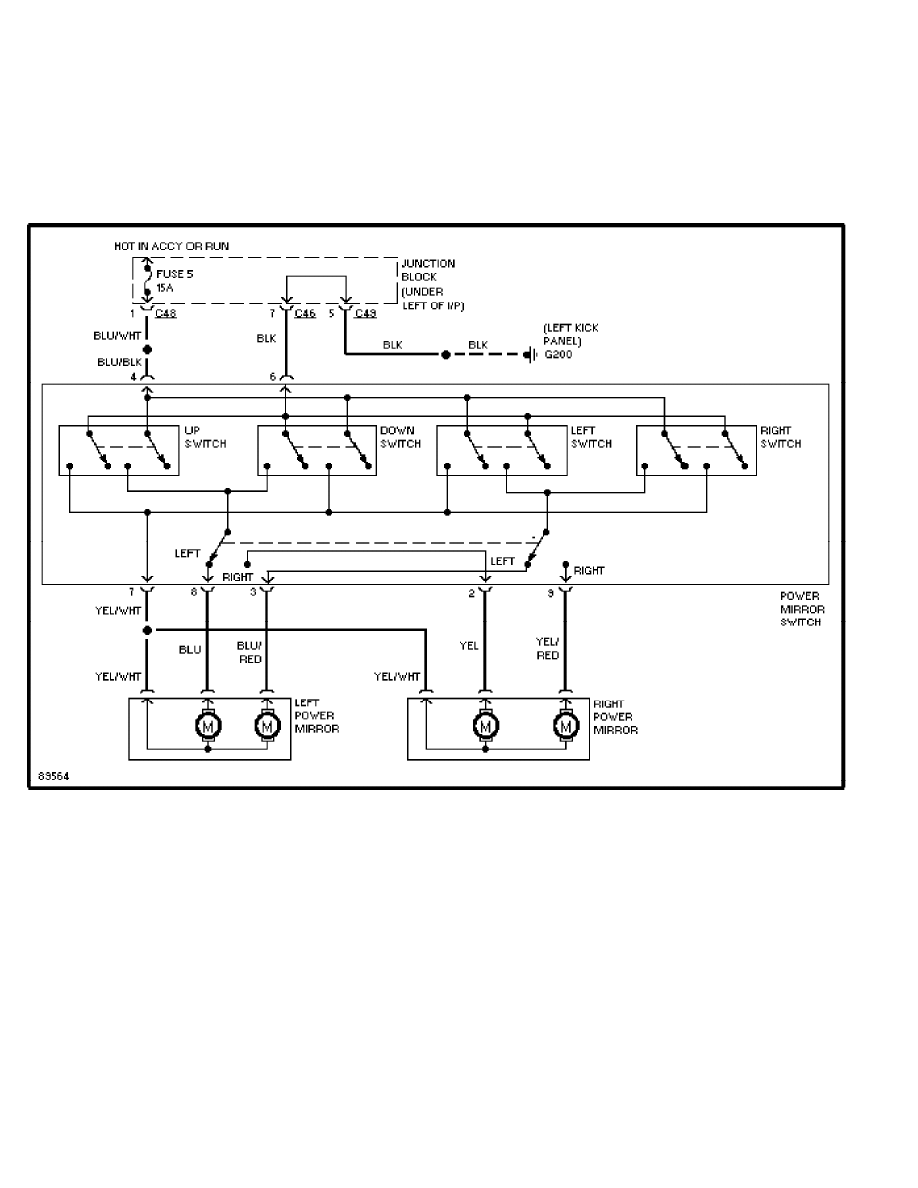

Power Mirror Circuit (p. 7)

1993 Mitsubishi Eclipse

For x

Thursday, March 17, 2005 09:24AM

SYSTEM WIRING DIAGRAMS

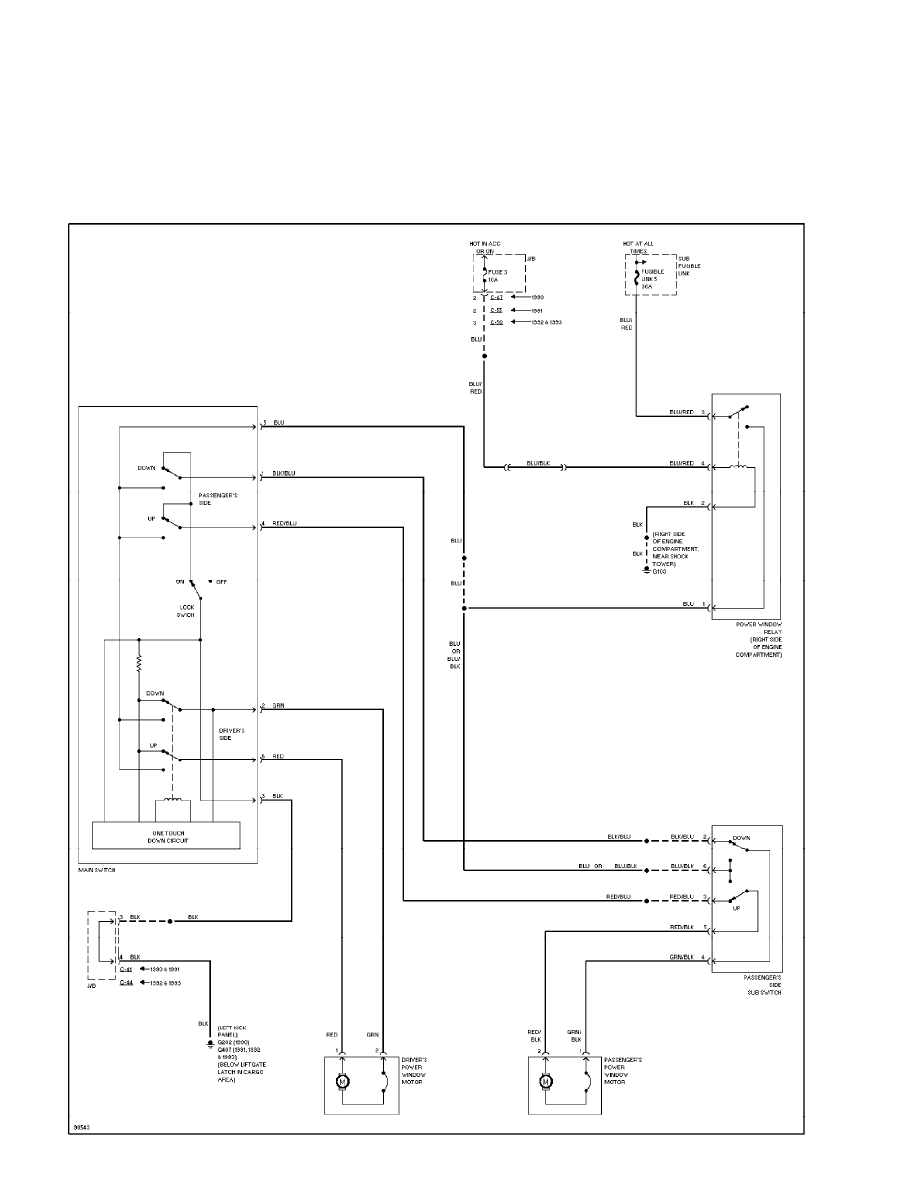

Power Window Circuit (p. 8)

1993 Mitsubishi Eclipse

For x

Thursday, March 17, 2005 09:24AM

SYSTEM WIRING DIAGRAMS

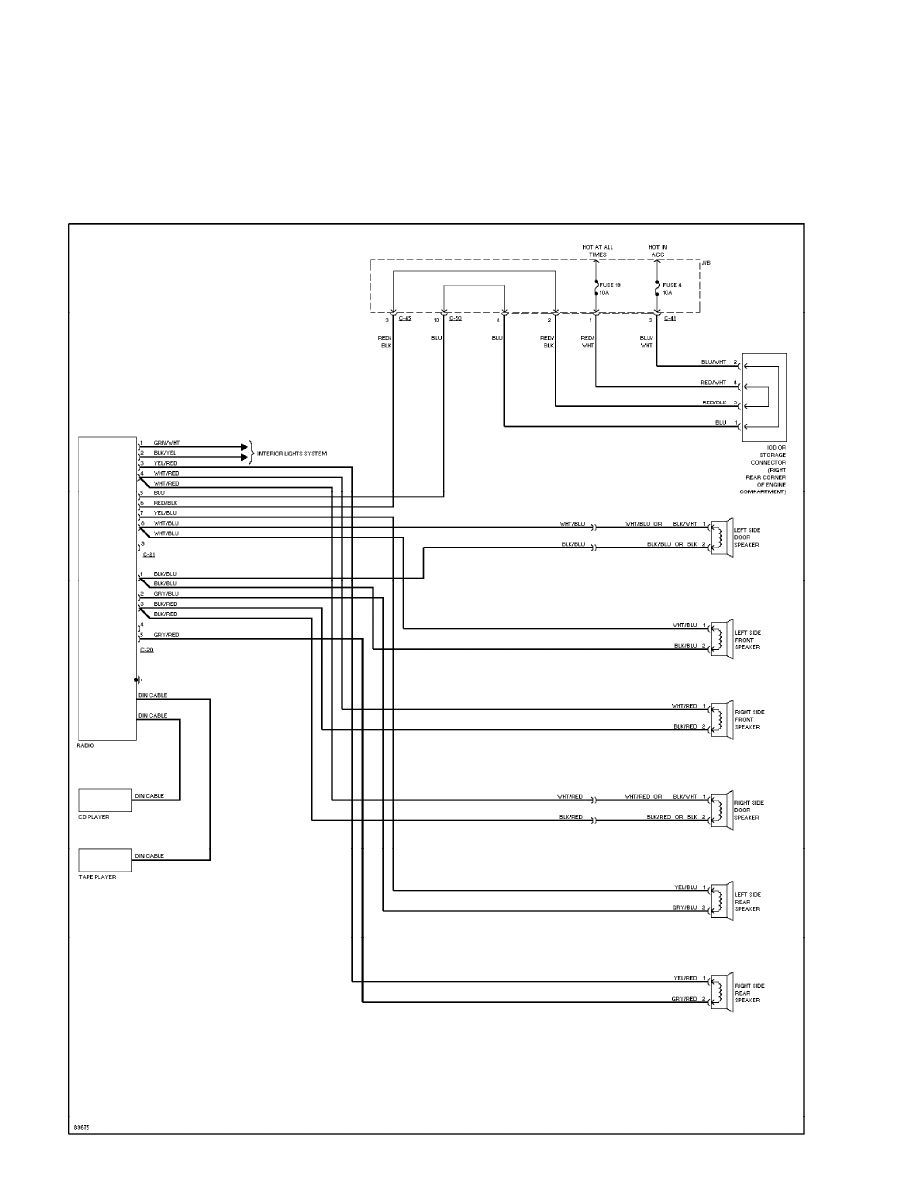

Radio Circuits (p. 9)

1993 Mitsubishi Eclipse

For x

Thursday, March 17, 2005 09:24AM

SYSTEM WIRING DIAGRAMS

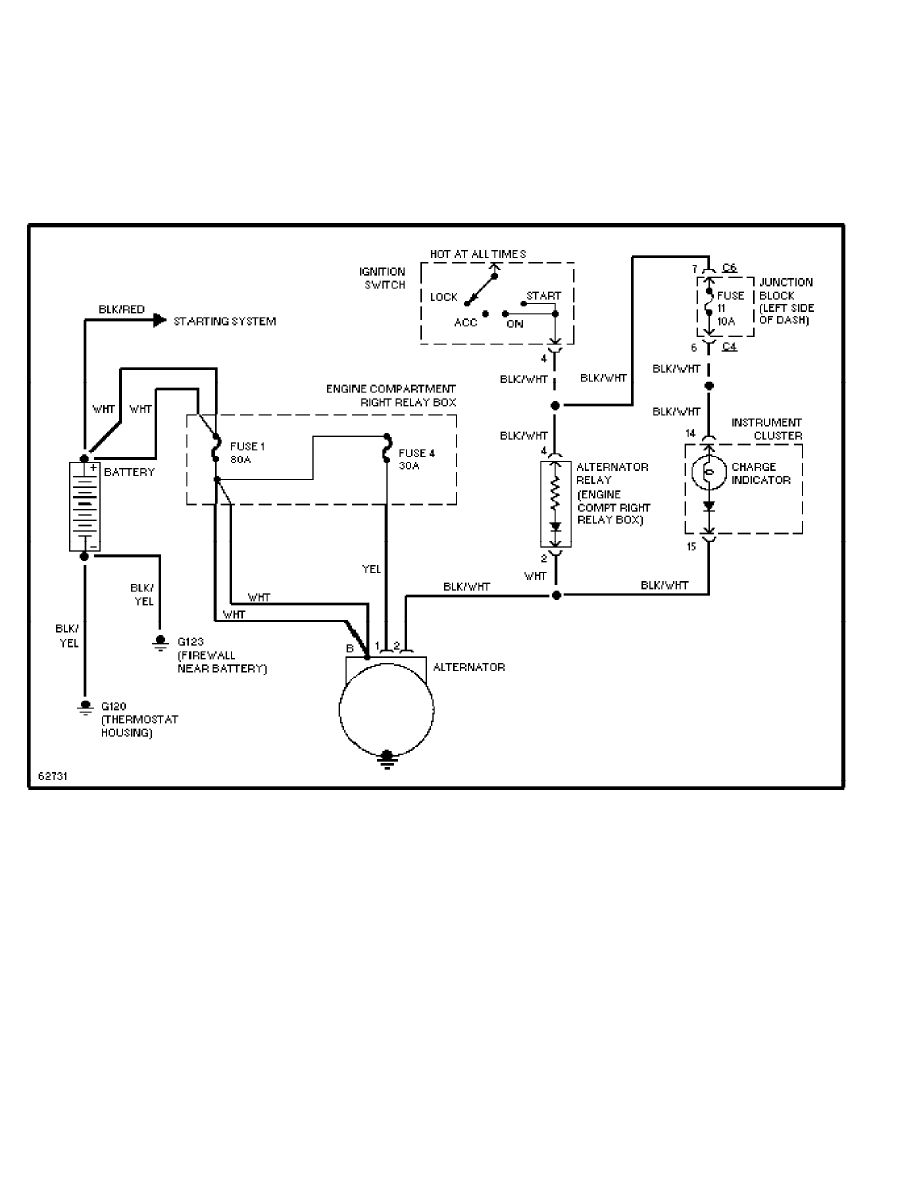

Charging Circuit (p. 10)

1993 Mitsubishi Eclipse

For x

Thursday, March 17, 2005 09:24AM

SYSTEM WIRING DIAGRAMS

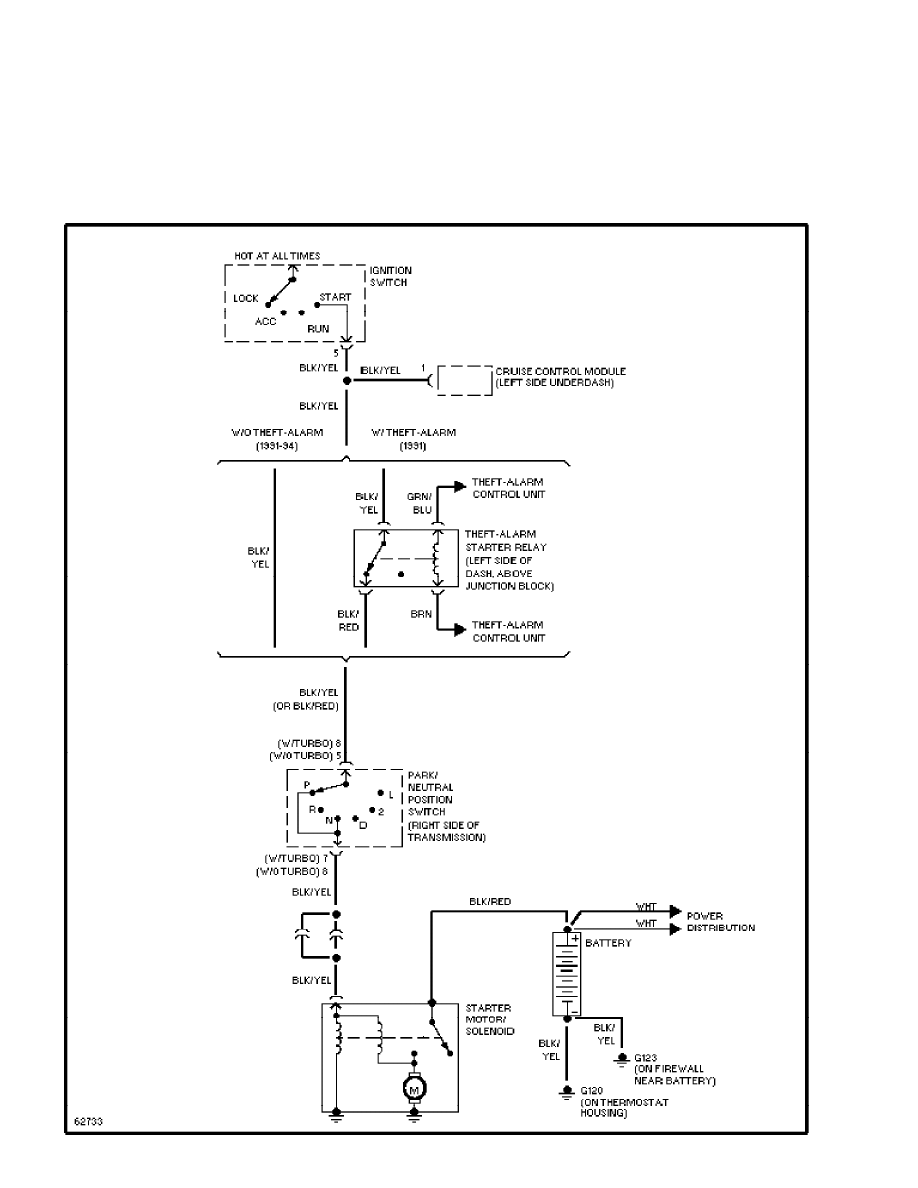

Starting Circuit, A/T (p. 11)

1993 Mitsubishi Eclipse

For x

Thursday, March 17, 2005 09:24AM

SYSTEM WIRING DIAGRAMS

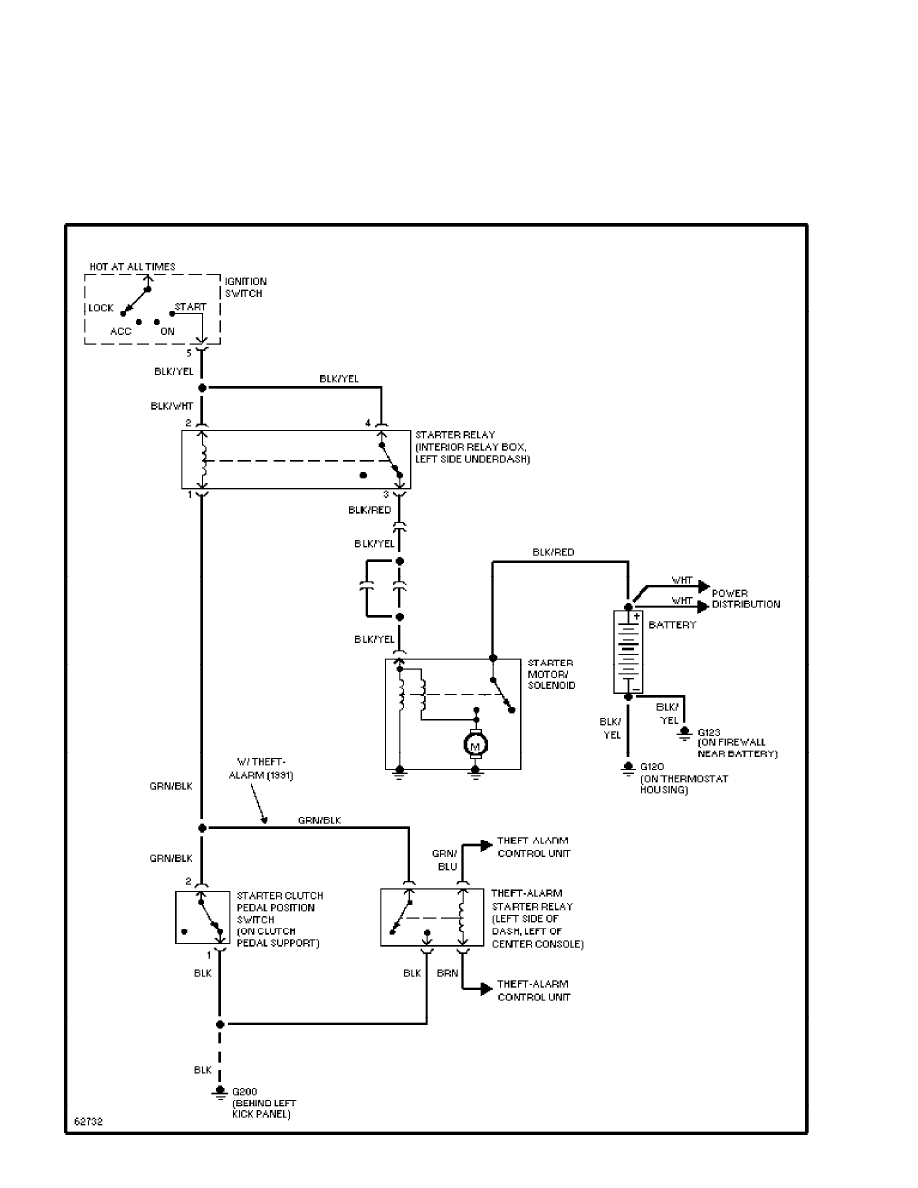

Starting Circuit, M/T (p. 12)

1993 Mitsubishi Eclipse

For x

Thursday, March 17, 2005 09:24AM

SYSTEM WIRING DIAGRAMS

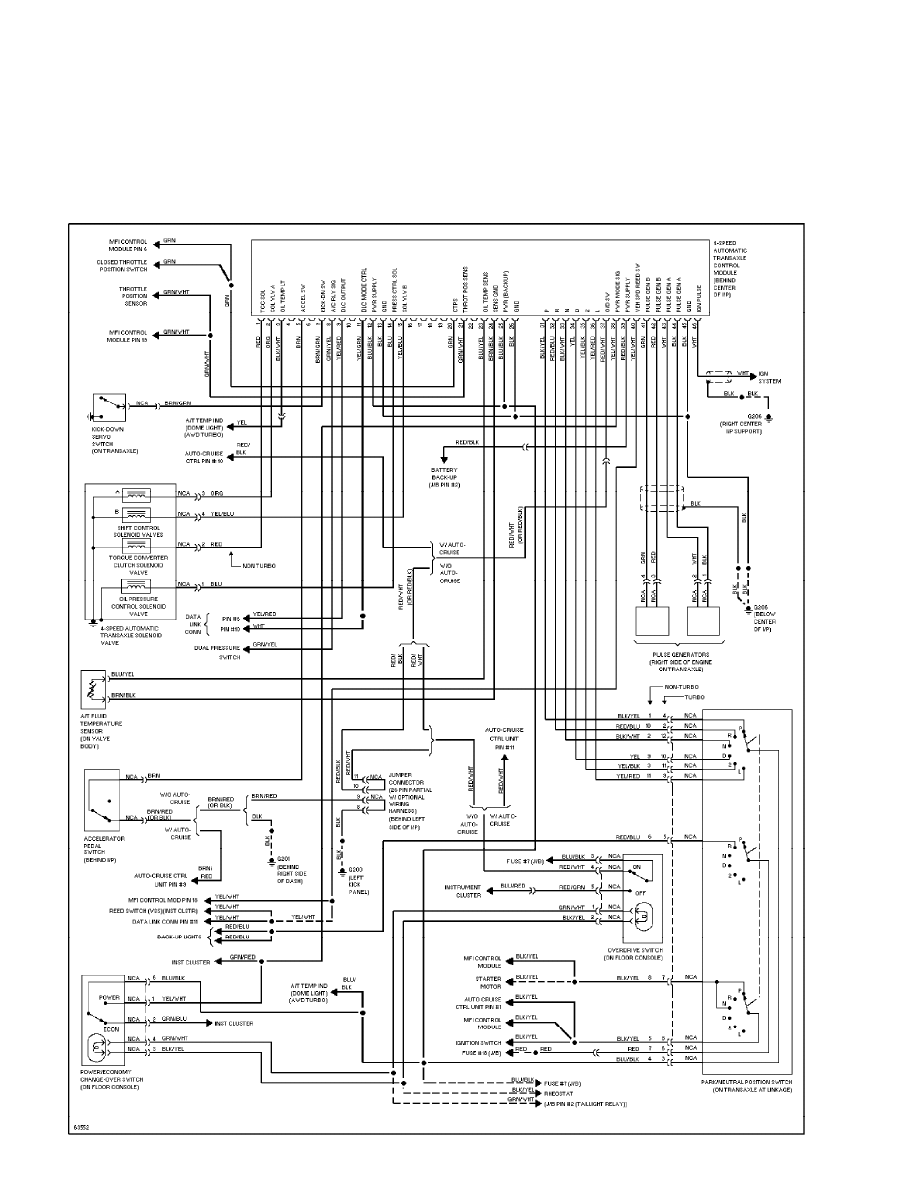

Transmission Circuit (p. 13)

1993 Mitsubishi Eclipse

For x

Thursday, March 17, 2005 09:24AM

SYSTEM WIRING DIAGRAMS

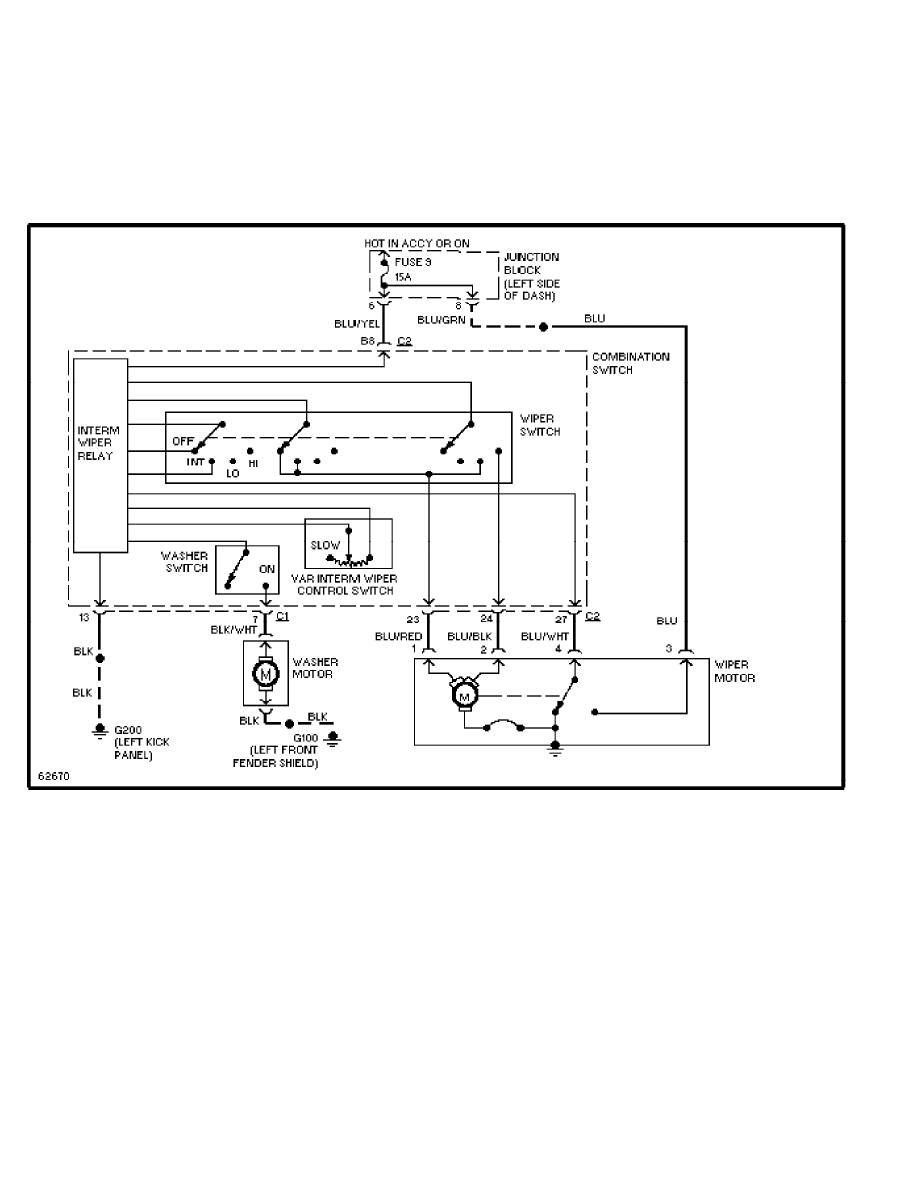

Front Wiper/Washer Circuit (p. 14)

1993 Mitsubishi Eclipse

For x

Thursday, March 17, 2005 09:24AM

SYSTEM WIRING DIAGRAMS

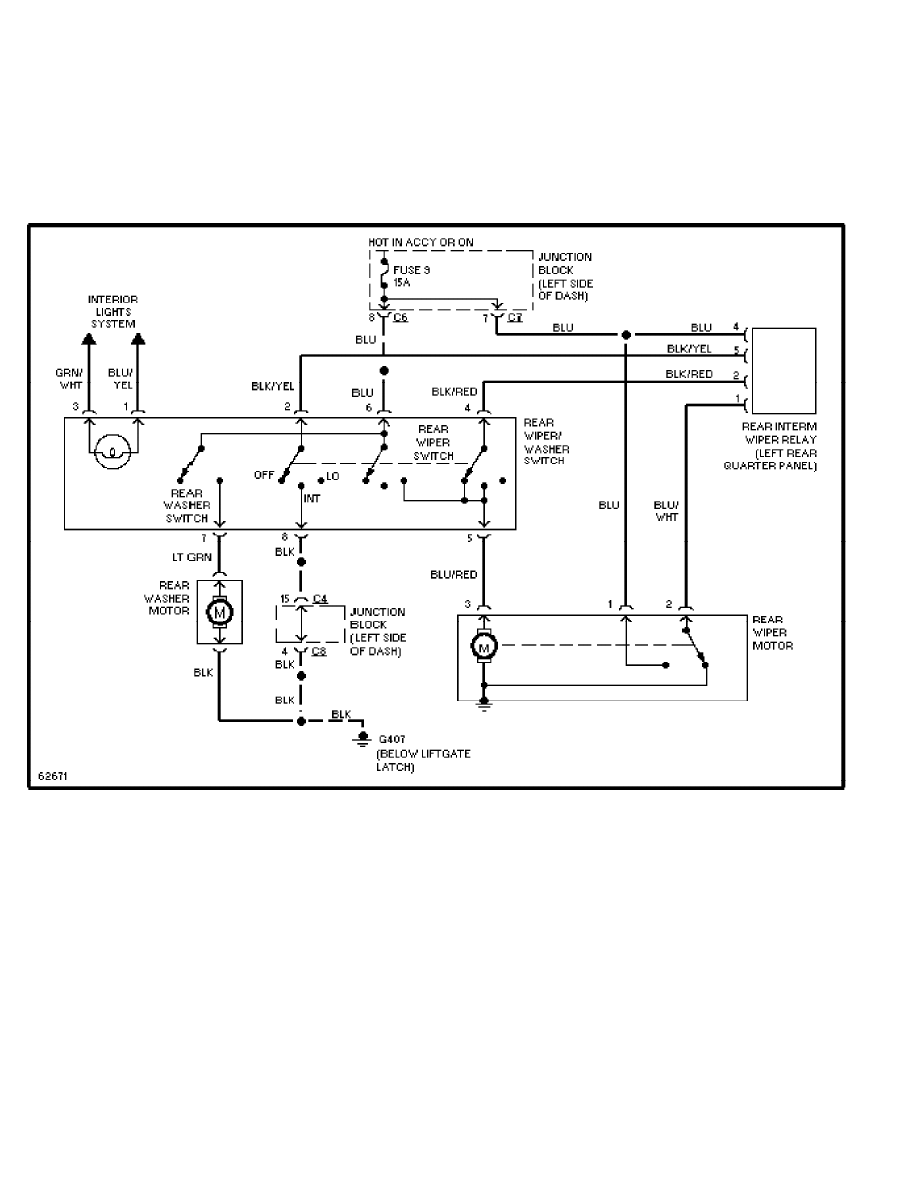

Rear Wiper/Washer Circuit (p. 15)

1993 Mitsubishi Eclipse

For x

Thursday, March 17, 2005 09:24AM

WIRING DIAGRAMS

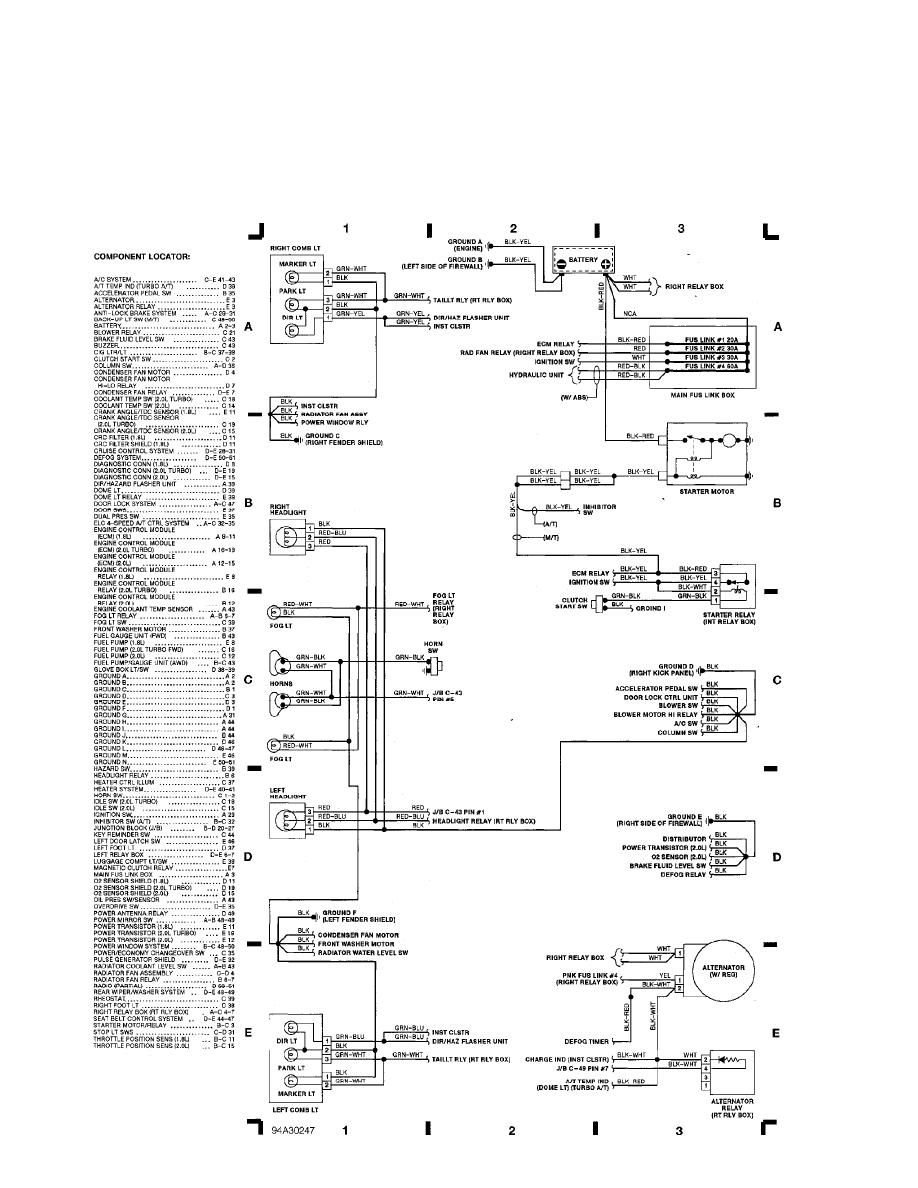

Fig. 1: Engine Compartment, Alternator, Headlights (Grid 1-3)

1993 Mitsubishi Eclipse

For x

Thursday, March 17, 2005 09:24AM

WIRING DIAGRAMS

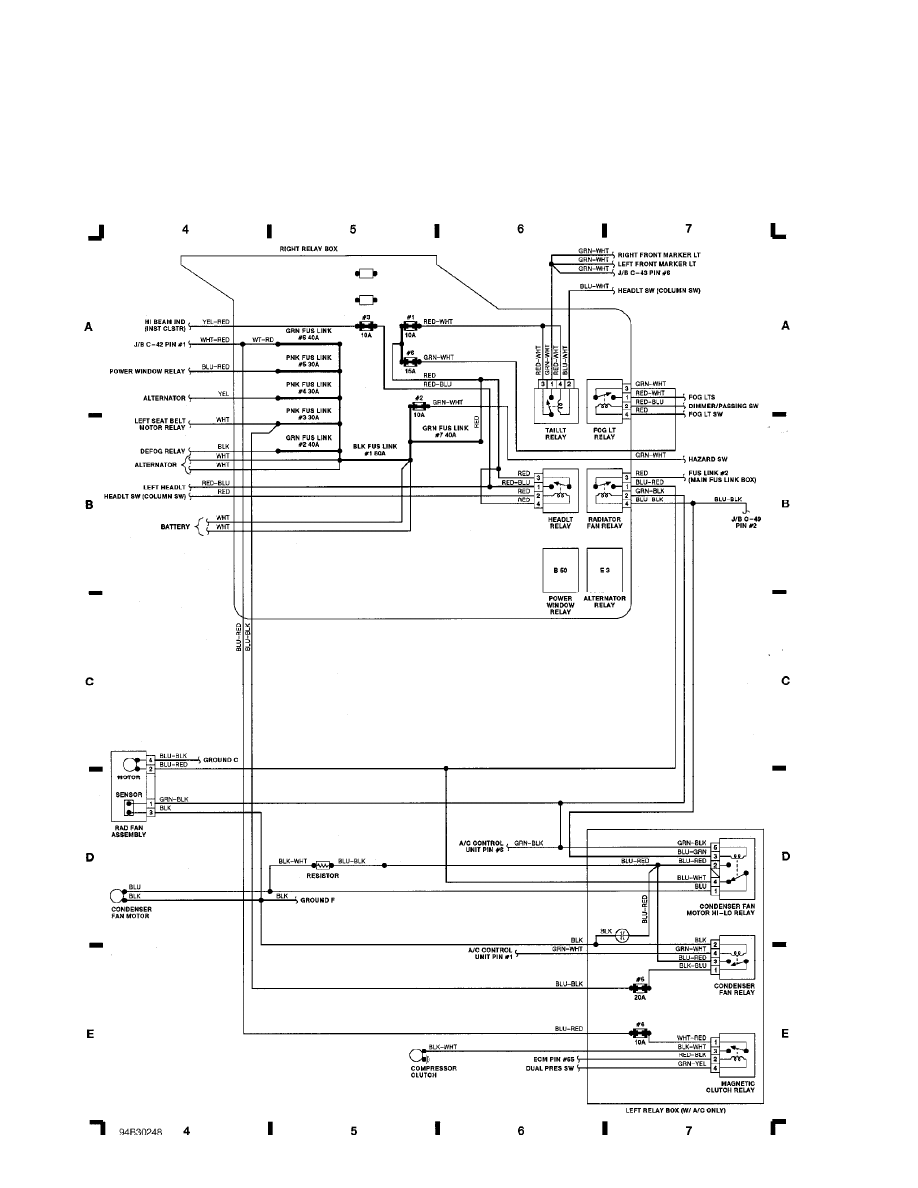

Fig. 2: Right Relay, Left Relay Box (W/ A/C Only) (Grid 4-7) (p. 2)

1993 Mitsubishi Eclipse

For x

Thursday, March 17, 2005 09:24AM

WIRING DIAGRAMS

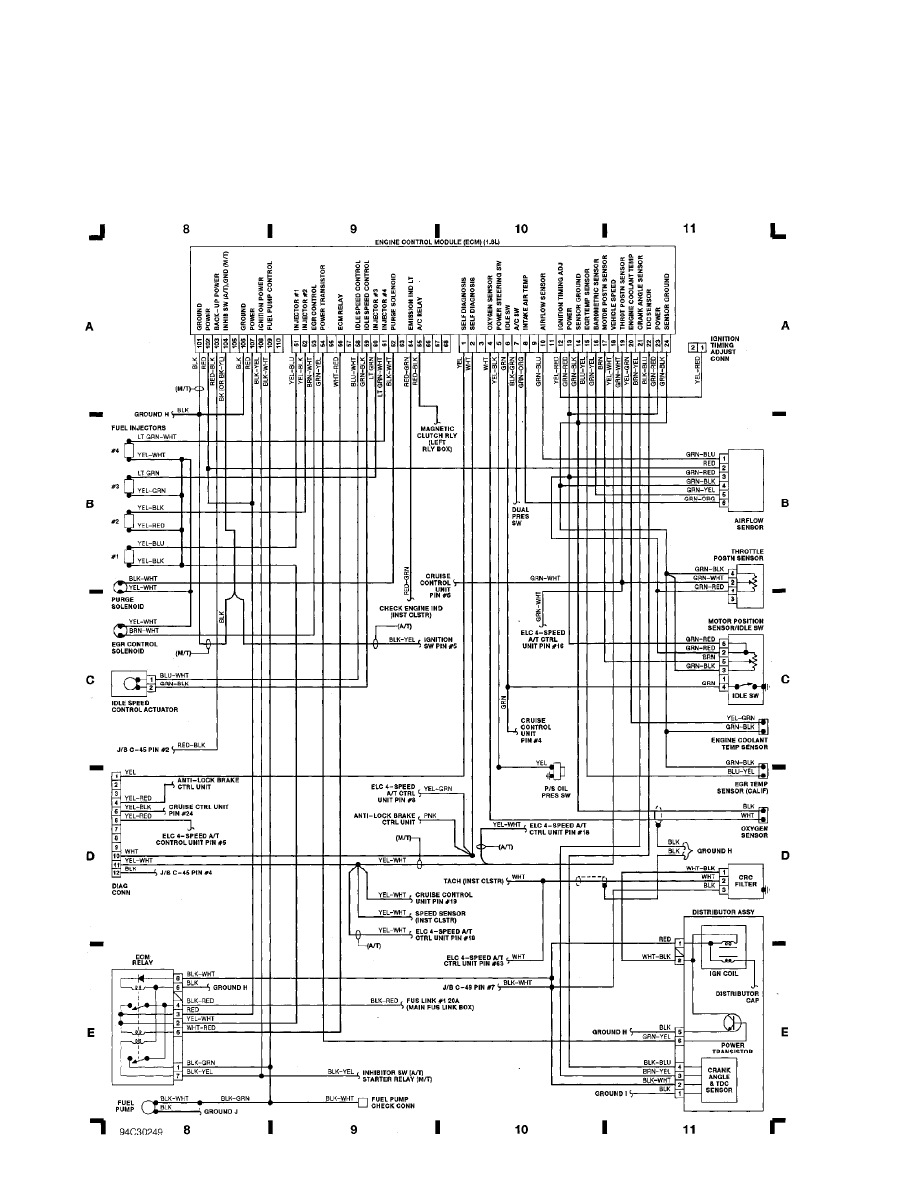

Fig. 3: Engine Control Unit (1.8L) (Grid 8-11) (p. 3)

1993 Mitsubishi Eclipse

For x

Thursday, March 17, 2005 09:24AM

WIRING DIAGRAMS

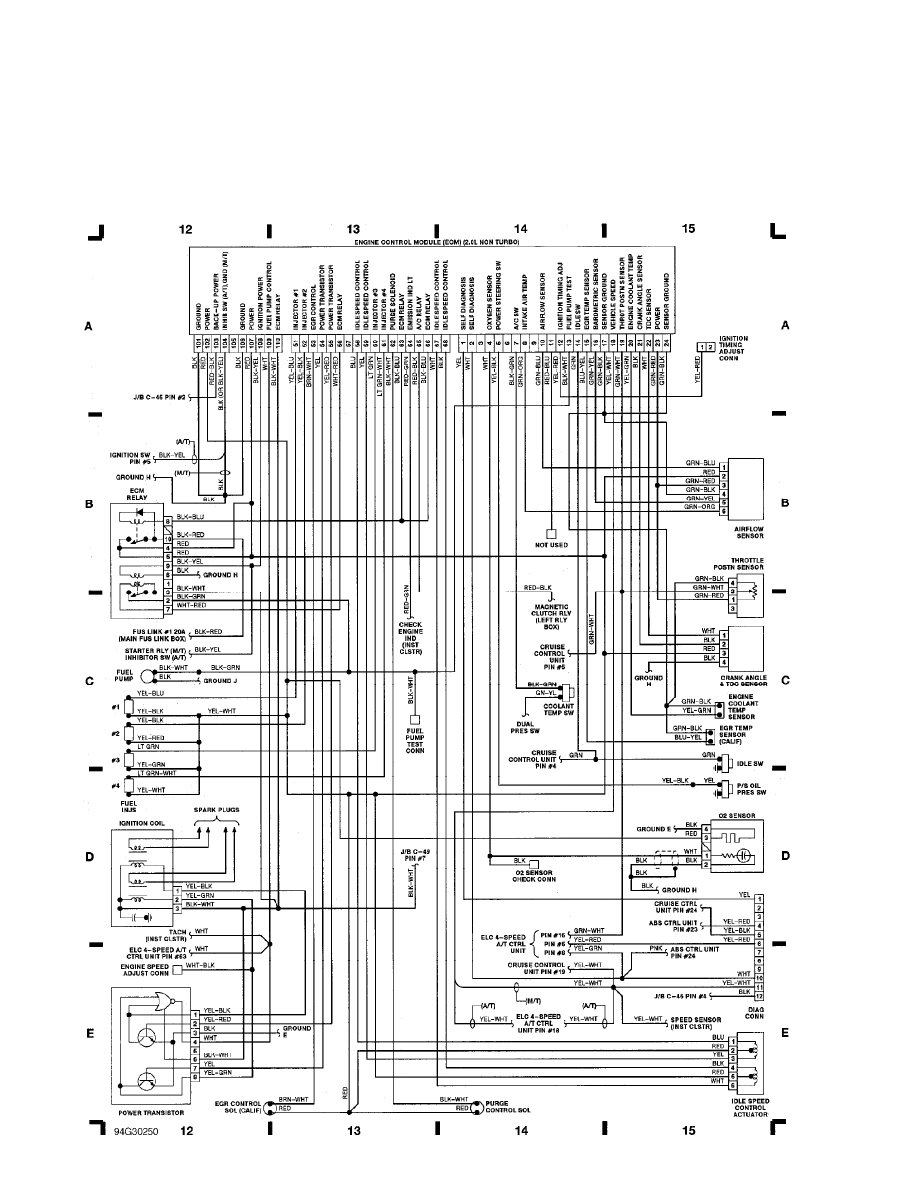

Fig. 4: Engine Control Unit (2.0L) (Grid 12-15) (p. 4)

1993 Mitsubishi Eclipse

For x

Thursday, March 17, 2005 09:24AM

WIRING DIAGRAMS

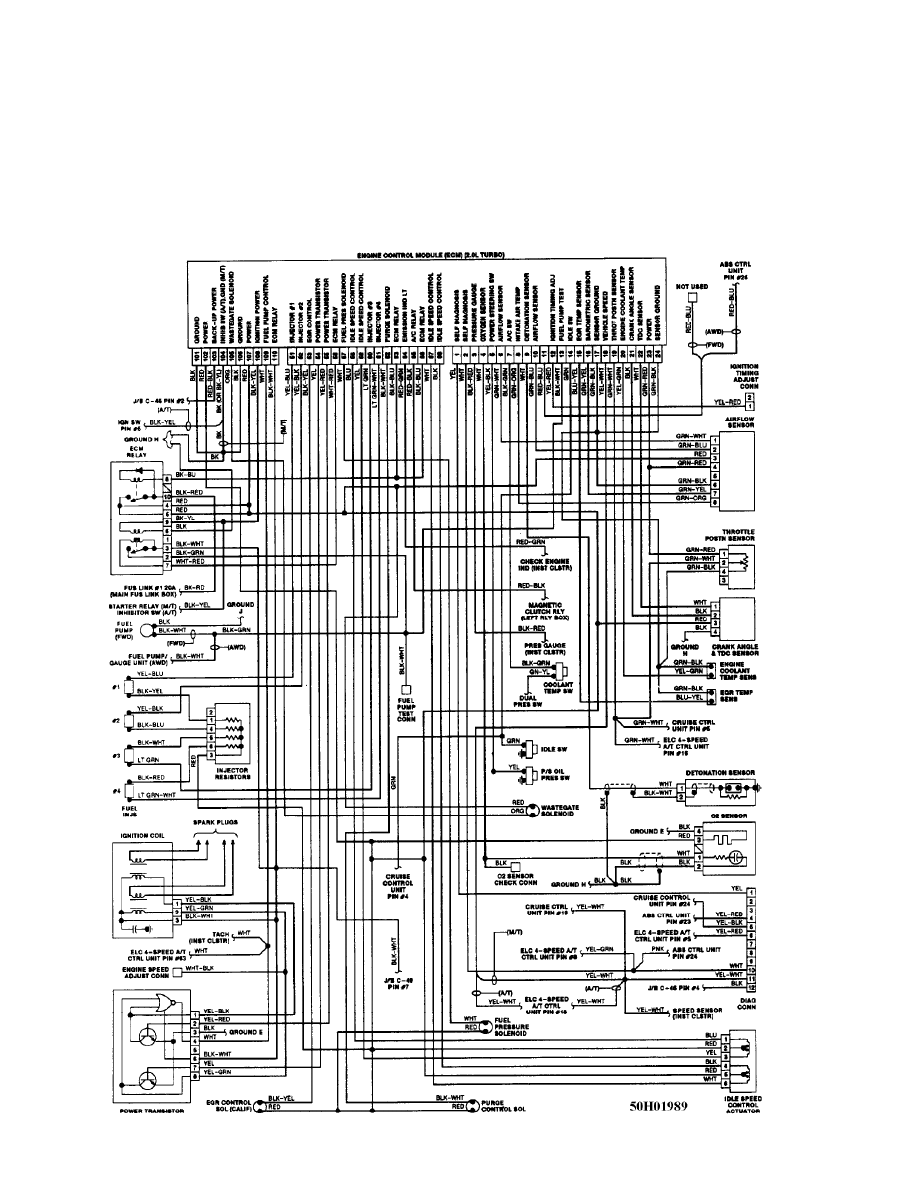

Fig. 5: Engine Control Unit (2.0L Turbo) (Grid 16-19) (p. 5)

1993 Mitsubishi Eclipse

For x

Thursday, March 17, 2005 09:24AM

WIRING DIAGRAMS

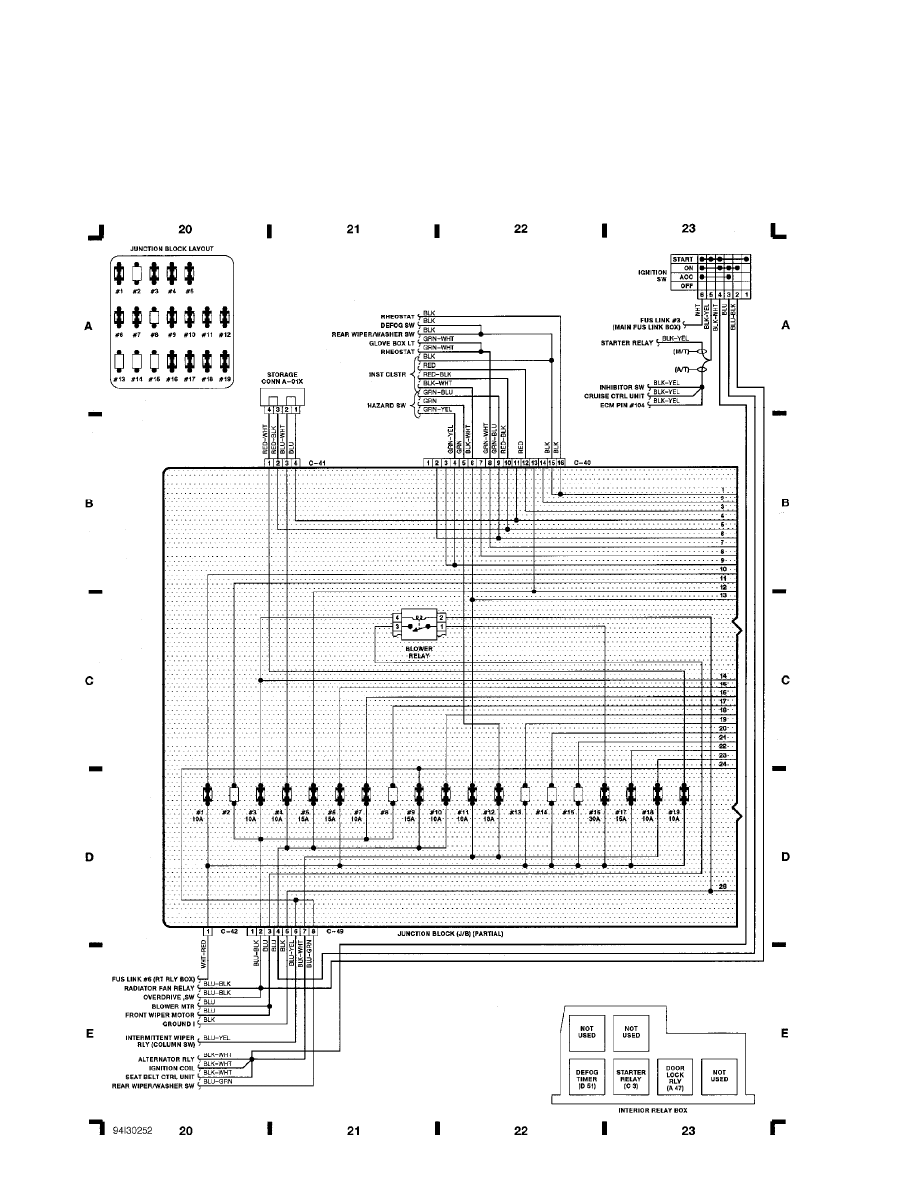

Fig. 6: Junction Block (J/B) (Partial), Ignition Sw (Grid 20-23) (p. 6)

1993 Mitsubishi Eclipse

For x

Thursday, March 17, 2005 09:24AM

WIRING DIAGRAMS

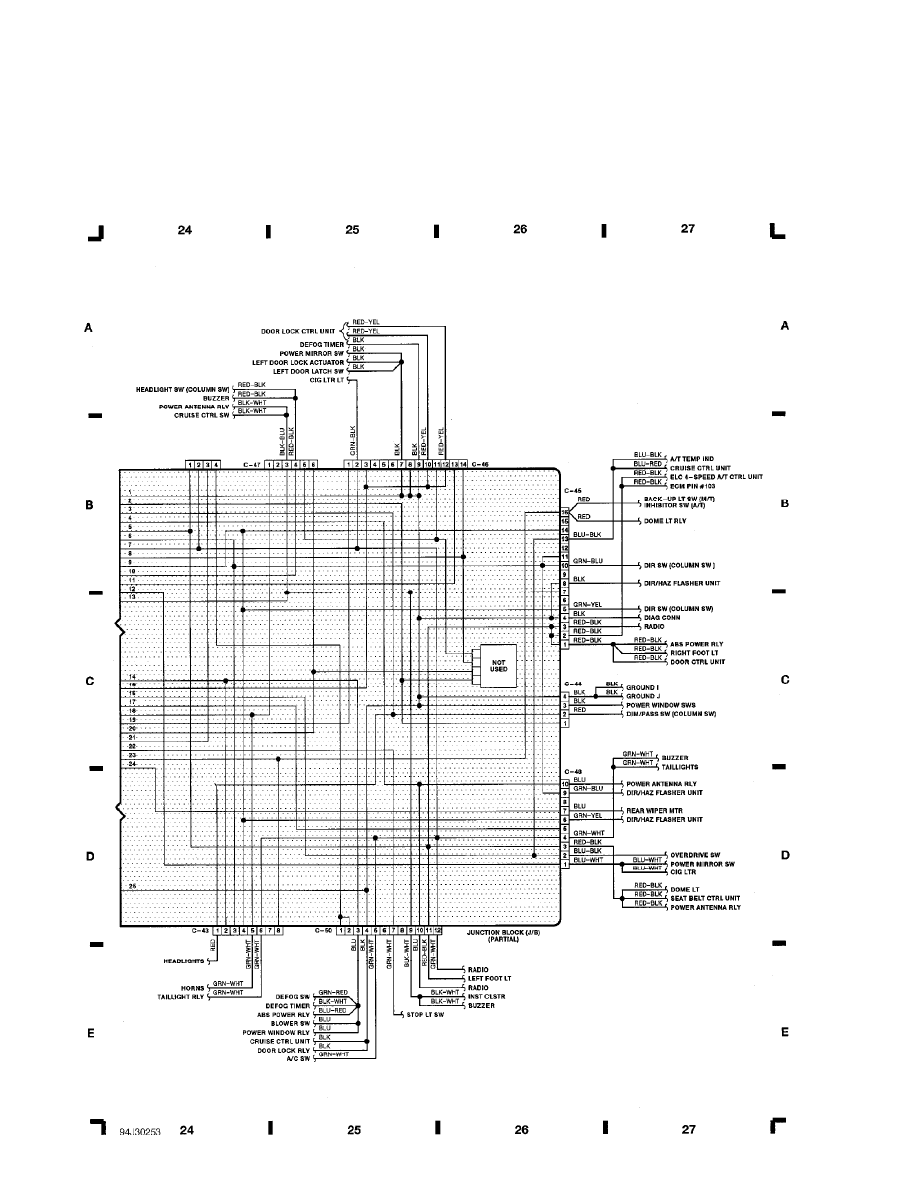

Fig. 7: Junction Block (J/B) (Partial) (Grid 24-27) (p. 7)

1993 Mitsubishi Eclipse

For x

Thursday, March 17, 2005 09:24AM

WIRING DIAGRAMS

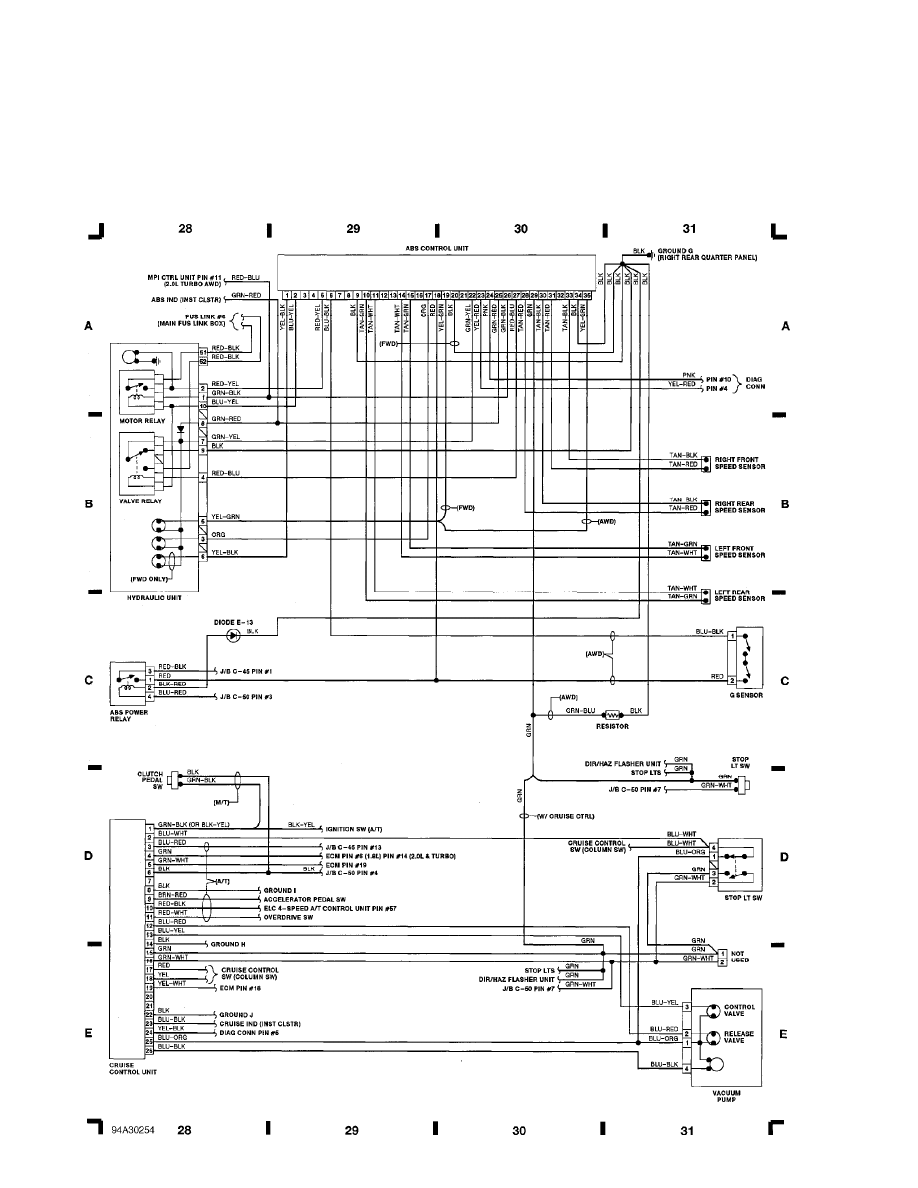

Fig. 8: ABS Control Unit, Cruise Control Unit (Grid 28-31) (p. 8)

1993 Mitsubishi Eclipse

For x

Thursday, March 17, 2005 09:24AM

WIRING DIAGRAMS

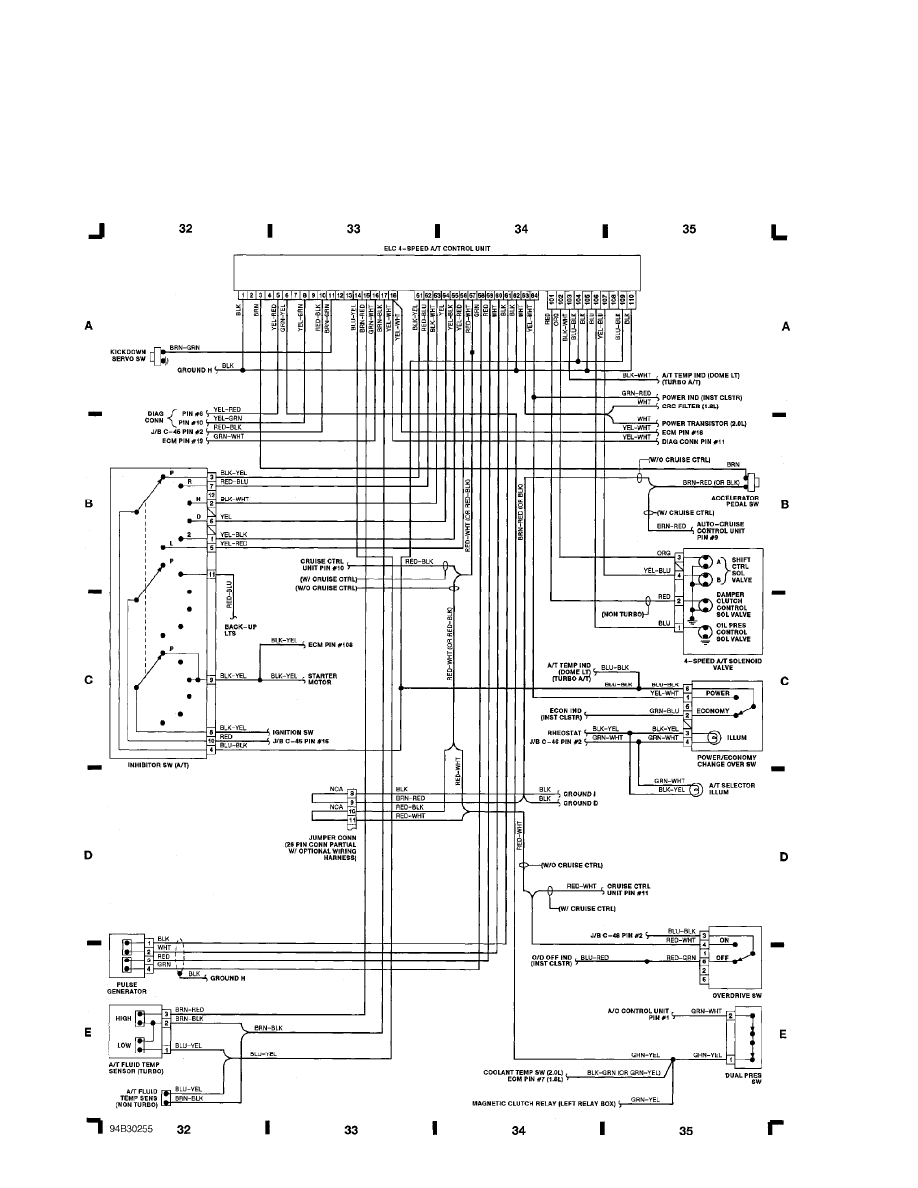

Fig. 9: ELC 4-Speed A/T Control Unit, Inhibitor Sw (A/T) (Grid 32-35) (p. 9)

1993 Mitsubishi Eclipse

For x

Thursday, March 17, 2005 09:24AM

WIRING DIAGRAMS

Fig. 10: Column Sw, Interior Lights, Wiper Motor (Grid 36-39) (p. 10)

1993 Mitsubishi Eclipse

For x

Thursday, March 17, 2005 09:24AM

WIRING DIAGRAMS

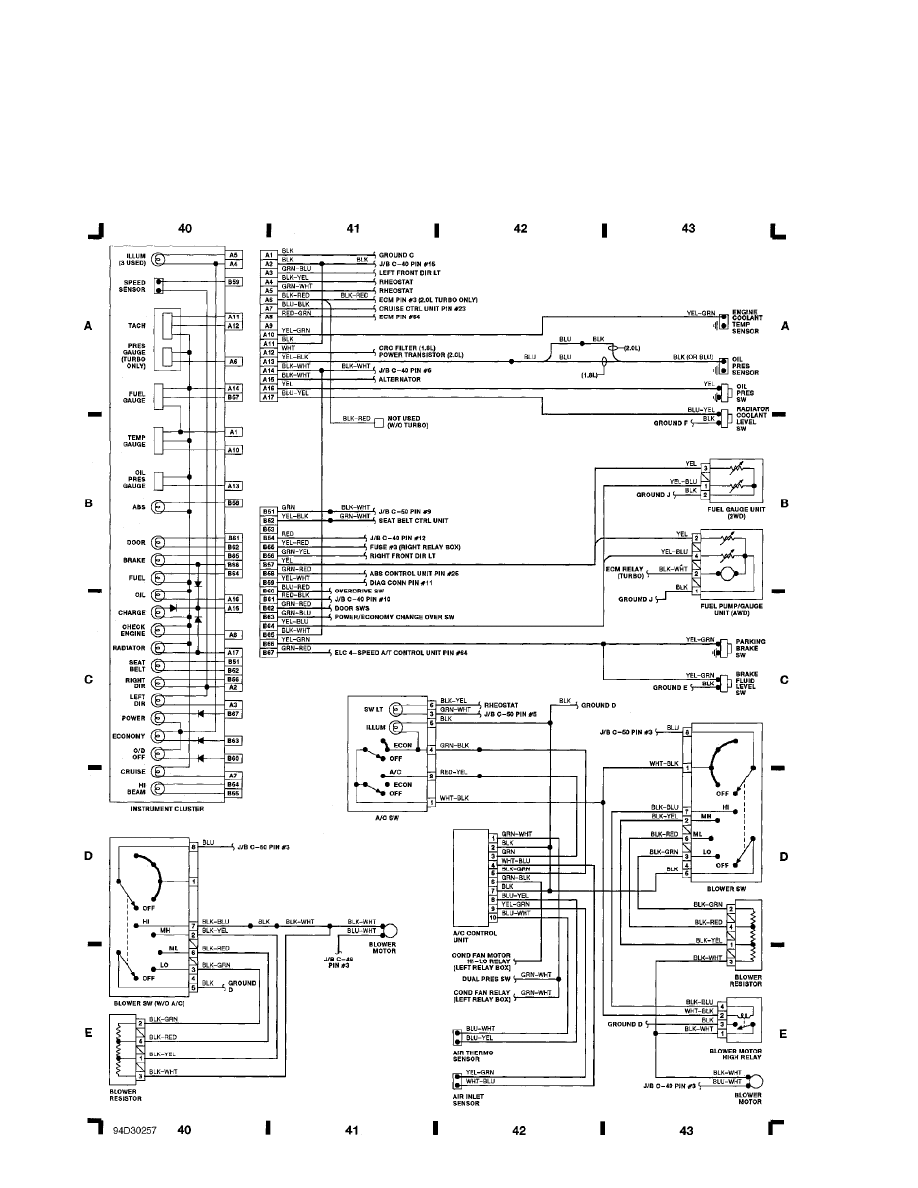

Fig. 11: Instrument Cluster, A/C System (Grid 40-43) (p. 11)

1993 Mitsubishi Eclipse

For x

Thursday, March 17, 2005 09:24AM

WIRING DIAGRAMS

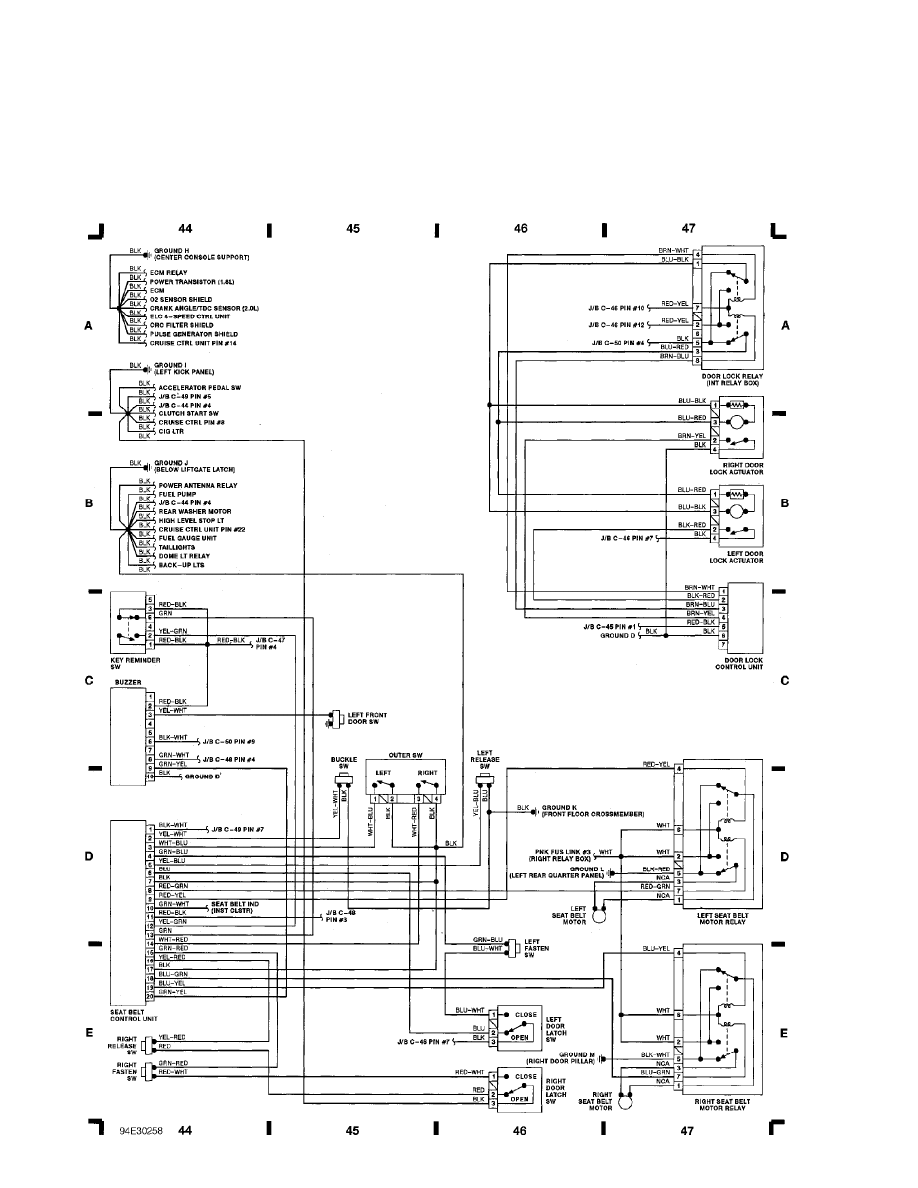

Fig. 12: Seat Belt Control Unit, Power Seats/ Doors (Grid 44-47) (p. 12)

1993 Mitsubishi Eclipse

For x

Thursday, March 17, 2005 09:24AM

WIRING DIAGRAMS

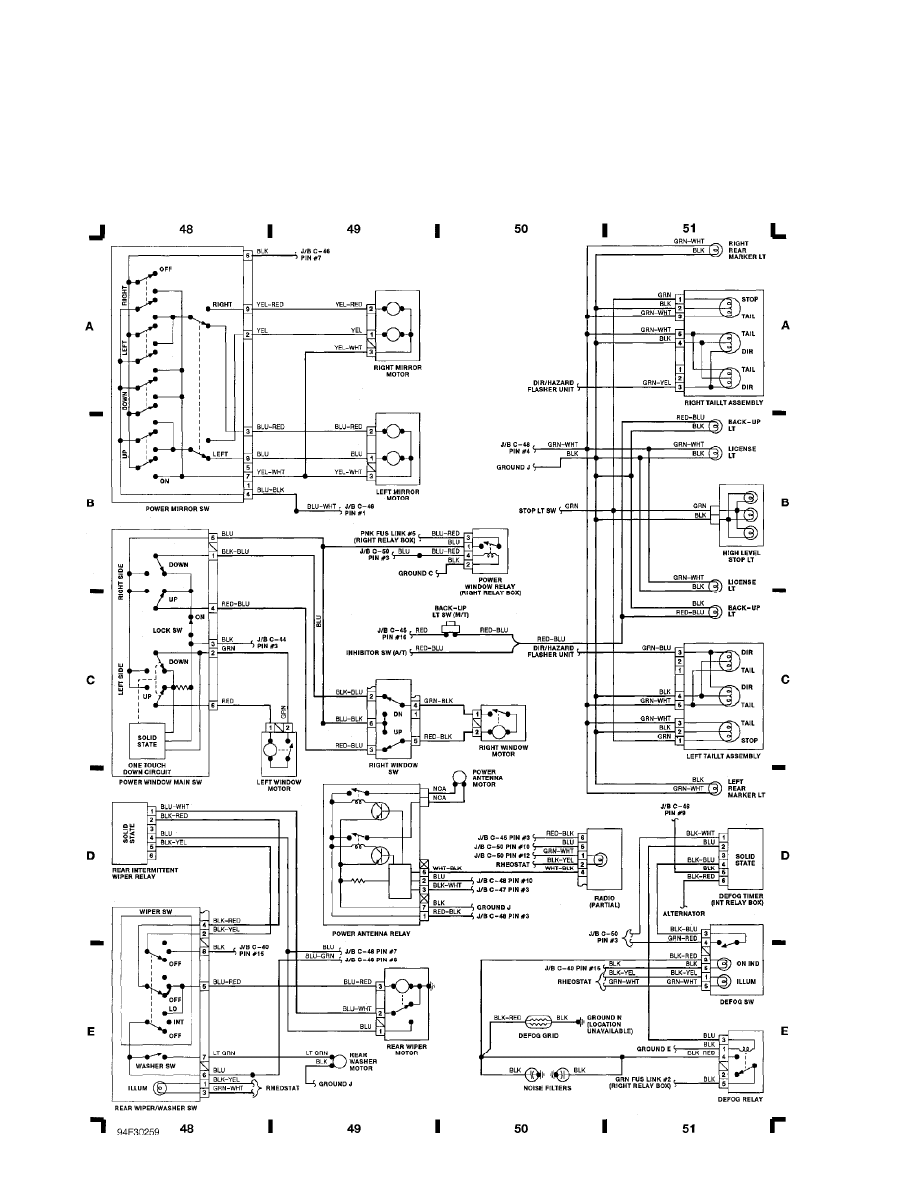

Fig. 13: Power Mirror/Window, Taillights (Grid 48-51) (p. 13)

1993 Mitsubishi Eclipse

For x

Thursday, March 17, 2005 09:24AM
