MERCEDES BENZ 190E 1992

background image

SYSTEM WIRING DIAGRAMS

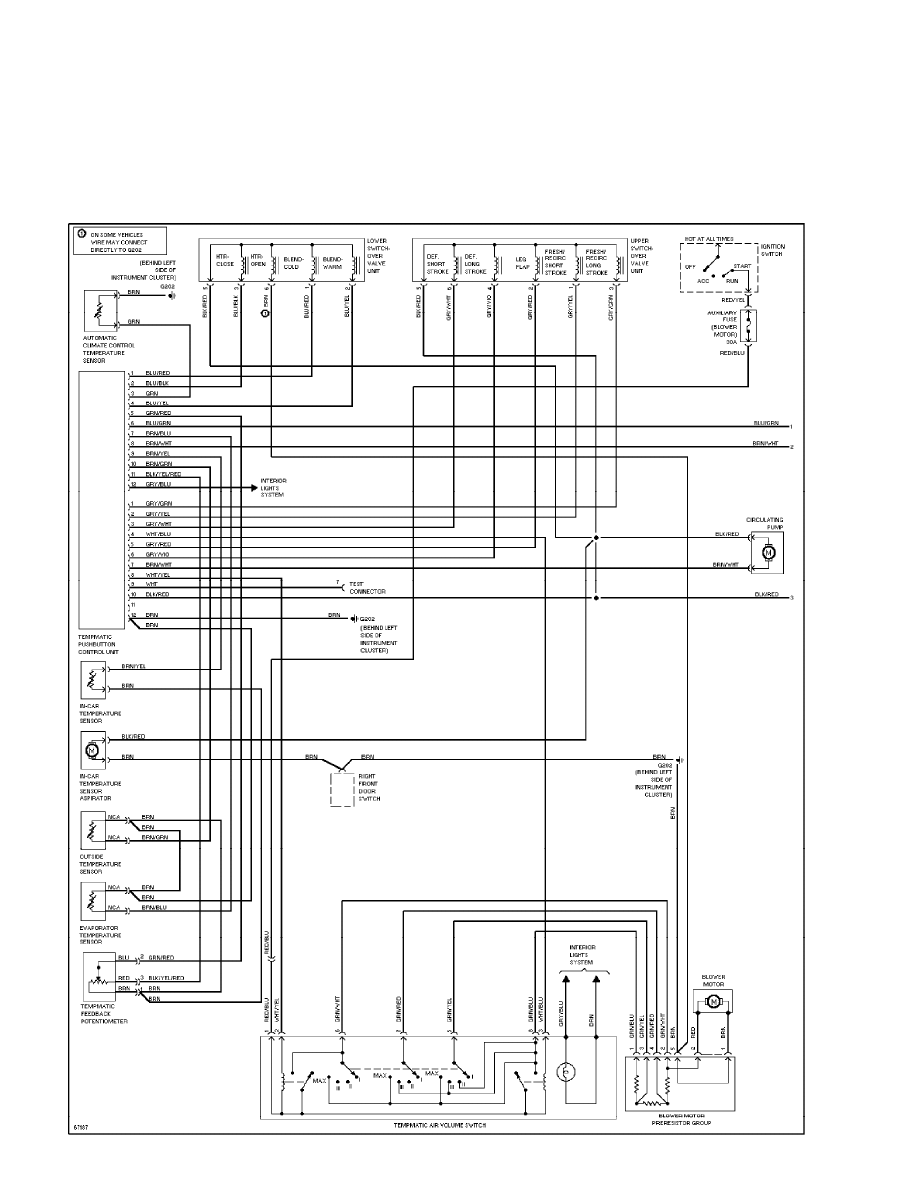

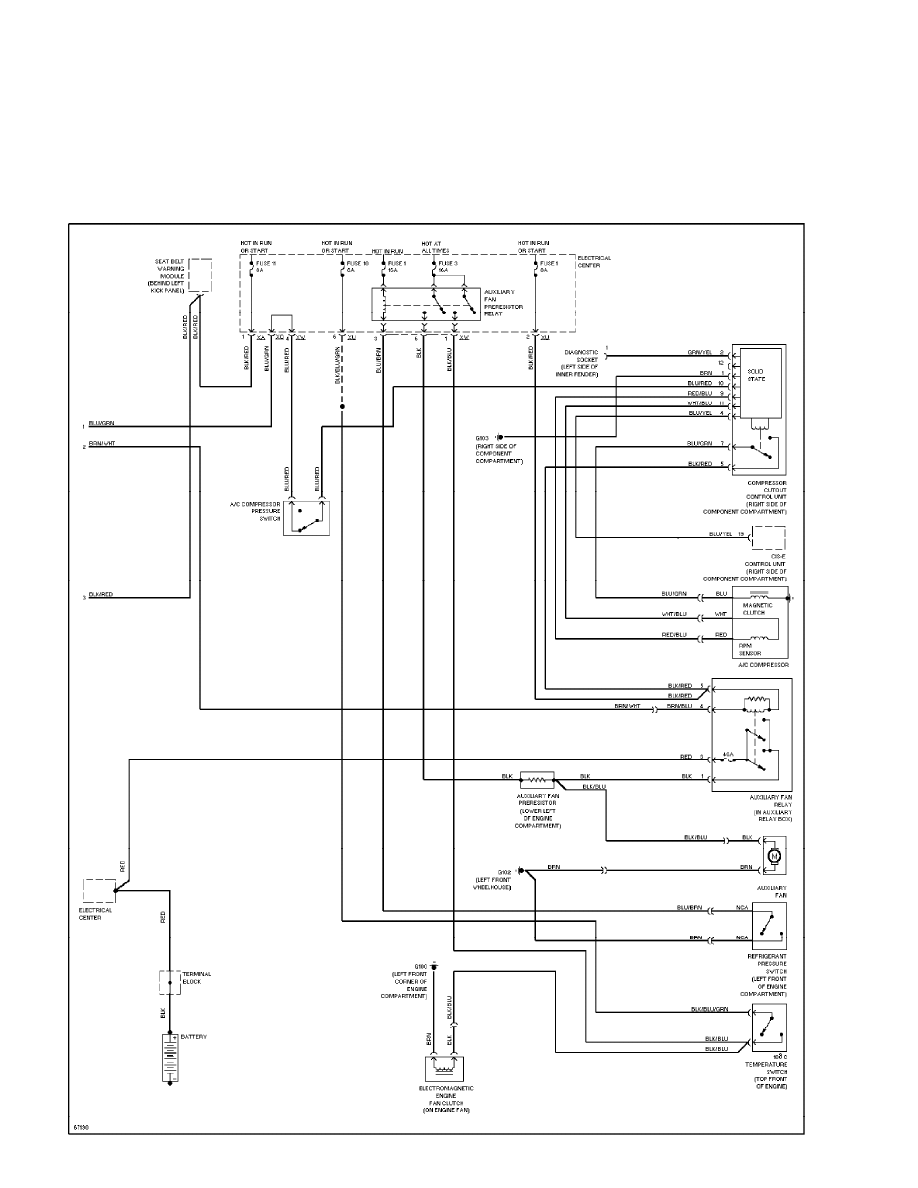

2.3L, Air Conditioning Circuits (1 of 2)

1992 Mercedes-Benz 190E

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, December 06, 2004 09:43AM

background image

SYSTEM WIRING DIAGRAMS

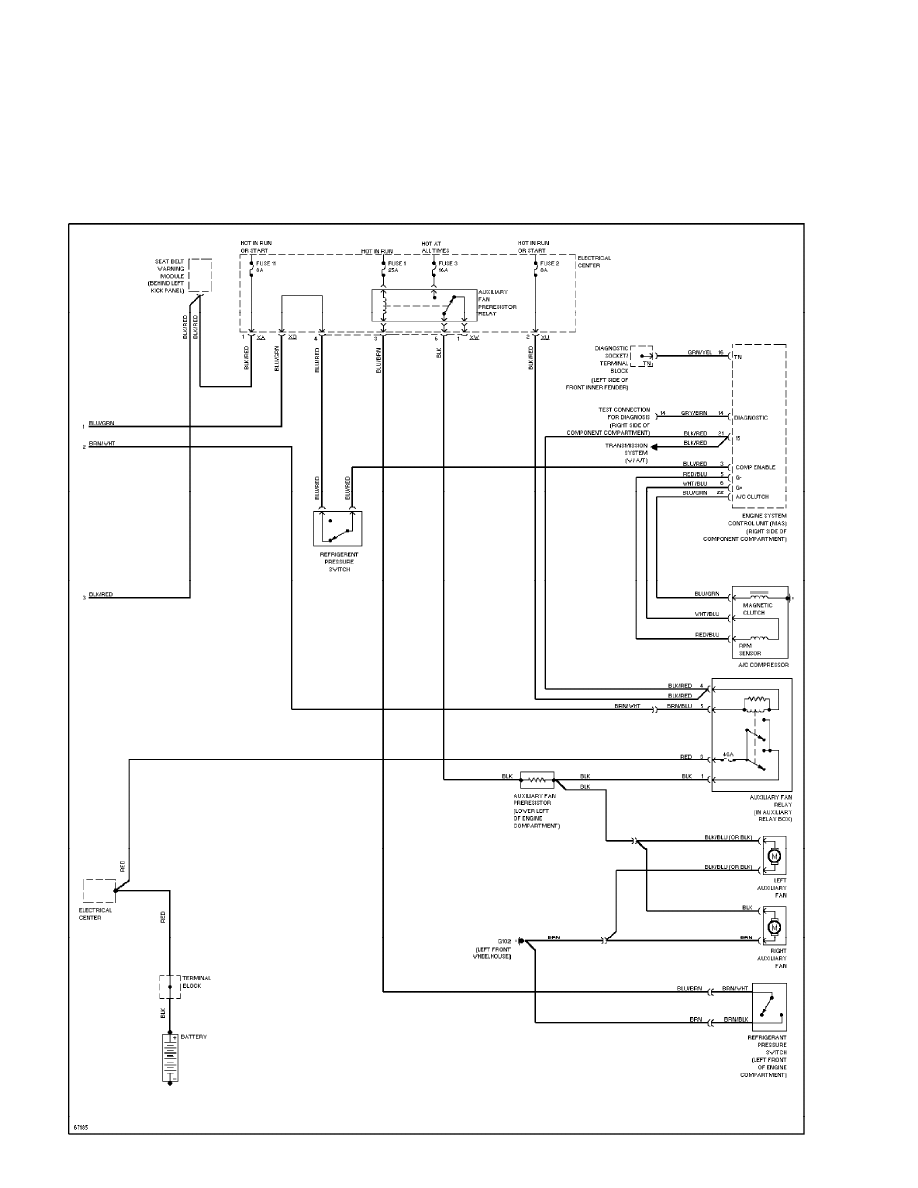

2.3L, Air Conditioning Circuits (2 of 2) (p. 2)

1992 Mercedes-Benz 190E

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, December 06, 2004 09:43AM

background image

SYSTEM WIRING DIAGRAMS

2.6L, Air Conditioning Circuits (1 of 2) (p. 3)

1992 Mercedes-Benz 190E

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, December 06, 2004 09:43AM

background image

SYSTEM WIRING DIAGRAMS

2.6L, Air Conditioning Circuits (2 of 2) (p. 4)

1992 Mercedes-Benz 190E

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, December 06, 2004 09:43AM

background image

SYSTEM WIRING DIAGRAMS

Anti-theft Circuit (p. 5)

1992 Mercedes-Benz 190E

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, December 06, 2004 09:43AM

background image

SYSTEM WIRING DIAGRAMS

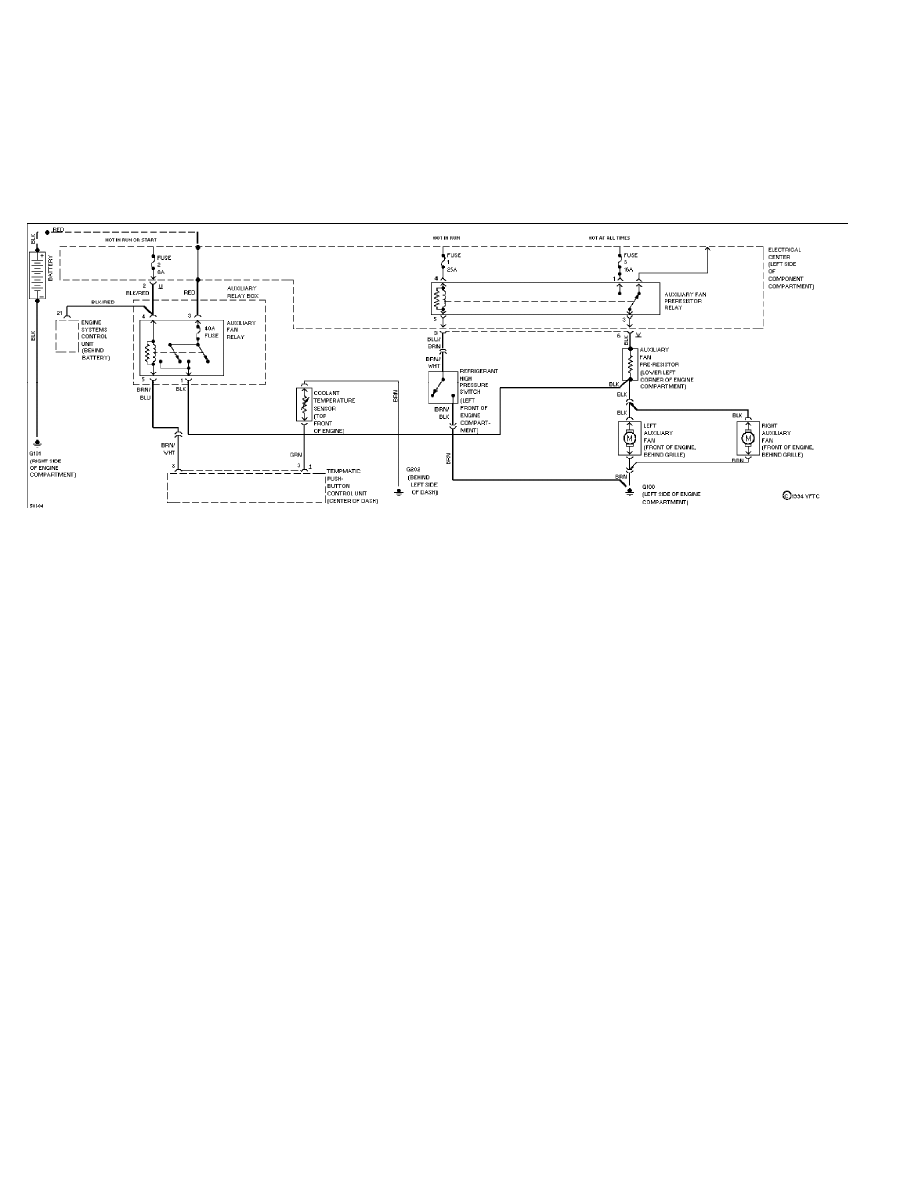

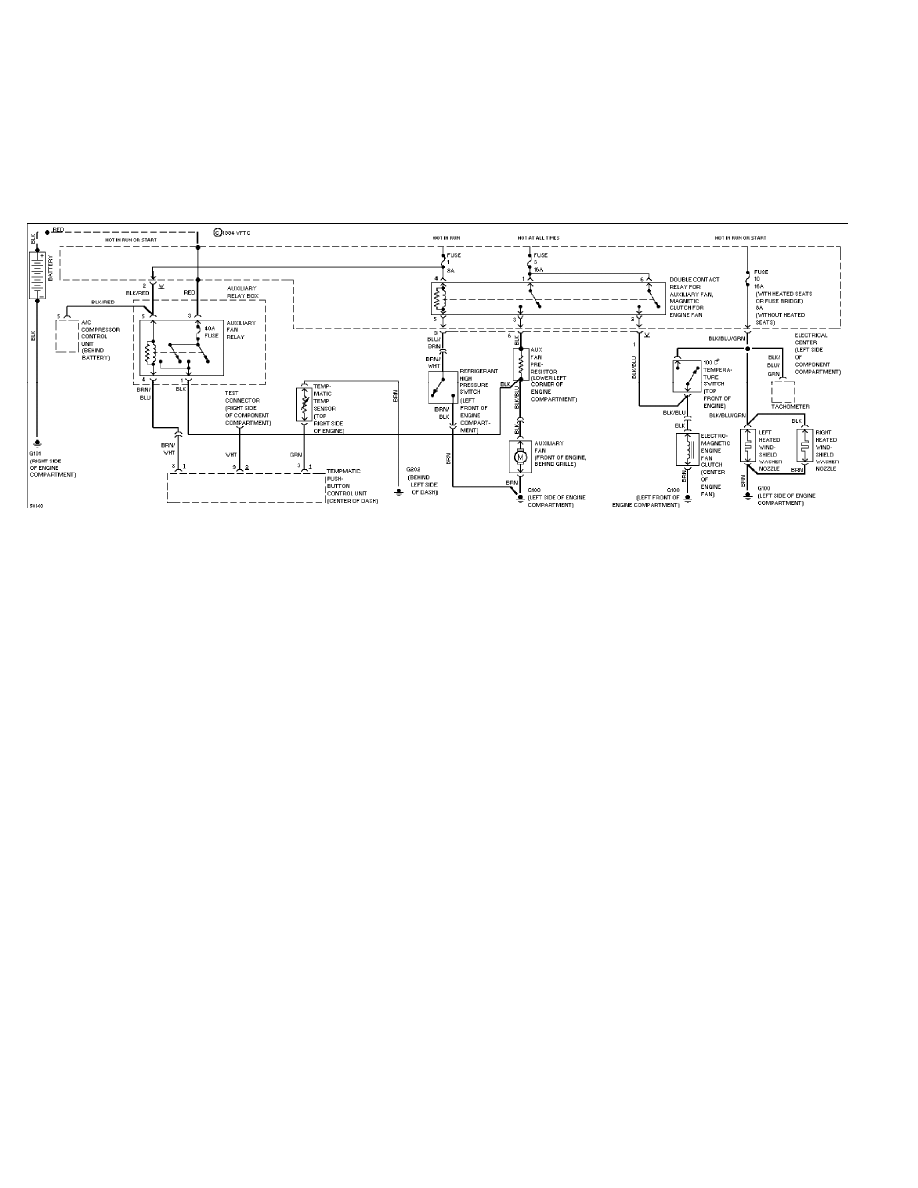

2.3L, Cooling Fan Circuit (p. 6)

1992 Mercedes-Benz 190E

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, December 06, 2004 09:43AM

background image

SYSTEM WIRING DIAGRAMS

2.6L, Cooling Fan Circuit (p. 7)

1992 Mercedes-Benz 190E

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, December 06, 2004 09:43AM

background image

SYSTEM WIRING DIAGRAMS

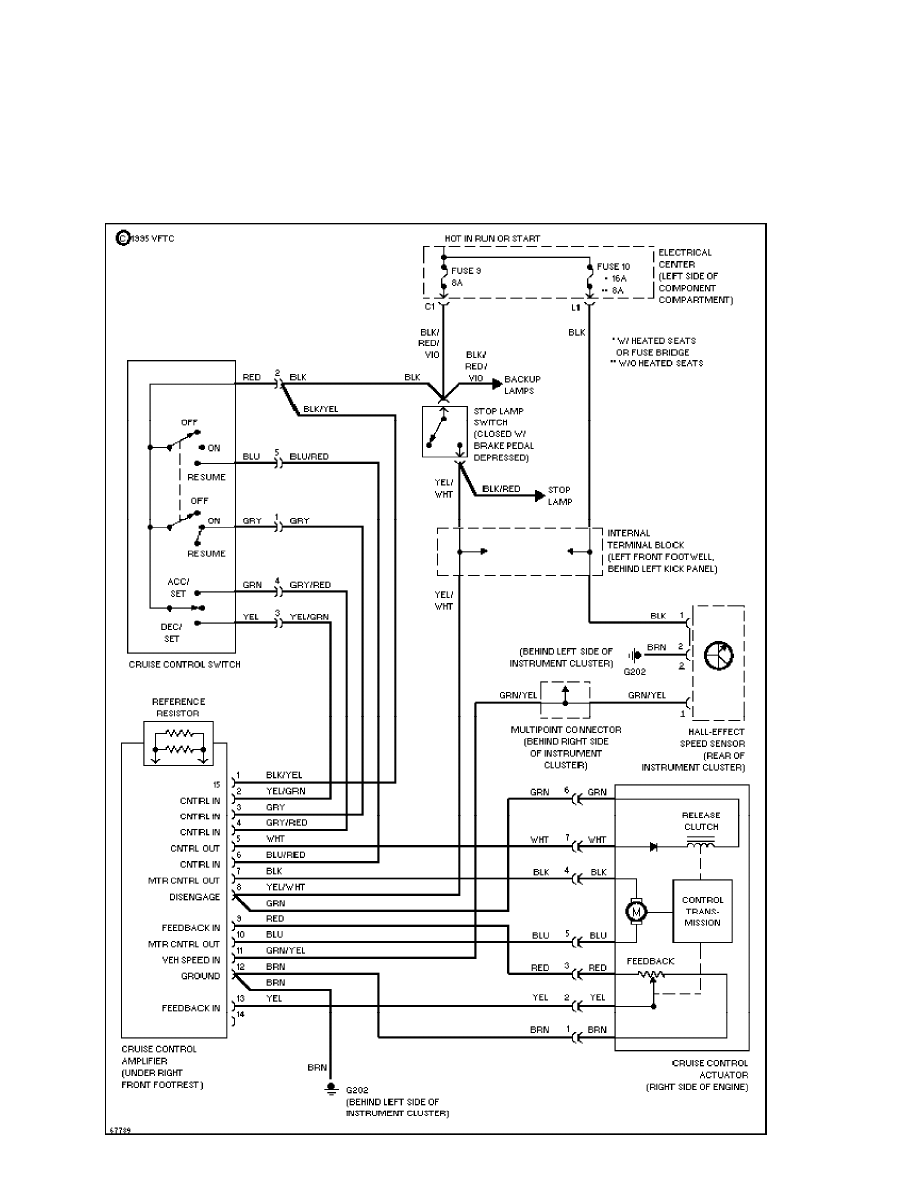

Cruise Control Circuit, A/T (p. 8)

1992 Mercedes-Benz 190E

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, December 06, 2004 09:43AM

background image

SYSTEM WIRING DIAGRAMS

Cruise Control Circuit, M/T (p. 9)

1992 Mercedes-Benz 190E

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, December 06, 2004 09:43AM

background image

SYSTEM WIRING DIAGRAMS

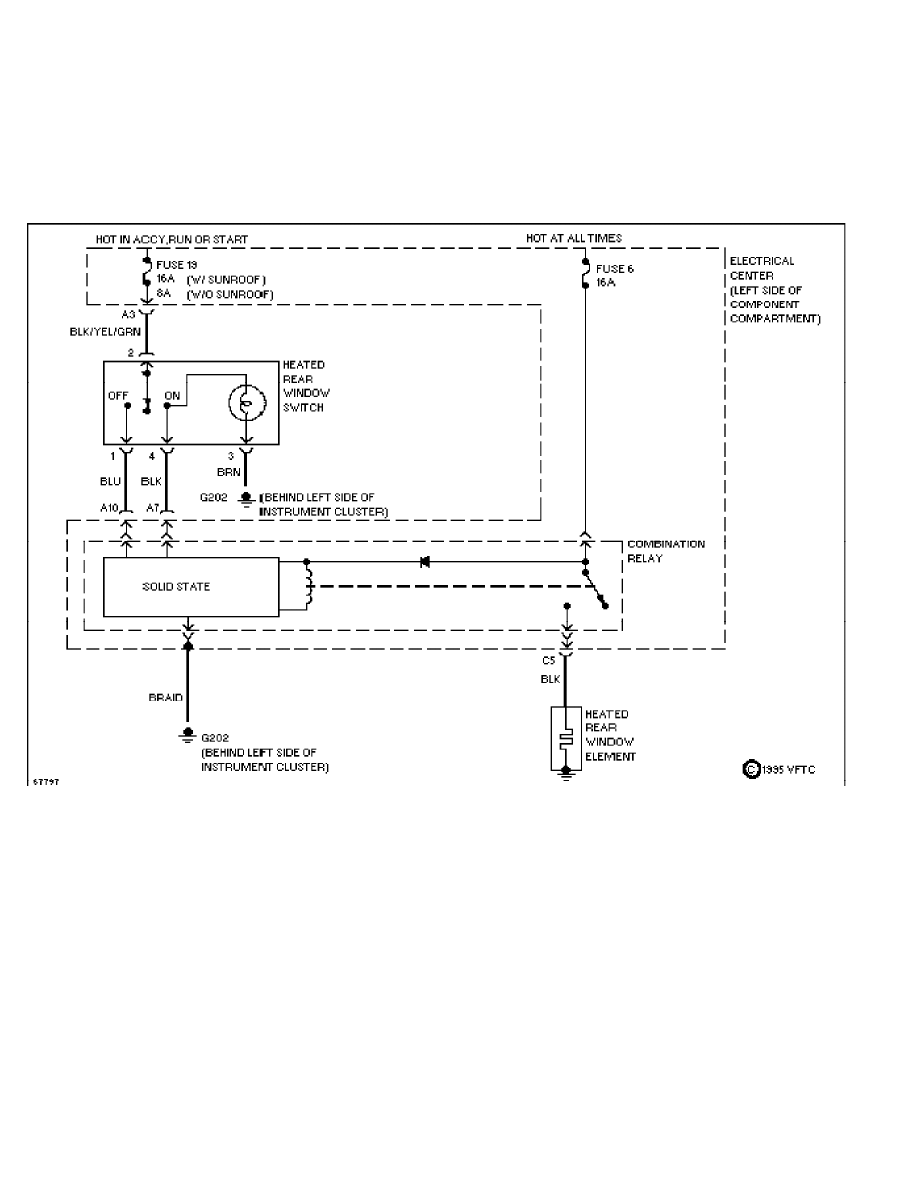

Defogger Circuit (p. 10)

1992 Mercedes-Benz 190E

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, December 06, 2004 09:43AM

background image

SYSTEM WIRING DIAGRAMS

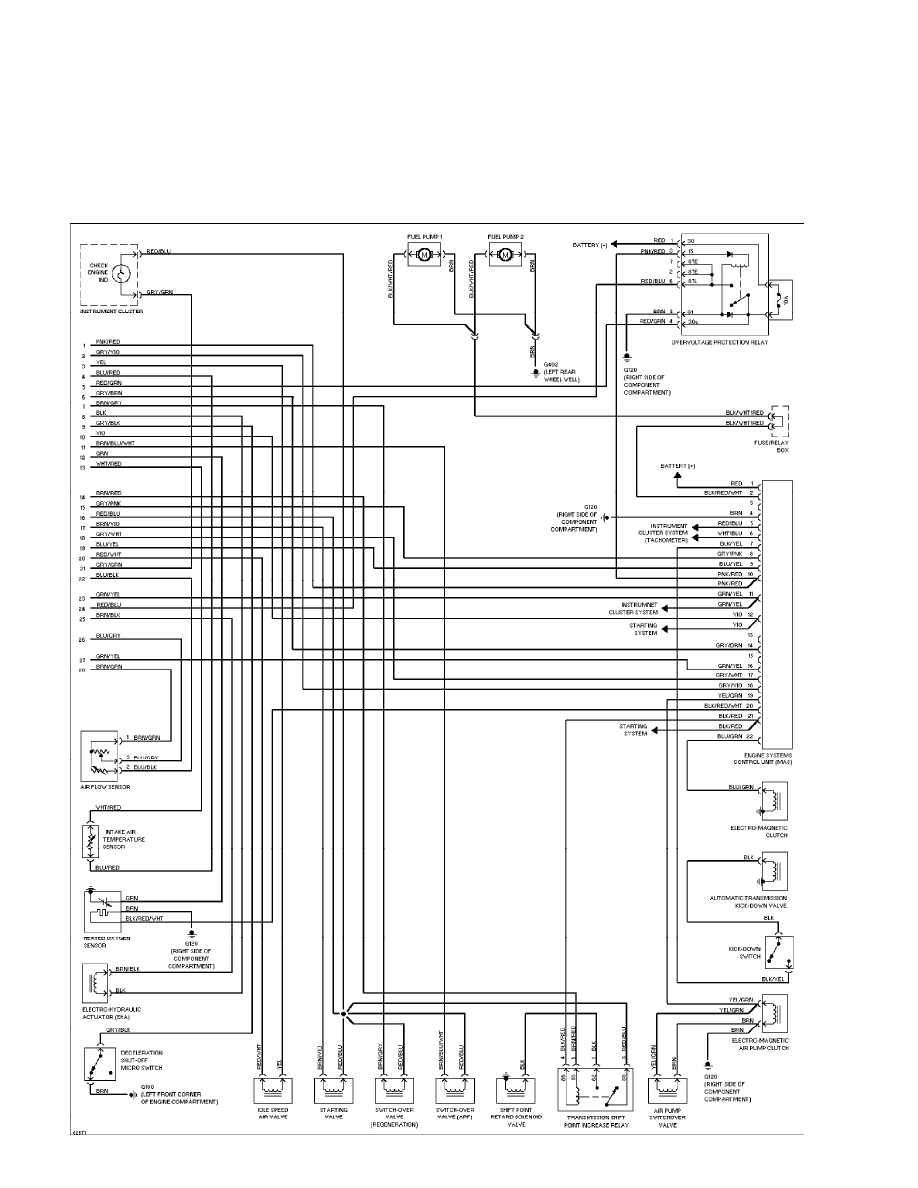

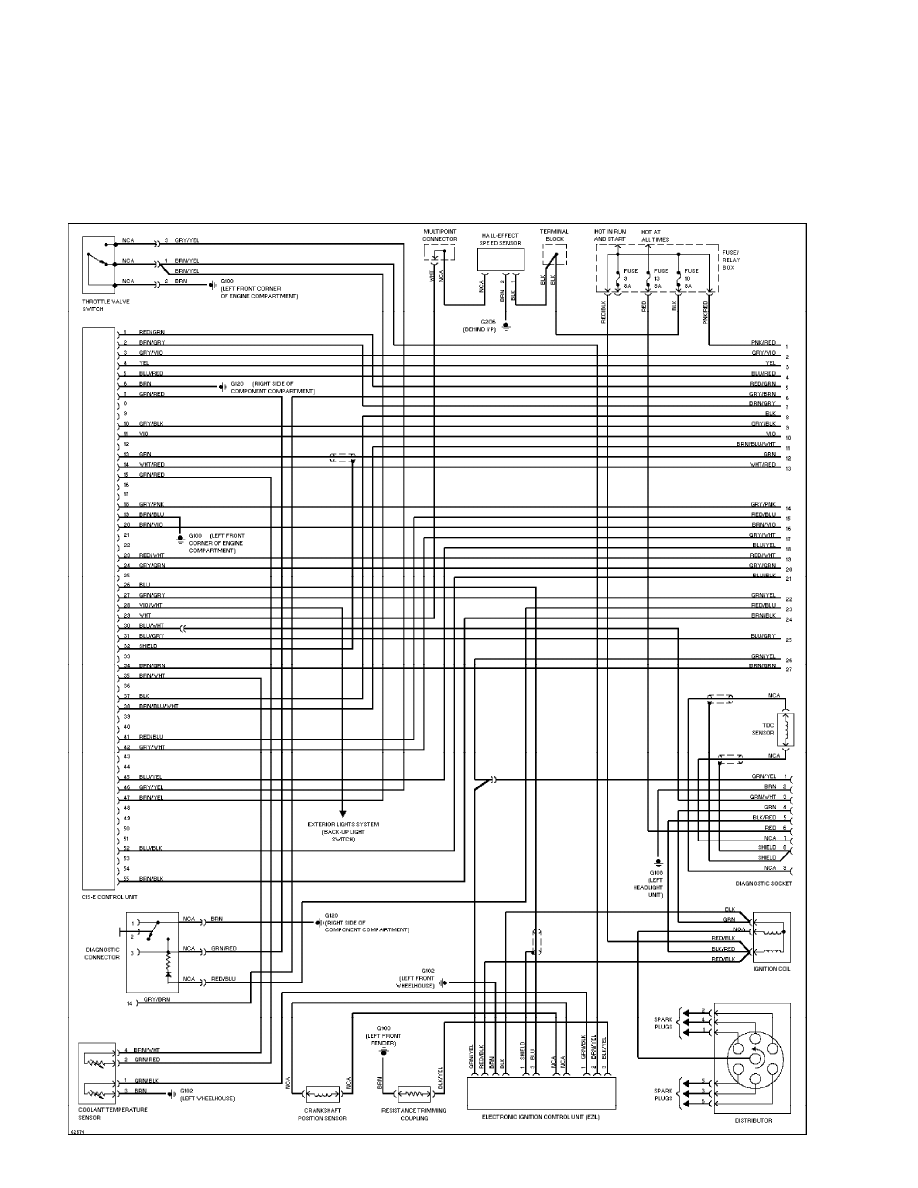

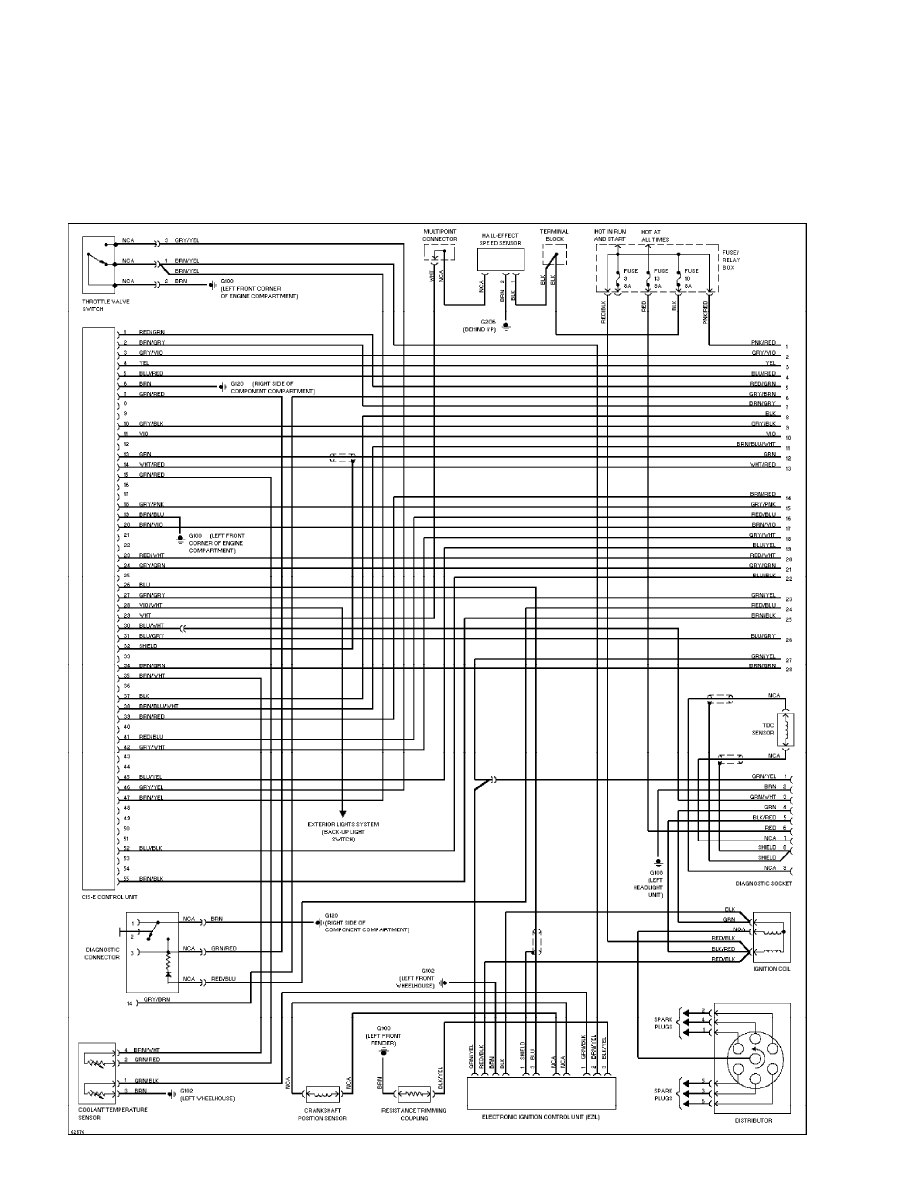

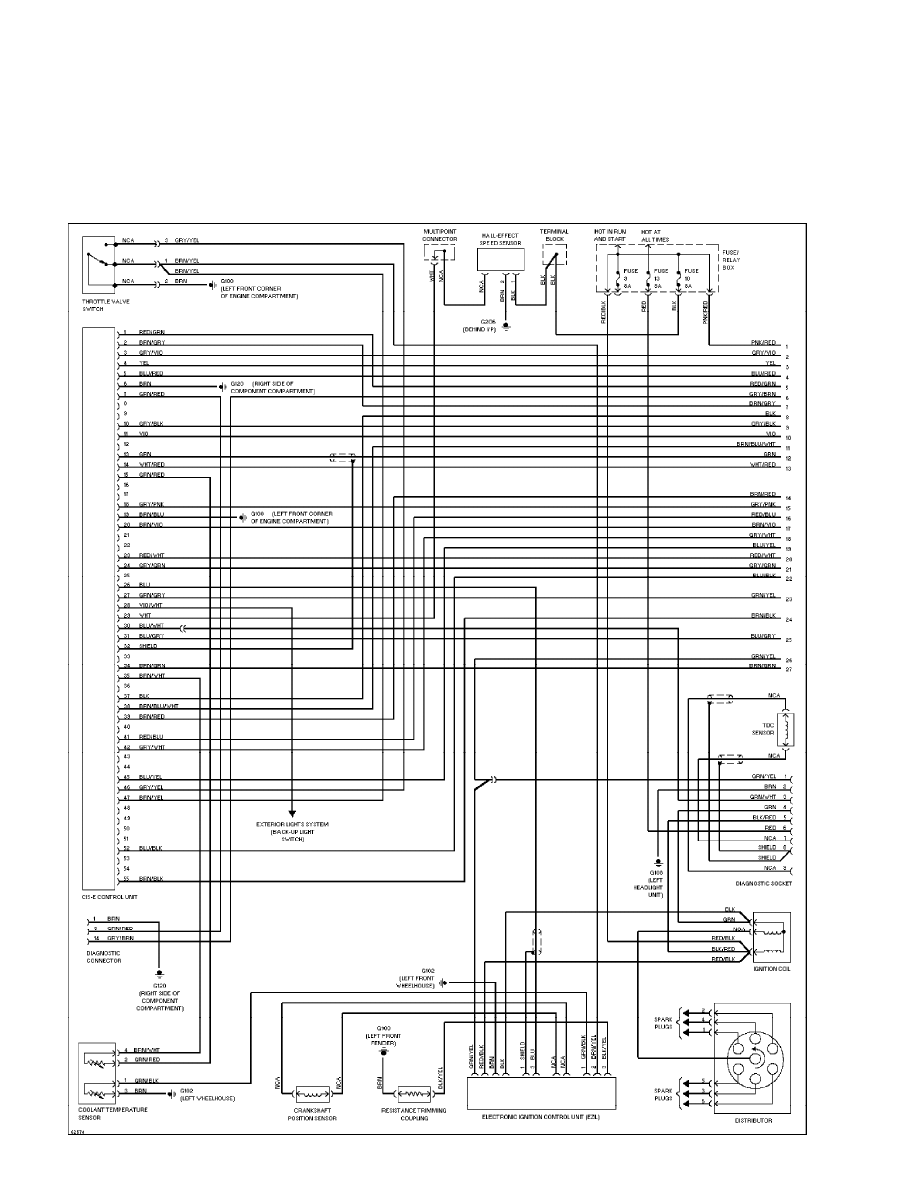

2.6L, Engine Performance Circuits, A/T California (1 of 2) (p. 11)

1992 Mercedes-Benz 190E

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, December 06, 2004 09:43AM

background image

SYSTEM WIRING DIAGRAMS

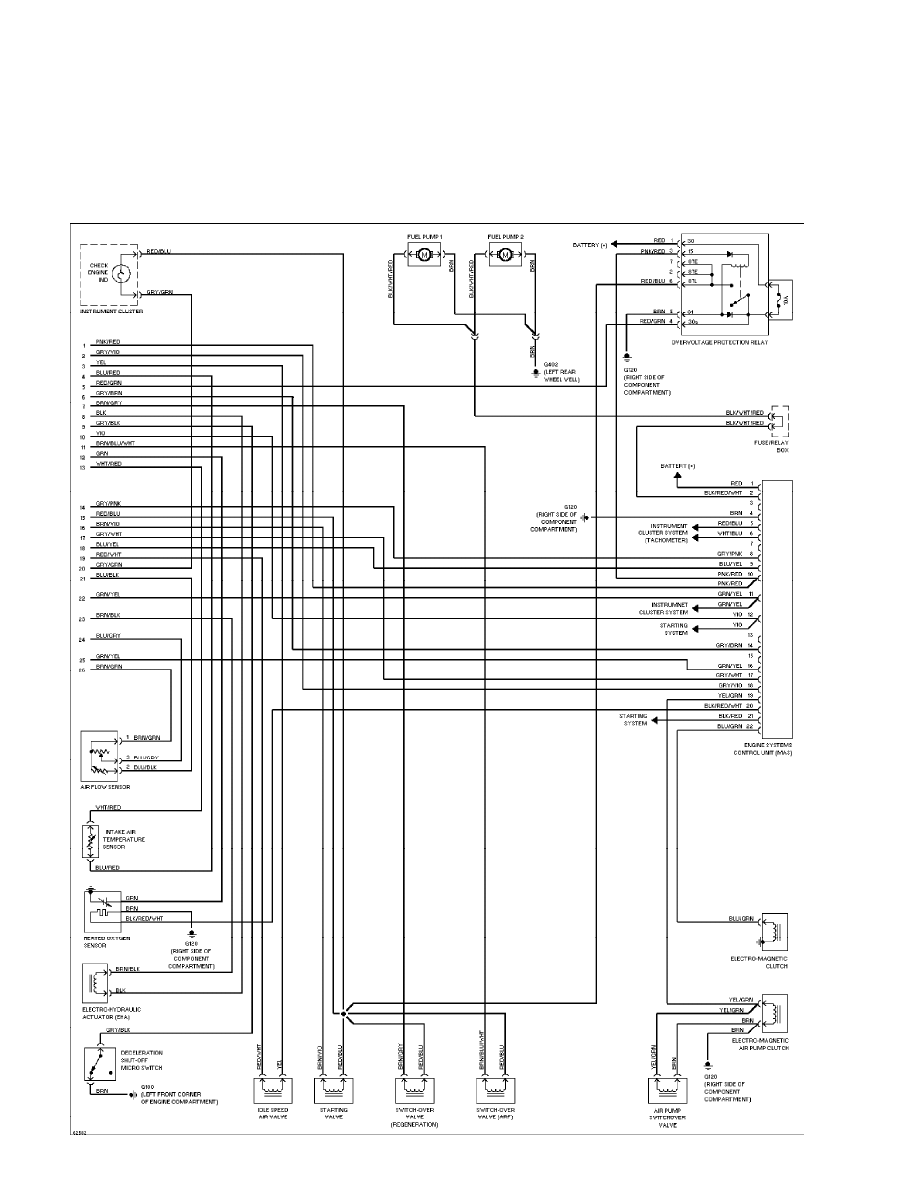

2.6L, Engine Performance Circuits, A/T California (2 of 2) (p. 12)

1992 Mercedes-Benz 190E

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, December 06, 2004 09:43AM

background image

SYSTEM WIRING DIAGRAMS

2.6L, Engine Performance Circuits, A/T Federal (1 of 2) (p. 13)

1992 Mercedes-Benz 190E

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, December 06, 2004 09:43AM

background image

SYSTEM WIRING DIAGRAMS

2.6L, Engine Performance Circuits, A/T Federal (2 of 2) (p. 14)

1992 Mercedes-Benz 190E

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, December 06, 2004 09:43AM

background image

SYSTEM WIRING DIAGRAMS

2.6L, Engine Performance Circuits, M/T California (1 of 2) (p. 15)

1992 Mercedes-Benz 190E

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, December 06, 2004 09:43AM

background image

SYSTEM WIRING DIAGRAMS

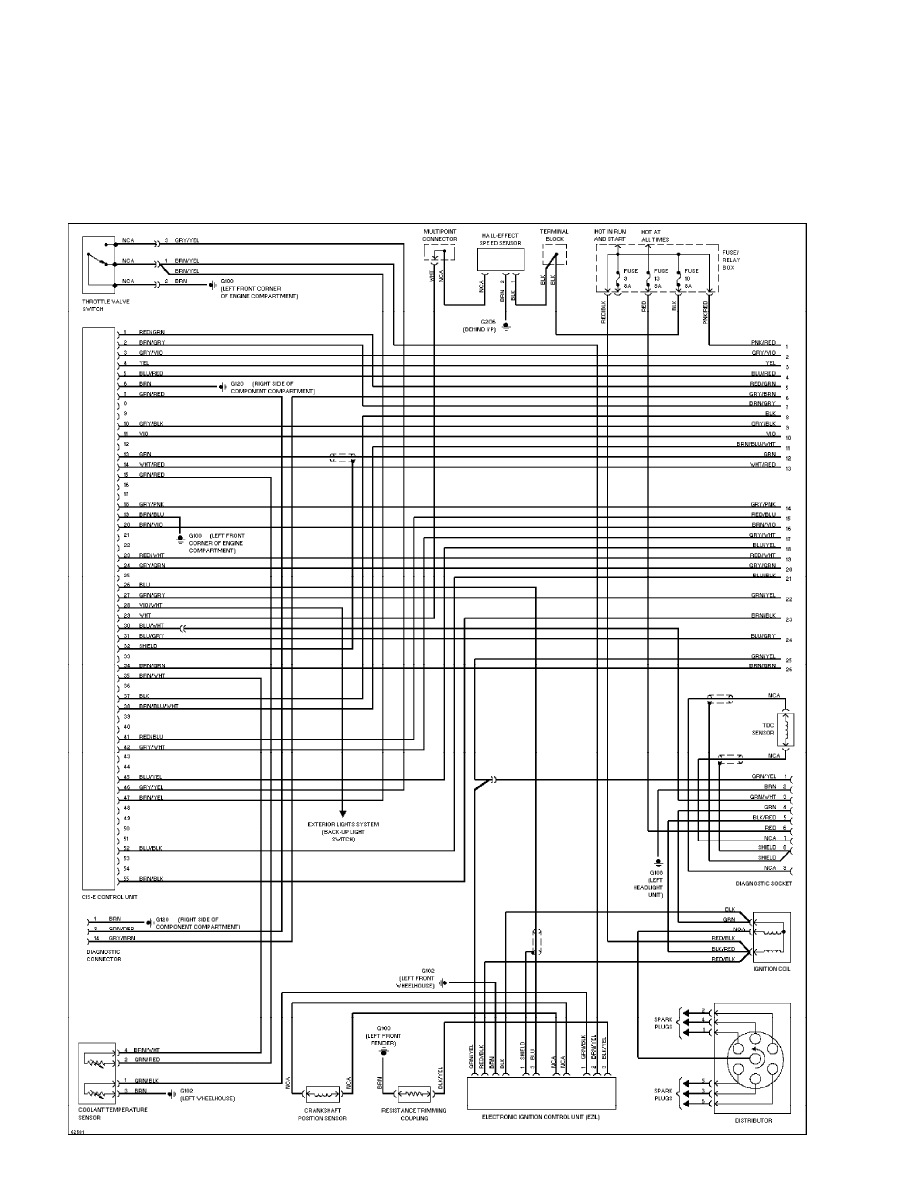

2.6L, Engine Performance Circuits, M/T California (2 of 2) (p. 16)

1992 Mercedes-Benz 190E

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, December 06, 2004 09:43AM

background image

SYSTEM WIRING DIAGRAMS

2.6L, Engine Performance Circuits, M/T Federal (1 of 2) (p. 17)

1992 Mercedes-Benz 190E

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, December 06, 2004 09:43AM

background image

SYSTEM WIRING DIAGRAMS

2.6L, Engine Performance Circuits, M/T Federal (2 of 2) (p. 18)

1992 Mercedes-Benz 190E

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, December 06, 2004 09:43AM

background image

SYSTEM WIRING DIAGRAMS

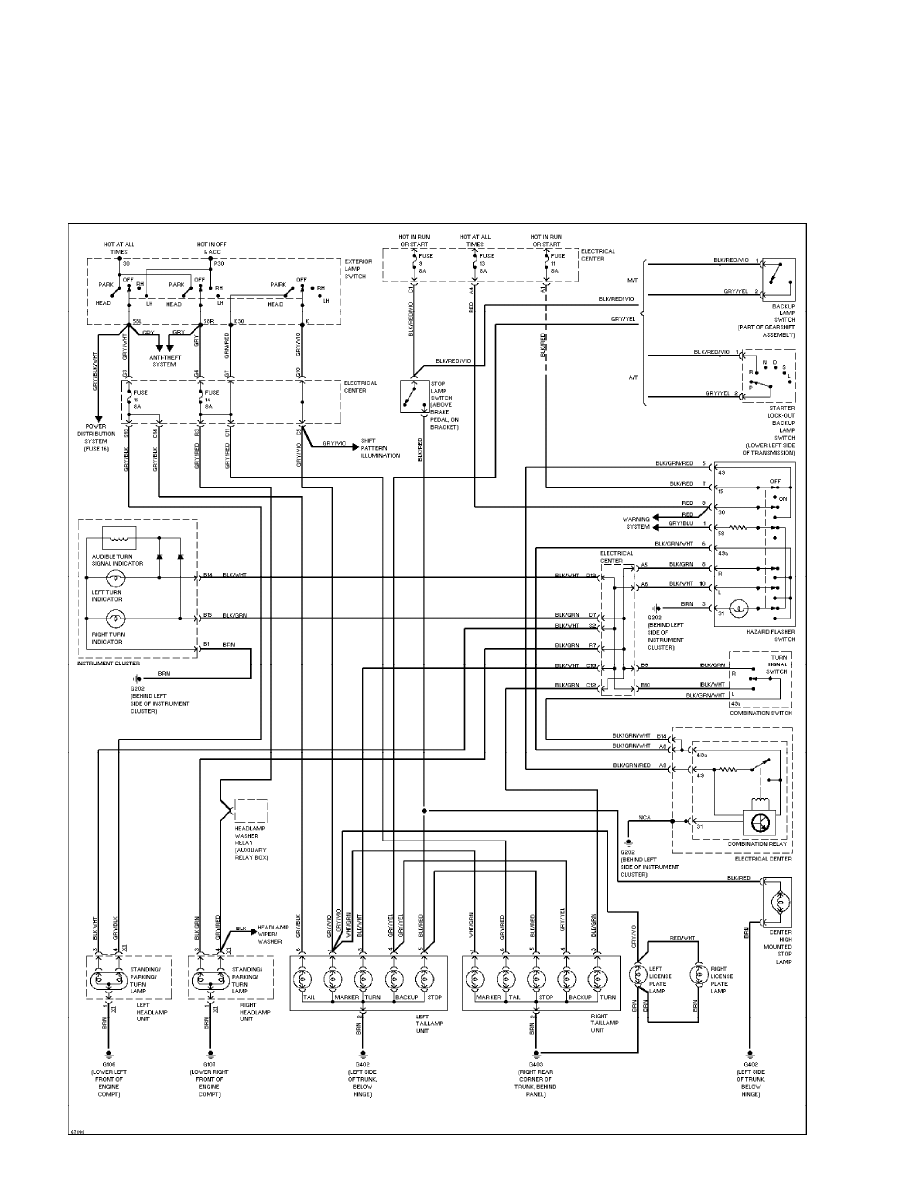

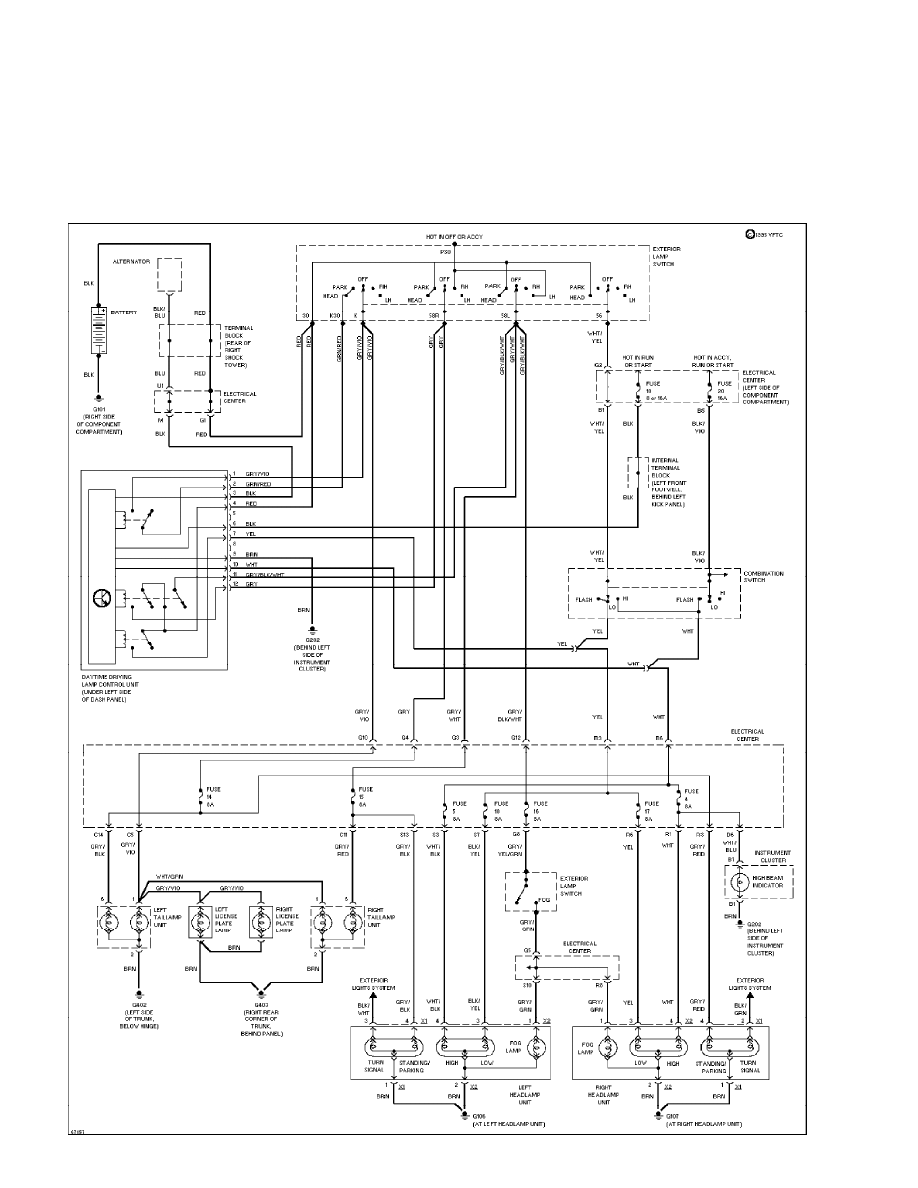

Exterior Light Circuit (p. 19)

1992 Mercedes-Benz 190E

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, December 06, 2004 09:43AM

background image

SYSTEM WIRING DIAGRAMS

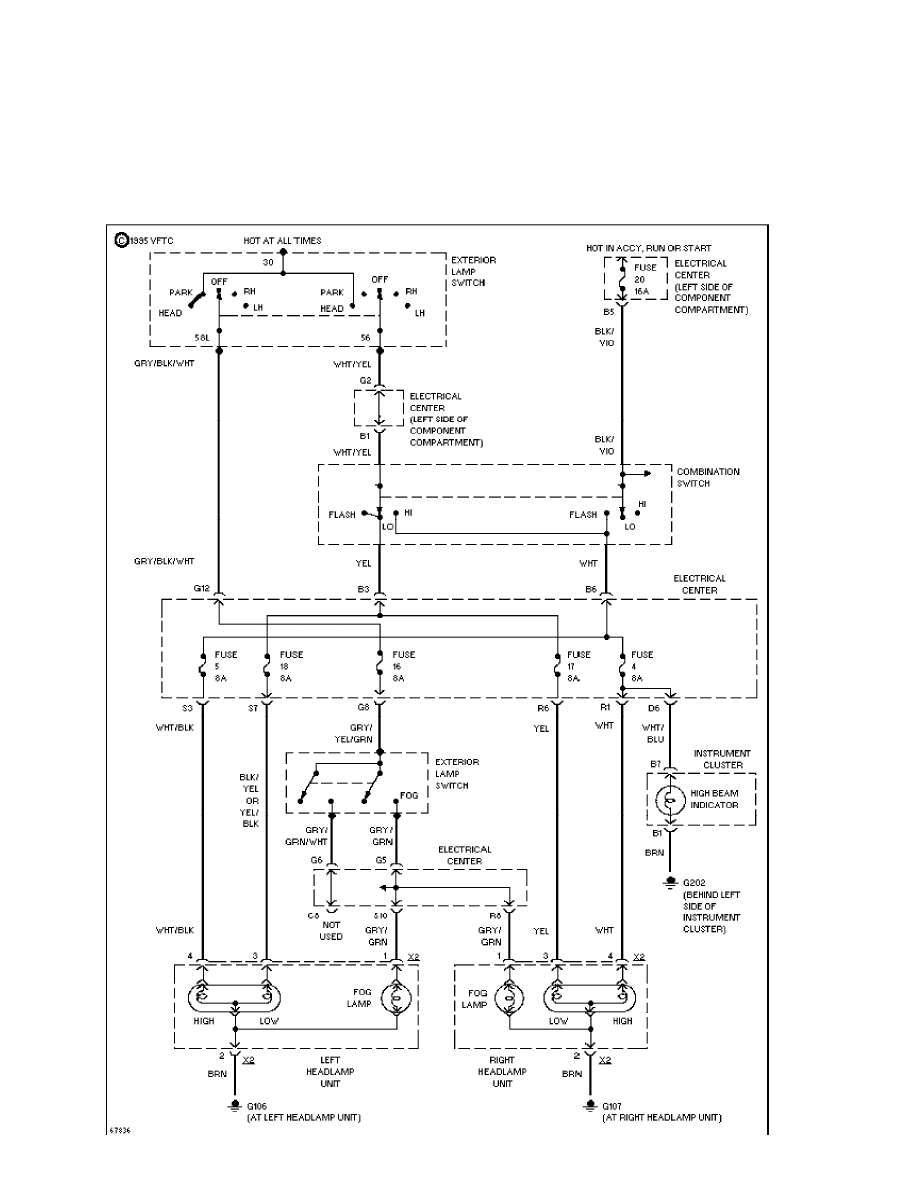

Headlight Circuit, W/ DRL (p. 20)

1992 Mercedes-Benz 190E

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, December 06, 2004 09:43AM

background image

SYSTEM WIRING DIAGRAMS

Headlight Circuit, W/O DRL (p. 21)

1992 Mercedes-Benz 190E

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, December 06, 2004 09:43AM

background image

SYSTEM WIRING DIAGRAMS

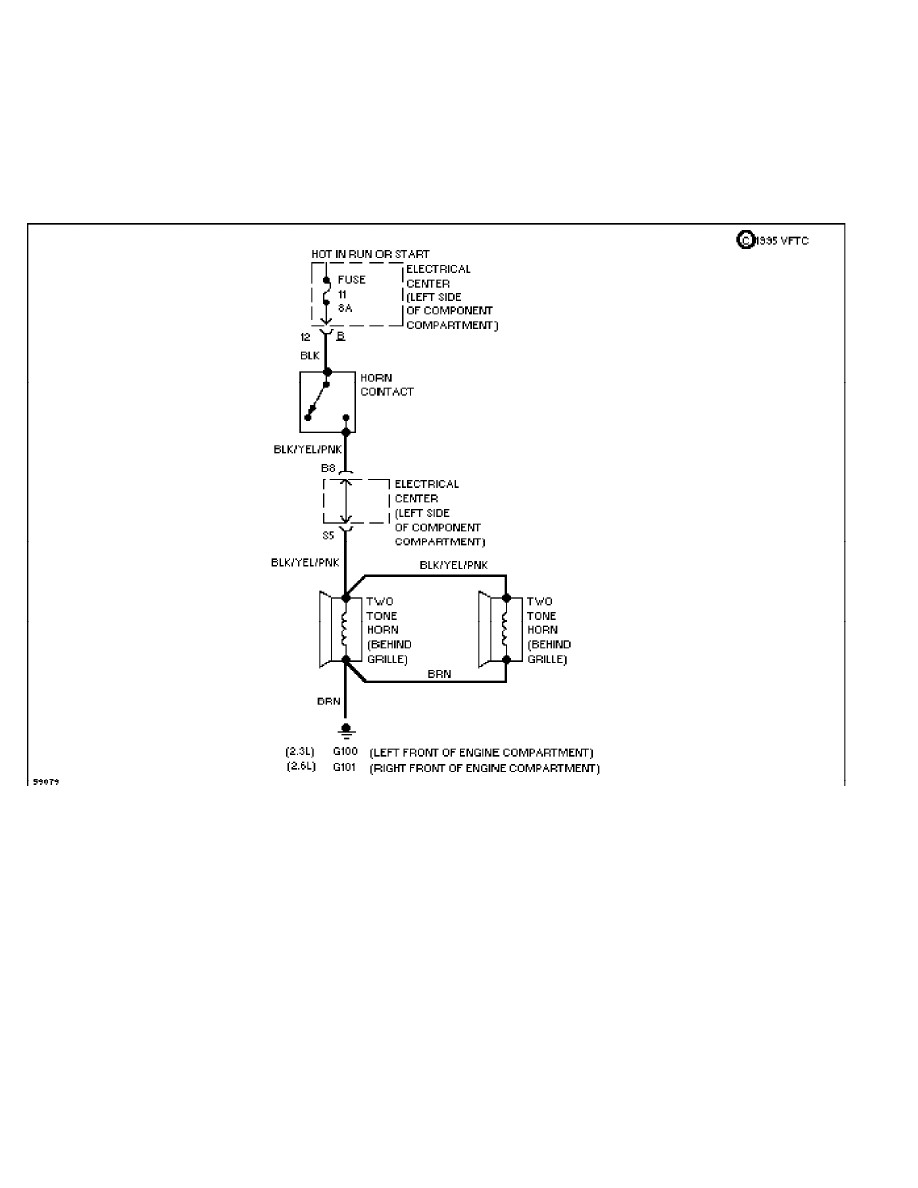

Horn Circuit (p. 22)

1992 Mercedes-Benz 190E

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, December 06, 2004 09:43AM

background image

SYSTEM WIRING DIAGRAMS

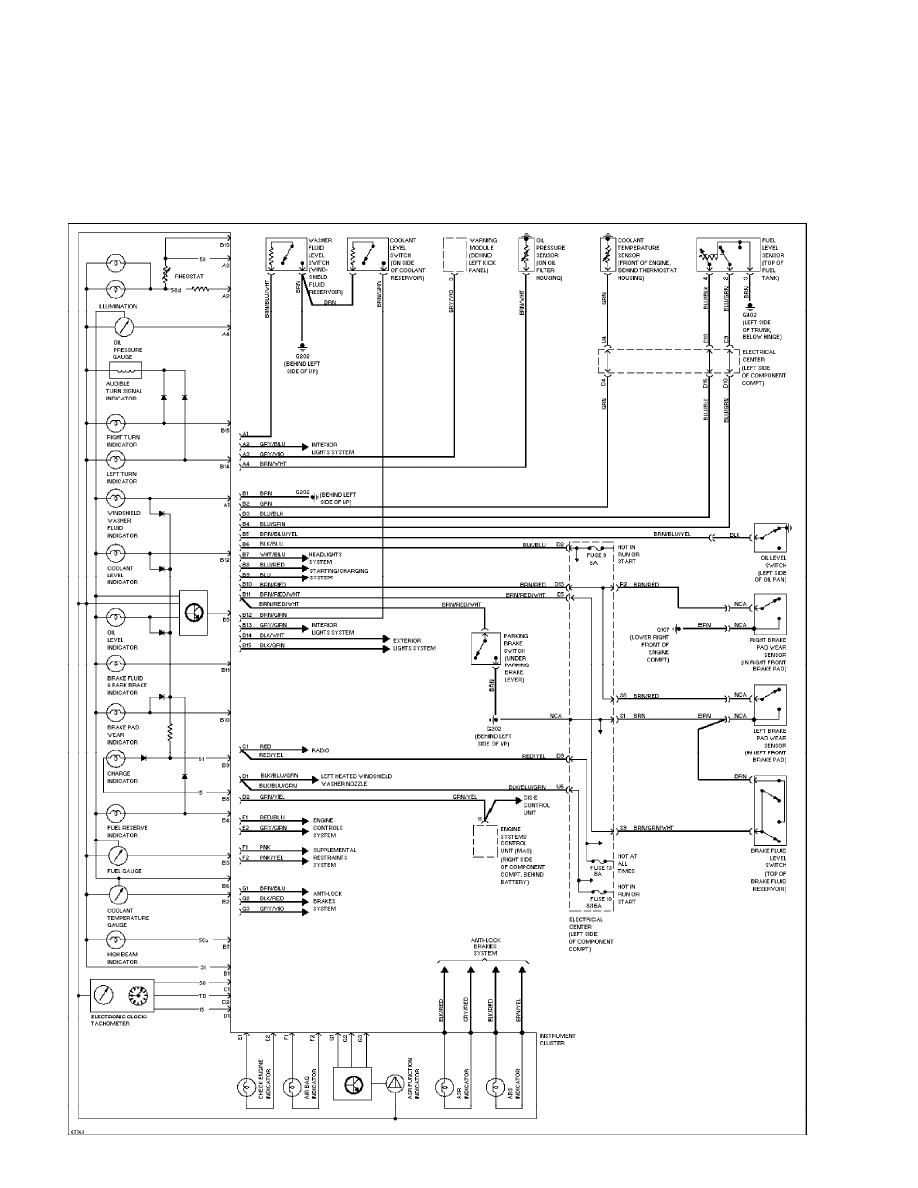

Instrument Cluster Circuit (p. 23)

1992 Mercedes-Benz 190E

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, December 06, 2004 09:43AM

background image

SYSTEM WIRING DIAGRAMS

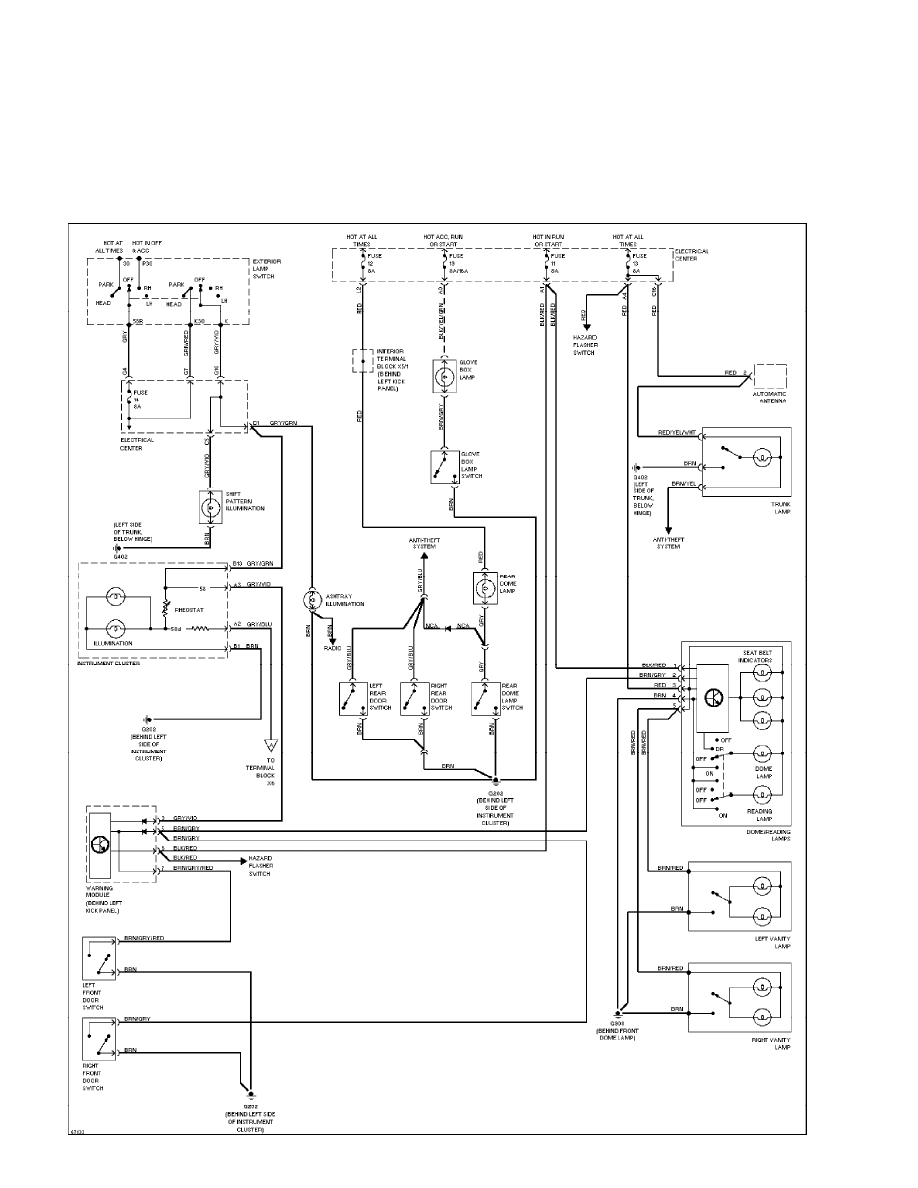

Interior Light Circuit (1 of 2) (p. 24)

1992 Mercedes-Benz 190E

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, December 06, 2004 09:43AM

background image

SYSTEM WIRING DIAGRAMS

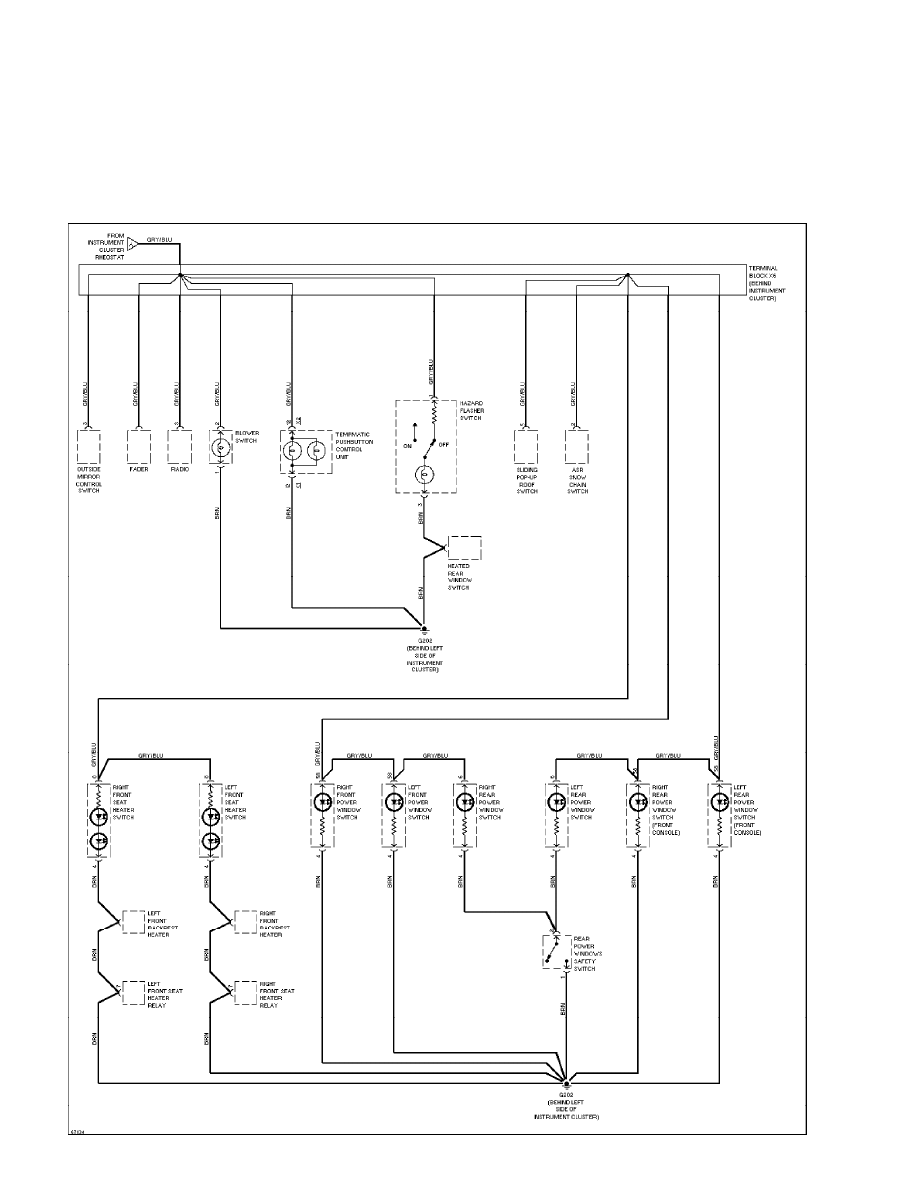

Interior Light Circuit (2 of 2) (p. 25)

1992 Mercedes-Benz 190E

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, December 06, 2004 09:43AM

background image

SYSTEM WIRING DIAGRAMS

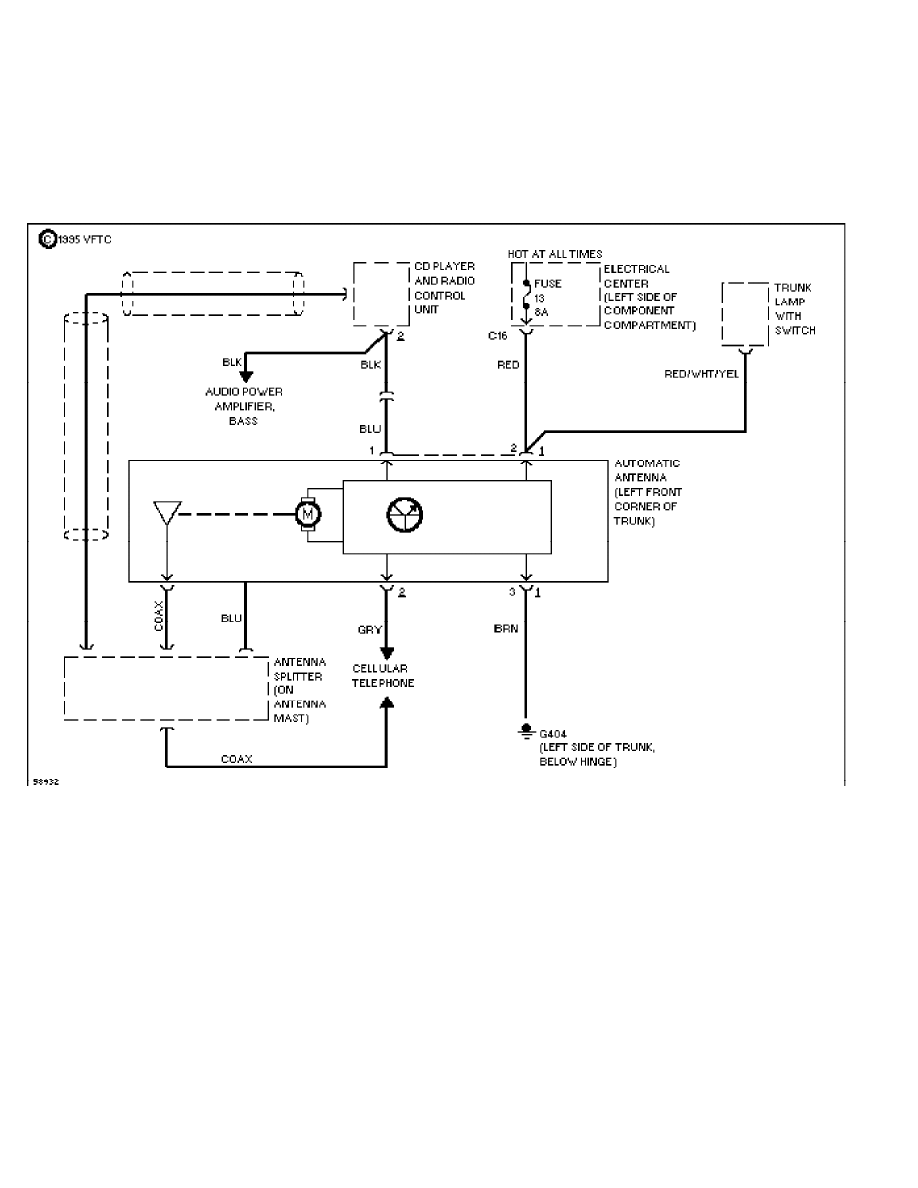

Power Antenna Circuit (p. 26)

1992 Mercedes-Benz 190E

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, December 06, 2004 09:43AM

background image

SYSTEM WIRING DIAGRAMS

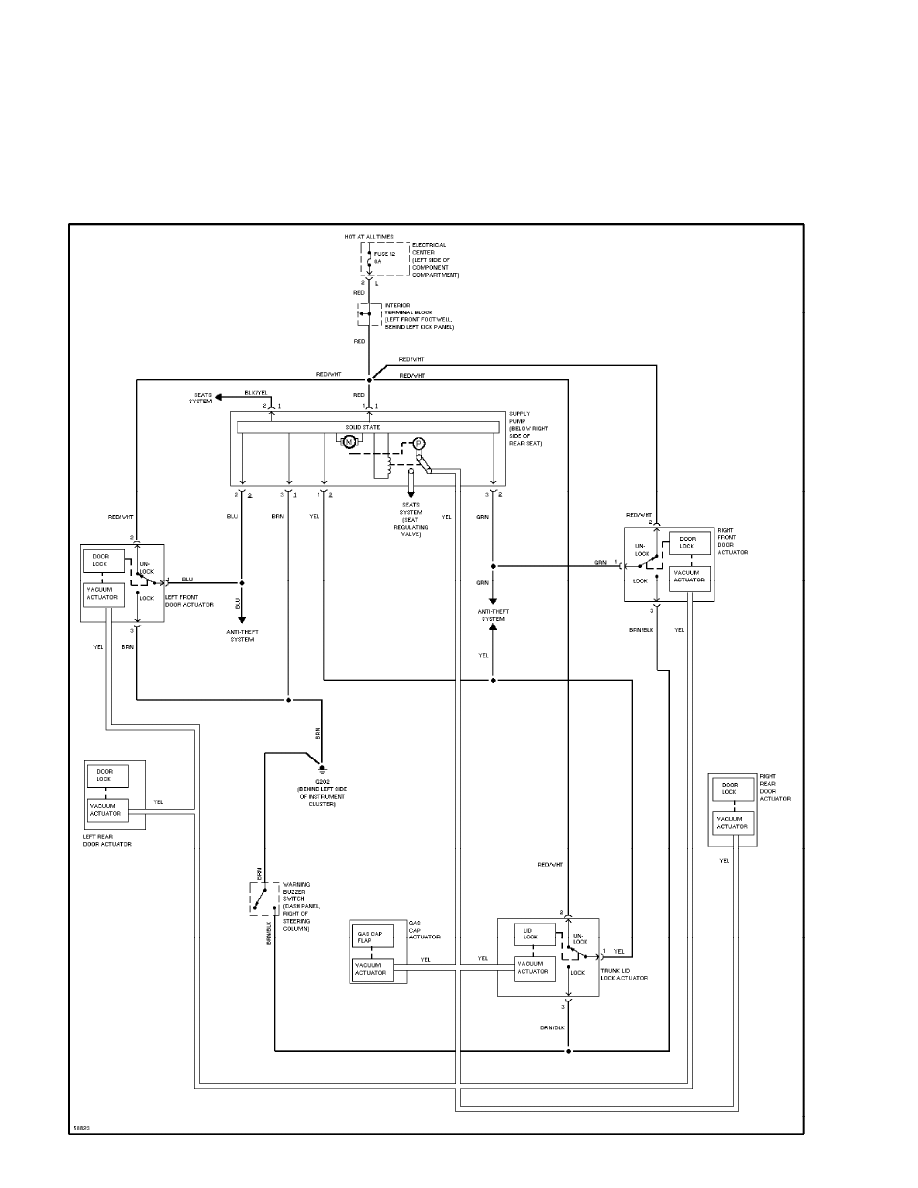

Power Door Lock Circuit (p. 27)

1992 Mercedes-Benz 190E

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, December 06, 2004 09:43AM

background image

SYSTEM WIRING DIAGRAMS

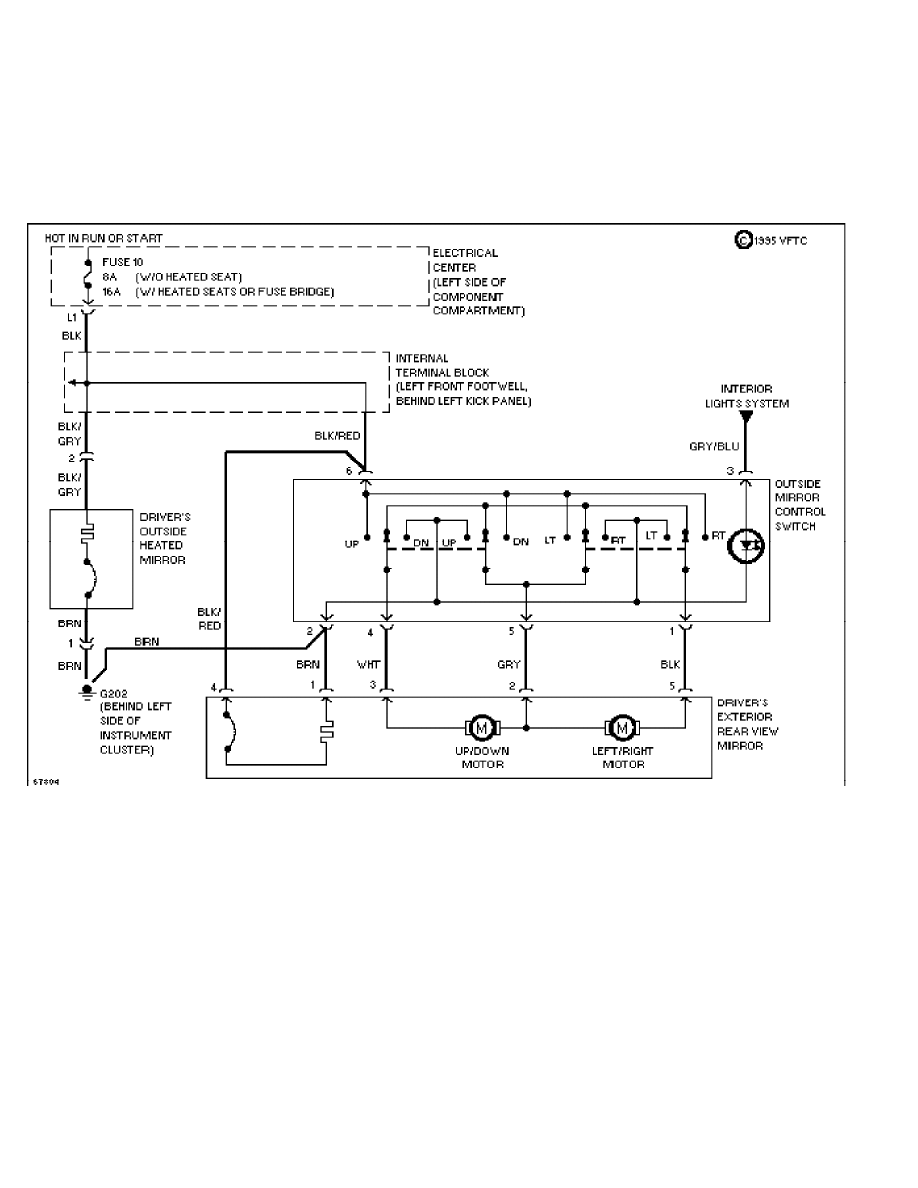

Power Mirror Circuit (p. 28)

1992 Mercedes-Benz 190E

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, December 06, 2004 09:43AM

background image

SYSTEM WIRING DIAGRAMS

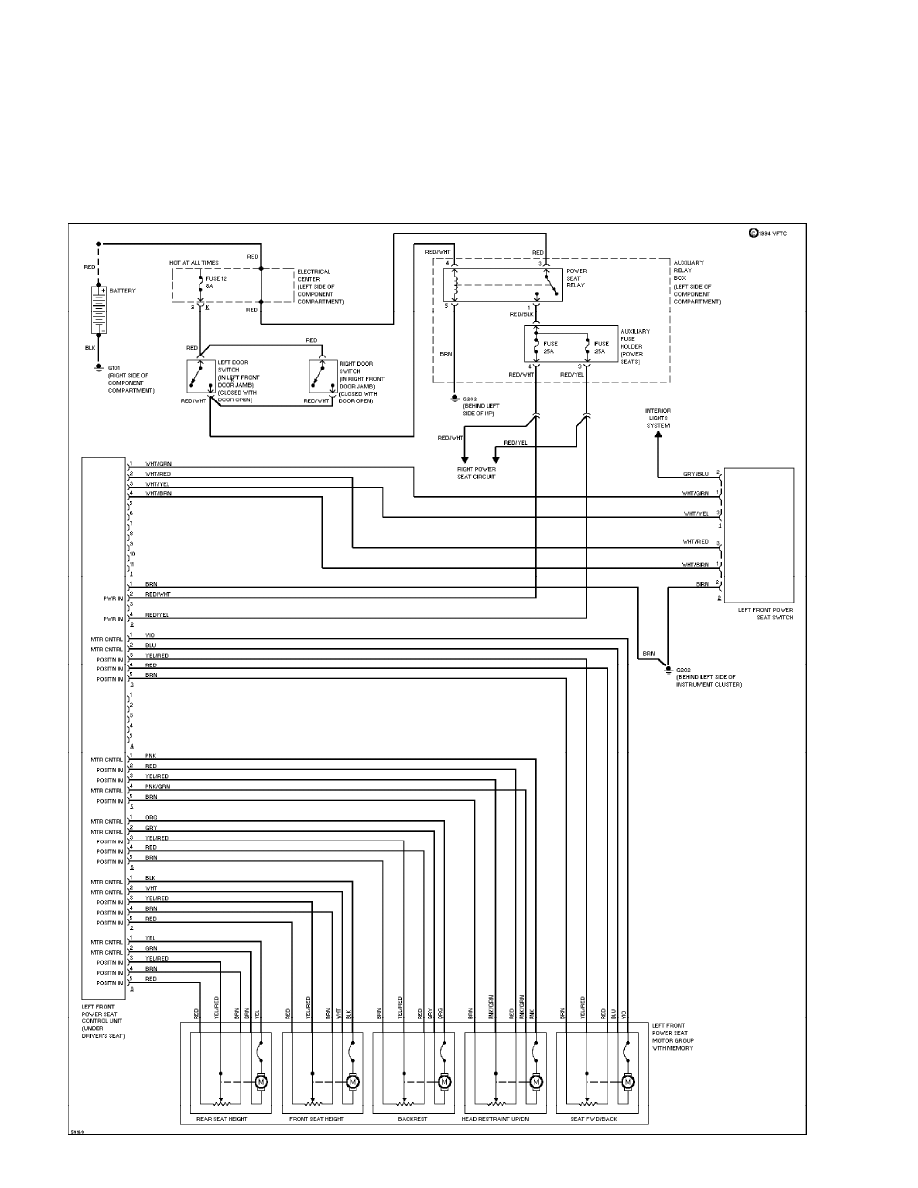

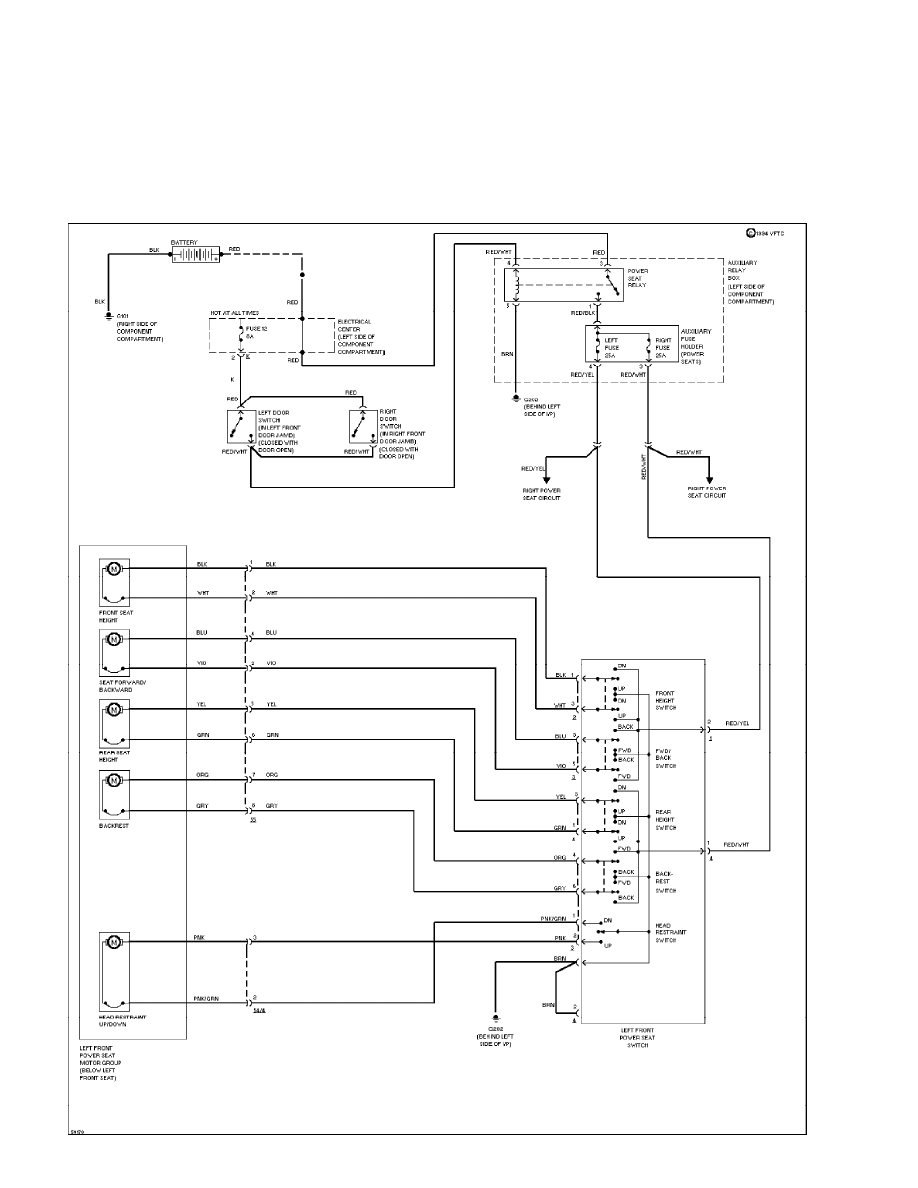

Driver Power Seat Circuit, W/ Memory (p. 29)

1992 Mercedes-Benz 190E

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, December 06, 2004 09:43AM

background image

SYSTEM WIRING DIAGRAMS

Driver Power Seat Circuit, W/O Memory (p. 30)

1992 Mercedes-Benz 190E

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, December 06, 2004 09:43AM

background image

SYSTEM WIRING DIAGRAMS

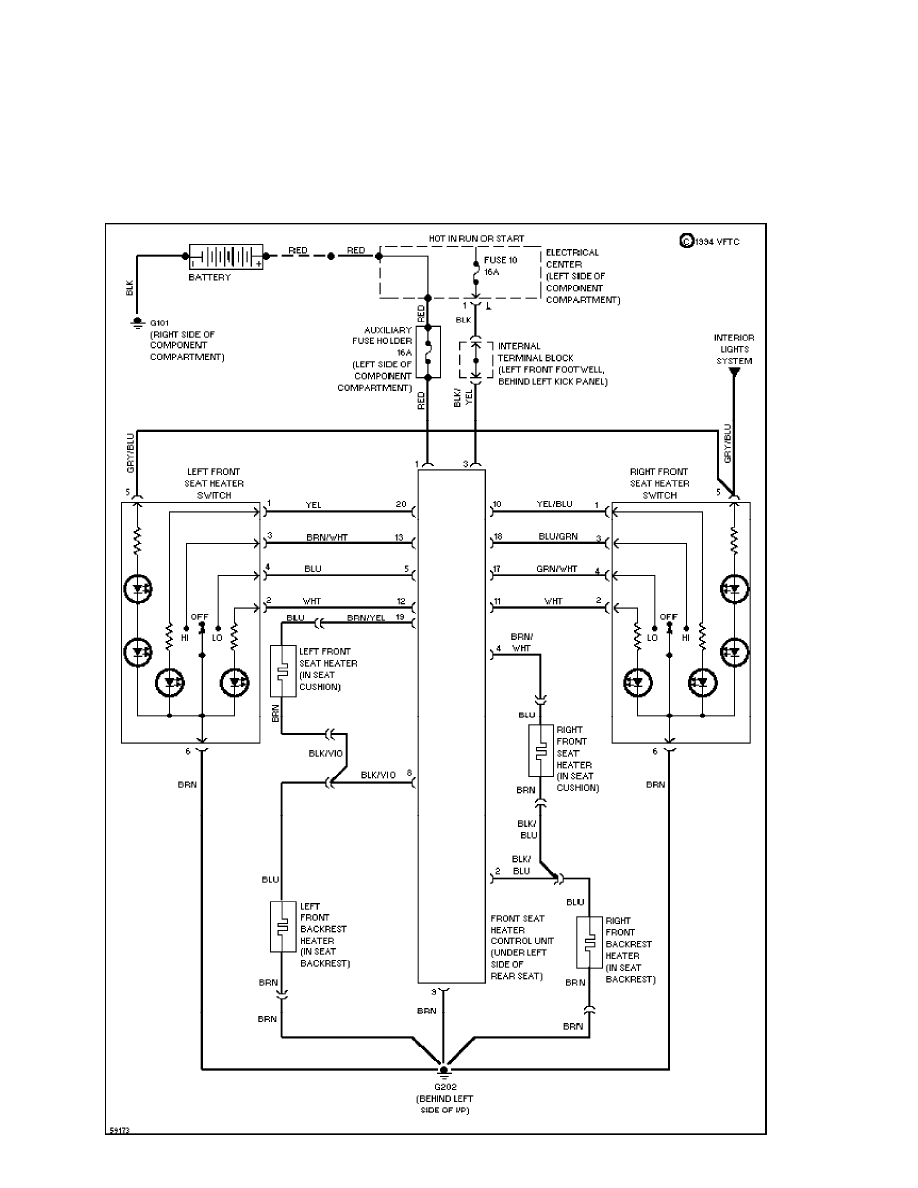

Heater Circuit (p. 31)

1992 Mercedes-Benz 190E

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, December 06, 2004 09:43AM

background image

SYSTEM WIRING DIAGRAMS

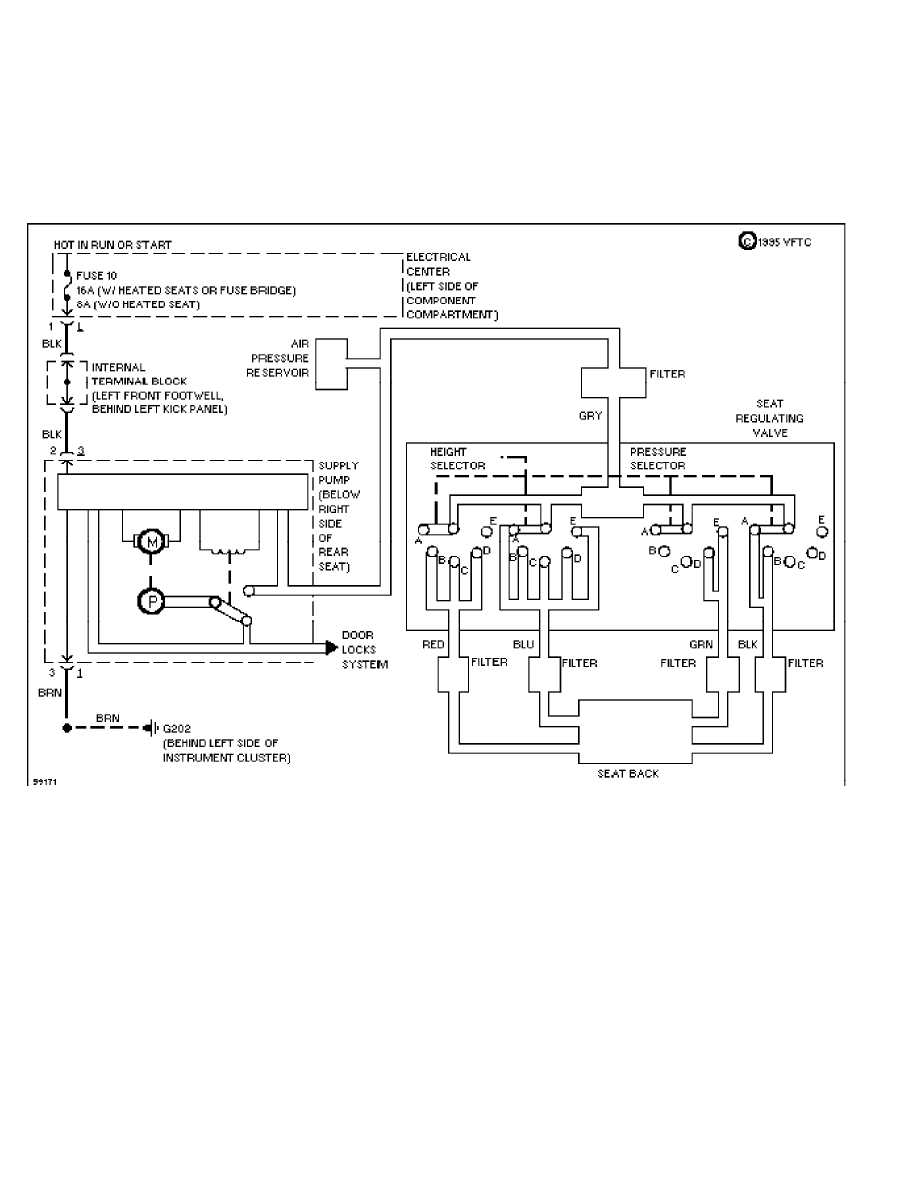

Orthopedic Seats (p. 32)

1992 Mercedes-Benz 190E

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, December 06, 2004 09:43AM

background image

SYSTEM WIRING DIAGRAMS

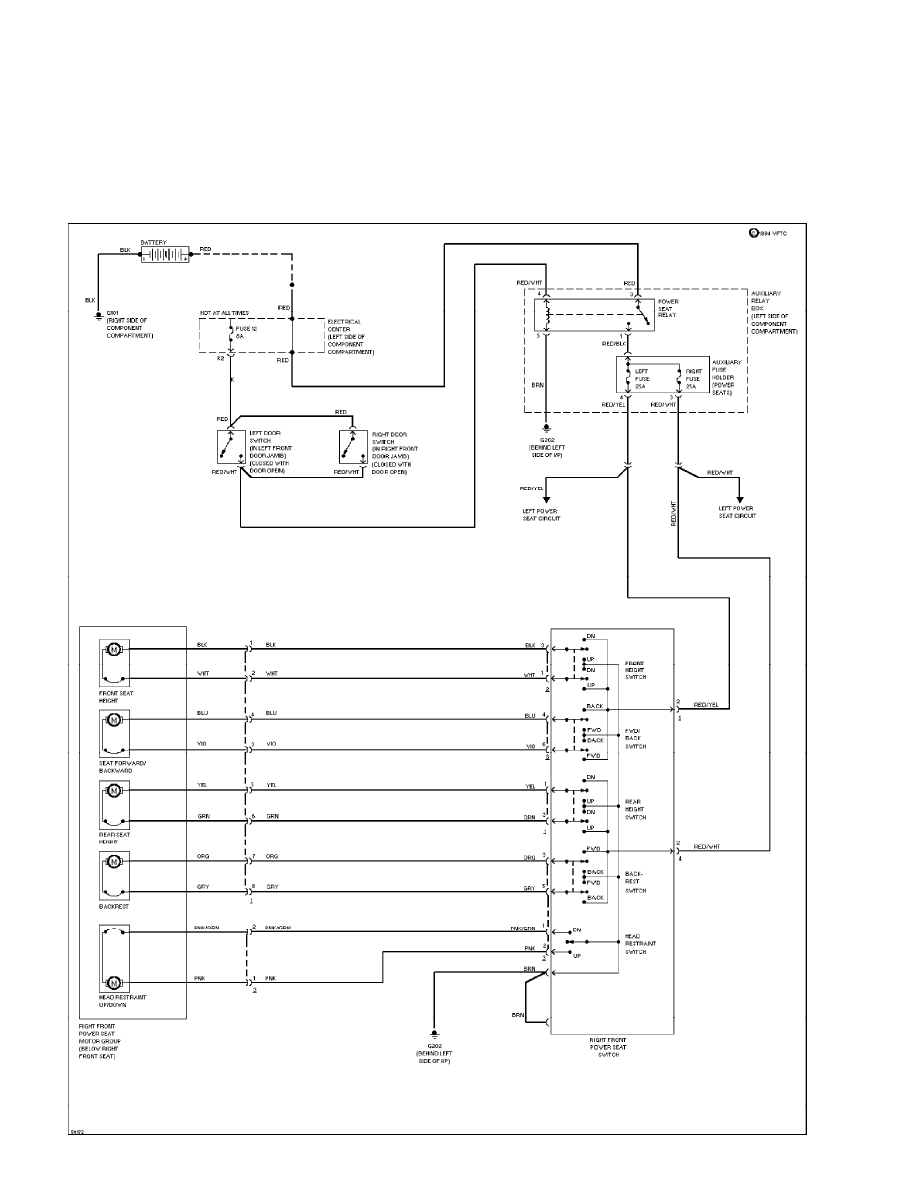

Right Seat Circuit (p. 33)

1992 Mercedes-Benz 190E

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, December 06, 2004 09:43AM

background image

SYSTEM WIRING DIAGRAMS

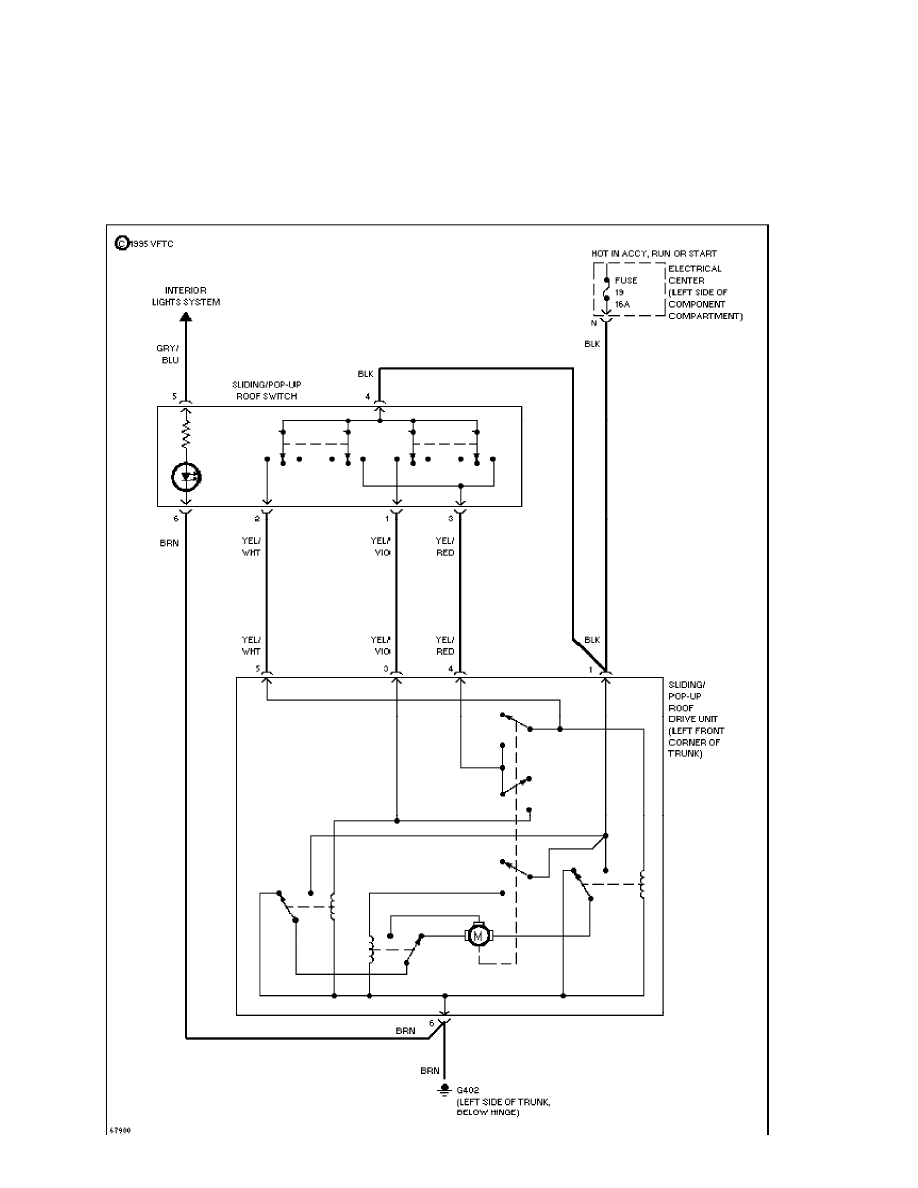

Power Top/Sunroof Circuits (p. 34)

1992 Mercedes-Benz 190E

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, December 06, 2004 09:43AM

background image

SYSTEM WIRING DIAGRAMS

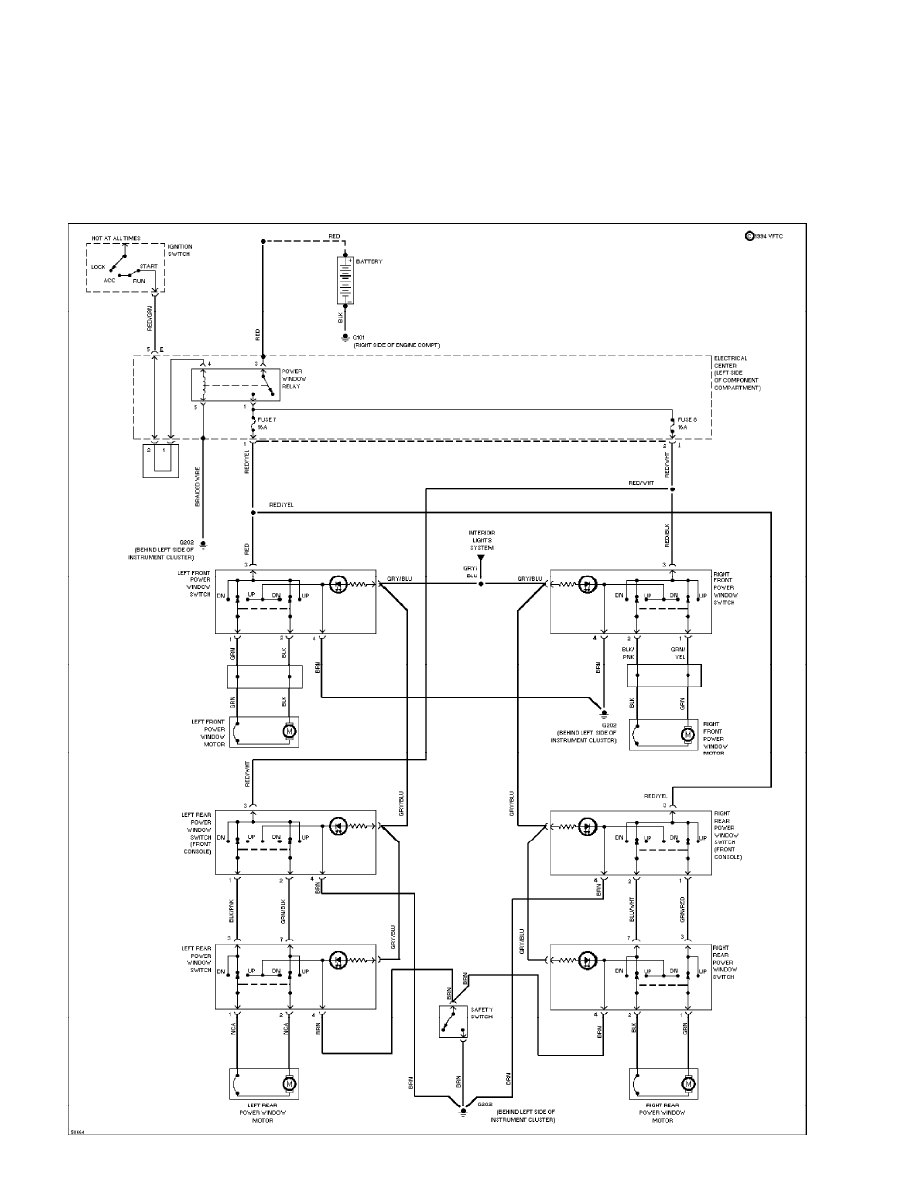

Power Window Circuit (p. 35)

1992 Mercedes-Benz 190E

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, December 06, 2004 09:43AM

background image

SYSTEM WIRING DIAGRAMS

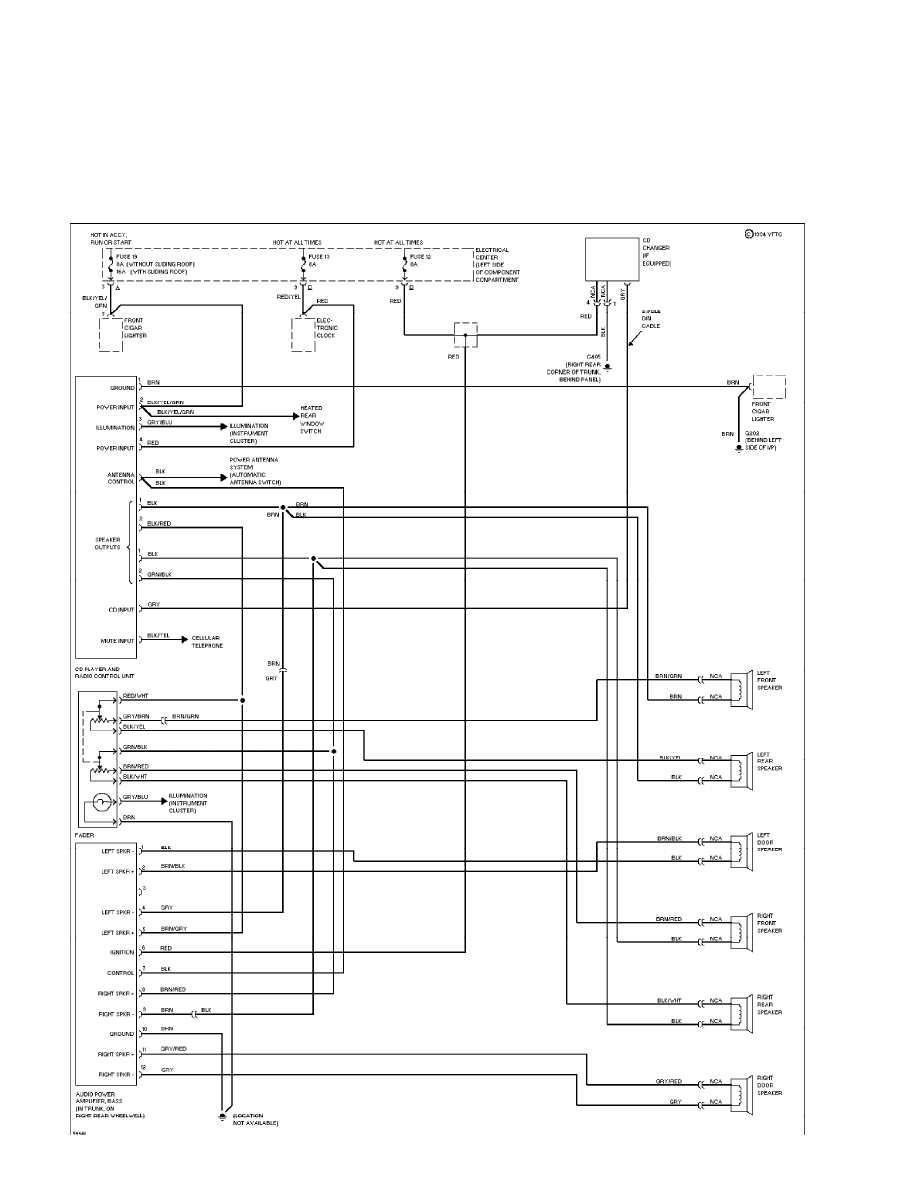

Radio Circuits (p. 36)

1992 Mercedes-Benz 190E

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, December 06, 2004 09:43AM

background image

SYSTEM WIRING DIAGRAMS

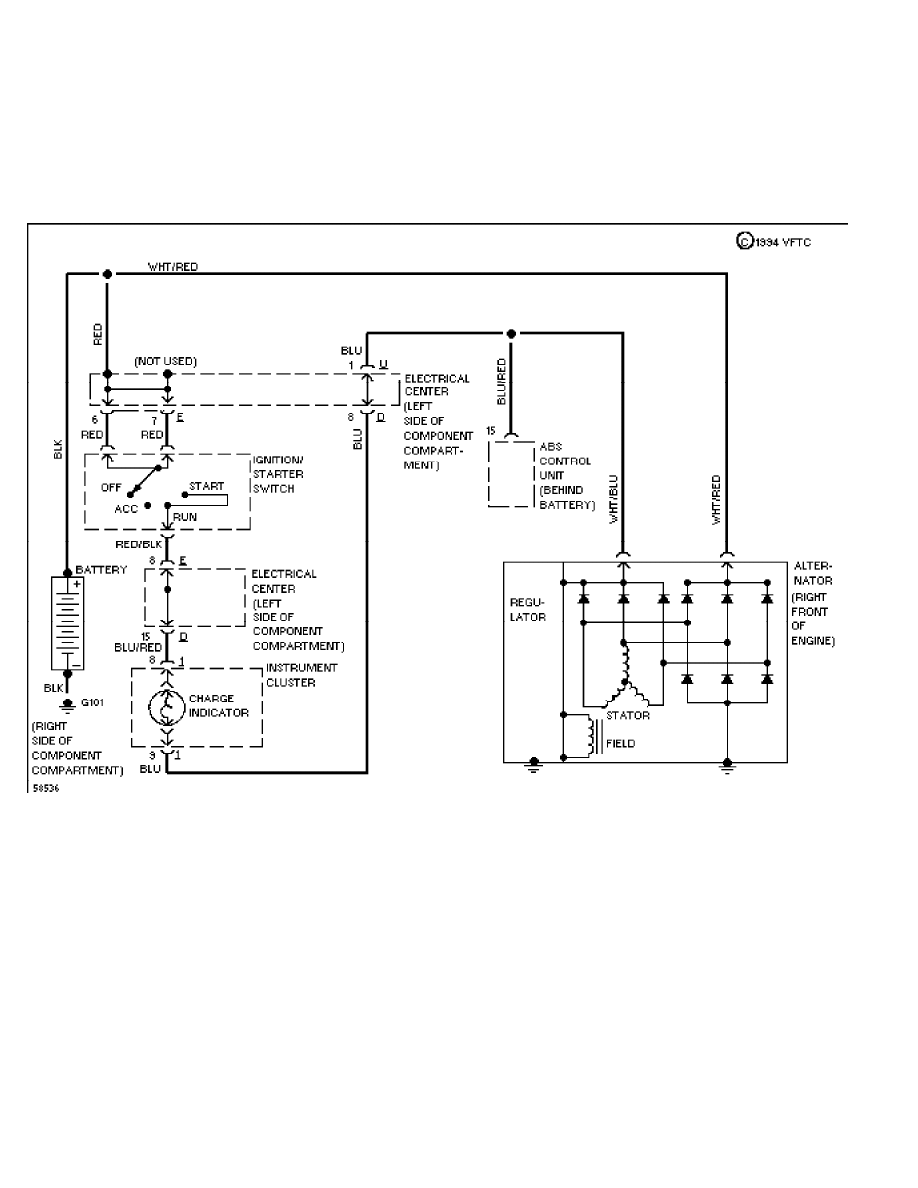

Charging Circuit (p. 37)

1992 Mercedes-Benz 190E

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, December 06, 2004 09:43AM

background image

SYSTEM WIRING DIAGRAMS

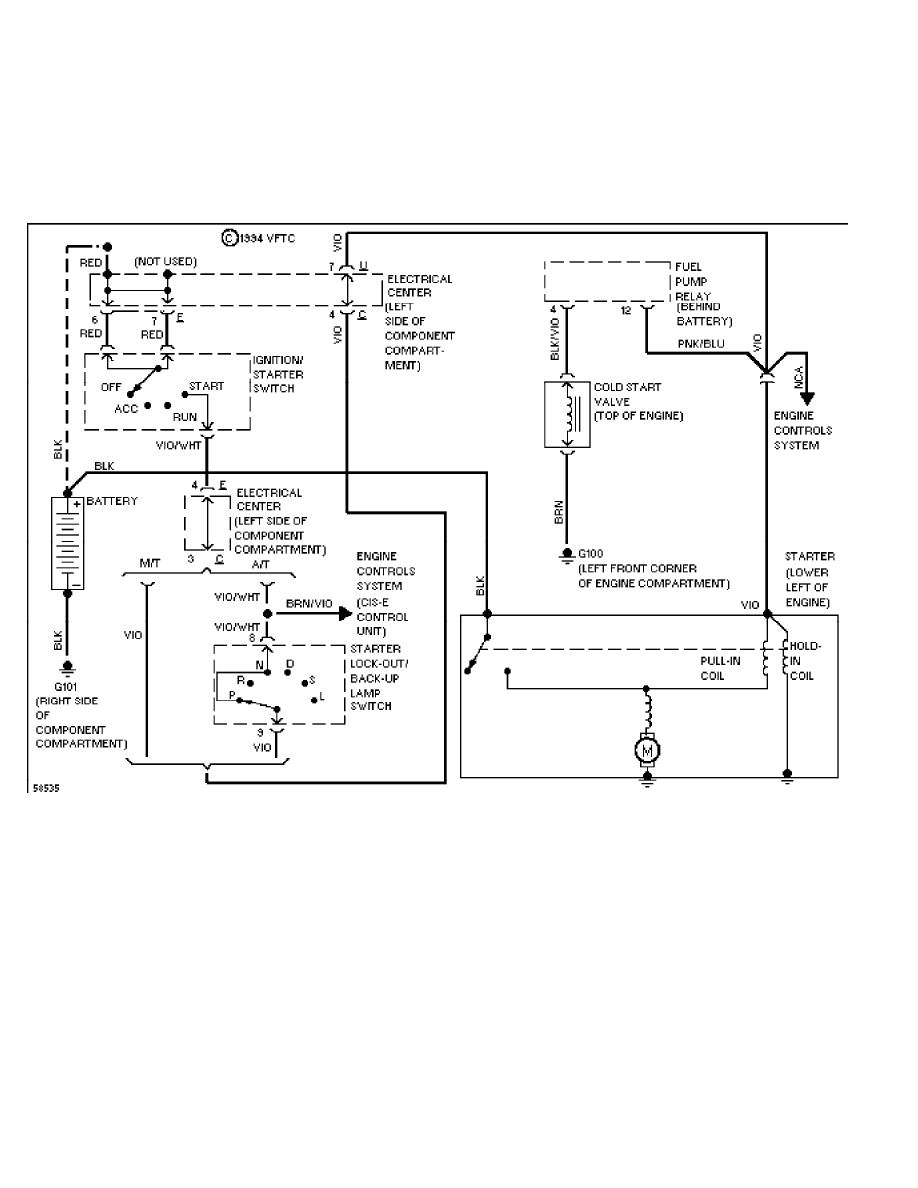

Starting Circuit (p. 38)

1992 Mercedes-Benz 190E

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, December 06, 2004 09:43AM

background image

SYSTEM WIRING DIAGRAMS

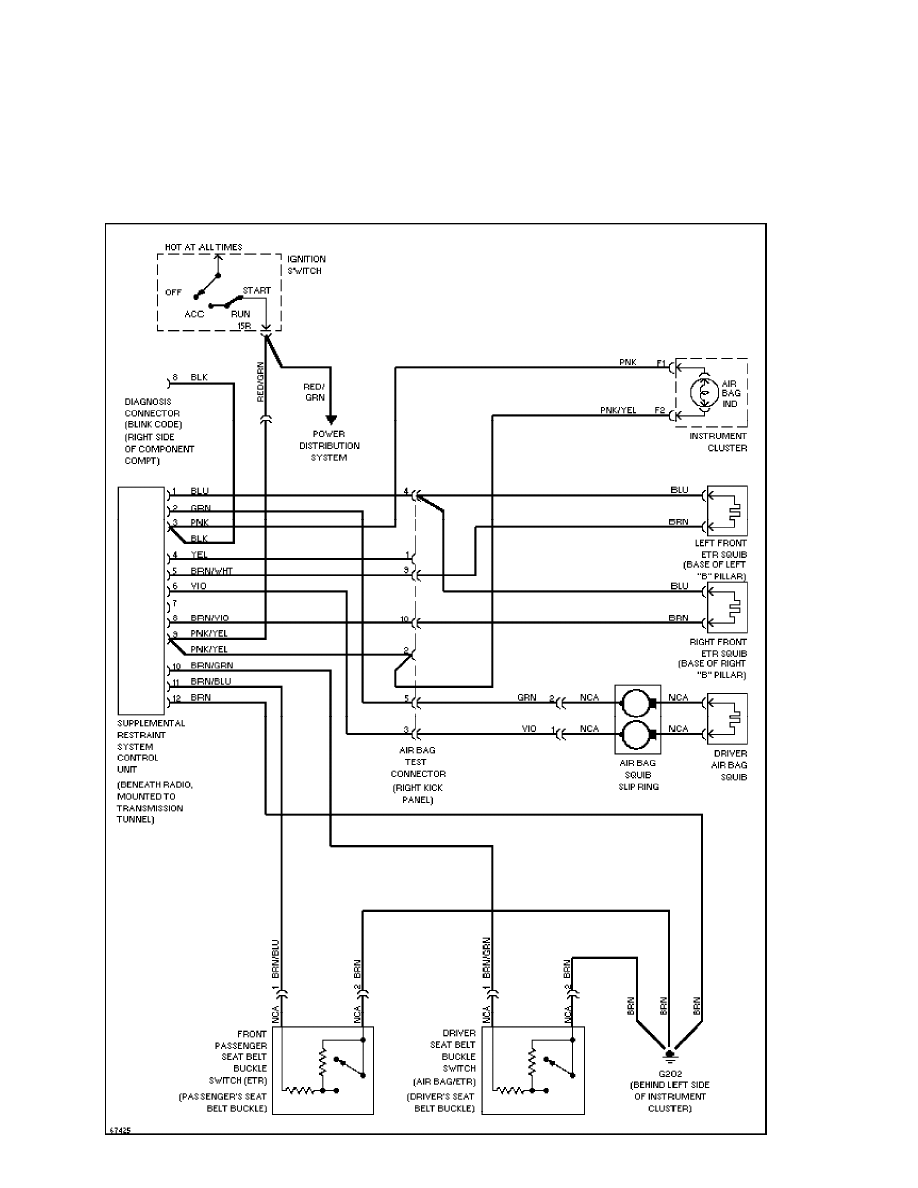

Supplemental Restraint Circuit (p. 39)

1992 Mercedes-Benz 190E

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, December 06, 2004 09:43AM

background image

SYSTEM WIRING DIAGRAMS

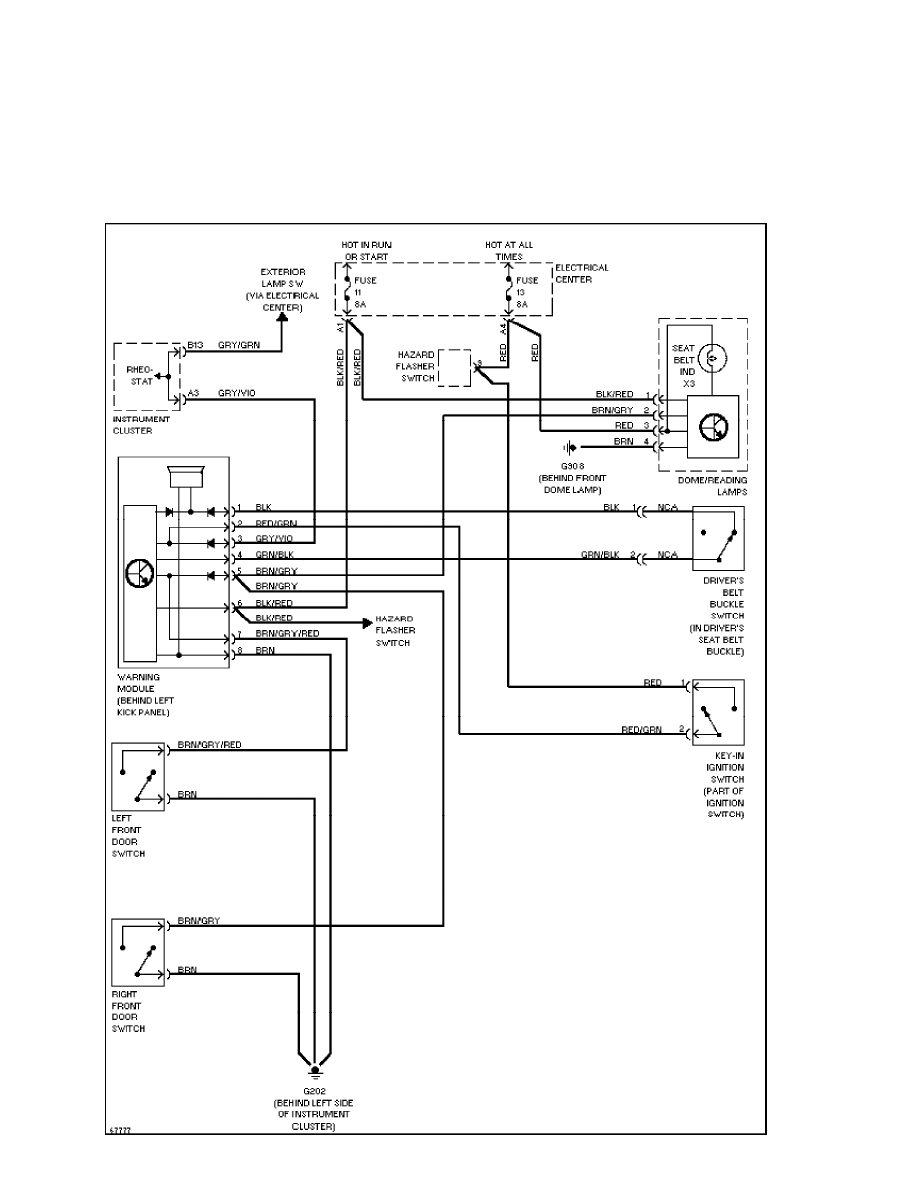

Warning System Circuits (p. 40)

1992 Mercedes-Benz 190E

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, December 06, 2004 09:43AM

background image

SYSTEM WIRING DIAGRAMS

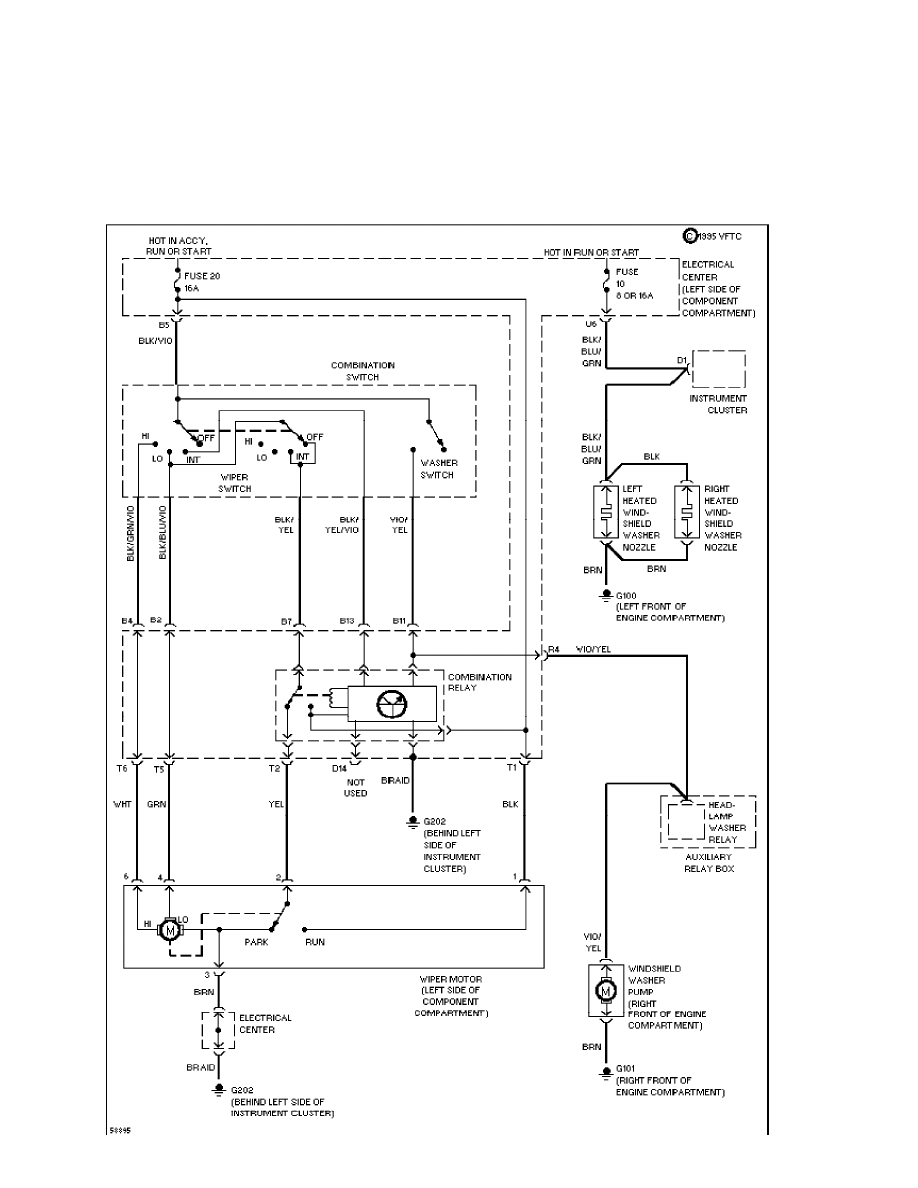

Front Wiper/Washer Circuit (p. 41)

1992 Mercedes-Benz 190E

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, December 06, 2004 09:43AM

background image

SYSTEM WIRING DIAGRAMS

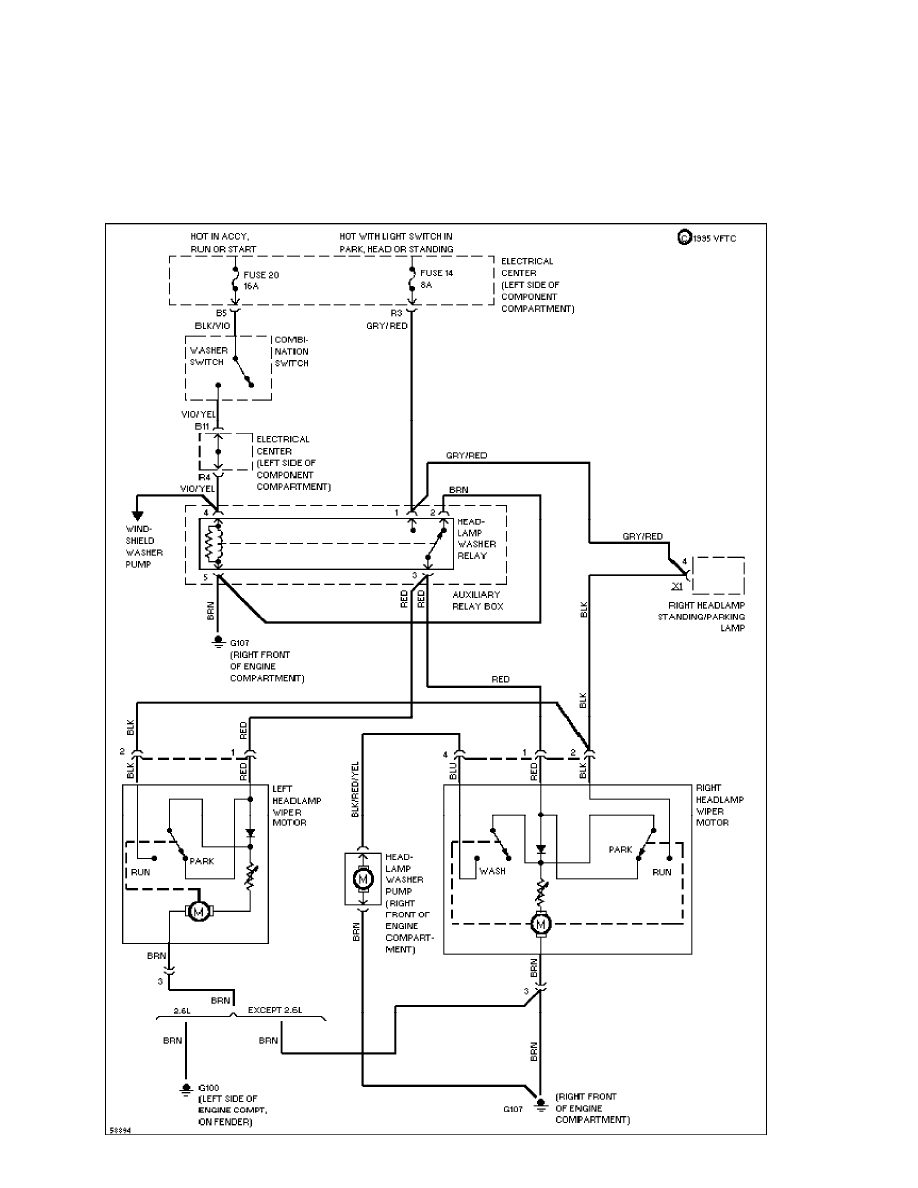

Headlight Washer/Wiper Circuit (p. 42)

1992 Mercedes-Benz 190E

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, December 06, 2004 09:43AM

background image

SYSTEM WIRING DIAGRAMS

Interval Wiper/Washer Circuit (p. 43)

1992 Mercedes-Benz 190E

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, December 06, 2004 09:43AM
