SYSTEM WIRING DIAGRAMS

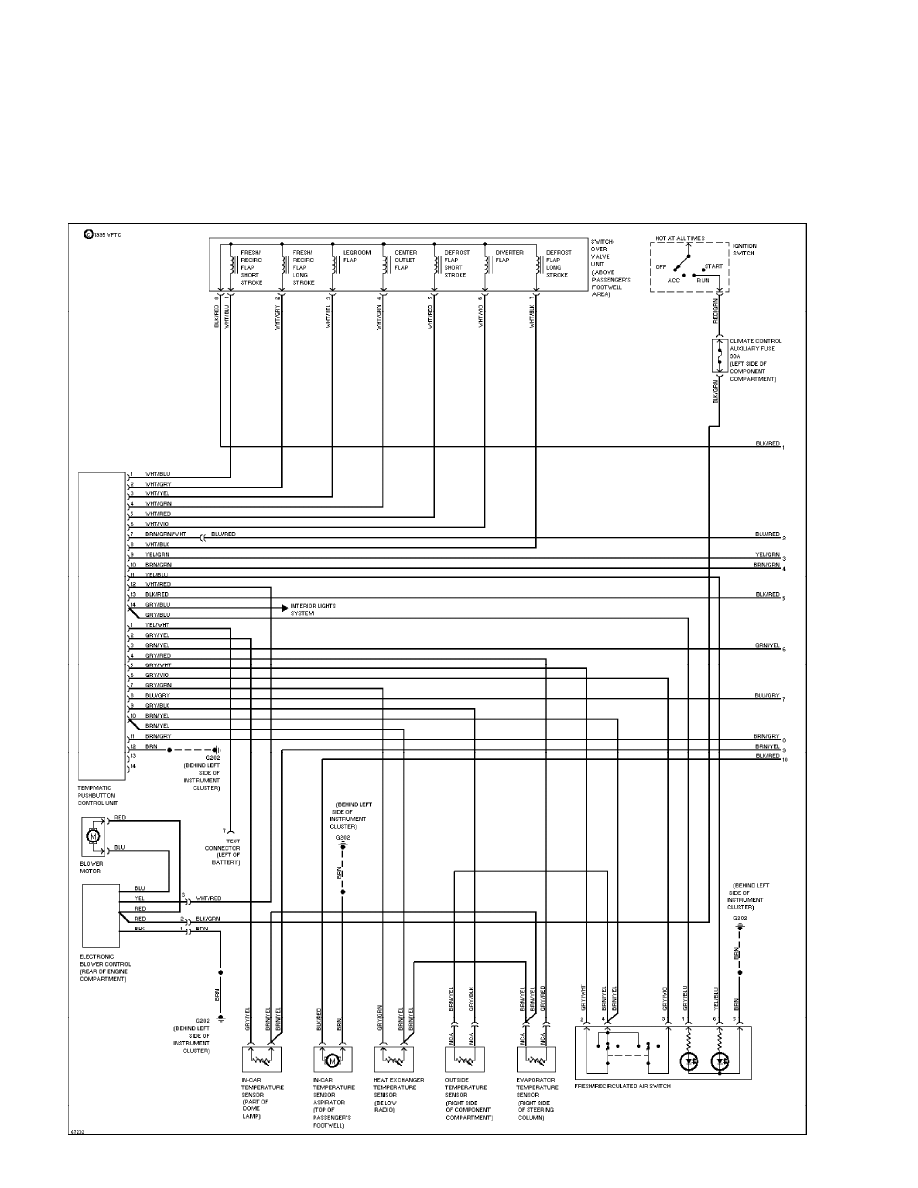

Air Conditioning Circuits (1 of 2)
1992 Mercedes-Benz 300E
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, April 02, 2006 02:03PM
SYSTEM WIRING DIAGRAMS

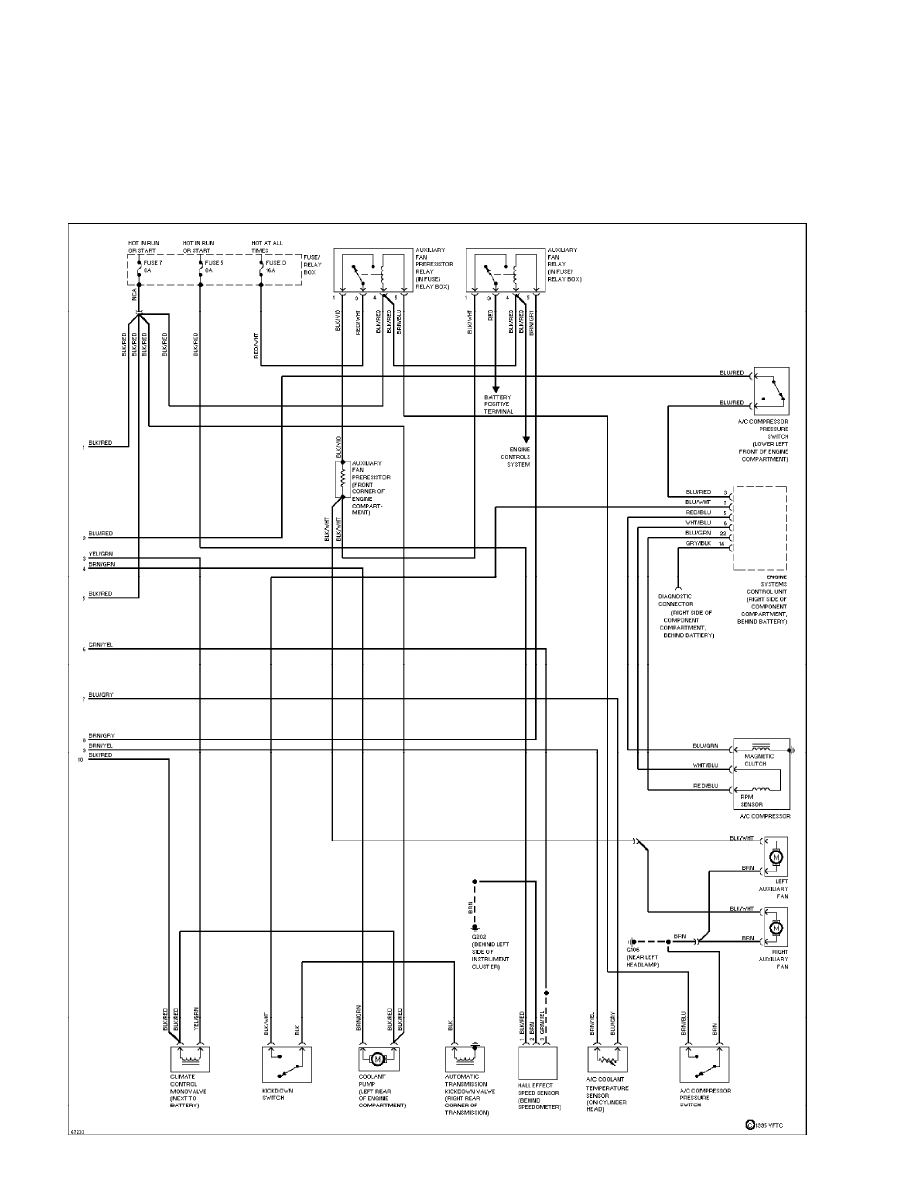

Air Conditioning Circuits (2 of 2) (p. 2)
1992 Mercedes-Benz 300E
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, April 02, 2006 02:03PM
SYSTEM WIRING DIAGRAMS
Anti-theft Circuit (p. 3)
1992 Mercedes-Benz 300E
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, April 02, 2006 02:03PM
SYSTEM WIRING DIAGRAMS

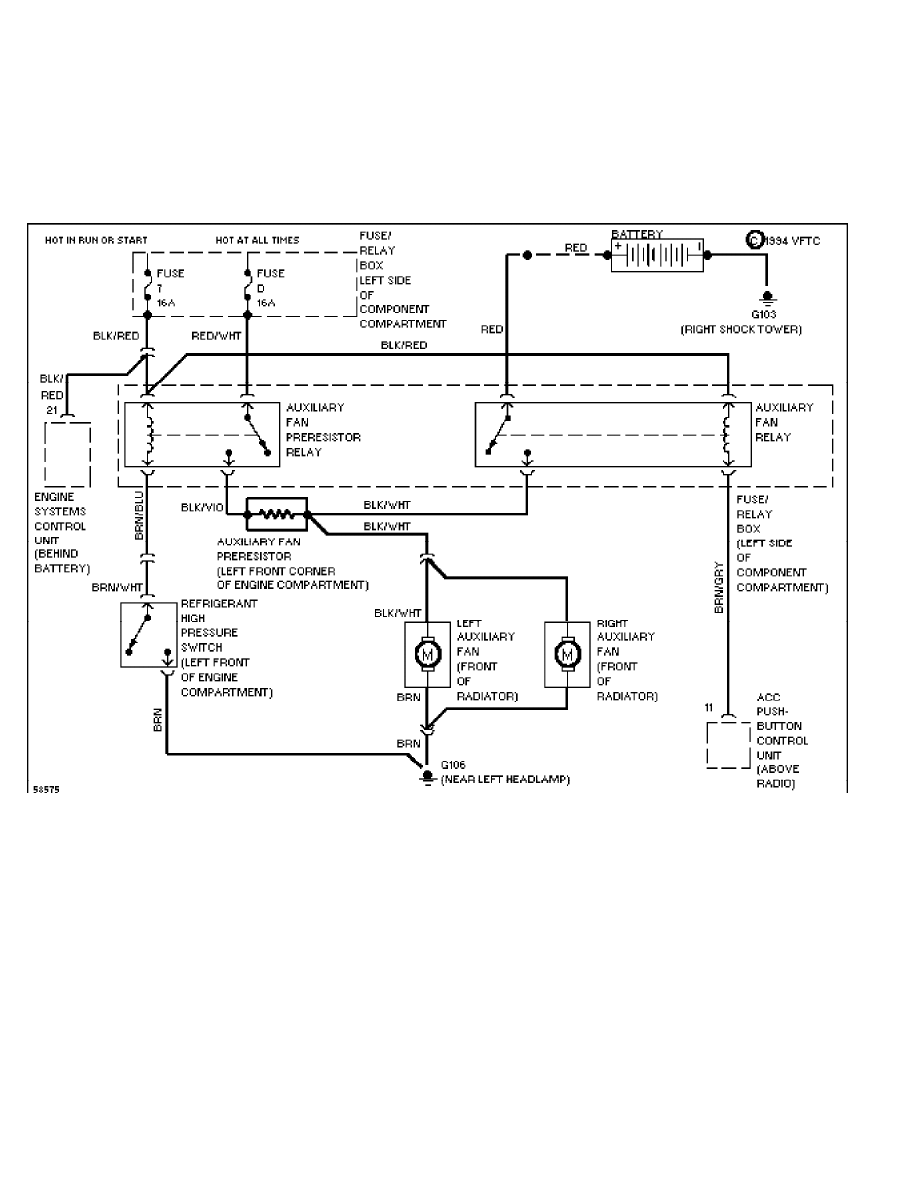

Cooling Fan Circuit (p. 4)
1992 Mercedes-Benz 300E
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, April 02, 2006 02:03PM
SYSTEM WIRING DIAGRAMS

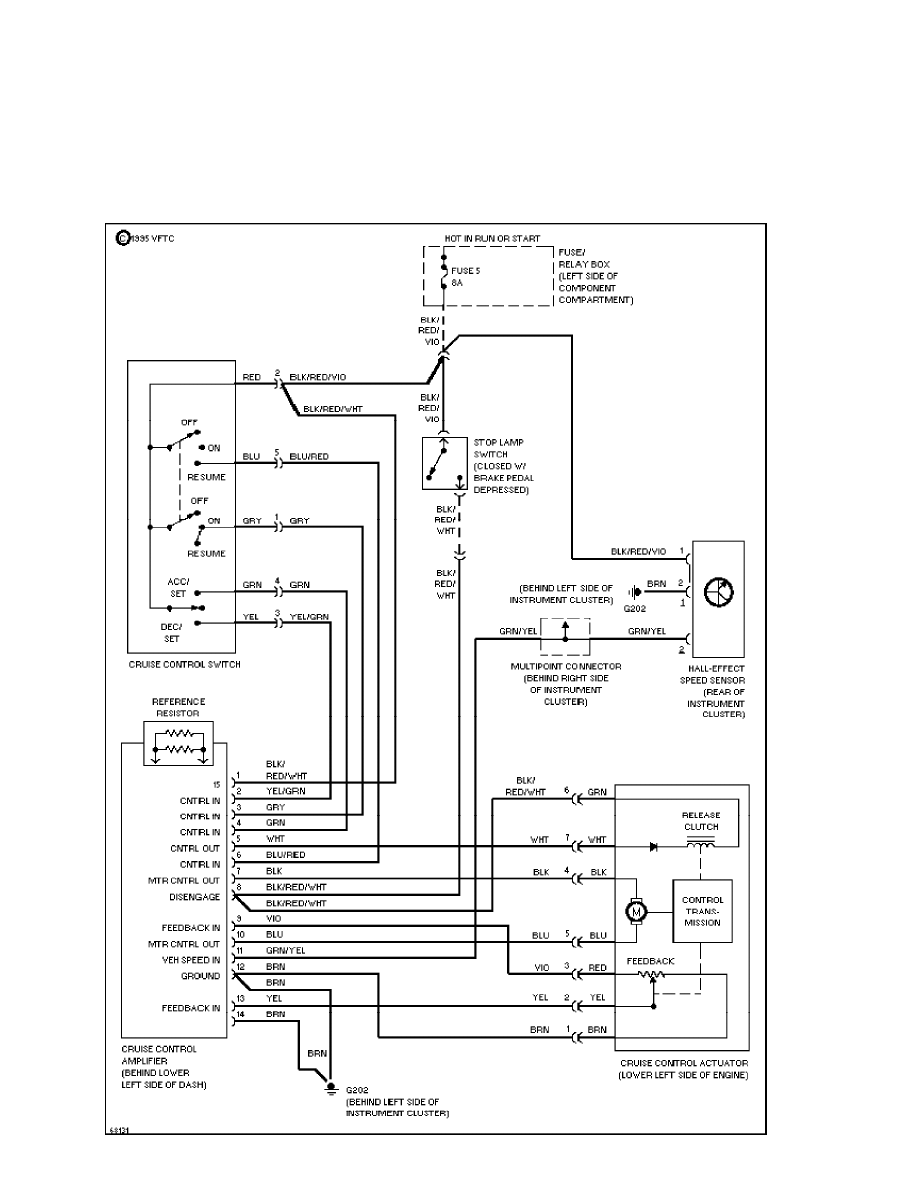

Cruise Control Circuit (p. 5)
1992 Mercedes-Benz 300E
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, April 02, 2006 02:03PM
SYSTEM WIRING DIAGRAMS

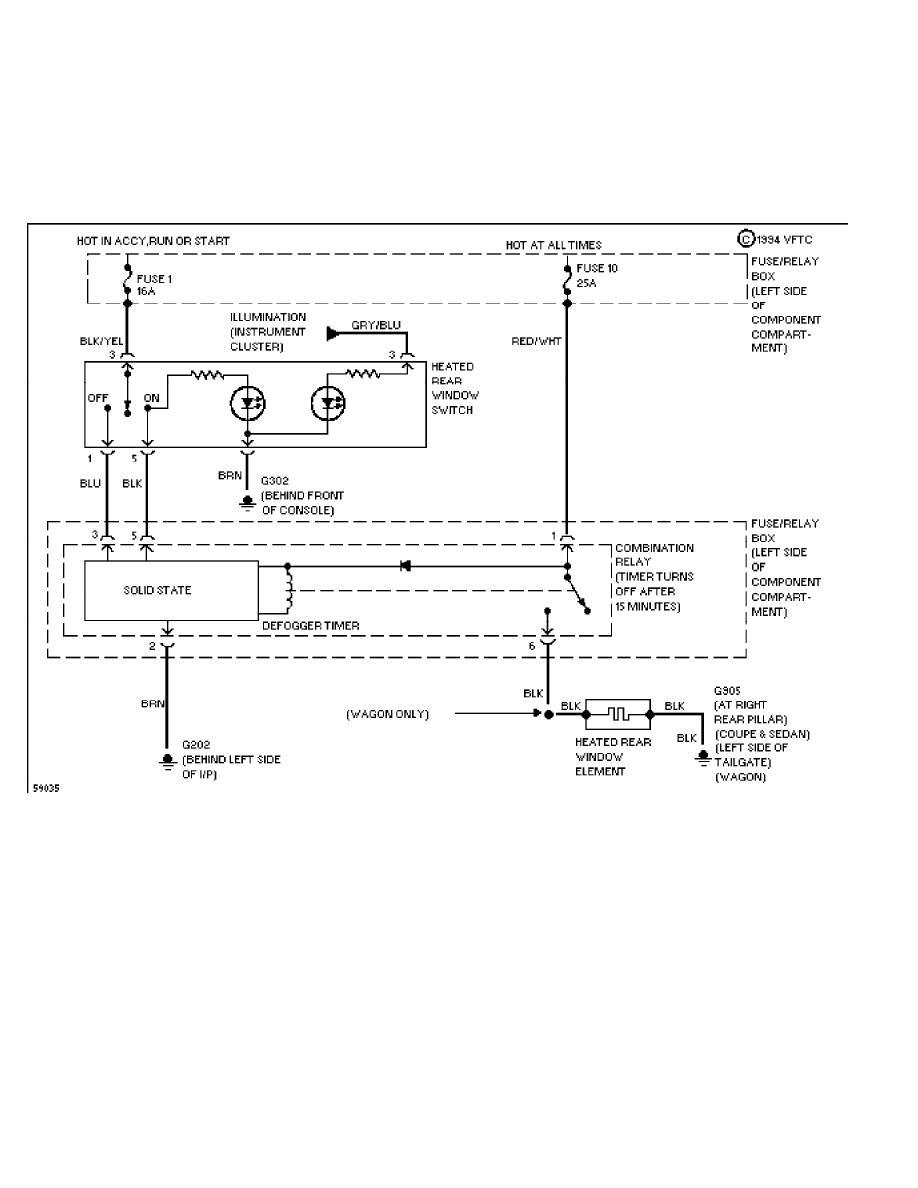

Defogger Circuit (p. 6)
1992 Mercedes-Benz 300E
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, April 02, 2006 02:03PM
SYSTEM WIRING DIAGRAMS
2.6L, Engine Performance Circuits (1 of 2) (p. 7)
1992 Mercedes-Benz 300E
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, April 02, 2006 02:03PM
SYSTEM WIRING DIAGRAMS
2.6L, Engine Performance Circuits (2 of 2) (p. 8)
1992 Mercedes-Benz 300E
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, April 02, 2006 02:03PM
SYSTEM WIRING DIAGRAMS

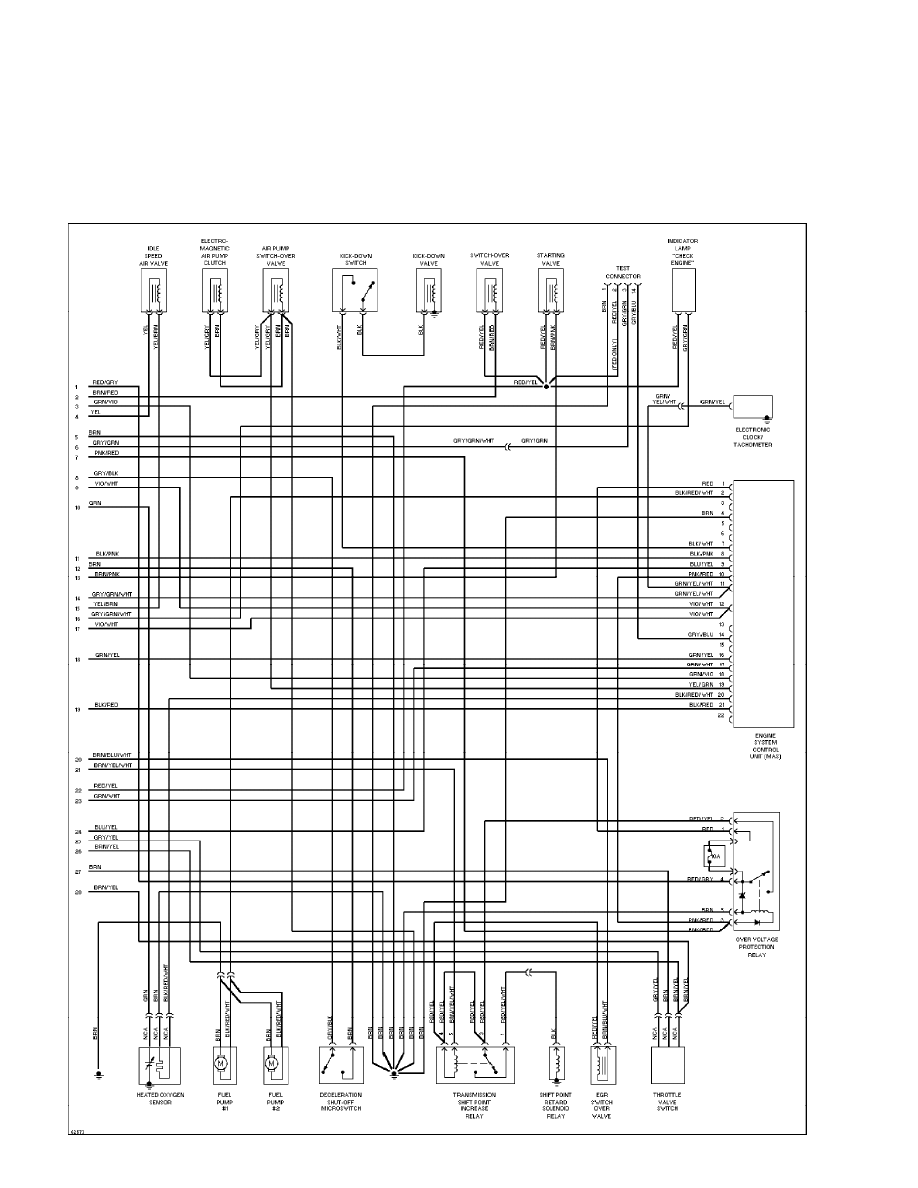

3.0L, Engine Performance Circuits (1 of 2) (p. 9)
1992 Mercedes-Benz 300E
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, April 02, 2006 02:03PM
SYSTEM WIRING DIAGRAMS

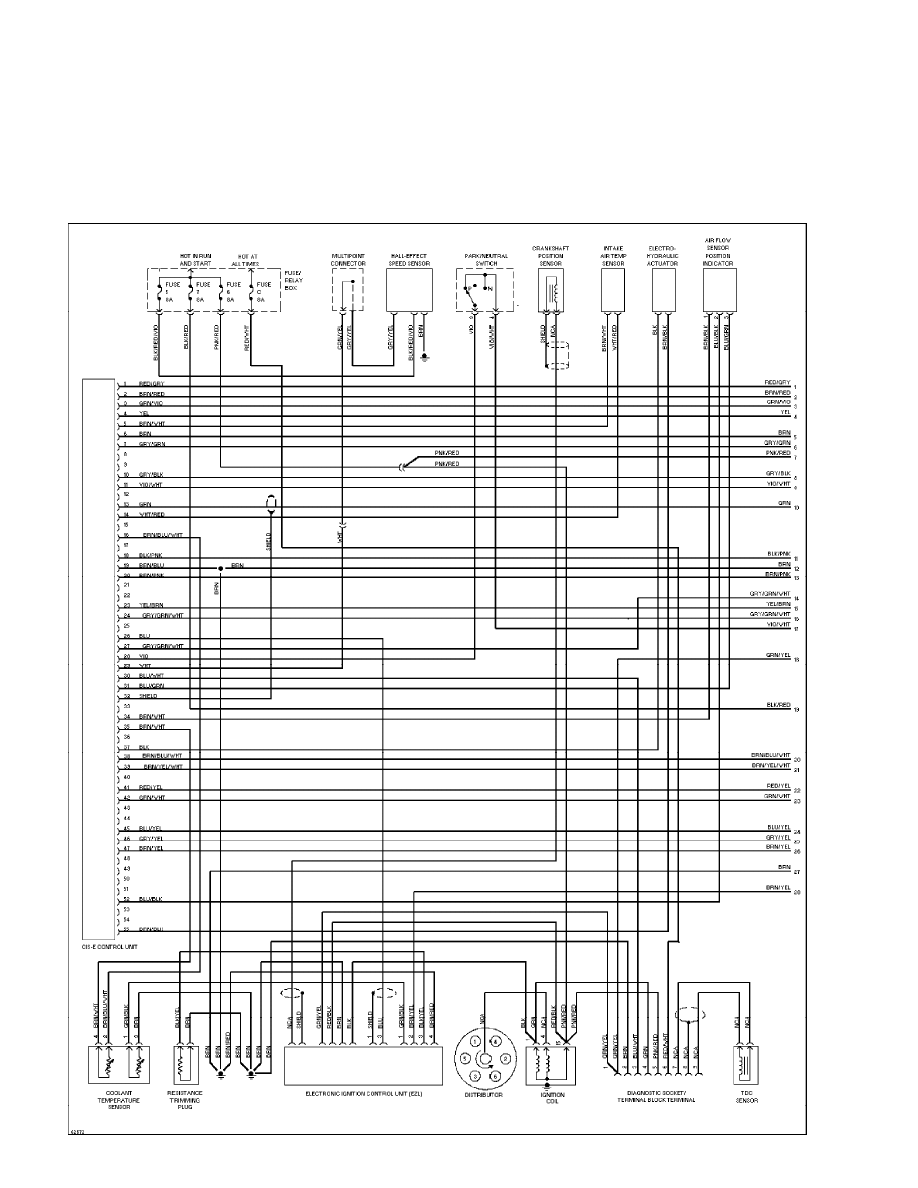

3.0L, Engine Performance Circuits (2 of 2) (p. 10)
1992 Mercedes-Benz 300E
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, April 02, 2006 02:03PM
SYSTEM WIRING DIAGRAMS

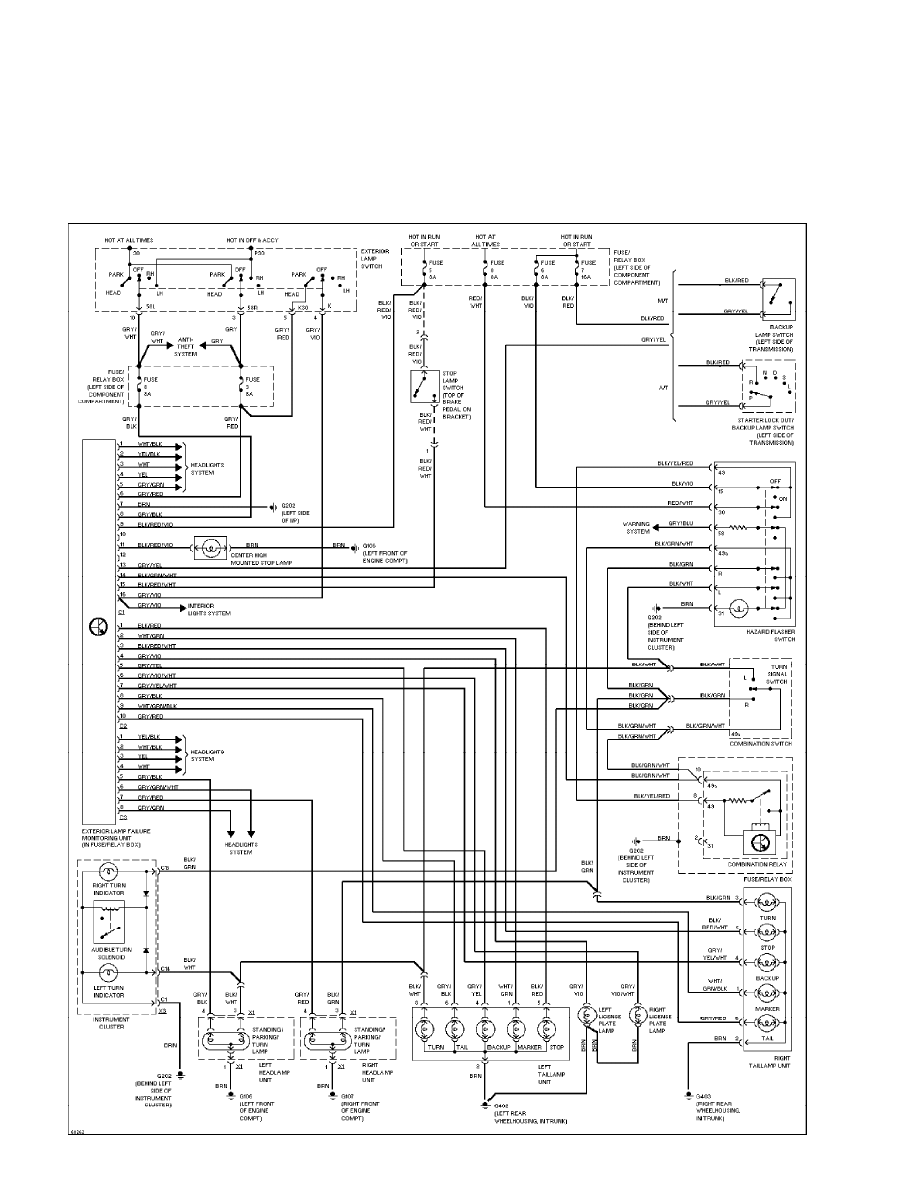

Exterior Light Circuit (p. 11)
1992 Mercedes-Benz 300E
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, April 02, 2006 02:03PM
SYSTEM WIRING DIAGRAMS

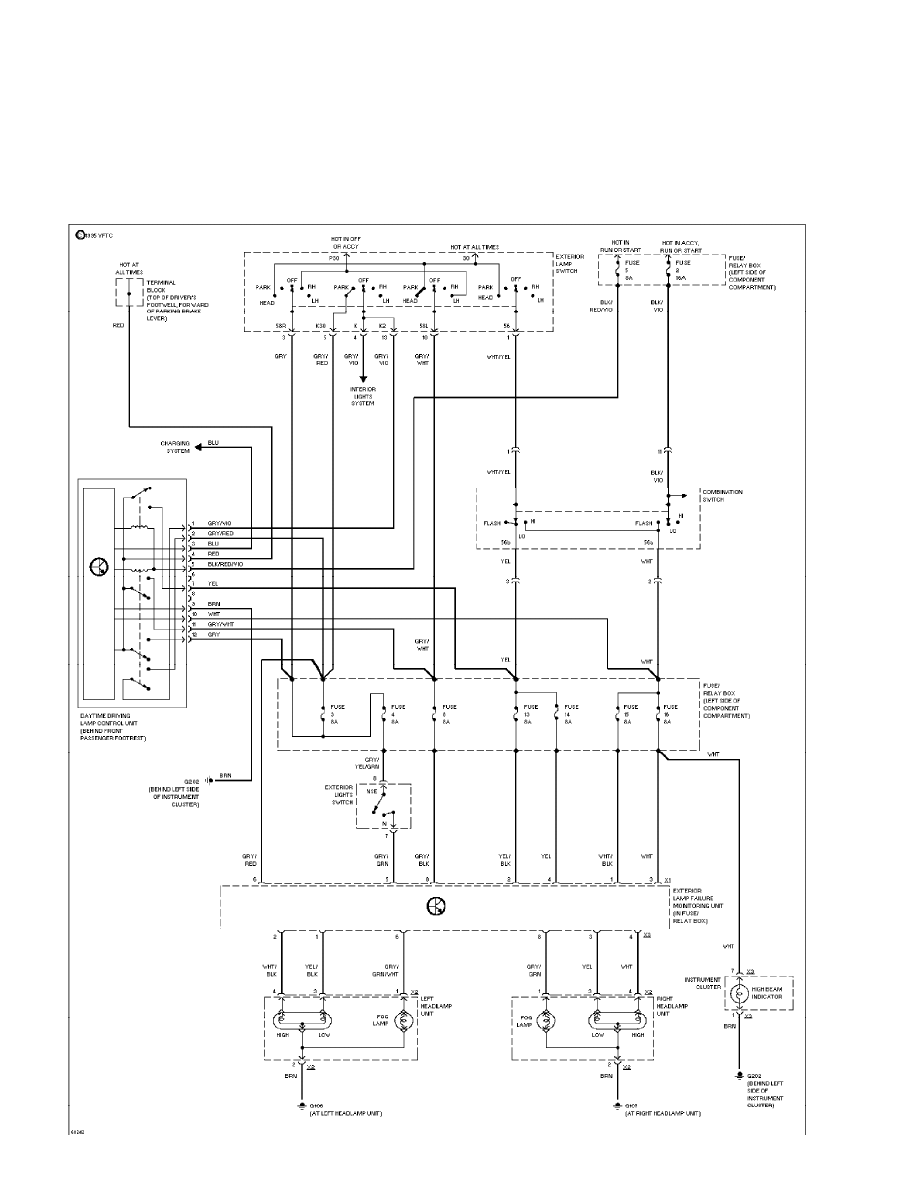

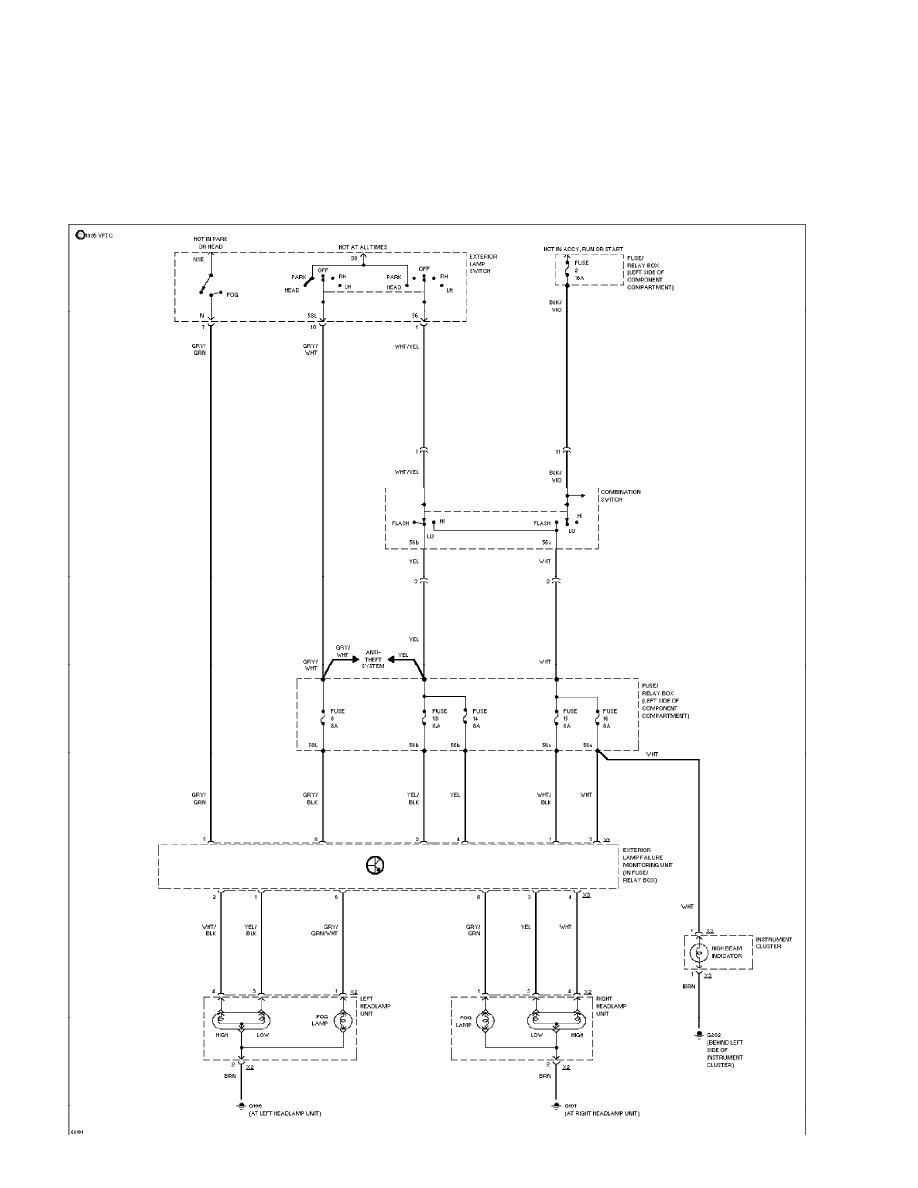

Headlight Circuit, W/ DRL (p. 12)
1992 Mercedes-Benz 300E
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, April 02, 2006 02:03PM
SYSTEM WIRING DIAGRAMS
Headlight Circuit, W/O DRL (p. 13)
1992 Mercedes-Benz 300E
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, April 02, 2006 02:03PM
SYSTEM WIRING DIAGRAMS

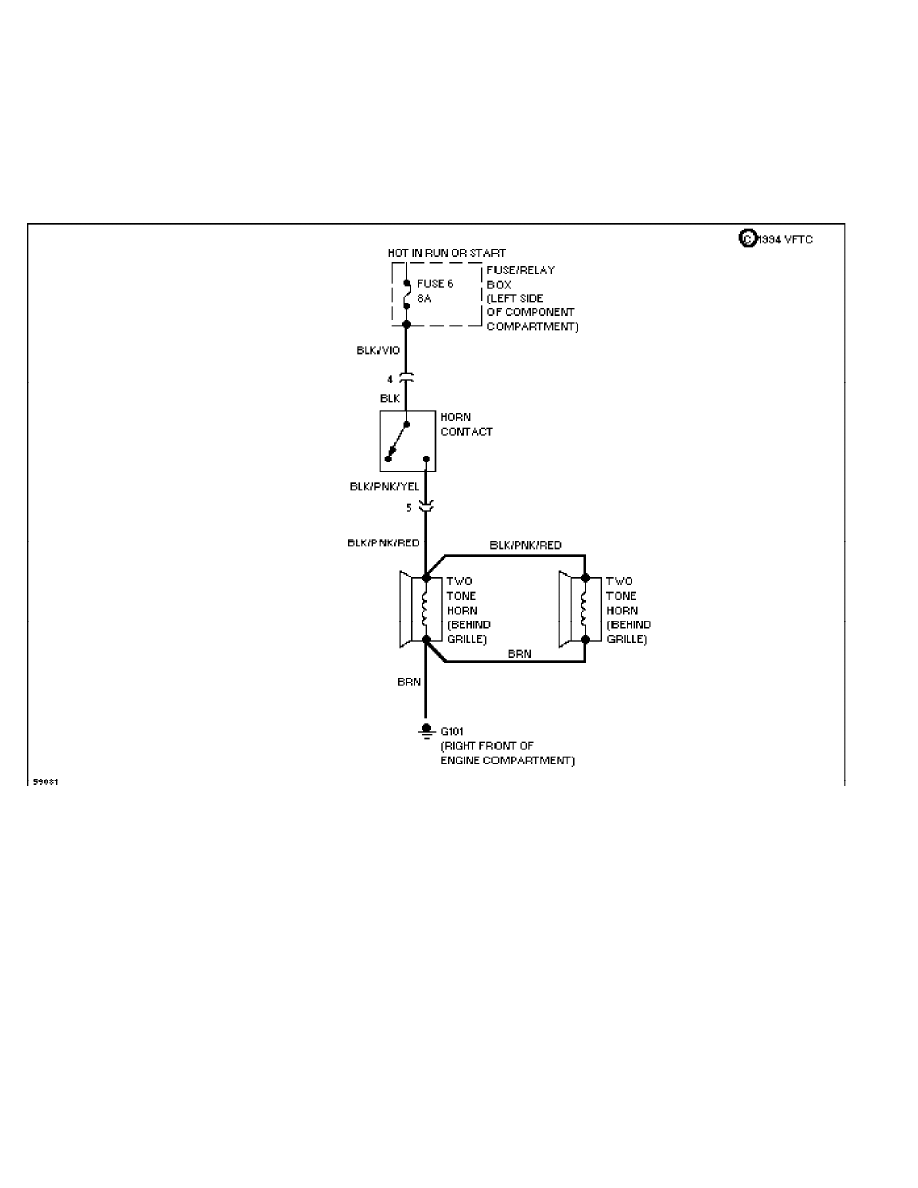

Horn Circuit (p. 14)
1992 Mercedes-Benz 300E
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, April 02, 2006 02:03PM
SYSTEM WIRING DIAGRAMS

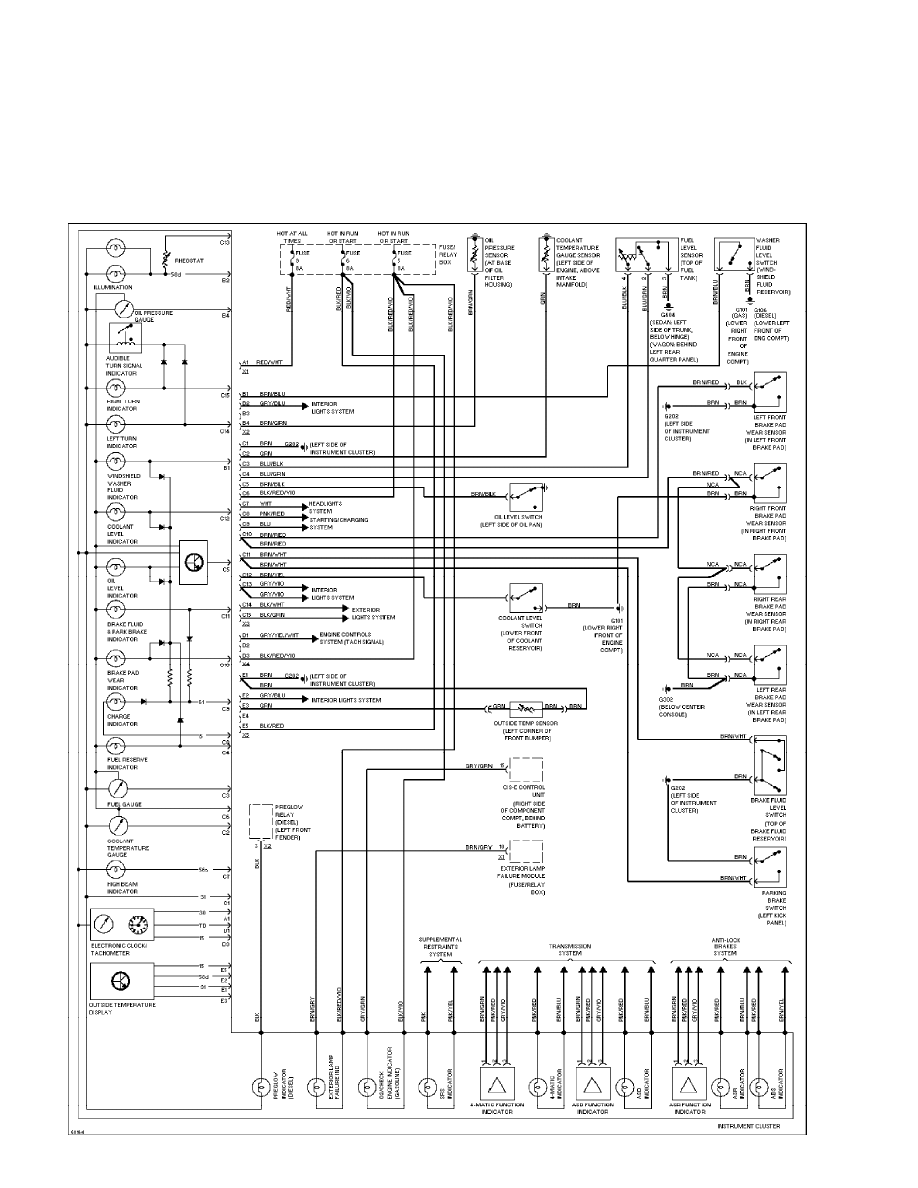

Instrument Cluster Circuit (p. 15)
1992 Mercedes-Benz 300E
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, April 02, 2006 02:03PM
SYSTEM WIRING DIAGRAMS

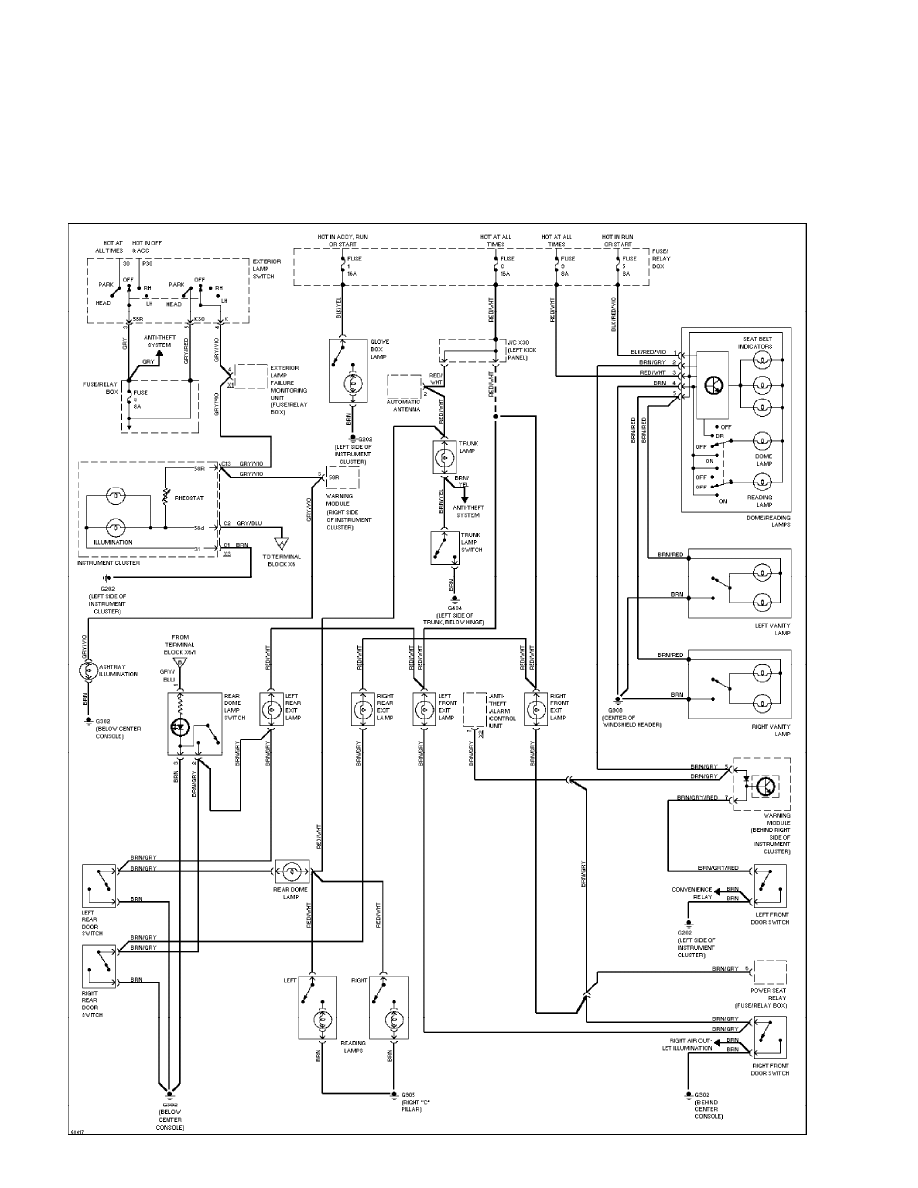

Interior Light Circuit (1 of 2) (p. 16)
1992 Mercedes-Benz 300E
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, April 02, 2006 02:03PM
SYSTEM WIRING DIAGRAMS

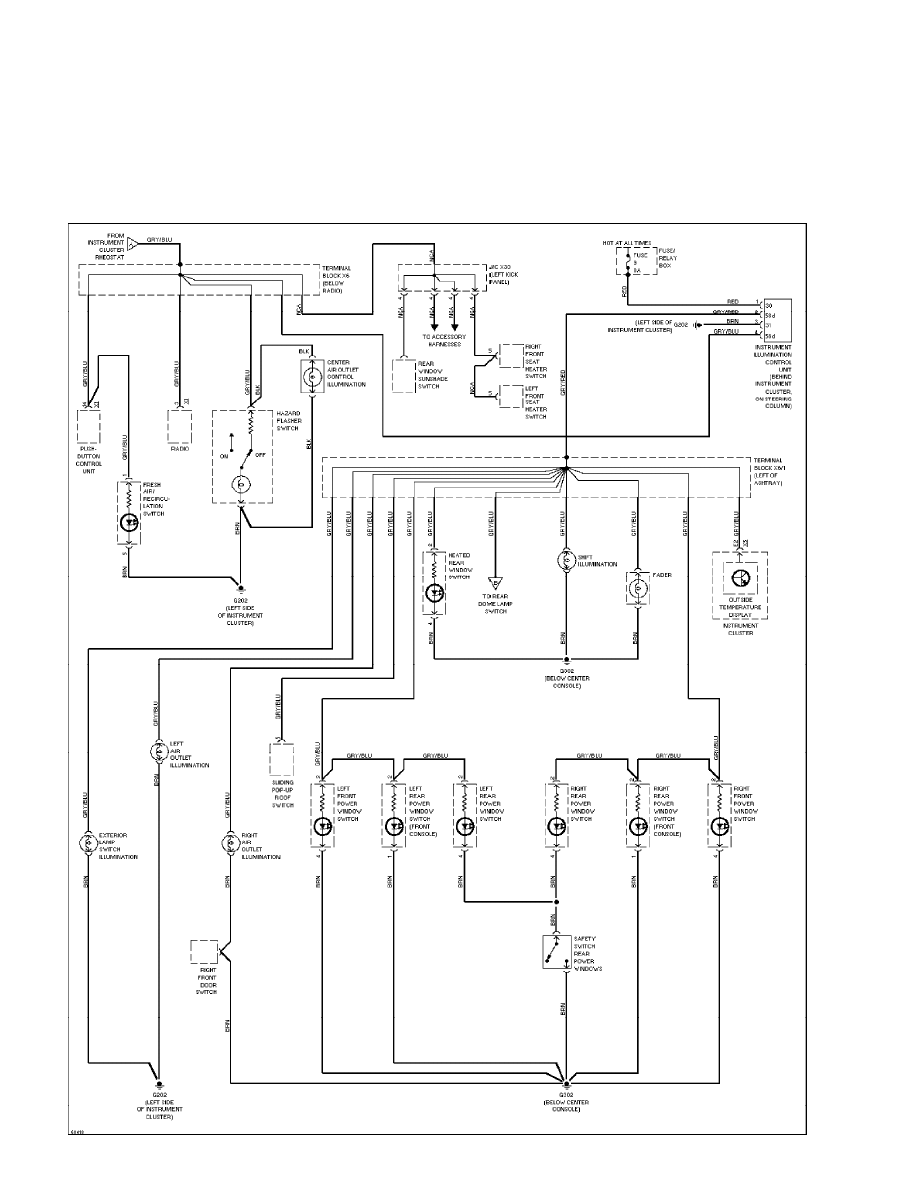

Interior Light Circuit (2 of 2) (p. 17)
1992 Mercedes-Benz 300E
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, April 02, 2006 02:03PM
SYSTEM WIRING DIAGRAMS

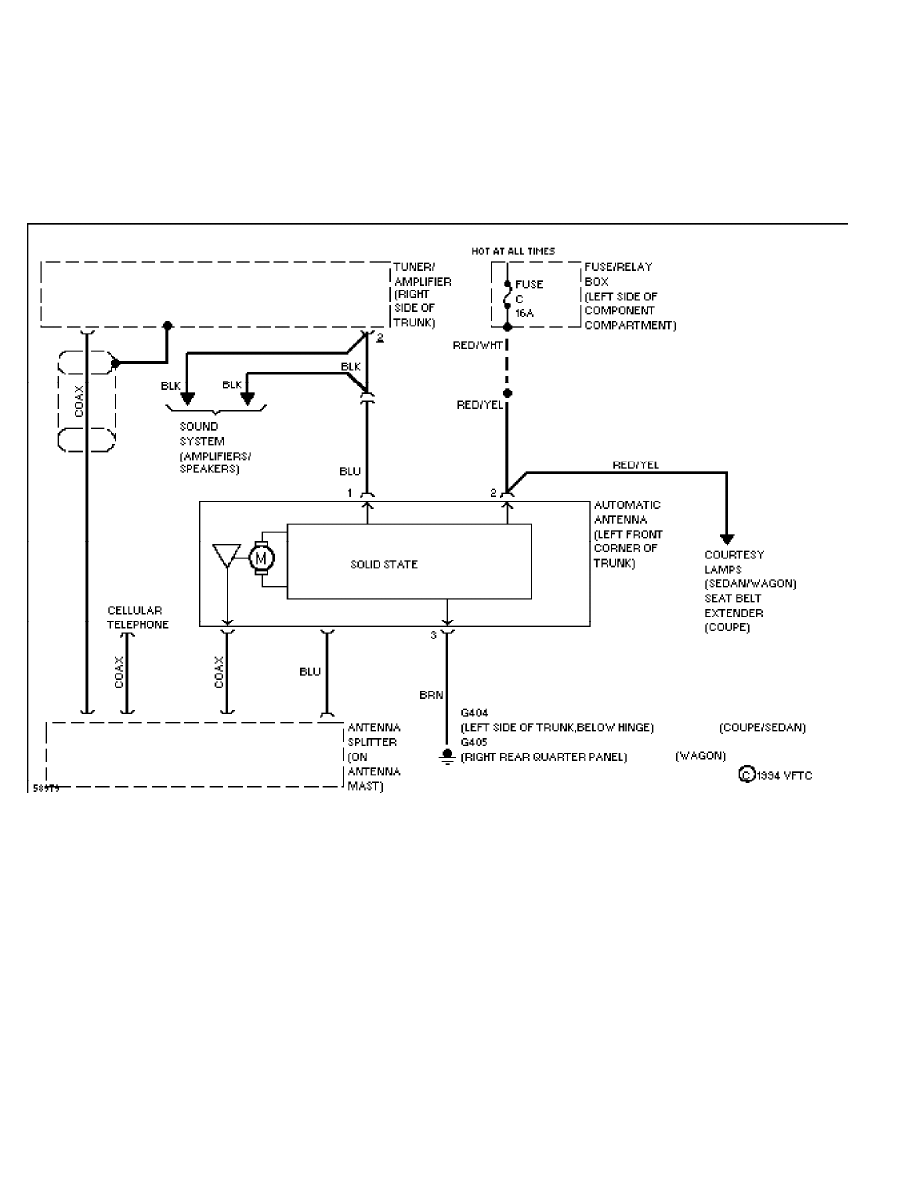

Power Antenna Circuit (p. 18)
1992 Mercedes-Benz 300E
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, April 02, 2006 02:03PM
SYSTEM WIRING DIAGRAMS

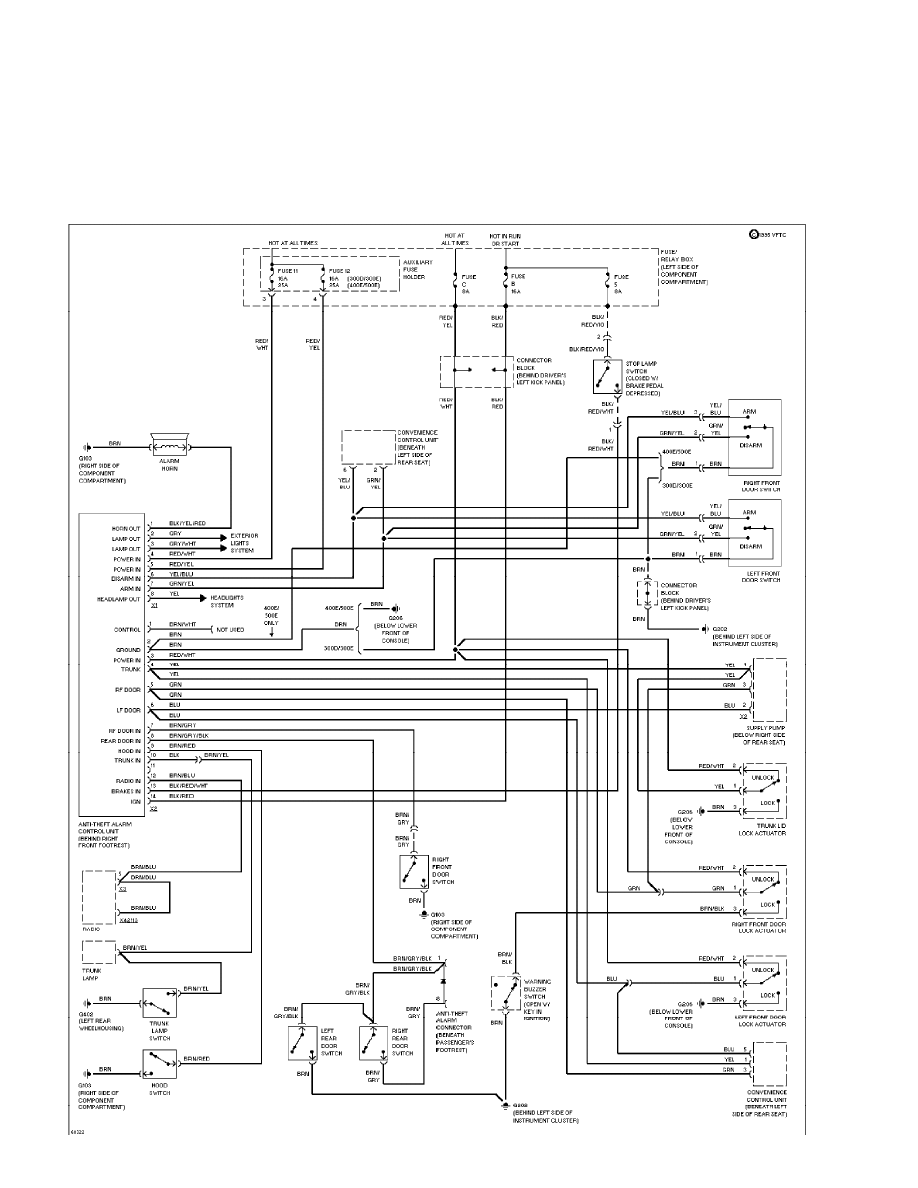

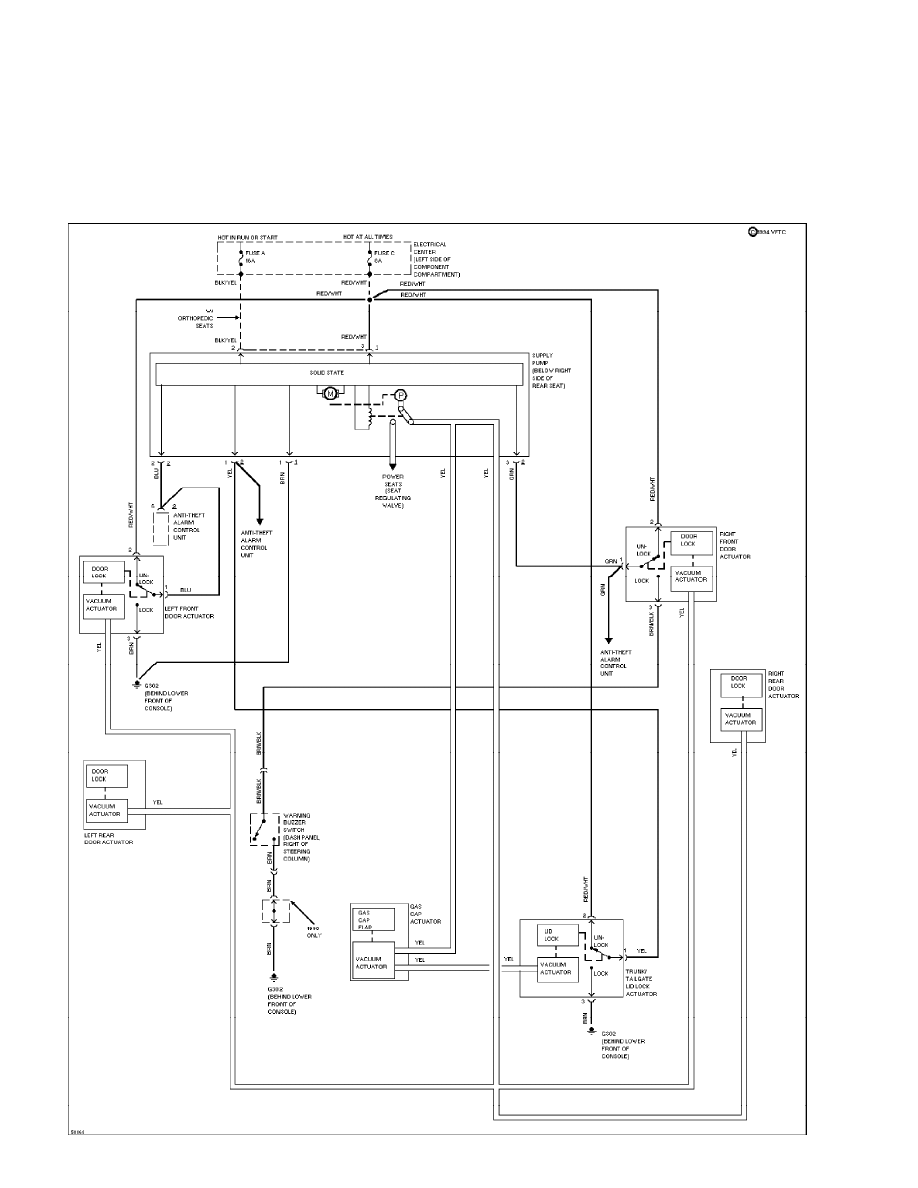

Power Door Lock Circuit (p. 19)
1992 Mercedes-Benz 300E
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, April 02, 2006 02:03PM
SYSTEM WIRING DIAGRAMS

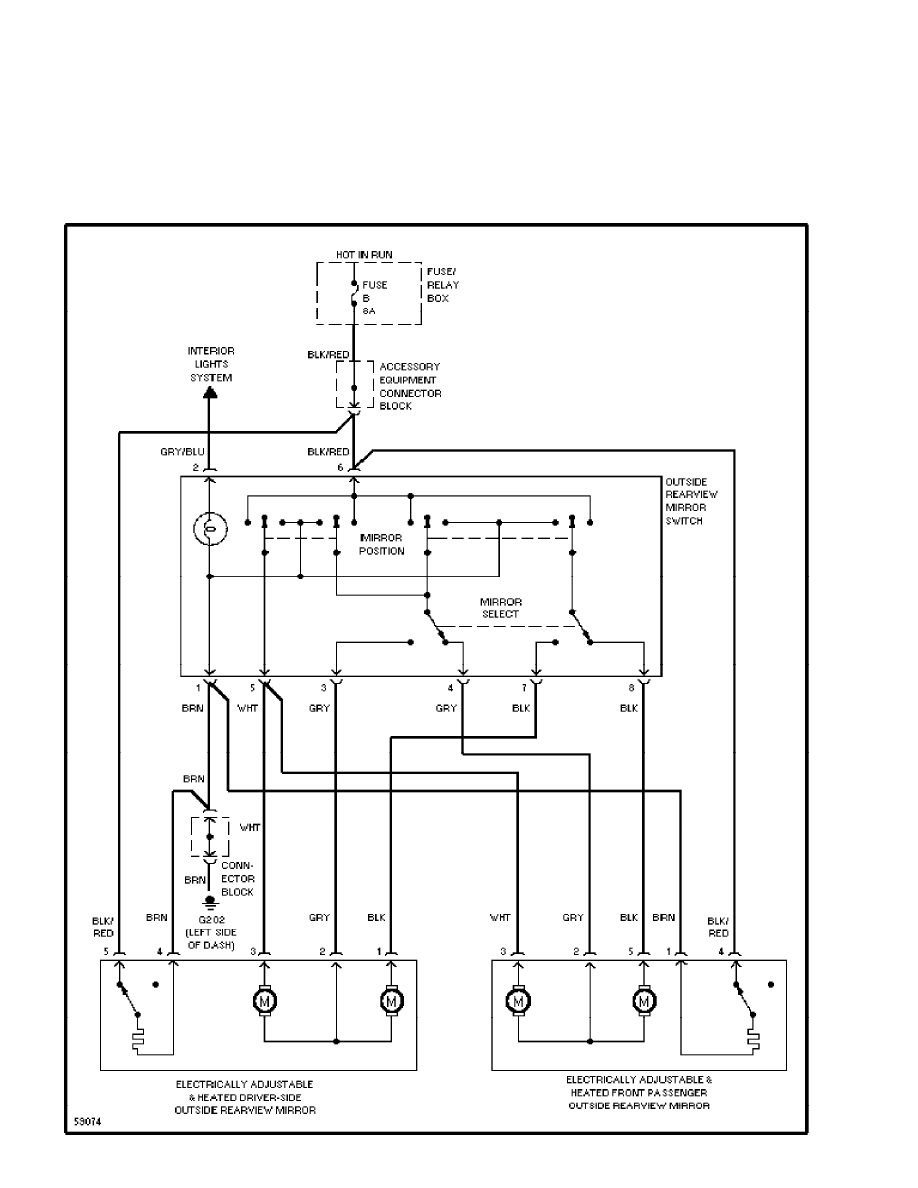

Power Mirror Circuit (p. 20)
1992 Mercedes-Benz 300E
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, April 02, 2006 02:03PM
SYSTEM WIRING DIAGRAMS

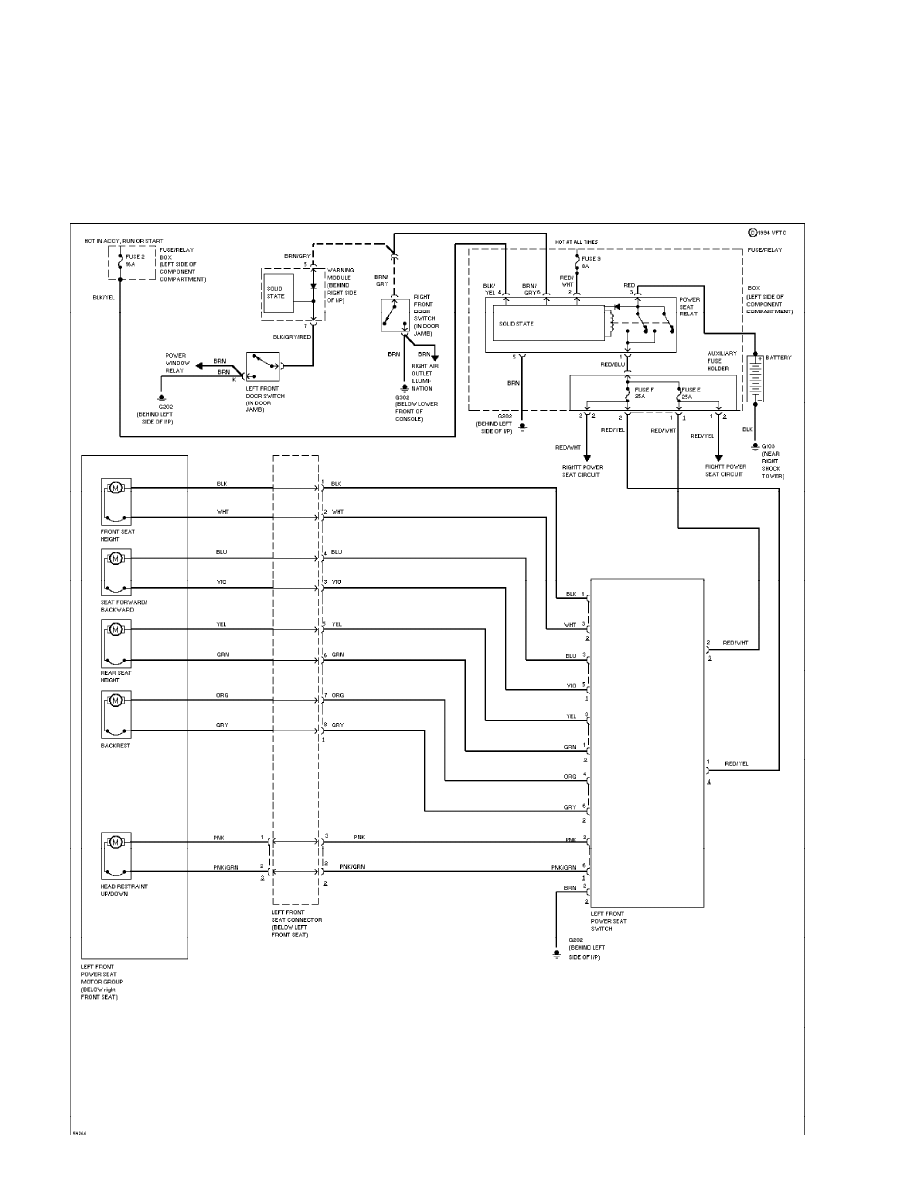

2.6L, Driver Power Seat Circuit, W/O Memory (p. 21)
1992 Mercedes-Benz 300E
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, April 02, 2006 02:03PM
SYSTEM WIRING DIAGRAMS
2.6L, Heater Circuit (p. 22)
1992 Mercedes-Benz 300E
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, April 02, 2006 02:03PM
SYSTEM WIRING DIAGRAMS

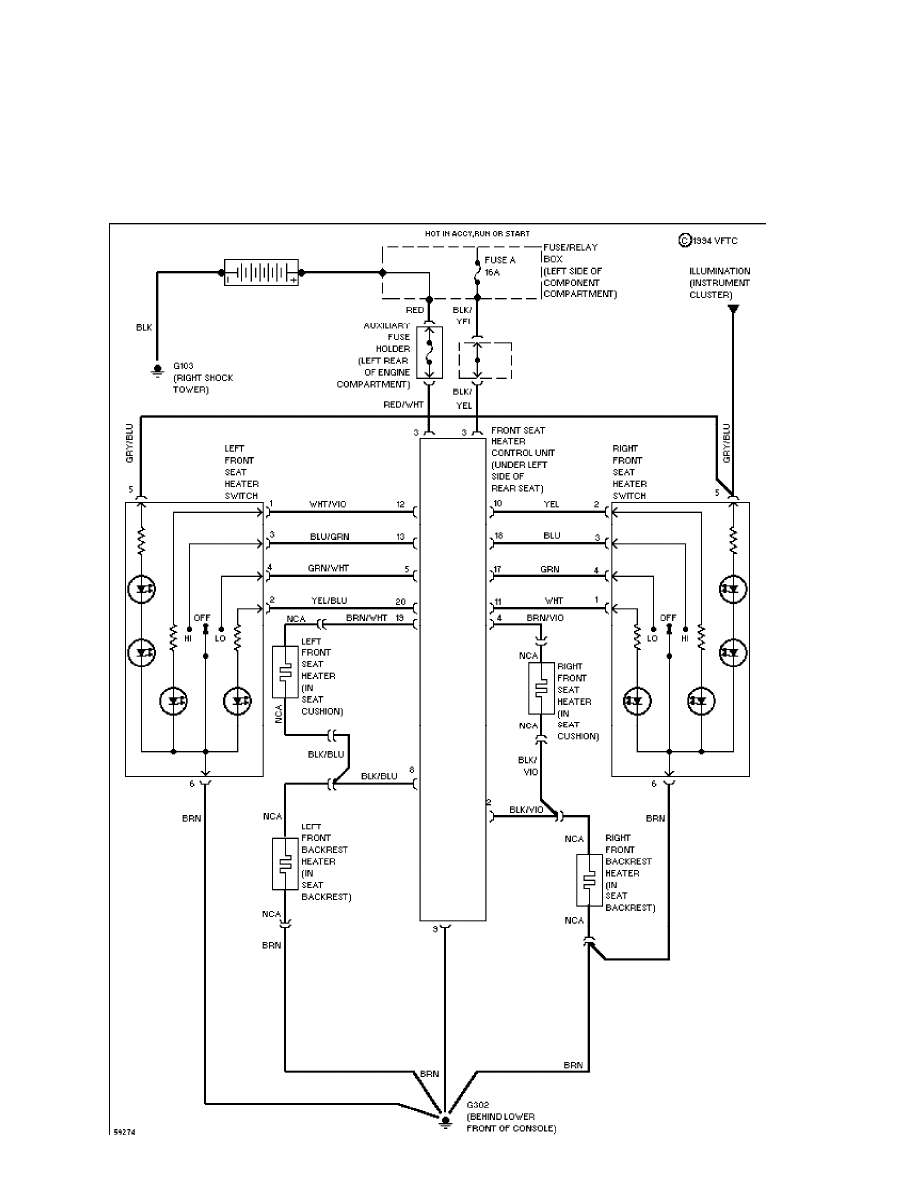

2.6L, Orthopedic Seats (p. 23)
1992 Mercedes-Benz 300E
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, April 02, 2006 02:03PM
SYSTEM WIRING DIAGRAMS
2.6L, Rear Head Restraint Circuit (p. 24)
1992 Mercedes-Benz 300E
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, April 02, 2006 02:03PM
SYSTEM WIRING DIAGRAMS
2.6L, Right Seat Circuit (p. 25)
1992 Mercedes-Benz 300E
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, April 02, 2006 02:03PM
SYSTEM WIRING DIAGRAMS

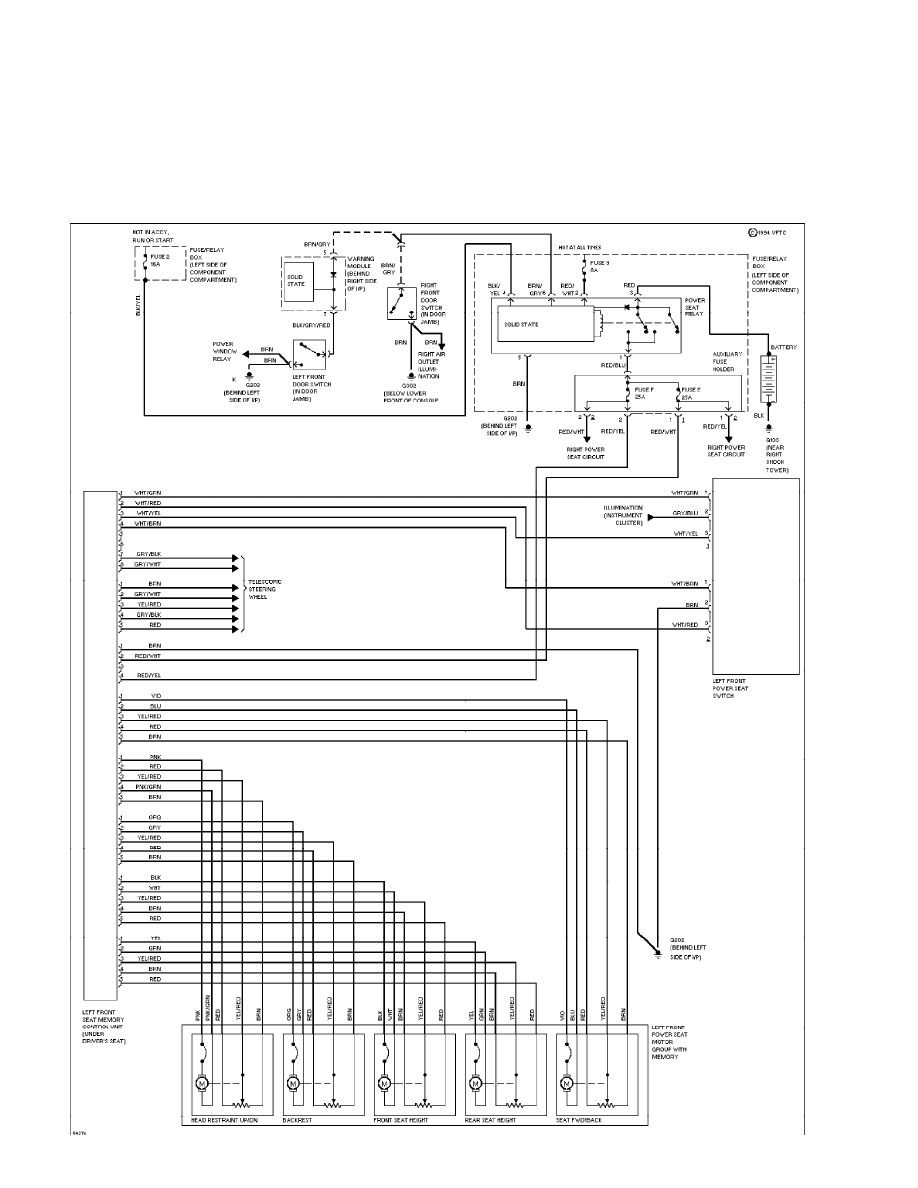

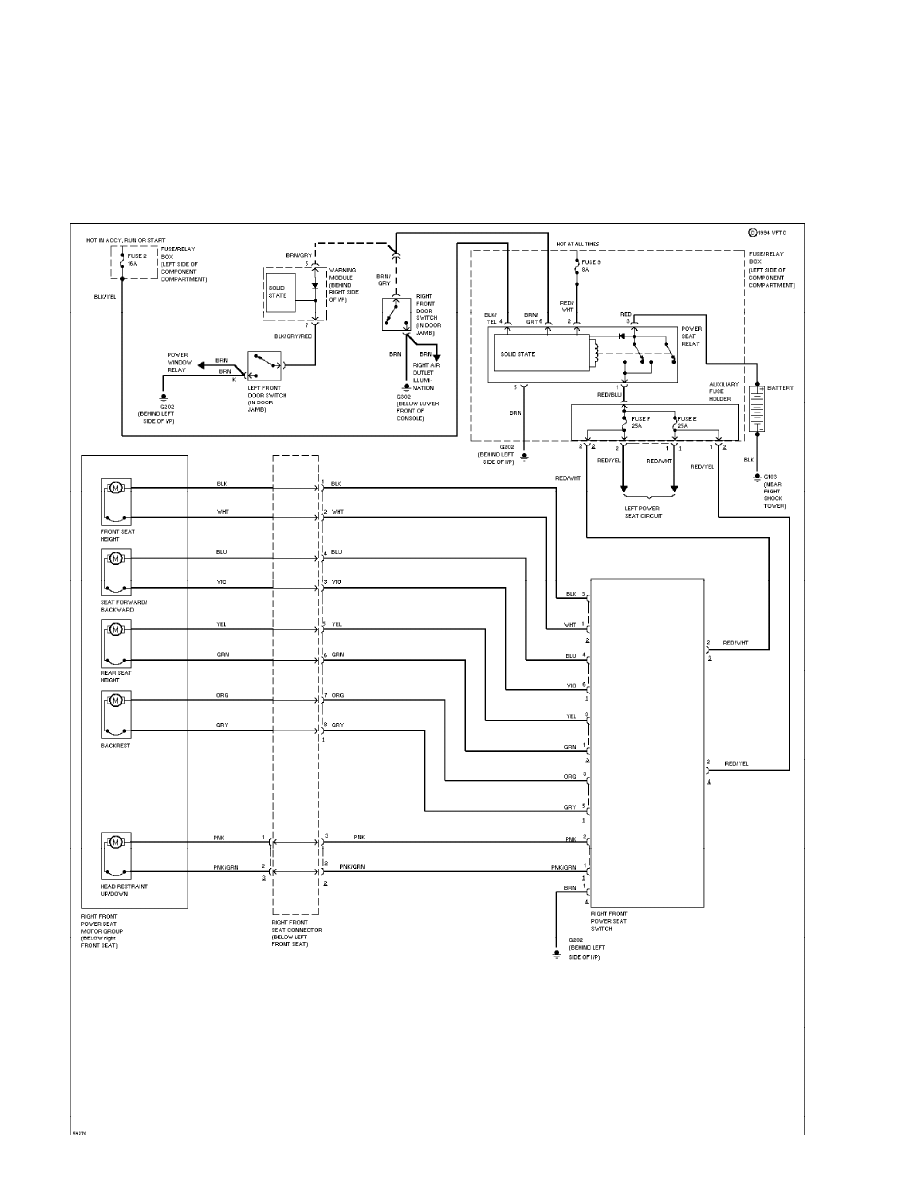

3.0L, Driver Power Seat Circuit, W/ Memory (p. 26)
1992 Mercedes-Benz 300E
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, April 02, 2006 02:03PM
SYSTEM WIRING DIAGRAMS
3.0L, Heater Circuit (p. 27)
1992 Mercedes-Benz 300E
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, April 02, 2006 02:03PM
SYSTEM WIRING DIAGRAMS

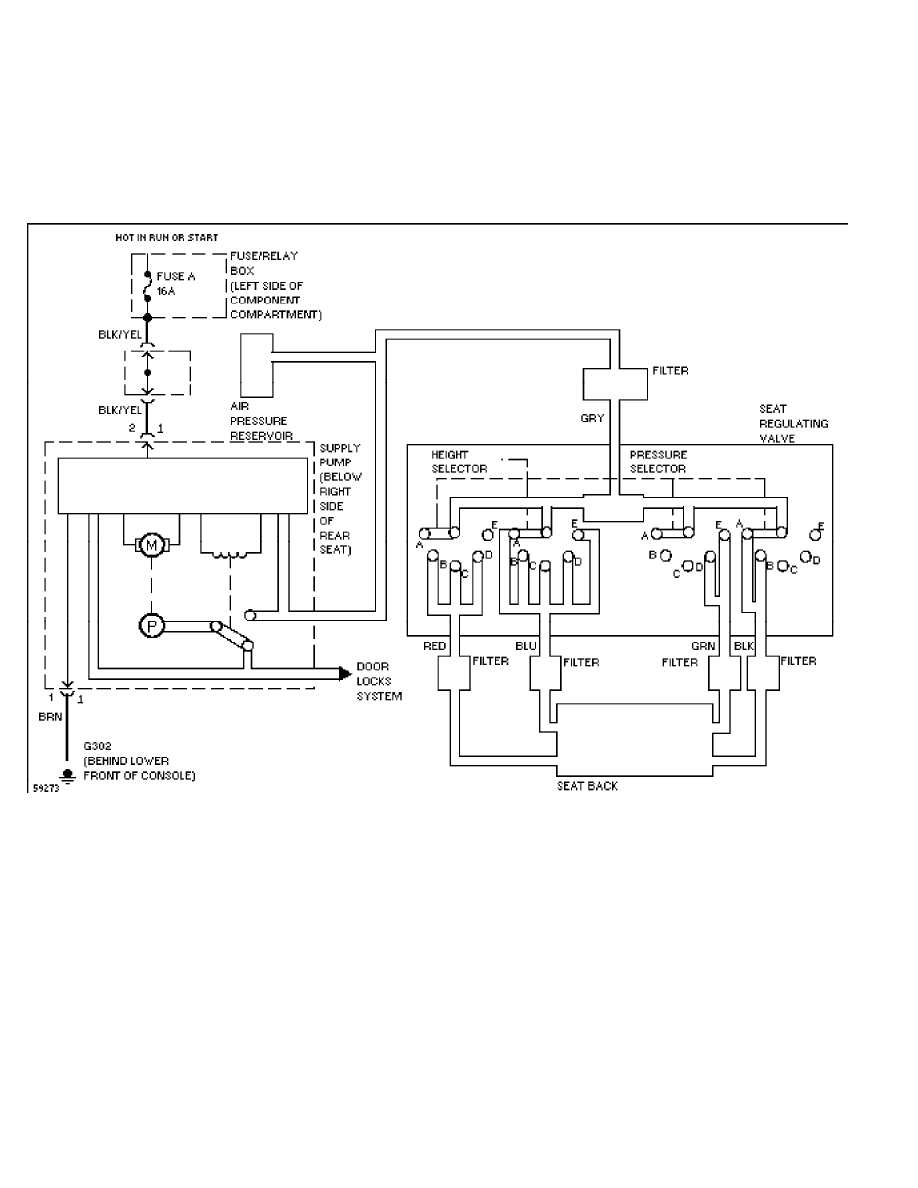

3.0L, Orthopedic Seats (p. 28)
1992 Mercedes-Benz 300E
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, April 02, 2006 02:03PM
SYSTEM WIRING DIAGRAMS

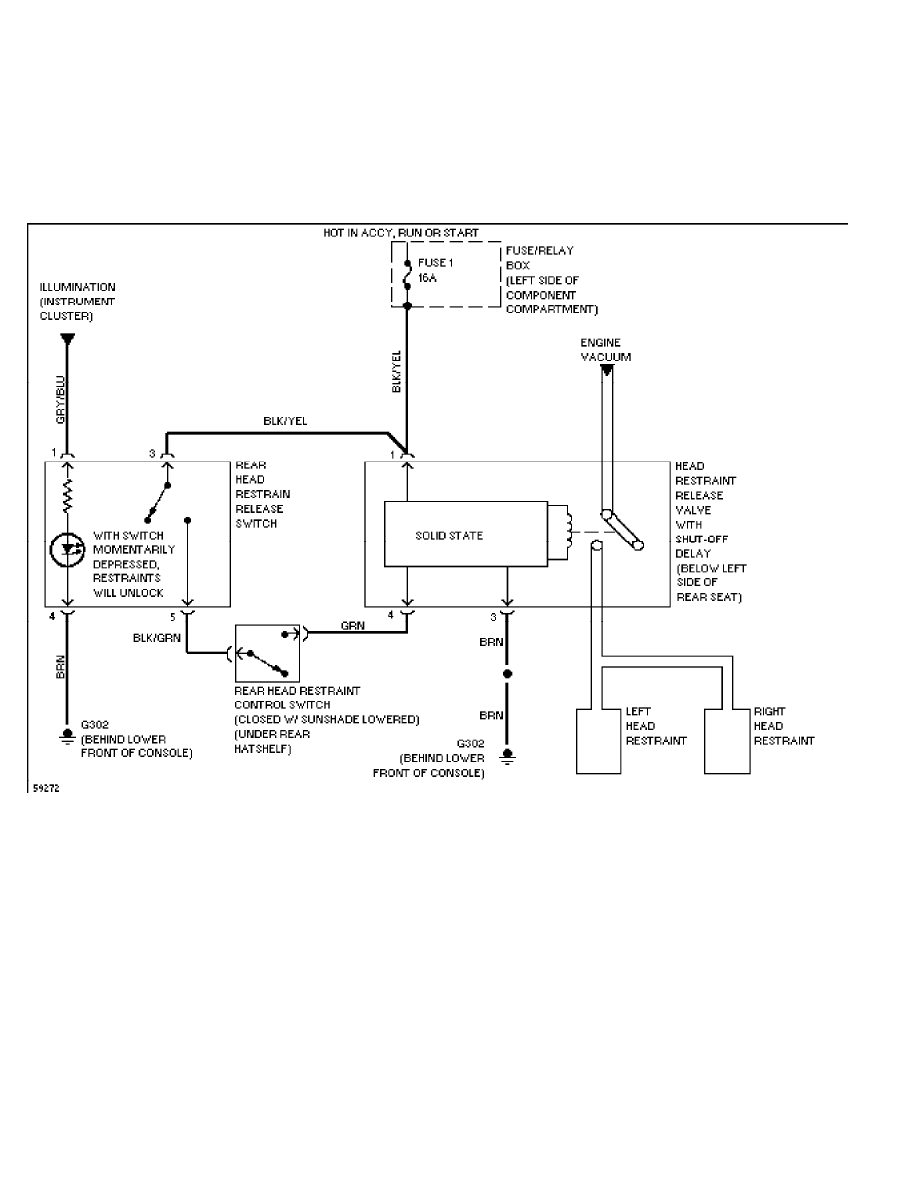

3.0L, Rear Head Restraint Circuit (p. 29)
1992 Mercedes-Benz 300E
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, April 02, 2006 02:03PM
SYSTEM WIRING DIAGRAMS
3.0L, Right Seat Circuit (p. 30)
1992 Mercedes-Benz 300E
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, April 02, 2006 02:03PM
SYSTEM WIRING DIAGRAMS
Power Top/Sunroof Circuits (p. 31)
1992 Mercedes-Benz 300E
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, April 02, 2006 02:03PM
SYSTEM WIRING DIAGRAMS

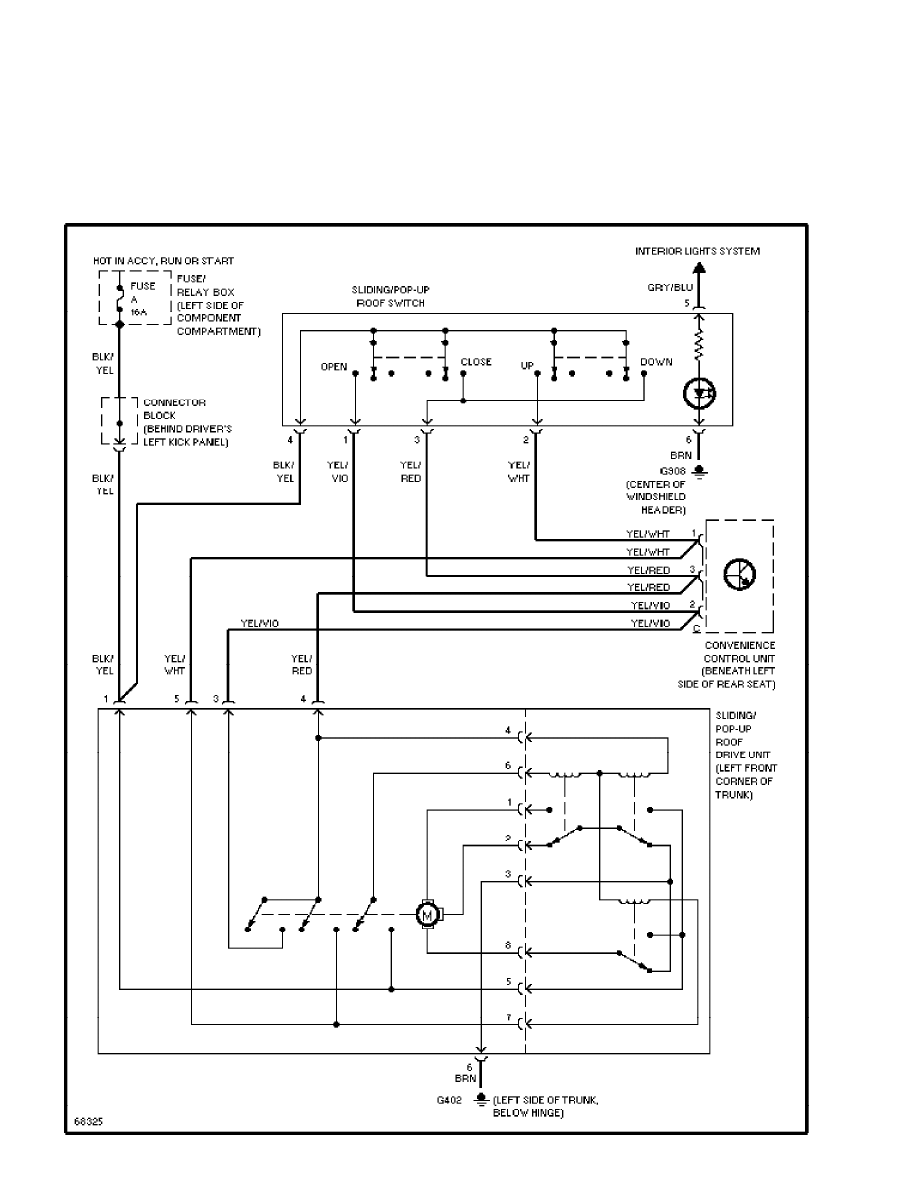

Sunroof Circuit (p. 32)
1992 Mercedes-Benz 300E
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, April 02, 2006 02:03PM
SYSTEM WIRING DIAGRAMS

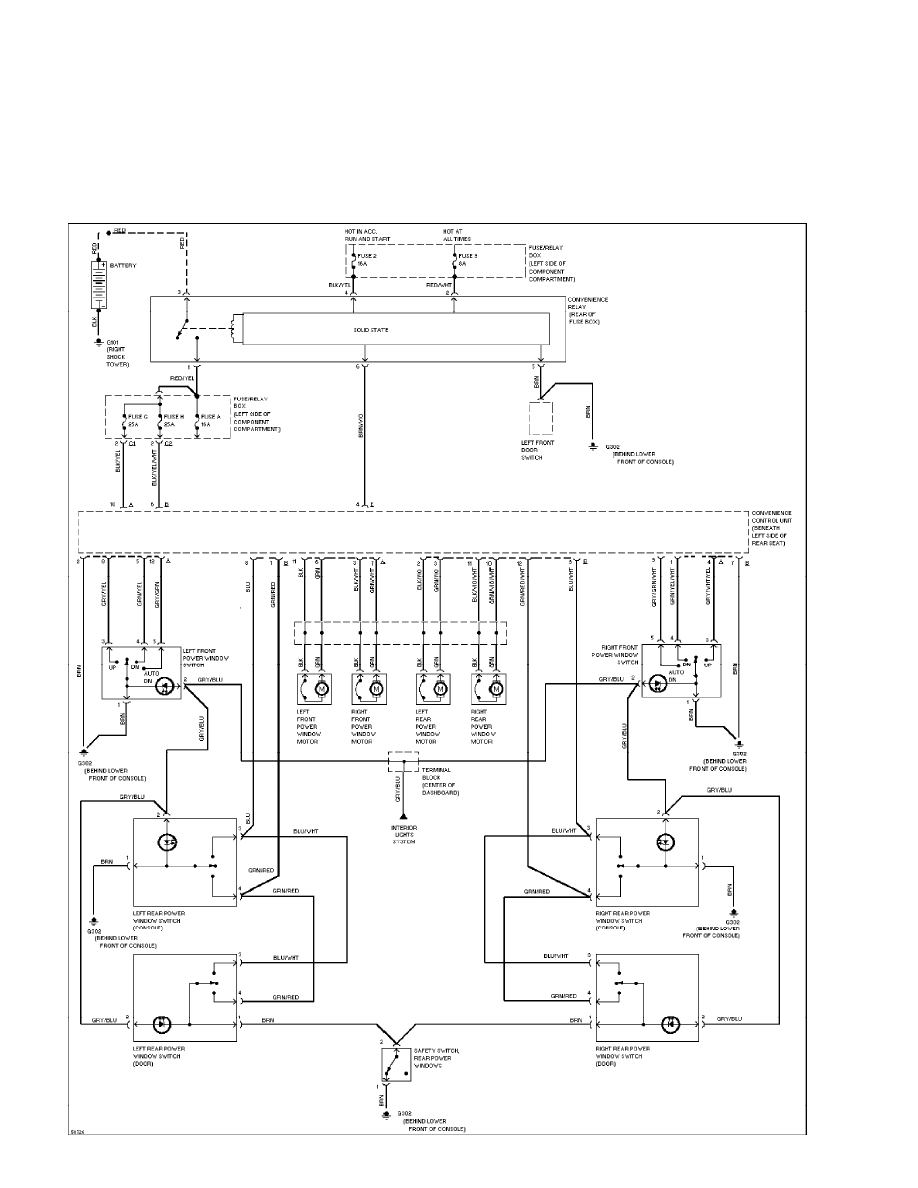

Power Window Circuit (p. 33)
1992 Mercedes-Benz 300E
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, April 02, 2006 02:03PM
SYSTEM WIRING DIAGRAMS

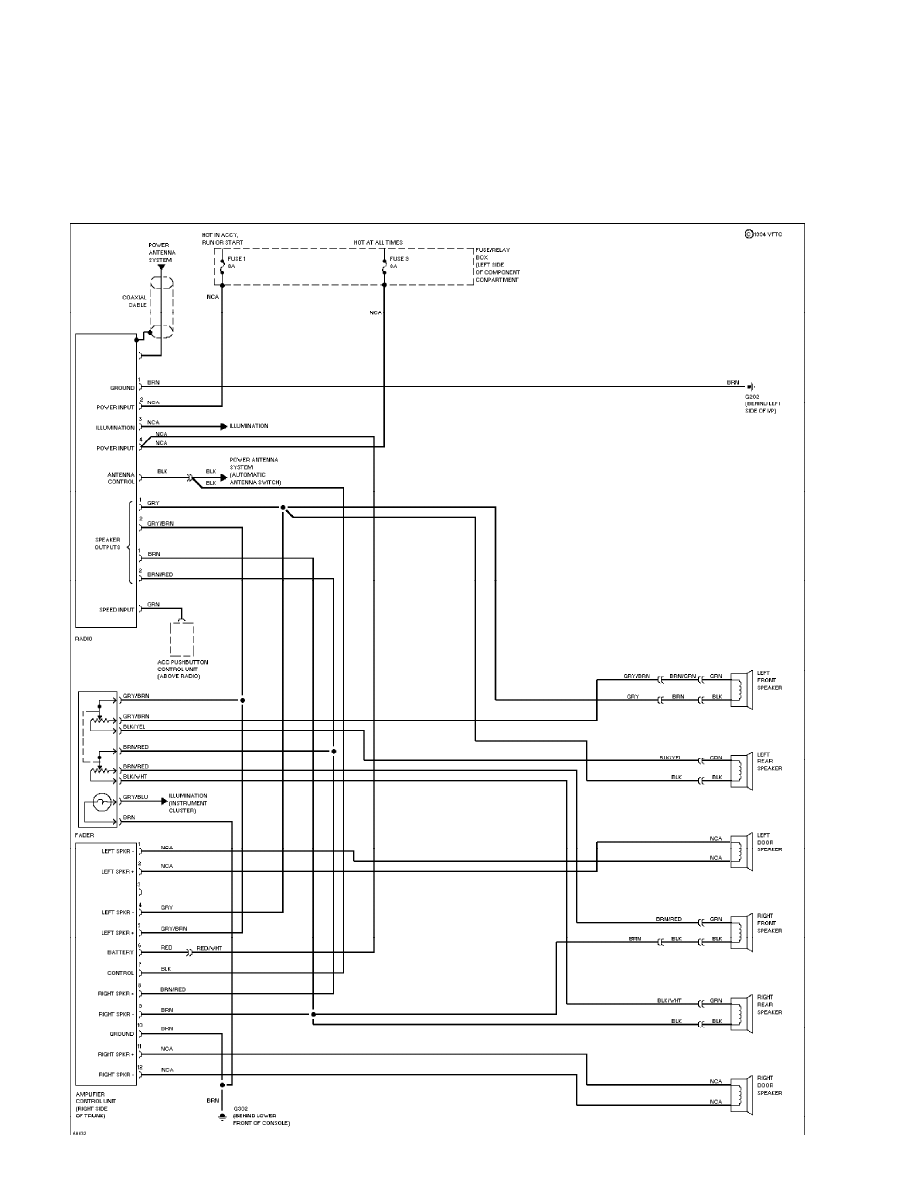

One Piece Radio, W/ Active Bass (p. 34)
1992 Mercedes-Benz 300E
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, April 02, 2006 02:03PM
SYSTEM WIRING DIAGRAMS

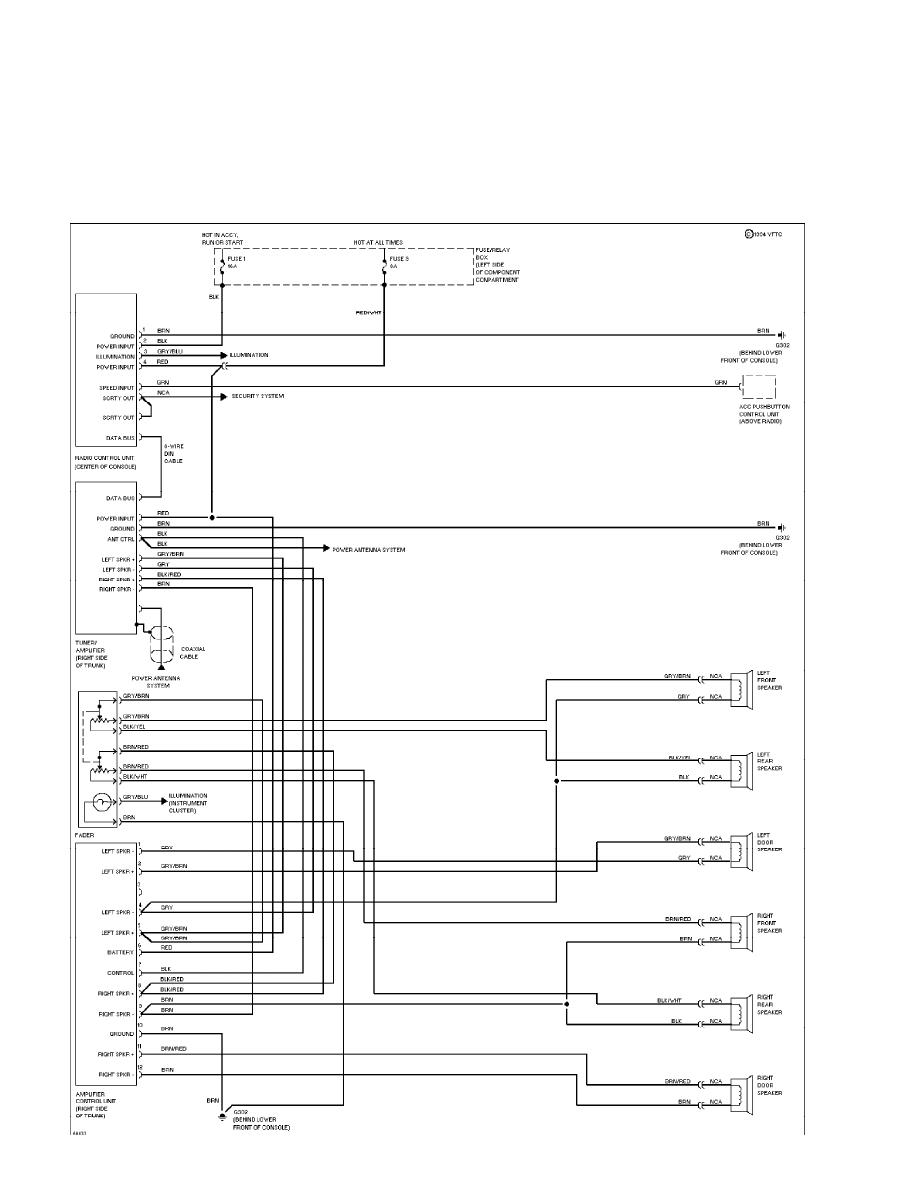

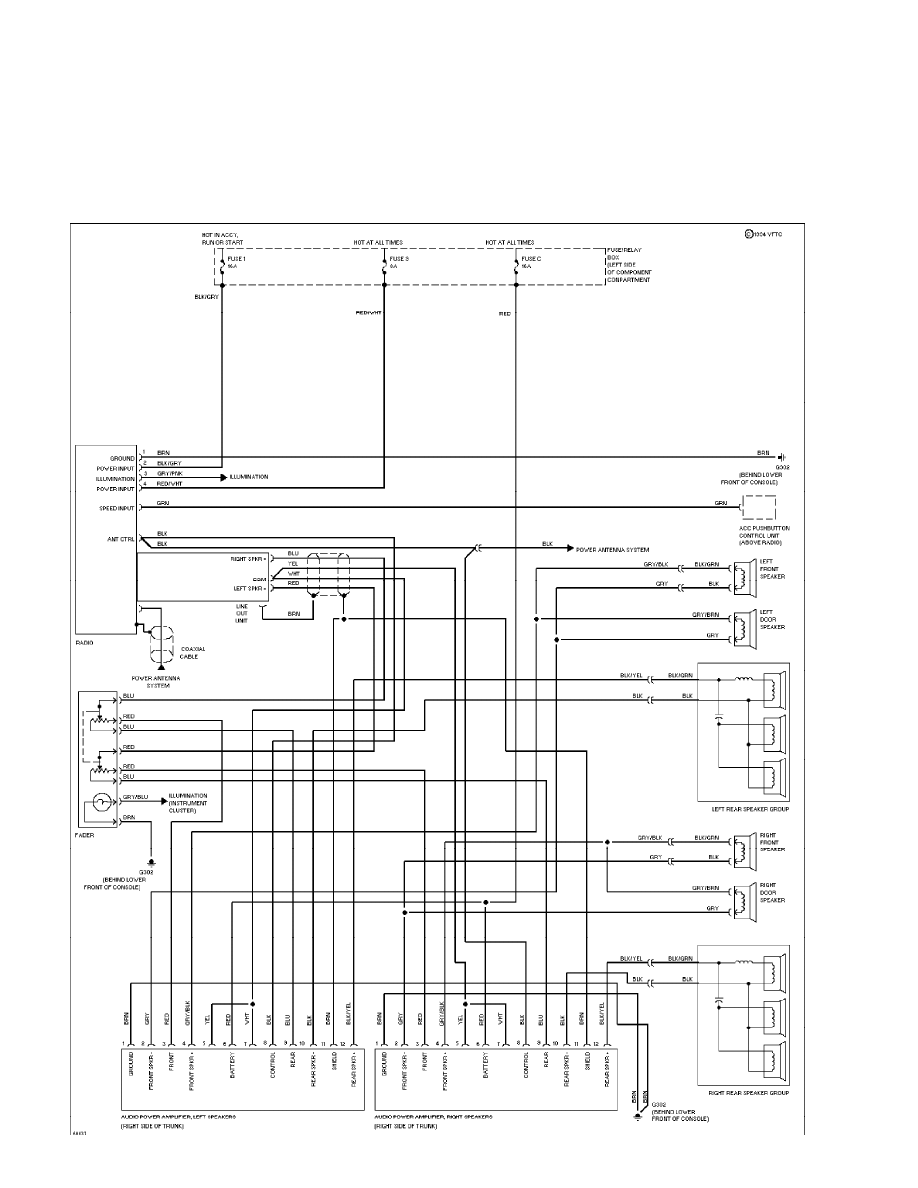

One Piece Radio, W/ Sound System (p. 35)
1992 Mercedes-Benz 300E
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, April 02, 2006 02:03PM
SYSTEM WIRING DIAGRAMS
Two Piece Radio, W/ Active Bass (p. 36)
1992 Mercedes-Benz 300E
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, April 02, 2006 02:03PM
SYSTEM WIRING DIAGRAMS

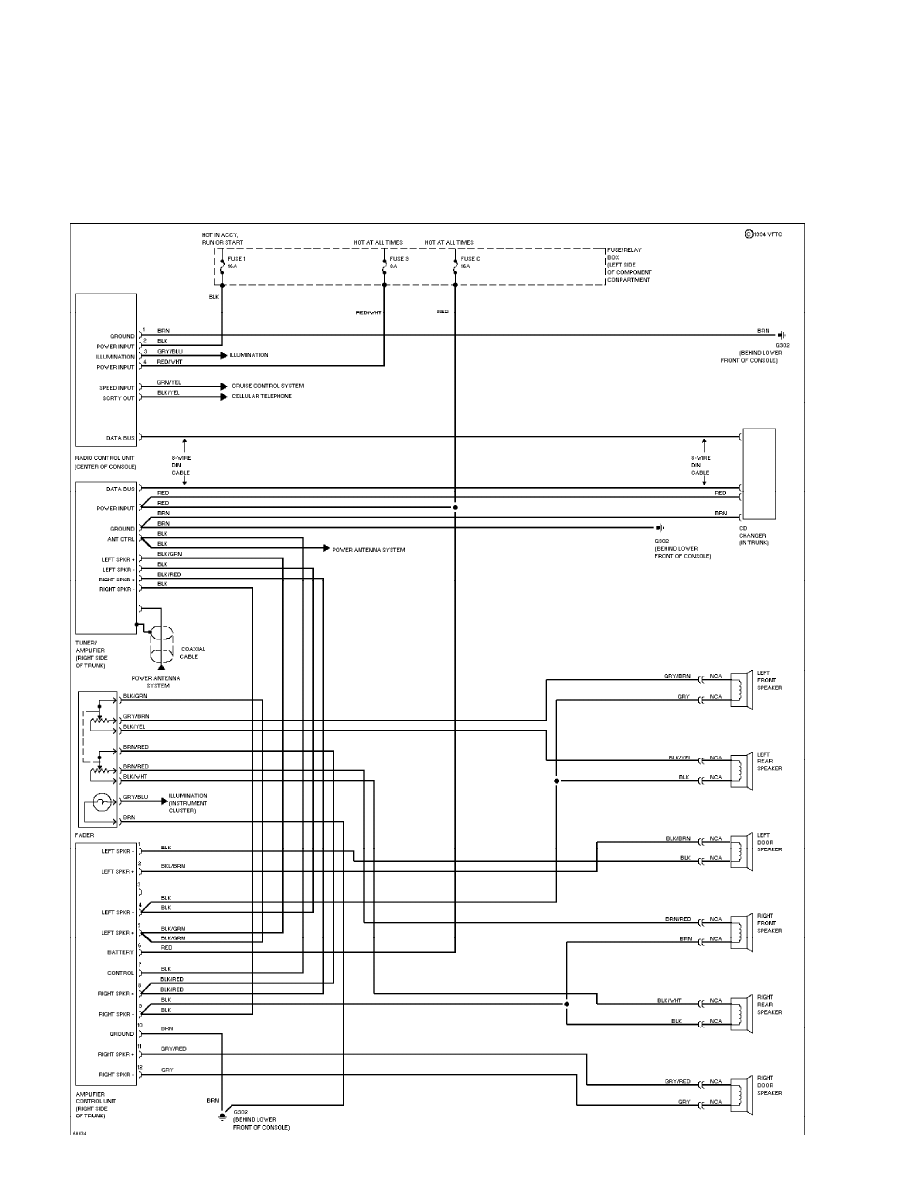

Two Piece Radio, W/ Active Bass & CD Player (2 of 1) (p. 37)
1992 Mercedes-Benz 300E
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, April 02, 2006 02:03PM
SYSTEM WIRING DIAGRAMS

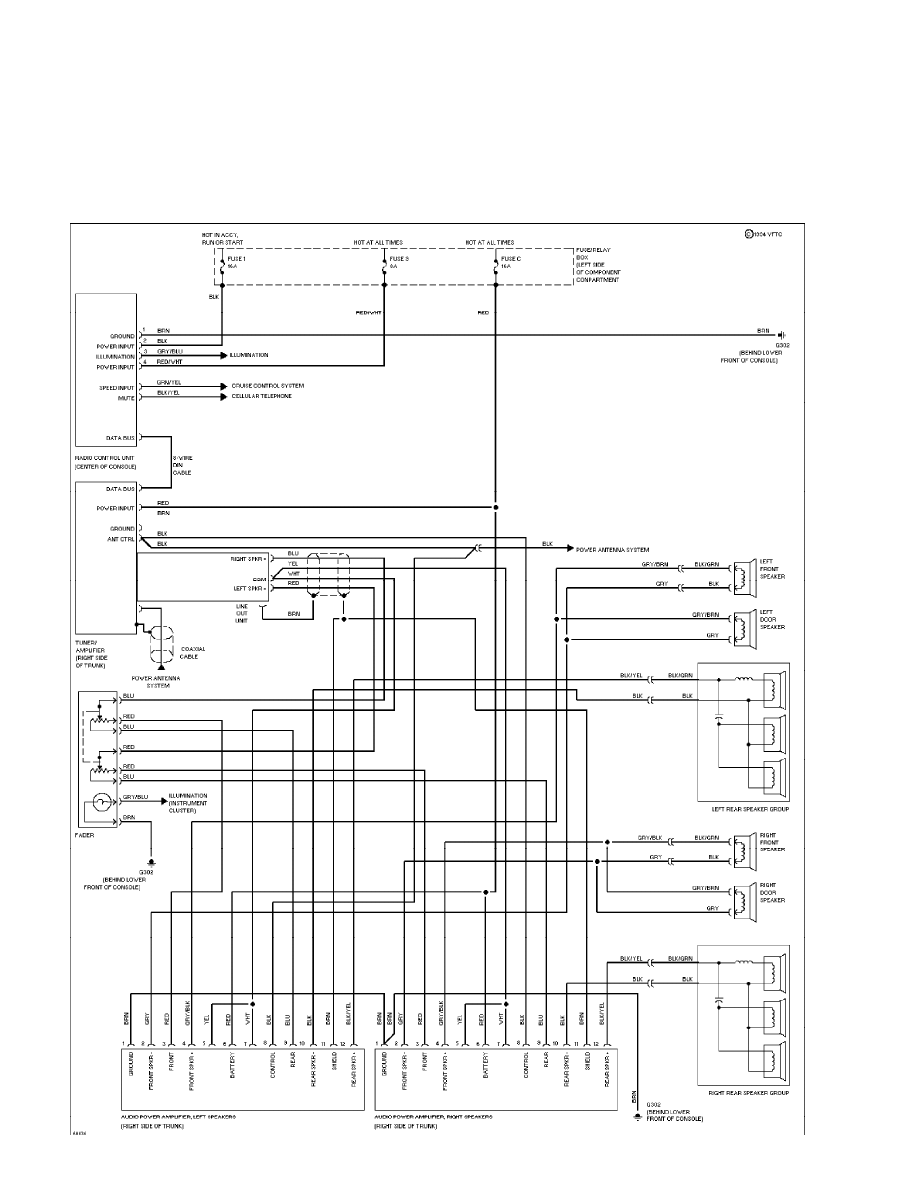

Two Piece Radio, W/ Sound System (p. 38)
1992 Mercedes-Benz 300E
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, April 02, 2006 02:03PM
SYSTEM WIRING DIAGRAMS

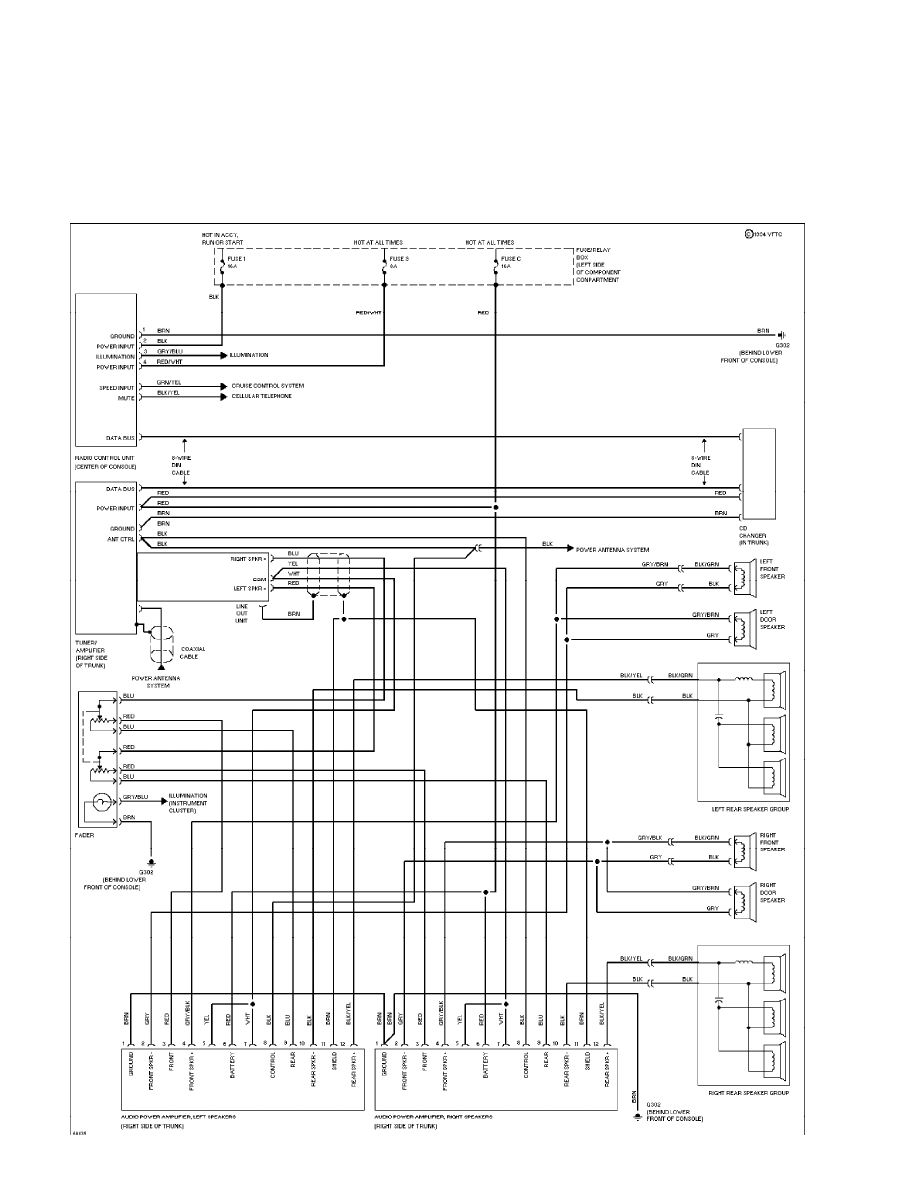

Two Piece Radio, W/ Sound System & CD Player (p. 39)
1992 Mercedes-Benz 300E
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, April 02, 2006 02:03PM
SYSTEM WIRING DIAGRAMS

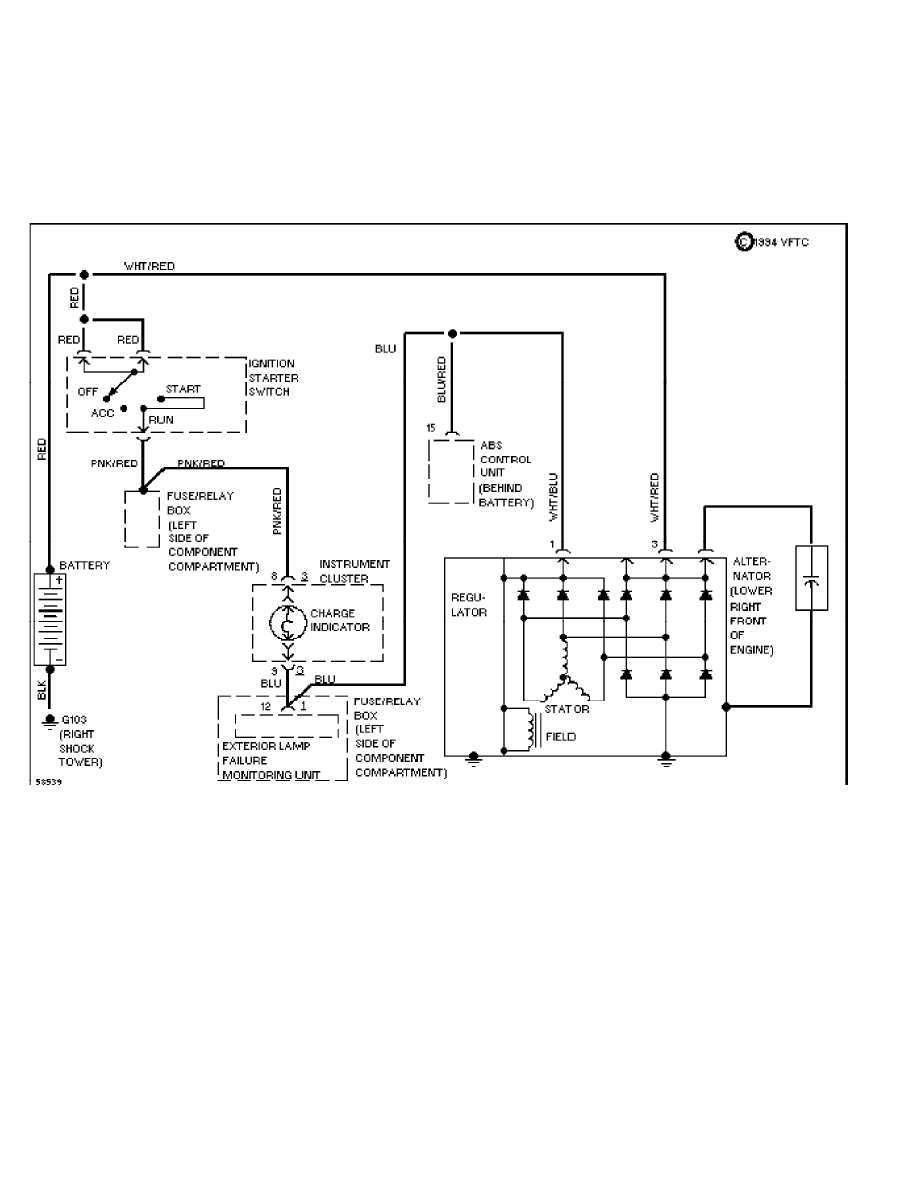

Charging Circuit (p. 40)
1992 Mercedes-Benz 300E
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, April 02, 2006 02:03PM
SYSTEM WIRING DIAGRAMS

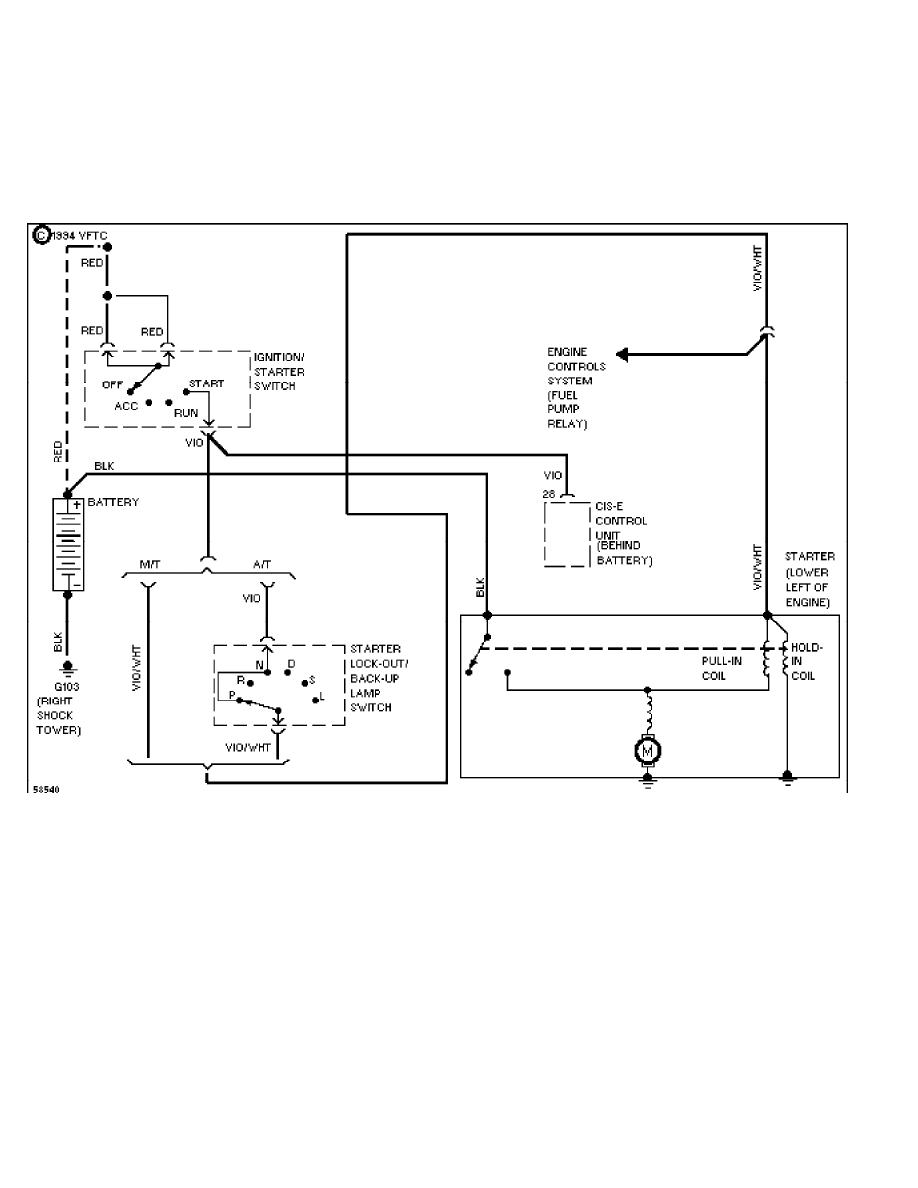

Starting Circuit (p. 41)
1992 Mercedes-Benz 300E
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, April 02, 2006 02:03PM
SYSTEM WIRING DIAGRAMS

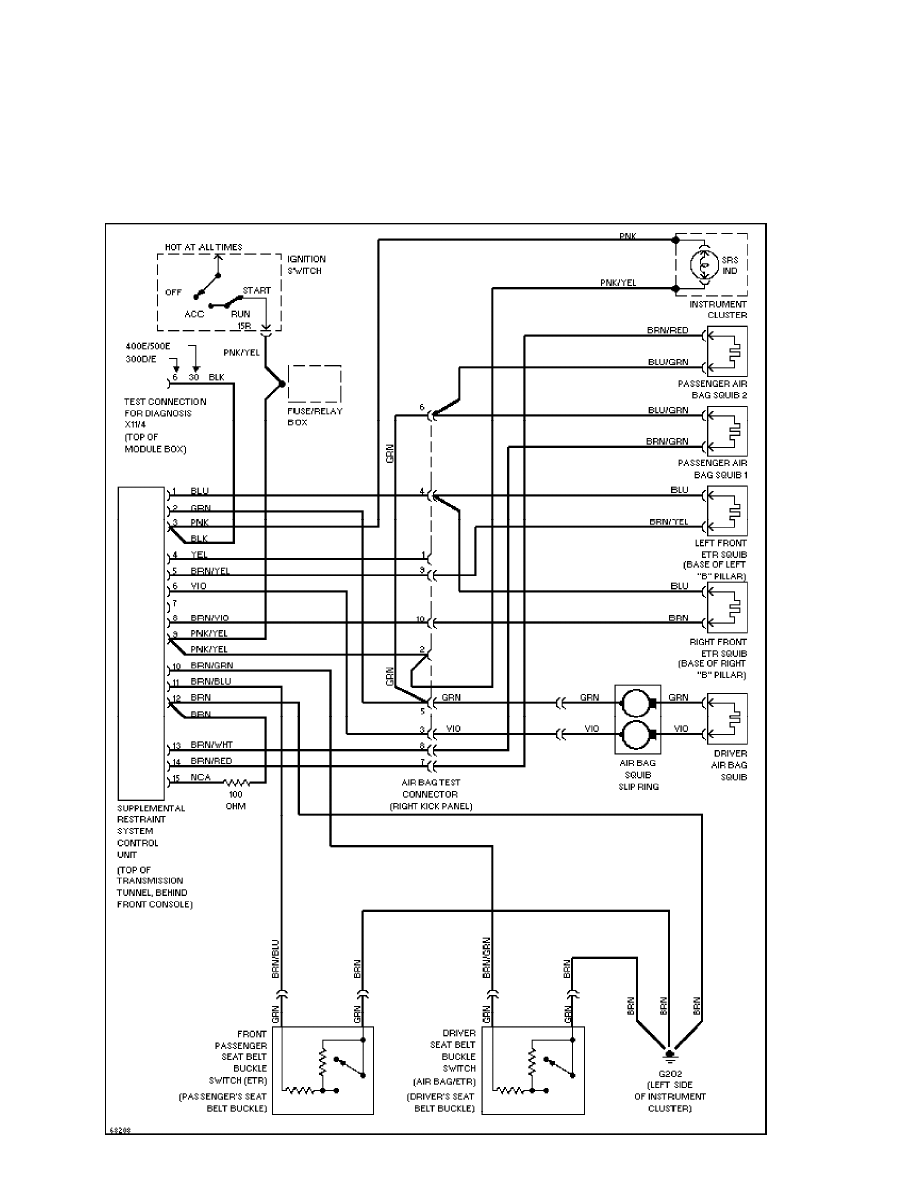

Supplemental Restraint Circuit (p. 42)
1992 Mercedes-Benz 300E
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, April 02, 2006 02:03PM
SYSTEM WIRING DIAGRAMS

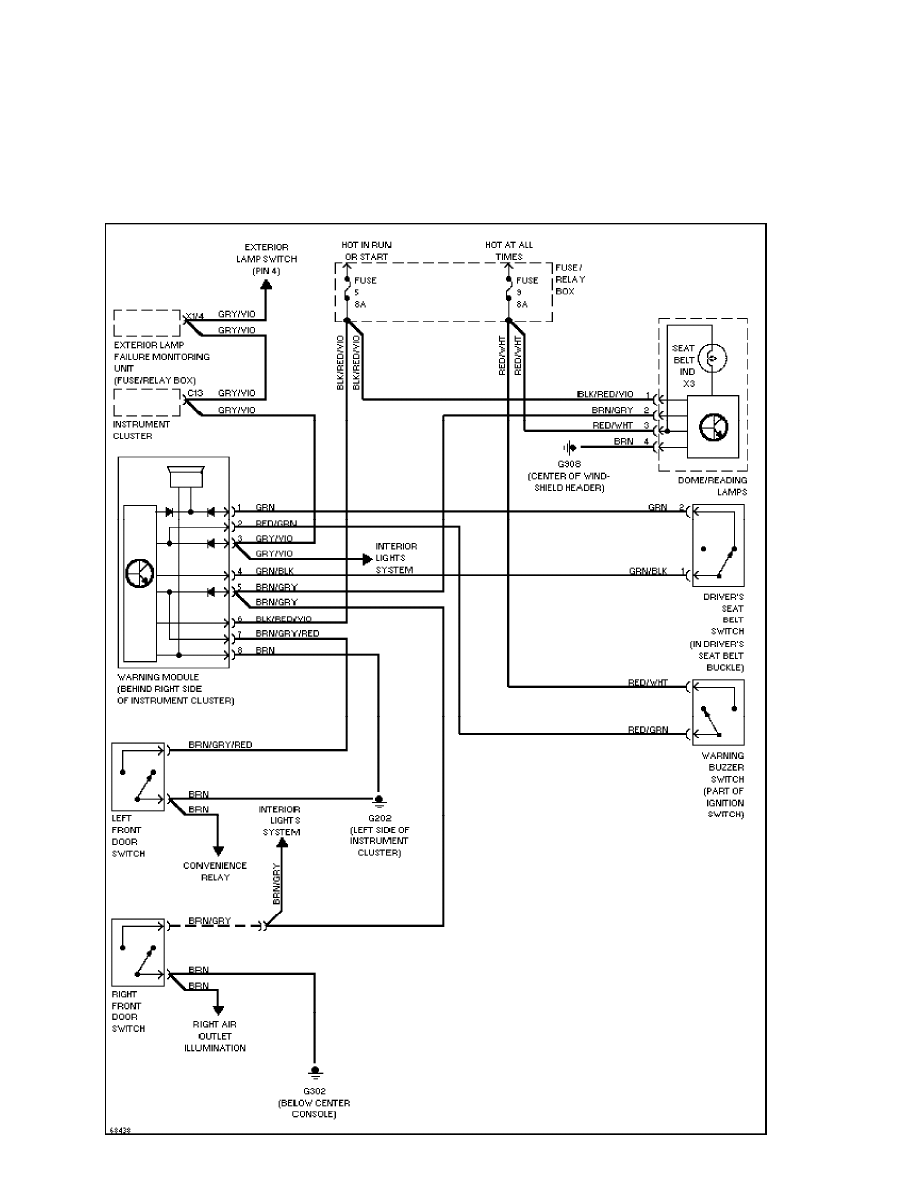

Warning System Circuits (p. 43)
1992 Mercedes-Benz 300E
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, April 02, 2006 02:03PM
SYSTEM WIRING DIAGRAMS
Front Wiper/Washer Circuit (p. 44)
1992 Mercedes-Benz 300E
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, April 02, 2006 02:03PM
SYSTEM WIRING DIAGRAMS

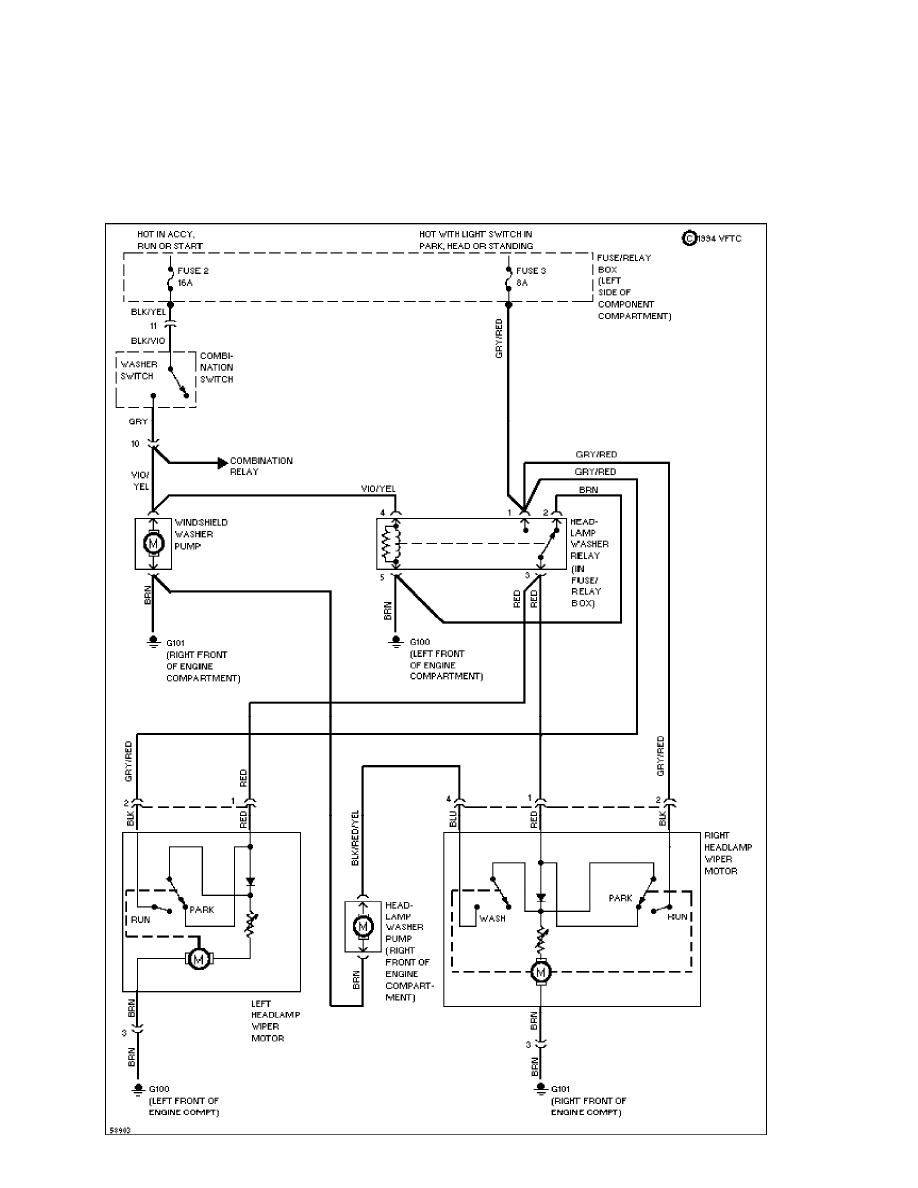

Headlight Washer/Wiper Circuit (p. 45)
1992 Mercedes-Benz 300E
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, April 02, 2006 02:03PM
SYSTEM WIRING DIAGRAMS

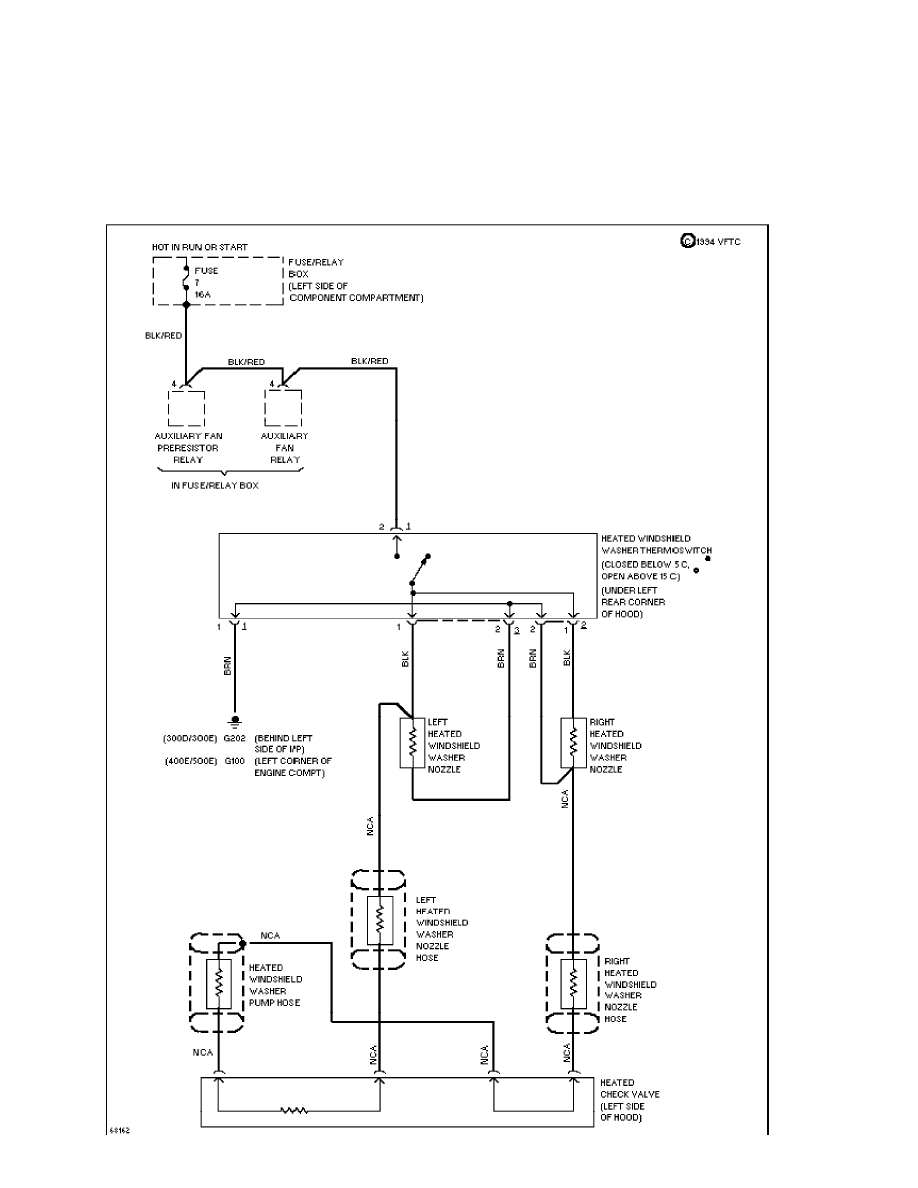

Heated Windshield Washer Circuit (p. 46)
1992 Mercedes-Benz 300E
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, April 02, 2006 02:03PM
SYSTEM WIRING DIAGRAMS

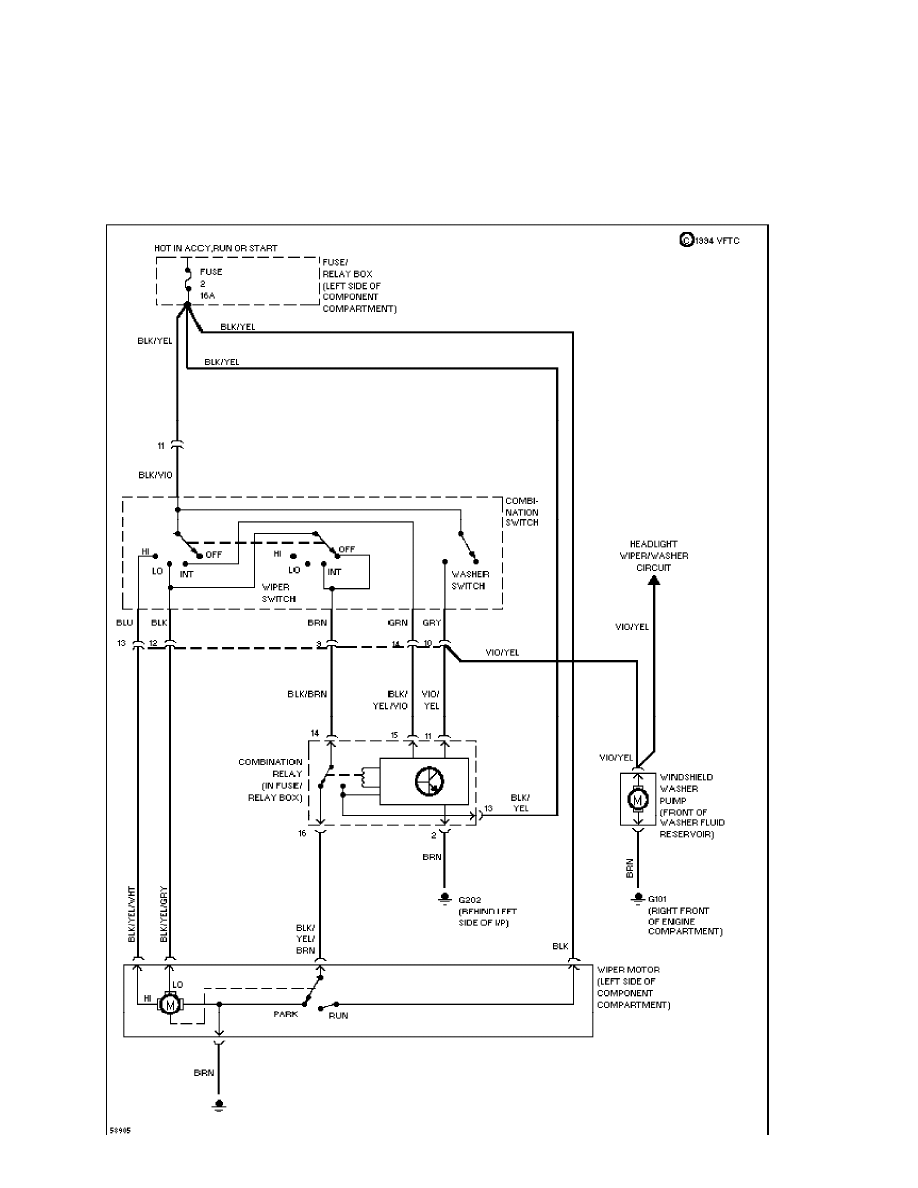

Interval Wiper/Washer Circuit (p. 47)
1992 Mercedes-Benz 300E
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, April 02, 2006 02:03PM
