Make a Voice Controlled Robot
This tutorial will show how to build a simple voice controlled robot that's easy enough for beginners to make in just a few hours. I show how it can be done in two
languages, both English and Thai.
The cost of the entire project is about ~$224, which factors in quality components and parts.
There will be three parts to this tutorial. This part will show you how to assemble the robot mechanically, the next part will show you how to program your microcontroller,
and the last part will be how to configure voice recognition.
Watch the video for step-by-step instructions, and see the result at the end. If you like it, please boost my ego and rate this Instructable =)

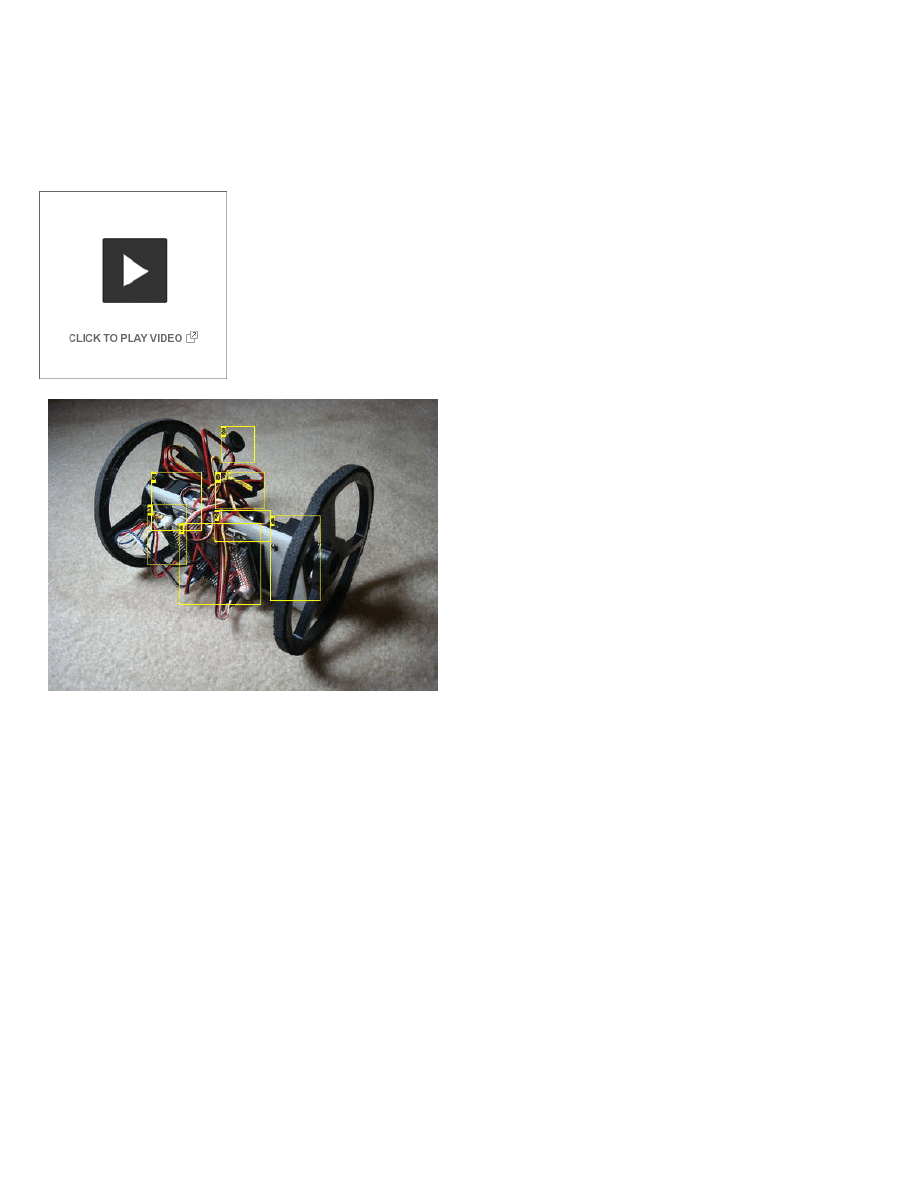

Image Notes
1. Axon II Microcontroller
2. VRbot Voice Recognition Module
3. microphone
4. servo #1
5. servo #2
6. on/off switch
7. 6V battery
Step 1:
Parts Needed
You can find all the parts you need for your robot using this handy-dandy
.
for ~$8.99 each
$1.95
(2) wheels - I custom made these using a CNC (although a laser cutter would be better), but you can buy some for ~$3 each
- about ~$22 for a quality battery
(1) small piece of plastic (scrap)
(16) 4-40 screws ~$2
$118

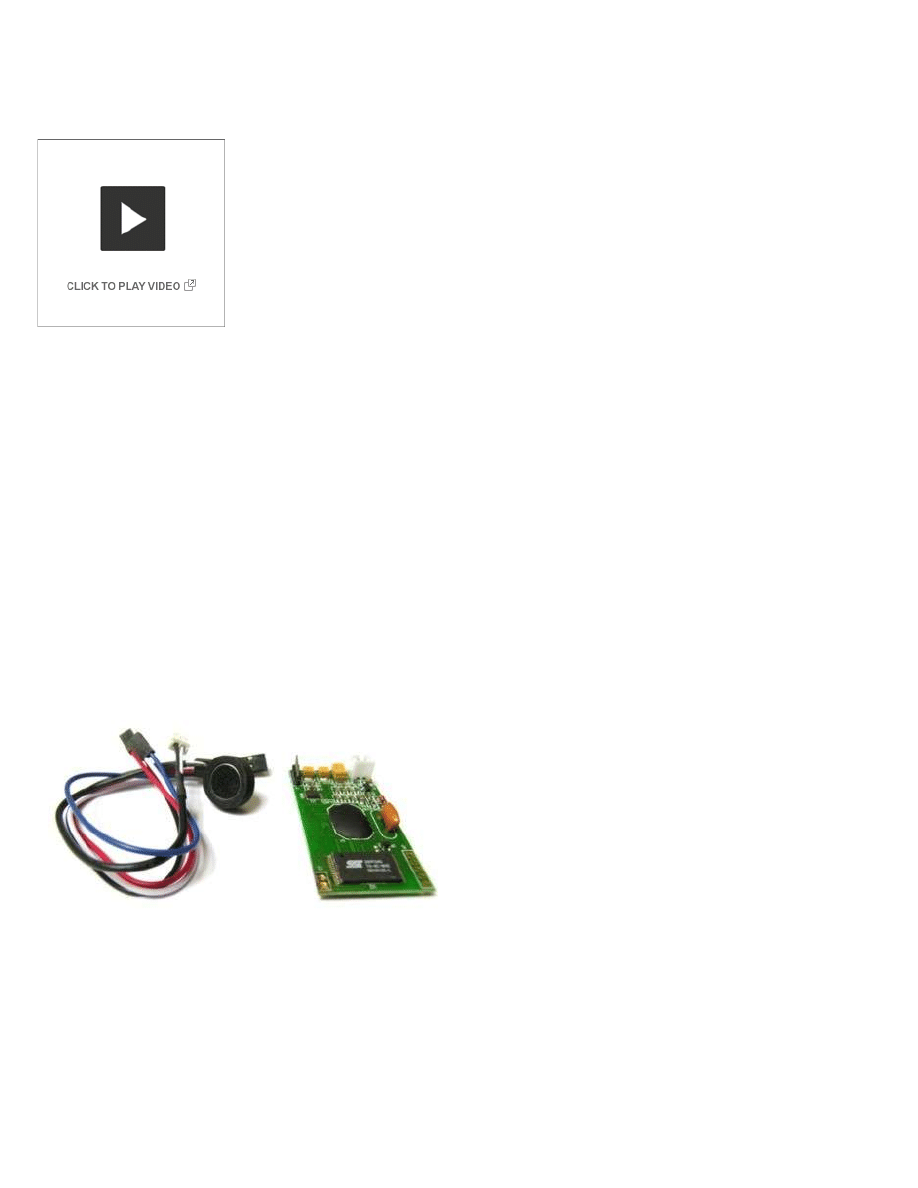

VRbot Voice Recognition Module
$57.95
http://www.instructables.com/id/Voice-Control-Robot-in-7-Minutes/

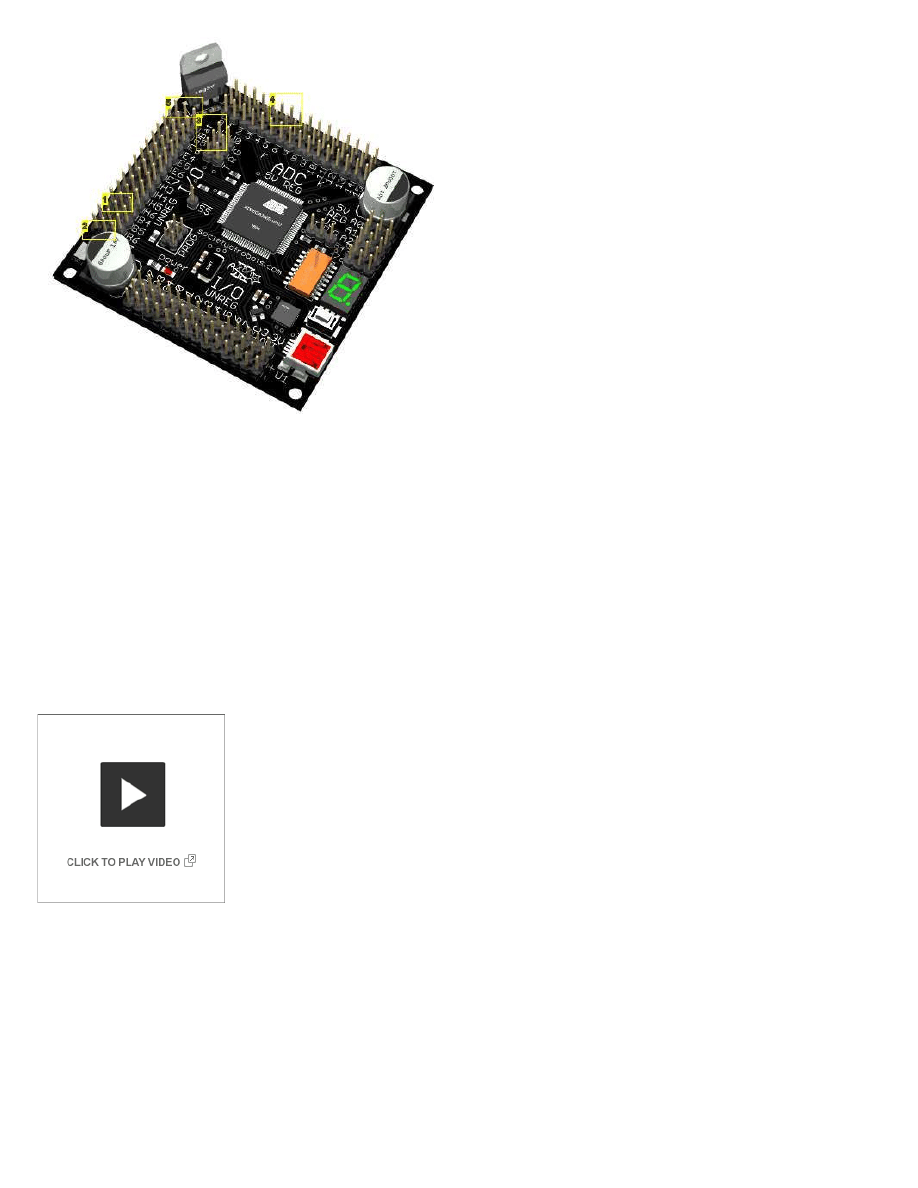

Image Notes
1. B5 for Left Servo
2. B7 for Right Servo
3. U2 for VRbot module
4. regulated voltage for VRbot module
5. battery connection
Step 2:
Installing Software
Now that your robot is assembled, we will now program the robot.
If you have never used the Axon before, the getting started tutorial will get you up and running quickly:
http://societyofrobots.com/axon2/axon2_setup1.shtml
The fully commented source code to this project can be downloaded here:
http://www.societyofrobots.com/downloads/Axon2_Voice_Recognition_Software.zip
You will need AVR Studio to upload the .hex file to your Axon - no programming required. But feel free to modify it should you want to do more.
This tutorial video will now show you how to customize the software of your robot using
.
The robot in the video you saw uses this following code:
It includes a WebbotLib Project Designer file
http://www.instructables.com/id/Voice-Control-Robot-in-7-Minutes/
Step 3:
Configure VRbot
The last step is to program in your voice commands using VRbot. The easiest way to do this is with a TTL serial to USB adapter. I used the
. Make
sure you power your VRbot using the 5V USB output, not the 3.3V output or it won't work. The VRbot manual has more specific details if you get stuck.
:
The specific list of commands programmed into the VRbot are as follows, although many were not used in this demo:
Group 1:
PASA_THAI
LEFT
RIGHT
FORWARD
DANCE
WAI
BOW
ARM
ATTACK
SHUTDOWN
POWER_UP
LED
UP
DOWN
GRAB
RELEASE
Group 2:
PASA_ANGRIT
LONG
KEUN
LEO_SAI
LEO_KWA
DTRONG_BAI
Step 4:
Upgrade Your Robot
Now that you have the basics done, start adding more servos and other voice commands to slowly build up your butler robot.
This of course is beyond the scope of this Instructable so I won't go into further detail, however I want to show what possibilities there are.
This video demonstrates higher level commands for your robot. If you'd like to get designs and source code for this robot, as well as find out more, I've documented it all
here:
http://www.instructables.com/id/Voice-Control-Robot-in-7-Minutes/
Step 5:
About the Axon II Microcontroller (shameless plug)
(FYI - I'm the creator of the Axon, so I'm biased)
Why use the Axon II instead of the Arduino?
The Axon requires only one 6V battery to run everything, while the Arduino requires two batteries - a 6V for servos and a 7.2V battery for the microcontroller. The Axon is
plug-n-play while the Arduino requires additional costly shields and rats-nest protoboards. These are hidden costs of the Arduino.
The Axon is just as easy if not easier to use than an Arduino, with simple drag-n-drop programming using
. The Axon is ~2x more expensive,
but has ~3x more features.
Here are a few videos on how simple it is:
