BMW 750iL 1992

background image

SYSTEM WIRING DIAGRAMS
Auxiliary Cooling Fan Circuit

1992 BMW 750iL

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, November 21, 2000 01:19PM

cdr@wp.pl

background image

SYSTEM WIRING DIAGRAMS

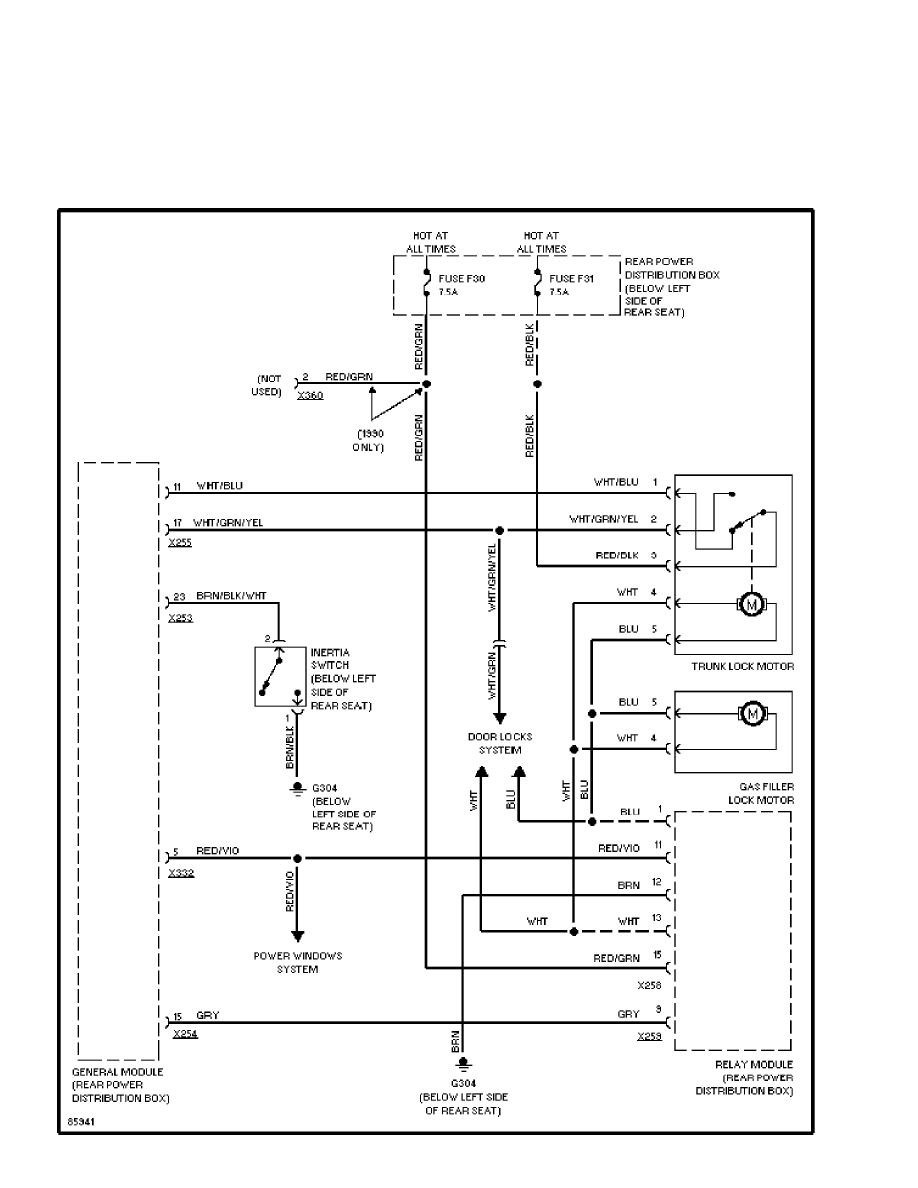

Trunk & Fuel Door Release Circuit

1992 BMW 750iL

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, November 21, 2000 01:23PM

background image

SYSTEM WIRING DIAGRAMS

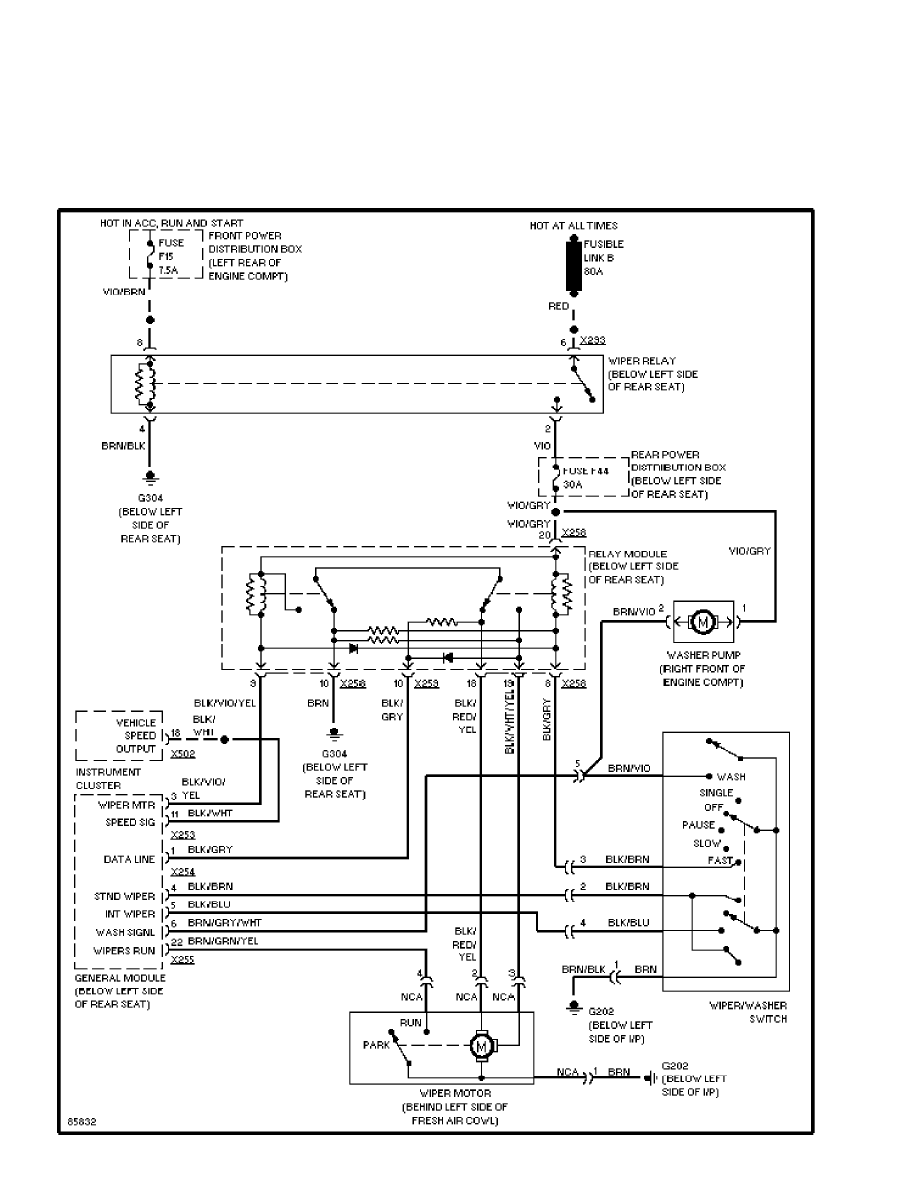

Wiper/Washer Circuit

1992 BMW 750iL

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, November 21, 2000 01:23PM

background image

SYSTEM WIRING DIAGRAMS

Charging Circuit

1992 BMW 750iL

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, November 21, 2000 01:22PM

background image

SYSTEM WIRING DIAGRAMS

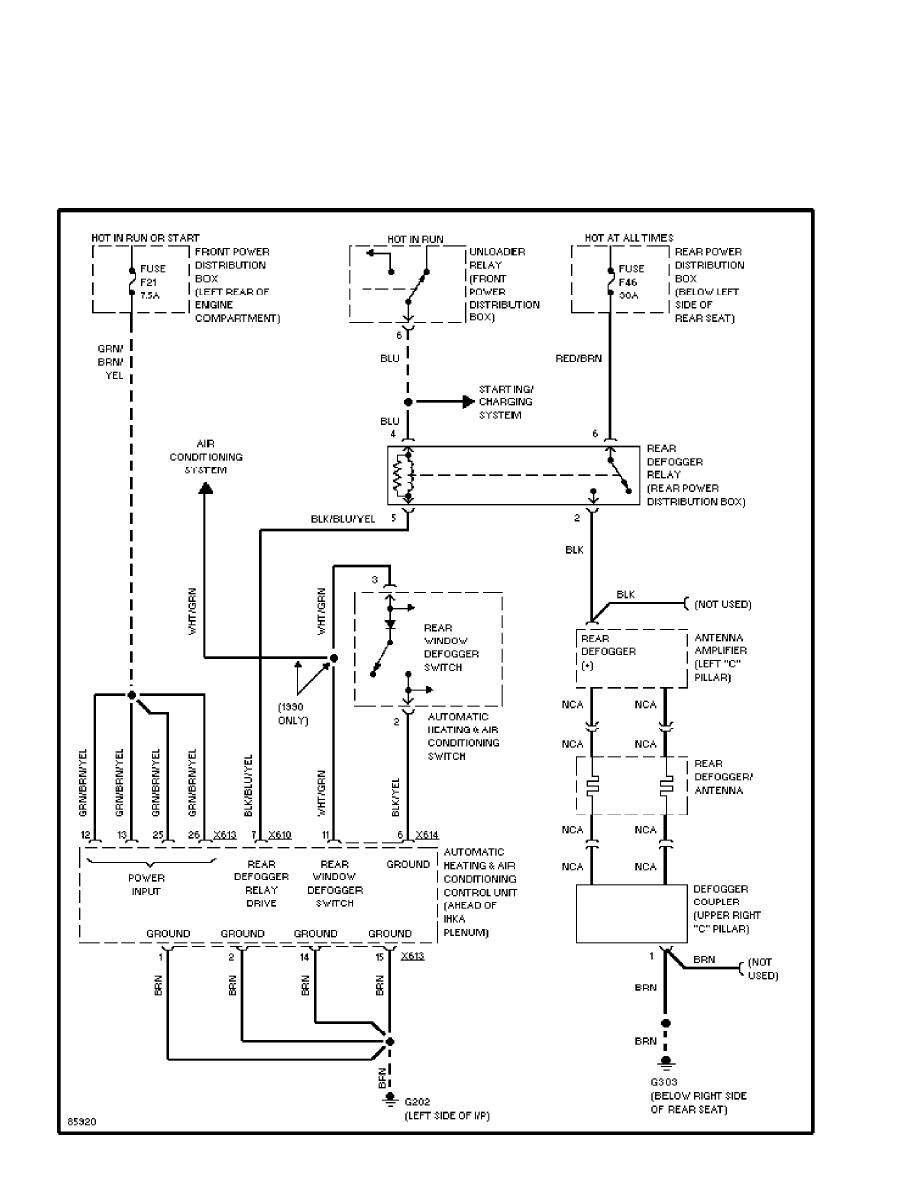

Defogger Circuit

1992 BMW 750iL

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, November 21, 2000 01:19PM

background image

SYSTEM WIRING DIAGRAMS

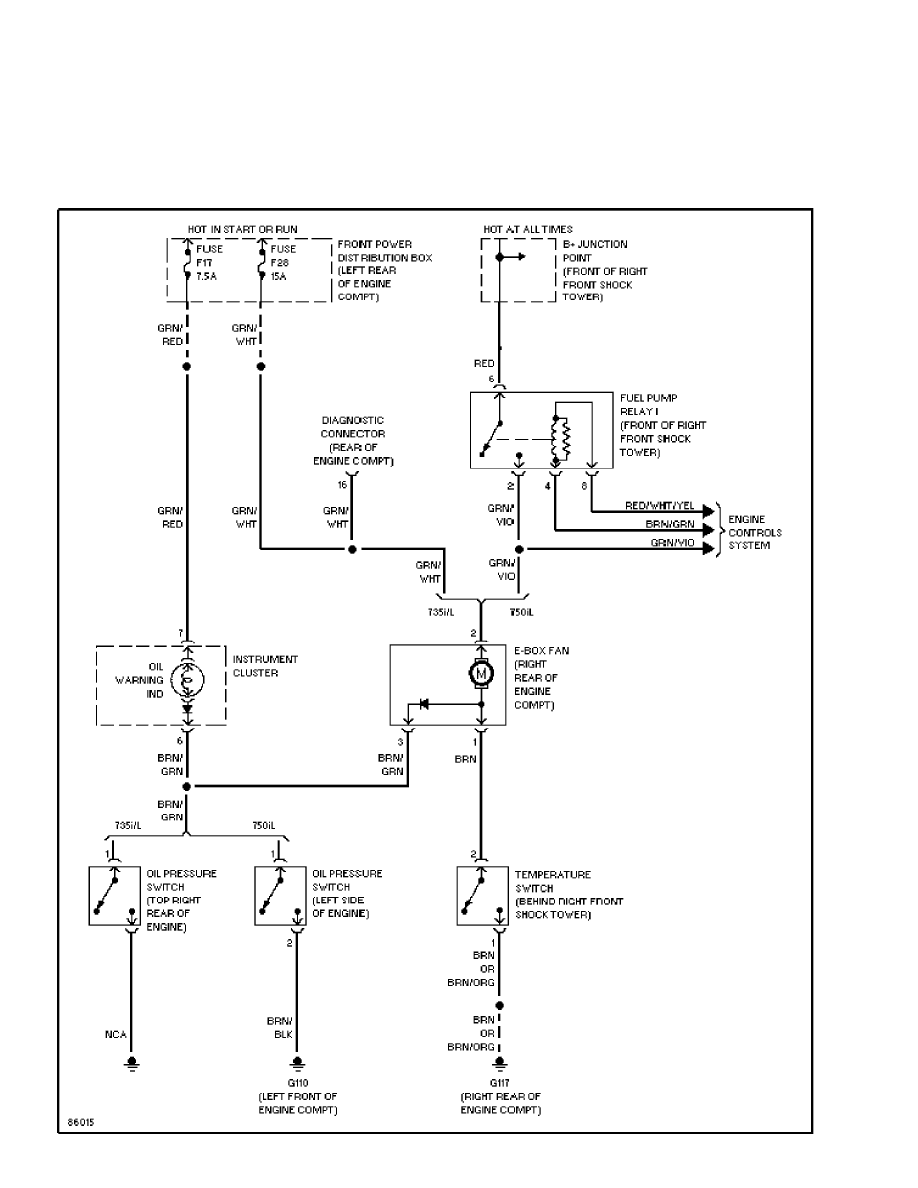

Electrical Box Fan Circuit

1992 BMW 750iL

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, November 21, 2000 01:19PM

background image

SYSTEM WIRING DIAGRAMS

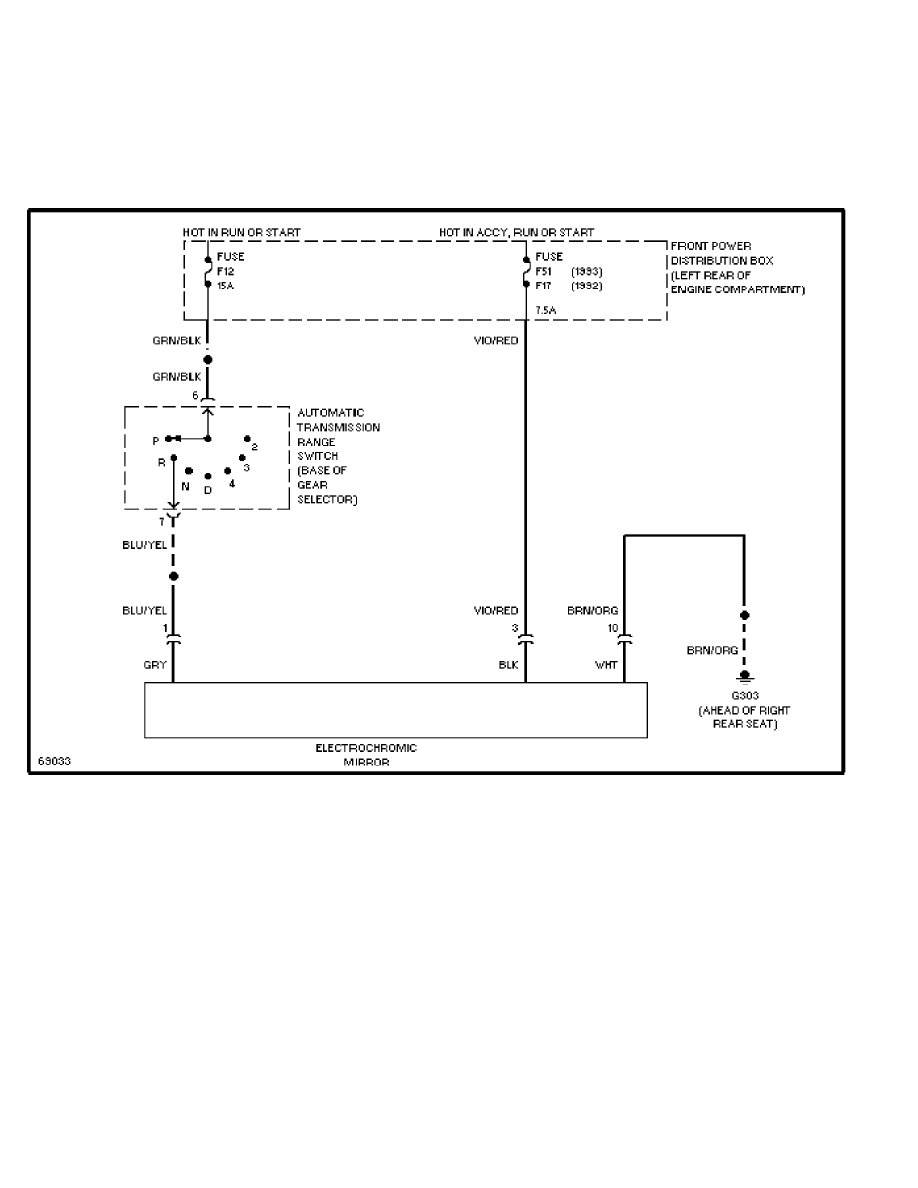

Electrochromic Mirror Circuit

1992 BMW 750iL

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, November 21, 2000 01:21PM

background image

SYSTEM WIRING DIAGRAMS

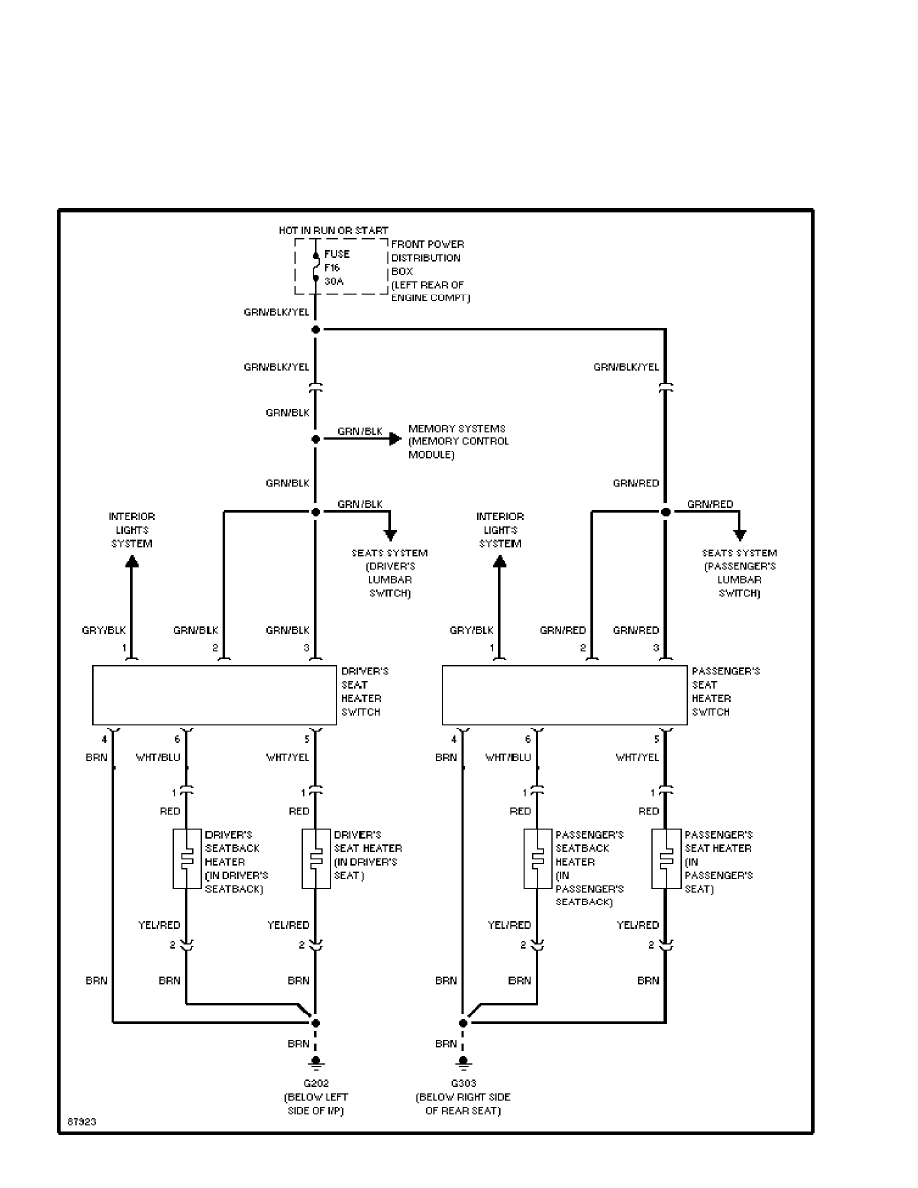

Front Seat Heater Circuit

1992 BMW 750iL

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, November 21, 2000 01:21PM

background image

SYSTEM WIRING DIAGRAMS

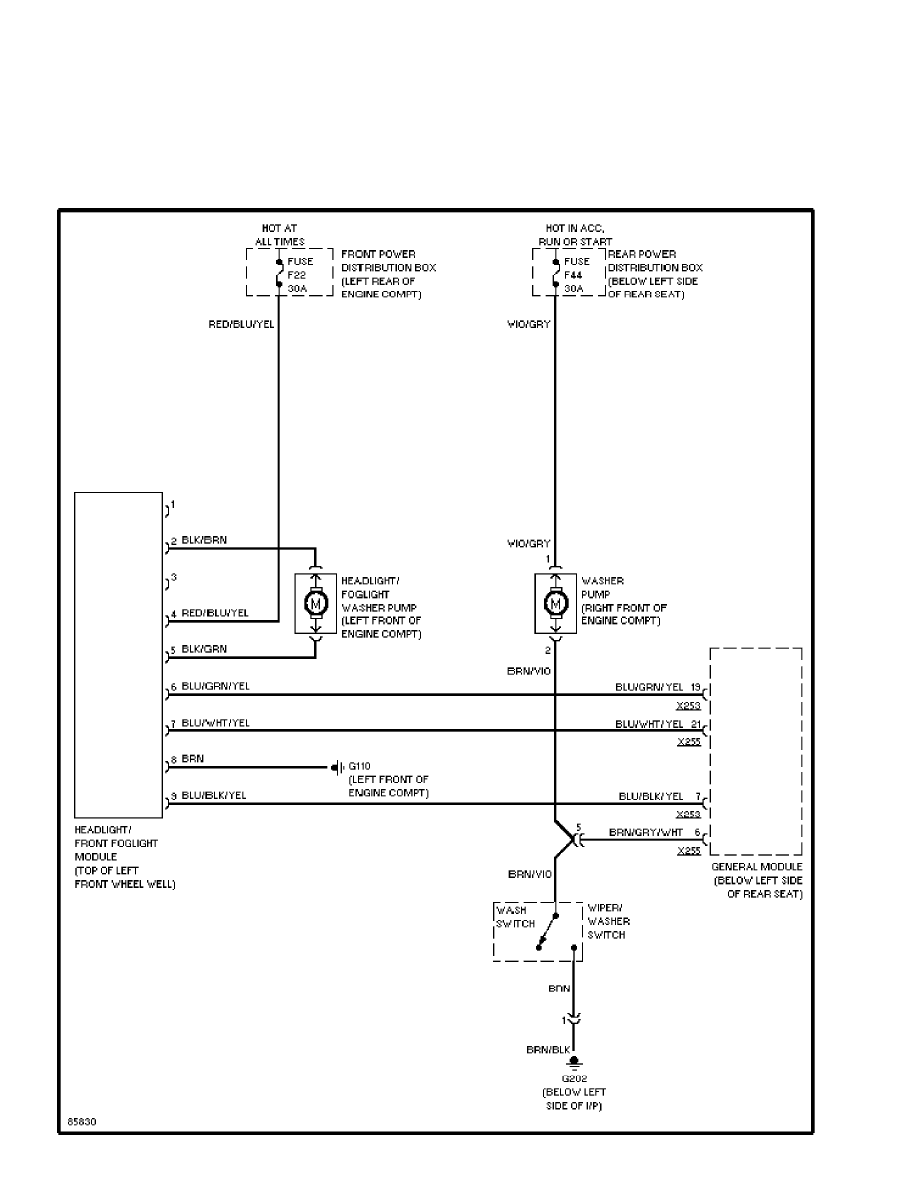

Headlamp/Foglamp Washer Circuit

1992 BMW 750iL

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, November 21, 2000 01:23PM

background image

SYSTEM WIRING DIAGRAMS

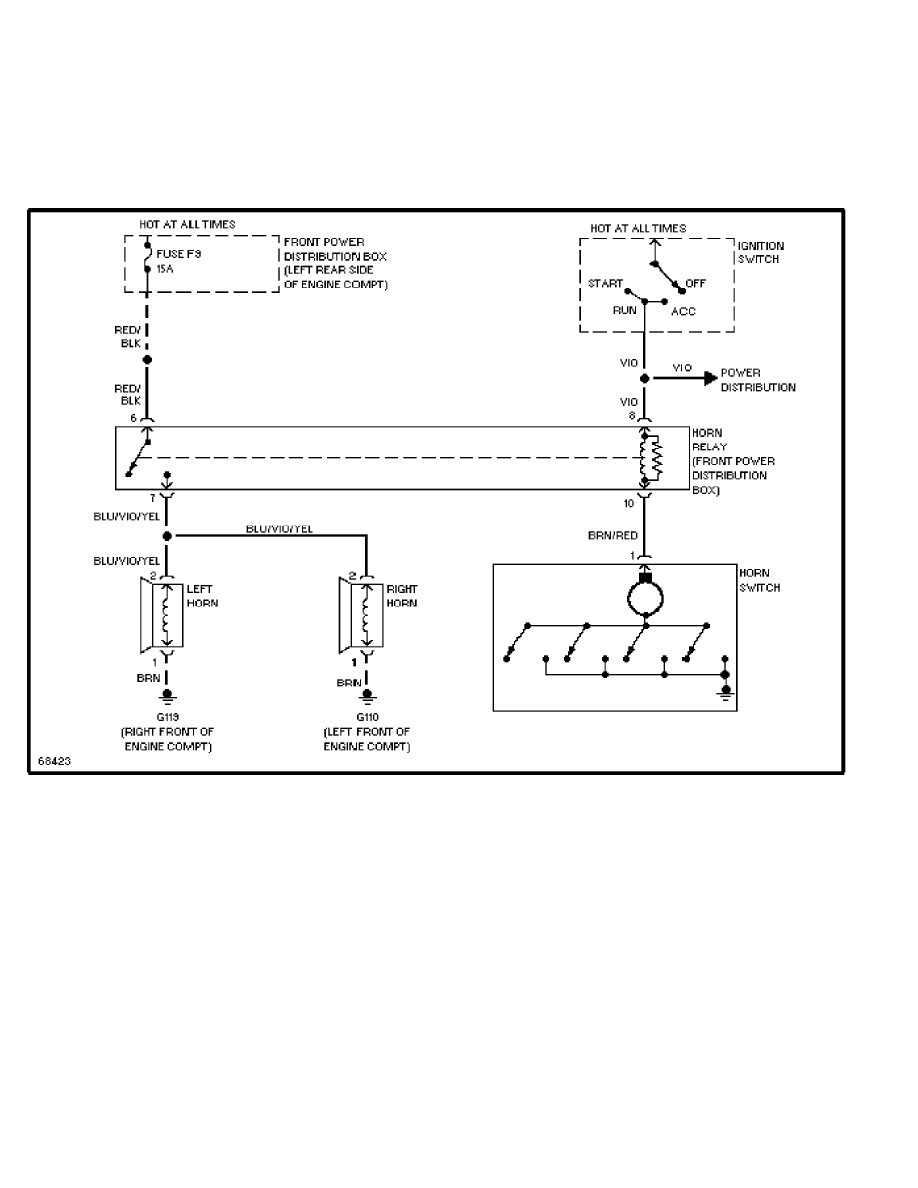

Horn Circuit

1992 BMW 750iL

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, November 21, 2000 01:19PM

background image

SYSTEM WIRING DIAGRAMS

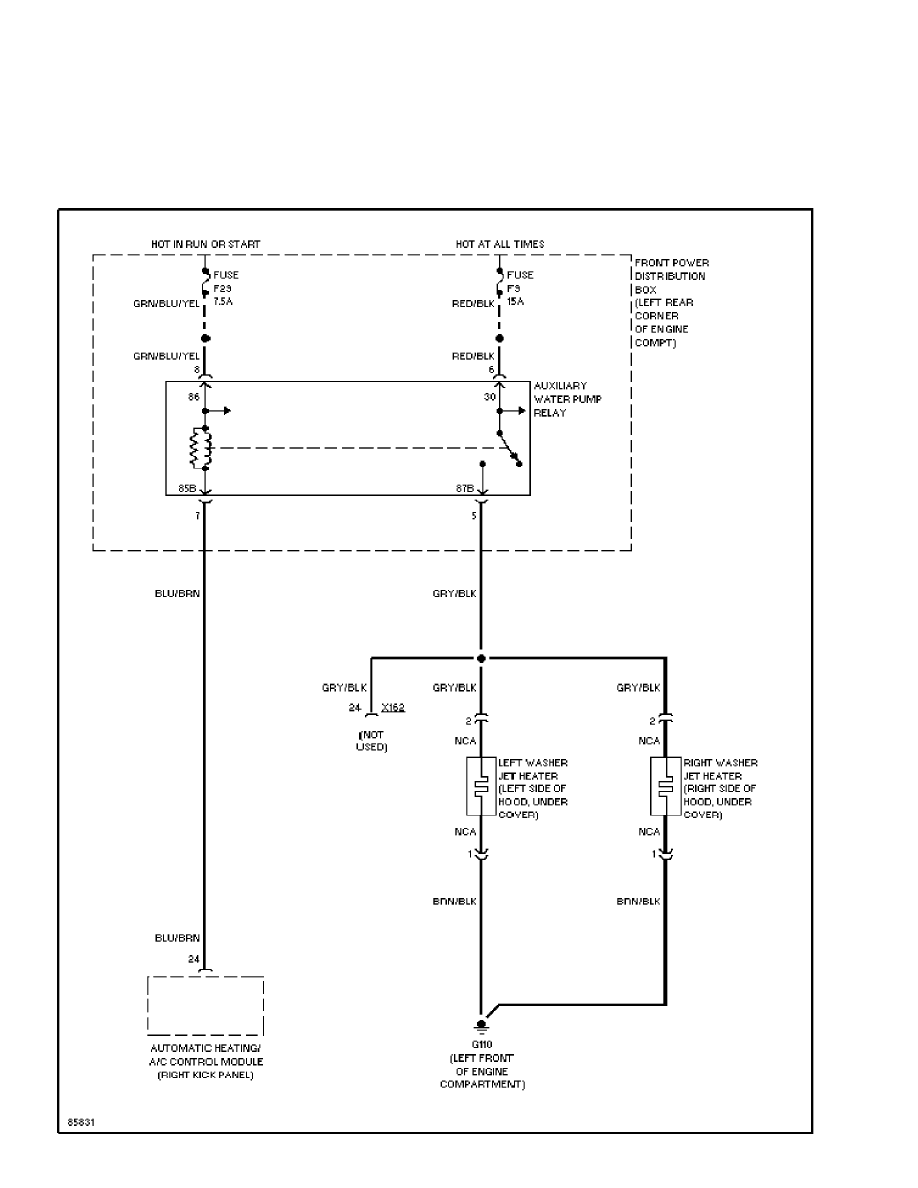

Jet Heater Circuit

1992 BMW 750iL

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, November 21, 2000 01:23PM

background image

SYSTEM WIRING DIAGRAMS

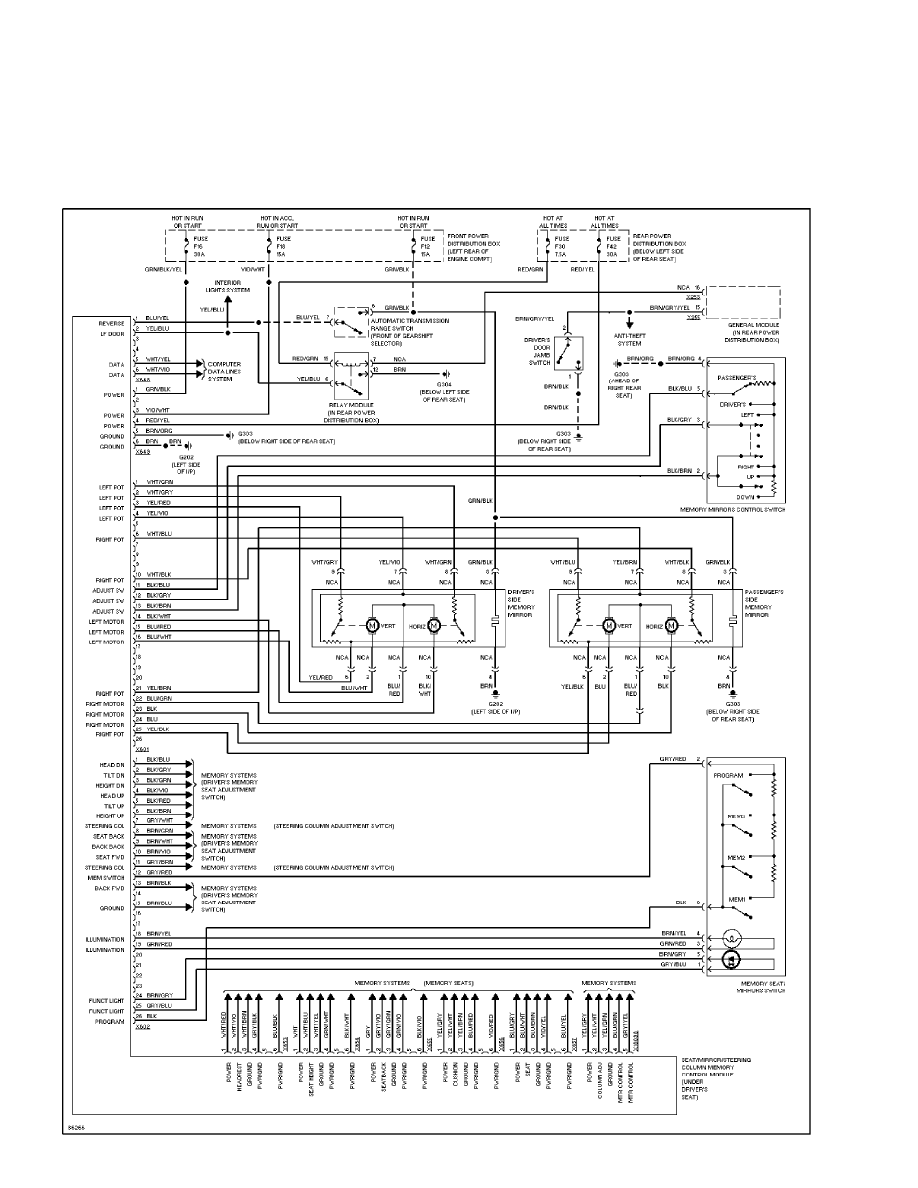

Memory Mirrors Circuit

1992 BMW 750iL

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, November 21, 2000 01:20PM

background image

SYSTEM WIRING DIAGRAMS

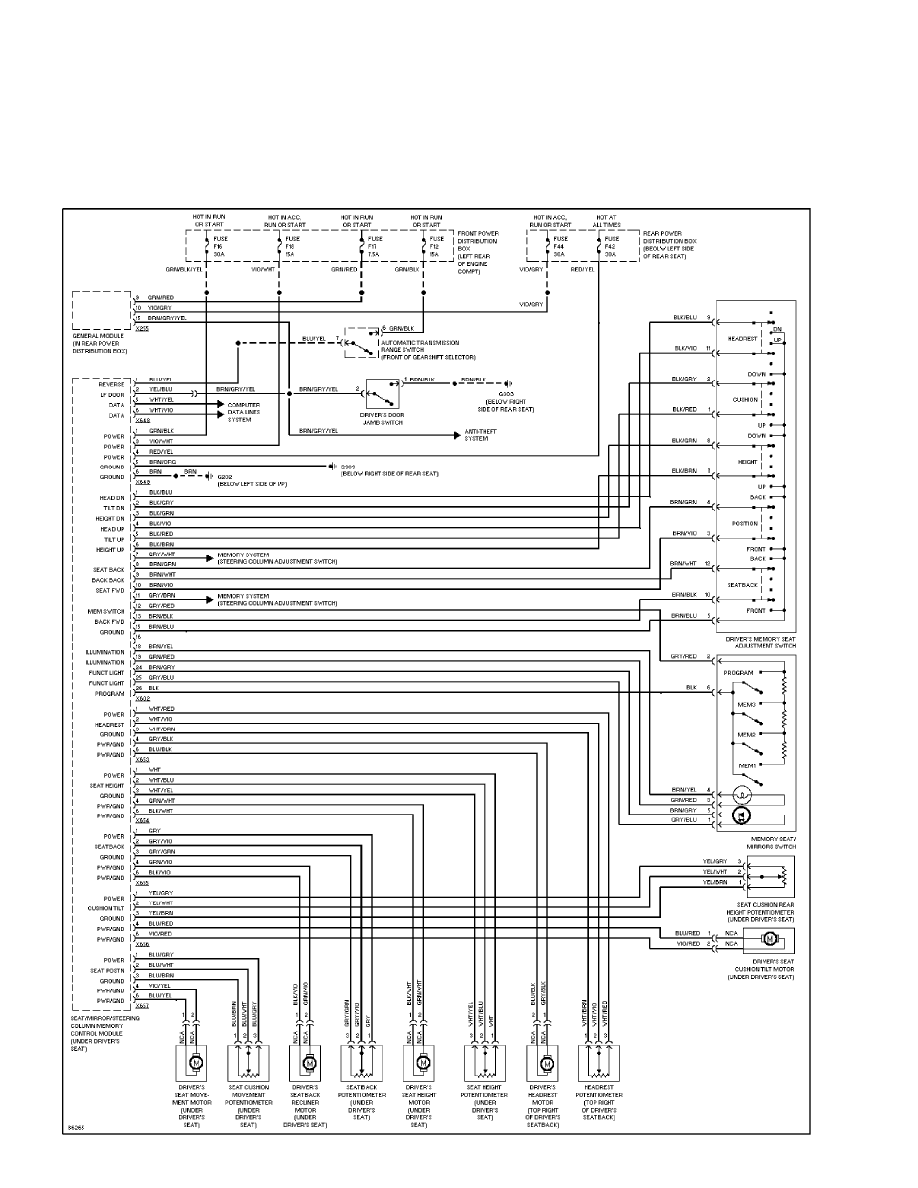

Memory Seat Circuit

1992 BMW 750iL

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, November 21, 2000 01:20PM

background image

SYSTEM WIRING DIAGRAMS

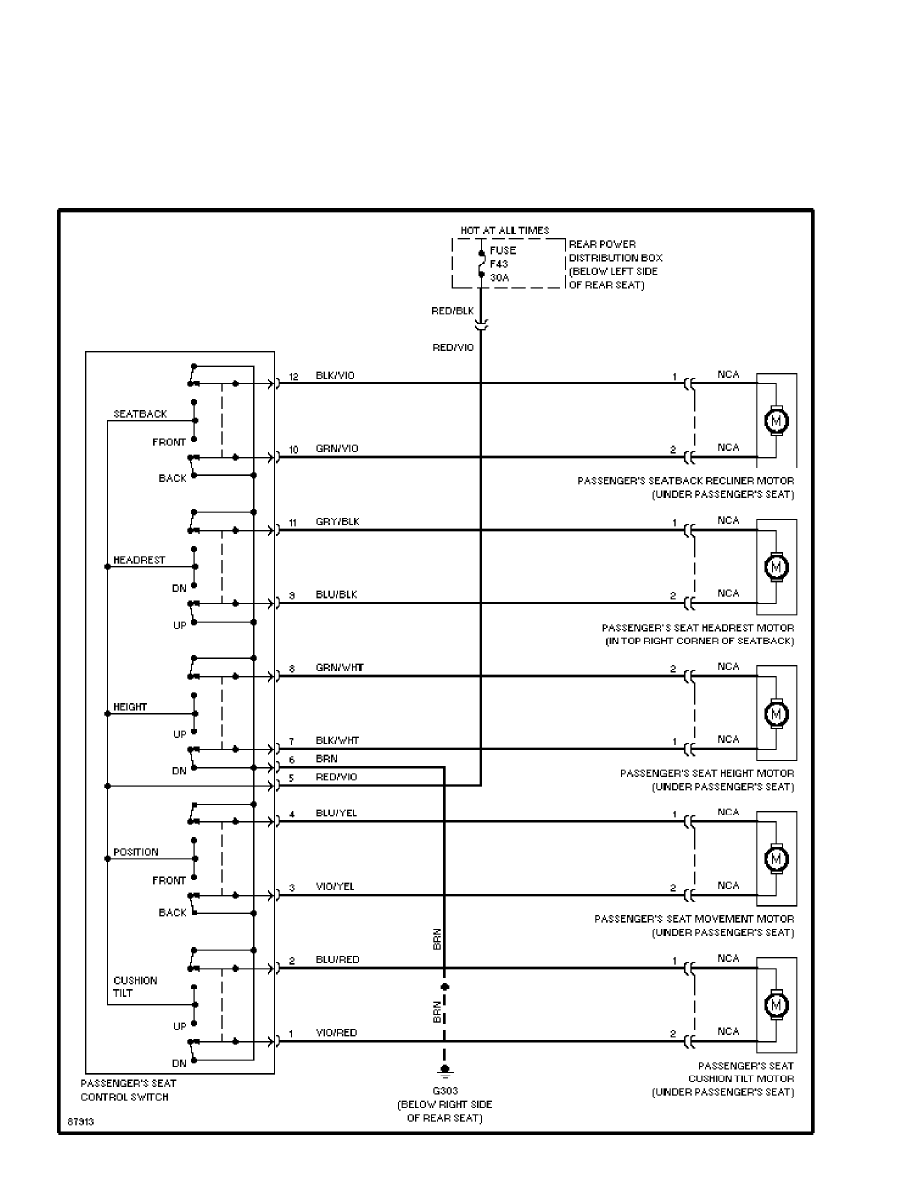

Passenger Power Seat Circuit

1992 BMW 750iL

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, November 21, 2000 01:21PM

background image

SYSTEM WIRING DIAGRAMS

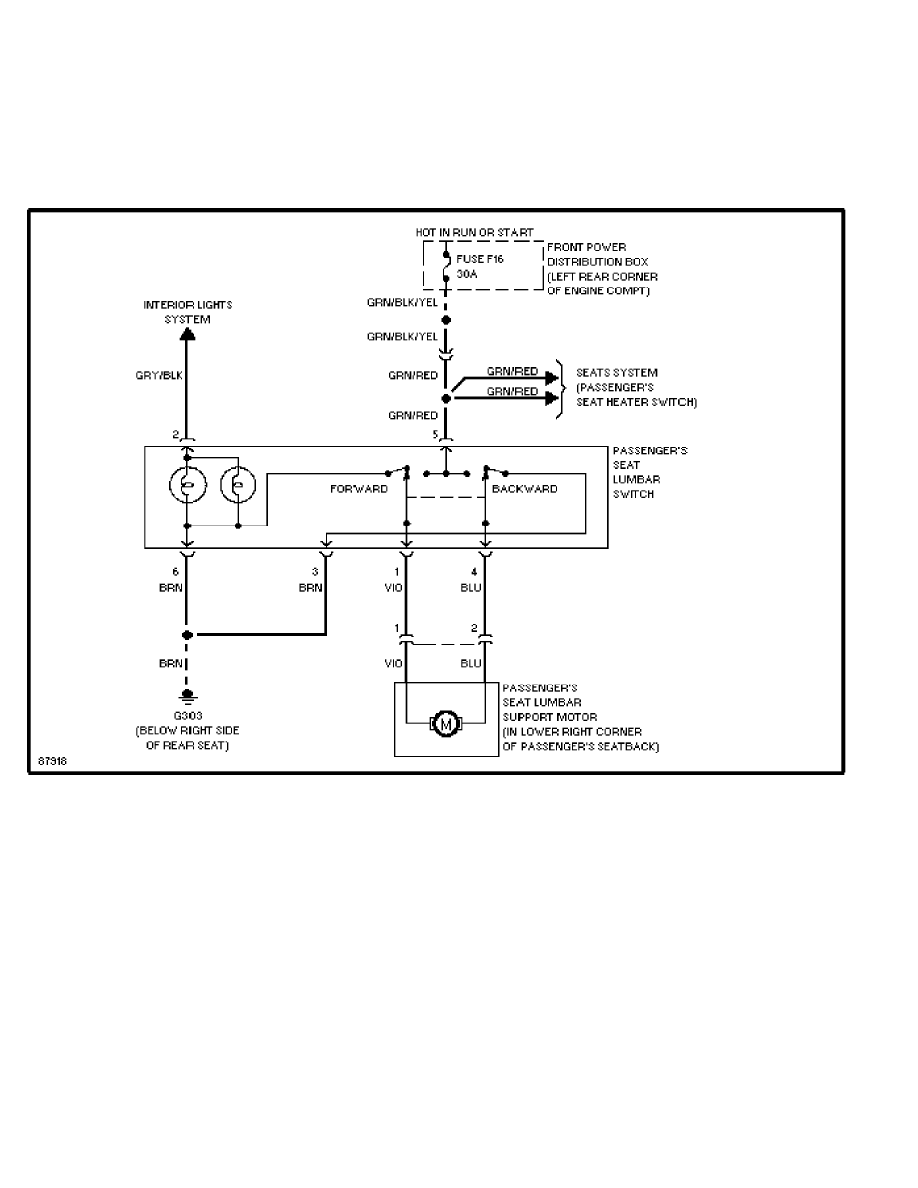

Passenger's Lumbar Circuit

1992 BMW 750iL

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, November 21, 2000 01:21PM

background image

SYSTEM WIRING DIAGRAMS

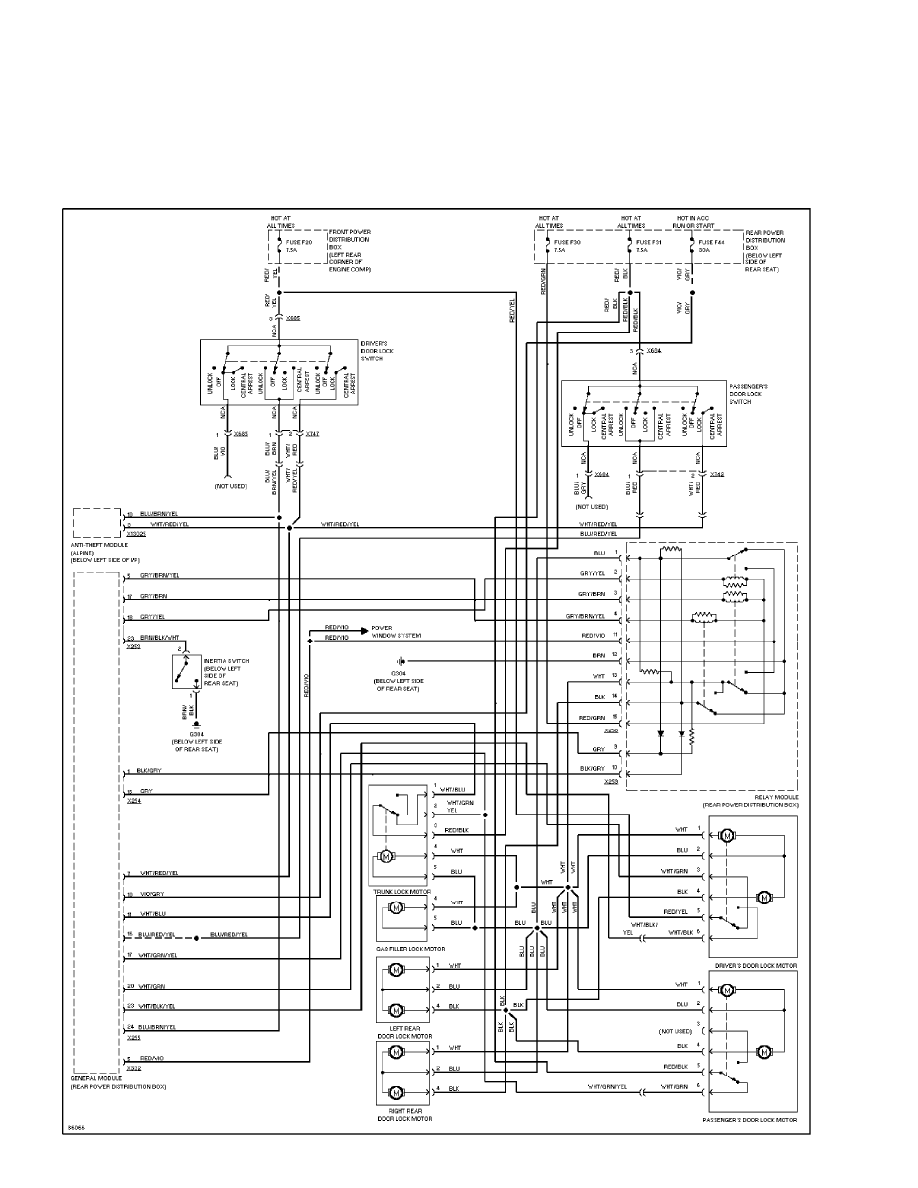

Power Door Lock Circuit

1992 BMW 750iL

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, November 21, 2000 01:20PM

background image

SYSTEM WIRING DIAGRAMS

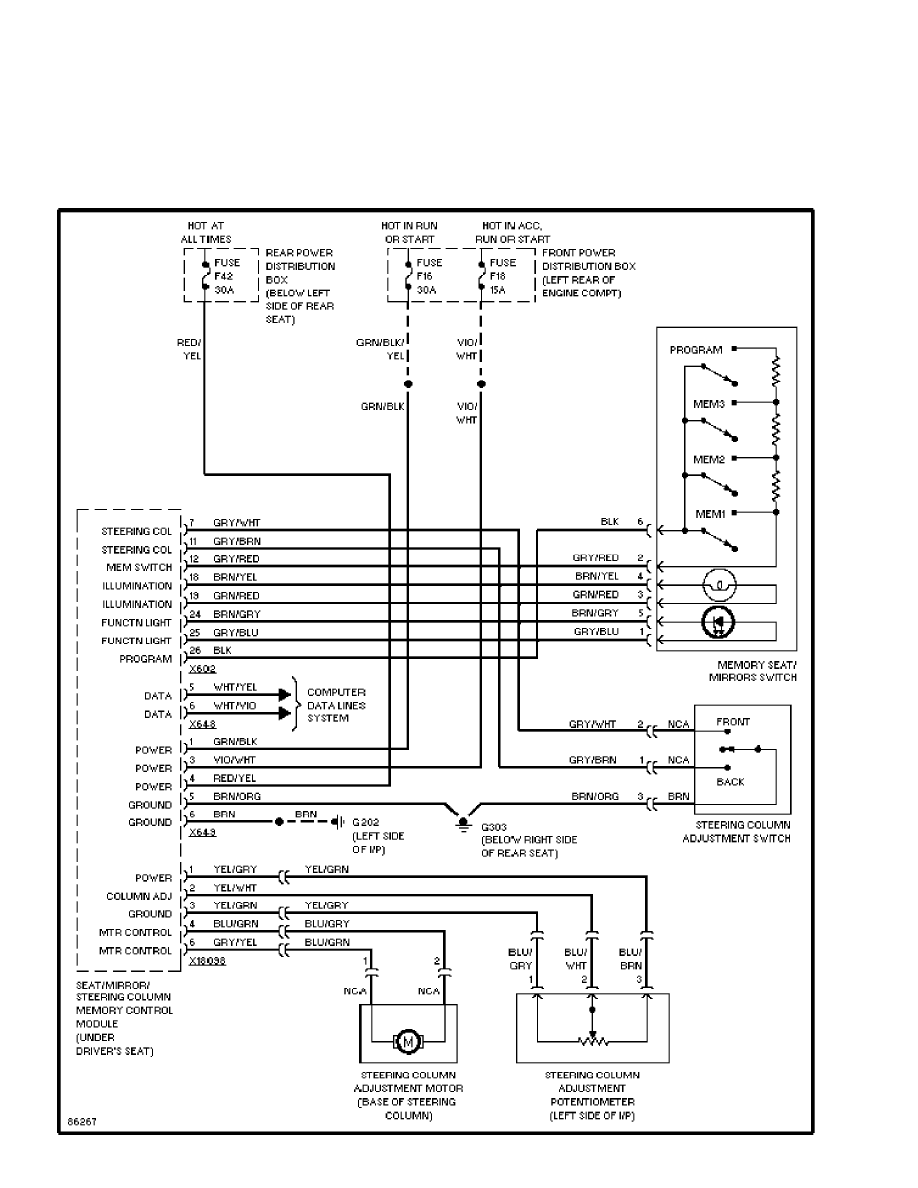

Power Steering Column Circuit

1992 BMW 750iL

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, November 21, 2000 01:20PM

background image

SYSTEM WIRING DIAGRAMS

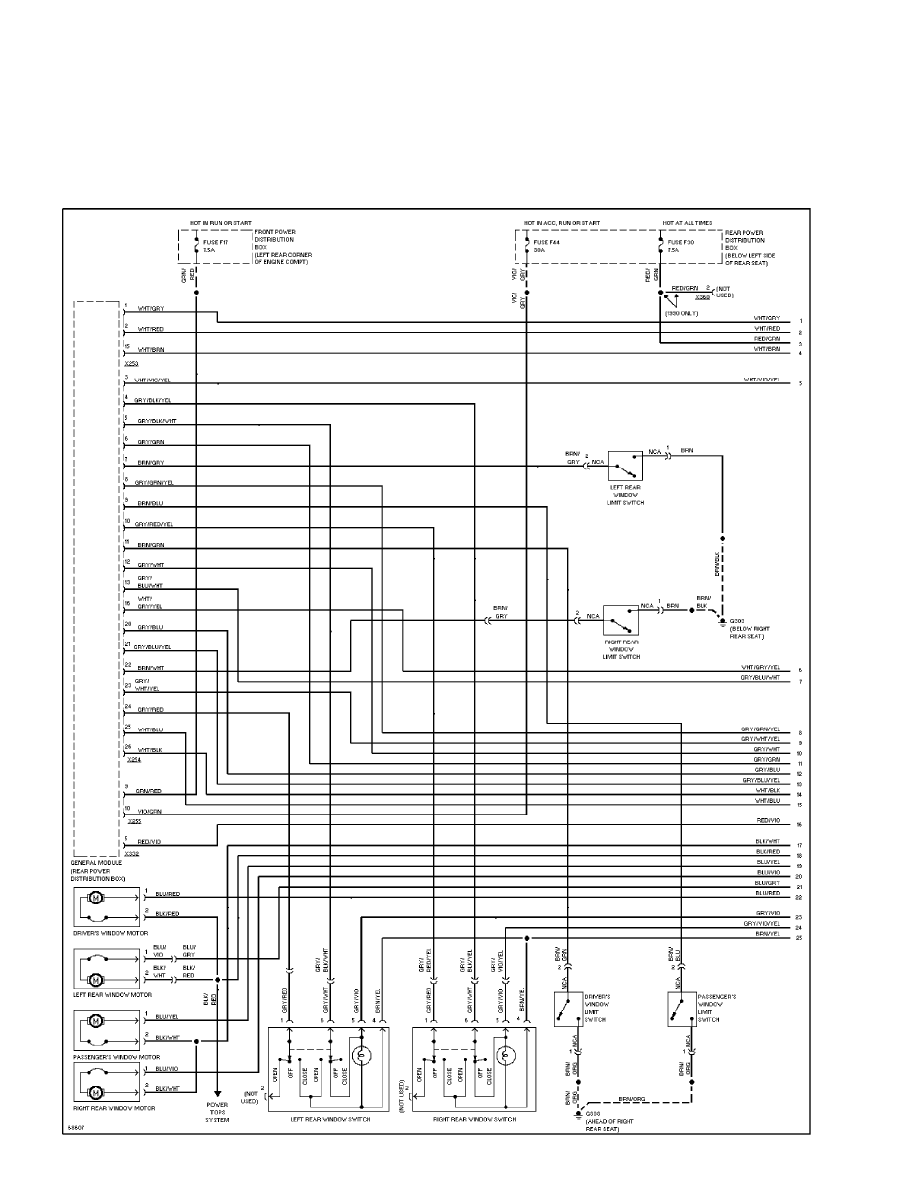

Power Window Circuit (1 of 2)

1992 BMW 750iL

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, November 21, 2000 01:22PM

background image

SYSTEM WIRING DIAGRAMS

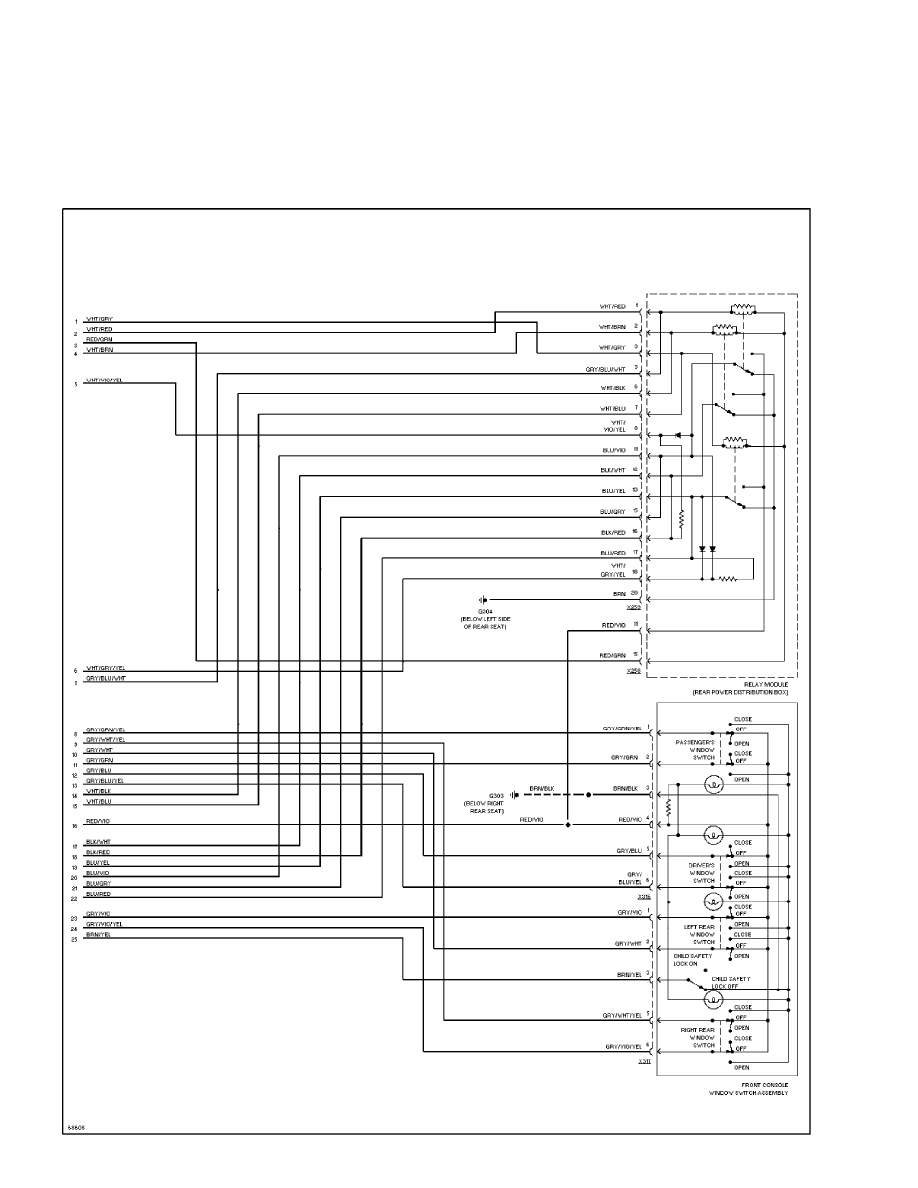

Power Window Circuit (2 of 2)

1992 BMW 750iL

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, November 21, 2000 01:22PM

background image

SYSTEM WIRING DIAGRAMS

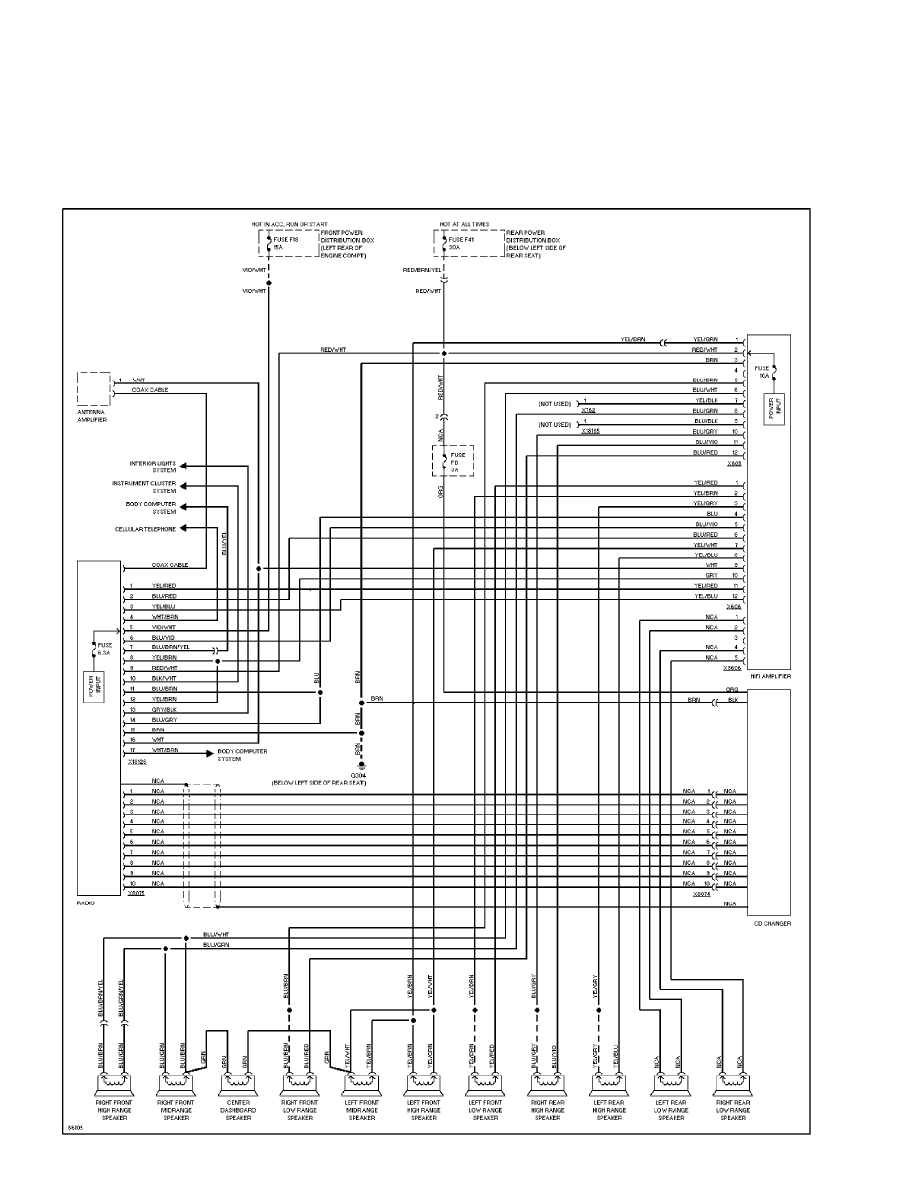

Radio Circuits

1992 BMW 750iL

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, November 21, 2000 01:22PM

background image

SYSTEM WIRING DIAGRAMS

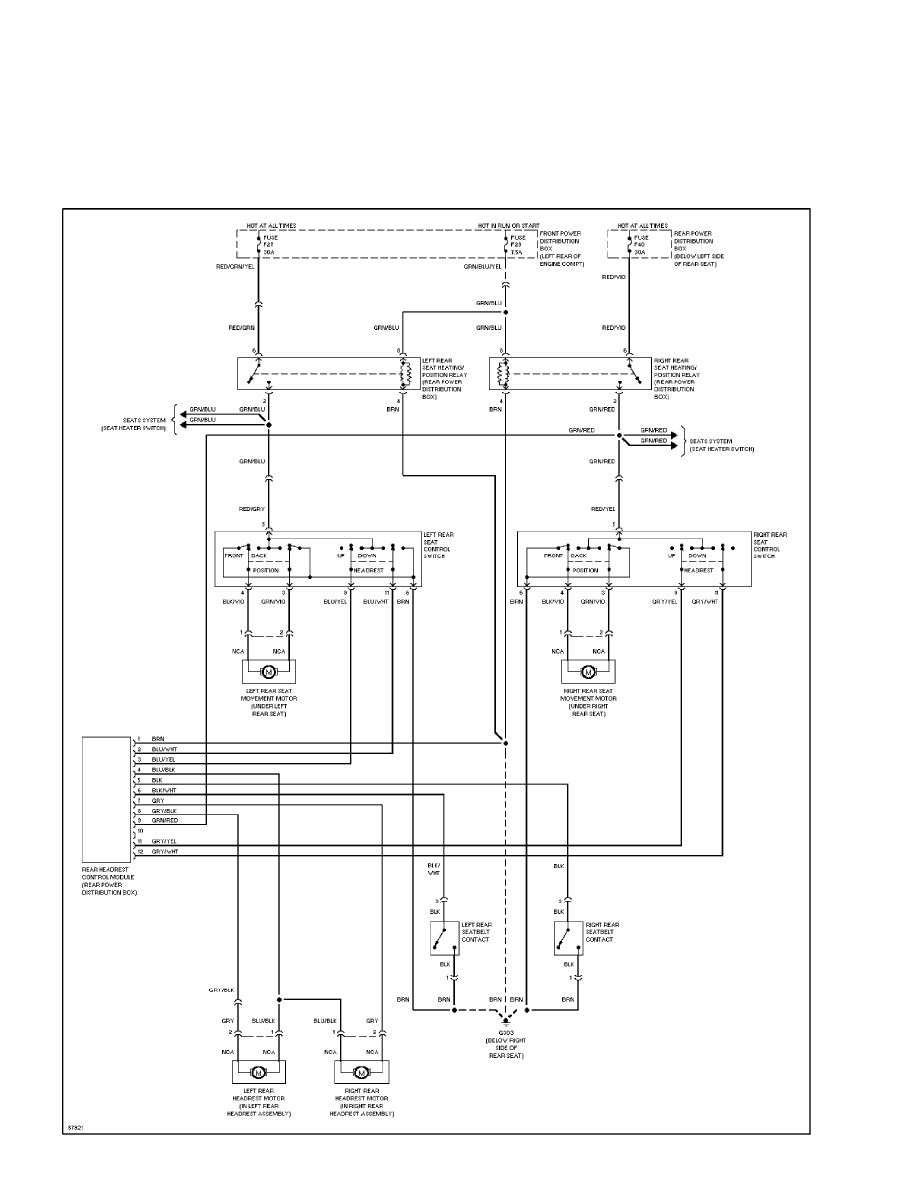

Rear Power Seat/Headrest Circuit

1992 BMW 750iL

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, November 21, 2000 01:21PM

background image

SYSTEM WIRING DIAGRAMS

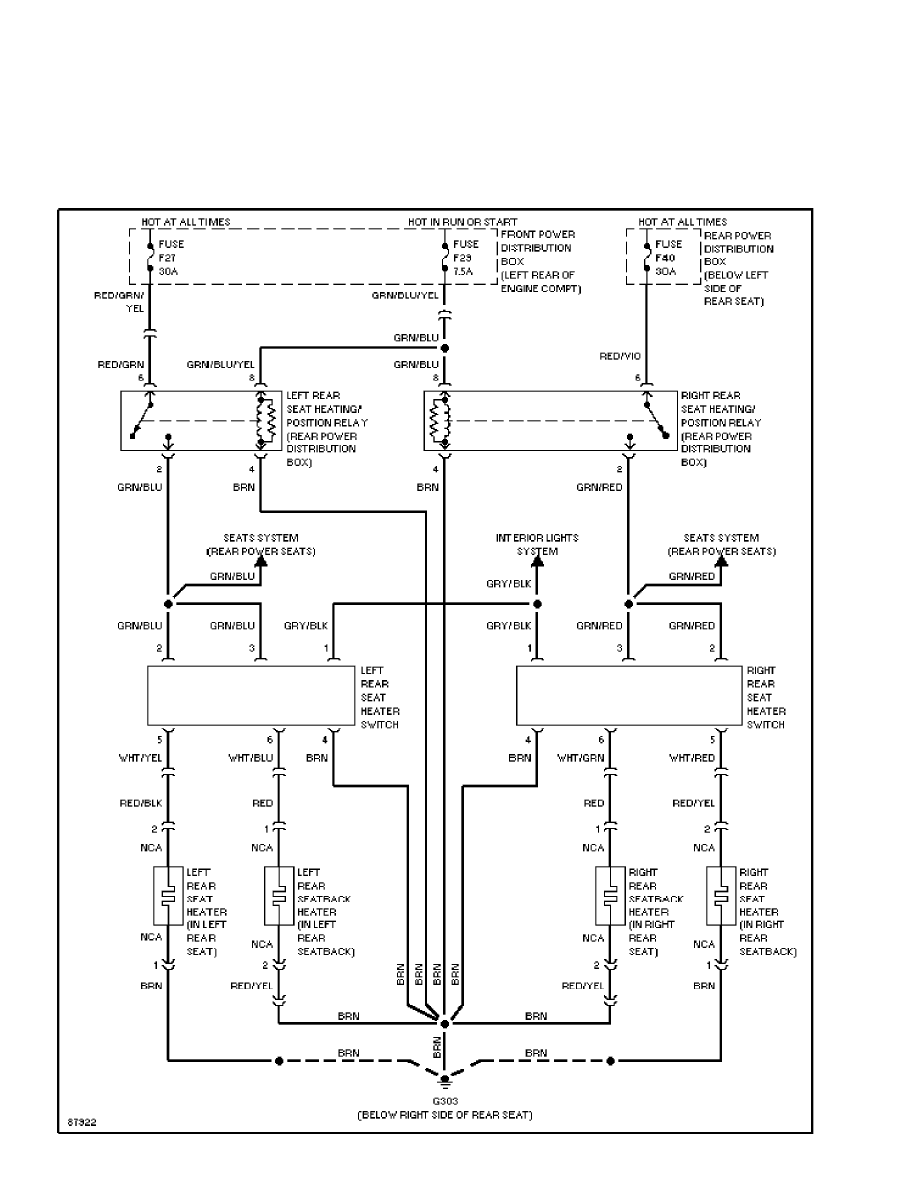

Rear Seat Heater Circuit

1992 BMW 750iL

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, November 21, 2000 01:21PM

background image

SYSTEM WIRING DIAGRAMS

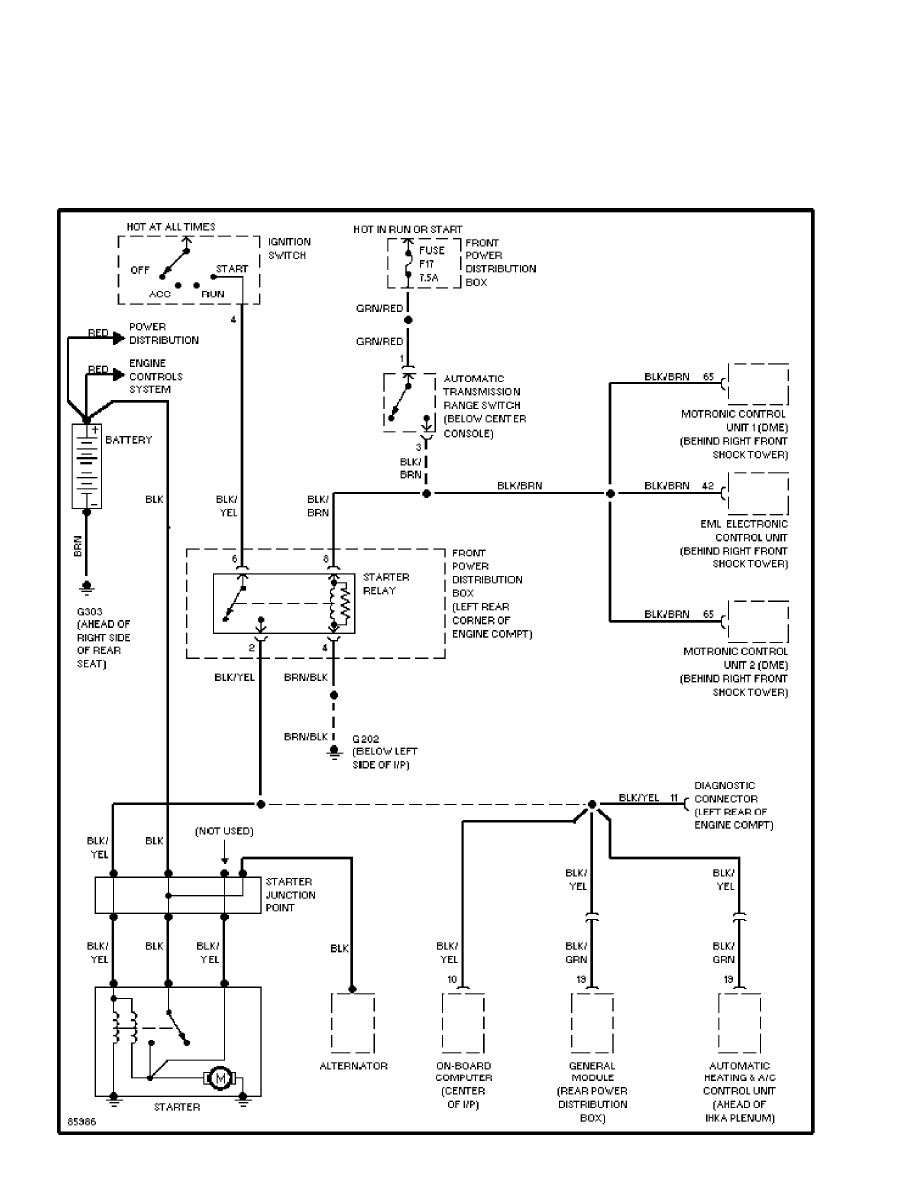

Starting Circuit

1992 BMW 750iL

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, November 21, 2000 01:22PM
