SYSTEM WIRING DIAGRAMS

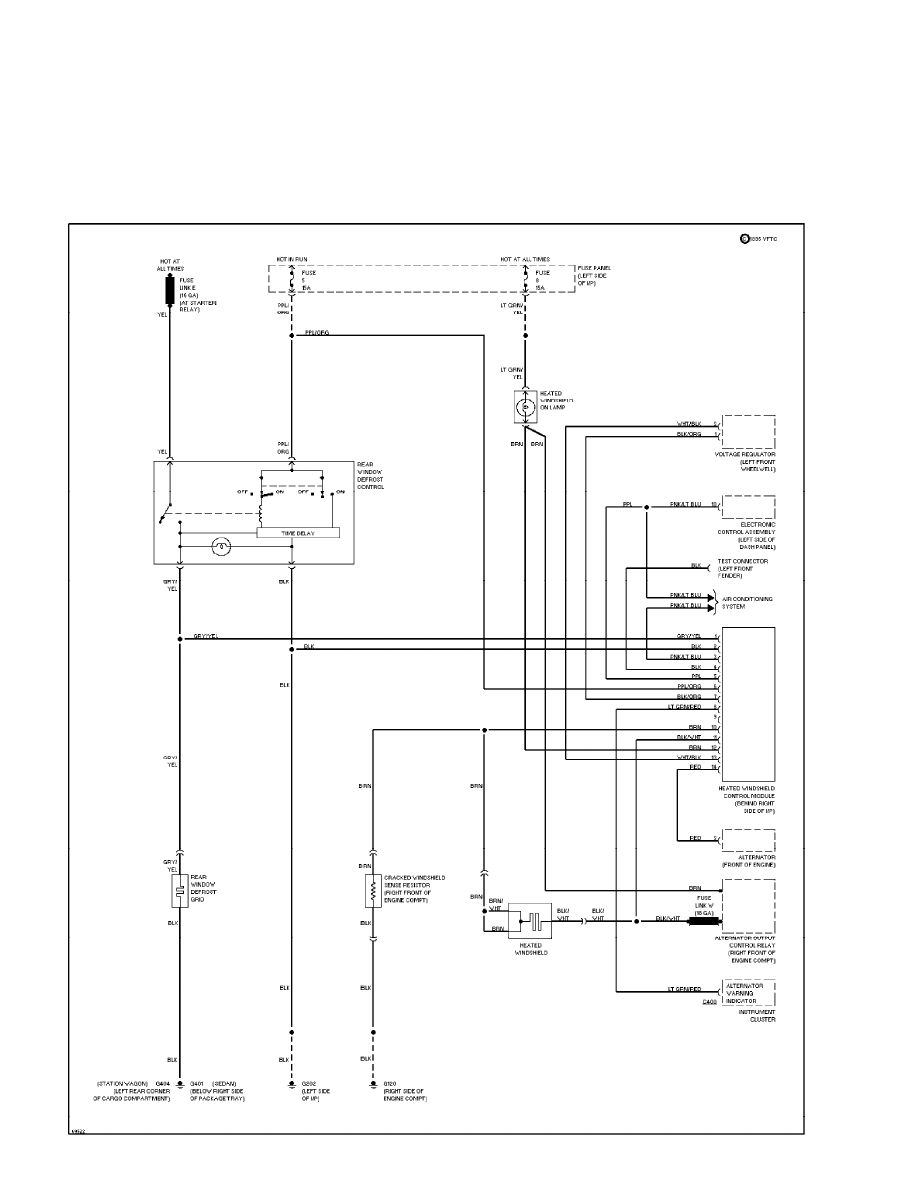

Defogger Circuit
1989 Ford Crown Victoria
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 06:28PM
SYSTEM WIRING DIAGRAMS

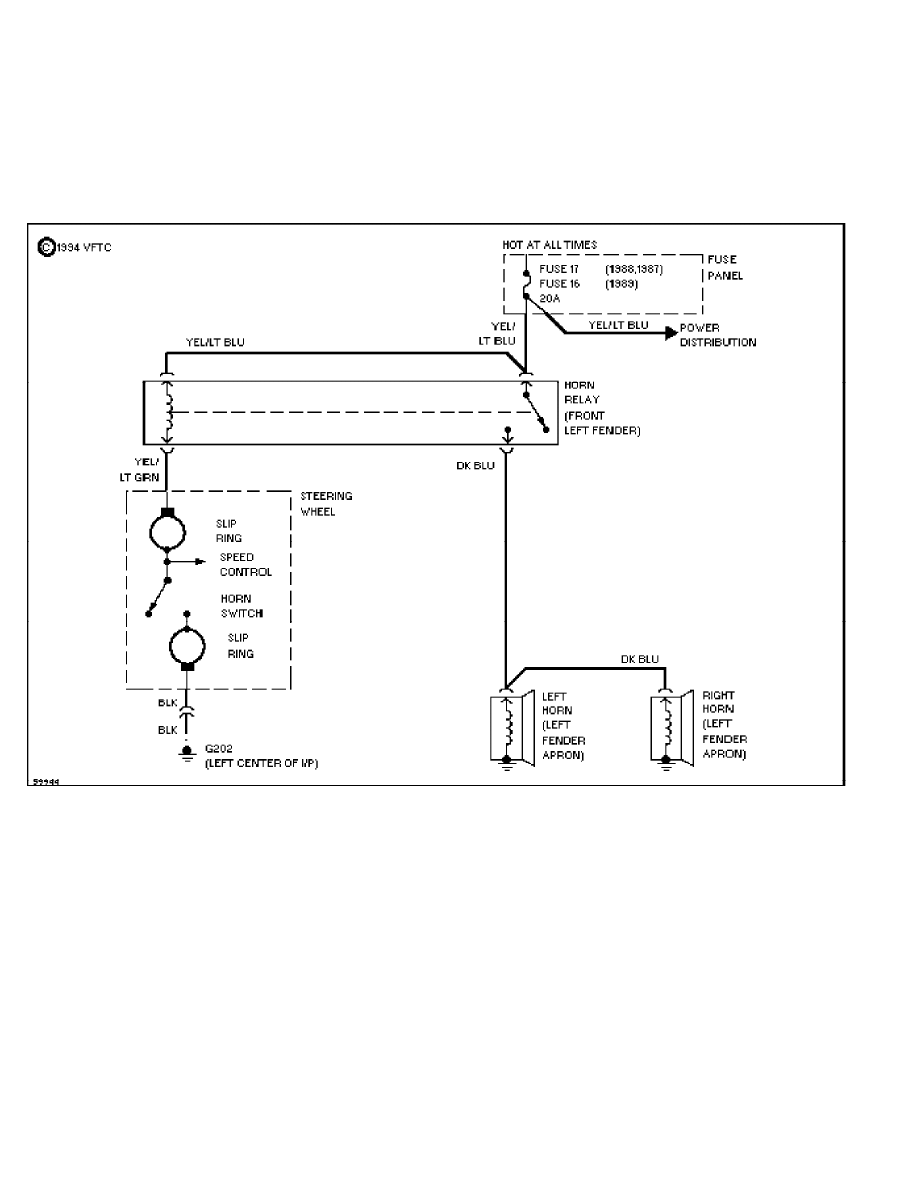

Horn Circuit (p. 2)
1989 Ford Crown Victoria
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 06:28PM

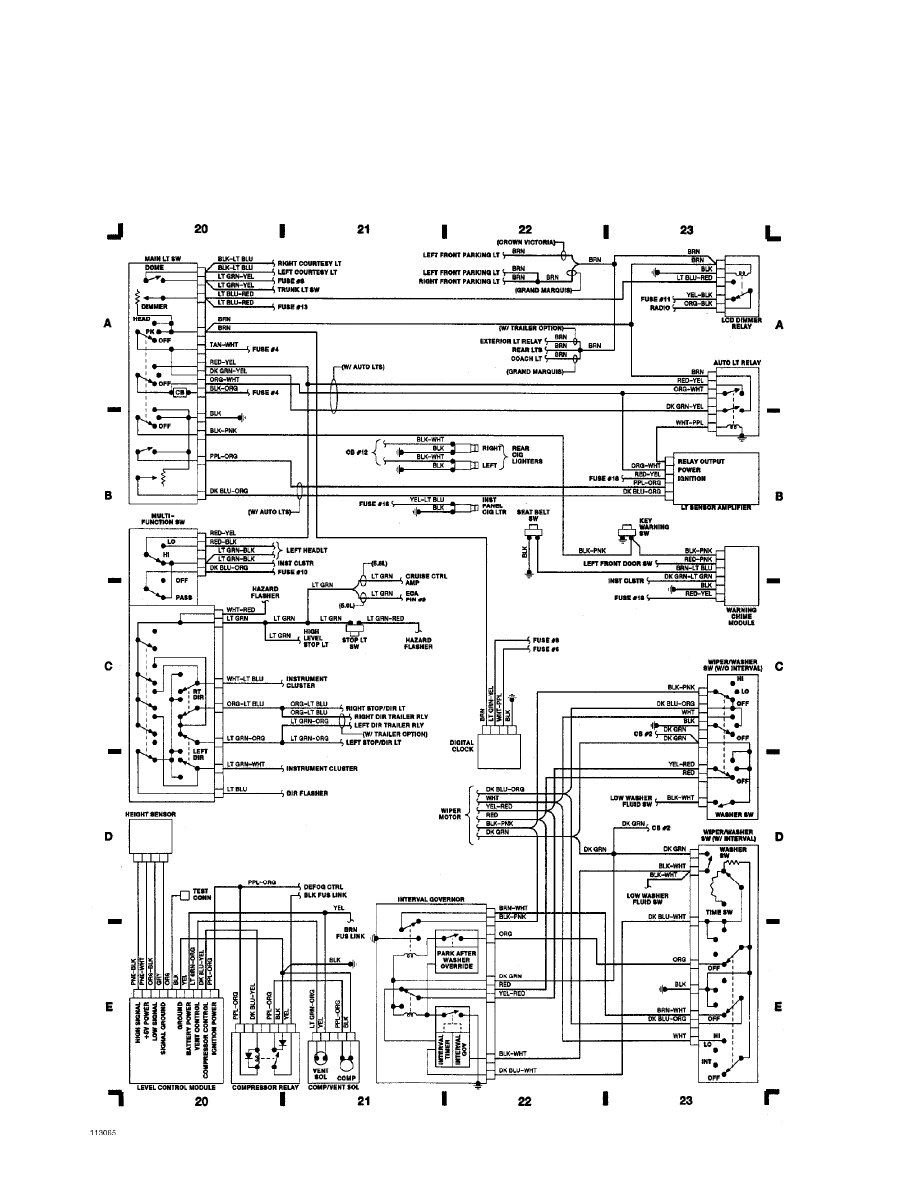

SYSTEM WIRING DIAGRAMS

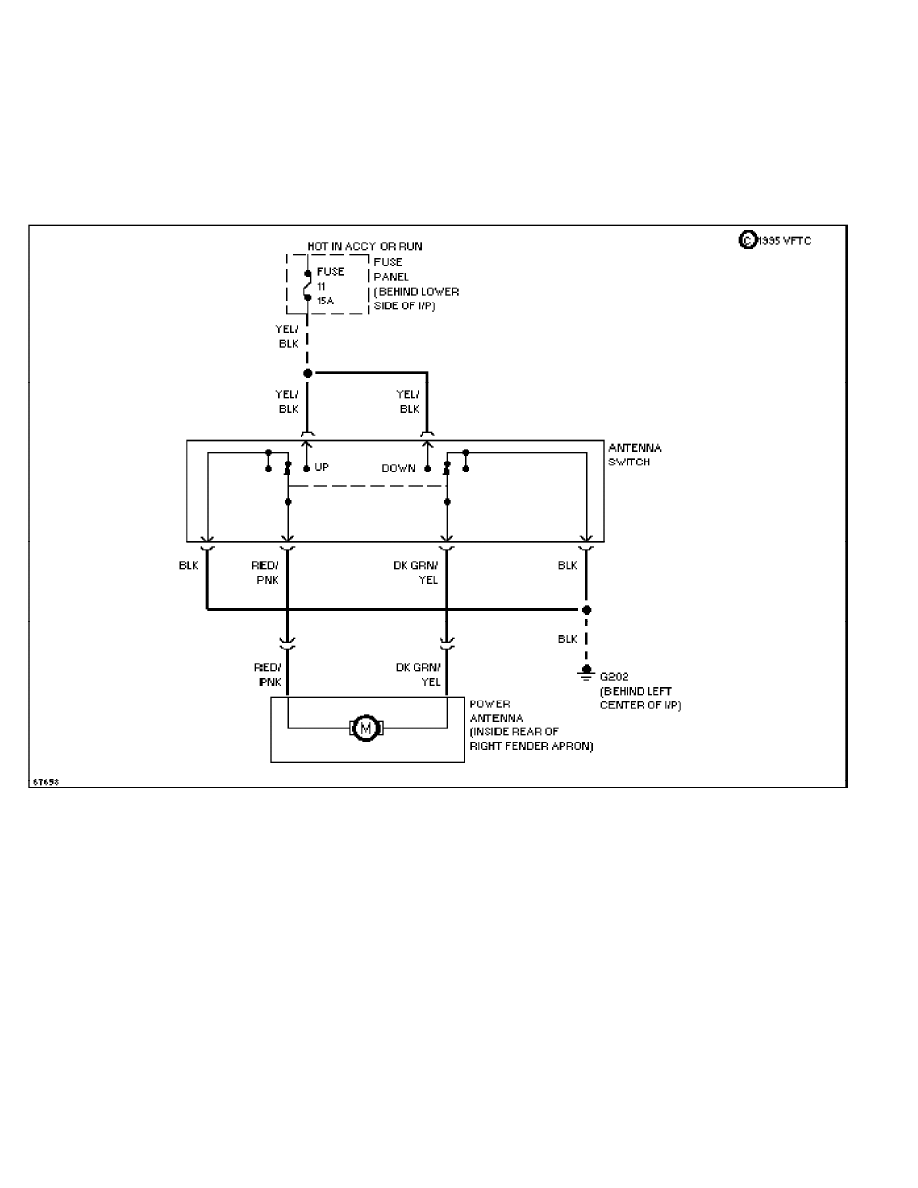

Power Antenna Circuit (p. 3)
1989 Ford Crown Victoria
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 06:28PM
SYSTEM WIRING DIAGRAMS

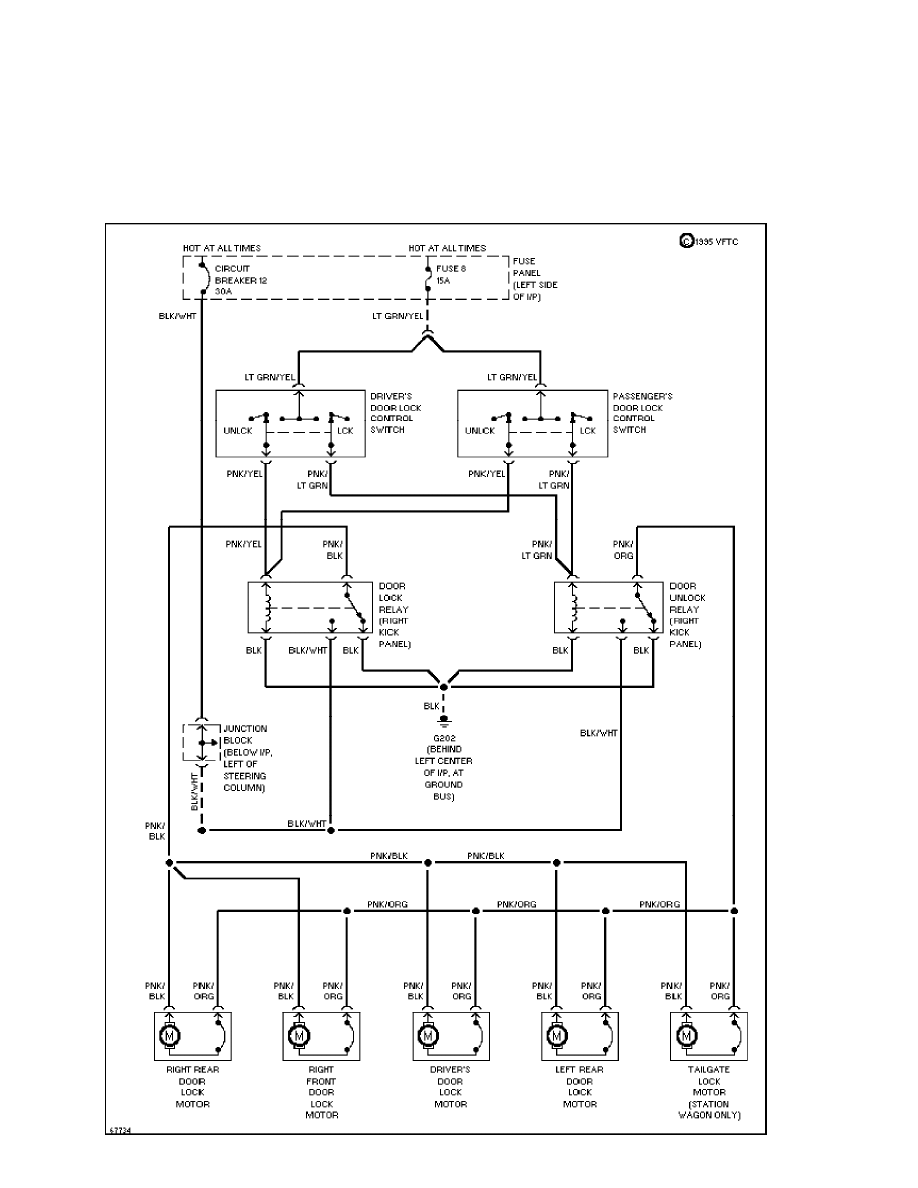

Power Door Lock Circuit (p. 4)
1989 Ford Crown Victoria
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 06:28PM
SYSTEM WIRING DIAGRAMS

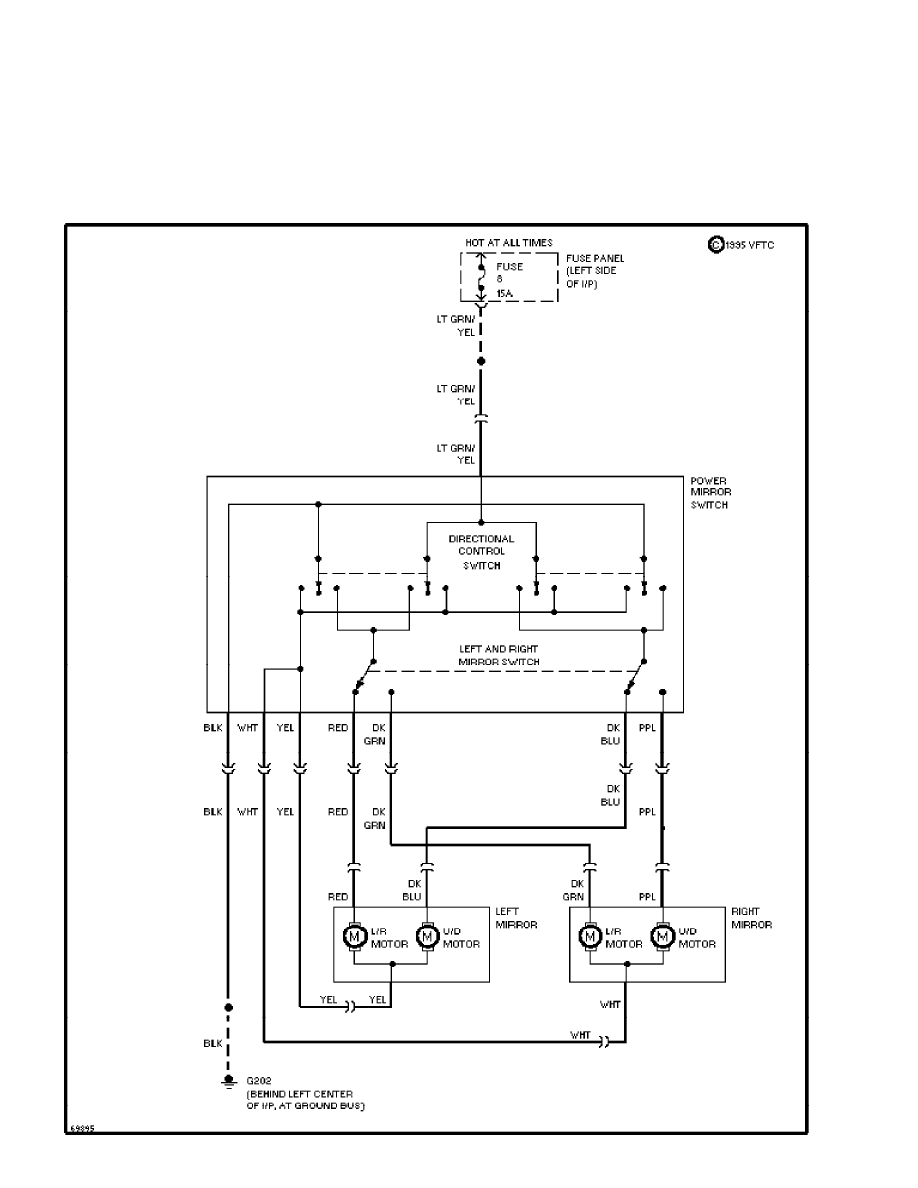

Power Mirror Circuit (p. 5)
1989 Ford Crown Victoria
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 06:28PM
SYSTEM WIRING DIAGRAMS

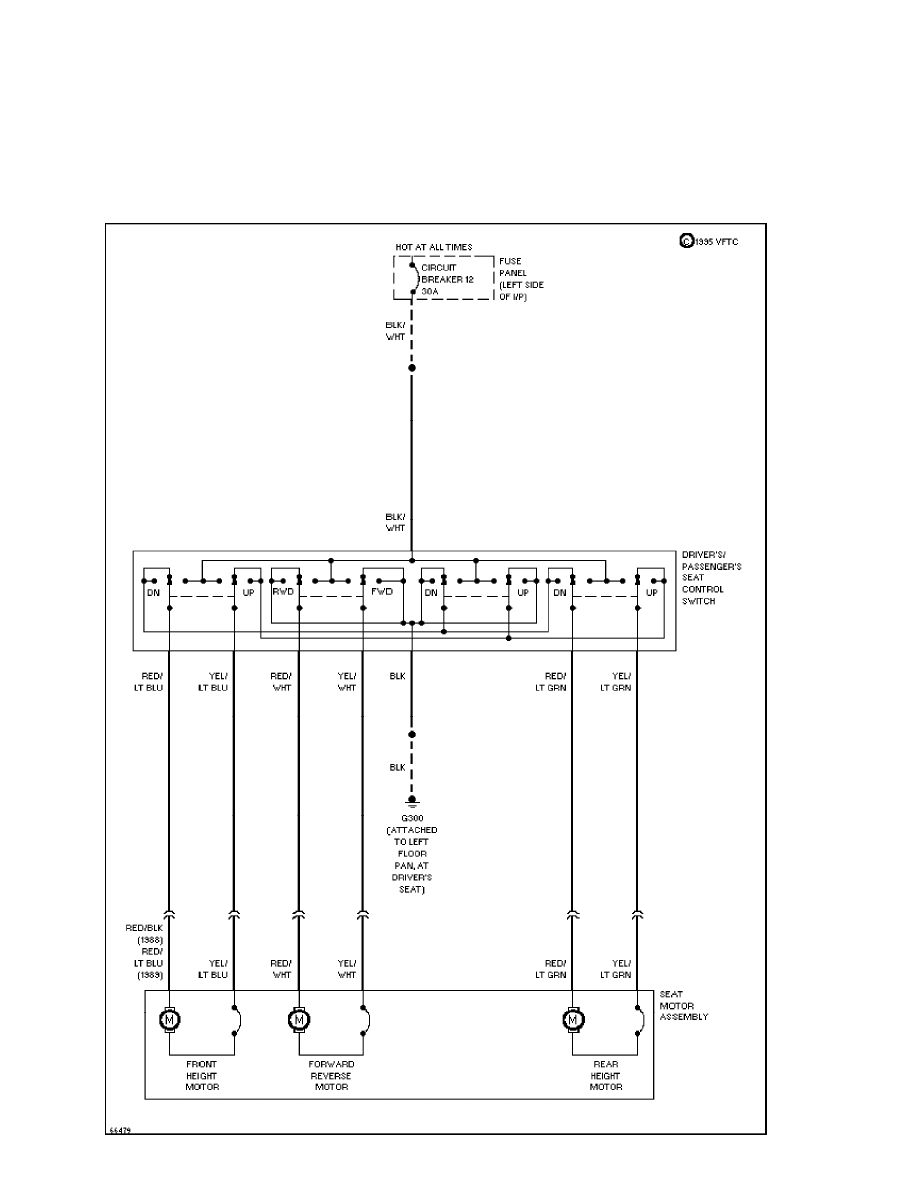

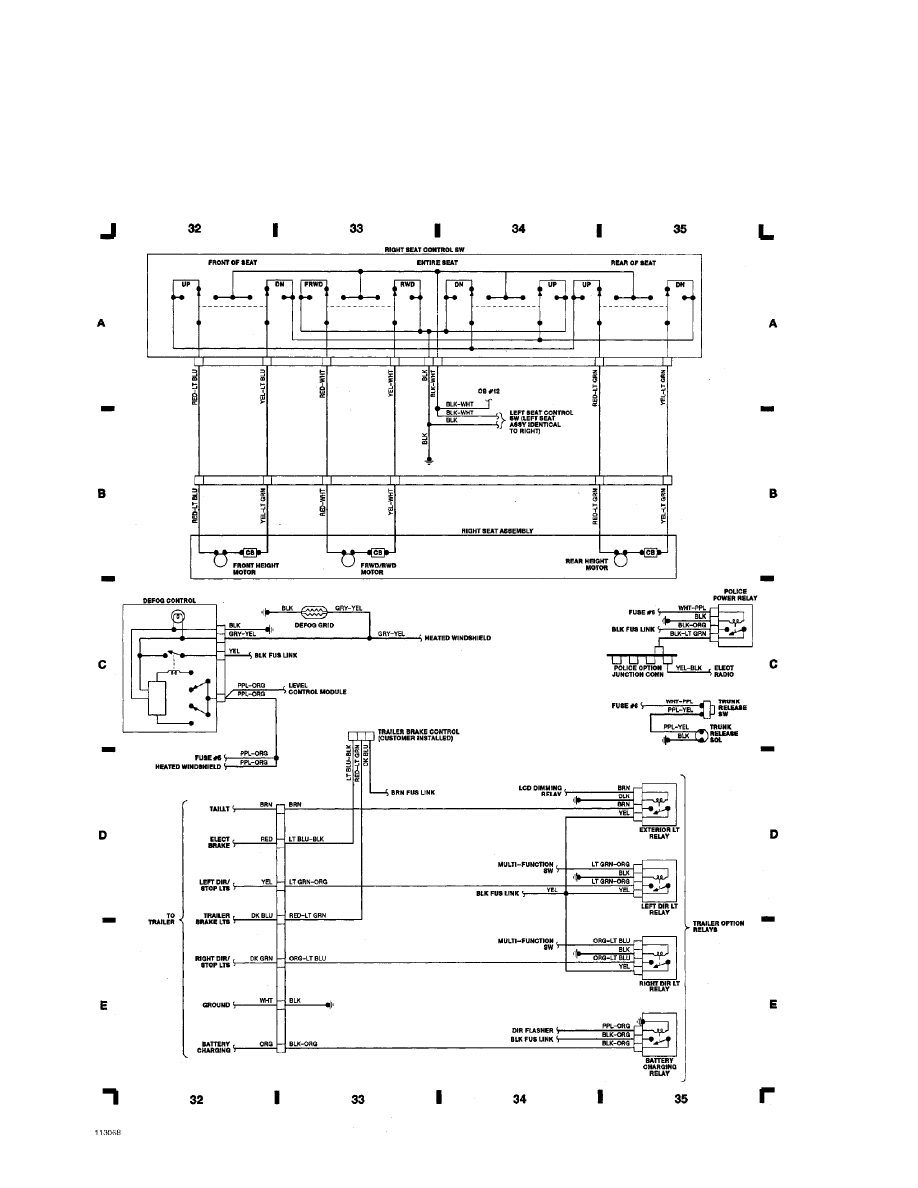

Power Seat Circuits (p. 6)
1989 Ford Crown Victoria
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 06:28PM
SYSTEM WIRING DIAGRAMS

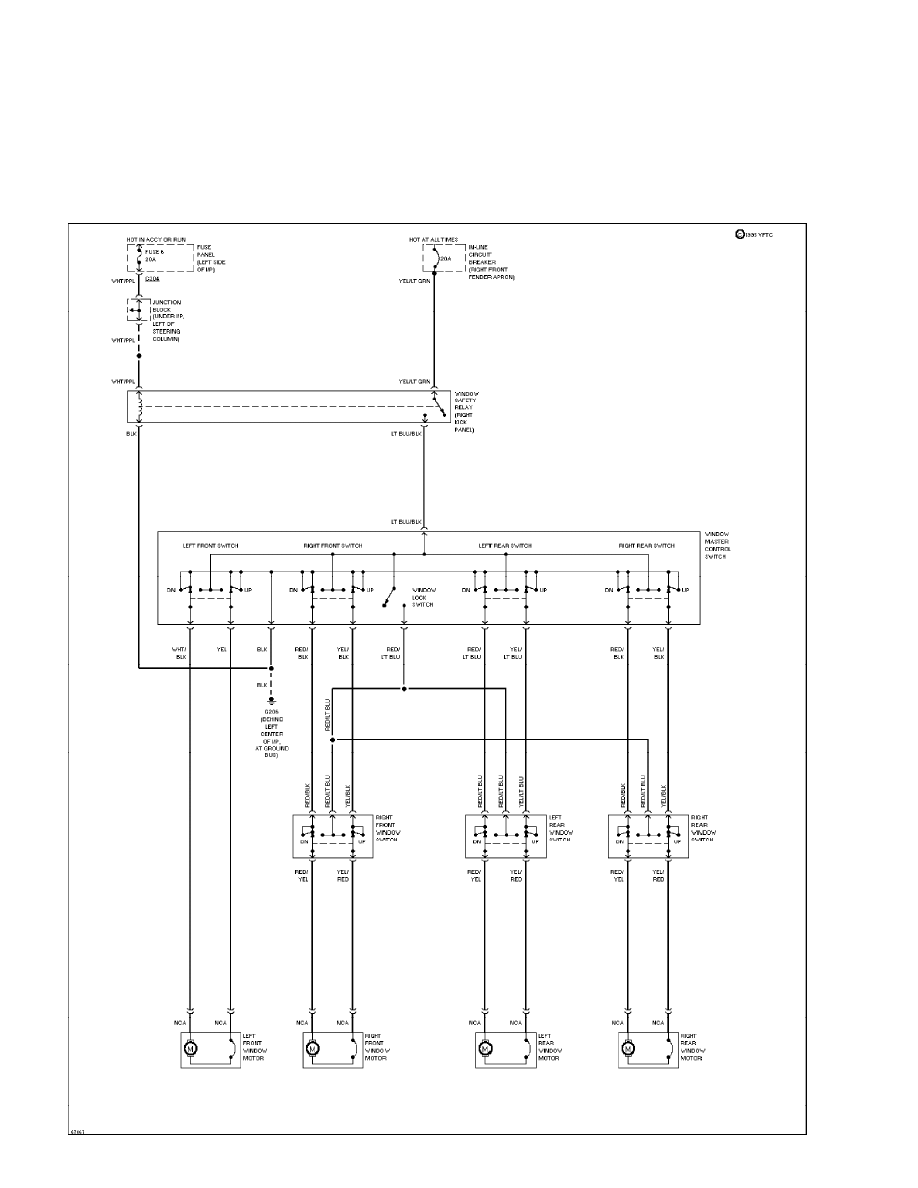

Power Windows Circuit (p. 7)
1989 Ford Crown Victoria
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 06:28PM
SYSTEM WIRING DIAGRAMS

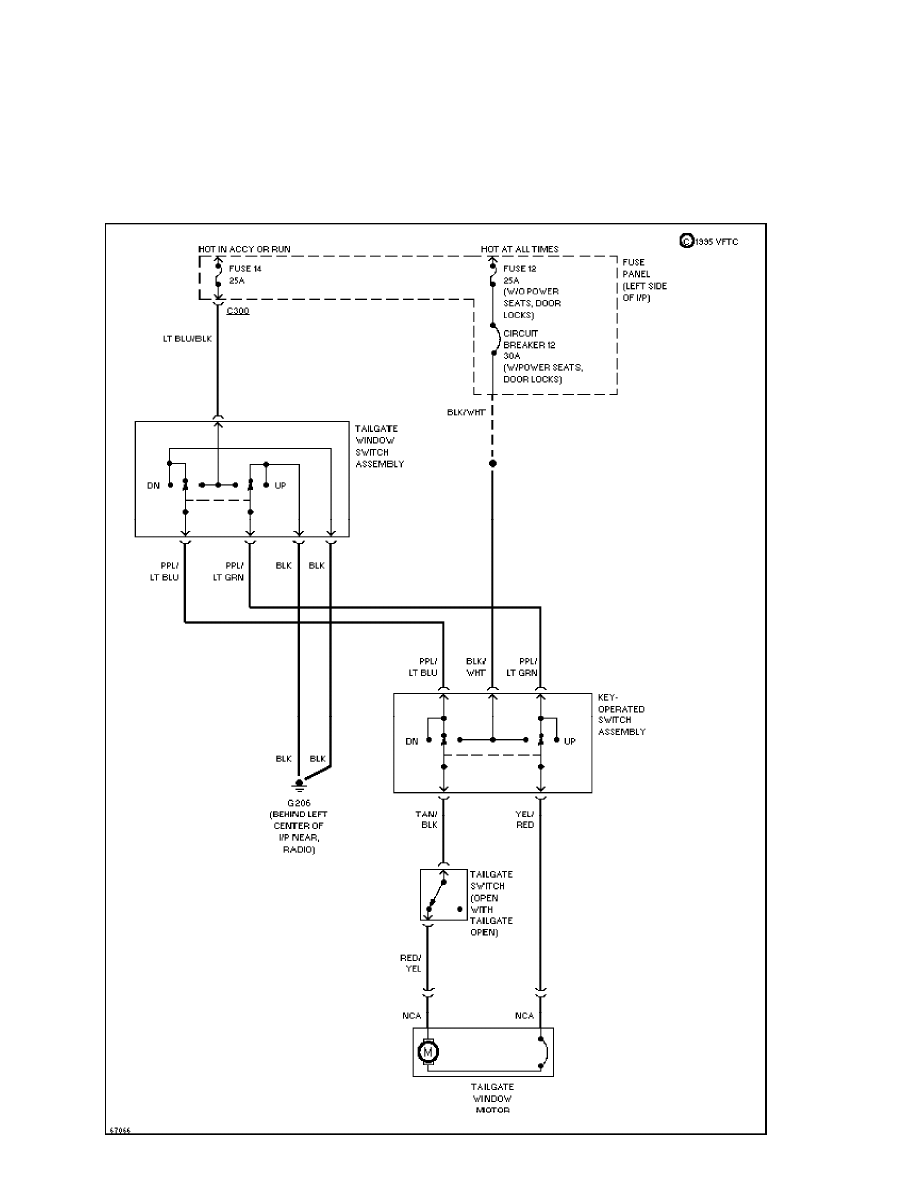

Tailgate Power Window Circuit (p. 8)
1989 Ford Crown Victoria
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 06:28PM
SYSTEM WIRING DIAGRAMS

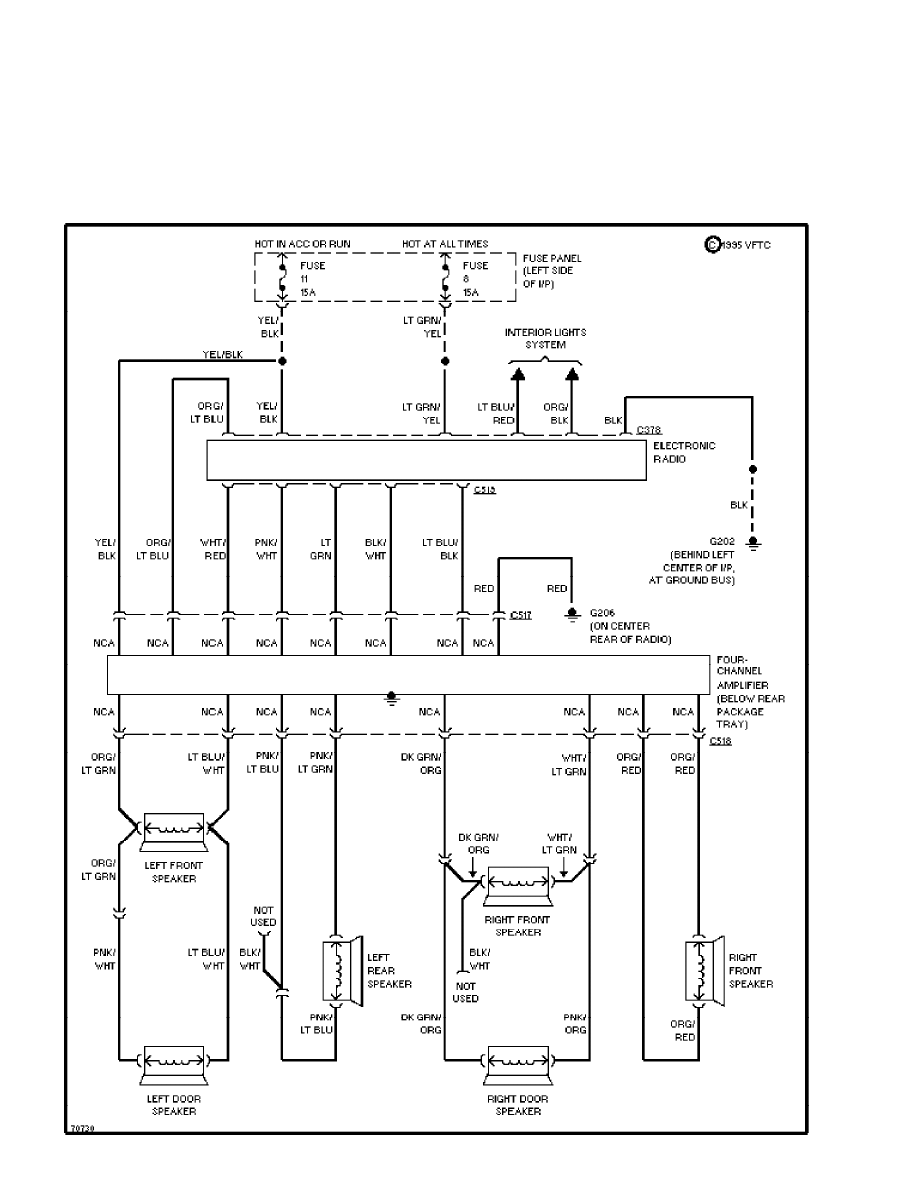

Premium Sound Radio Circuit, W/ EPC (p. 9)
1989 Ford Crown Victoria
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 06:28PM
SYSTEM WIRING DIAGRAMS

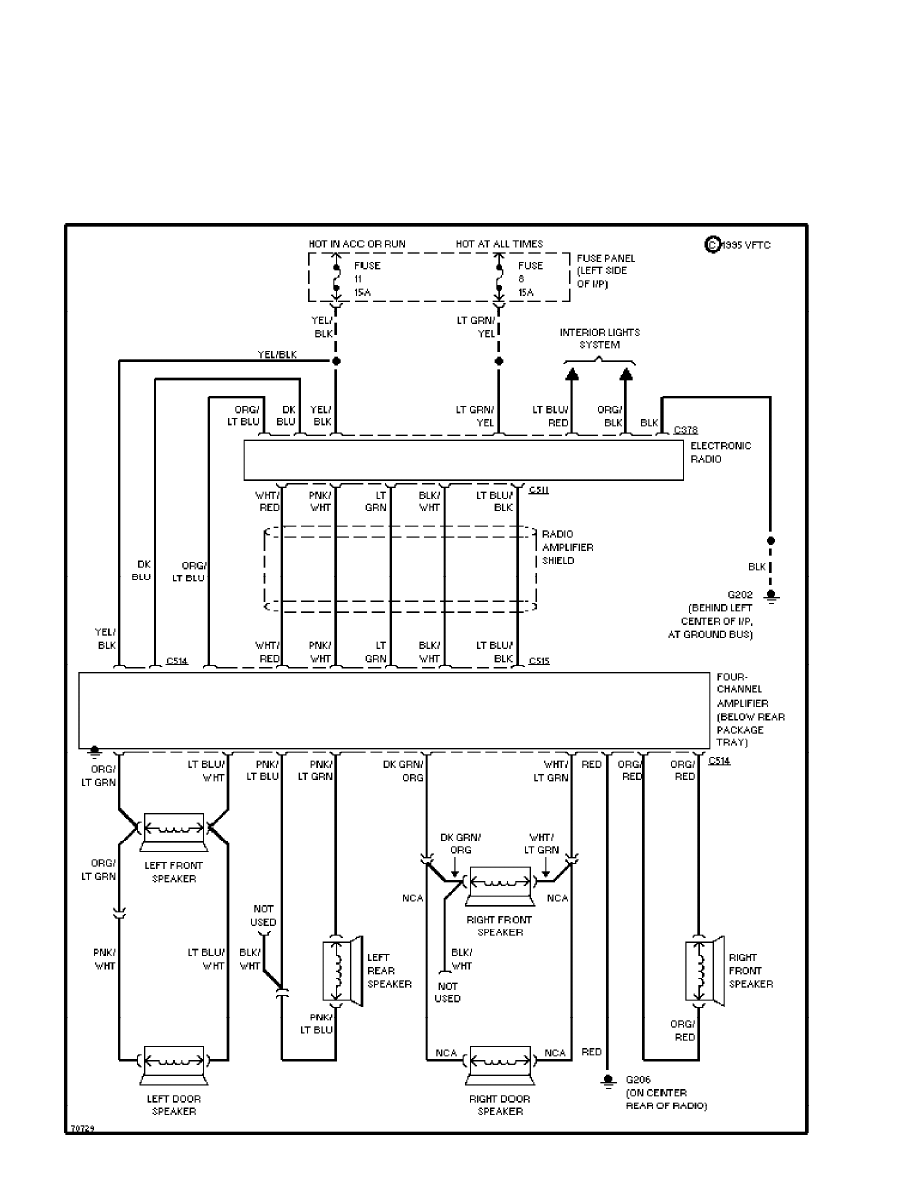

Premium Sound Radio Circuit, W/ ESR/ESC (p. 10)
1989 Ford Crown Victoria
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 06:28PM
SYSTEM WIRING DIAGRAMS

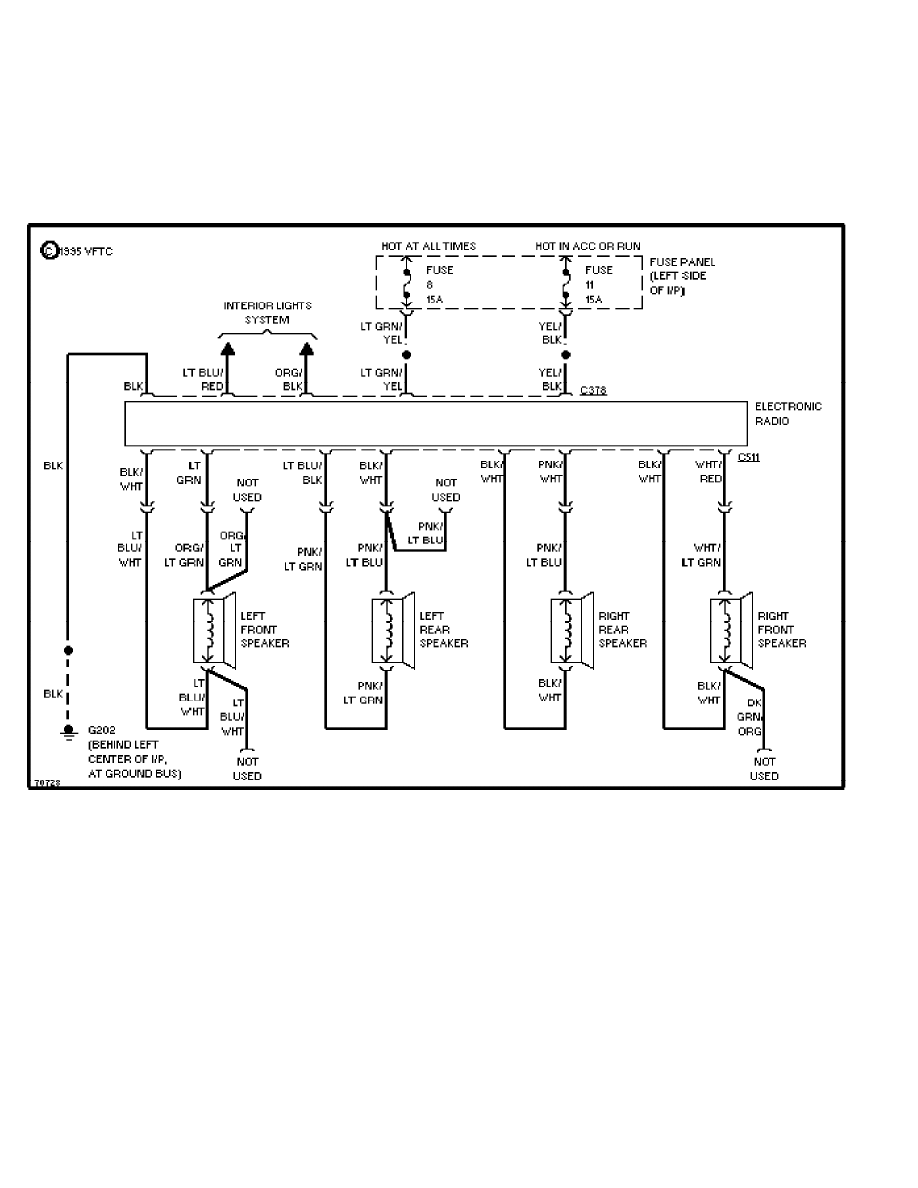

Stereo Radio Circuit (p. 11)
1989 Ford Crown Victoria
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 06:28PM
SYSTEM WIRING DIAGRAMS

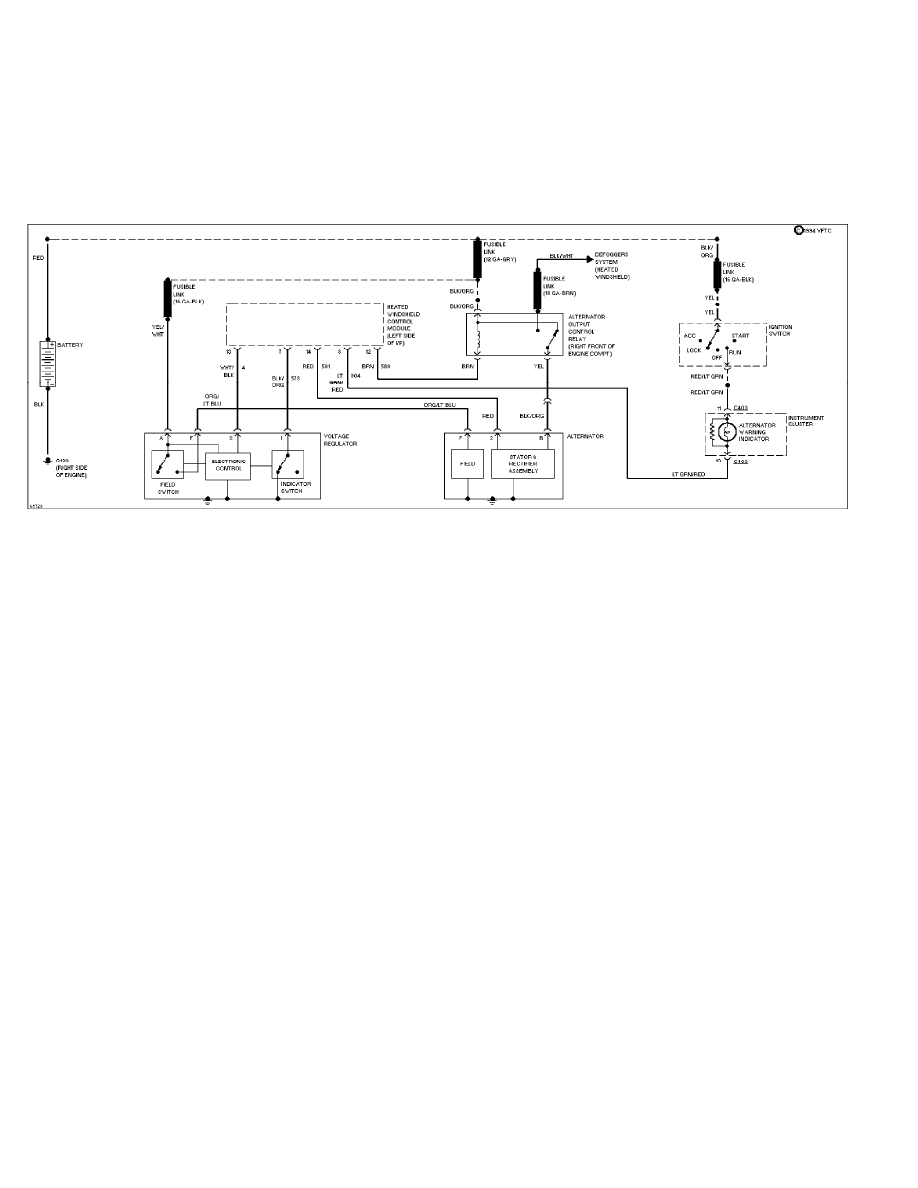

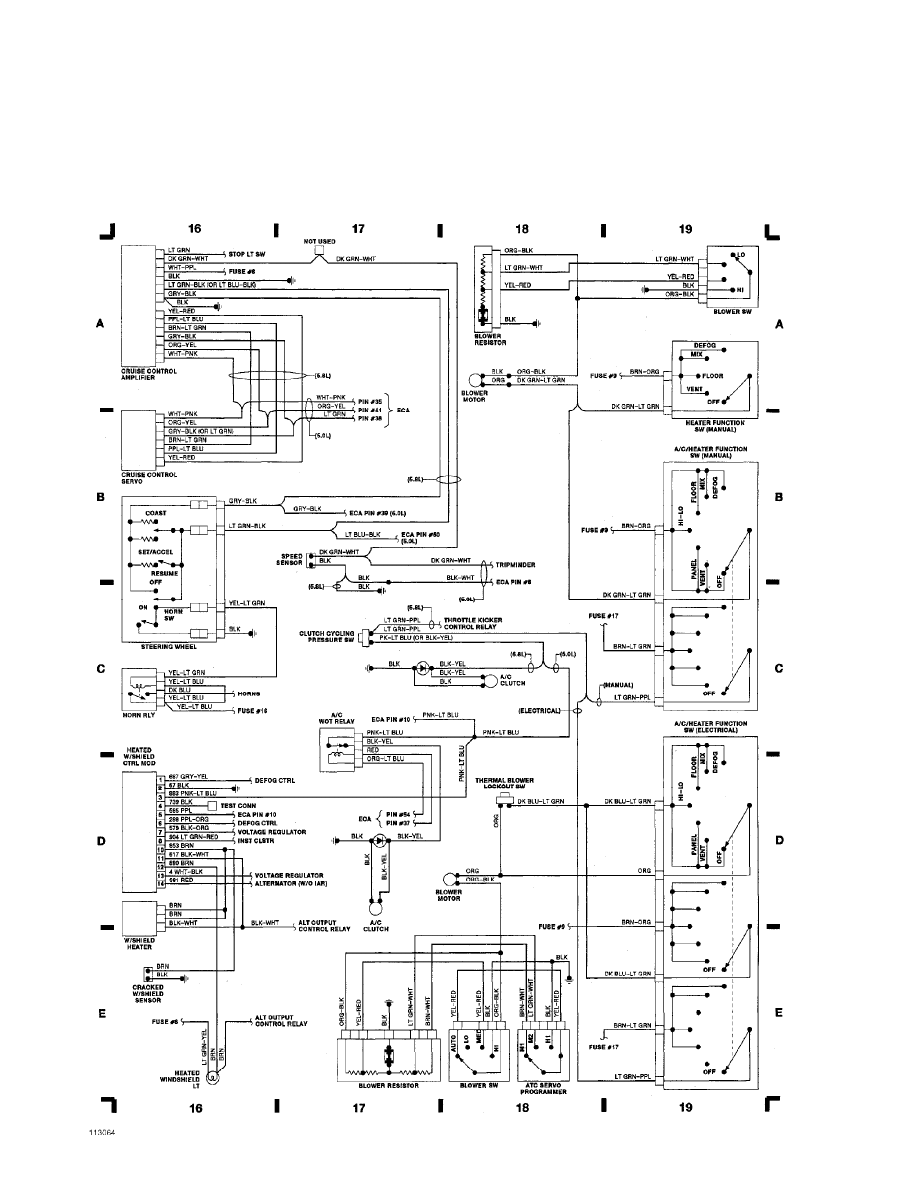

Charging Circuit, W/ Heated Windshield (p. 12)
1989 Ford Crown Victoria
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 06:28PM
SYSTEM WIRING DIAGRAMS

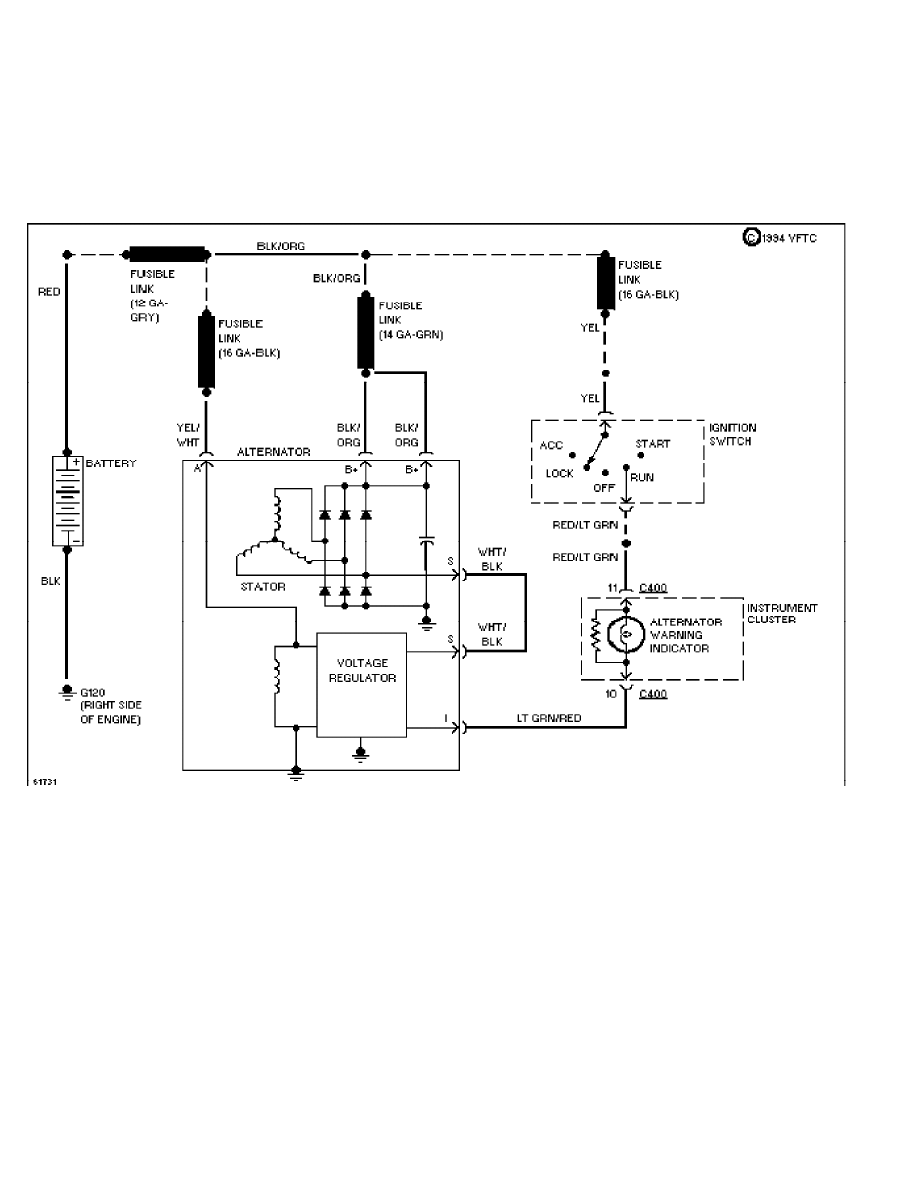

Charging Circuit, W/O Heated Windshield (p. 13)
1989 Ford Crown Victoria
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 06:28PM
SYSTEM WIRING DIAGRAMS

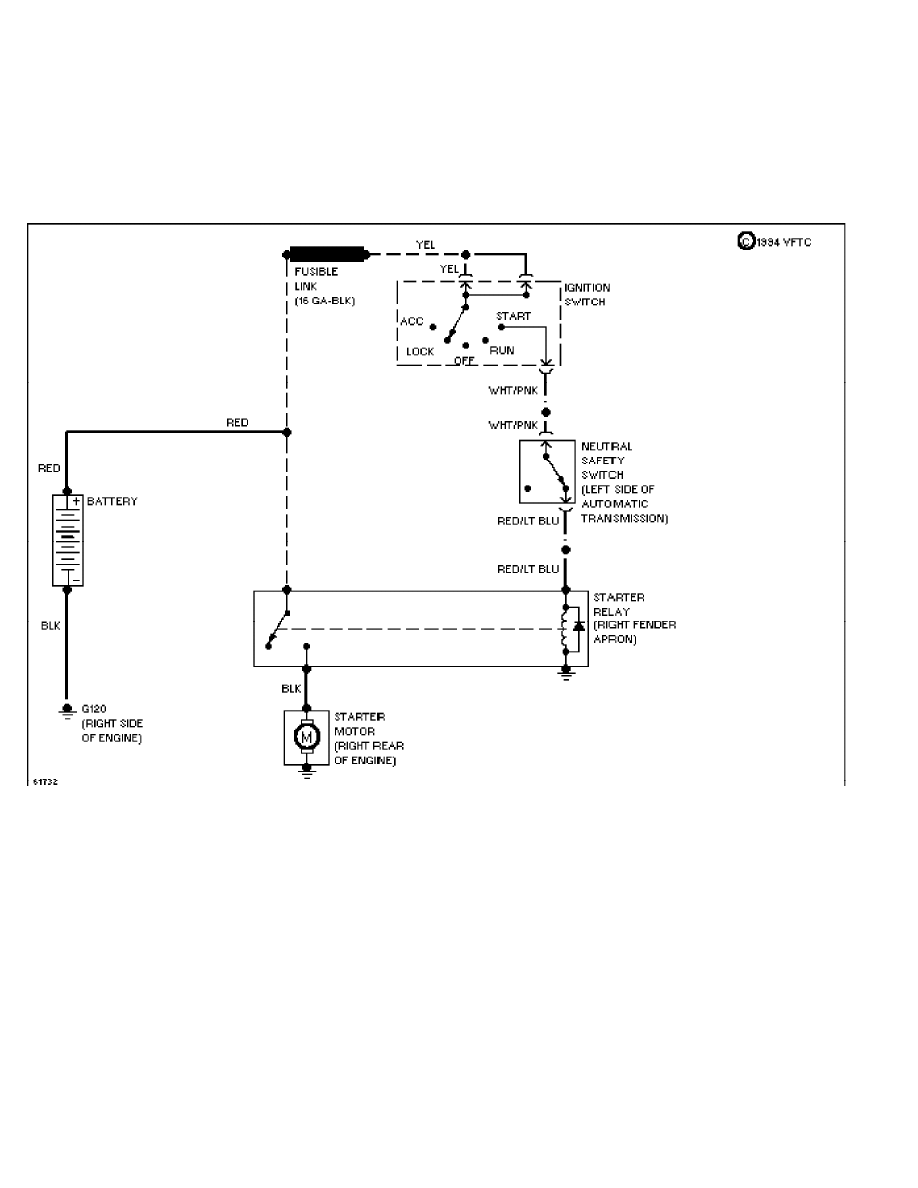

Starting Circuit (p. 14)
1989 Ford Crown Victoria
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 06:28PM
SYSTEM WIRING DIAGRAMS

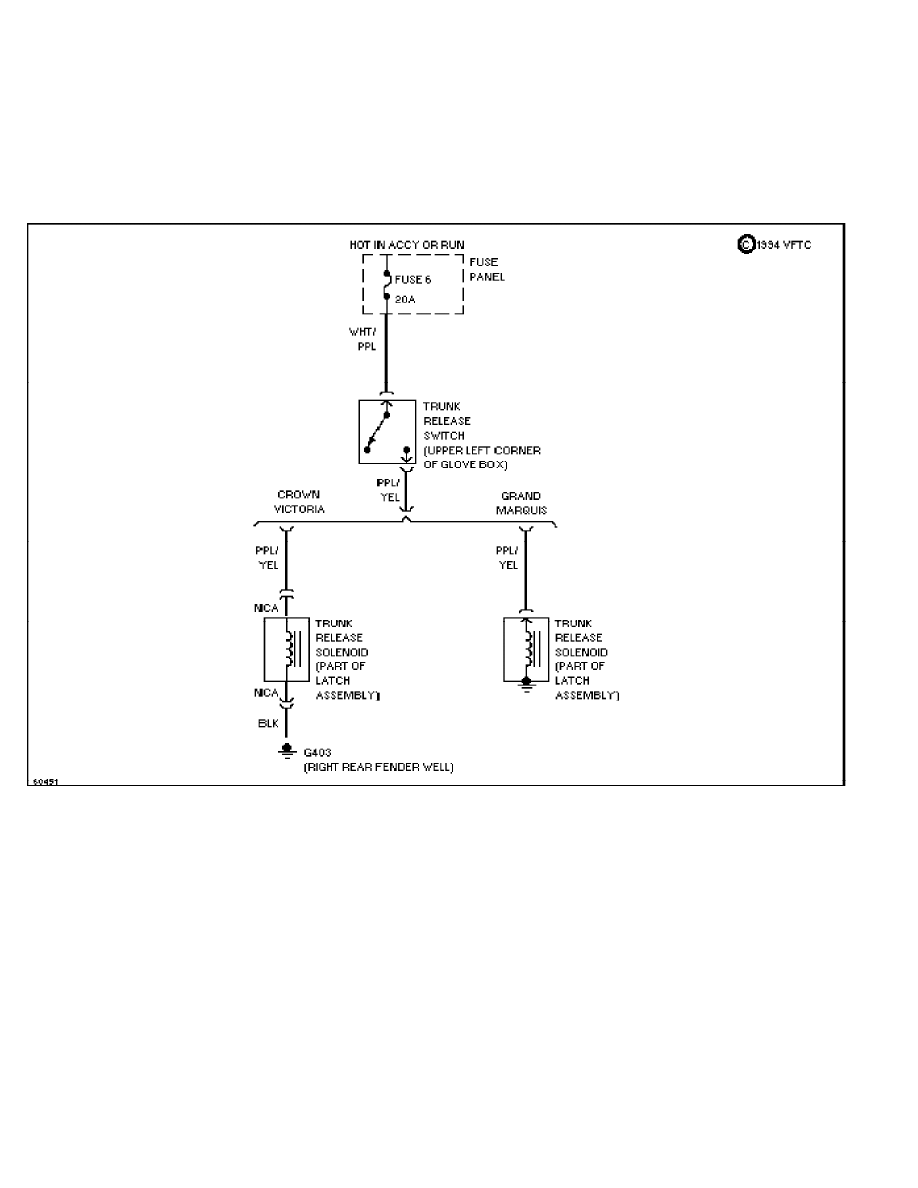

Trunk Release Circuit (p. 15)
1989 Ford Crown Victoria
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 06:28PM
SYSTEM WIRING DIAGRAMS

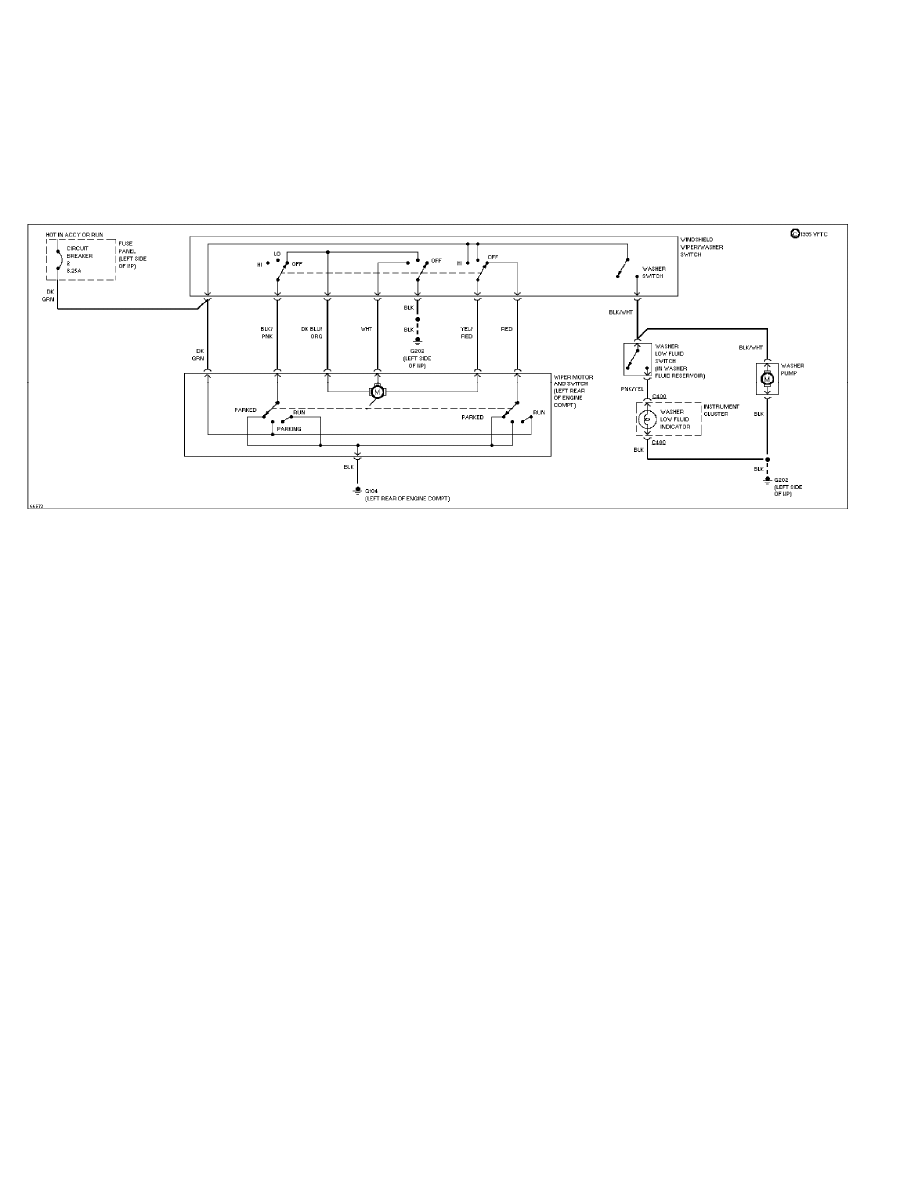

2-Speed Wiper/Washer Circuit (p. 16)
1989 Ford Crown Victoria
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 06:28PM
SYSTEM WIRING DIAGRAMS

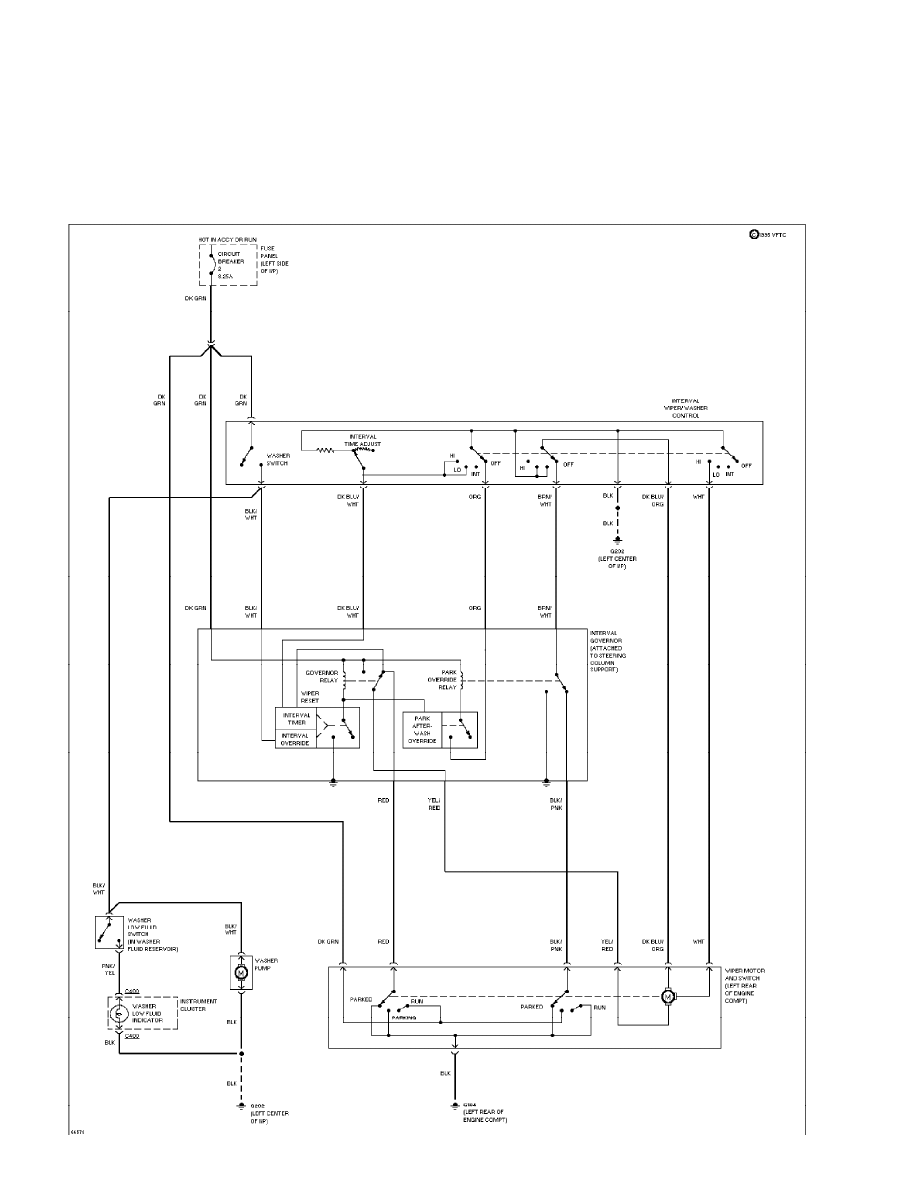

Interval Wiper/Washer Circuit (p. 17)
1989 Ford Crown Victoria
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 06:28PM
WIRING DIAGRAMS

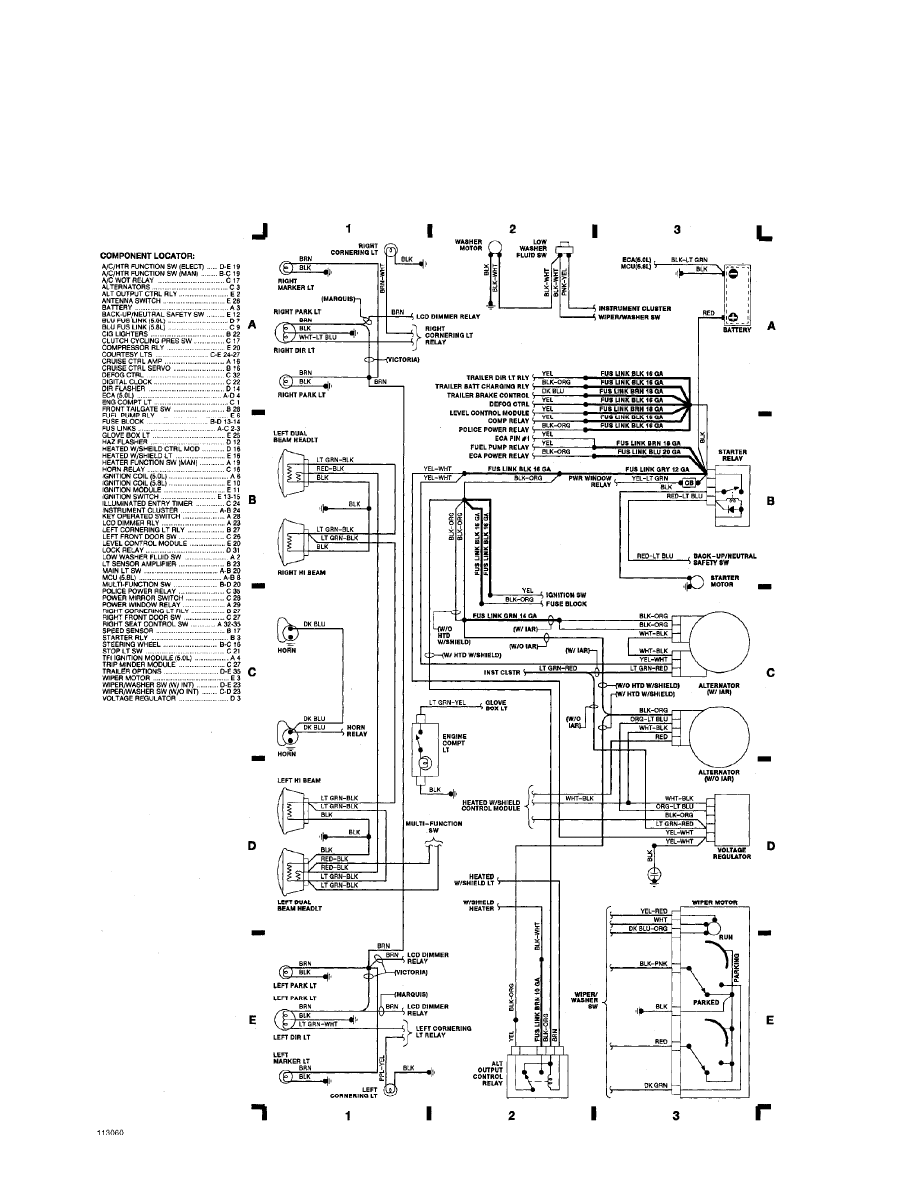

Fig. 1: Engine Compartment & Headlights
1989 Ford Crown Victoria
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 06:28PM
WIRING DIAGRAMS

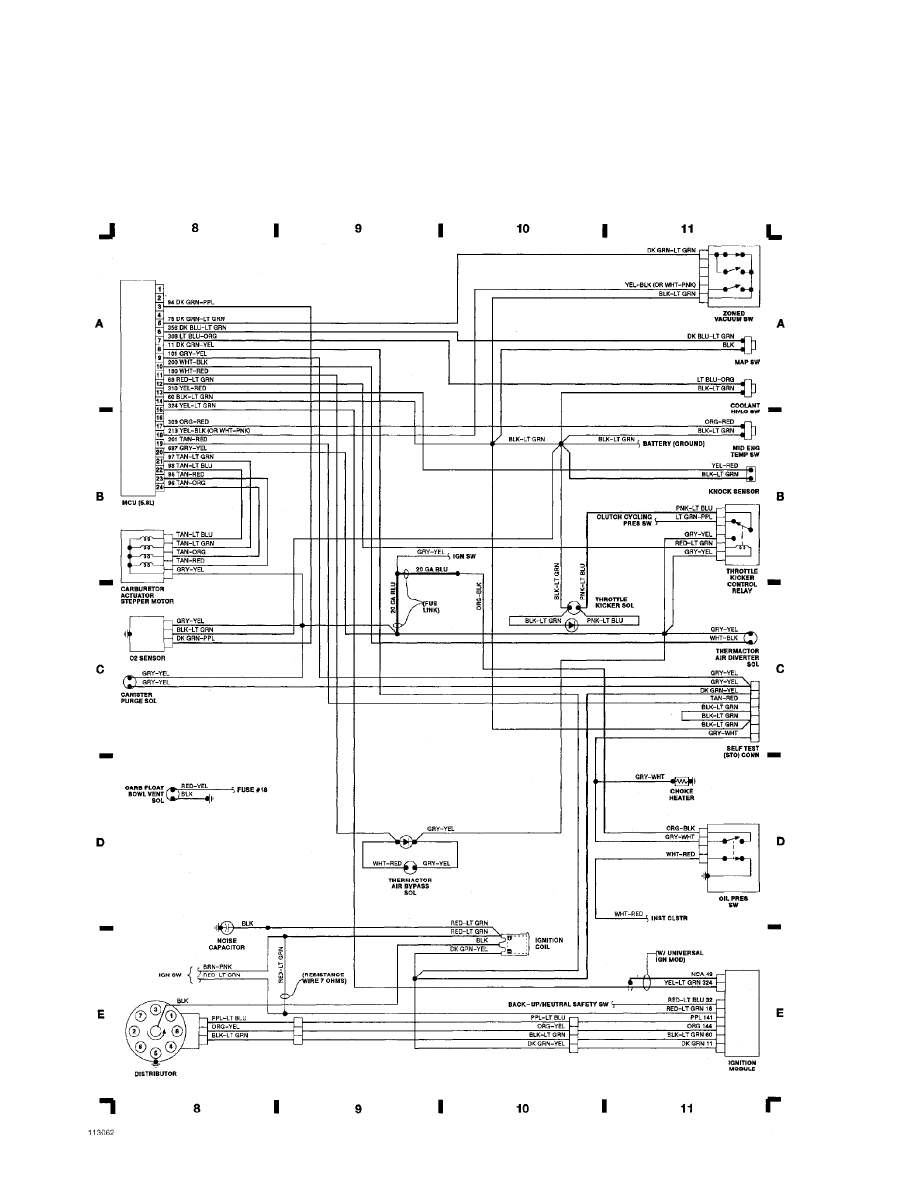

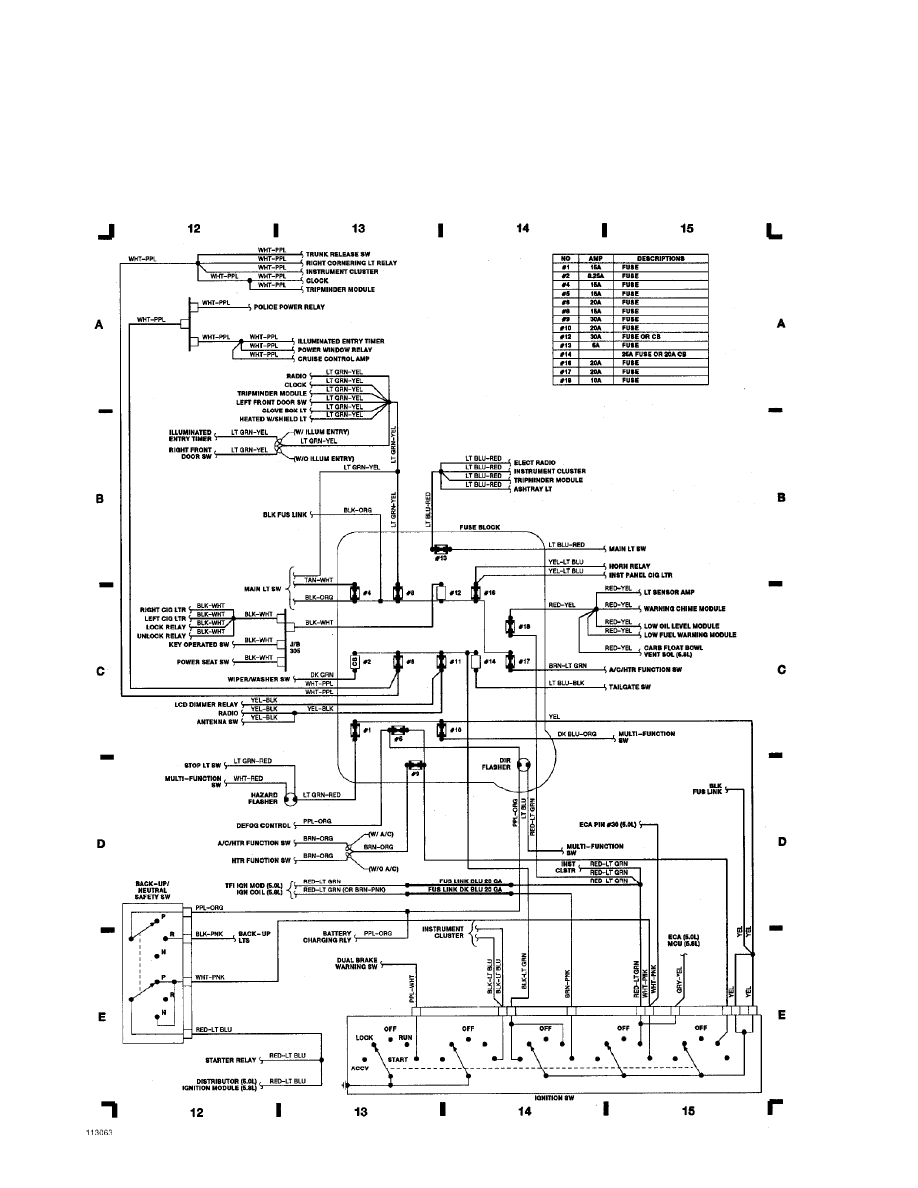

Fig. 2: Computer Engine Control (p. 2)
1989 Ford Crown Victoria
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 06:28PM
WIRING DIAGRAMS
Fig. 3: Engine Sensors (p. 3)
1989 Ford Crown Victoria
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 06:28PM
WIRING DIAGRAMS

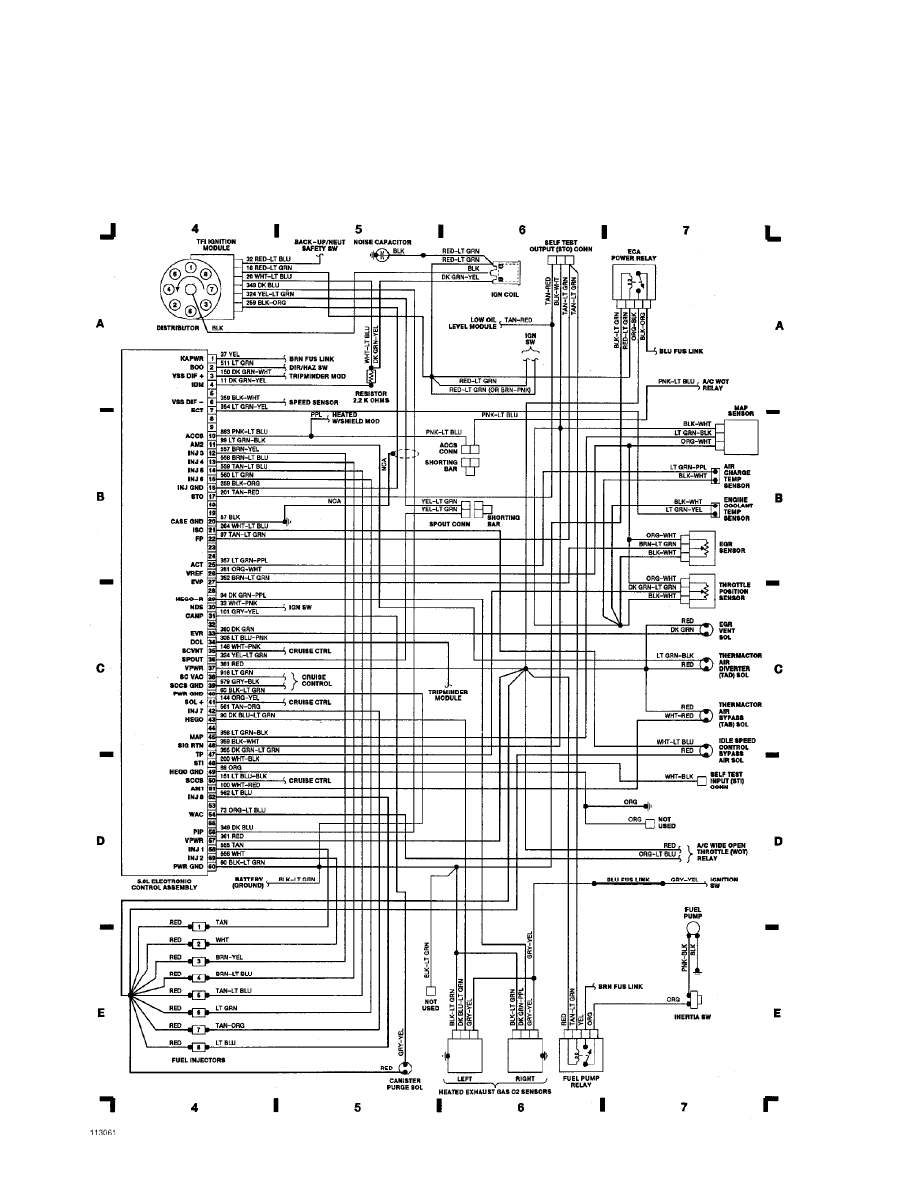

Fig. 4: Fuse Block (p. 4)
1989 Ford Crown Victoria
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 06:28PM
WIRING DIAGRAMS
Fig. 5: A/C & Cruise Control (p. 5)
1989 Ford Crown Victoria
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 06:28PM
WIRING DIAGRAMS
Fig. 6: Level Control & Wiper/Washer System (p. 6)
1989 Ford Crown Victoria
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 06:28PM
WIRING DIAGRAMS

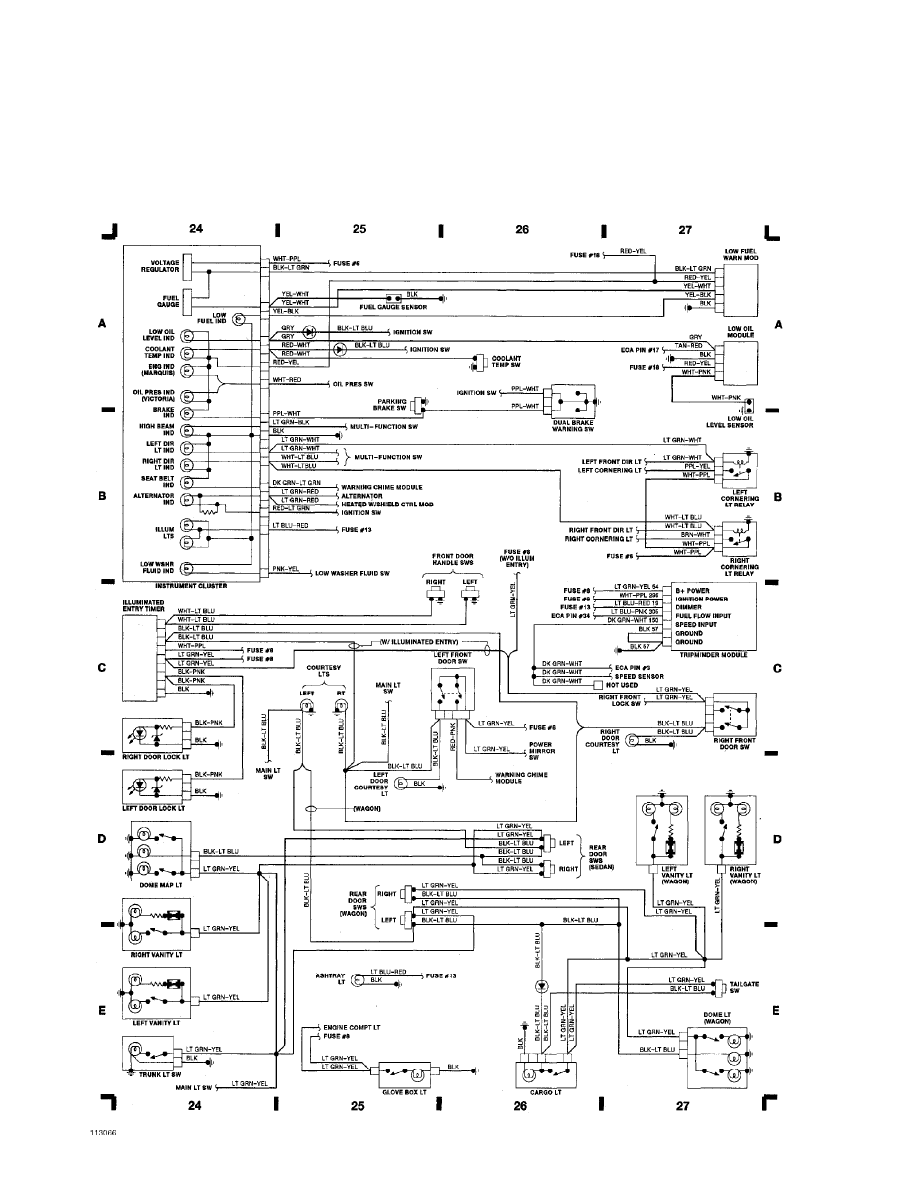

Fig. 7: Instrument Panel (p. 7)
1989 Ford Crown Victoria
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 06:28PM
WIRING DIAGRAMS

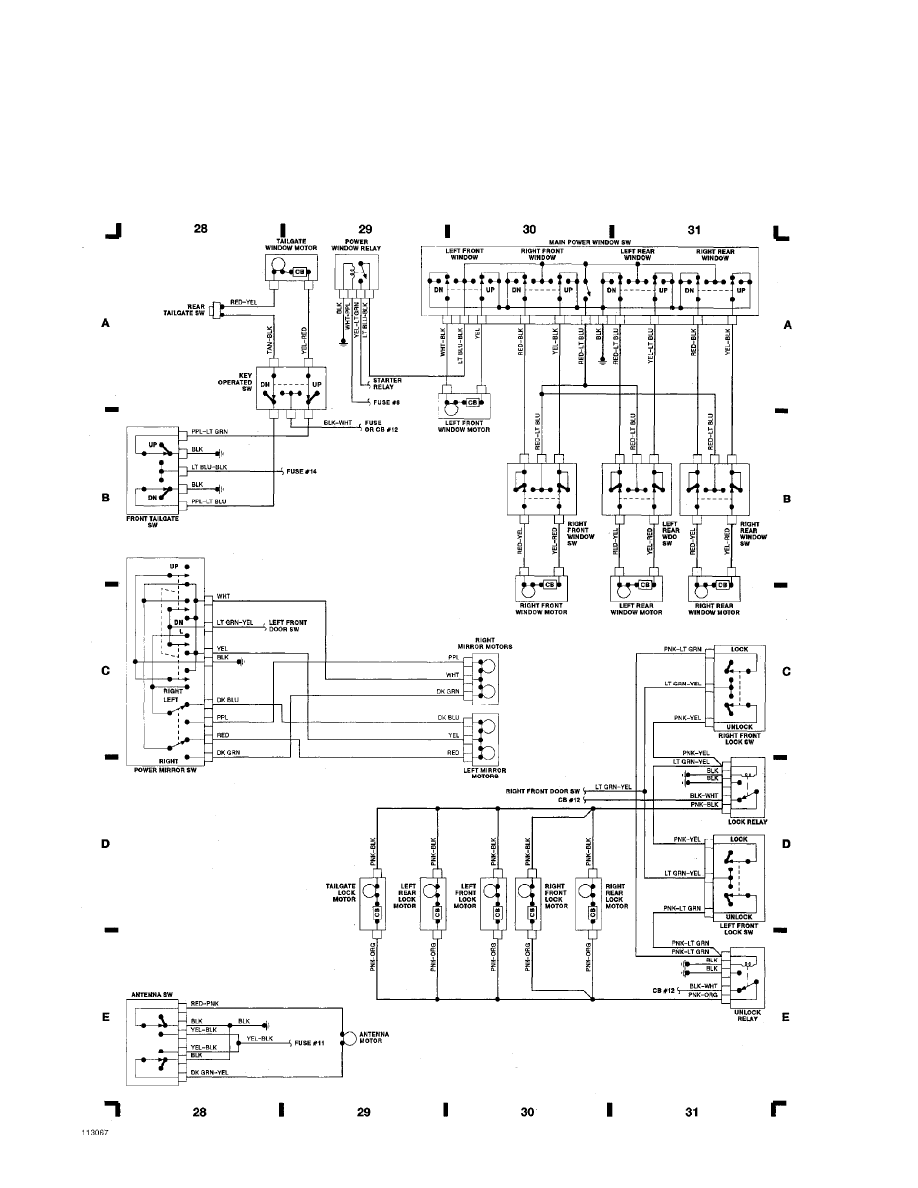

Fig. 8: Power Windows & Power Doors (p. 8)
1989 Ford Crown Victoria
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 06:28PM
WIRING DIAGRAMS
Fig. 9: Passenger Compartment (p. 9)
1989 Ford Crown Victoria
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 06:28PM
WIRING DIAGRAMS

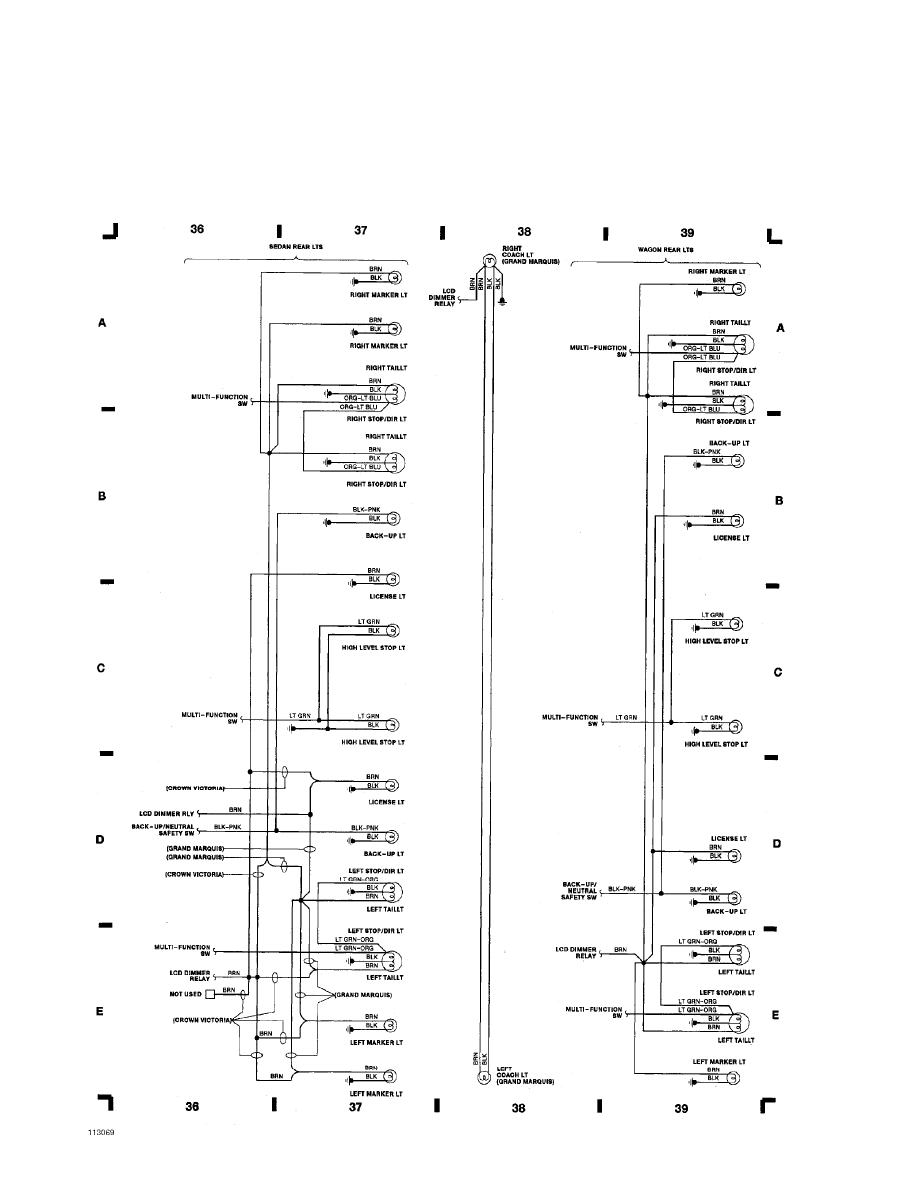

Fig. 10: Taillights (p. 10)
1989 Ford Crown Victoria
For cdr101@wp.pl x x x x
Copyright © 1998 Mitchell Repair Information Company, LLC
Tuesday, April 04, 2006 06:28PM
