CHEVROLET LUMINA 1992

background image

SYSTEM WIRING DIAGRAMS

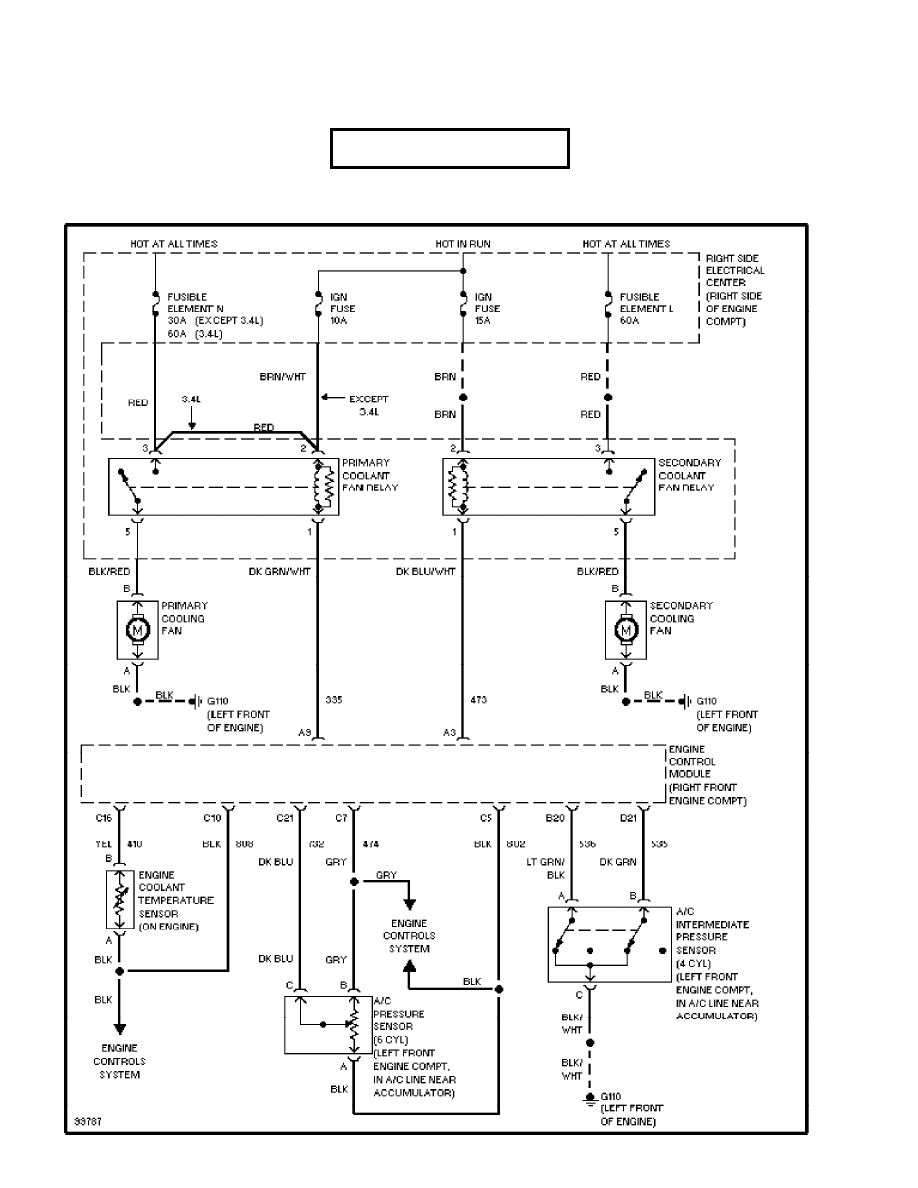

Cooling Fan Circuit, W/ A/C

1992 Chevrolet Lumina

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, July 31, 2004 02:31PM

CDR@WP.PL

background image

SYSTEM WIRING DIAGRAMS

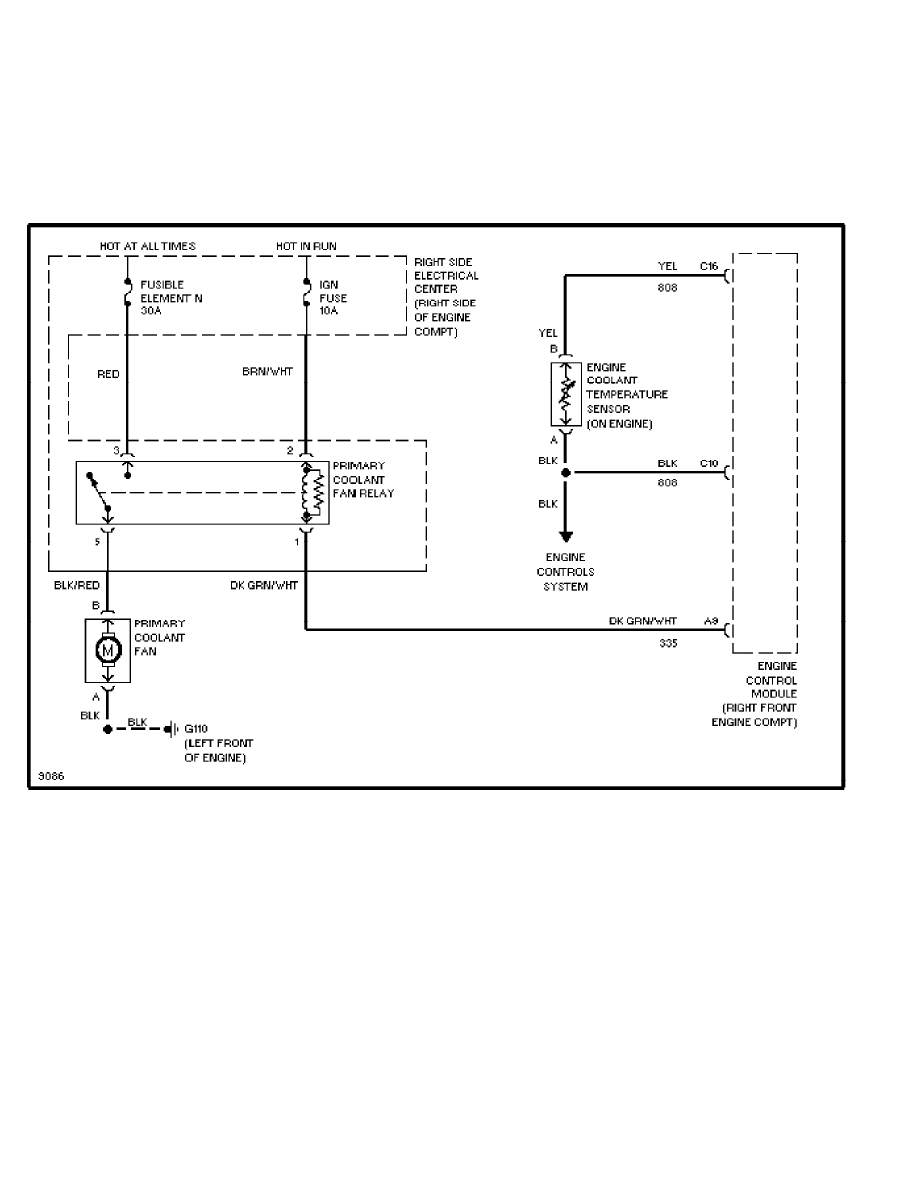

Cooling Fan Circuit, W/O A/C (p. 2)

1992 Chevrolet Lumina

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, July 31, 2004 02:31PM

background image

SYSTEM WIRING DIAGRAMS

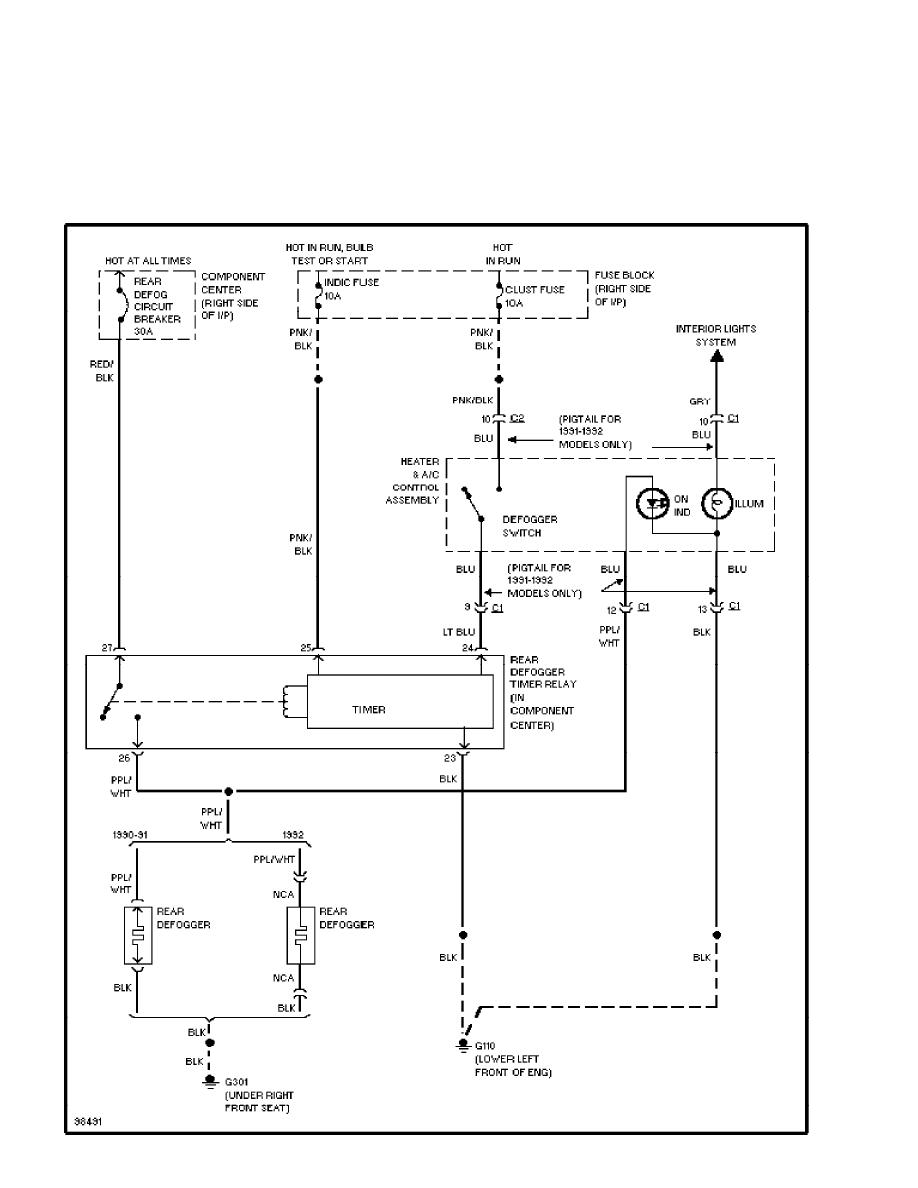

Defogger Circuit (p. 3)

1992 Chevrolet Lumina

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, July 31, 2004 02:31PM

background image

SYSTEM WIRING DIAGRAMS

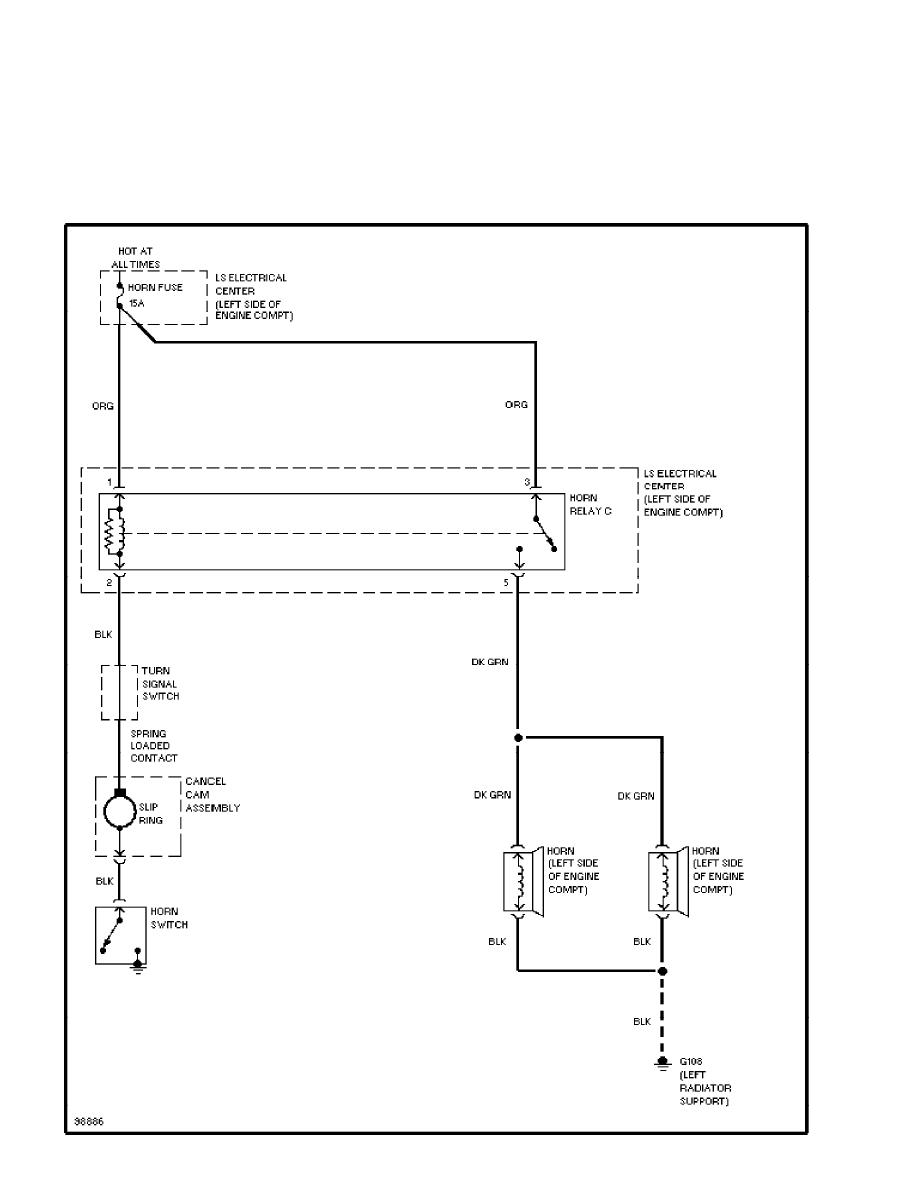

Horn Circuit (p. 4)

1992 Chevrolet Lumina

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, July 31, 2004 02:31PM

background image

SYSTEM WIRING DIAGRAMS

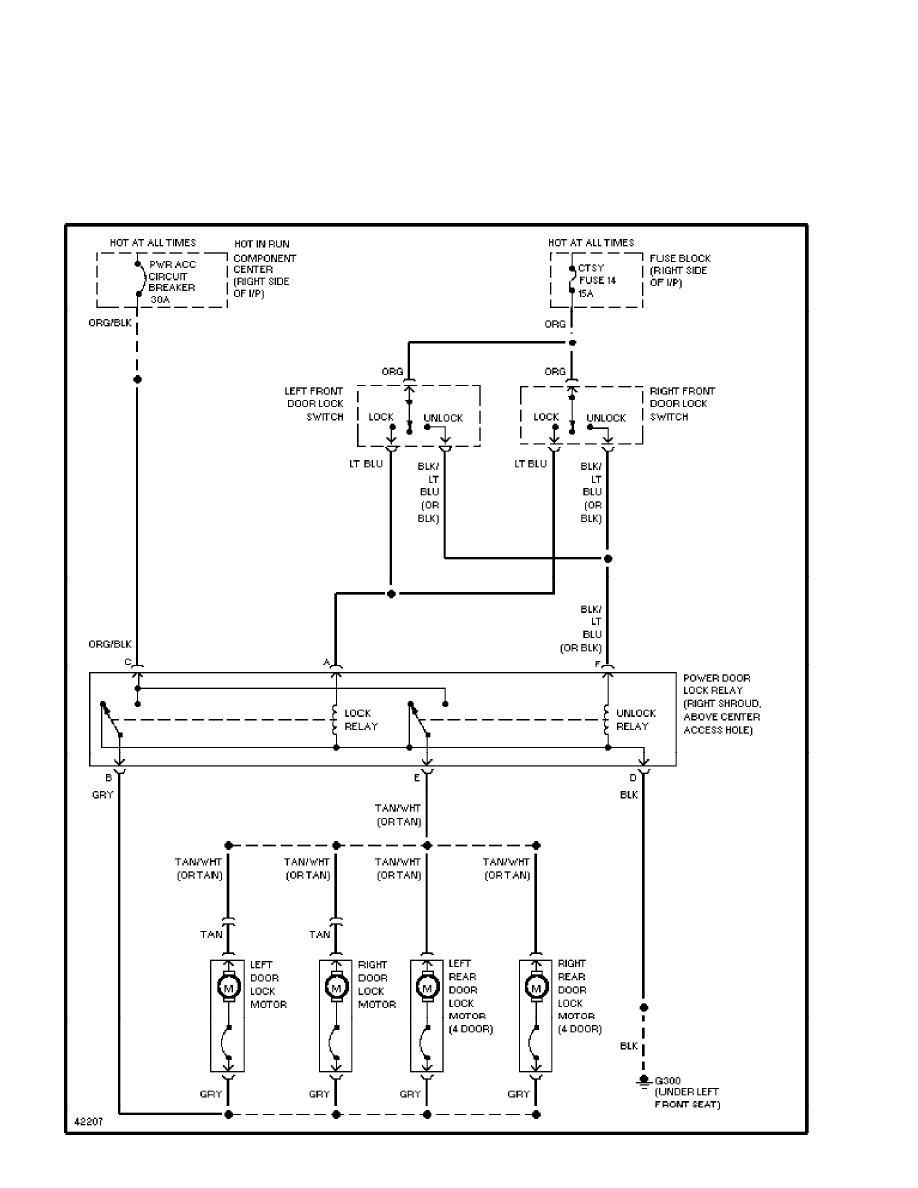

Power Door Lock Circuit (p. 5)

1992 Chevrolet Lumina

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, July 31, 2004 02:31PM

background image

SYSTEM WIRING DIAGRAMS

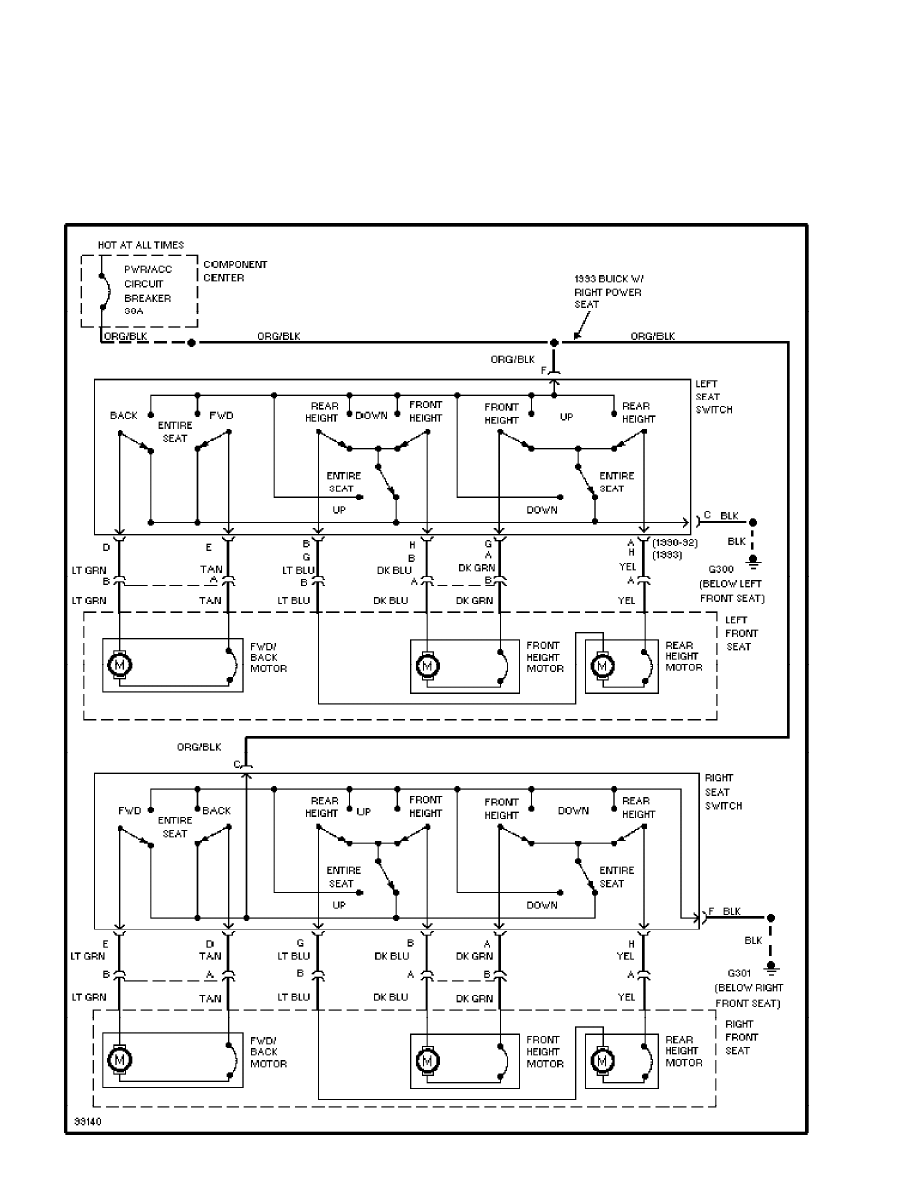

6-Way Power Seat Circuit (p. 6)

1992 Chevrolet Lumina

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, July 31, 2004 02:31PM

background image

SYSTEM WIRING DIAGRAMS

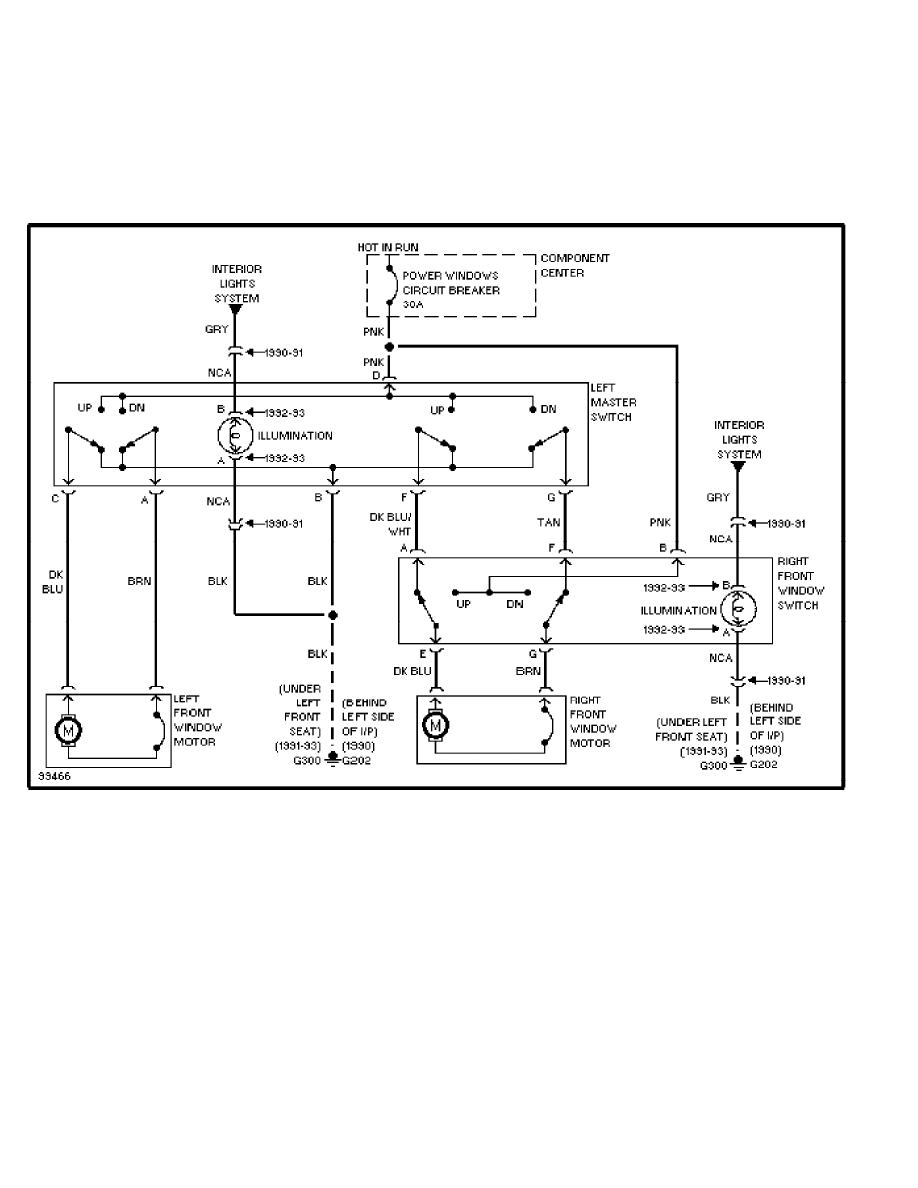

Power Window Circuit, Coupe (p. 7)

1992 Chevrolet Lumina

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, July 31, 2004 02:31PM

background image

SYSTEM WIRING DIAGRAMS

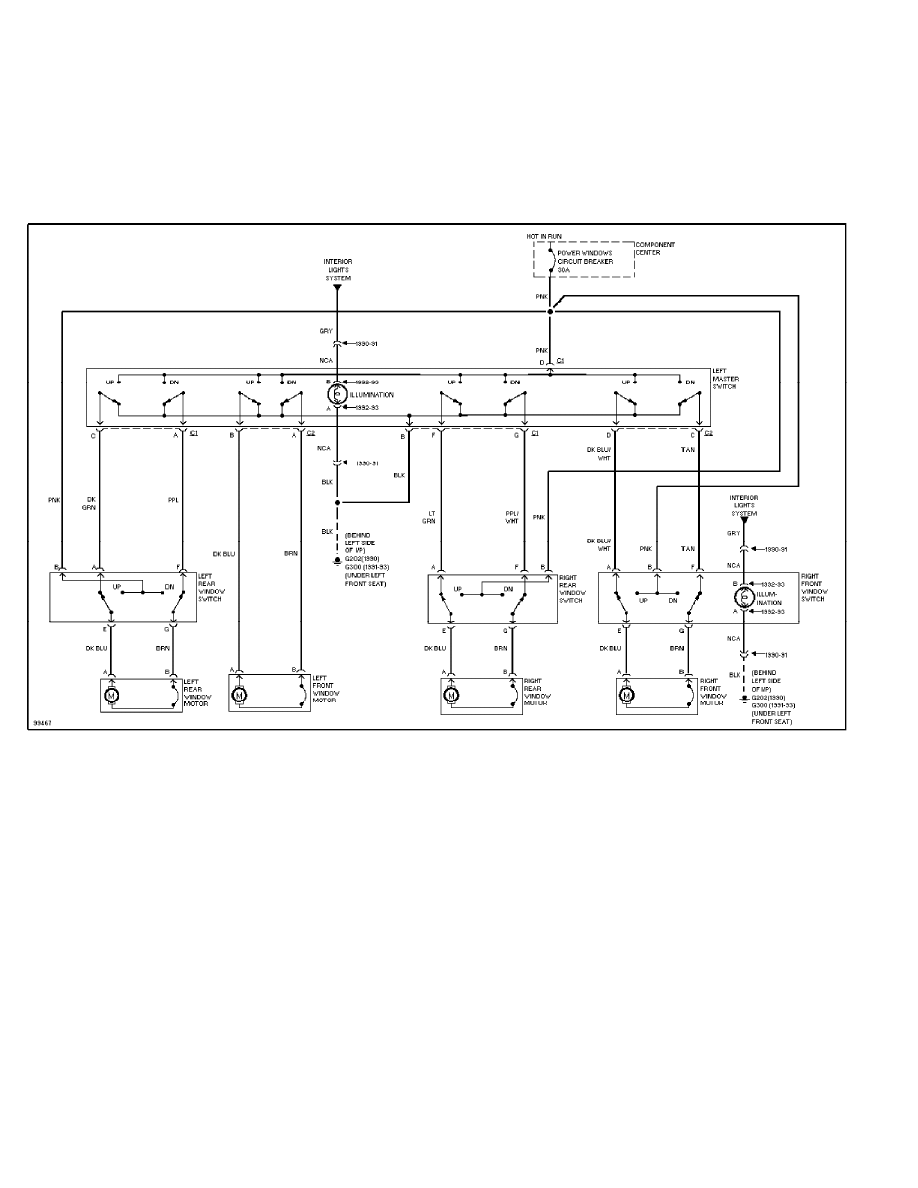

Power Window Circuit, Sedan (p. 8)

1992 Chevrolet Lumina

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, July 31, 2004 02:31PM

background image

SYSTEM WIRING DIAGRAMS

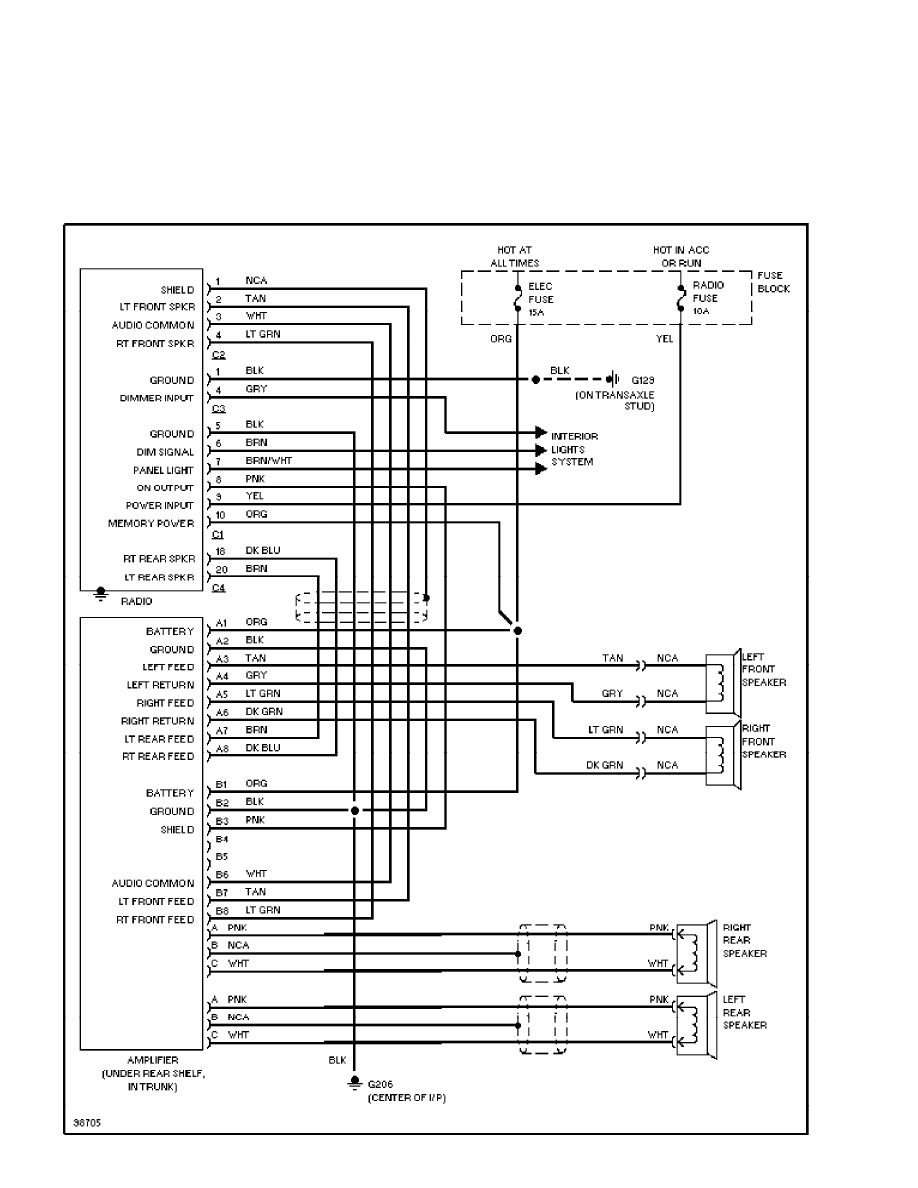

Radio Circuits, W/ Amplifier (p. 9)

1992 Chevrolet Lumina

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, July 31, 2004 02:31PM

background image

SYSTEM WIRING DIAGRAMS

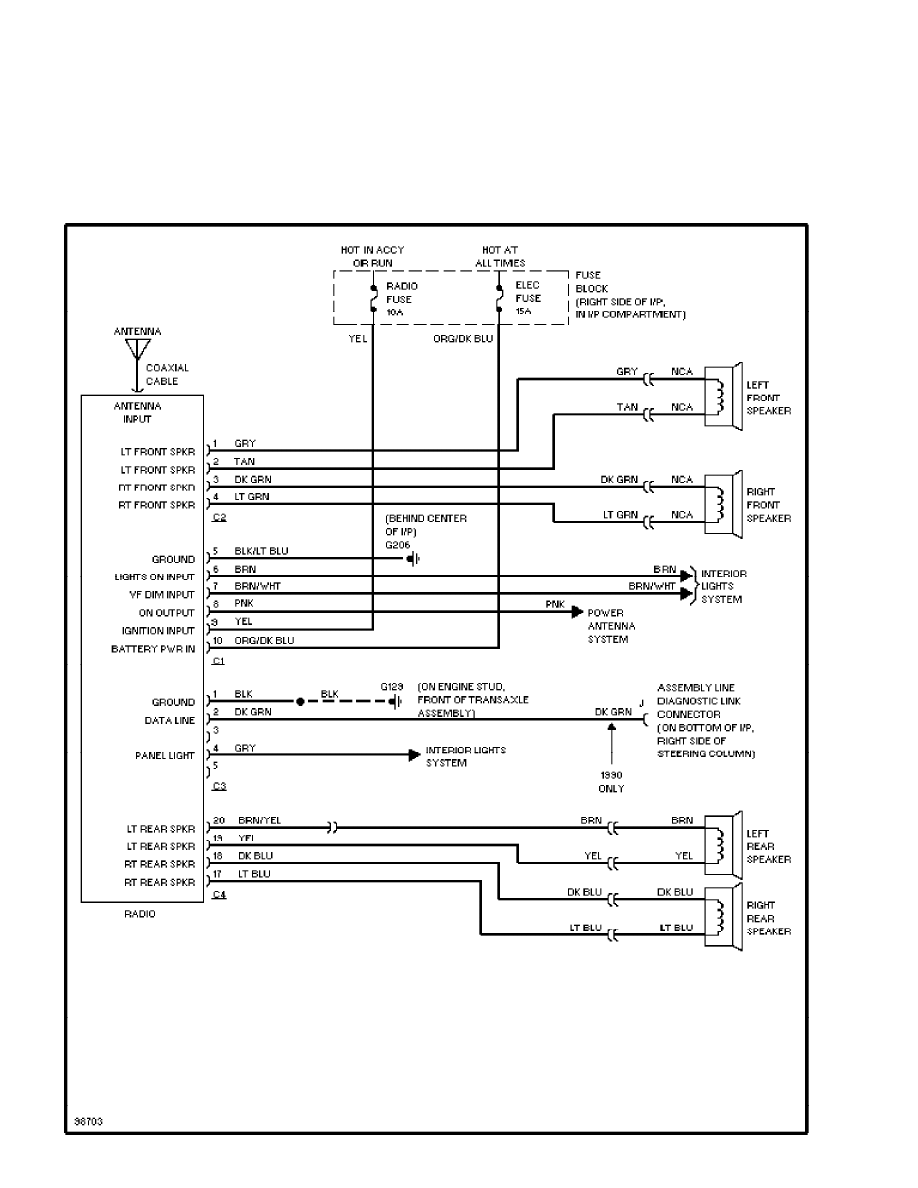

Radio Circuits, W/O Amplifier (p. 10)

1992 Chevrolet Lumina

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, July 31, 2004 02:31PM

background image

SYSTEM WIRING DIAGRAMS

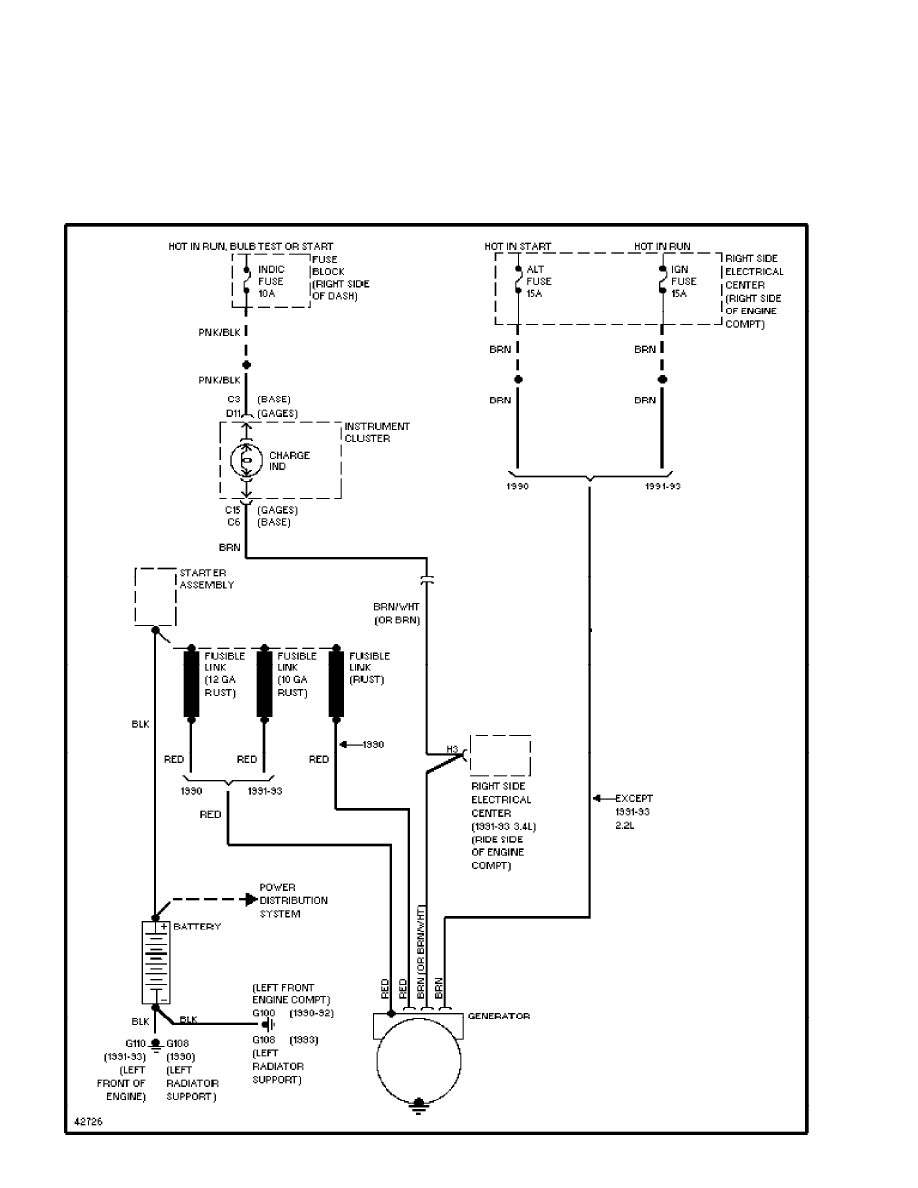

Charging Circuit (p. 11)

1992 Chevrolet Lumina

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, July 31, 2004 02:31PM

background image

SYSTEM WIRING DIAGRAMS

Starting Circuit (p. 12)

1992 Chevrolet Lumina

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, July 31, 2004 02:31PM

background image

SYSTEM WIRING DIAGRAMS

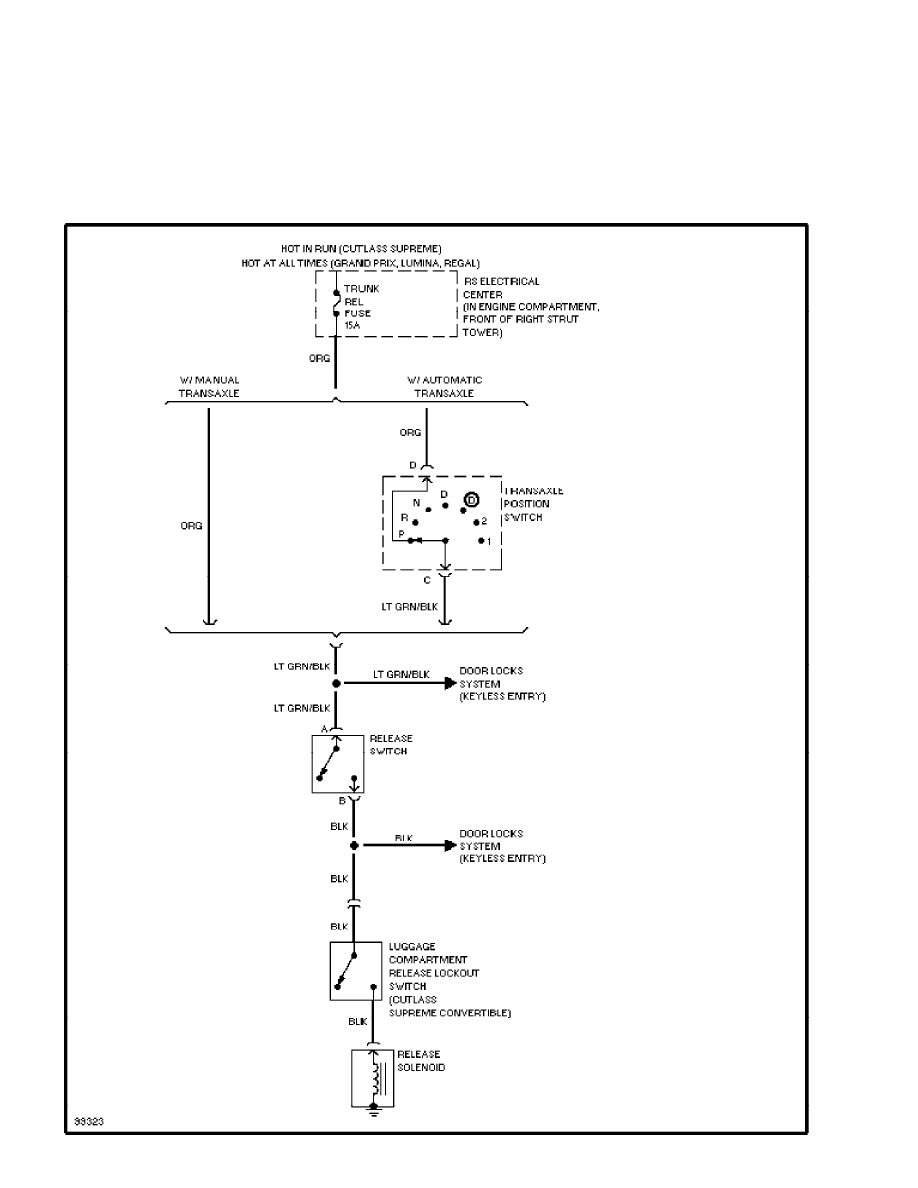

Trunk Release Circuit (p. 13)

1992 Chevrolet Lumina

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, July 31, 2004 02:31PM

background image

SYSTEM WIRING DIAGRAMS

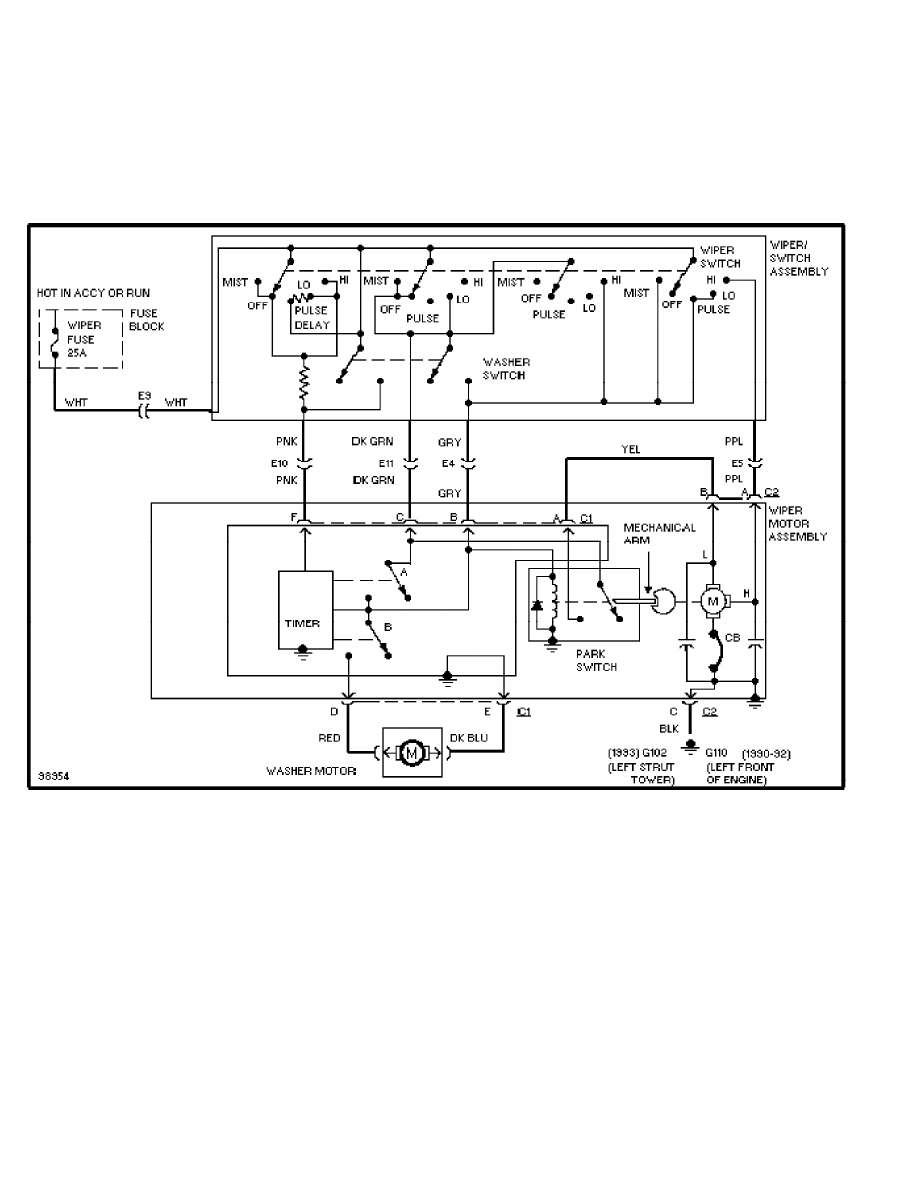

Interval Wiper/Washer Circuit (p. 14)

1992 Chevrolet Lumina

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, July 31, 2004 02:31PM

background image

WIRING DIAGRAMS

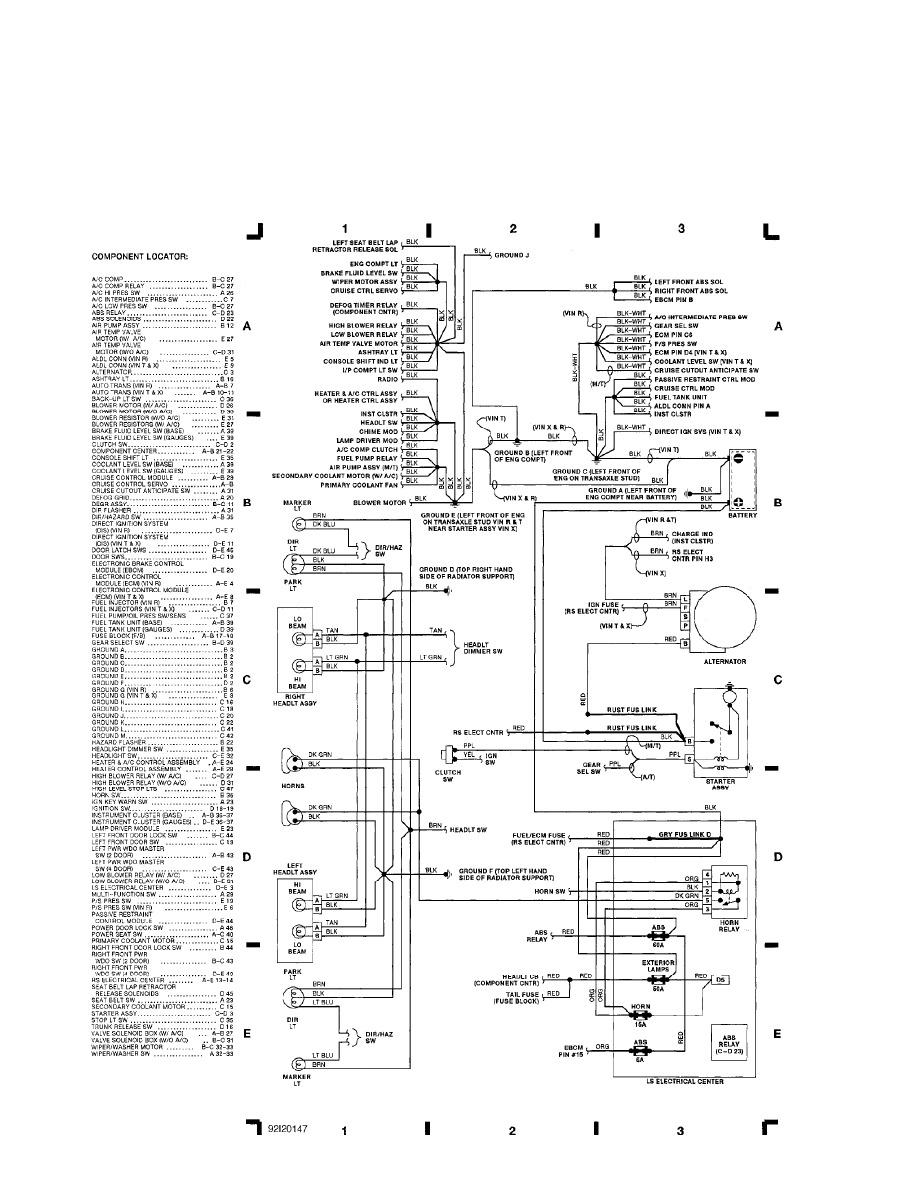

Fig. 1: Engine Compartment & Headlights (Grid 1-3)

1992 Chevrolet Lumina

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, July 31, 2004 02:32PM

background image

WIRING DIAGRAMS

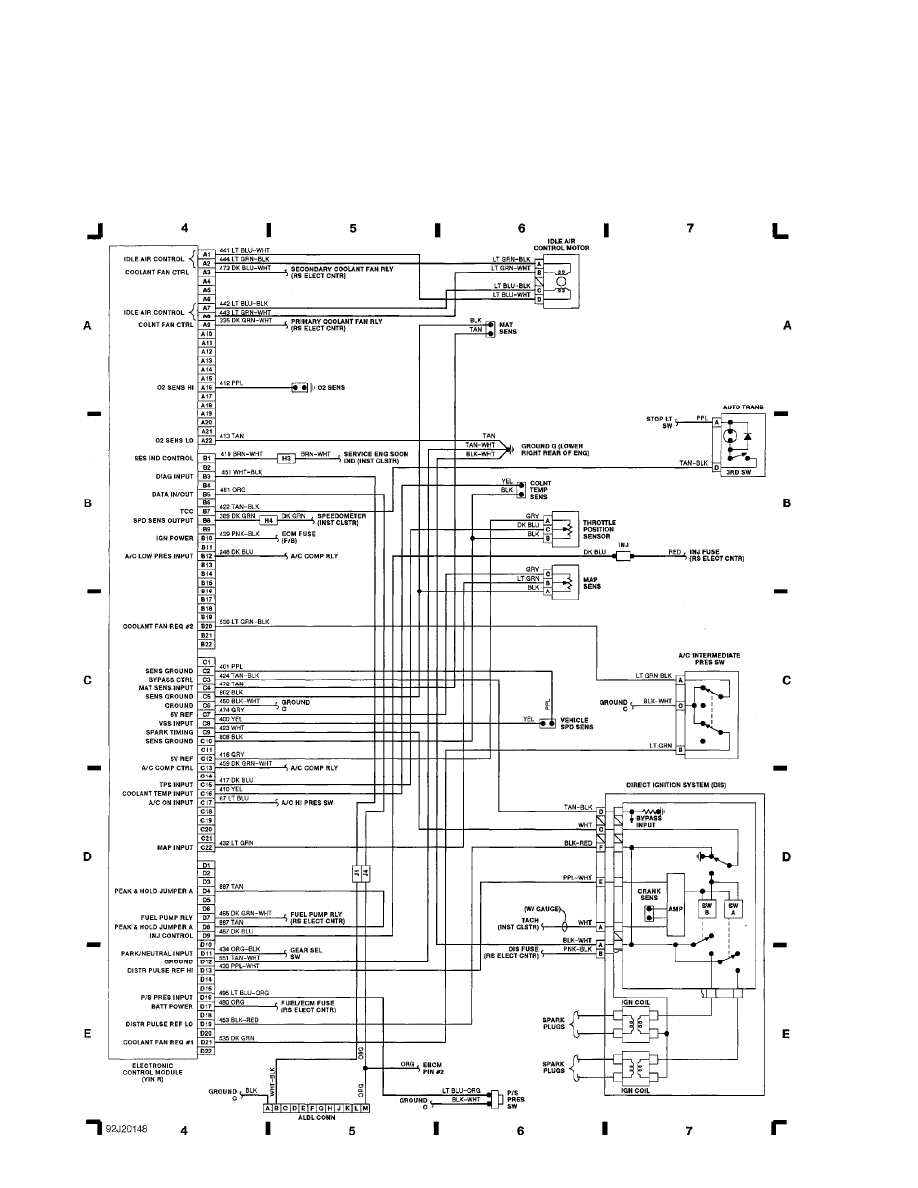

Fig. 2: Elect Control Module (VIN R) Direct Ignition (Grid 4-7) (p. 2)

1992 Chevrolet Lumina

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, July 31, 2004 02:32PM

background image

WIRING DIAGRAMS

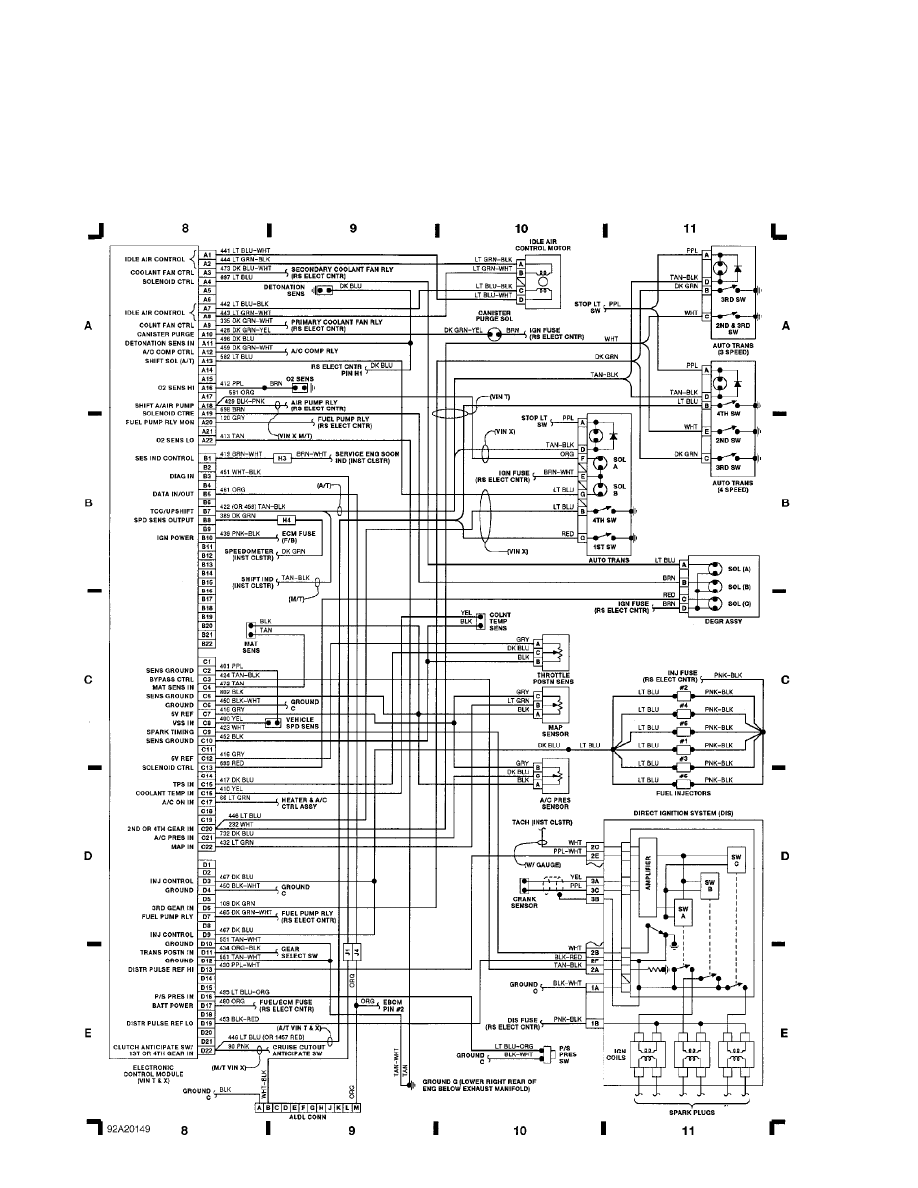

Fig. 3: Elect Engine Control (VIN T & X) (Grid 8-11) (p. 3)

1992 Chevrolet Lumina

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, July 31, 2004 02:32PM

background image

WIRING DIAGRAMS

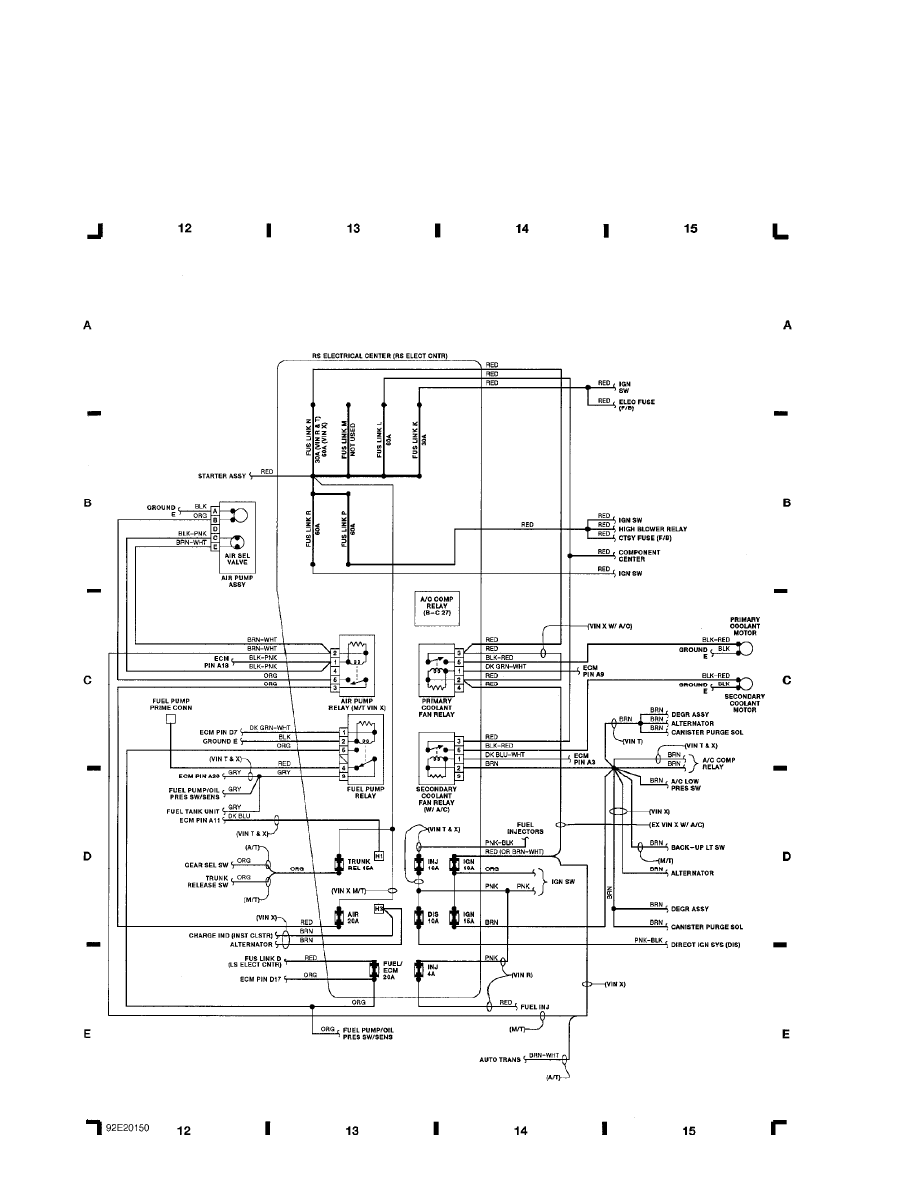

Fig. 4: RS Electrical Center (Grid 12-15) (p. 4)

1992 Chevrolet Lumina

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, July 31, 2004 02:32PM

background image

WIRING DIAGRAMS

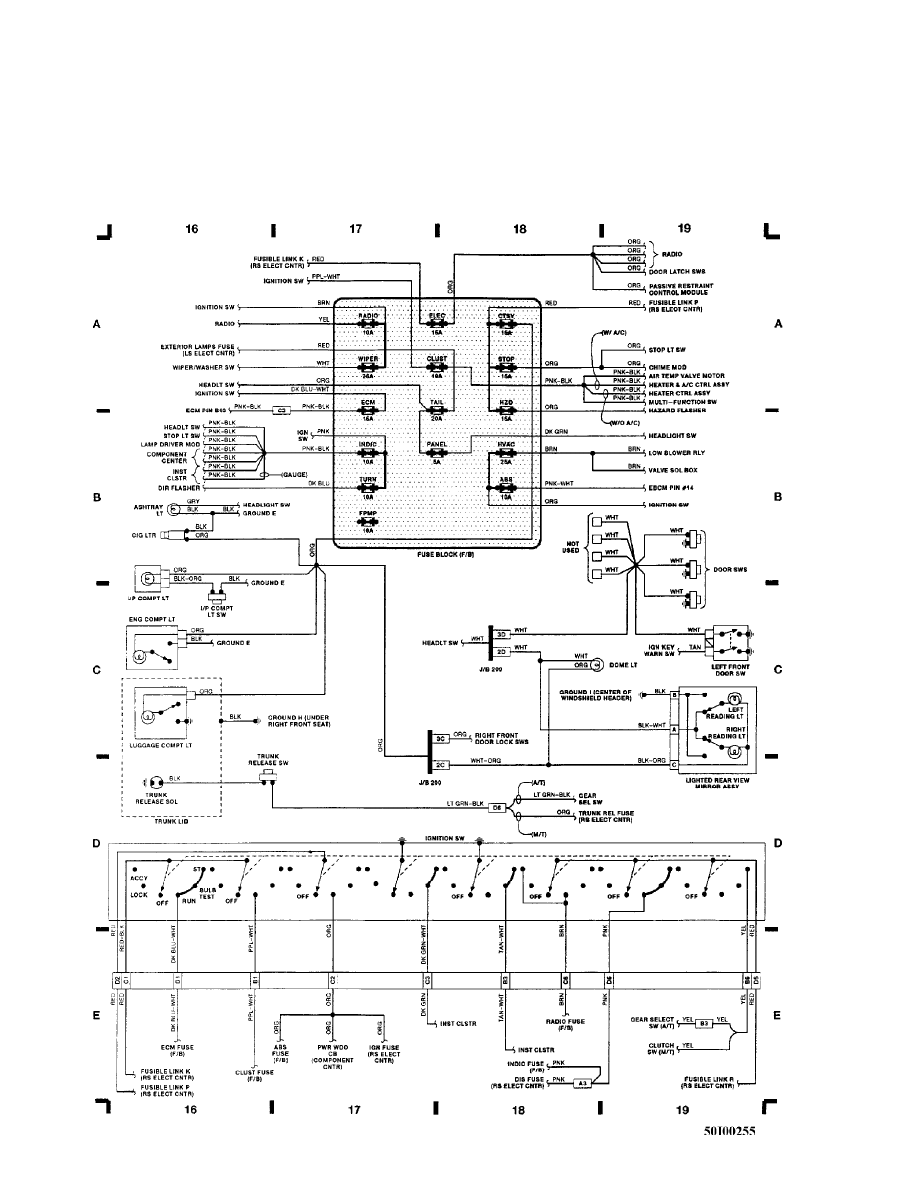

Fig. 5: Ignition Switch, Fuse Block (Grid 16-19) (p. 5)

1992 Chevrolet Lumina

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, July 31, 2004 02:32PM

background image

WIRING DIAGRAMS

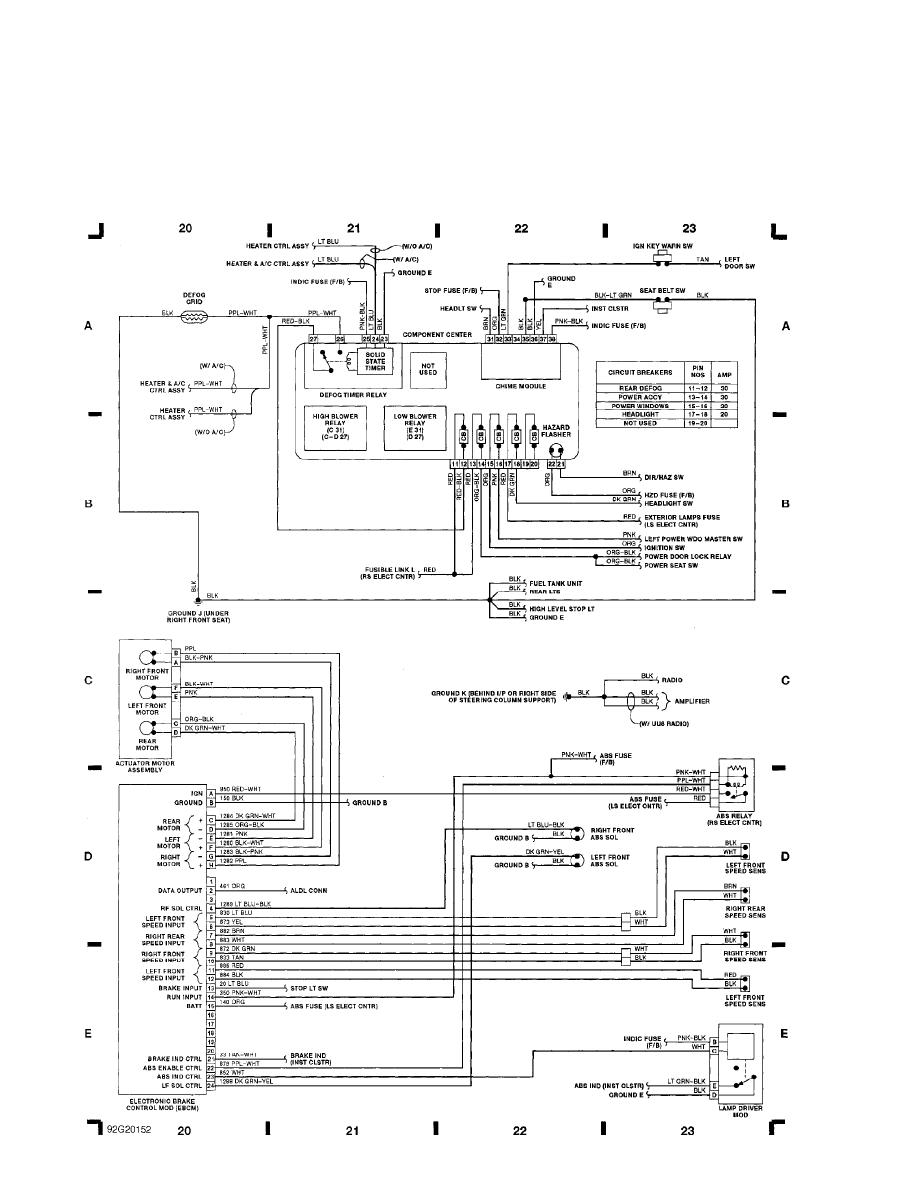

Fig. 6: Component Center, (EBCM) (Grid 20-23) (p. 6)

1992 Chevrolet Lumina

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, July 31, 2004 02:32PM

background image

WIRING DIAGRAMS

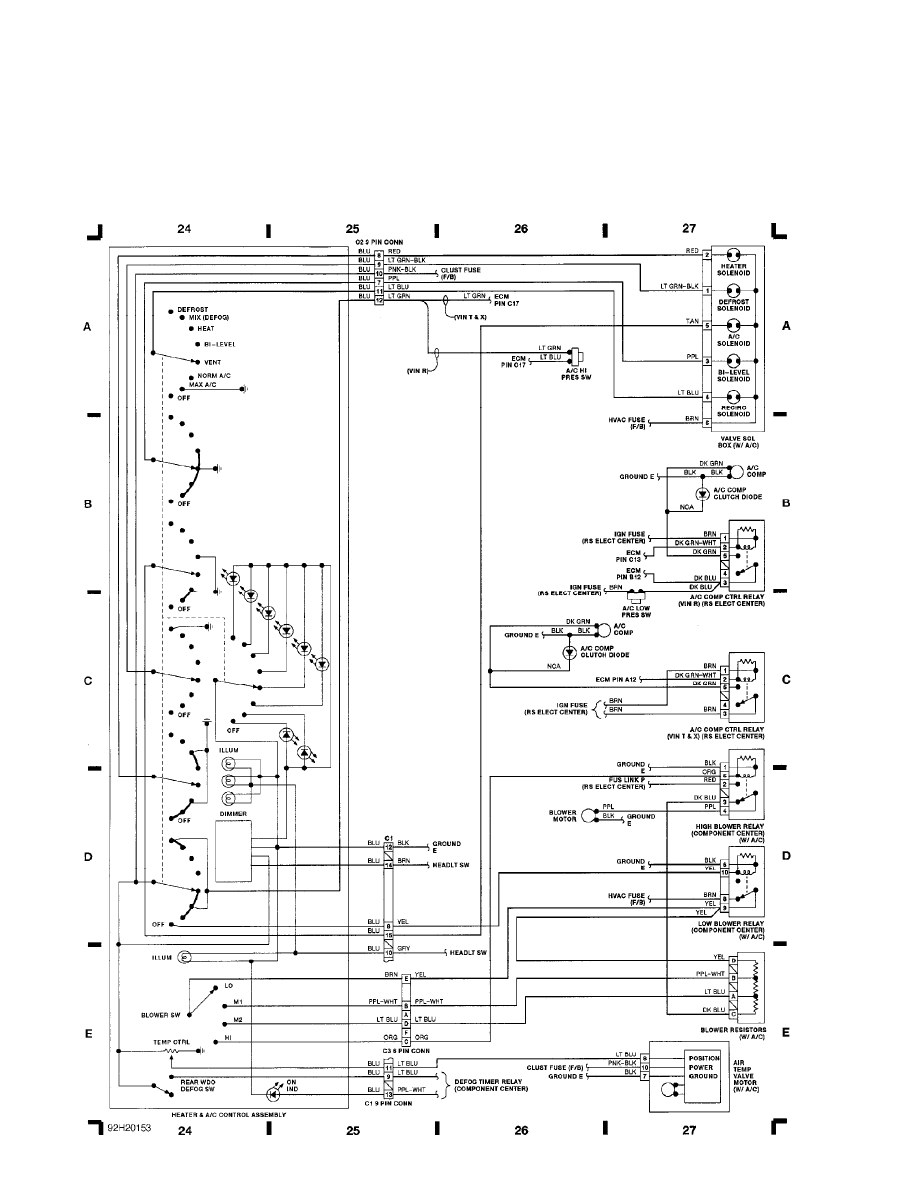

Fig. 7: Heater & A/C Control Assembly (Grid 24-27) (p. 7)

1992 Chevrolet Lumina

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, July 31, 2004 02:32PM

background image

WIRING DIAGRAMS

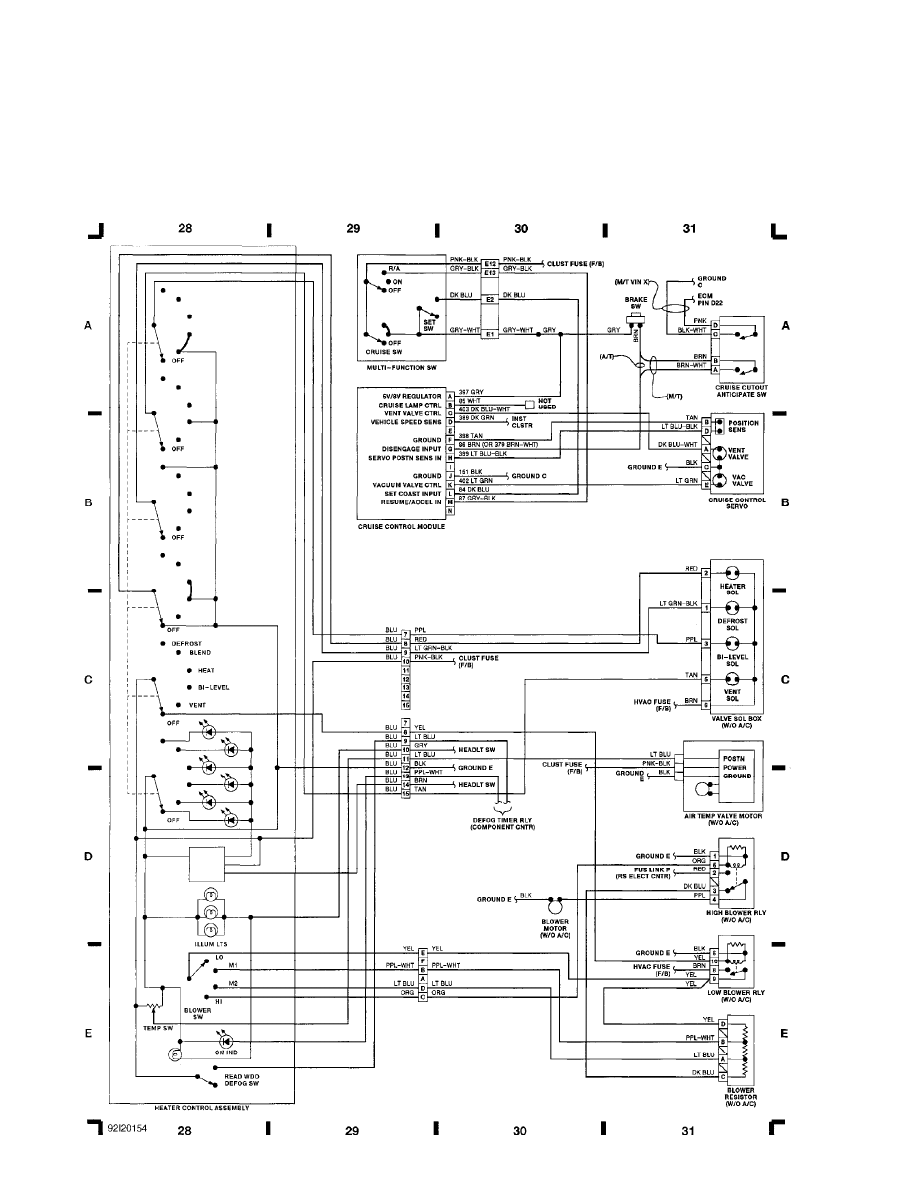

Fig. 8: Heater Control Assembly, Cruise Control (Grid 28-31) (p. 8)

1992 Chevrolet Lumina

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, July 31, 2004 02:32PM

background image

WIRING DIAGRAMS

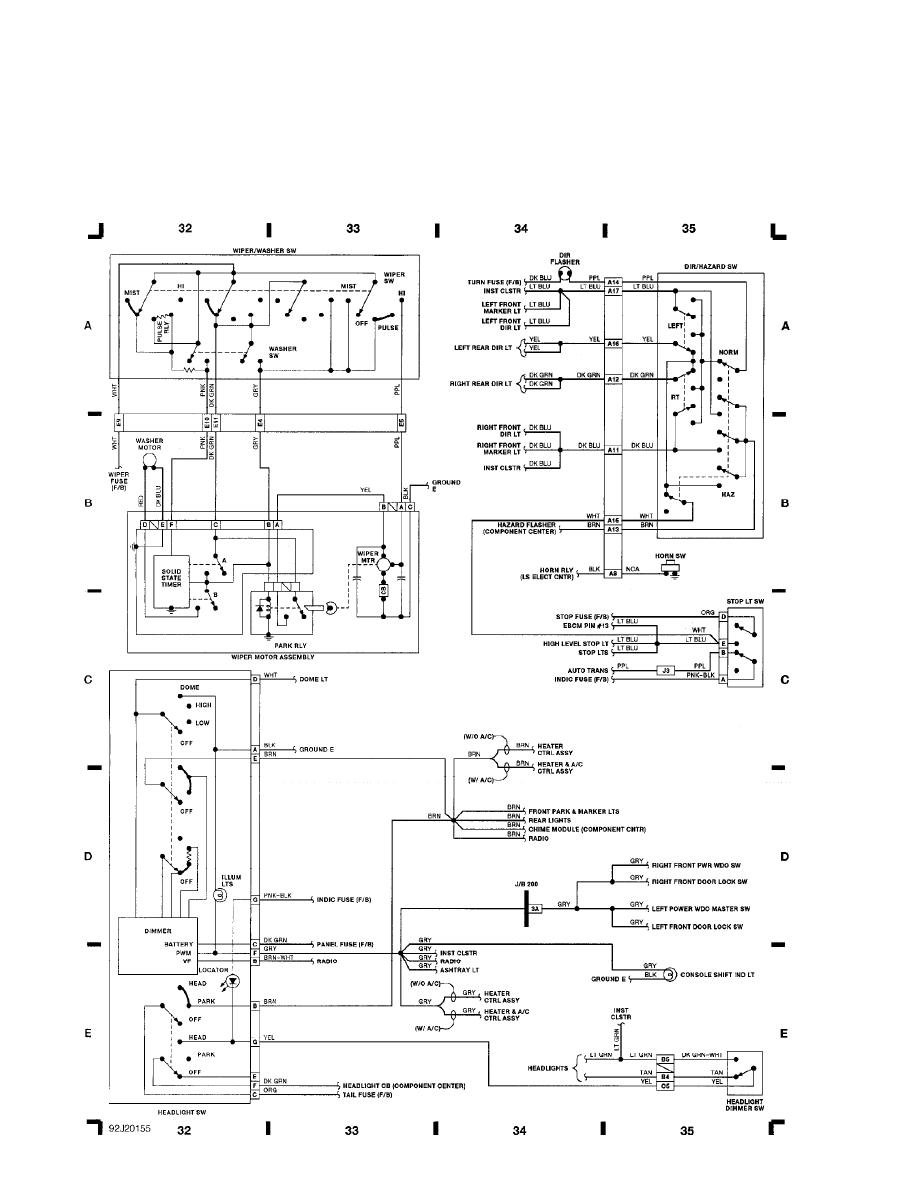

Fig. 9: Wipers, Headlight Switch Dir/Hazard Sw(Grid 32-35) (p. 9)

1992 Chevrolet Lumina

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, July 31, 2004 02:32PM

background image

WIRING DIAGRAMS

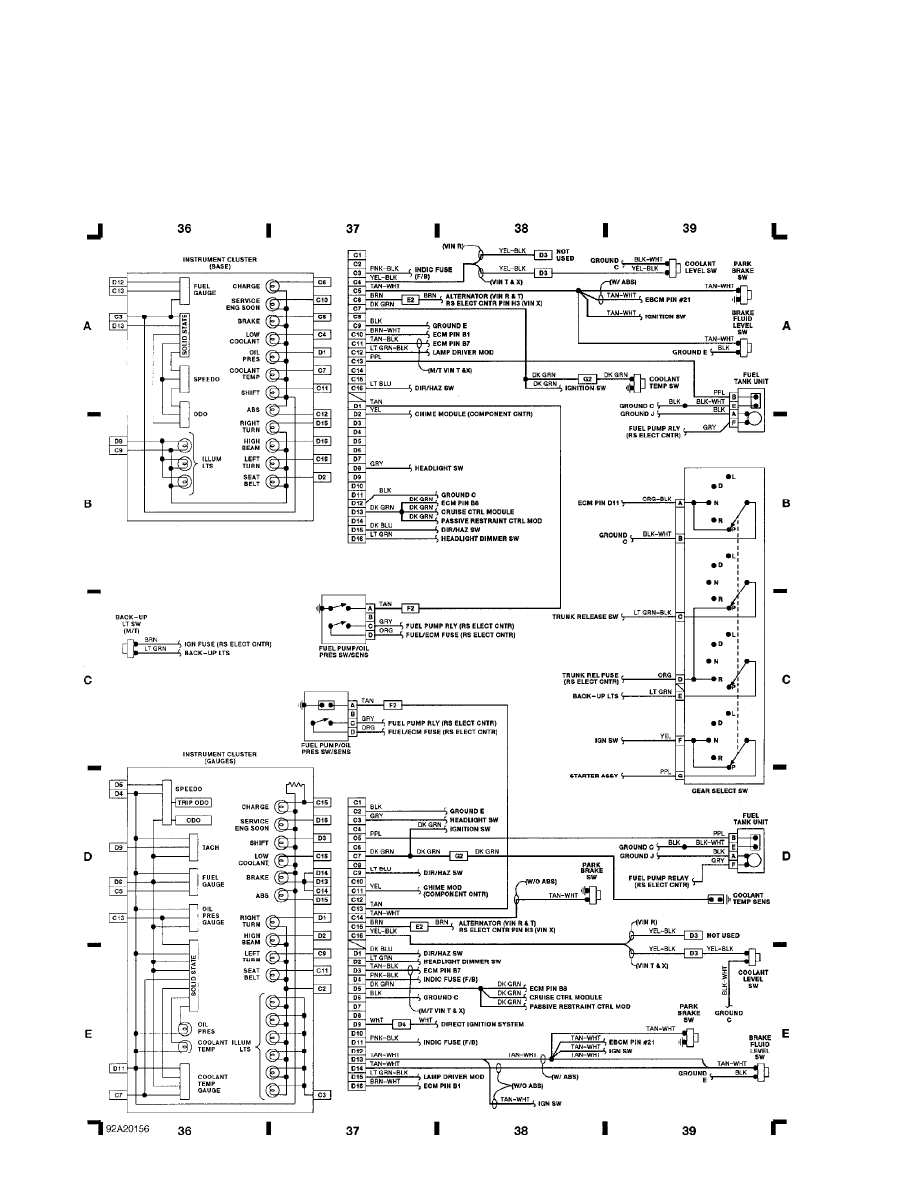

Fig. 10: Instrument Cluster, Gear Select Switch (Grid 36-39) (p. 10)

1992 Chevrolet Lumina

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, July 31, 2004 02:32PM

background image

WIRING DIAGRAMS

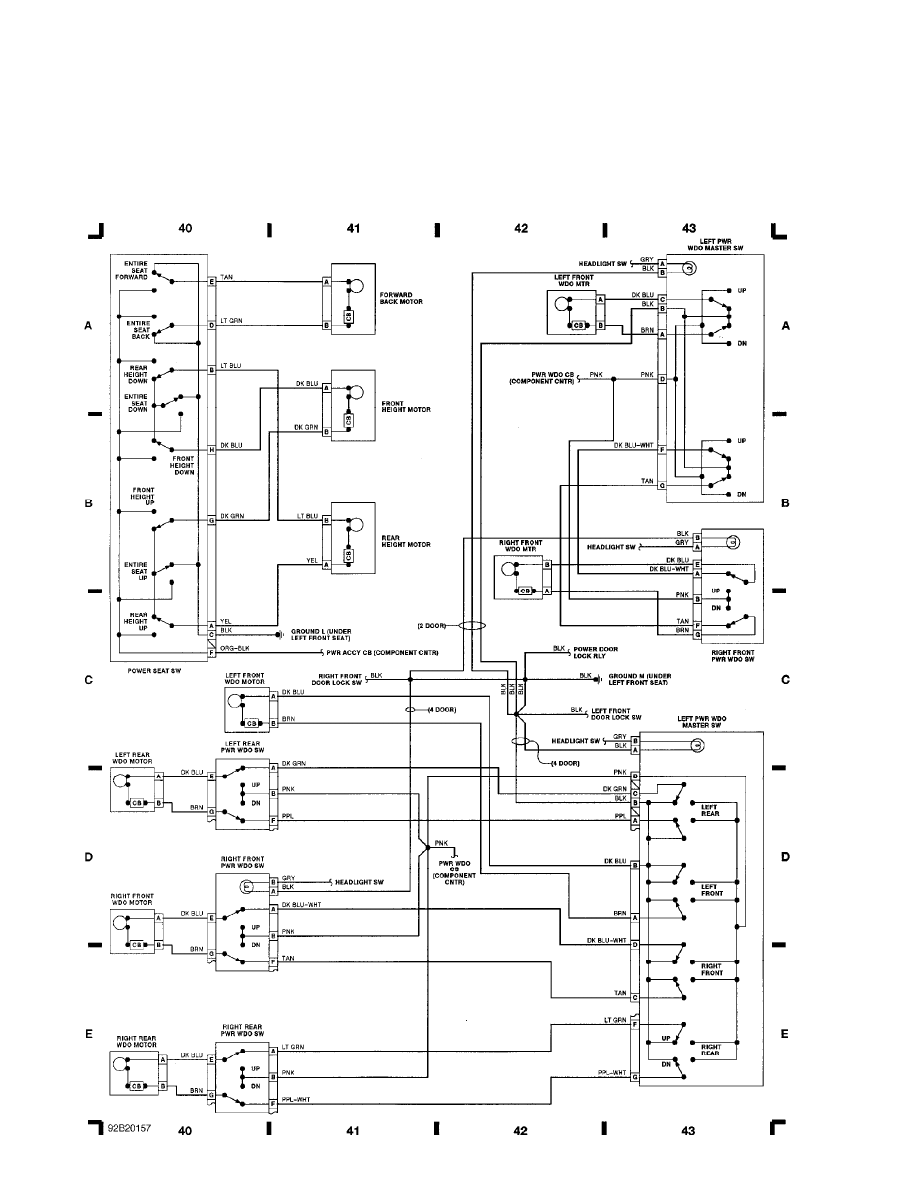

Fig. 11: Power Seat/Windows (Grid 40-43) (p. 11)

1992 Chevrolet Lumina

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, July 31, 2004 02:32PM

background image

WIRING DIAGRAMS

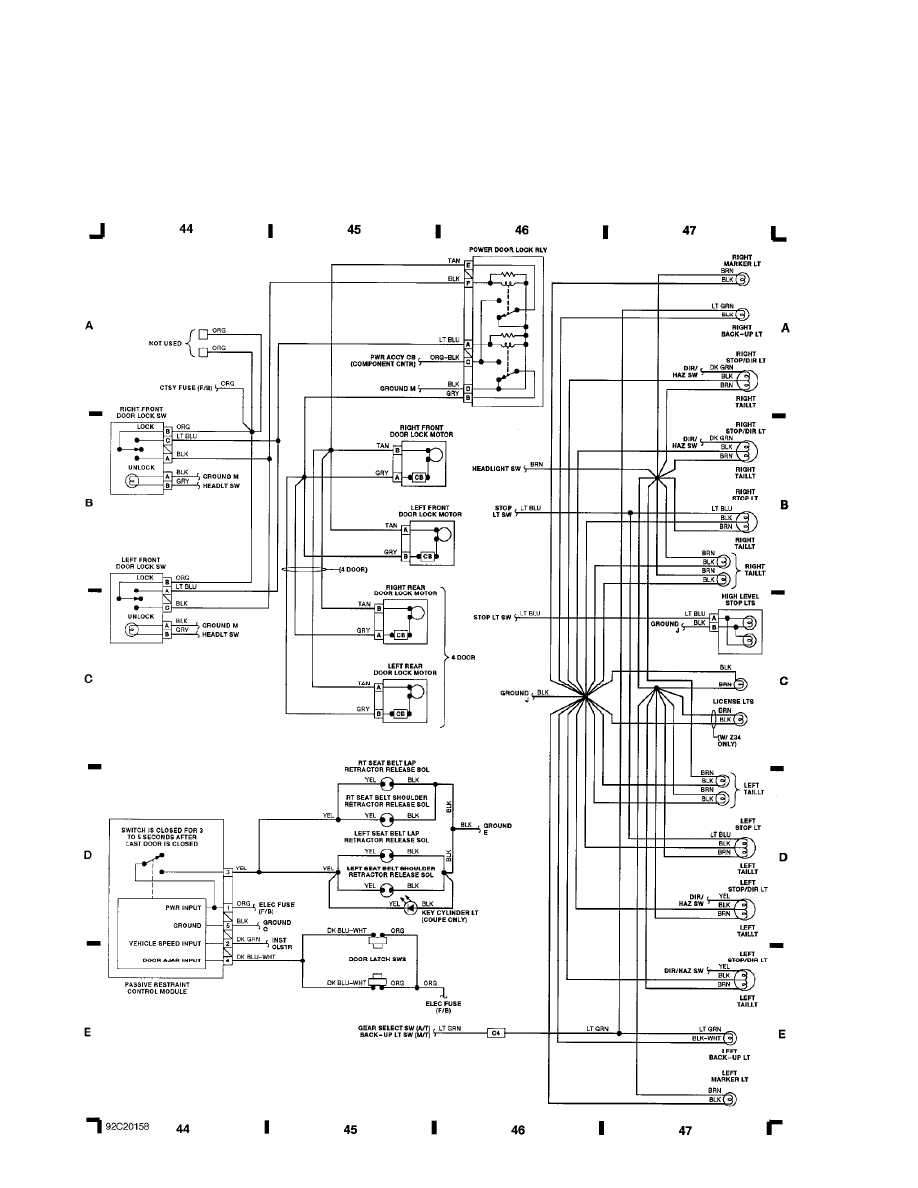

Fig. 12: Power Door, Passive Restraint, Taillights (Grid 44-47) (p. 12)

1992 Chevrolet Lumina

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, July 31, 2004 02:32PM
