WIRING DIAGRAMS

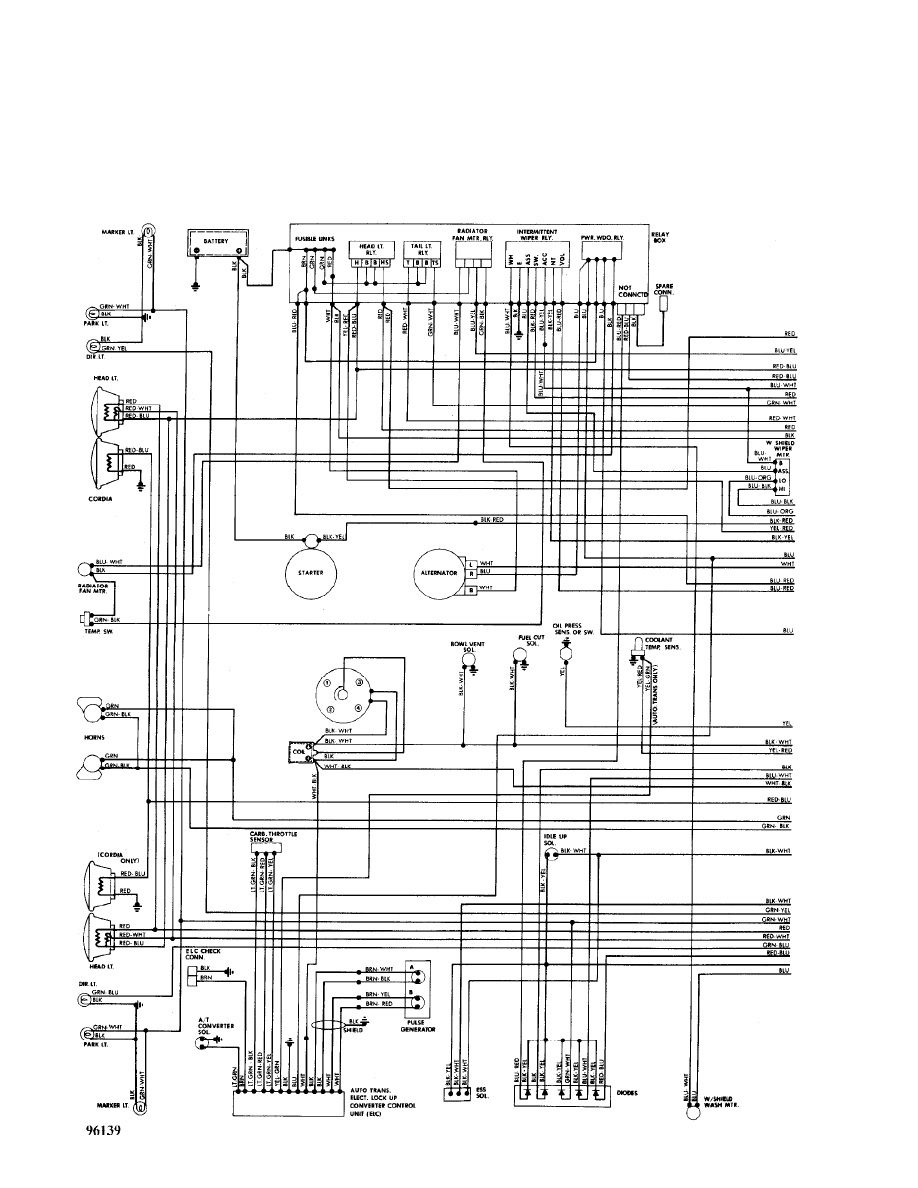

Fig. 1: Engine Compartment

1983 Mitsubishi Tredia

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 12:48PM

WIRING DIAGRAMS

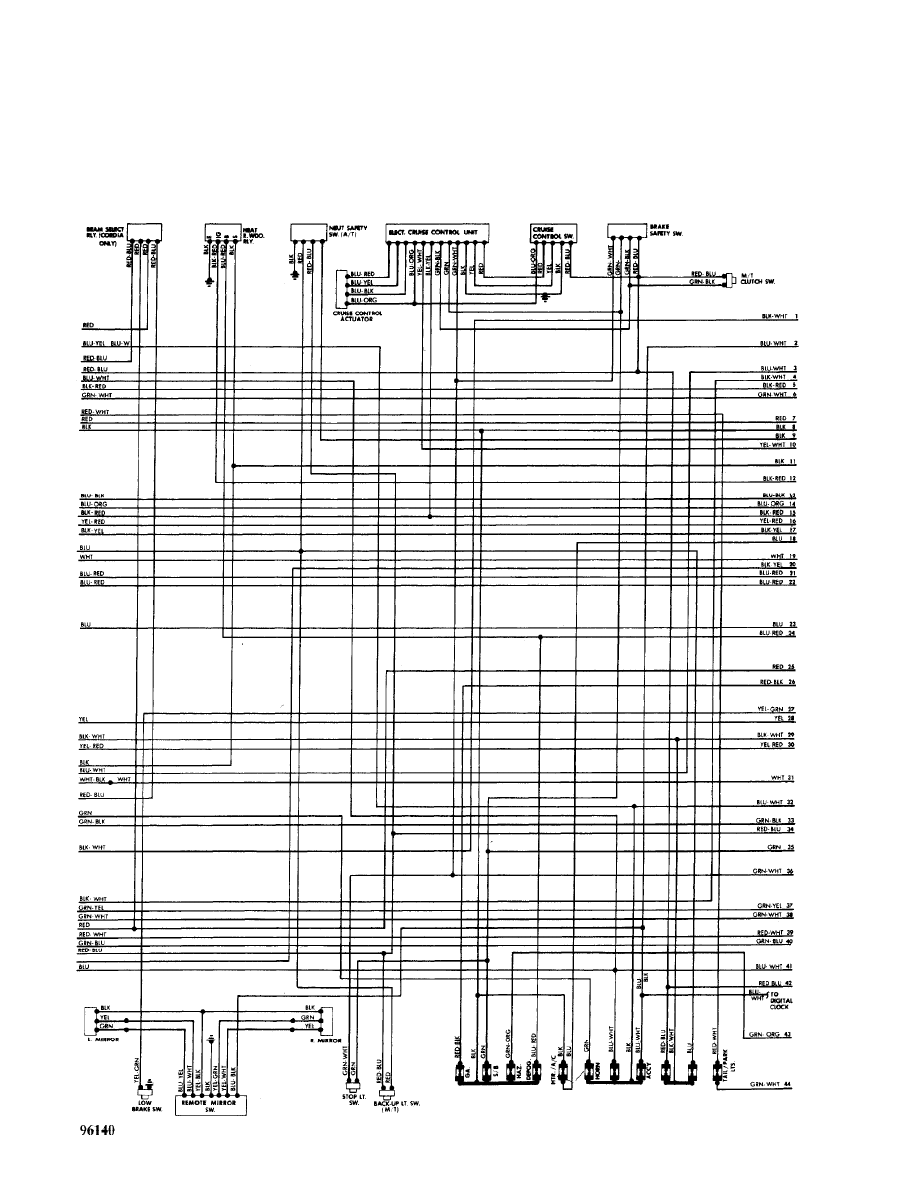

Fig. 2: Fuse Block & Underdash (p. 2)

1983 Mitsubishi Tredia

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 12:48PM

WIRING DIAGRAMS

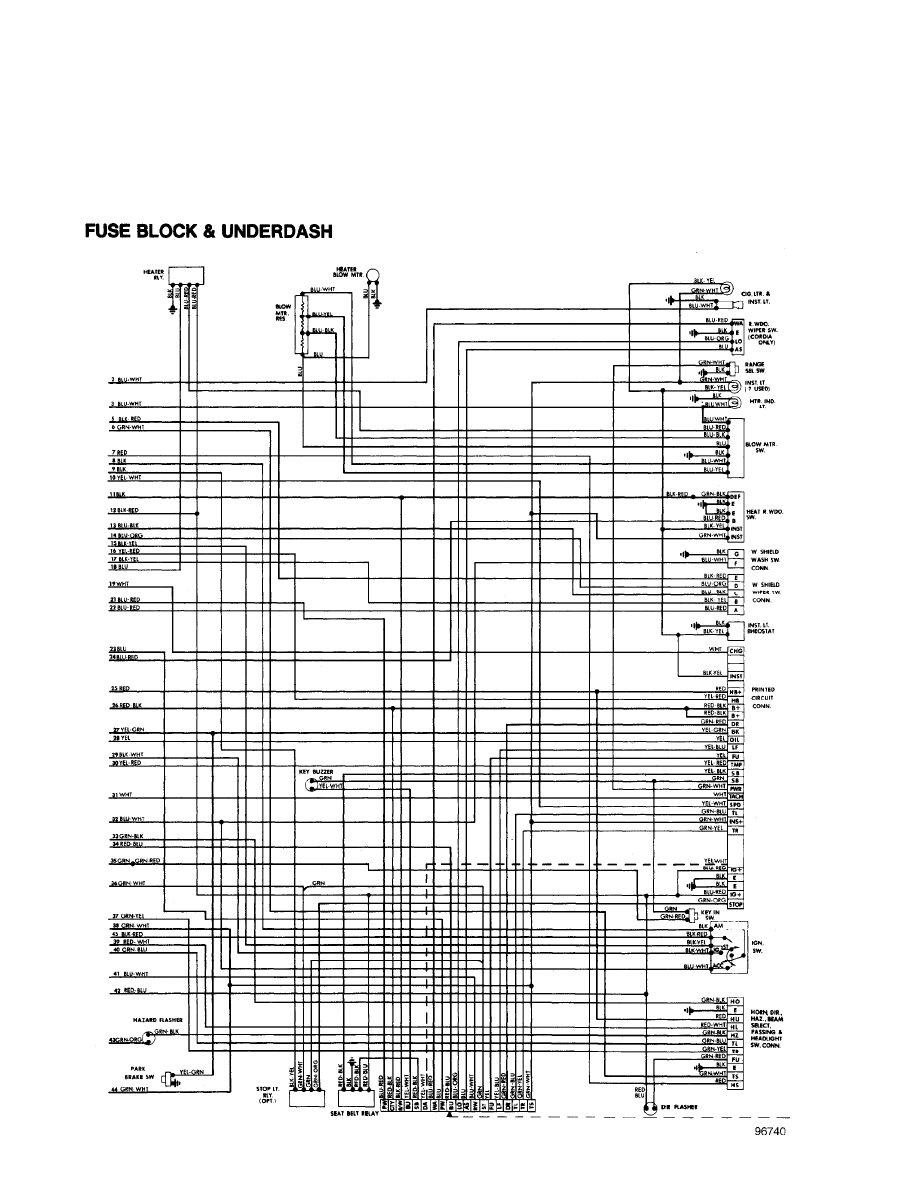

Fig. 3: Underdash (Cont.) & Instrument Panel (p. 3)

1983 Mitsubishi Tredia

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 12:48PM

WIRING DIAGRAMS

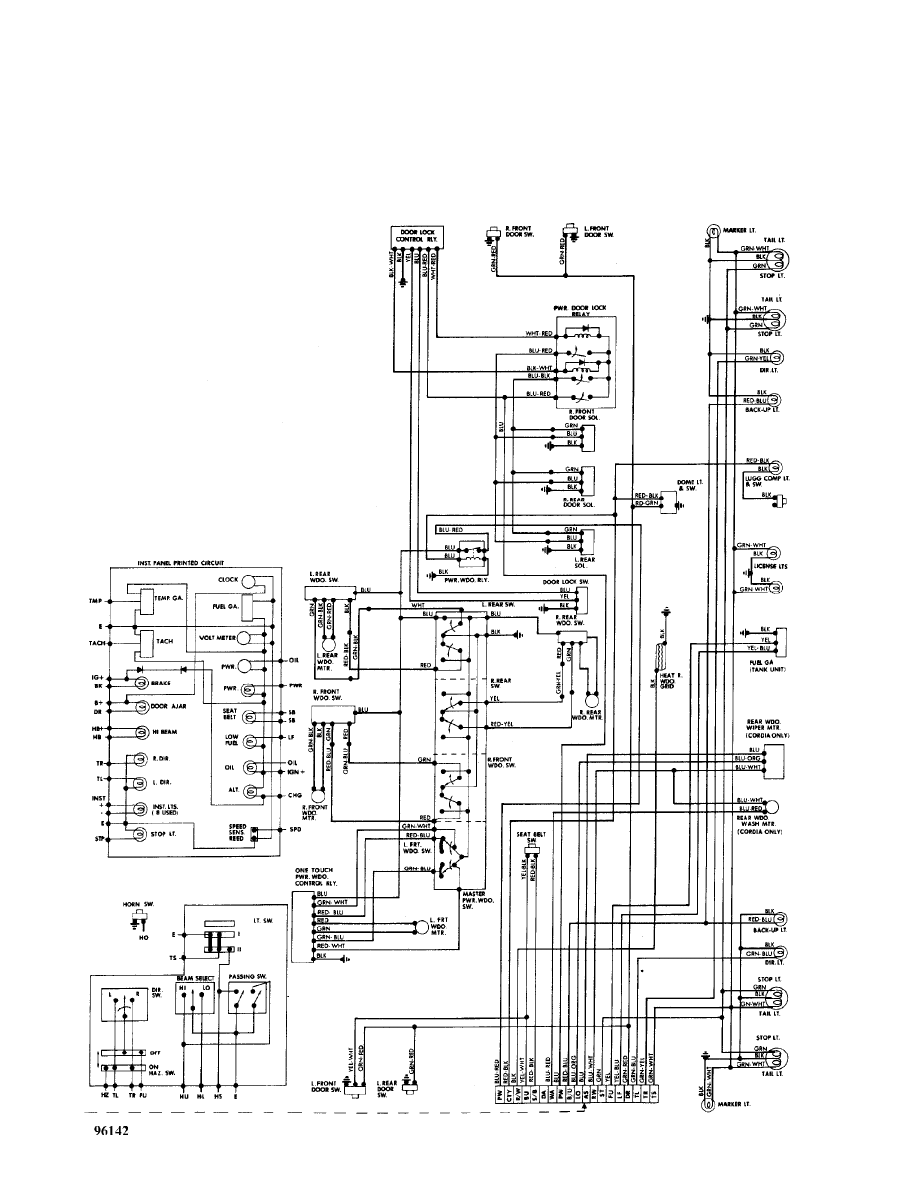

Fig. 4: Rear Compartment & Accessories (p. 4)

1983 Mitsubishi Tredia

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 12:48PM
