WIRING INFORMATION 1990 Ford Bronco

WIRE

WIRE COLOR

LOCATION

12V CONSTANT WIRE

YELLOW

Ignition Harness

12V IGNITION WIRE

RED/LT.GREEN

Ignition Harness

12V ACCESSORY WIRE

GRAY/YELLOW

Ignition Harness

STARTER WIRE

RED/LT.BLUE

Ignition Harness

PARKING LIGHTS (+)

BROWN

At Headlight Switch

POWER DOOR LOCK (5-wire reverse polarity,
test using driver’s door lock switch)

BLACK/ORANGE

At Harness In Passenger Kick Panel

POWER DOOR UNLOCK (5-wire reverse
polarity, test using driver’s door lock switch)

PINK/GREEN

At Harness In Passenger Kick Panel

DOOR TRIGGER/DOMELIGHT
SUPERVISION (+)

BLACK/LT.BLUE

At Courtesy Light Under Dash

BRAKE WIRE (+)

LT.GREEN

Harness In Driver’s Kick Panel Or Brake
Pedal Switch

TACHOMETER WIRE

TAN/YELLOW
WHITE/BLACK (Diesels)

At Ignition Coil
At Alternator

DIESEL WAIT-TO-START (-)

BLACK/PINK

Behind Instrument Cluster

HORN TRIGGER (-)

DARK BLUE

Harness At Steering Column

LEFT FRONT WINDOW UP

RED

At Driver Window Motor Inside Door

LEFT FRONT WINDOW DOWN

YELLOW

At Driver Window Motor Inside Door

RIGHT FRONT WINDOW UP

RED/BLACK

Harness In Driver’s Kick From Driver Door

RIGHT FRONT WINDOW DOWN

YELLOW/BLACK

Harness In Driver’s Kick From Driver Door


WIRING INFORMATION 1991 Ford Bronco

WIRE

WIRE COLOR

LOCATION

12V CONSTANT WIRE

YELLOW

Ignition Harness

12V IGNITION WIRE

RED/LT.GREEN

Ignition Harness

12V ACCESSORY WIRE

GRAY/YELLOW

Ignition Harness

STARTER WIRE

RED/LT.BLUE

Ignition Harness

PARKING LIGHTS (+)

BROWN

At Headlight Switch

POWER DOOR LOCK (5-wire reverse polarity,
test using driver’s door lock switch)

BLACK/ORANGE

At Harness In Passenger Kick Panel

POWER DOOR UNLOCK (5-wire reverse
polarity, test using driver’s door lock switch)

PINK/GREEN

At Harness In Passenger Kick Panel

DOOR TRIGGER/DOMELIGHT
SUPERVISION (+)

BLACK/LT.BLUE

At Courtesy Light Under Dash

BRAKE WIRE (+)

LT.GREEN

Harness In Driver’s Kick Panel Or Brake
Pedal Switch

TACHOMETER WIRE

TAN/YELLOW
WHITE/BLACK (Diesels)

At Ignition Coil
At Alternator

DIESEL WAIT-TO-START (-)

BLACK/PINK

Behind Instrument Cluster

HORN TRIGGER (-)

DARK BLUE

Harness At Steering Column

LEFT FRONT WINDOW UP

RED

At Driver Window Motor Inside Door

LEFT FRONT WINDOW DOWN

YELLOW

At Driver Window Motor Inside Door

RIGHT FRONT WINDOW UP

RED/BLACK

Harness In Driver’s Kick From Driver Door

RIGHT FRONT WINDOW DOWN

YELLOW/BLACK

Harness In Driver’s Kick From Driver Door

background image

Copyright 2002-2004 Triple S Customs

3

WIRING INFORMATION 1992 Ford Bronco

WIRE

WIRE COLOR

LOCATION

12V CONSTANT WIRE

YELLOW

Ignition Harness

12V IGNITION WIRE

RED/LT.GREEN

Ignition Harness

12V ACCESSORY WIRE

GRAY/YELLOW

Ignition Harness

STARTER WIRE

RED/LT.BLUE

Ignition Harness

PARKING LIGHTS (+)

BROWN

At Headlight Switch

POWER DOOR LOCK (5-wire reverse polarity,
test using driver’s door lock switch)

PINK/YELLOW

At Harness In Passenger Kick Panel

POWER DOOR UNLOCK (5-wire reverse
polarity, test using driver’s door lock switch)

PINK/GREEN

At Harness In Passenger Kick Panel

DOOR TRIGGER/DOMELIGHT
SUPERVISION (+)

BLACK/LT.BLUE

At Courtesy Light Under Dash

BRAKE WIRE (+)

LT.GREEN

Harness In Driver’s Kick Panel Or Brake
Pedal Switch

TACHOMETER WIRE

TAN/YELLOW
WHITE/BLACK (Diesels)

At Ignition Coil
At Alternator

DIESEL WAIT-TO-START (-)

BLACK/PINK

Behind Instrument Cluster

HORN TRIGGER (-)

DARK BLUE

Harness At Steering Column

LEFT FRONT WINDOW UP

RED

At Driver Window Motor Inside Door

LEFT FRONT WINDOW DOWN

YELLOW

At Driver Window Motor Inside Door

RIGHT FRONT WINDOW UP

RED/BLACK

Harness In Driver’s Kick From Driver Door

RIGHT FRONT WINDOW DOWN

YELLOW/BLACK

Harness In Driver’s Kick From Driver Door


WIRING INFORMATION 1993 Ford Bronco

WIRE

WIRE COLOR

LOCATION

12V CONSTANT WIRE

YELLOW

Ignition Harness

12V IGNITION WIRE

RED/LT.GREEN

Ignition Harness

12V ACCESSORY WIRE

GRAY/YELLOW

Ignition Harness

STARTER WIRE

RED/LT.BLUE

Ignition Harness

PARKING LIGHTS (+)

BROWN

At Headlight Switch

POWER DOOR LOCK (5-wire reverse polarity,
test using driver’s door lock switch)

PINK/YELLOW

At Harness In Passenger Kick Panel

POWER DOOR UNLOCK (5-wire reverse
polarity, test using driver’s door lock switch)

PINK/GREEN

At Harness In Passenger Kick Panel

DOOR TRIGGER/DOMELIGHT
SUPERVISION (+)

BLACK/LT.BLUE

At Courtesy Light Under Dash

BRAKE WIRE (+)

LT.GREEN

Harness In Driver’s Kick Panel Or Brake
Pedal Switch

TACHOMETER WIRE

TAN/YELLOW
WHITE/BLACK (Diesels)

At Ignition Coil
At Alternator

DIESEL WAIT-TO-START (-)

BLACK/PINK

Behind Instrument Cluster

HORN TRIGGER (-)

DARK BLUE

Harness At Steering Column

LEFT FRONT WINDOW UP

RED

At Driver Window Motor Inside Door

LEFT FRONT WINDOW DOWN

YELLOW

At Driver Window Motor Inside Door

RIGHT FRONT WINDOW UP

RED/BLACK

Harness In Driver’s Kick From Driver Door

RIGHT FRONT WINDOW DOWN

YELLOW/BLACK

Harness In Driver’s Kick From Driver Door

background image

Copyright 2002-2004 Triple S Customs

4

WIRING INFORMATION 1994 Ford Bronco

WIRE

WIRE COLOR

LOCATION

12V CONSTANT WIRE

YELLOW

Ignition Harness

12V IGNITION WIRE

RED/LT.GREEN

Ignition Harness

12V ACCESSORY WIRE

GRAY/YELLOW

Ignition Harness

SECOND ACCESSORY WIRE

BLACK/GREEN

Ignition Harness

THIRD ACCESSORY WIRE

GRAY/YELLOW (18gauge)

Ignition Harness

STARTER WIRE

RED/LT.BLUE

Ignition Harness

PARKING LIGHTS (+)

BROWN

At Headlight Switch

POWER DOOR LOCK

PINK/YELLOW

Black Connector In Passenger Kick Panel

POWER DOOR UNLOCK

PINK/GREEN

Black Connector In Passenger Kick Panel

Door locks on models with OEM keyless entry: negative trigger, models without OEM keyless entry: 5-wire reverse polarity
DOOR TRIGGER/DOMELIGHT
SUPERVISION (+)

BLACK/LT.BLUE

Gray Connector In Driver’s Kick Panel

BRAKE WIRE (+)

LT.GREEN

Black Connector Left Of Steering Column

TACHOMETER WIRE

TAN/YELLOW

At Ignition Coil

DIESEL TACHOMETER WIRE

WHITE/BLACK

At Harness Along Firewall By Brake Pedal

DIESEL WAIT-TO-START (-)

BLACK/PINK

Behind Instrument Cluster

HORN TRIGGER (-)

DARK BLUE

Black Connector At Steering Column

LEFT FRONT WINDOW UP

RED

At Driver Window Motor Inside Door

LEFT FRONT WINDOW DOWN

YELLOW

At Driver Window Motor Inside Door

RIGHT FRONT WINDOW UP

RED/BLACK

Harness In Driver’s Kick From Driver Door

RIGHT FRONT WINDOW DOWN

YELLOW/BLACK

Harness In Driver’s Kick From Driver Door

background image

Copyright 2002-2004 Triple S Customs

5

WIRING INFORMATION 1995 Ford Bronco

WIRE

WIRE COLOR

LOCATION

12V CONSTANT WIRE

YELLOW

Ignition Harness

12V IGNITION WIRE

RED/LT.GREEN

Ignition Harness

12V ACCESSORY WIRE

GRAY/YELLOW

Ignition Harness

SECOND ACCESSORY WIRE

BLACK/GREEN

Ignition Harness

THIRD ACCESSORY WIRE

GRAY/YELLOW (18gauge)

Ignition Harness

STARTER WIRE

RED/LT.BLUE

Ignition Harness

PARKING LIGHTS (+)

BROWN

At Headlight Switch

POWER DOOR LOCK

PINK/YELLOW

Black Connector In Passenger Kick Panel

POWER DOOR UNLOCK

PINK/GREEN

Black Connector In Passenger Kick Panel

Door locks on models with OEM keyless entry: negative trigger, models without OEM keyless entry: 5-wire reverse polarity
DOOR TRIGGER/DOMELIGHT
SUPERVISION (+)

BLACK/LT.BLUE

Gray Connector In Driver’s Kick Panel

BRAKE WIRE (+)

LT.GREEN

Black Connector Left Of Steering Column

TACHOMETER WIRE

TAN/YELLOW

At Ignition Coil

DIESEL TACHOMETER WIRE

WHITE/BLACK

At Harness Along Firewall By Brake Pedal

DIESEL WAIT-TO-START (-)

BLACK/PINK

Behind Instrument Cluster

HORN TRIGGER (-)

DARK BLUE

Black Connector At Steering Column

LEFT FRONT WINDOW UP

RED

At Driver Window Motor Inside Door

LEFT FRONT WINDOW DOWN

YELLOW

At Driver Window Motor Inside Door

RIGHT FRONT WINDOW UP

RED/BLACK

Harness In Driver’s Kick From Driver Door

RIGHT FRONT WINDOW DOWN

YELLOW/BLACK

Harness In Driver’s Kick From Driver Door

background image

Copyright 2002-2004 Triple S Customs

6

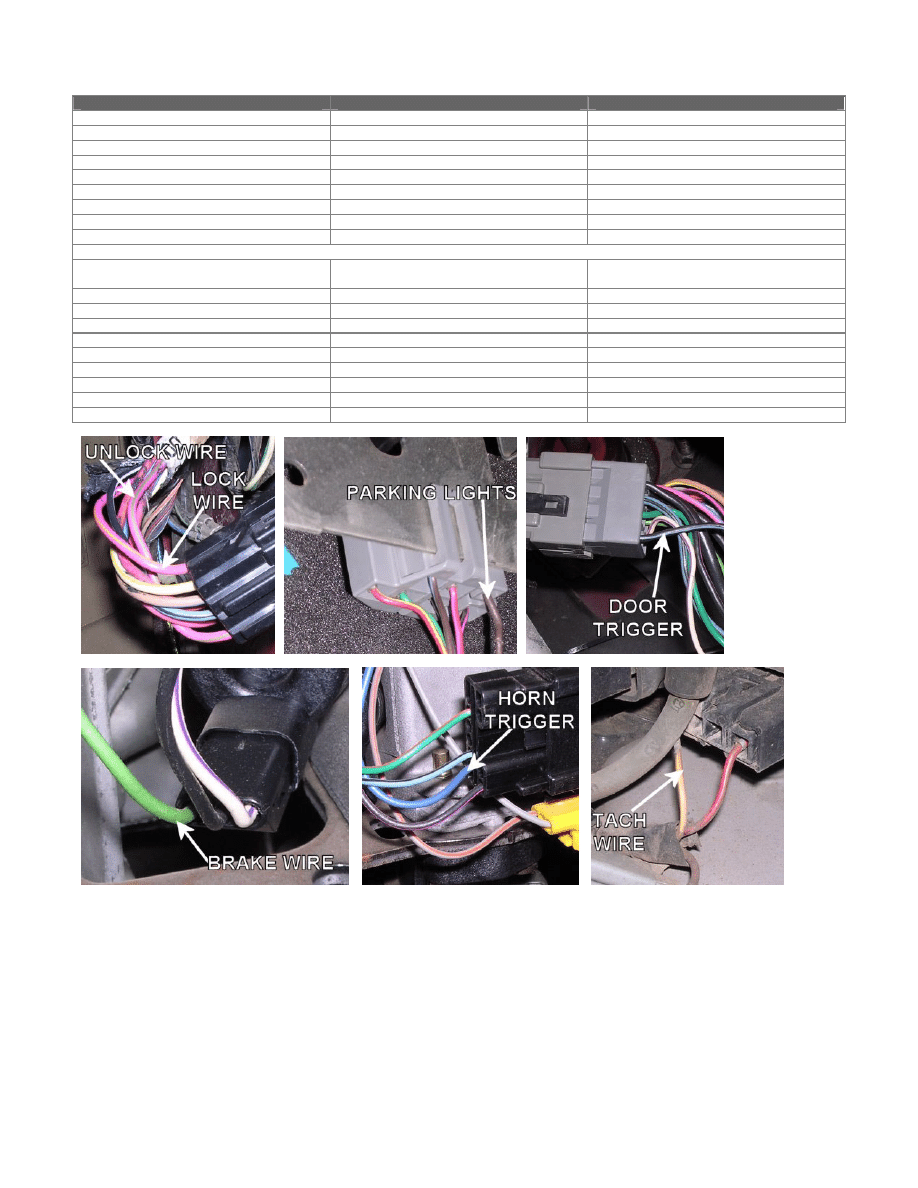

WIRING INFORMATION 1996 Ford Bronco

WIRE

WIRE COLOR

LOCATION

12V CONSTANT WIRE

YELLOW

Ignition Harness

12V IGNITION WIRE

RED/LT.GREEN

Ignition Harness

12V ACCESSORY WIRE

GRAY/YELLOW

Ignition Harness

SECOND ACCESSORY WIRE

BLACK/GREEN

Ignition Harness

THIRD ACCESSORY WIRE

GRAY/YELLOW (18gauge)

Ignition Harness

STARTER WIRE

RED/LT.BLUE

Ignition Harness

PARKING LIGHTS (+)

BROWN

At Headlight Switch

POWER DOOR LOCK

PINK/YELLOW

Black Connector In Passenger Kick Panel

POWER DOOR UNLOCK

PINK/GREEN

Black Connector In Passenger Kick Panel

Door locks on models with OEM keyless entry: negative trigger, models without OEM keyless entry: 5-wire reverse polarity
DOOR TRIGGER/DOMELIGHT
SUPERVISION (+)

BLACK/LT.BLUE

Gray Connector In Driver’s Kick Panel

BRAKE WIRE (+)

LT.GREEN

Black Connector Left Of Steering Column

TACHOMETER WIRE

TAN/YELLOW

At Ignition Coil

DIESEL TACHOMETER WIRE

WHITE/BLACK

At Harness Along Firewall By Brake Pedal

DIESEL WAIT-TO-START (-)

BLACK/PINK

Behind Instrument Cluster

HORN TRIGGER (-)

DARK BLUE

Black Connector At Steering Column

LEFT FRONT WINDOW UP

RED

At Driver Window Motor Inside Door

LEFT FRONT WINDOW DOWN

YELLOW

At Driver Window Motor Inside Door

RIGHT FRONT WINDOW UP

RED/BLACK

Harness In Driver’s Kick From Driver Door

RIGHT FRONT WINDOW DOWN

YELLOW/BLACK

Harness In Driver’s Kick From Driver Door
