Enclosure ...............................................................................Magnetically shielded type

Woofer ..............................................................................100 mm, (4 in) cone type x2

Tweeter .....................................................................................................linaeum type

Impedance ...................................................................................................................6

Ω

Maximum Input Power ............................................................................................70W

Sensitivity .................................................................................................87dB/W at 1m

Frequency Response ..........................................................................70 Hz ~ 20,000 Hz

Dimensions .....................................................................................W: 410mm (16-1/8")

H: 160mm (6-5/16")

D: 235mm (9-1/4")

Net Weight ..................................................................................................4.6kg (10.1lb)

Accessories ........................................................................................Speaker cord 3mx1

Note:

KENWOOD follows a policy of continuous advancements in development. For this

reason specifications may be changed without notice.

2-WAY 3-SPEAKER SYSTEM

CS-V720-W

SERVICE MANUAL

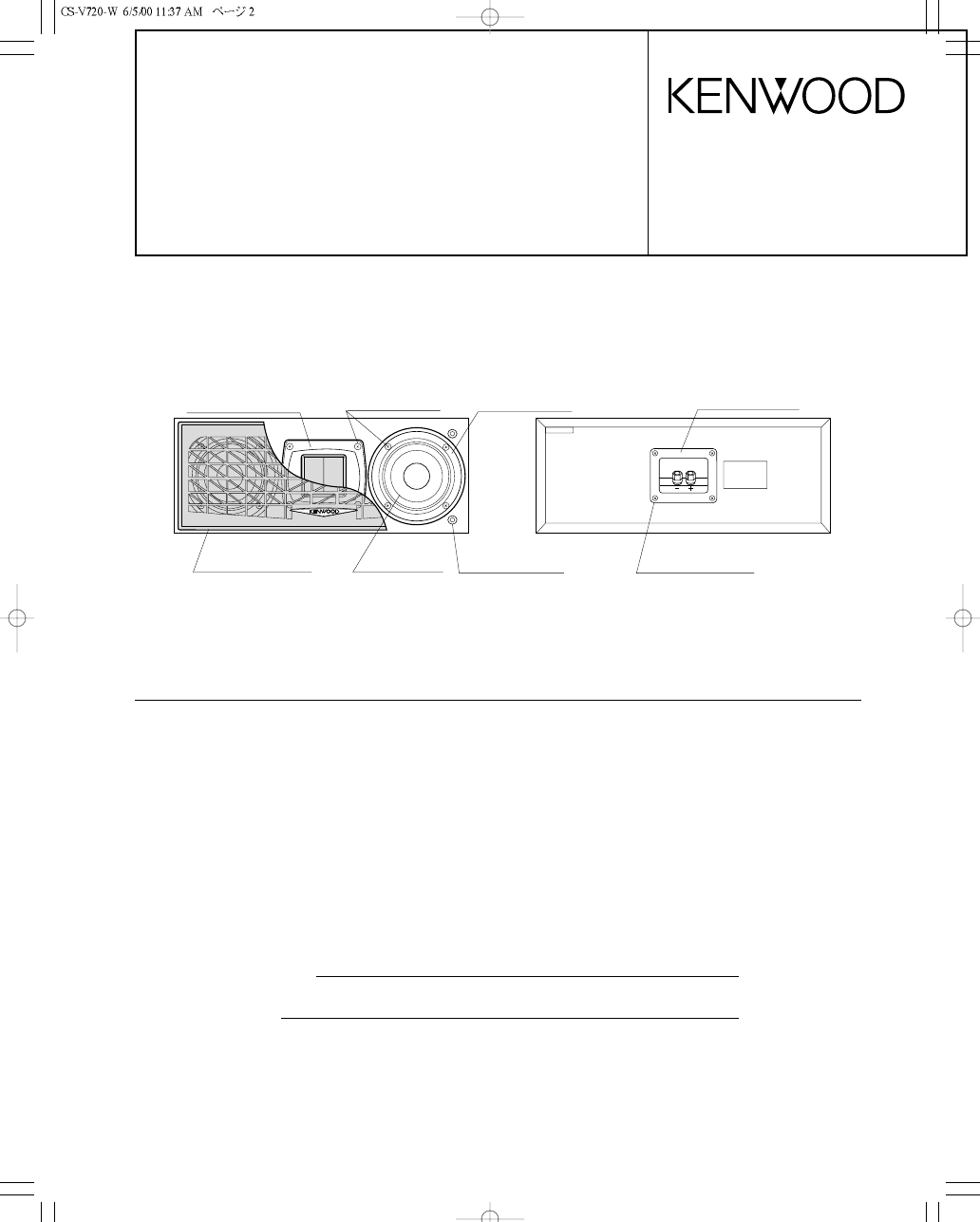

EXTERNAL VIEW

SPECIFICATIONS

Woofer
(T10-0890-15)x2

Grille ass’y
(B06-1504-03)

Binding post
(E21-0906-05)

Binding head
tapping screw
(N44-4020-45)x12



2000-5/B51-5634-00 (Z/K)293

Tweeter
(T03-0766-05)

Dressing panel
(A21-3231-03)

Flat head
tapping screw
(N47-3520-45)x4

Grille holder
(J19-3976-08)

-

A21-3231-03

DRESSING PANEL

-

*

B06-1504-03

GRILLE ASSY

-

*

B61-1076-00

INSTRUCTION MANUAL

-

E21-0906-05

BINDING POST

-

E30-5406-08

SPEAKER CORD

-

H10-8057-08

POLYSTYRENE FOAMED FIXTURE

-

H10-8059-08

POLYSTYRENE FOAMED FIXTURE

-

H25-1047-08

PROTECTION BAG

-

*

H51-1516-08

ITEM CARTON CASE

-

J19-3976-08

GRILLE HOLDER

SP1

T10-0890-15

WOOFER

SP2

T03-0766-05

TWEETER

CS-V720-W

PARTS LIST

Desti-

nation

Re-

marks

Ref. No.

Address

New
Parts

Parts No.

Description

∗

New Parts

Parts without Parts No. are not supplied.
Les articles non mentionnes dans le Parts No. ne sont pas fournis.
Teile ohne Parts No. werden nicht geliefert.

SP2
TWEETER

INPUT

SP1
WOOFER

BLK

SP1
WOOFER

BLK

BLU

BLU

BLK

RED

;

#

. 205 FASTON

;

#

. 110 FASTON

+

-

+

-

+

-

+

-

CS-V720-W

L: Scandinavia

K: USA

P: Canada

R: Mexico

C: China

I: Malaysia

Y: PX(For East Hawaii) T: England

E: Europe

G: Germany

V: China(Shanghai)

Y: AAFES(Europe)

X: Australia

Q: Russia

H: Korea

M: Other Areas

indicates safety critical components.

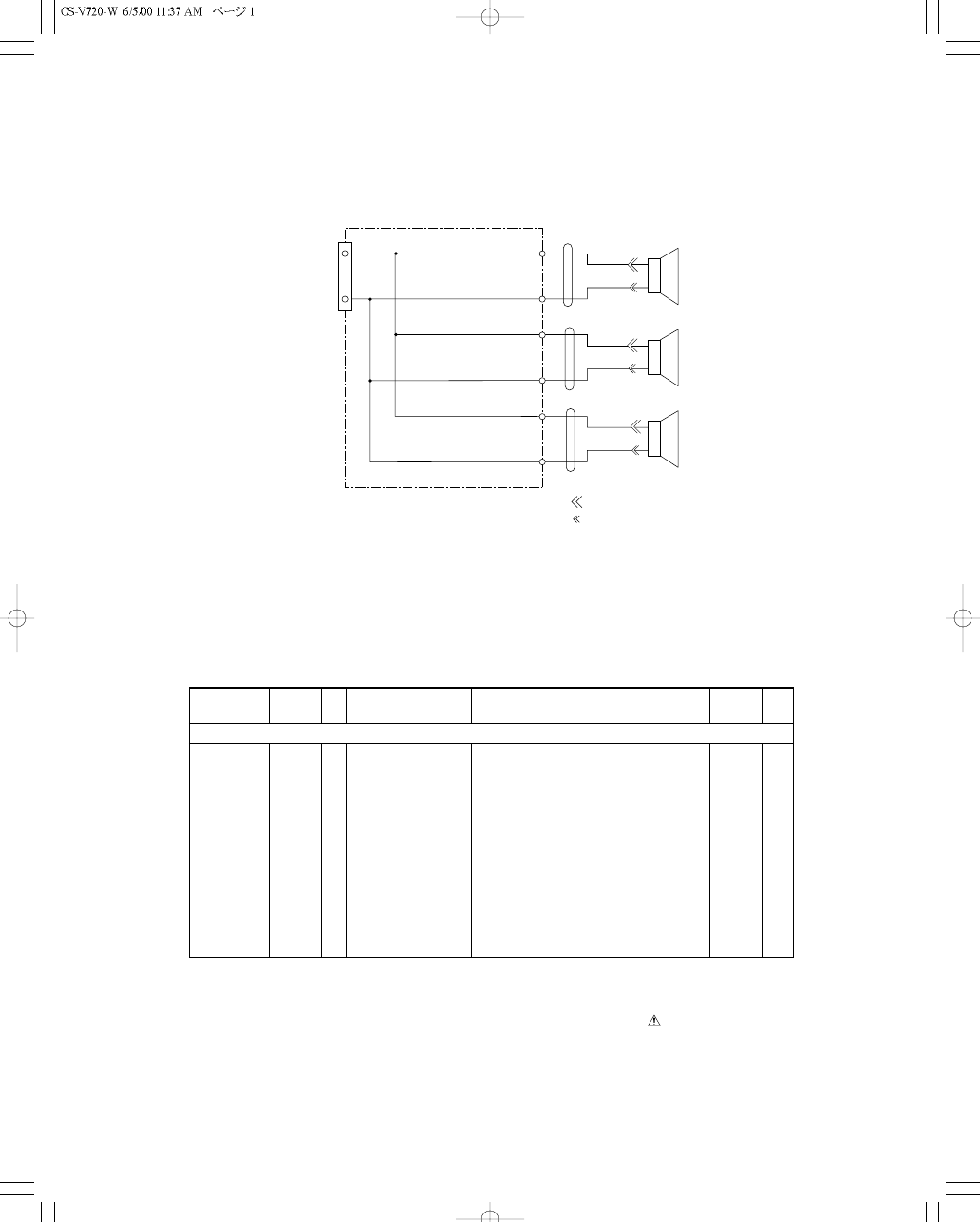

NETWORK UNIT/PARTS LIST

NETWORK UNIT
