DODGE CARAVAN 1991

background image

SYSTEM WIRING DIAGRAMS

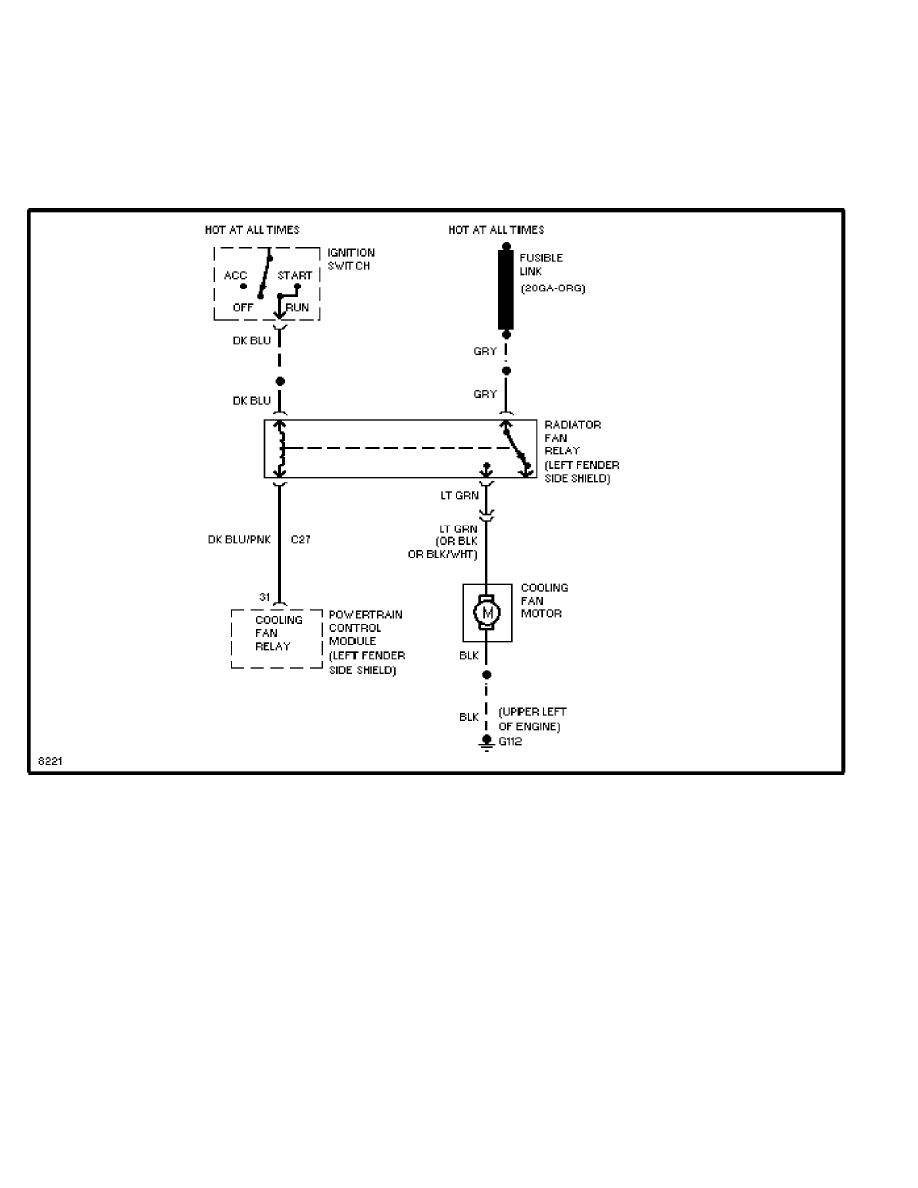

Cooling Fan Circuit

1991 Dodge Caravan

For cdr101@wp.pl

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, May 24, 2005 03:28PM

background image

SYSTEM WIRING DIAGRAMS

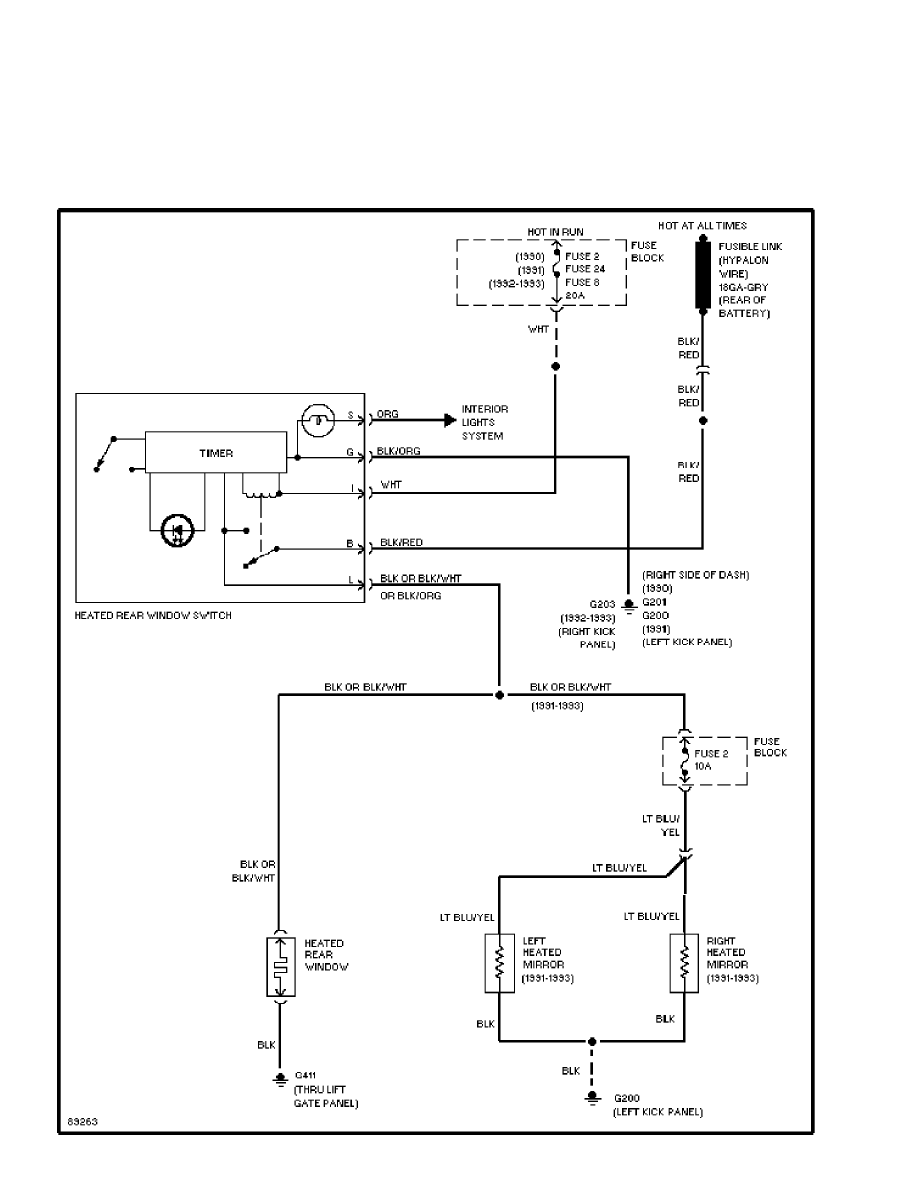

Defogger Circuit (p. 2)

1991 Dodge Caravan

For cdr101@wp.pl

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, May 24, 2005 03:28PM

background image

SYSTEM WIRING DIAGRAMS

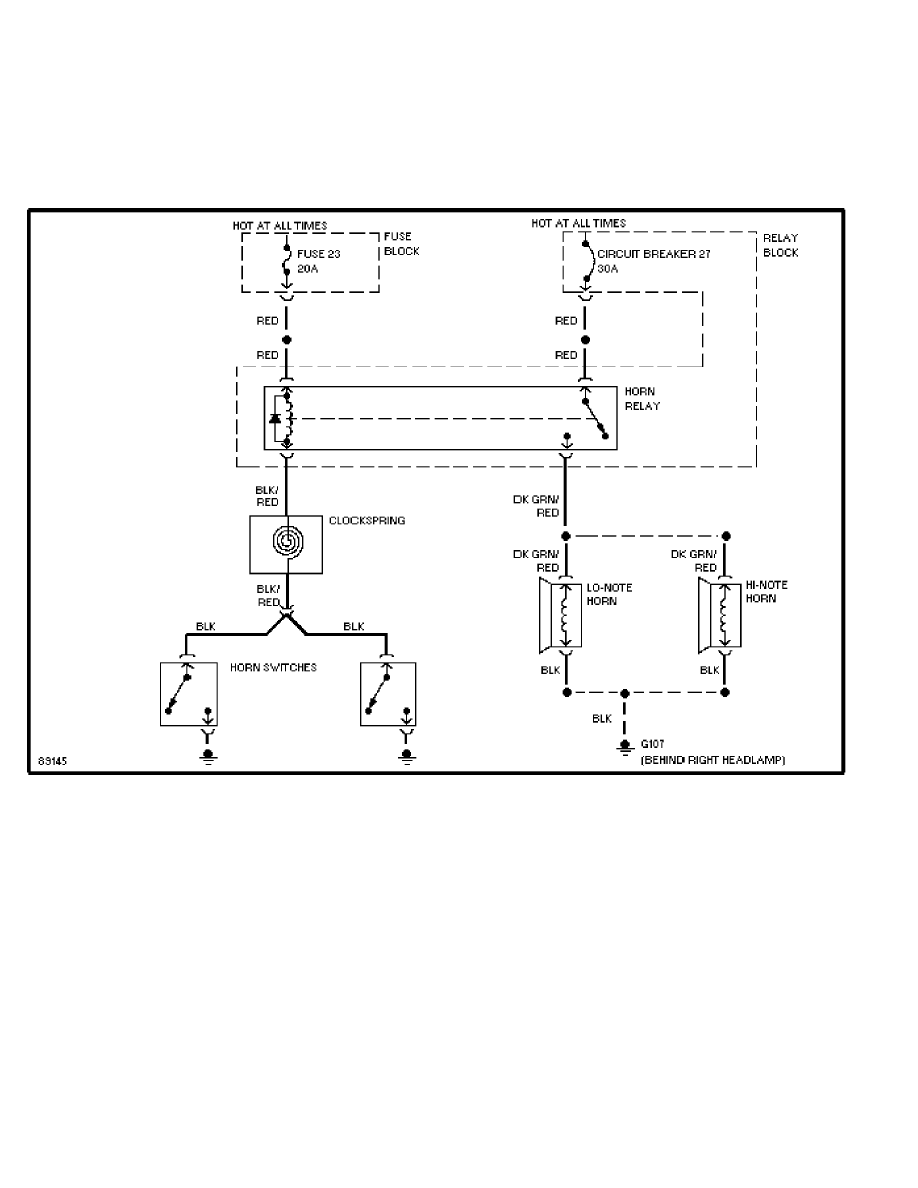

Horn Circuit (p. 3)

1991 Dodge Caravan

For cdr101@wp.pl

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, May 24, 2005 03:28PM

background image

SYSTEM WIRING DIAGRAMS

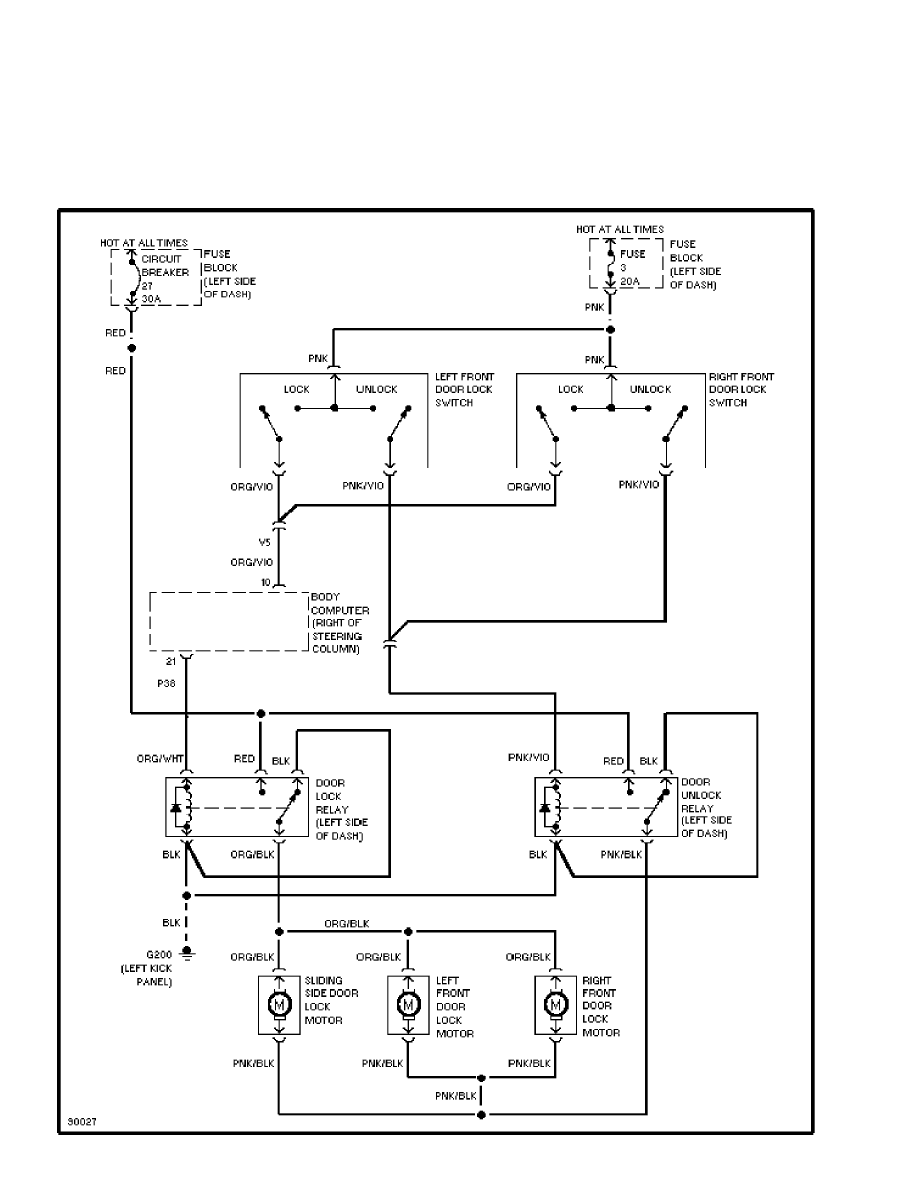

Power Door Lock Circuit (p. 4)

1991 Dodge Caravan

For cdr101@wp.pl

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, May 24, 2005 03:28PM

background image

SYSTEM WIRING DIAGRAMS

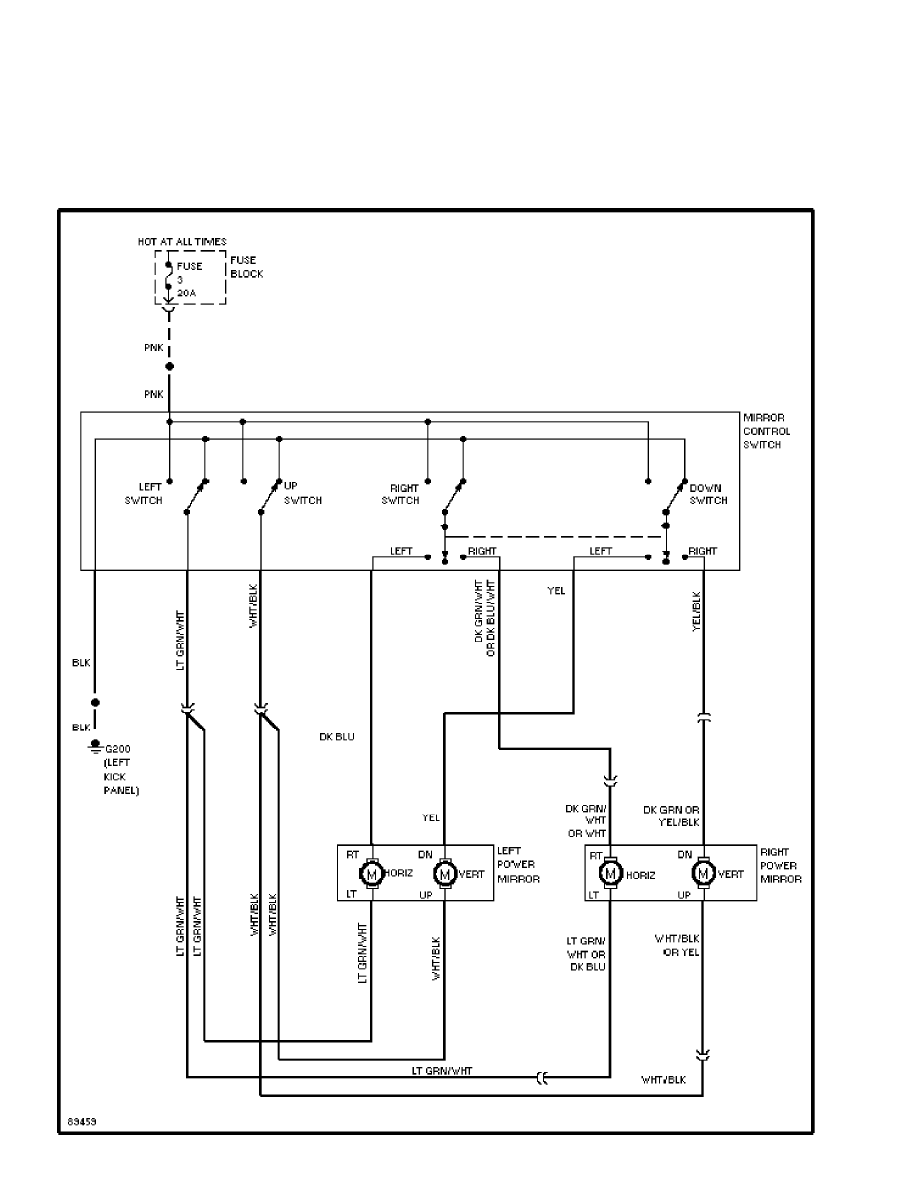

Power Mirror Circuit (p. 5)

1991 Dodge Caravan

For cdr101@wp.pl

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, May 24, 2005 03:28PM

background image

SYSTEM WIRING DIAGRAMS

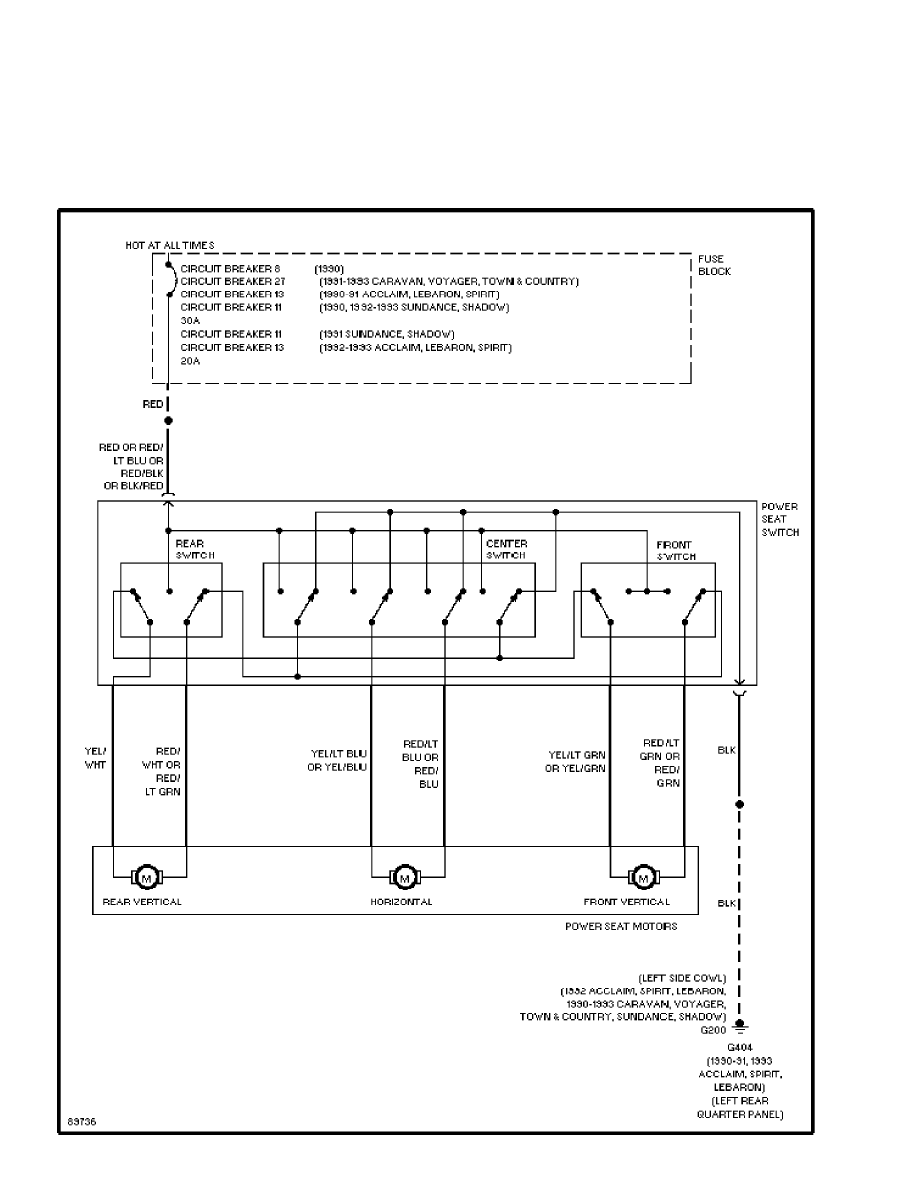

Power Seat Circuit (p. 6)

1991 Dodge Caravan

For cdr101@wp.pl

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, May 24, 2005 03:28PM

background image

SYSTEM WIRING DIAGRAMS

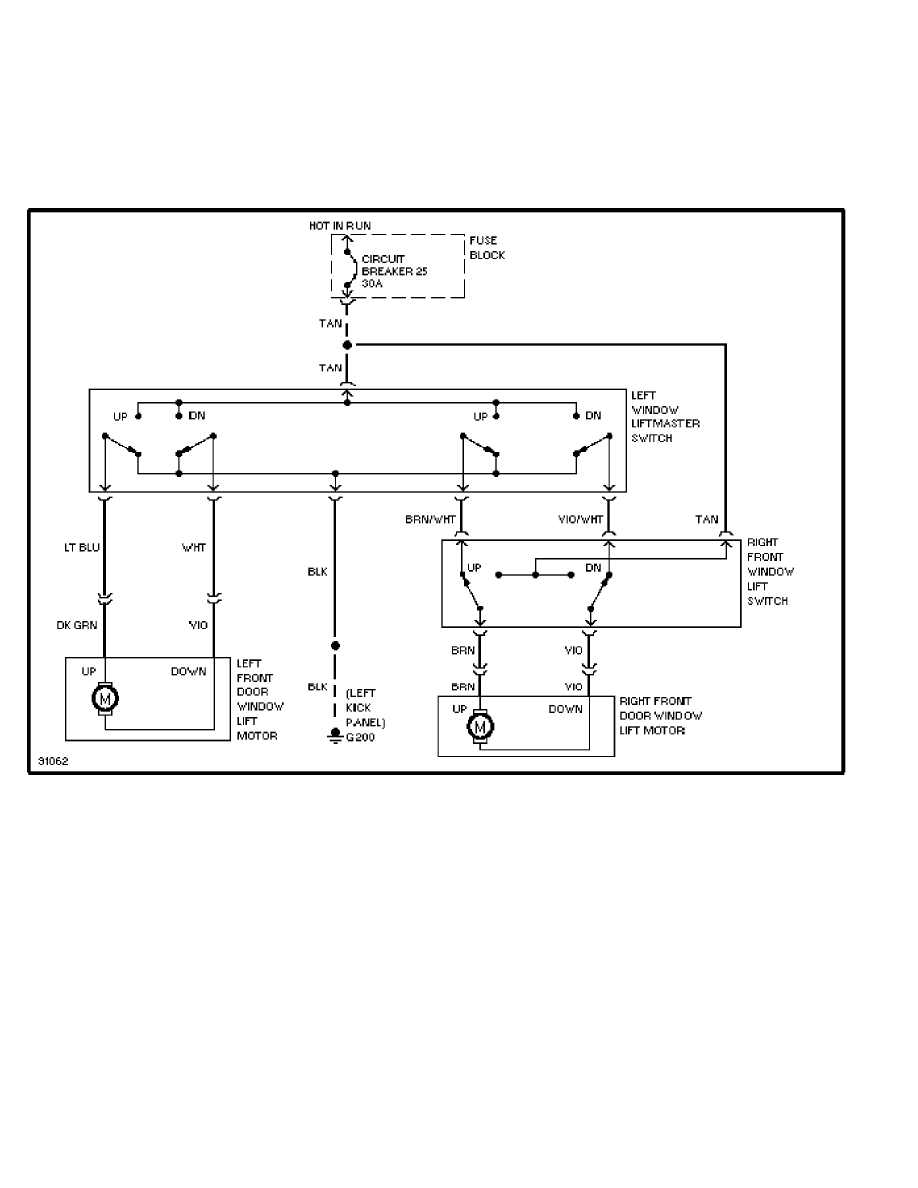

Power Windows Circuit (p. 7)

1991 Dodge Caravan

For cdr101@wp.pl

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, May 24, 2005 03:28PM

background image

SYSTEM WIRING DIAGRAMS

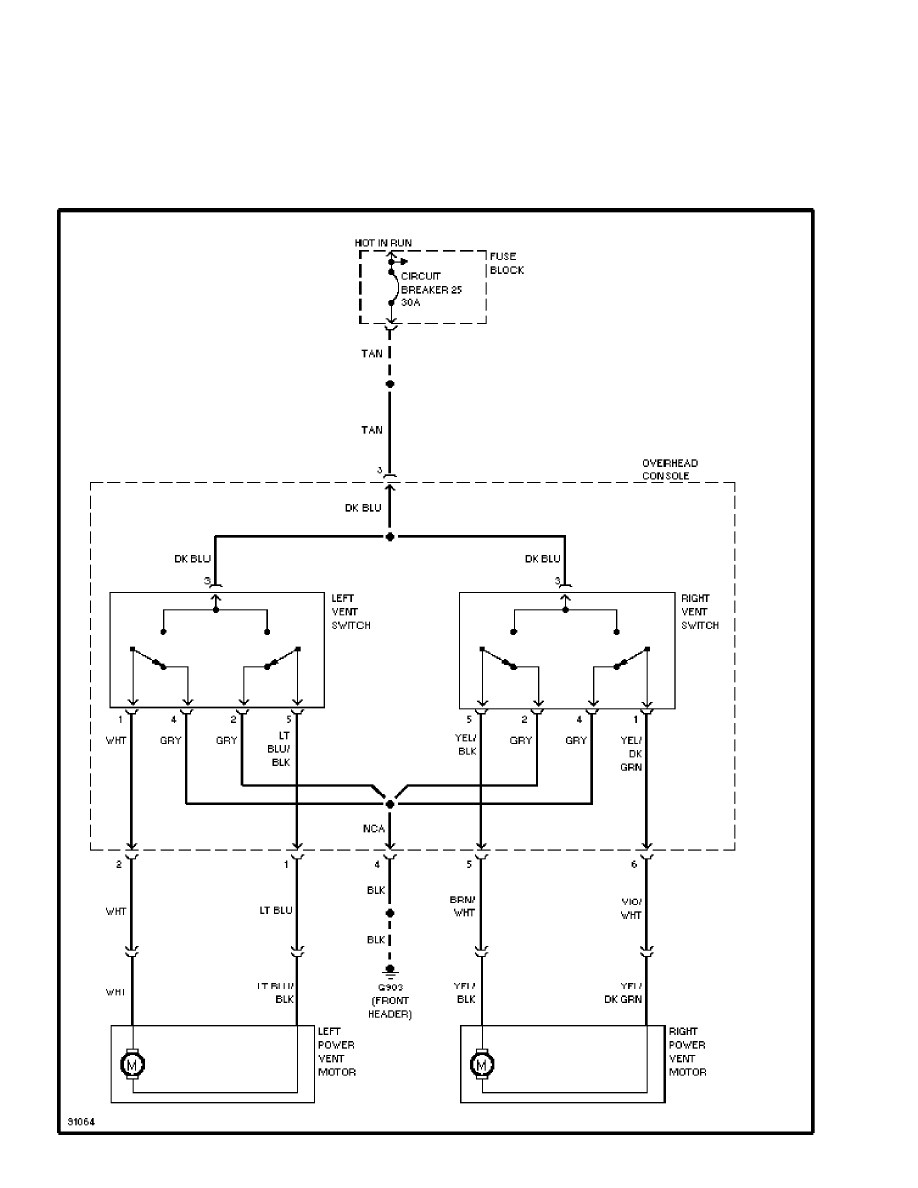

Rear Quarter Windows Circuit (p. 8)

1991 Dodge Caravan

For cdr101@wp.pl

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, May 24, 2005 03:28PM

background image

SYSTEM WIRING DIAGRAMS

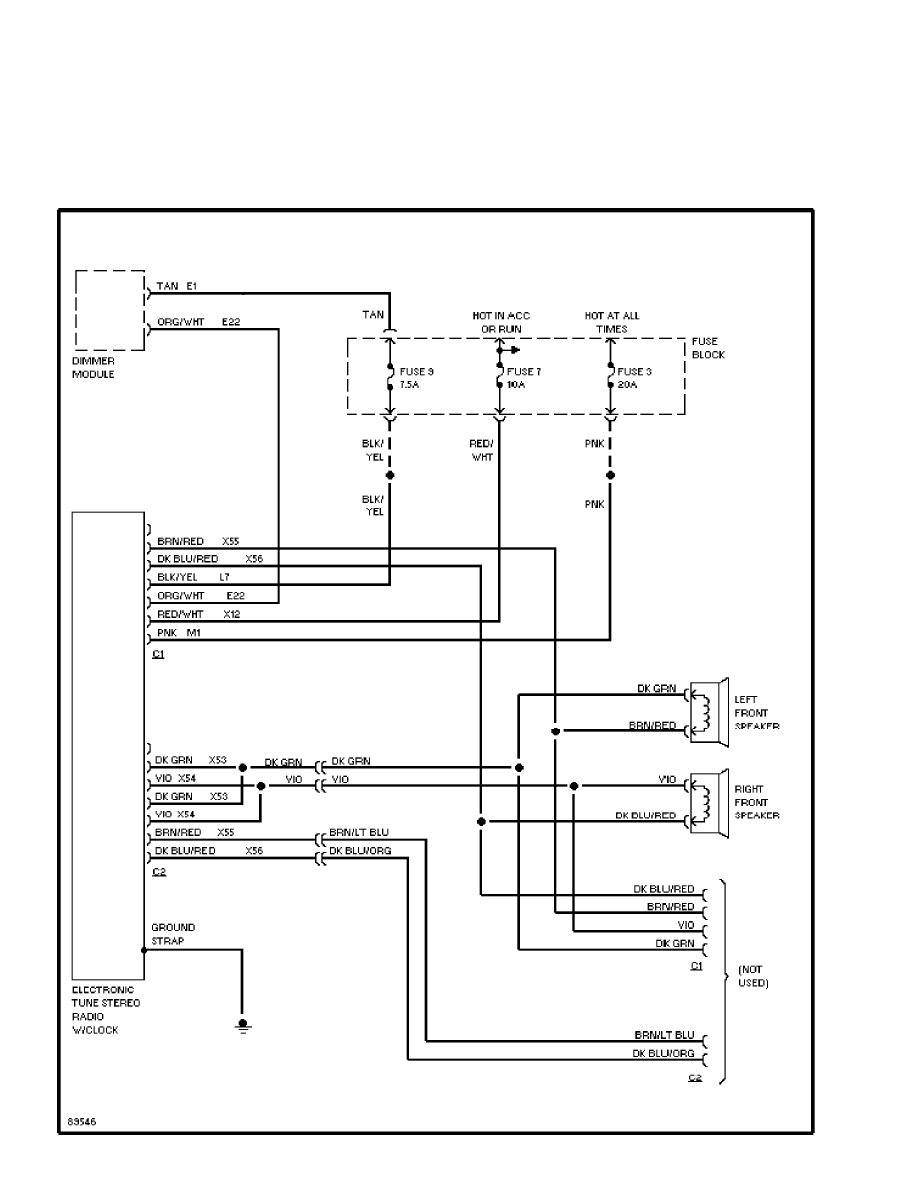

Radio Circuits, 2 Speaker System (p. 9)

1991 Dodge Caravan

For cdr101@wp.pl

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, May 24, 2005 03:28PM

background image

SYSTEM WIRING DIAGRAMS

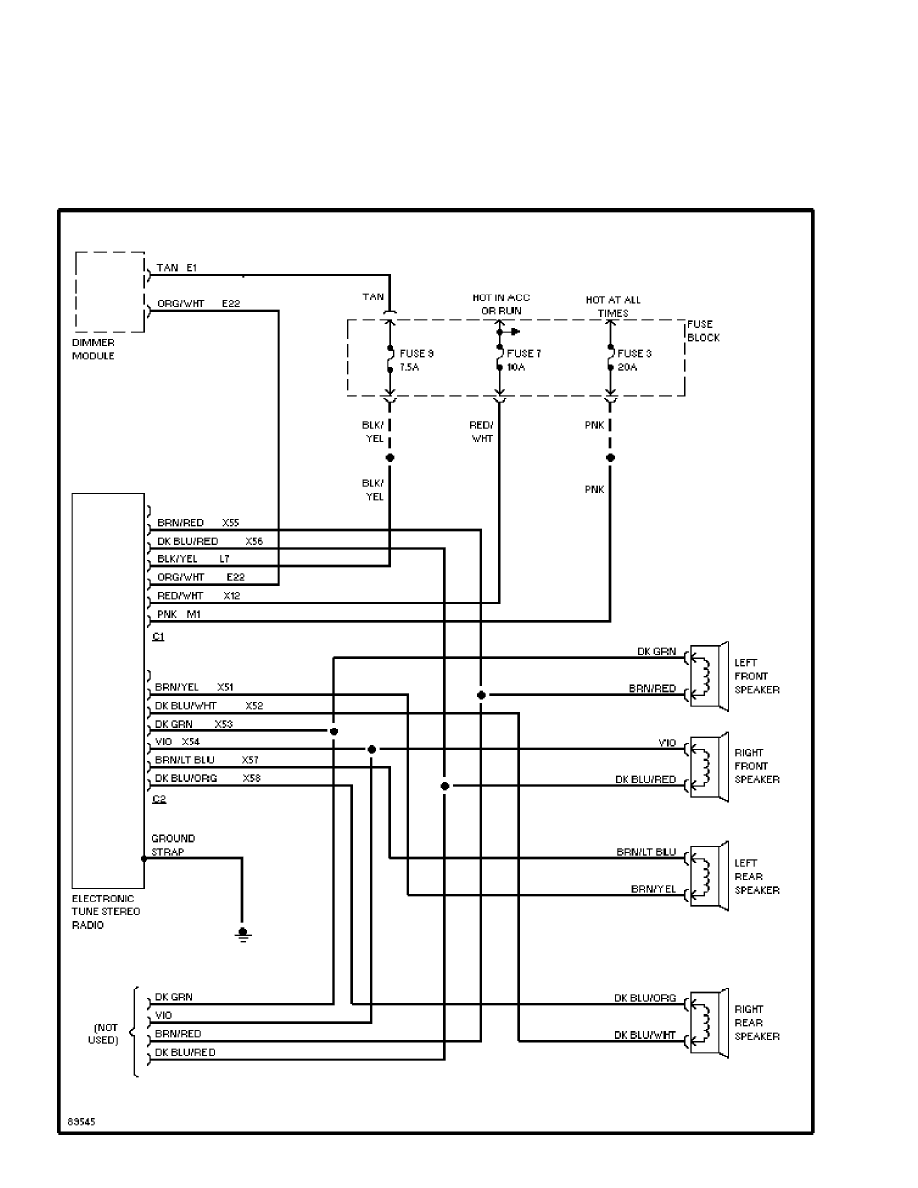

Radio Circuits, 4 Speaker System (p. 10)

1991 Dodge Caravan

For cdr101@wp.pl

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, May 24, 2005 03:28PM

background image

SYSTEM WIRING DIAGRAMS

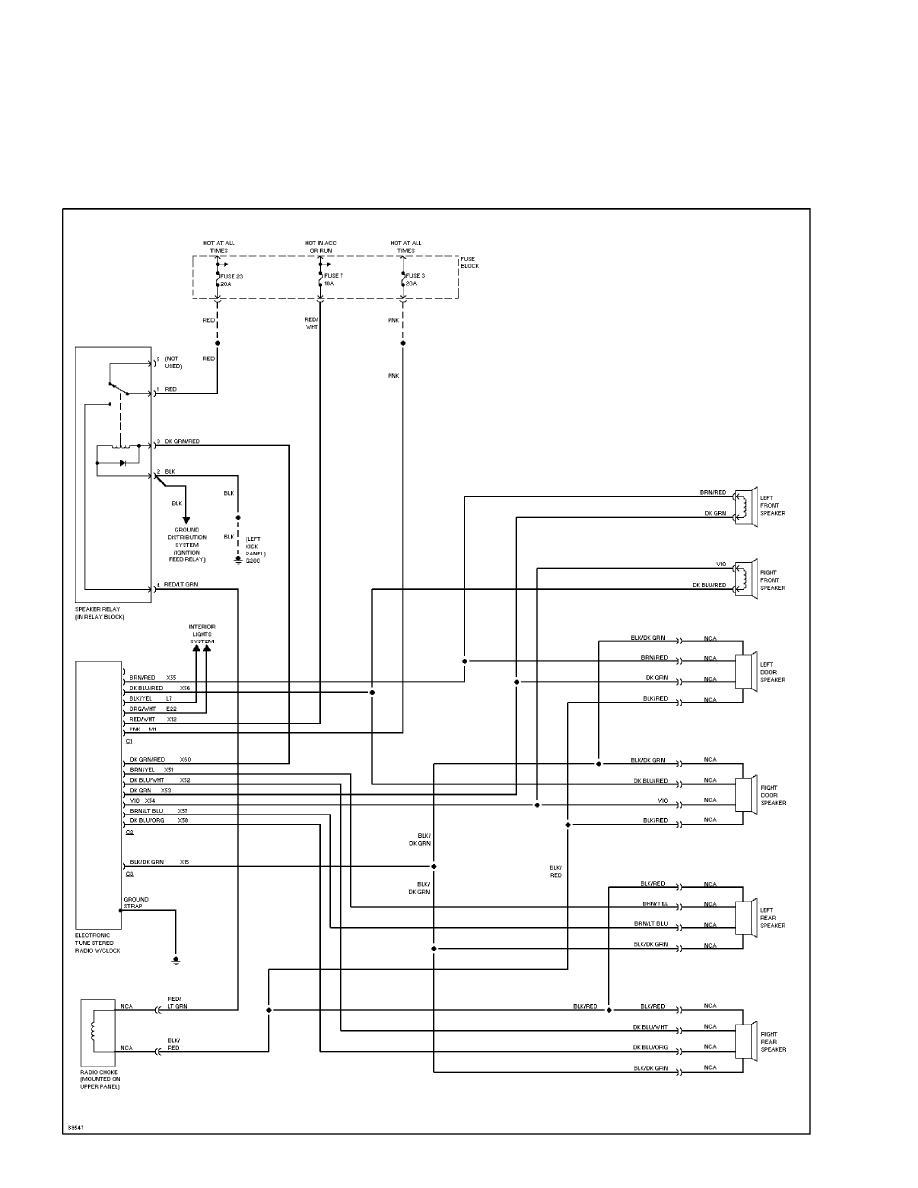

Radio Circuits, Premium Model (p. 11)

1991 Dodge Caravan

For cdr101@wp.pl

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, May 24, 2005 03:28PM

background image

SYSTEM WIRING DIAGRAMS

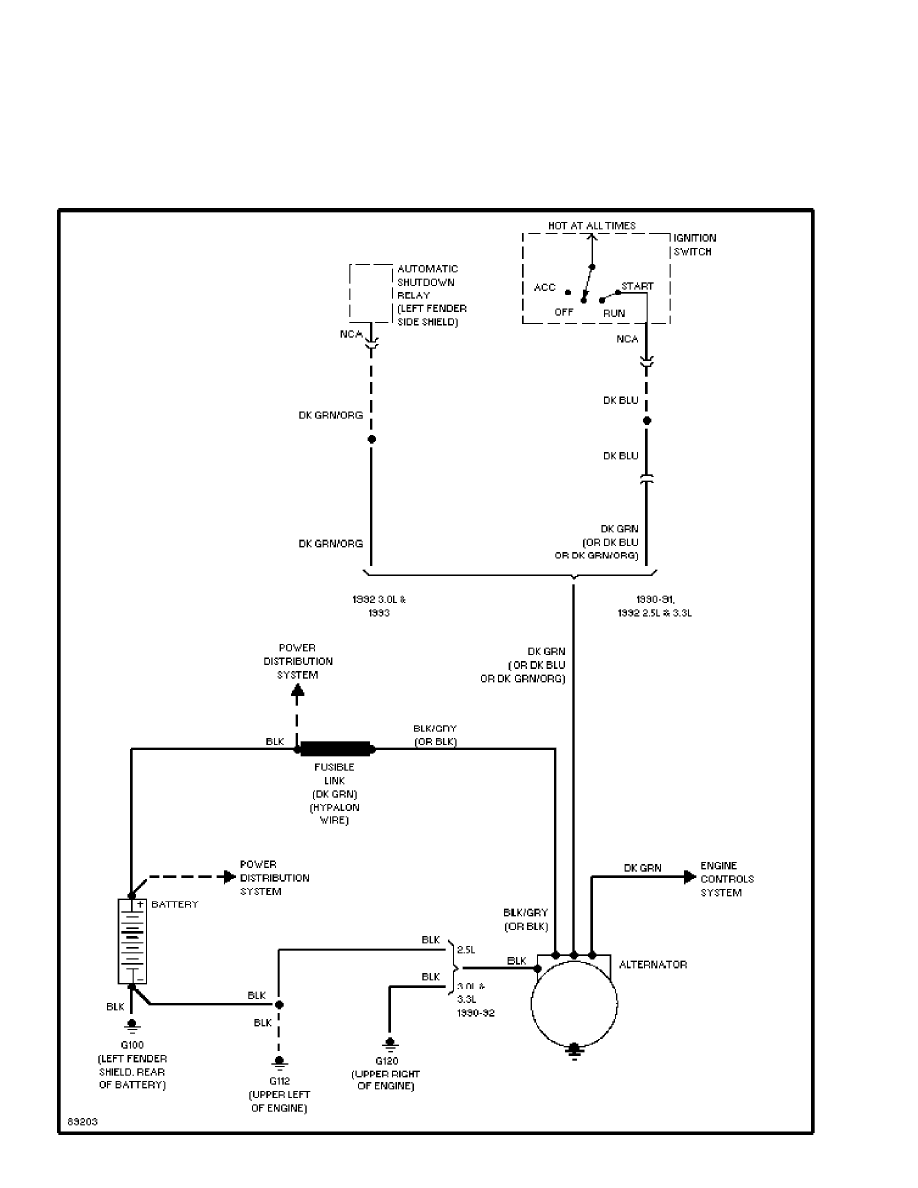

Charging Circuit (p. 12)

1991 Dodge Caravan

For cdr101@wp.pl

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, May 24, 2005 03:28PM

background image

SYSTEM WIRING DIAGRAMS

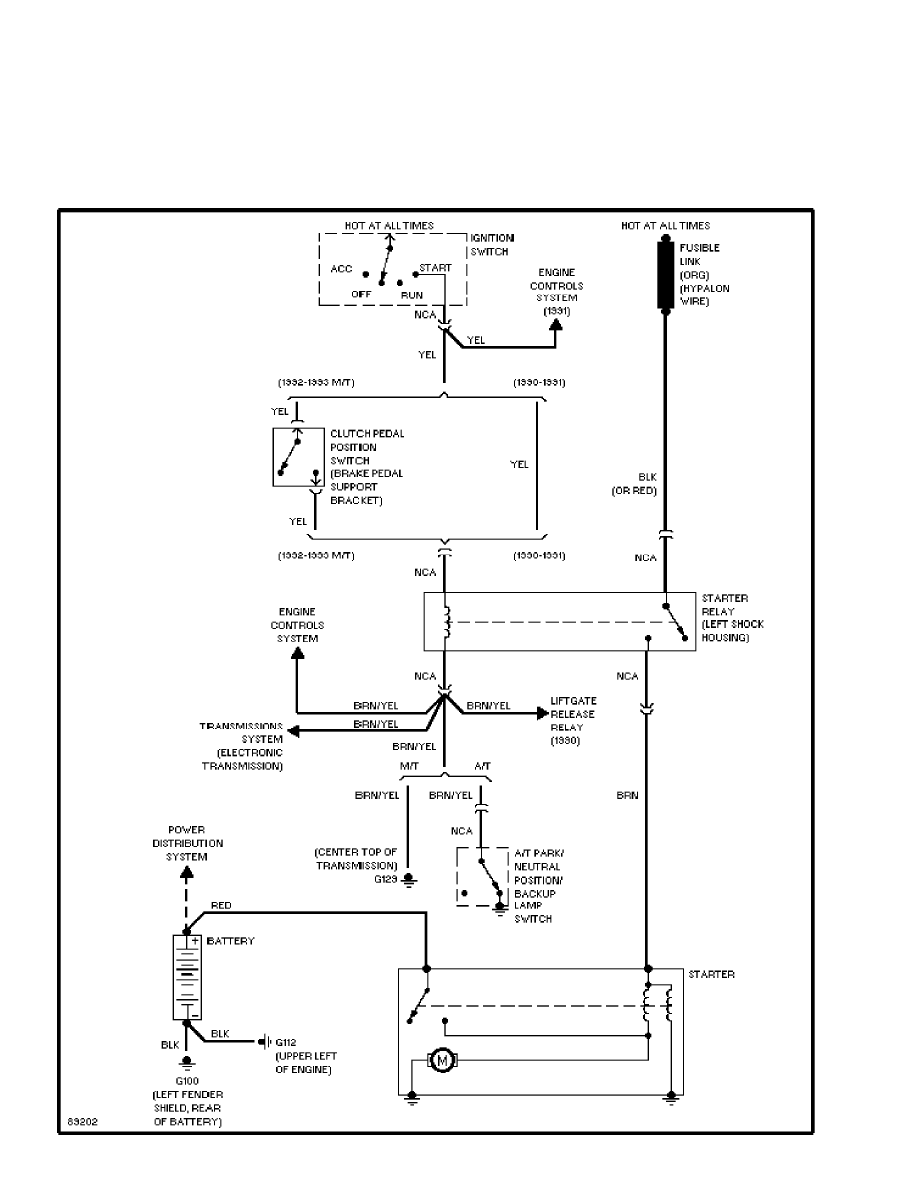

Starting Circuit (p. 13)

1991 Dodge Caravan

For cdr101@wp.pl

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, May 24, 2005 03:28PM

background image

SYSTEM WIRING DIAGRAMS

Tailgate Release Circuit (p. 14)

1991 Dodge Caravan

For cdr101@wp.pl

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, May 24, 2005 03:28PM

background image

SYSTEM WIRING DIAGRAMS

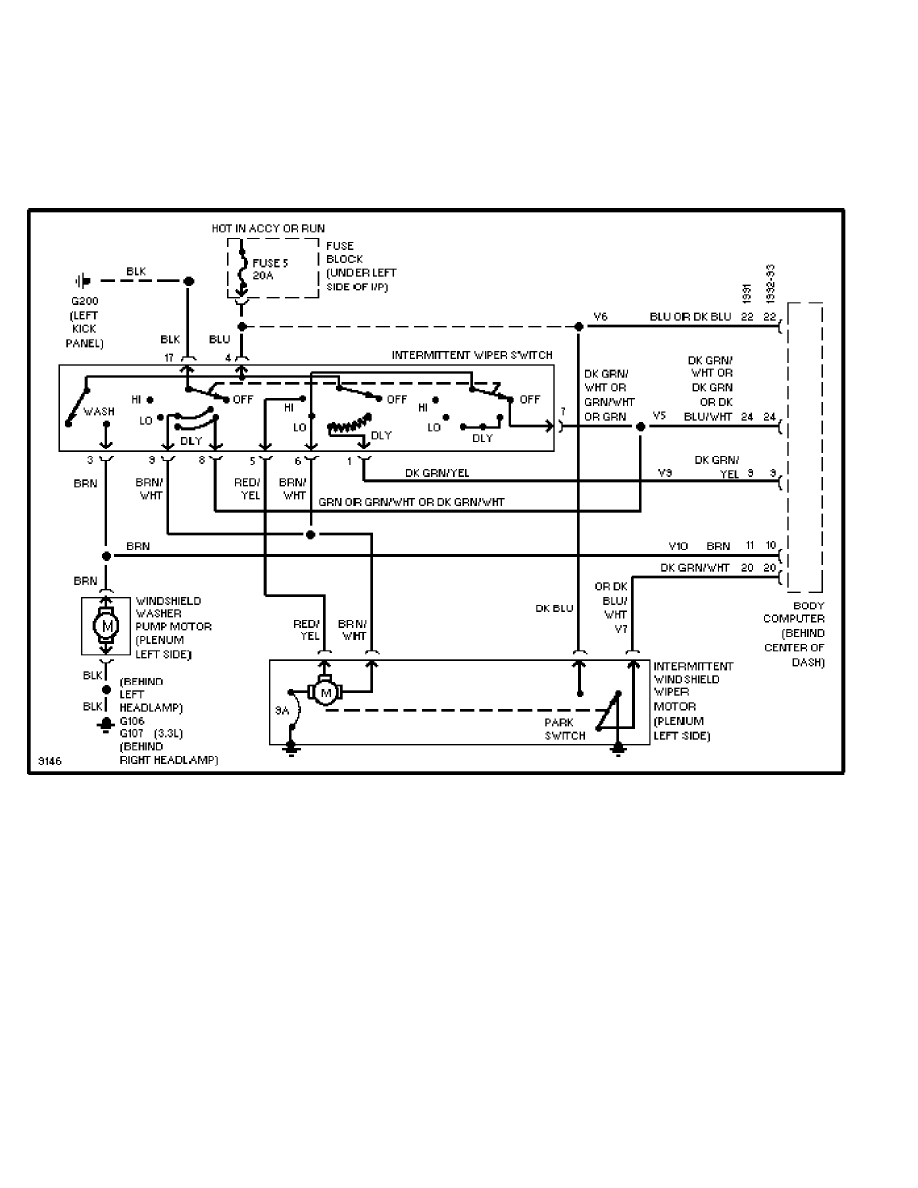

Interval Wiper/Washer Circuit (p. 15)

1991 Dodge Caravan

For cdr101@wp.pl

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, May 24, 2005 03:28PM

background image

SYSTEM WIRING DIAGRAMS

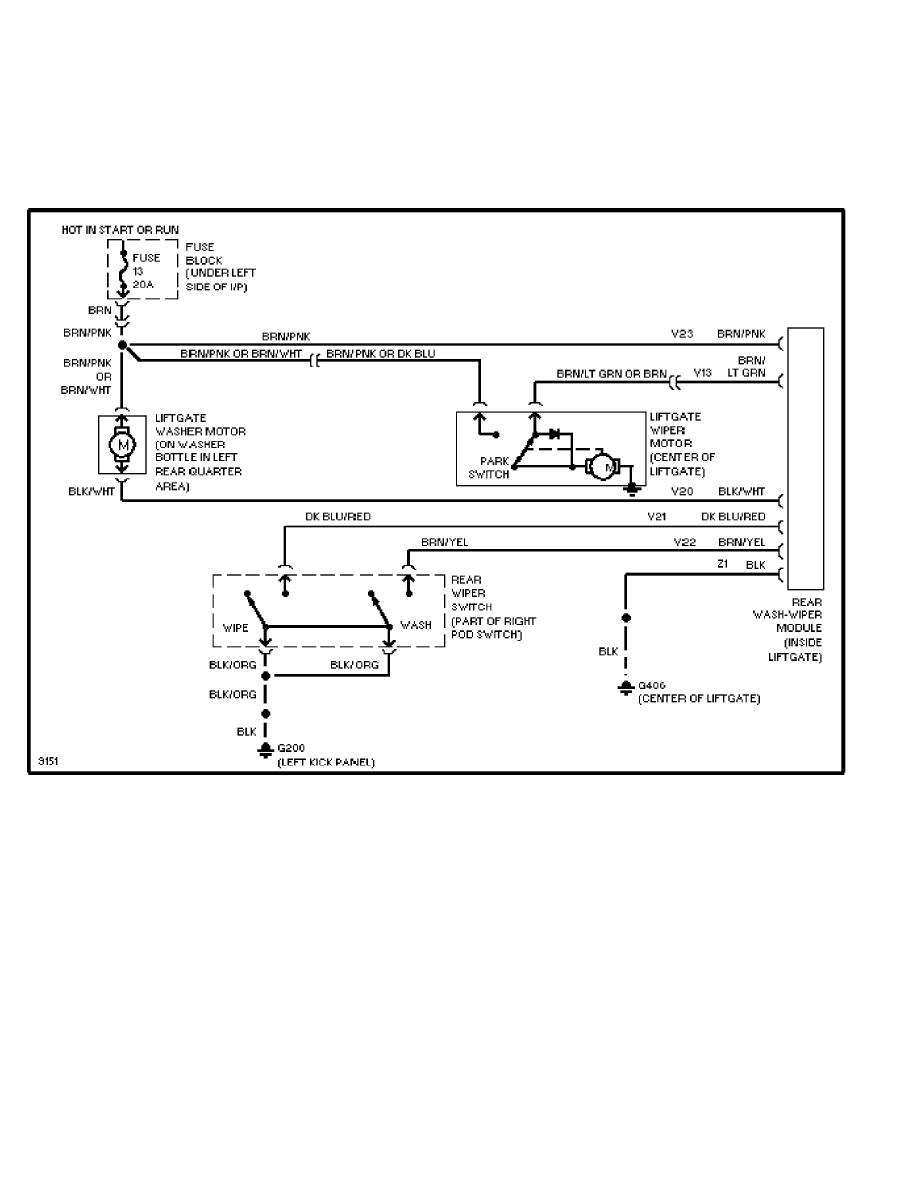

Rear Wiper/Washer Circuit (p. 16)

1991 Dodge Caravan

For cdr101@wp.pl

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, May 24, 2005 03:28PM

background image

WIRING DIAGRAMS

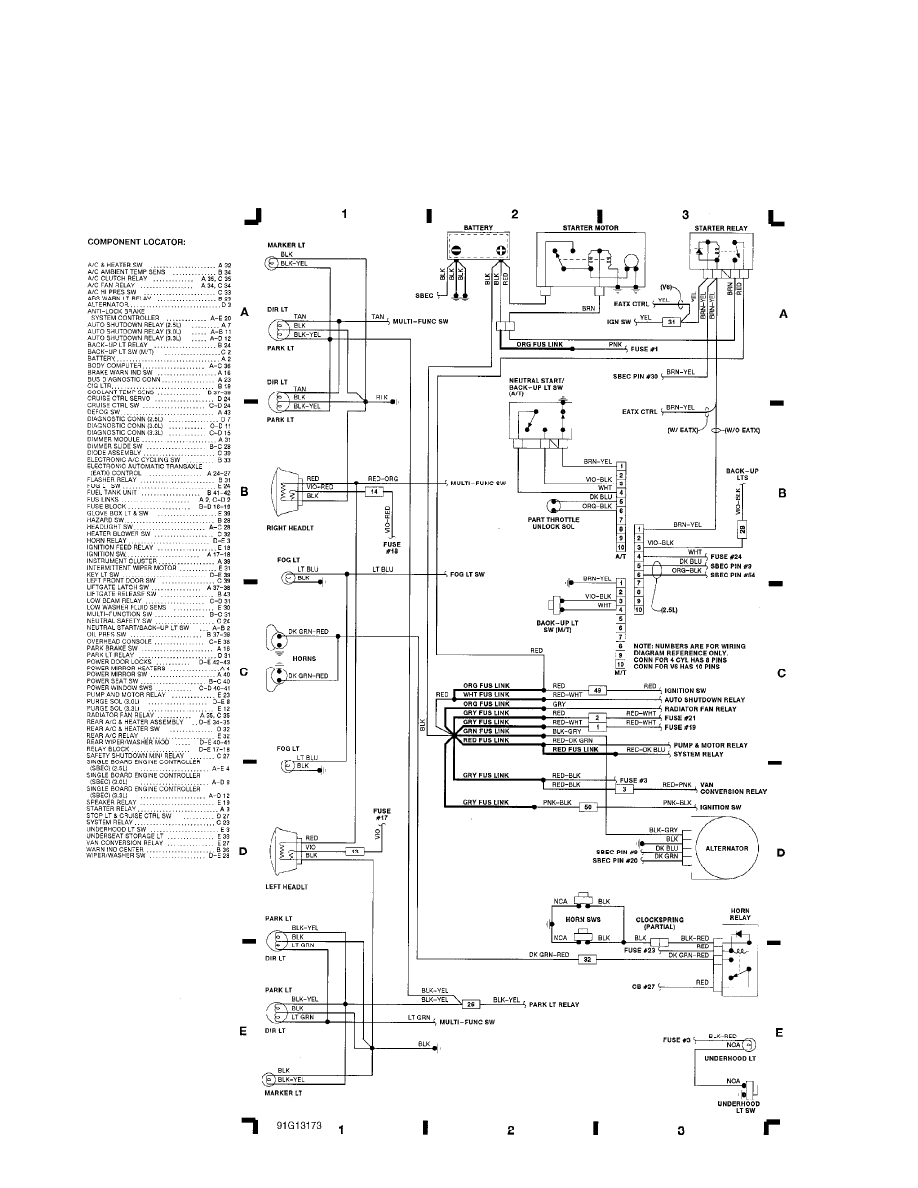

Fig. 1: Engine Compartment & Headlights (Grids 1-3)

1991 Dodge Caravan

For cdr101@wp.pl

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, May 24, 2005 03:29PM

background image

WIRING DIAGRAMS

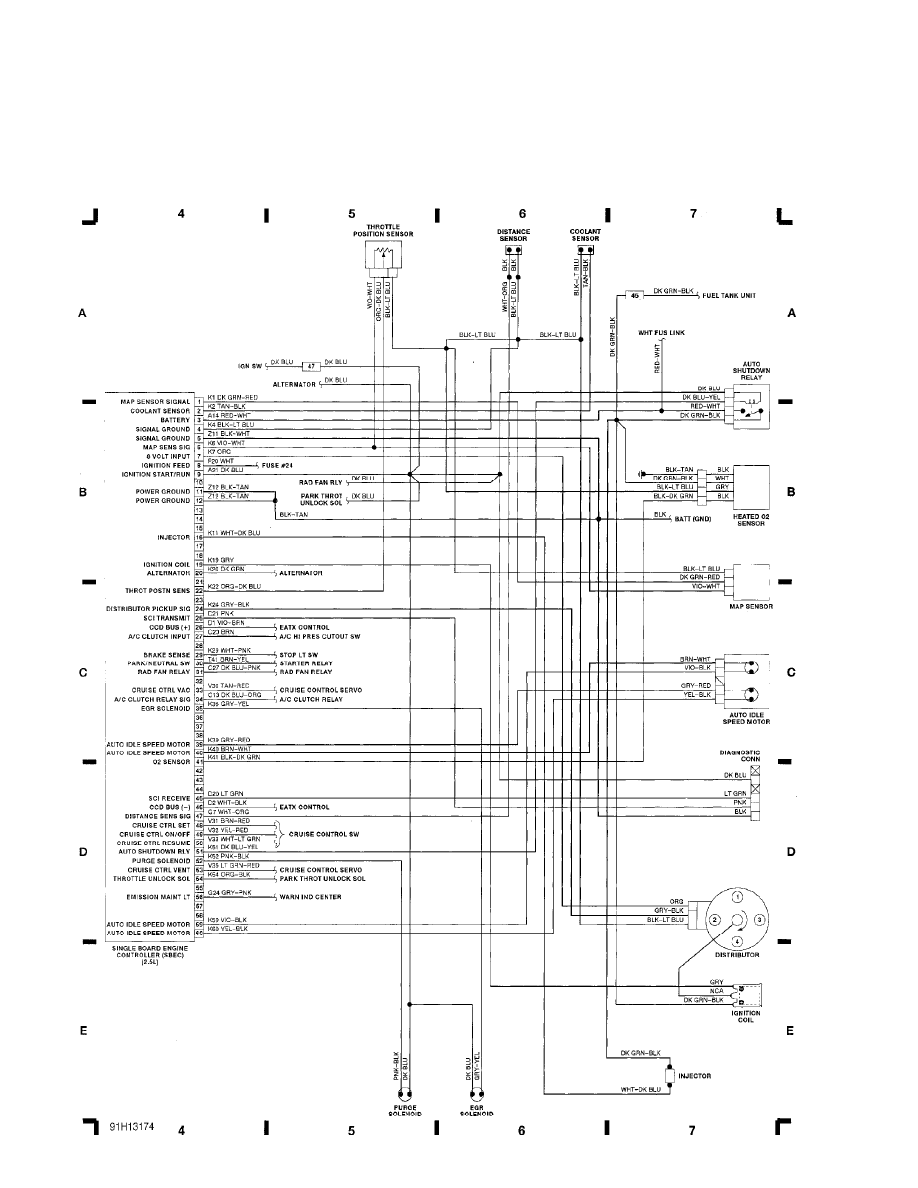

Fig. 2: Electronic Control Module (2.5L) (Grids 4-7) (p. 2)

1991 Dodge Caravan

For cdr101@wp.pl

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, May 24, 2005 03:29PM

background image

WIRING DIAGRAMS

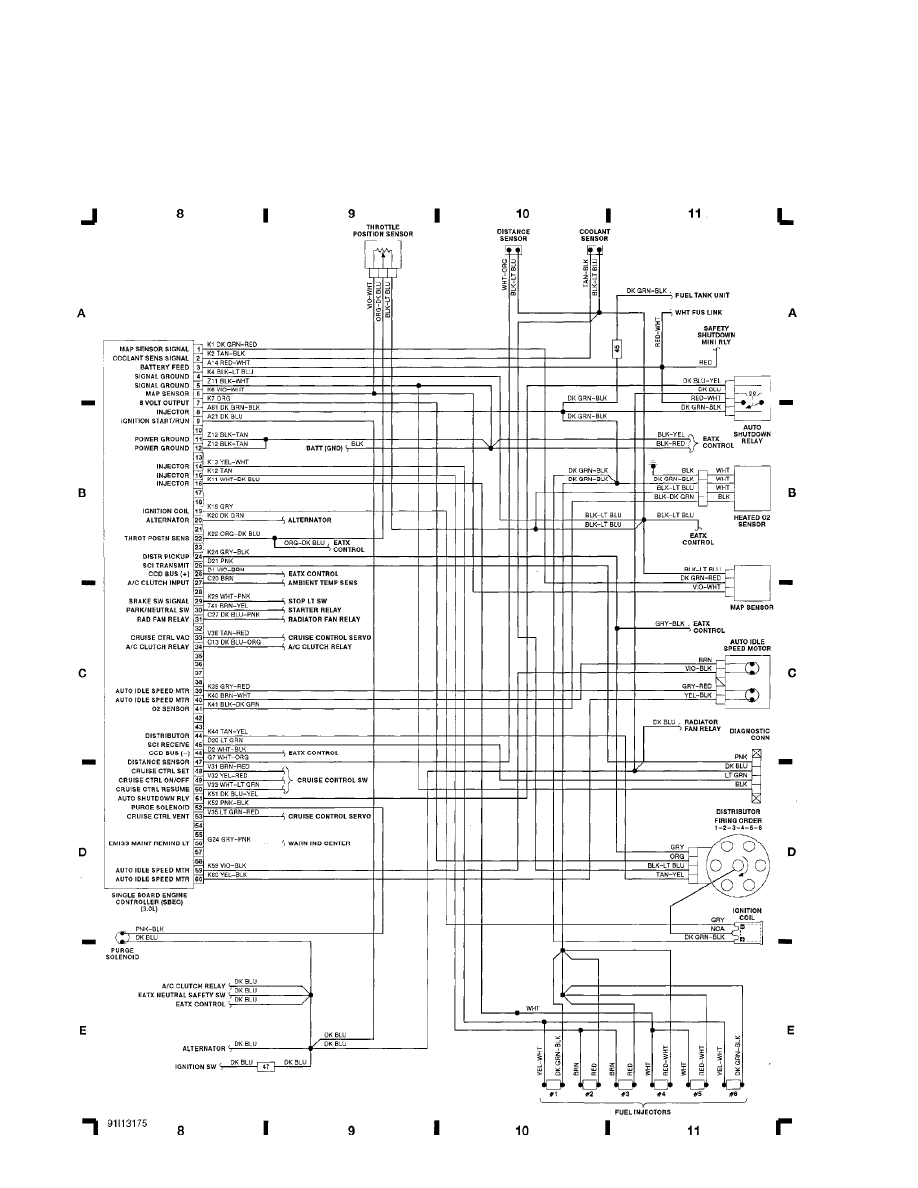

Fig. 3: Electronic Control Module (3.0L) (Grids 8-11) (p. 3)

1991 Dodge Caravan

For cdr101@wp.pl

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, May 24, 2005 03:29PM

background image

WIRING DIAGRAMS

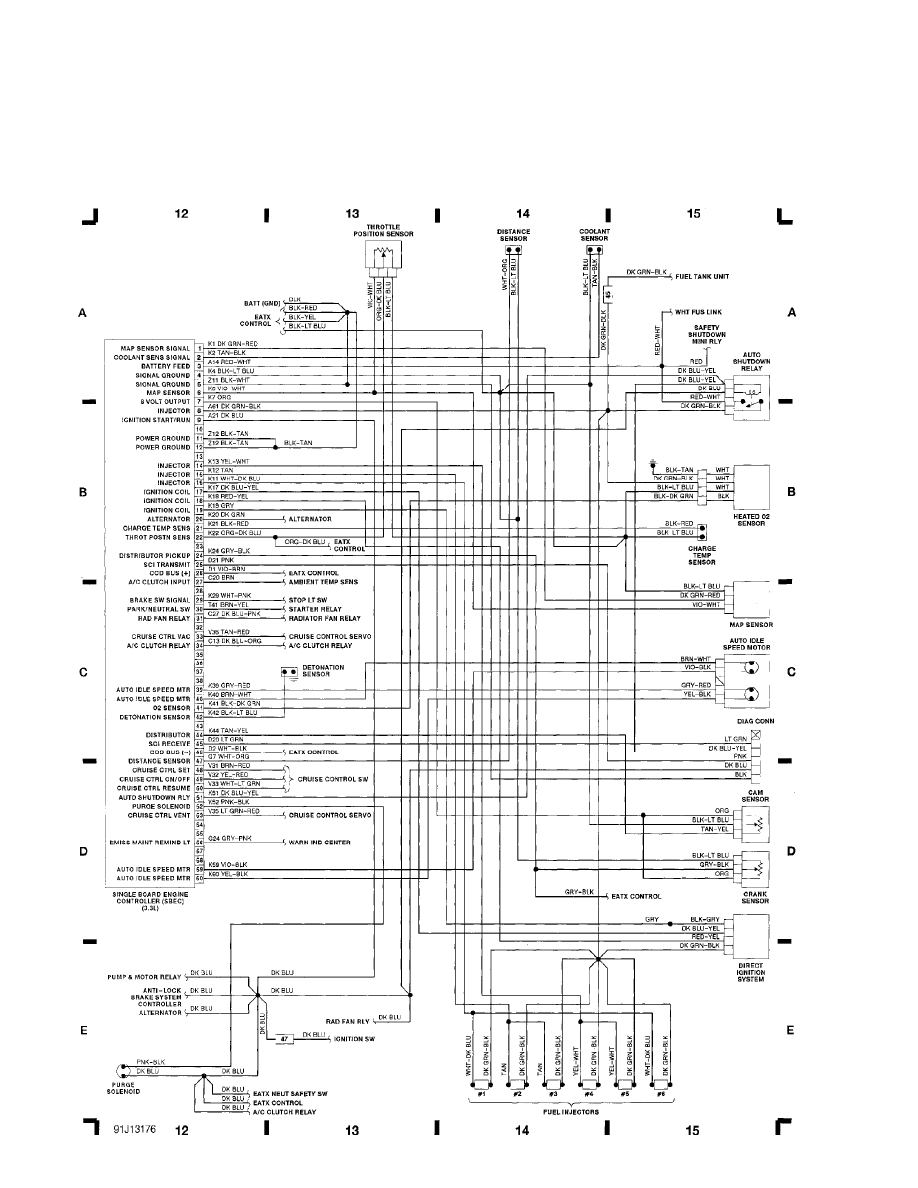

Fig. 4: Electronic Control Module (3.3L) (Grids 12-15) (p. 4)

1991 Dodge Caravan

For cdr101@wp.pl

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, May 24, 2005 03:29PM

background image

WIRING DIAGRAMS

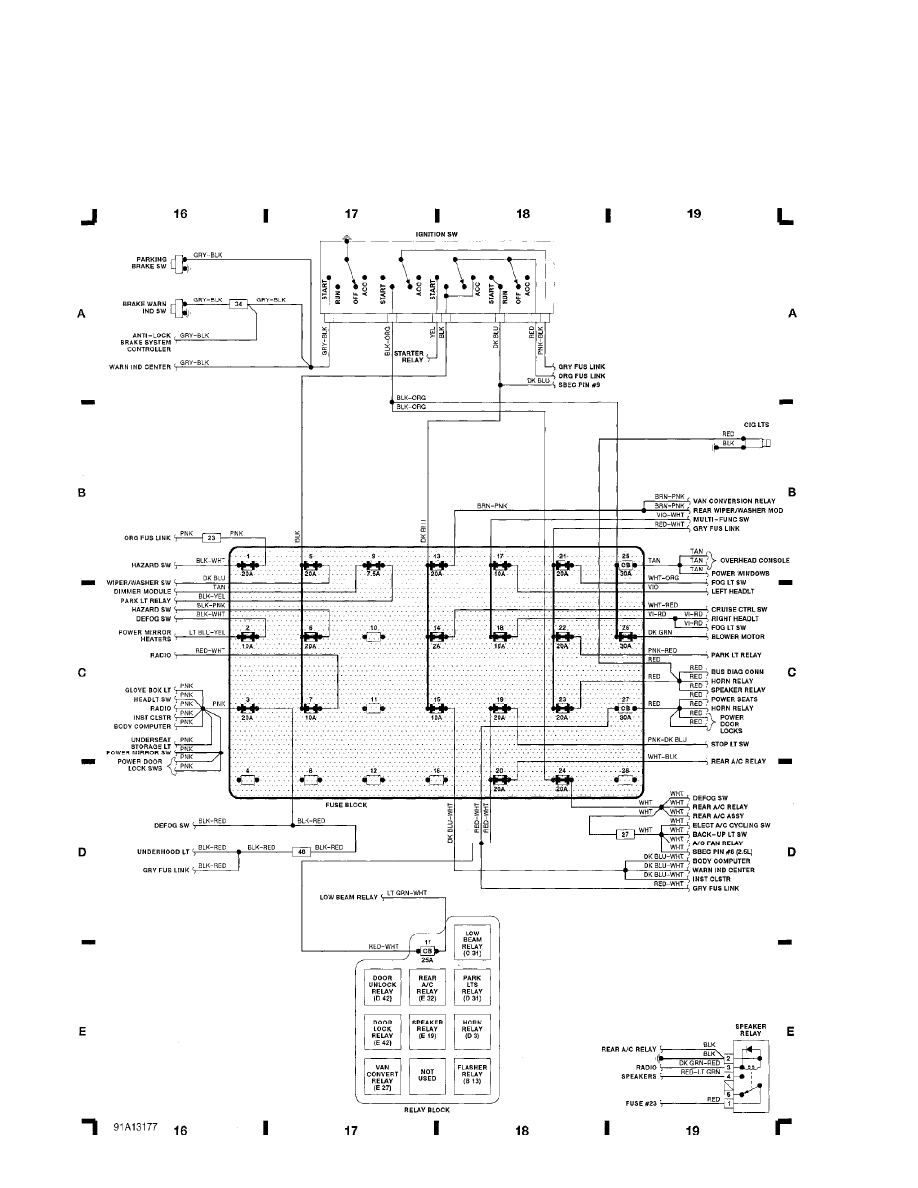

Fig. 5: Fuse Block (Grids 16-19) (p. 5)

1991 Dodge Caravan

For cdr101@wp.pl

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, May 24, 2005 03:29PM

background image

WIRING DIAGRAMS

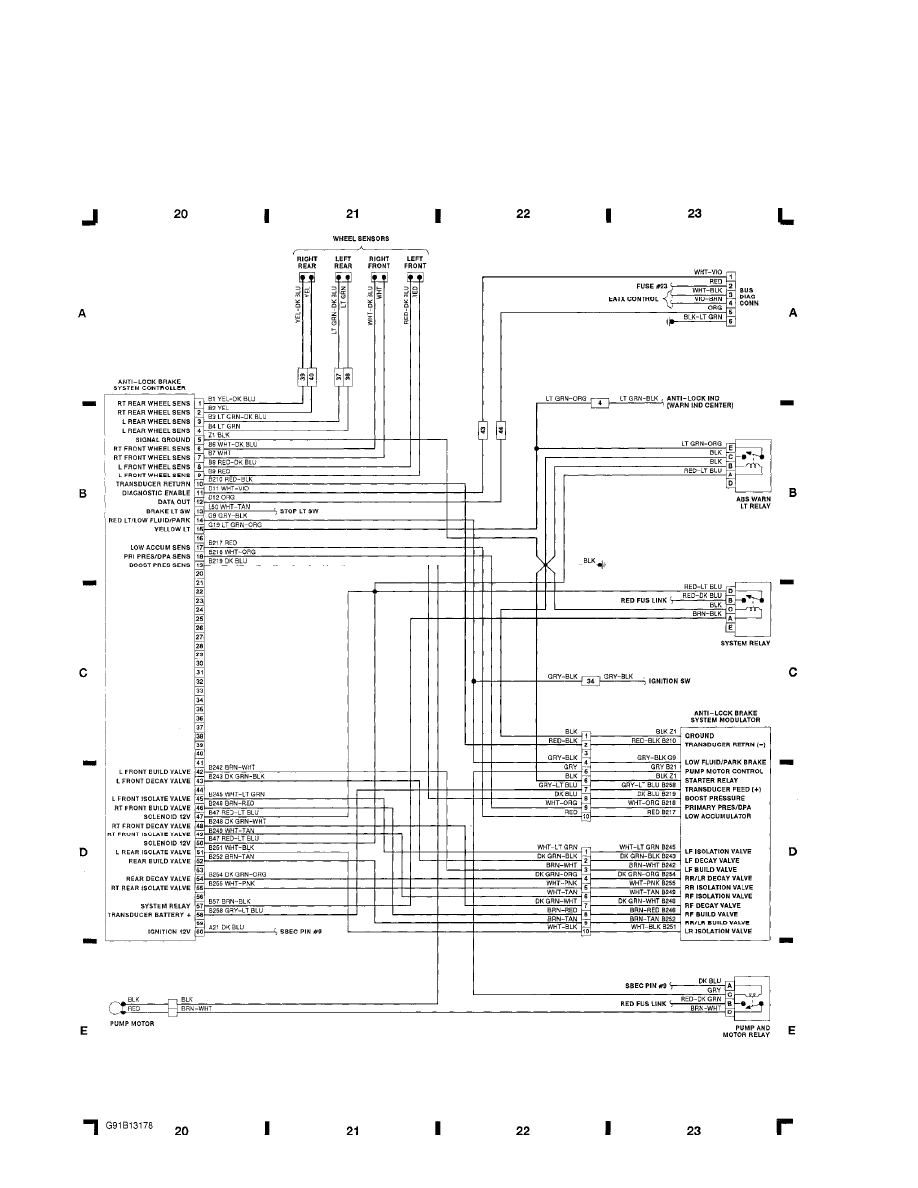

Fig. 6: Anti-Lock Brake System (Grids 20-23) (p. 6)

1991 Dodge Caravan

For cdr101@wp.pl

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, May 24, 2005 03:29PM

background image

WIRING DIAGRAMS

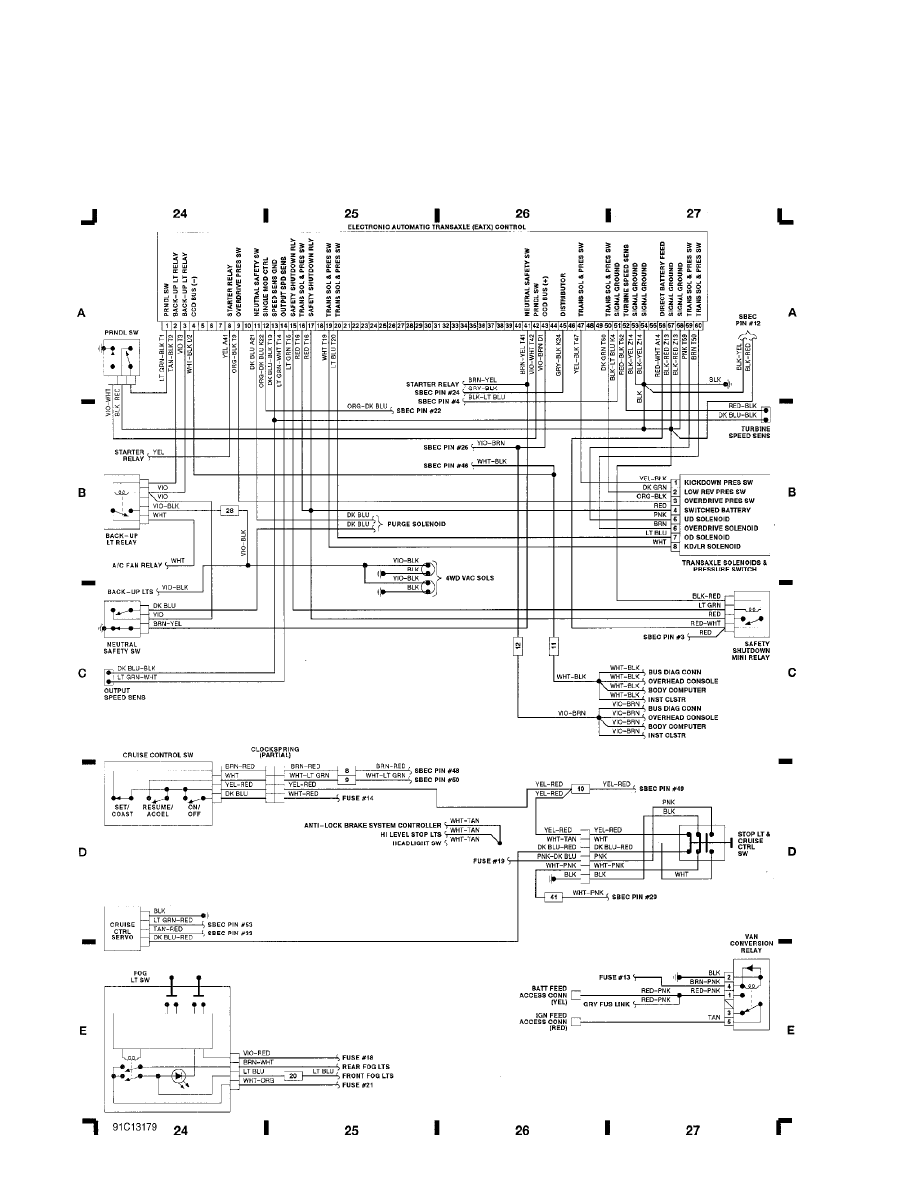

Fig. 7: EATX Control System & Cruise Control (Grids 24-27) (p. 7)

1991 Dodge Caravan

For cdr101@wp.pl

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, May 24, 2005 03:29PM

background image

WIRING DIAGRAMS

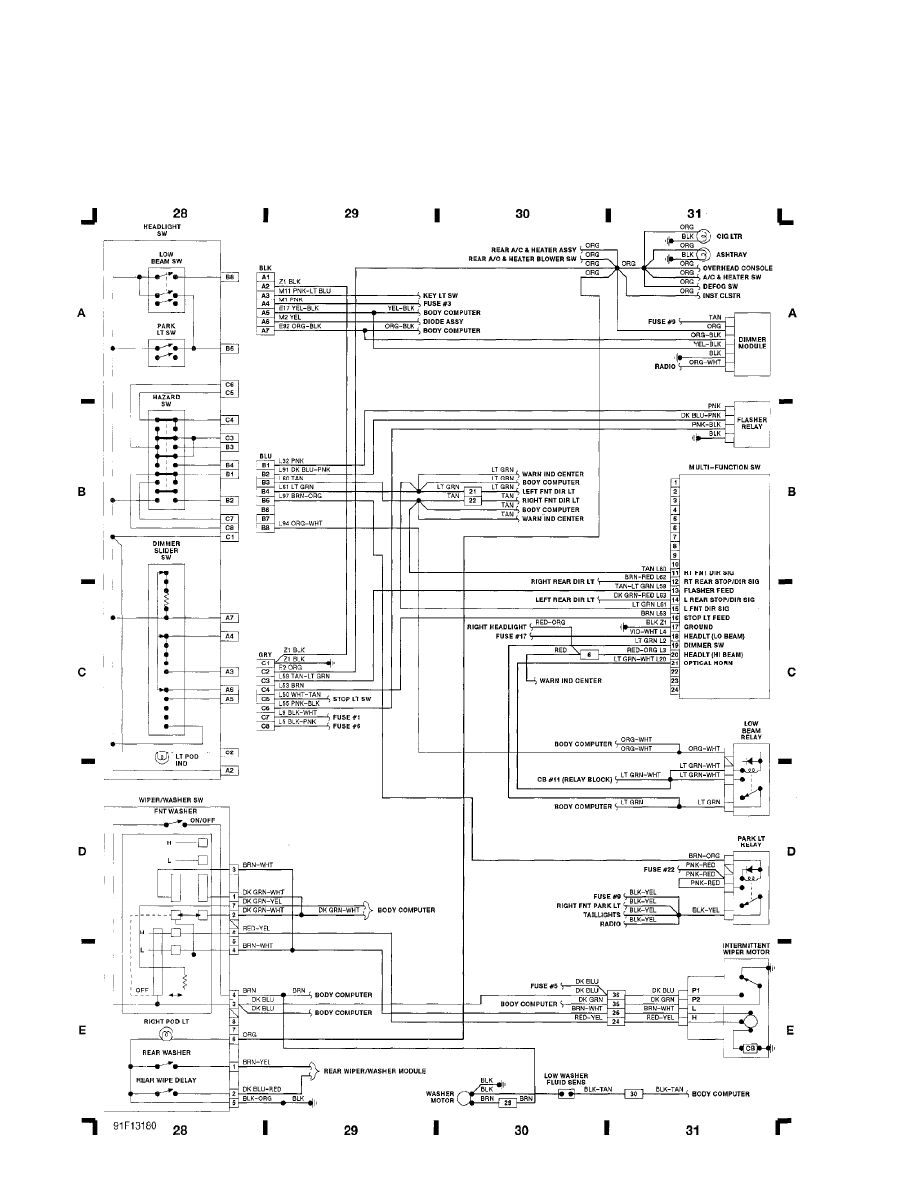

Fig. 8: Multi-Function Switch (Grids 28-31) (p. 8)

1991 Dodge Caravan

For cdr101@wp.pl

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, May 24, 2005 03:29PM

background image

WIRING DIAGRAMS

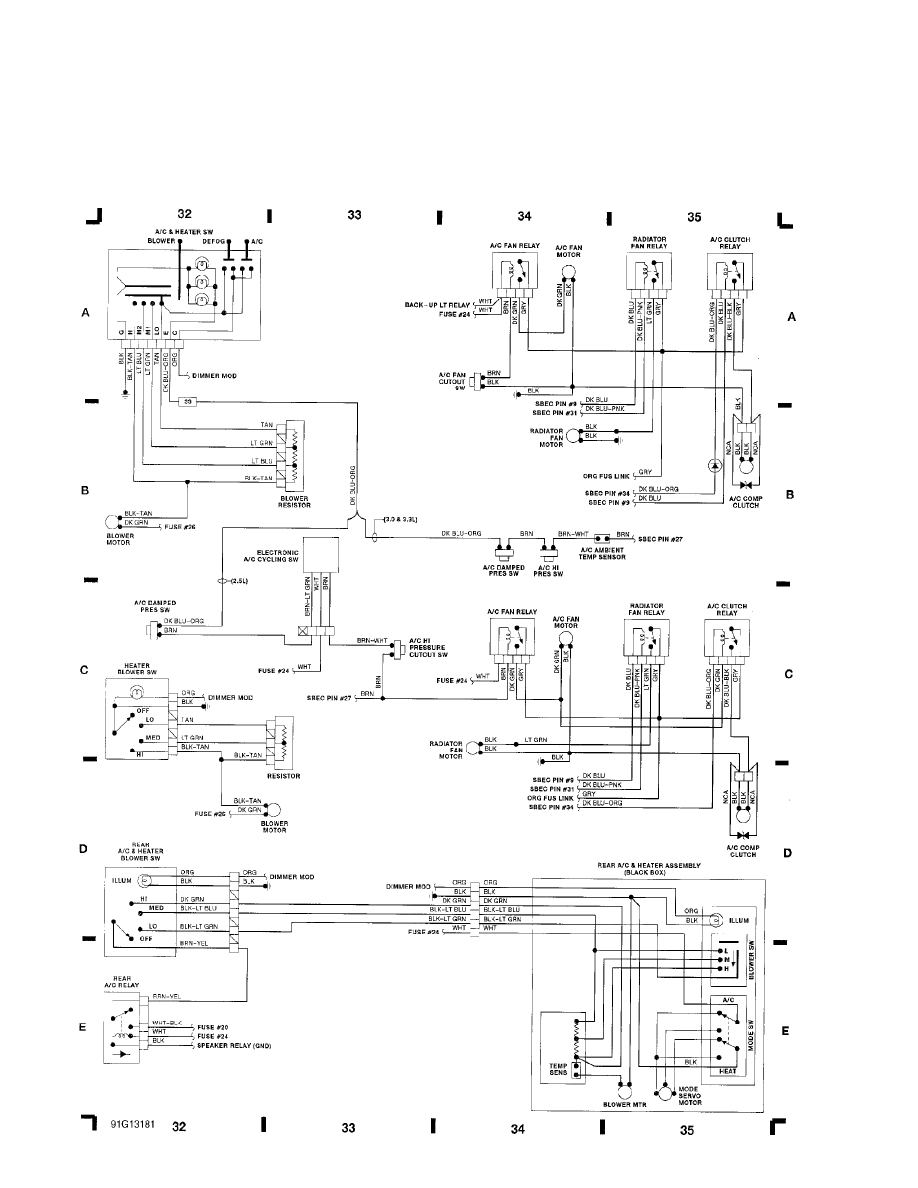

Fig. 9: Air Conditioning & Heater Switch (Grids 32-35) (p. 9)

1991 Dodge Caravan

For cdr101@wp.pl

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, May 24, 2005 03:29PM

background image

WIRING DIAGRAMS

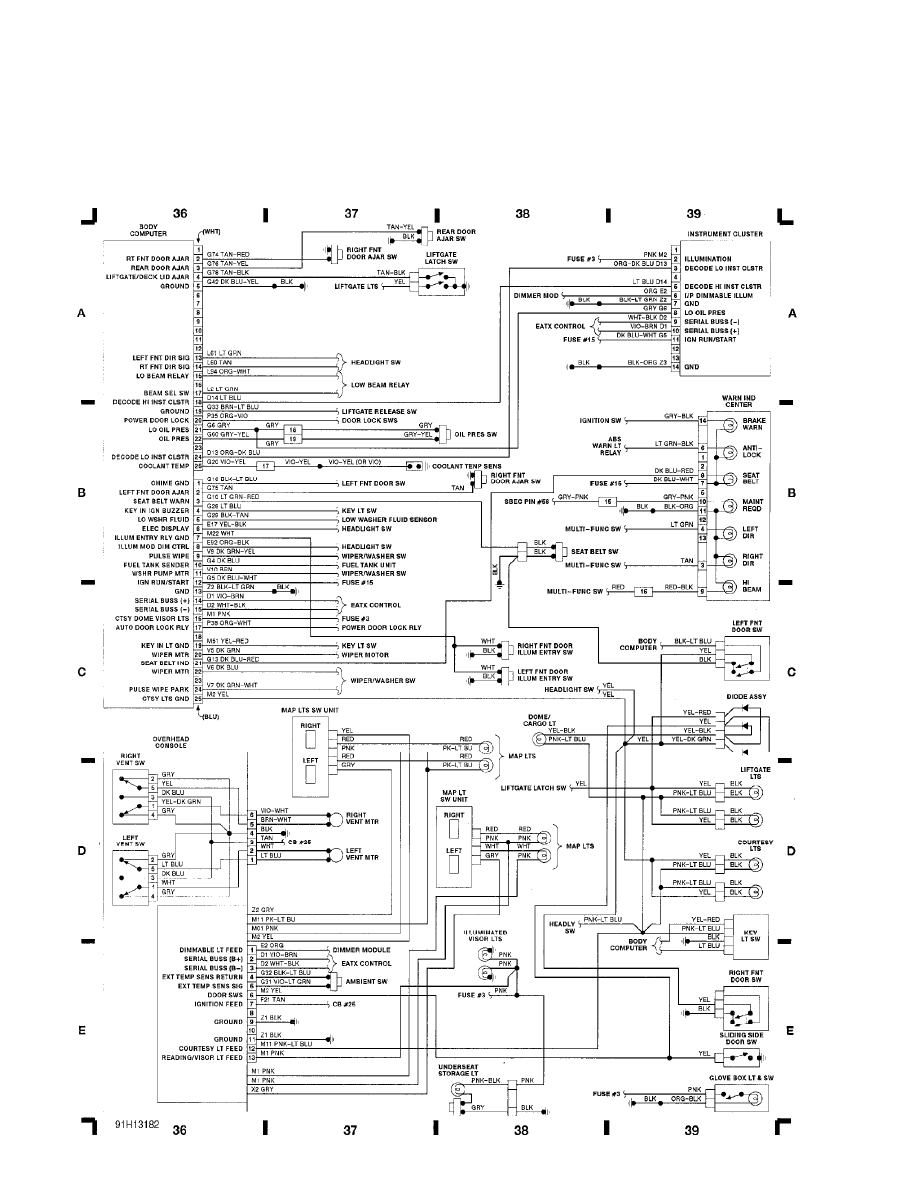

Fig. 10: Body Computer, Overhead Console, Tailights, Instrument Cluster (Grids 36-39) (p. 10)

1991 Dodge Caravan

For cdr101@wp.pl

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, May 24, 2005 03:29PM

background image

WIRING DIAGRAMS

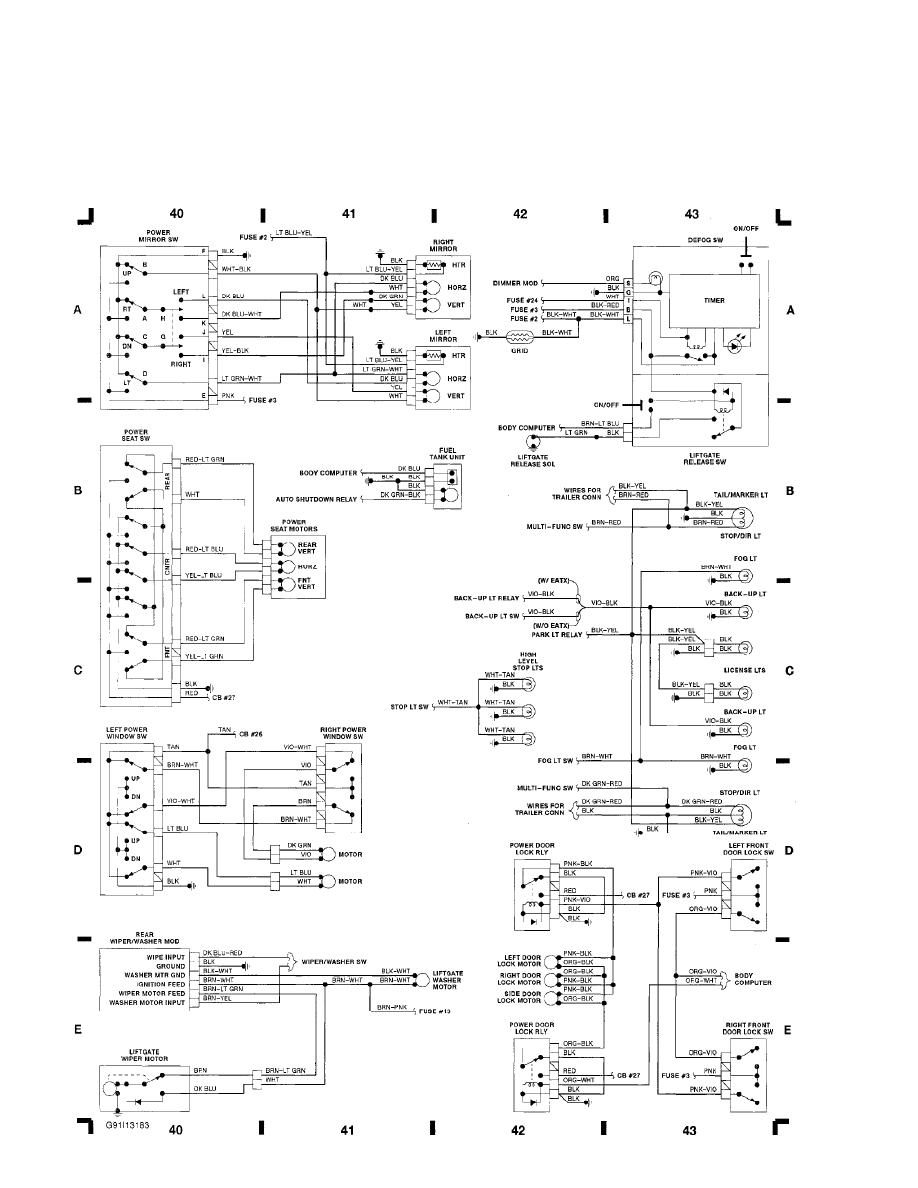

Fig. 11: Power Mirror & Window Switches (Grids 40-43) (p. 11)

1991 Dodge Caravan

For cdr101@wp.pl

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, May 24, 2005 03:29PM
