MAZDA MPV 1995

SYSTEM WIRING DIAGRAMS

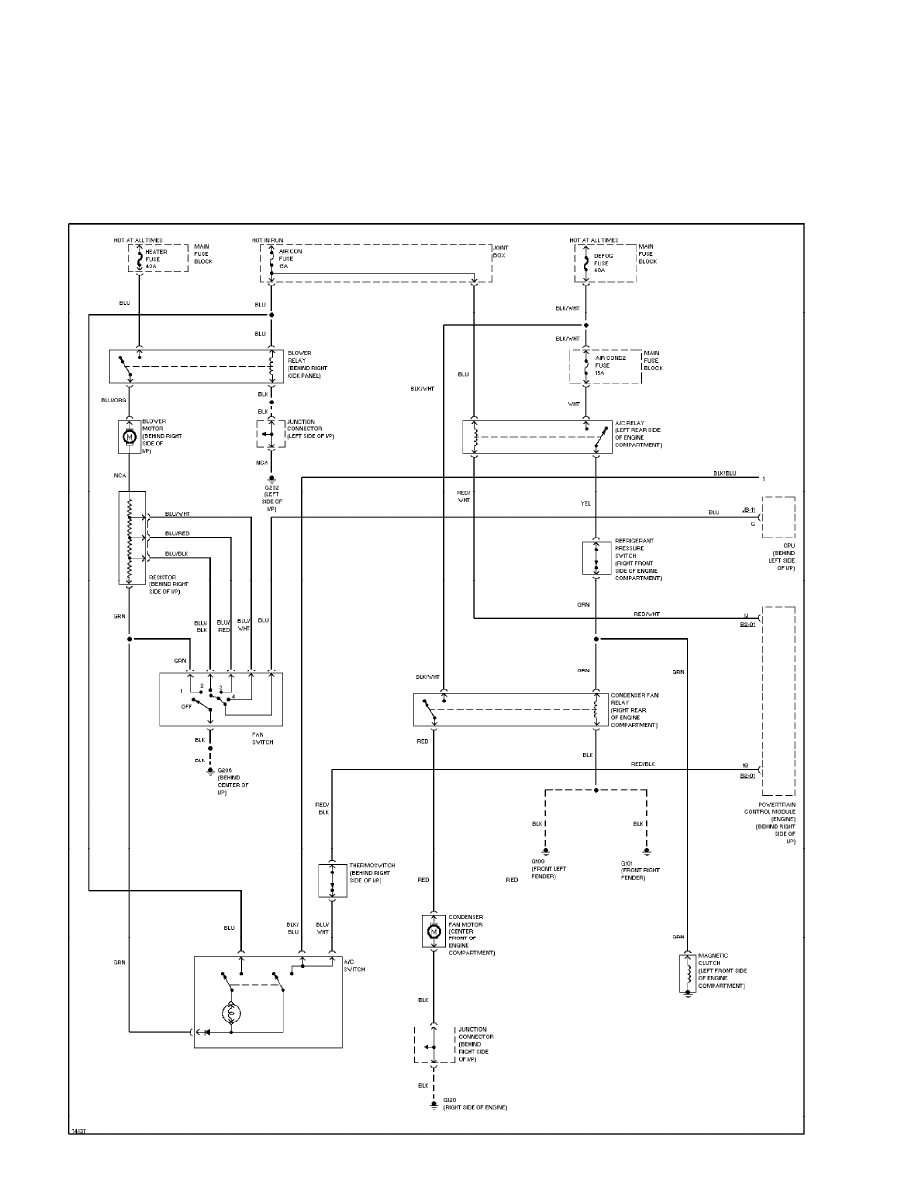

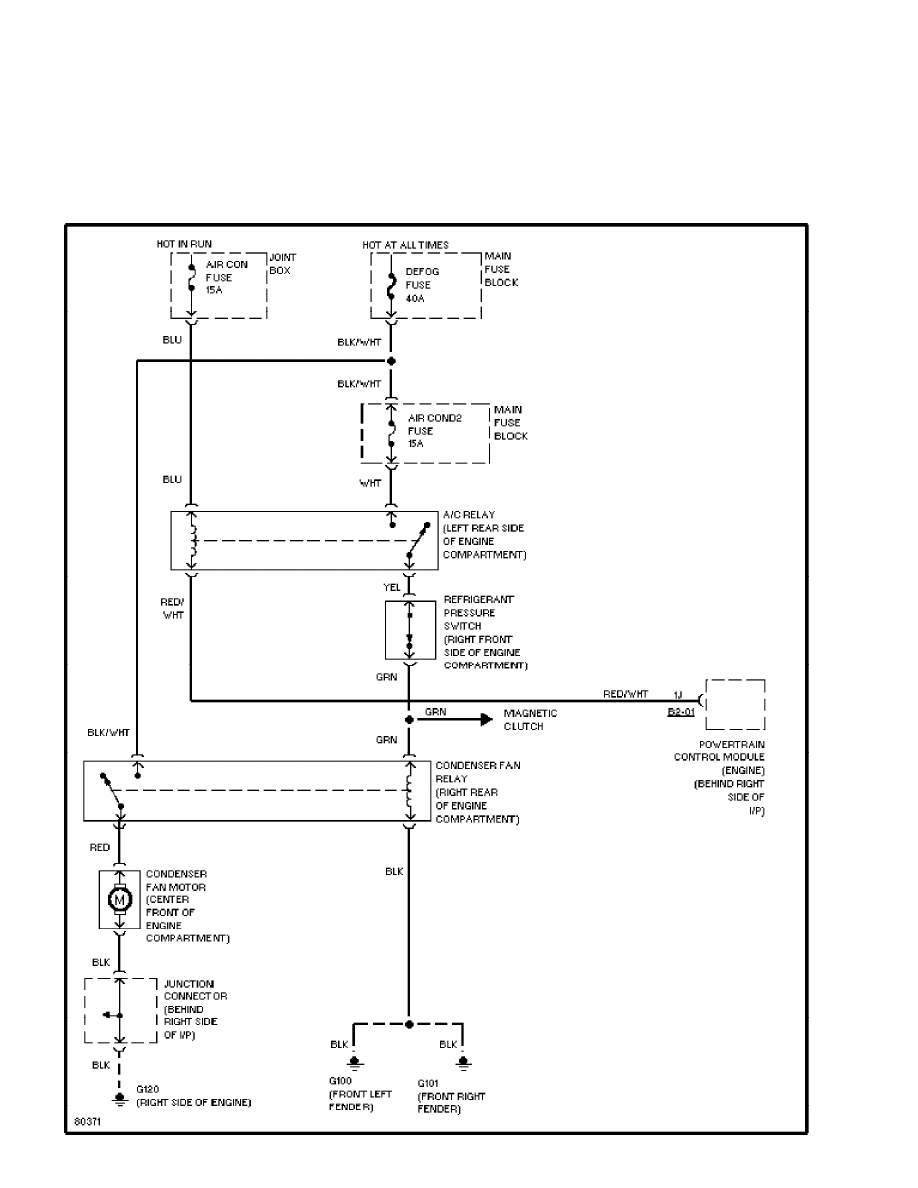

A/C Circuit (1 of 2)

1995 Mazda MPV

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 04:47PM

SYSTEM WIRING DIAGRAMS

A/C Circuit (2 of 2) (p. 2)

1995 Mazda MPV

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 04:47PM

SYSTEM WIRING DIAGRAMS

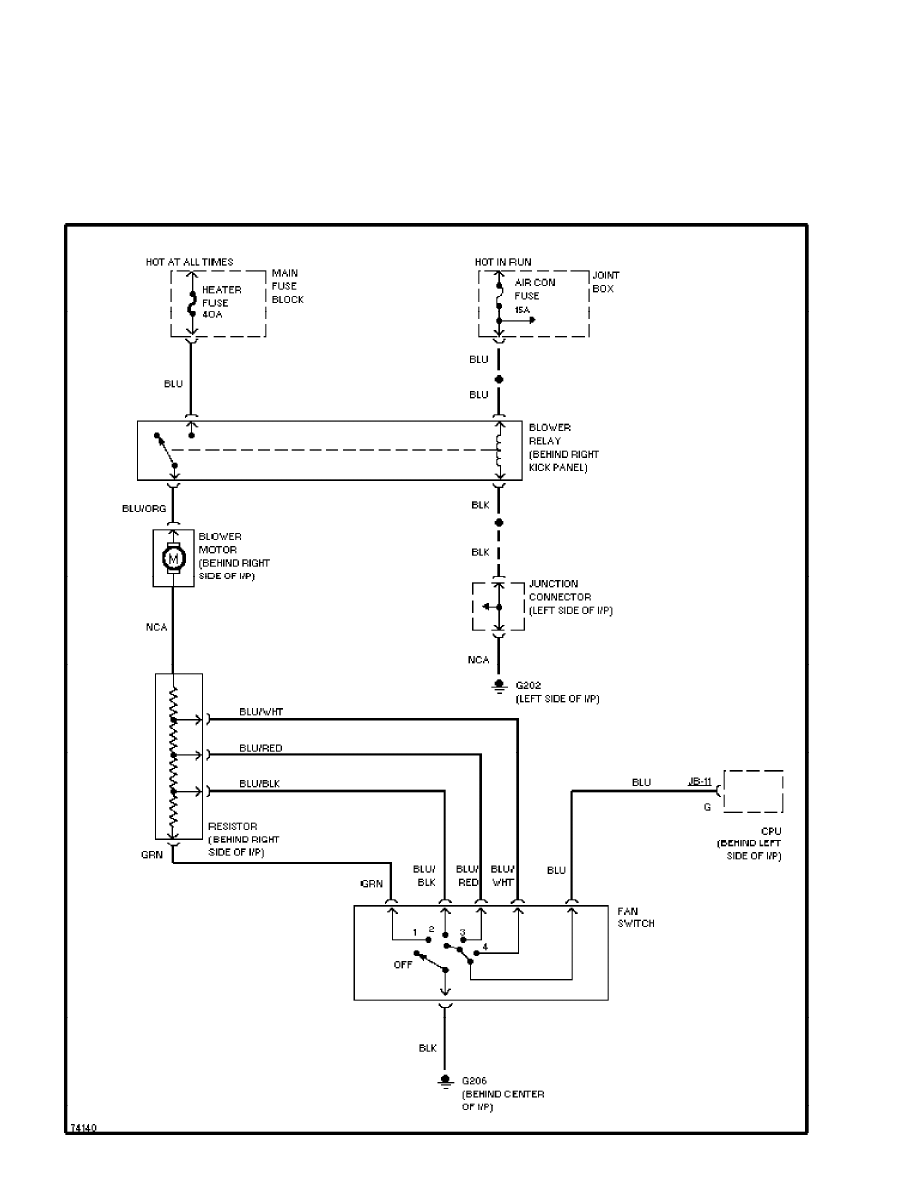

Heater Circuit (p. 3)

1995 Mazda MPV

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 04:47PM

SYSTEM WIRING DIAGRAMS

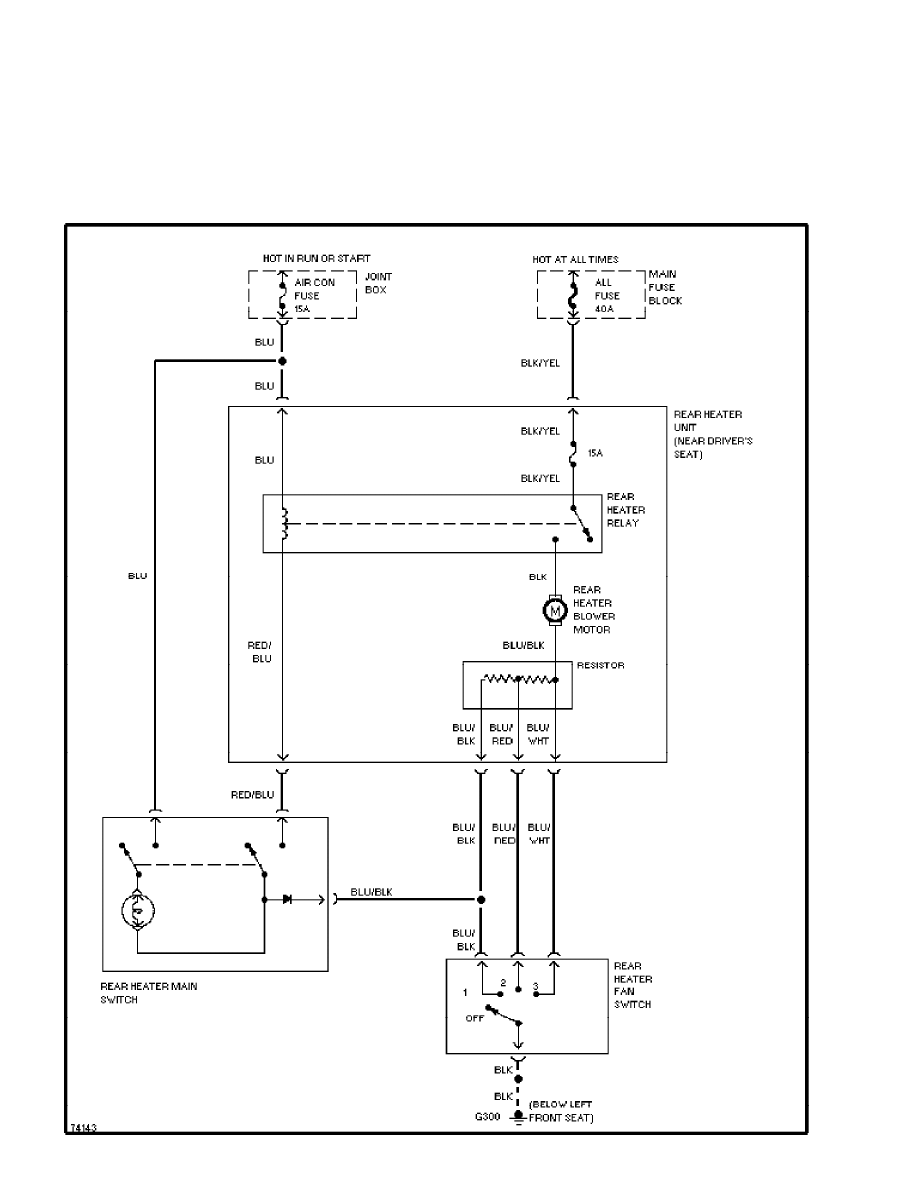

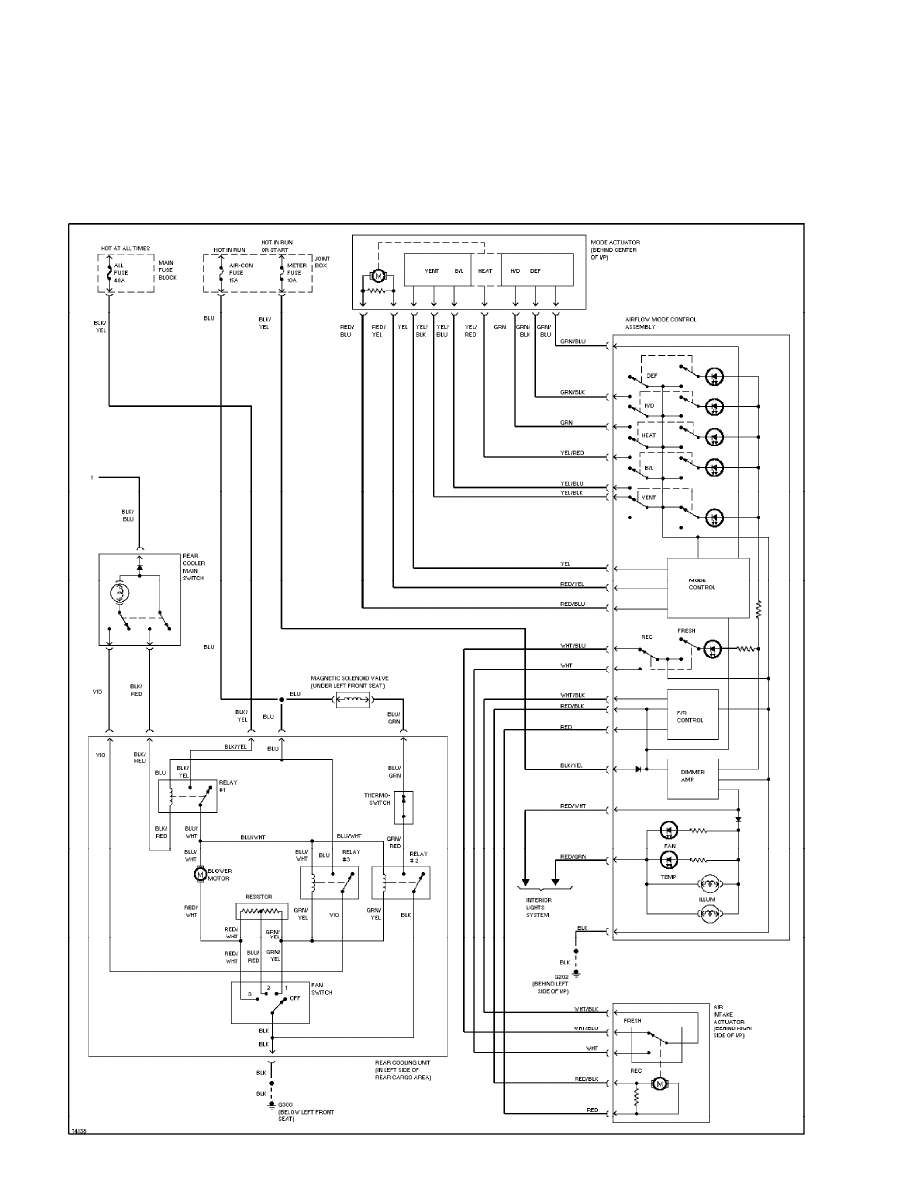

Rear Heater Circuit (p. 4)

1995 Mazda MPV

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 04:47PM

SYSTEM WIRING DIAGRAMS

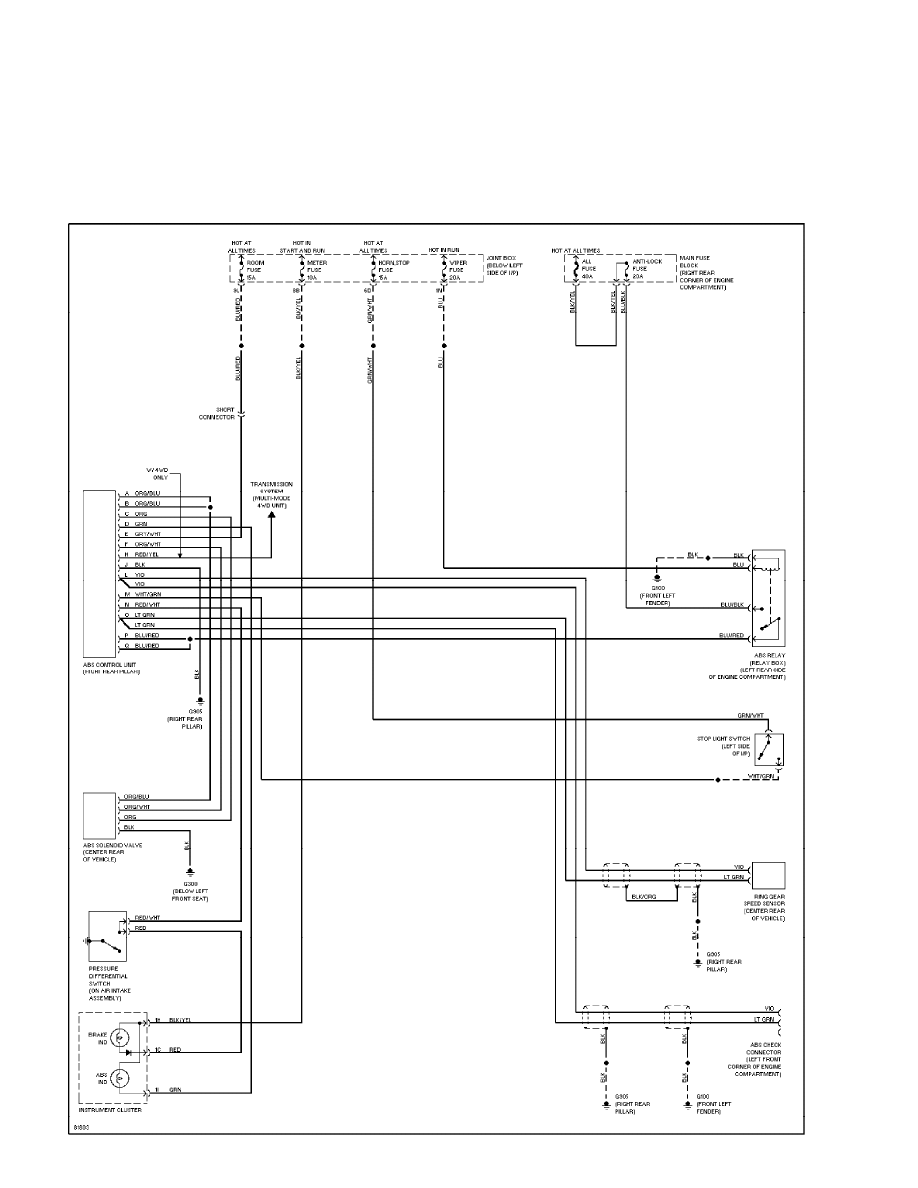

Rear Wheel ABS Circuit (p. 5)

1995 Mazda MPV

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 04:47PM

SYSTEM WIRING DIAGRAMS

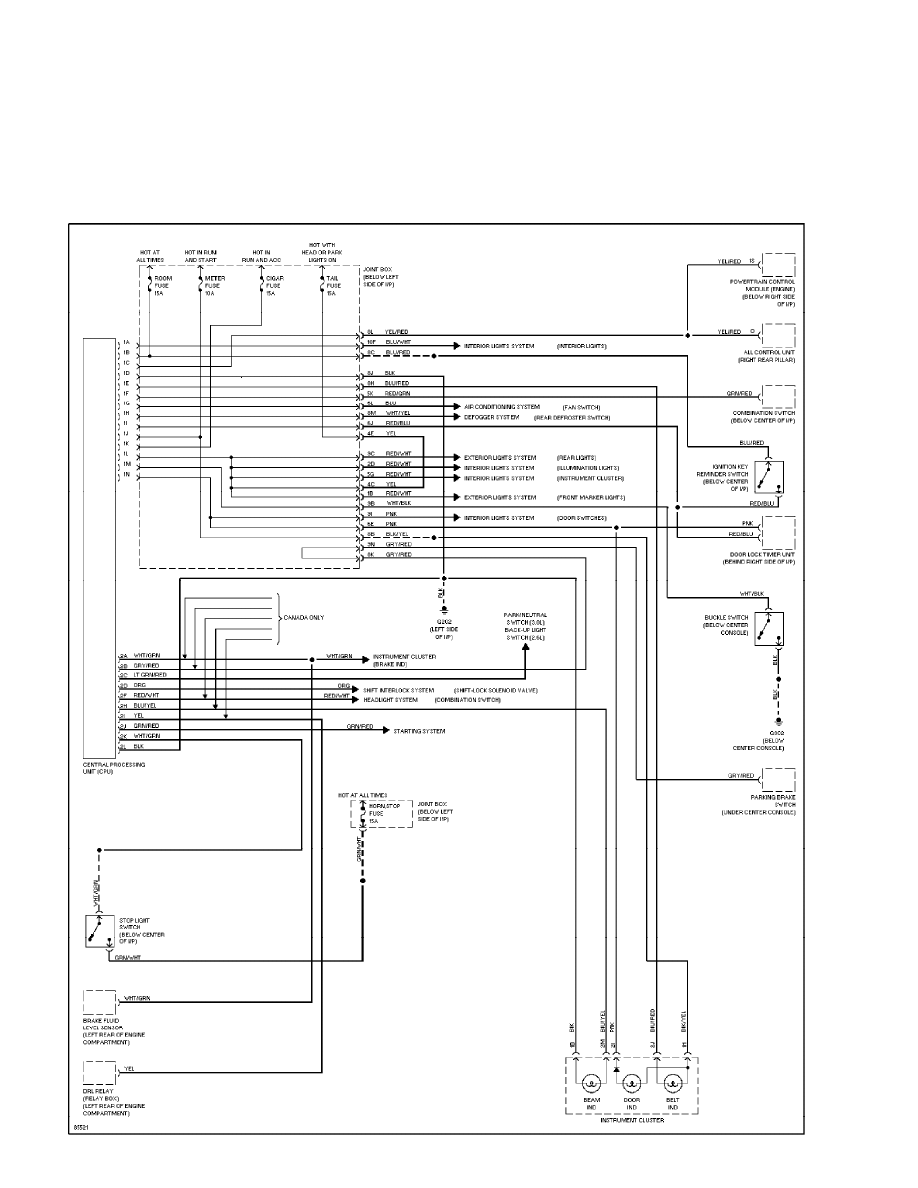

Central Processing Unit Circuit (p. 6)

1995 Mazda MPV

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 04:47PM

SYSTEM WIRING DIAGRAMS

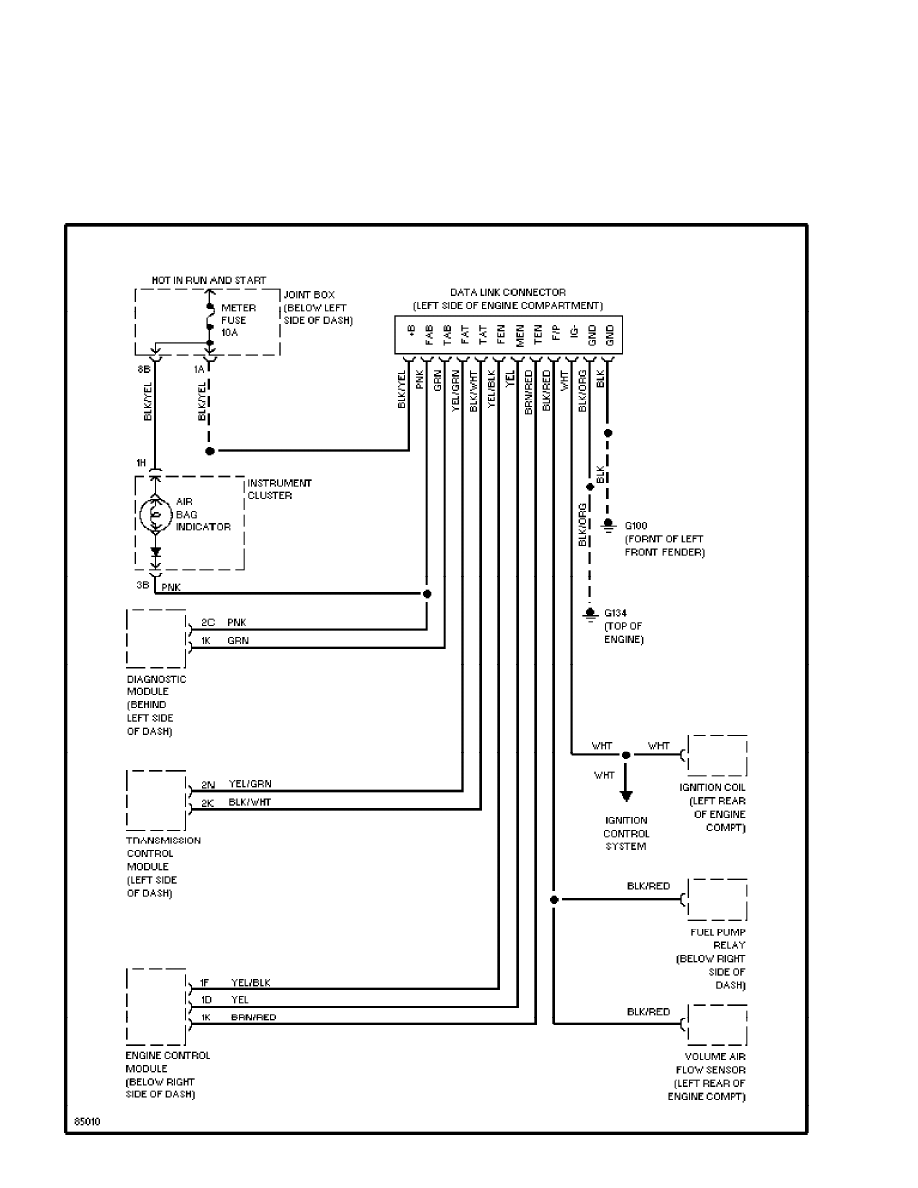

Data Link Connector Circuit (p. 7)

1995 Mazda MPV

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 04:47PM

SYSTEM WIRING DIAGRAMS

Cooling Fan Circuit (p. 8)

1995 Mazda MPV

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 04:47PM

SYSTEM WIRING DIAGRAMS

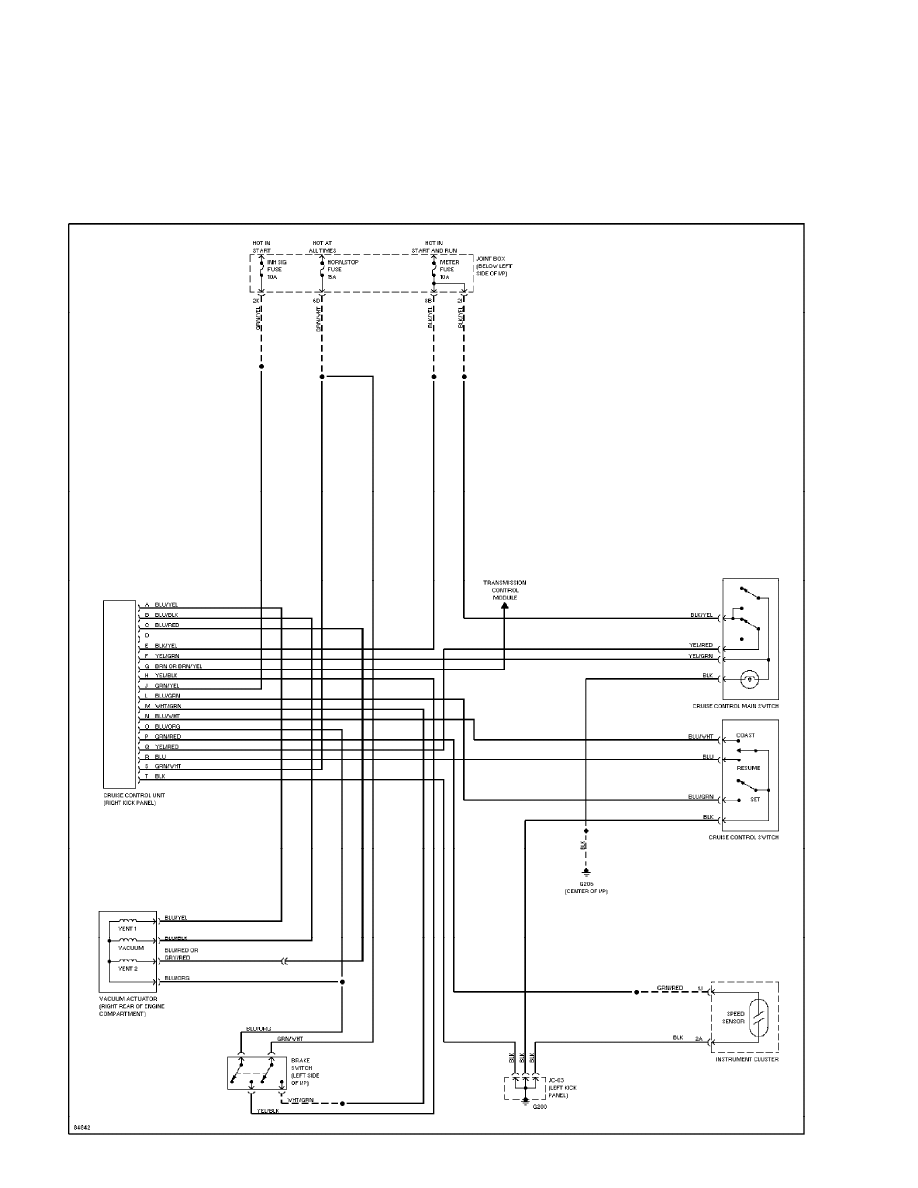

Cruise Control Circuit (p. 9)

1995 Mazda MPV

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 04:47PM

SYSTEM WIRING DIAGRAMS

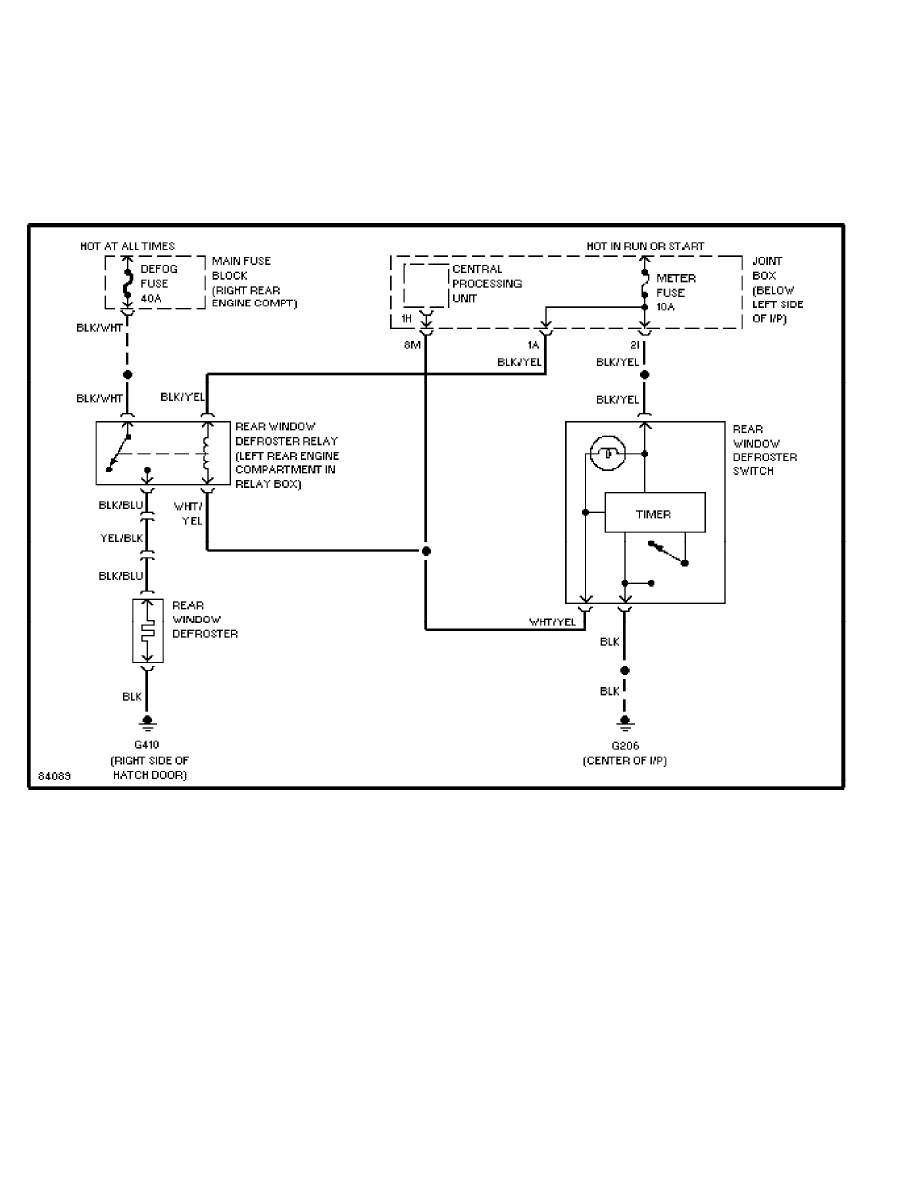

Defogger Circuit (p. 10)

1995 Mazda MPV

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 04:47PM

SYSTEM WIRING DIAGRAMS

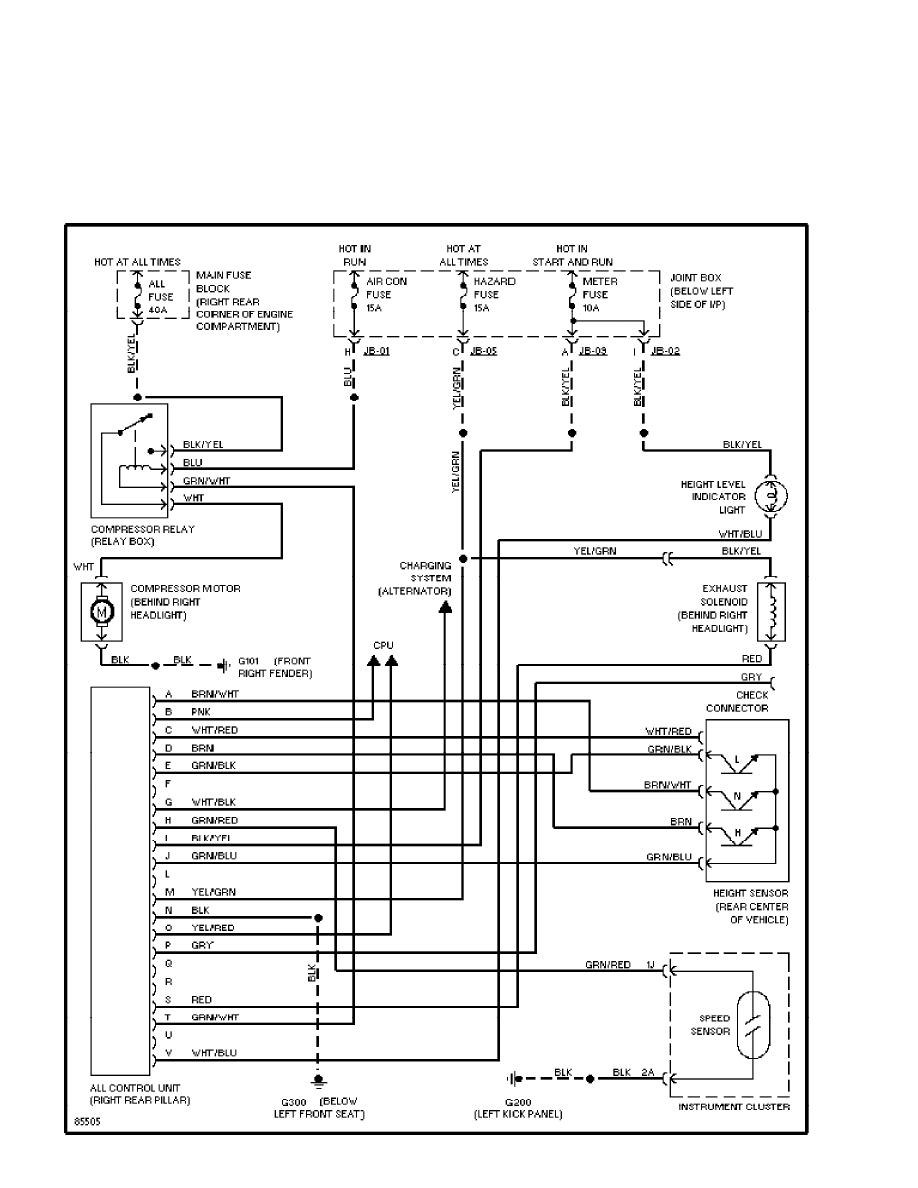

Electronic Suspension Circuit (p. 11)

1995 Mazda MPV

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 04:47PM

SYSTEM WIRING DIAGRAMS

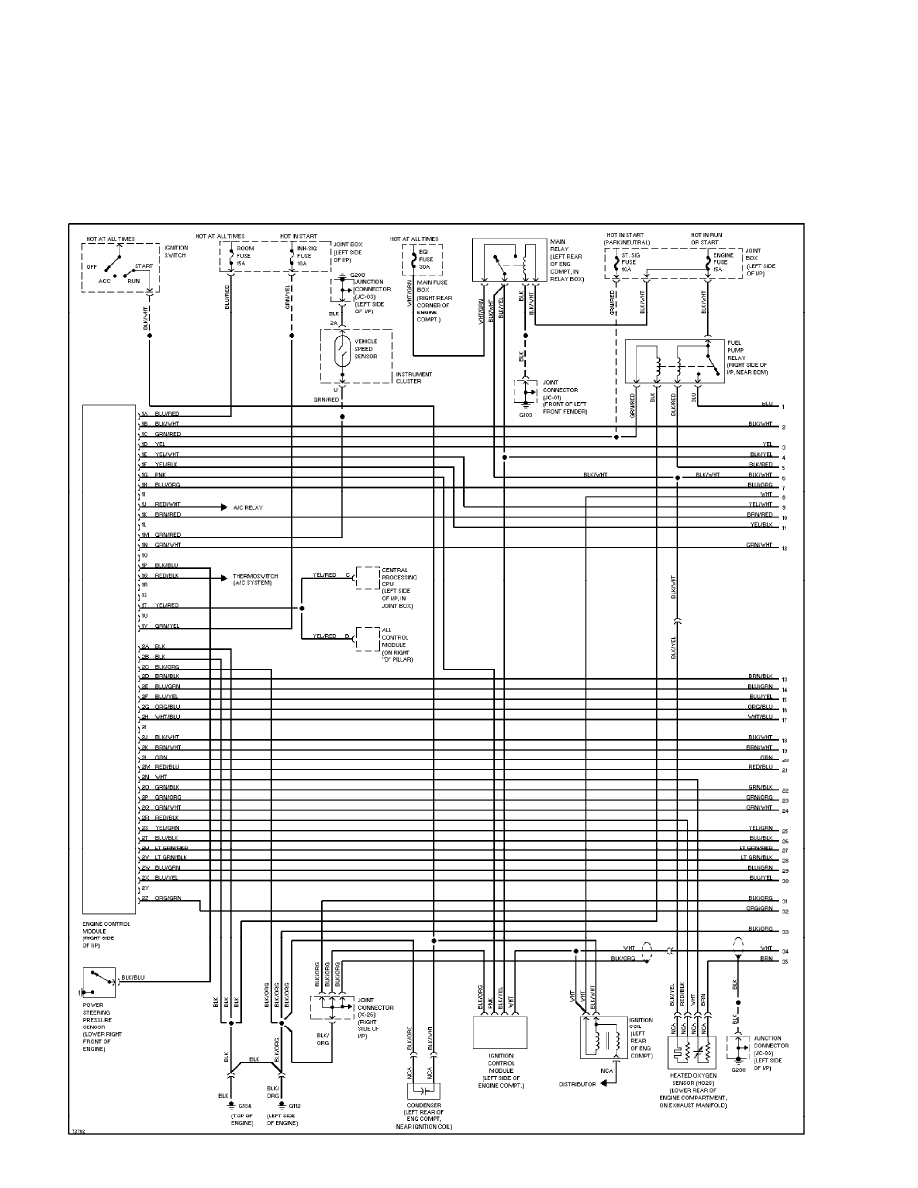

3.0L, Engine Performance Circuits (1 of 2) (p. 12)

1995 Mazda MPV

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 04:47PM

SYSTEM WIRING DIAGRAMS

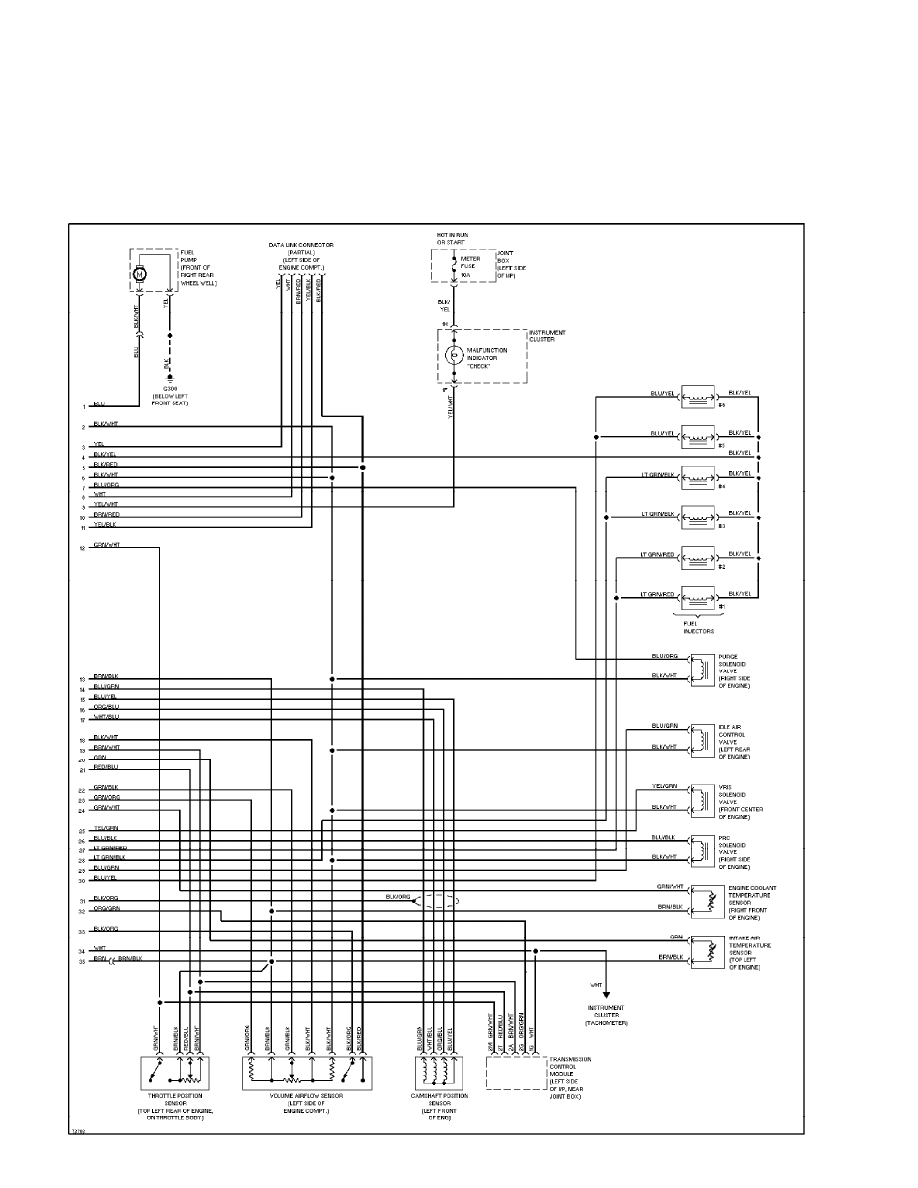

3.0L, Engine Performance Circuits (2 of 2) (p. 13)

1995 Mazda MPV

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 04:47PM

SYSTEM WIRING DIAGRAMS

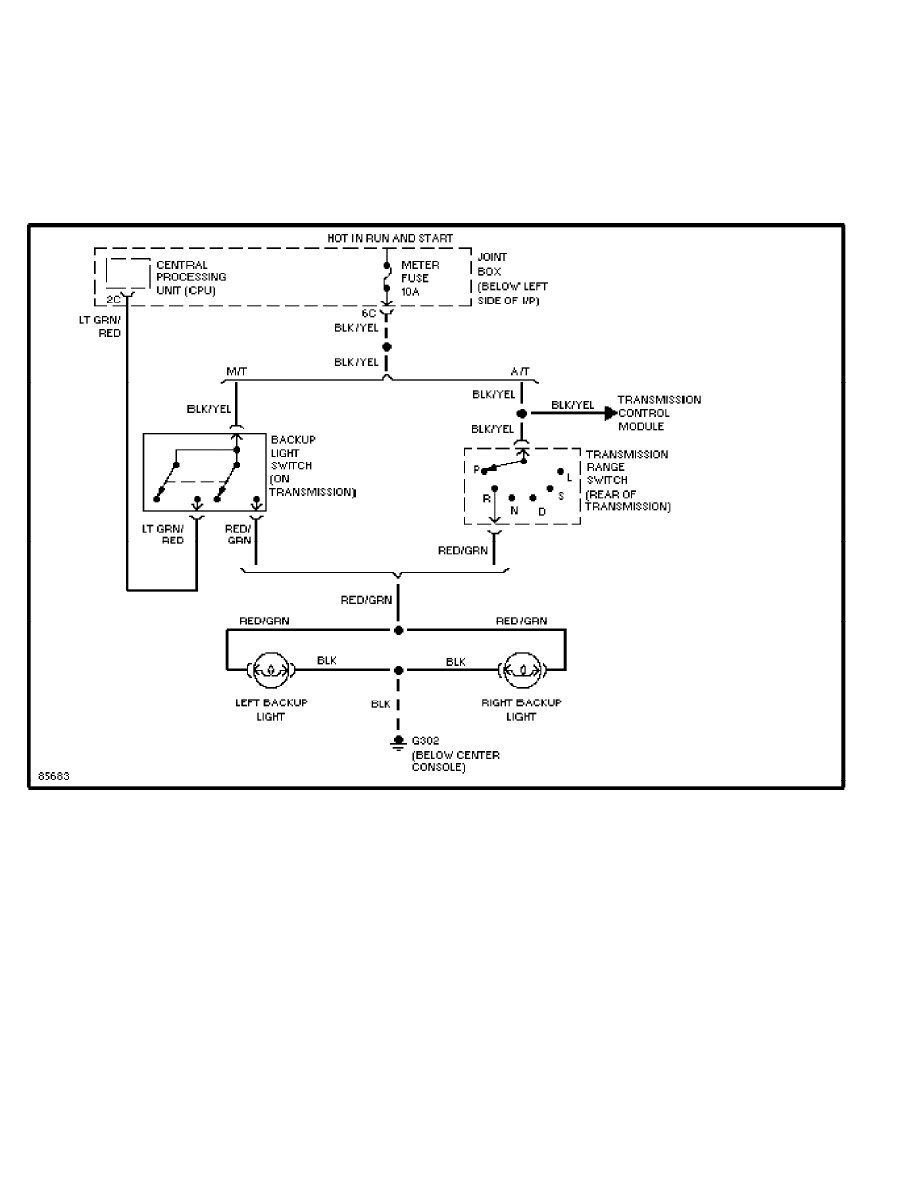

Back-up Lamps Circuit (p. 14)

1995 Mazda MPV

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 04:47PM

SYSTEM WIRING DIAGRAMS

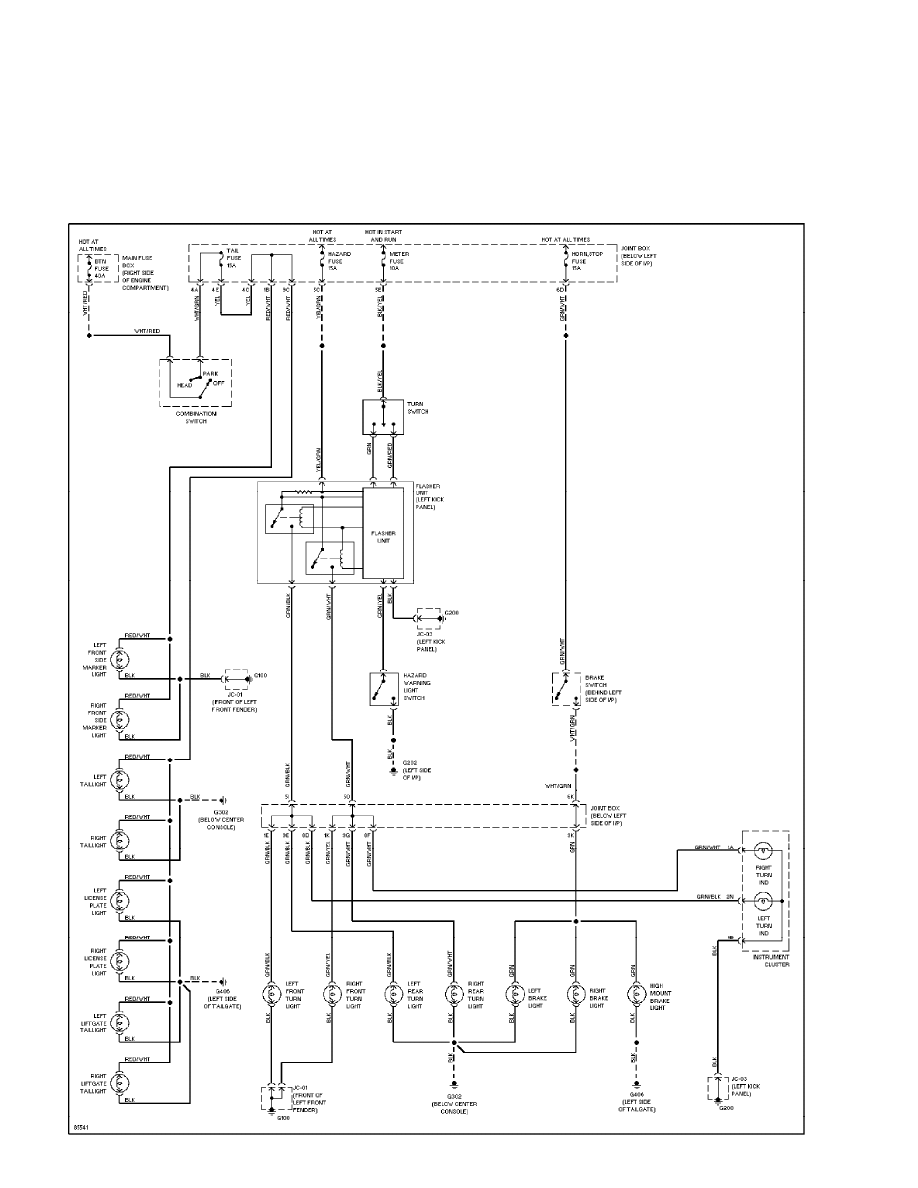

Exterior Lamps Circuit (p. 15)

1995 Mazda MPV

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 04:47PM

SYSTEM WIRING DIAGRAMS

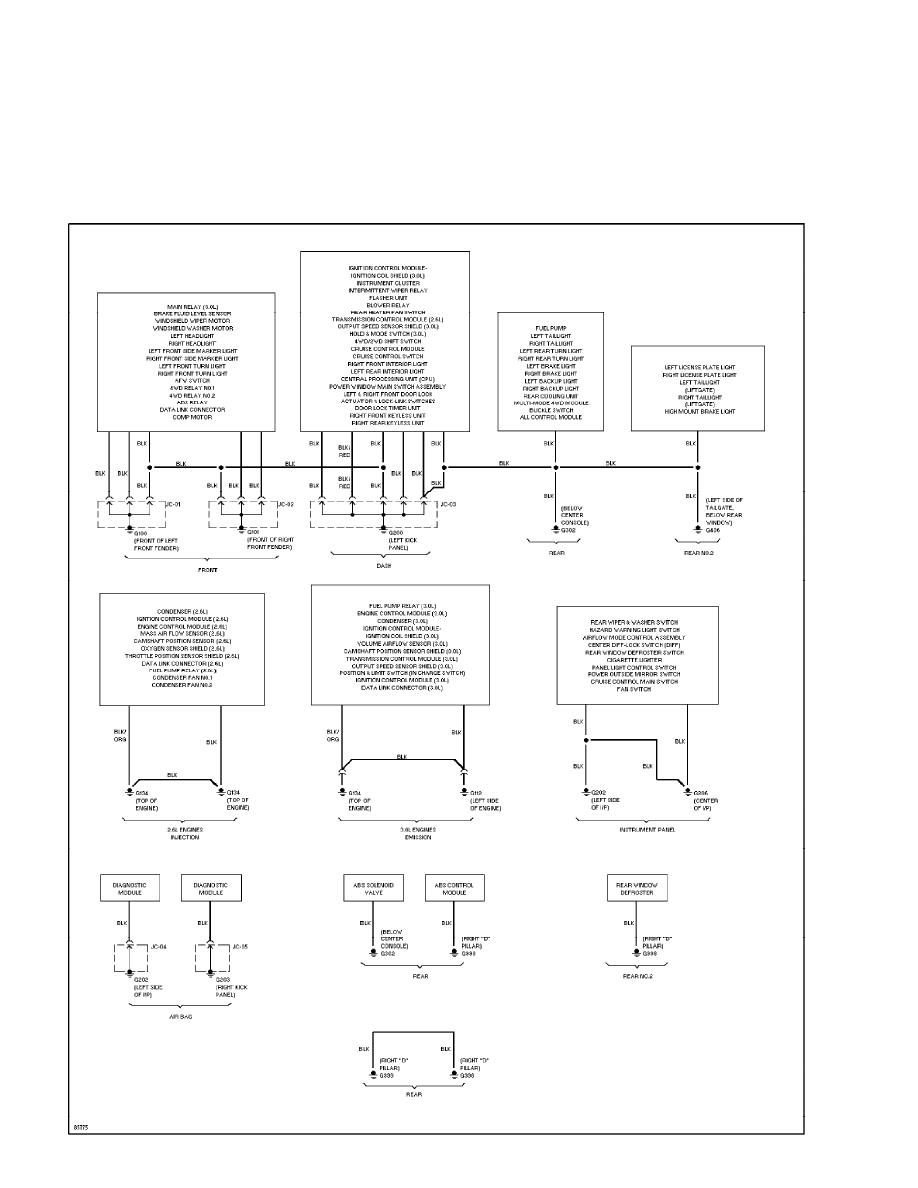

Ground Distribution Circuit (p. 16)

1995 Mazda MPV

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 04:47PM

SYSTEM WIRING DIAGRAMS

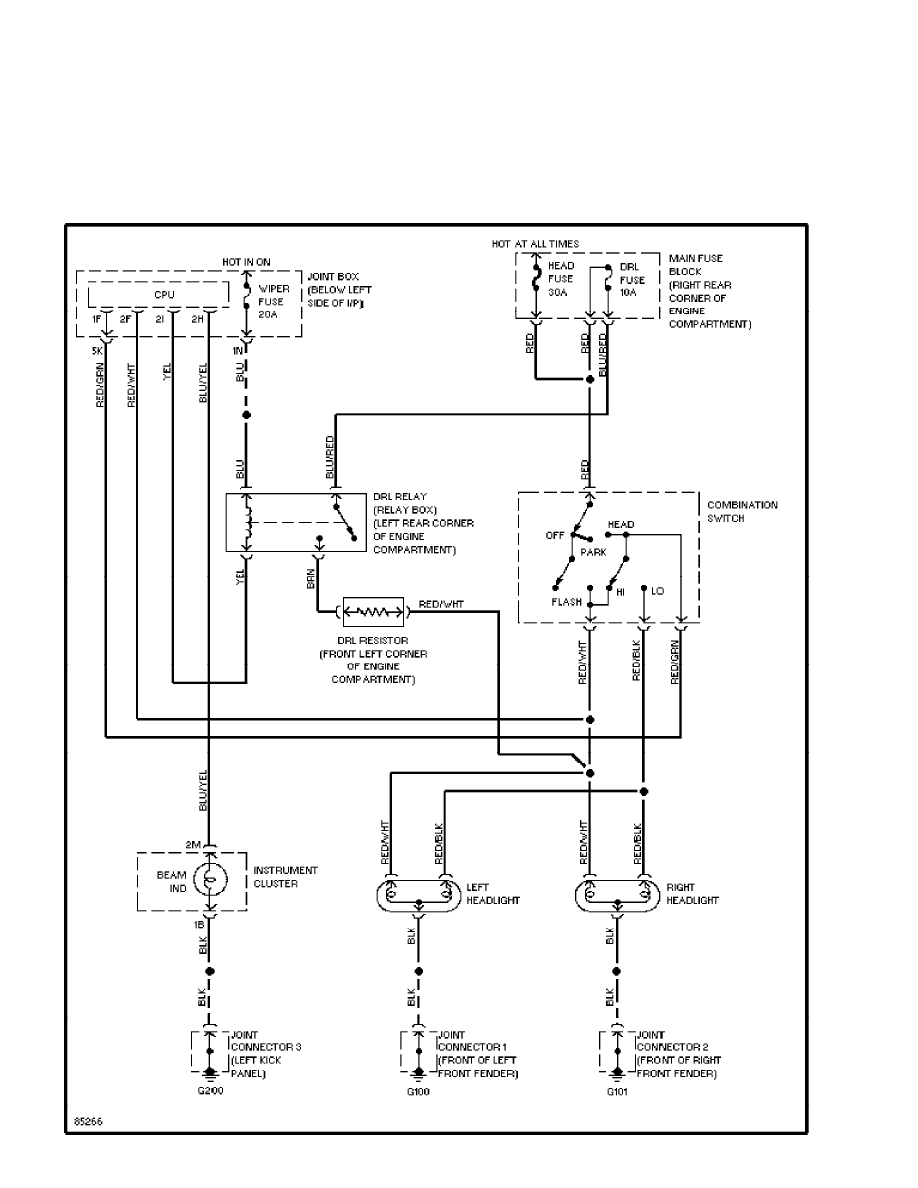

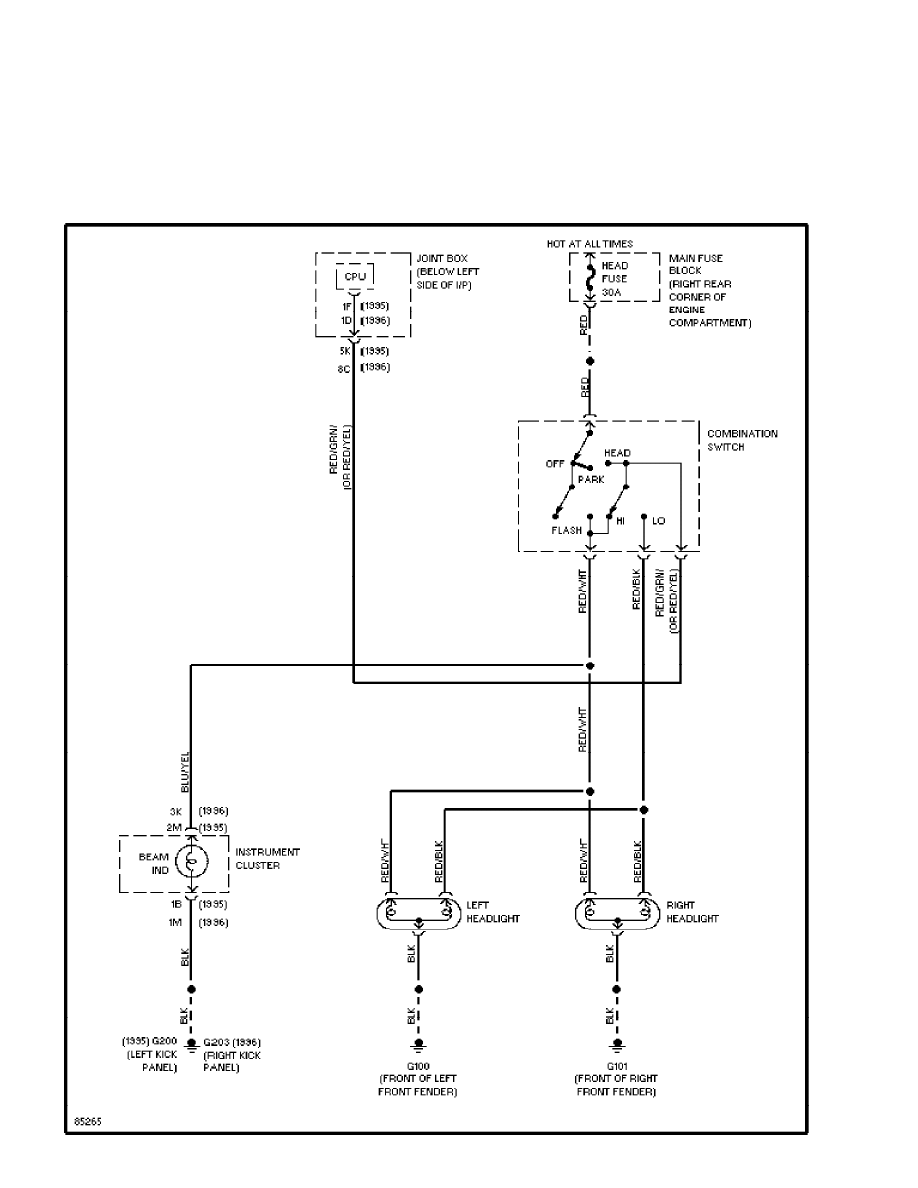

Headlight Circuit, W/ DRL (p. 17)

1995 Mazda MPV

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 04:47PM

SYSTEM WIRING DIAGRAMS

Headlight Circuit, W/O DRL (p. 18)

1995 Mazda MPV

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 04:47PM

SYSTEM WIRING DIAGRAMS

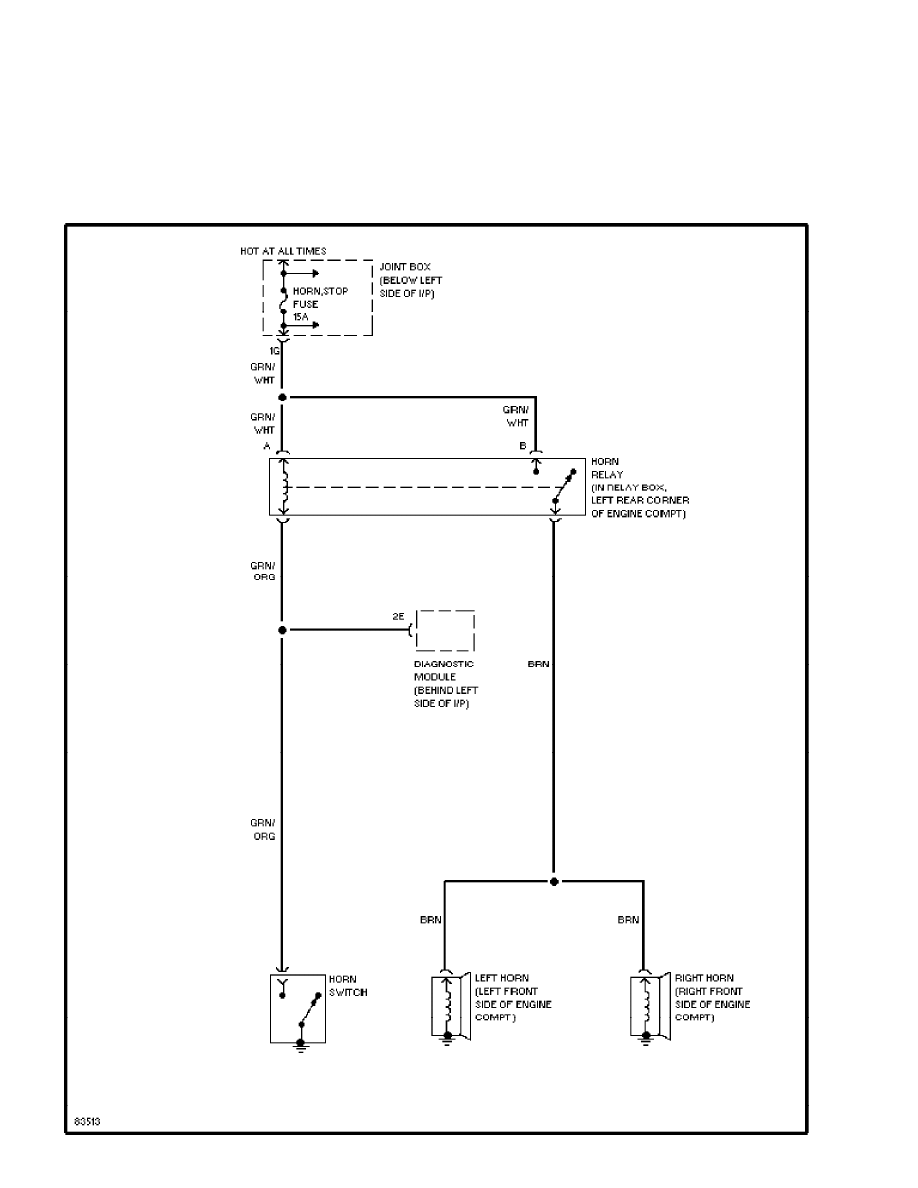

Horn Circuit (p. 19)

1995 Mazda MPV

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 04:47PM

SYSTEM WIRING DIAGRAMS

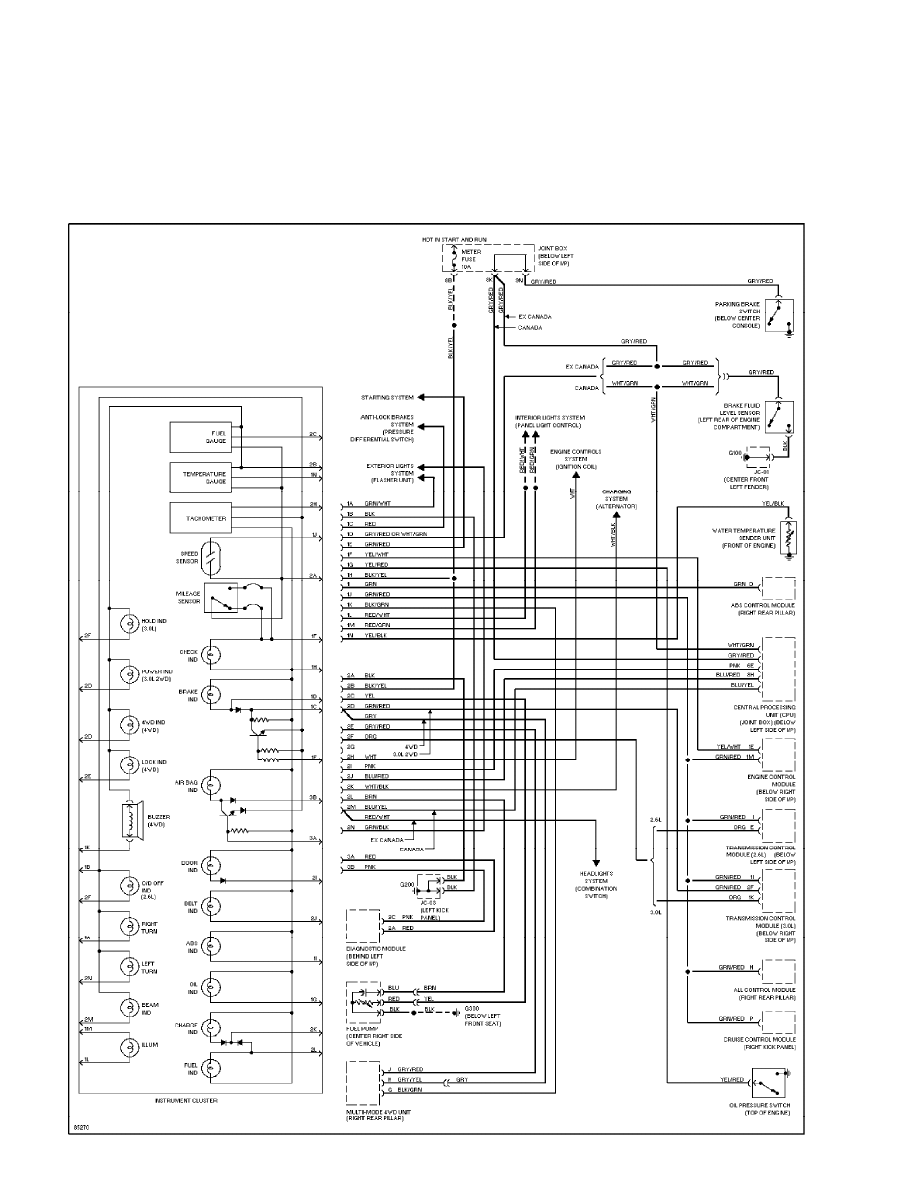

Instrument Cluster Circuit (p. 20)

1995 Mazda MPV

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 04:47PM

SYSTEM WIRING DIAGRAMS

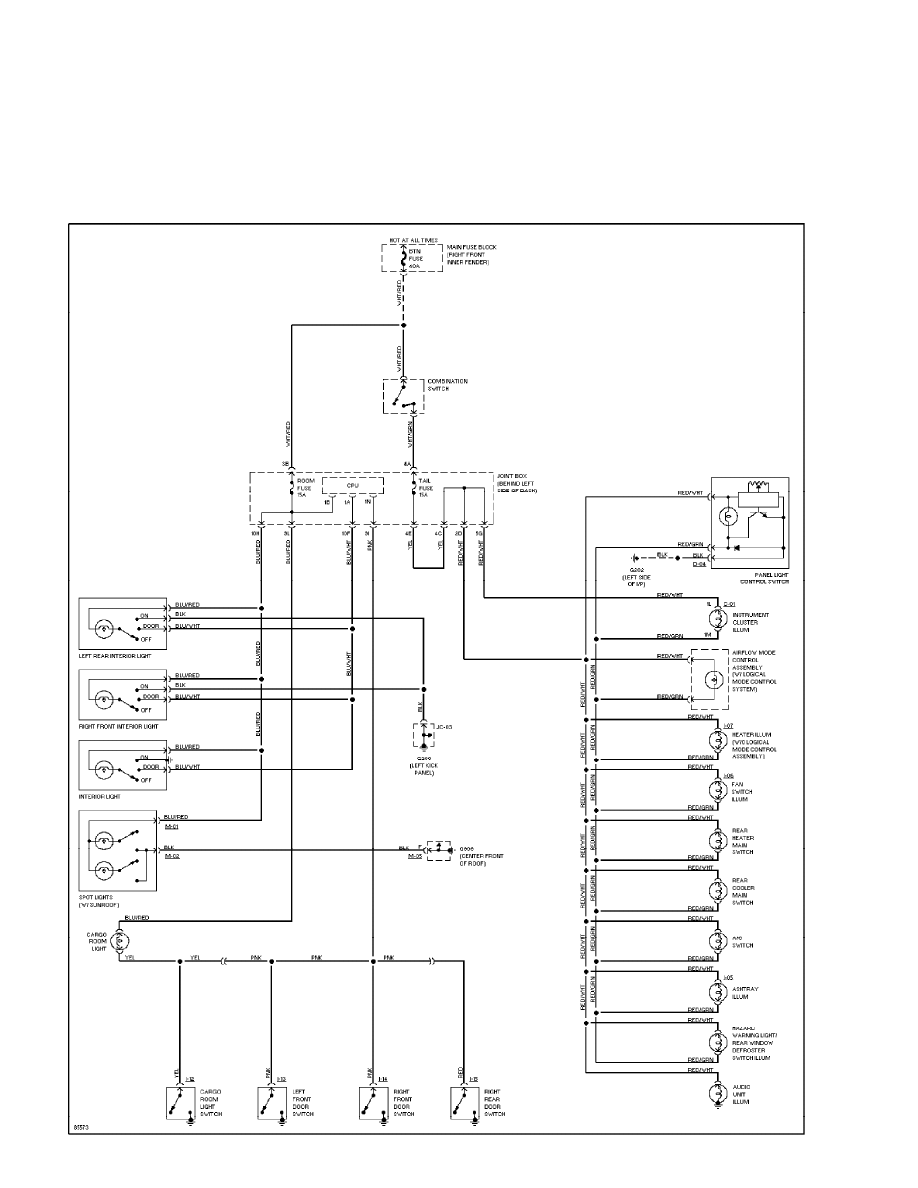

Interior Light Circuit (p. 21)

1995 Mazda MPV

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 04:47PM

SYSTEM WIRING DIAGRAMS

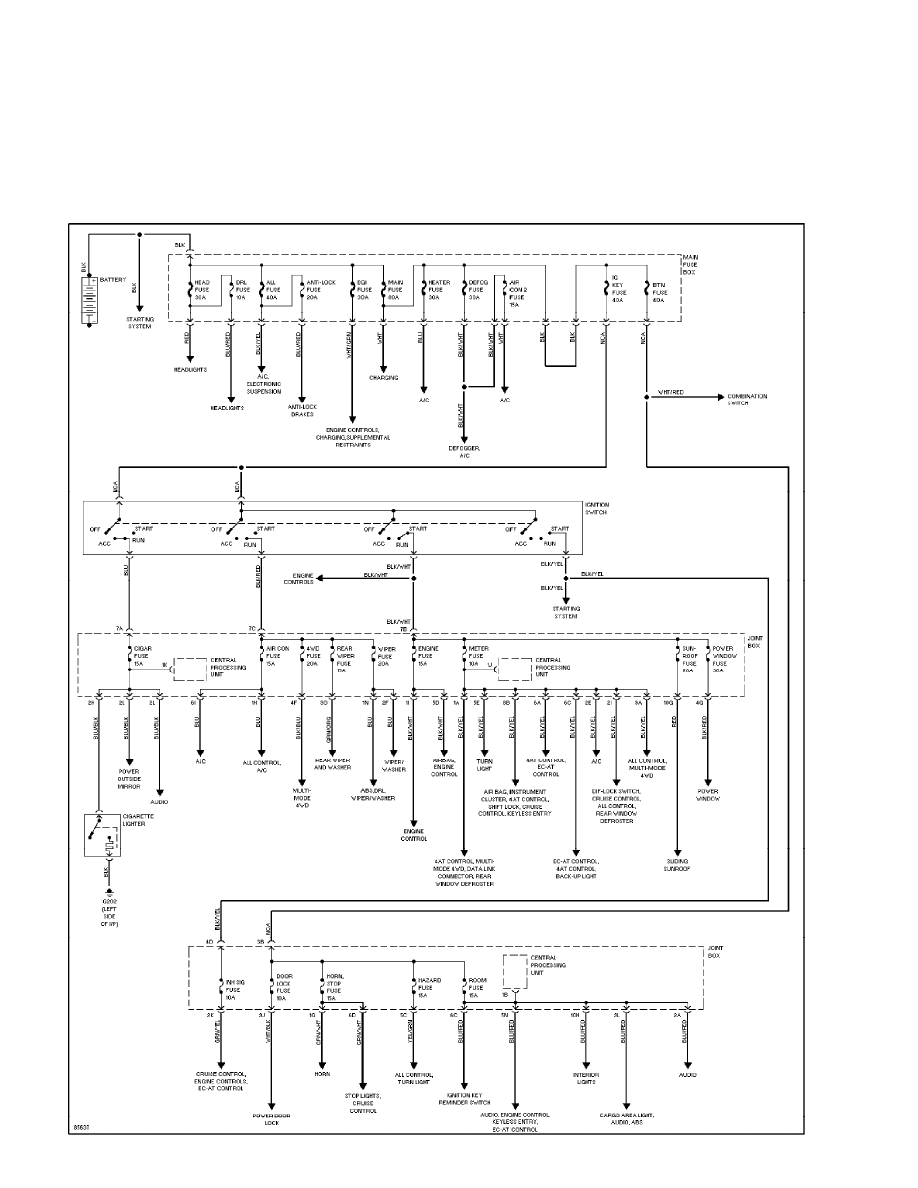

Power Distribution Circuit (p. 22)

1995 Mazda MPV

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 04:47PM

SYSTEM WIRING DIAGRAMS

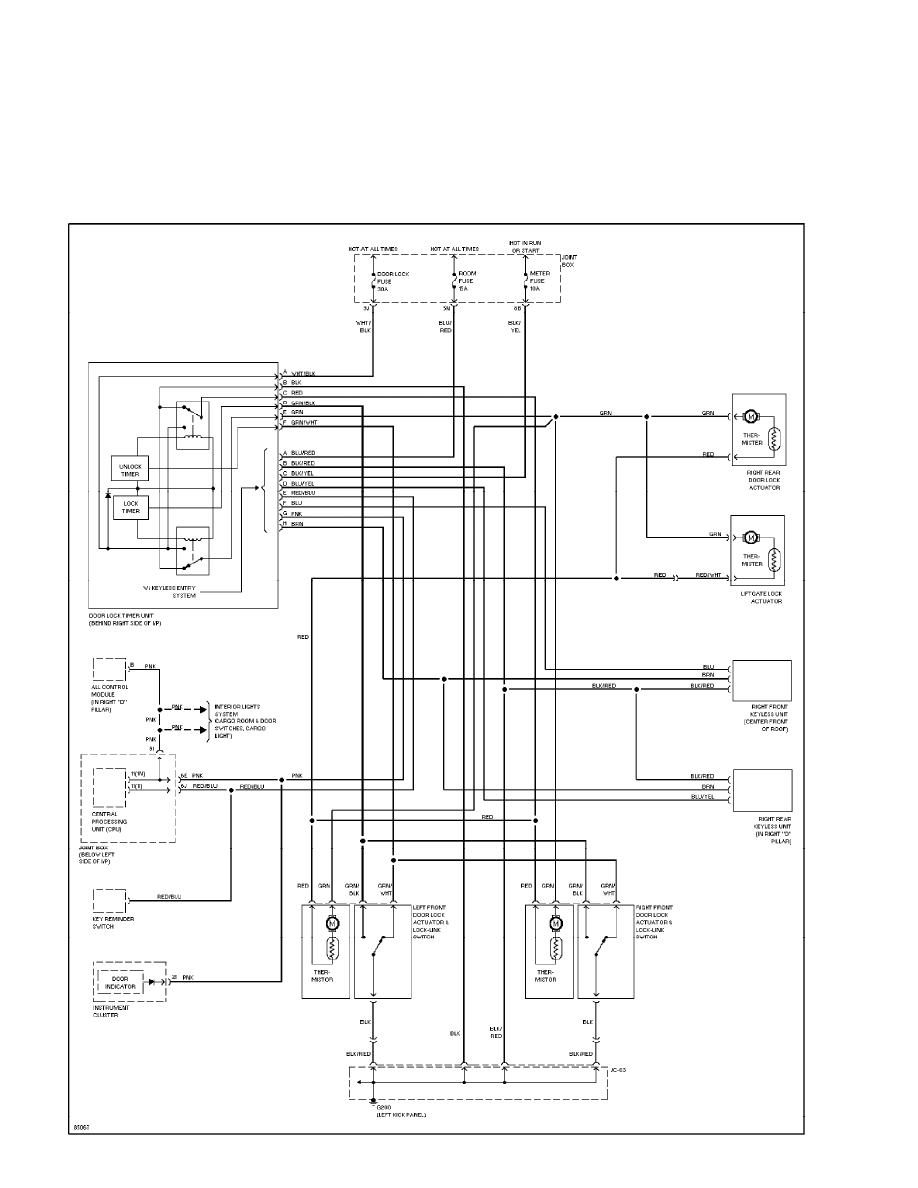

Power Door Lock Circuit (p. 23)

1995 Mazda MPV

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 04:47PM

SYSTEM WIRING DIAGRAMS

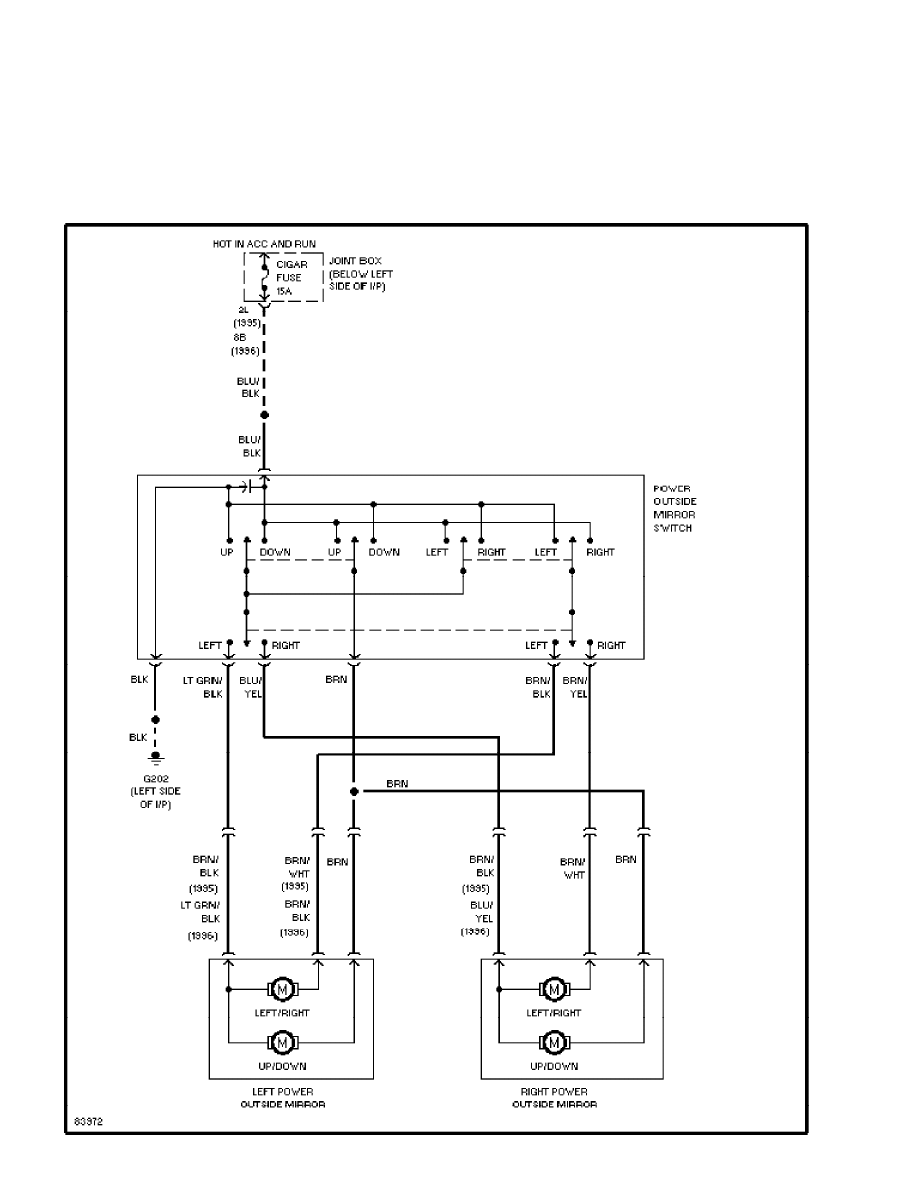

Power Mirror Circuit (p. 24)

1995 Mazda MPV

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 04:47PM

SYSTEM WIRING DIAGRAMS

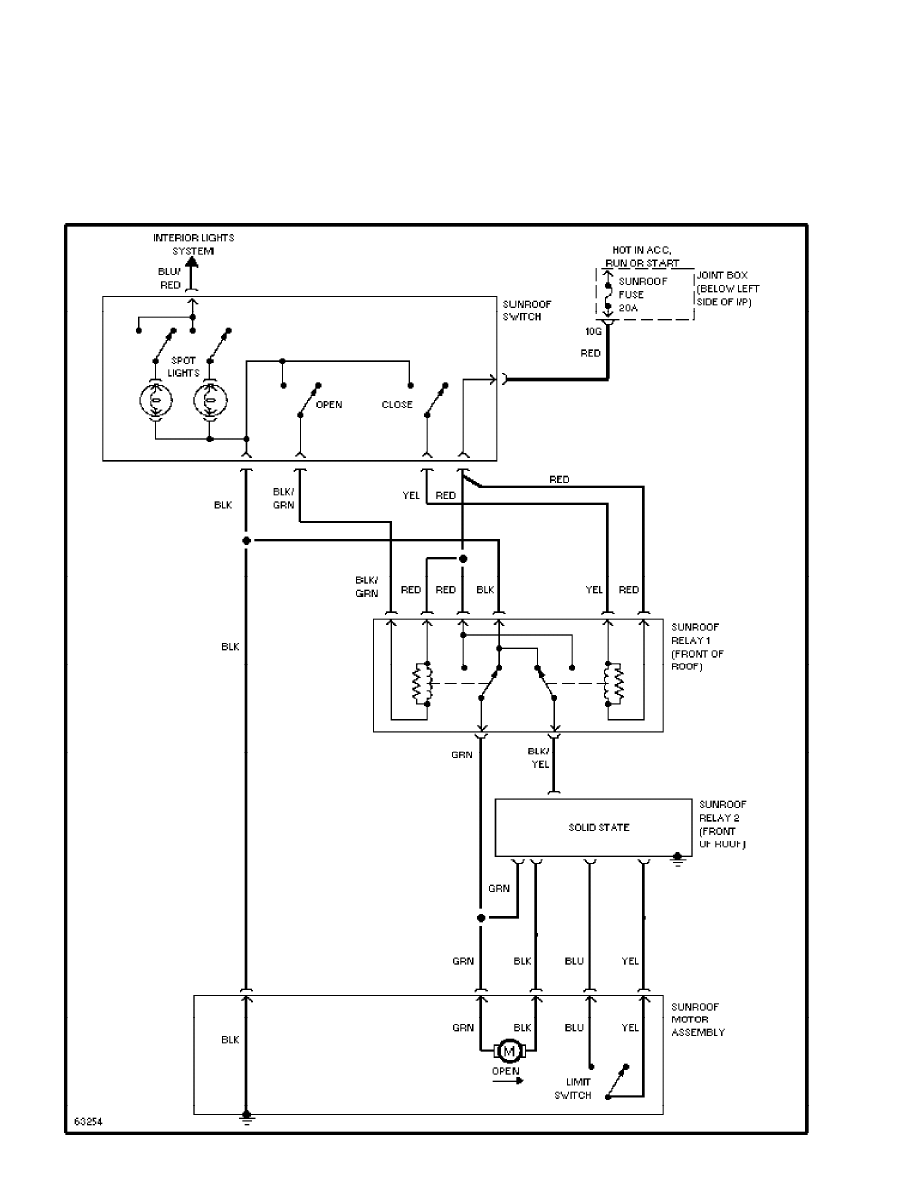

Power Top/Sunroof Circuits (p. 25)

1995 Mazda MPV

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 04:47PM

SYSTEM WIRING DIAGRAMS

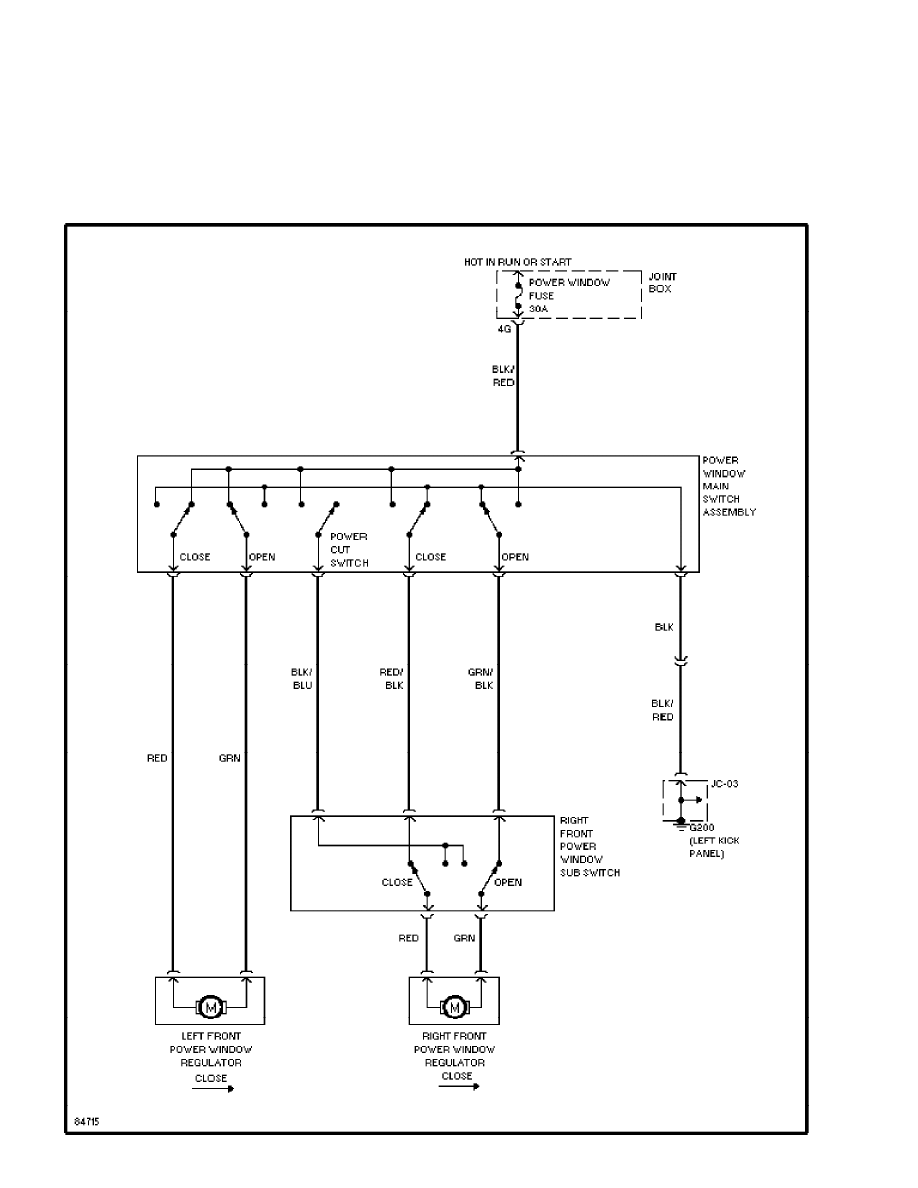

Power Window Circuit (p. 26)

1995 Mazda MPV

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 04:47PM

SYSTEM WIRING DIAGRAMS

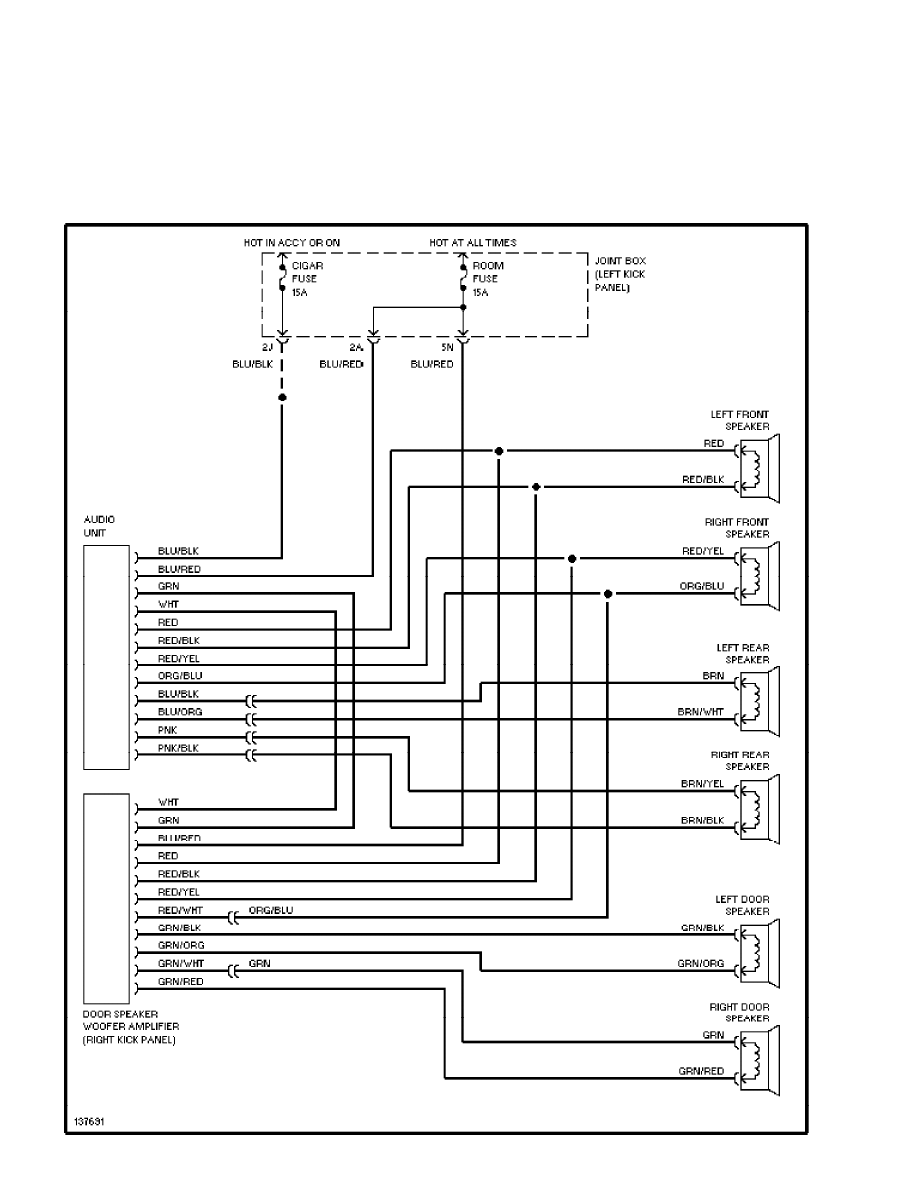

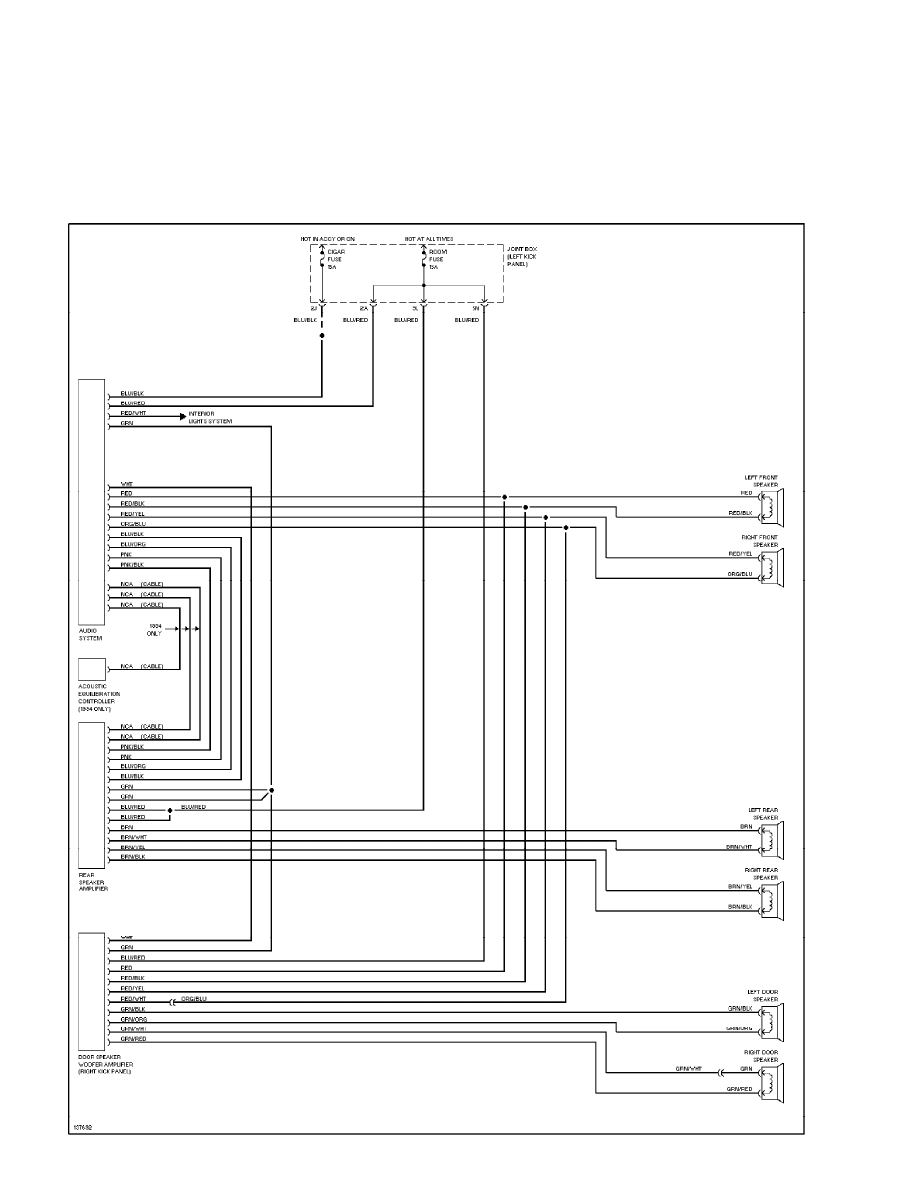

Radio Circuits, W/ Acoustic Equilibration (p. 27)

1995 Mazda MPV

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 04:47PM

SYSTEM WIRING DIAGRAMS

Radio Circuits, W/O Acoustic Equilibration (p. 28)

1995 Mazda MPV

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 04:47PM

SYSTEM WIRING DIAGRAMS

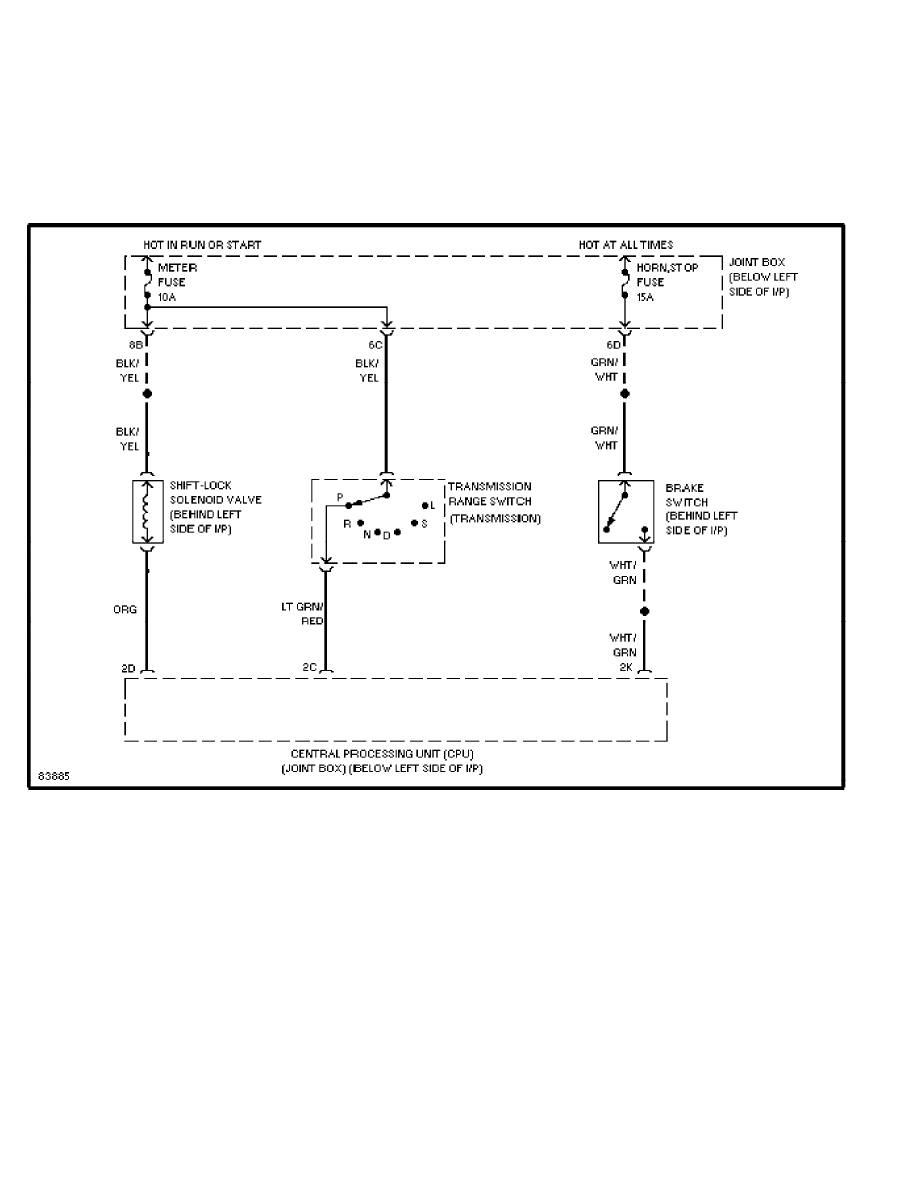

Shift Interlock Circuit (p. 29)

1995 Mazda MPV

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 04:47PM

SYSTEM WIRING DIAGRAMS

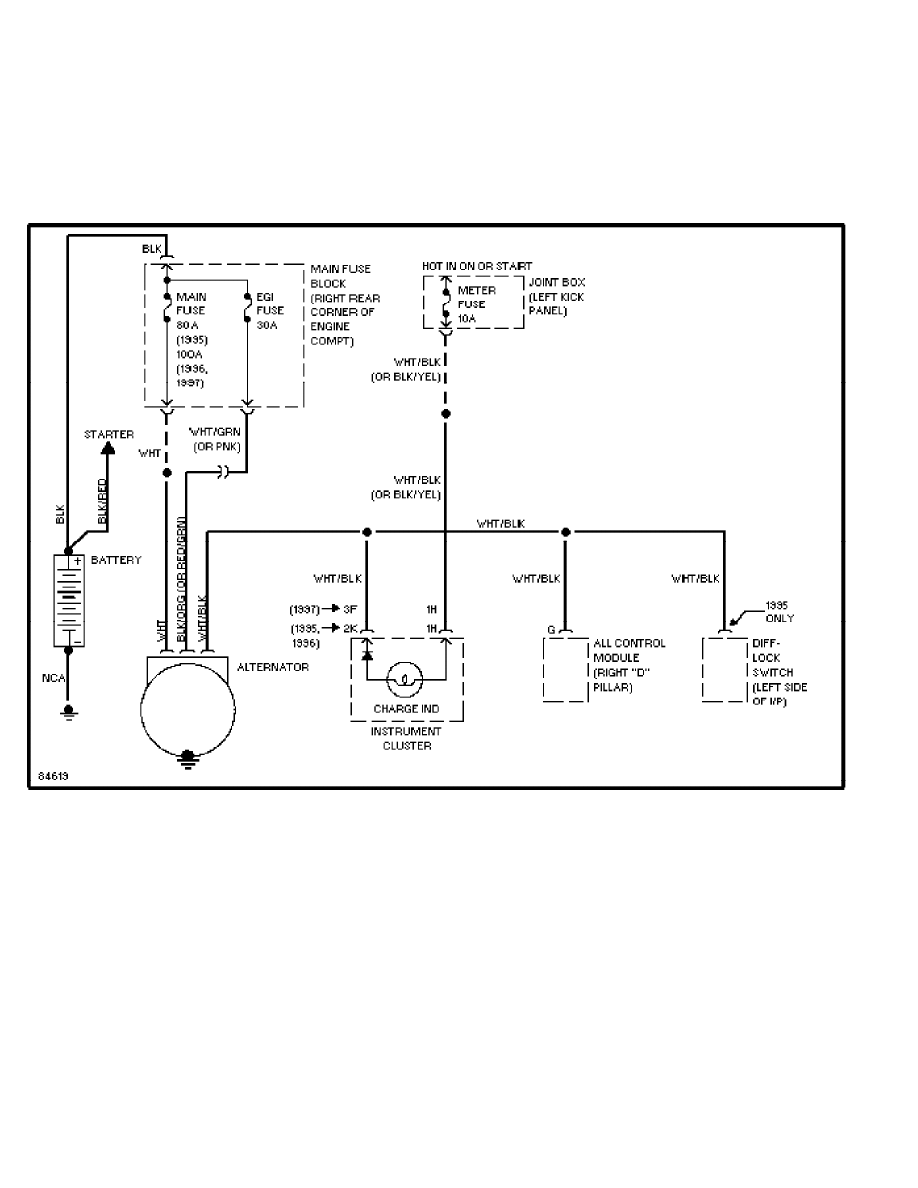

Charging Circuit (p. 30)

1995 Mazda MPV

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 04:47PM

SYSTEM WIRING DIAGRAMS

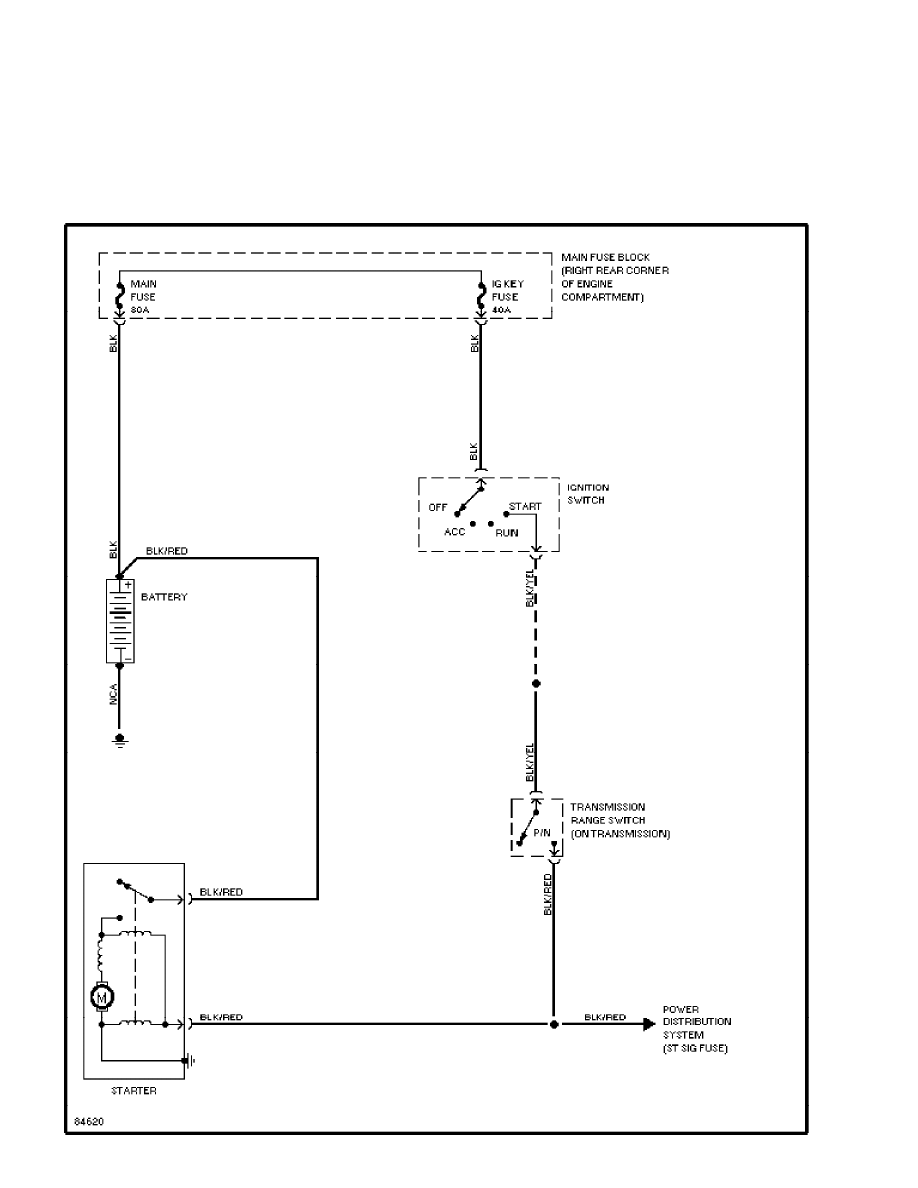

Starting Circuit (p. 31)

1995 Mazda MPV

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 04:47PM

SYSTEM WIRING DIAGRAMS

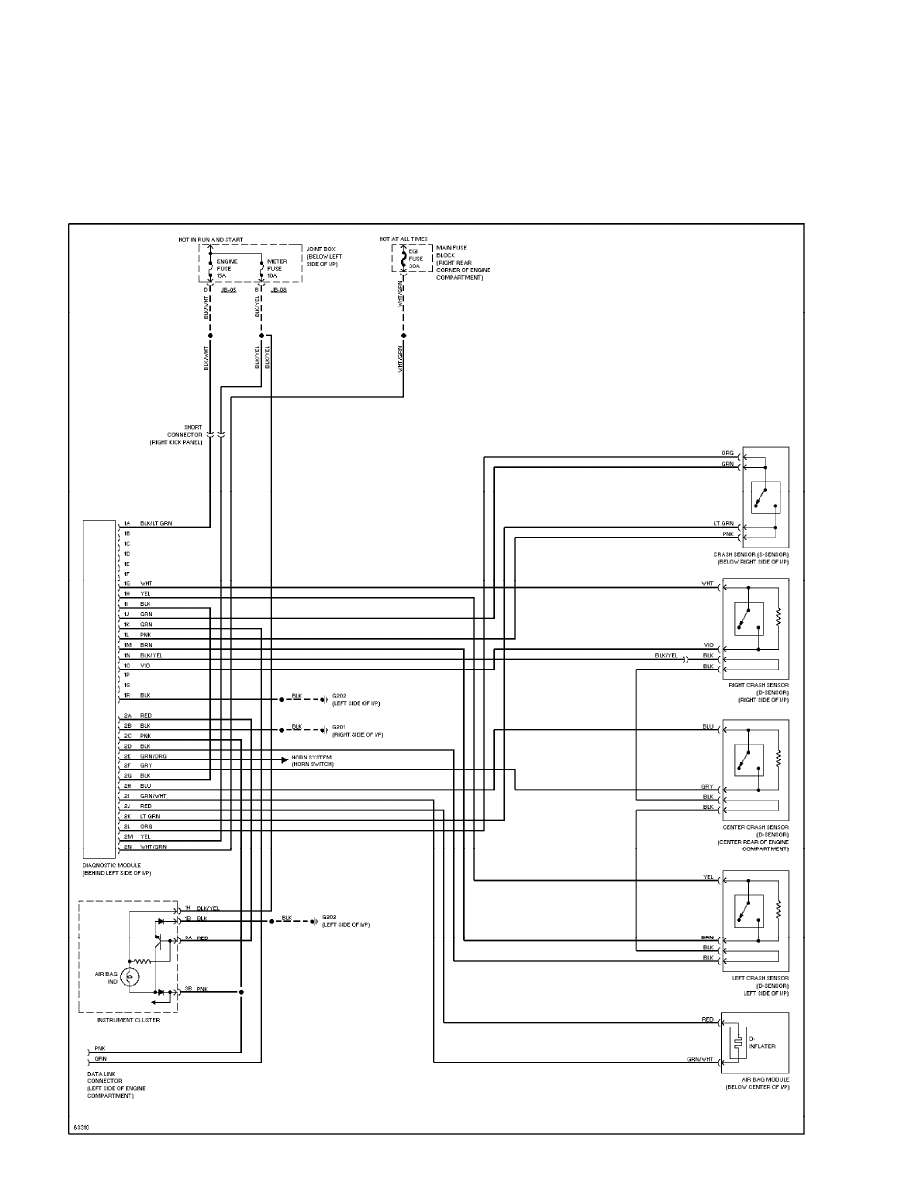

Supplemental Restraint Circuit (p. 32)

1995 Mazda MPV

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 04:47PM

SYSTEM WIRING DIAGRAMS

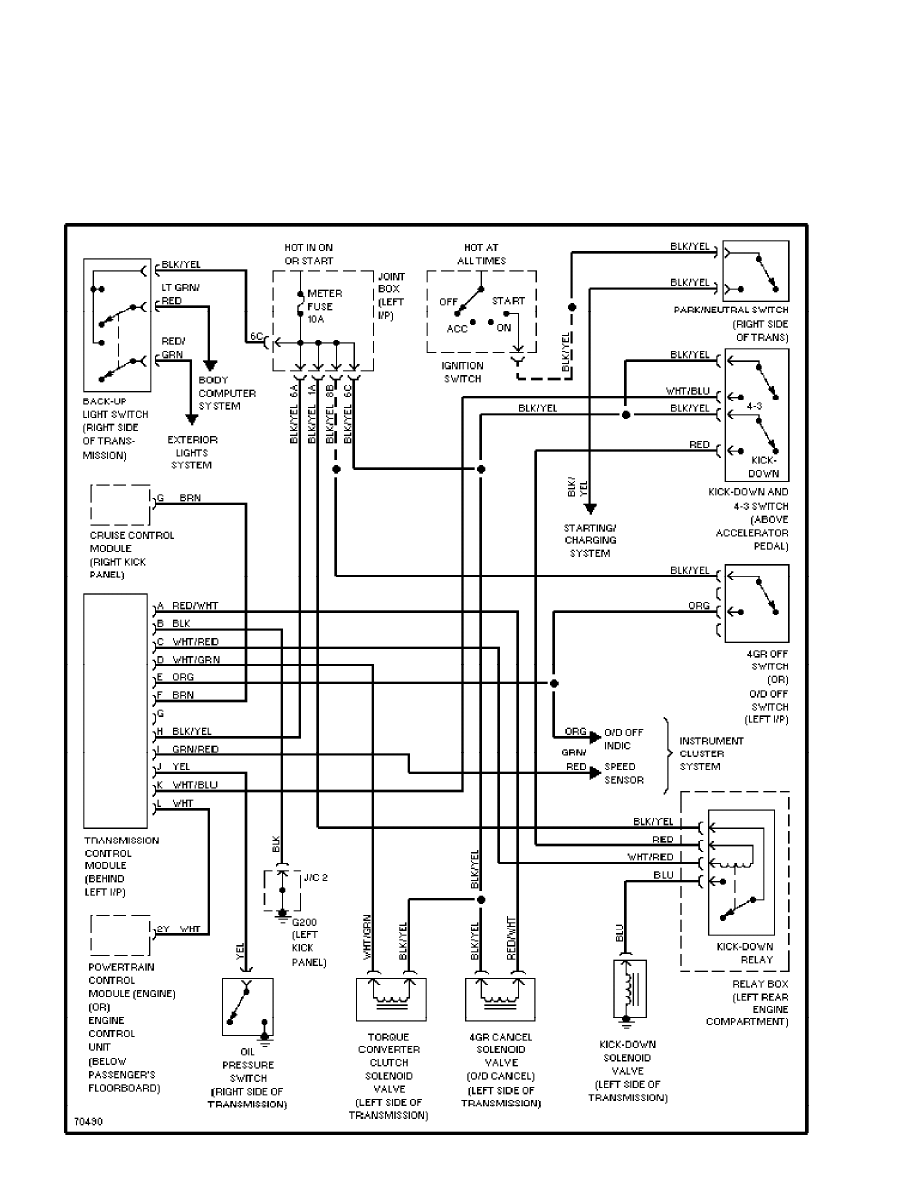

2.6L, Transmission Circuit (p. 33)

1995 Mazda MPV

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 04:47PM

SYSTEM WIRING DIAGRAMS

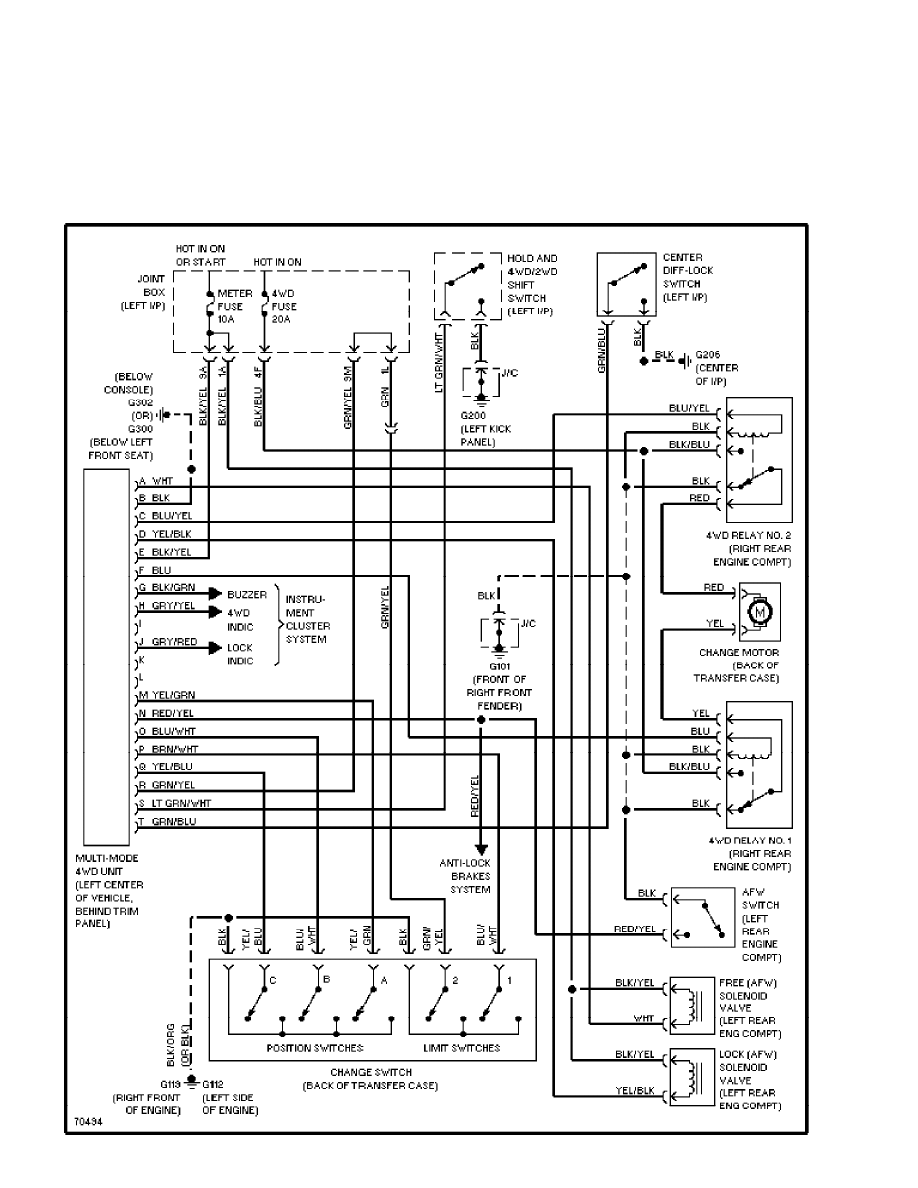

3.0L, Transfer Case Circuit (p. 34)

1995 Mazda MPV

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 04:47PM

SYSTEM WIRING DIAGRAMS

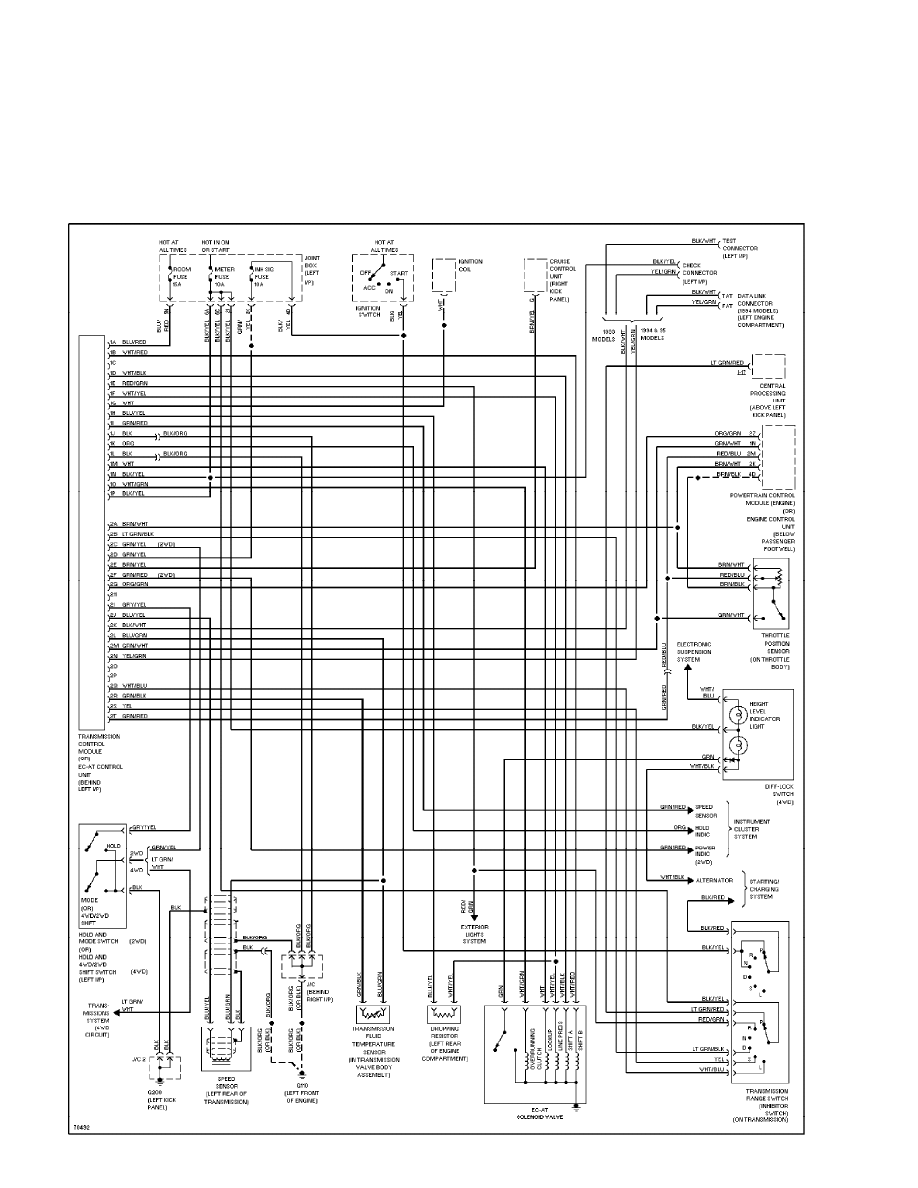

3.0L, Transmission Circuit (p. 35)

1995 Mazda MPV

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 04:47PM

SYSTEM WIRING DIAGRAMS

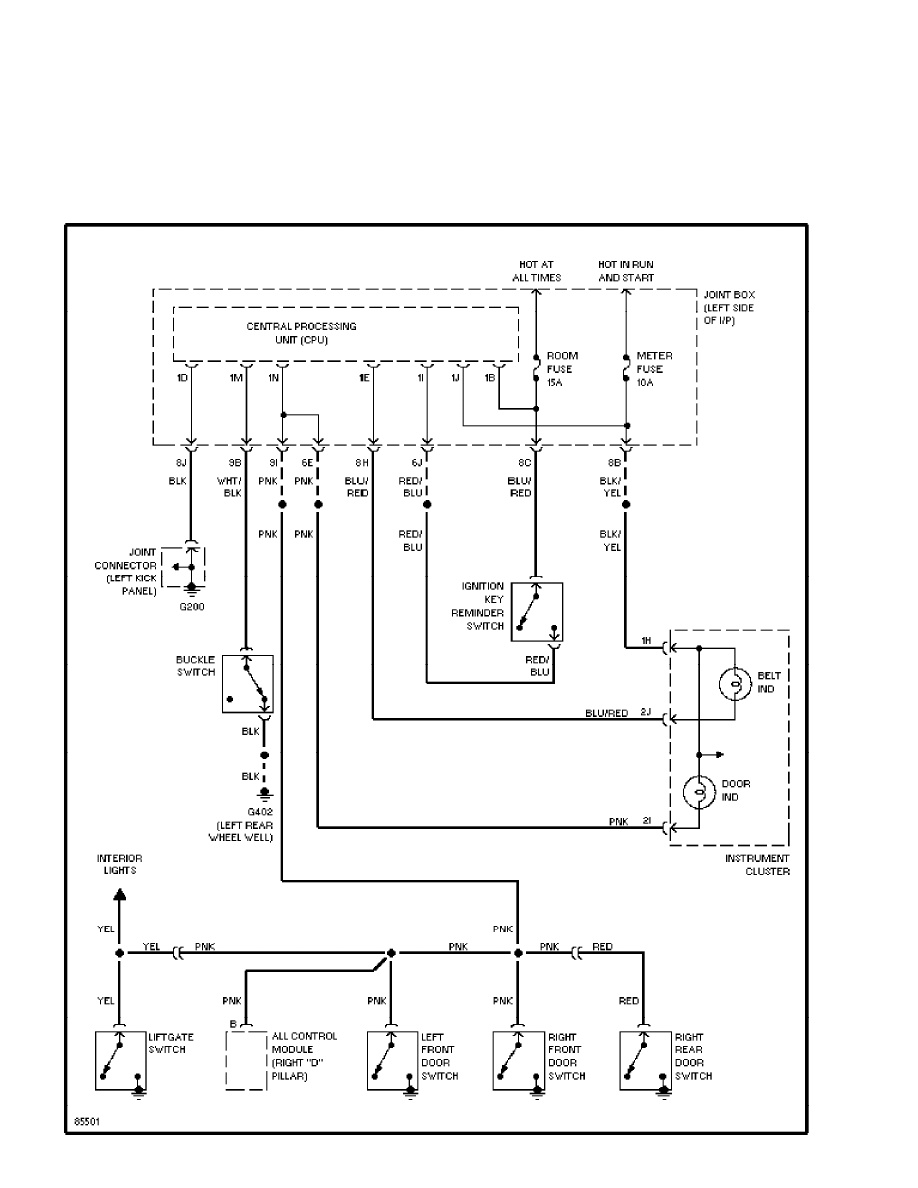

Warning System Circuits (p. 36)

1995 Mazda MPV

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 04:47PM

SYSTEM WIRING DIAGRAMS

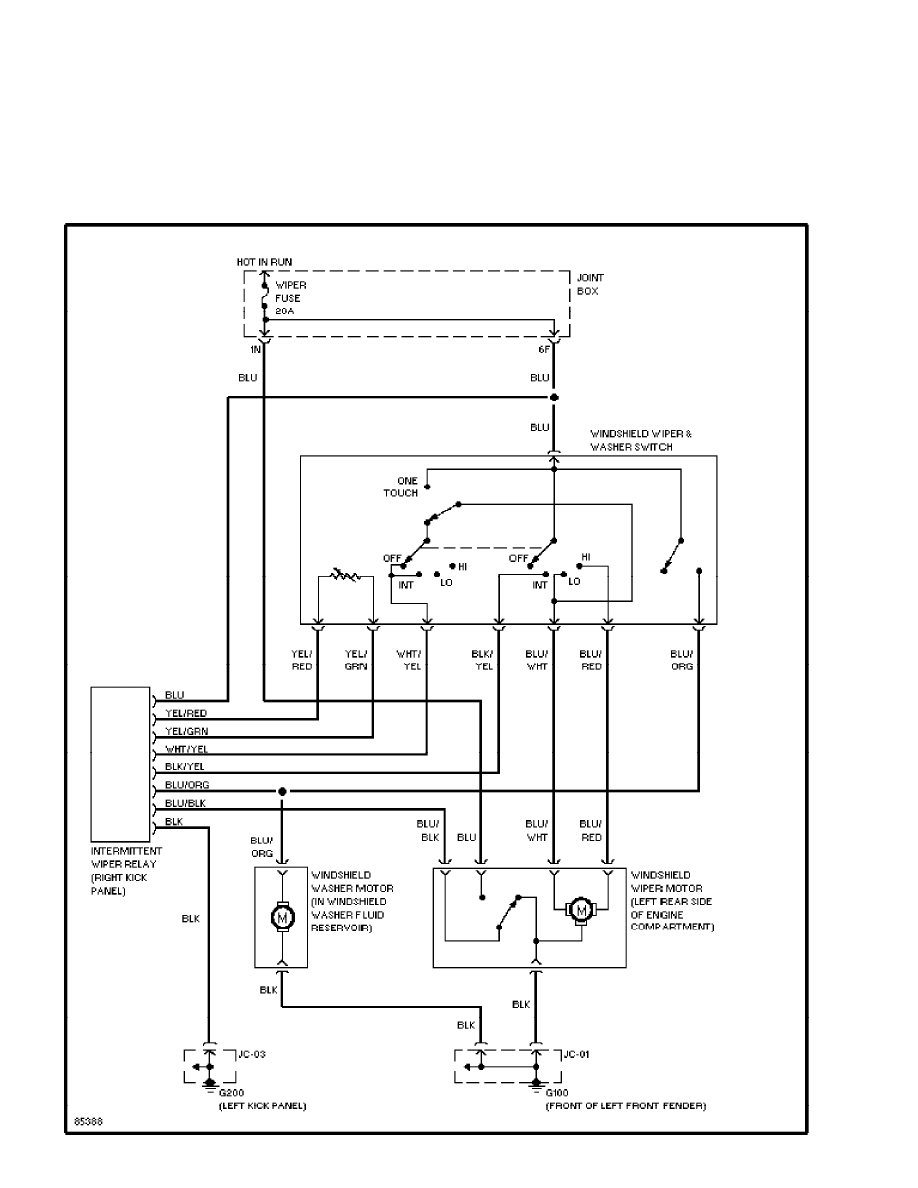

Front Wiper/Washer Circuit (p. 37)

1995 Mazda MPV

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 04:47PM

SYSTEM WIRING DIAGRAMS

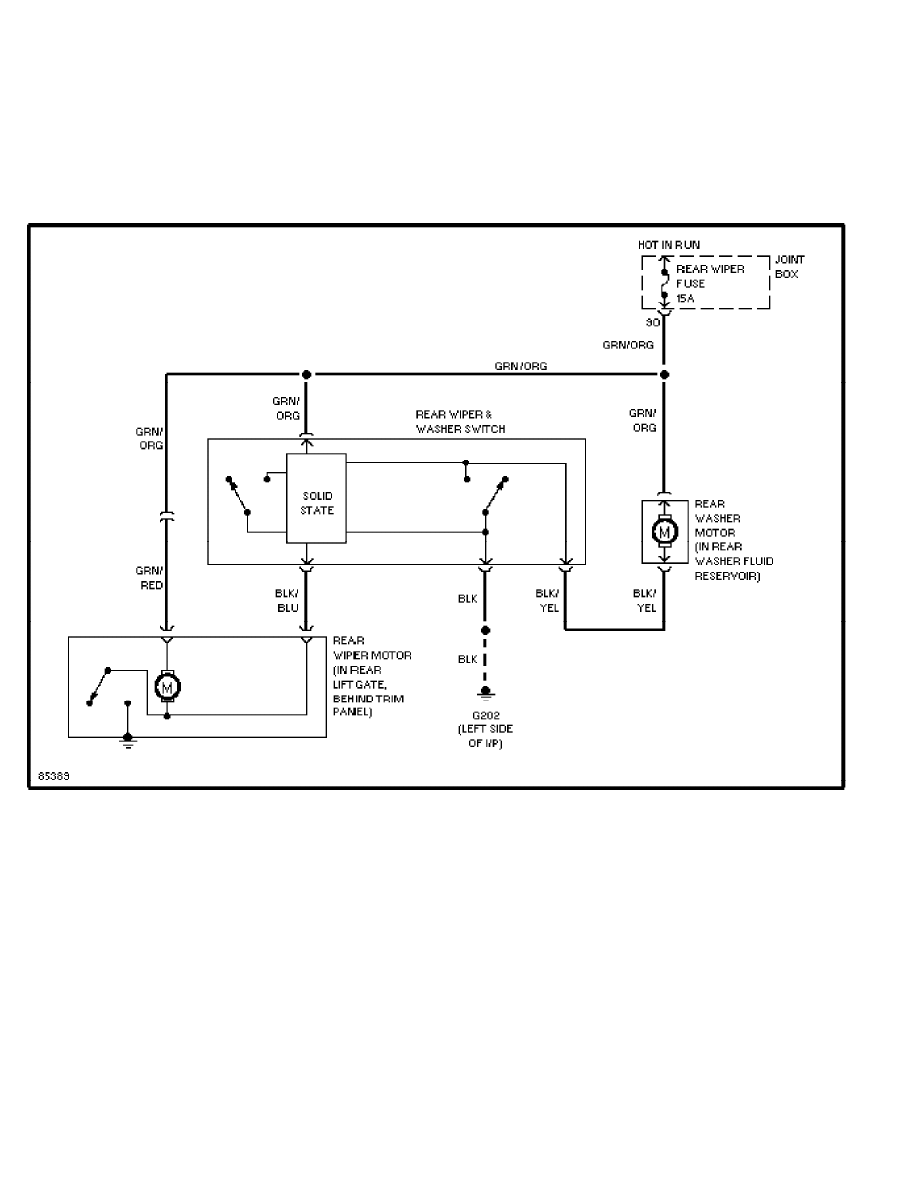

Rear Wiper/Washer Circuit (p. 38)

1995 Mazda MPV

For cdr101@wp.pl x x x x

Tuesday, April 04, 2006 04:47PM
