SYSTEM WIRING DIAGRAMS

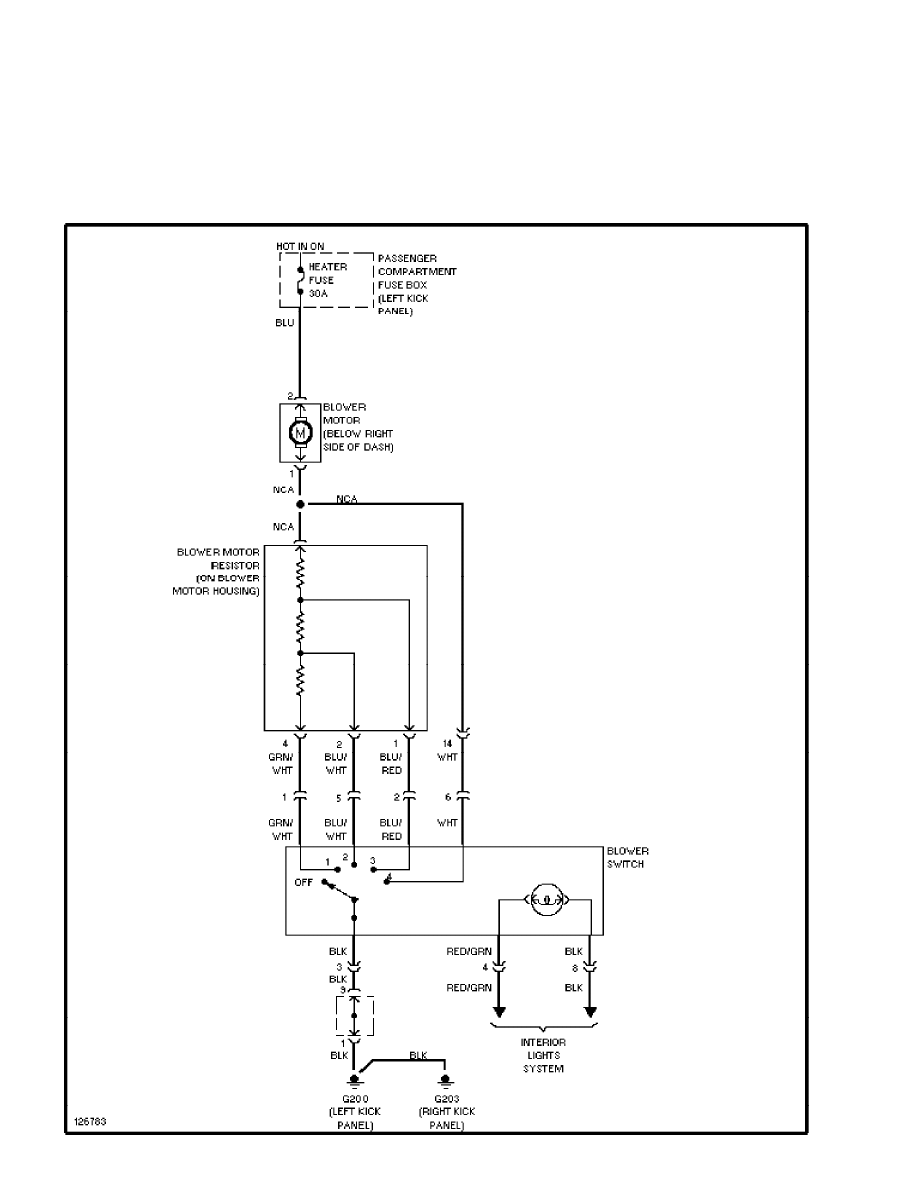

Heater Circuit
2000 Kia Sportage
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, September 29, 2004 12:55PM
SYSTEM WIRING DIAGRAMS

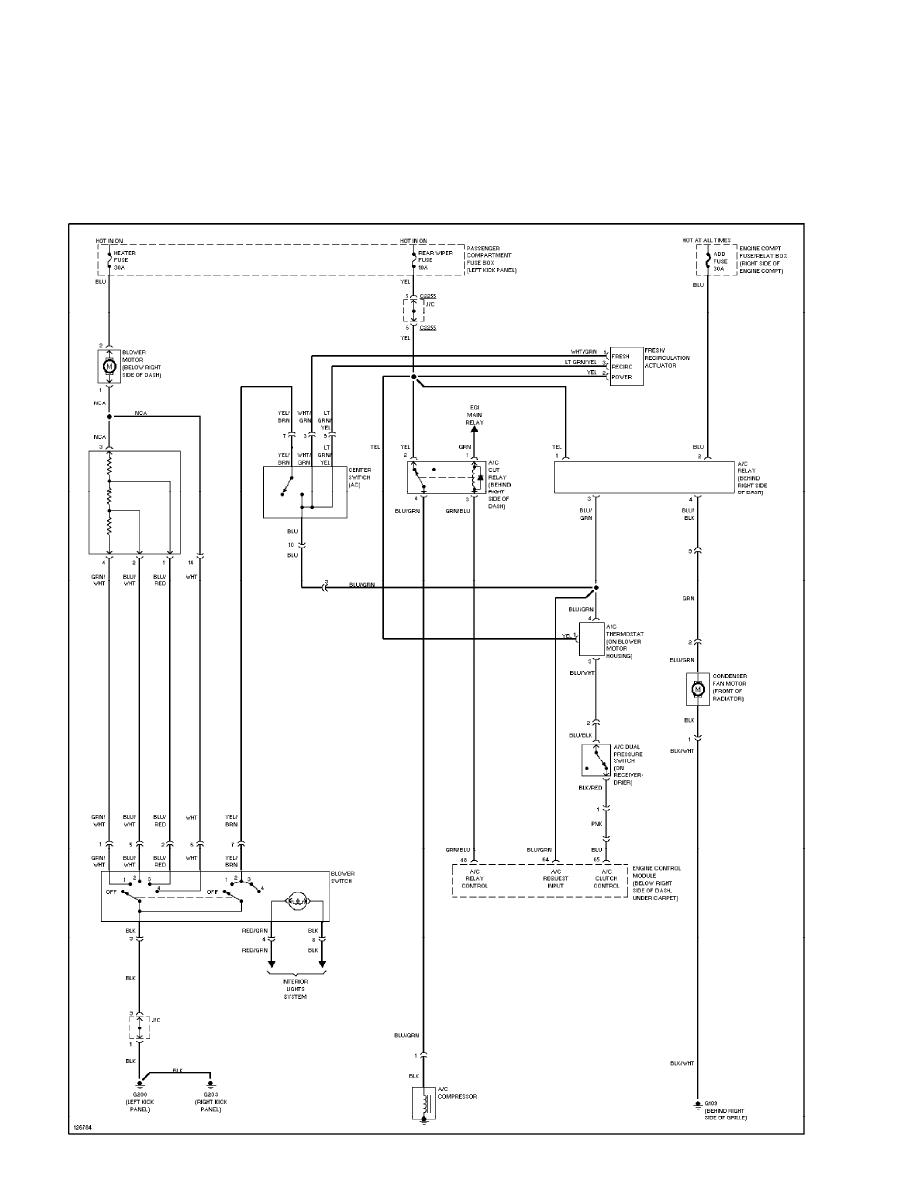

Manual A/C Circuit (p. 2)
2000 Kia Sportage
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, September 29, 2004 12:55PM
SYSTEM WIRING DIAGRAMS

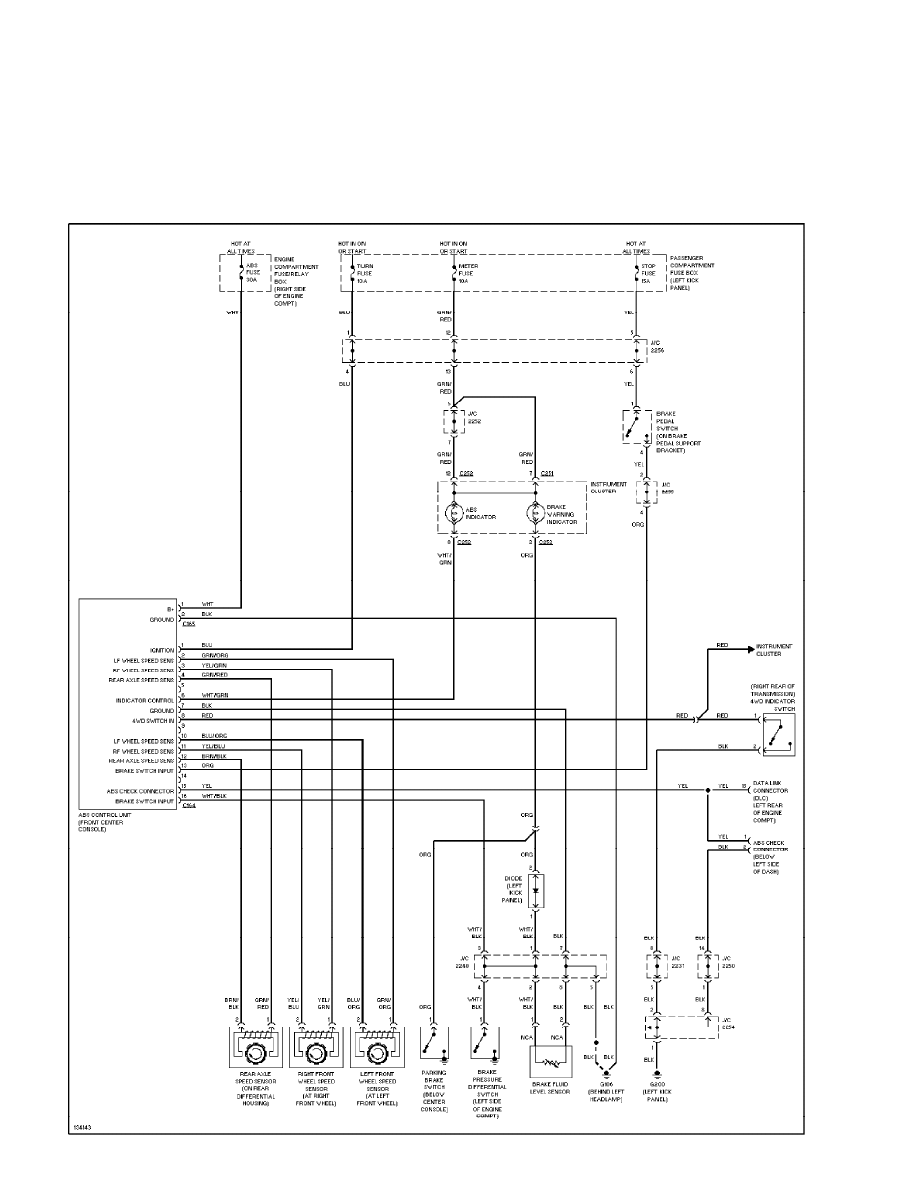

Anti-lock Brake Circuits (p. 3)
2000 Kia Sportage
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, September 29, 2004 12:55PM
SYSTEM WIRING DIAGRAMS

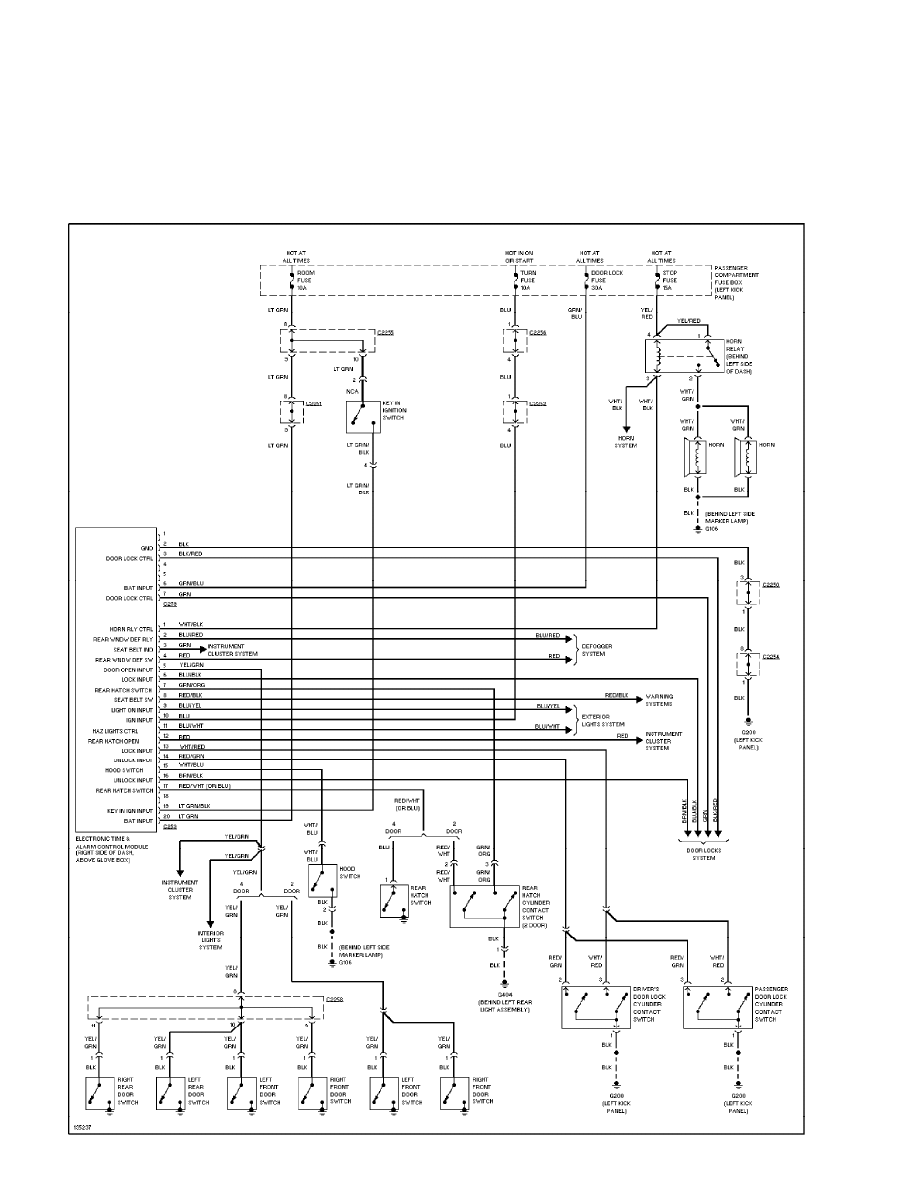

Anti-theft Circuit (p. 4)
2000 Kia Sportage
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, September 29, 2004 12:55PM
SYSTEM WIRING DIAGRAMS
Body Computer Circuits (p. 5)
2000 Kia Sportage
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, September 29, 2004 12:55PM
SYSTEM WIRING DIAGRAMS
Computer Data Lines (p. 6)
2000 Kia Sportage
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, September 29, 2004 12:55PM
SYSTEM WIRING DIAGRAMS

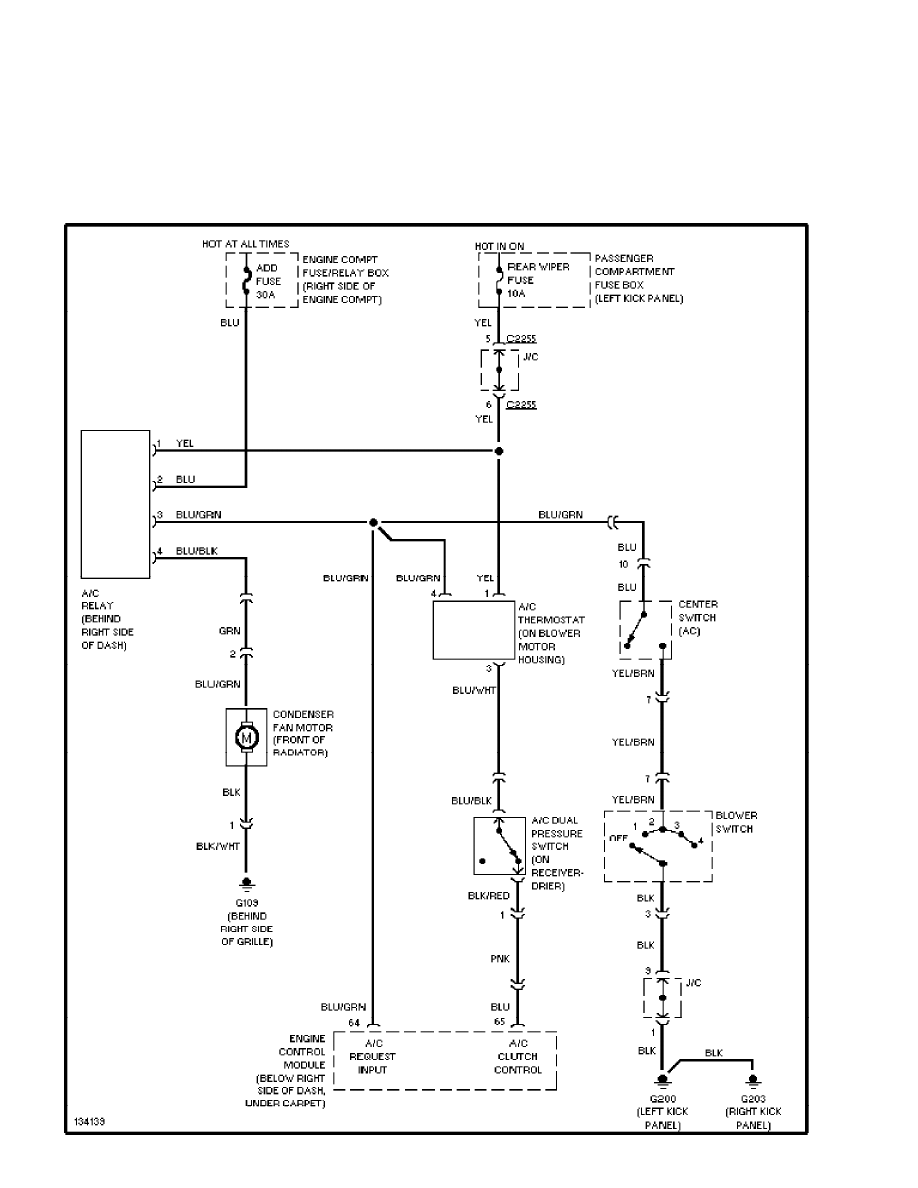

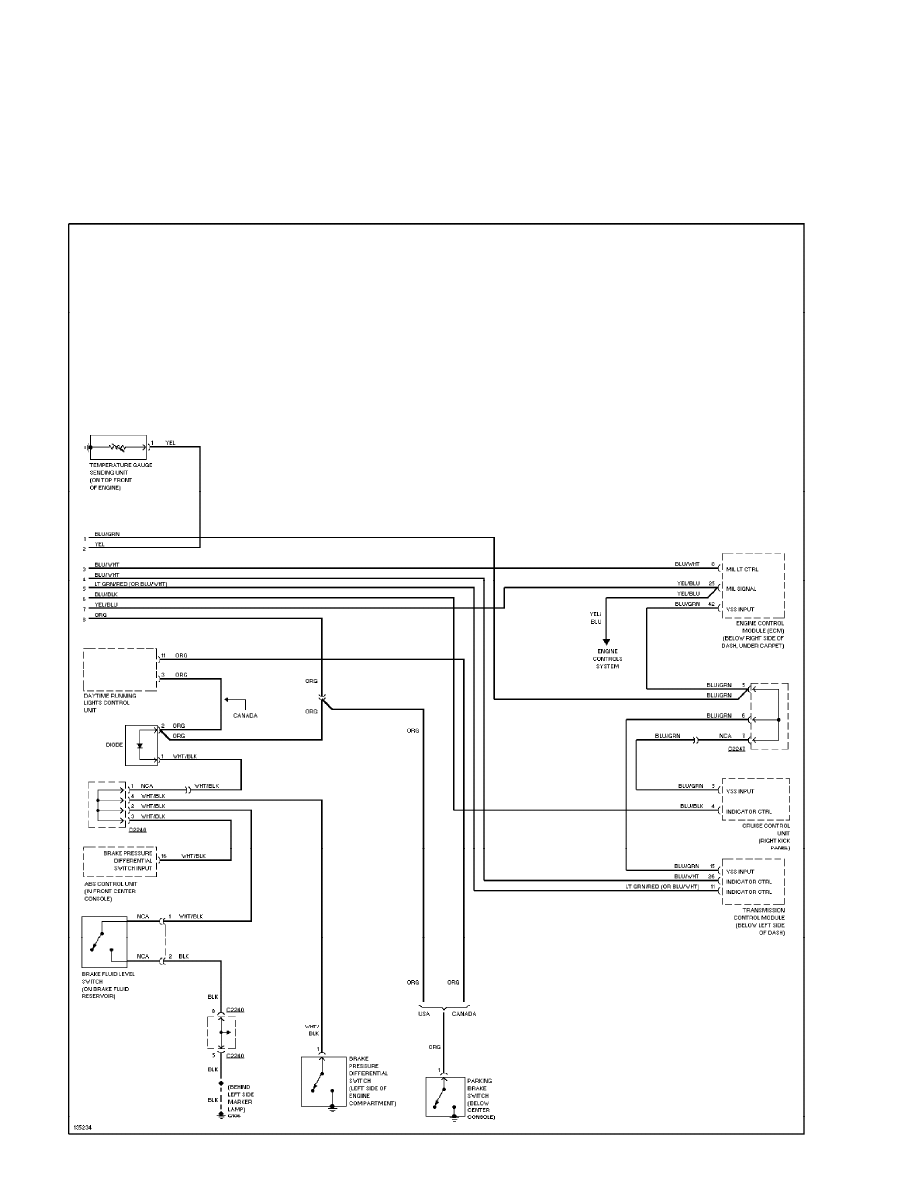

Condenser Cooling Fan Circuit (p. 7)
2000 Kia Sportage
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, September 29, 2004 12:55PM
SYSTEM WIRING DIAGRAMS

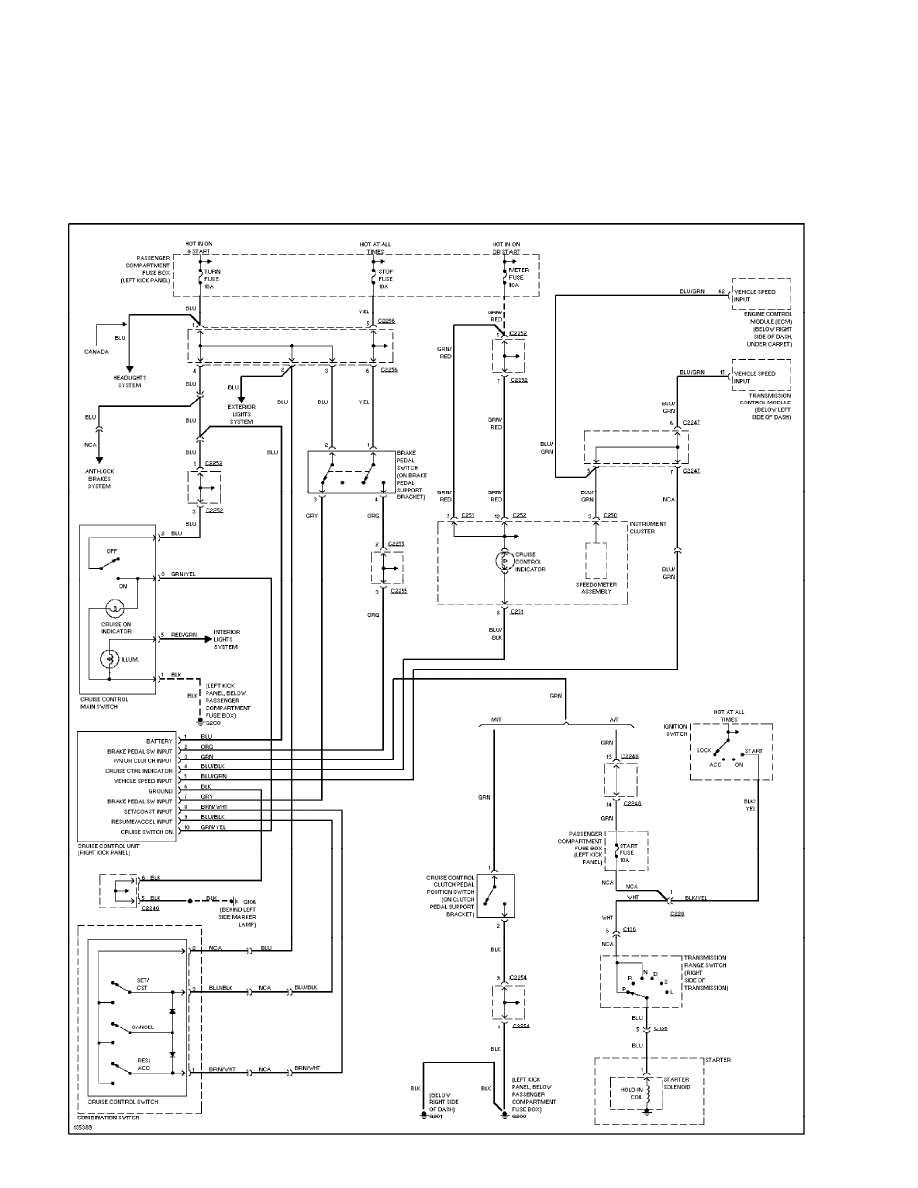

Cruise Control Circuit (p. 8)
2000 Kia Sportage
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, September 29, 2004 12:55PM
SYSTEM WIRING DIAGRAMS

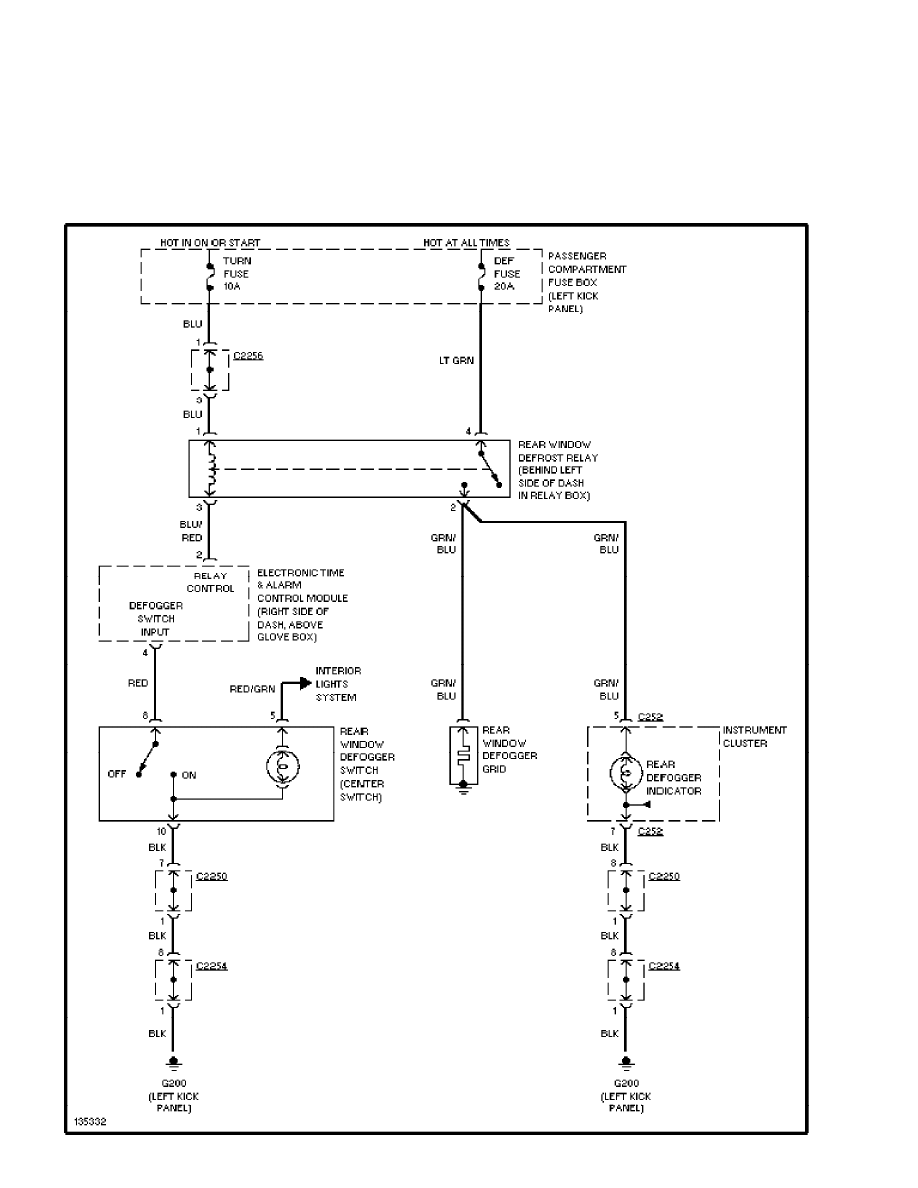

Defogger Circuit (p. 9)
2000 Kia Sportage
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, September 29, 2004 12:55PM
SYSTEM WIRING DIAGRAMS

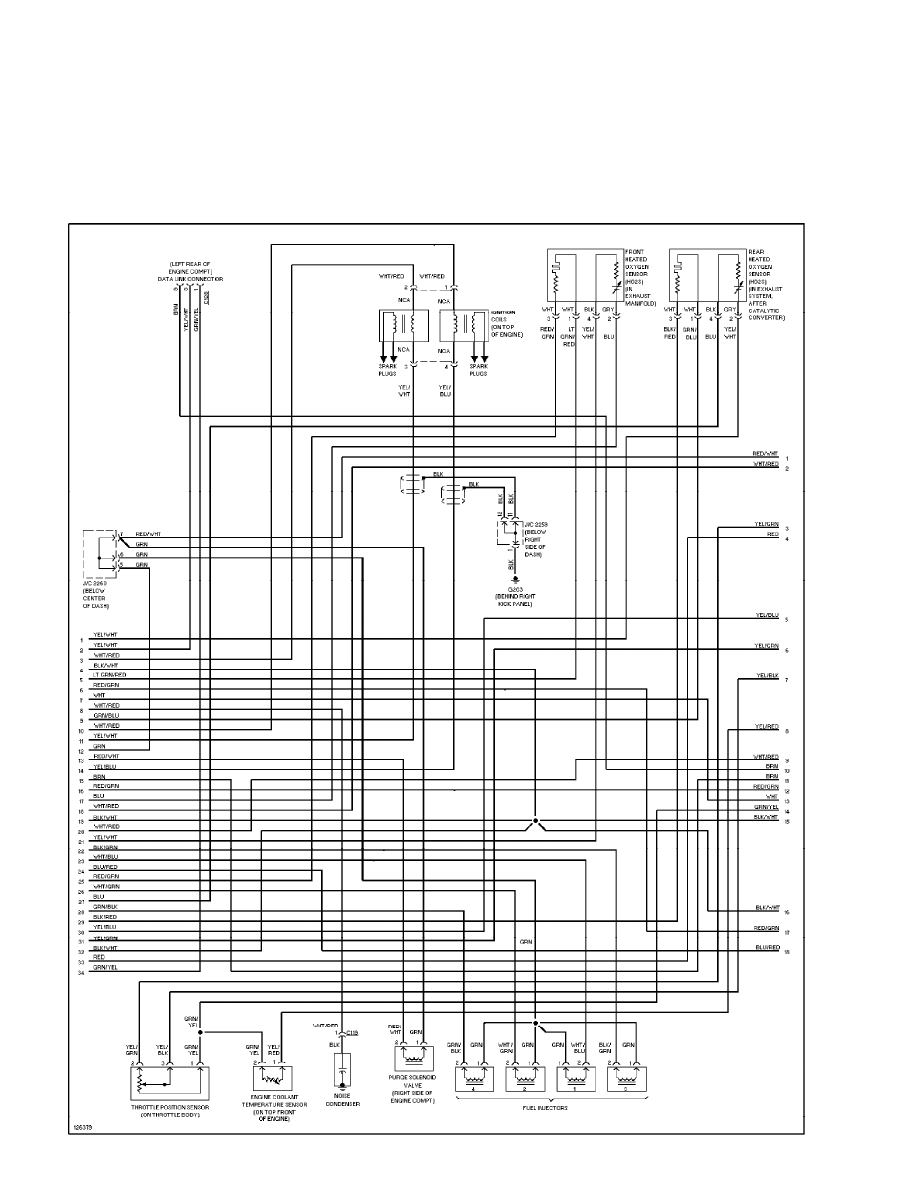

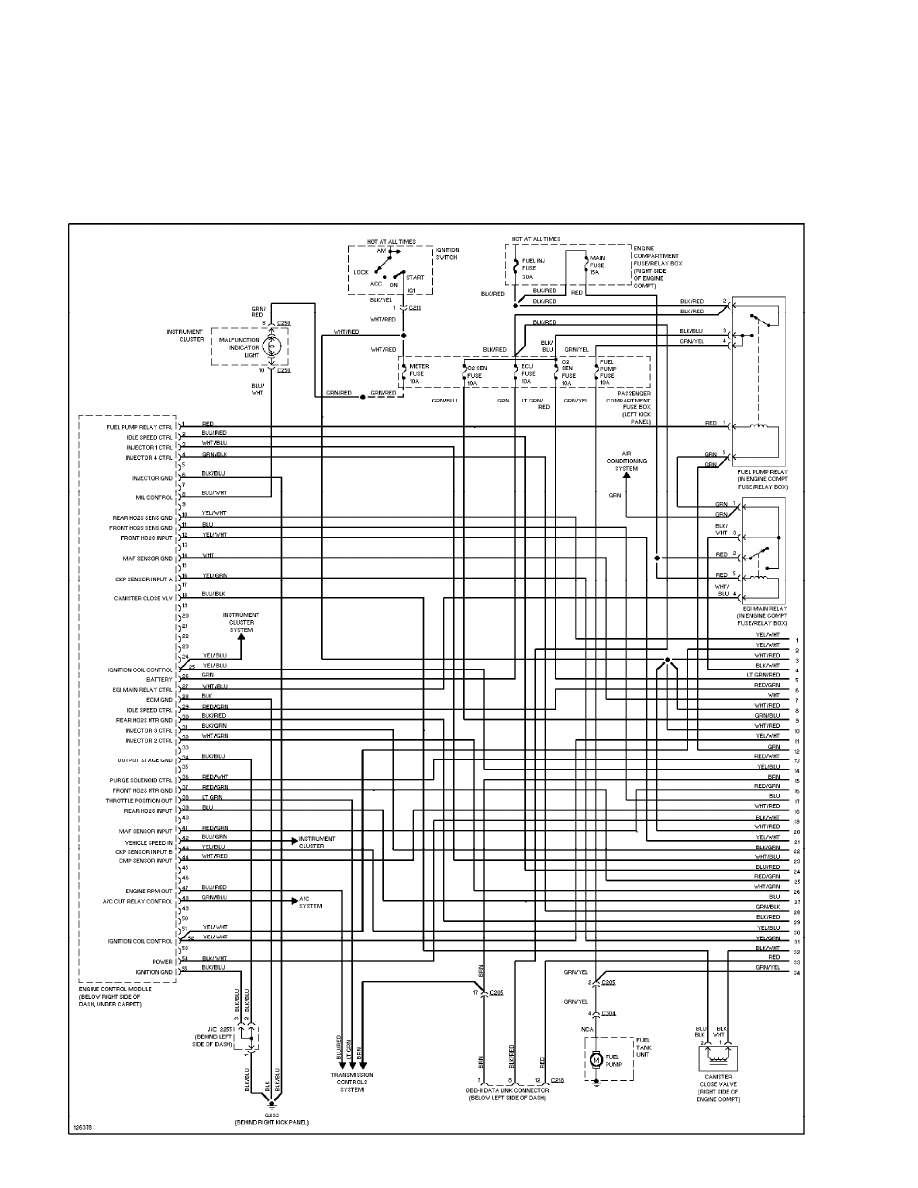

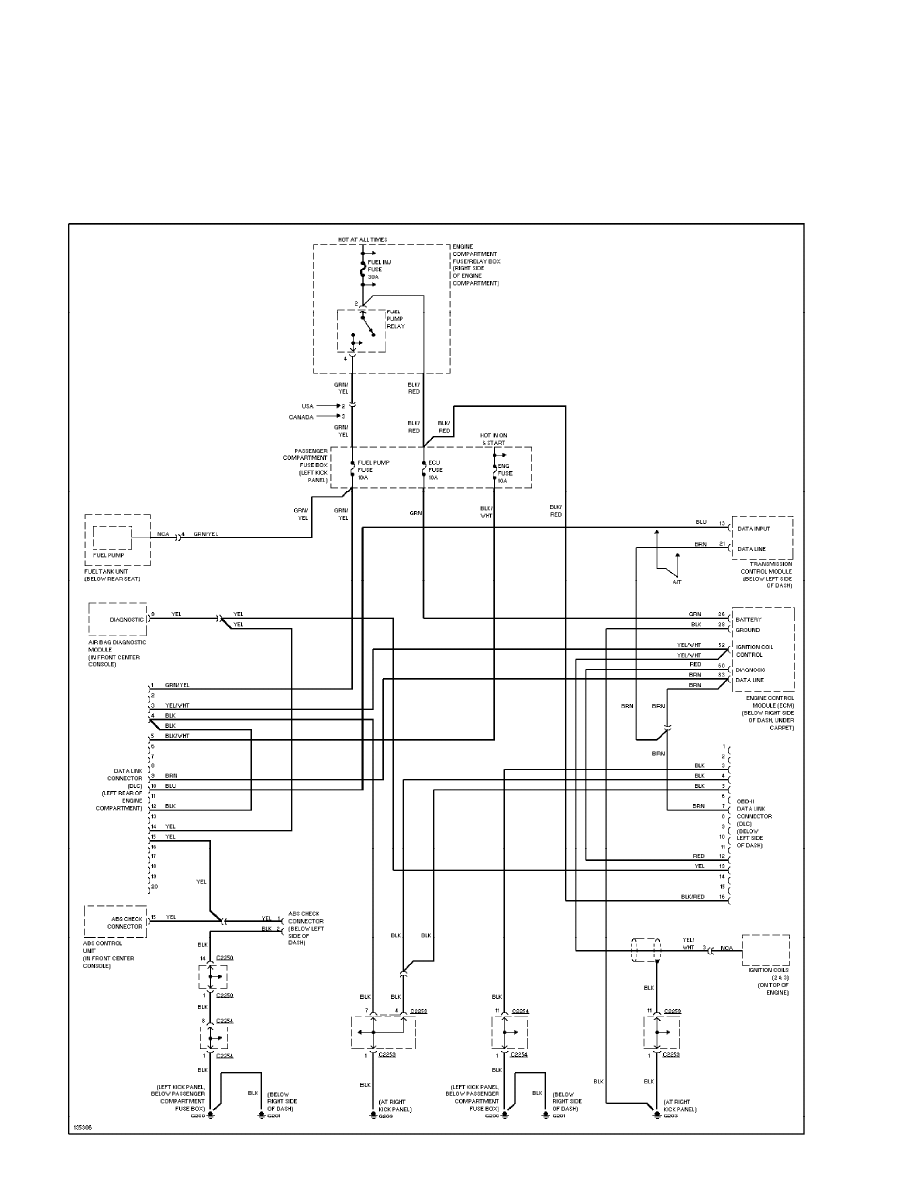

2.0L, Engine Performance Circuits (1 of 3) (p. 10)
2000 Kia Sportage
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, September 29, 2004 12:55PM
SYSTEM WIRING DIAGRAMS

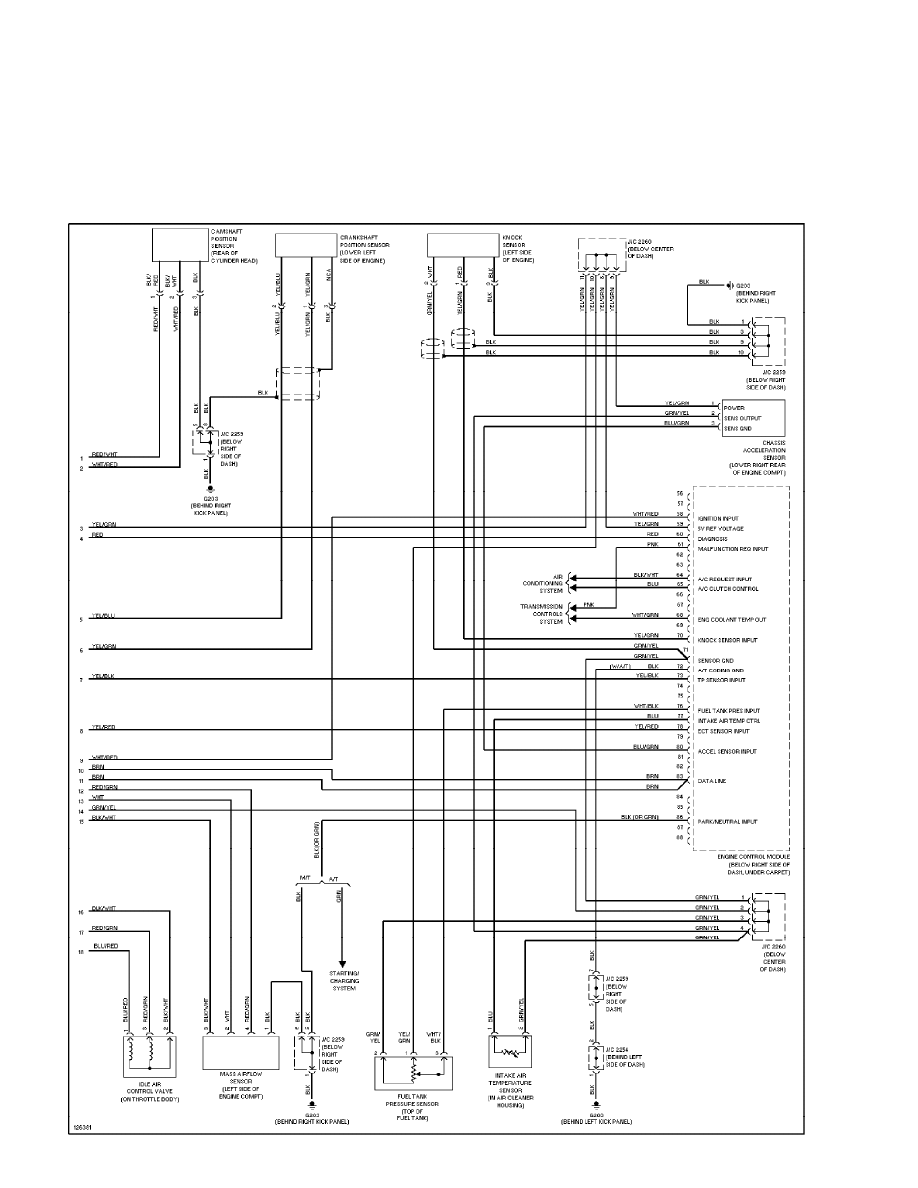

2.0L, Engine Performance Circuits (2 of 3) (p. 11)
2000 Kia Sportage
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, September 29, 2004 12:55PM
SYSTEM WIRING DIAGRAMS
2.0L, Engine Performance Circuits (3 of 3) (p. 12)
2000 Kia Sportage
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, September 29, 2004 12:55PM
SYSTEM WIRING DIAGRAMS

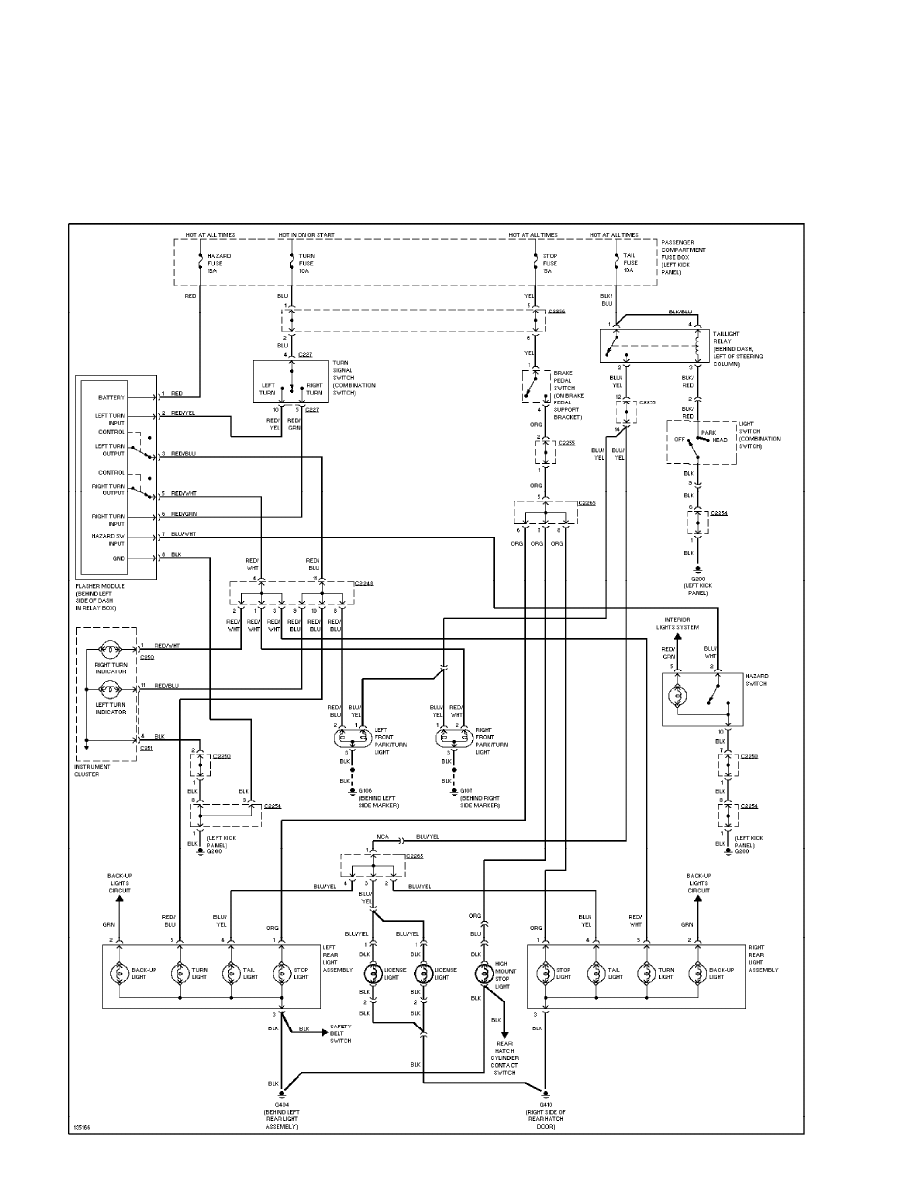

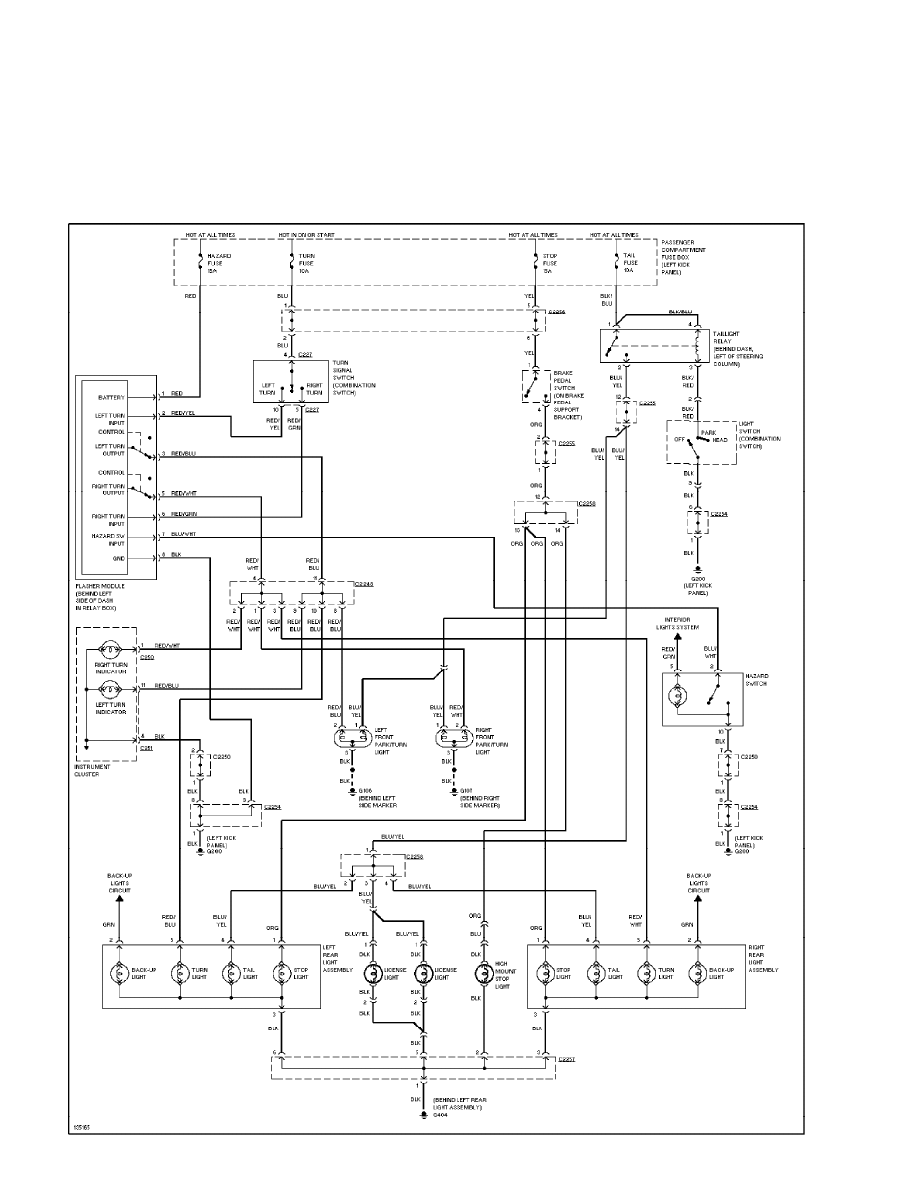

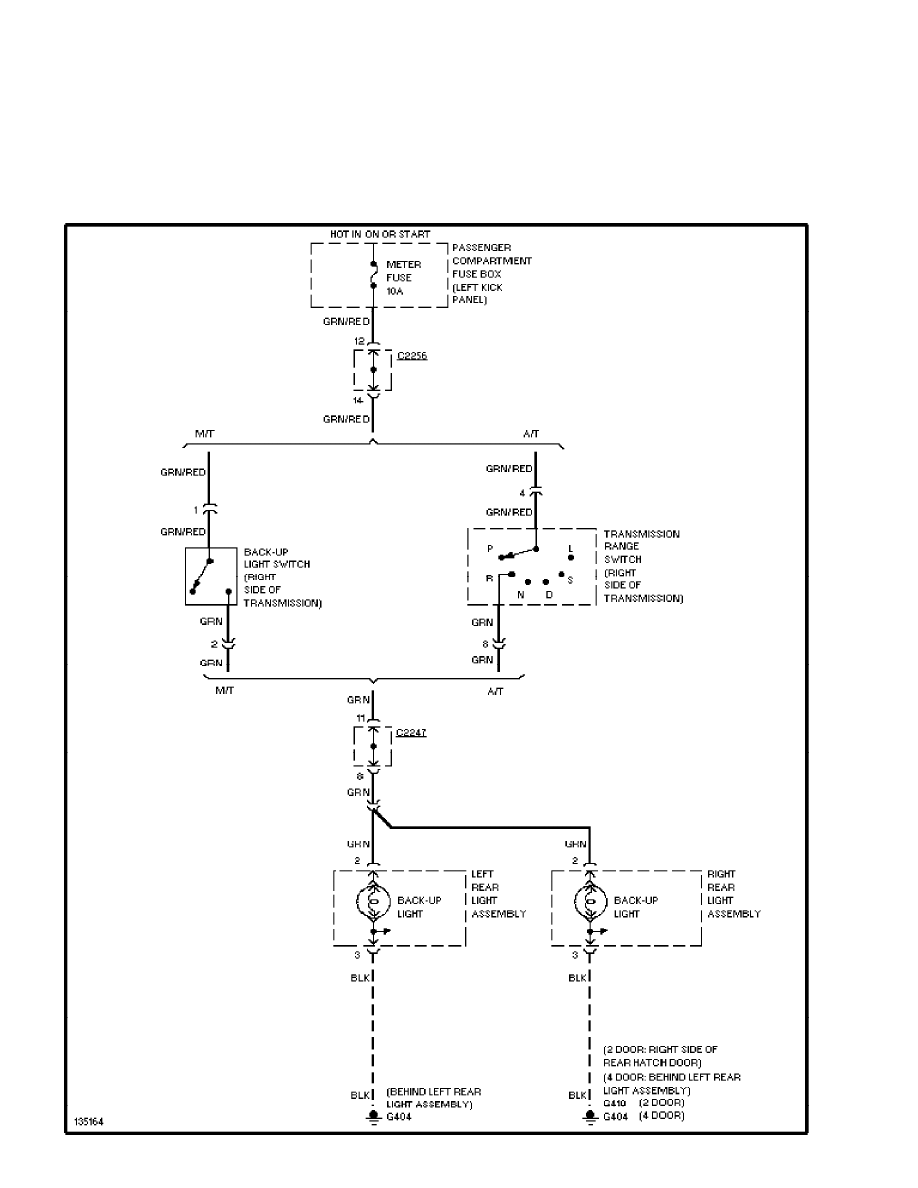

Back-up Lamps Circuit (p. 13)
2000 Kia Sportage
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, September 29, 2004 12:55PM
SYSTEM WIRING DIAGRAMS
Exterior Lamps Circuit, 2 Door (p. 14)
2000 Kia Sportage
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, September 29, 2004 12:55PM
SYSTEM WIRING DIAGRAMS
Exterior Lamps Circuit, 4 Door (p. 15)
2000 Kia Sportage
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, September 29, 2004 12:55PM
SYSTEM WIRING DIAGRAMS

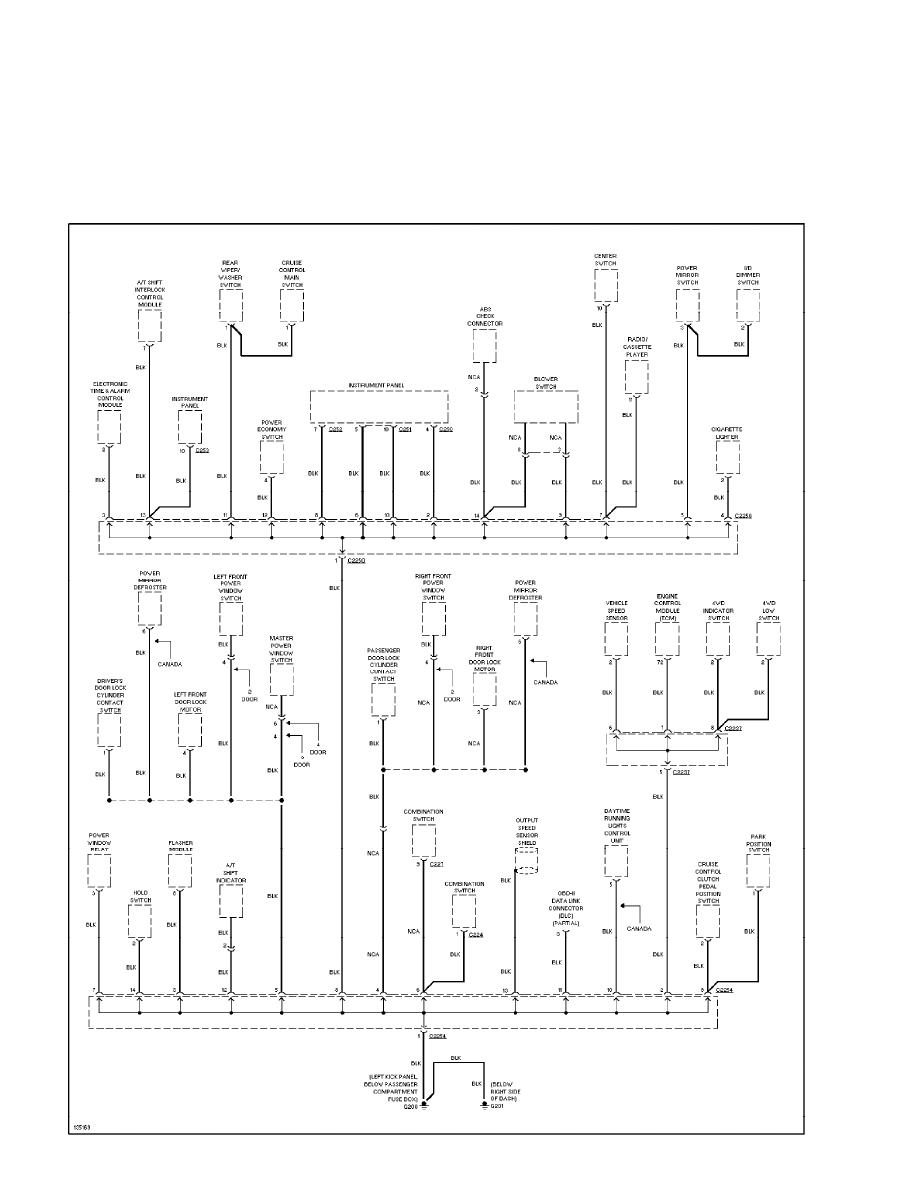

Ground Distribution Circuit (1 of 3) (p. 16)
2000 Kia Sportage
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, September 29, 2004 12:55PM
SYSTEM WIRING DIAGRAMS

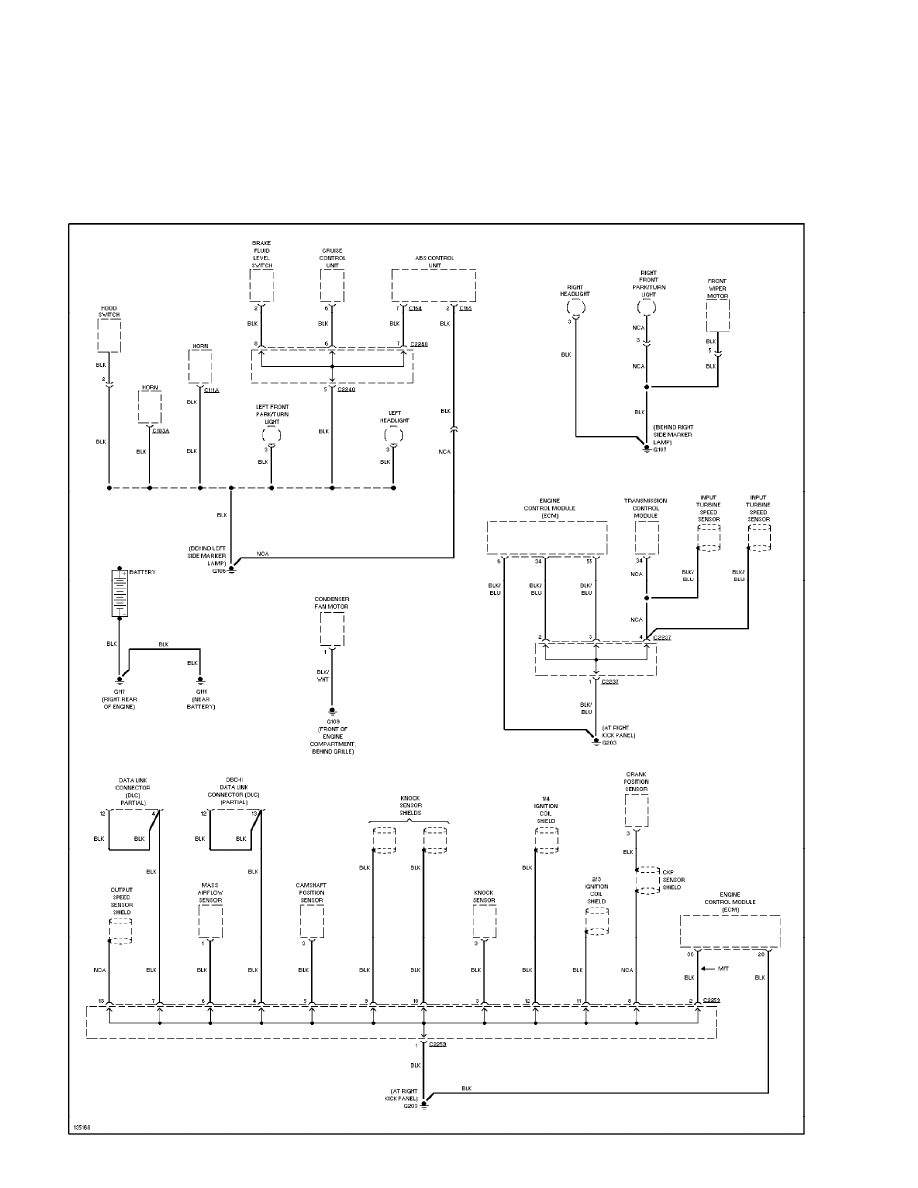

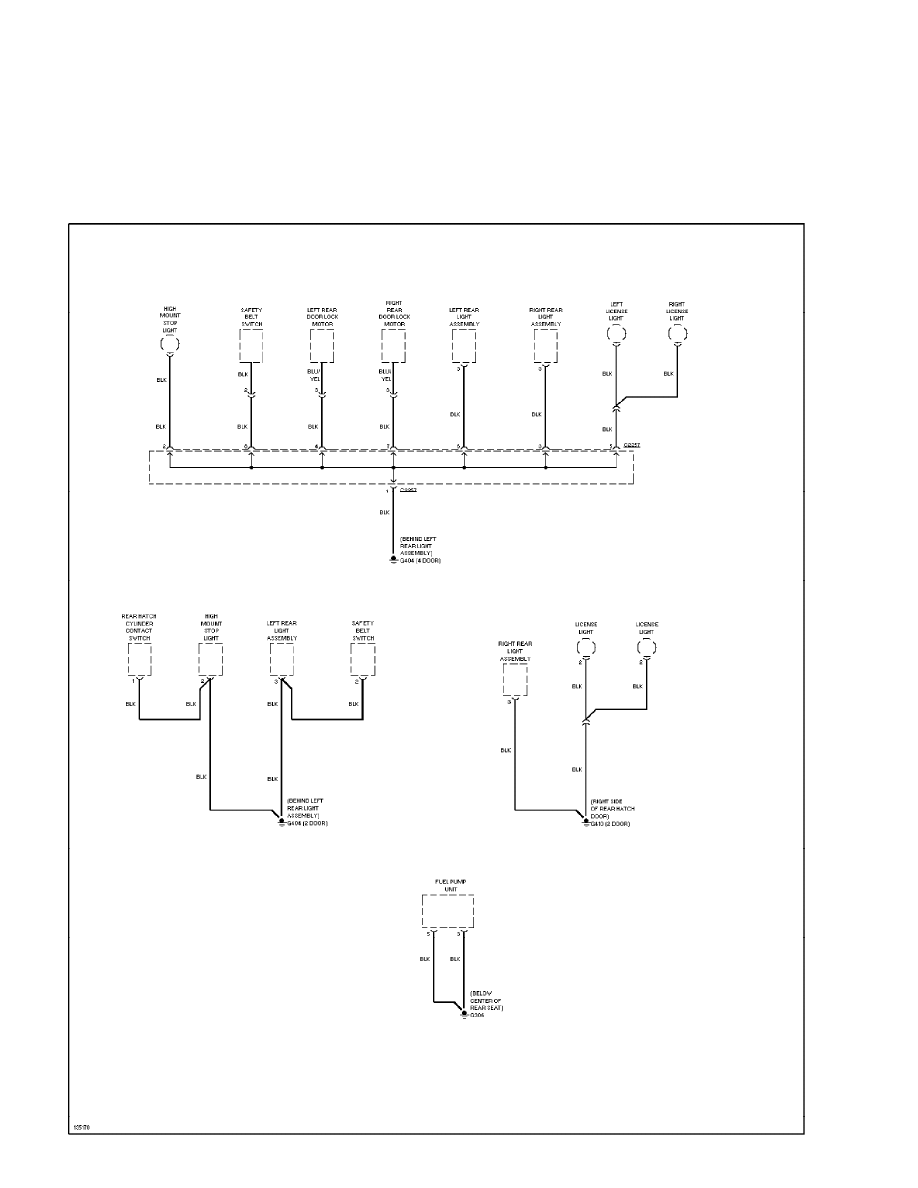

Ground Distribution Circuit (2 of 3) (p. 17)
2000 Kia Sportage
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, September 29, 2004 12:55PM
SYSTEM WIRING DIAGRAMS
Ground Distribution Circuit (3 of 3) (p. 18)
2000 Kia Sportage
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, September 29, 2004 12:55PM
SYSTEM WIRING DIAGRAMS

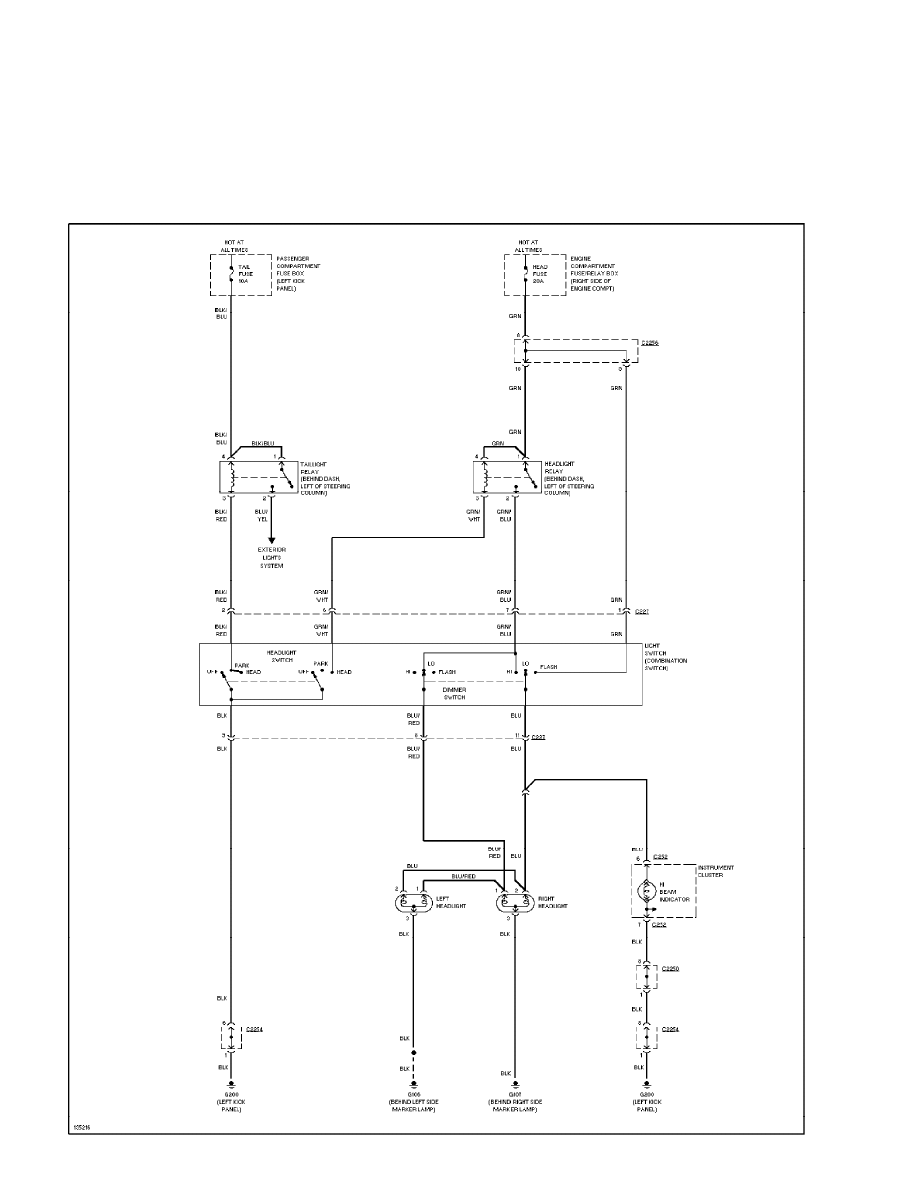

Headlight Circuit (p. 19)
2000 Kia Sportage
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, September 29, 2004 12:55PM
SYSTEM WIRING DIAGRAMS

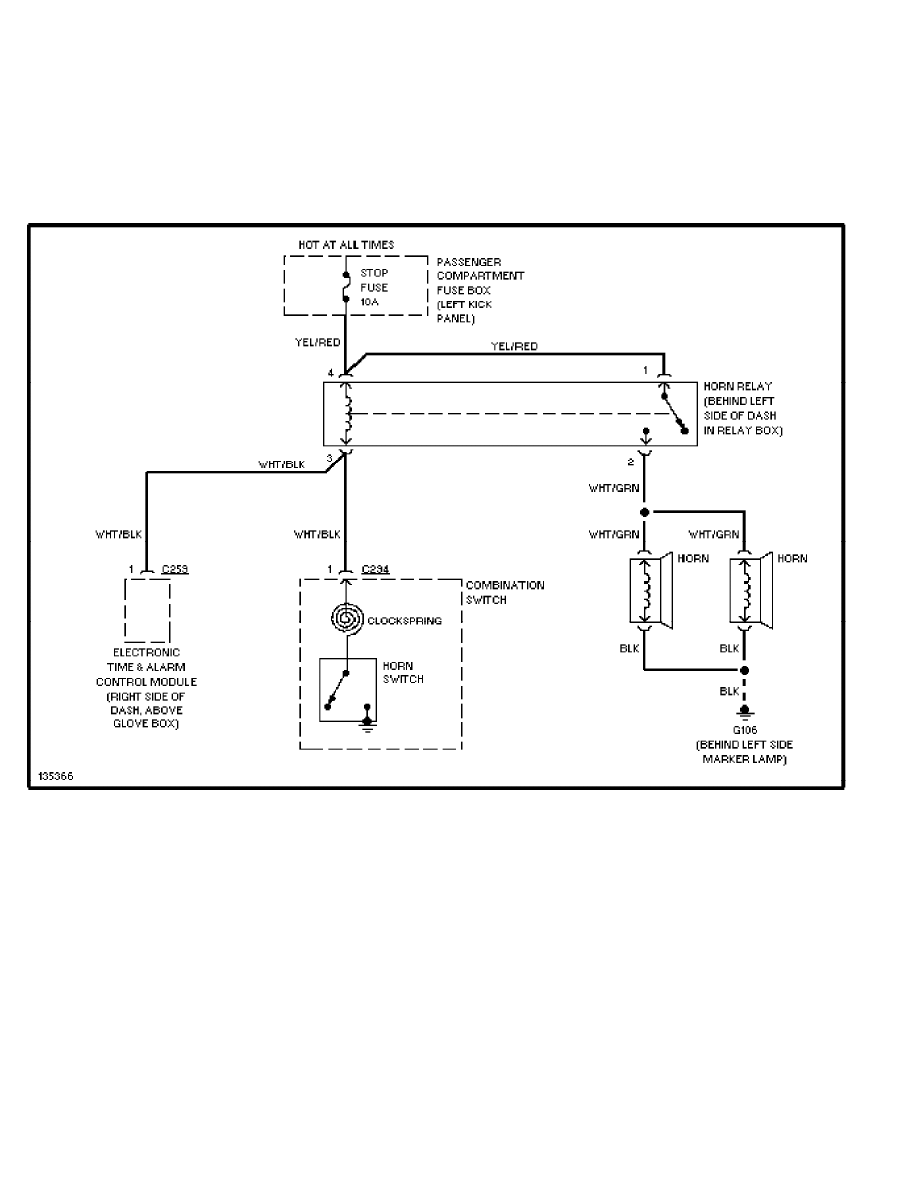

Horn Circuit (p. 20)
2000 Kia Sportage
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, September 29, 2004 12:55PM
SYSTEM WIRING DIAGRAMS

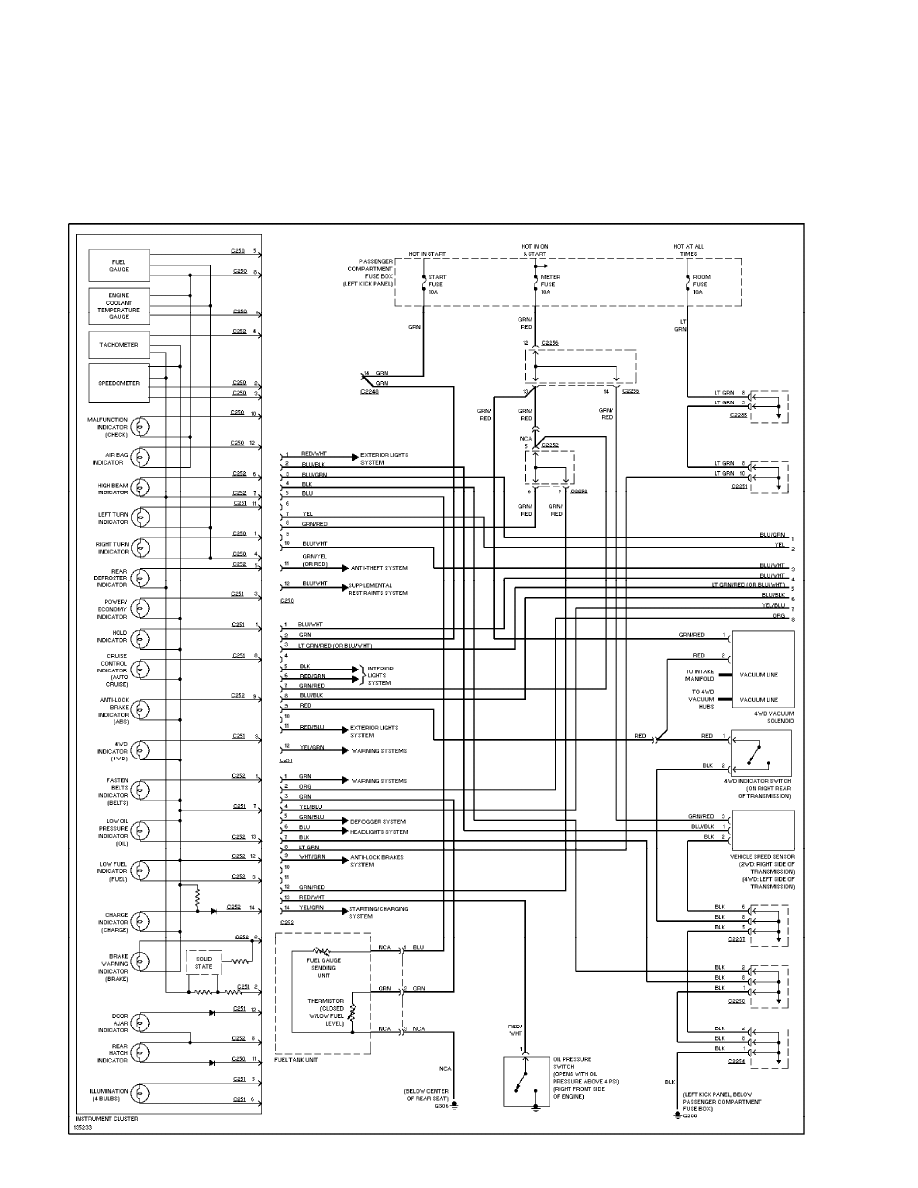

Instrument Cluster Circuit (1 of 2) (p. 21)
2000 Kia Sportage
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, September 29, 2004 12:55PM
SYSTEM WIRING DIAGRAMS
Instrument Cluster Circuit (2 of 2) (p. 22)
2000 Kia Sportage
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, September 29, 2004 12:55PM
SYSTEM WIRING DIAGRAMS

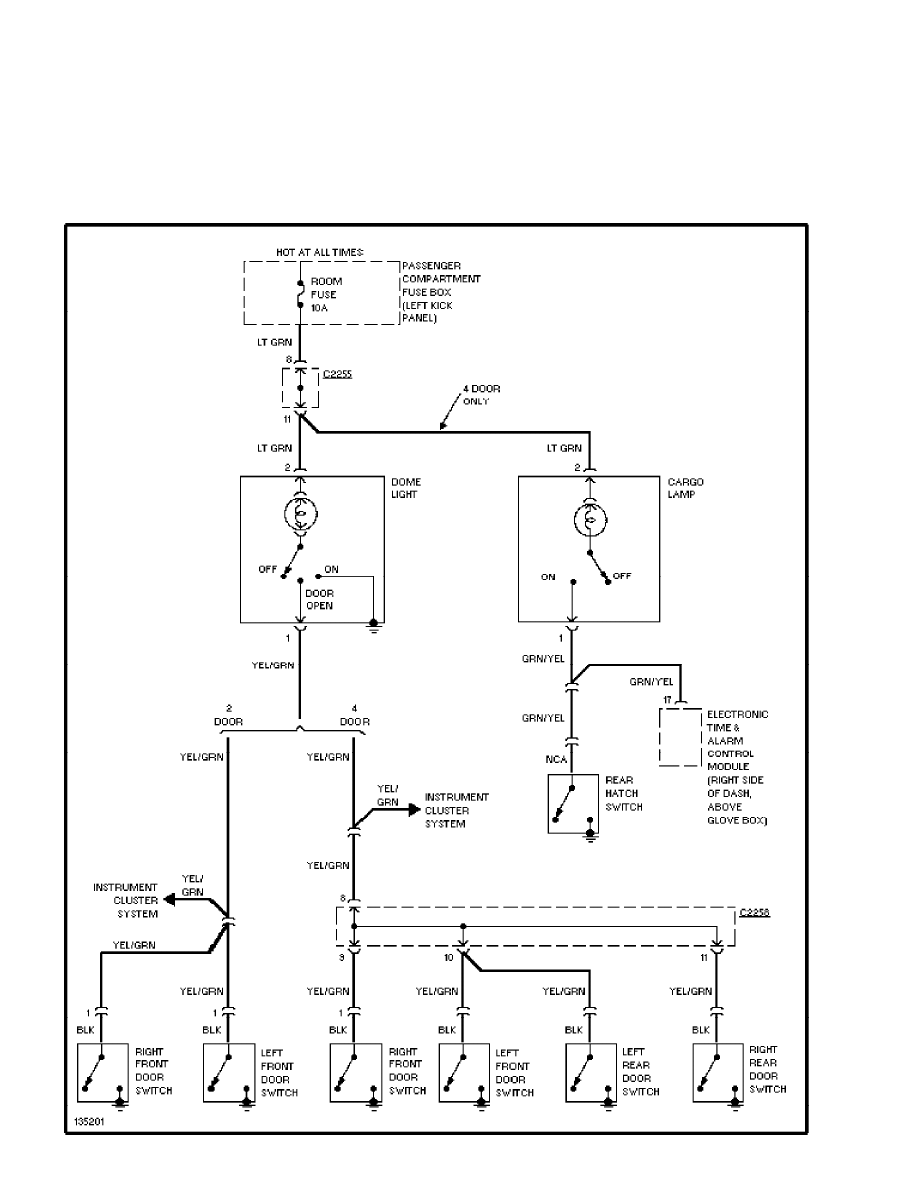

Courtesy Lamps Circuit (p. 23)
2000 Kia Sportage
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, September 29, 2004 12:55PM
SYSTEM WIRING DIAGRAMS

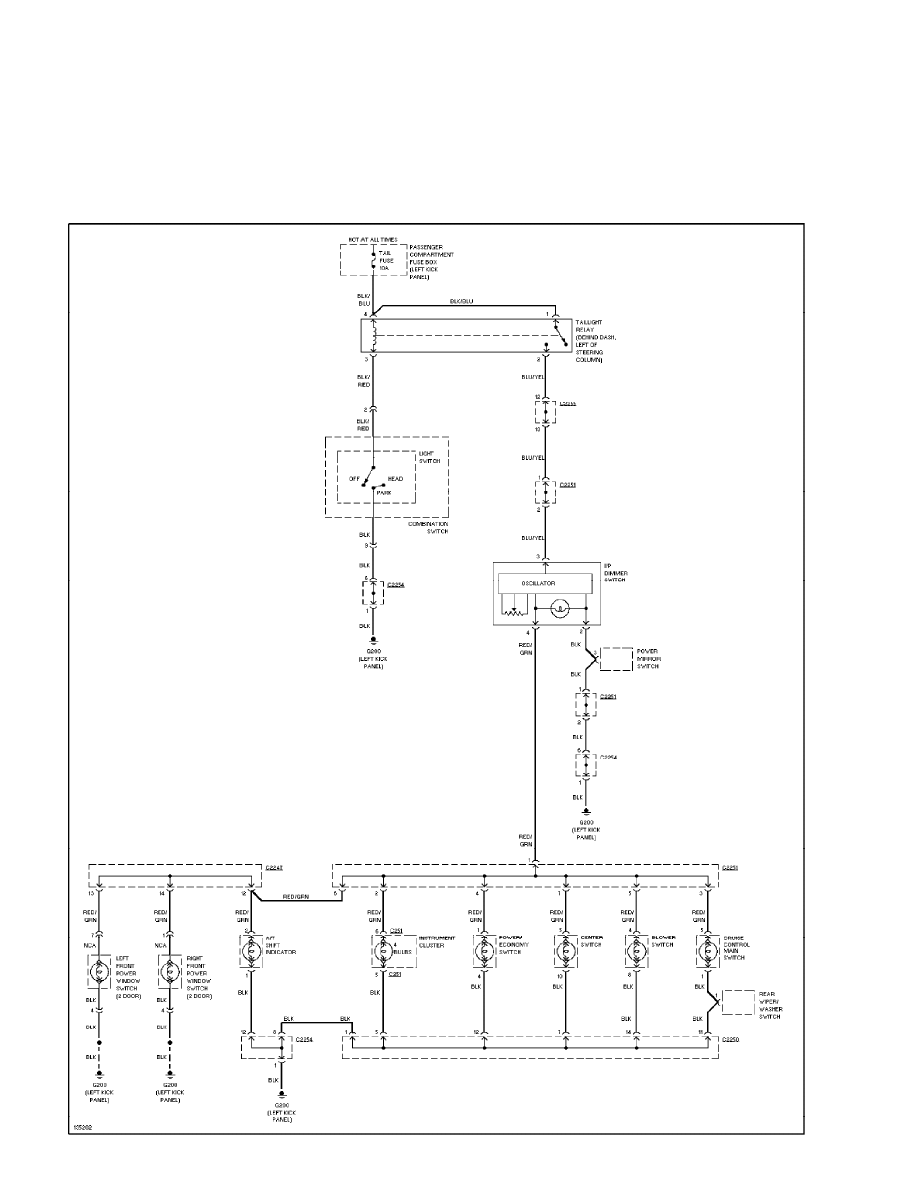

Instrument Illumination Circuit (p. 24)
2000 Kia Sportage
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, September 29, 2004 12:55PM
SYSTEM WIRING DIAGRAMS

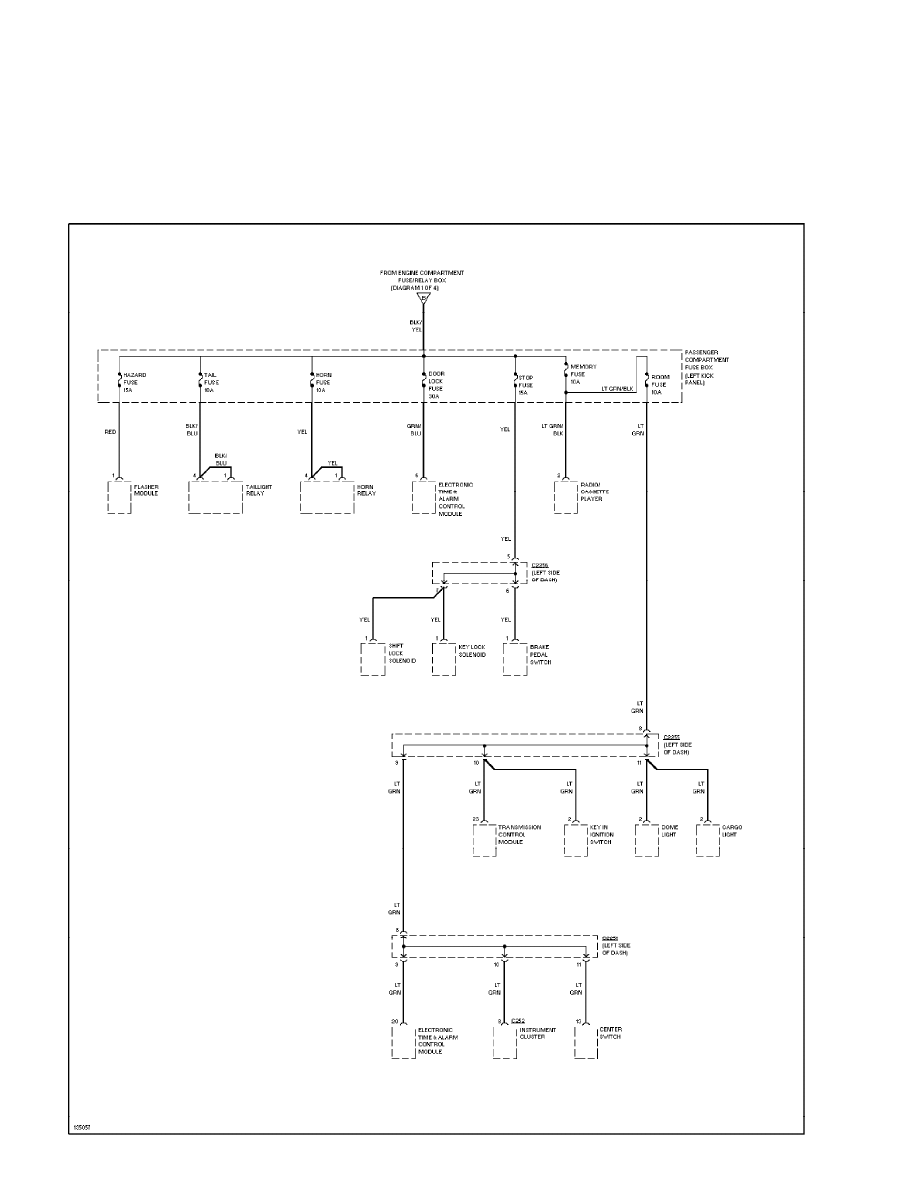

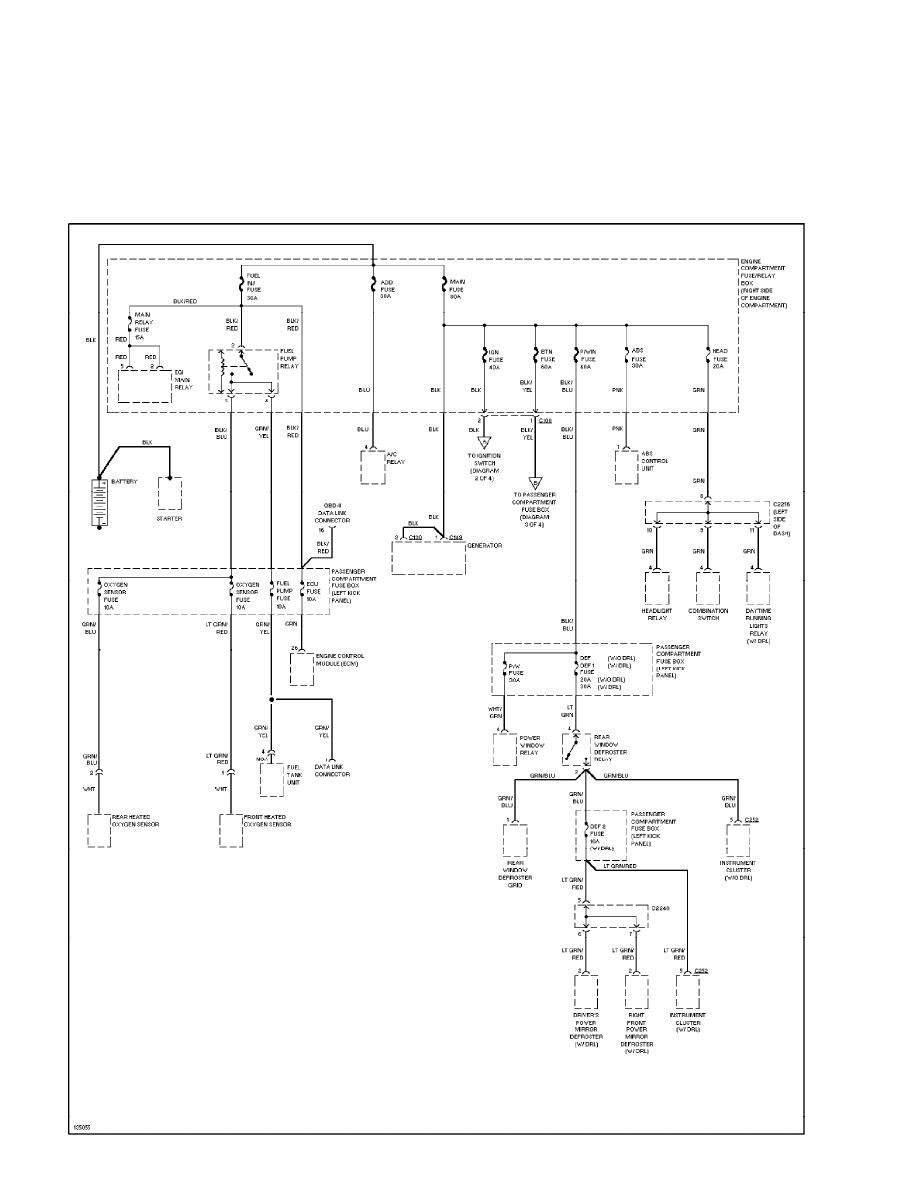

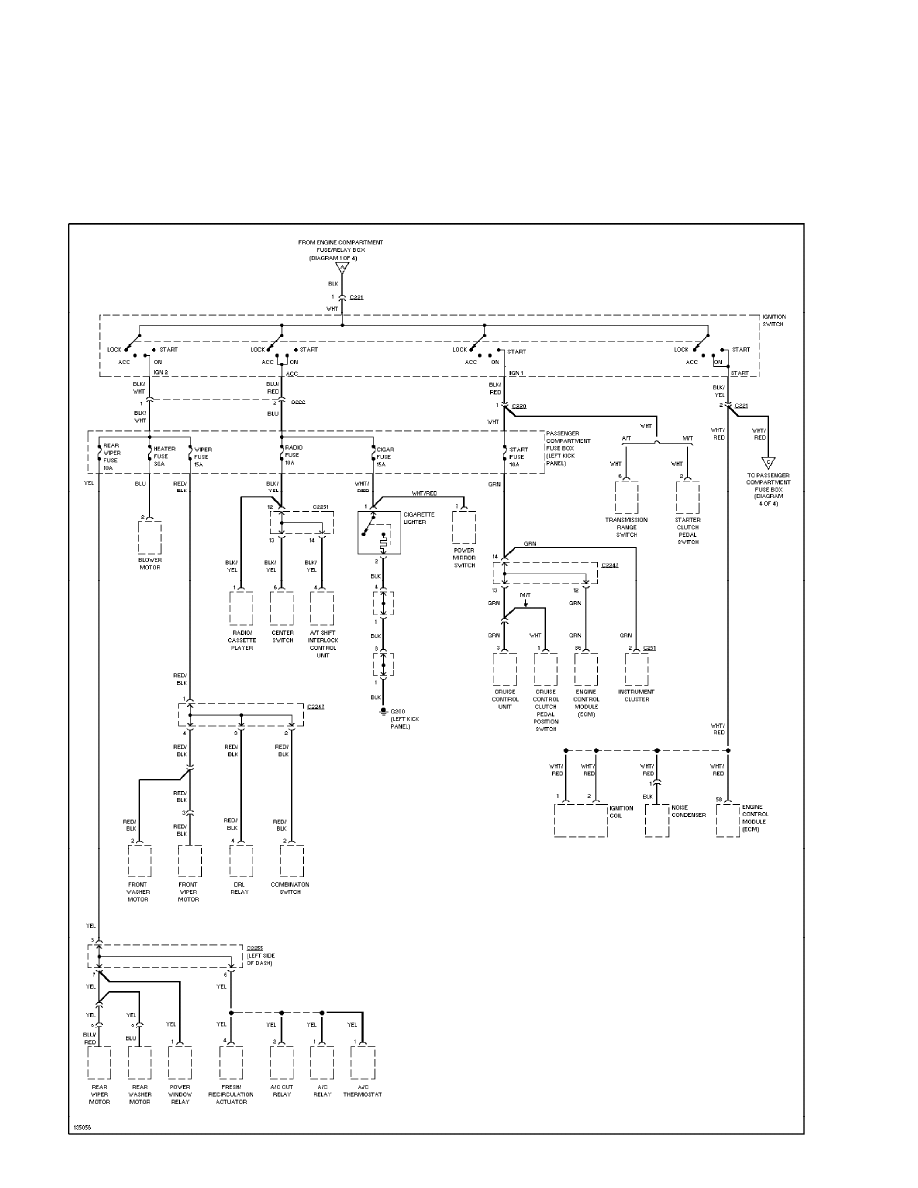

Power Distribution Circuit (1 of 4) (p. 25)
2000 Kia Sportage
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, September 29, 2004 12:55PM
SYSTEM WIRING DIAGRAMS

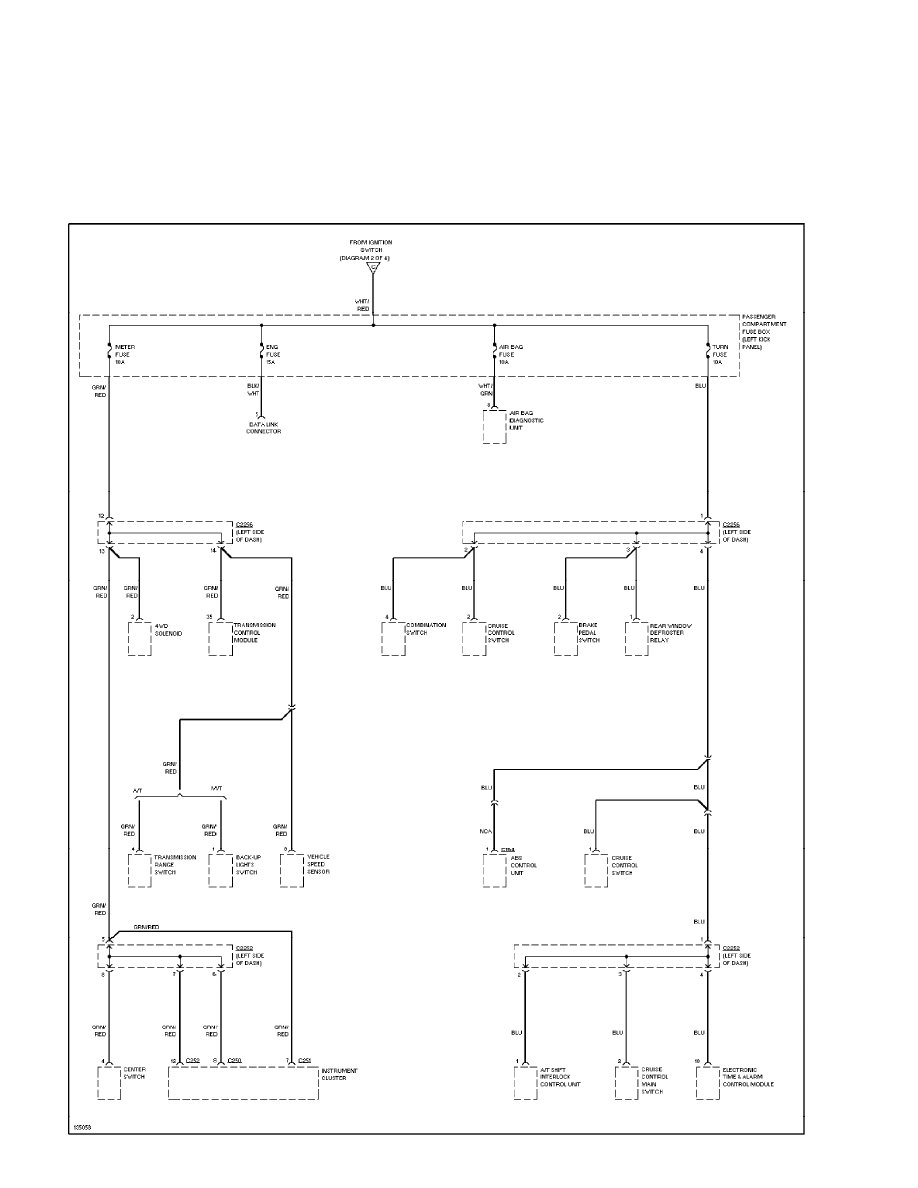

Power Distribution Circuit (2 of 4) (p. 26)
2000 Kia Sportage
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, September 29, 2004 12:56PM
SYSTEM WIRING DIAGRAMS
Power Distribution Circuit (3 of 4) (p. 27)
2000 Kia Sportage
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, September 29, 2004 12:56PM
SYSTEM WIRING DIAGRAMS
Power Distribution Circuit (4 of 4) (p. 28)
2000 Kia Sportage
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, September 29, 2004 12:56PM
SYSTEM WIRING DIAGRAMS

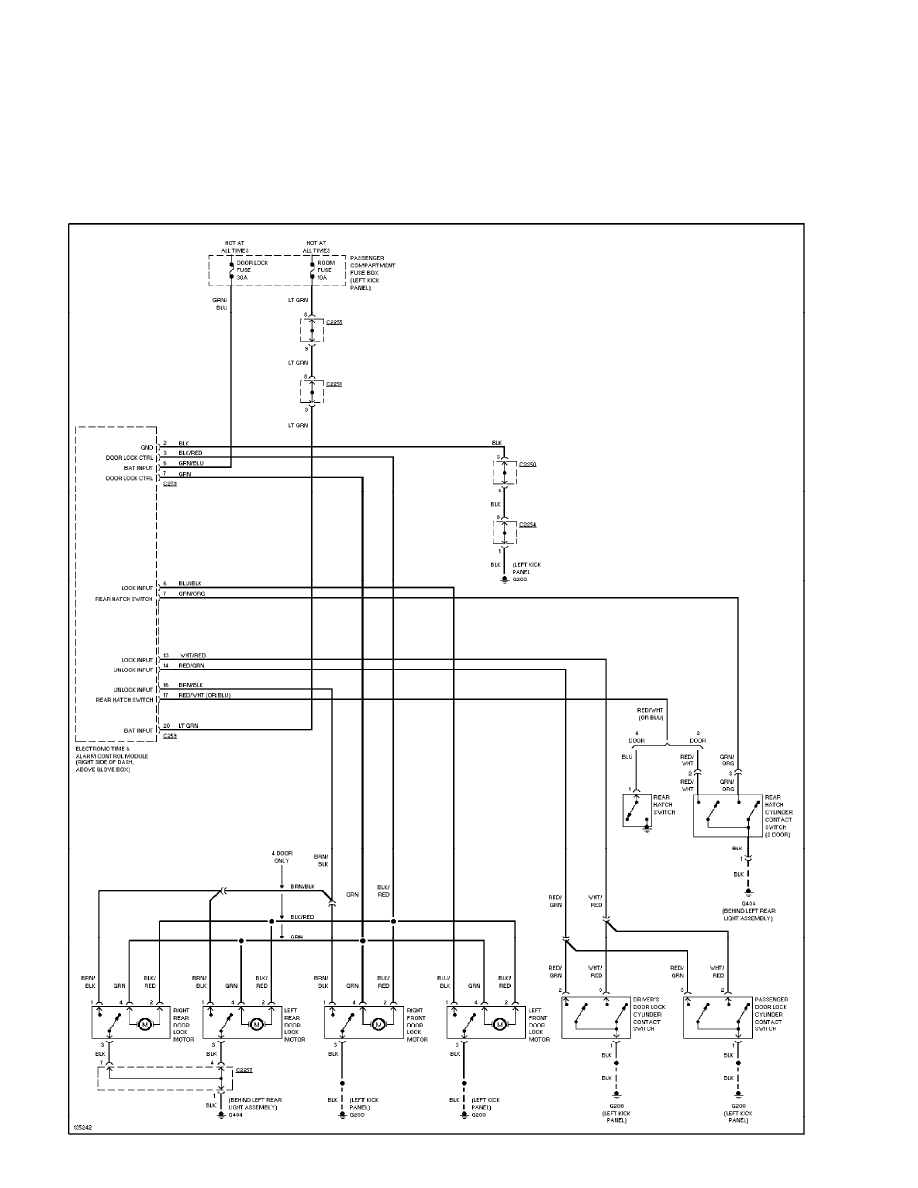

Power Door Lock Circuit (p. 29)
2000 Kia Sportage
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, September 29, 2004 12:56PM
SYSTEM WIRING DIAGRAMS

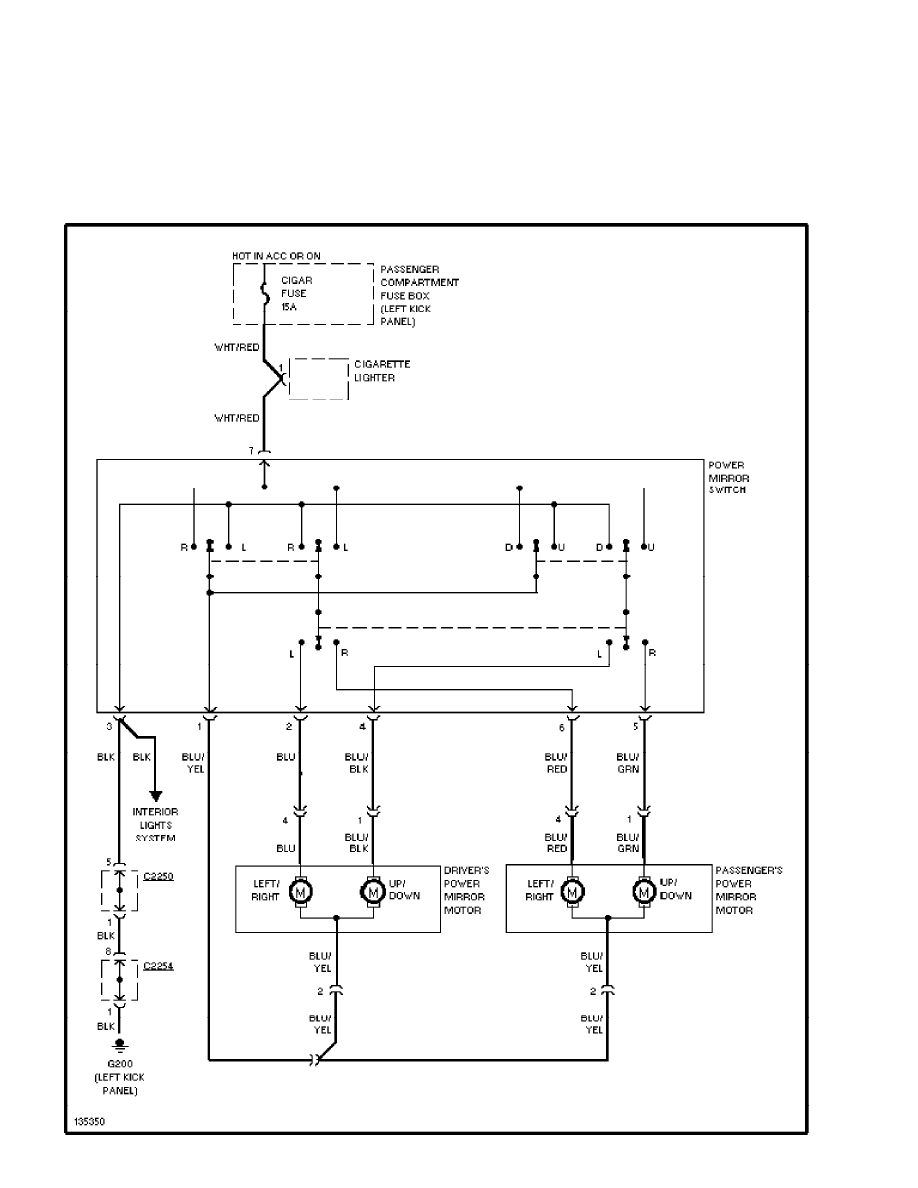

Power Mirror Circuit (p. 30)
2000 Kia Sportage
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, September 29, 2004 12:56PM
SYSTEM WIRING DIAGRAMS

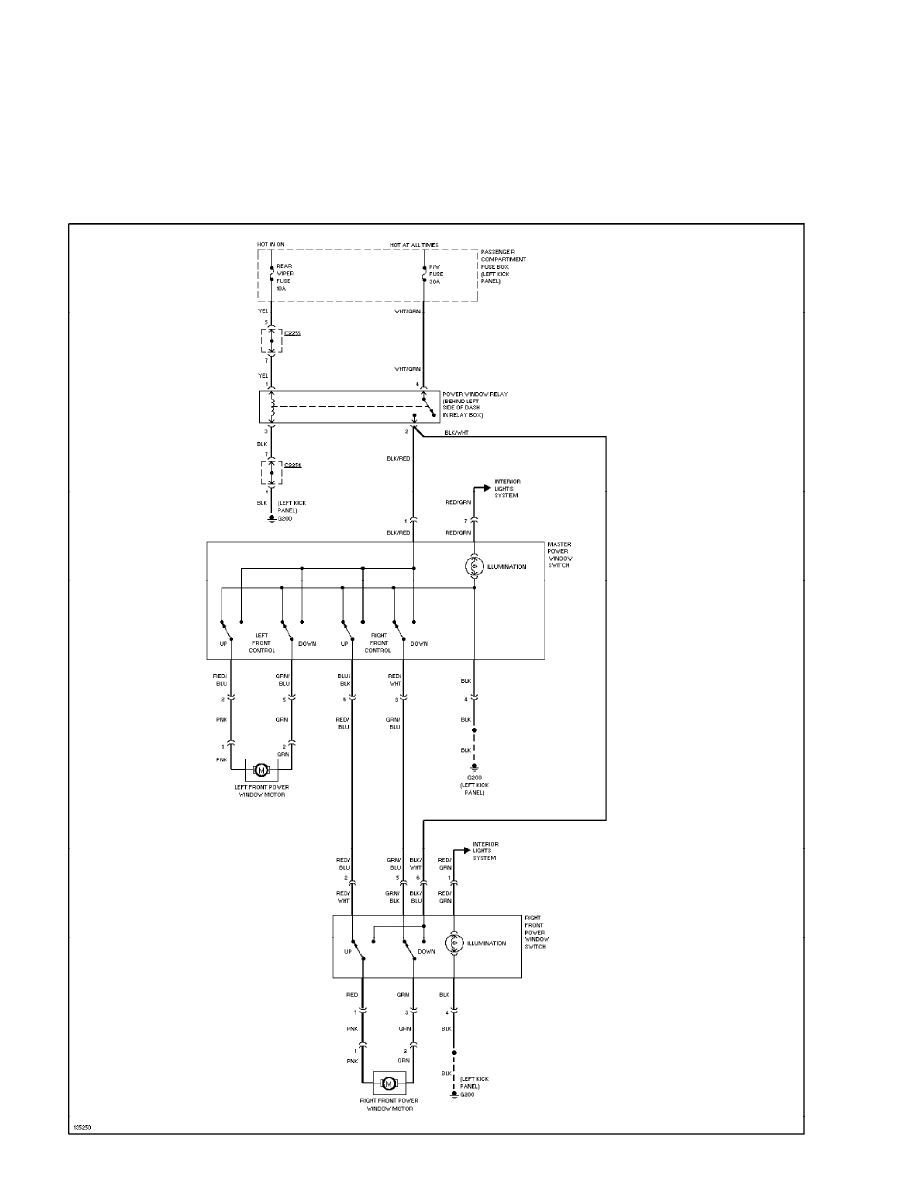

Power Window Circuit, 2 Door (p. 31)
2000 Kia Sportage
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, September 29, 2004 12:56PM
SYSTEM WIRING DIAGRAMS

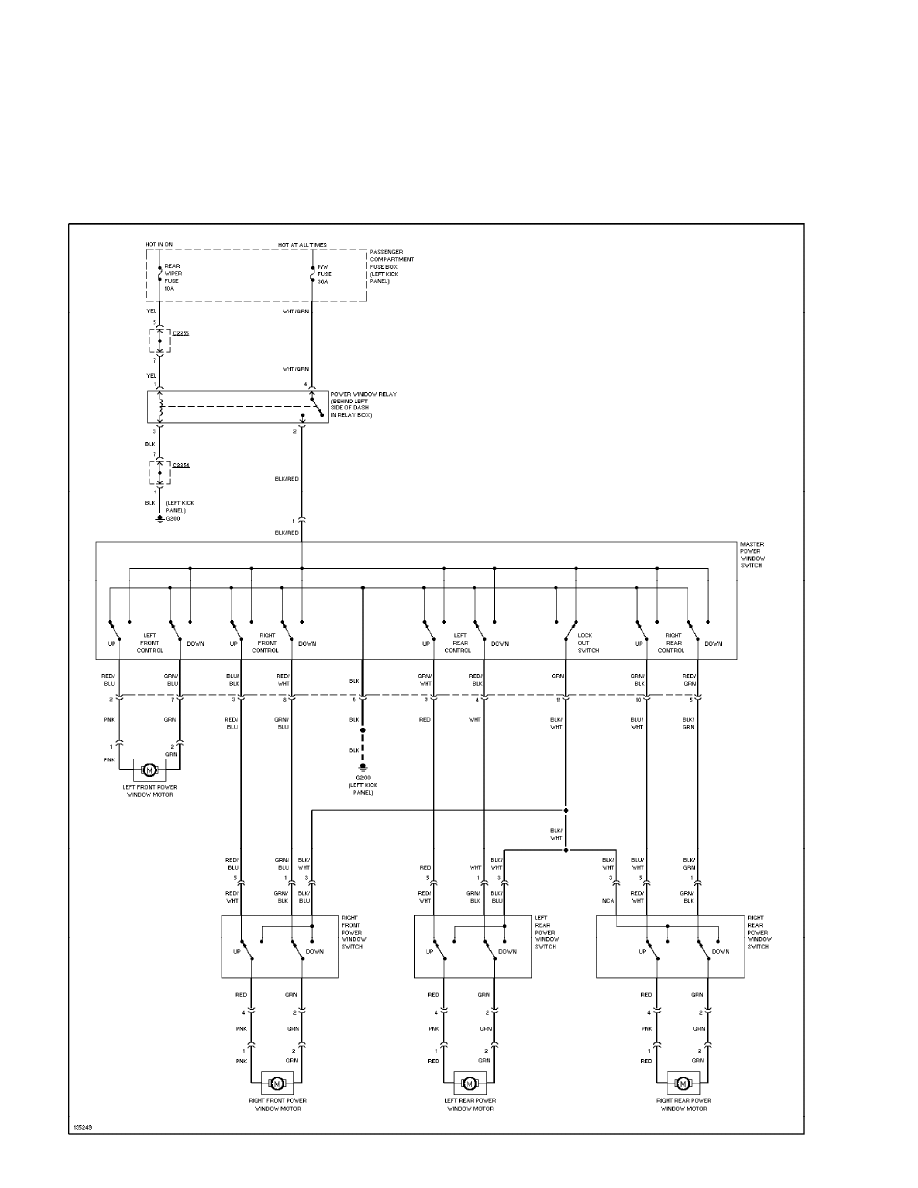

Power Window Circuit, 4 Door (p. 32)
2000 Kia Sportage
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, September 29, 2004 12:56PM
SYSTEM WIRING DIAGRAMS

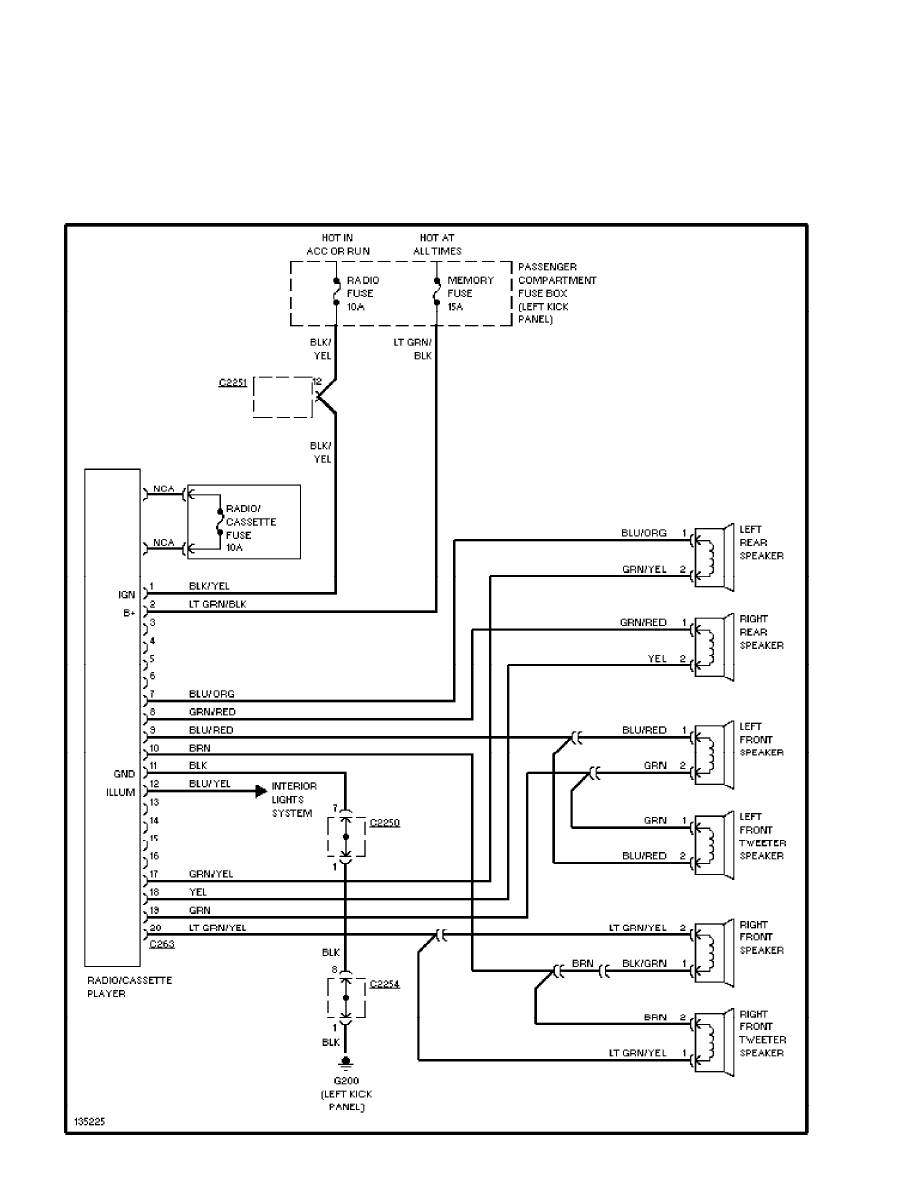

Radio Circuits (p. 33)
2000 Kia Sportage
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, September 29, 2004 12:56PM
SYSTEM WIRING DIAGRAMS

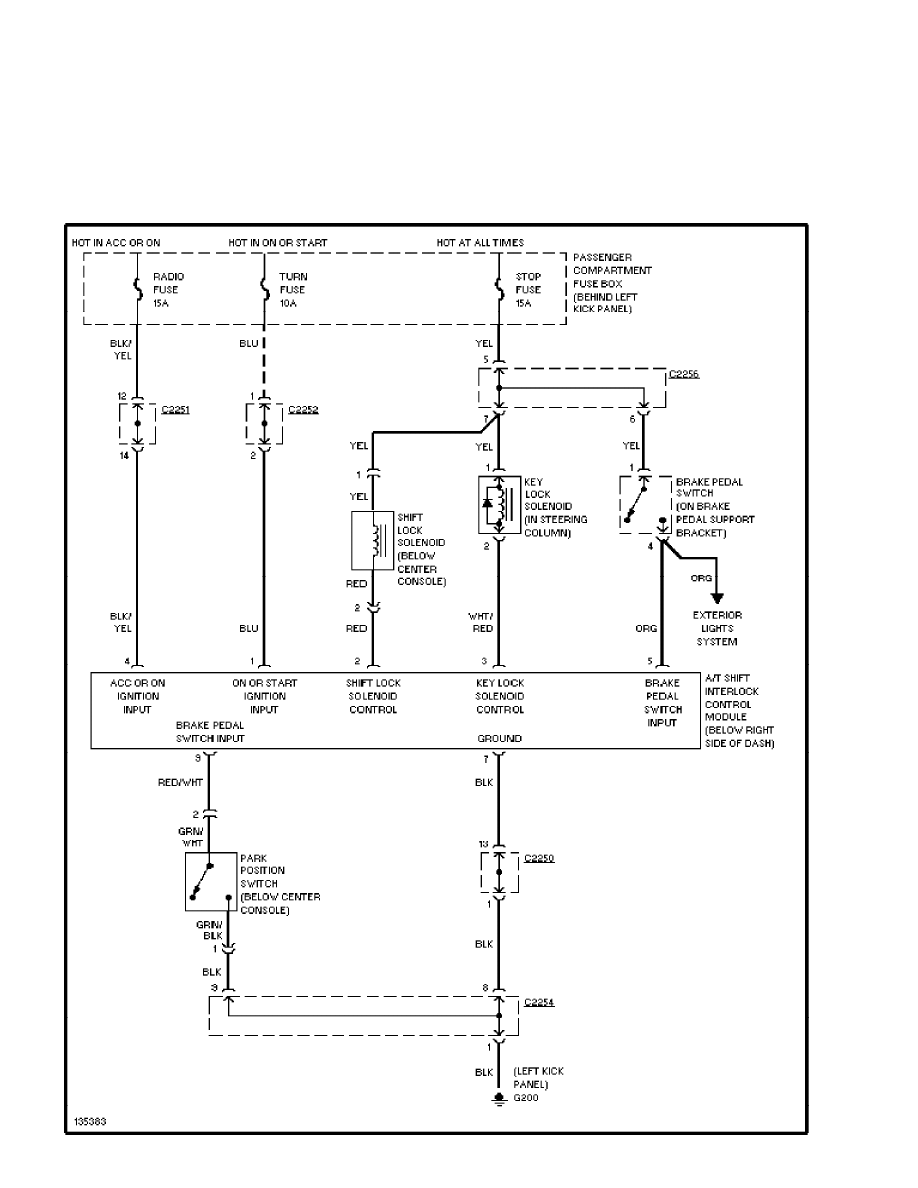

Shift Interlock Circuit (p. 34)
2000 Kia Sportage
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, September 29, 2004 12:56PM
SYSTEM WIRING DIAGRAMS

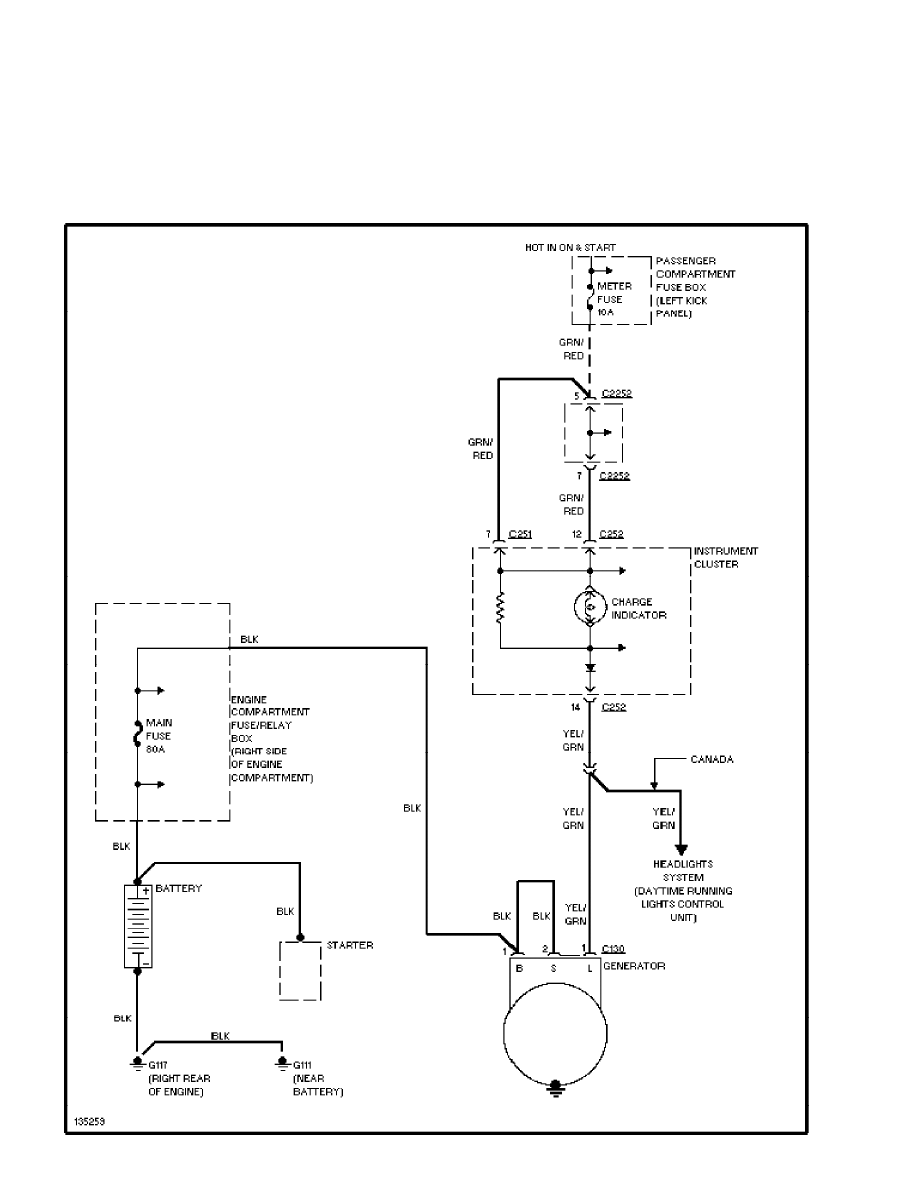

Charging Circuit (p. 35)
2000 Kia Sportage
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, September 29, 2004 12:56PM
SYSTEM WIRING DIAGRAMS

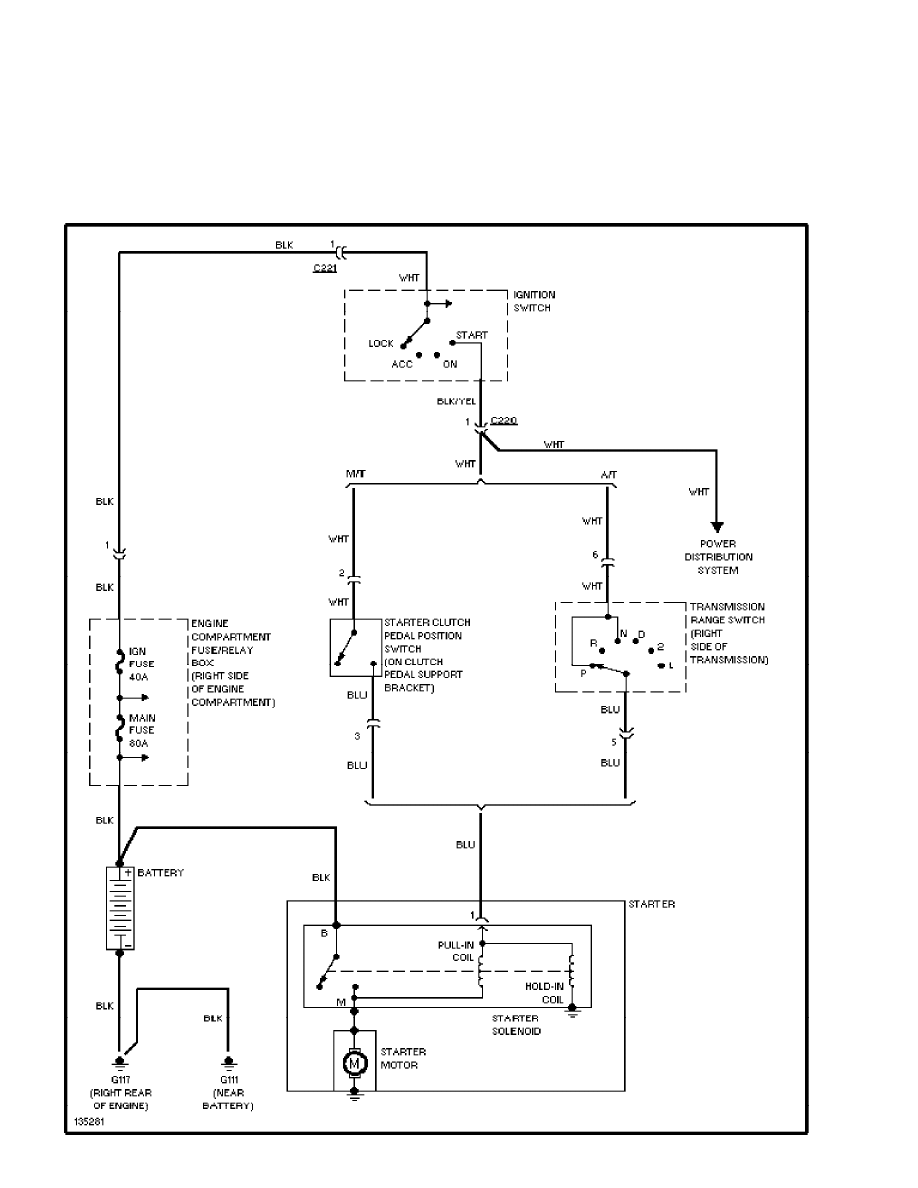

Starting Circuit (p. 36)
2000 Kia Sportage
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, September 29, 2004 12:56PM
SYSTEM WIRING DIAGRAMS

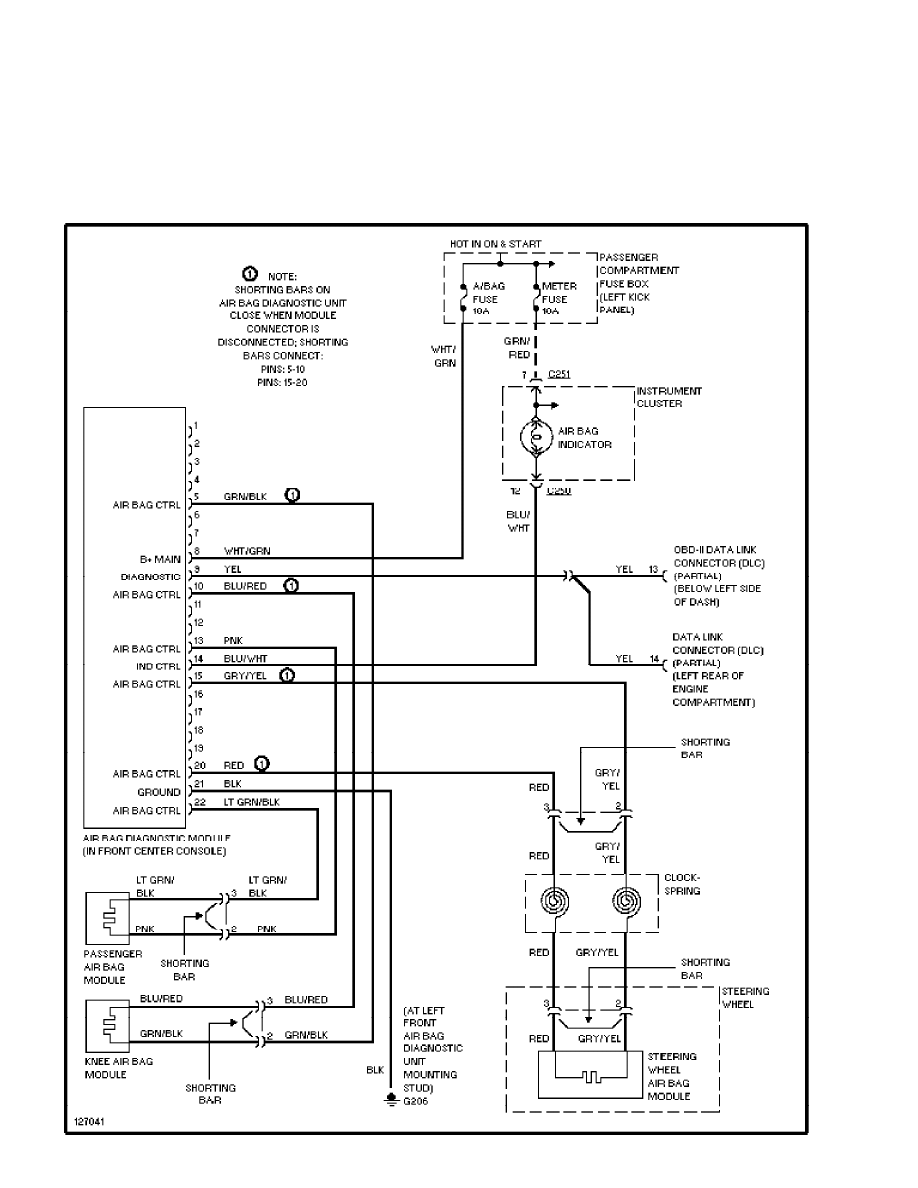

Supplemental Restraint Circuit (p. 37)
2000 Kia Sportage
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, September 29, 2004 12:56PM
SYSTEM WIRING DIAGRAMS
A/T Circuit (p. 38)
2000 Kia Sportage
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, September 29, 2004 12:56PM
SYSTEM WIRING DIAGRAMS

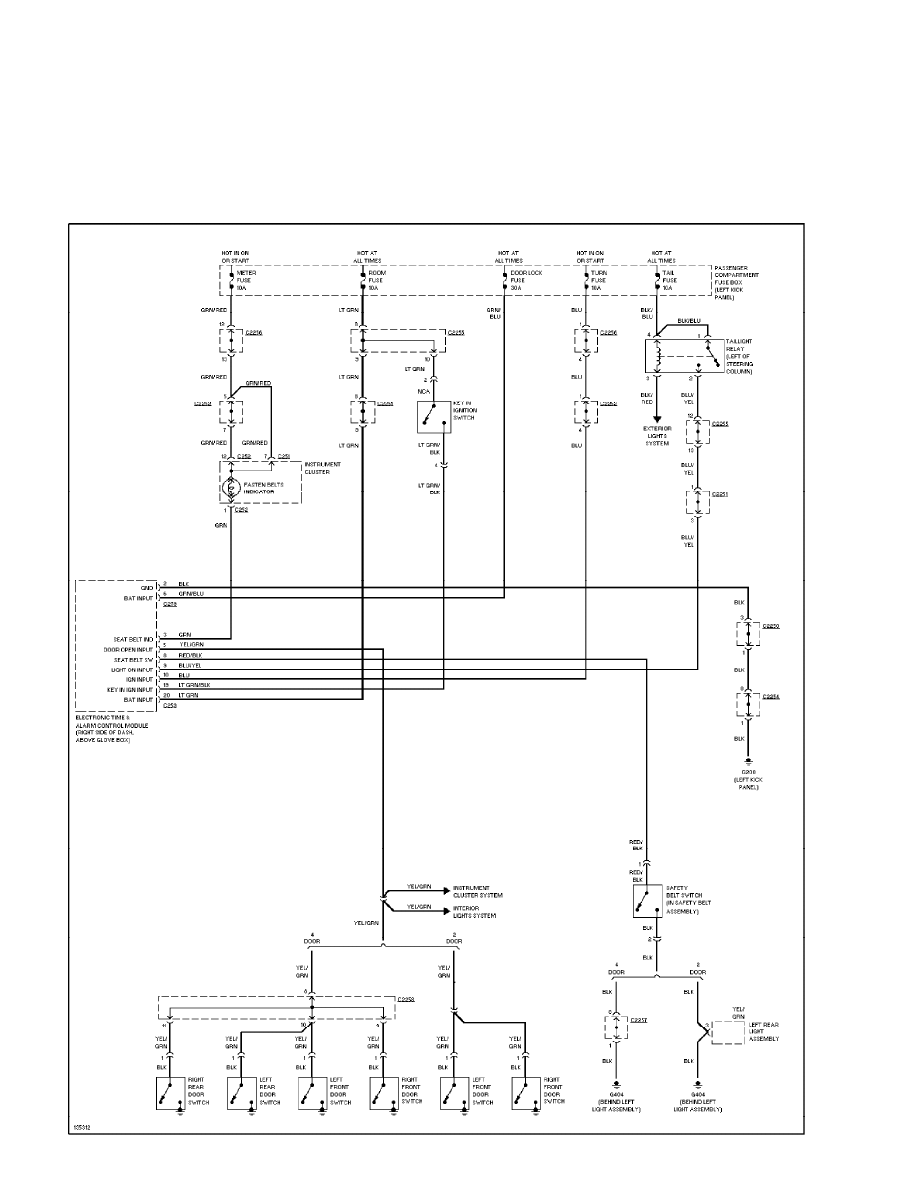

Warning System Circuits (p. 39)
2000 Kia Sportage
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, September 29, 2004 12:56PM
SYSTEM WIRING DIAGRAMS

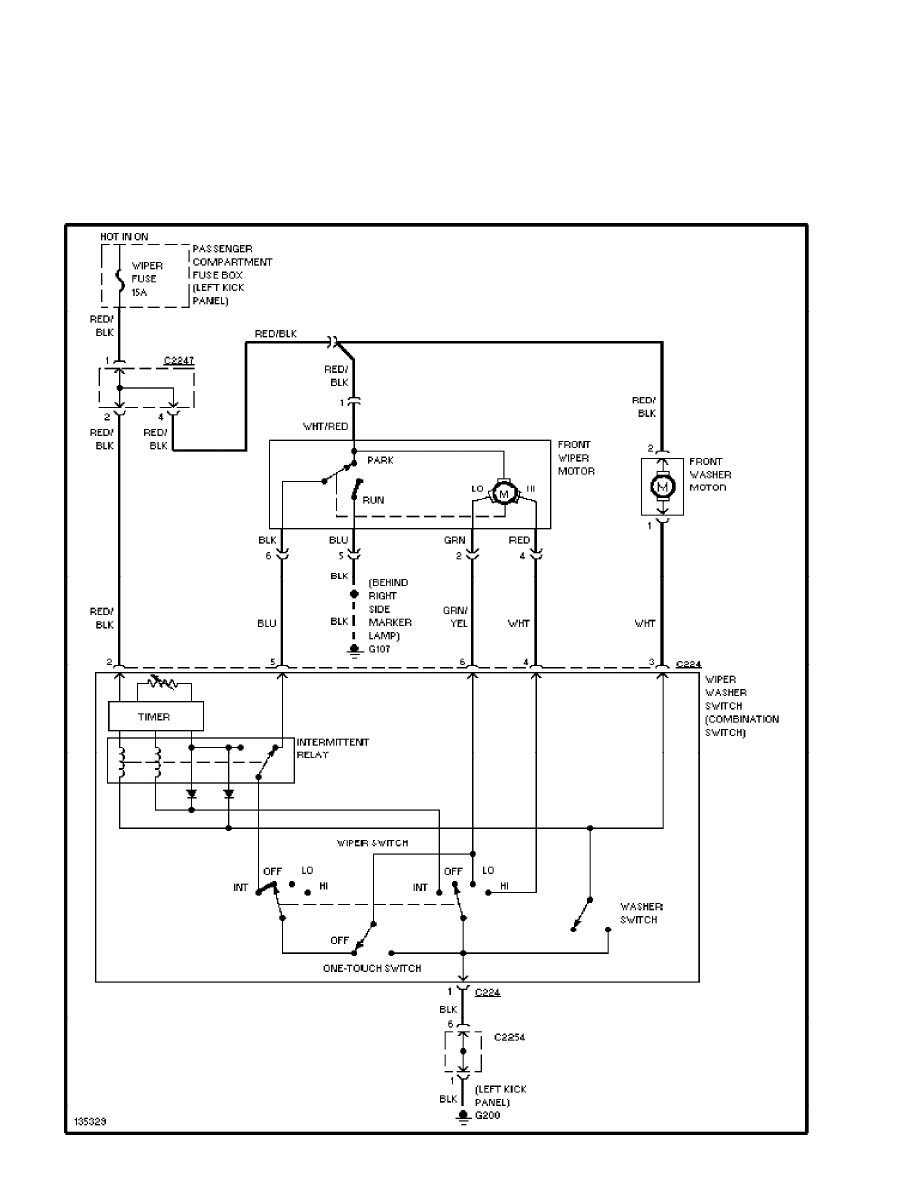

Front Wiper/Washer Circuit (p. 40)
2000 Kia Sportage
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, September 29, 2004 12:56PM
SYSTEM WIRING DIAGRAMS

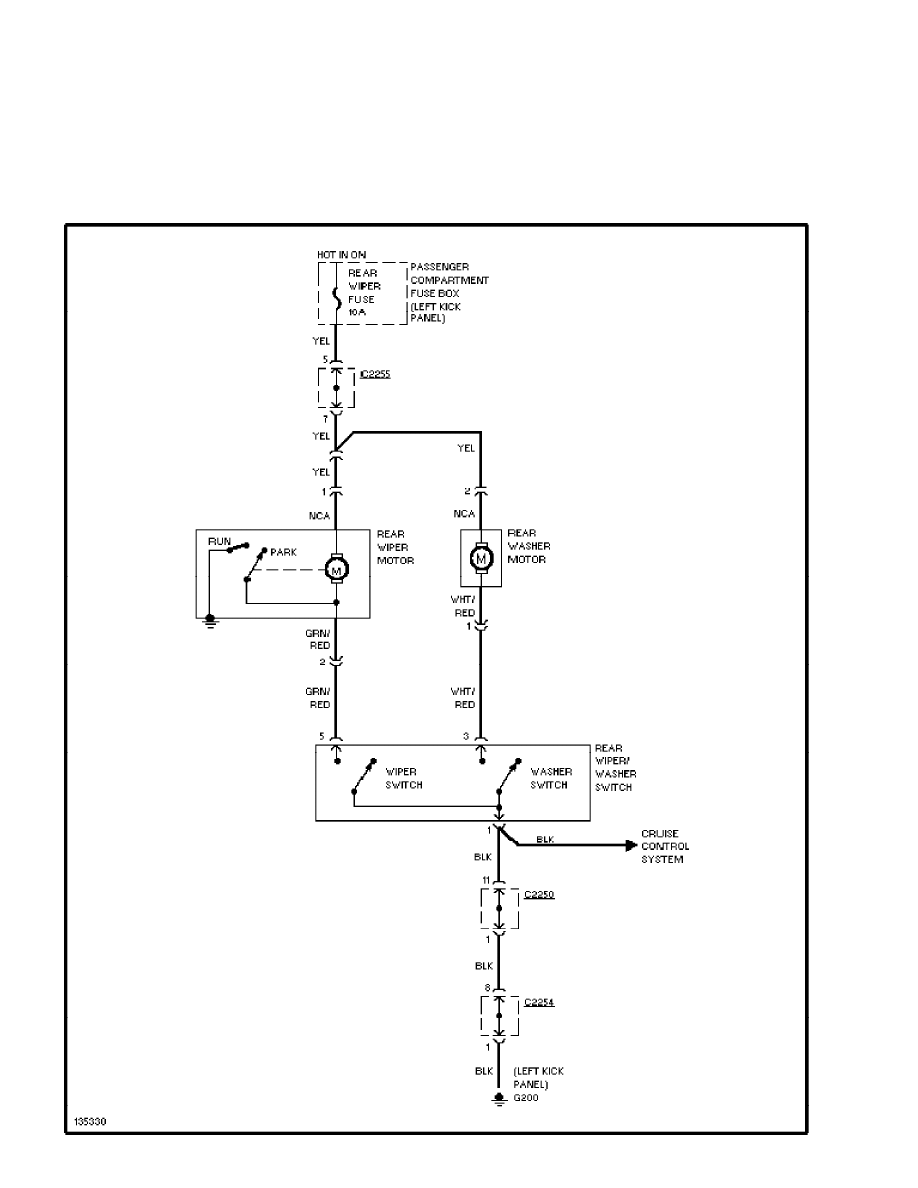

Rear Wiper/Washer Circuit (p. 41)
2000 Kia Sportage
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, September 29, 2004 12:56PM
