MITSUBISHI MIRAGE 2000

SYSTEM WIRING DIAGRAMS

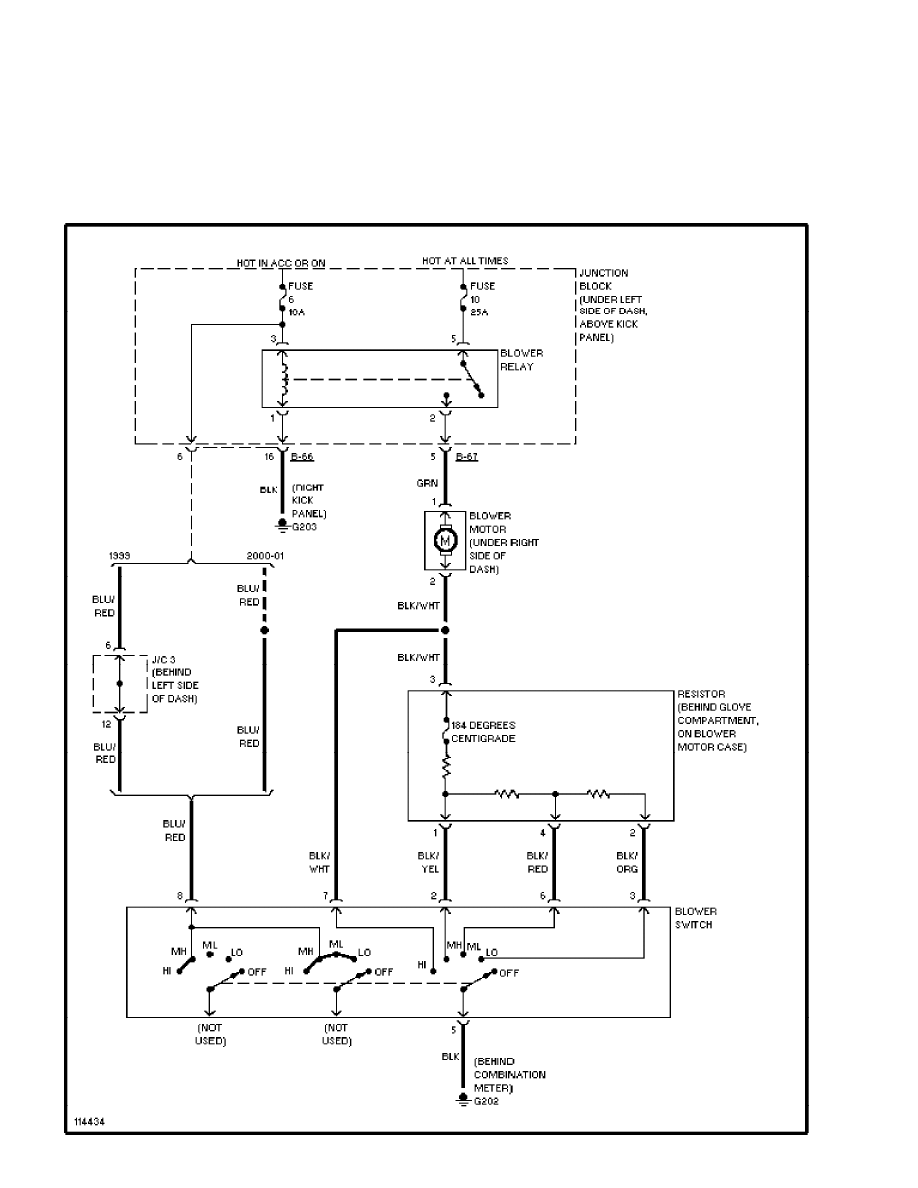

Heater Circuit

2000 Mitsubishi Mirage

For x

Thursday, March 17, 2005 09:41AM

SYSTEM WIRING DIAGRAMS

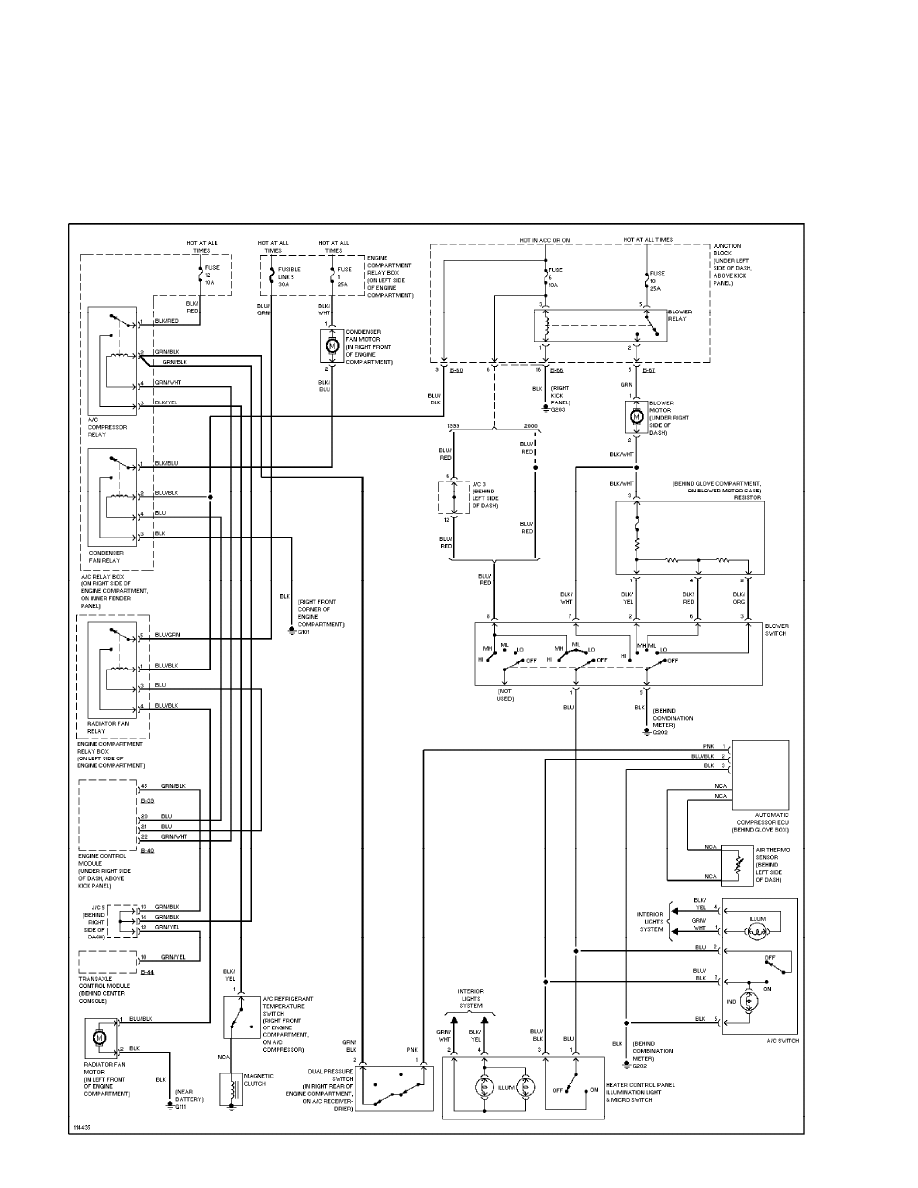

Manual A/C Circuit (p. 2)

2000 Mitsubishi Mirage

For x

Thursday, March 17, 2005 09:41AM

SYSTEM WIRING DIAGRAMS

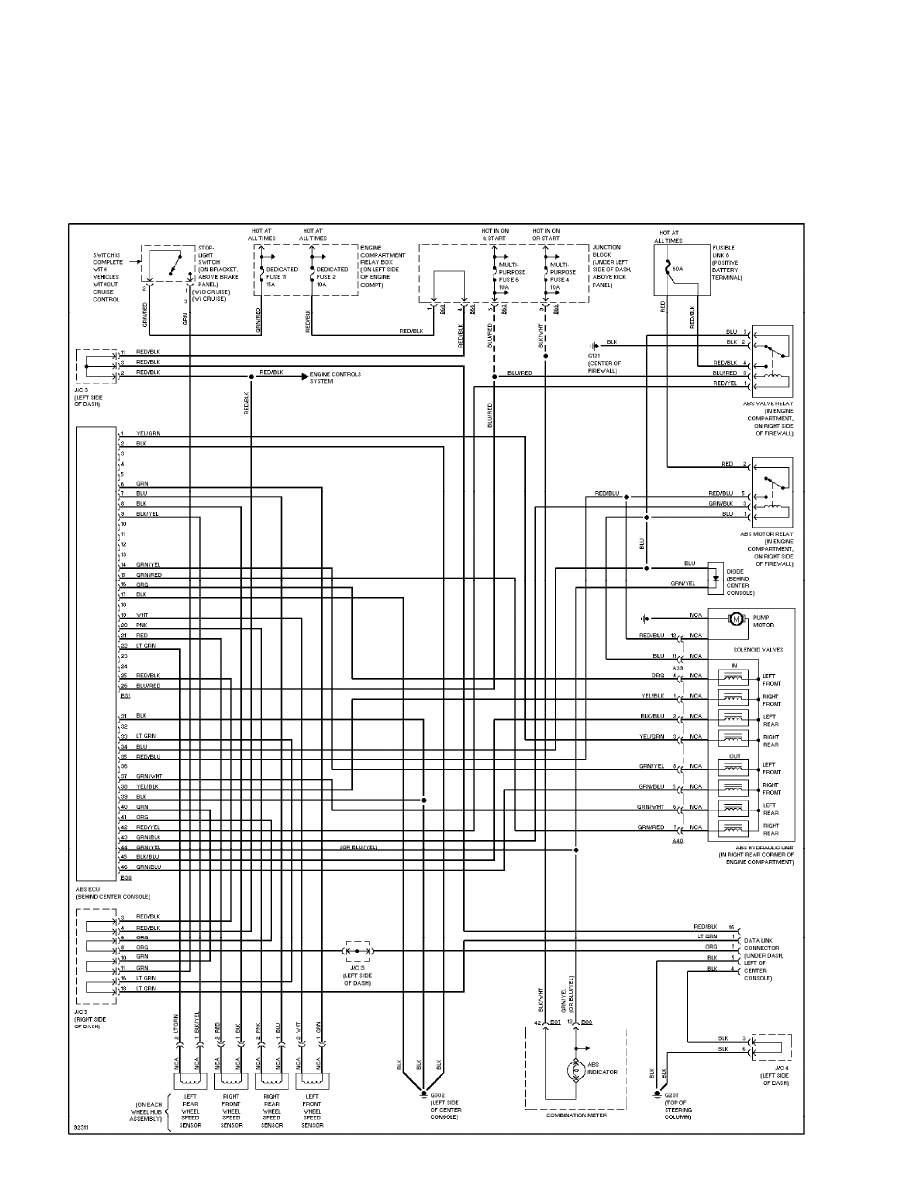

Anti-lock Brake Circuits (p. 3)

2000 Mitsubishi Mirage

For x

Thursday, March 17, 2005 09:41AM

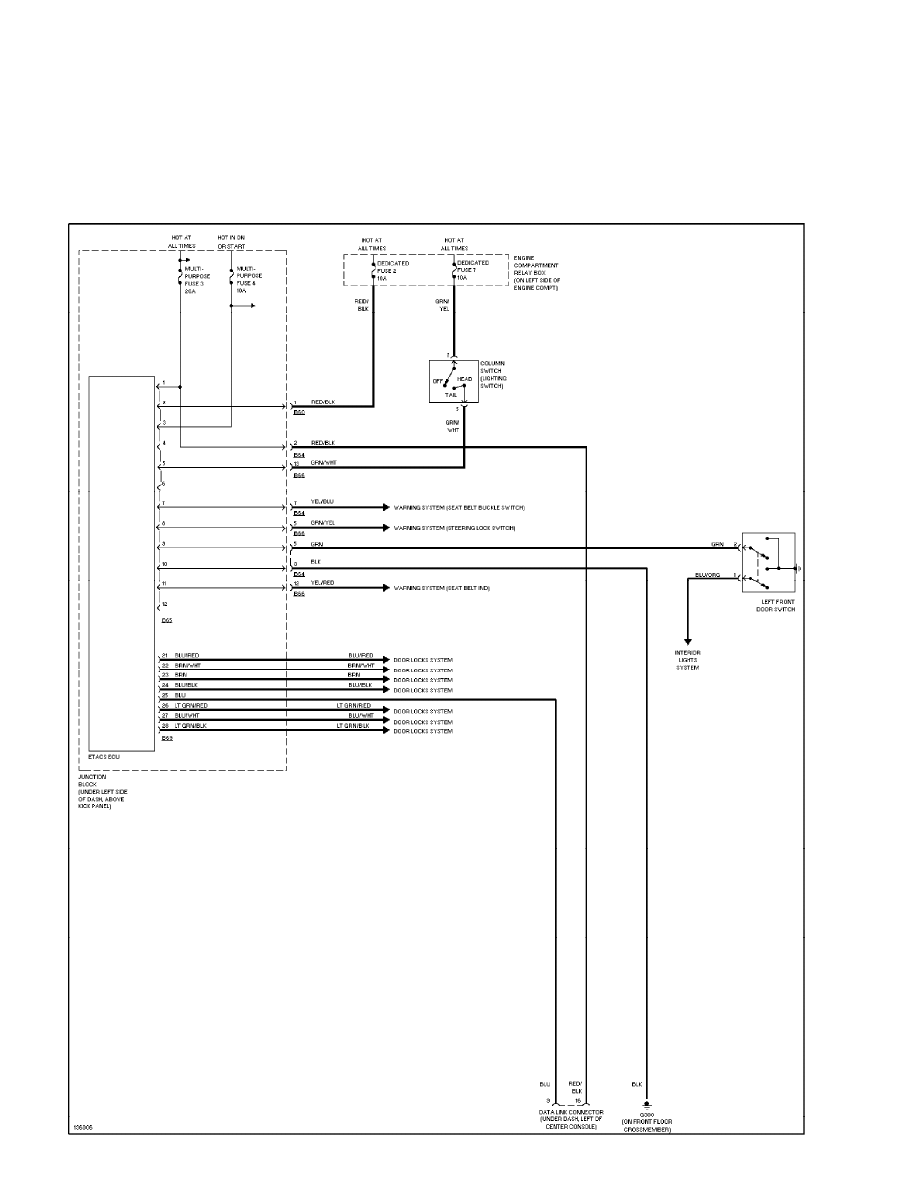

SYSTEM WIRING DIAGRAMS

Body Computer Circuits (p. 4)

2000 Mitsubishi Mirage

For x

Thursday, March 17, 2005 09:41AM

SYSTEM WIRING DIAGRAMS

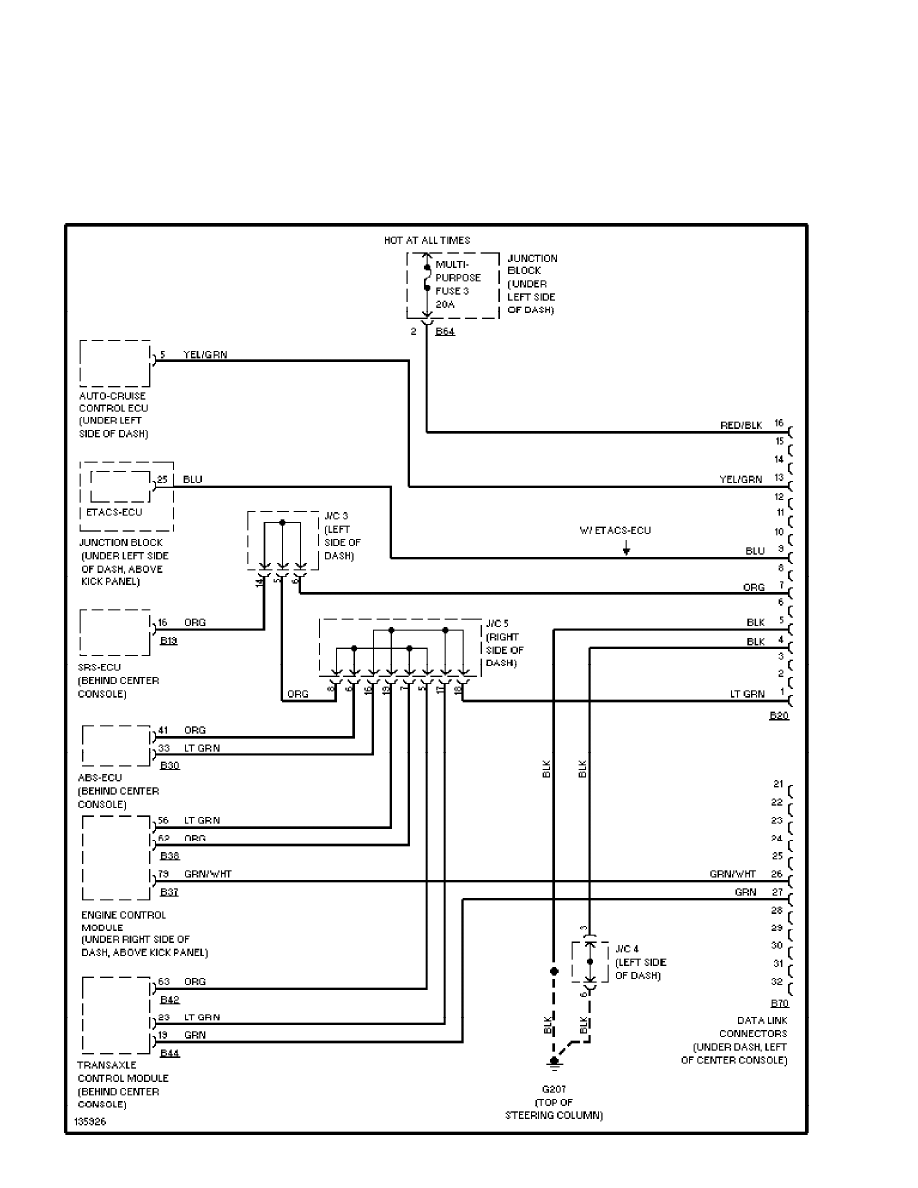

Computer Data Lines (p. 5)

2000 Mitsubishi Mirage

For x

Thursday, March 17, 2005 09:41AM

SYSTEM WIRING DIAGRAMS

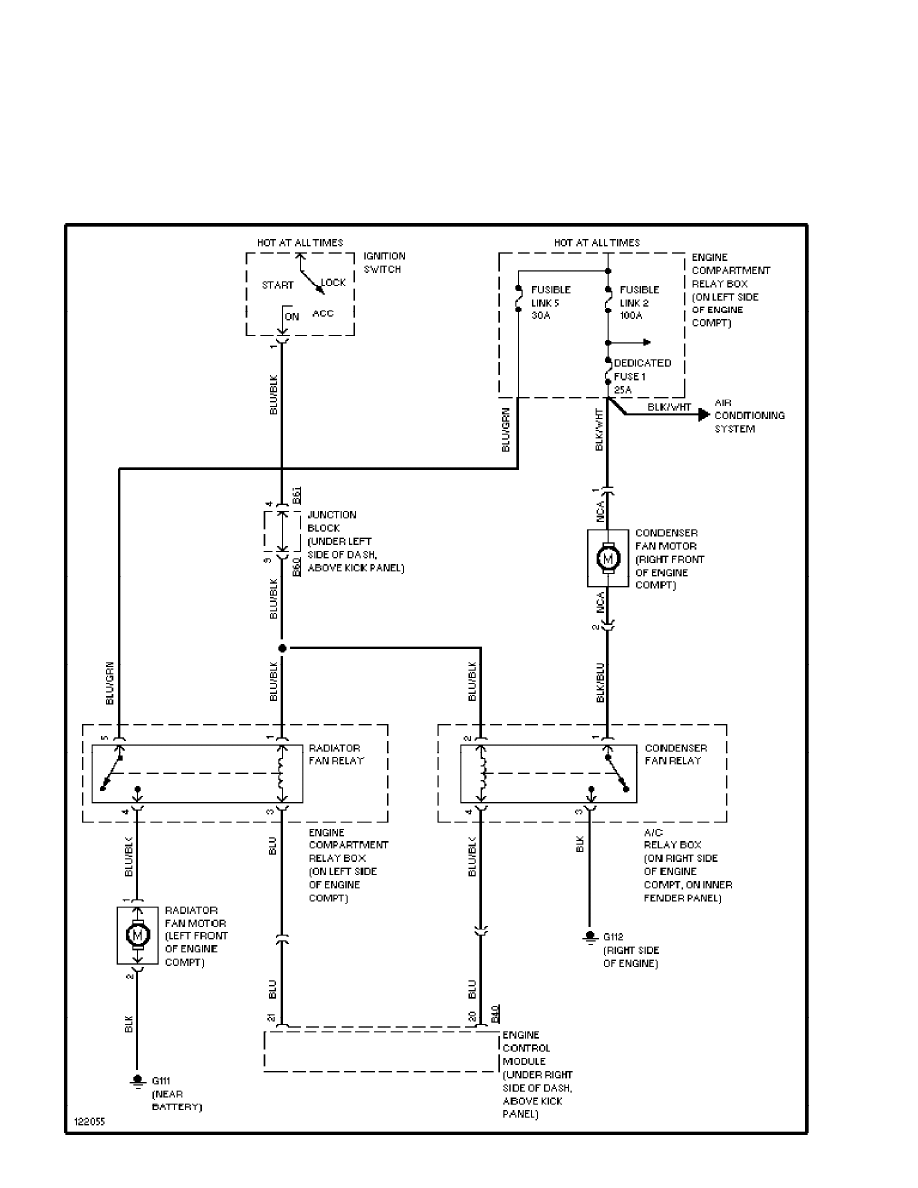

Cooling Fan Circuit (p. 6)

2000 Mitsubishi Mirage

For x

Thursday, March 17, 2005 09:41AM

SYSTEM WIRING DIAGRAMS

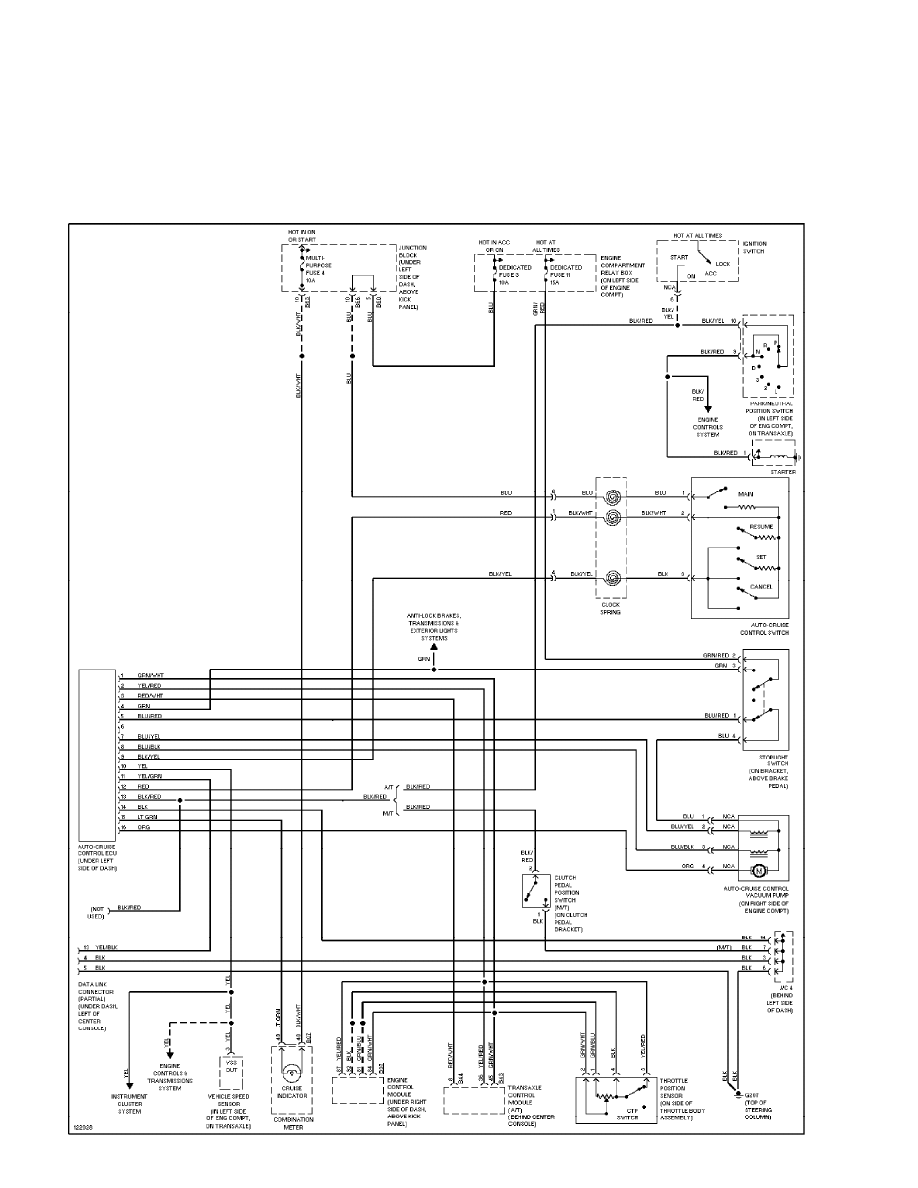

Cruise Control Circuit (p. 7)

2000 Mitsubishi Mirage

For x

Thursday, March 17, 2005 09:41AM

SYSTEM WIRING DIAGRAMS

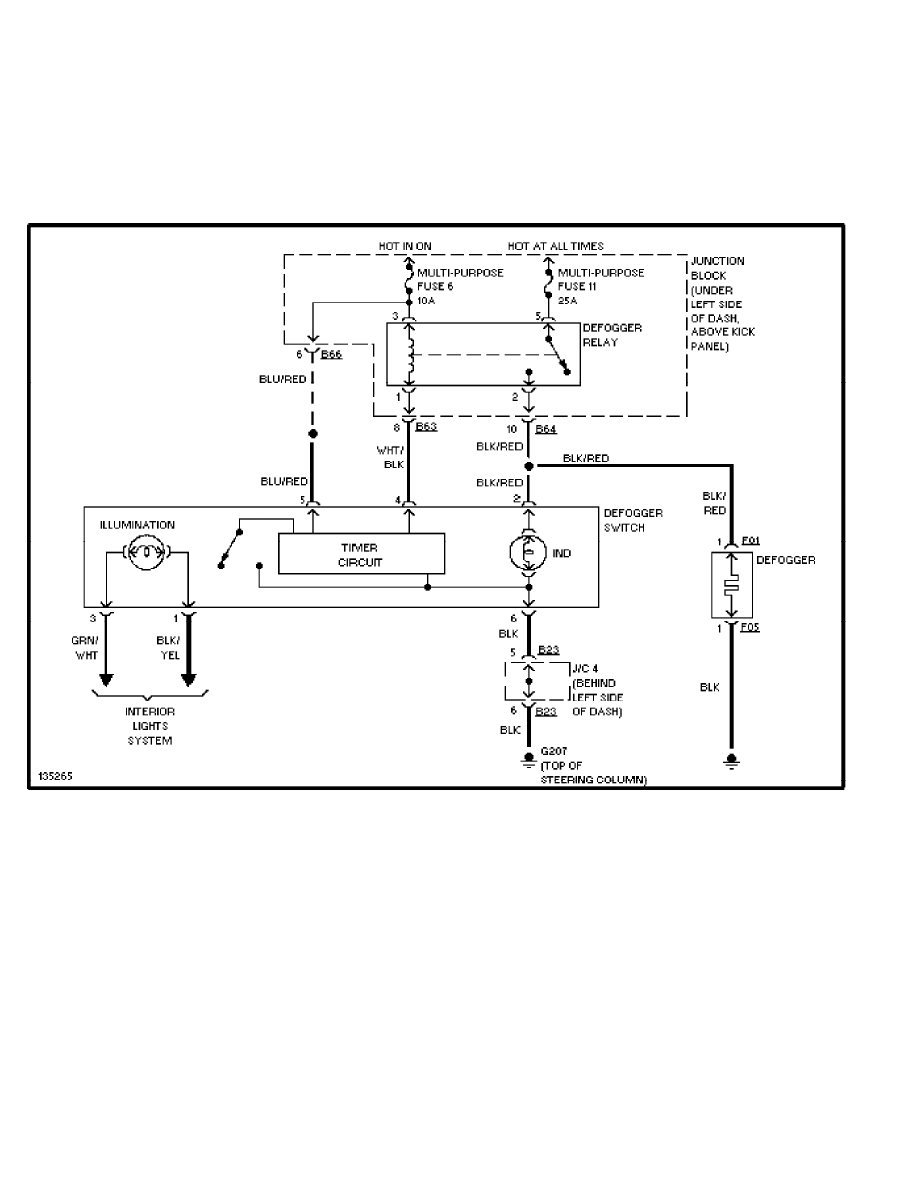

Defogger Circuit (p. 8)

2000 Mitsubishi Mirage

For x

Thursday, March 17, 2005 09:41AM

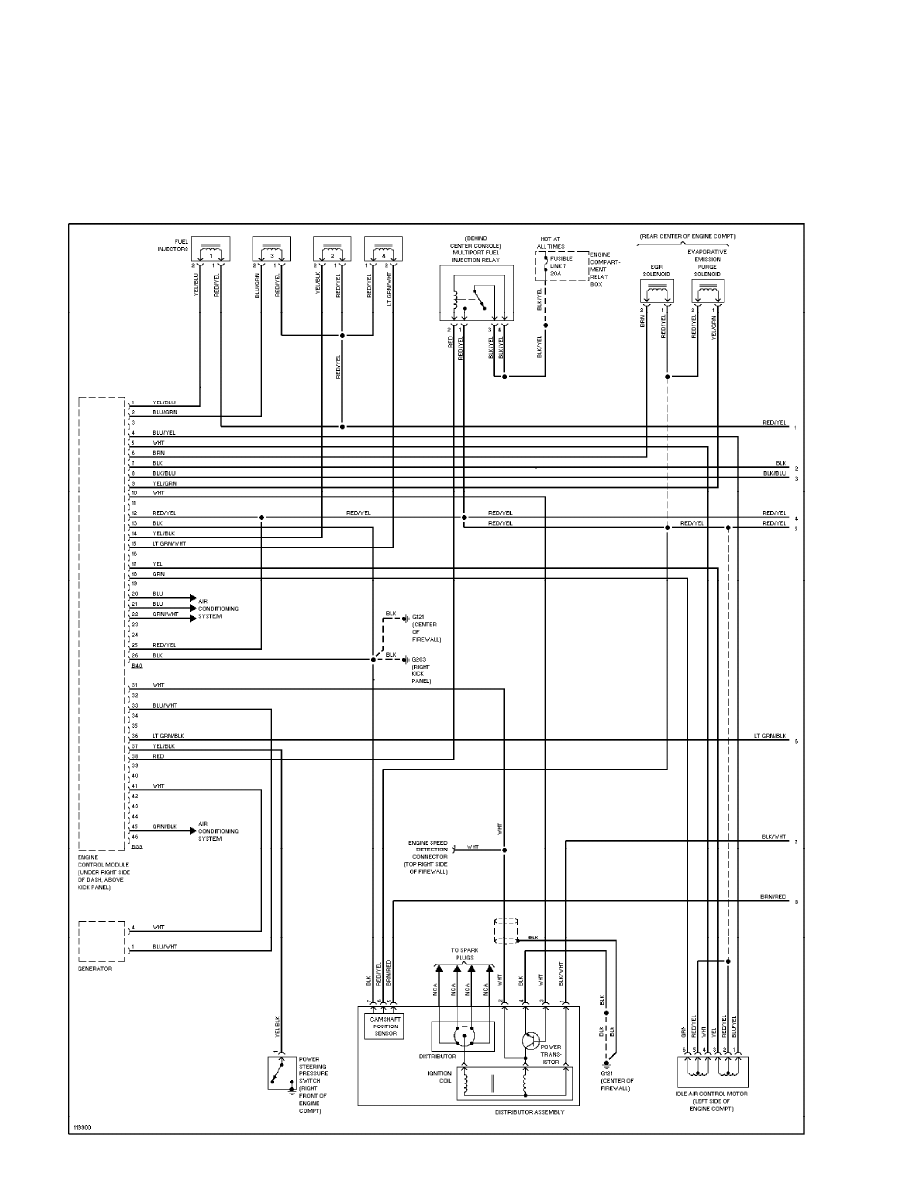

SYSTEM WIRING DIAGRAMS

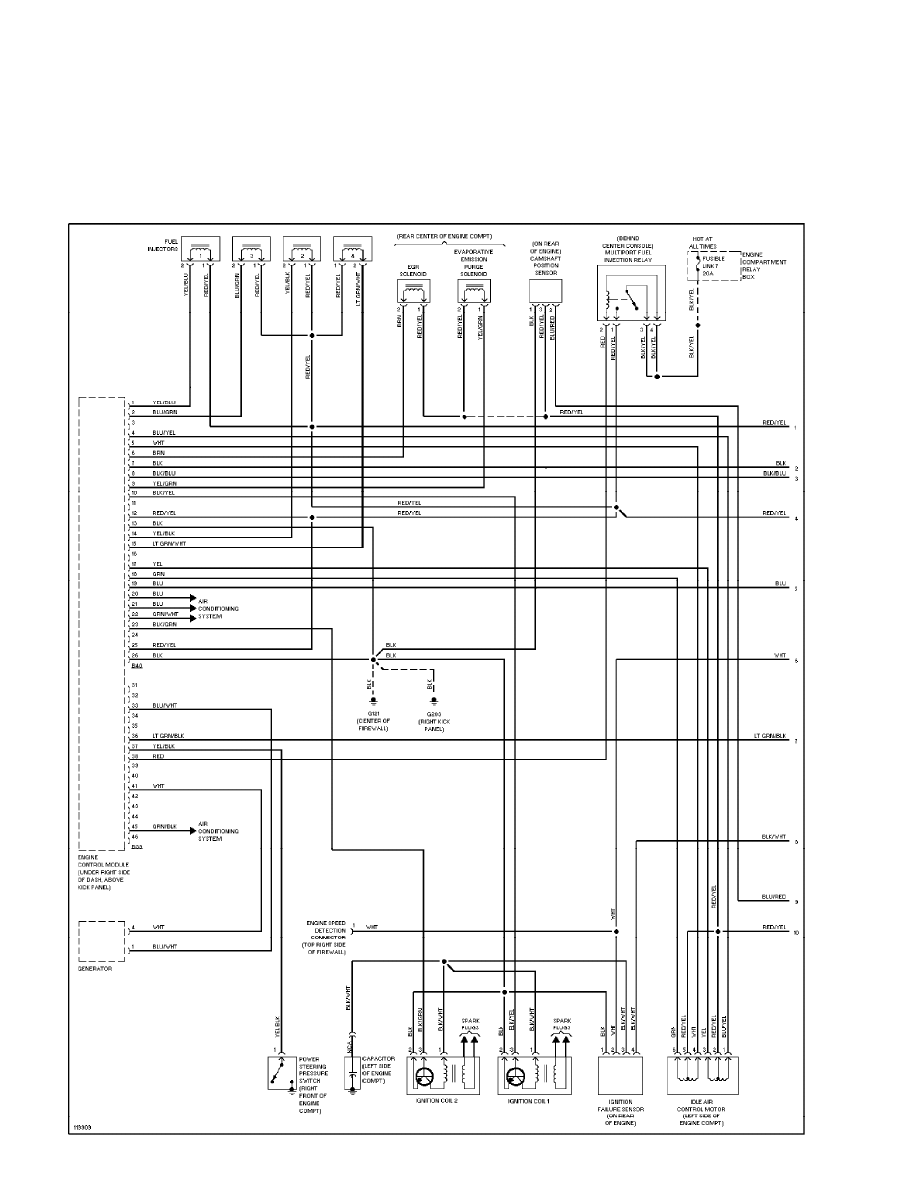

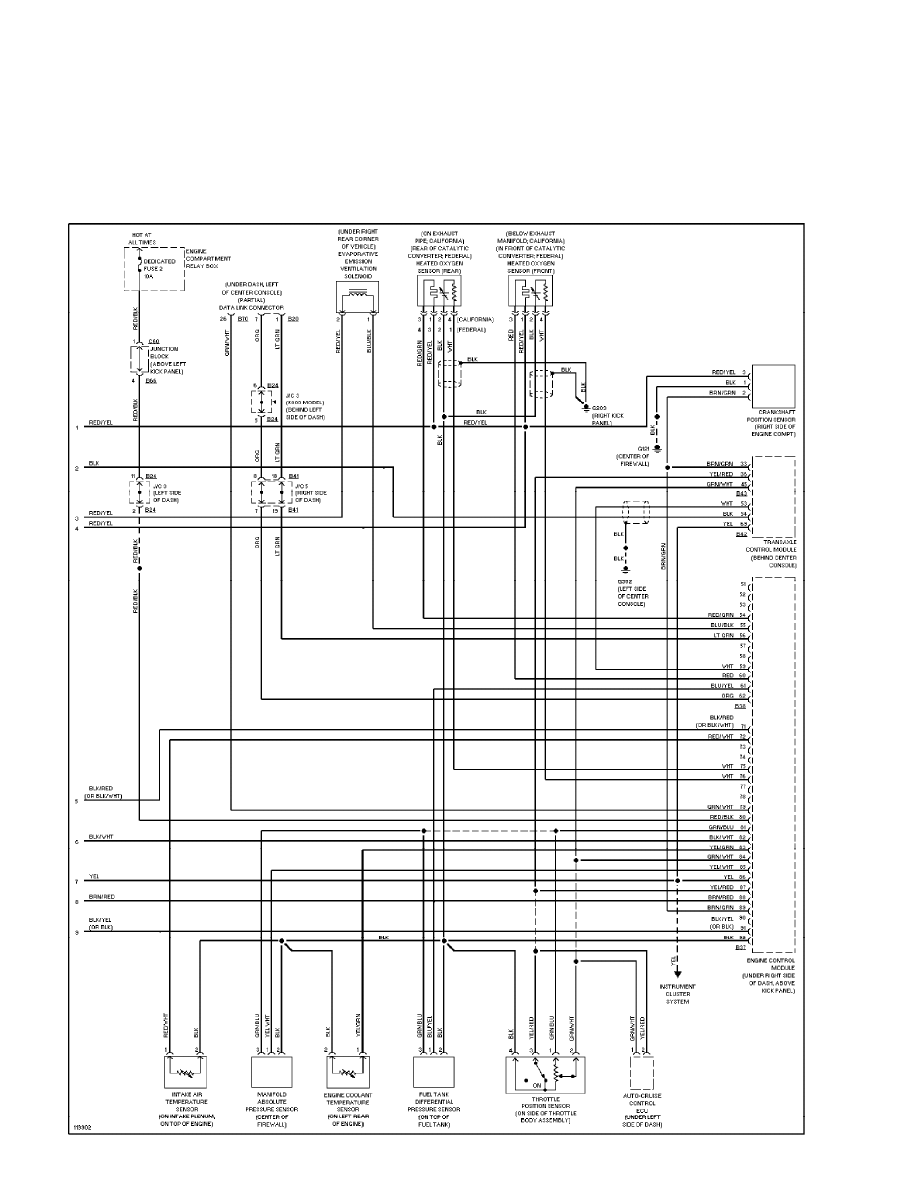

1.5L, Engine Performance Circuits (1 of 3) (p. 9)

2000 Mitsubishi Mirage

For x

Thursday, March 17, 2005 09:41AM

SYSTEM WIRING DIAGRAMS

1.5L, Engine Performance Circuits (2 of 3) (p. 10)

2000 Mitsubishi Mirage

For x

Thursday, March 17, 2005 09:41AM

SYSTEM WIRING DIAGRAMS

1.5L, Engine Performance Circuits (3 of 3) (p. 11)

2000 Mitsubishi Mirage

For x

Thursday, March 17, 2005 09:41AM

SYSTEM WIRING DIAGRAMS

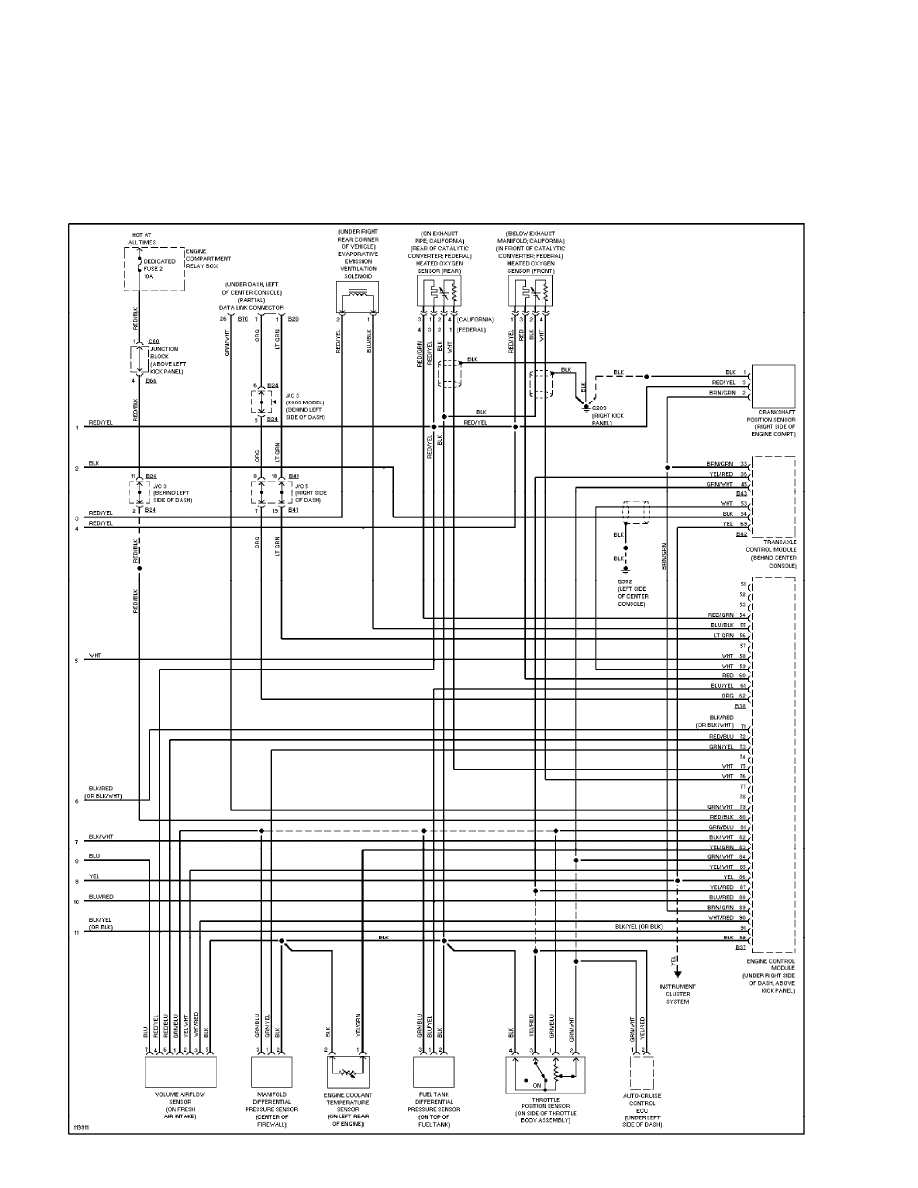

1.8L, Engine Performance Circuits (1 of 3) (p. 12)

2000 Mitsubishi Mirage

For x

Thursday, March 17, 2005 09:41AM

SYSTEM WIRING DIAGRAMS

1.8L, Engine Performance Circuits (2 of 3) (p. 13)

2000 Mitsubishi Mirage

For x

Thursday, March 17, 2005 09:41AM

SYSTEM WIRING DIAGRAMS

1.8L, Engine Performance Circuits (3 of 3) (p. 14)

2000 Mitsubishi Mirage

For x

Thursday, March 17, 2005 09:41AM

SYSTEM WIRING DIAGRAMS

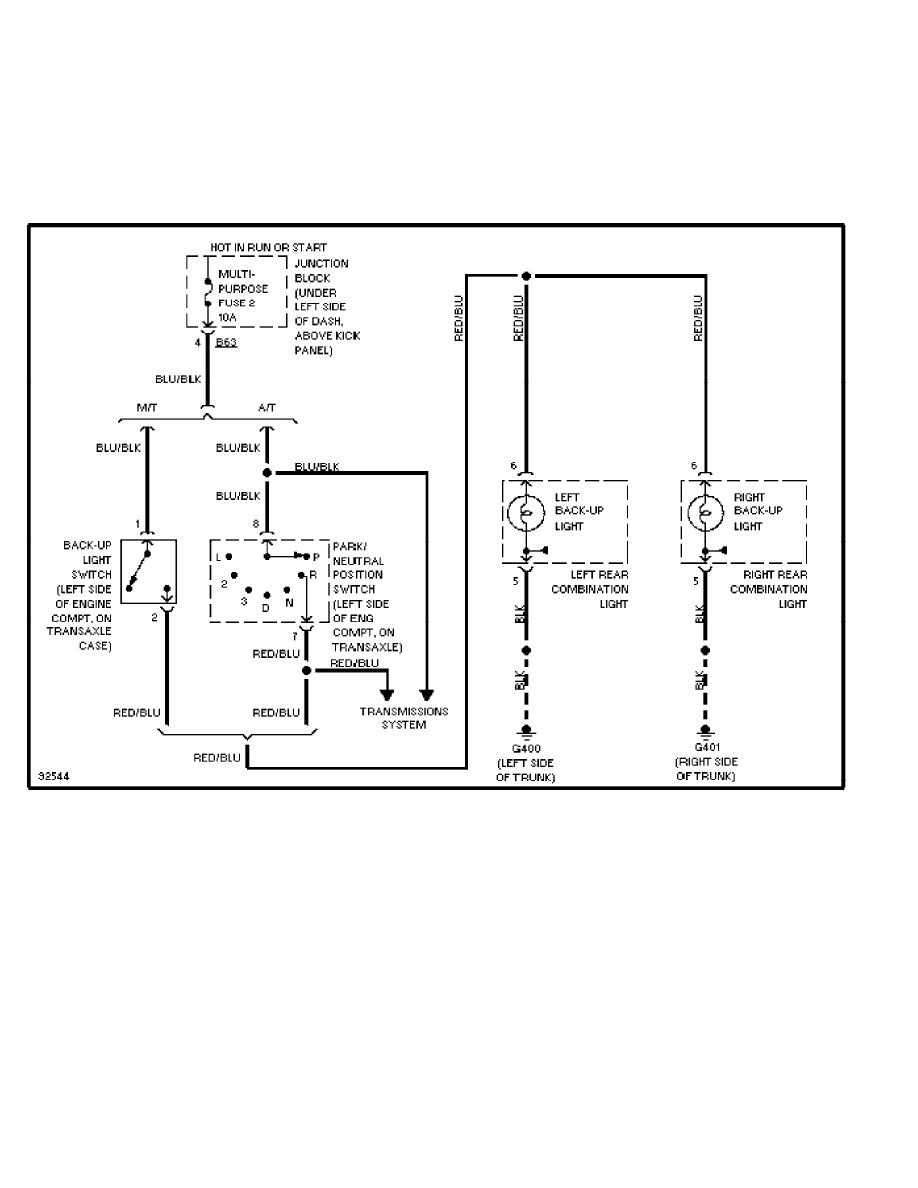

Back-up Lamps Circuit (p. 15)

2000 Mitsubishi Mirage

For x

Thursday, March 17, 2005 09:41AM

SYSTEM WIRING DIAGRAMS

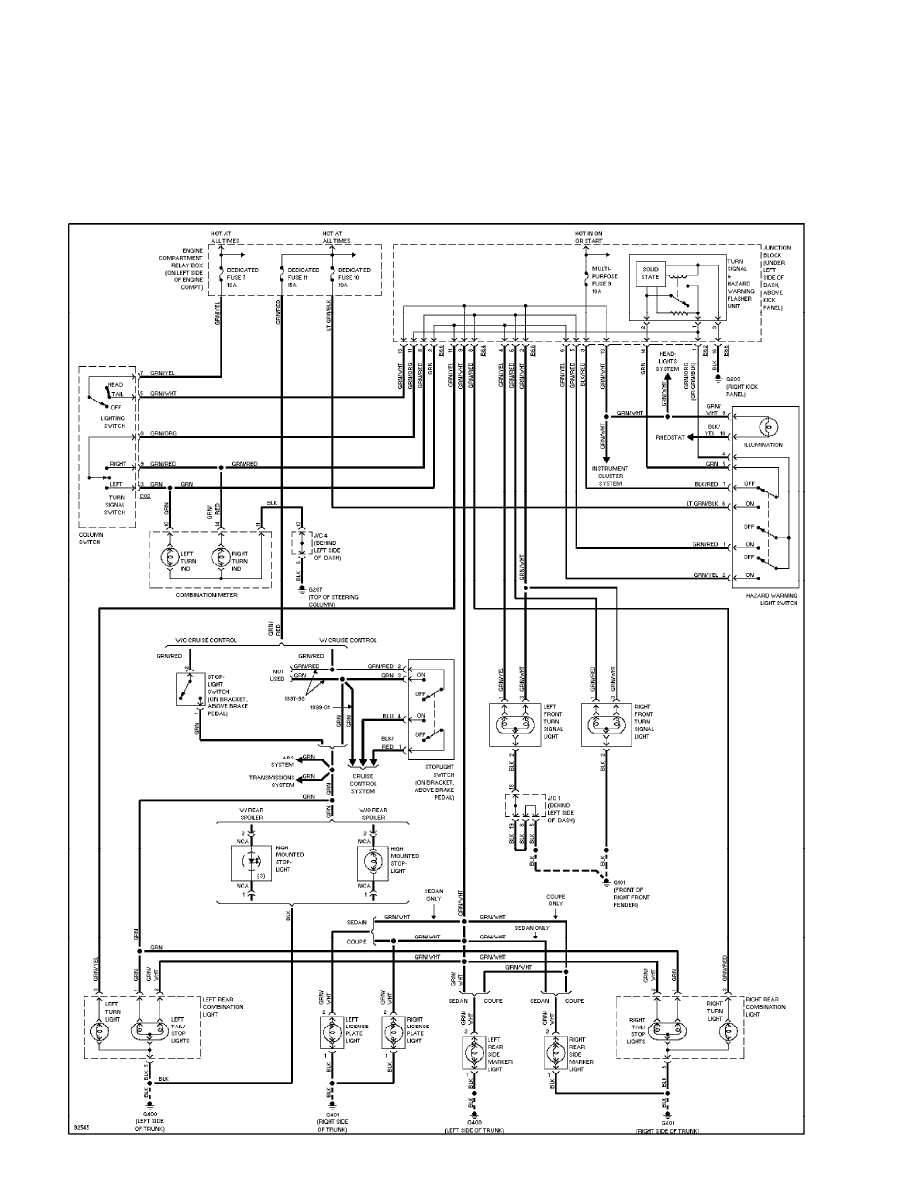

Exterior Lamps Circuit (p. 16)

2000 Mitsubishi Mirage

For x

Thursday, March 17, 2005 09:41AM

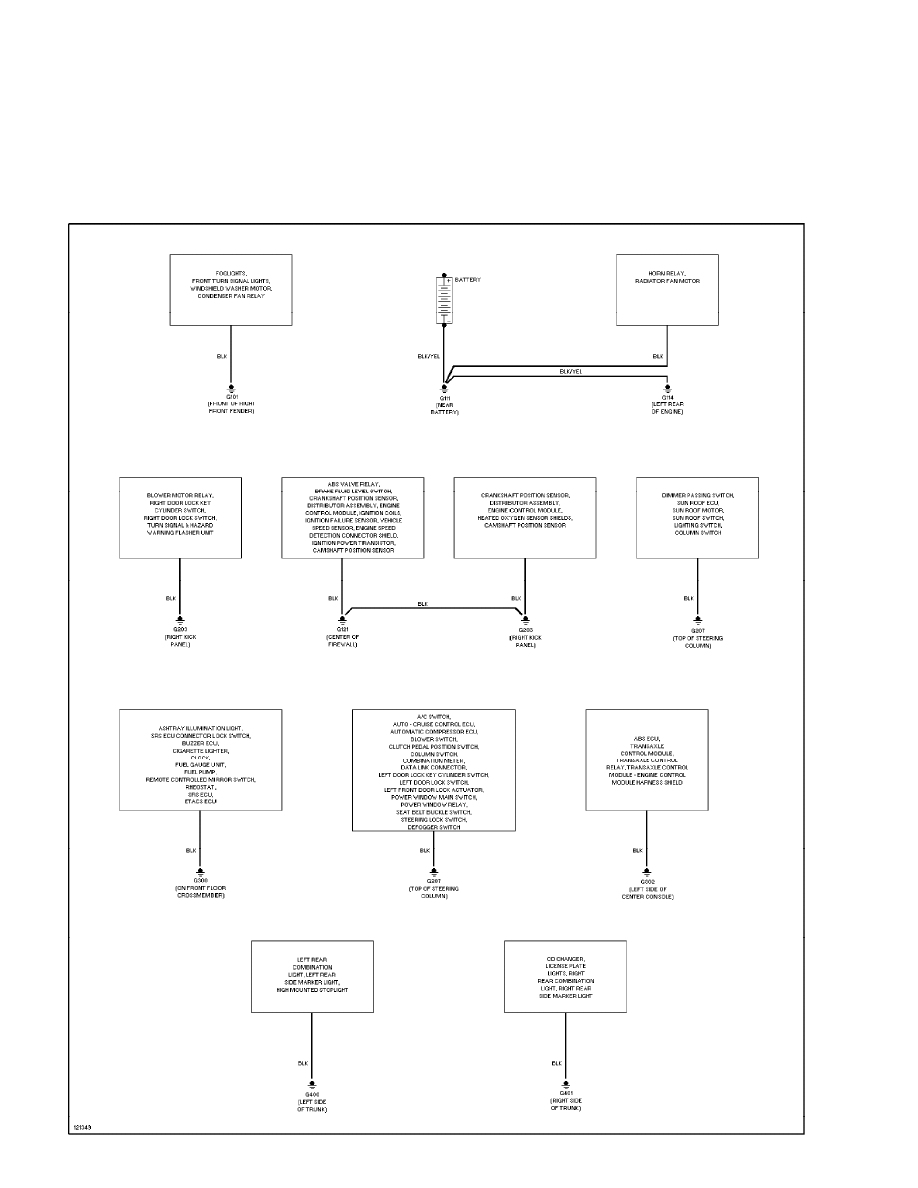

SYSTEM WIRING DIAGRAMS

Ground Distribution Circuit (p. 17)

2000 Mitsubishi Mirage

For x

Thursday, March 17, 2005 09:41AM

SYSTEM WIRING DIAGRAMS

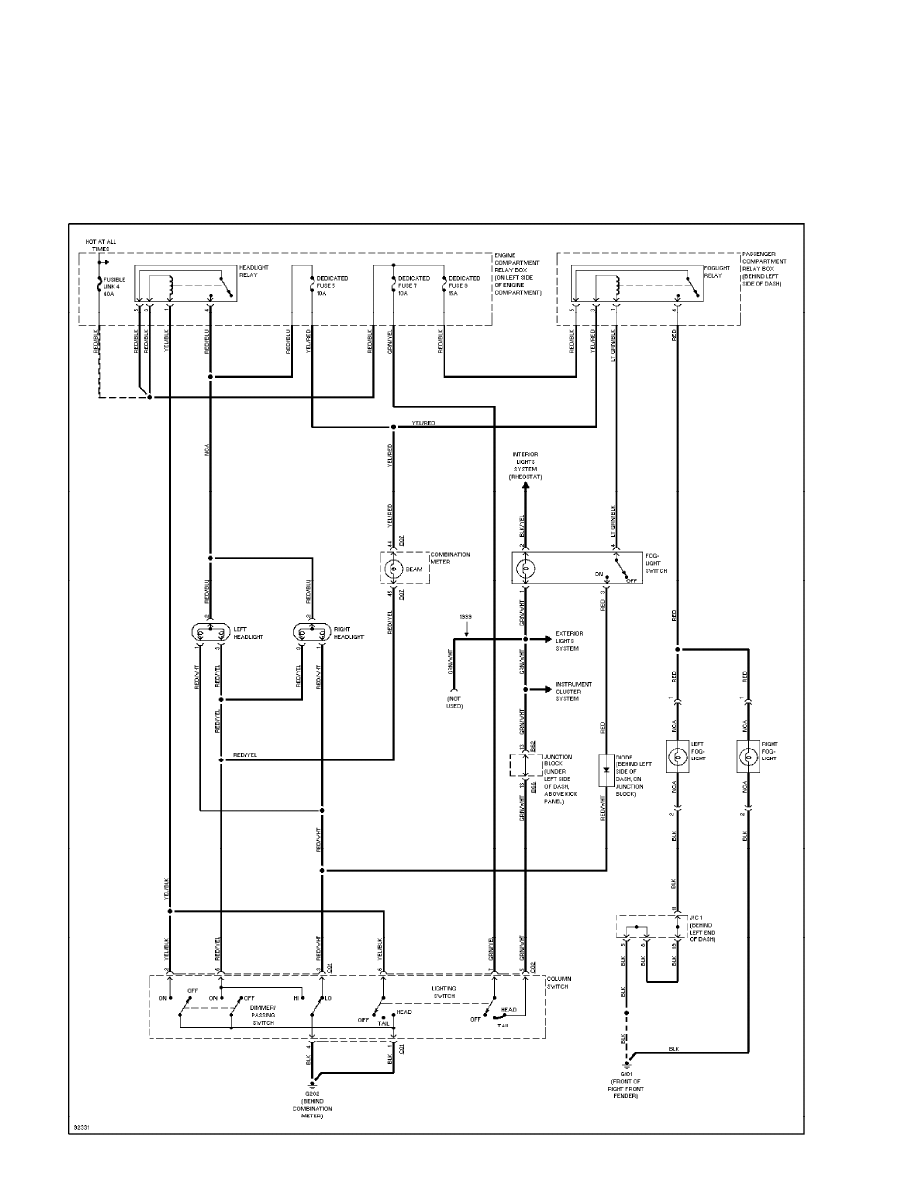

Headlight Circuit (p. 18)

2000 Mitsubishi Mirage

For x

Thursday, March 17, 2005 09:41AM

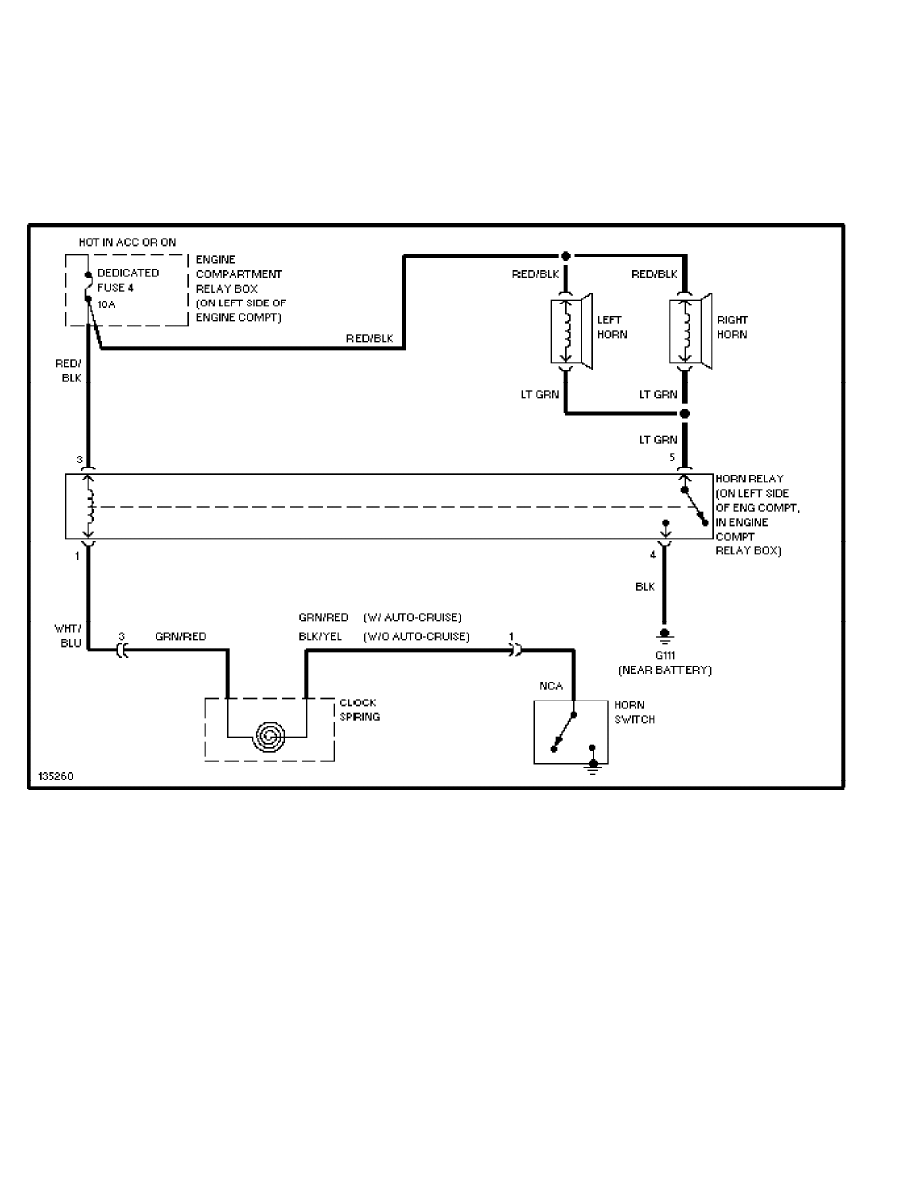

SYSTEM WIRING DIAGRAMS

Horn Circuit (p. 19)

2000 Mitsubishi Mirage

For x

Thursday, March 17, 2005 09:41AM

SYSTEM WIRING DIAGRAMS

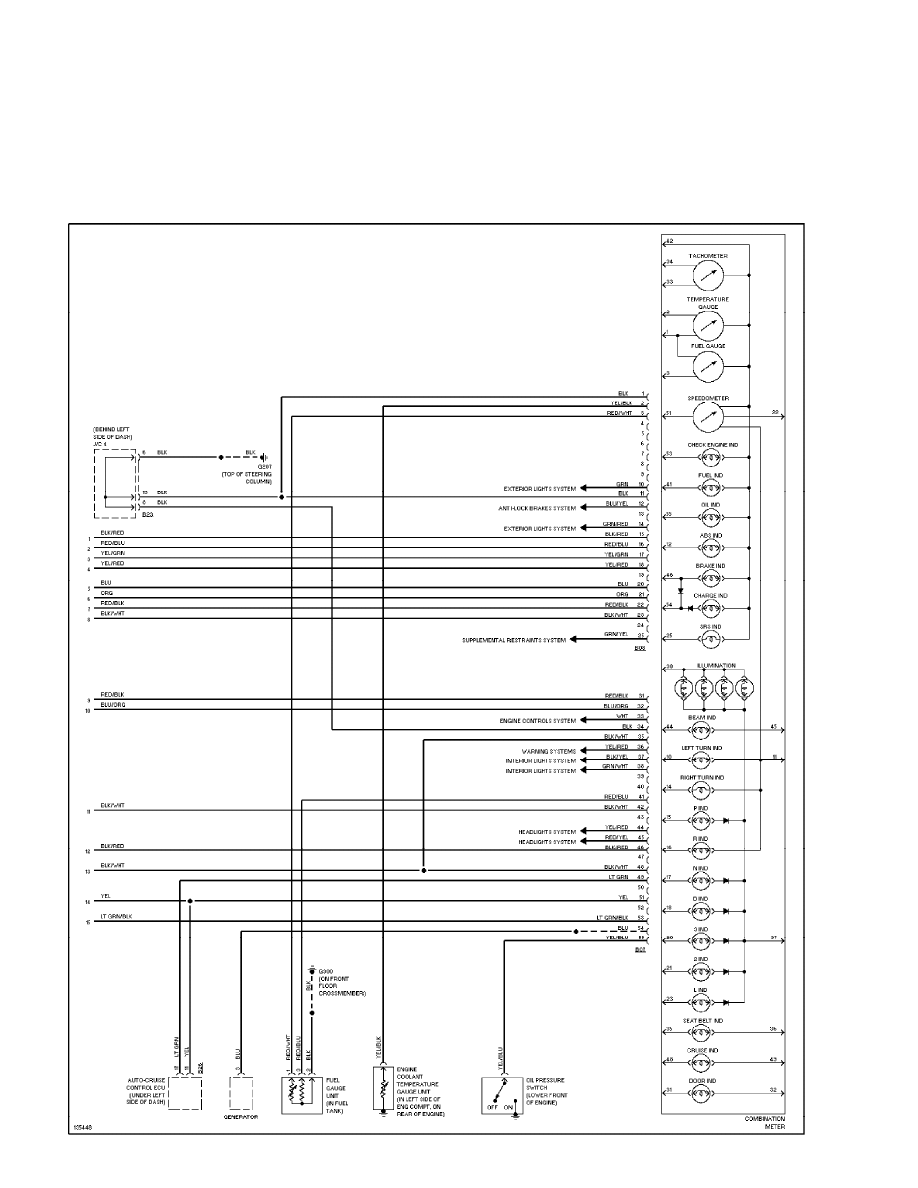

Instrument Cluster Circuit (1 of 2) (p. 20)

2000 Mitsubishi Mirage

For x

Thursday, March 17, 2005 09:41AM

SYSTEM WIRING DIAGRAMS

Instrument Cluster Circuit (2 of 2) (p. 21)

2000 Mitsubishi Mirage

For x

Thursday, March 17, 2005 09:41AM

SYSTEM WIRING DIAGRAMS

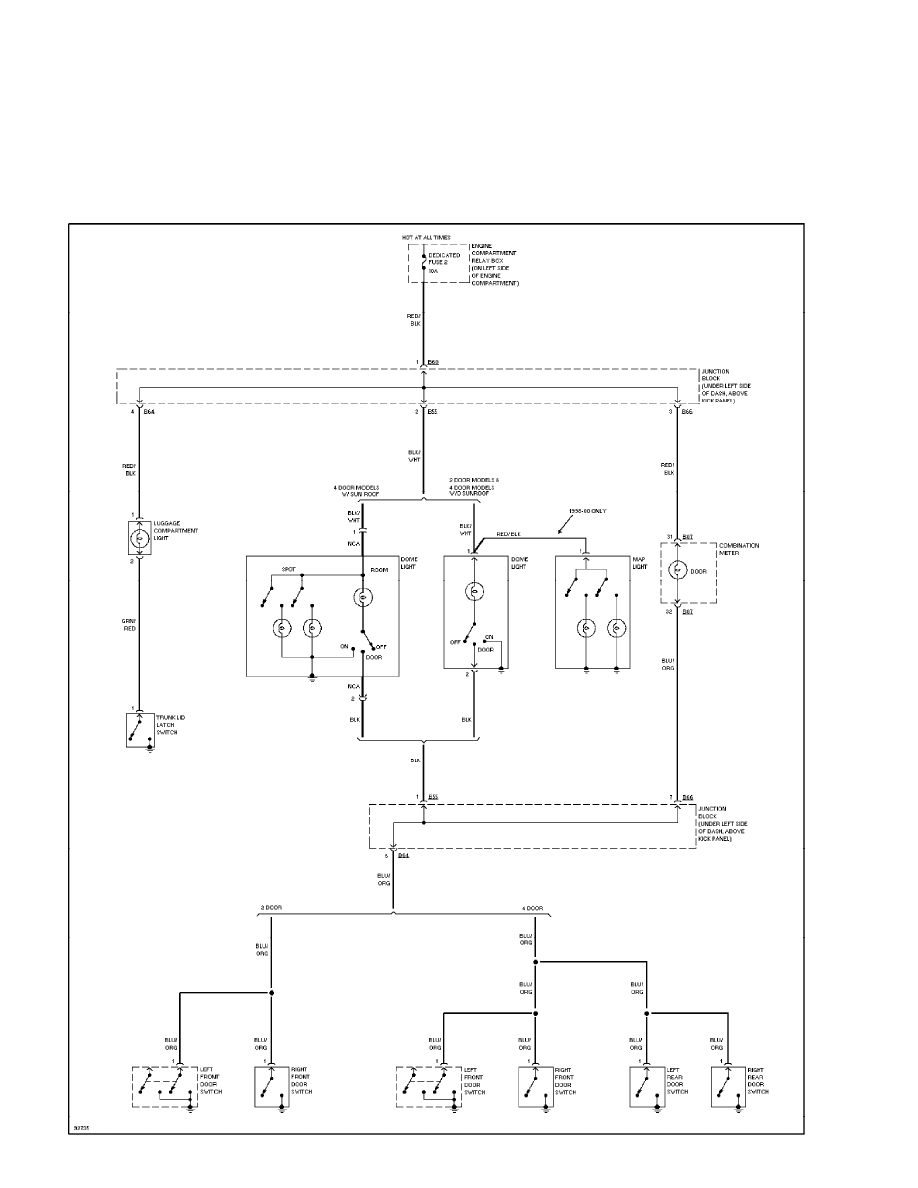

Courtesy Lamps Circuit (p. 22)

2000 Mitsubishi Mirage

For x

Thursday, March 17, 2005 09:41AM

SYSTEM WIRING DIAGRAMS

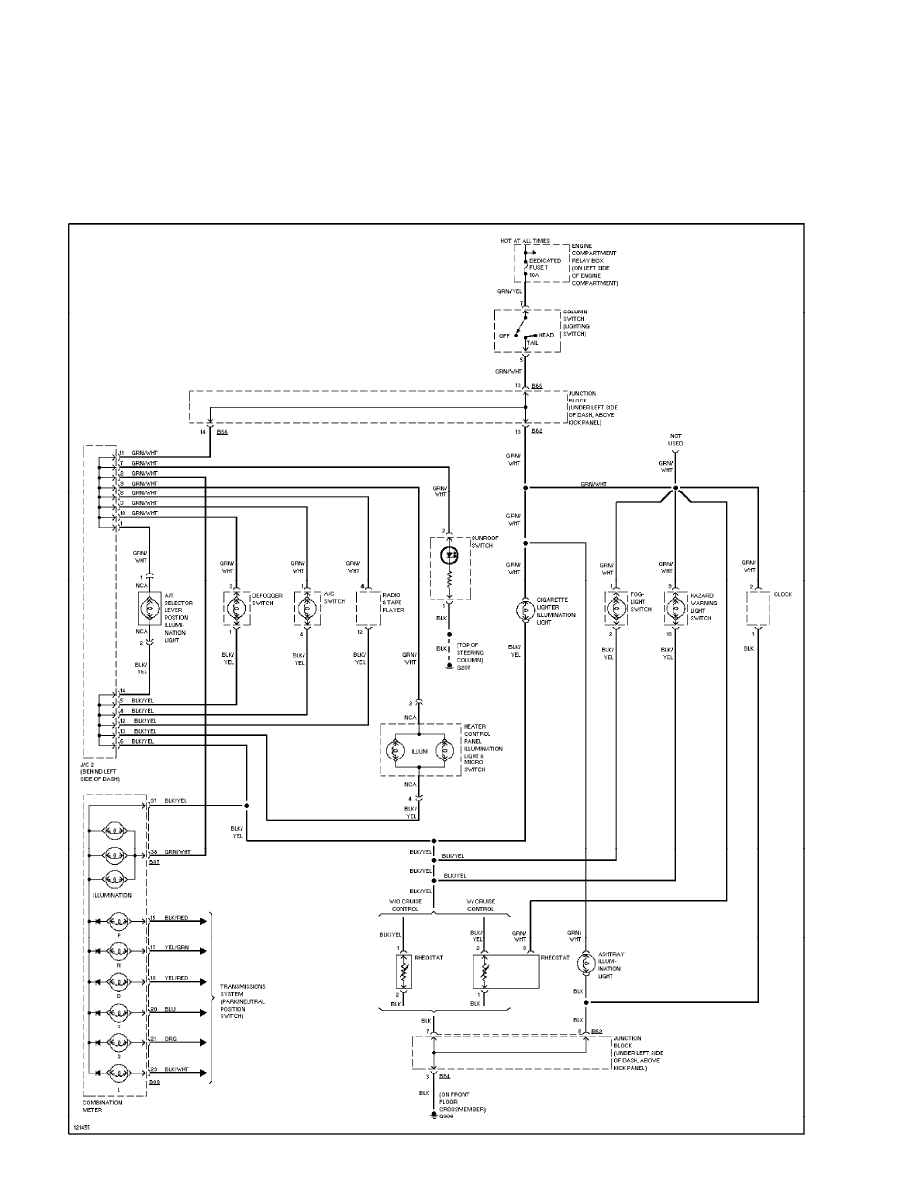

Instrument Illumination Circuit (p. 23)

2000 Mitsubishi Mirage

For x

Thursday, March 17, 2005 09:41AM

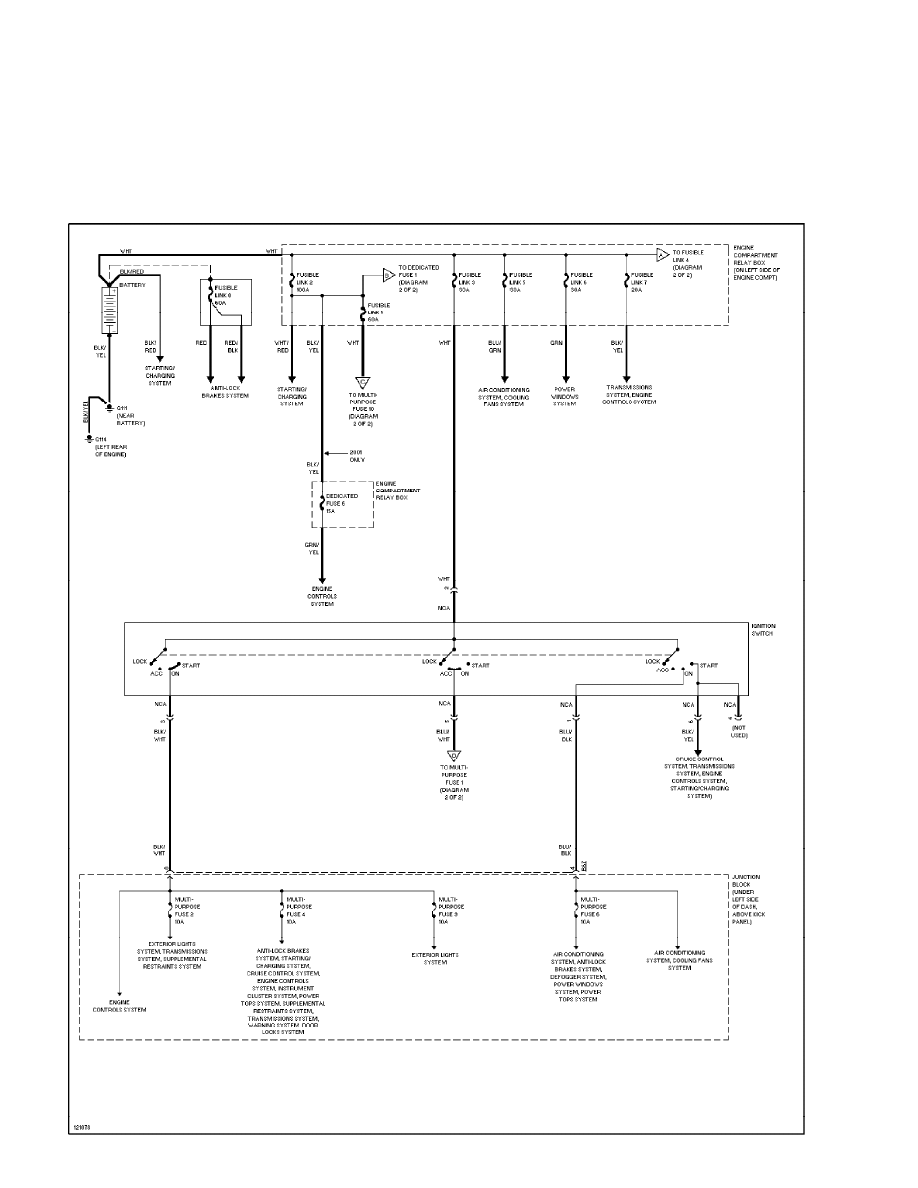

SYSTEM WIRING DIAGRAMS

Power Distribution Circuit (1 of 2) (p. 24)

2000 Mitsubishi Mirage

For x

Thursday, March 17, 2005 09:41AM

SYSTEM WIRING DIAGRAMS

Power Distribution Circuit (2 of 2) (p. 25)

2000 Mitsubishi Mirage

For x

Thursday, March 17, 2005 09:41AM

SYSTEM WIRING DIAGRAMS

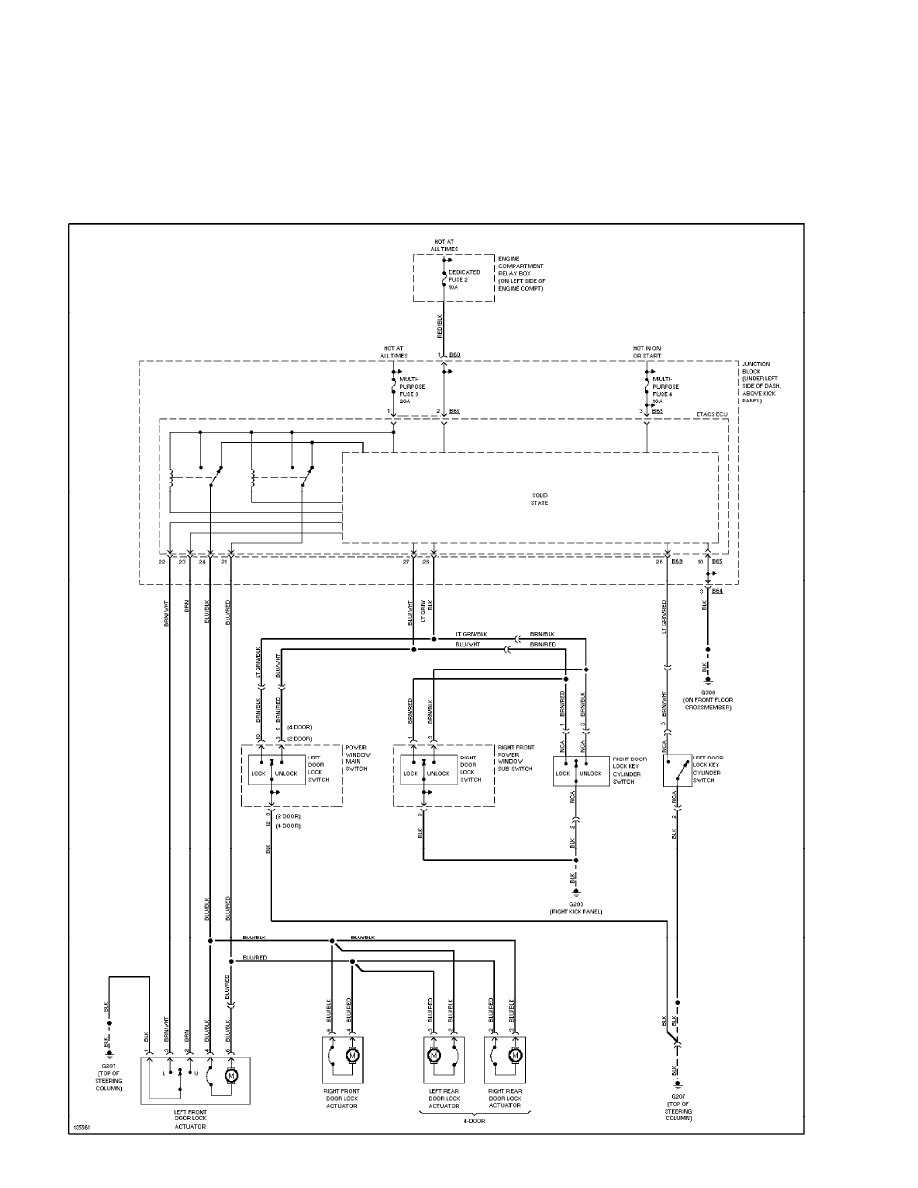

Power Door Lock Circuit (p. 26)

2000 Mitsubishi Mirage

For x

Thursday, March 17, 2005 09:41AM

SYSTEM WIRING DIAGRAMS

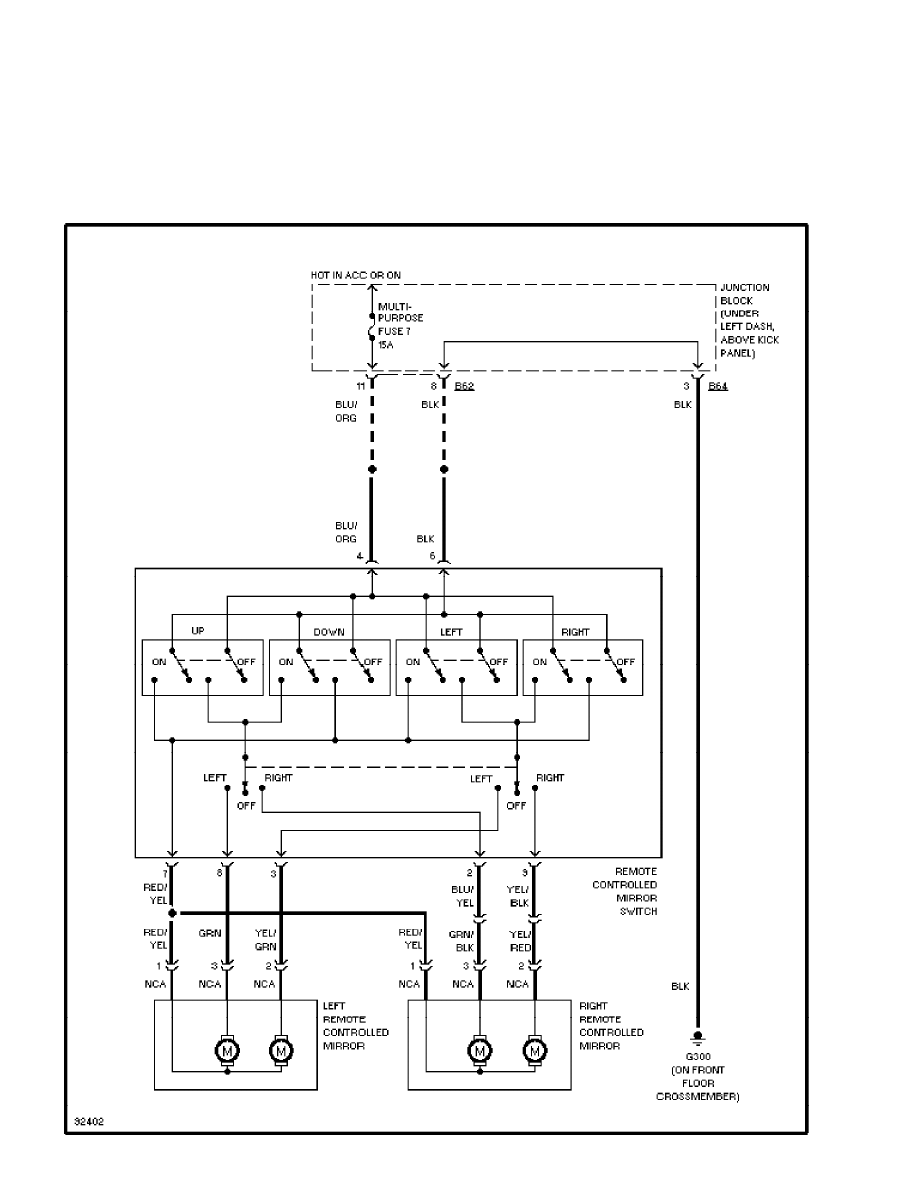

Power Mirror Circuit (p. 27)

2000 Mitsubishi Mirage

For x

Thursday, March 17, 2005 09:41AM

SYSTEM WIRING DIAGRAMS

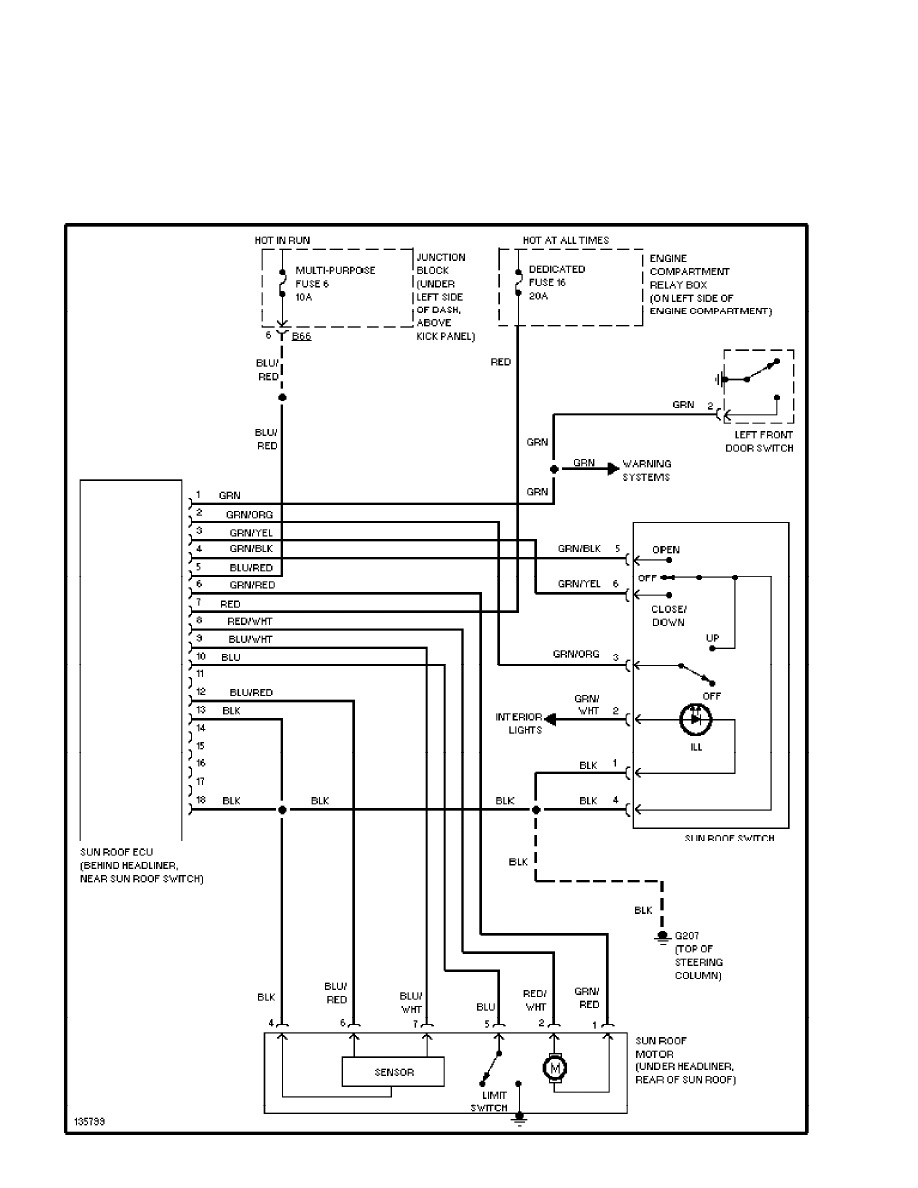

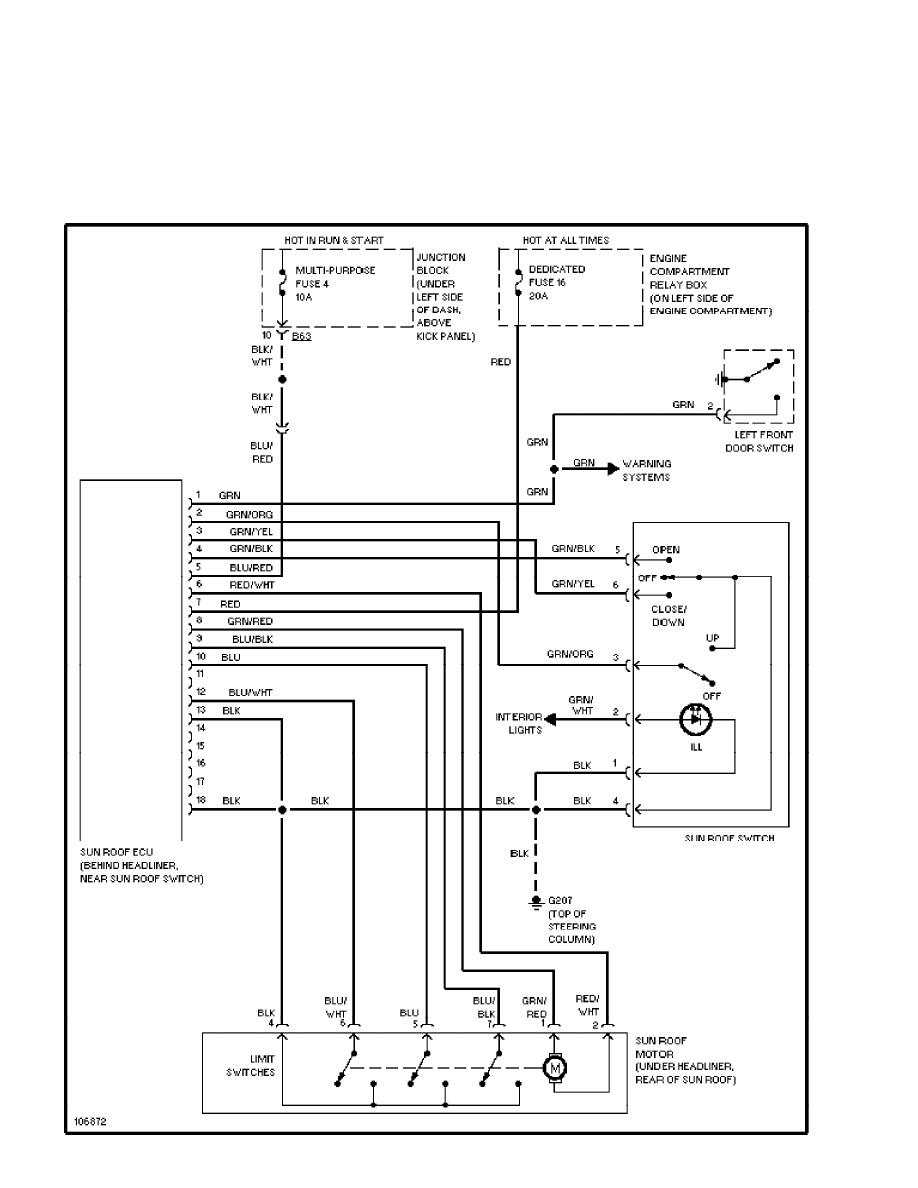

Power Top/Sunroof Circuits, 2 Door (p. 28)

2000 Mitsubishi Mirage

For x

Thursday, March 17, 2005 09:41AM

SYSTEM WIRING DIAGRAMS

Power Top/Sunroof Circuits, 4 Door (p. 29)

2000 Mitsubishi Mirage

For x

Thursday, March 17, 2005 09:41AM

SYSTEM WIRING DIAGRAMS

Power Window Circuit, 2 Door (p. 30)

2000 Mitsubishi Mirage

For x

Thursday, March 17, 2005 09:41AM

SYSTEM WIRING DIAGRAMS

Power Window Circuit, 4 Door (p. 31)

2000 Mitsubishi Mirage

For x

Thursday, March 17, 2005 09:41AM

SYSTEM WIRING DIAGRAMS

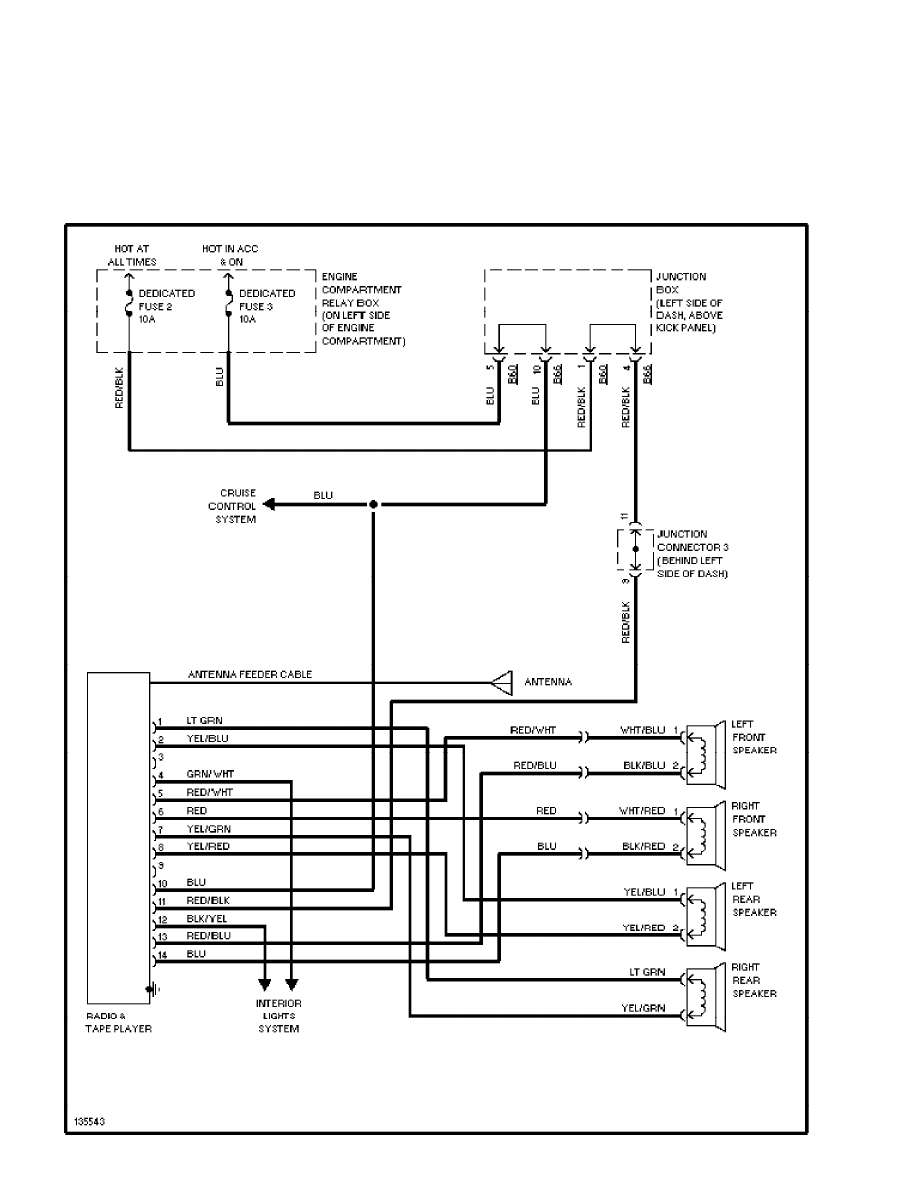

Radio Circuits (p. 32)

2000 Mitsubishi Mirage

For x

Thursday, March 17, 2005 09:41AM

SYSTEM WIRING DIAGRAMS

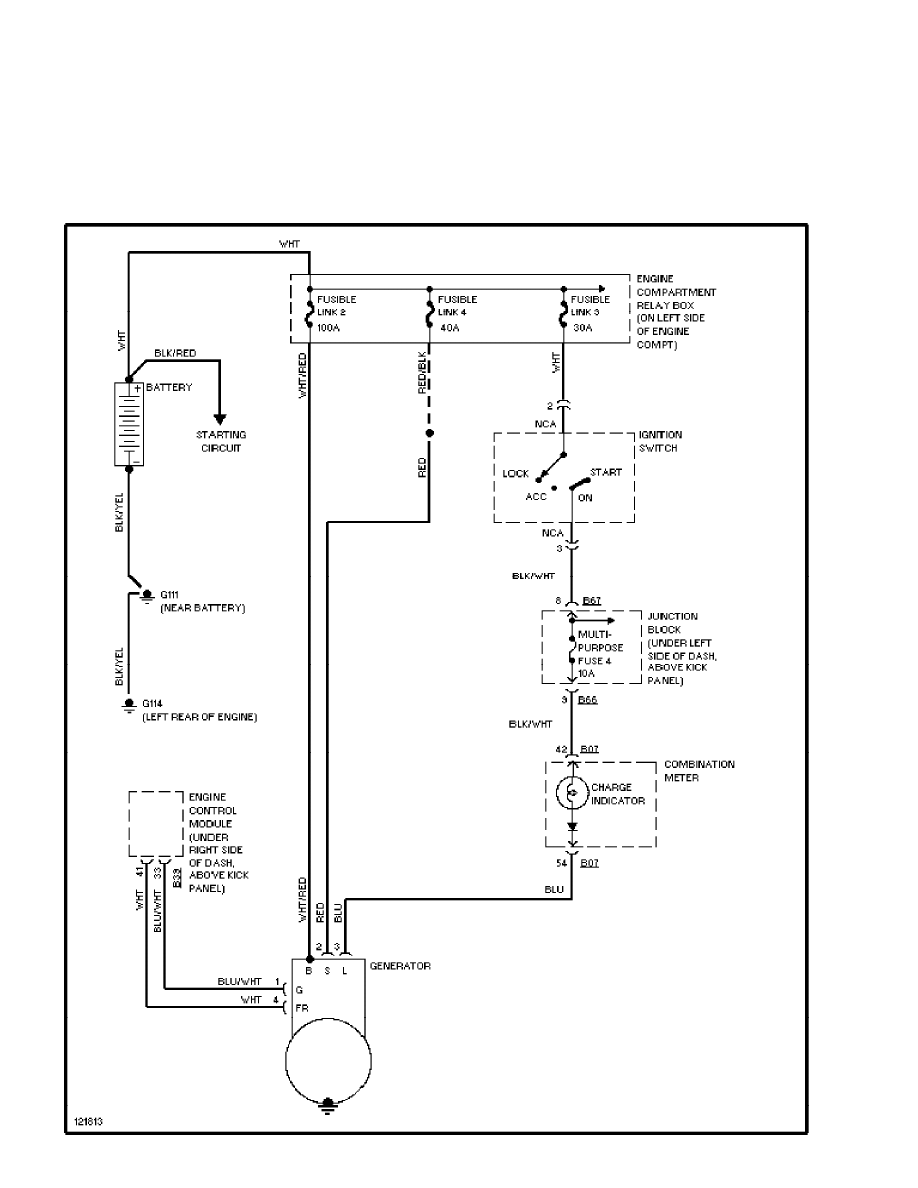

Charging Circuit (p. 33)

2000 Mitsubishi Mirage

For x

Thursday, March 17, 2005 09:41AM

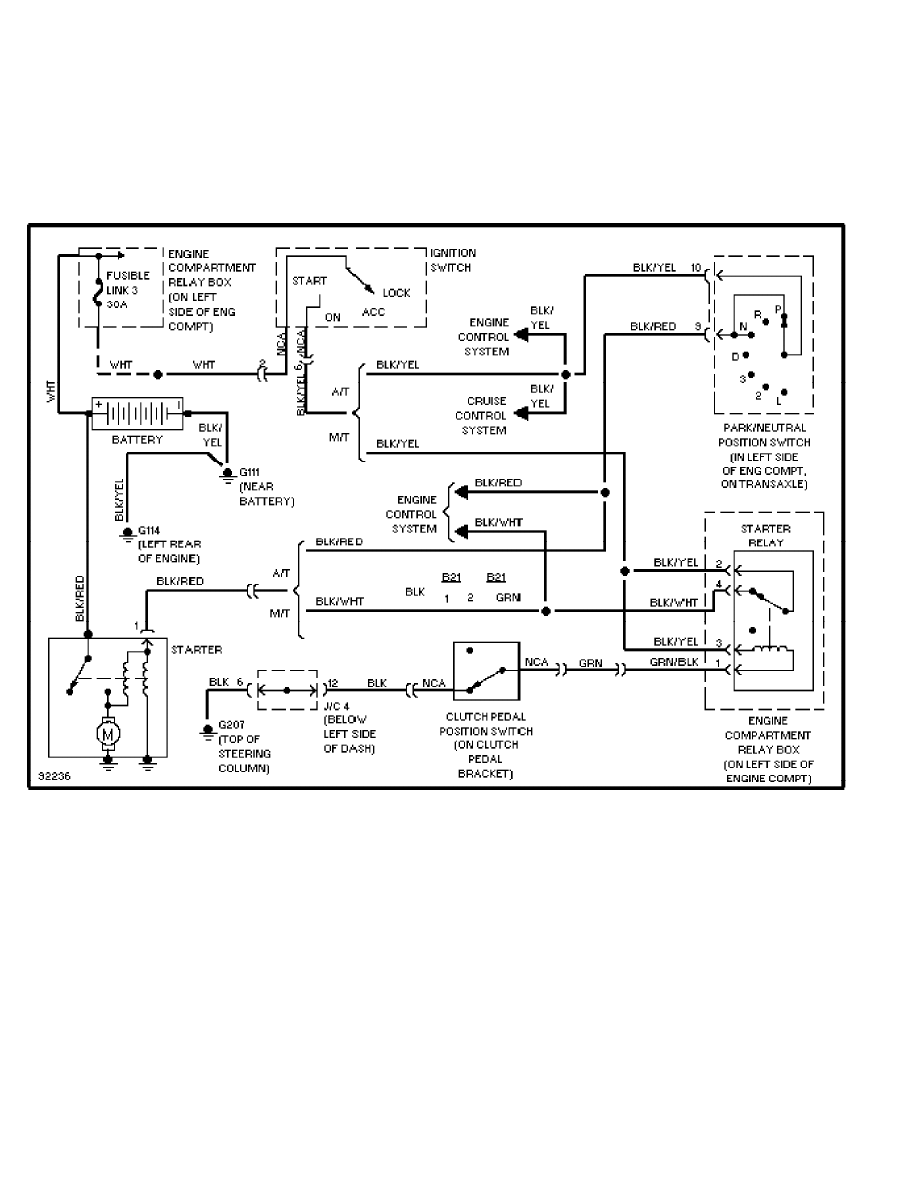

SYSTEM WIRING DIAGRAMS

Starting Circuit (p. 34)

2000 Mitsubishi Mirage

For x

Thursday, March 17, 2005 09:41AM

SYSTEM WIRING DIAGRAMS

Supplemental Restraint Circuit (p. 35)

2000 Mitsubishi Mirage

For x

Thursday, March 17, 2005 09:41AM

SYSTEM WIRING DIAGRAMS

A/T Circuit (p. 36)

2000 Mitsubishi Mirage

For x

Thursday, March 17, 2005 09:41AM

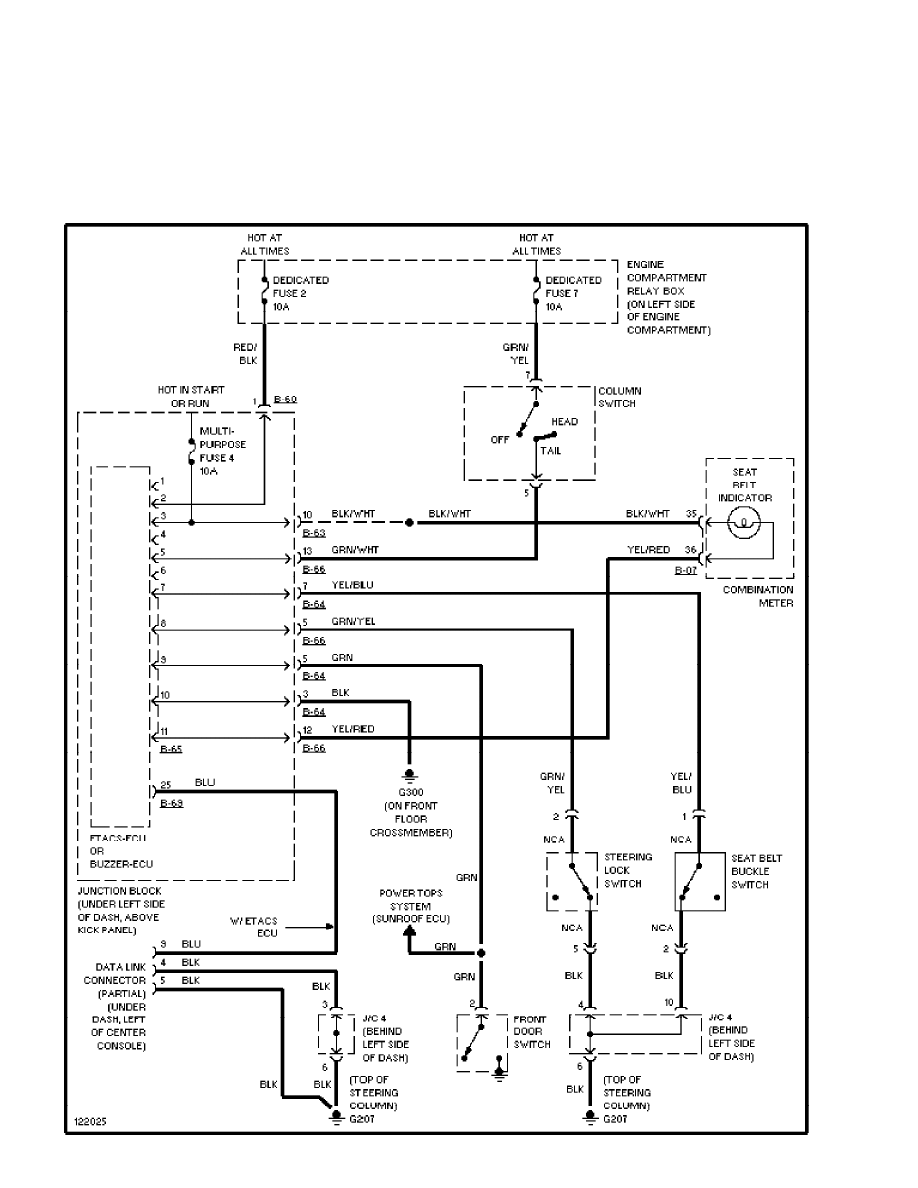

SYSTEM WIRING DIAGRAMS

Warning System Circuits (p. 37)

2000 Mitsubishi Mirage

For x

Thursday, March 17, 2005 09:41AM

SYSTEM WIRING DIAGRAMS

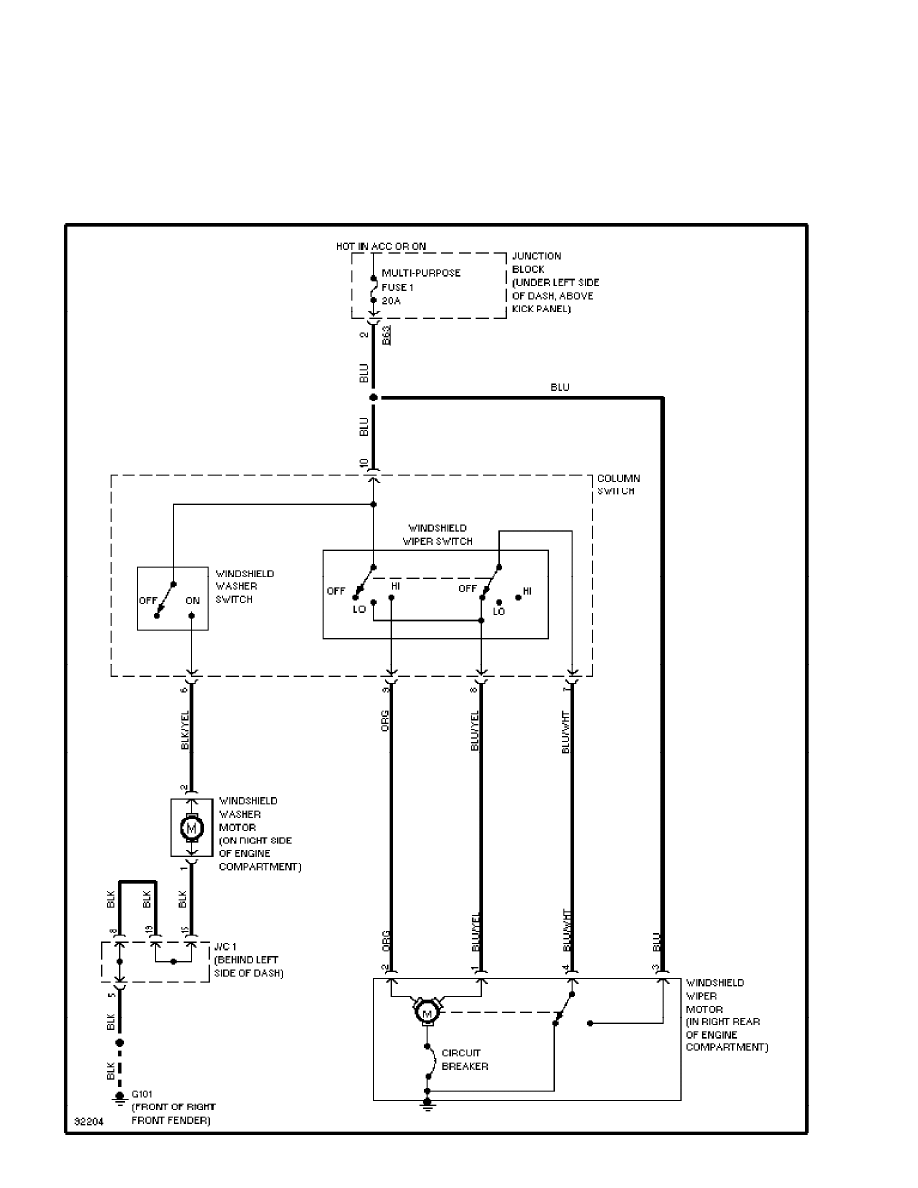

2-Speed Wiper/Washer Circuit (p. 38)

2000 Mitsubishi Mirage

For x

Thursday, March 17, 2005 09:41AM

SYSTEM WIRING DIAGRAMS

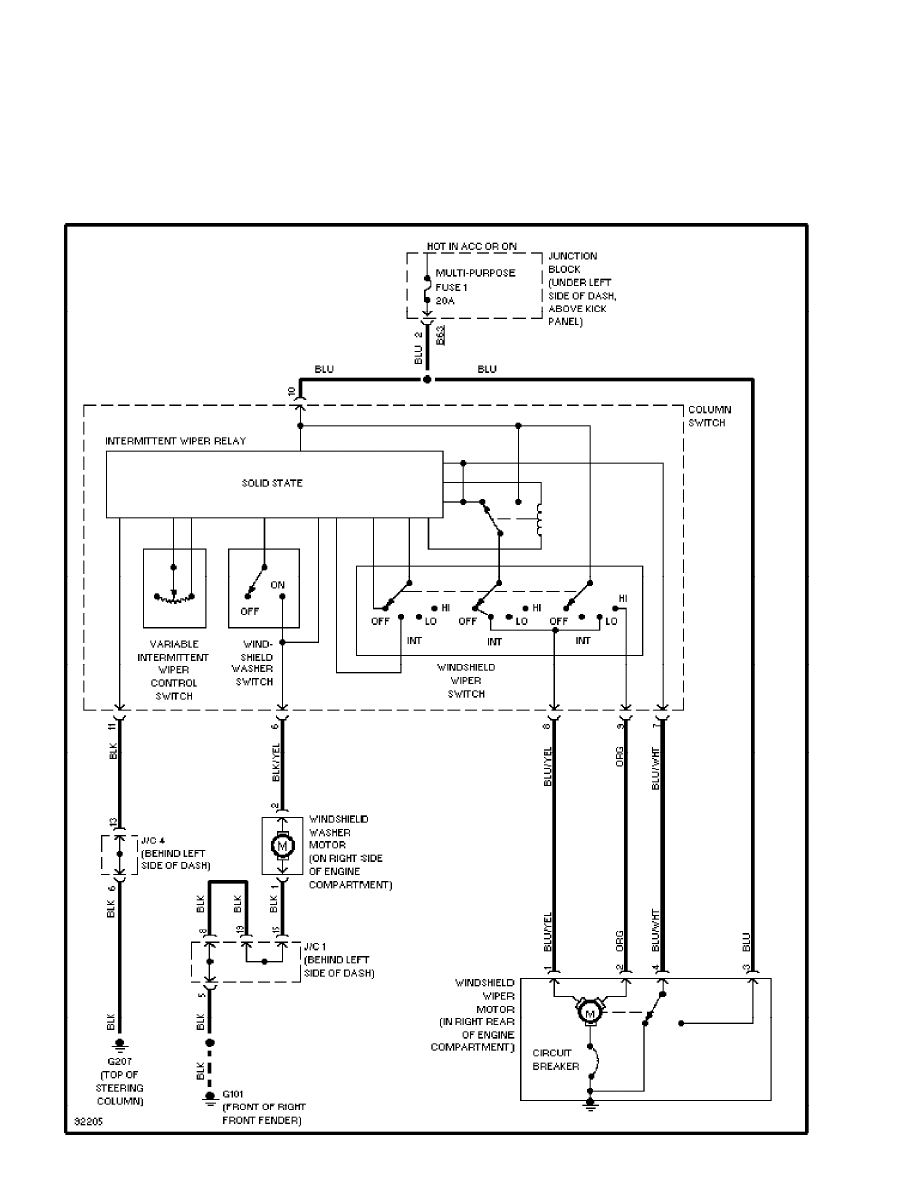

Intermittent Wiper/Washer Circuit (p. 39)

2000 Mitsubishi Mirage

For x

Thursday, March 17, 2005 09:41AM
