SYSTEM WIRING DIAGRAMS

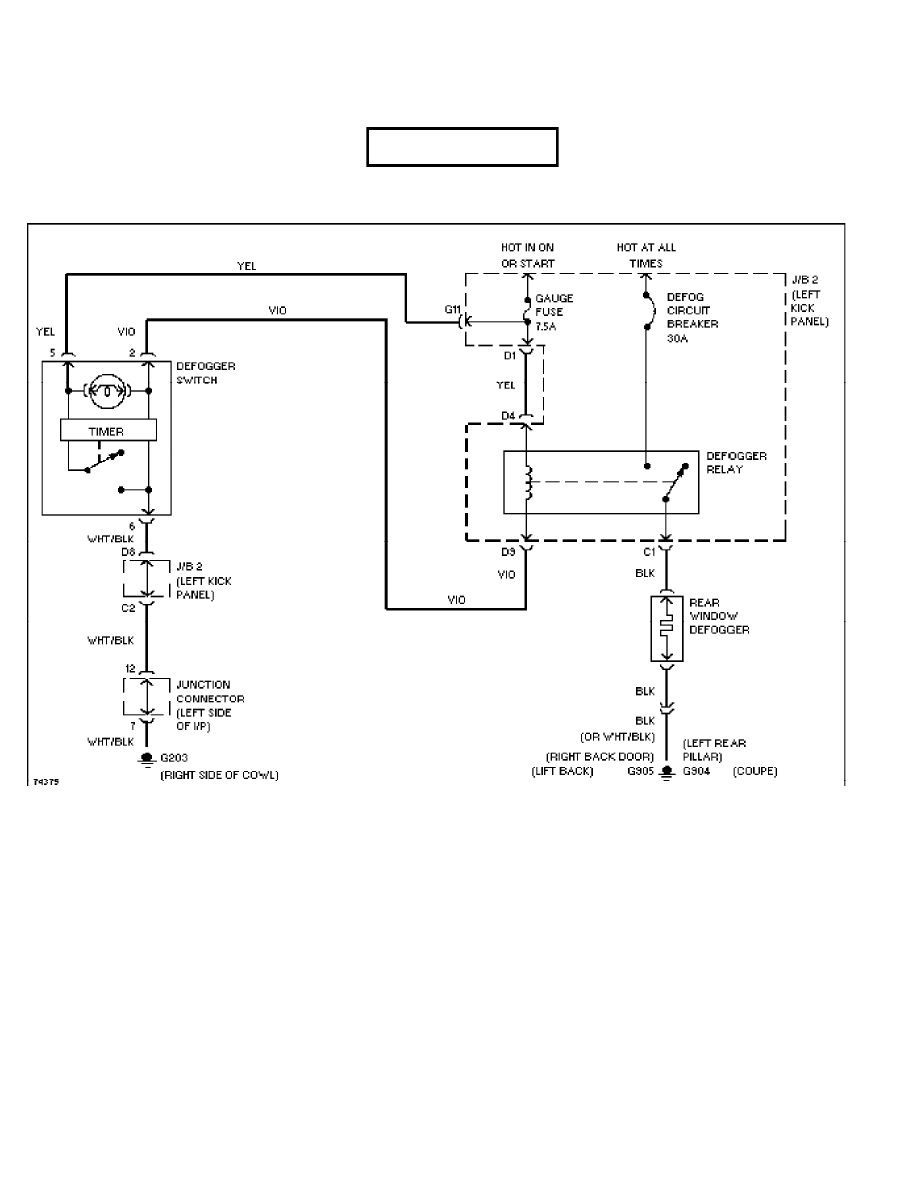

Defogger Circuit, W/ Timer Circuit
1985 Toyota Celica
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Friday, July 30, 2004 10:38AM
cdr@wp.pl
SYSTEM WIRING DIAGRAMS
Defogger Circuit, W/O Timer Circuit (p. 2)
1985 Toyota Celica
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Friday, July 30, 2004 10:38AM
SYSTEM WIRING DIAGRAMS
Horn Circuit (p. 3)
1985 Toyota Celica
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Friday, July 30, 2004 10:38AM

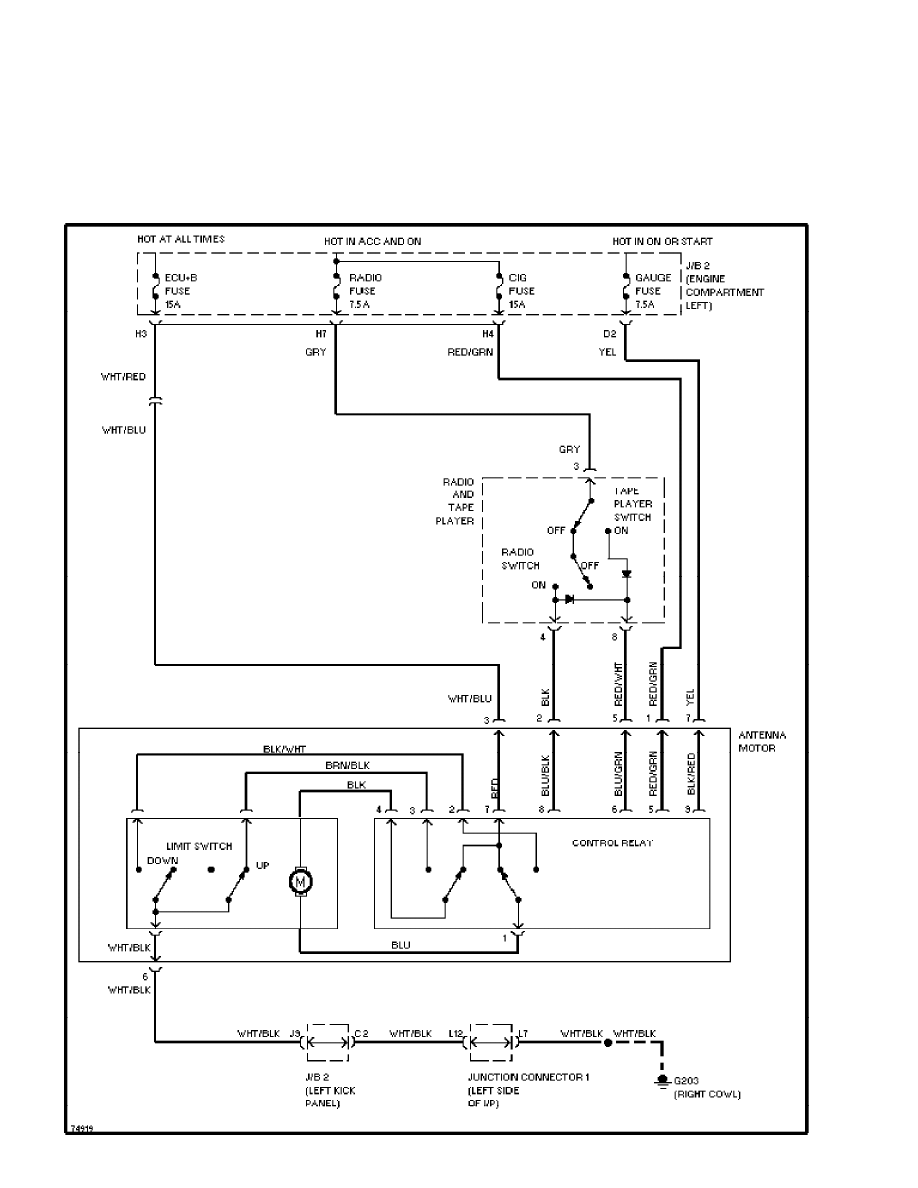

SYSTEM WIRING DIAGRAMS
Power Antenna Circuit (p. 4)
1985 Toyota Celica
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Friday, July 30, 2004 10:38AM
SYSTEM WIRING DIAGRAMS

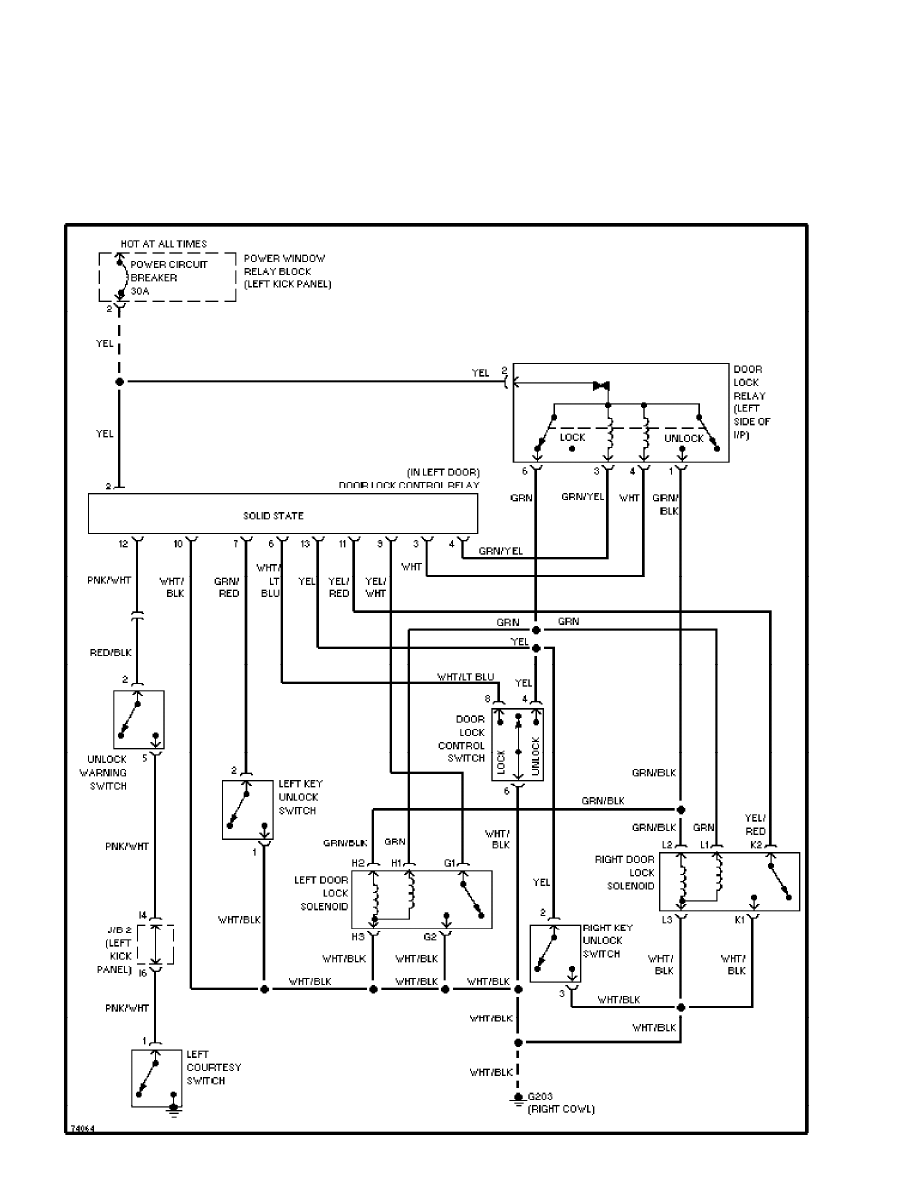

Power Door Lock Circuit (p. 5)
1985 Toyota Celica
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Friday, July 30, 2004 10:38AM
SYSTEM WIRING DIAGRAMS

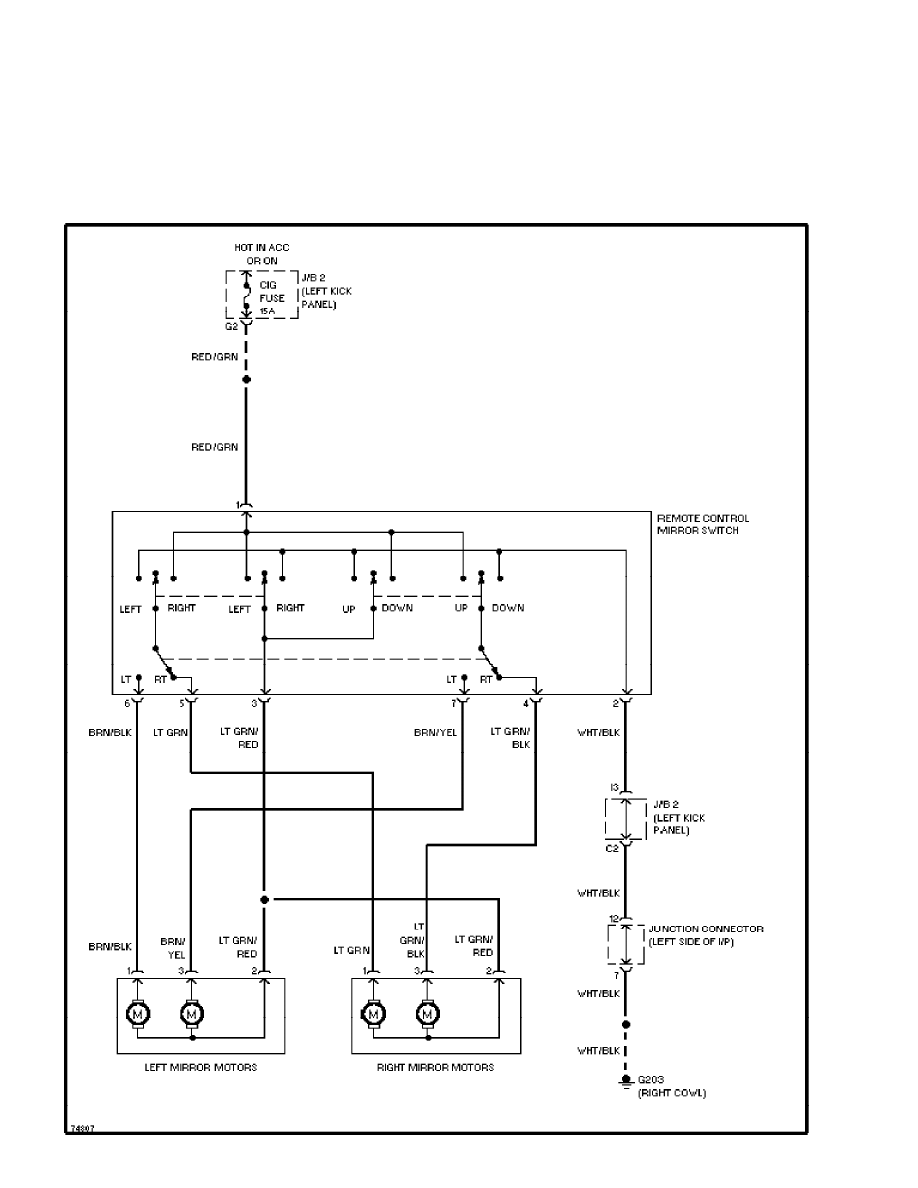

Power Mirror Circuit (p. 6)
1985 Toyota Celica
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Friday, July 30, 2004 10:38AM

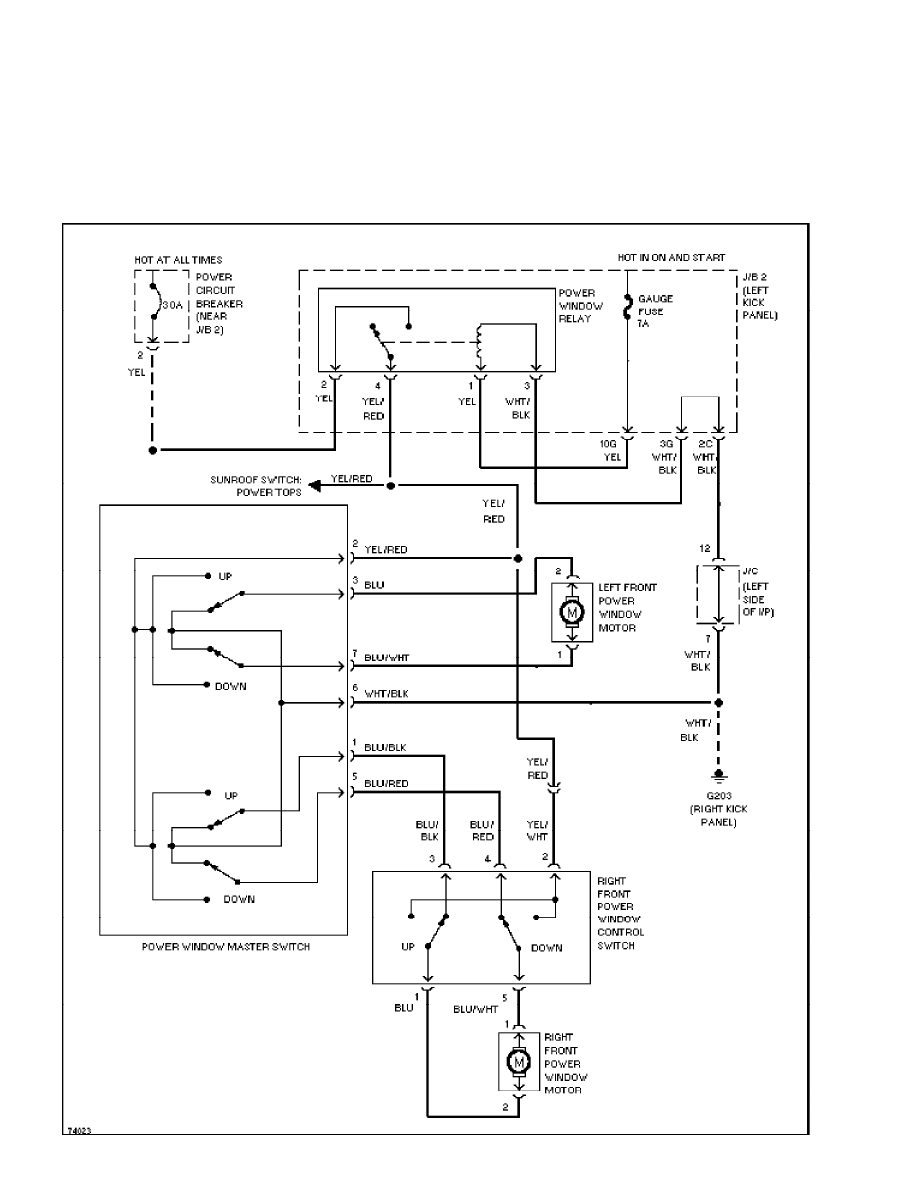

SYSTEM WIRING DIAGRAMS
Power Window Circuit (p. 7)
1985 Toyota Celica
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Friday, July 30, 2004 10:38AM

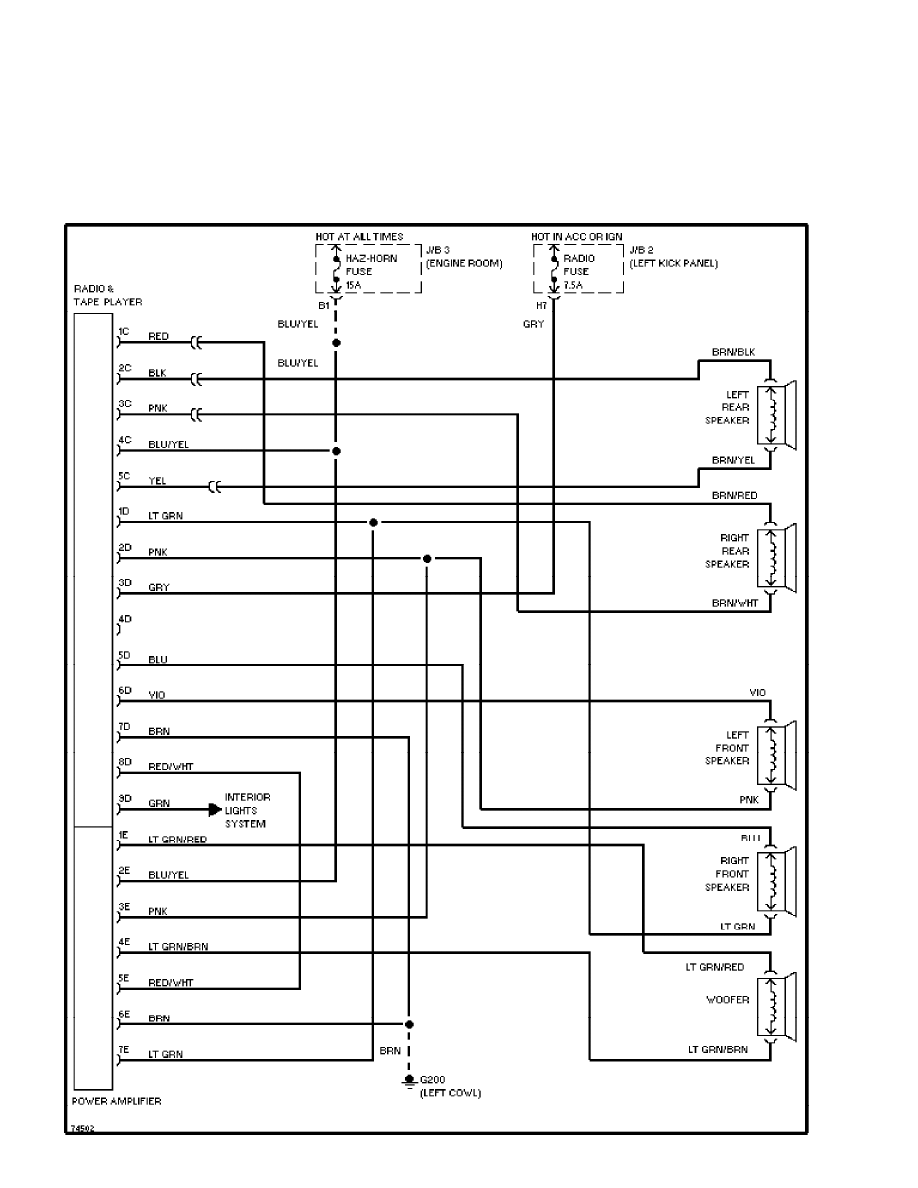

SYSTEM WIRING DIAGRAMS
Radio Circuits (p. 8)
1985 Toyota Celica
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Friday, July 30, 2004 10:38AM

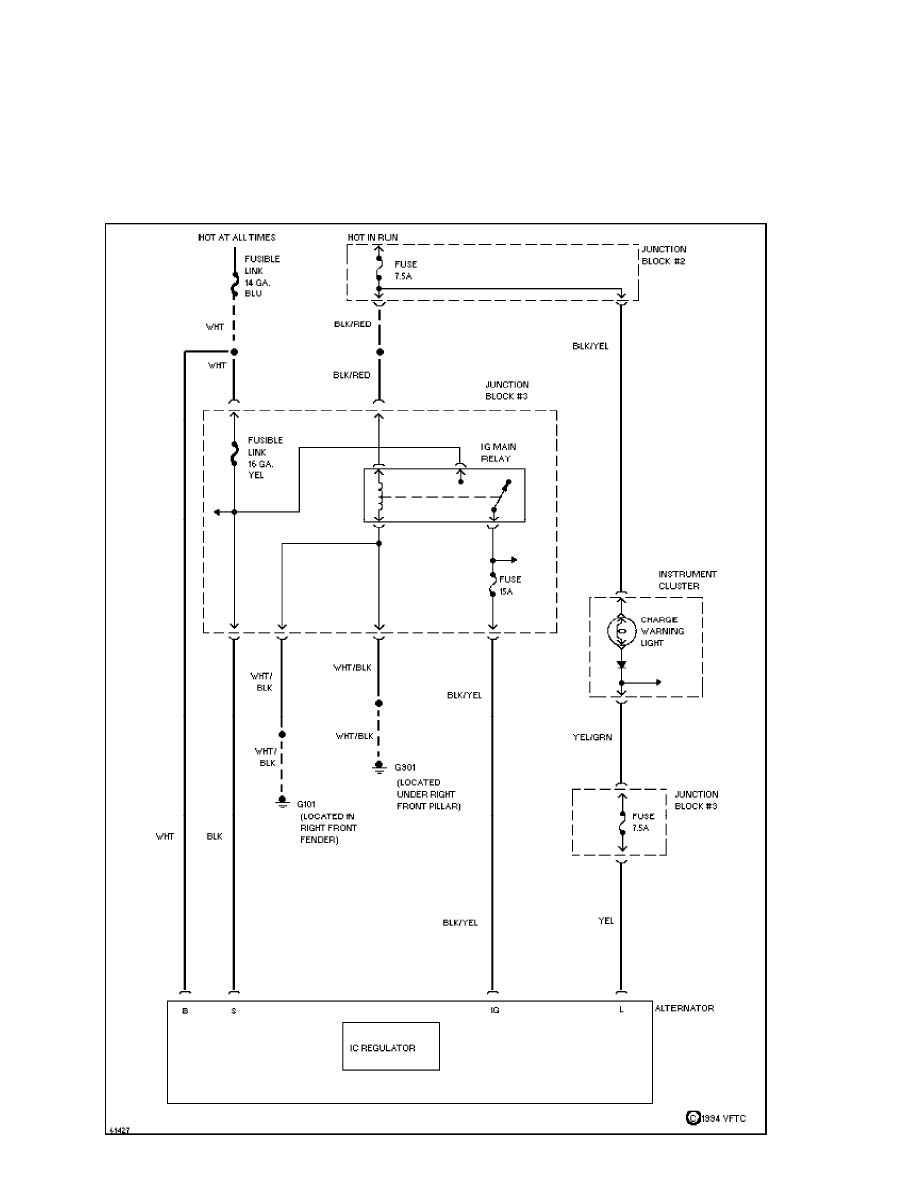

SYSTEM WIRING DIAGRAMS
2.4L, Charging Circuit (p. 9)
1985 Toyota Celica
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Friday, July 30, 2004 10:38AM
SYSTEM WIRING DIAGRAMS

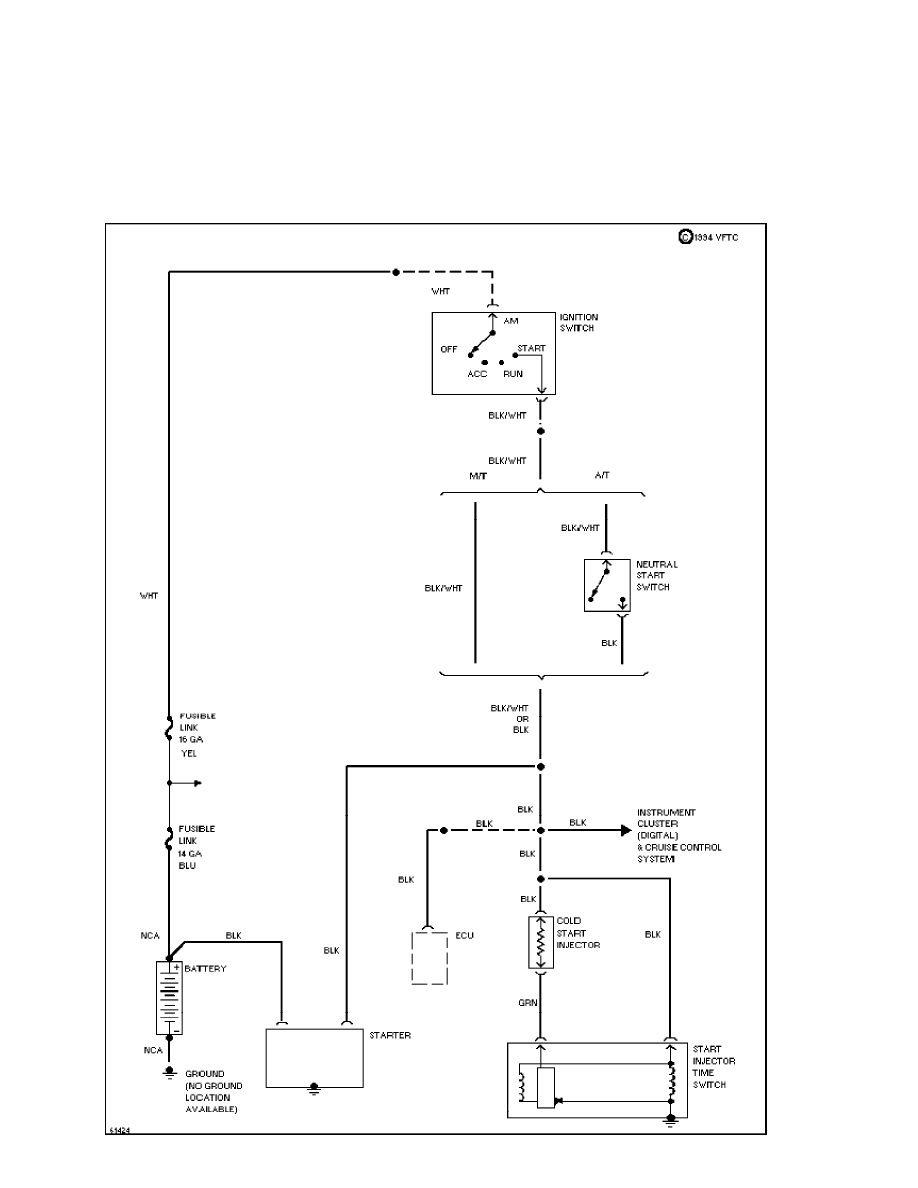

2.4L, Starting Circuit (p. 10)
1985 Toyota Celica
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Friday, July 30, 2004 10:38AM

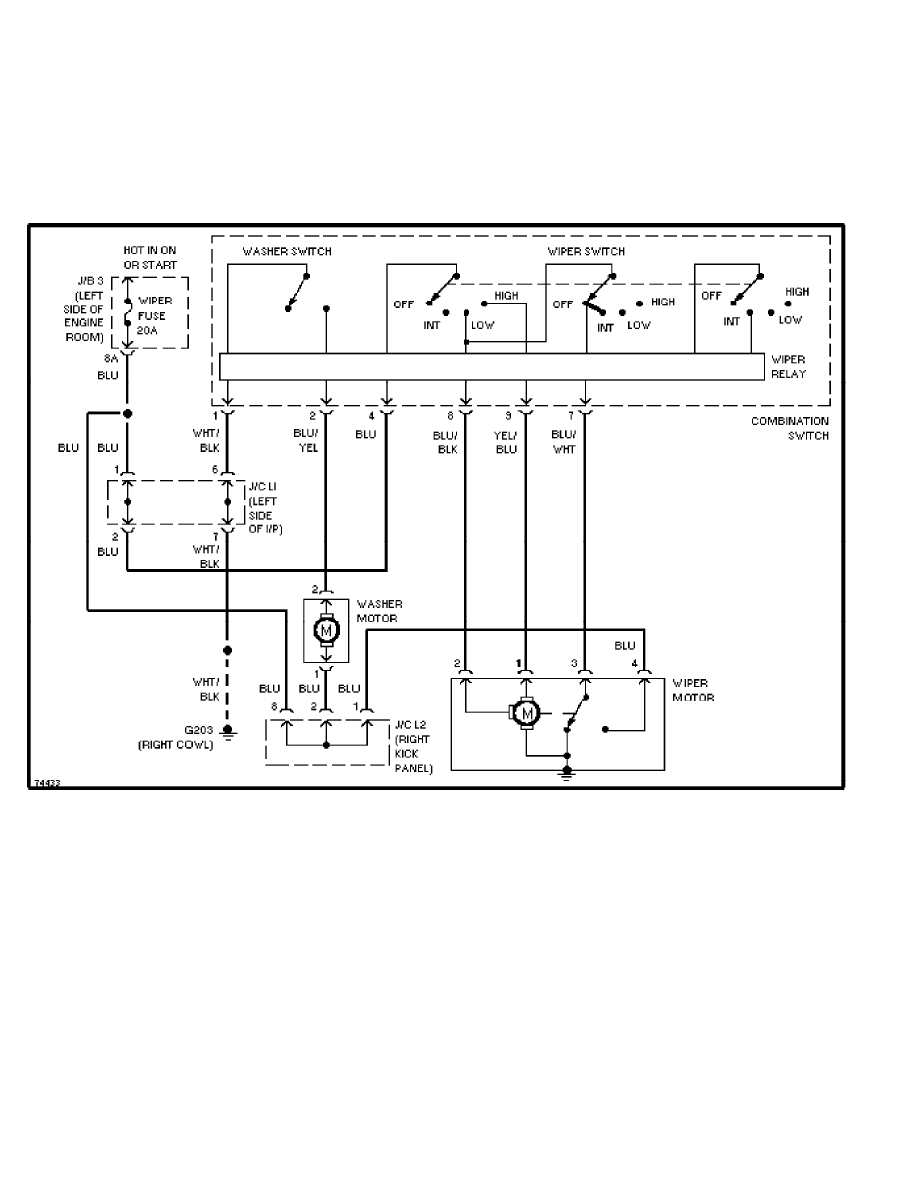

SYSTEM WIRING DIAGRAMS
Front Wiper/Washer Circuit (p. 11)
1985 Toyota Celica
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Friday, July 30, 2004 10:38AM
SYSTEM WIRING DIAGRAMS

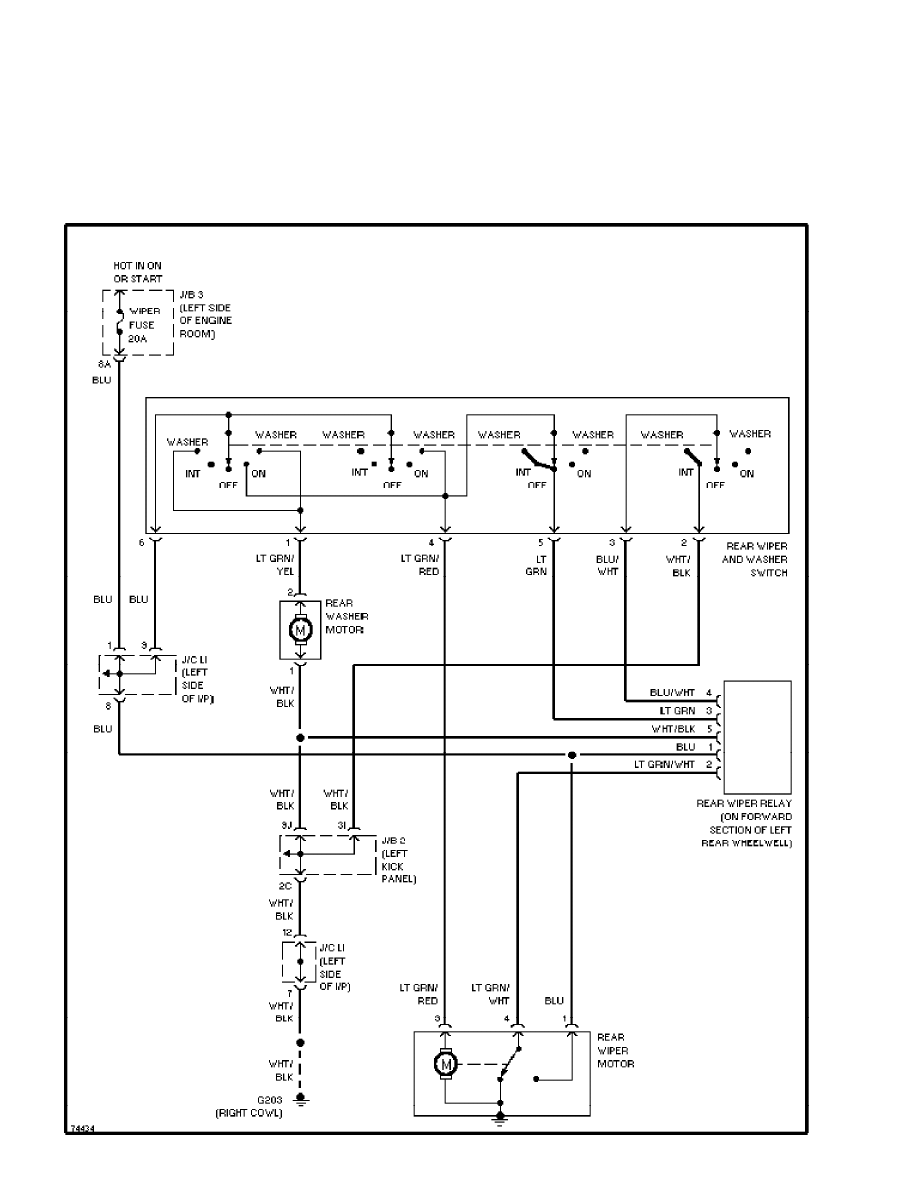

Rear Wiper/Washer Circuit (p. 12)
1985 Toyota Celica
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Friday, July 30, 2004 10:38AM
WIRING DIAGRAMS

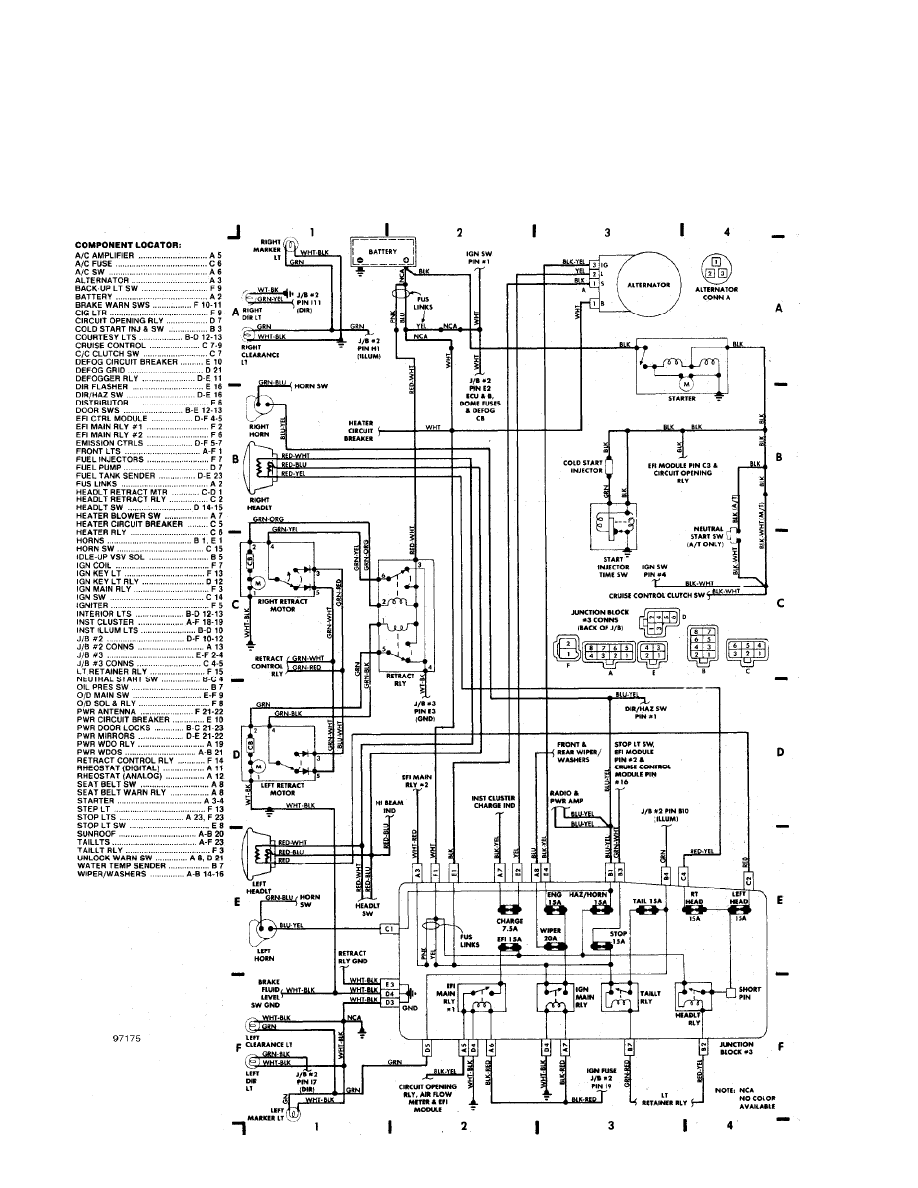

Fig. 1: Engine Compartment
1985 Toyota Celica
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Friday, July 30, 2004 10:40AM

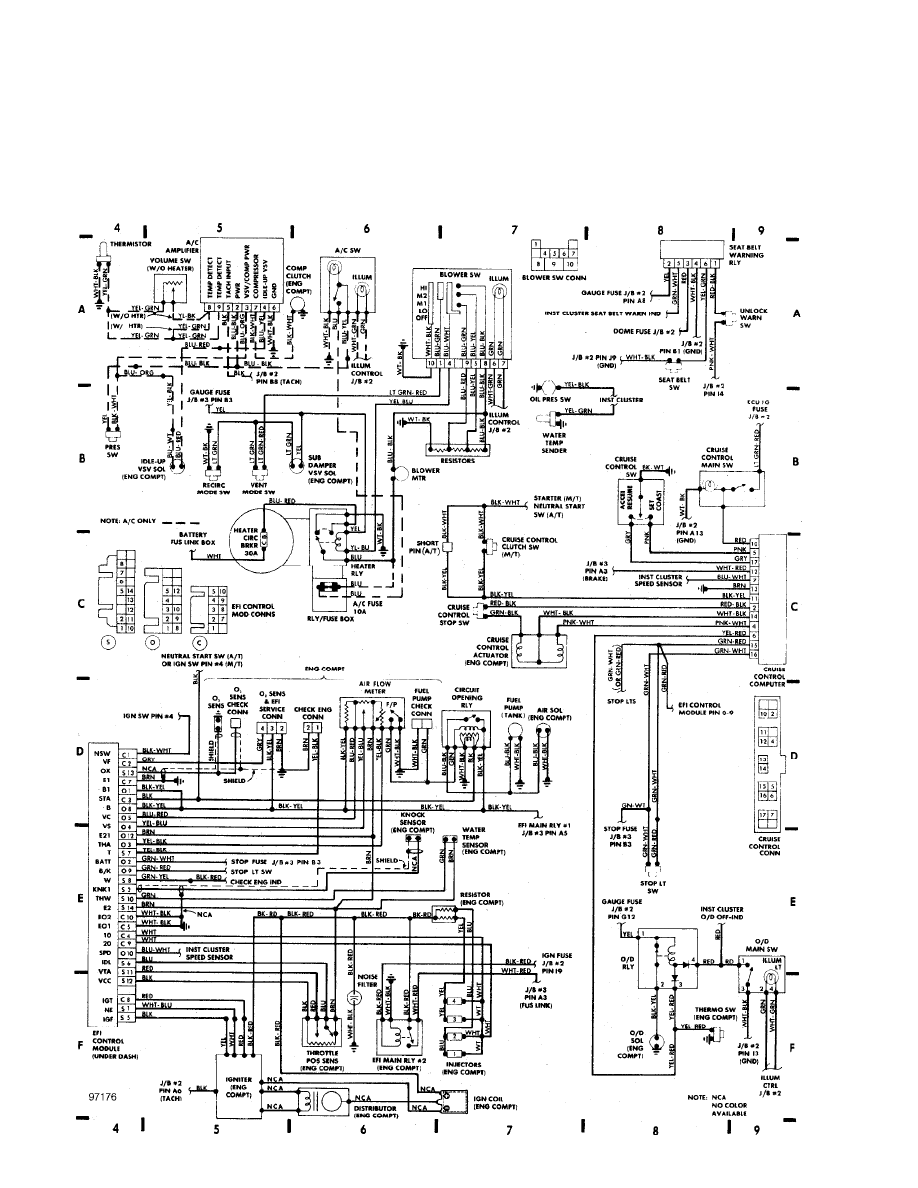

WIRING DIAGRAMS
Fig. 2: Engine Compartment (Cont.) & Underdash (p. 2)
1985 Toyota Celica
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Friday, July 30, 2004 10:40AM
WIRING DIAGRAMS

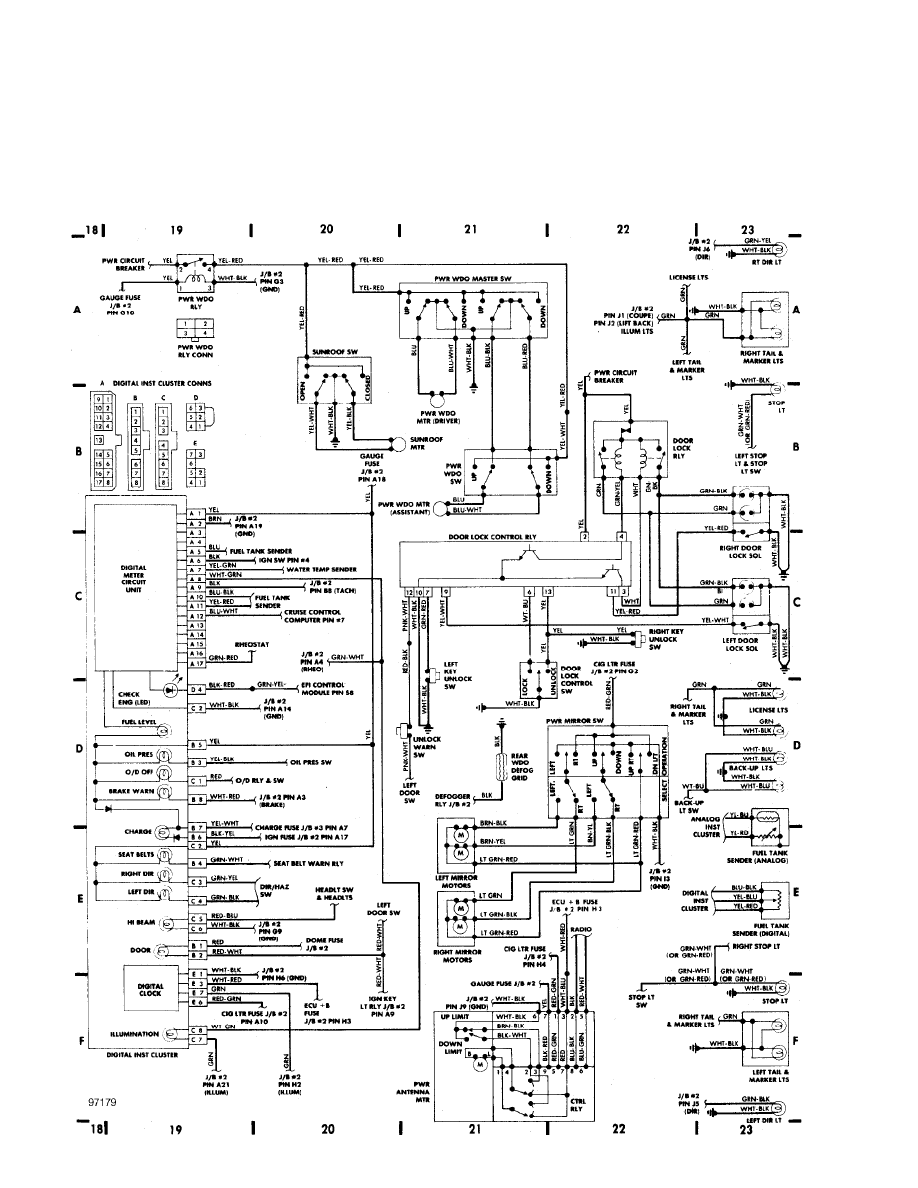

Fig. 3: Underdash (p. 3)
1985 Toyota Celica
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Friday, July 30, 2004 10:40AM
WIRING DIAGRAMS

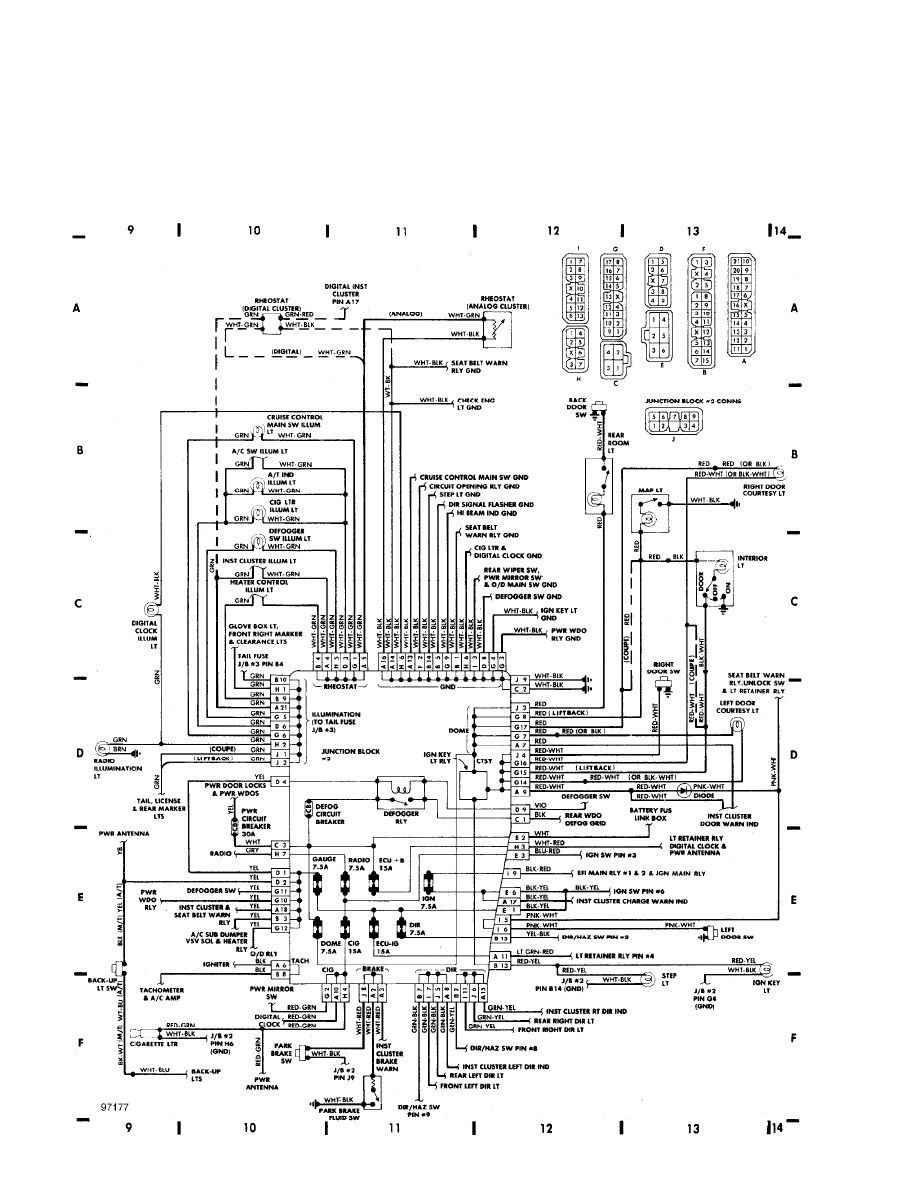

Fig. 4: Instrument Panel (p. 4)
1985 Toyota Celica
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Friday, July 30, 2004 10:40AM
WIRING DIAGRAMS
Fig. 5: Rear Compartment & Accessories (p. 5)
1985 Toyota Celica
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Friday, July 30, 2004 10:40AM
