Form No. F –K400037/8B
CATALOGUE CARD
K4-15-161
ISSUE 1
DFME
DAMEL S.A.
MINING INDUCTION MOTOR
SG3 450L-4/8
PAGE
1/5
File No: 200 400kW, SG3 450L- 8 4.doc/2005
Translated by: PTU -DAMAR- Sosnowiec
APPLICATION
Two-speed motors of type SG3 with mechanical value of 450 are intended for driving mining
machines and equipment, especially of belt conveyors and scraper belt conveyors.
The motors can be used in underground parts of mines and surface installations of the mines, where
there are possible explosion conditions for methane and/ or coal dust.
There is also possible to operate the motors in the surroundings where the explosion-proof equipment
is not required.
CHARACTERISTIC FEATURES OF MOTORS
•
The induction 3-phase motors with squirrel-cage rotor, with two independent windings: for
synchronous speed 750 1/min – so called „slow speed ” (2p=8) and for synchronous speed
1500 1/min – so called „fast speed” (2p=4).
•
Explosion-proof construction with flame-proof casing of motor „d” - mark
I M2 EExd I,
equipment ranked as group I of category M2 according to Directive 94/9/EC,
•
The degree of protection IP 55 acc. to PN-EN 60034-5:2002U,
•
The motors are cooled by water flowing through water jacket of body and connected in series
channel of bearing disk P.
•
Form of execution: flanged execution – IM 3001 (B5); flange FF740.
•
Basic voltage execution: 1000; 1140V (Y) – 50Hz
After settlement it is possible to execute the motors for other voltage and frequency of 60Hz.
•
Class of insulation: class H – with reinforced wound insulation,
•
Thermal protection of motors: bimetal sensors NC or posistor PTC sensors in winding and
bearing nodes – two identical circuits basic and stand-by .
•
Temperature control: thermometric resistors Pt100 in winding and bearing nodes.
•
Three-inlet terminal box, can be equipped with two or three cable inlets:
− 2 cable inlets Wk3u/d … with rubber gaskets produced by Damel (Catalogue Card K4-15-136)
− cable inlet 54232…-M36 with rubber gasket produced by Gothe or stopper M36x1,5 closing
FLP inlet - instead of inlet 54232…-M36.
•
The motor is equipped with the final link of protection conductor continuity control circuit, mounted
in the terminal box – primary execution: final unit CK-0A
After settlement the assembly of final unit CK of other type is possible (e.g. diode+resistor, reverse
polarity, etc.) produced by DAMEL – (Catalogue Card K4-15-121).
• Feeding and start-up: the motors are intended for feeding from power network – start-up by direct
switching on the voltage,
• The motors adapted for work in temperate climate;
after settlement the adaptation for work in tropical climate TA or TH is possible.
COMPATIBILITY WITH REQUIREMENTS OF STANDARDS
The motors meet requirements of Directive 94/9/EC (ATEX), European harmonized standards and
domestic norms:
- norms for electrical equipment in areas of explosion hazard:
-
EN 50014:1997+A1:1999+A2:1999 – Polish equivalent PN-EN 50014:2002U,
-
EN 50018:2000+A1:2002 – Polish equivalent PN-EN 50018:2002U,
-
EN 50019:2000 – Polish equivalent PN-EN 50019:2002U,
- norms for rotational electric machines:
-
EN 60034-1:1998+A1:1998+A2:1999+AC:2000 – Polish equivalent PN-EN 60034-1:2001
- domestic norms for induction motors for mining machines:
-
PN G-38010:1997(domestic standard).
CERTIFICATES
The motors have the certificates:
− certificate EC (ATEX) issued by notified Testing Station GIG KD “BARBARA”, valid on the
area of European Union.
− Certificate of Russian Test Station МОС „Сертиум”, valid on the area of Russian Federation.
Form No. F –K400037/8B
CATALOGUE CARD
K4-15-161
ISSUE 1
DFME
DAMEL S.A.
MINING INDUCTION MOTOR
SG3 450L-4/8
PAGE
2/5
File No: 200 400kW, SG3 450L- 8 4.doc/2005
Translated by: PTU -DAMAR- Sosnowiec
TECHNICAL DATA
Table 1
Parameters SG3
450L-4/8
Rated power P
N
[kW]
200/400
Current at rated voltage
I
N
[A]
1000V
I
N
[A]
1140V
158/265
138/232
Power coefficient
cos
φ
0,78/0,91
Efficiency
η
[%] 94,2/96,0
Rotational speed n
[1/min]
740/1485
Rated moment M
N
[Nm] 2581/2572
Multiplicity of start-up current
I
K
/I
N
5,0/6,0
Multiplicity of start-up moment
M
K
/M
N
2,4/2,3
Multiplicity of critical moment
M
max
/M
N
2,1/2,2
Min. flow of cooling water
[dm
3
/min] 15
Mode of operation
2p=8, 200kW - S1; S4-60% 100c/h J
ext
/J
M
=0,4 (FI.1,4)
2p=4, 400kW - S1; S4-60% 60c/h J
ext
/J
M
=0,4 (FI.1,4)
Moment of inertia of rotor J
M
kgm
2
23
Mass of motor
kg
3400
1.
The parameters of motor: rated current, efficiency, power factor, rotational speed and rated
moment relate to rated load at rated feeding conditions – 50 Hz.
2.
Multiplicities of start-up current, start-up moment and critical moment refer to direct
connection of the motor to the supply network (mains).
3.
J
ext
– inertia moment of motor load referred to the shaft of motor.
bearing
winding
bimetals NC
or posistors
PTC
thermometric
resistors Pt 100

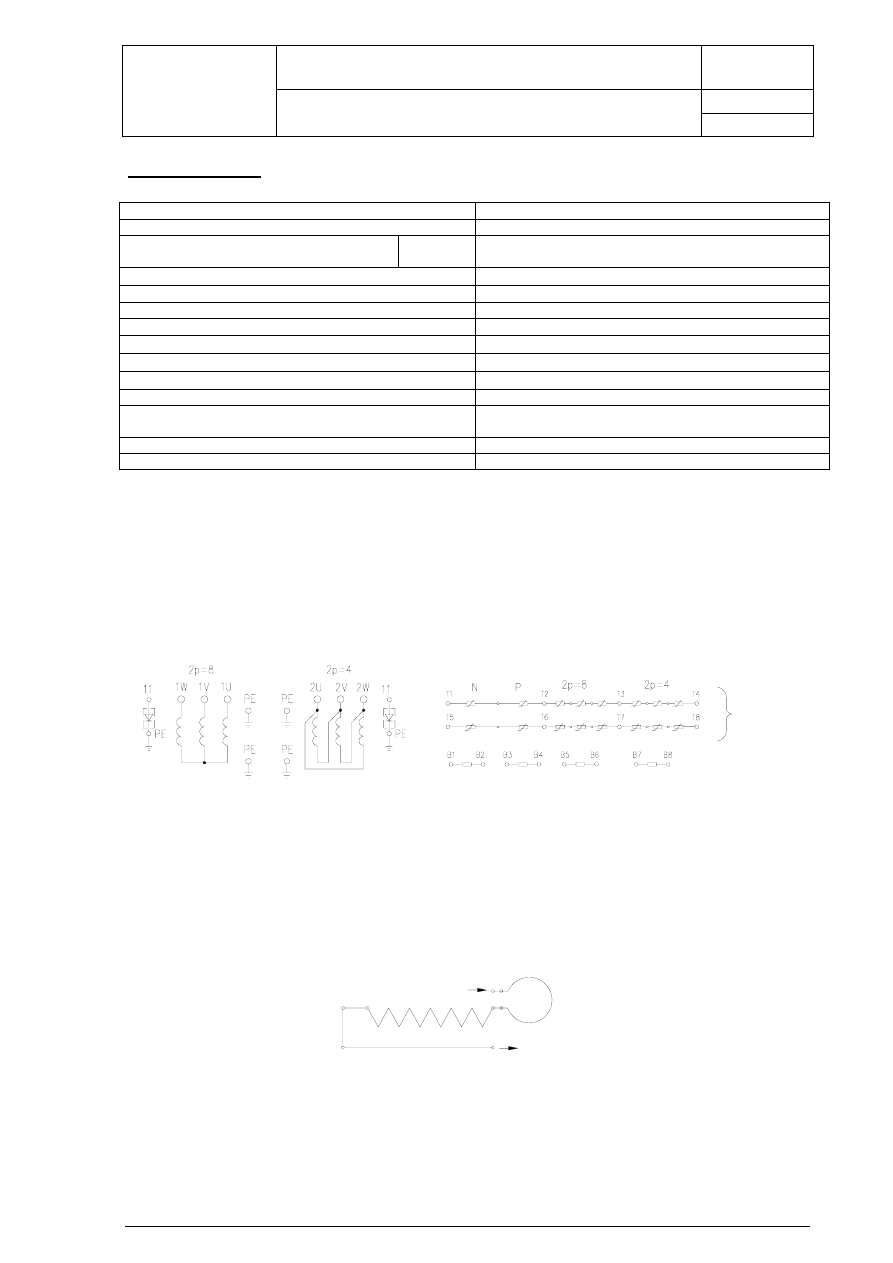

Fig. 1 Diagram of motor connections
–
winding, protective terminals, thermal protection.
WATER INLET
WATER OUTLET
STATOR
Water channel
Disk P
Fig.2 Diagram of cooling system
Form No. F –K400037/8B
CATALOGUE CARD
K4-15-161
ISSUE 1
DFME
DAMEL S.A.
MINING INDUCTION MOTOR
SG3 450L-4/8
PAGE
3/5
File No: 200 400kW, SG3 450L- 8 4.doc/2005
Translated by: PTU -DAMAR- Sosnowiec
Water outlet M27x2
Water channel
Centre hole 20
acc. to PN-75/
M-02497
View W
View V
Cable inlet Wk3u/d…
or Stopper Zk3u
Cable inlet Wk3u/d…
or Stopper Zk3u
Stopper M36x1.5
or Cable inlet 54232.. – M36
Water outlet M27x2
Water inlet M27x2
ATTENTION
DO NOT OPEN LIVE!
8 holes
Table 2
Type of motor
Version
Form of
execution
Shaft of the motor
Flange
Cable inlets
(basic
execution)
Diagram
of
cooling
system
acc. to
Fig. 2

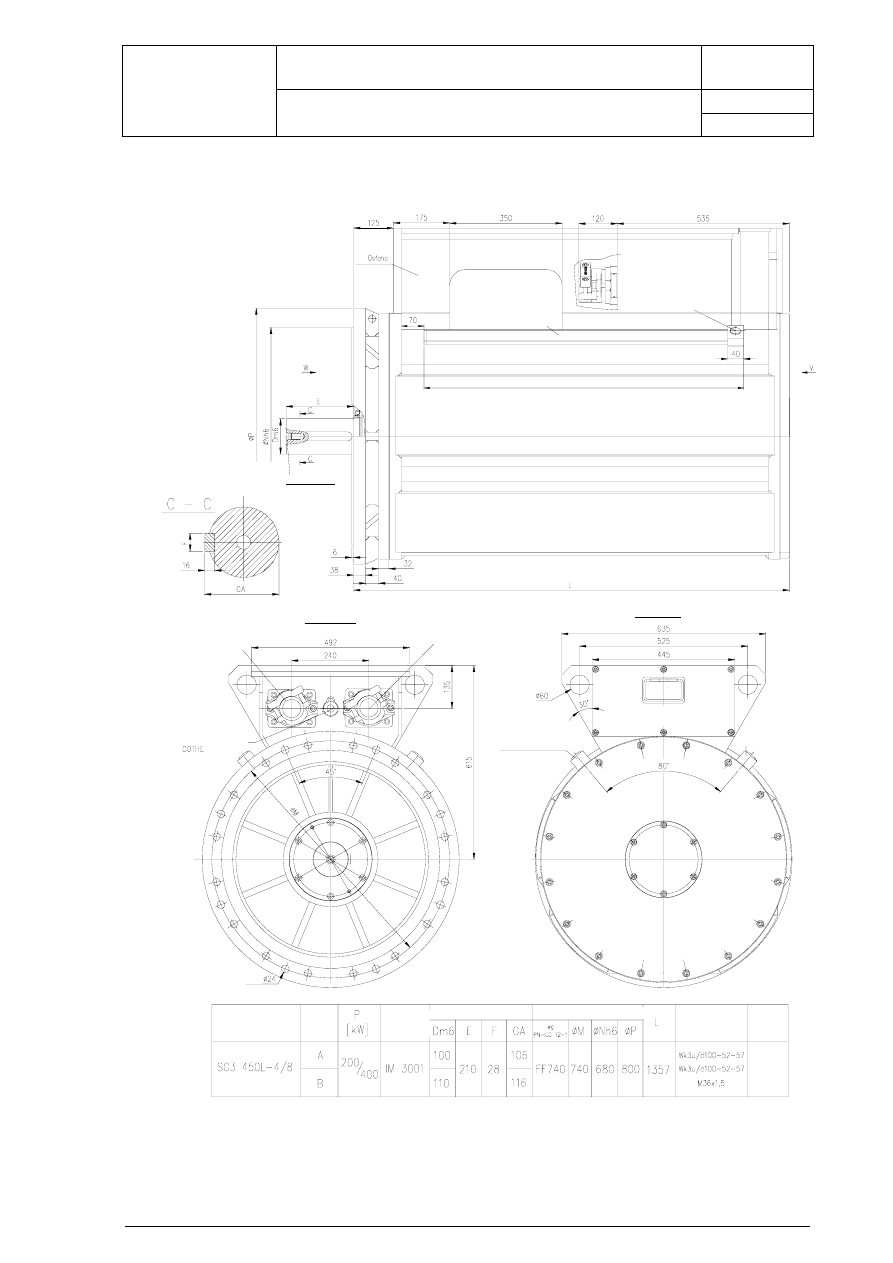

Fig. 3 Overall and assembly dimensions of motors.
Form No. F –K400037/8B
CATALOGUE CARD
K4-15-161
ISSUE 1
DFME
DAMEL S.A.
MINING INDUCTION MOTOR
SG3 450L-4/8
PAGE
4/5
File No: 200 400kW, SG3 450L- 8 4.doc/2005
Translated by: PTU -DAMAR- Sosnowiec
CONDITIONS OF OPERATION AND APPLICATION
• Ambient
temperature 0÷40
o
C
• Relative humidity at temperature of 35
o
97÷100%
• Height above the sea level
≤ 1000m
• Degree of corrosive aggressiveness C acc. to PN-71/H-04651
• Admissible inclination of the shaft axis to level
< 30
o
C
• Parameters of cooling water at inlet of cooling system
− maximum temperature
+ 30
0
C
− maximum static pressure
3MPa
• Supply voltage
(0,95÷1,05)U
N
• Electrical terminal
Power supply connection – mining armor conductor with rubber armor and insulation, multicore,
screened at voltage of 0.6/1kV with section area of cores selected to operating conditions.
Connection of auxiliary circuits of temperature sensors and temperature control thermometric
elements – auxiliary cores of feeder cable or multicore armored (control) pilot wire with section
area of wires up to 4mm
2
.
• Leading the armor conductors to terminal box through cable inlets selected according to the outer
diameter of conductors acc. to table 3.
Table 3
Type of inlet
Conductor
The range of diameters of conductors for cable inlets
Wk3u/d80 40÷44
41÷46
44÷49
48÷53
52÷57
Wk3u/d100
Feeder
cable
55÷61
59÷65
62÷68
68÷74
54232…-M36
Pilot
wire
18÷21
20÷24
22÷26
25÷28
In case the Orderer does not state the type of cable inlet (outer diameter of conductor ) the motor
is delivered with cable inlet and stopper acc. to table 3.
OFFER FOR DELIVERIES OF MOTORS
The producer offers motors in primary execution and in options executed against the Customer
order (additional, diversified equipment).
Table 4
1
Constructional
characteristic of motor
2
Primary execution
3
Execution against order
rated voltage
1000; 1140V
other voltage
frequency 50Hz
60Hz
Form of execution
flanged IM 3001(B5)
–
class of insulation
H
–
thermal protection
– type of sensors
bimetal NC
posistor PTC
temperature control
– thermometric elements
thermometric resistors Pt100
–
cable inlets
Two inlets Wk3u/d100…
+ stopper M36x1,5
-see table 2
One or two cable inlets Wk3u
+ cable inlet 54232…-M36
- see table 3
final link
of control circuit
CK-0A
CK … appointed by Orderer
(acc. to catalogue card K4-15-121)
climatic execution
for mild climate
for tropical climate TH or TA
constructional characteristic other
than above mentioned
–
acc. to settlements, it can require acceptance
of the unit certifying the product
The following items are included to the delivered motor:
- Technical & Operational Documentation (Service Manual of the motor).
- declaration of conformity EC.
Form No. F –K400037/8B
CATALOGUE CARD
K4-15-161
ISSUE 1
DFME
DAMEL S.A.
MINING INDUCTION MOTOR
SG3 450L-4/8
PAGE
5/5
File No: 200 400kW, SG3 450L- 8 4.doc/2005
Translated by: PTU -DAMAR- Sosnowiec
ORDERING PROCEDURE
The following data should be stated in the order directed to the address of manufacturer given below:
-
type of motor, power
-
rated voltage and frequency
- motor execution: preliminary – see table 4 column 2 or execution against order, for which
required equipment and constructional characteristic should be determined acc. to table 4
column 3.
When ordering we recommend to fill up the questionnaire „Statement of technical data of the motor...”
– accessible at internet (web) sites and in Marketing Department of DFME DAMEL.
The producer offers additionally:
- guarantee and after guarantee service,
- delivery of spare parts,
- training of employees in the range of correct maintenance and operating the motor.
Producer reserves the right to implement to the motor changes resulting from technical progress.
Dąbrowska Fabryka Maszyn Elektrycznych DAMEL S. A.
Aleja Józefa Piłsudskiego 2, 41-300 Dąbrowa Górnicza, POLSKA, tel: (32) 262-32-30 do 39
Faks (32) 264-34-26, 264-10-12, http: www.damel.com.pl, email: office@damel.com.pl
Elaboration: „DAMEL” – TK/PG/04/2005
