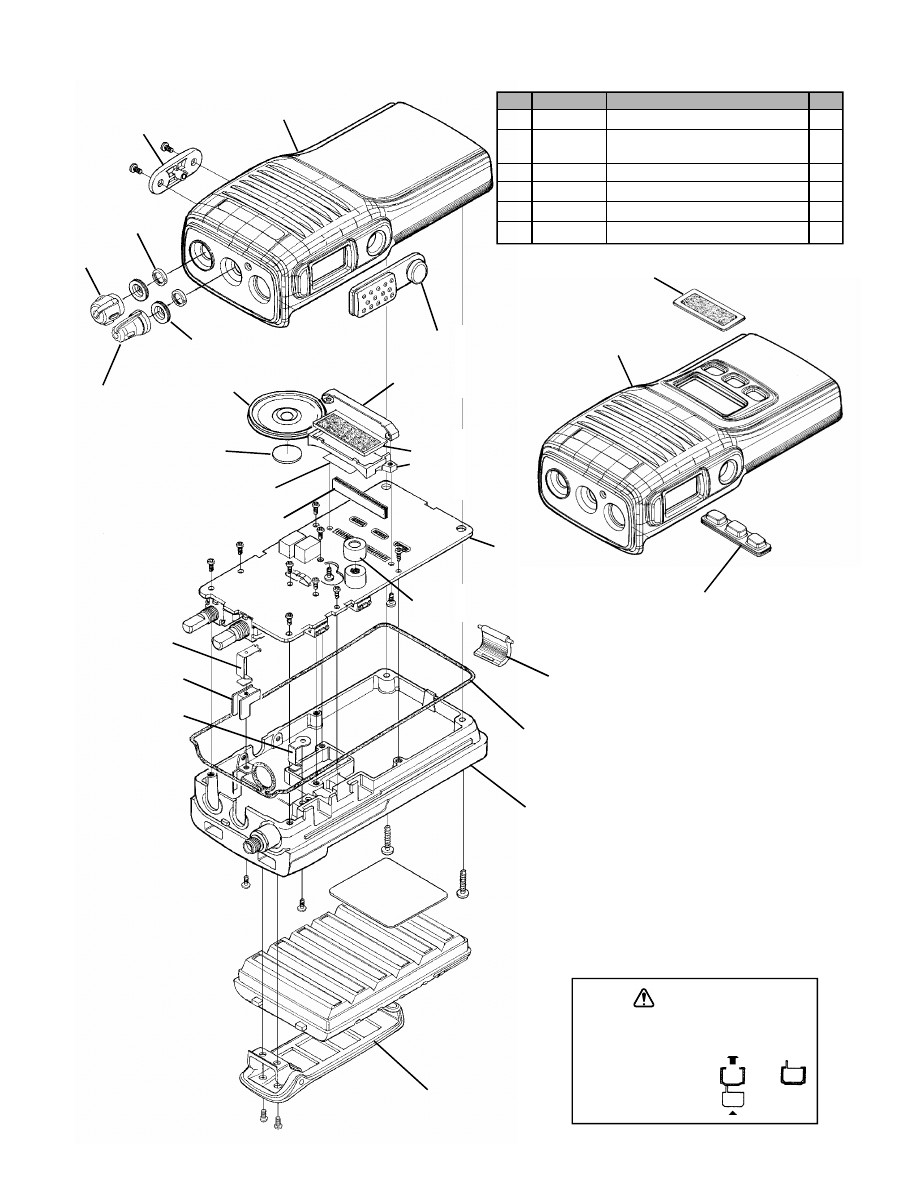

Exploded View & Miscellaneous Parts

RA029590B (Lot. 17~)
RA0295900 (Lot. 1~)
FRONT CASE ASSY (VX-180)

RA029600A (Lot. 17~)
RA0296000 (Lot. 1~)
FRONT CASE ASSY (VX-160)

RA0294800
INTER CONNECTOR (VX-180)

RA0294300 (Lot. 1~)
RA029430A (Lot. 4~)
RUBBER PACKING

RA0293900
RUBBER KNOB

RA0123500
LATCH NAIL B

RA0173500
CAP

MAIN Unit

RA029310D (Lot. 26~)
RA029310C (Lot. 20~)
RA029310B (Lot. 11~)
RA029310A (Lot. 3~)
RA0293100
REAR CASE ASSY
(w/SMA CONNECTOR, TERMINAL PLATE L,
PAN HEAD SCREW M2X3NI)

TERMINAL PLATE L

RA0107000
TERMINAL PLATE R

RA010340A
TERMINAL HOLDER

Å

Ã

Ã

À

À

À

À

À

À

À

Á

Á

Â

Â

R6147510
RING NUT (x 2 pcs)

RA0296100
VOLUME KNOB

RA029620A (Lot. 3~)
RA0296200 (Lot. 1~)
KNOB (CH)

RA0210900
WINDOW

G6090139
LCD (VX-180)

RA0110200
HOLDER RUBBER

À

REF. VXSTD P/N

Description

Qty.

À

U44104002

TAPTITE SCREW M2X4NI

10

Á

U44104002

TAPTITE SCREW M2X4NI

2

(VX-180U)

Â

U20206007

BINDING HEAD SCREW M2.6X6B

2

Ã

U24110002

TAPTITE SCREW M2X10NI

2

Ä

U02206007

SEMS SCREW SM2.6X6B

2

Å

U00103002

PAN HEAD SCREW M2X3NI

1

RA0210600
RUBBER PACKING (x 2 pcs)

RA0294200
PTT KNOB

RA0294400
LCD HOLDER (VX-180)

M4090151A (Lot. 10~)
M4090151 (Lot. 1~)
SPEAKER

À

À

Ä

Ä

CP7064001
BELT CLIP ASSY

CAUTION

The mic element must be desoldered

and removed from the PCB on order to re-
install its protective rubber cover.

T h e r e f o r e , b e

careful not to remove
this cover unless mic
element replacement
is necessary.

Á

À

RA0334900A
REFLECTOR SHEET (VX-180)

RA029450A (Lot. 10~)
RA0294500
LIGHT GUIDE (VX-180)

RA0309800 (Lot. 20~)
MYLAR SHEET (SP)
