SYSTEM WIRING DIAGRAMS

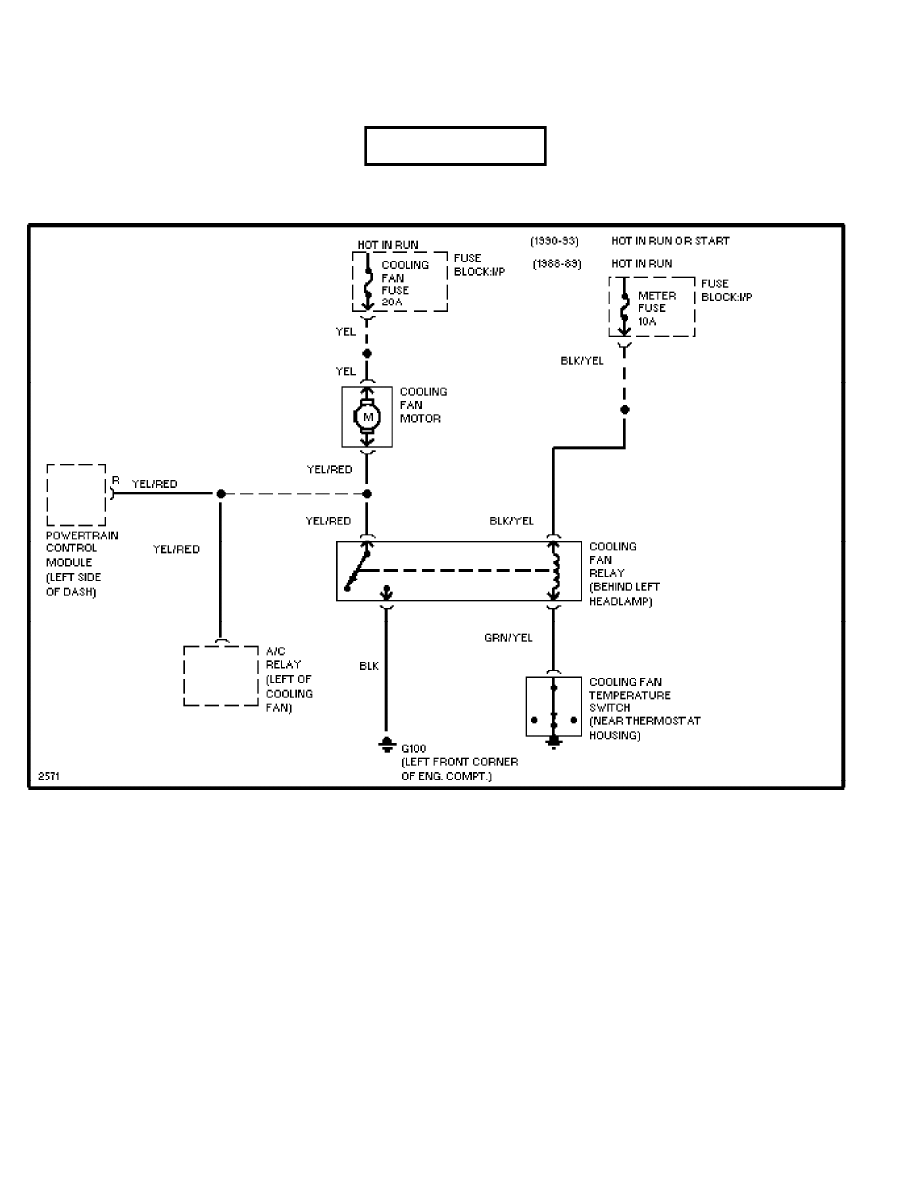

Cooling Fan Circuit
1990 Ford Festiva
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Saturday, July 31, 2004 10:40AM
cdr@wp.pl
SYSTEM WIRING DIAGRAMS

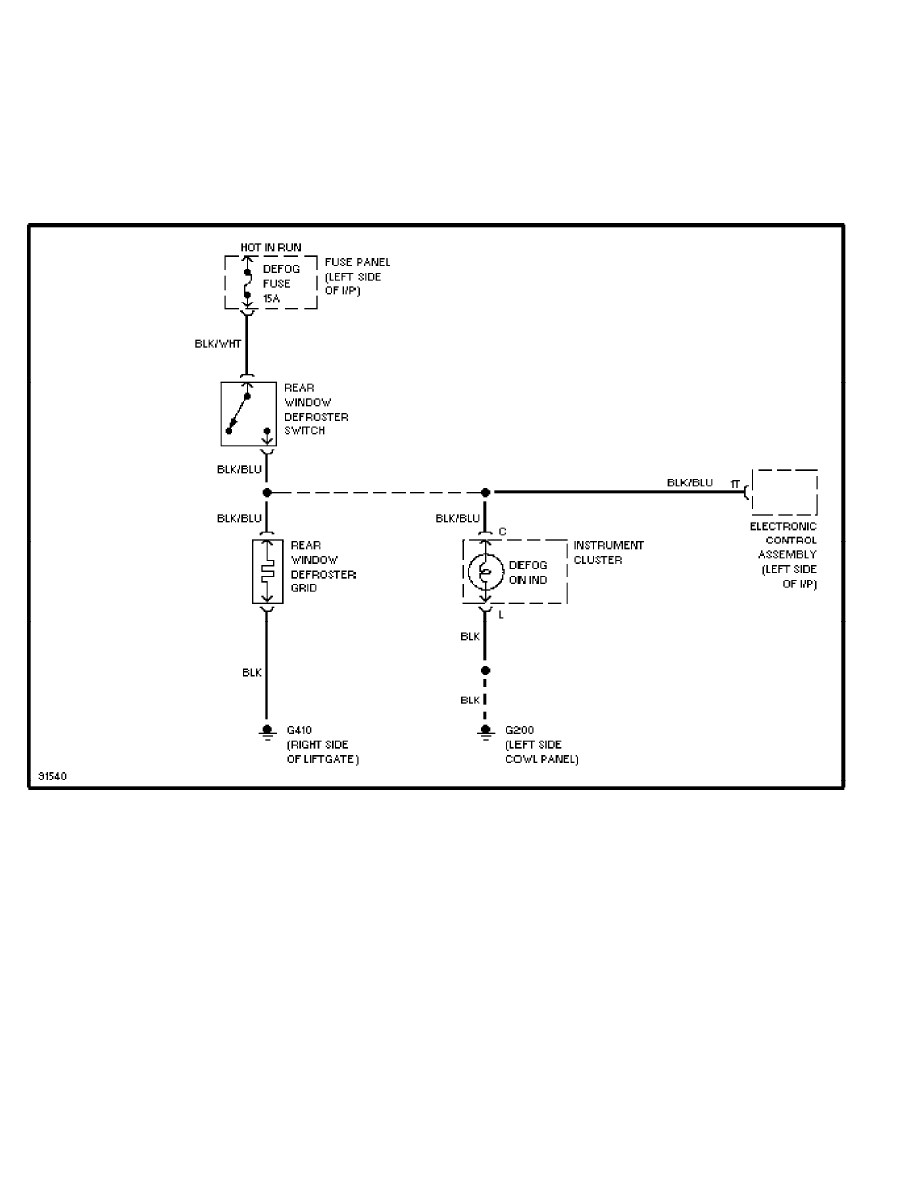

Defogger Circuit (p. 2)
1990 Ford Festiva
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Saturday, July 31, 2004 10:40AM
SYSTEM WIRING DIAGRAMS

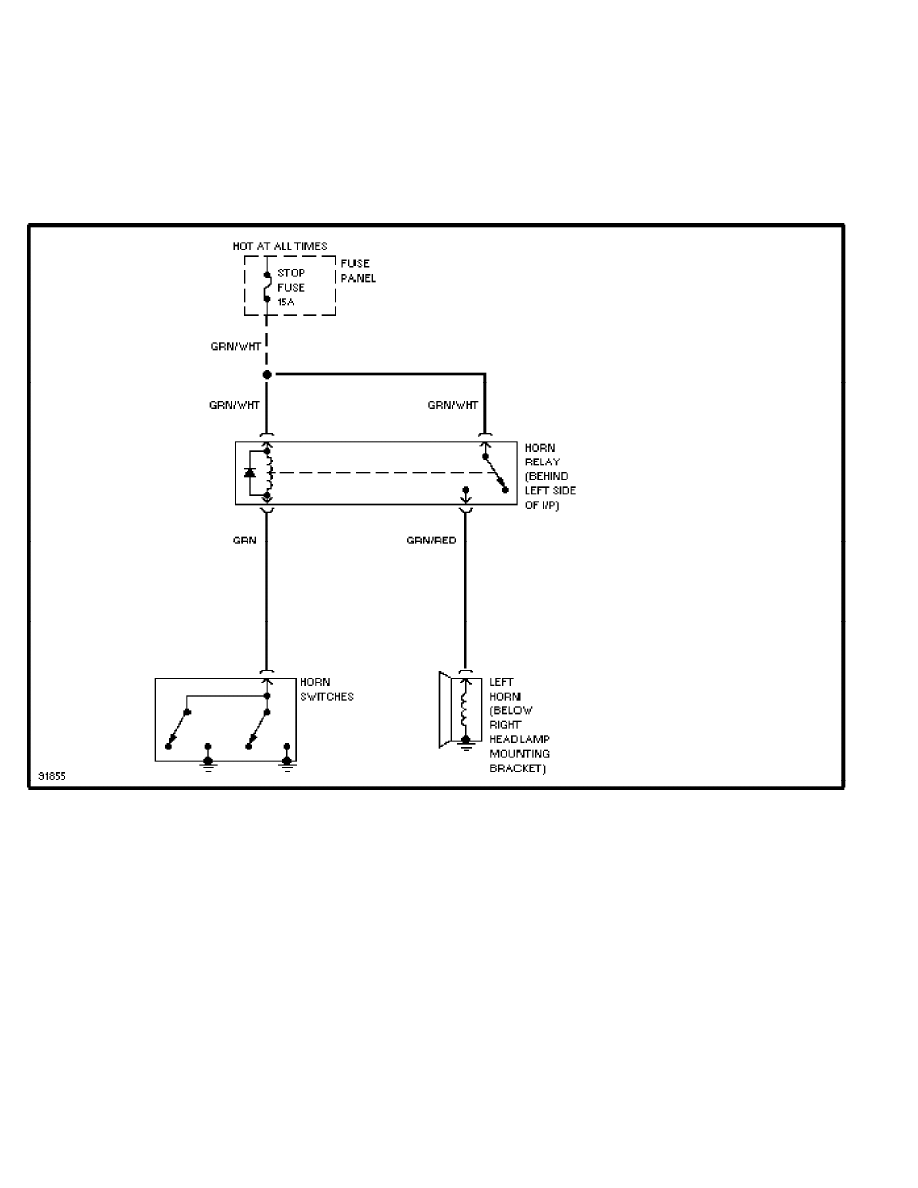

Horn Circuit (p. 3)
1990 Ford Festiva
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Saturday, July 31, 2004 10:40AM
SYSTEM WIRING DIAGRAMS

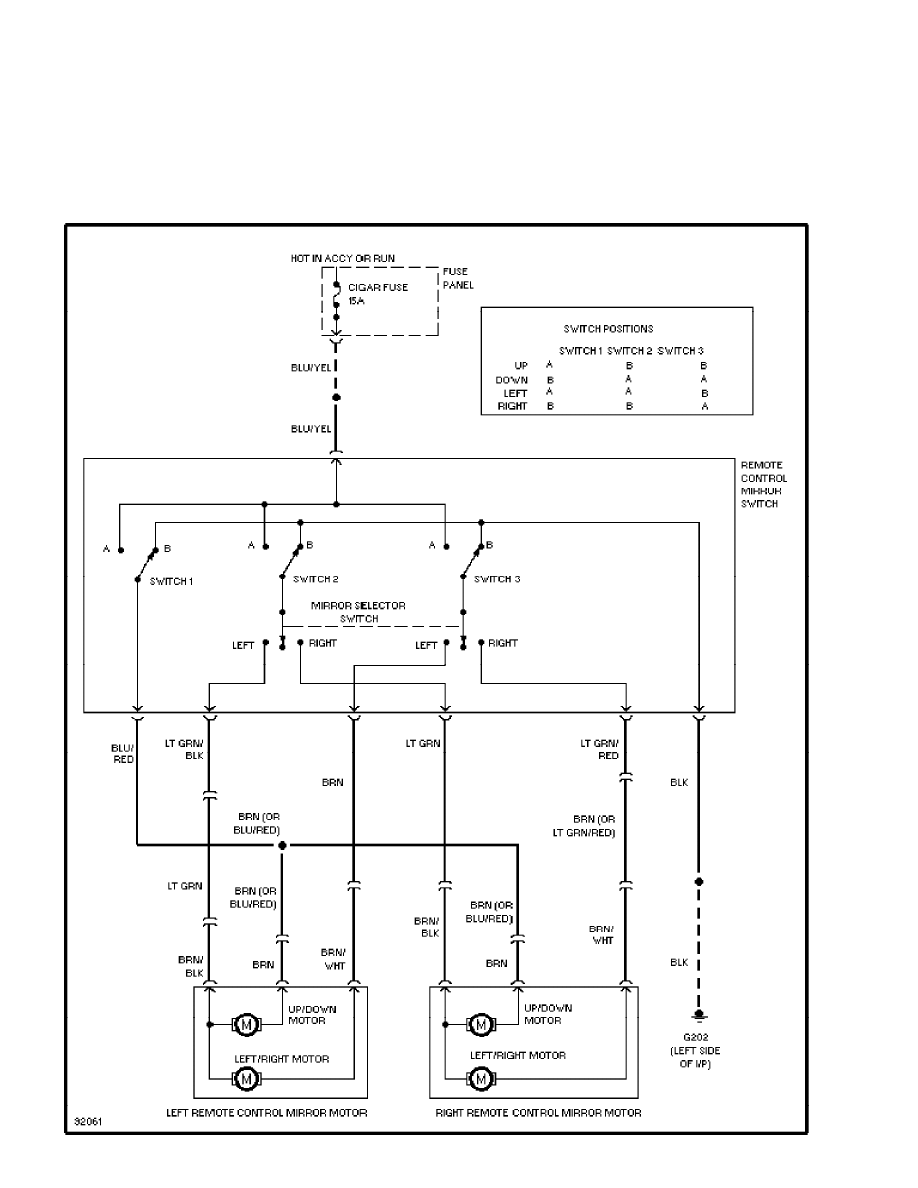

Power Mirror Circuit (p. 4)
1990 Ford Festiva
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Saturday, July 31, 2004 10:40AM
SYSTEM WIRING DIAGRAMS

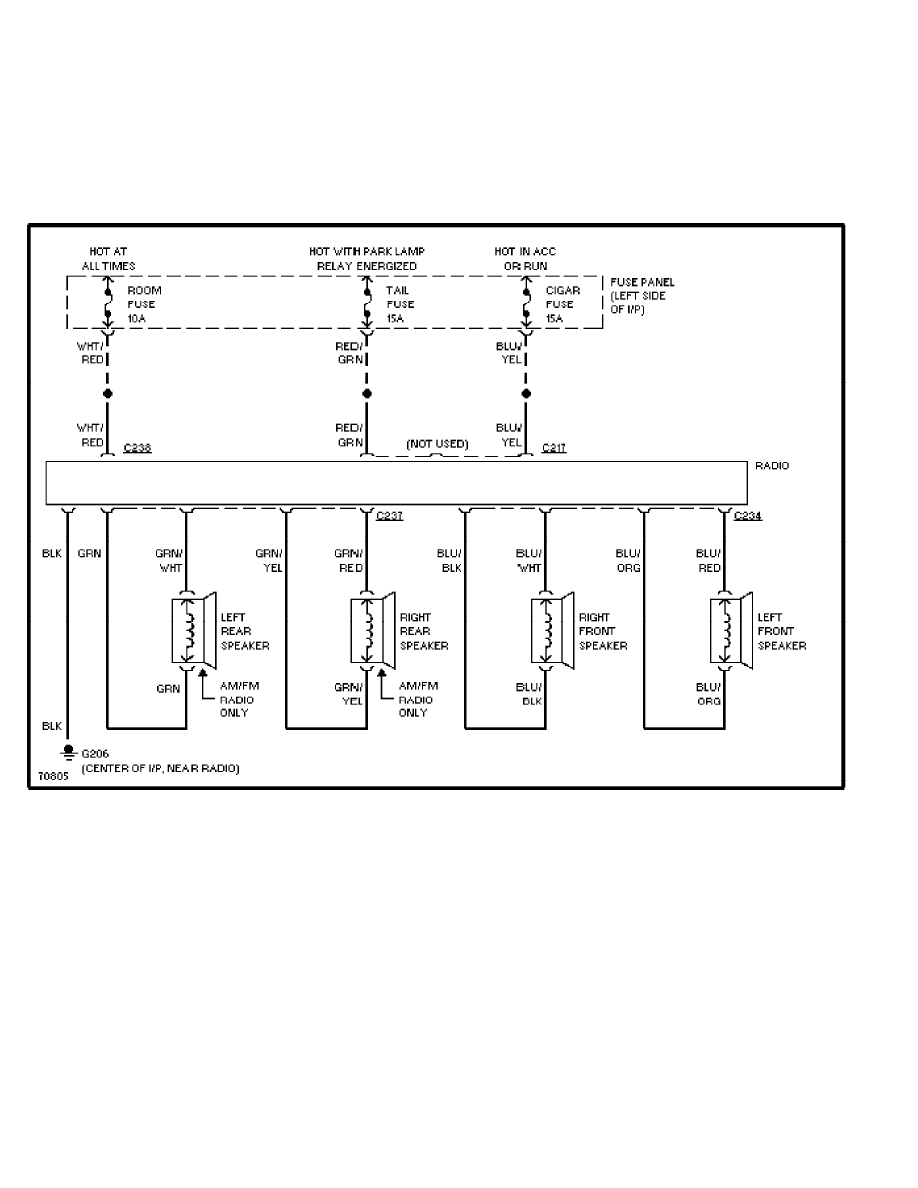

Radio Circuits (p. 5)
1990 Ford Festiva
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Saturday, July 31, 2004 10:40AM
SYSTEM WIRING DIAGRAMS

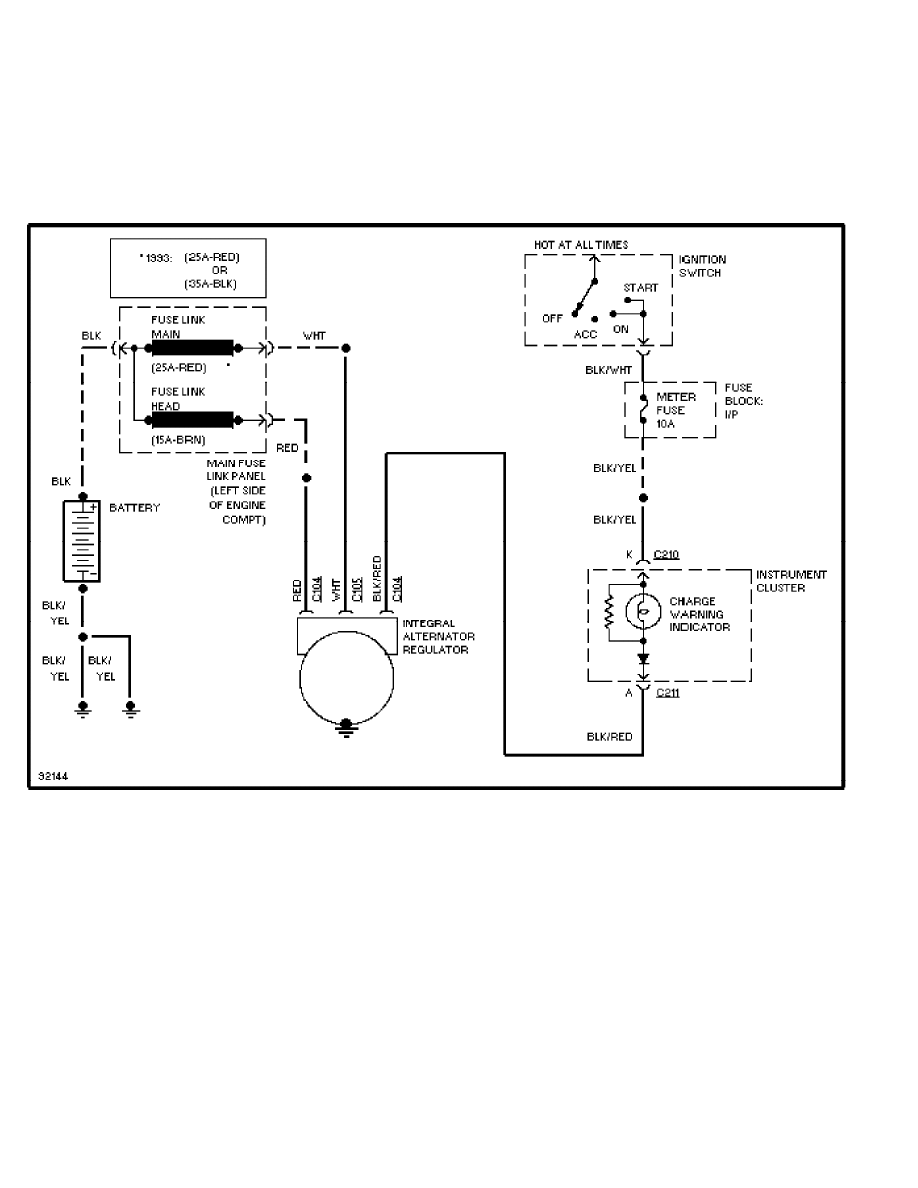

Charging Circuit (p. 6)
1990 Ford Festiva
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Saturday, July 31, 2004 10:40AM
SYSTEM WIRING DIAGRAMS

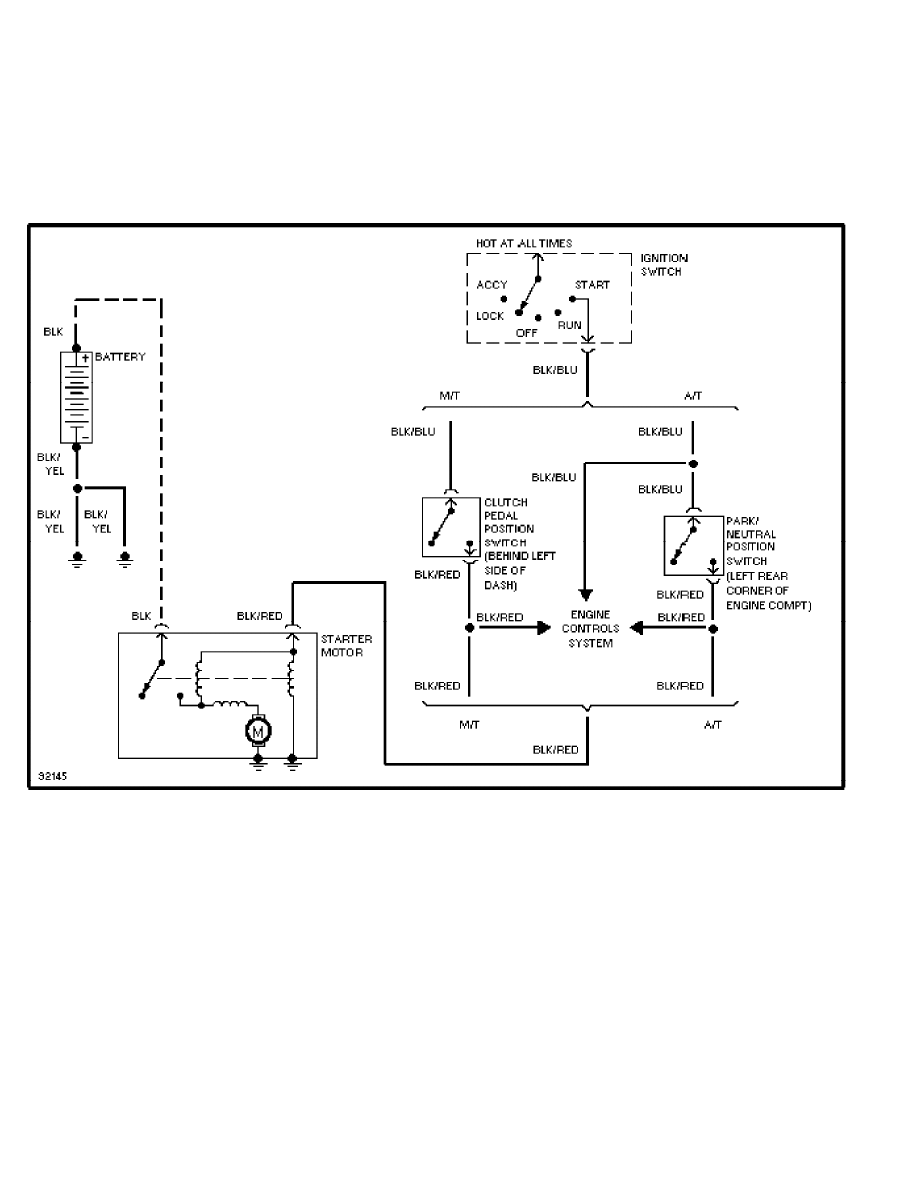

Starting Circuit (p. 7)
1990 Ford Festiva
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Saturday, July 31, 2004 10:40AM
SYSTEM WIRING DIAGRAMS

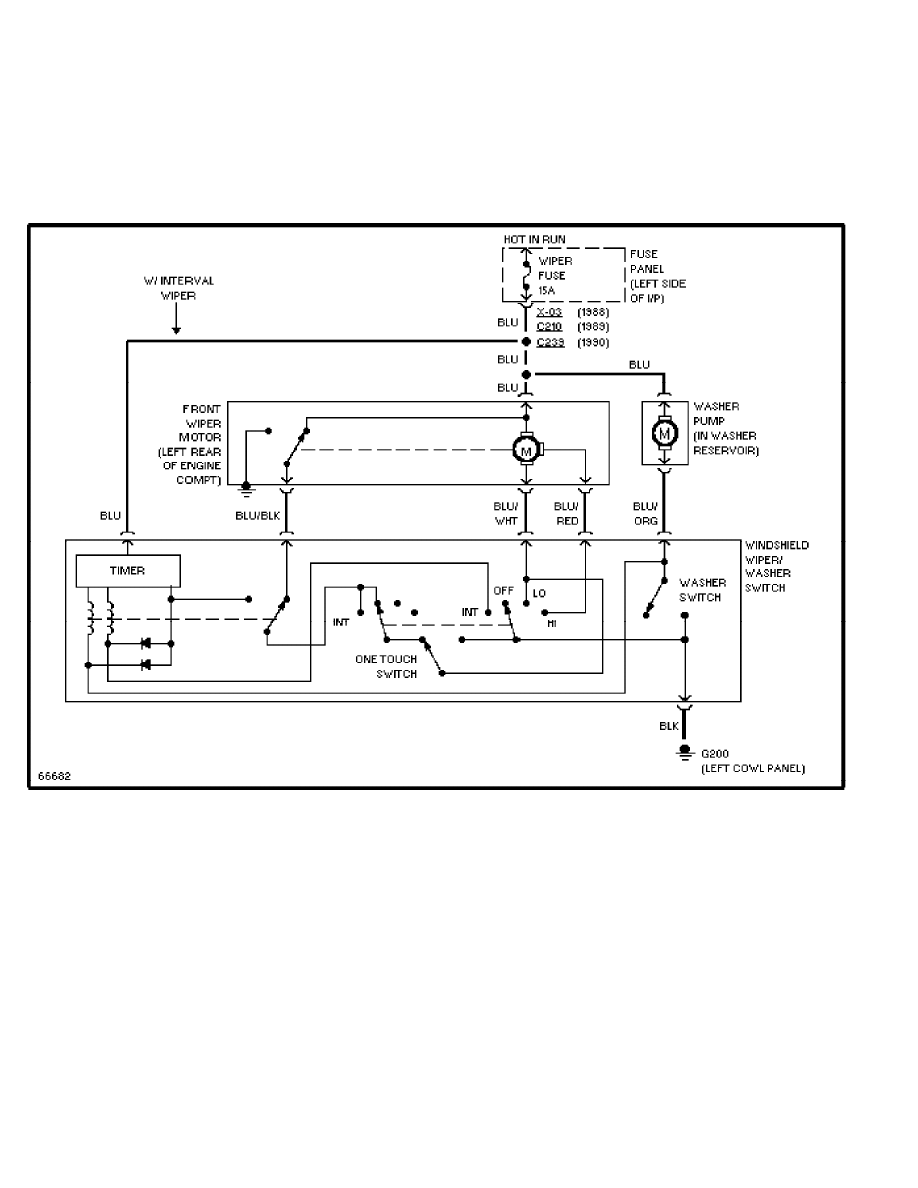

Front Wiper/Washer Circuit (p. 8)
1990 Ford Festiva
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Saturday, July 31, 2004 10:40AM
SYSTEM WIRING DIAGRAMS

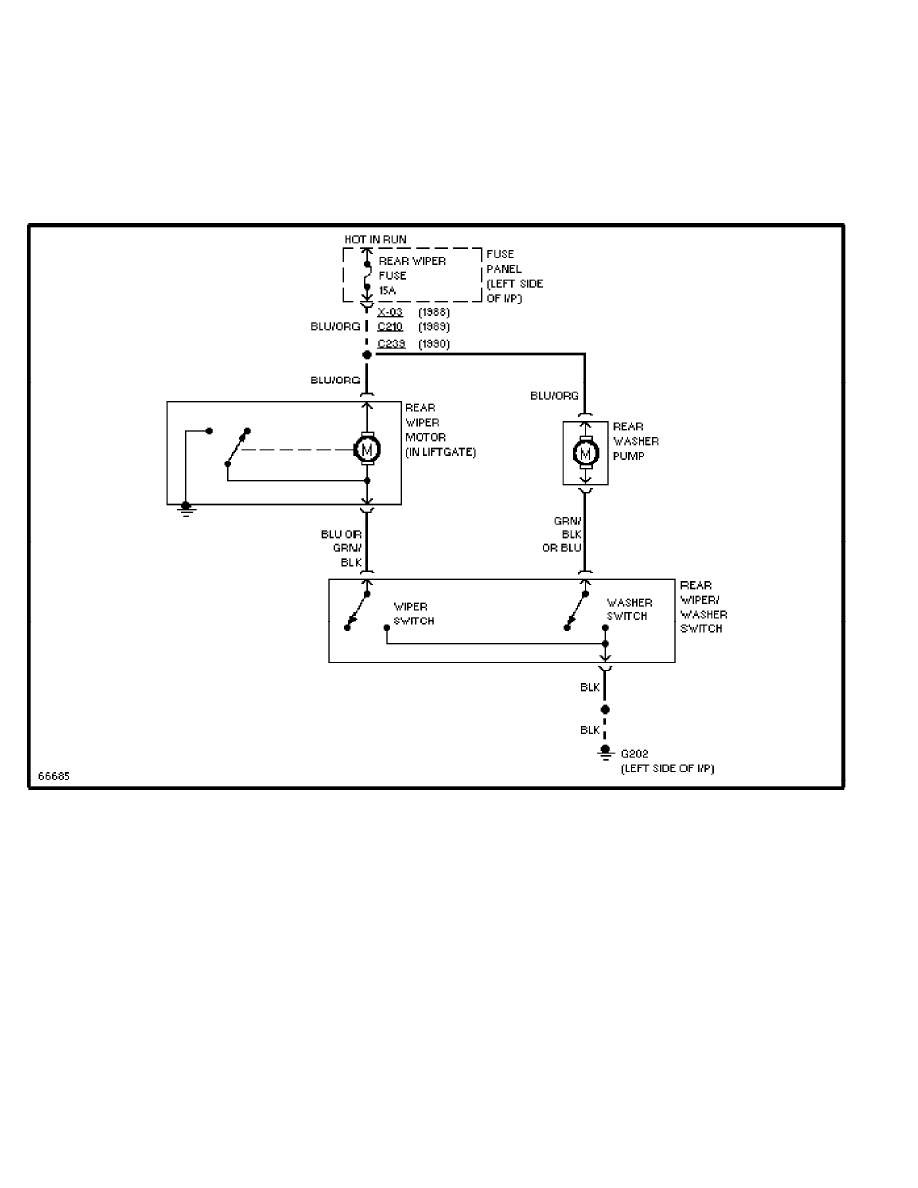

Rear Wiper/Washer Circuit (p. 9)
1990 Ford Festiva
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Saturday, July 31, 2004 10:40AM
WIRING DIAGRAMS

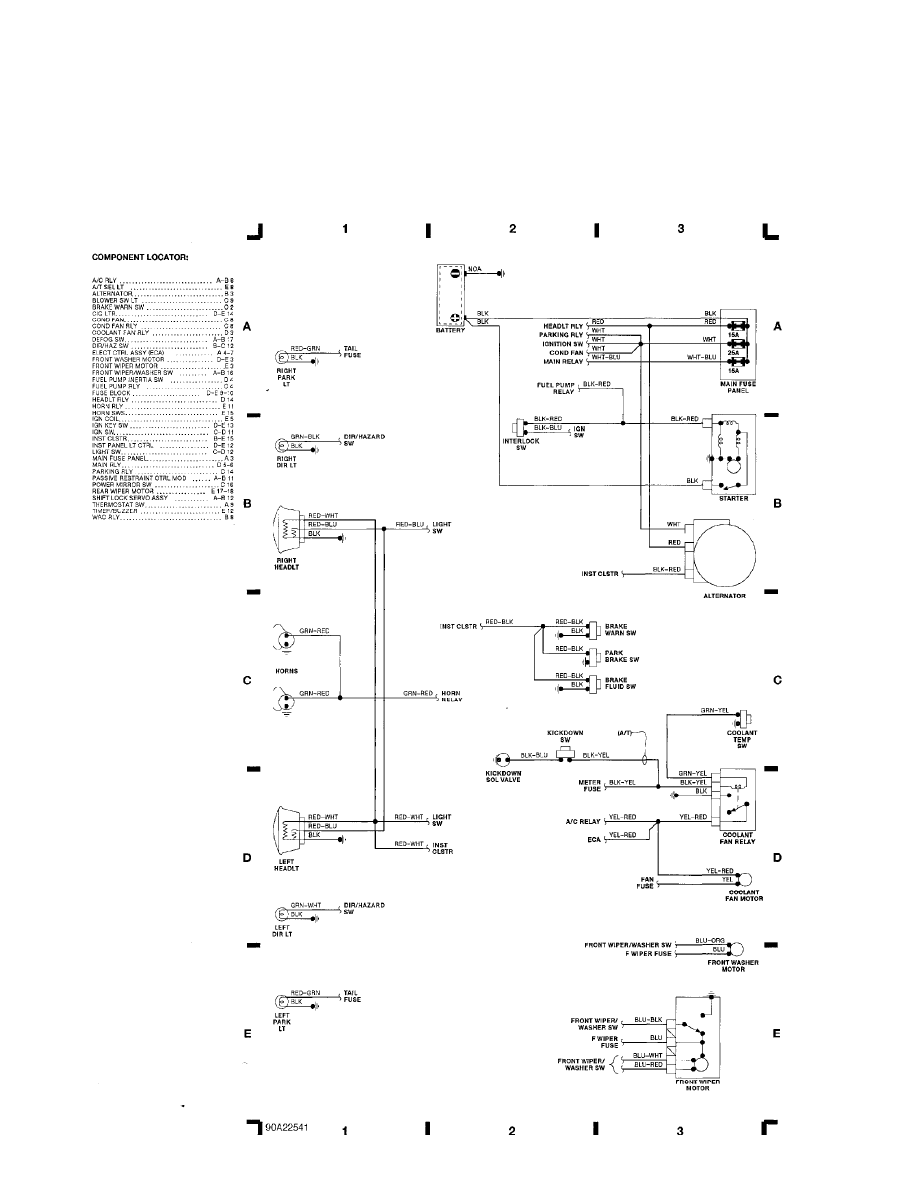

Fig. 1: Engine Compartment & Headlights (Grid 1-3)
1990 Ford Festiva
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Saturday, July 31, 2004 10:40AM
WIRING DIAGRAMS

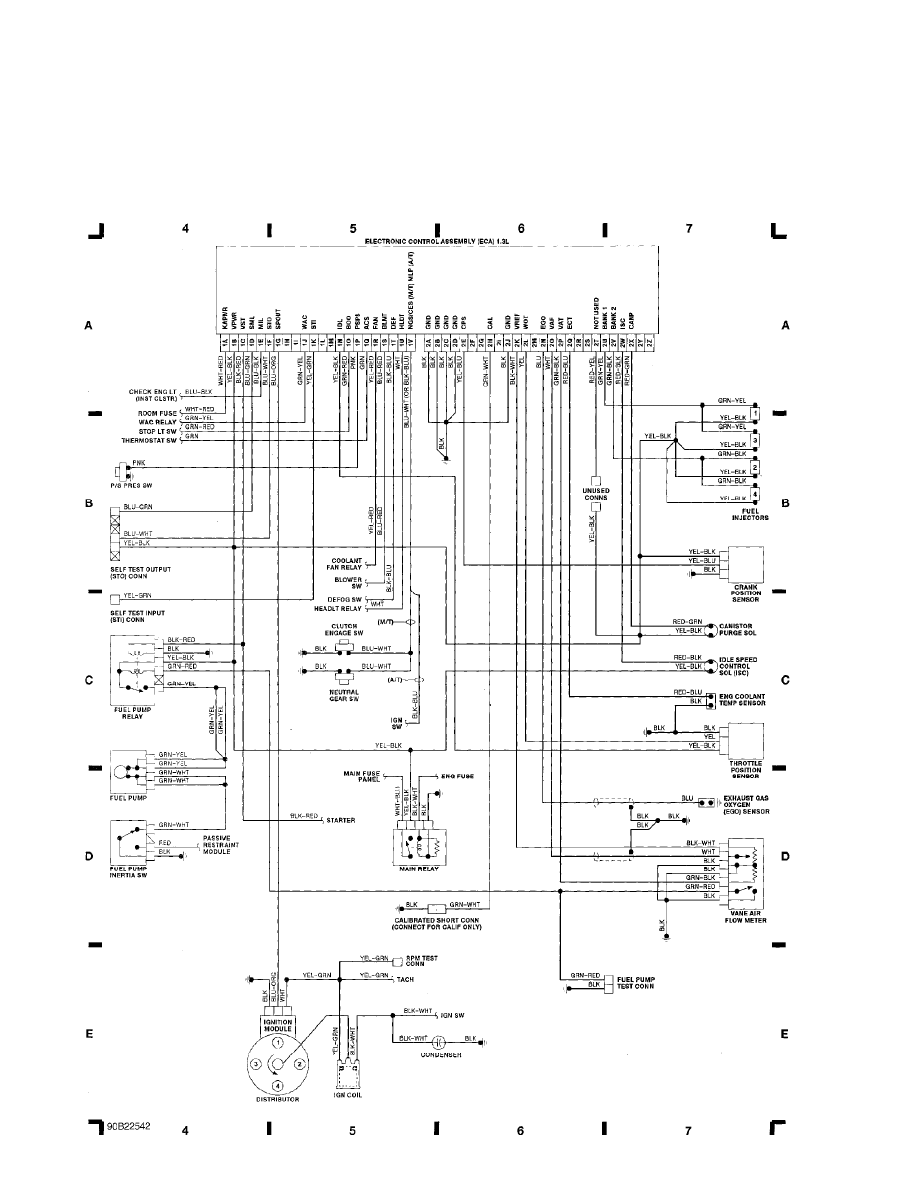

Fig. 2: Computer Engine Control, Fuel Pump System (Grid 4-7) (p. 2)
1990 Ford Festiva
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Saturday, July 31, 2004 10:40AM
WIRING DIAGRAMS

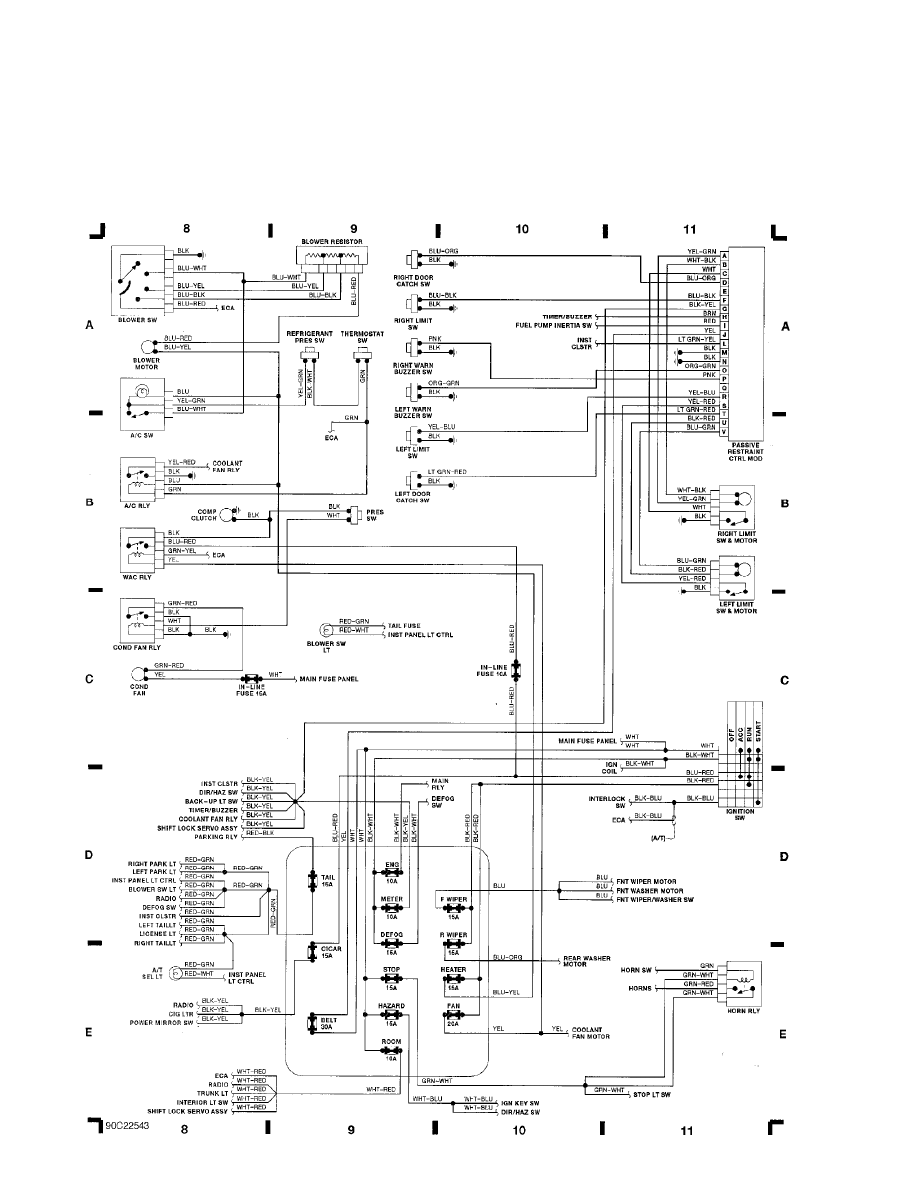

Fig. 3: A/C & Heat, Fuse Block, Passive Restraint,Ign (Grid 8-11) (p. 3)
1990 Ford Festiva
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Saturday, July 31, 2004 10:40AM
WIRING DIAGRAMS

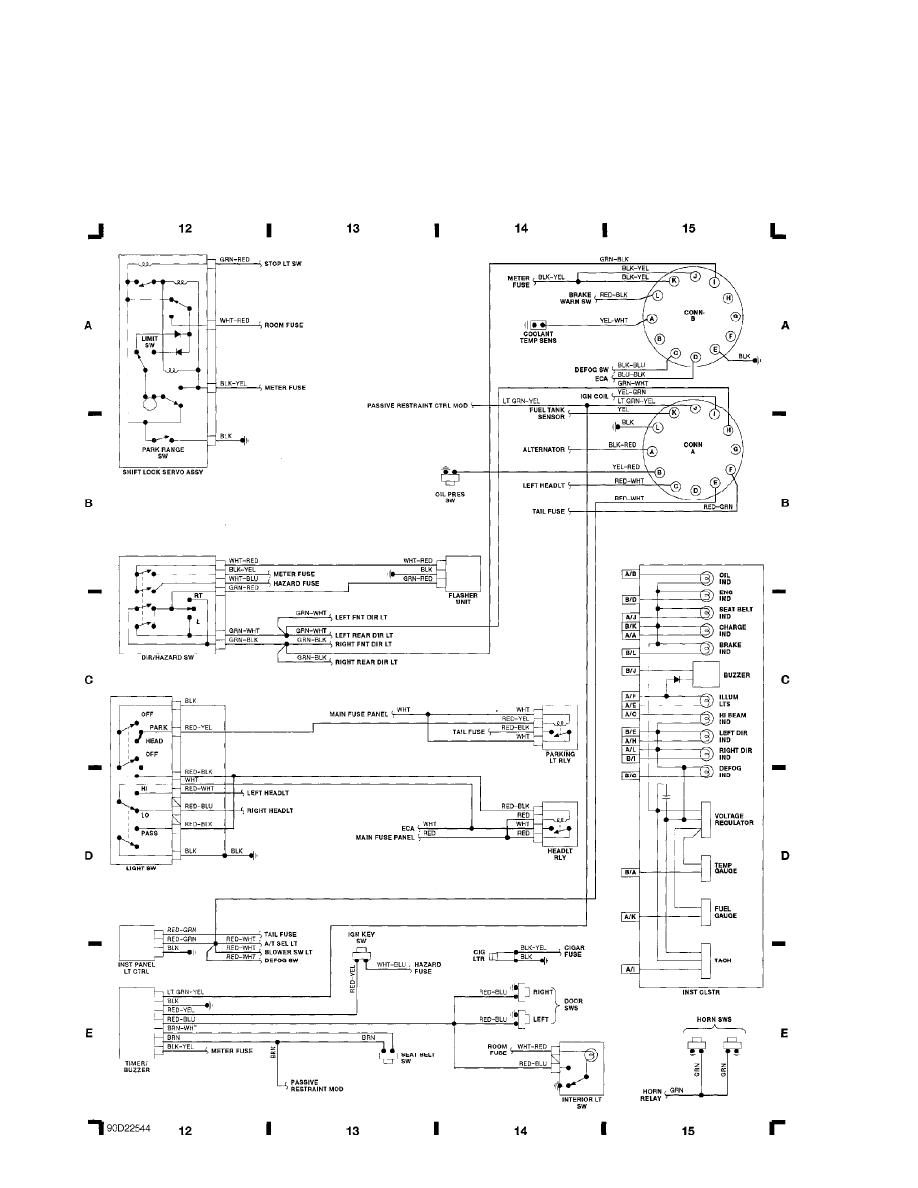

Fig. 4: Steering Column, Instrument Panel (Grid 12-15) (p. 4)
1990 Ford Festiva
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Saturday, July 31, 2004 10:40AM
WIRING DIAGRAMS

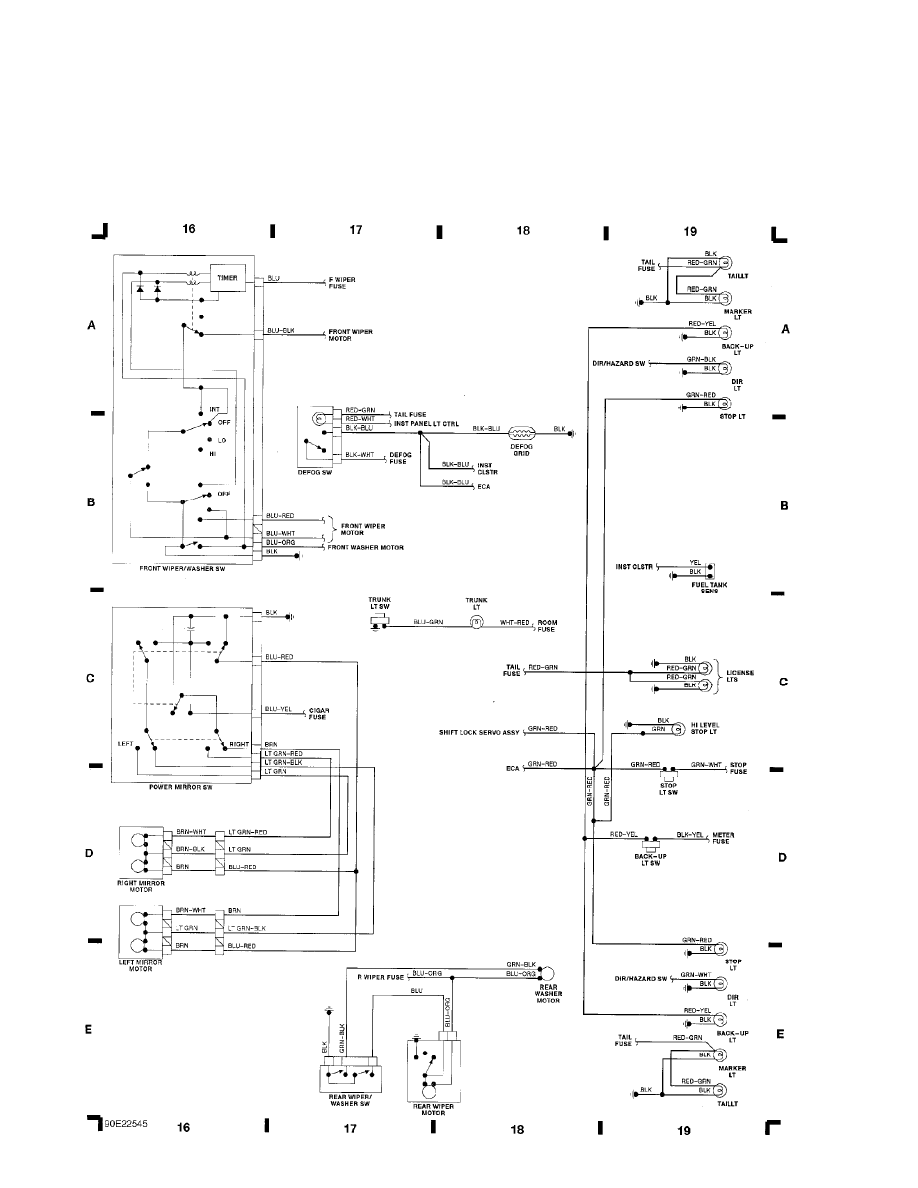

Fig. 5: Pwr Mirror, Wiper/Washer, Defog Sw, Taillights (Grid 16-19) (p. 5)
1990 Ford Festiva
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Saturday, July 31, 2004 10:40AM
