BMW 528e 1987

background image

WIRING DIAGRAMS

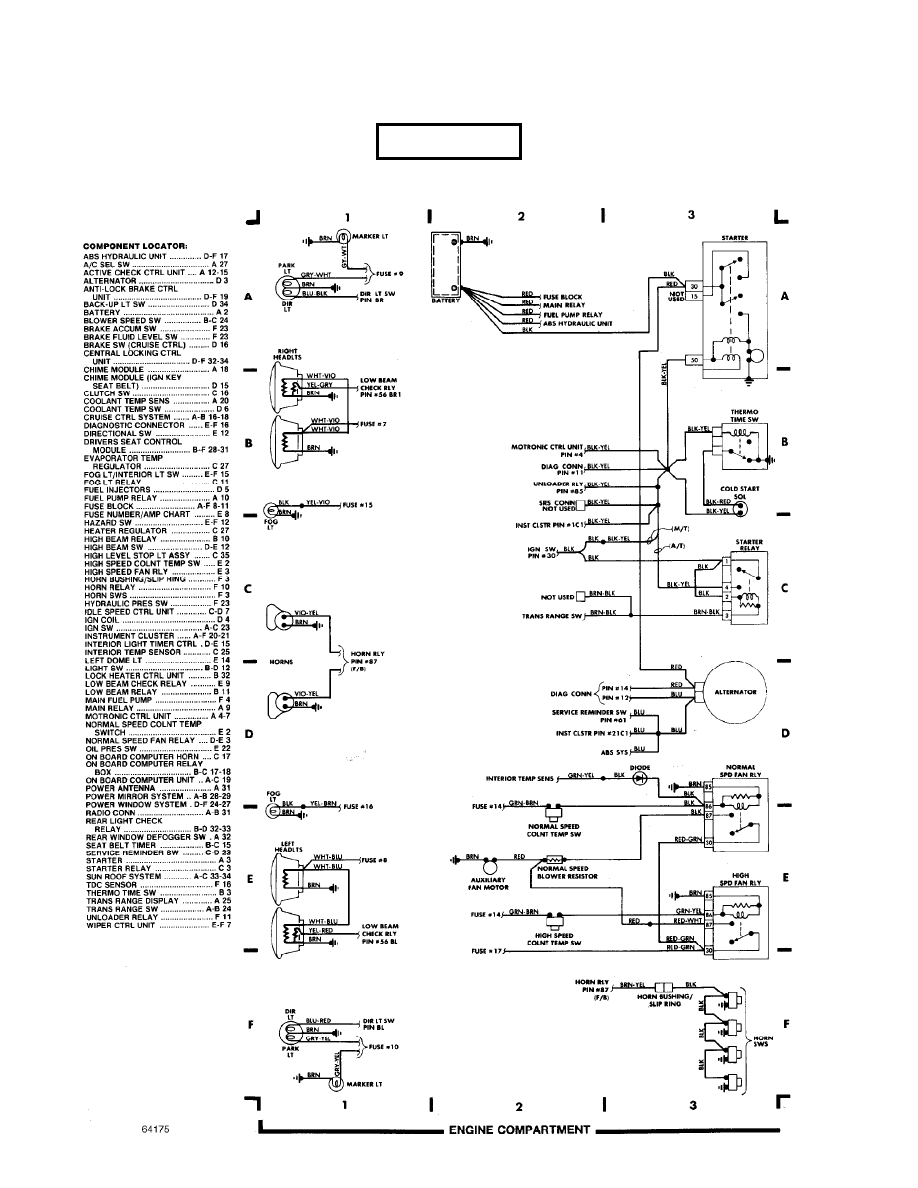

Fig. 1: Engine Compartment (Grids 1-3)

1987 BMW 528e

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, November 03, 2000 03:49PM

cdr@wp.pl

background image

WIRING DIAGRAMS

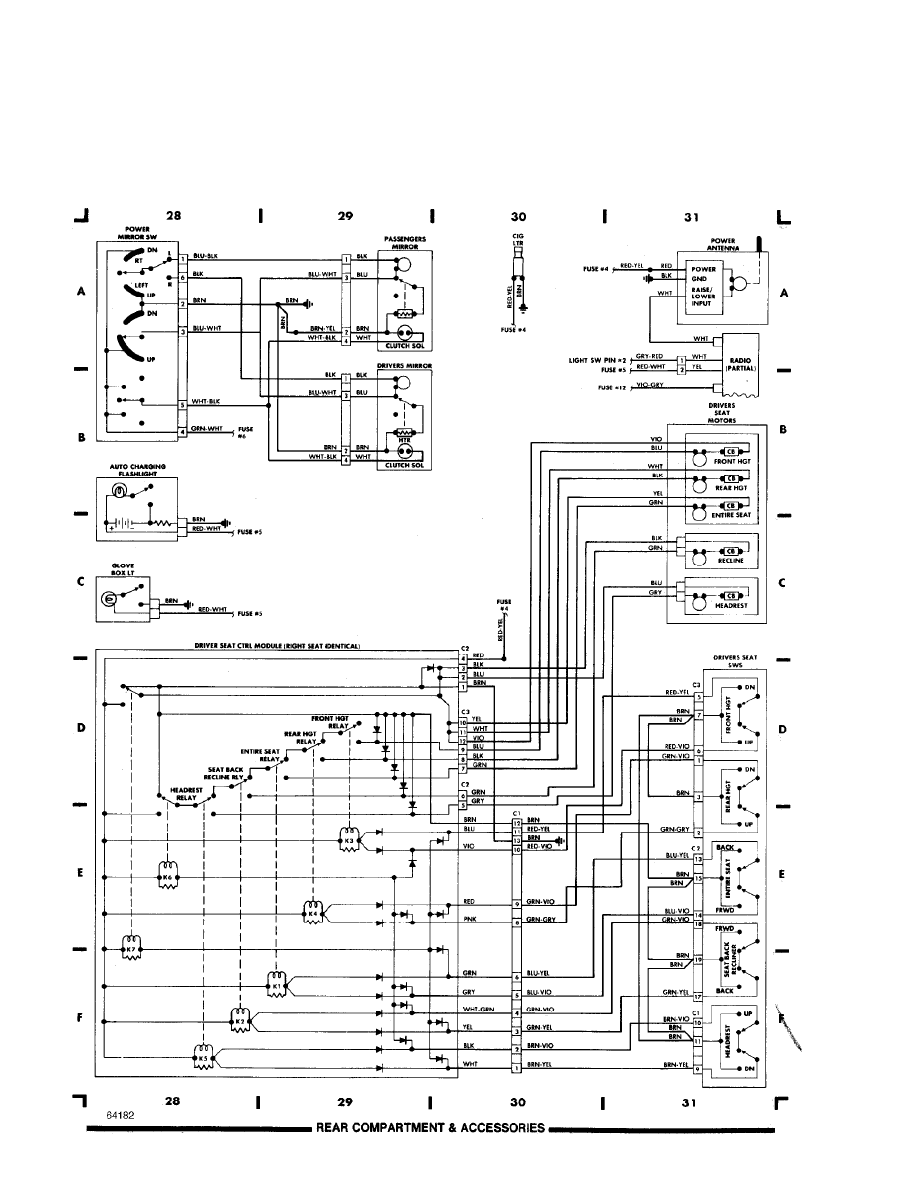

Fig. 8: Rear Compartment & Accessories (Cont.) (Grids 28-31)

1987 BMW 528e

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, November 03, 2000 03:56PM

background image

WIRING DIAGRAMS

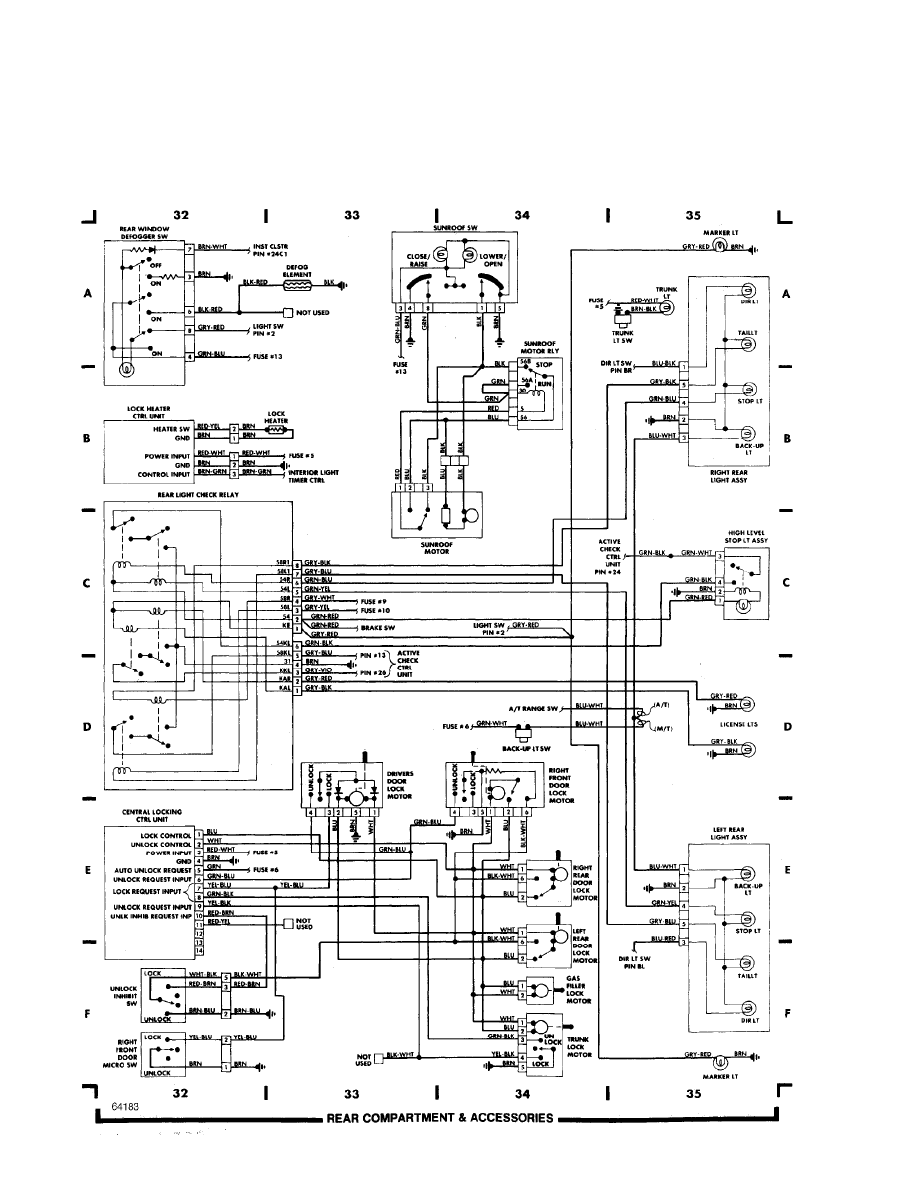

Fig. 9: Rear Compartment & Accessories (Cont.) (Grids 32-35)

1987 BMW 528e

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, November 03, 2000 03:57PM

background image

WIRING DIAGRAMS

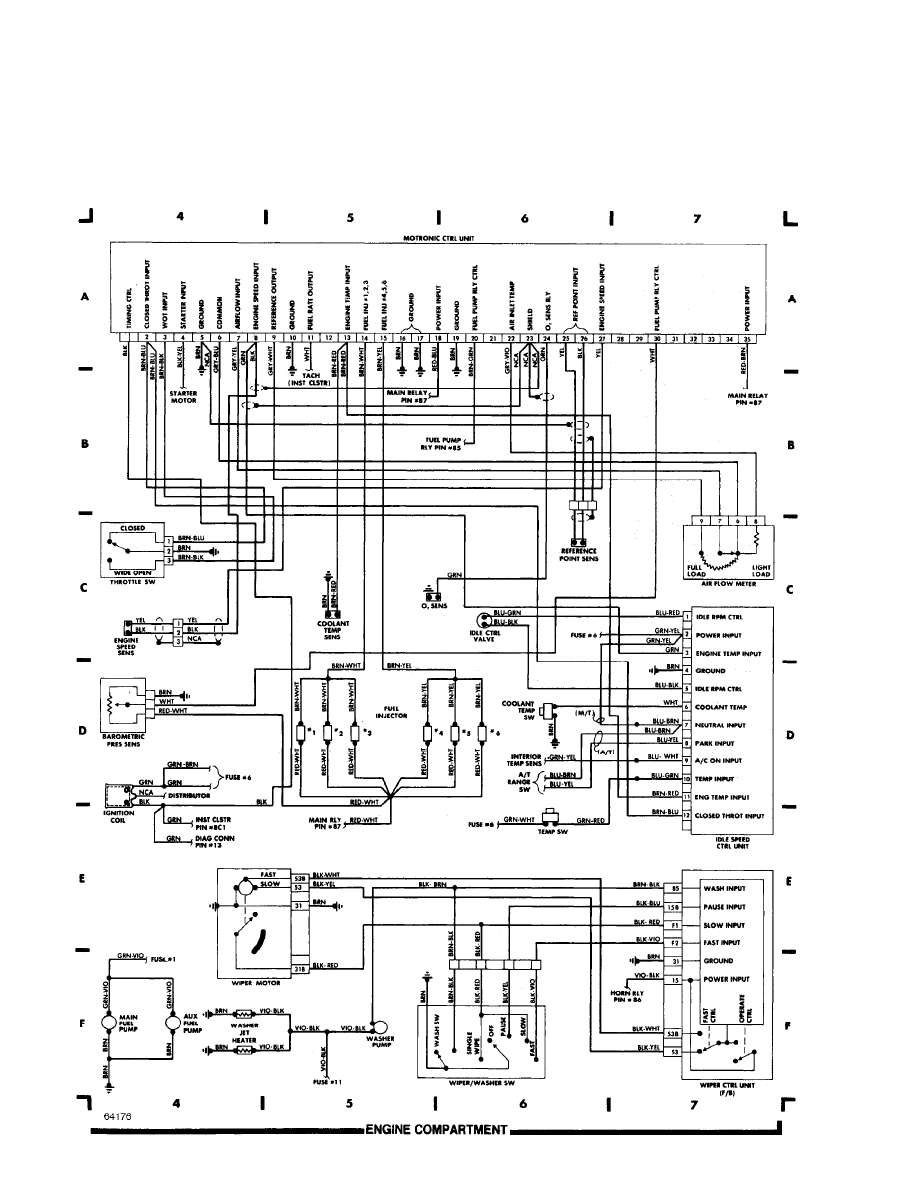

Fig. 2: Engine Compartment (Cont.) (Grids 4-7)

1987 BMW 528e

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, November 03, 2000 03:49PM

background image

WIRING DIAGRAMS

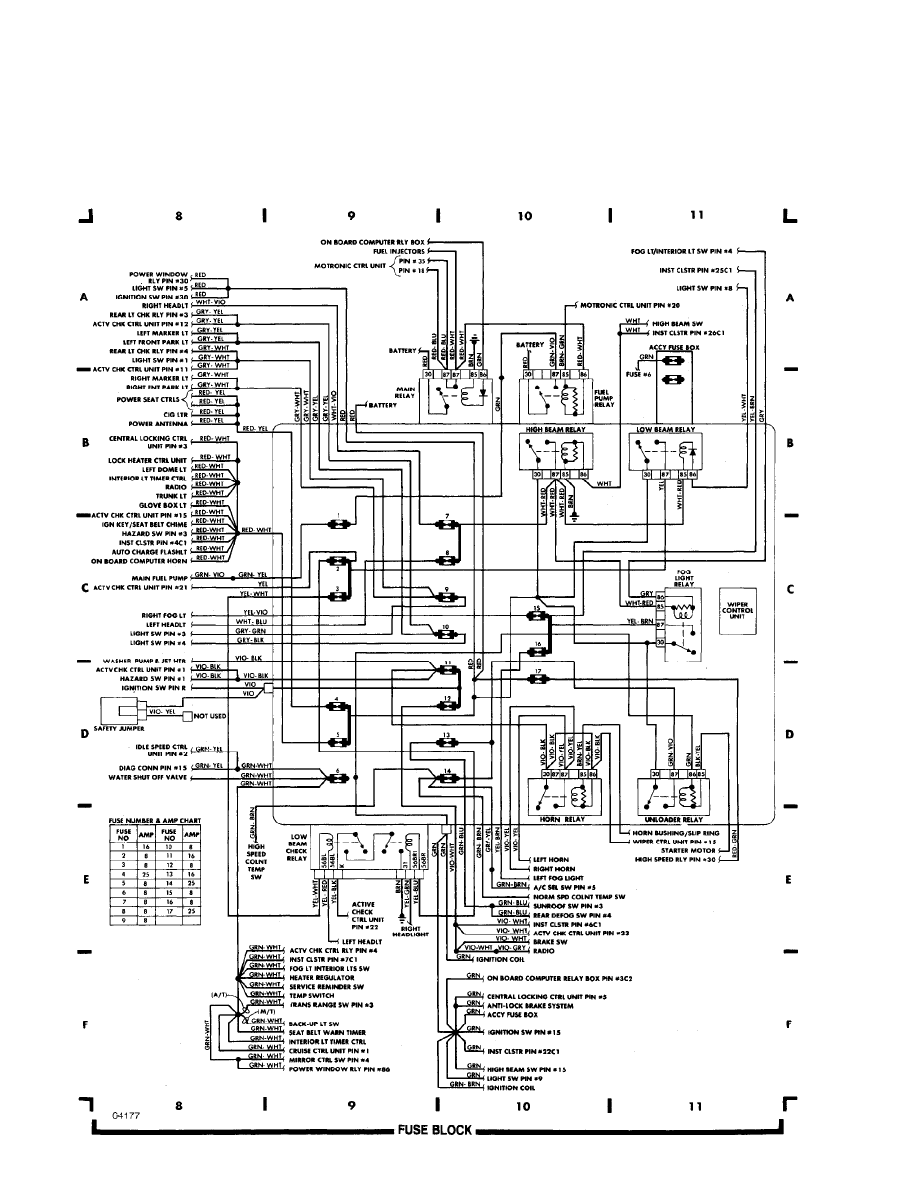

Fig. 3: Fuse Block (Grids 8-11)

1987 BMW 528e

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, November 03, 2000 03:49PM

background image

WIRING DIAGRAMS

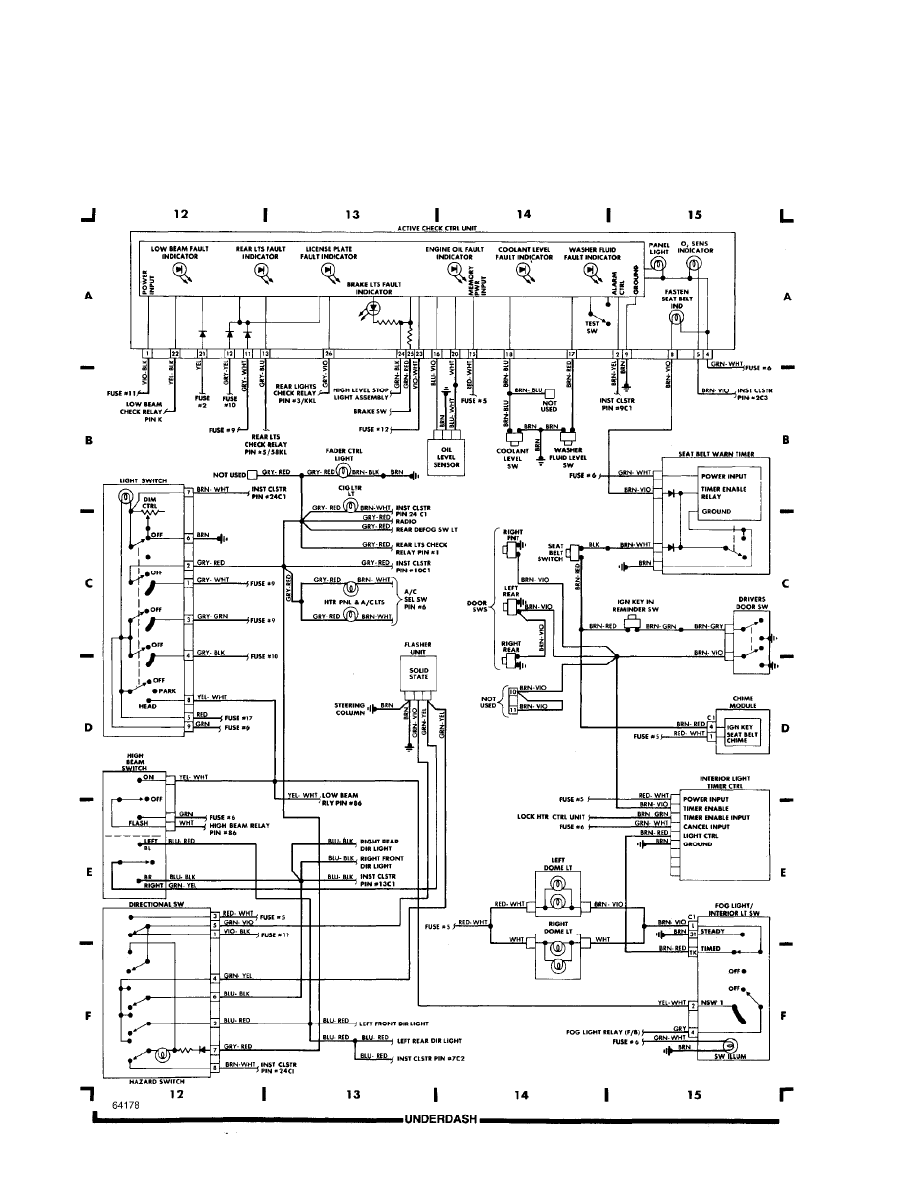

Fig. 4: Underdash (Grids 12-15)

1987 BMW 528e

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, November 03, 2000 03:49PM

background image

WIRING DIAGRAMS

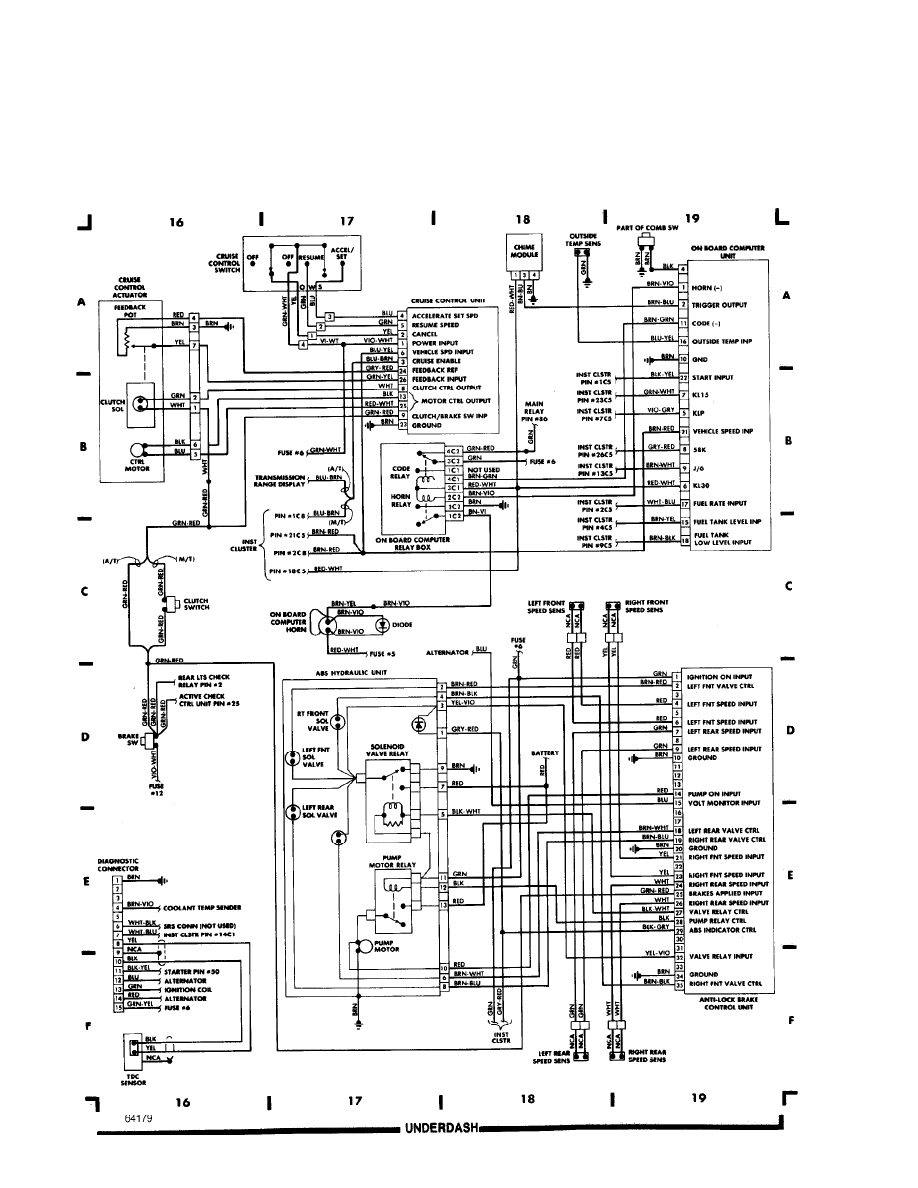

Fig. 5: Underdash (Cont.) (Grids 16-19)

1987 BMW 528e

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, November 03, 2000 03:49PM

background image

WIRING DIAGRAMS

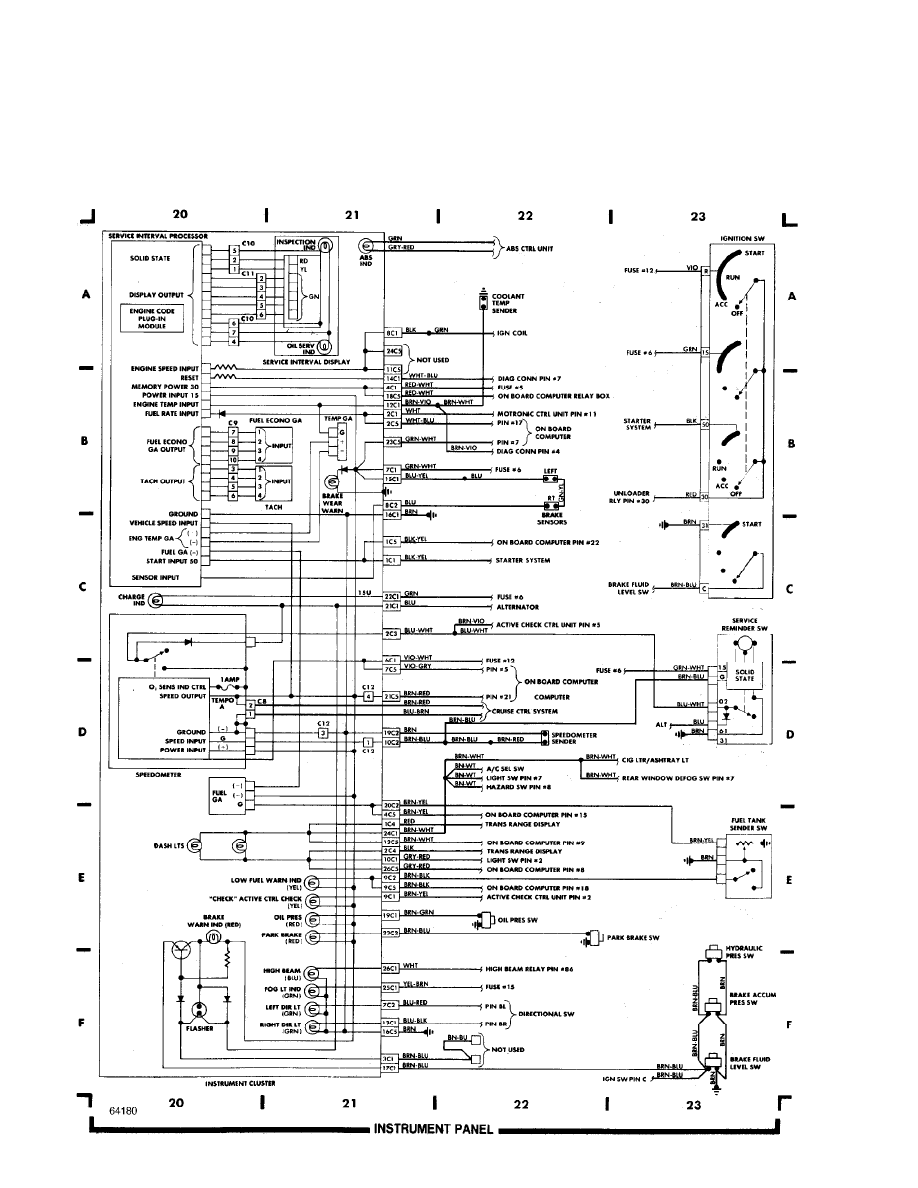

Fig. 6: Instrument Panel (Grids 20-23)

1987 BMW 528e

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, November 03, 2000 03:50PM

background image

WIRING DIAGRAMS

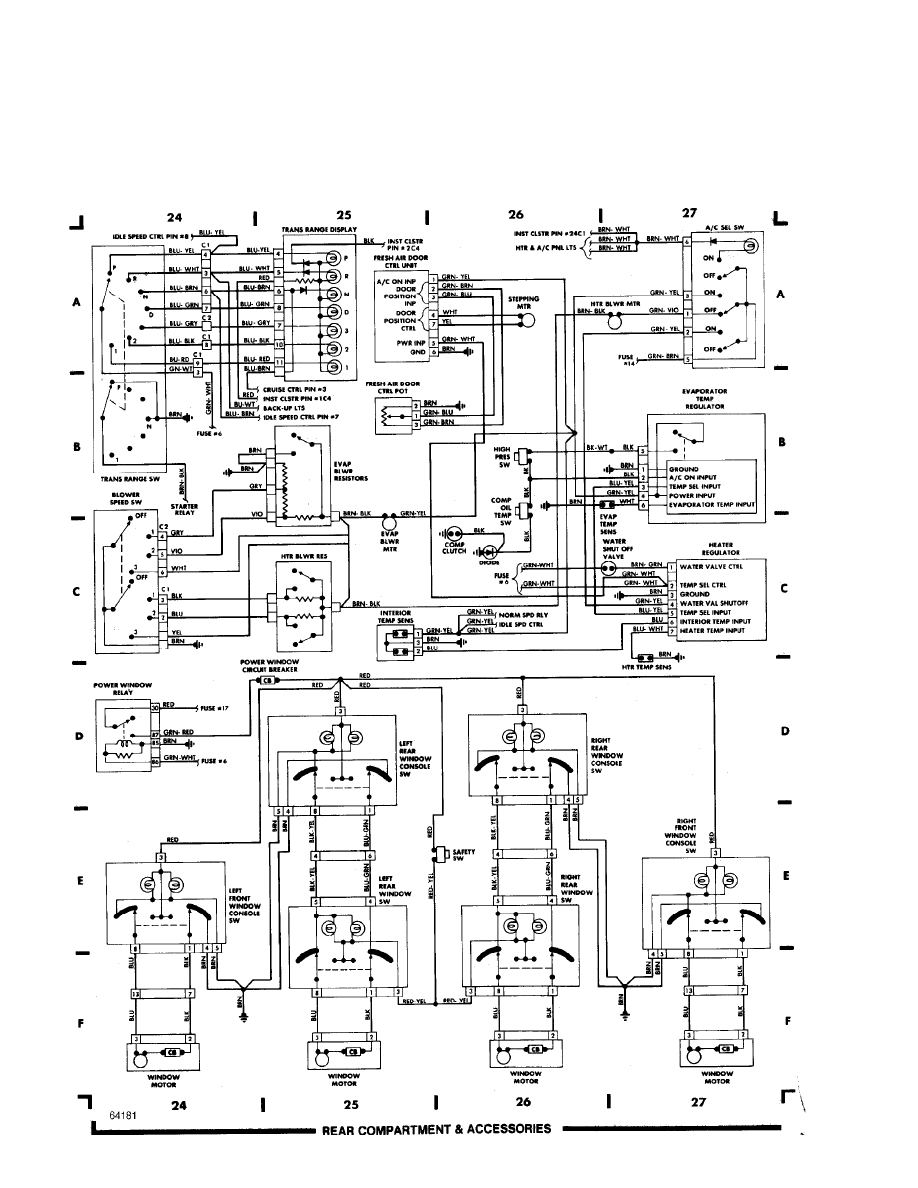

Fig. 7: Rear Compartment & Accessories (Grids 24-27)

1987 BMW 528e

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, November 03, 2000 03:56PM
