MAZDA 626 1992

SYSTEM WIRING DIAGRAMS

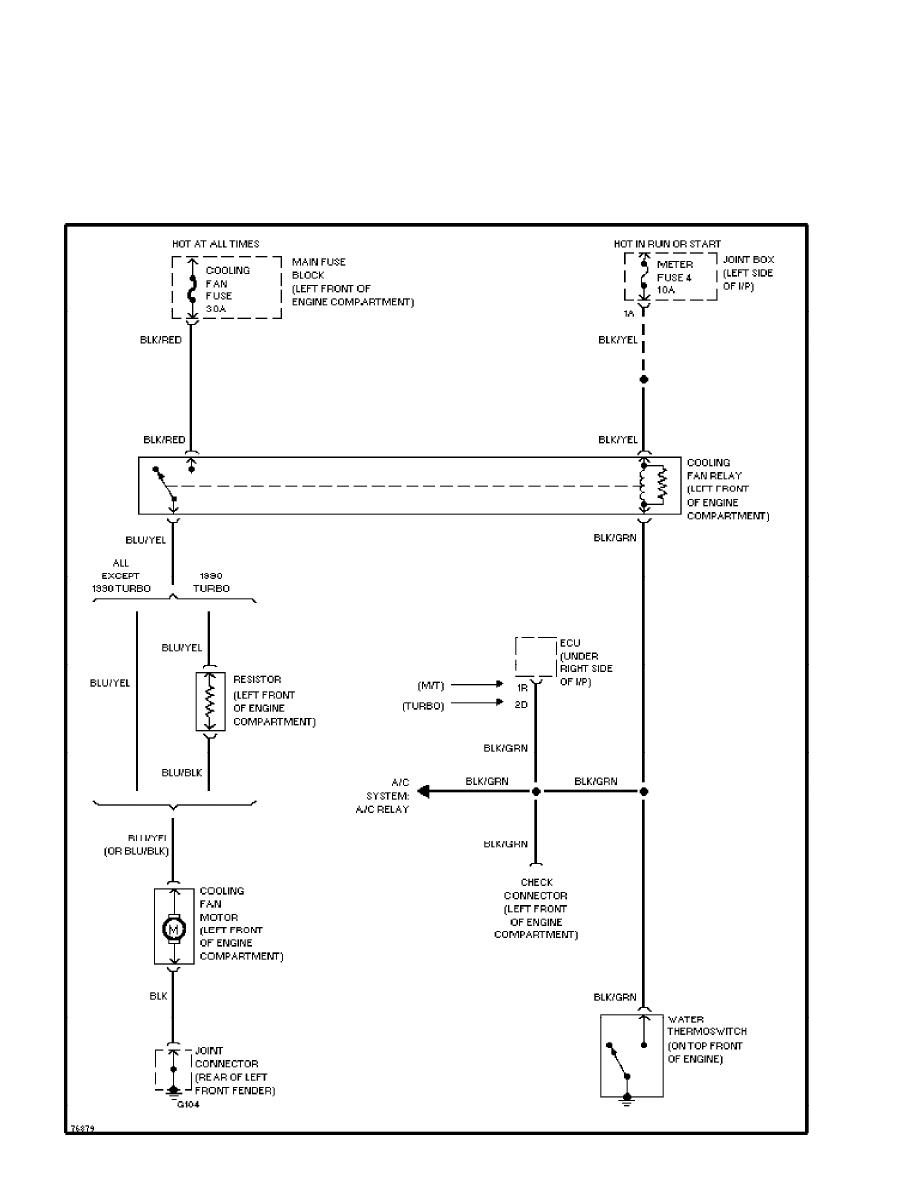

Cooling Fan Circuit, A/T

1992 Mazda 626

For x

Tuesday, September 07, 2004 08:34AM

SYSTEM WIRING DIAGRAMS

Cooling Fan Circuit, M/T (p. 2)

1992 Mazda 626

For x

Tuesday, September 07, 2004 08:34AM

SYSTEM WIRING DIAGRAMS

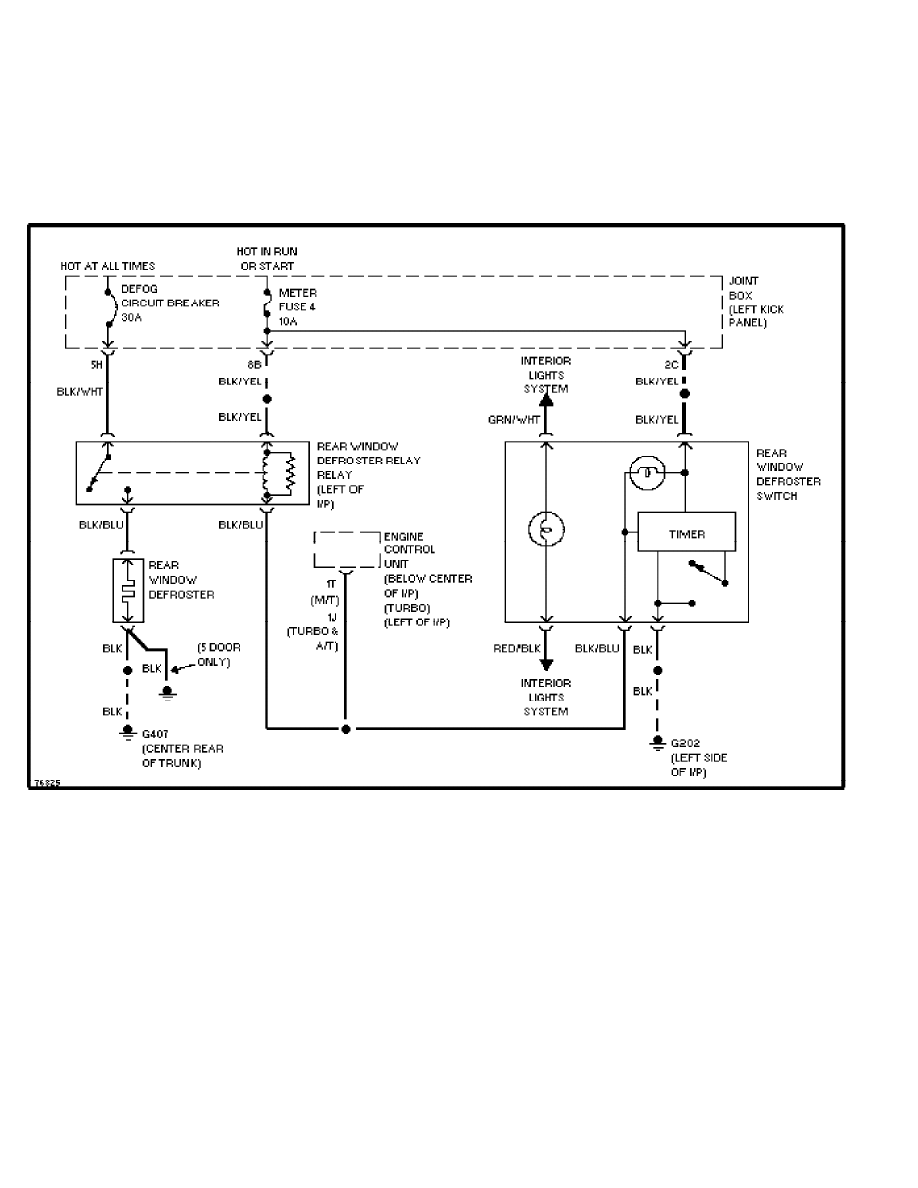

Defogger Circuit (p. 3)

1992 Mazda 626

For x

Tuesday, September 07, 2004 08:34AM

SYSTEM WIRING DIAGRAMS

Horn Circuit (p. 4)

1992 Mazda 626

For x

Tuesday, September 07, 2004 08:34AM

SYSTEM WIRING DIAGRAMS

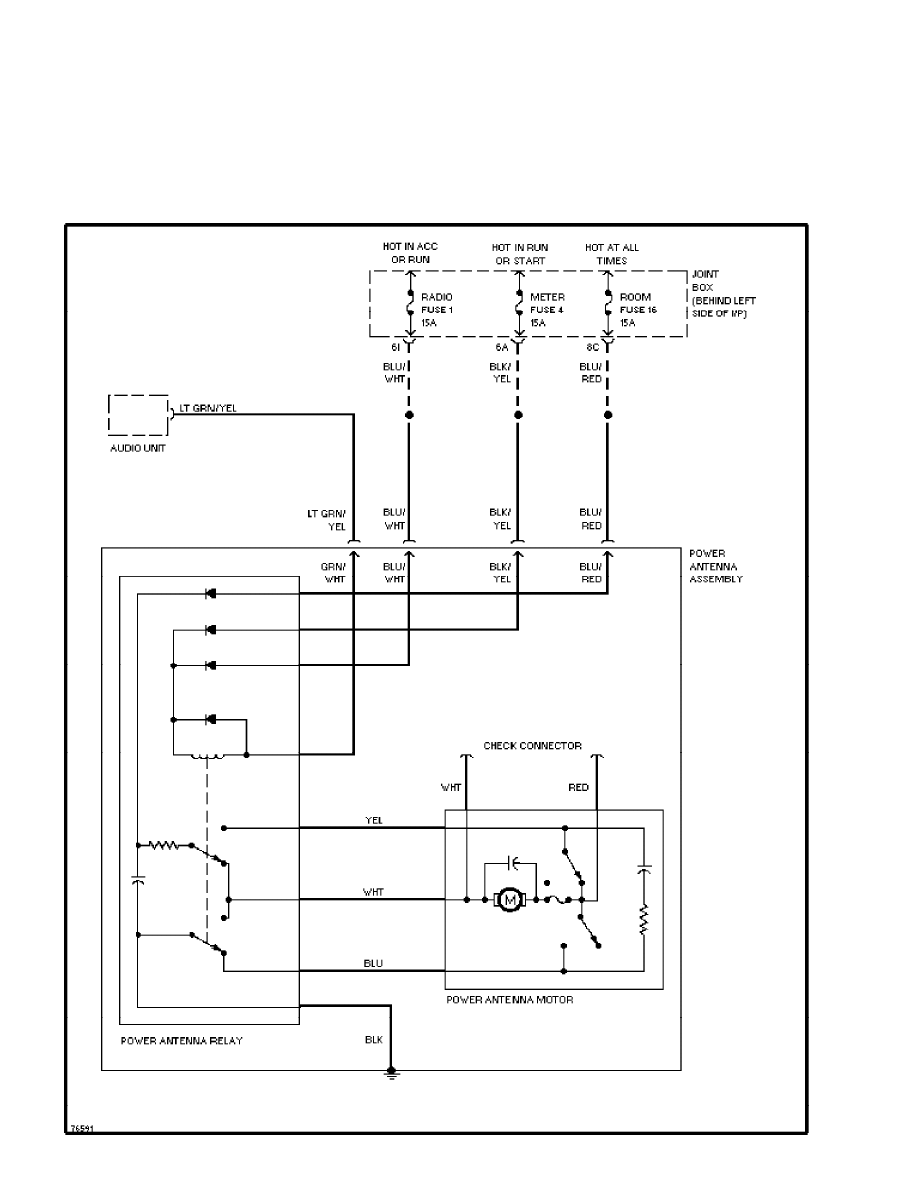

Power Antenna Circuit (p. 5)

1992 Mazda 626

For x

Tuesday, September 07, 2004 08:34AM

SYSTEM WIRING DIAGRAMS

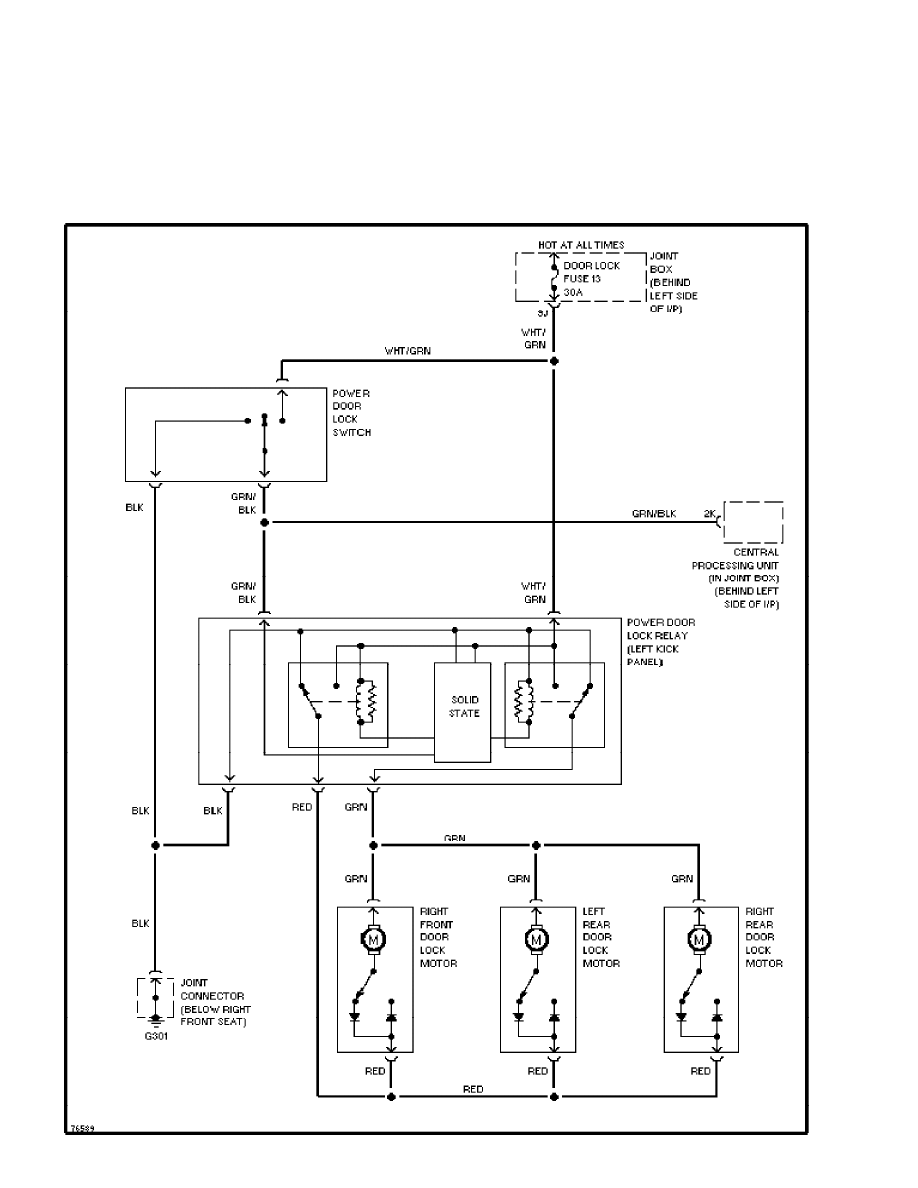

Power Door Lock Circuit (p. 6)

1992 Mazda 626

For x

Tuesday, September 07, 2004 08:34AM

SYSTEM WIRING DIAGRAMS

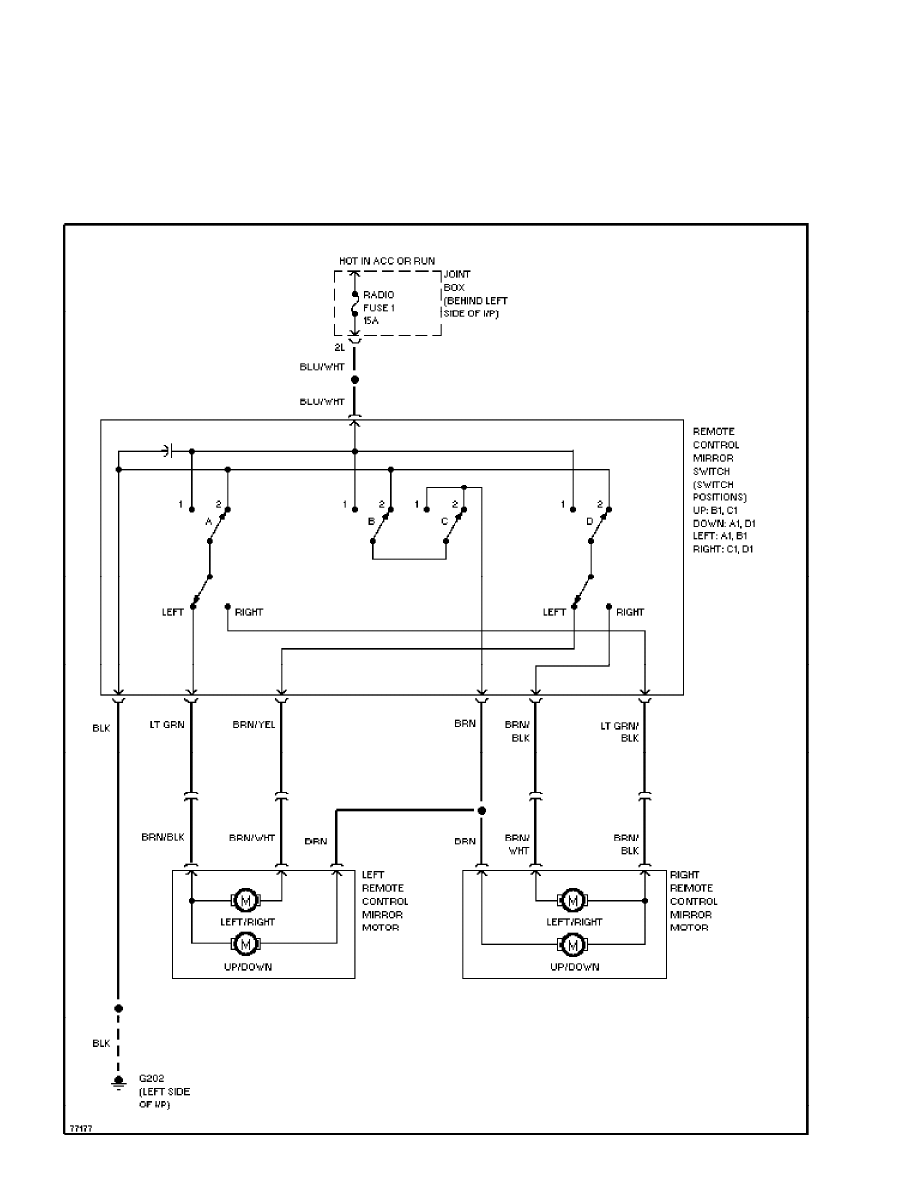

Power Mirror Circuit (p. 7)

1992 Mazda 626

For x

Tuesday, September 07, 2004 08:34AM

SYSTEM WIRING DIAGRAMS

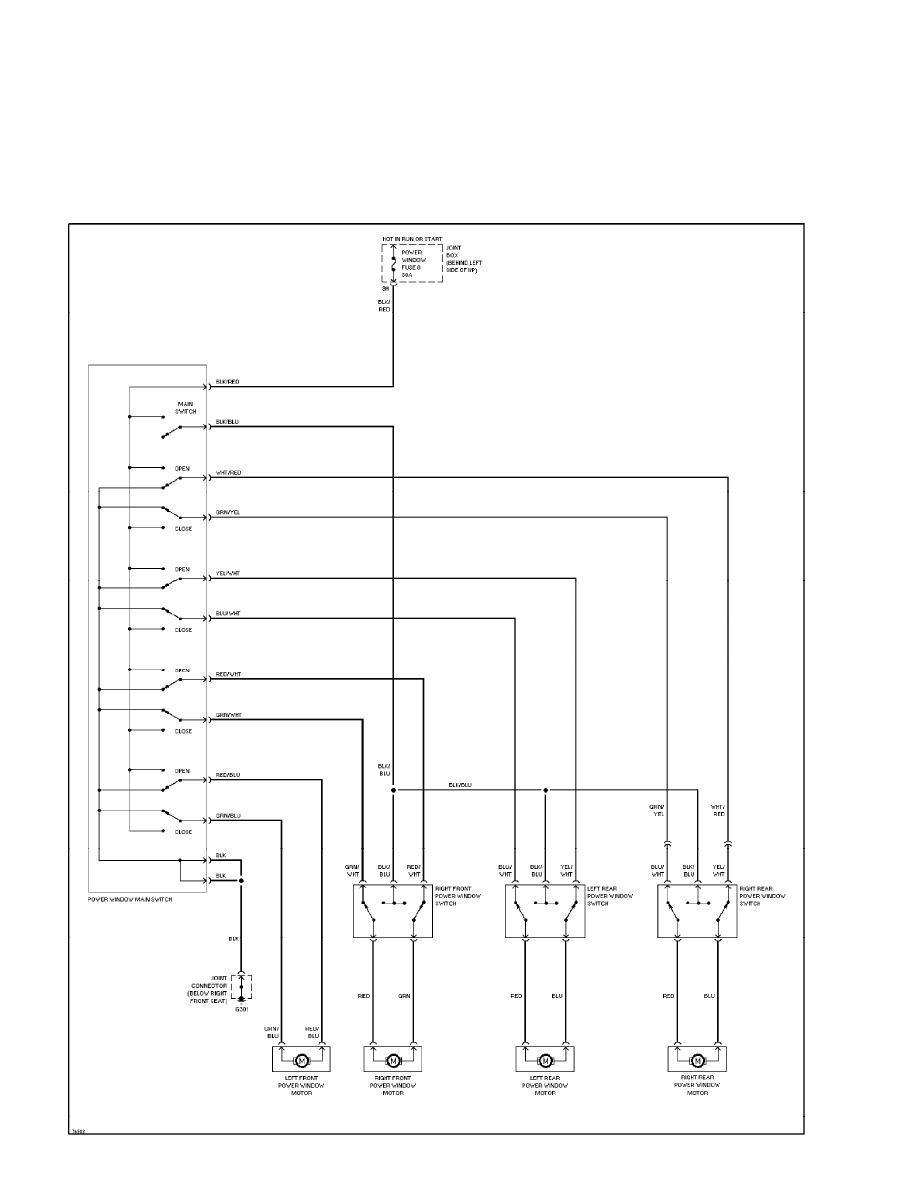

Power Window Circuit (p. 8)

1992 Mazda 626

For x

Tuesday, September 07, 2004 08:34AM

SYSTEM WIRING DIAGRAMS

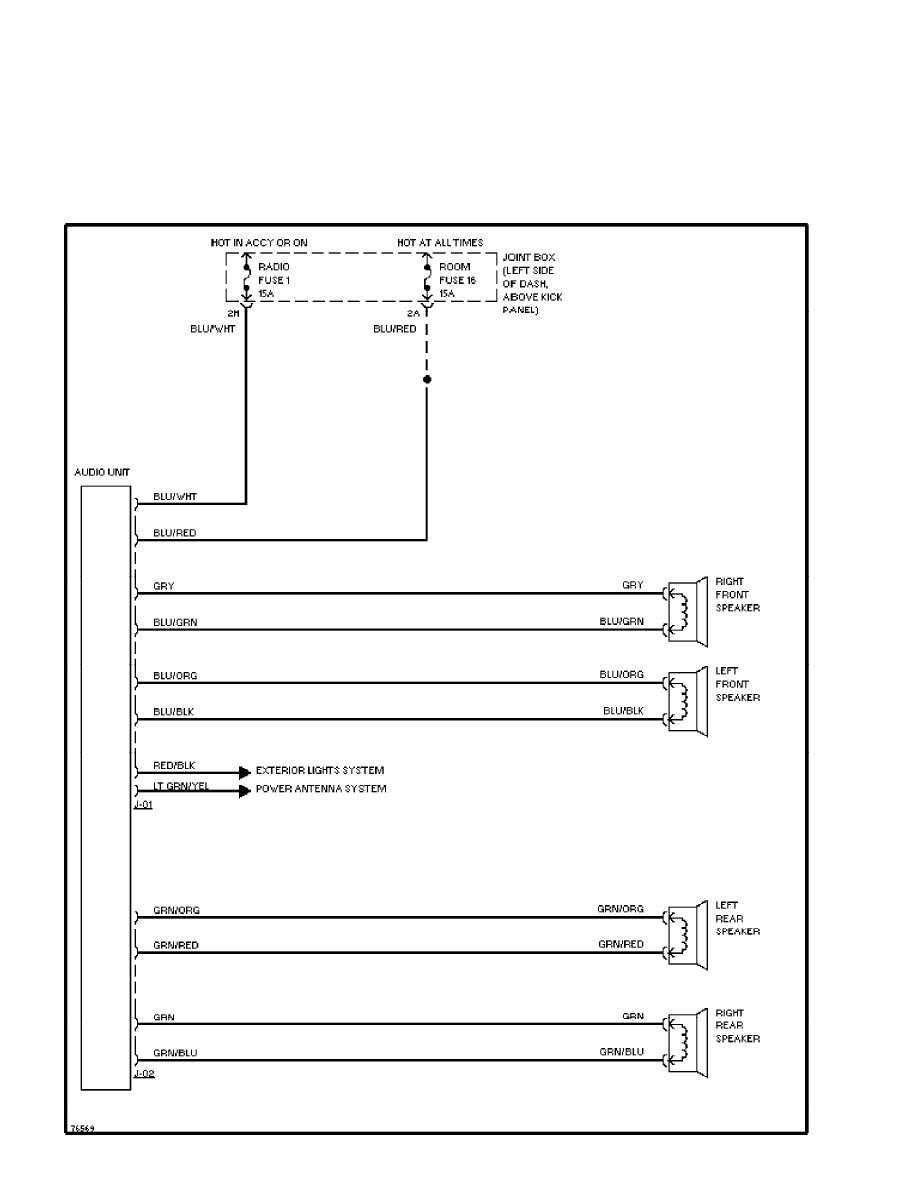

Radio Circuits, W/ Full Logic Cassette Player (p. 9)

1992 Mazda 626

For x

Tuesday, September 07, 2004 08:34AM

SYSTEM WIRING DIAGRAMS

Radio Circuits, W/O Full Logic Cassette Player (p. 10)

1992 Mazda 626

For x

Tuesday, September 07, 2004 08:34AM

SYSTEM WIRING DIAGRAMS

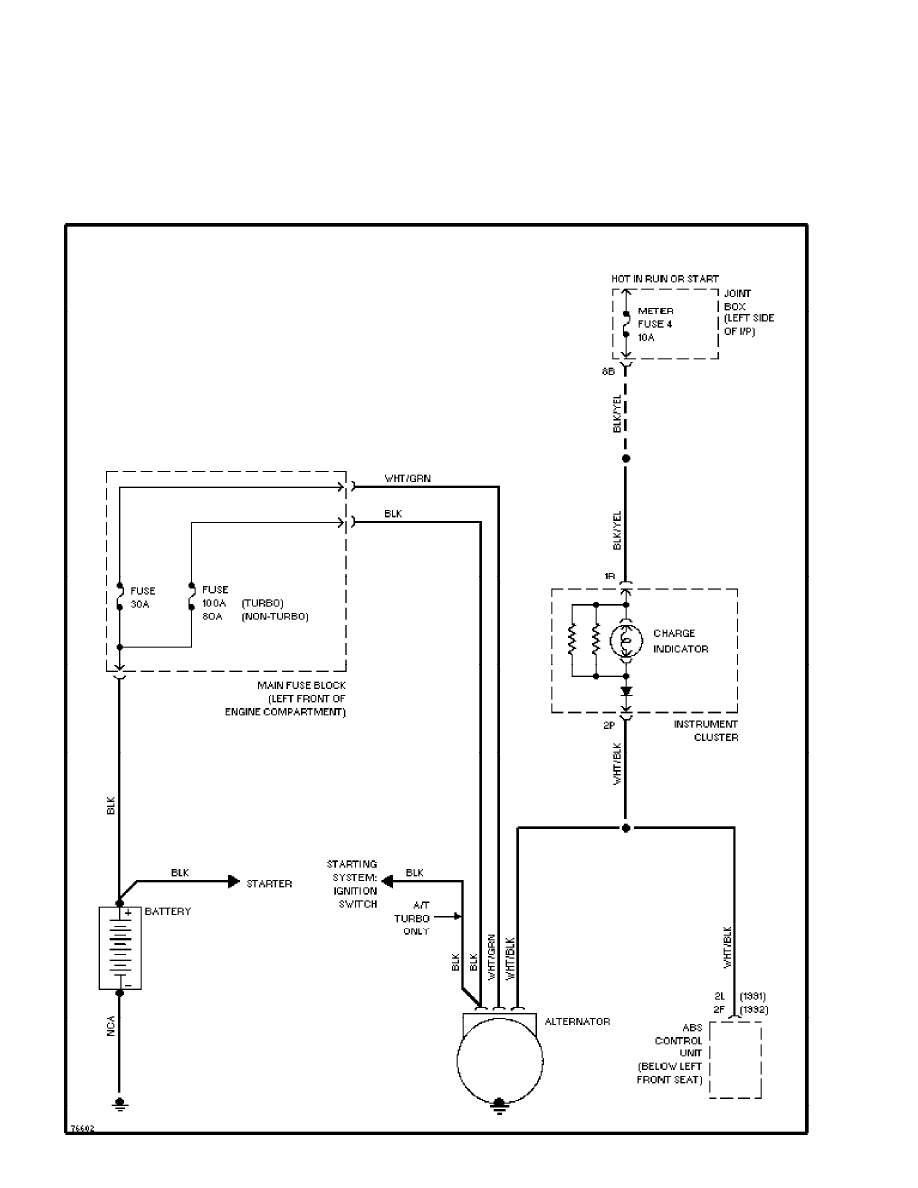

Charging Circuit (p. 11)

1992 Mazda 626

For x

Tuesday, September 07, 2004 08:34AM

SYSTEM WIRING DIAGRAMS

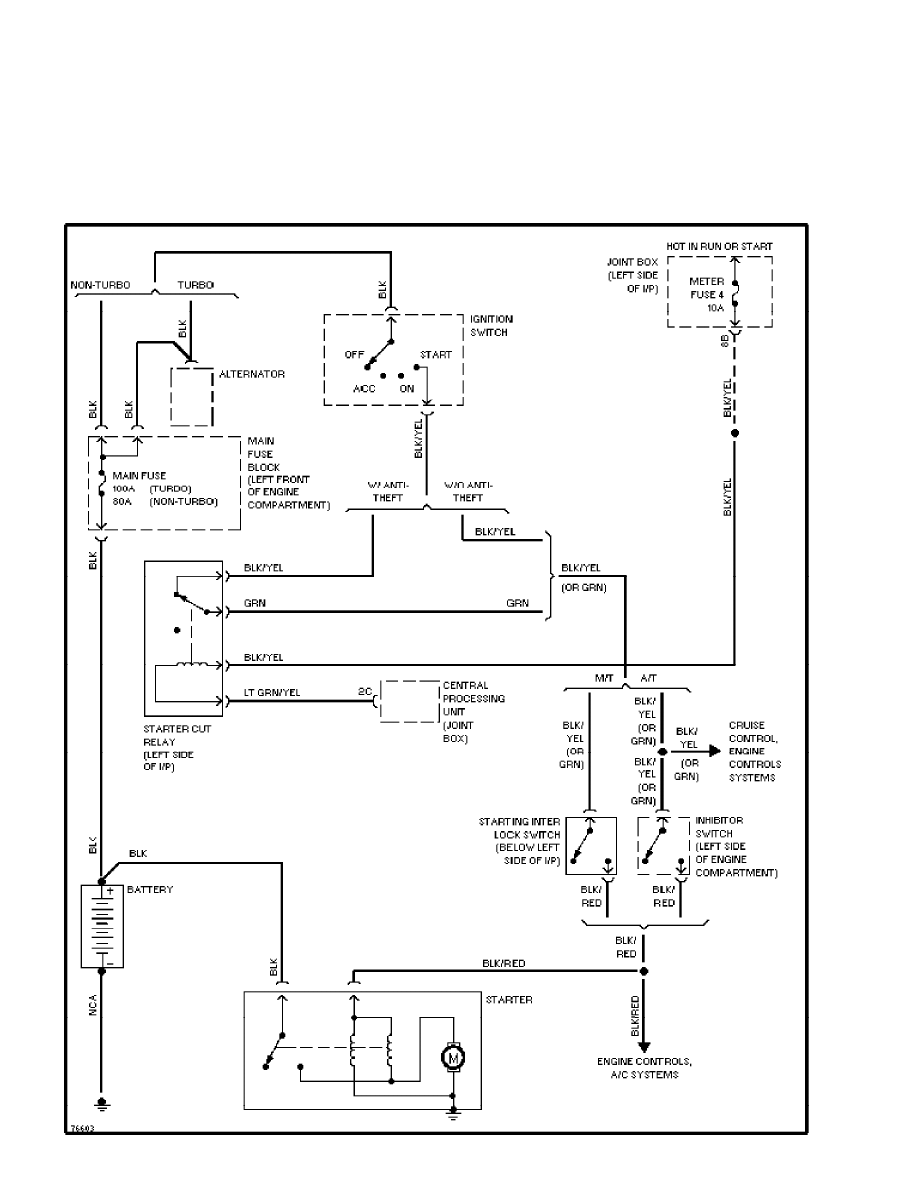

Starting Circuit (p. 12)

1992 Mazda 626

For x

Tuesday, September 07, 2004 08:34AM

SYSTEM WIRING DIAGRAMS

Front Washer/Wiper Circuit (p. 13)

1992 Mazda 626

For x

Tuesday, September 07, 2004 08:34AM

SYSTEM WIRING DIAGRAMS

Headlamp Washer Circuit (p. 14)

1992 Mazda 626

For x

Tuesday, September 07, 2004 08:34AM

WIRING DIAGRAMS

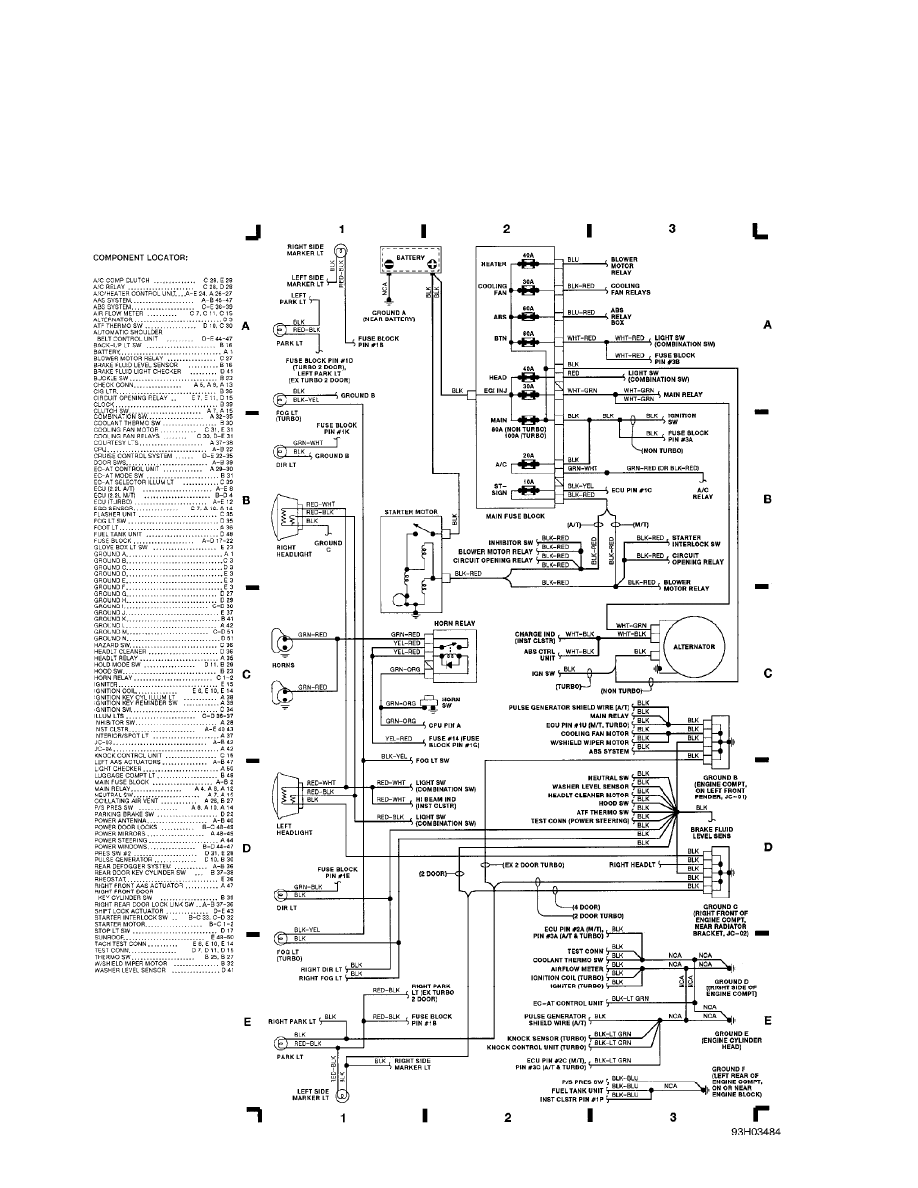

Fig. 1: Engine Compartment, Headlights (Grid 1-3)

1992 Mazda 626

For x

Tuesday, September 07, 2004 08:36AM

WIRING DIAGRAMS

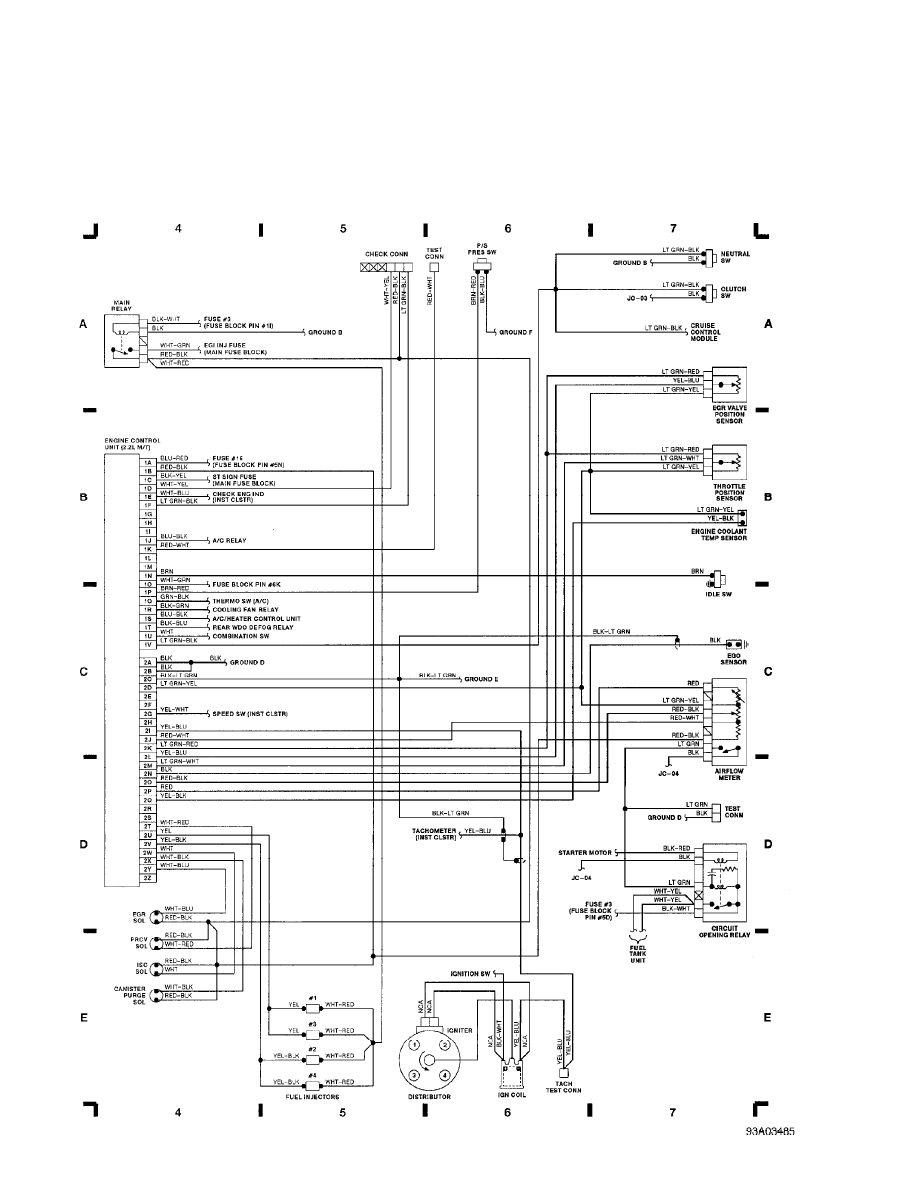

Fig. 2: Engine Control Unit (2.2L M/T) (Grid 4-11) (p. 2)

1992 Mazda 626

For x

Tuesday, September 07, 2004 08:36AM

WIRING DIAGRAMS

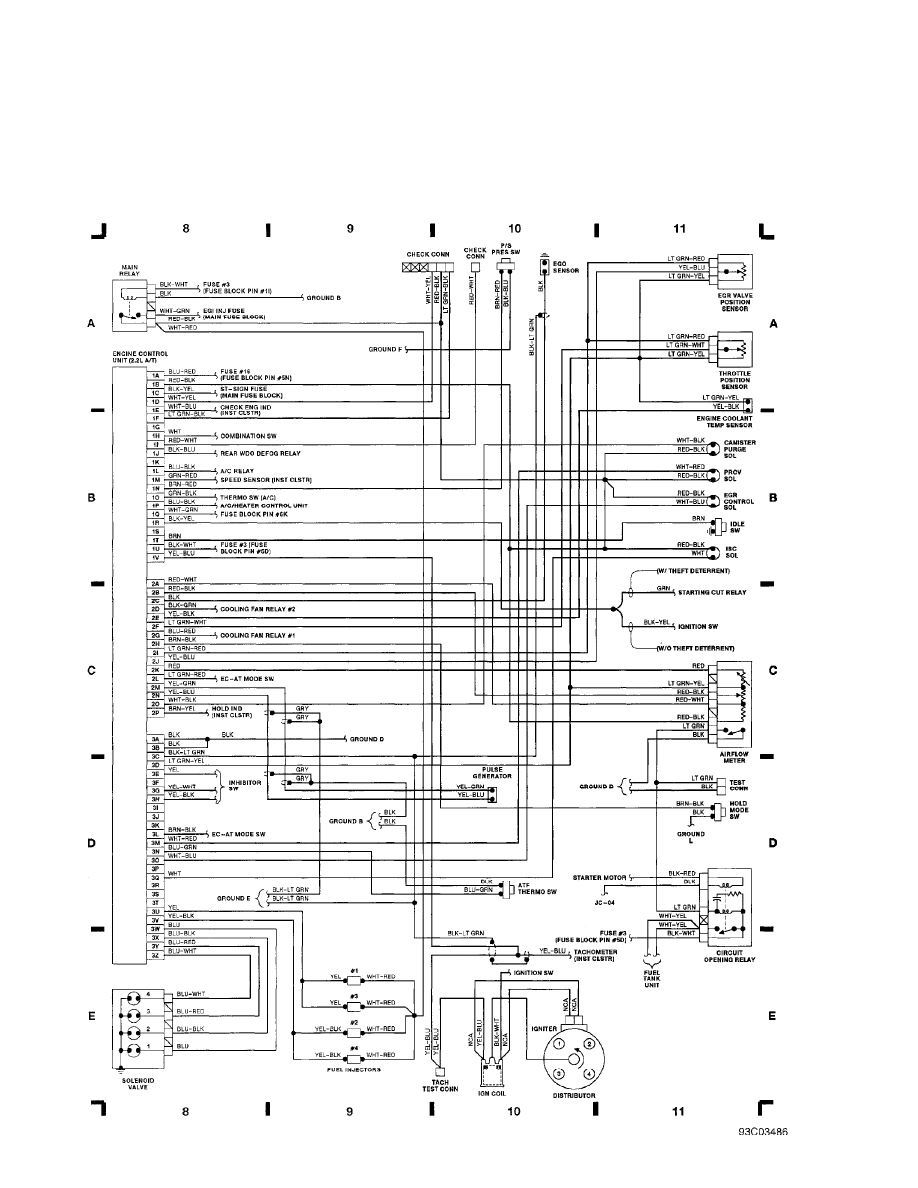

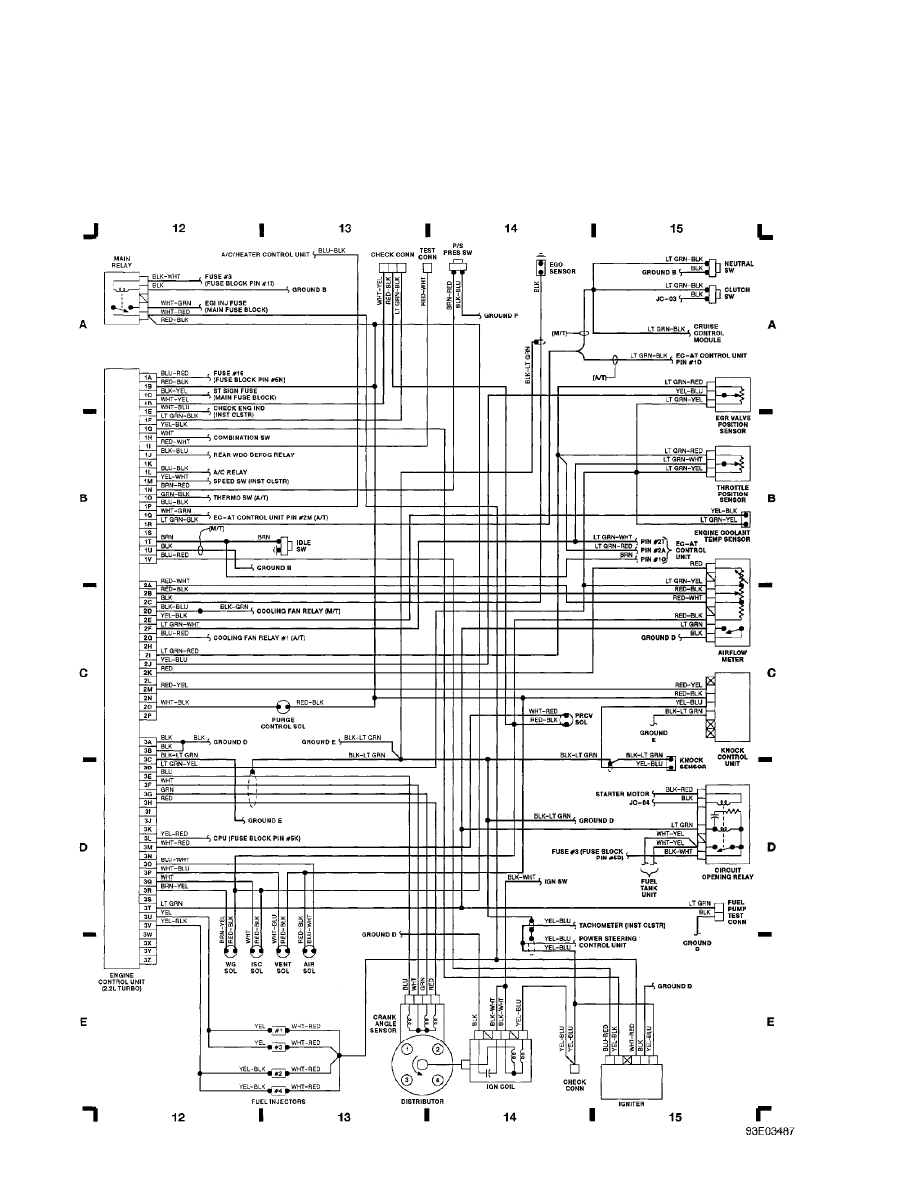

Fig. 3: Engine Control Unit (2.2L A/T) (Grid 12-15) (p. 3)

1992 Mazda 626

For x

Tuesday, September 07, 2004 08:36AM

WIRING DIAGRAMS

Fig. 4: Engine Control Unit (2.2L TURBO) (Grid 16-19) (p. 4)

1992 Mazda 626

For x

Tuesday, September 07, 2004 08:36AM

WIRING DIAGRAMS

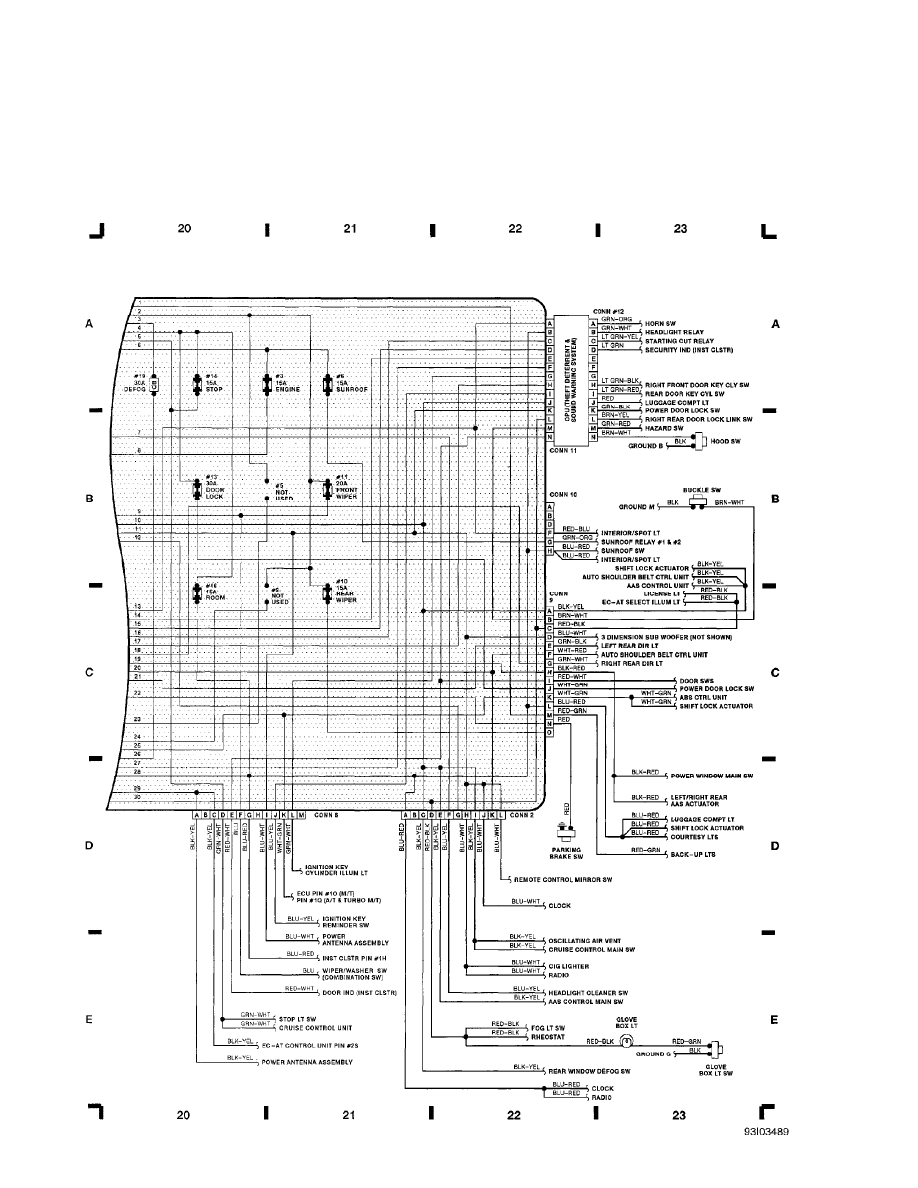

Fig. 5: Fuse Block (Partial) (Grid 20-23) (p. 5)

1992 Mazda 626

For x

Tuesday, September 07, 2004 08:36AM

WIRING DIAGRAMS

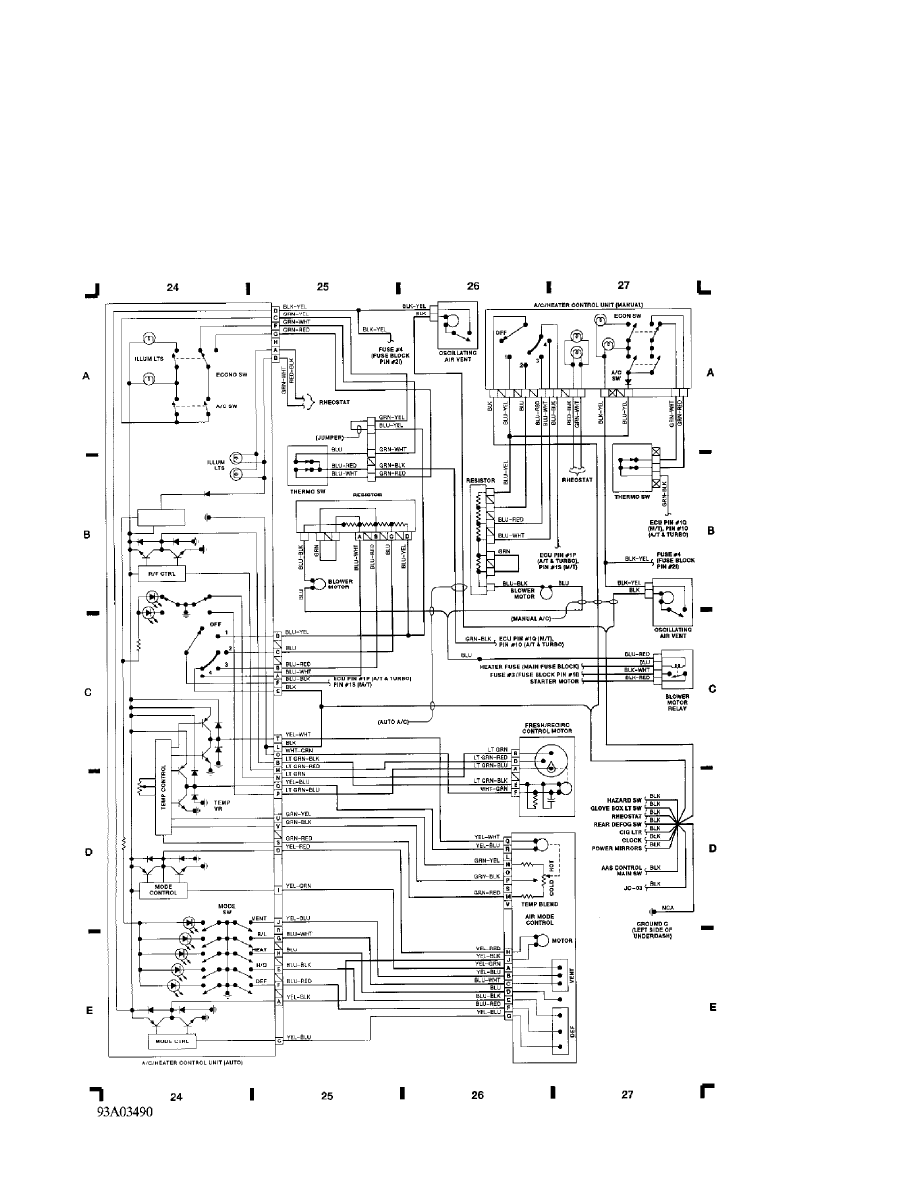

Fig. 6: Fuse Block (Partial), CPU (Theft Deterrent) (Grid 24-27) (p. 6)

1992 Mazda 626

For x

Tuesday, September 07, 2004 08:36AM

WIRING DIAGRAMS

Fig. 7: A/C Heater Control Unit (Auto) (Grid 28-31) (p. 7)

1992 Mazda 626

For x

Tuesday, September 07, 2004 08:36AM

WIRING DIAGRAMS

Fig. 8: Elect Con Auto Trans (EC-AT) Con Unit (TURBO) (Grid 32-35) (p. 8)

1992 Mazda 626

For x

Tuesday, September 07, 2004 08:36AM

WIRING DIAGRAMS

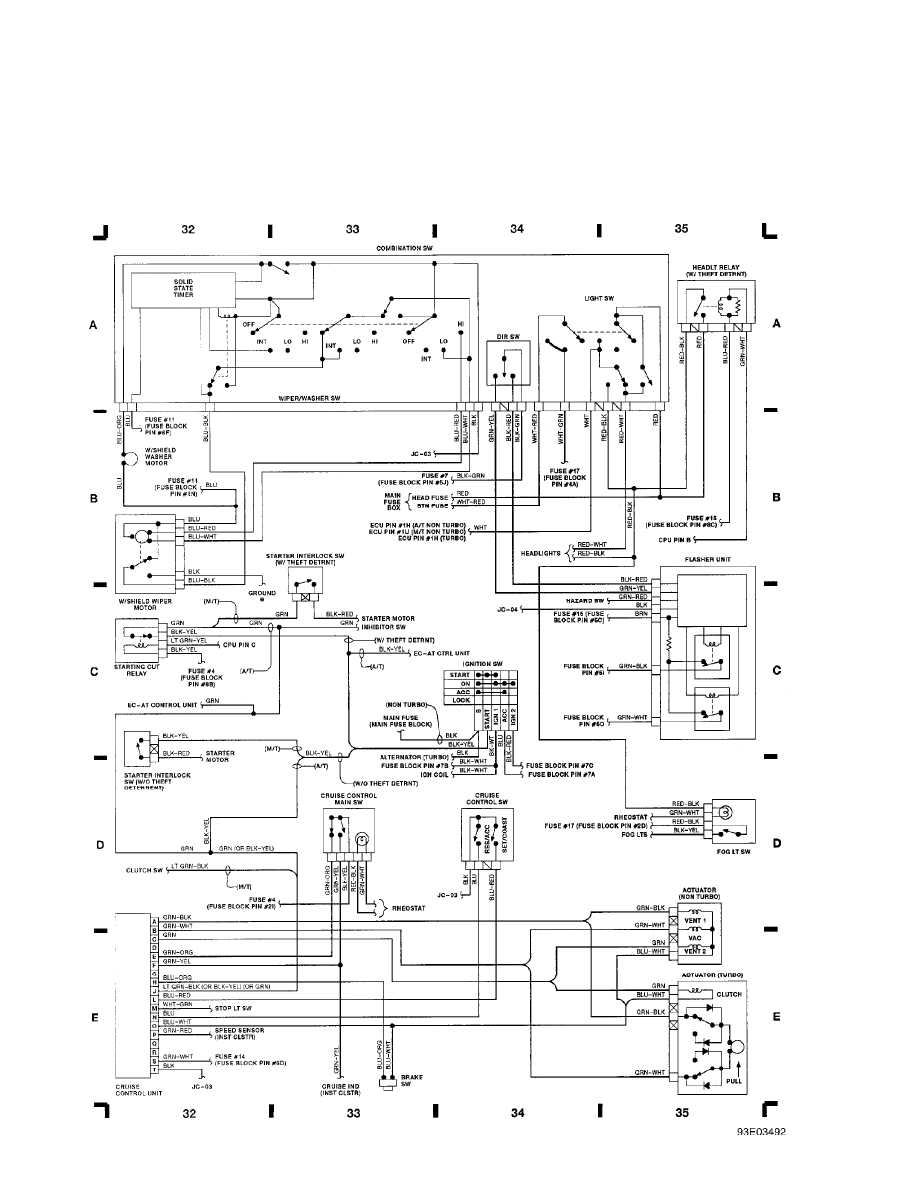

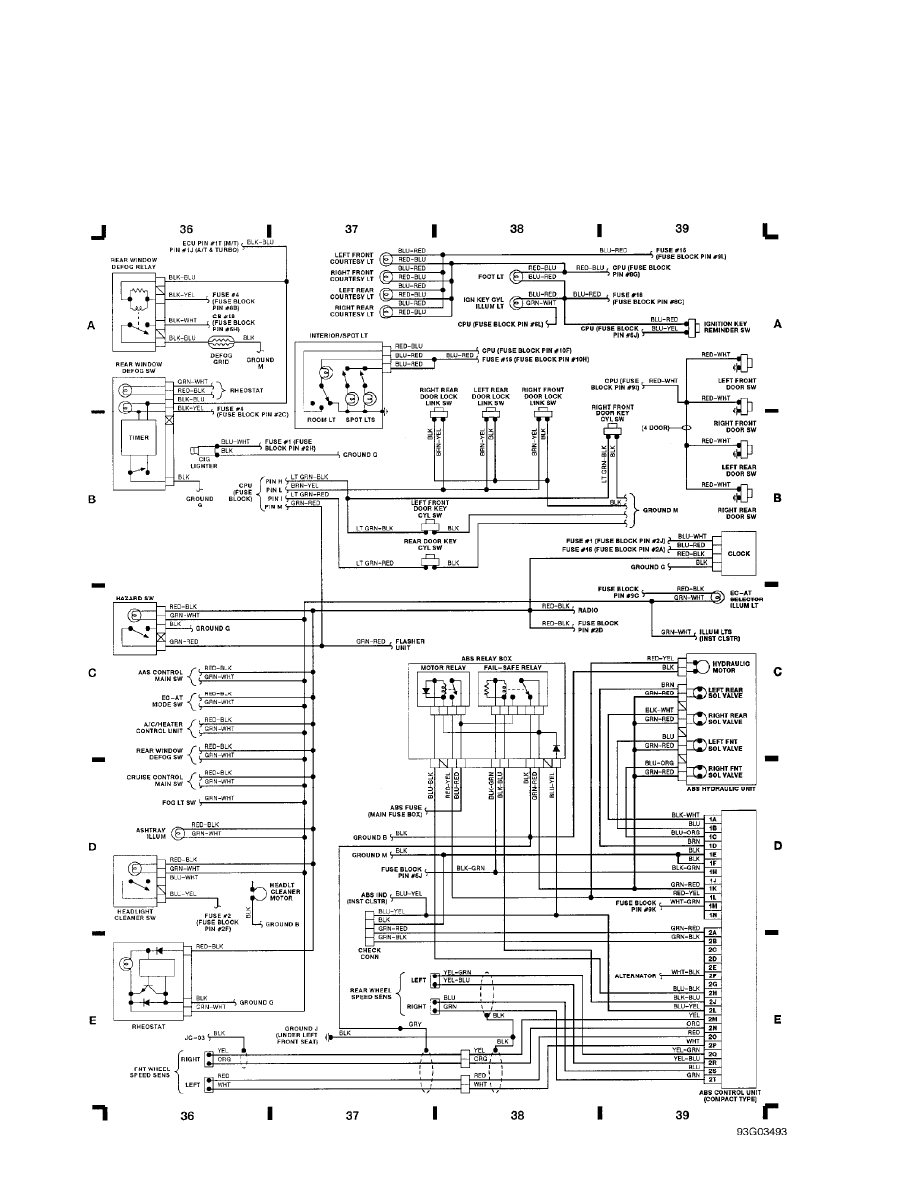

Fig. 9: Combination Sw, Cruise Control Unit (Grid 36-39) (p. 9)

1992 Mazda 626

For x

Tuesday, September 07, 2004 08:36AM

WIRING DIAGRAMS

Fig. 10: ABS/Hydraulic Control Unit, Hazard Sw (Grid 40-43) (p. 10)

1992 Mazda 626

For x

Tuesday, September 07, 2004 08:36AM

WIRING DIAGRAMS

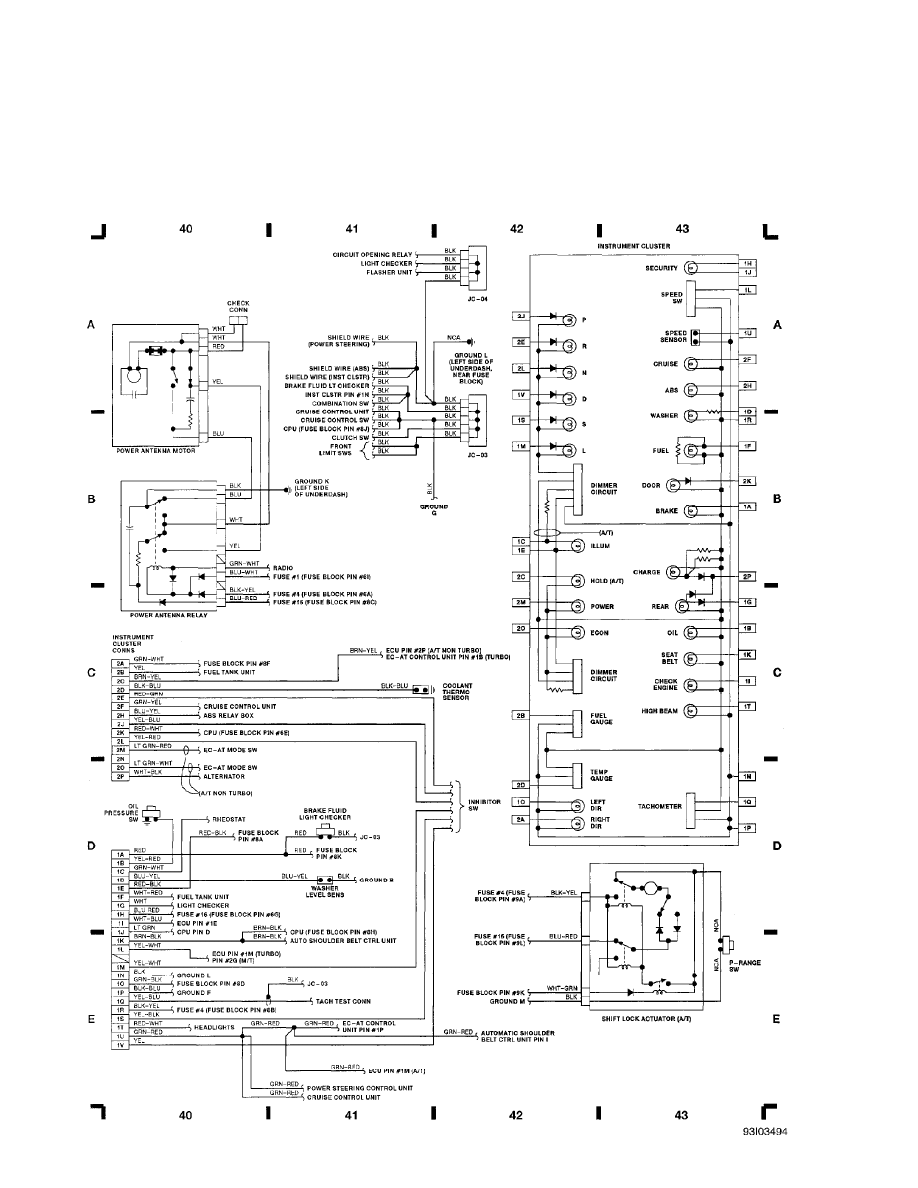

Fig. 11: Instrument Cluster, Power Antenna Relay Motor (Grid 44-47) (p. 11)

1992 Mazda 626

For x

Tuesday, September 07, 2004 08:36AM

WIRING DIAGRAMS

Fig. 12: Auto Adjusting Suspension (AAS) Con Unit (Grid 48-51) (p. 12)

1992 Mazda 626

For x

Tuesday, September 07, 2004 08:36AM

WIRING DIAGRAMS

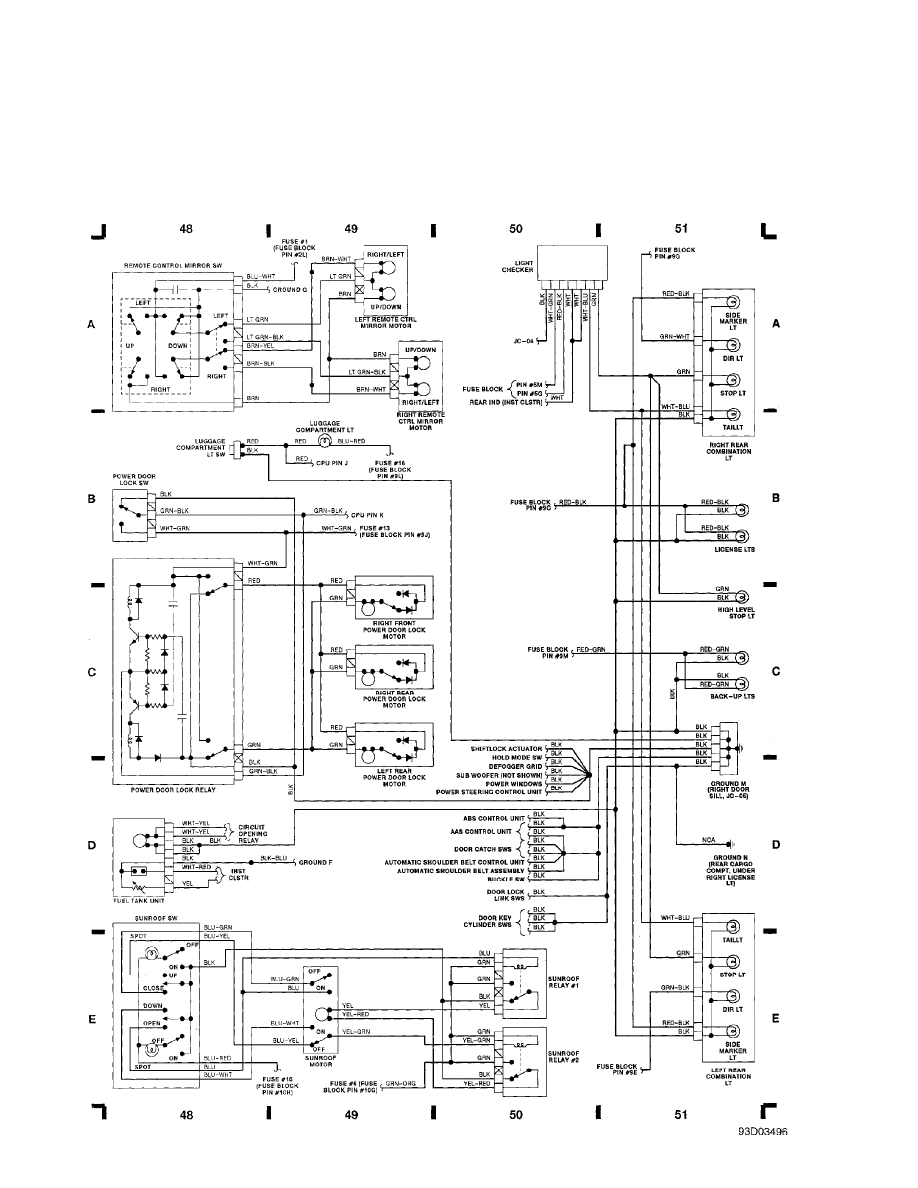

Fig. 13: Power Door/Sunroof Sw, Taillight (Grid 52-55) (p. 13)

1992 Mazda 626

For x

Tuesday, September 07, 2004 08:36AM
