AUDI 5000 5000S 1983

background image

WIRING DIAGRAMS

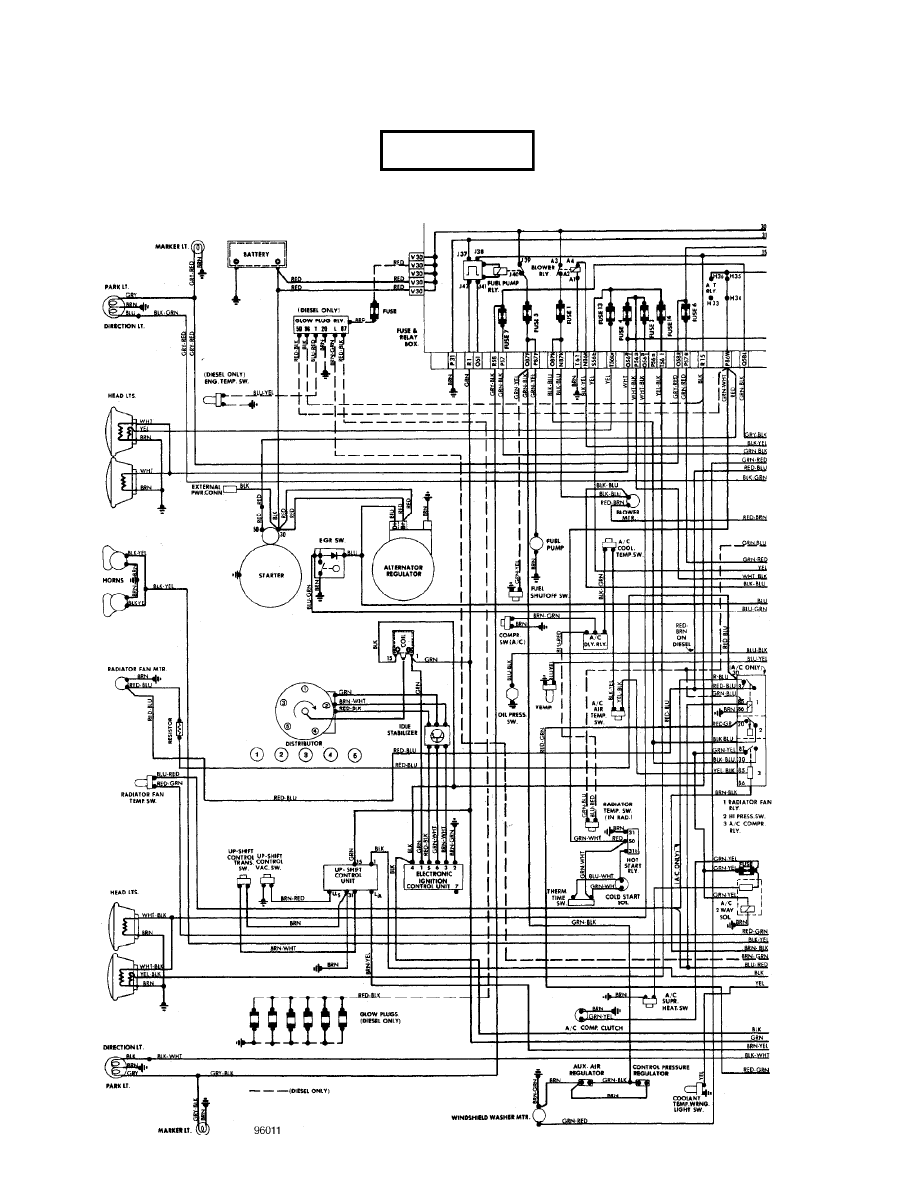

Fig. 1: Engine Compartment & Fuse Block

1983 Audi 5000/5000S

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, July 19, 2004 05:22PM

cdr@wp.pl

background image

WIRING DIAGRAMS

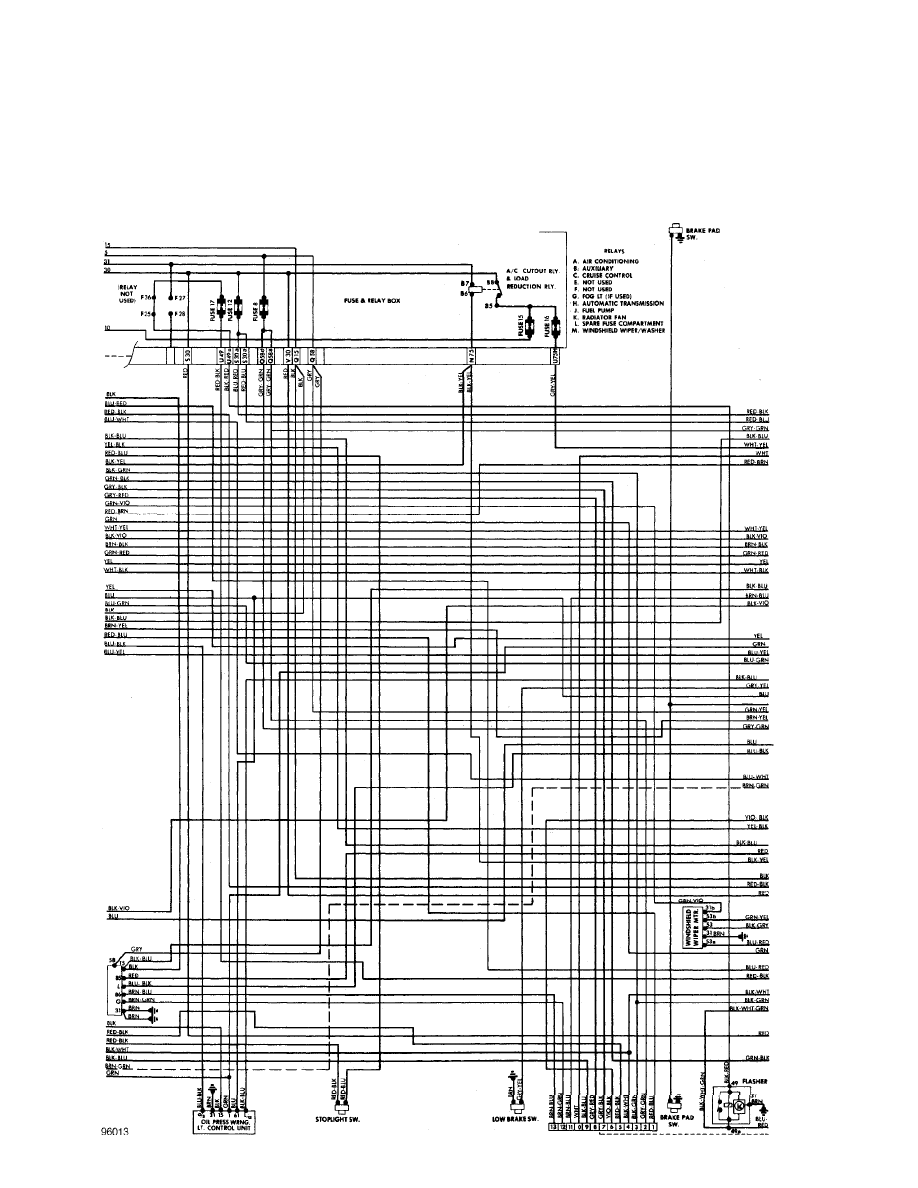

Fig. 3: Fuse Block & Underdash (Cont.)

1983 Audi 5000/5000S

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, July 19, 2004 05:22PM

background image

WIRING DIAGRAMS

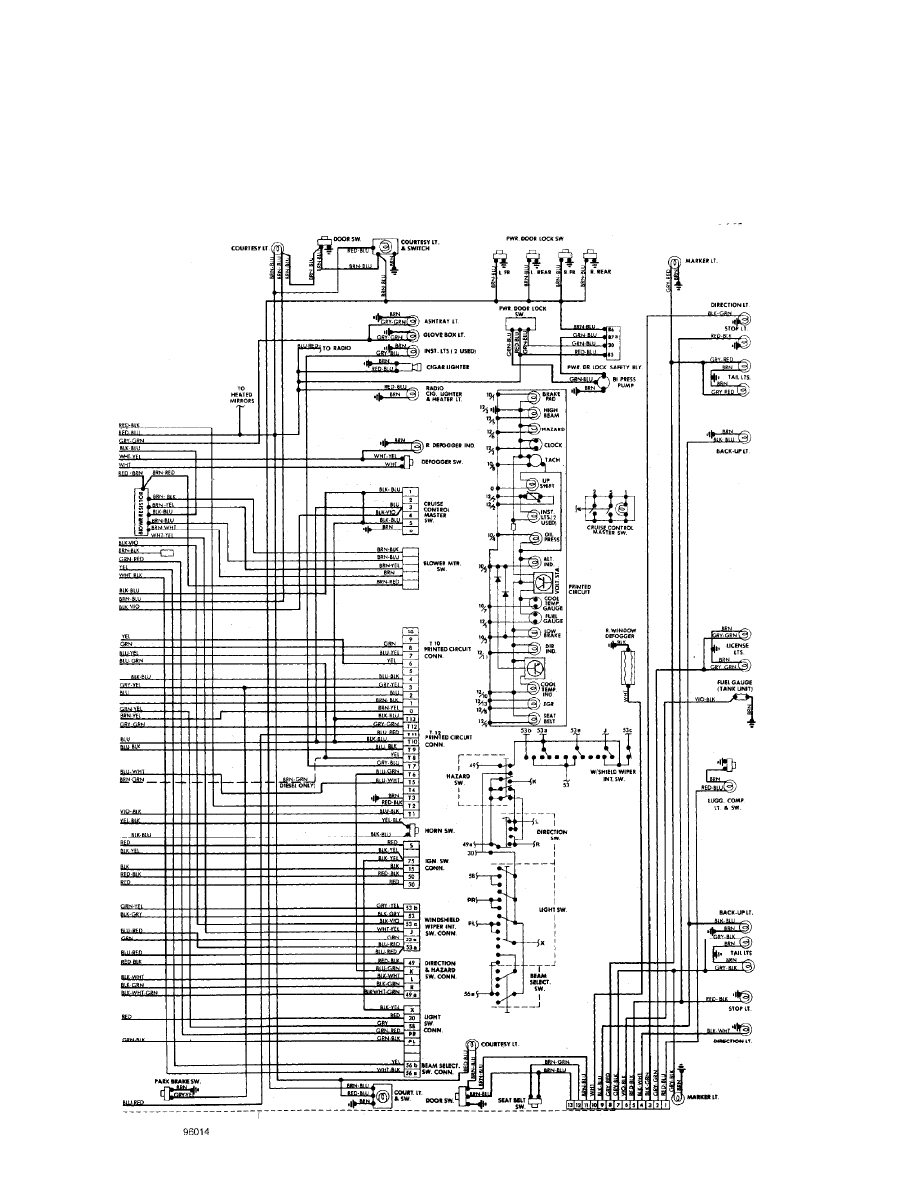

Fig. 4: Instrument Panel & Rear Compartment

1983 Audi 5000/5000S

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, July 19, 2004 05:22PM

background image

WIRING DIAGRAMS

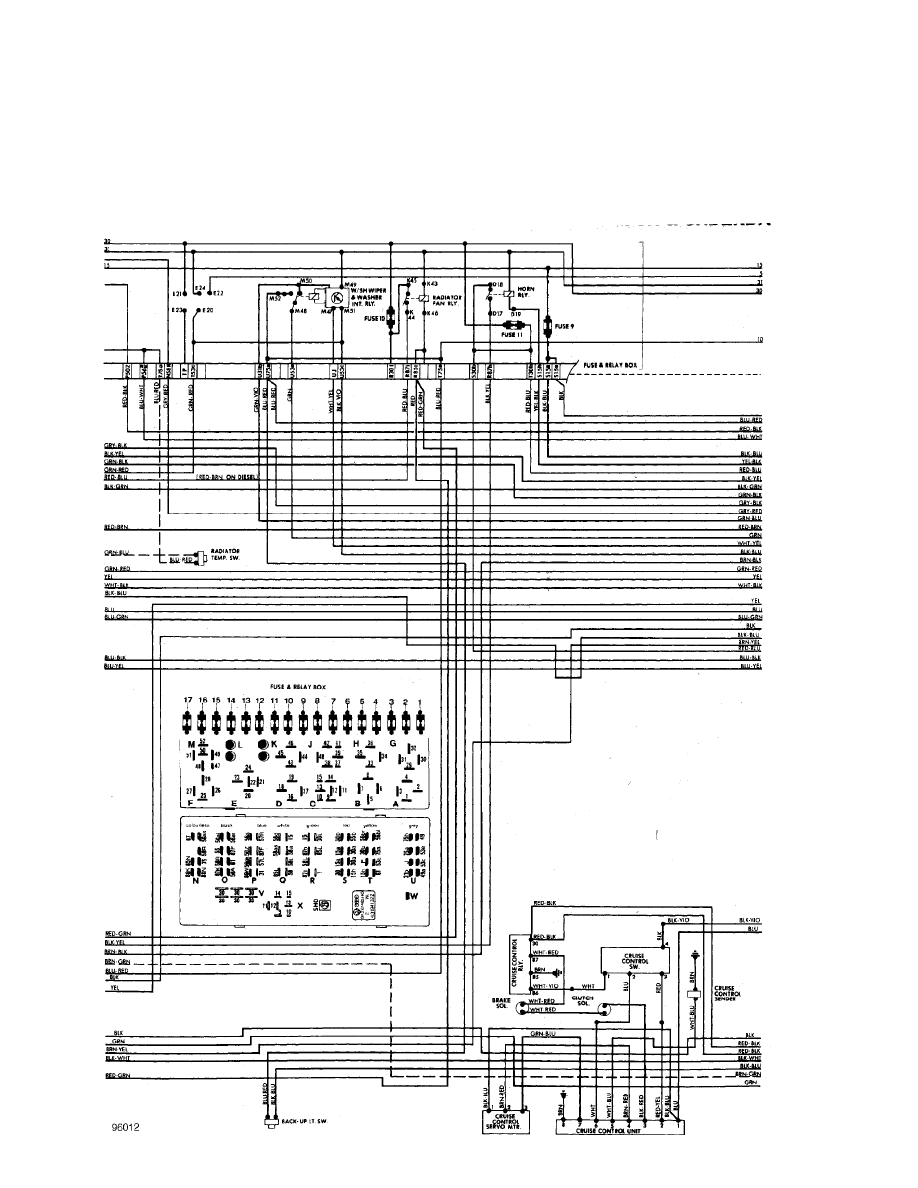

Fig. 2: Fuse Block (Cont.) & Underdash

1983 Audi 5000/5000S

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, July 19, 2004 05:22PM
