ISUZU IMPULSE 1990

SYSTEM WIRING DIAGRAMS

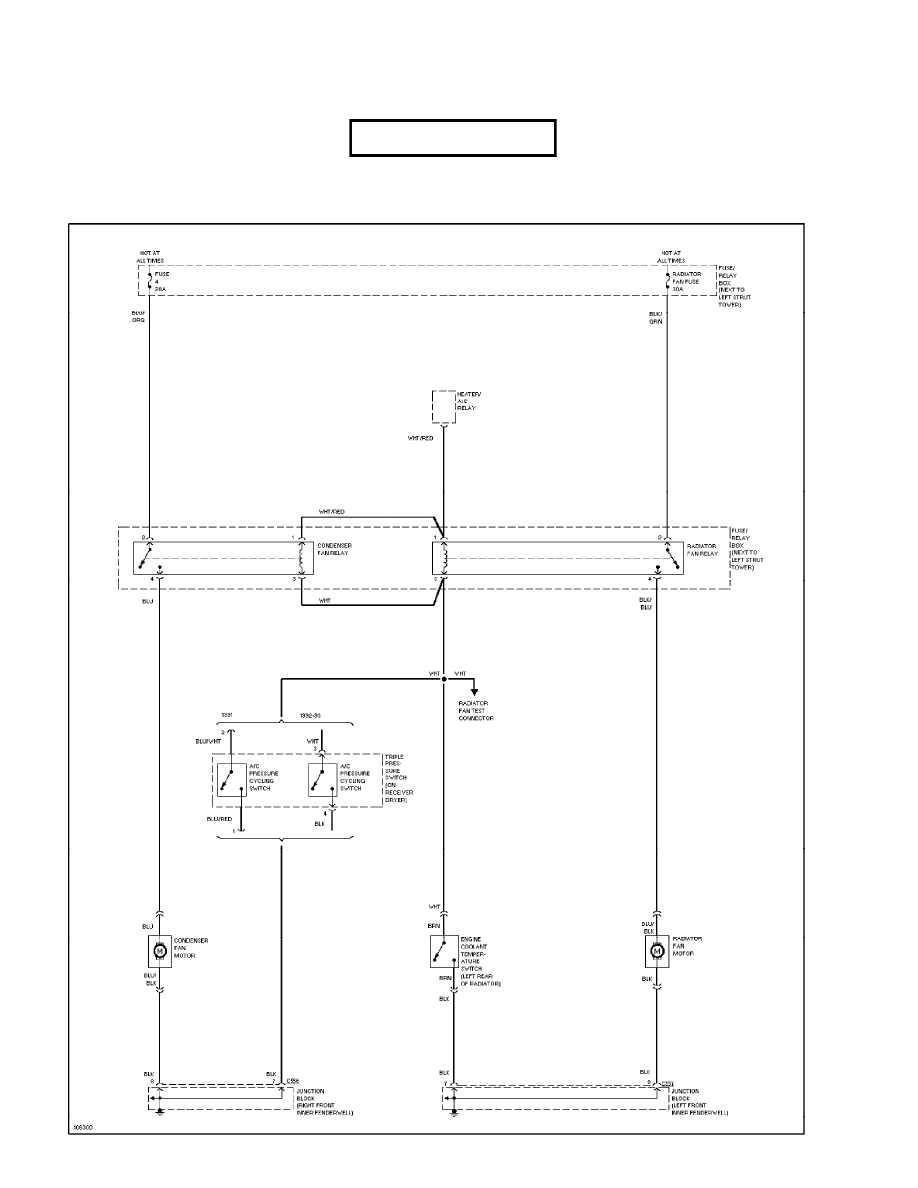

Cooling Fan Circuit

1990 Isuzu Impulse

For x

Thursday, July 29, 2004 03:16PM

cdr@wp.pl

WIRING DIAGRAMS

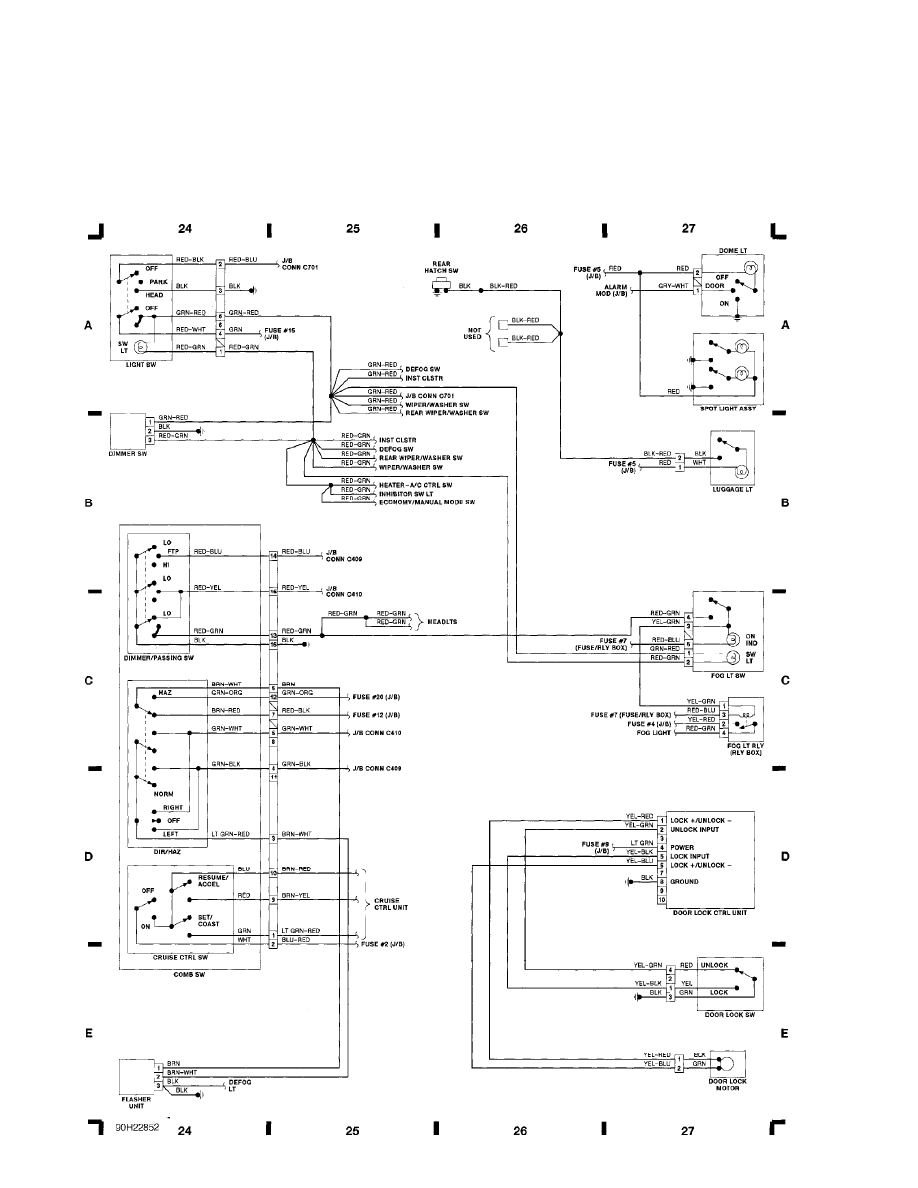

Fig. 7: Combination Switch, Power Doors (Grids 24-27)

1990 Isuzu Impulse

For x

Thursday, July 29, 2004 03:18PM

WIRING DIAGRAMS

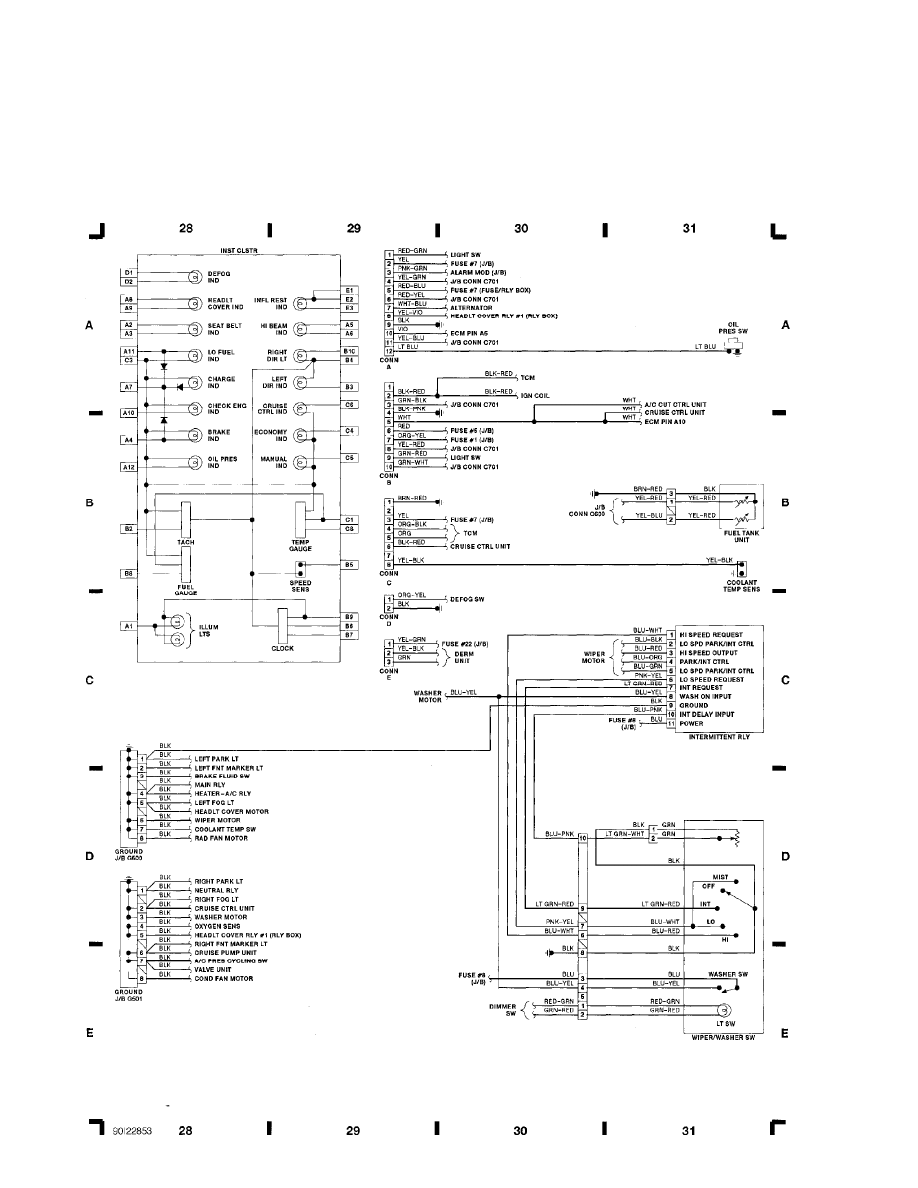

Fig. 8: Instrument Panel, Wiper/Washer System (Grids 28-31)

1990 Isuzu Impulse

For x

Thursday, July 29, 2004 03:18PM

WIRING DIAGRAMS

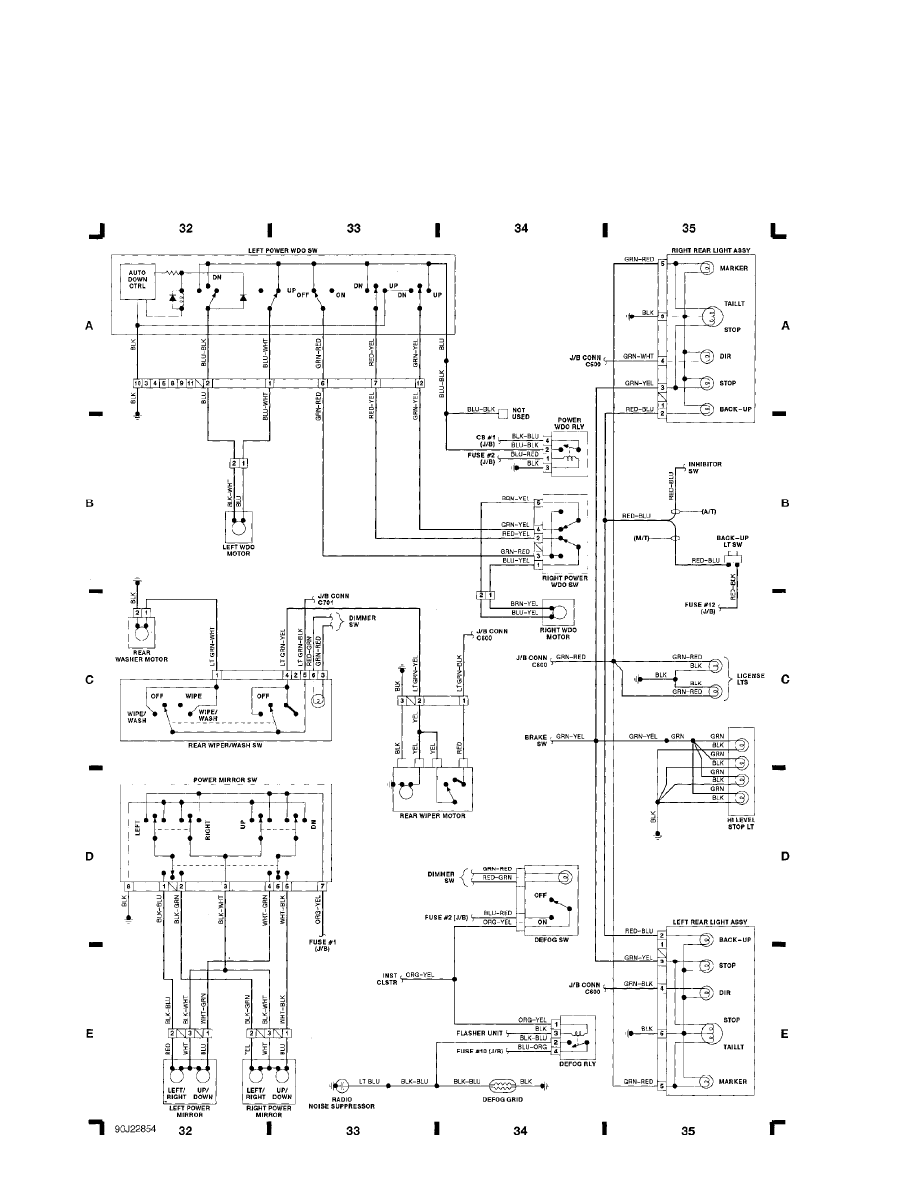

Fig. 9: Rear Wiper, Power Windows, Taillights (Grids 32-35)

1990 Isuzu Impulse

For x

Thursday, July 29, 2004 03:18PM

SYSTEM WIRING DIAGRAMS

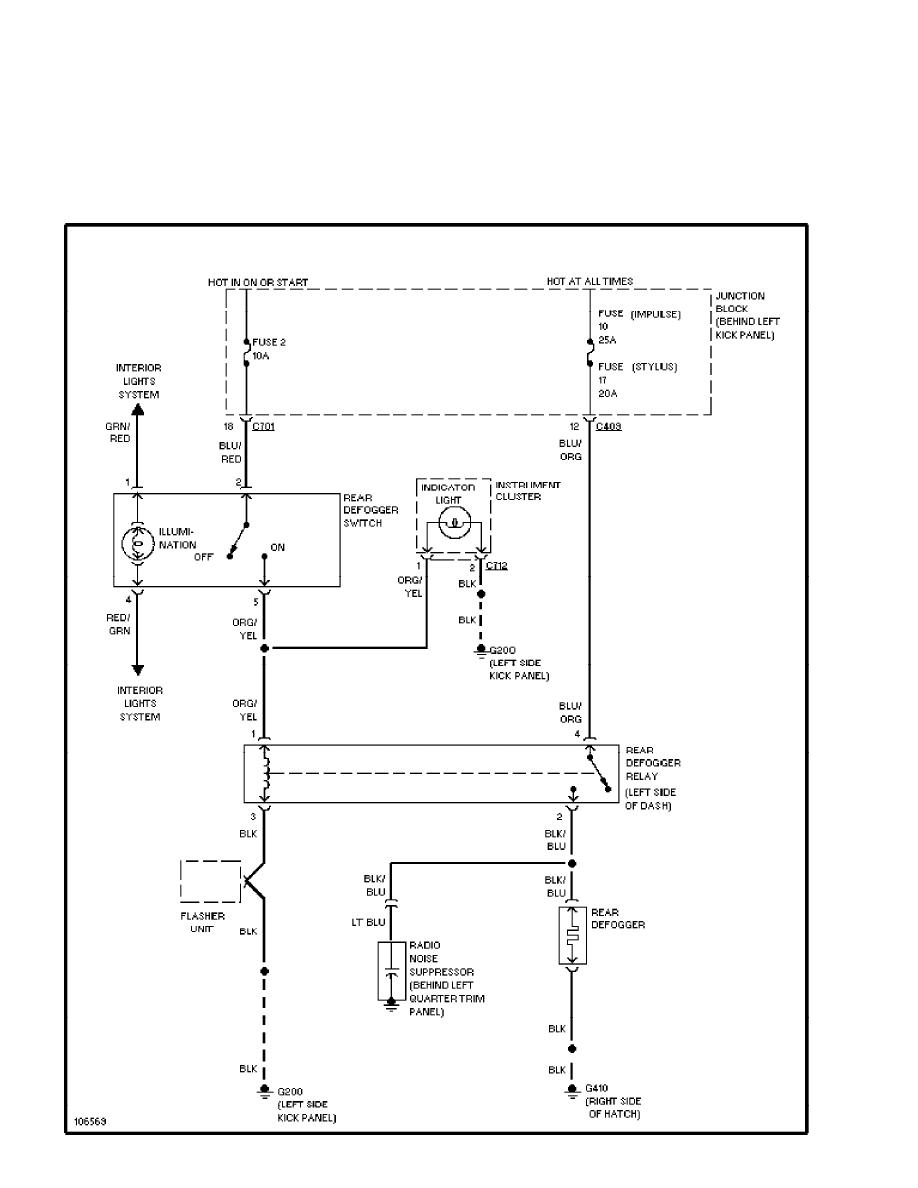

Defogger Circuit

1990 Isuzu Impulse

For x

Thursday, July 29, 2004 03:16PM

SYSTEM WIRING DIAGRAMS

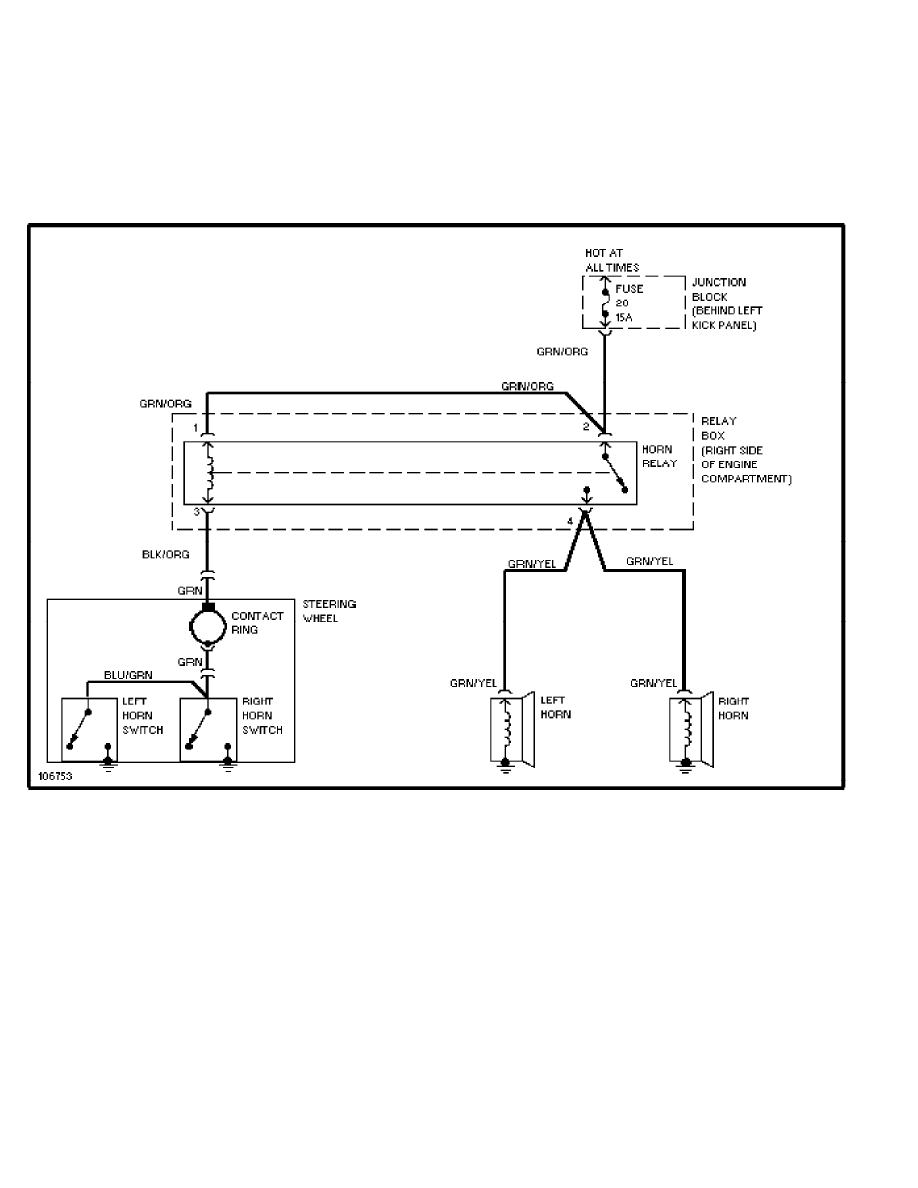

Horn Circuit

1990 Isuzu Impulse

For x

Thursday, July 29, 2004 03:16PM

SYSTEM WIRING DIAGRAMS

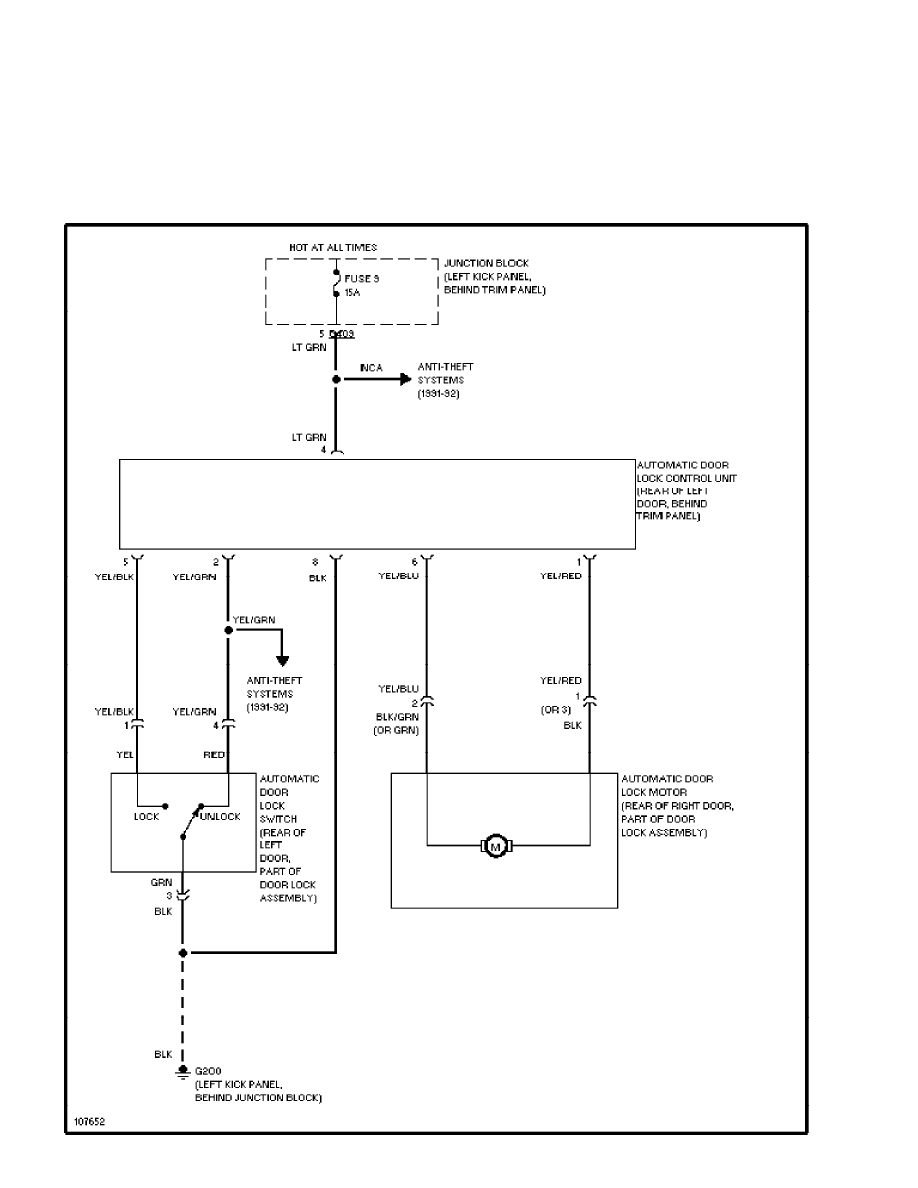

Power Door Lock Circuit

1990 Isuzu Impulse

For x

Thursday, July 29, 2004 03:17PM

SYSTEM WIRING DIAGRAMS

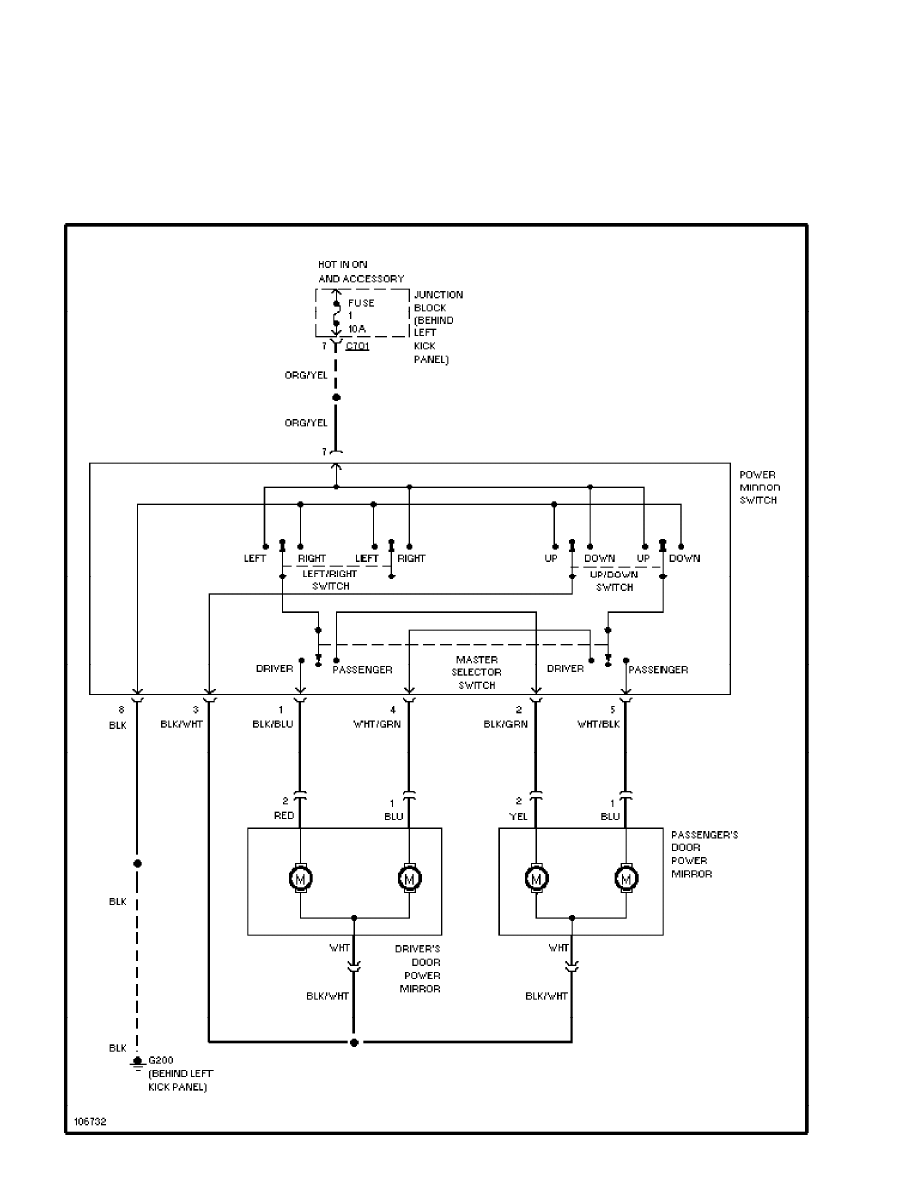

Power Mirror Circuit

1990 Isuzu Impulse

For x

Thursday, July 29, 2004 03:17PM

SYSTEM WIRING DIAGRAMS

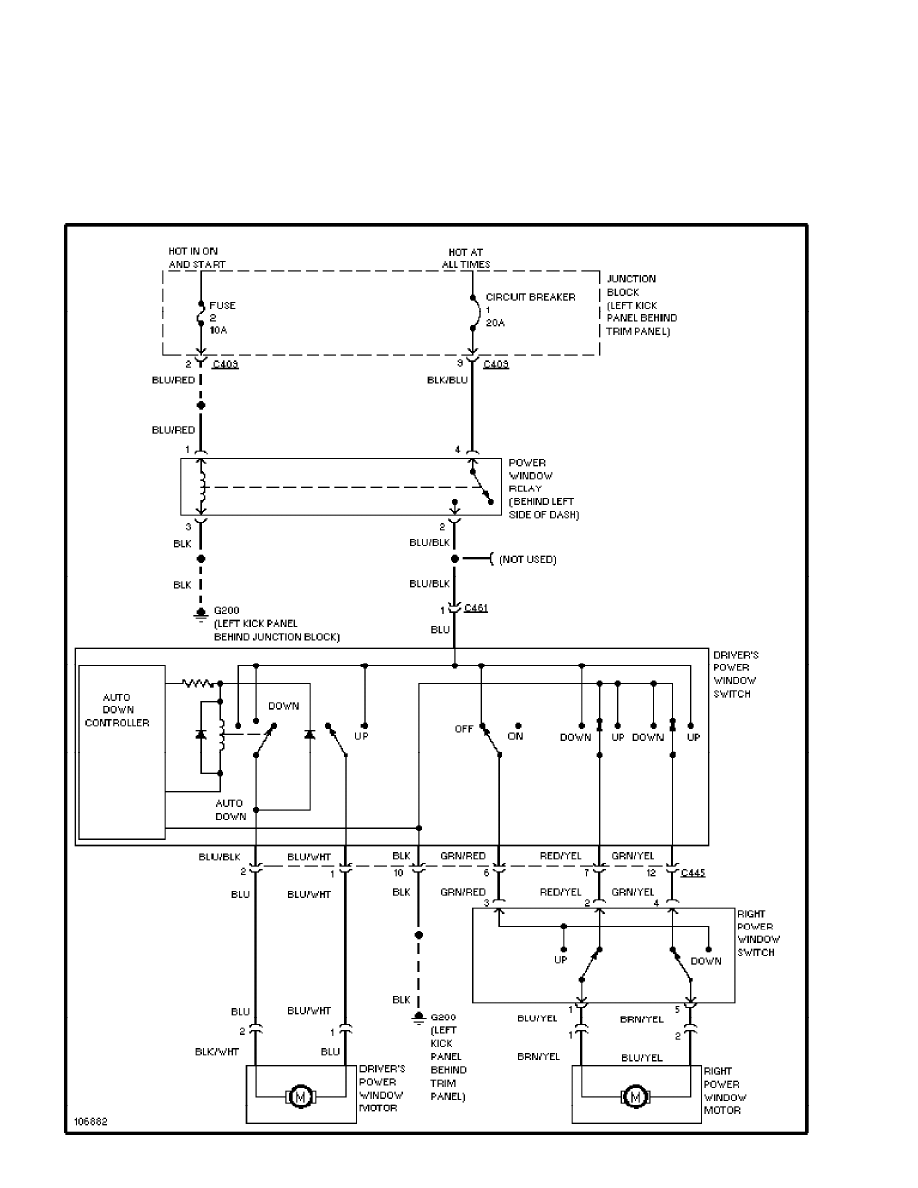

Power Window Circuit

1990 Isuzu Impulse

For x

Thursday, July 29, 2004 03:17PM

SYSTEM WIRING DIAGRAMS

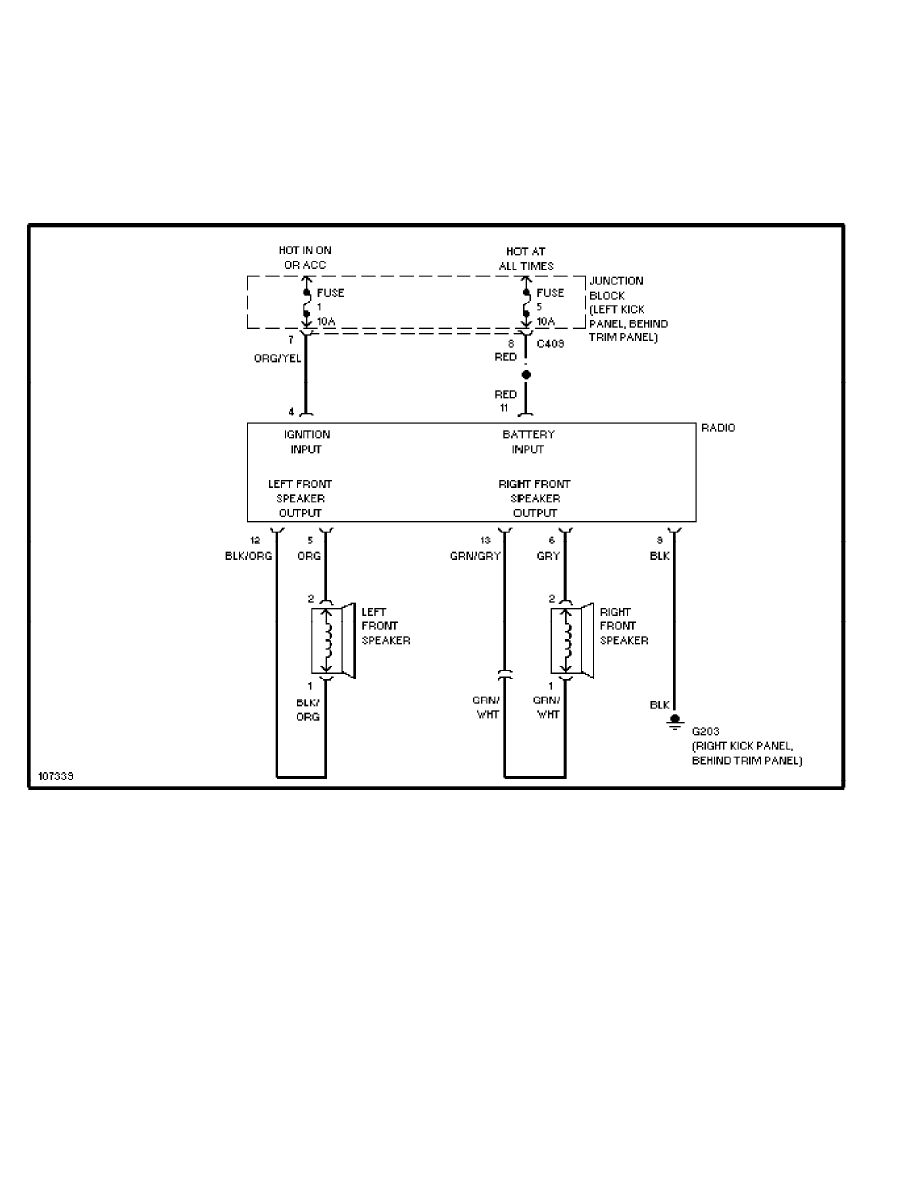

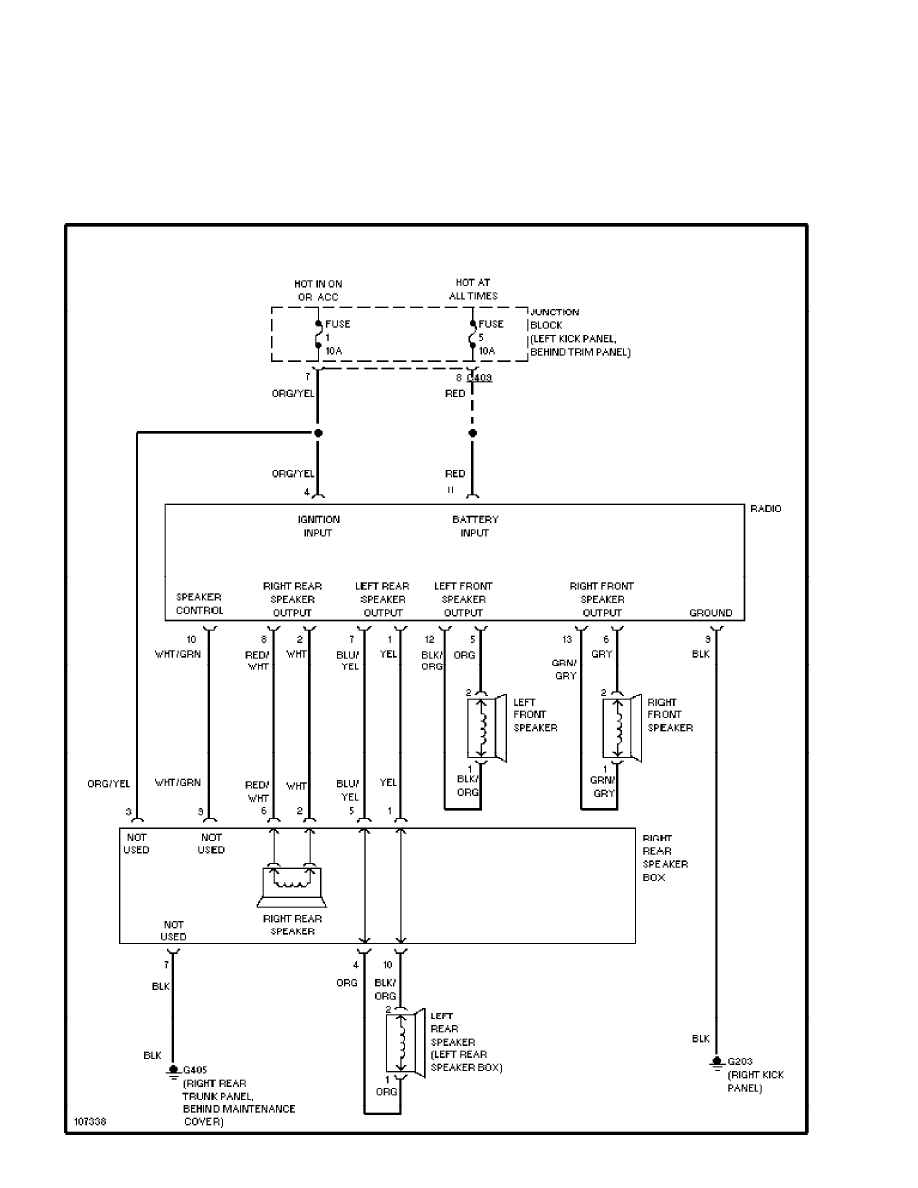

2-Speaker System Circuit

1990 Isuzu Impulse

For x

Thursday, July 29, 2004 03:17PM

SYSTEM WIRING DIAGRAMS

4-Speaker System Circuit, W/ Equalizer

1990 Isuzu Impulse

For x

Thursday, July 29, 2004 03:17PM

SYSTEM WIRING DIAGRAMS

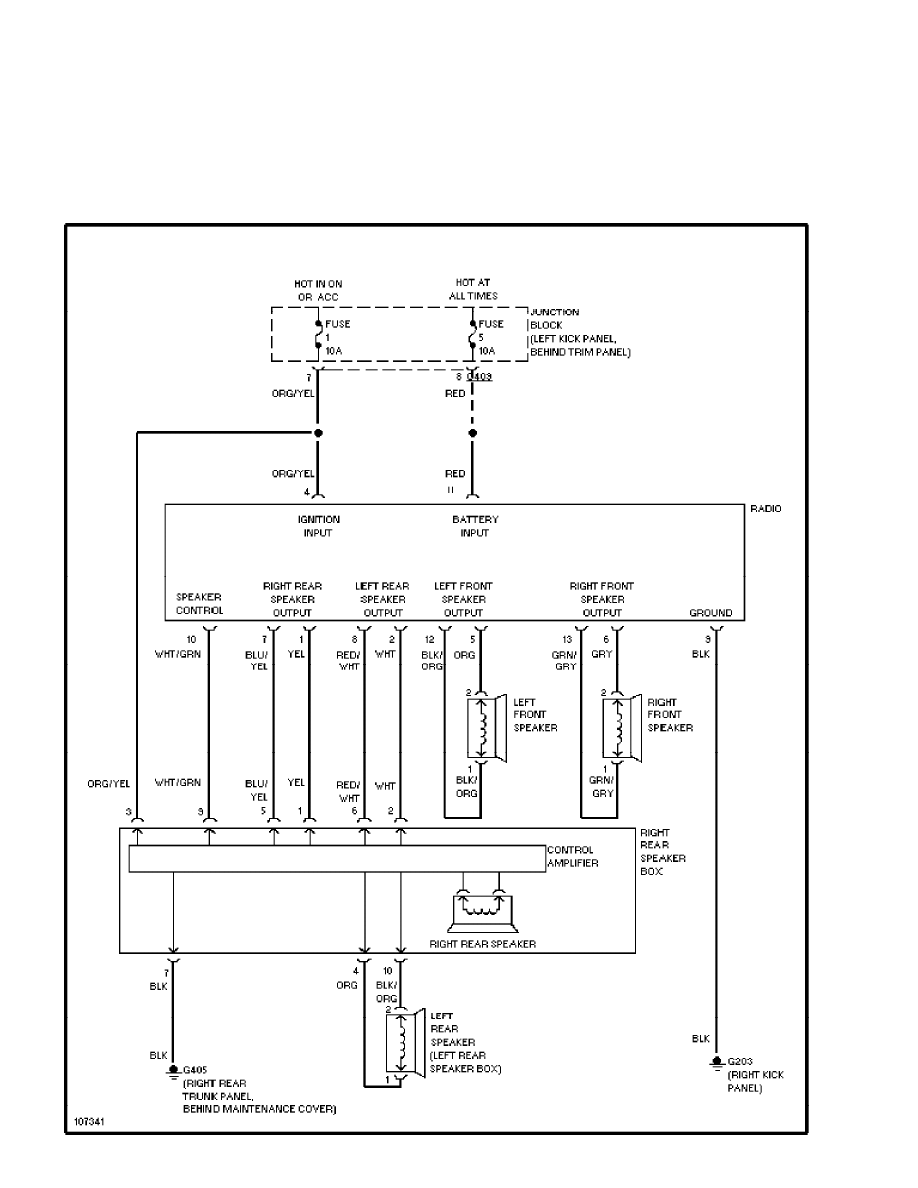

4-Speaker System Circuit, W/O Equalizer

1990 Isuzu Impulse

For x

Thursday, July 29, 2004 03:17PM

SYSTEM WIRING DIAGRAMS

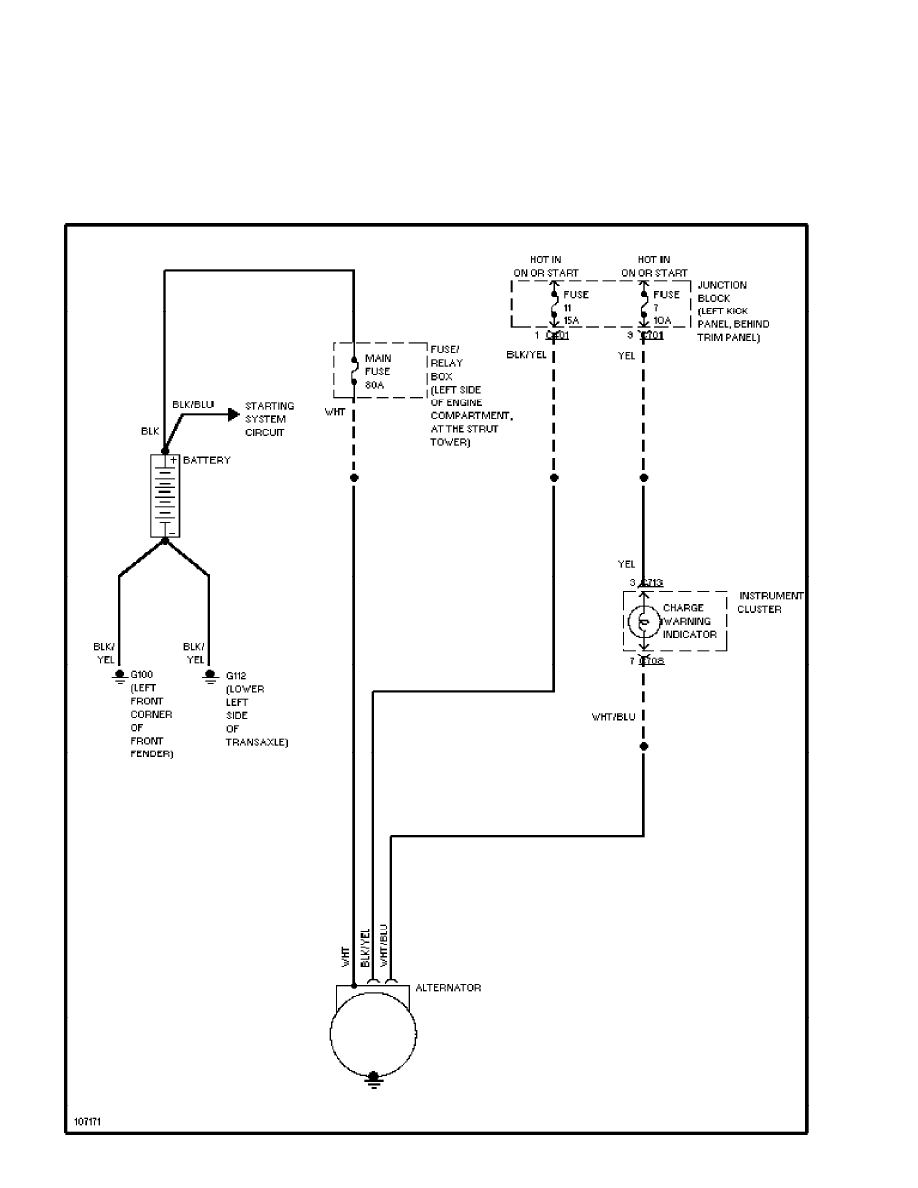

Charging Circuit

1990 Isuzu Impulse

For x

Thursday, July 29, 2004 03:17PM

SYSTEM WIRING DIAGRAMS

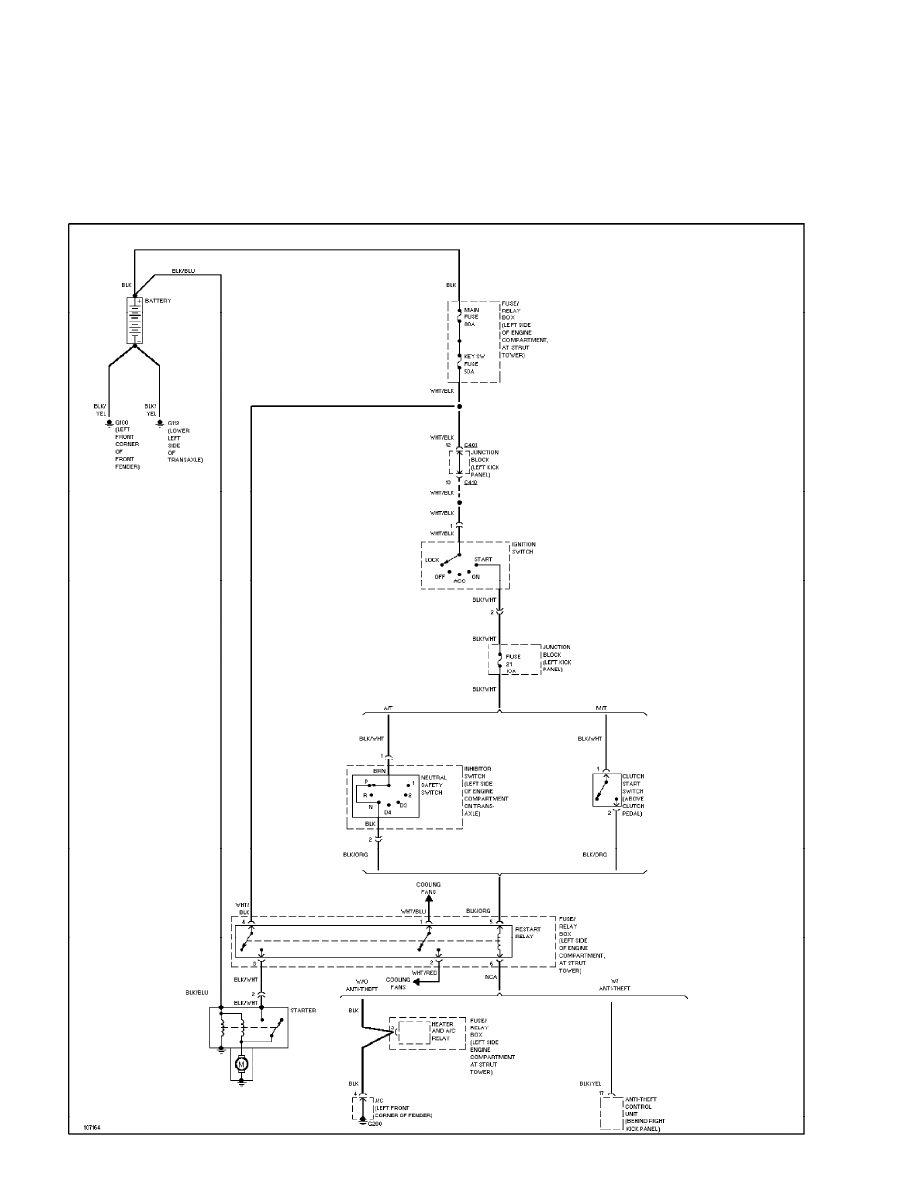

Starting Circuit

1990 Isuzu Impulse

For x

Thursday, July 29, 2004 03:17PM

SYSTEM WIRING DIAGRAMS

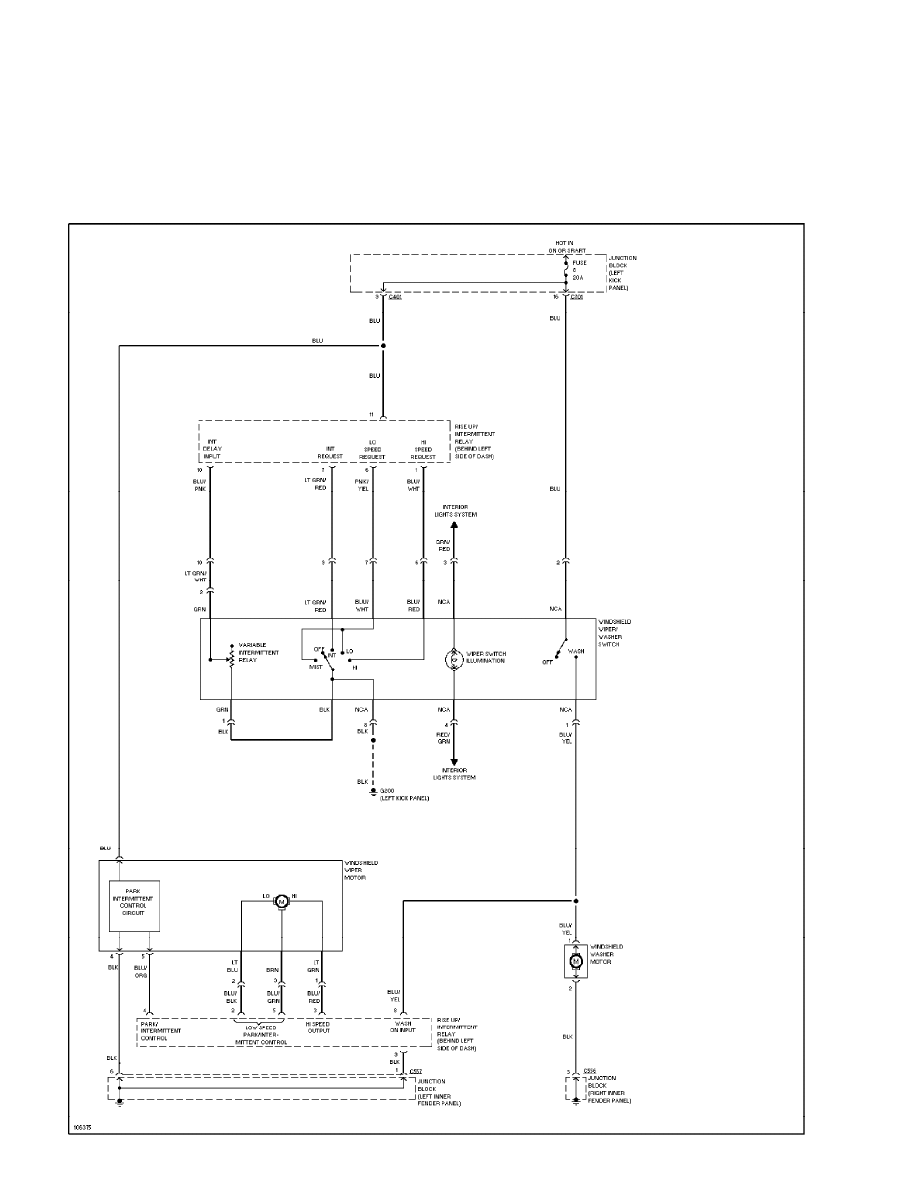

Wiper/Washer Circuit

1990 Isuzu Impulse

For x

Thursday, July 29, 2004 03:17PM

WIRING DIAGRAMS

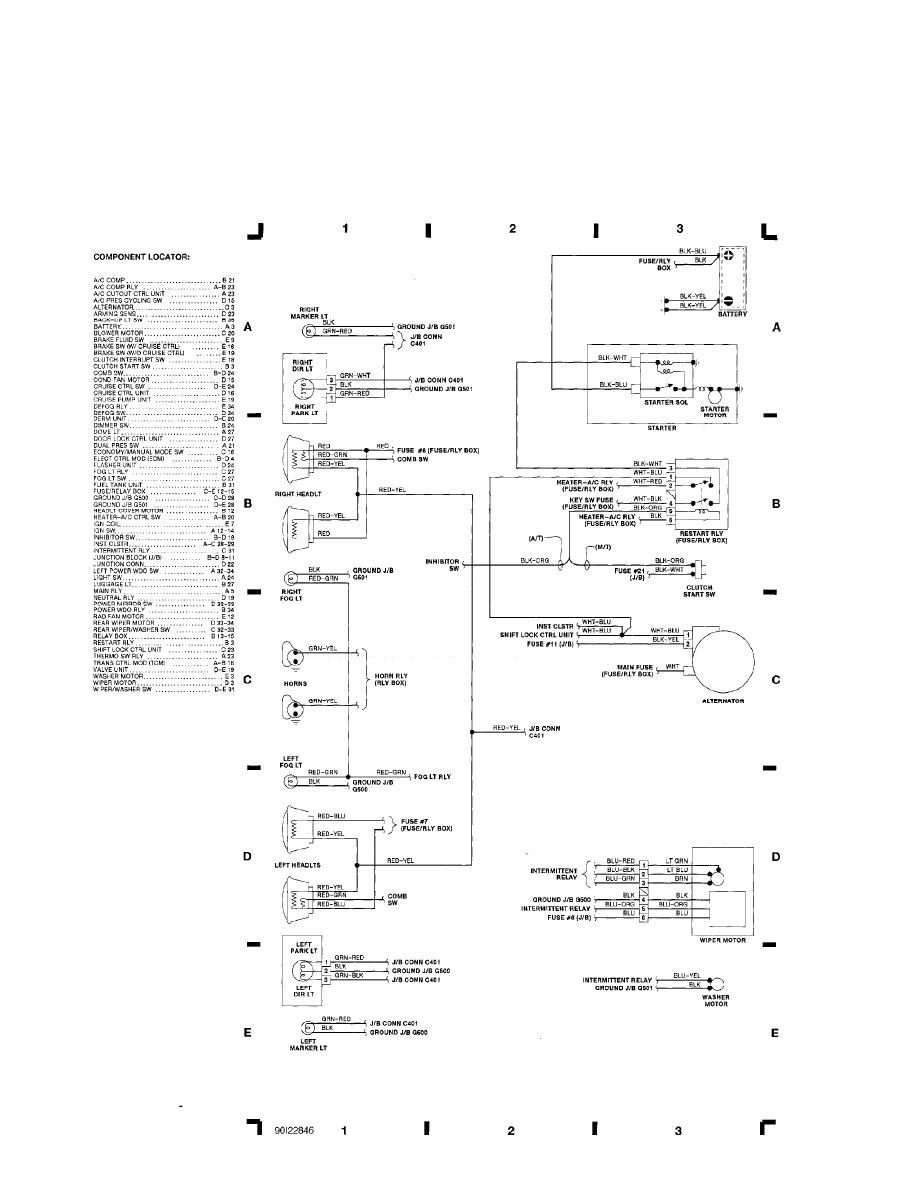

Fig. 1: Engine Compartment & Headlights (Grids 1-3)

1990 Isuzu Impulse

For x

Thursday, July 29, 2004 03:18PM

WIRING DIAGRAMS

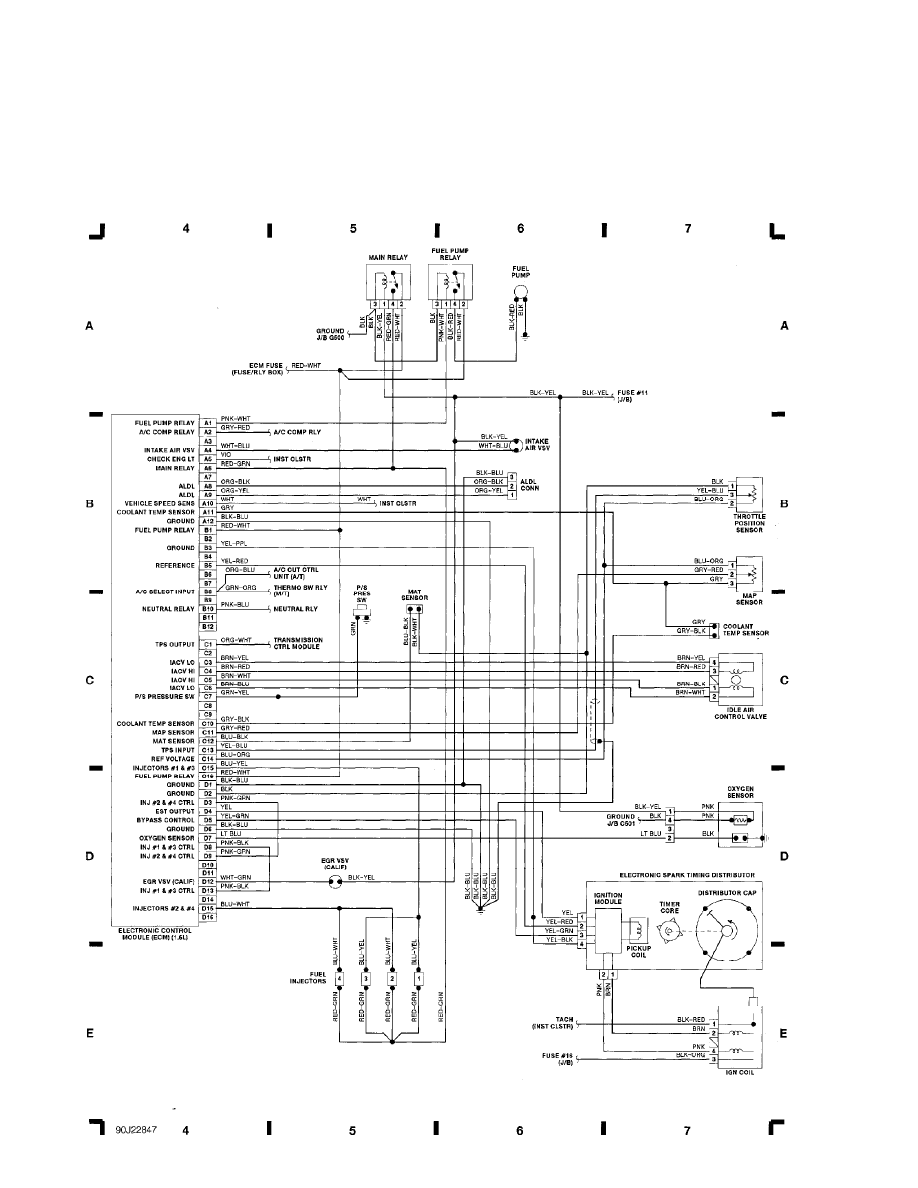

Fig. 2: Computer Engine Control (Grids 4-7)

1990 Isuzu Impulse

For x

Thursday, July 29, 2004 03:18PM

WIRING DIAGRAMS

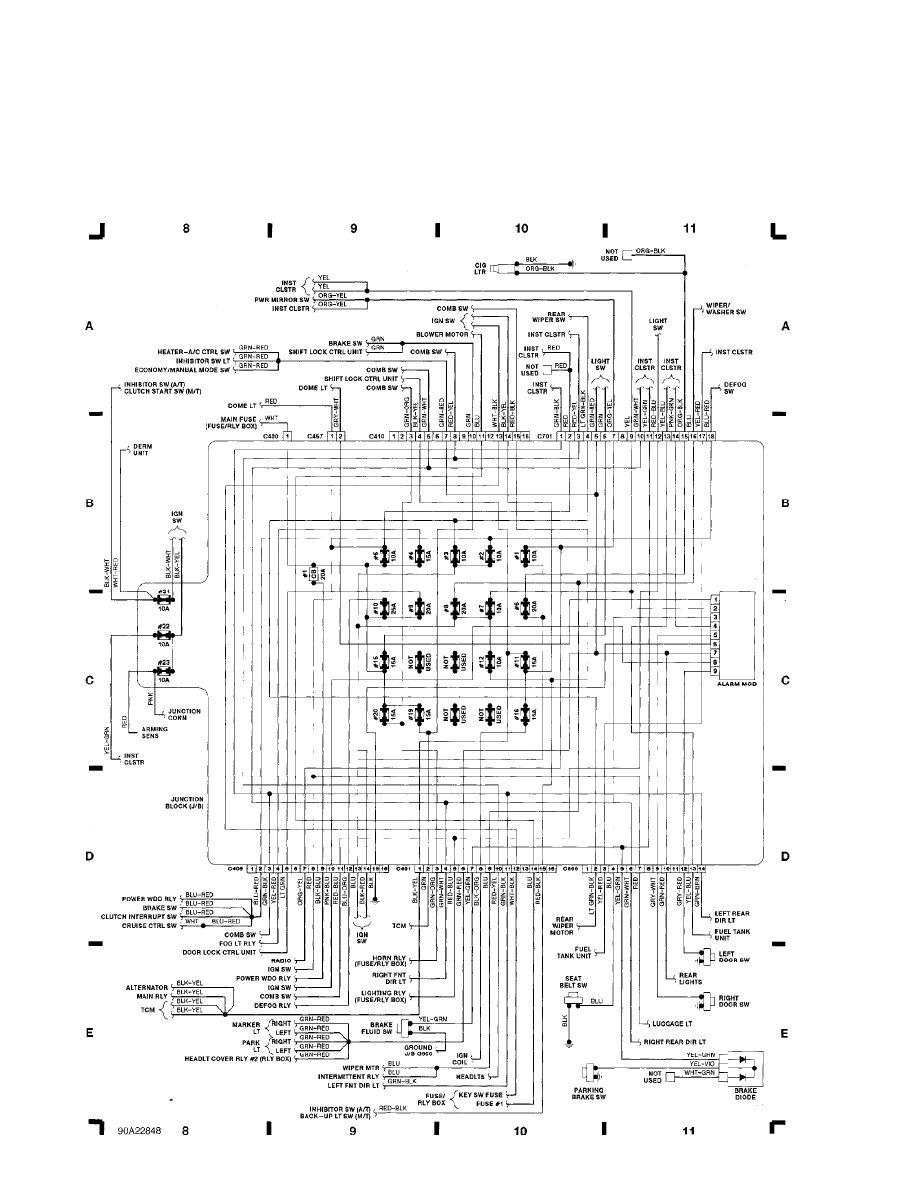

Fig. 3: Fuse Block (Grids 8-11)

1990 Isuzu Impulse

For x

Thursday, July 29, 2004 03:18PM

WIRING DIAGRAMS

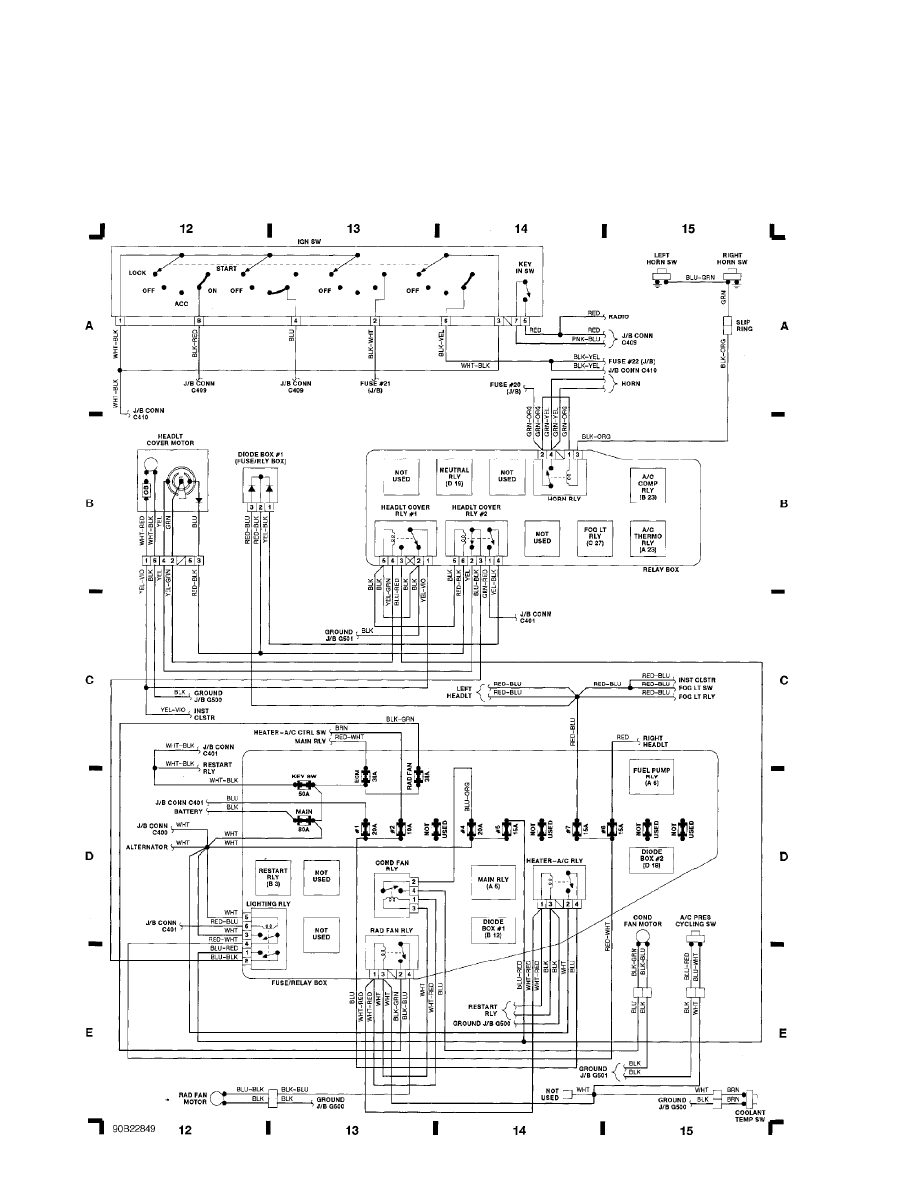

Fig. 4: Fuse/Relay Box, Ignition Switch (Grids 12-15)

1990 Isuzu Impulse

For x

Thursday, July 29, 2004 03:18PM

WIRING DIAGRAMS

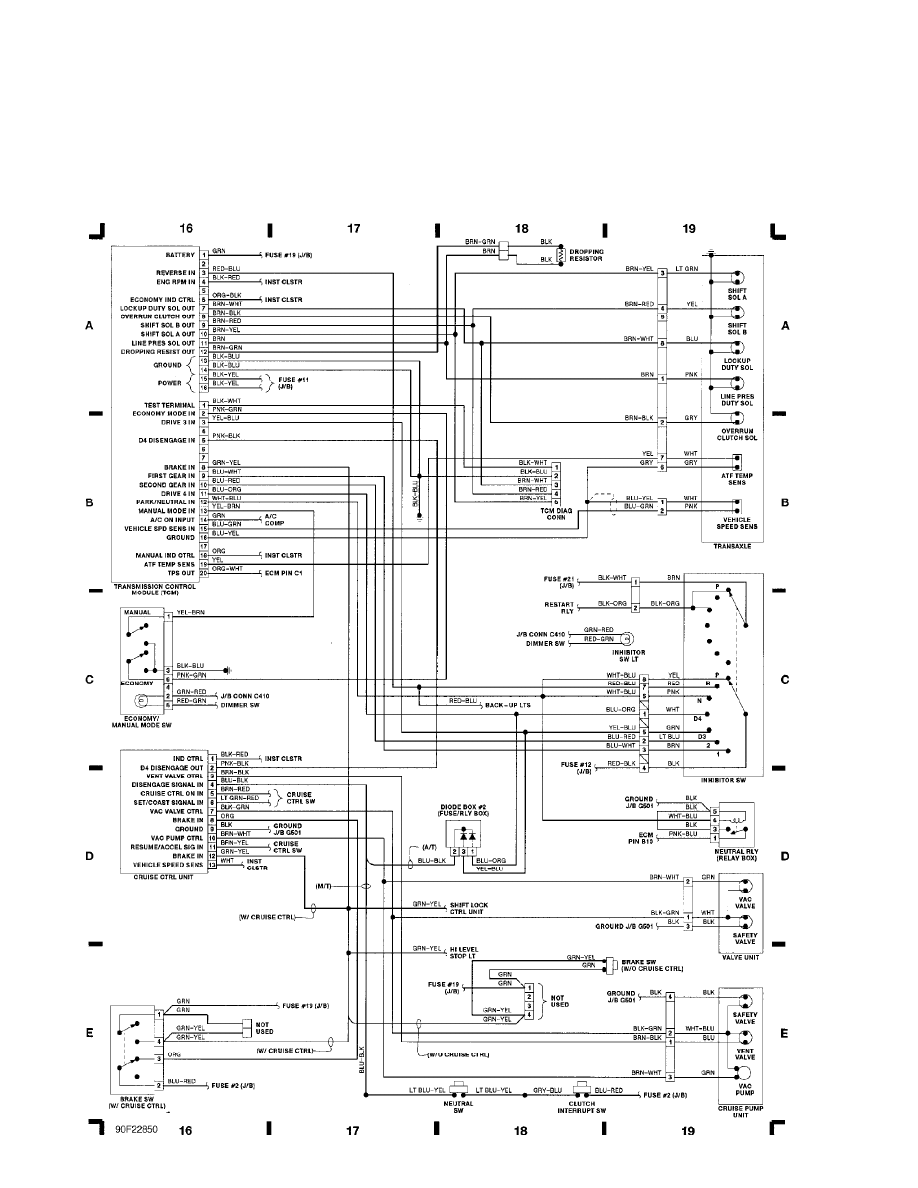

Fig. 5: Cruise Control, Trans Control Module (Grids 16-19)

1990 Isuzu Impulse

For x

Thursday, July 29, 2004 03:18PM

WIRING DIAGRAMS

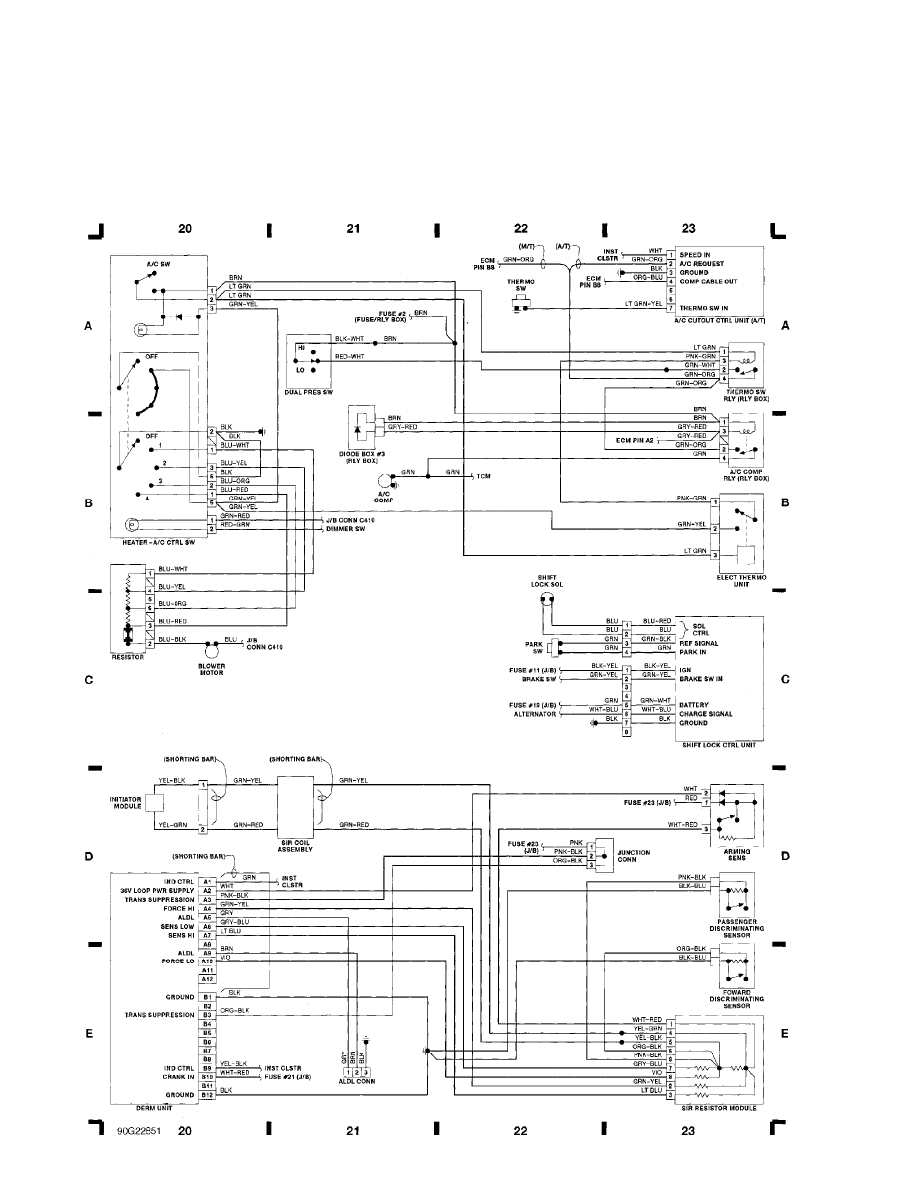

Fig. 6: A/C Heating, DERM Unit (Grids 20-23)

1990 Isuzu Impulse

For x

Thursday, July 29, 2004 03:18PM
