HONDA CIVIC CRX 1987

SYSTEM WIRING DIAGRAMS

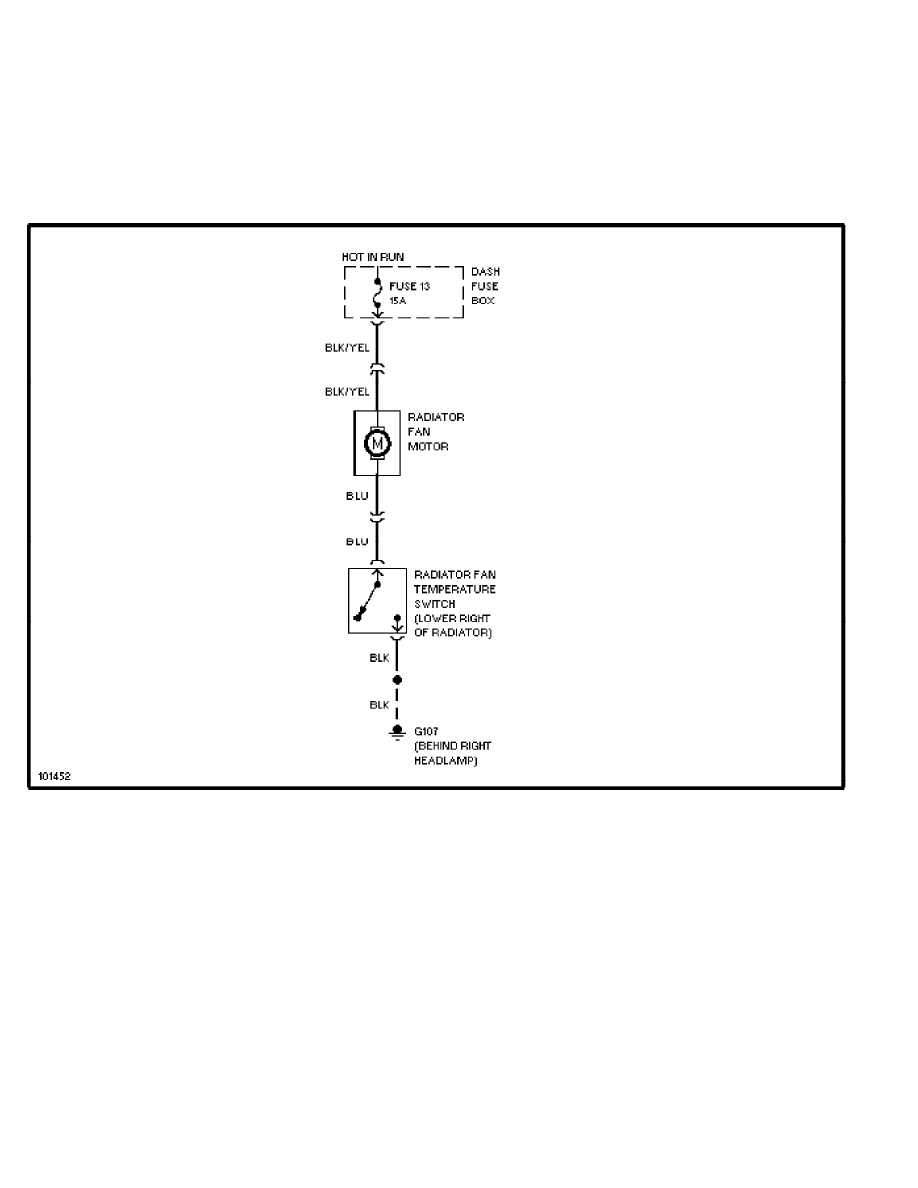

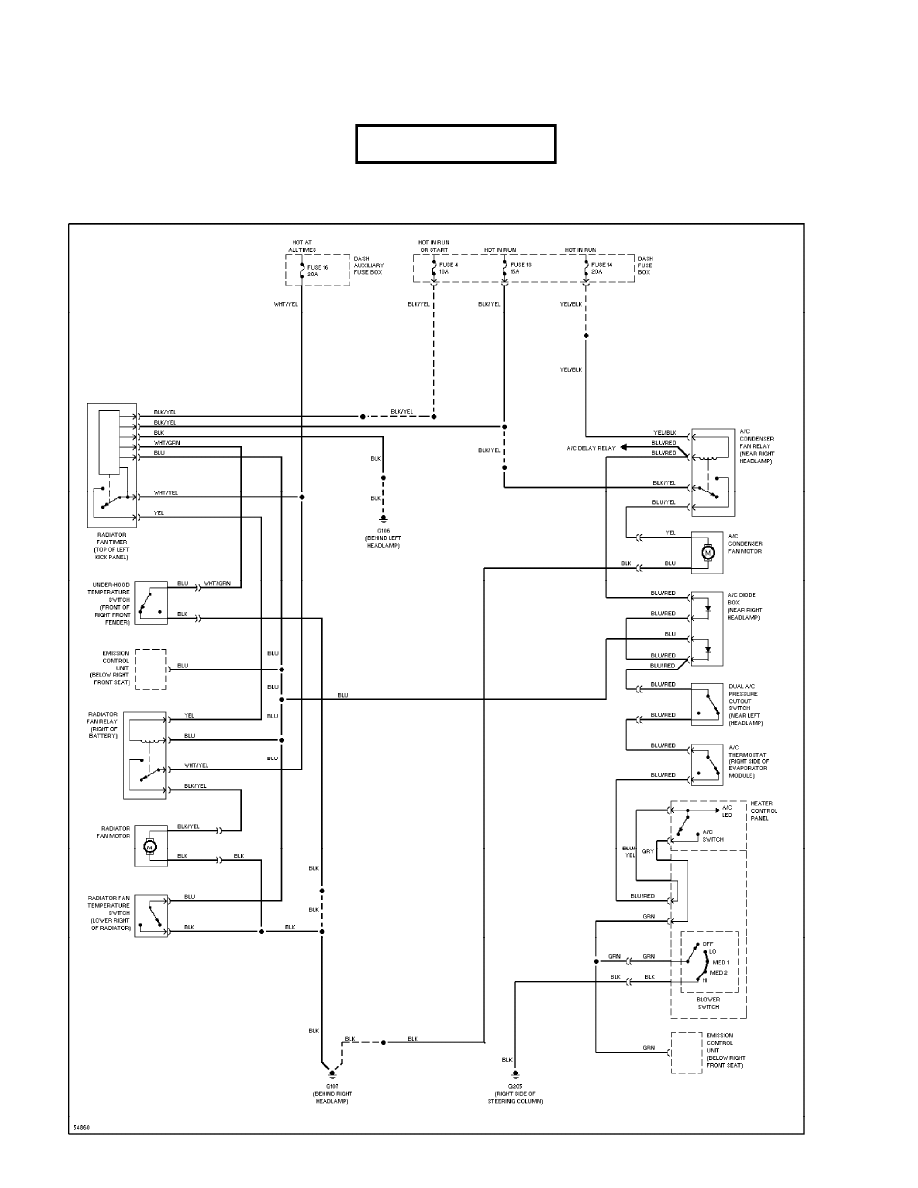

Cooling Fan Circuit, CRX DX

1987 Honda Civic/CRX

For x

Thursday, July 29, 2004 11:08PM

cdr@wp.pl

SYSTEM WIRING DIAGRAMS

Cooling Fan Circuit, CRX HF (p. 2)

1987 Honda Civic/CRX

For x

Thursday, July 29, 2004 11:08PM

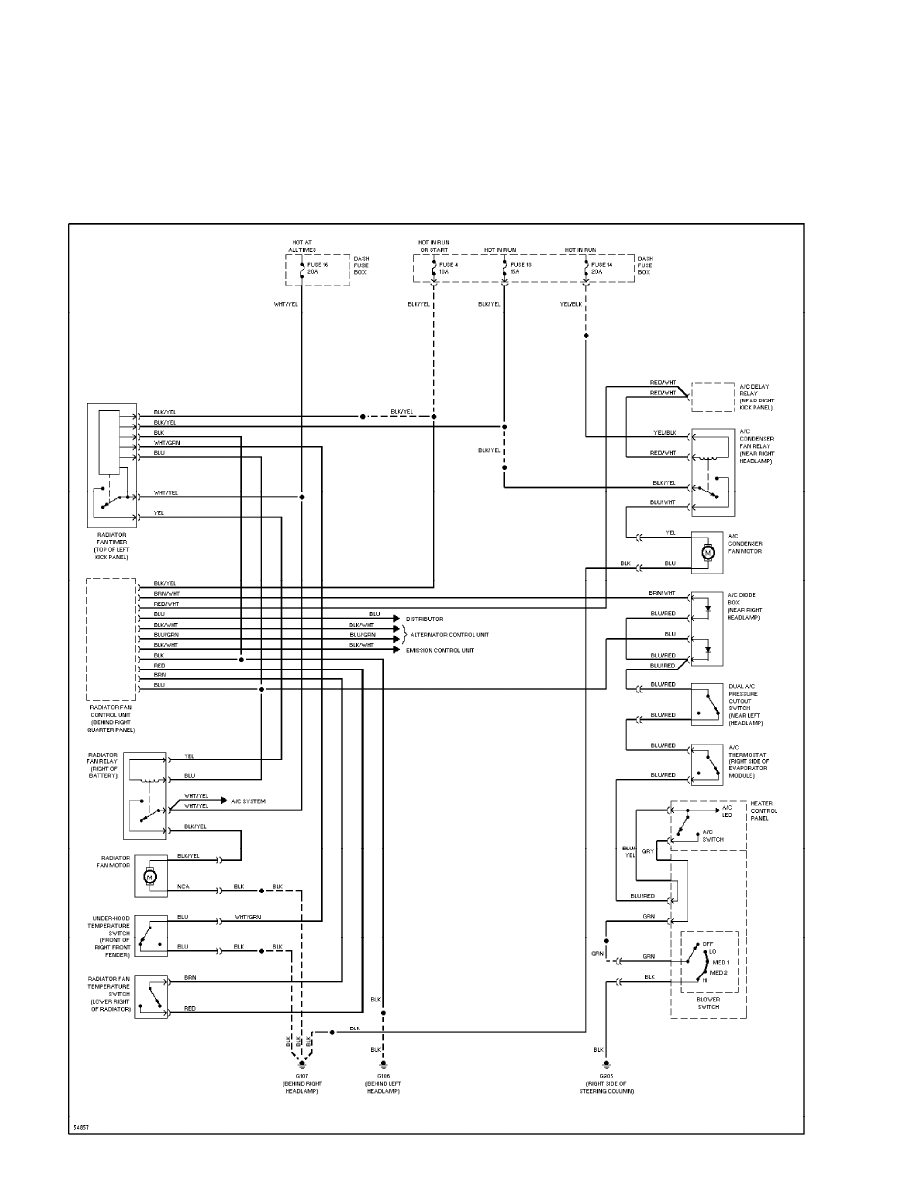

SYSTEM WIRING DIAGRAMS

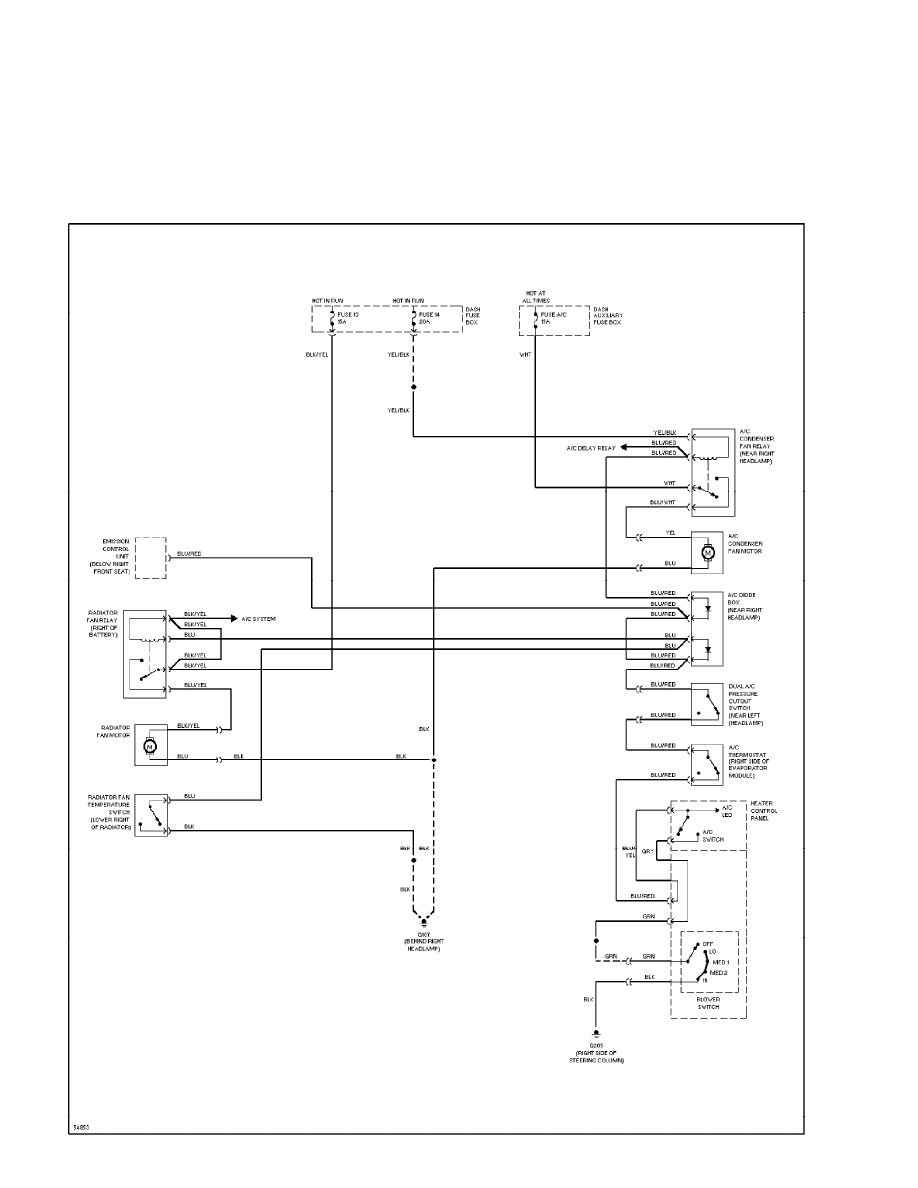

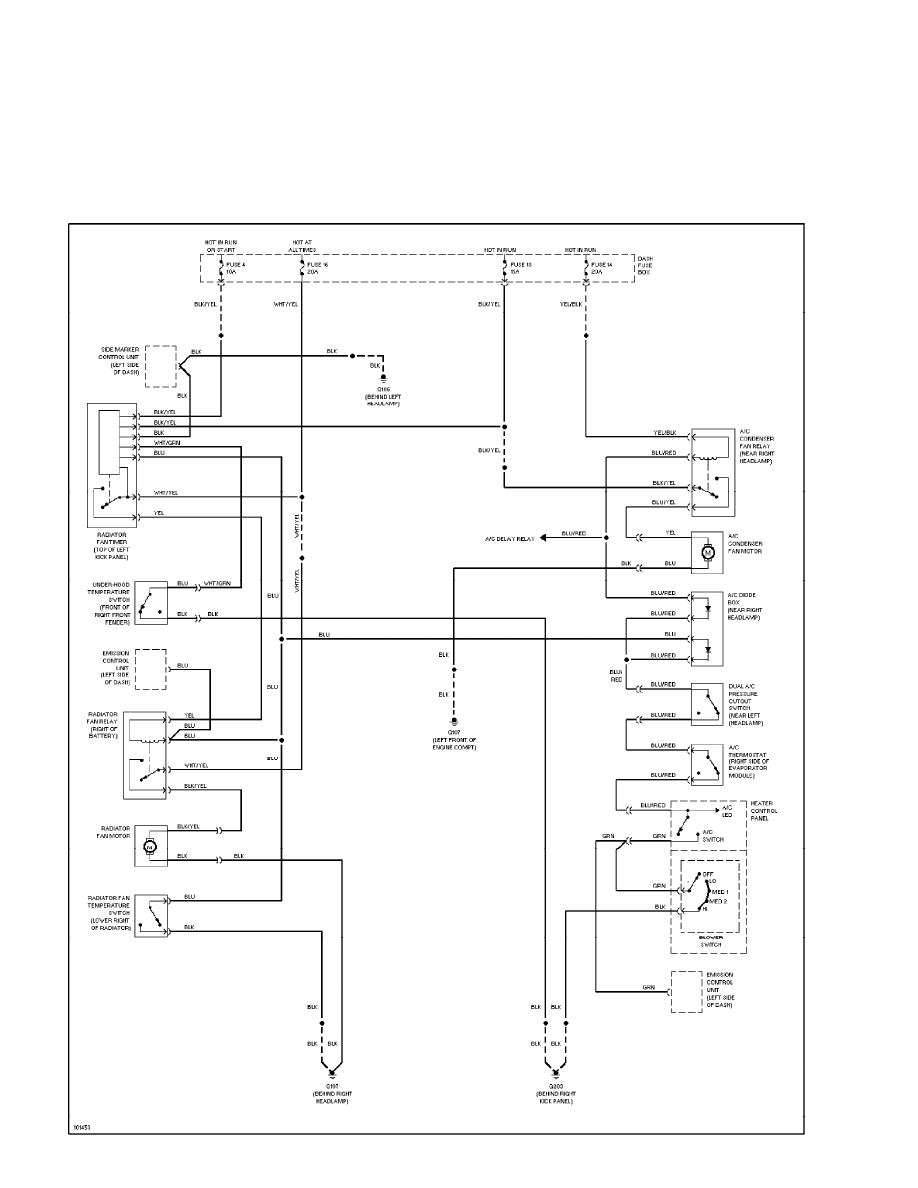

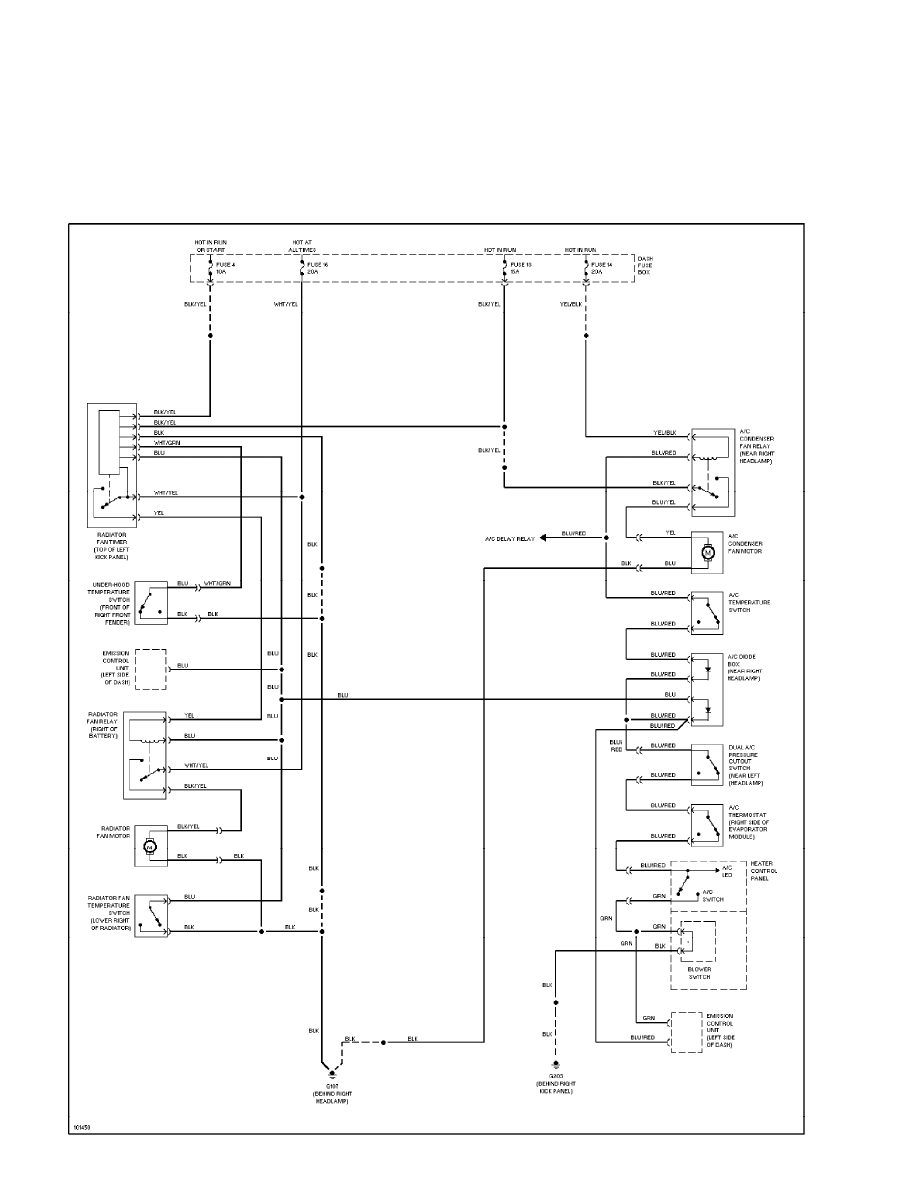

Cooling Fan Circuit, CRX SI W/ A/C (p. 3)

1987 Honda Civic/CRX

For x

Thursday, July 29, 2004 11:08PM

SYSTEM WIRING DIAGRAMS

Cooling Fan Circuit, CRX SI W/O A/C (p. 4)

1987 Honda Civic/CRX

For x

Thursday, July 29, 2004 11:08PM

SYSTEM WIRING DIAGRAMS

Cooling Fan Circuit, Civic Carbureted (p. 5)

1987 Honda Civic/CRX

For x

Thursday, July 29, 2004 11:08PM

SYSTEM WIRING DIAGRAMS

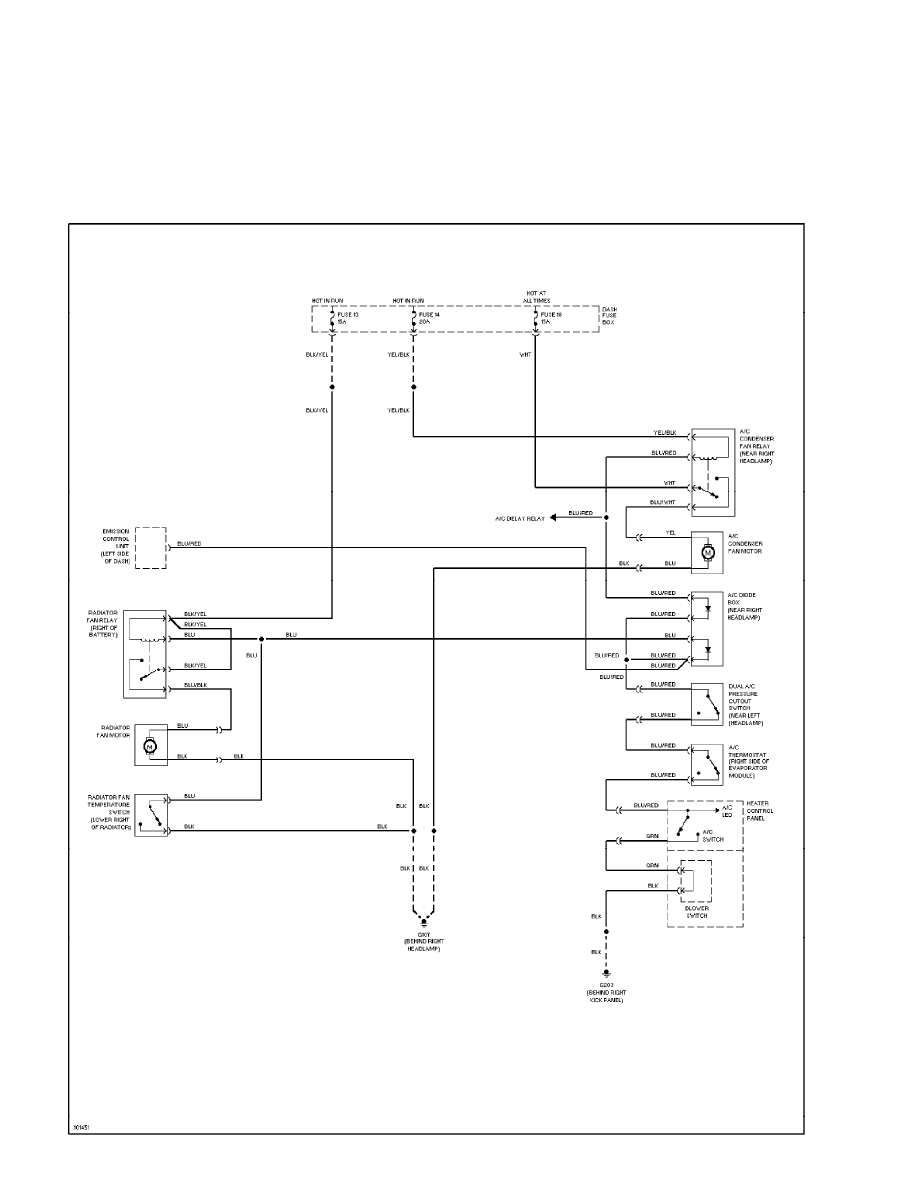

Cooling Fan Circuit, Civic EFI W/ A/C (p. 6)

1987 Honda Civic/CRX

For x

Thursday, July 29, 2004 11:08PM

SYSTEM WIRING DIAGRAMS

Cooling Fan Circuit, Civic EFI W/O A/C (p. 7)

1987 Honda Civic/CRX

For x

Thursday, July 29, 2004 11:08PM

SYSTEM WIRING DIAGRAMS

Cooling Fan Circuit, Civic Wagon (p. 8)

1987 Honda Civic/CRX

For x

Thursday, July 29, 2004 11:08PM

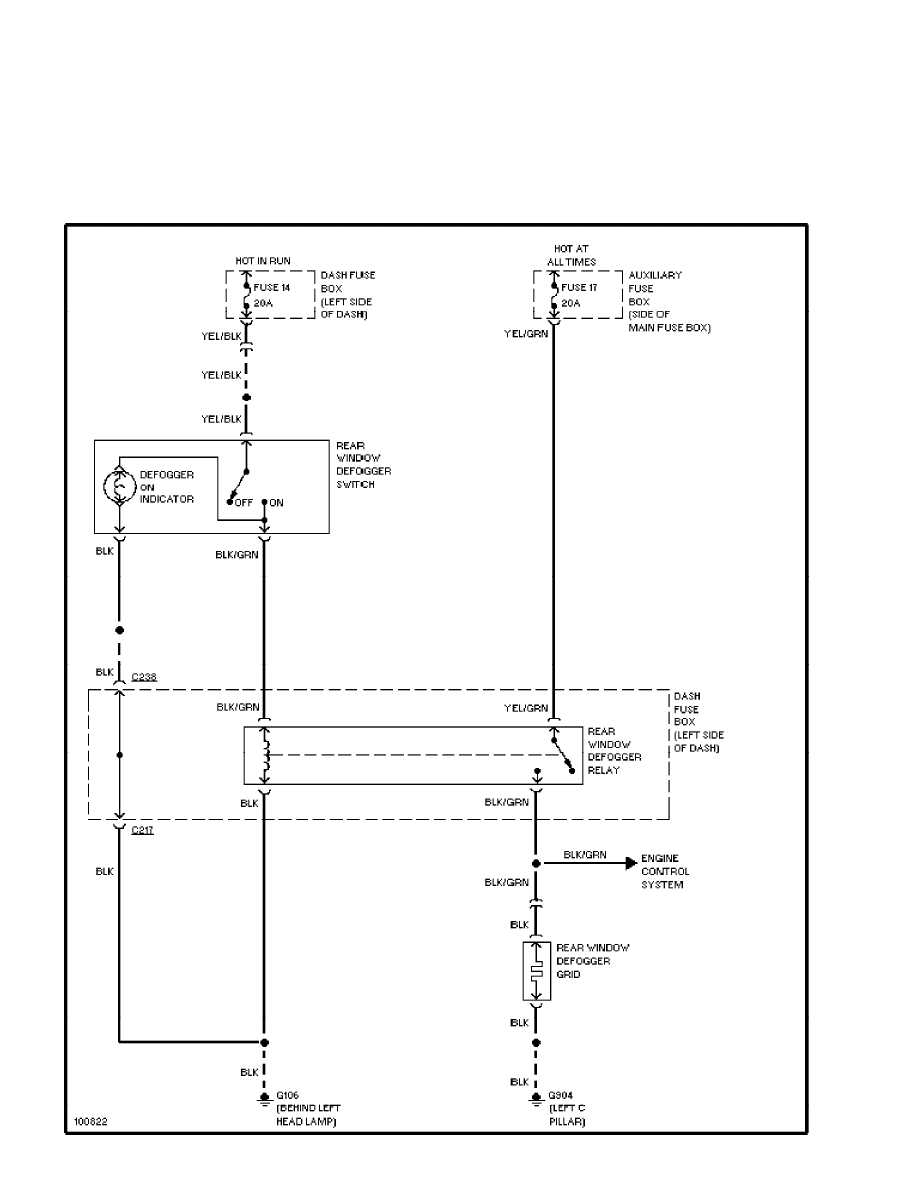

SYSTEM WIRING DIAGRAMS

Defogger Circuit (p. 9)

1987 Honda Civic/CRX

For x

Thursday, July 29, 2004 11:08PM

SYSTEM WIRING DIAGRAMS

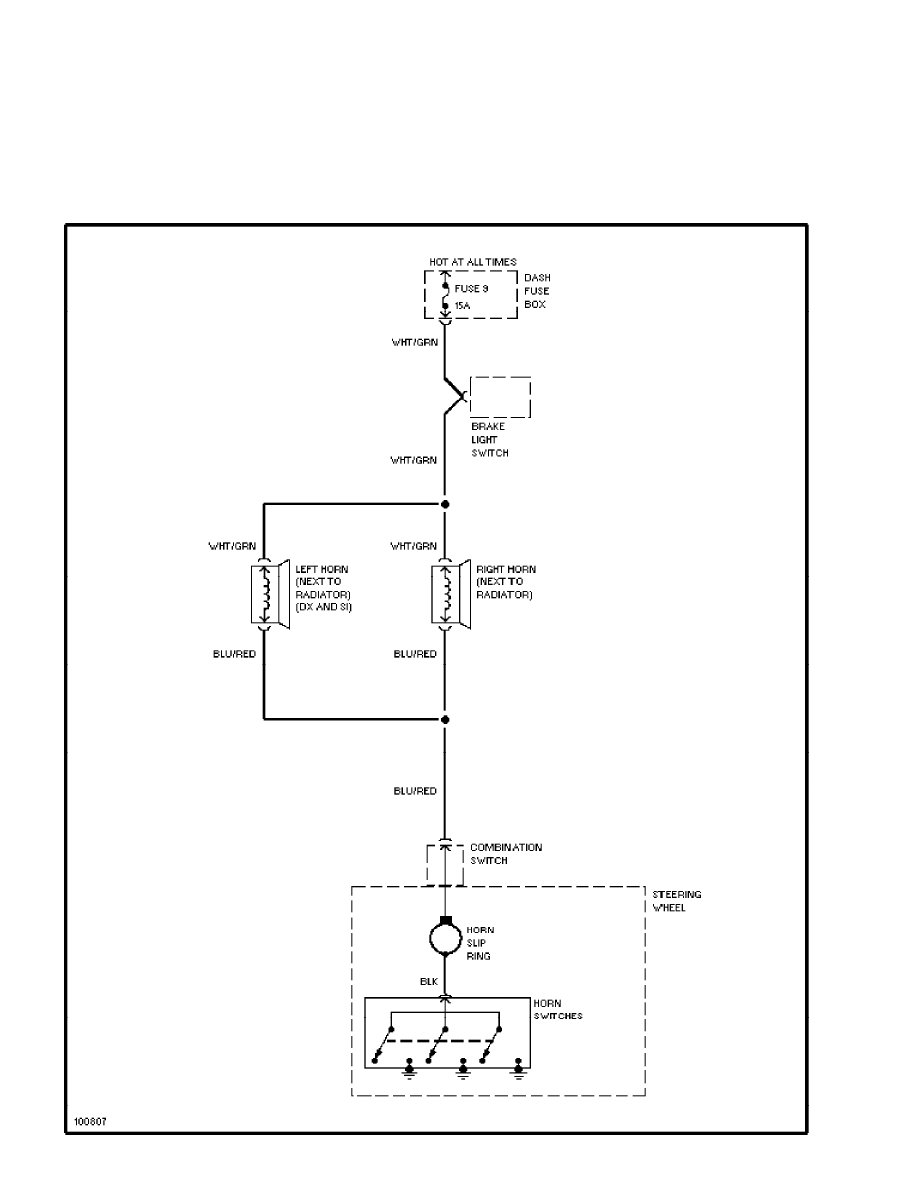

Horn Circuit (p. 10)

1987 Honda Civic/CRX

For x

Thursday, July 29, 2004 11:08PM

SYSTEM WIRING DIAGRAMS

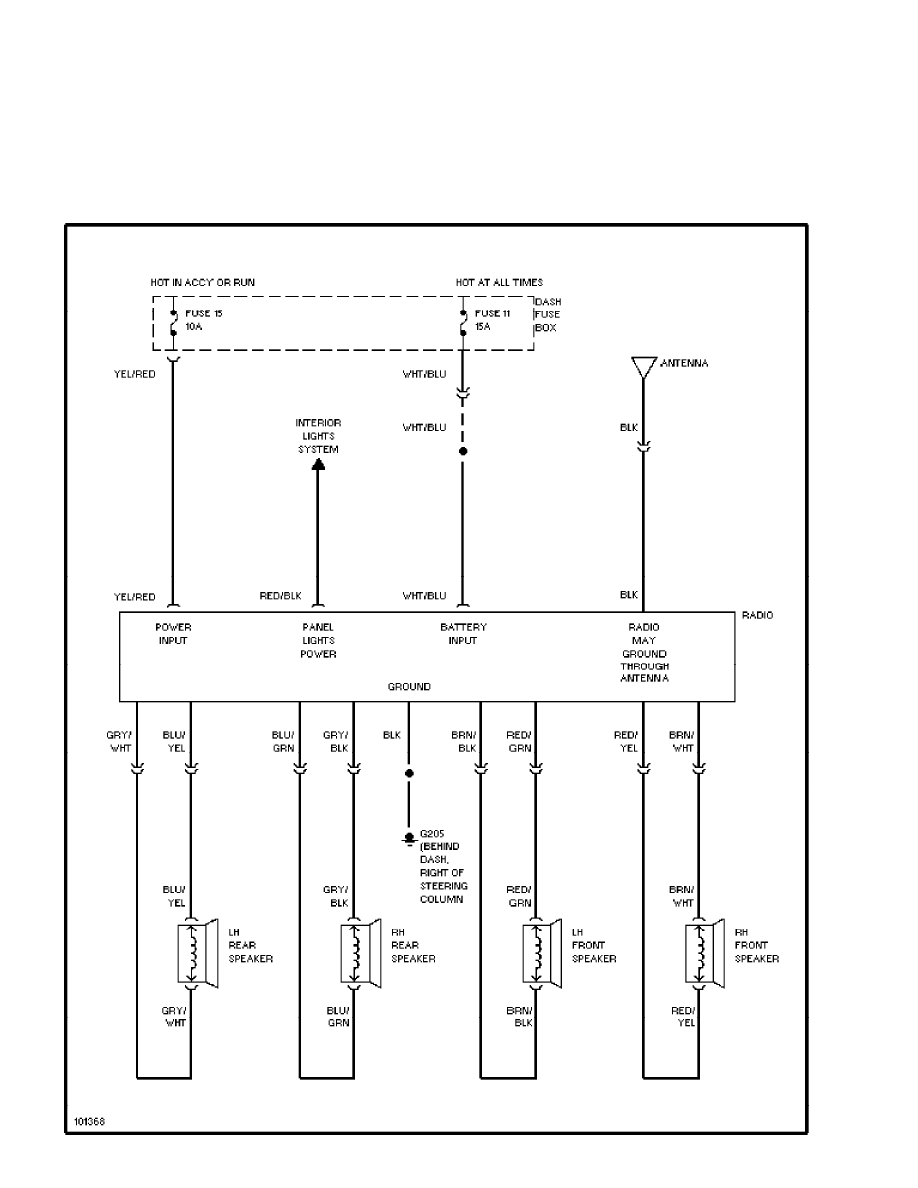

Radio Circuits (p. 11)

1987 Honda Civic/CRX

For x

Thursday, July 29, 2004 11:08PM

SYSTEM WIRING DIAGRAMS

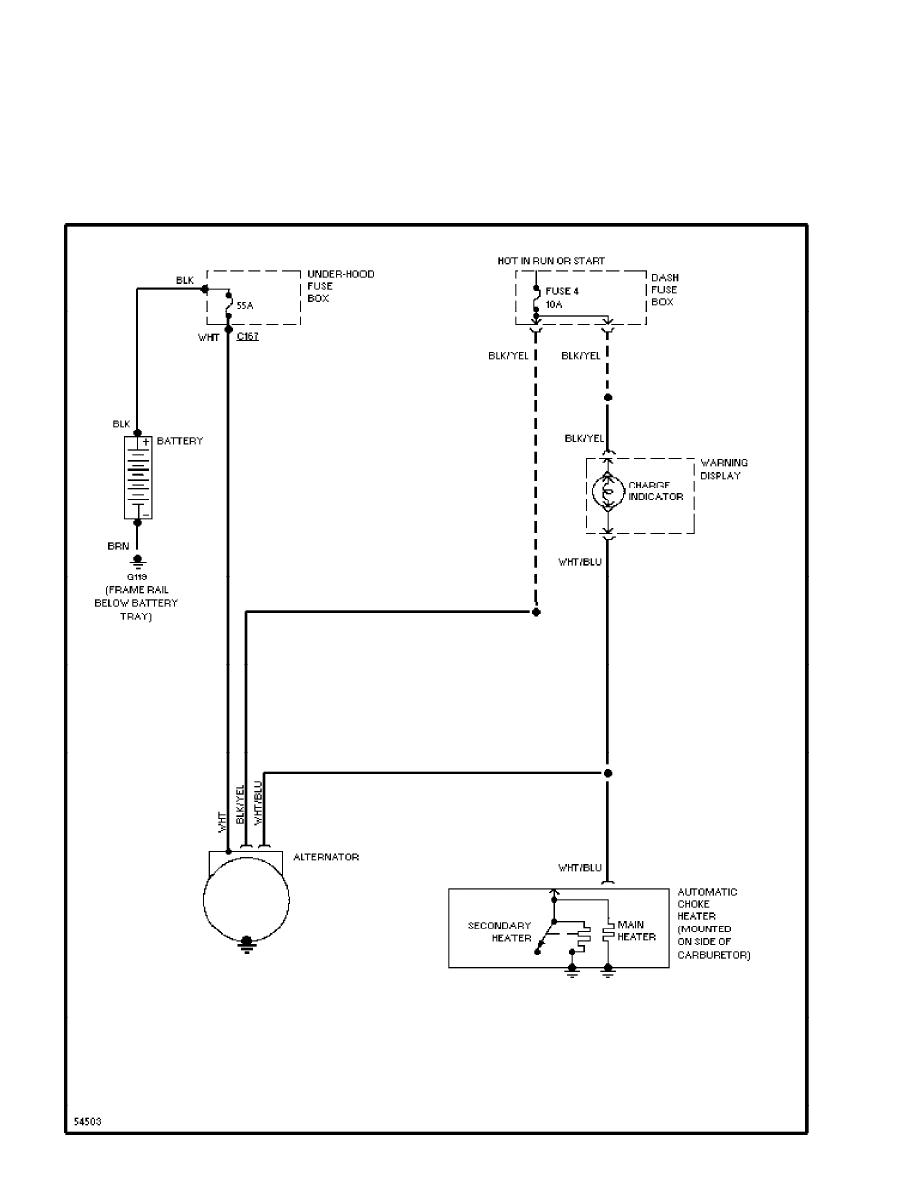

Charging Circuit (p. 12)

1987 Honda Civic/CRX

For x

Thursday, July 29, 2004 11:08PM

SYSTEM WIRING DIAGRAMS

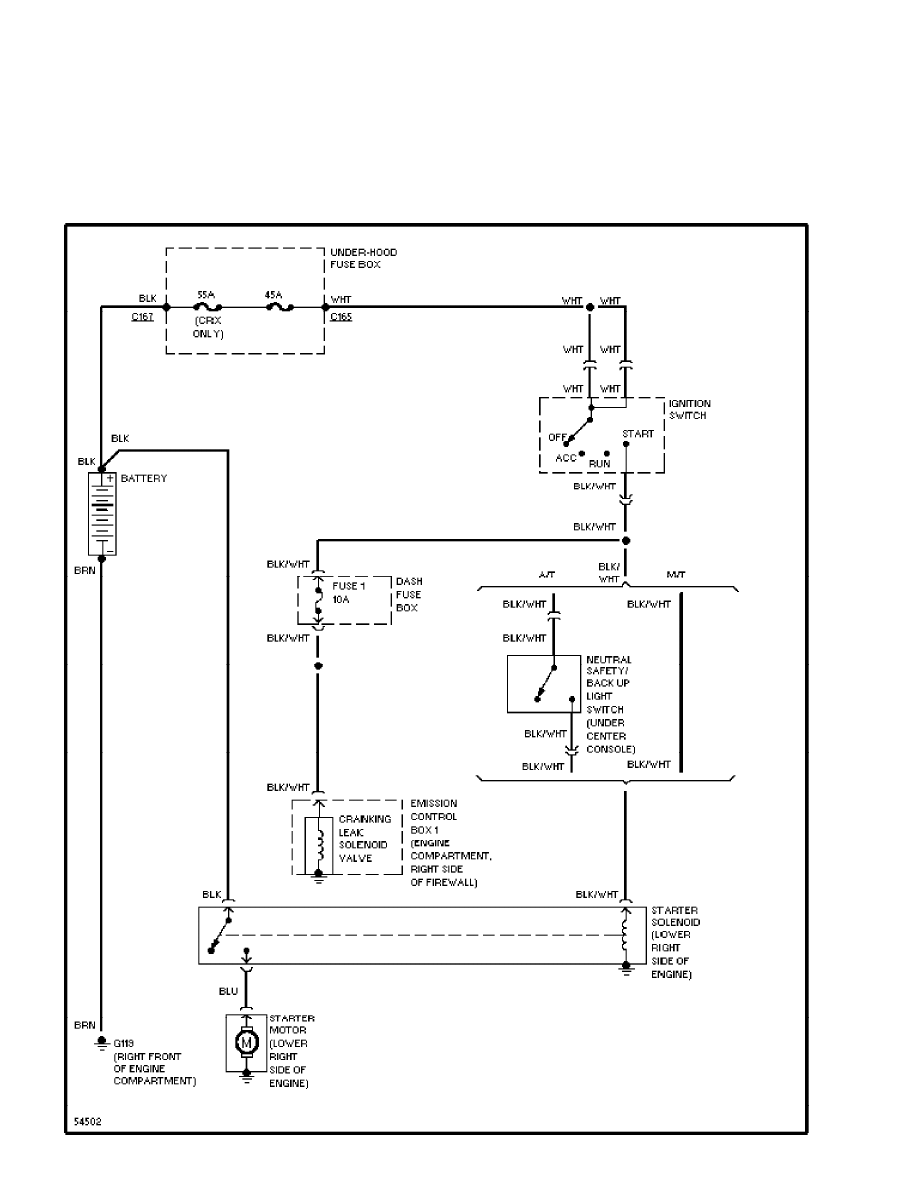

Starting Circuit (p. 13)

1987 Honda Civic/CRX

For x

Thursday, July 29, 2004 11:08PM

SYSTEM WIRING DIAGRAMS

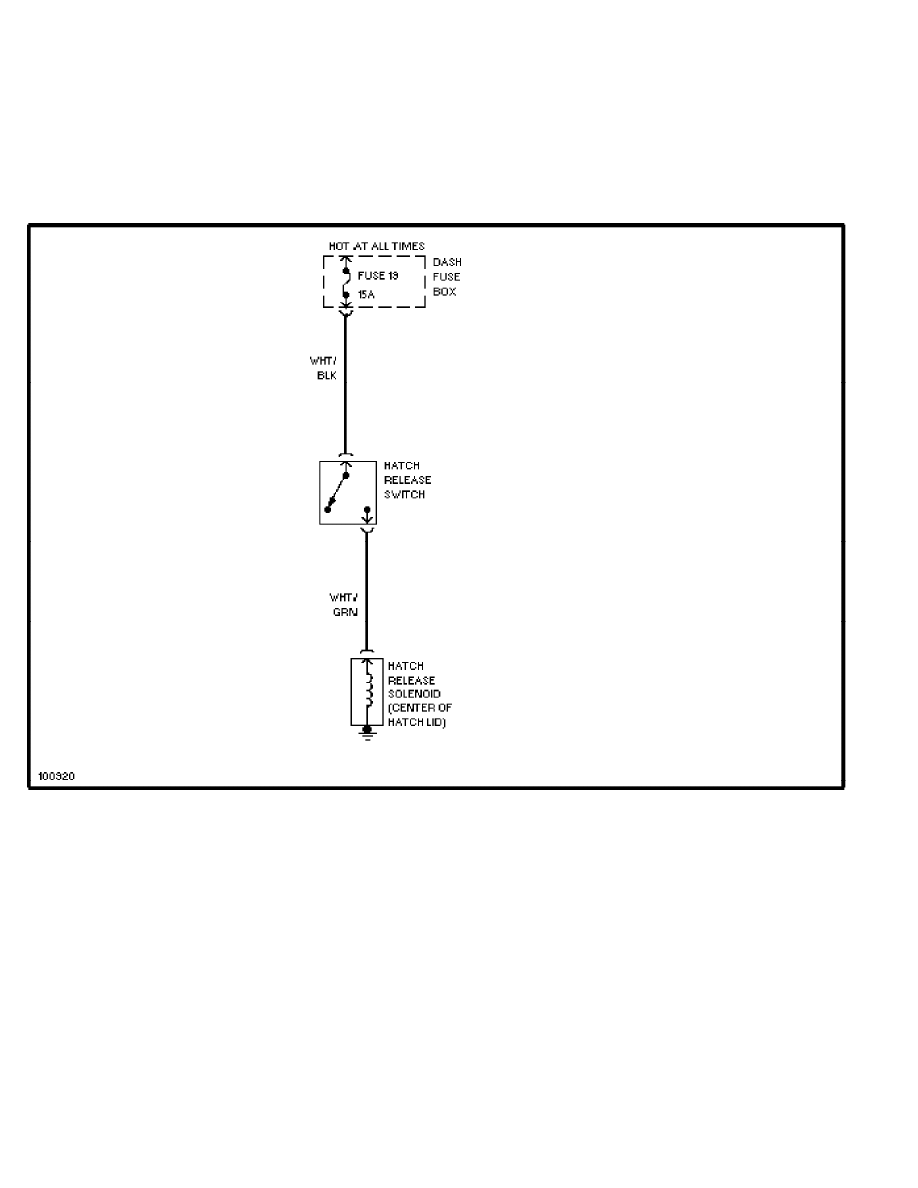

Trunk, Tailgate, Fuel Door Circuits (p. 14)

1987 Honda Civic/CRX

For x

Thursday, July 29, 2004 11:08PM

SYSTEM WIRING DIAGRAMS

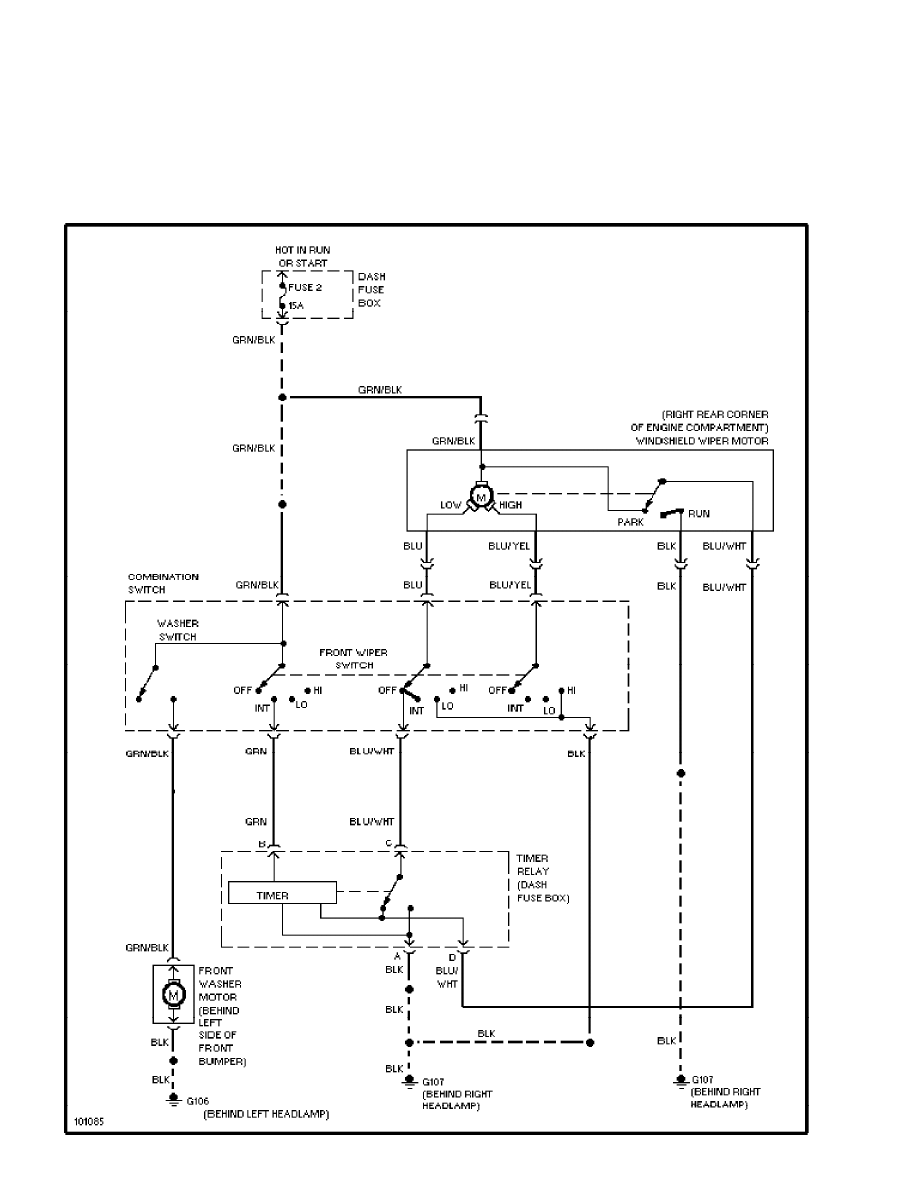

Front Wiper/Washer Circuit (p. 15)

1987 Honda Civic/CRX

For x

Thursday, July 29, 2004 11:08PM

SYSTEM WIRING DIAGRAMS

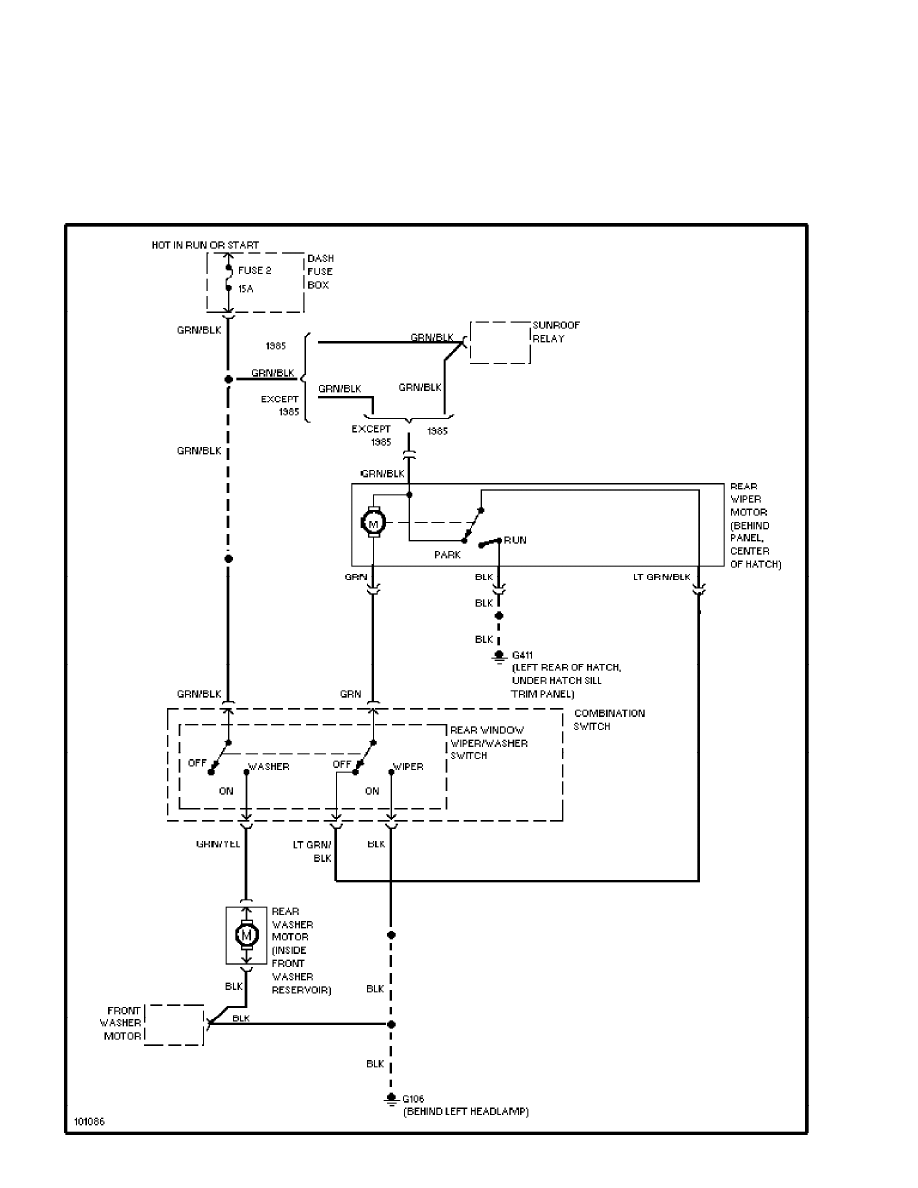

Rear Washer/Wiper Circuit (p. 16)

1987 Honda Civic/CRX

For x

Thursday, July 29, 2004 11:08PM

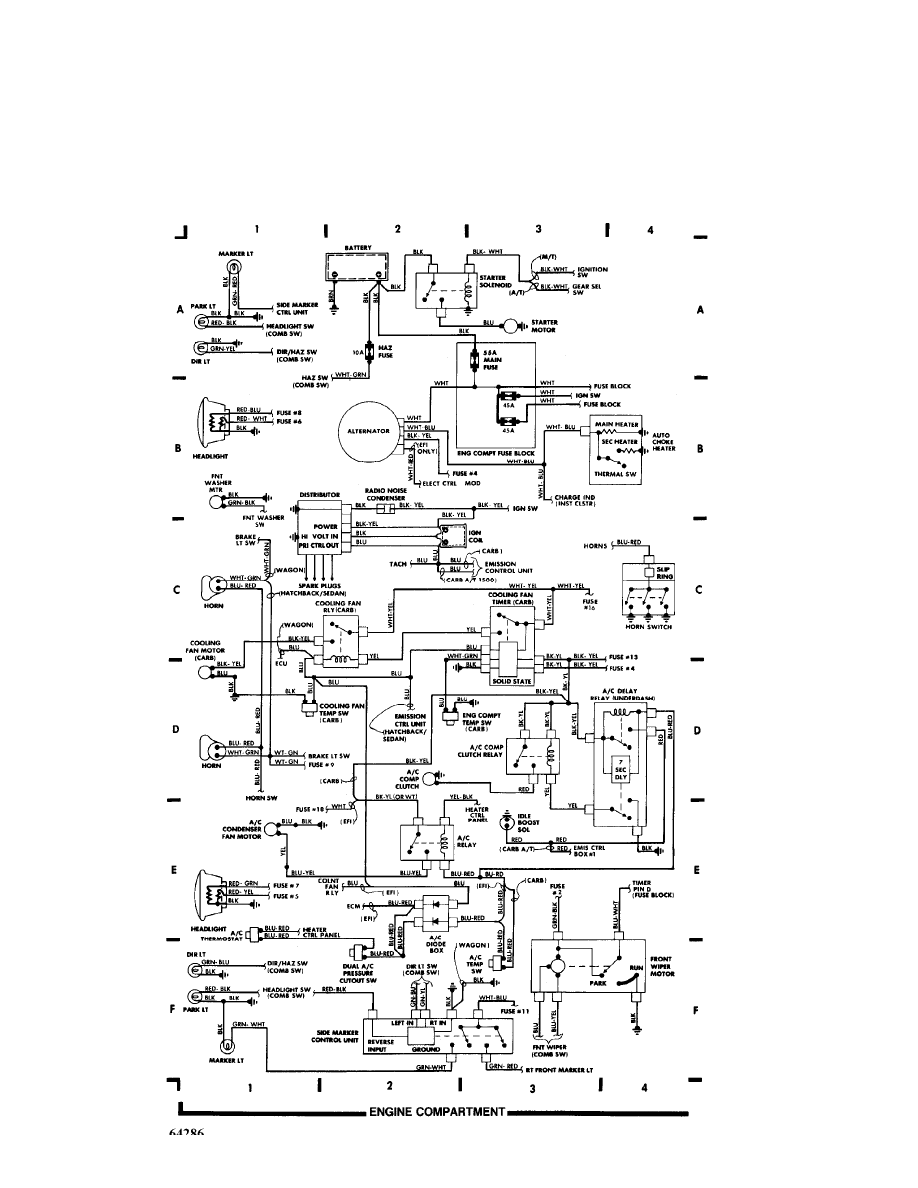

WIRING DIAGRAMS - CRX

Fig. 1: Engine Compartment (Grids 1-4)

1987 Honda Civic/CRX

For x

Thursday, July 29, 2004 11:08PM

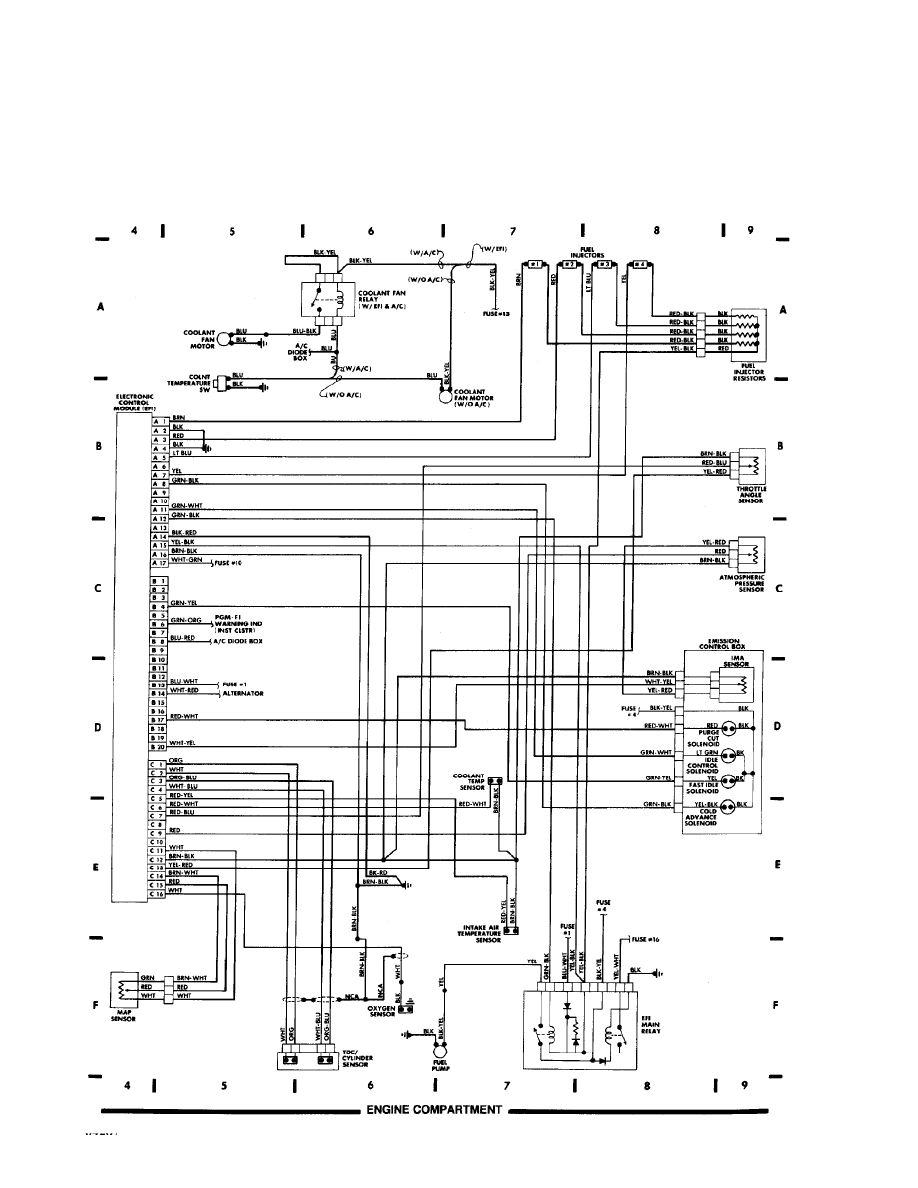

WIRING DIAGRAMS - CRX

Fig. 2: Engine Compartment (Cont.) (Grids 4-9) (p. 2)

1987 Honda Civic/CRX

For x

Thursday, July 29, 2004 11:08PM

WIRING DIAGRAMS - CRX

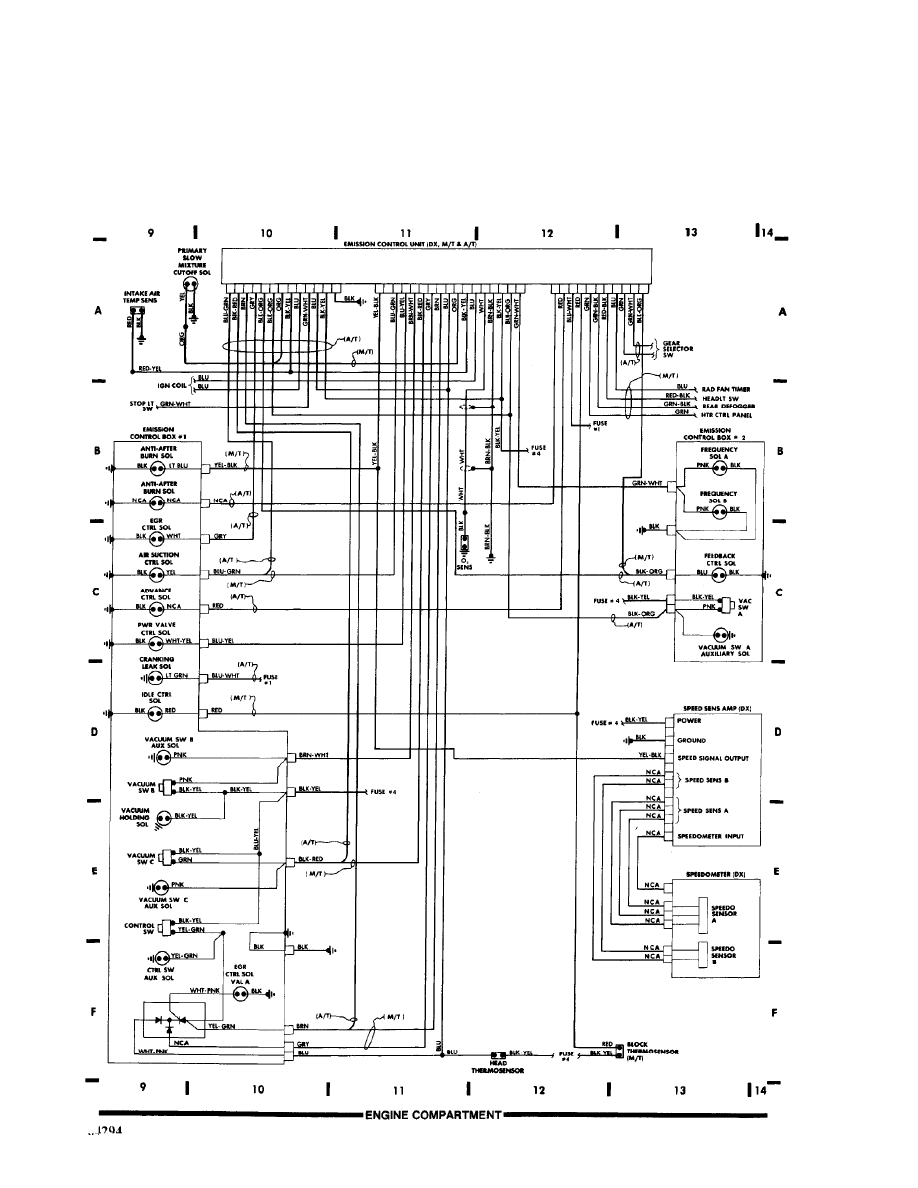

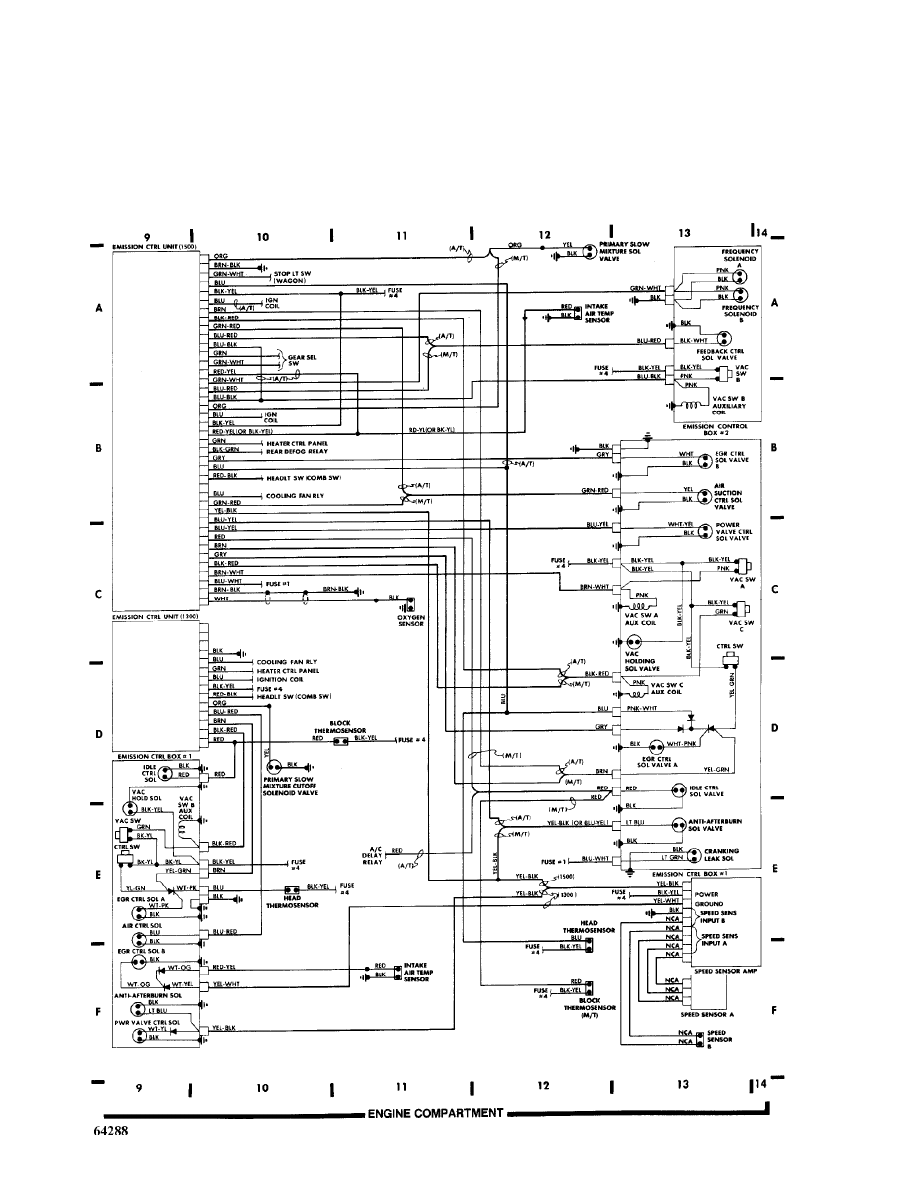

Fig. 3: Engine Compartment (Cont.) (Grids 9-14) (p. 3)

1987 Honda Civic/CRX

For x

Thursday, July 29, 2004 11:08PM

WIRING DIAGRAMS - CRX

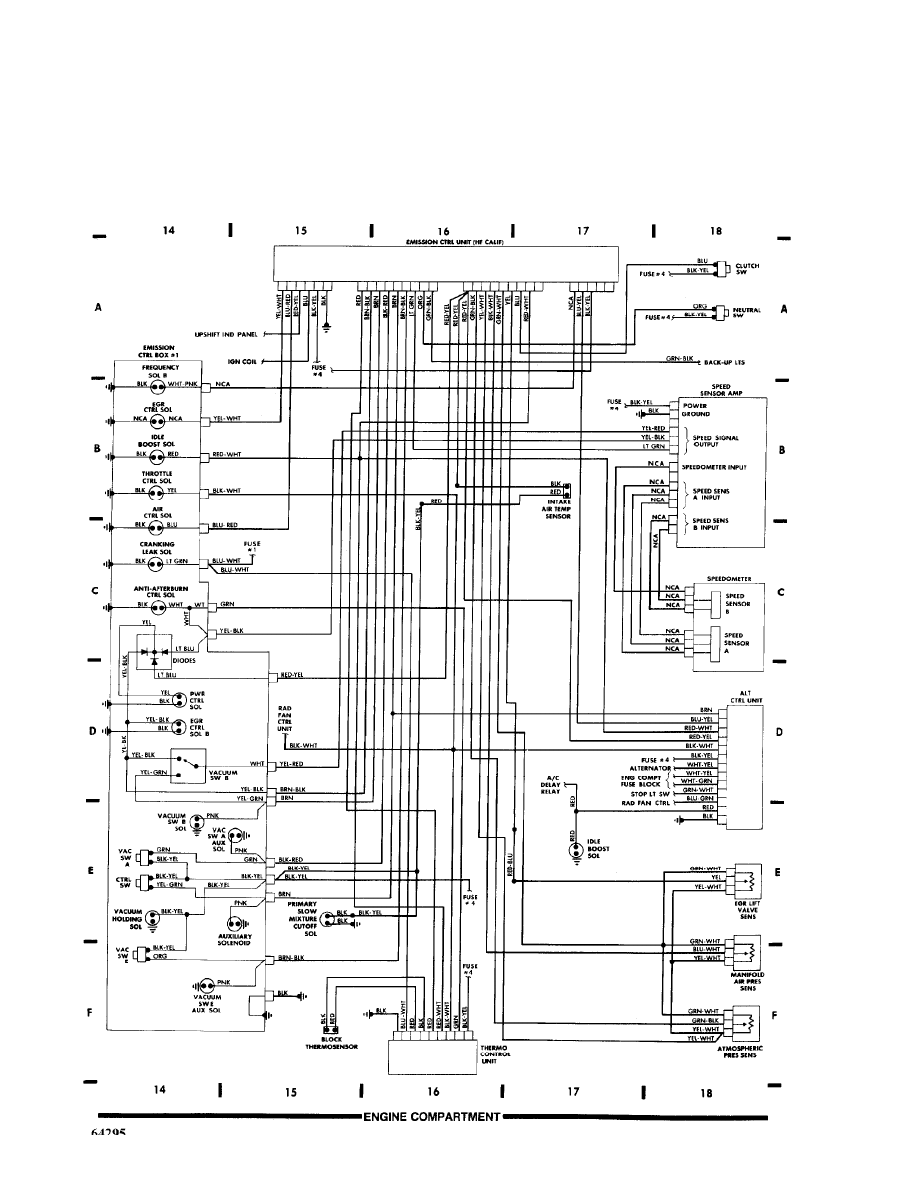

Fig. 4: Engine Compartment (Cont.) (Grids 14-18) (p. 4)

1987 Honda Civic/CRX

For x

Thursday, July 29, 2004 11:08PM

WIRING DIAGRAMS - CRX

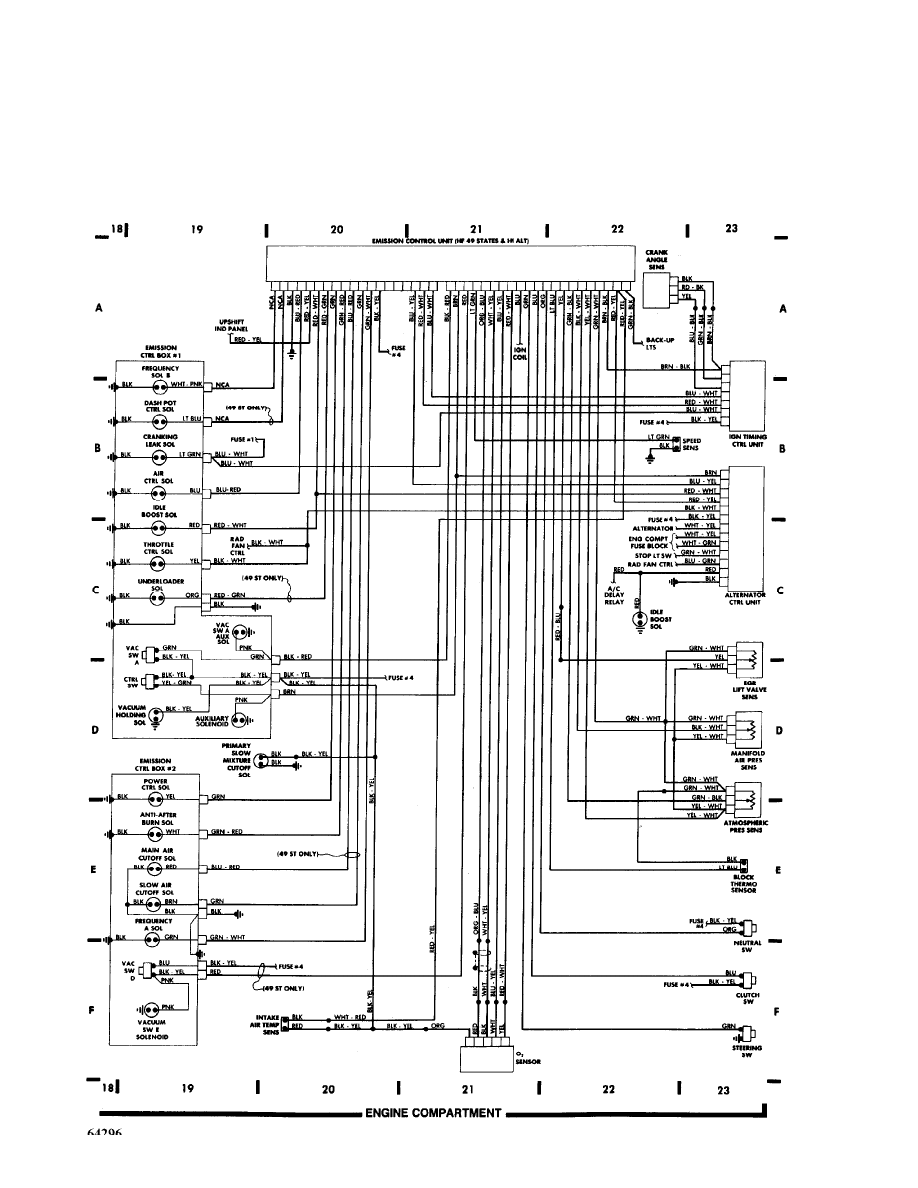

Fig. 5: Engine Compartment (Cont.) (Grids 18-23) (p. 5)

1987 Honda Civic/CRX

For x

Thursday, July 29, 2004 11:08PM

WIRING DIAGRAMS - CRX

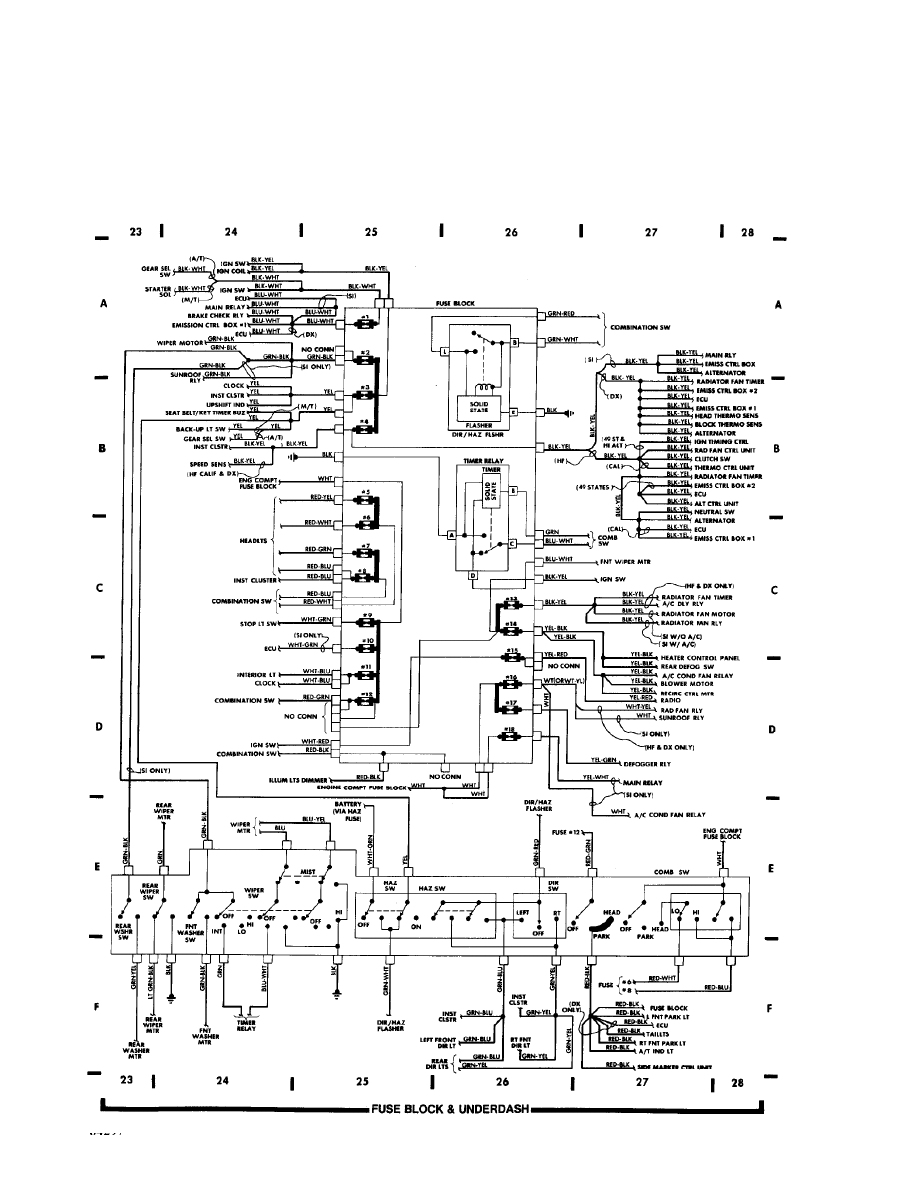

Fig. 6: Fuse Block & Underdash (Grids 23-28) (p. 6)

1987 Honda Civic/CRX

For x

Thursday, July 29, 2004 11:08PM

WIRING DIAGRAMS - CRX

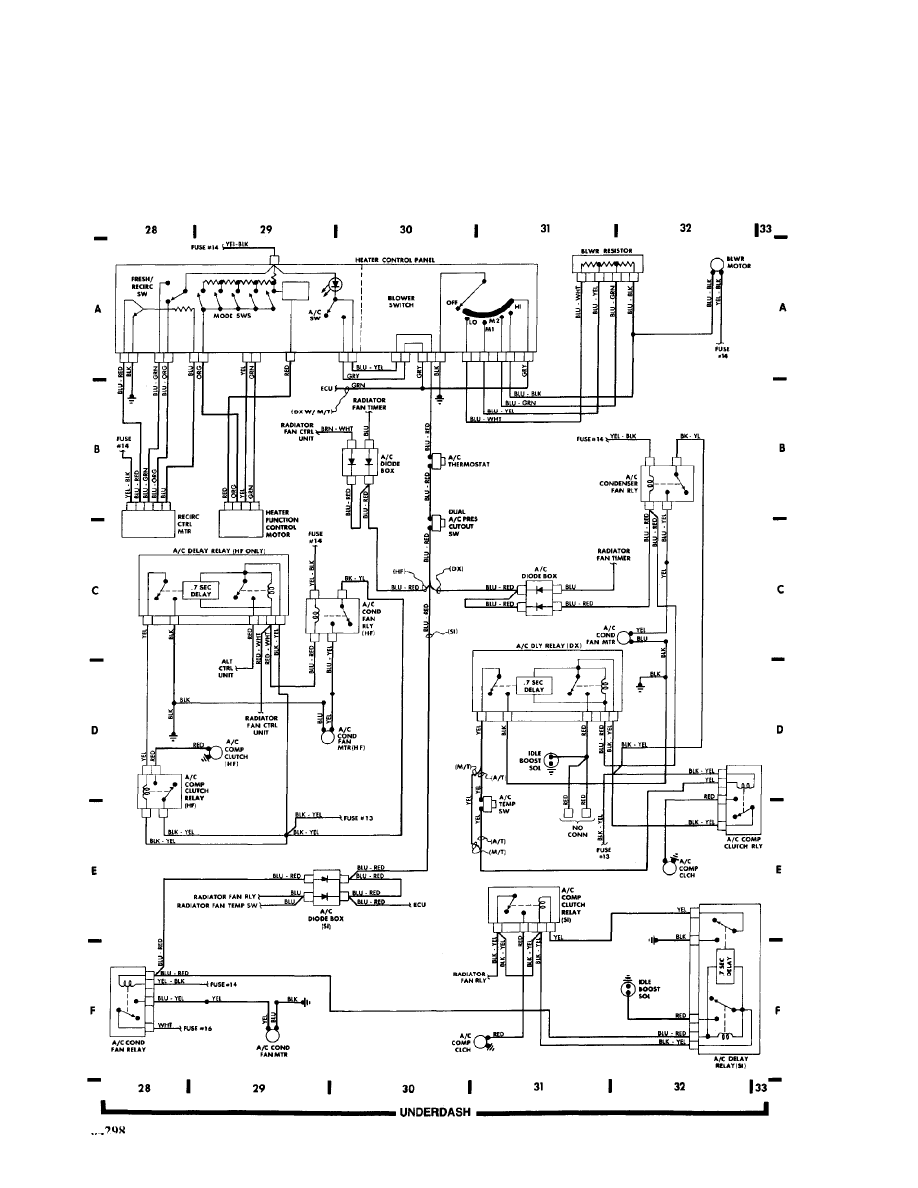

Fig. 7: Underdash (Cont.) (Grids 28-33) (p. 7)

1987 Honda Civic/CRX

For x

Thursday, July 29, 2004 11:08PM

WIRING DIAGRAMS - CRX

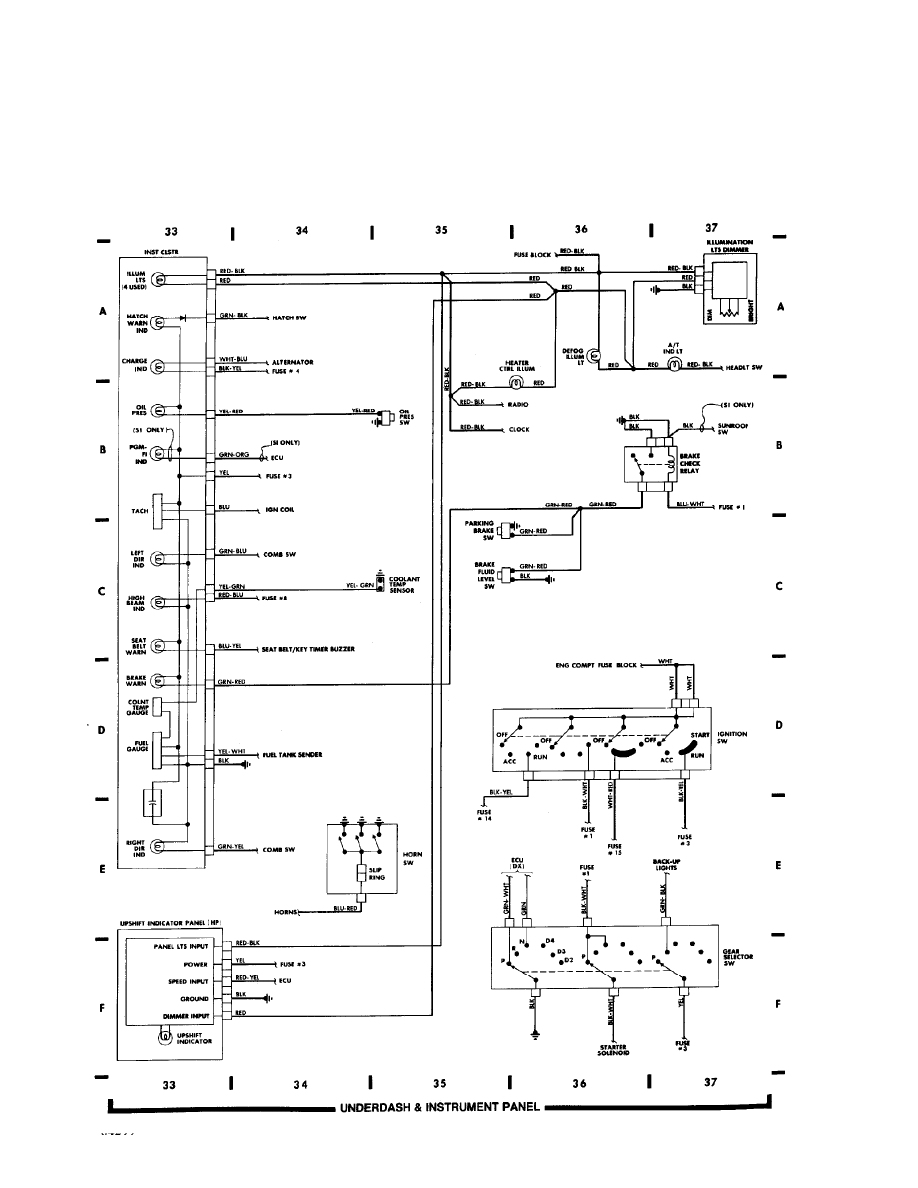

Fig. 8: Underdash (Cont.) & Instrument Panel (Grids 33-37) (p. 8)

1987 Honda Civic/CRX

For x

Thursday, July 29, 2004 11:08PM

WIRING DIAGRAMS - CRX

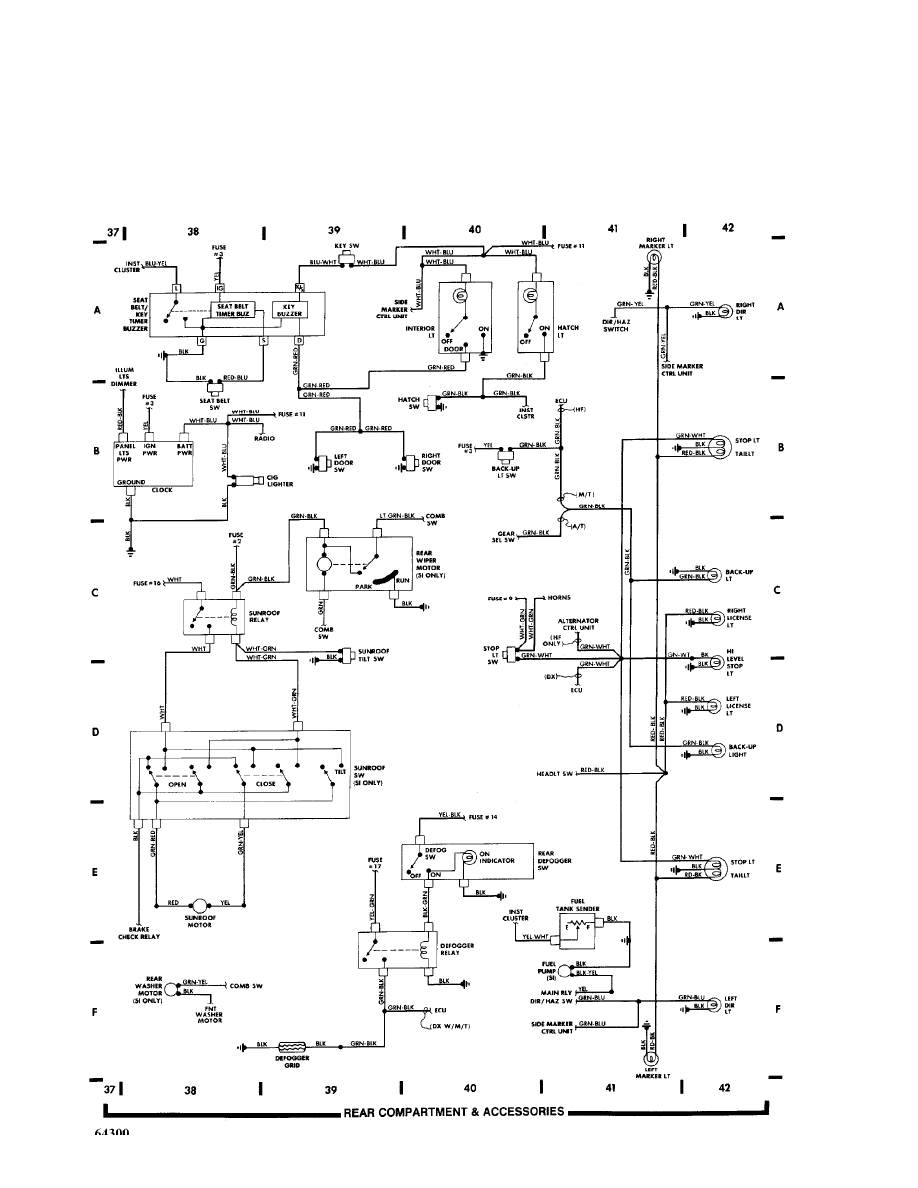

Fig. 9: Rear Compartment & Accessories (Grids 37-42) (p. 9)

1987 Honda Civic/CRX

For x

Thursday, July 29, 2004 11:08PM

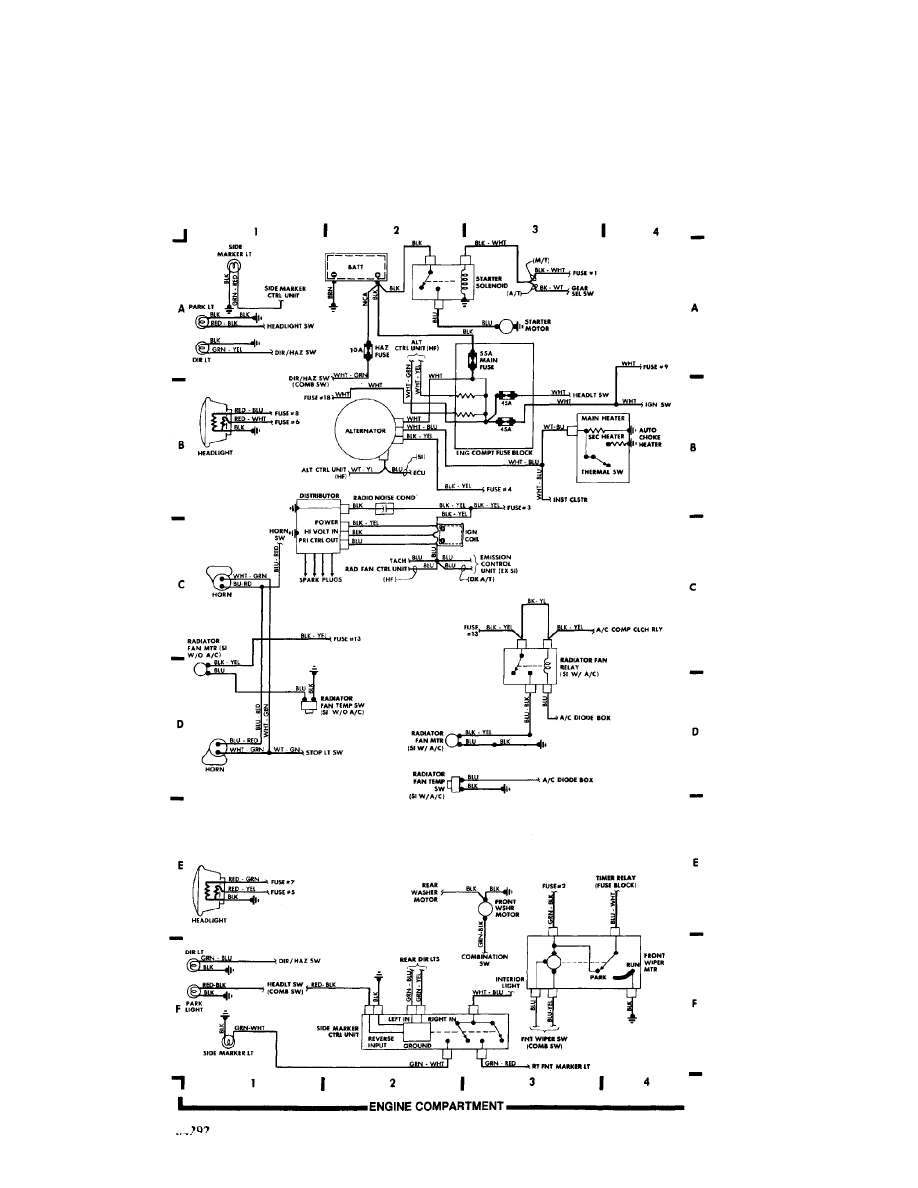

WIRING DIAGRAMS - EXCEPT CRX

Fig. 1: Engine Compartment & Headlights (Grids 1-4)

1987 Honda Civic/CRX

For x

Thursday, July 29, 2004 11:08PM

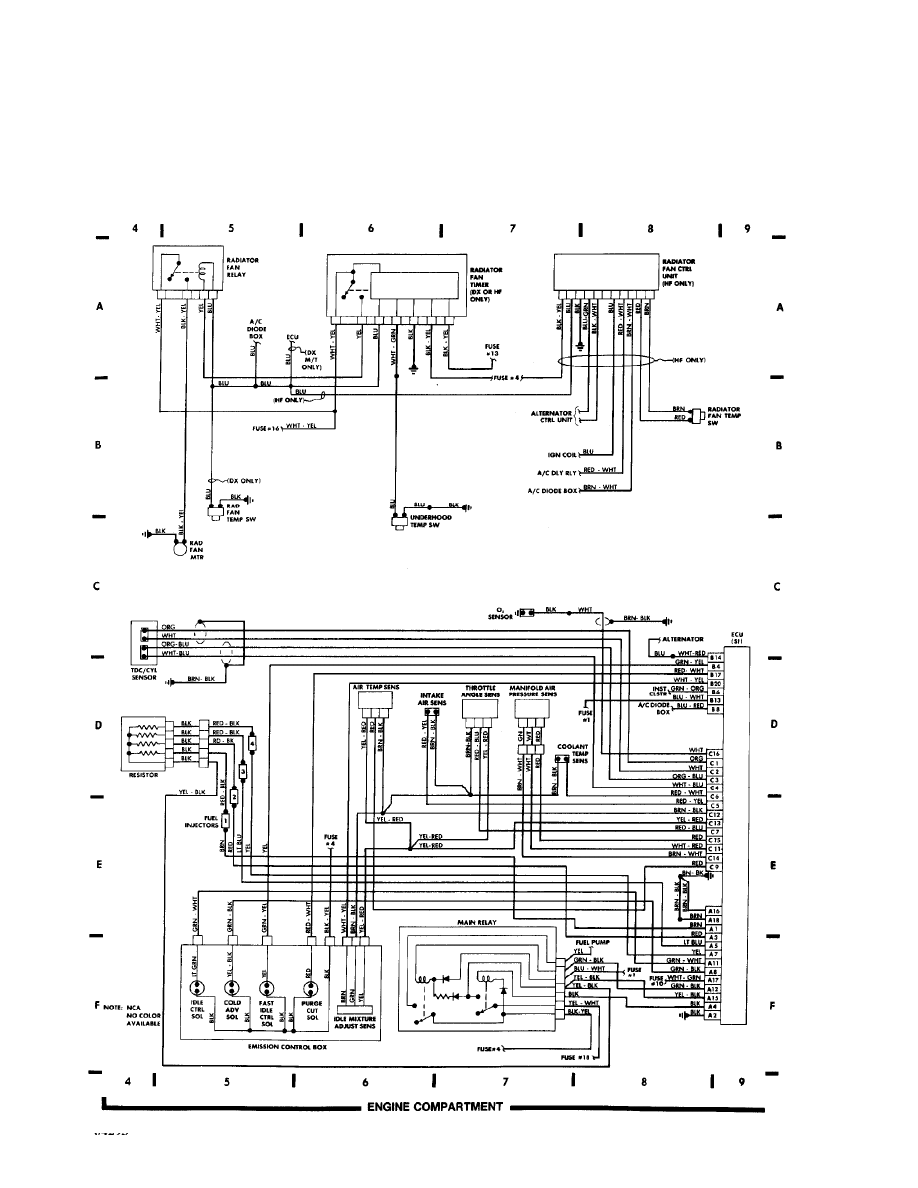

WIRING DIAGRAMS - EXCEPT CRX

Fig. 2: Computer Engine Control System (EFI) (Grids 4-9) (p. 2)

1987 Honda Civic/CRX

For x

Thursday, July 29, 2004 11:08PM

WIRING DIAGRAMS - EXCEPT CRX

Fig. 3: Computer Engine Control System (Carbureted 1500 & 1300) (Grids 9-14) (p. 3)

1987 Honda Civic/CRX

For x

Thursday, July 29, 2004 11:08PM

WIRING DIAGRAMS - EXCEPT CRX

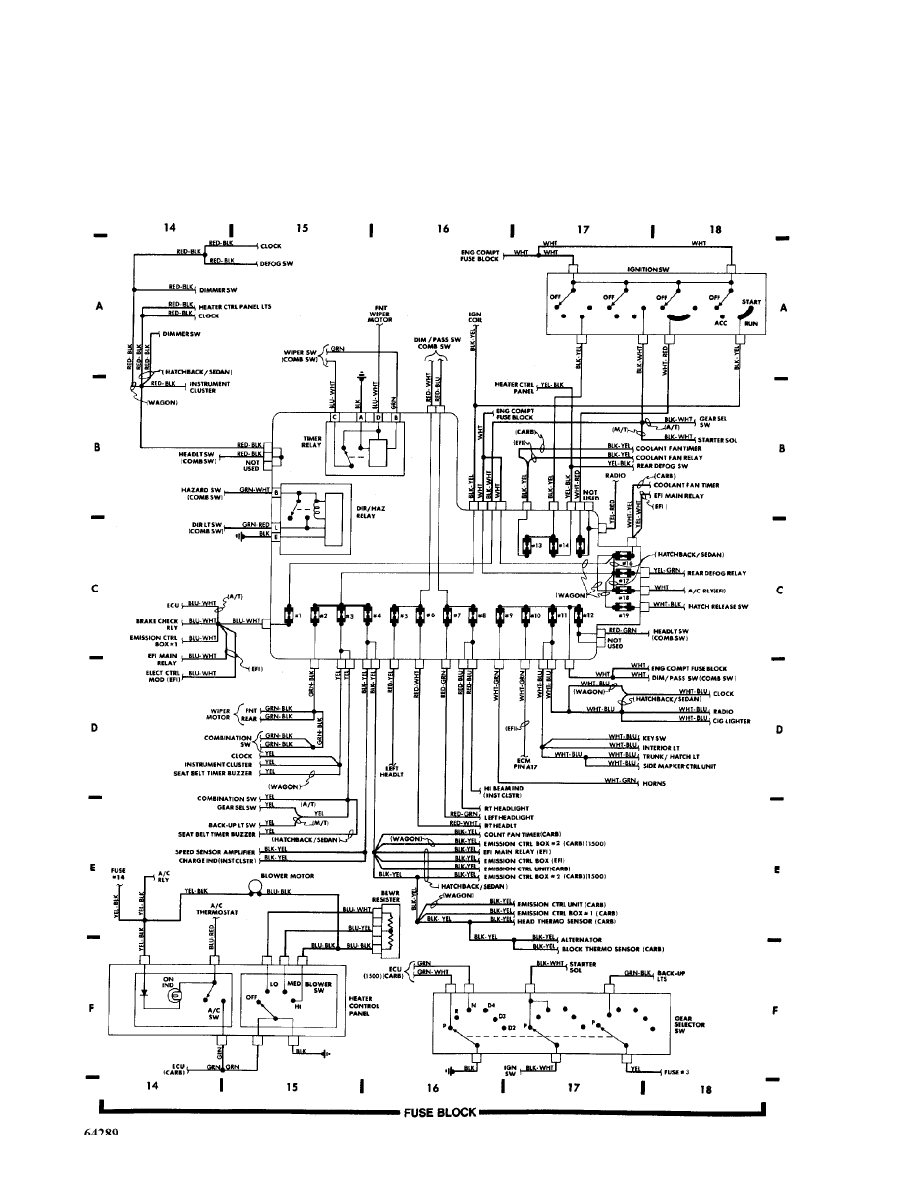

Fig. 4: Fuse Block (Grids 14-18) (p. 4)

1987 Honda Civic/CRX

For x

Thursday, July 29, 2004 11:08PM

WIRING DIAGRAMS - EXCEPT CRX

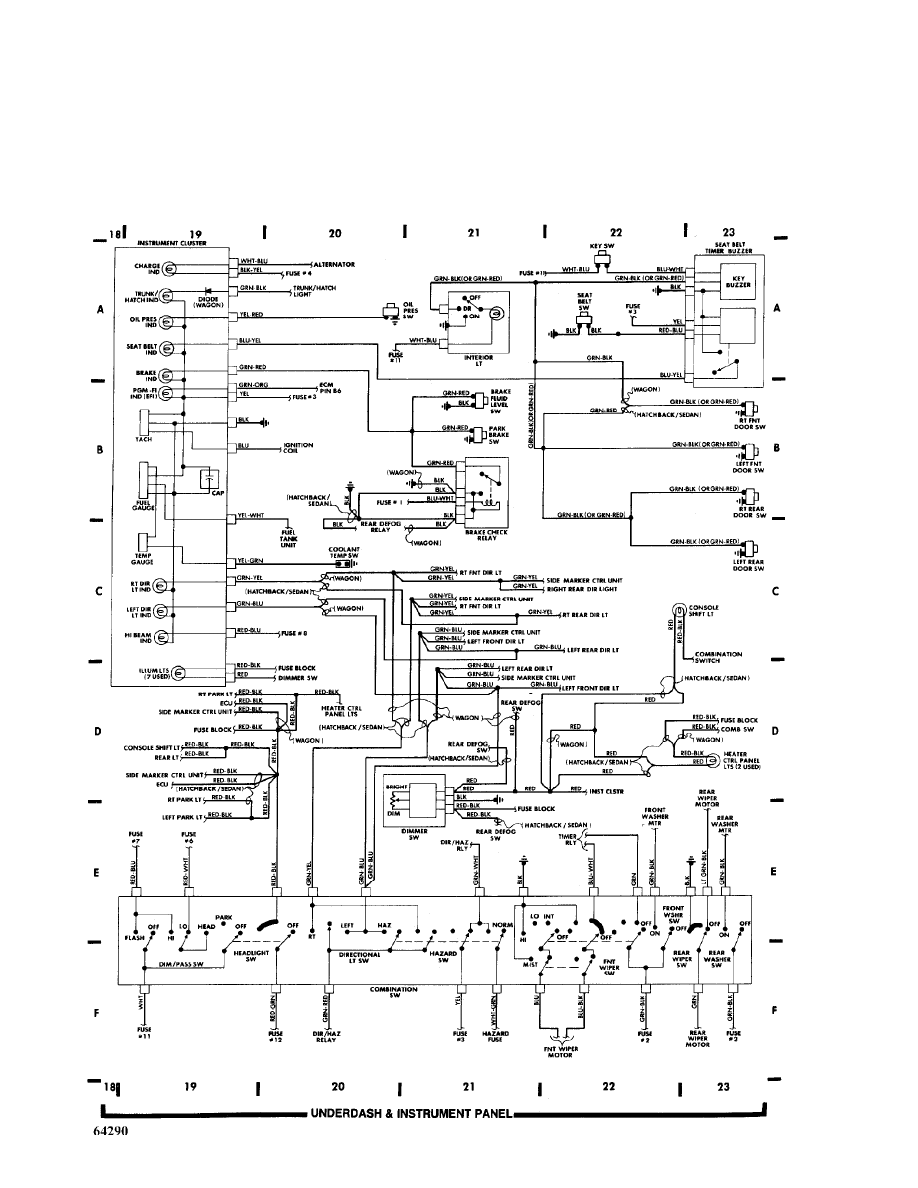

Fig. 5: Underdash & Instrument Panel (Grids 18-23) (p. 5)

1987 Honda Civic/CRX

For x

Thursday, July 29, 2004 11:08PM

WIRING DIAGRAMS - EXCEPT CRX

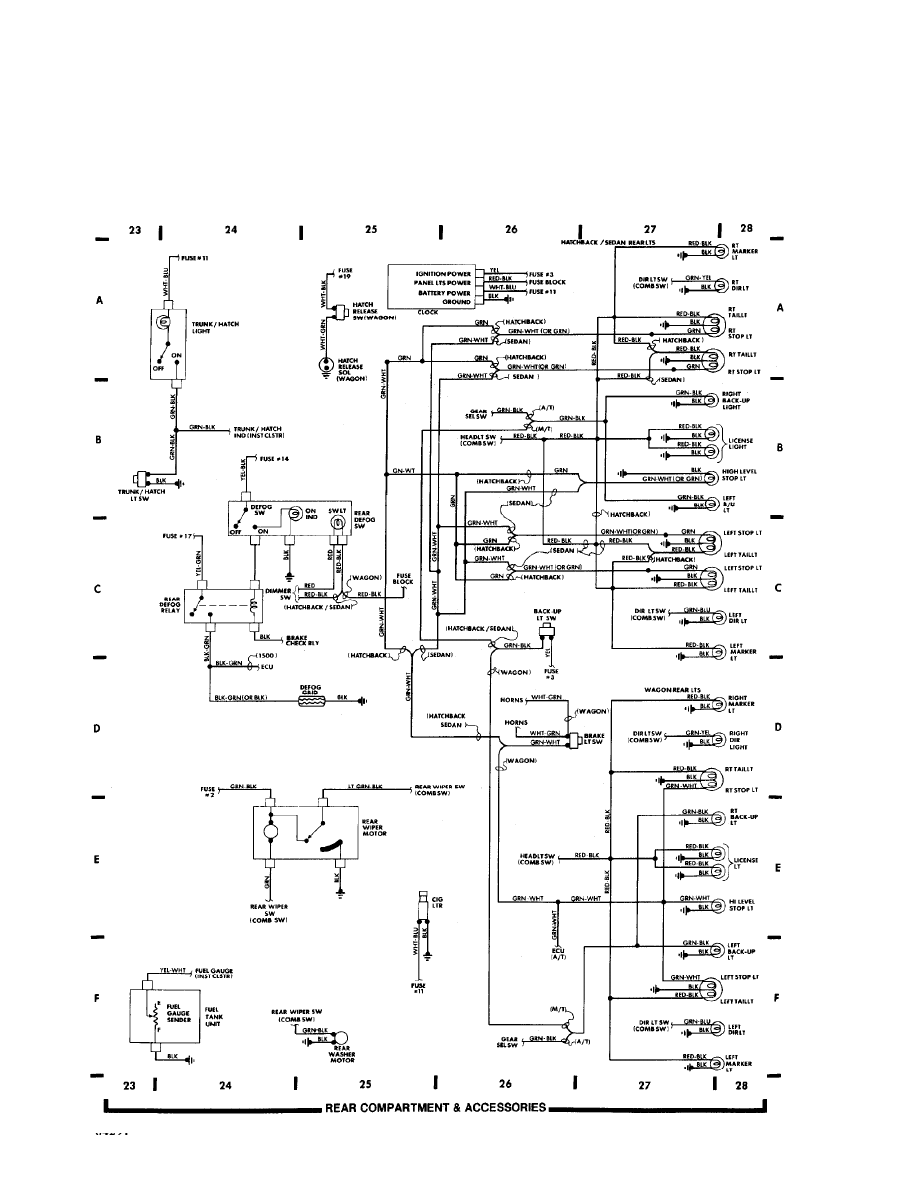

Fig. 6: Rear Compartment, Accessories & Taillights (Grids 23-28) (p. 6)

1987 Honda Civic/CRX

For x

Thursday, July 29, 2004 11:08PM
