JAGUAR XJ6 1983

background image

WIRING DIAGRAMS

Fig. 1: Engine Compartment & Fuse Block

1983 Jaguar XJ6

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, September 10, 2004 12:12PM

background image

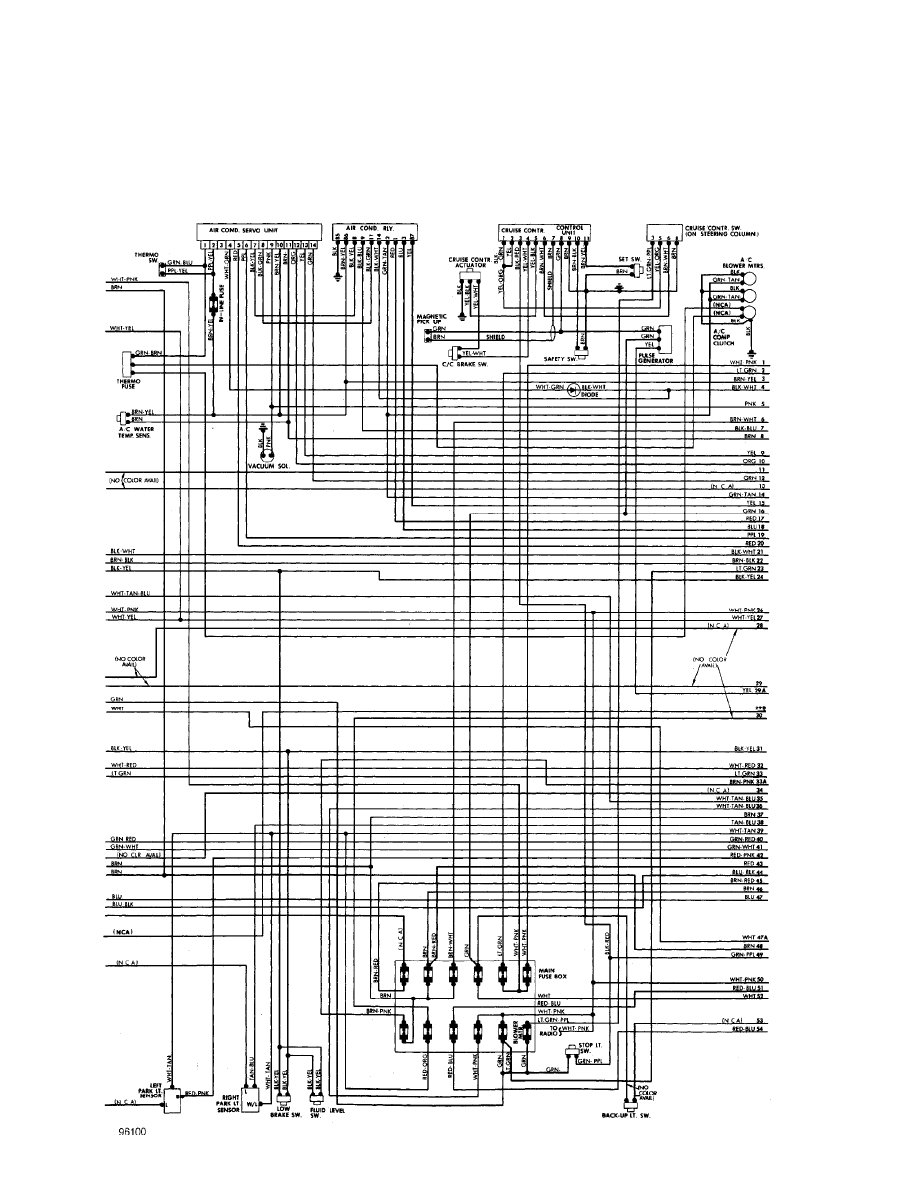

WIRING DIAGRAMS

Fig. 2: Fuse Block (Cont.) & Underdash (p. 2)

1983 Jaguar XJ6

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, September 10, 2004 12:12PM

background image

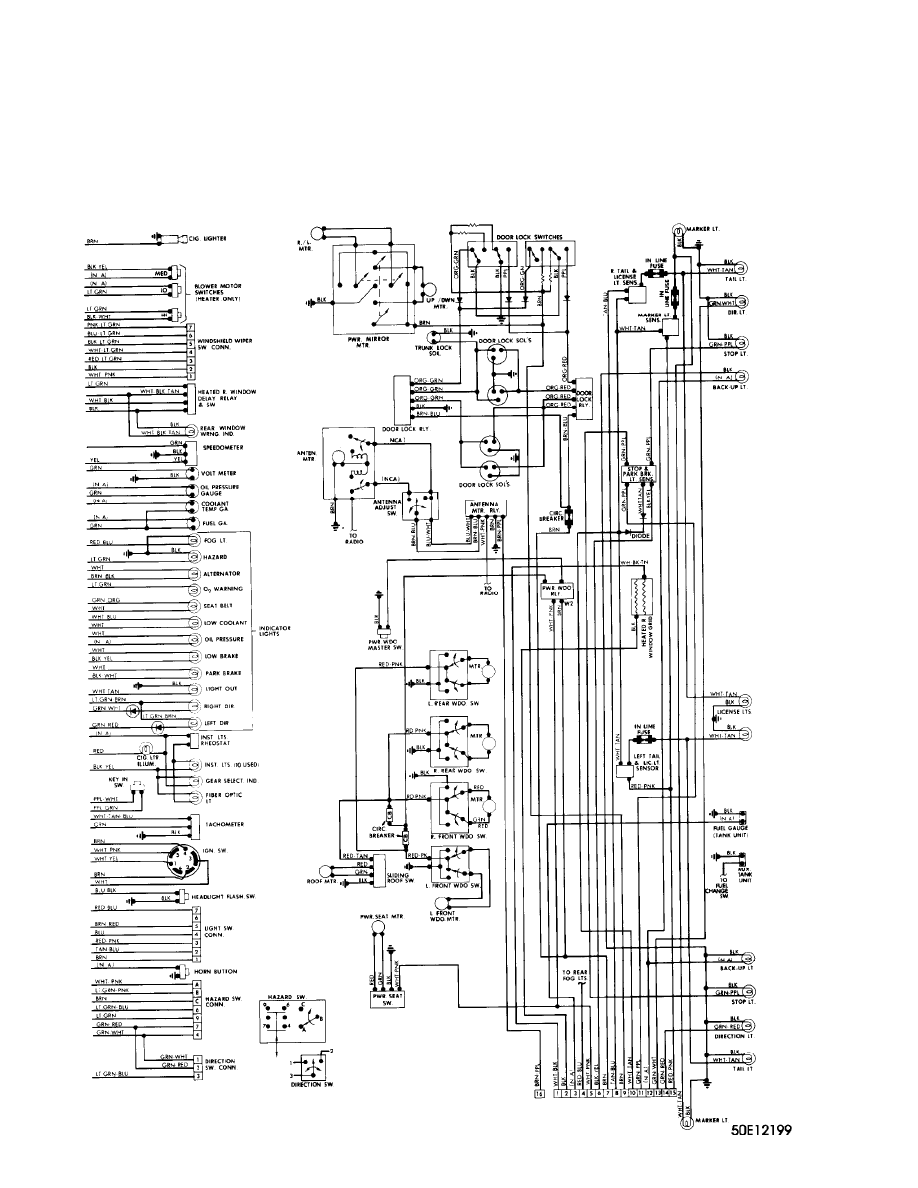

WIRING DIAGRAMS

Fig. 3: Underdash (Cont.) (p. 3)

1983 Jaguar XJ6

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, September 10, 2004 12:12PM

background image

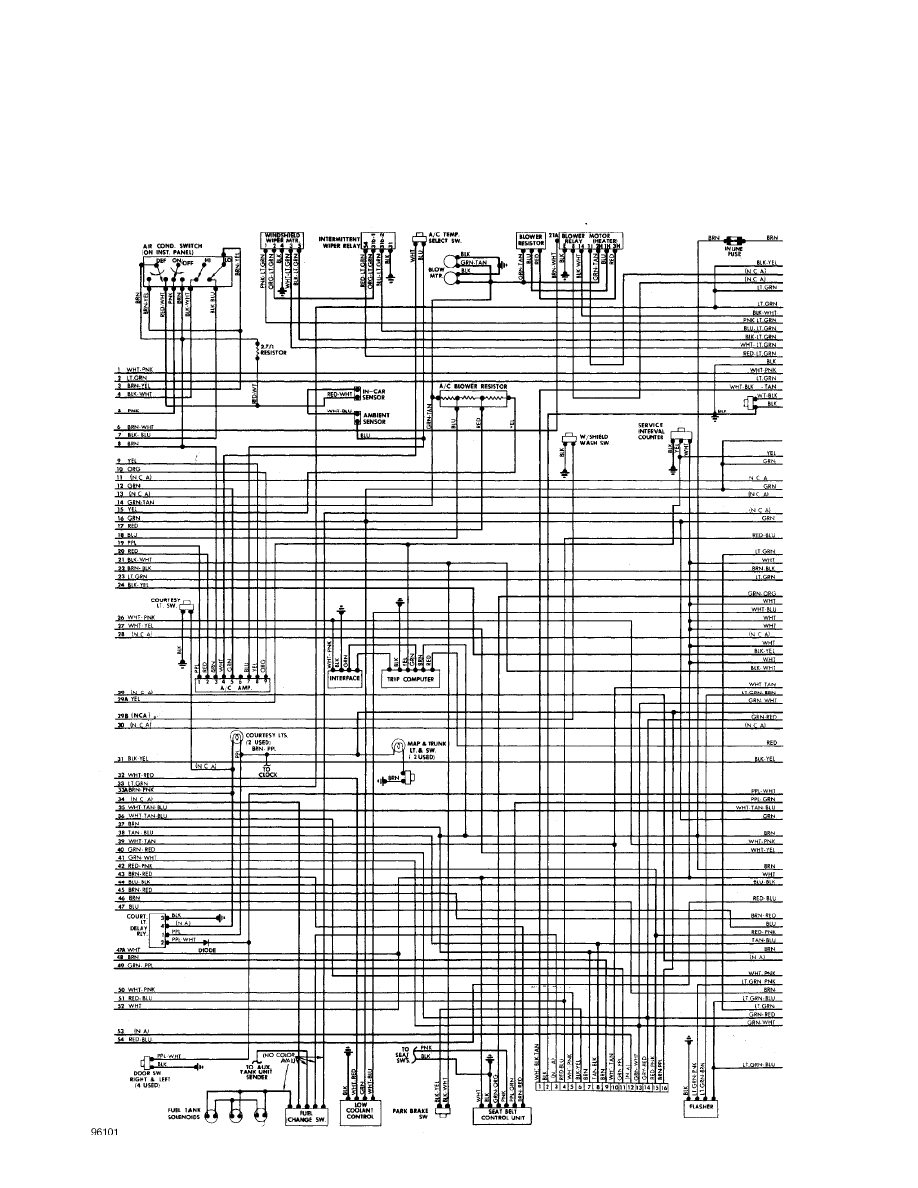

WIRING DIAGRAMS

Fig. 4: Instrument Panel, Rear Compartment & Accessories (p. 4)

1983 Jaguar XJ6

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, September 10, 2004 12:12PM
