MITSUBISHI PICKUP 1985

background image

SYSTEM WIRING DIAGRAMS

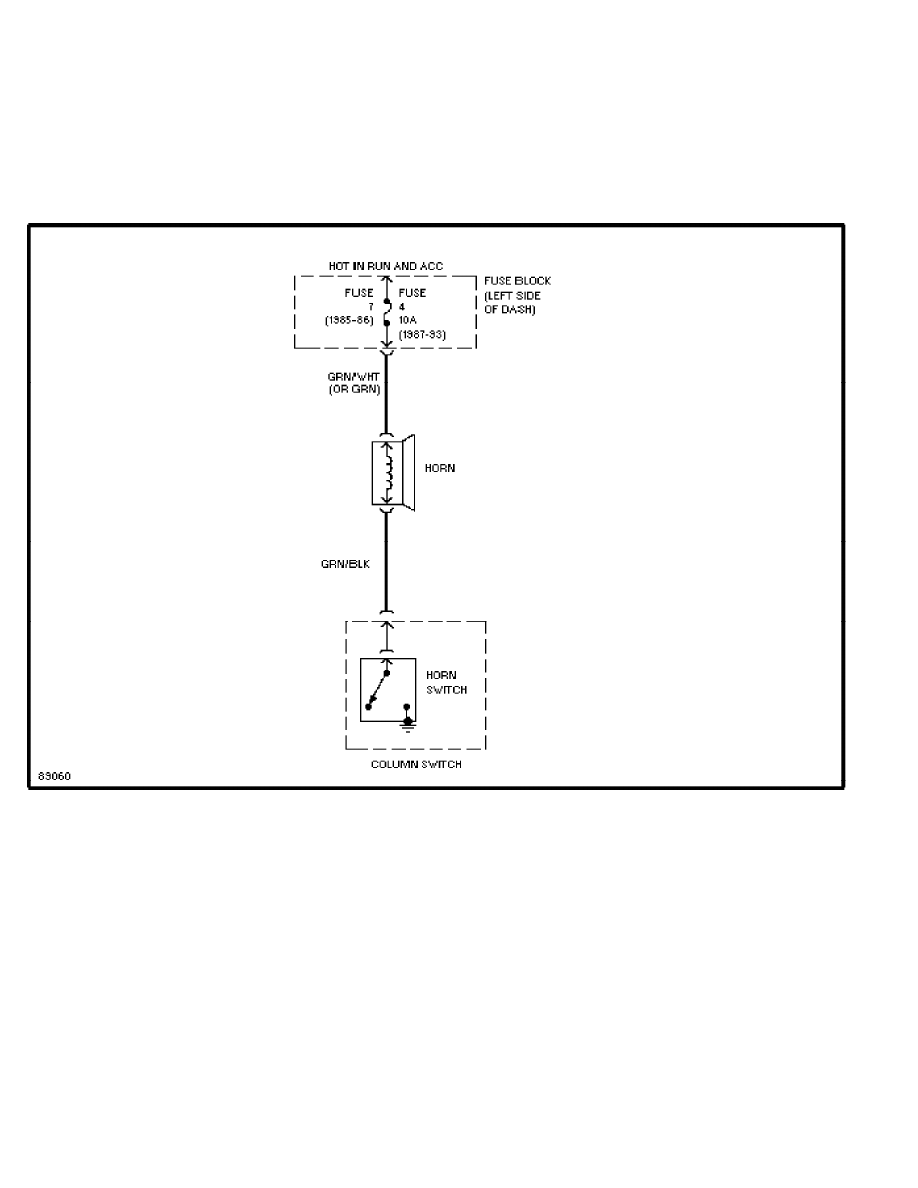

Horn Circuit

1985 Mitsubishi Pickup

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 12:11PM

background image

SYSTEM WIRING DIAGRAMS

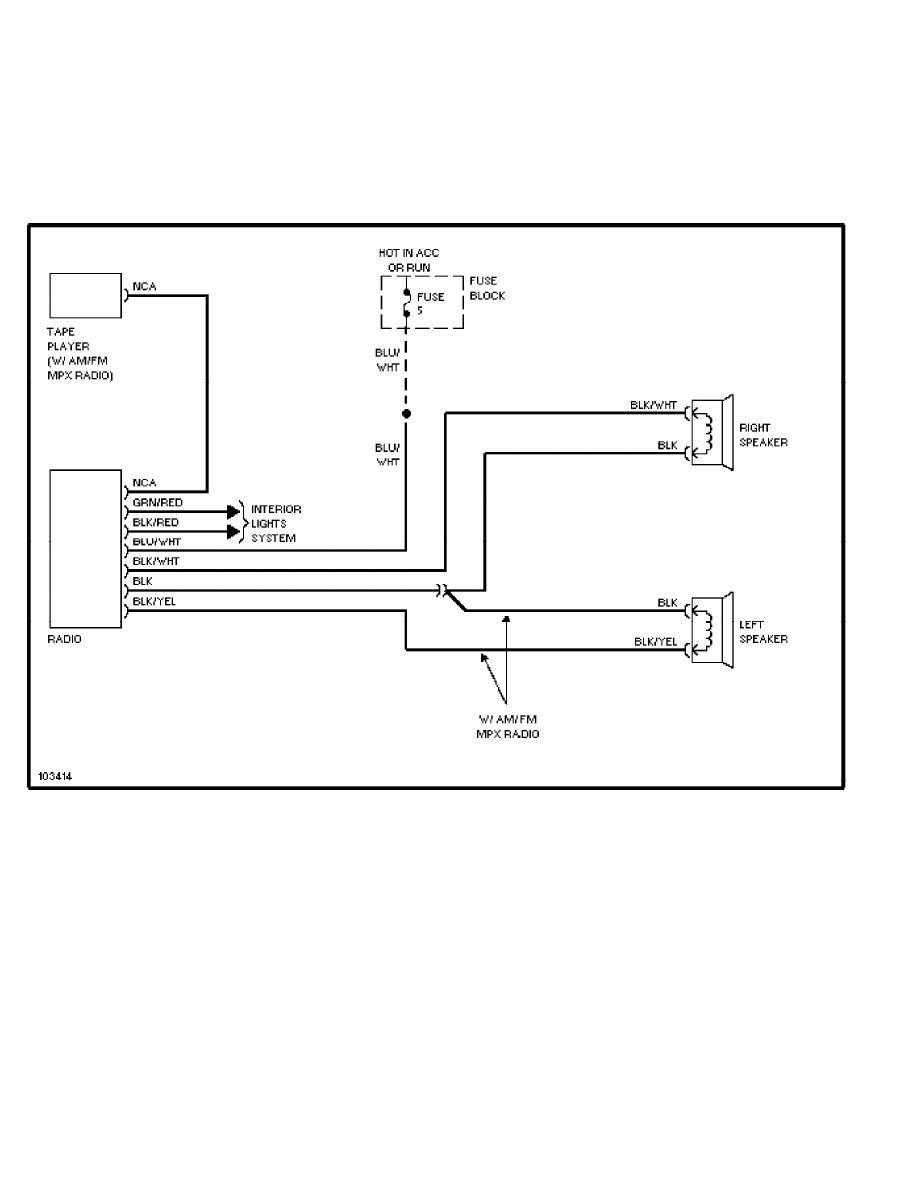

Radio Circuits (p. 2)

1985 Mitsubishi Pickup

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 12:11PM

background image

SYSTEM WIRING DIAGRAMS

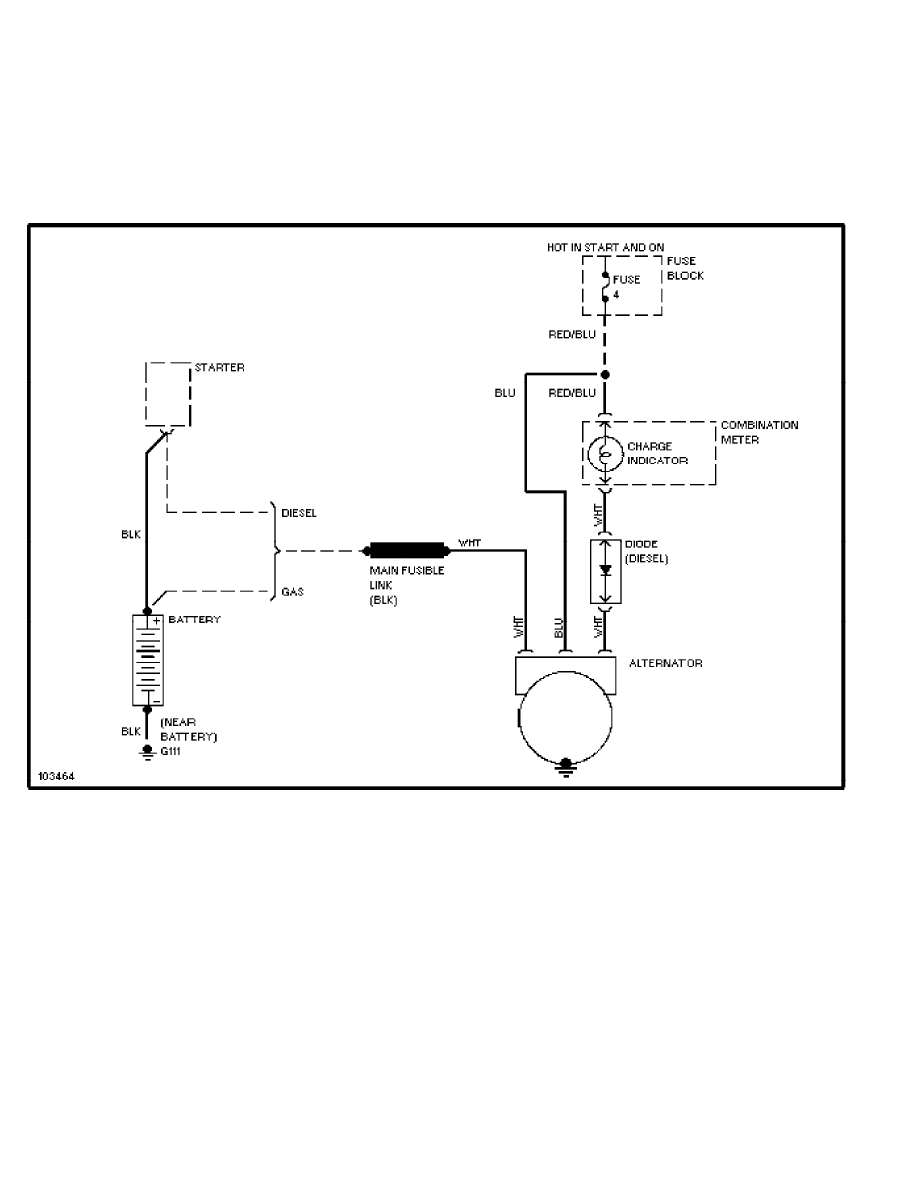

Charging Circuit (p. 3)

1985 Mitsubishi Pickup

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 12:11PM

background image

SYSTEM WIRING DIAGRAMS

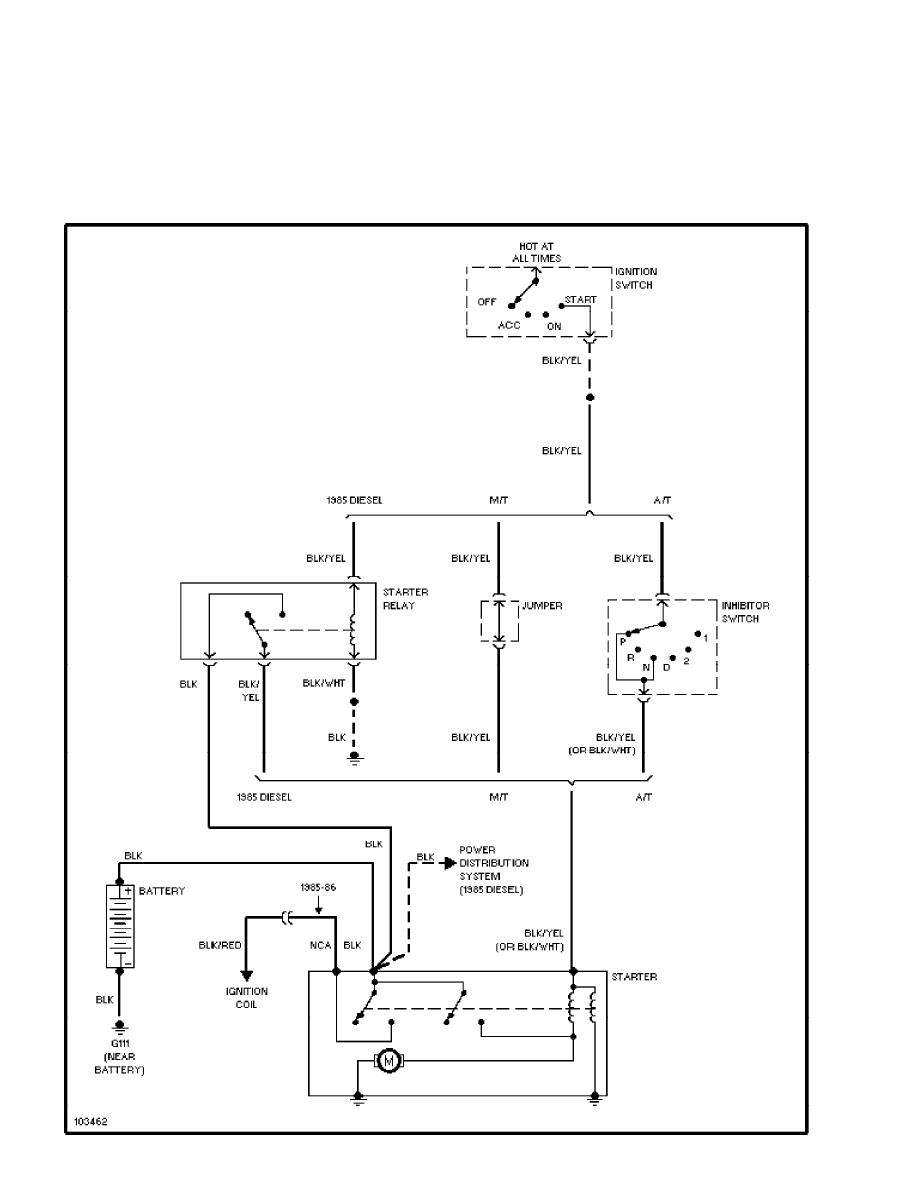

Starting Circuit (p. 4)

1985 Mitsubishi Pickup

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 12:11PM

background image

SYSTEM WIRING DIAGRAMS

Wiper/Washer Circuit (p. 5)

1985 Mitsubishi Pickup

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 12:11PM

background image

WIRING DIAGRAMS

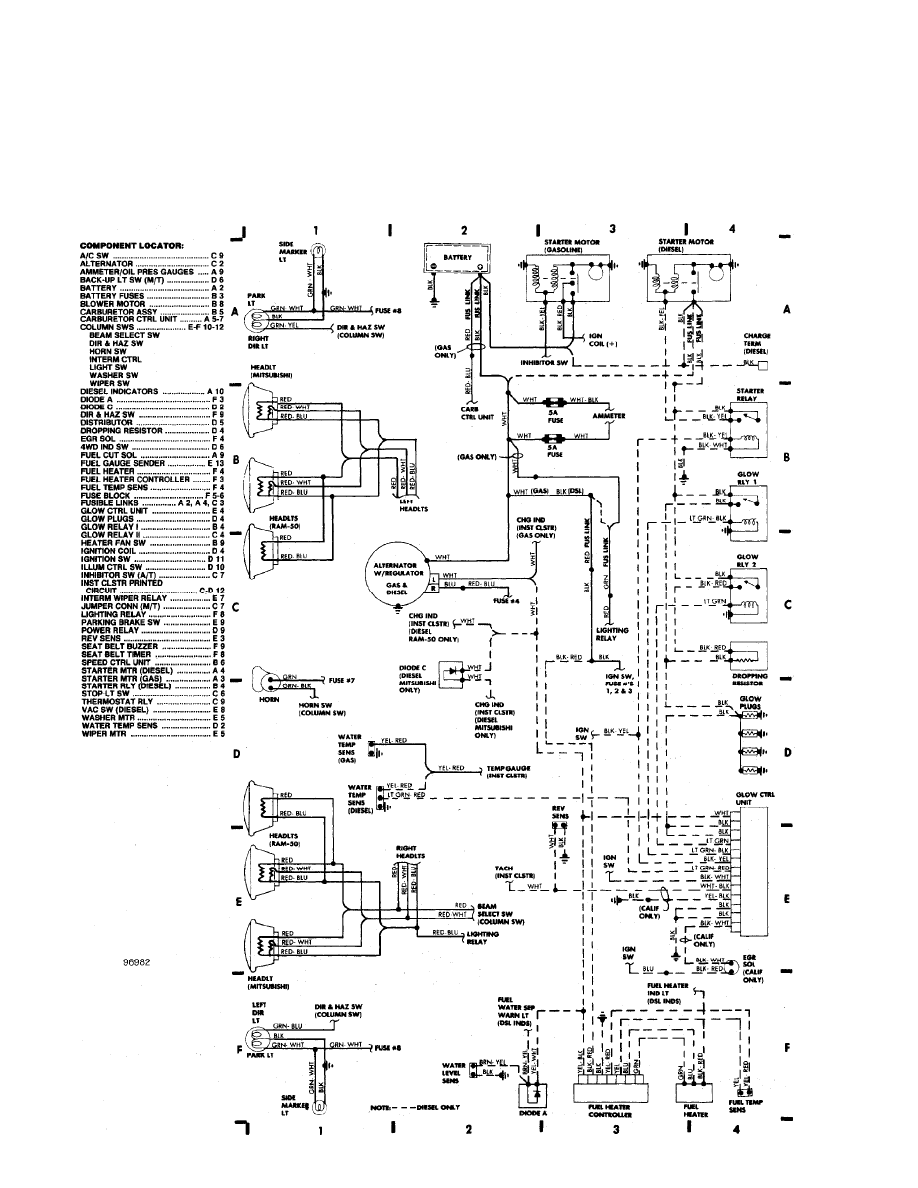

Fig. 1: Engine Compartment

1985 Mitsubishi Pickup

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 12:12PM

background image

WIRING DIAGRAMS

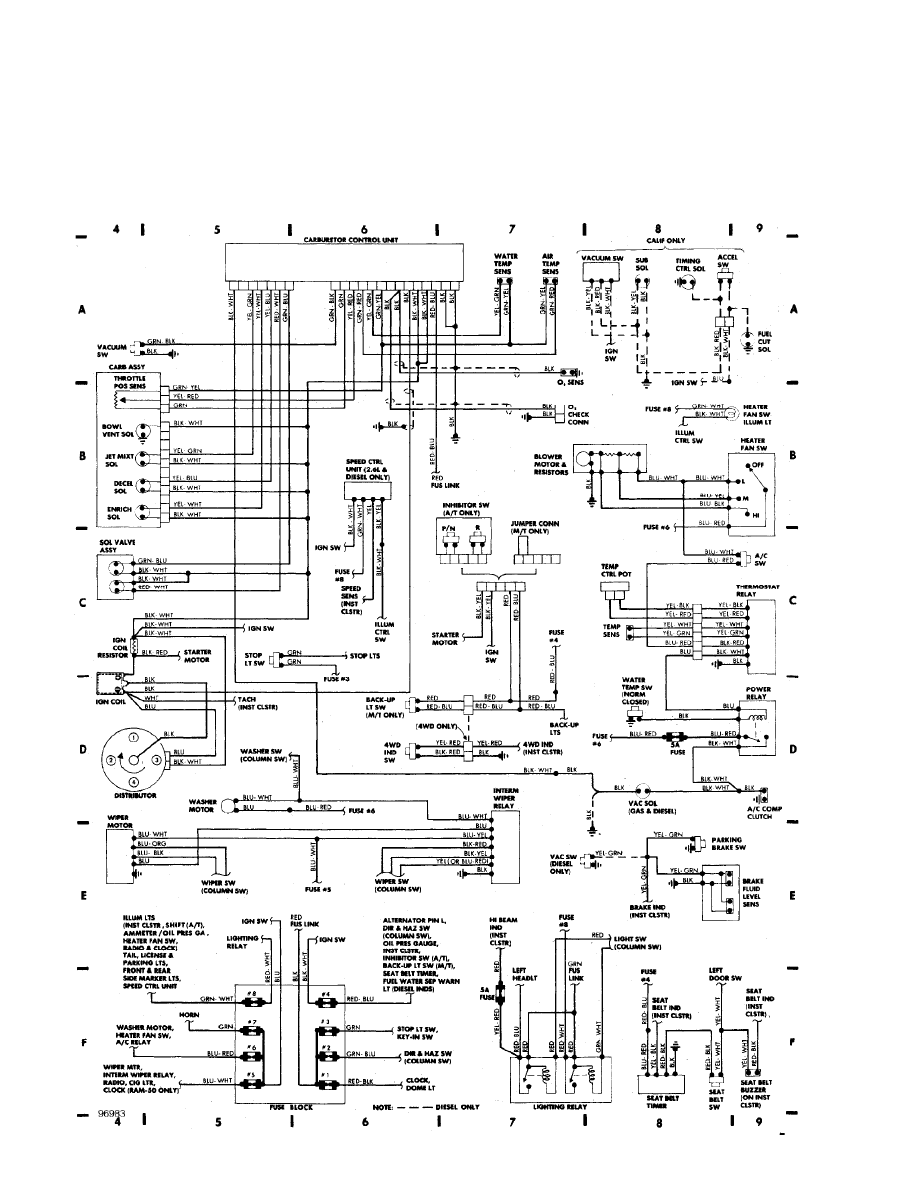

Fig. 2: Fuse Block & Underdash (p. 2)

1985 Mitsubishi Pickup

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 12:12PM

background image

WIRING DIAGRAMS

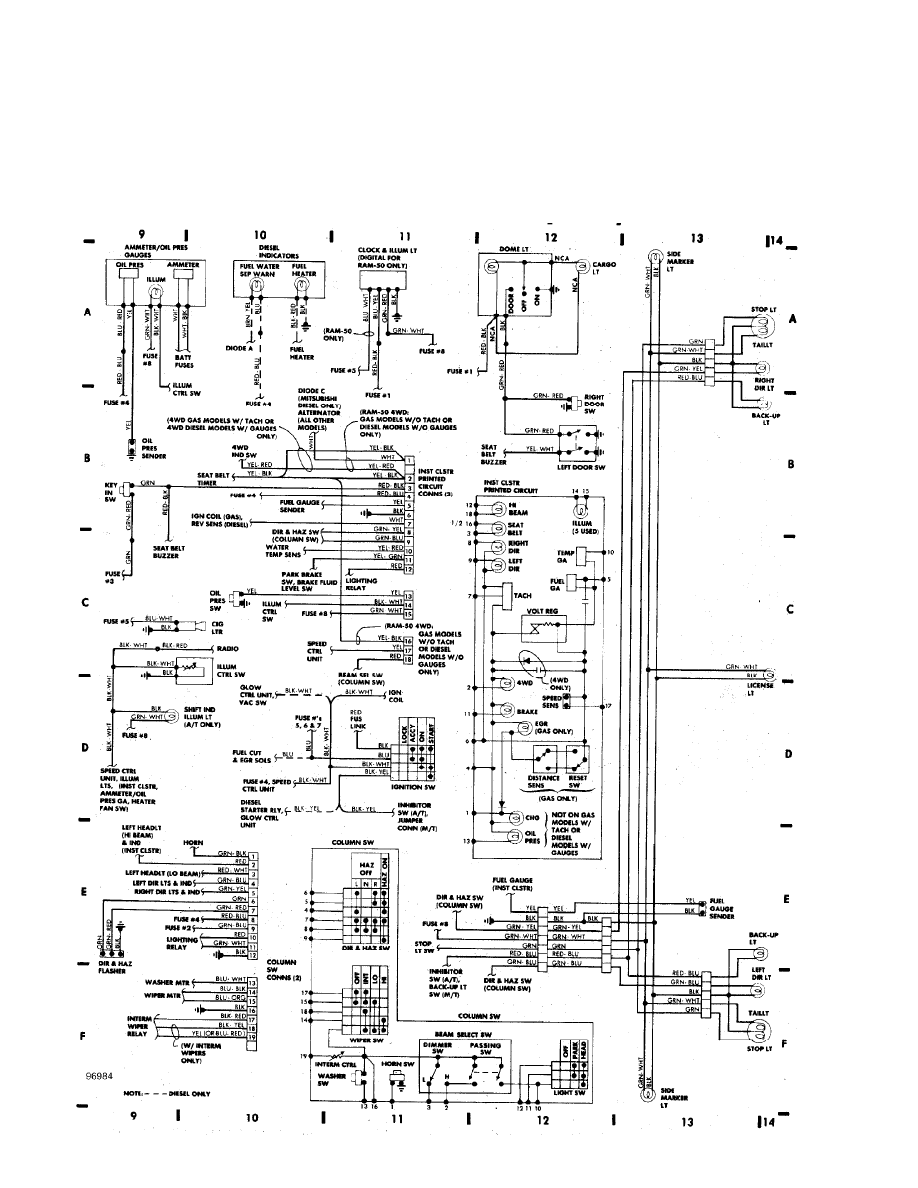

Fig. 3: Instrument Panel & Rear Compartment (p. 3)

1985 Mitsubishi Pickup

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, March 17, 2005 12:12PM
