SYSTEM WIRING DIAGRAMS

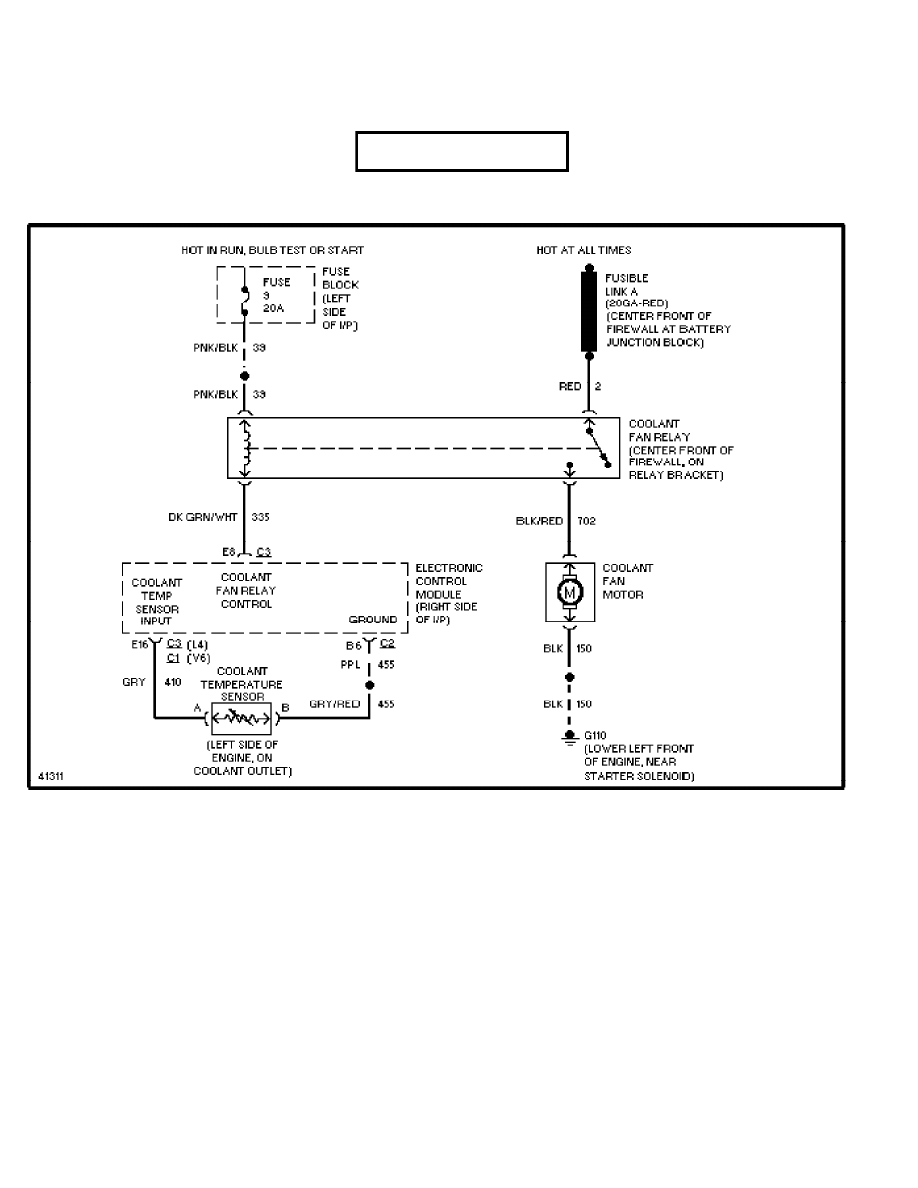

Cooling Fan Circuit
1988 Chevrolet Beretta
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, August 05, 2004 01:17PM
cdr@wp.pl
SYSTEM WIRING DIAGRAMS

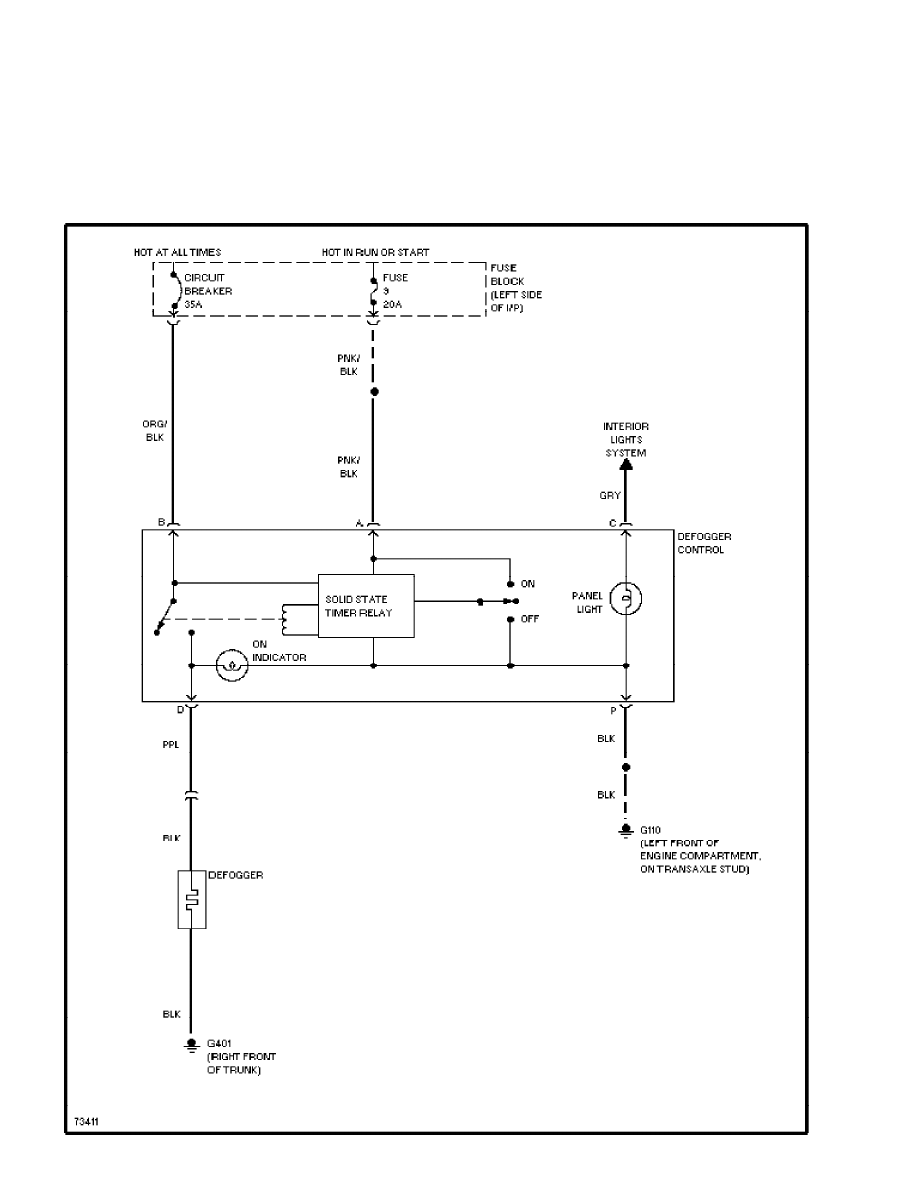

Defogger Circuit, Digital & Gauges Cluster (p. 2)
1988 Chevrolet Beretta
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, August 05, 2004 01:17PM
SYSTEM WIRING DIAGRAMS

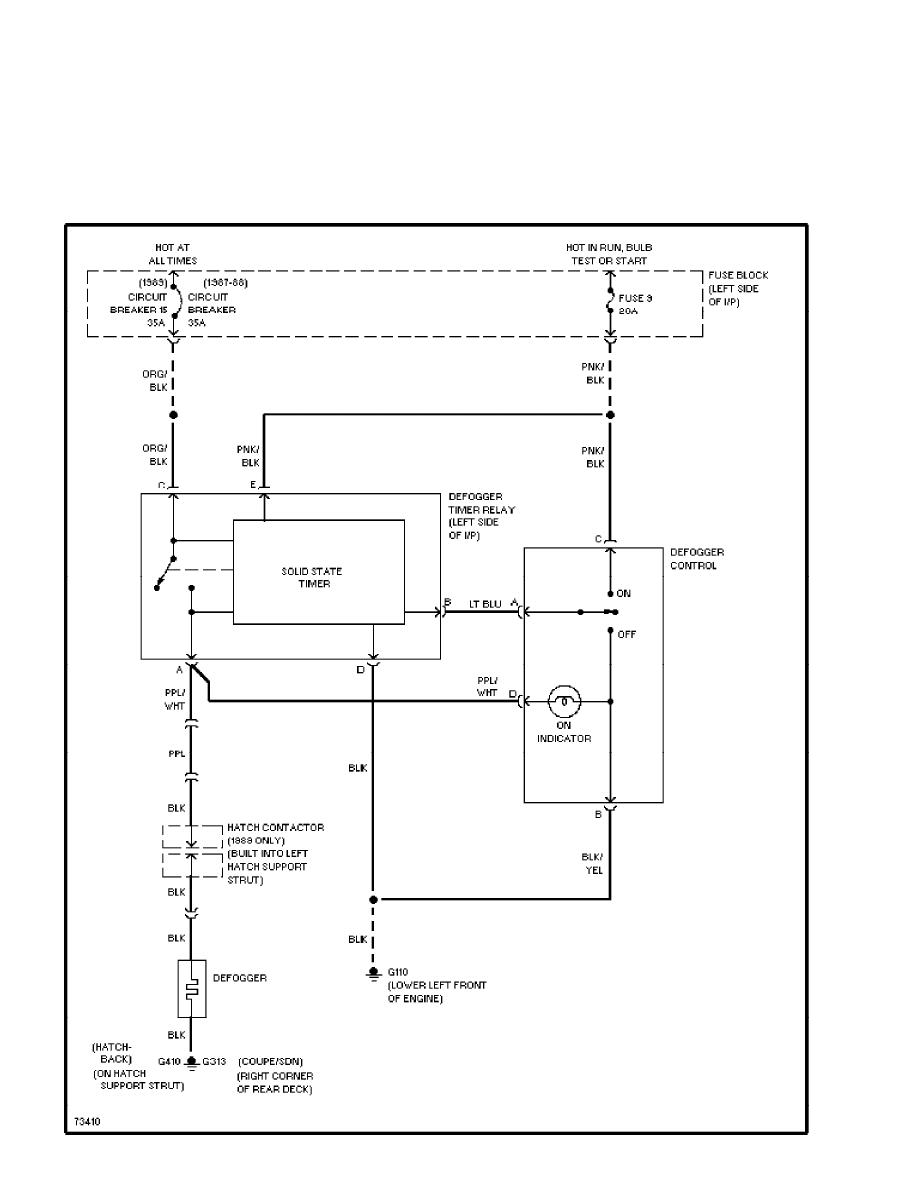

Defogger Circuit, Indicators Cluster (p. 3)
1988 Chevrolet Beretta
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, August 05, 2004 01:17PM
SYSTEM WIRING DIAGRAMS

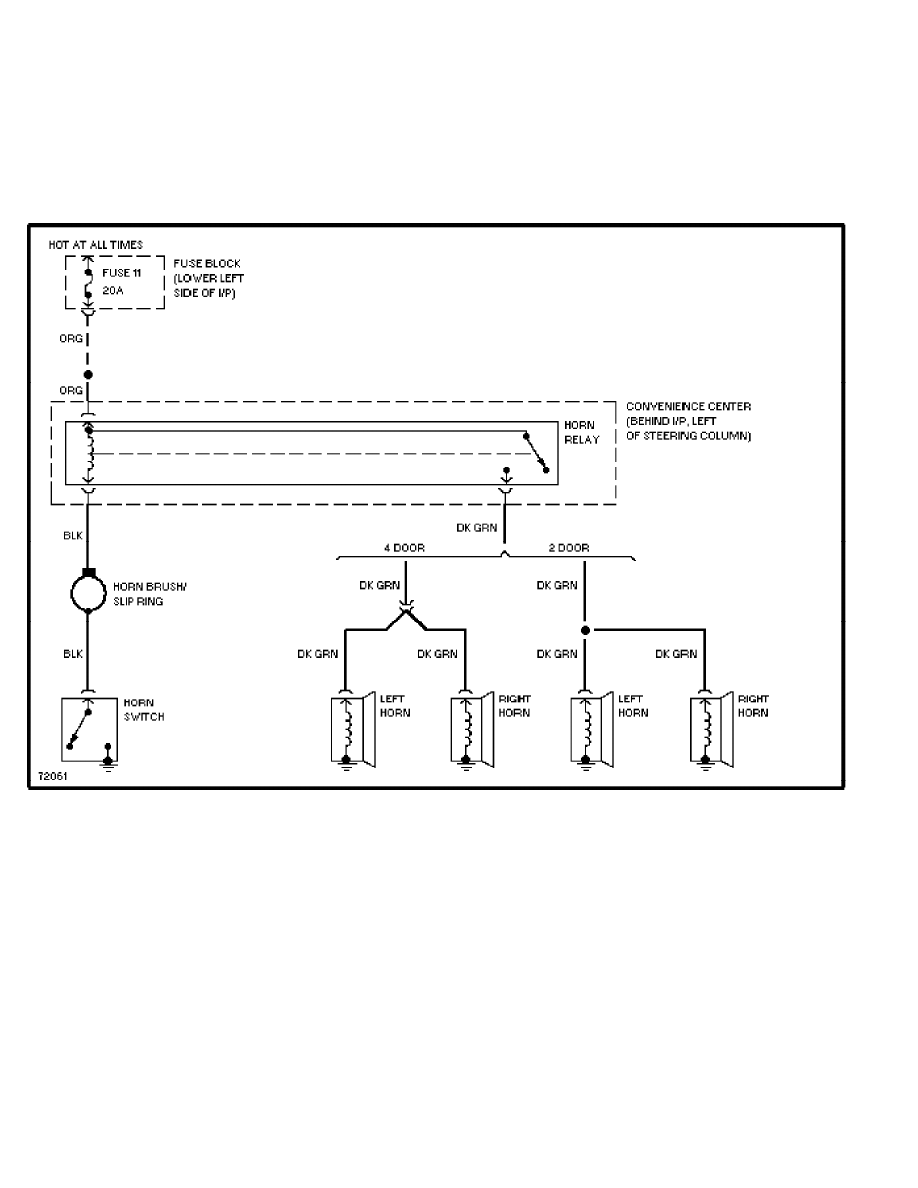

Horn Circuit (p. 4)
1988 Chevrolet Beretta
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, August 05, 2004 01:17PM
SYSTEM WIRING DIAGRAMS

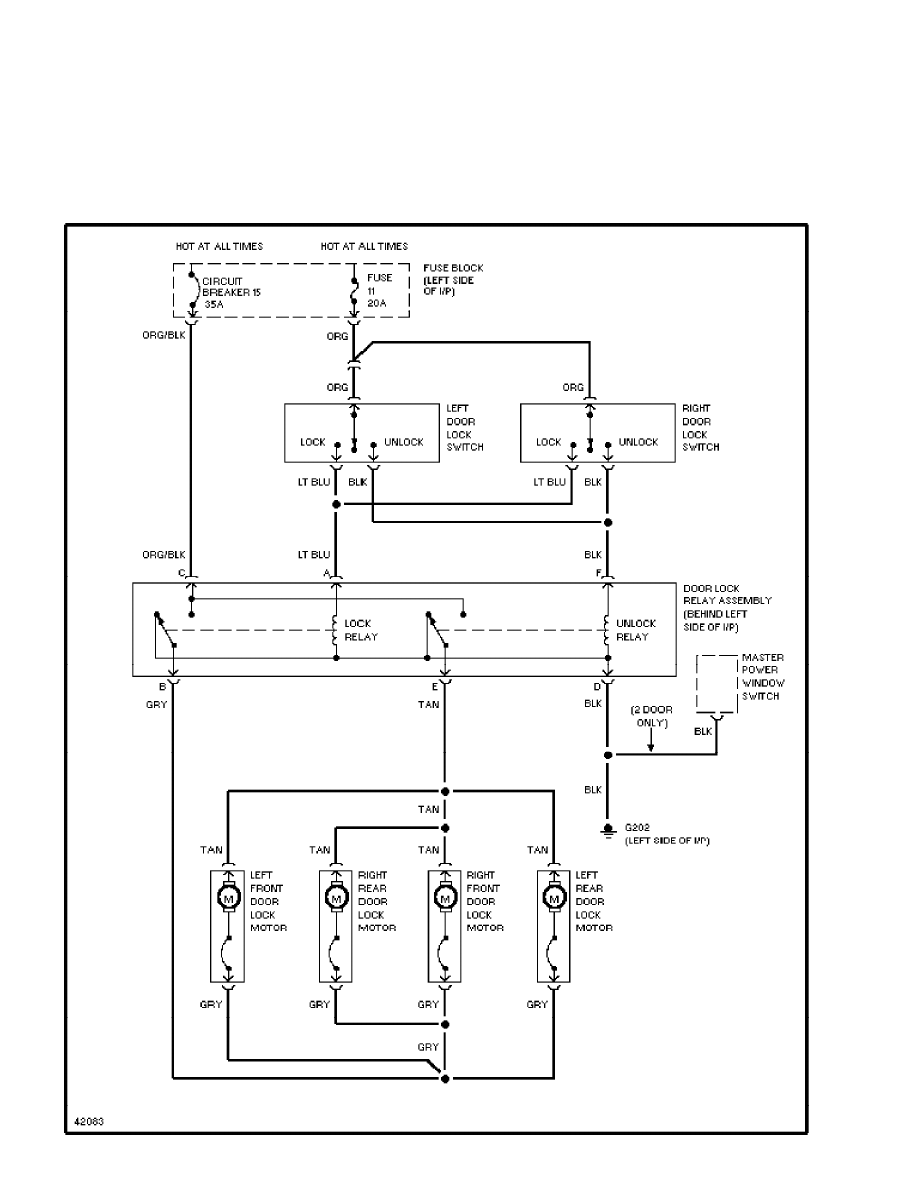

Power Door Lock Circuit (p. 5)
1988 Chevrolet Beretta
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, August 05, 2004 01:17PM
SYSTEM WIRING DIAGRAMS

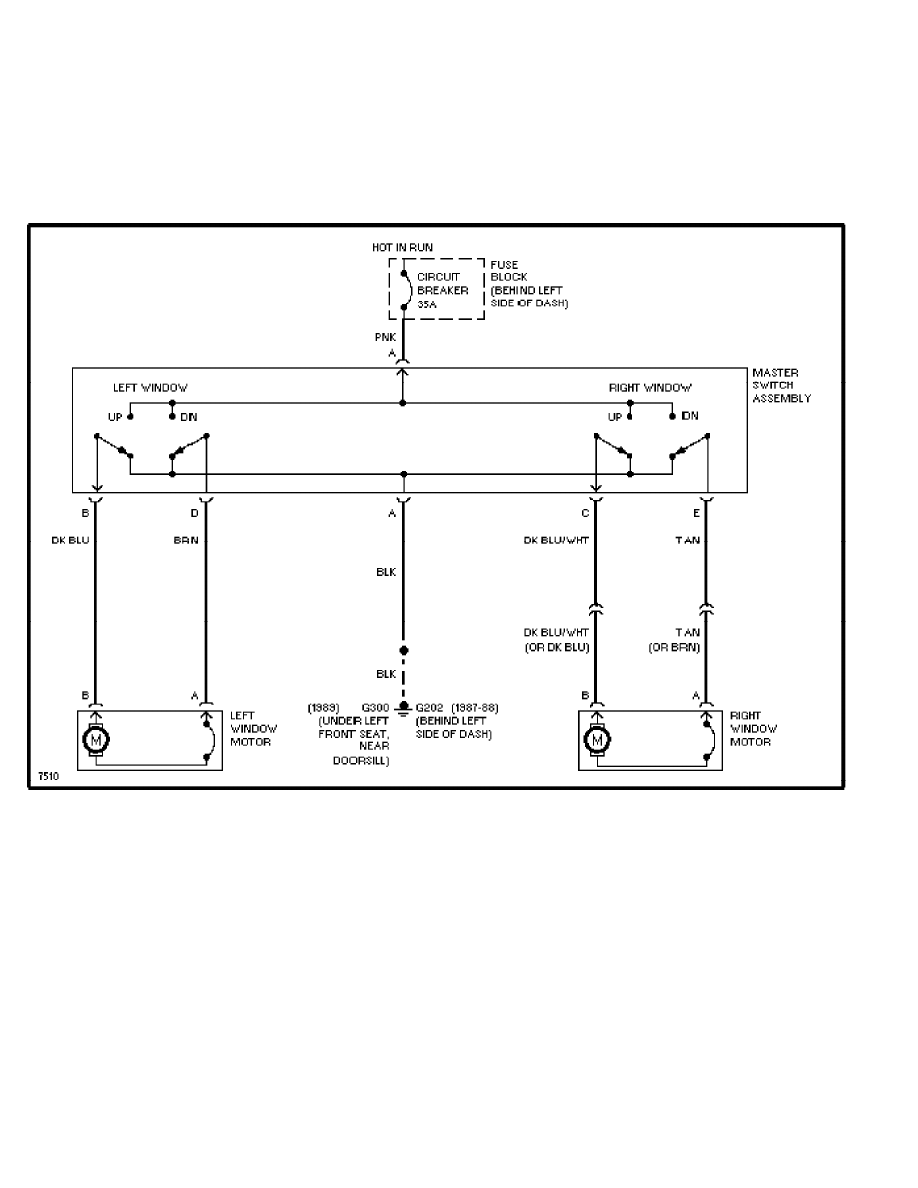

Power Window Circuit (p. 6)
1988 Chevrolet Beretta
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, August 05, 2004 01:17PM
SYSTEM WIRING DIAGRAMS

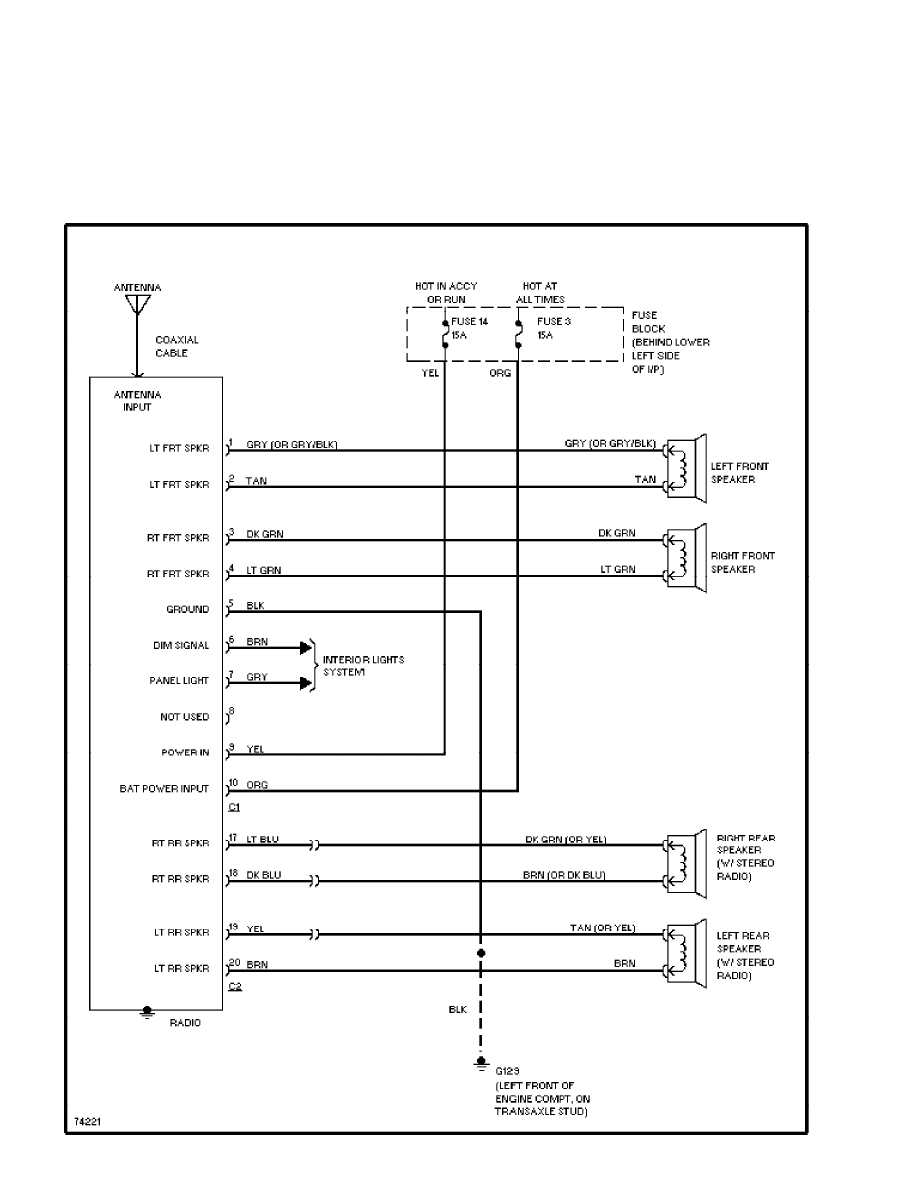

Radio Circuits (p. 7)
1988 Chevrolet Beretta
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, August 05, 2004 01:17PM
SYSTEM WIRING DIAGRAMS

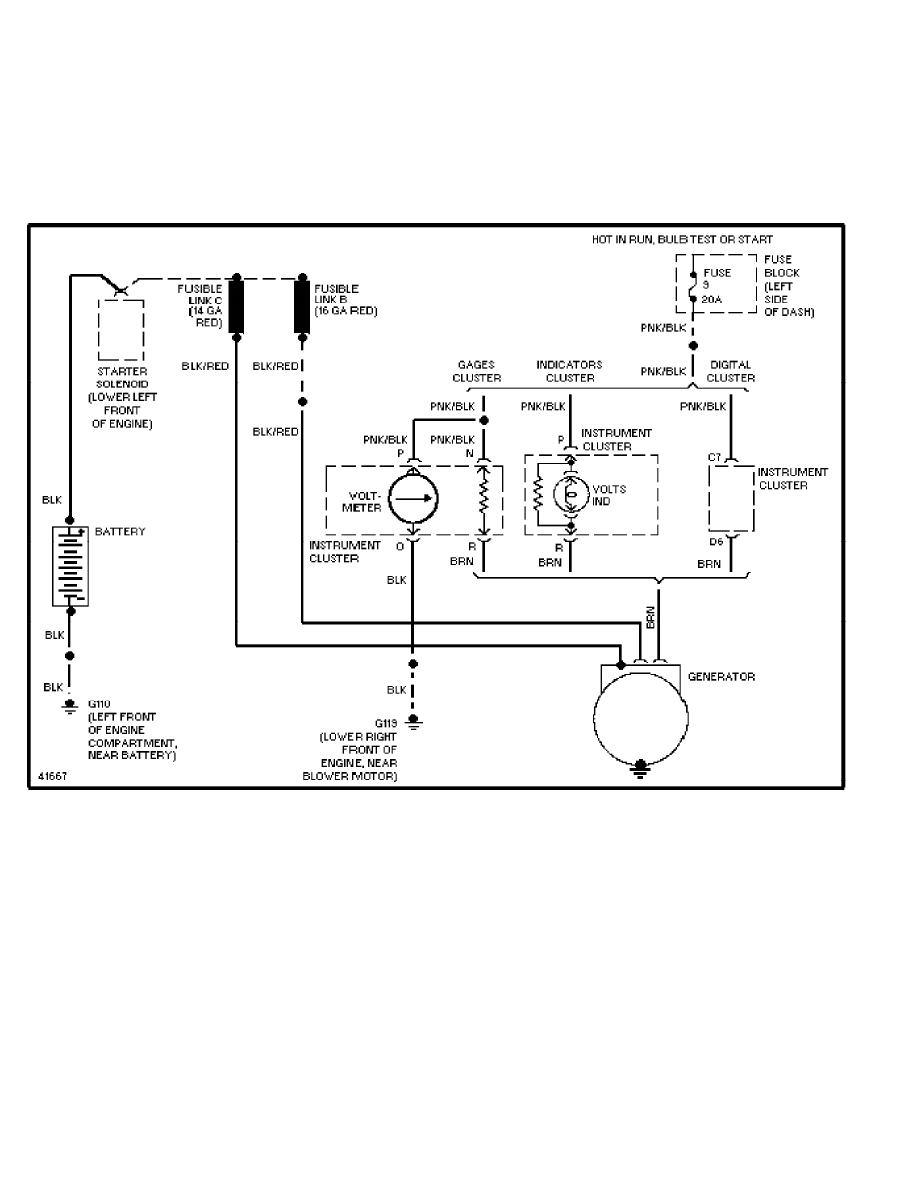

Charging Circuit (p. 8)
1988 Chevrolet Beretta
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, August 05, 2004 01:17PM
SYSTEM WIRING DIAGRAMS

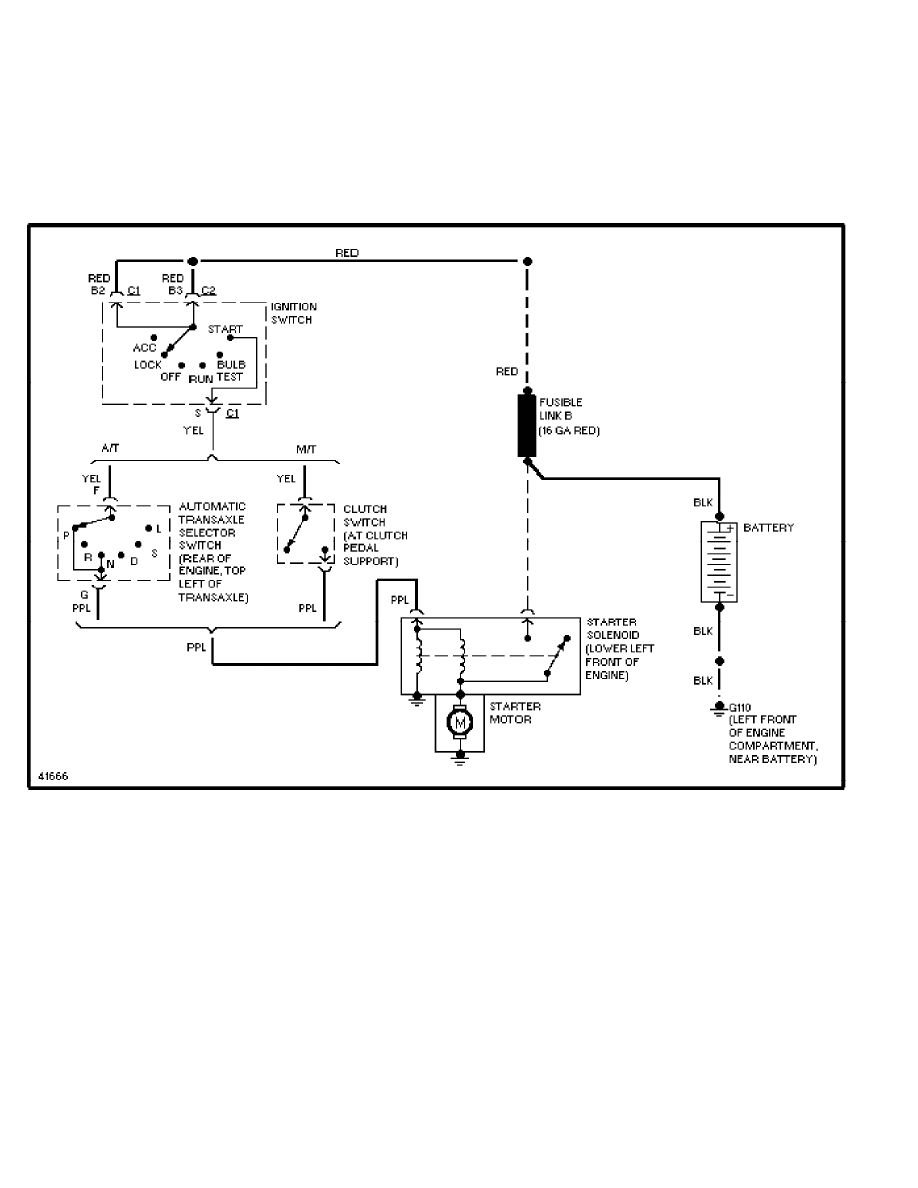

Starting Circuit (p. 9)
1988 Chevrolet Beretta
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, August 05, 2004 01:17PM
SYSTEM WIRING DIAGRAMS

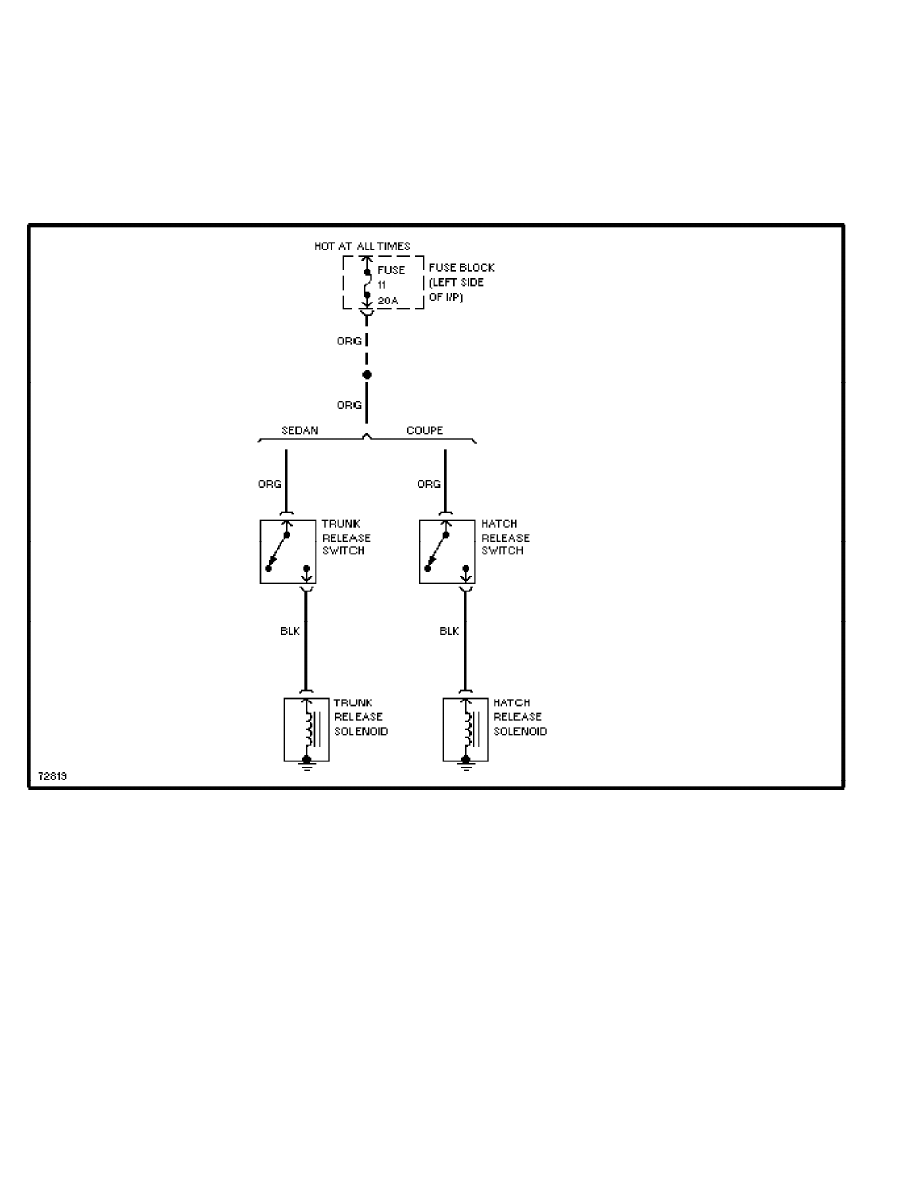

Trunk, Tailgate, Fuel Door Circuits (p. 10)
1988 Chevrolet Beretta
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, August 05, 2004 01:17PM
SYSTEM WIRING DIAGRAMS

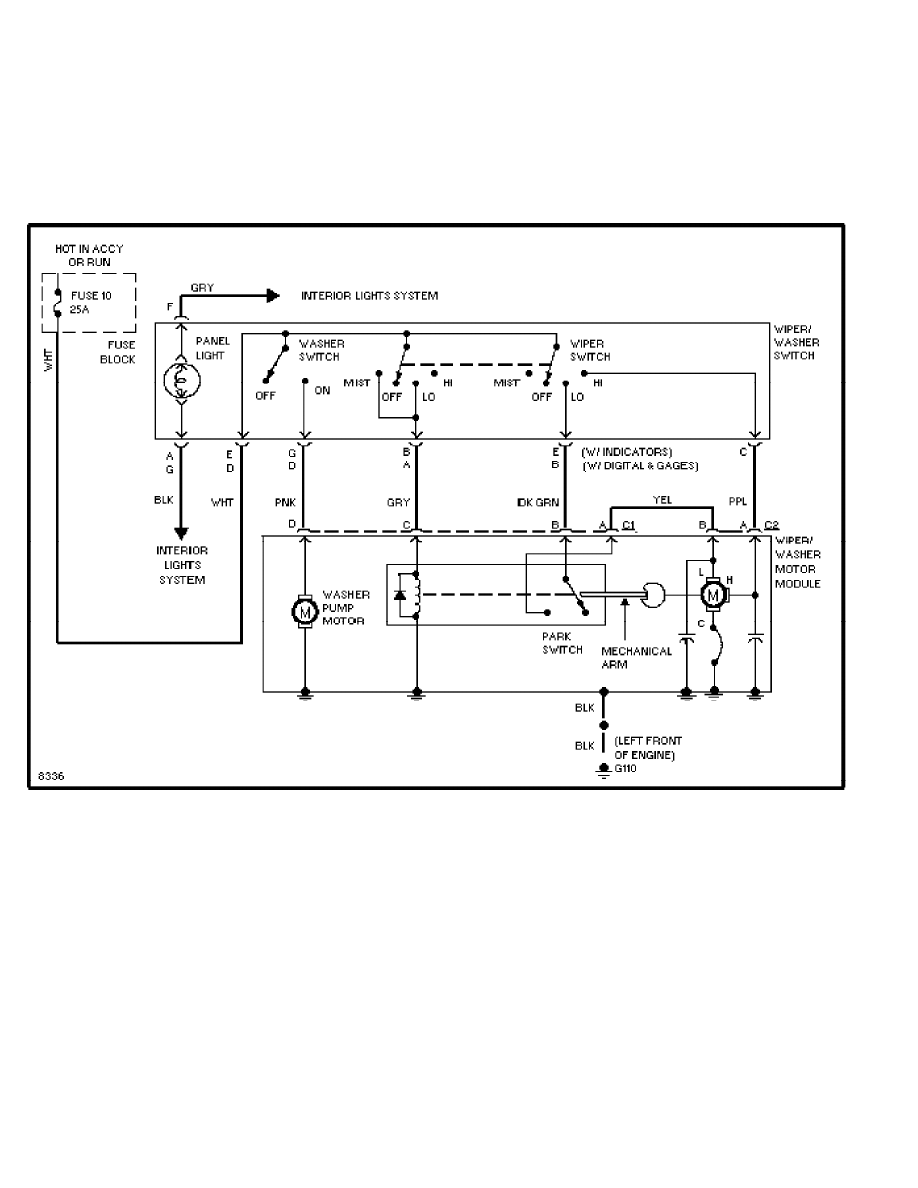

2-Speed Wiper/Washer Circuit (p. 11)
1988 Chevrolet Beretta
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, August 05, 2004 01:17PM
SYSTEM WIRING DIAGRAMS

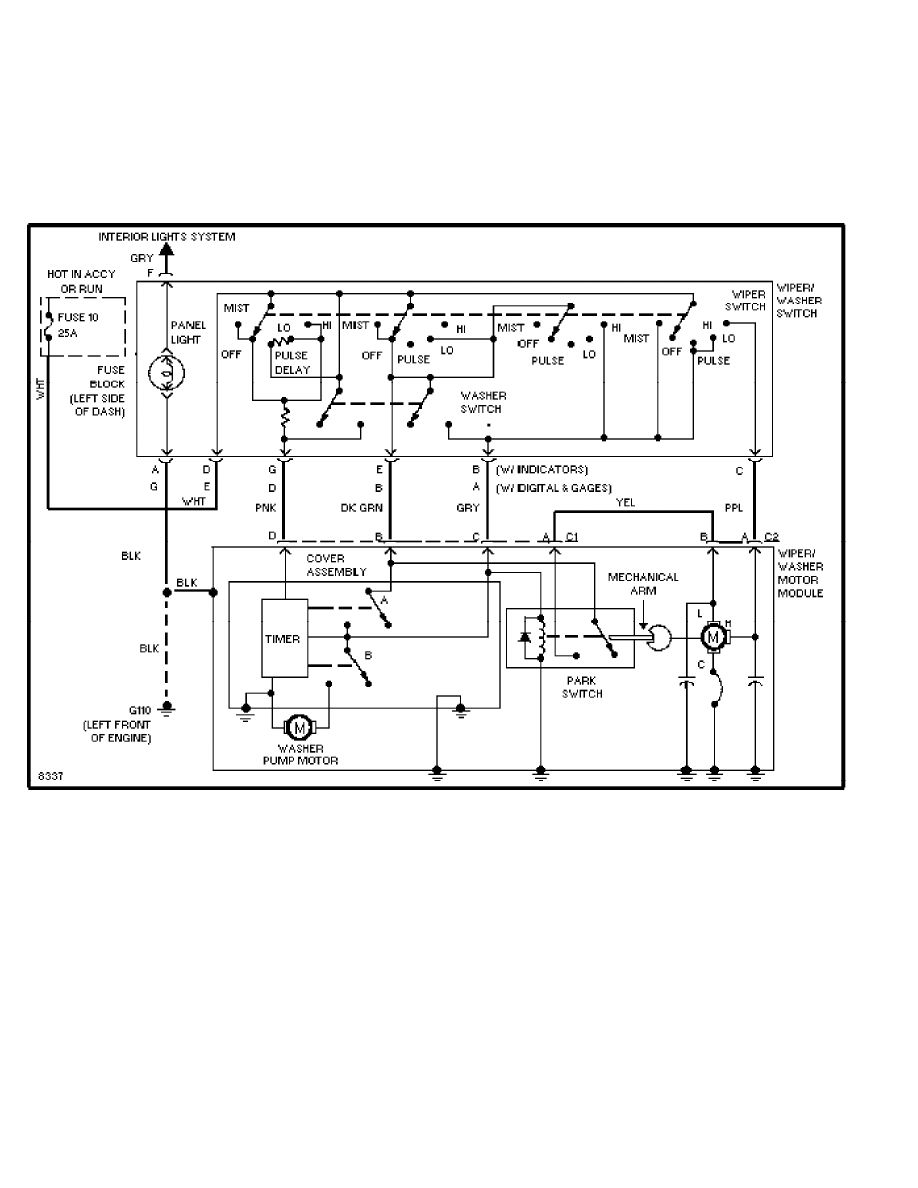

Interval Wiper/Washer Circuit (p. 12)
1988 Chevrolet Beretta
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, August 05, 2004 01:17PM
WIRING DIAGRAMS

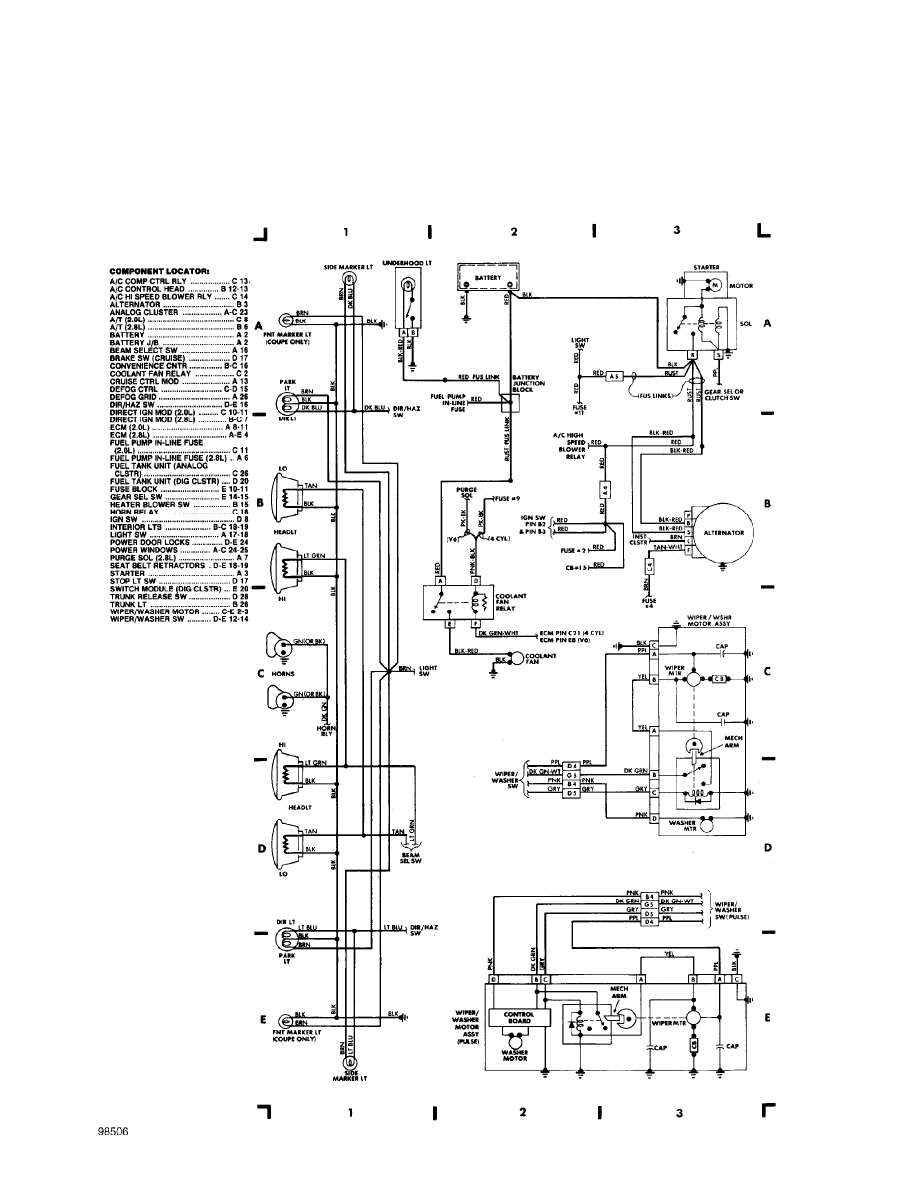

Fig. 1: Engine Compartment & Headlights
1988 Chevrolet Beretta
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, August 05, 2004 01:17PM
WIRING DIAGRAMS

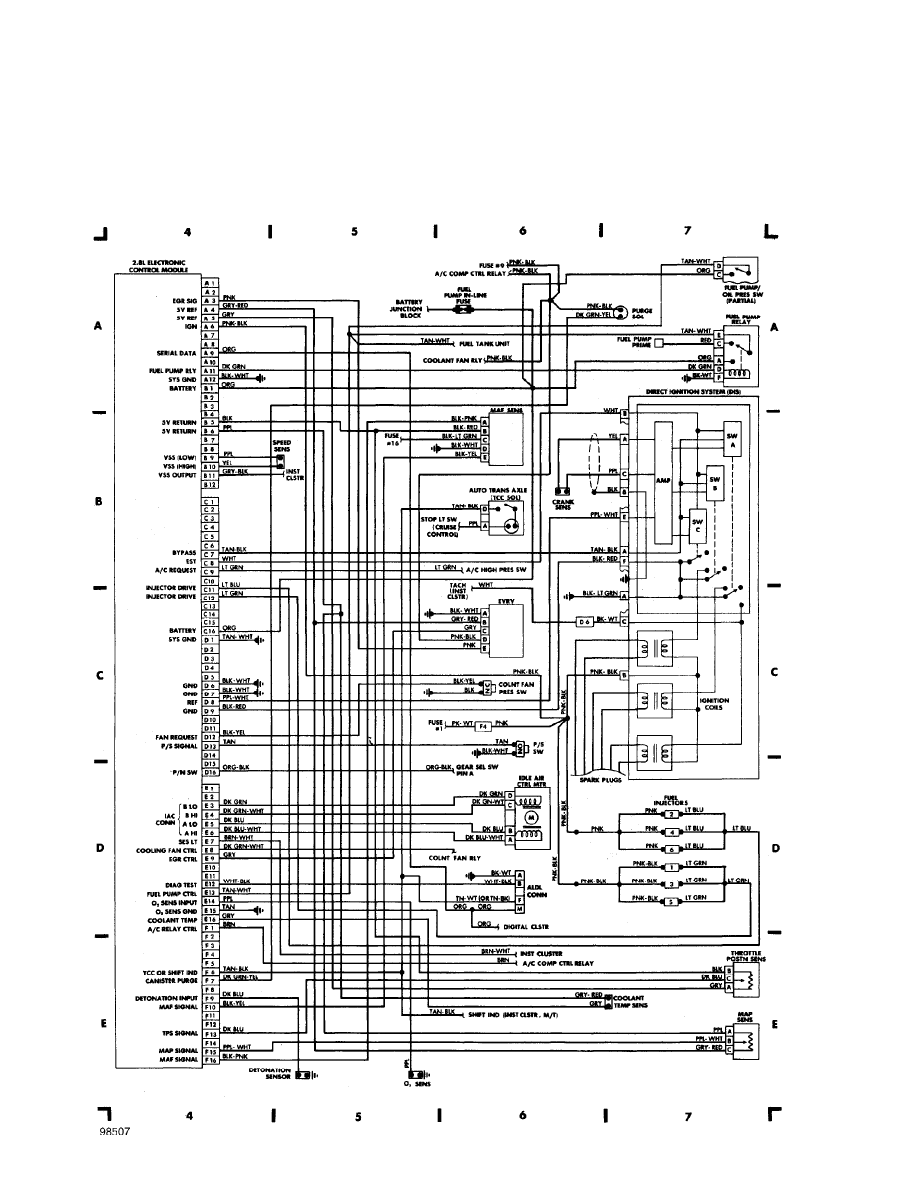

Fig. 2: Computer Engine Control (2.8L V6) (p. 2)
1988 Chevrolet Beretta
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, August 05, 2004 01:17PM
WIRING DIAGRAMS
Fig. 3: Computer Engine Control (2.0L 4-Cyl) (p. 3)
1988 Chevrolet Beretta
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, August 05, 2004 01:17PM
WIRING DIAGRAMS

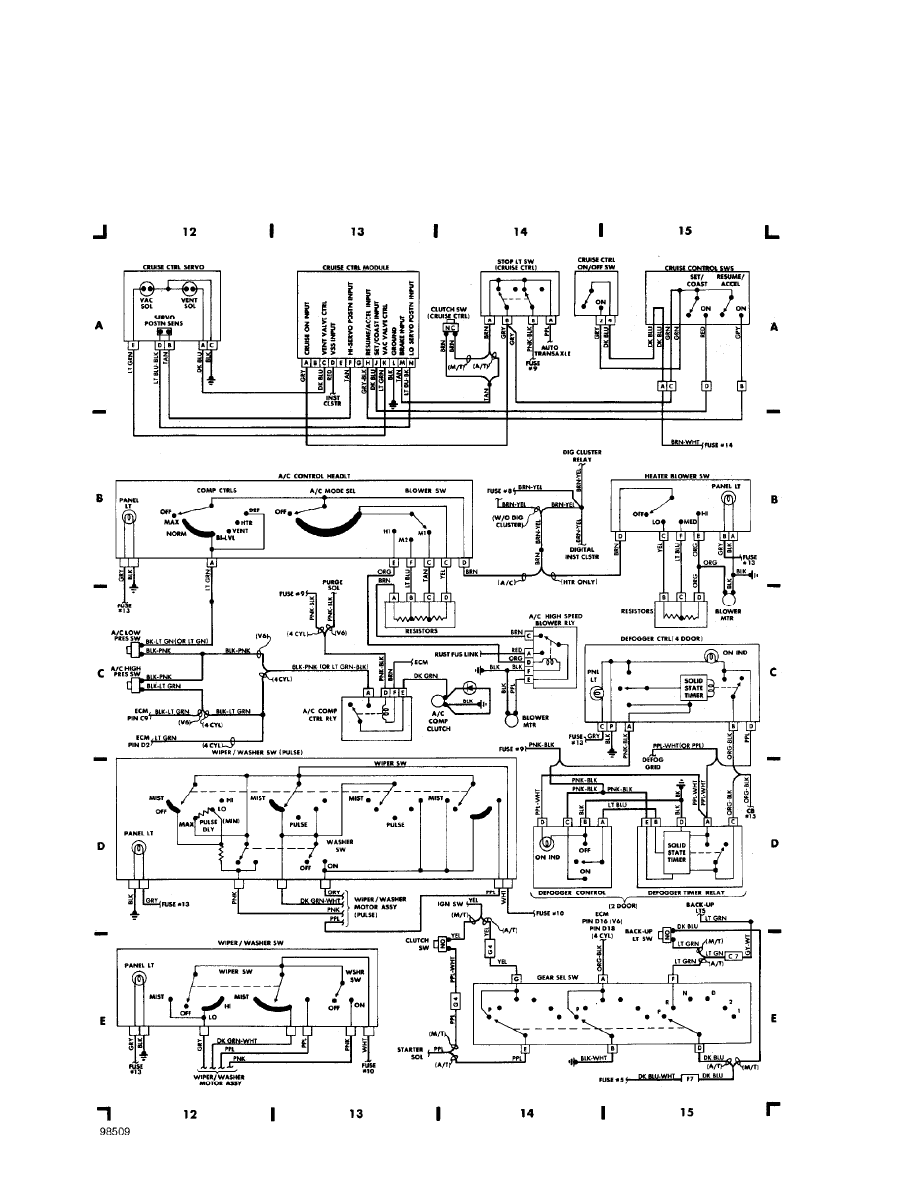

Fig. 4: Cruise Control, A/C & Heating System, & Wiper Control (p. 4)
1988 Chevrolet Beretta
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, August 05, 2004 01:17PM
WIRING DIAGRAMS
Fig. 5: Steering Column Switches (p. 5)
1988 Chevrolet Beretta
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, August 05, 2004 01:17PM
WIRING DIAGRAMS

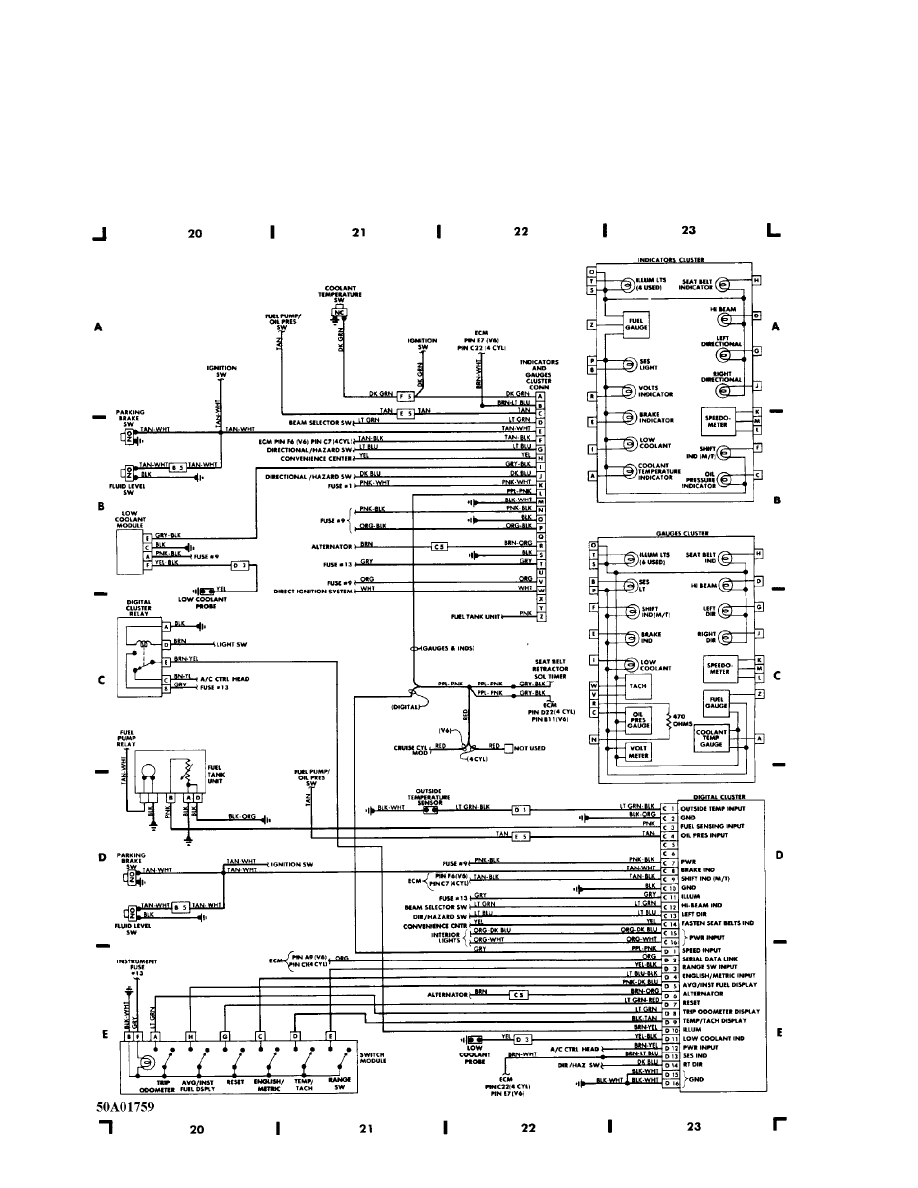

Fig. 6: Instrument Panel (p. 6)
1988 Chevrolet Beretta
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, August 05, 2004 01:17PM
WIRING DIAGRAMS

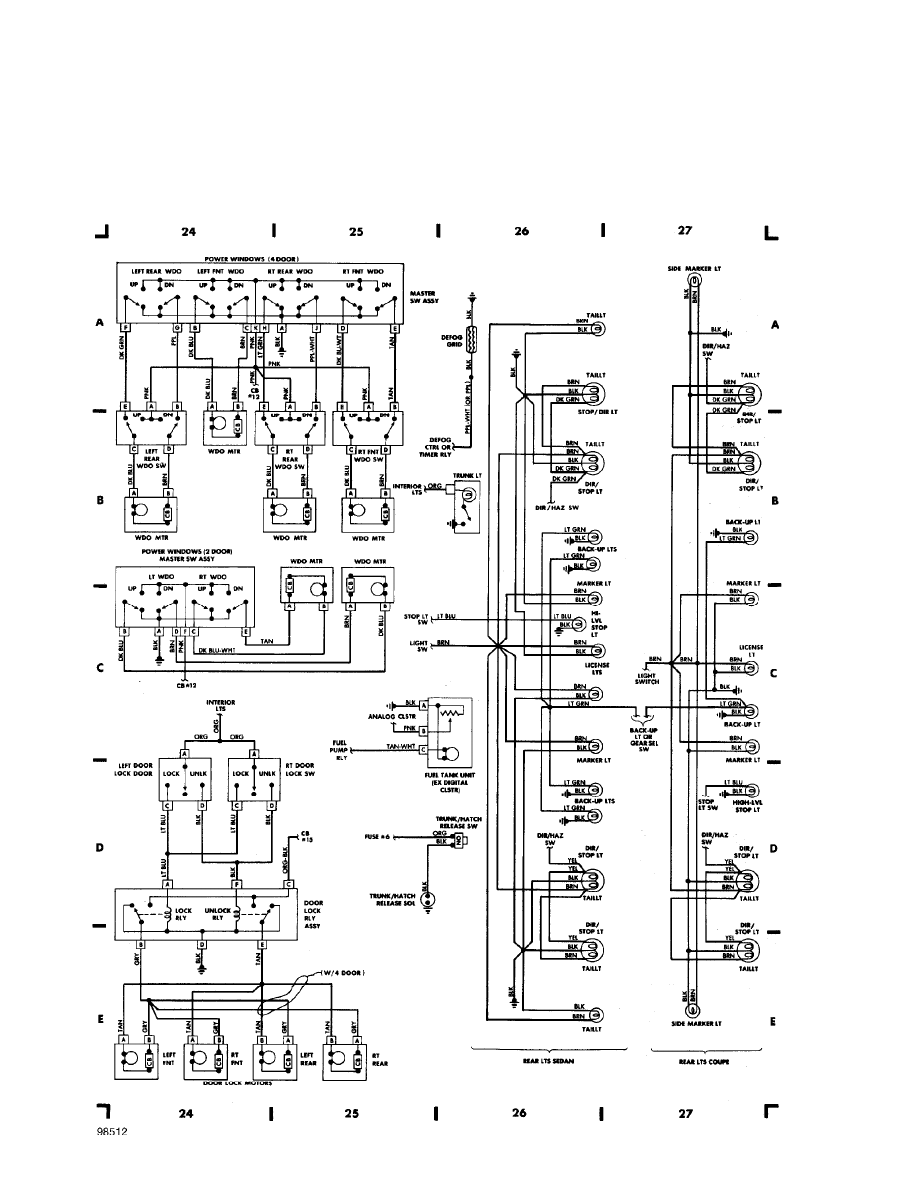

Fig. 7: Passenger Compartment & Taillights (p. 7)
1988 Chevrolet Beretta
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, August 05, 2004 01:17PM
WIRING DIAGRAMS

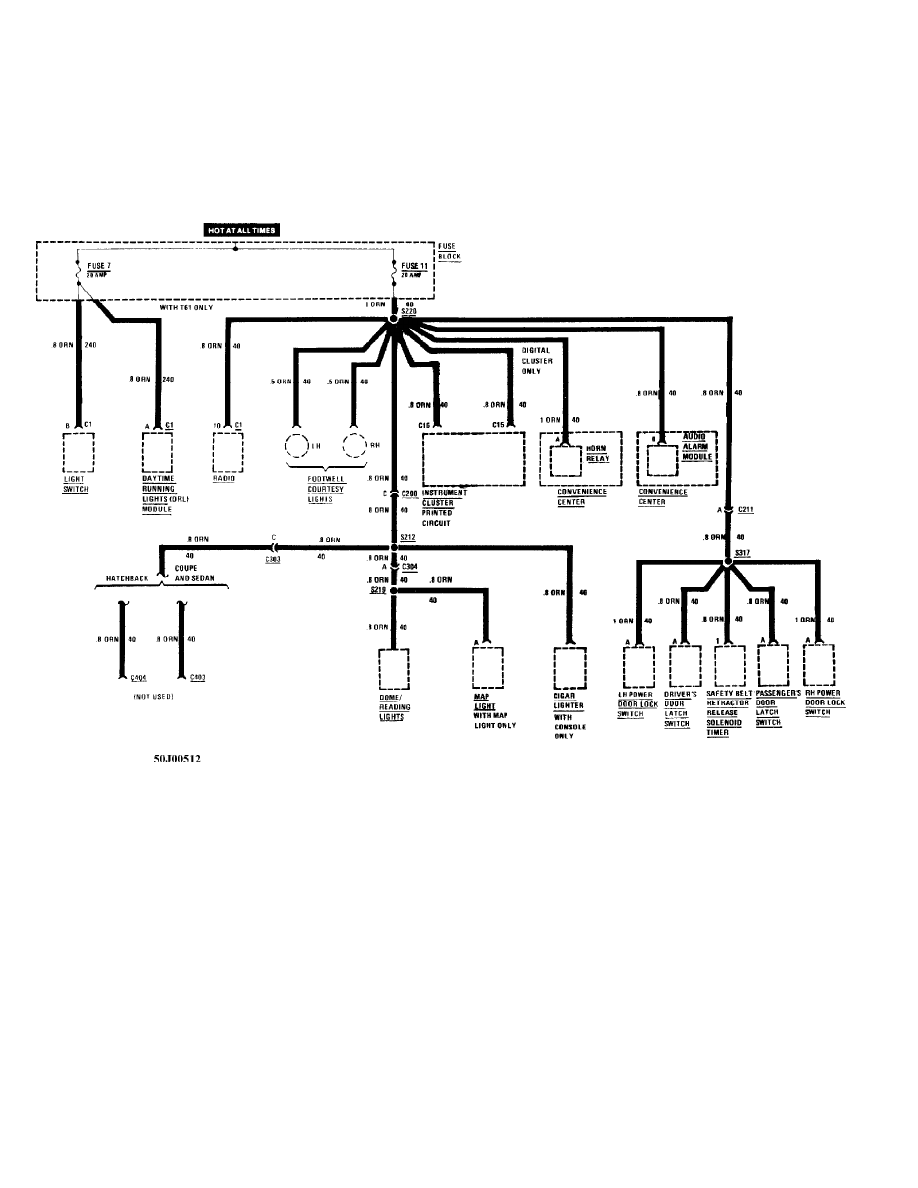

Fig. 8: Supplement to Fuse Block Wiring Diagram (p. 8)
1988 Chevrolet Beretta
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, August 05, 2004 01:17PM
