AUDI 5000S 1986

background image

SYSTEM WIRING DIAGRAMS

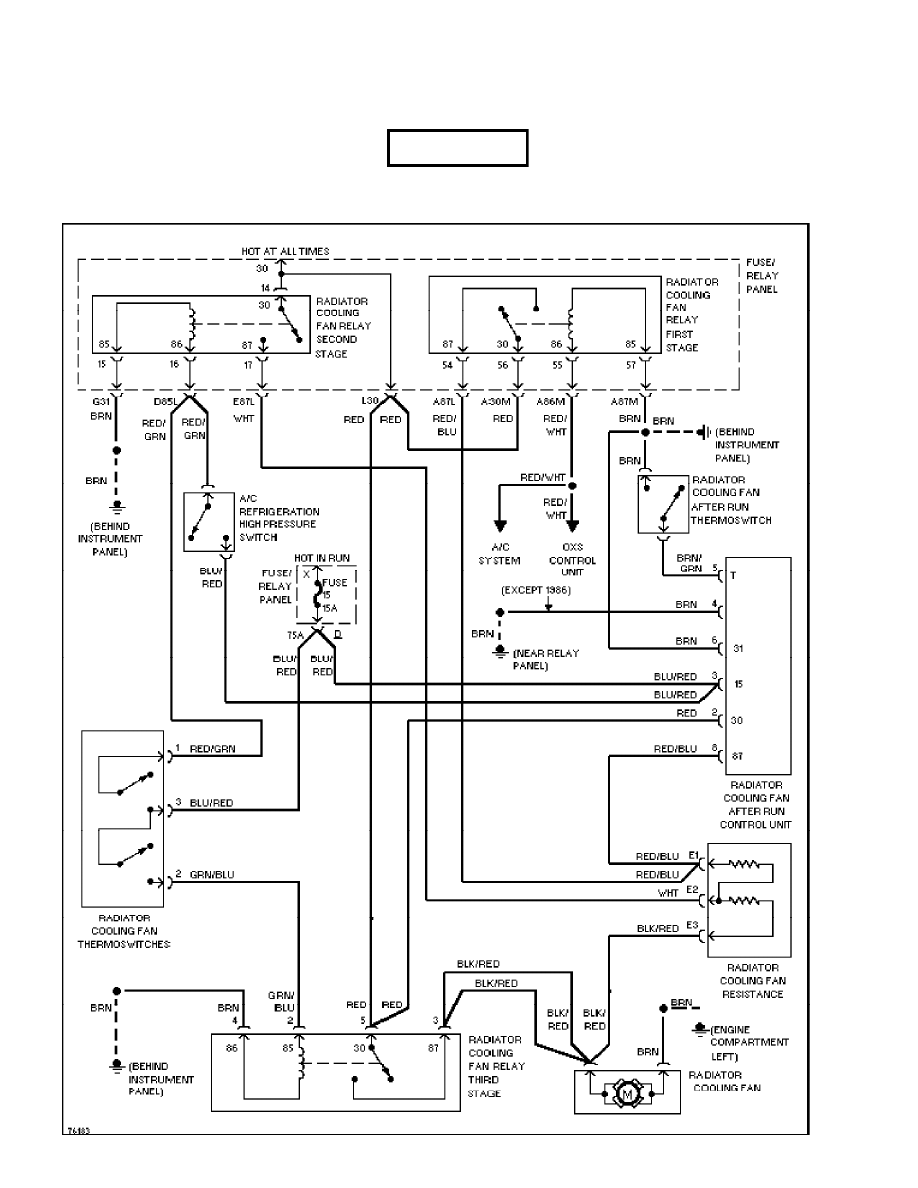

Cooling Fan Circuit, Early Production

1986 Audi 5000S

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, July 19, 2004 05:44PM

cdr@wp.pl

background image

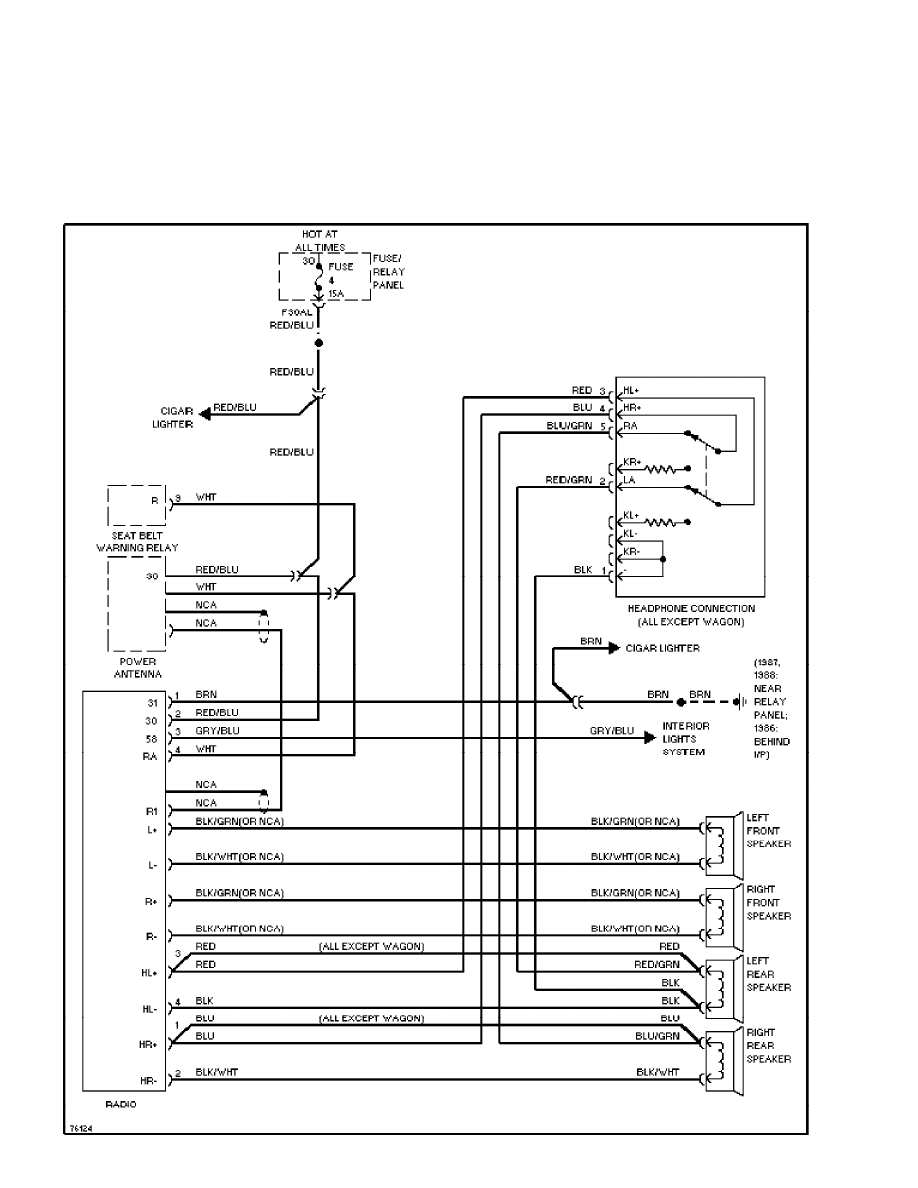

SYSTEM WIRING DIAGRAMS

Radio Circuits

1986 Audi 5000S

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, July 19, 2004 05:45PM

background image

SYSTEM WIRING DIAGRAMS

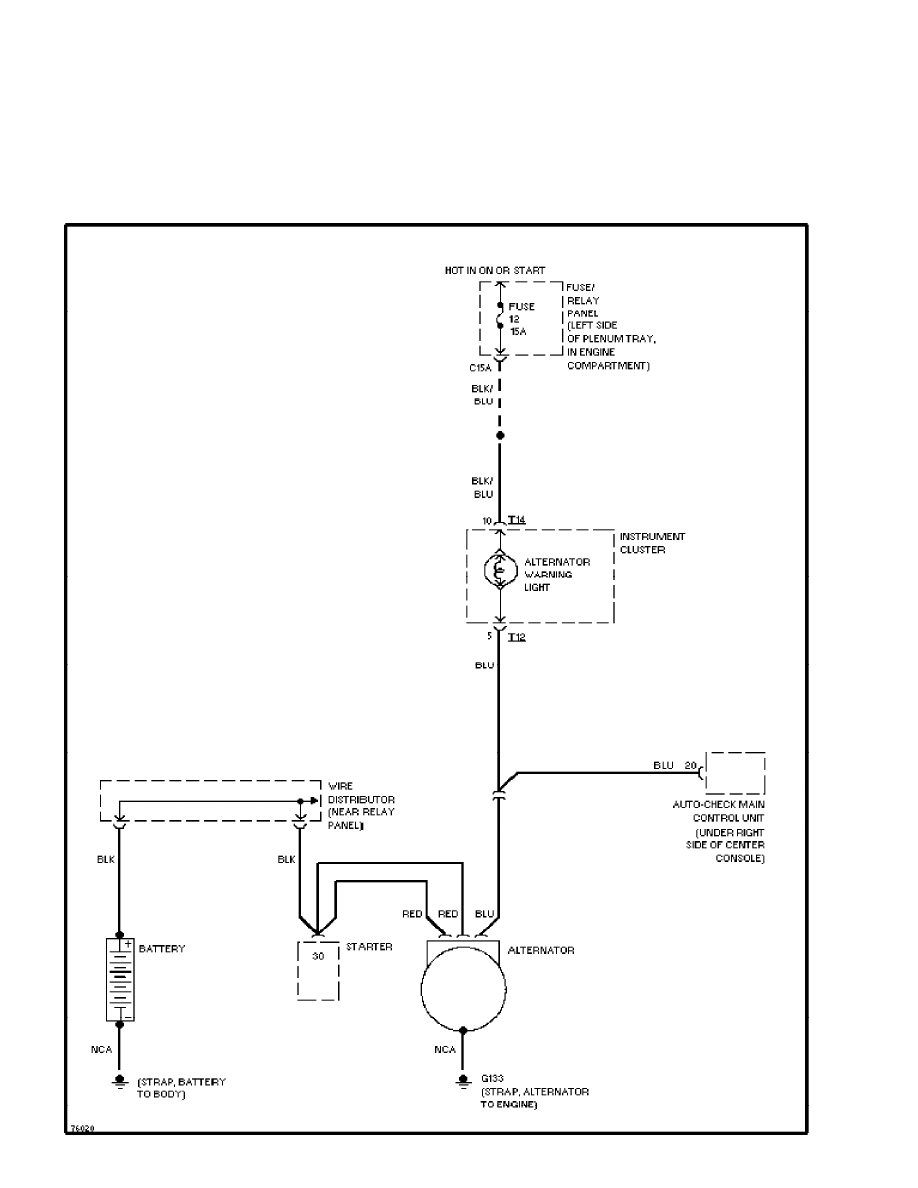

Charging Circuit

1986 Audi 5000S

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, July 19, 2004 05:45PM

background image

SYSTEM WIRING DIAGRAMS

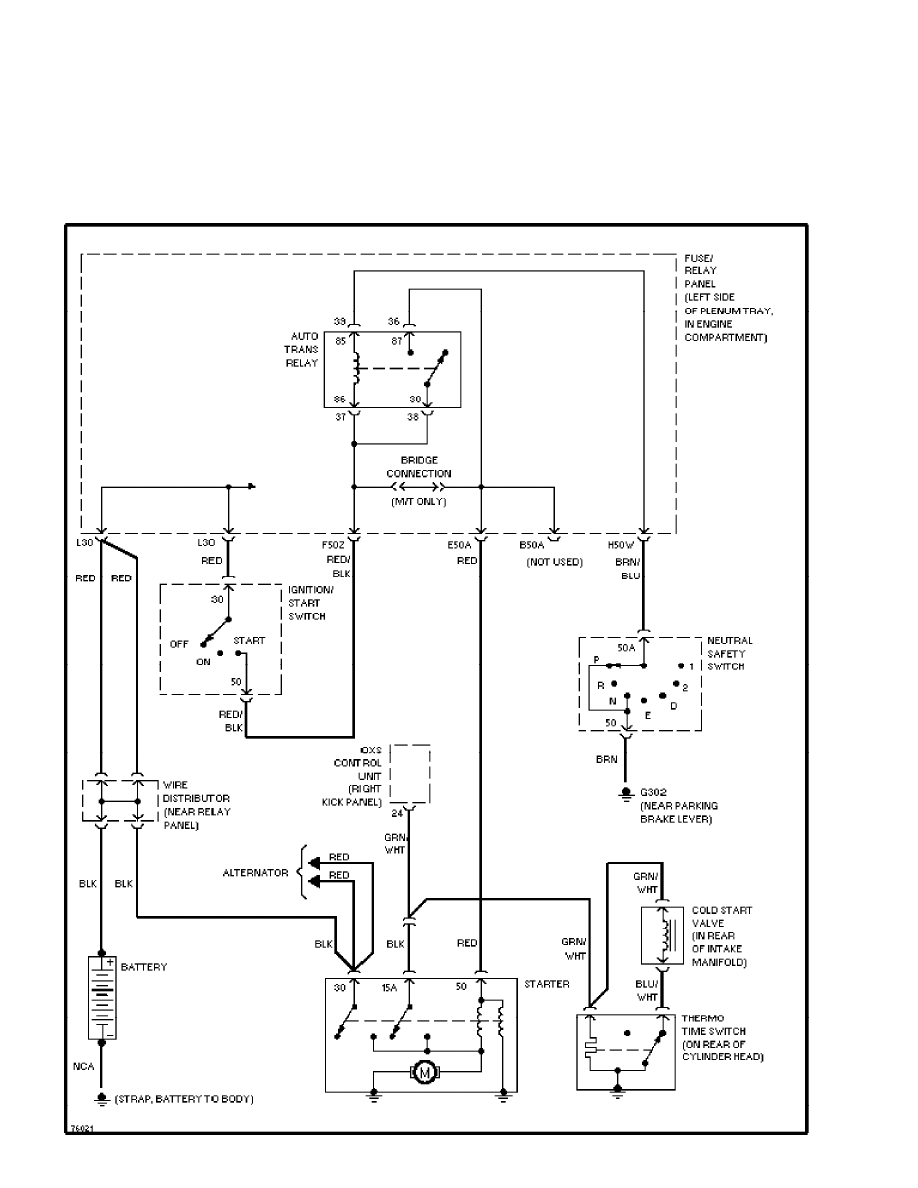

Starting Circuit

1986 Audi 5000S

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, July 19, 2004 05:45PM

background image

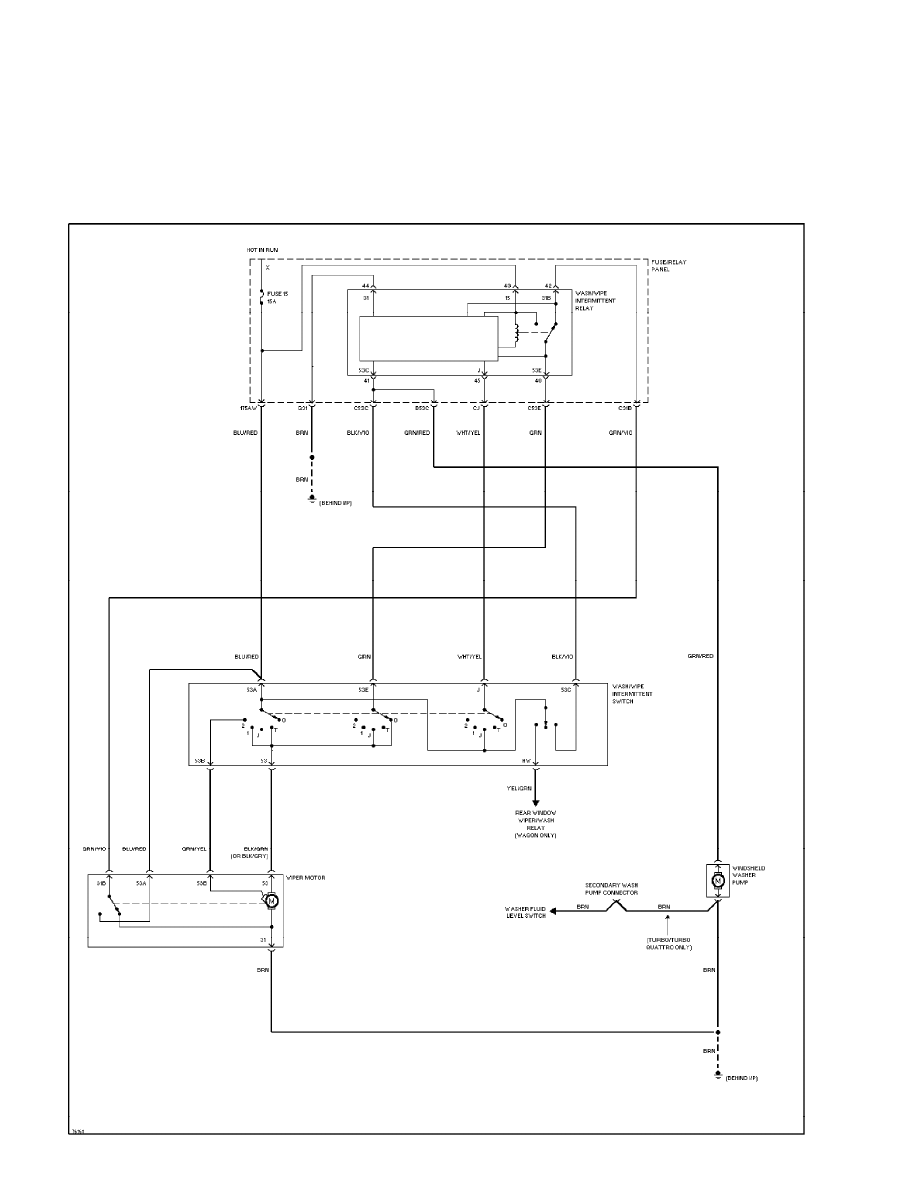

SYSTEM WIRING DIAGRAMS

Front Wiper/Washer Circuit

1986 Audi 5000S

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, July 19, 2004 05:45PM

background image

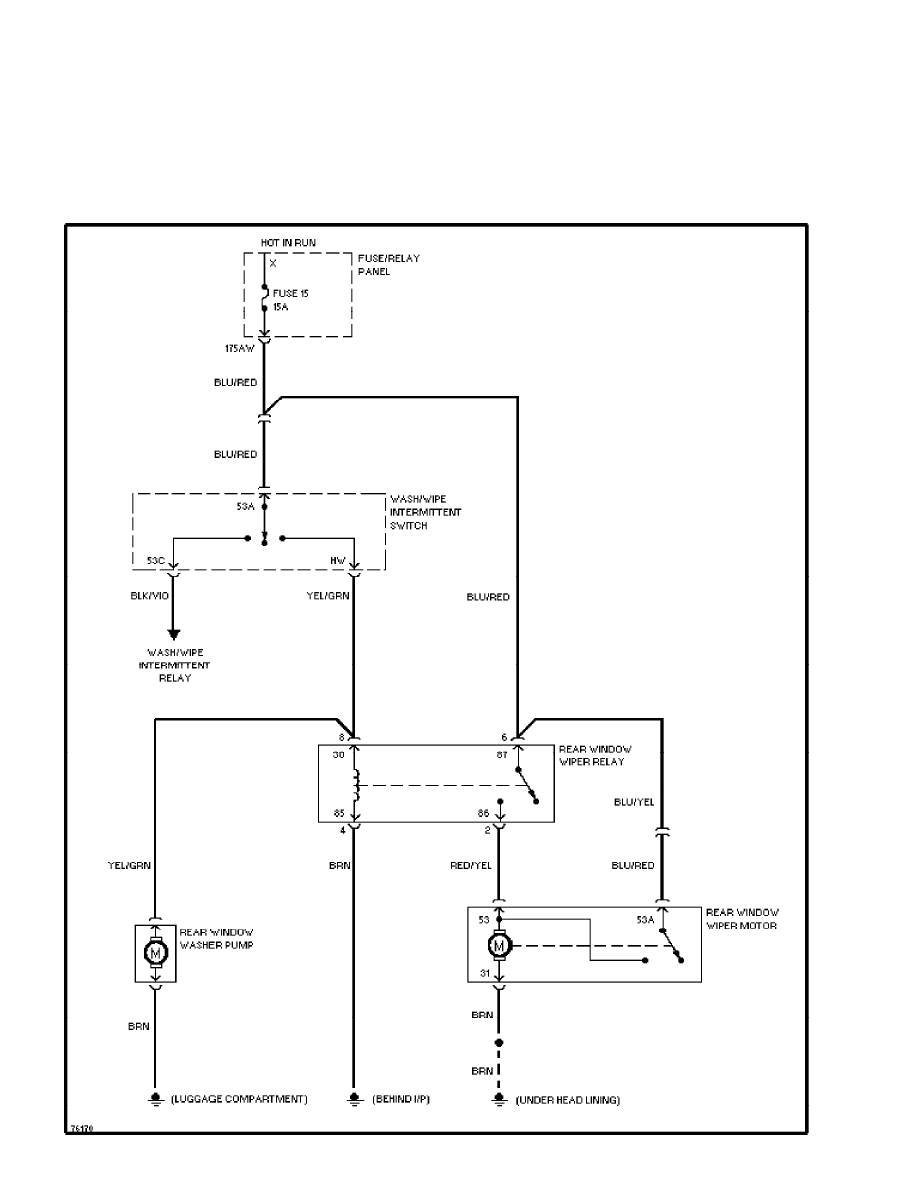

SYSTEM WIRING DIAGRAMS

Rear Wiper/Washer Circuit

1986 Audi 5000S

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, July 19, 2004 05:45PM

background image

SYSTEM WIRING DIAGRAMS

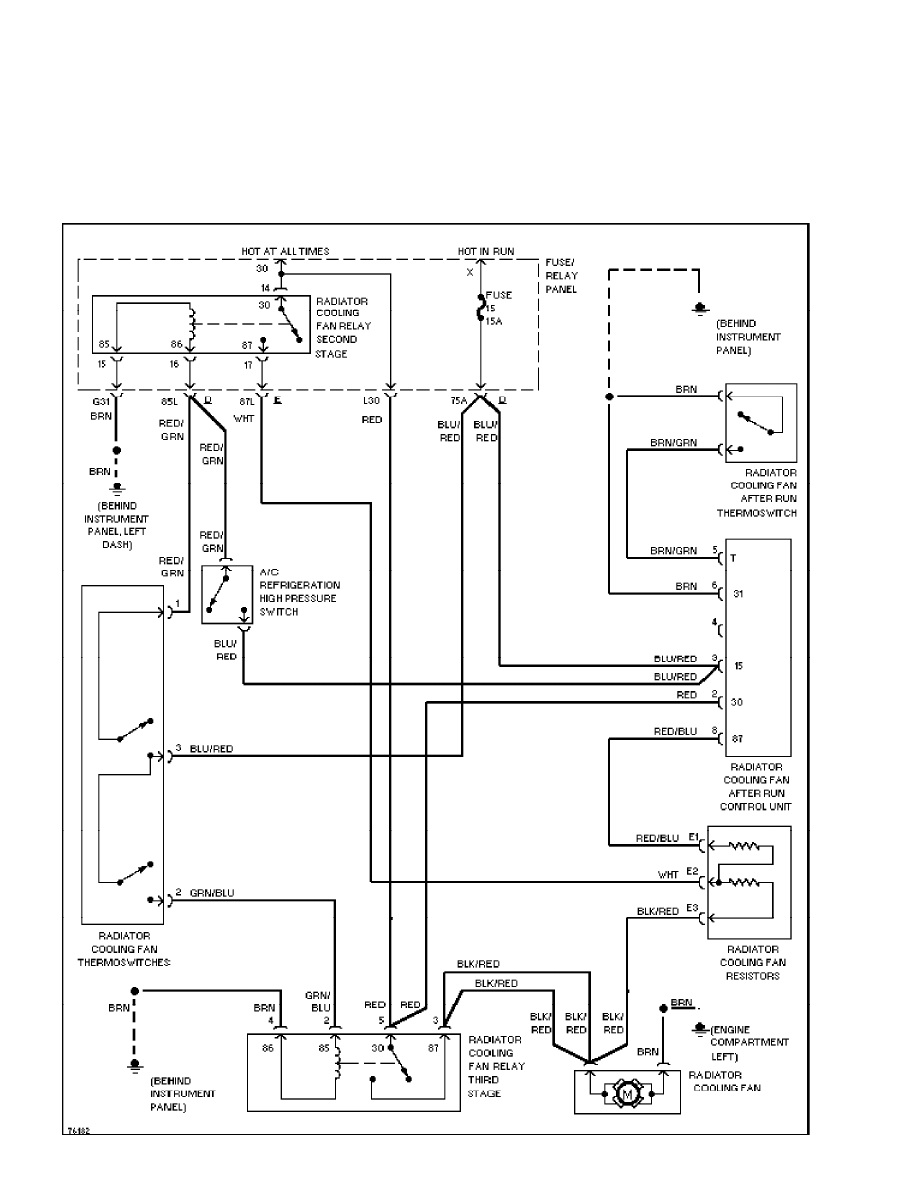

Cooling Fan Circuit, Late Production

1986 Audi 5000S

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, July 19, 2004 05:44PM

background image

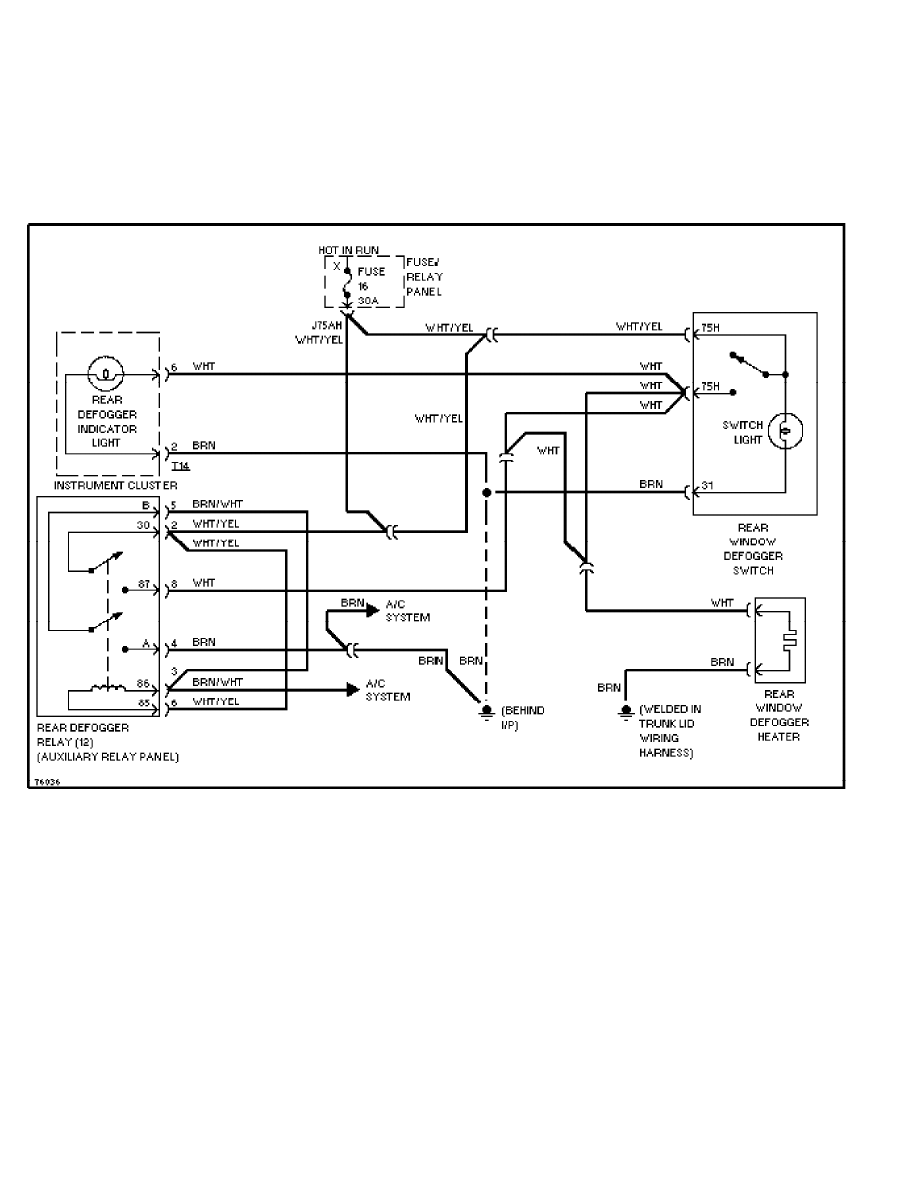

SYSTEM WIRING DIAGRAMS

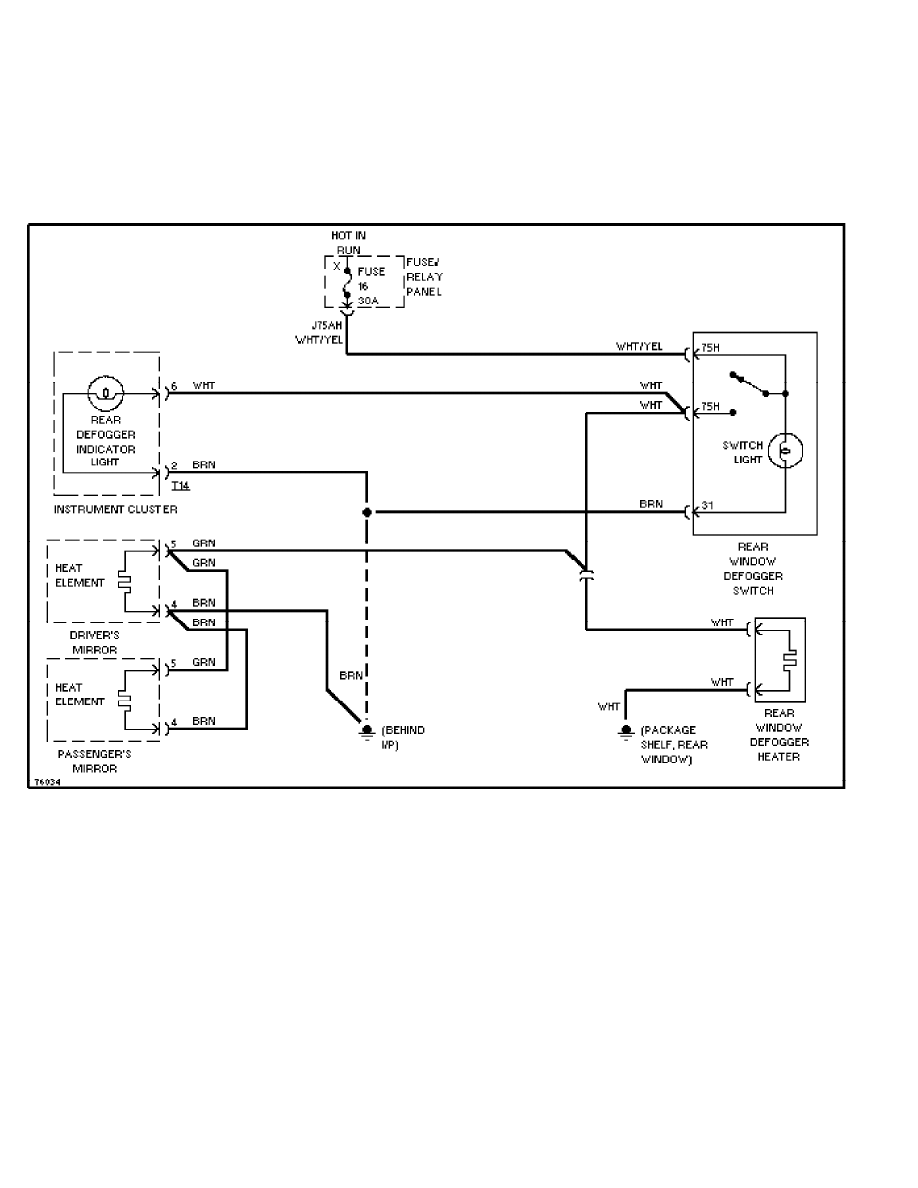

Defogger Circuit, Early Production

1986 Audi 5000S

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, July 19, 2004 05:44PM

background image

SYSTEM WIRING DIAGRAMS

Defogger Circuit, Late Production

1986 Audi 5000S

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, July 19, 2004 05:44PM

background image

SYSTEM WIRING DIAGRAMS

Defogger Circuit, Wagon

1986 Audi 5000S

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, July 19, 2004 05:45PM

background image

SYSTEM WIRING DIAGRAMS

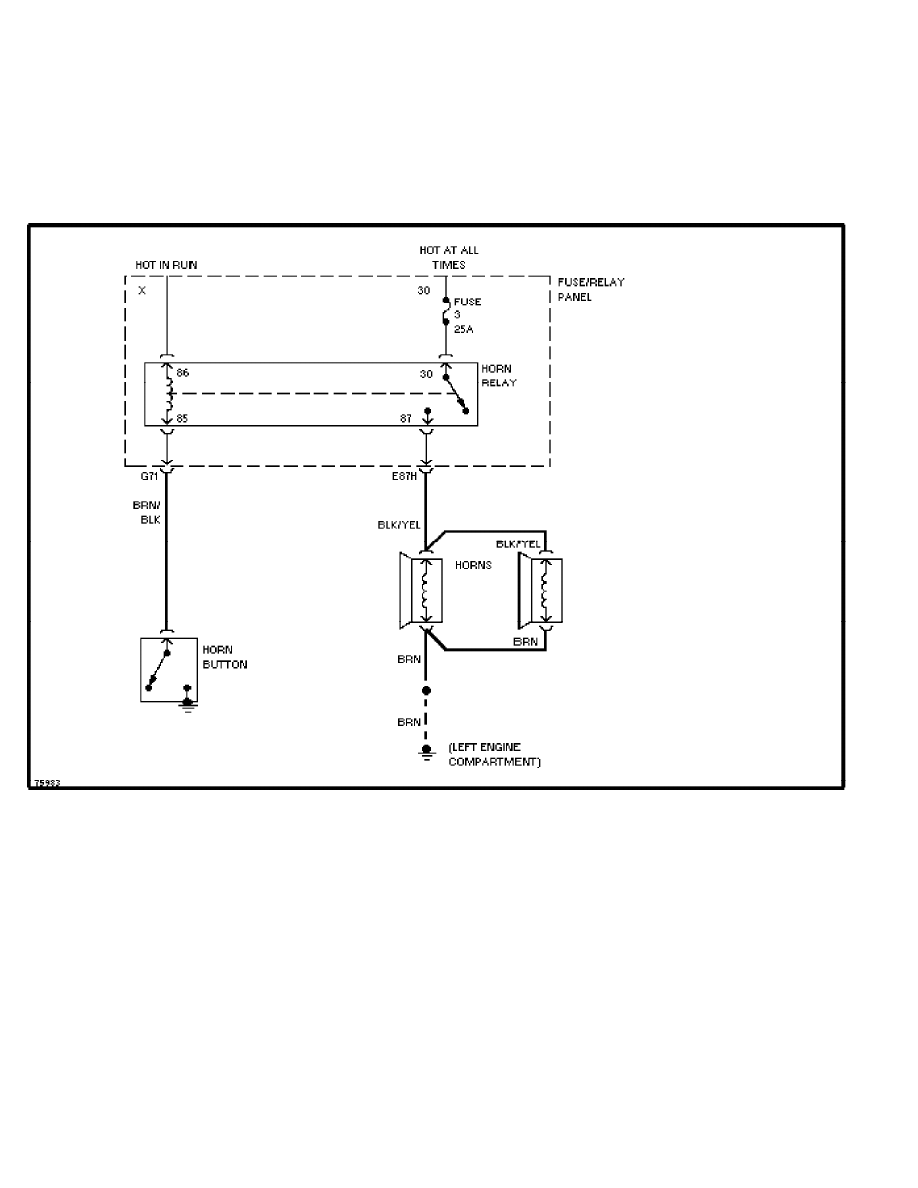

Horn Circuit

1986 Audi 5000S

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, July 19, 2004 05:45PM

background image

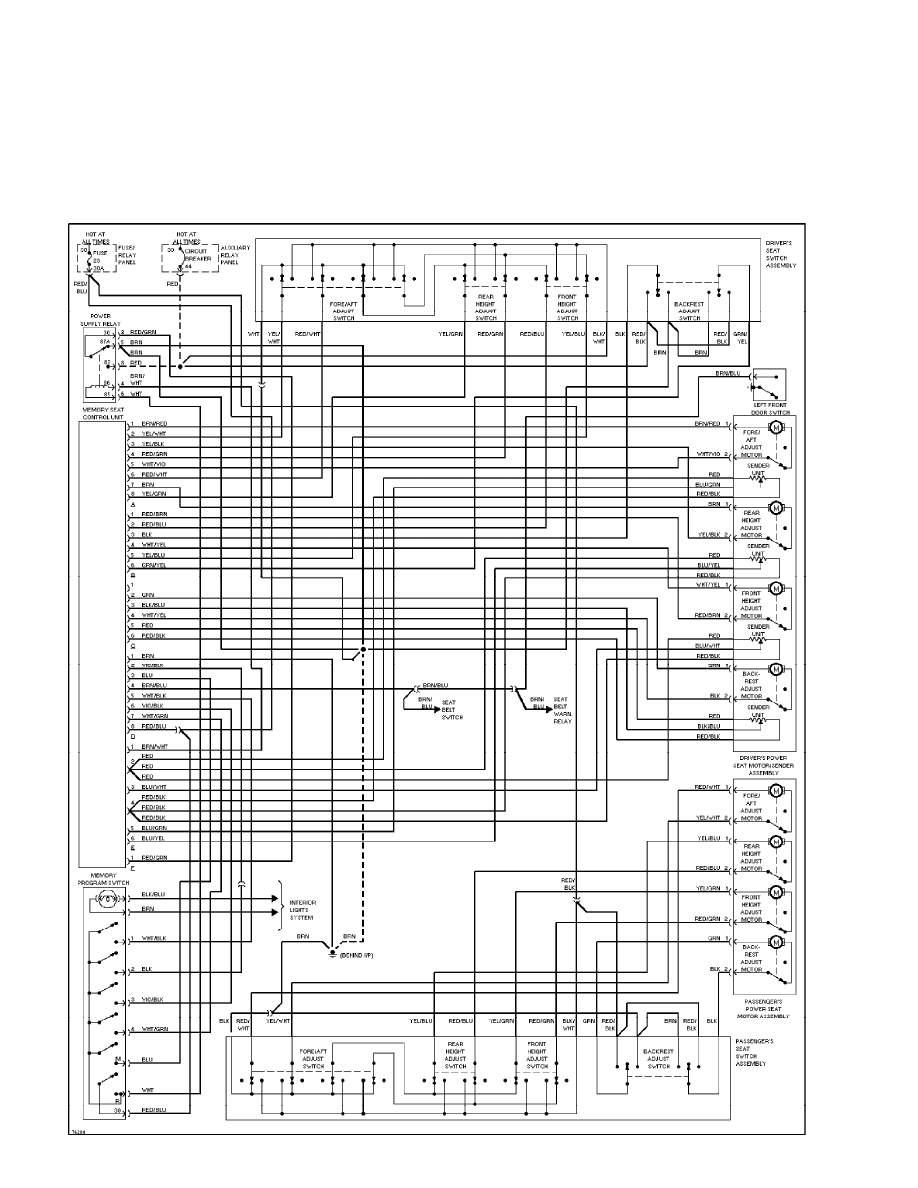

SYSTEM WIRING DIAGRAMS

Memory Seat Circuit

1986 Audi 5000S

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, July 19, 2004 05:45PM

background image

SYSTEM WIRING DIAGRAMS

Power Antenna Circuit

1986 Audi 5000S

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, July 19, 2004 05:45PM

background image

SYSTEM WIRING DIAGRAMS

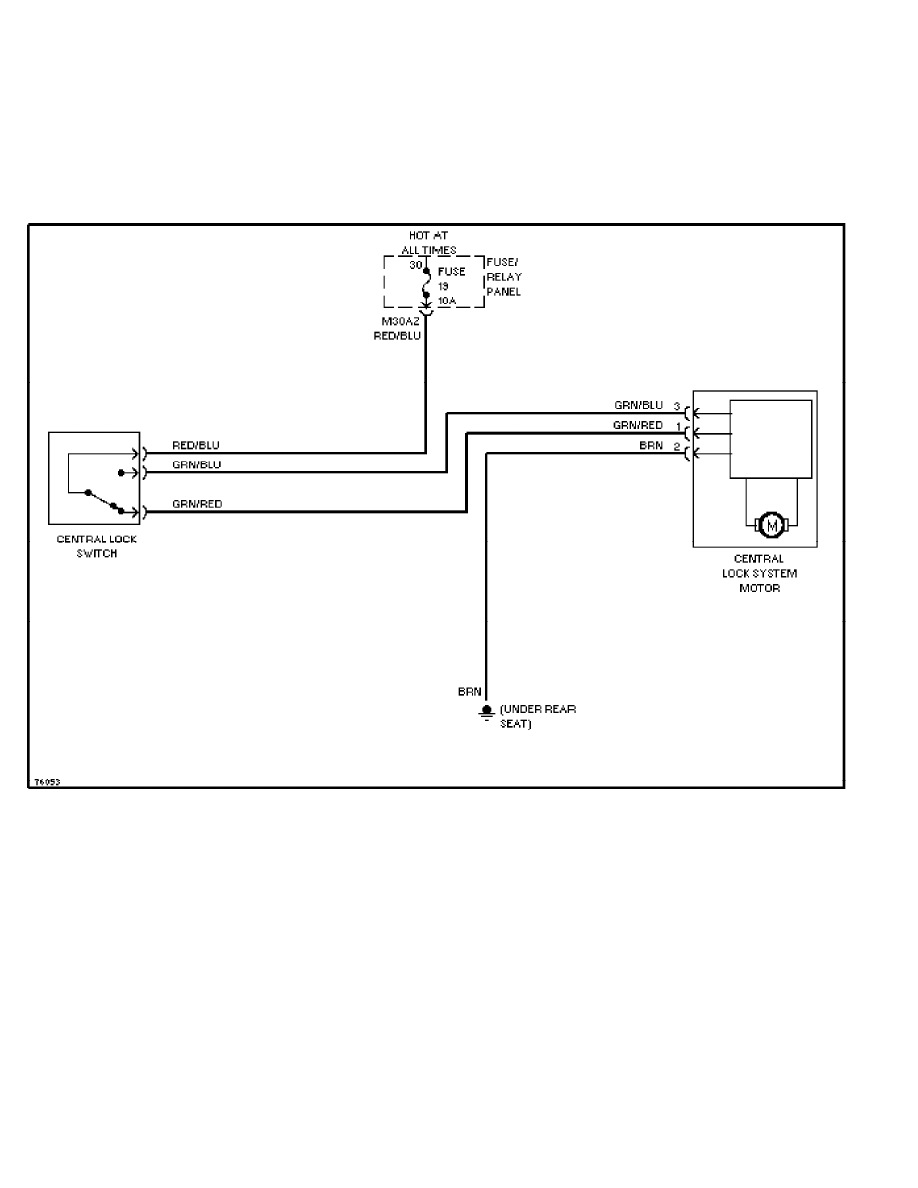

Power Door Lock Circuit

1986 Audi 5000S

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, July 19, 2004 05:45PM

background image

SYSTEM WIRING DIAGRAMS

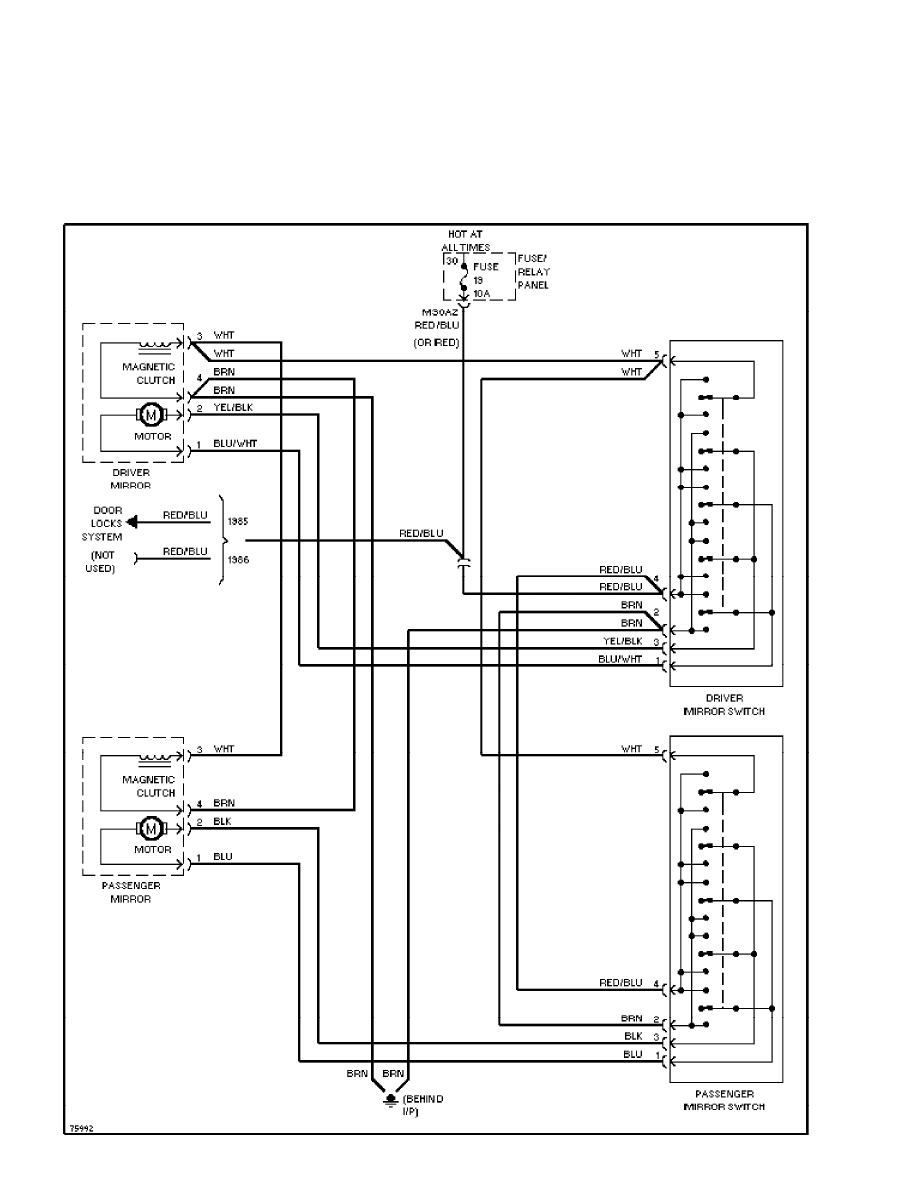

Power Mirror Circuit

1986 Audi 5000S

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, July 19, 2004 05:45PM

background image

SYSTEM WIRING DIAGRAMS

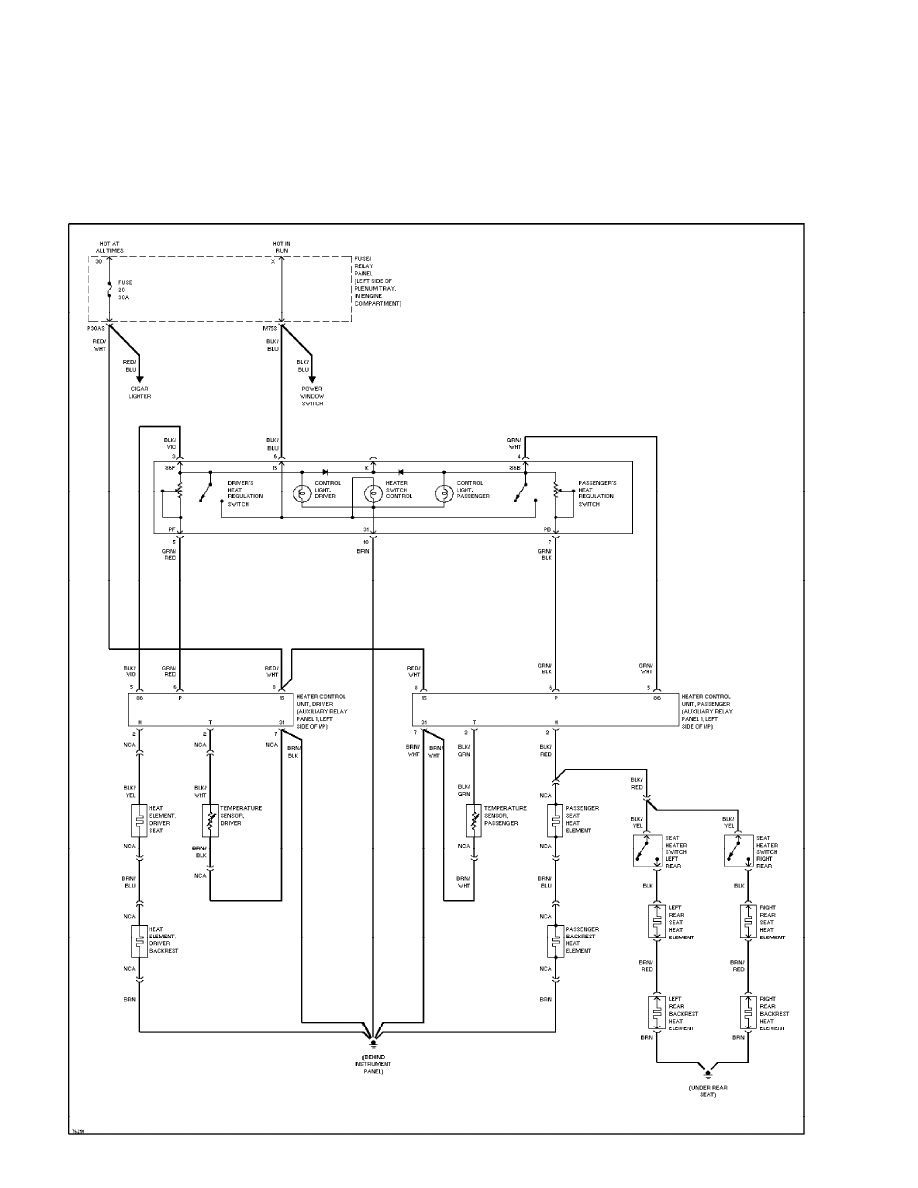

Heated Seats Circuit

1986 Audi 5000S

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, July 19, 2004 05:45PM

background image

SYSTEM WIRING DIAGRAMS

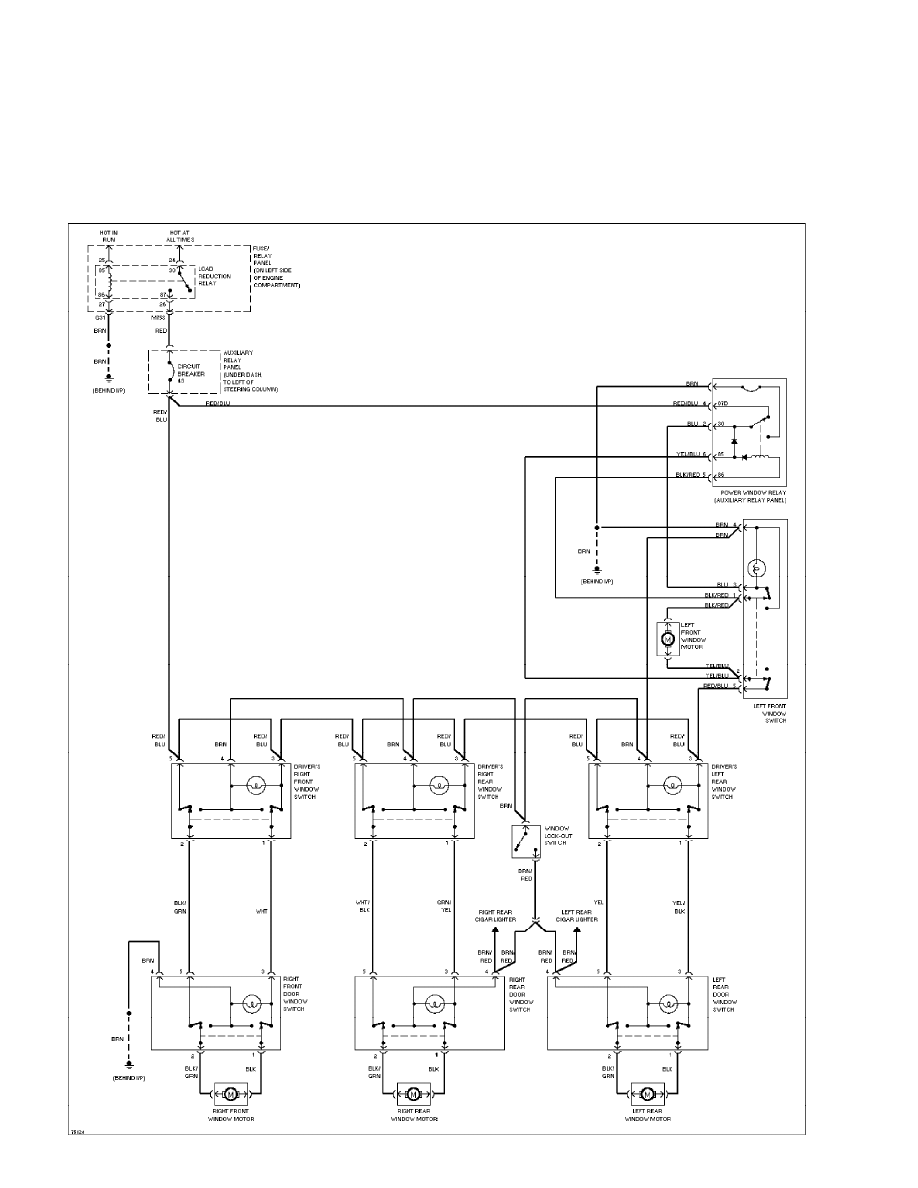

Power Window Circuit

1986 Audi 5000S

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, July 19, 2004 05:45PM

background image

WIRING DIAGRAMS - EXCEPT TURBO & QUATTRO

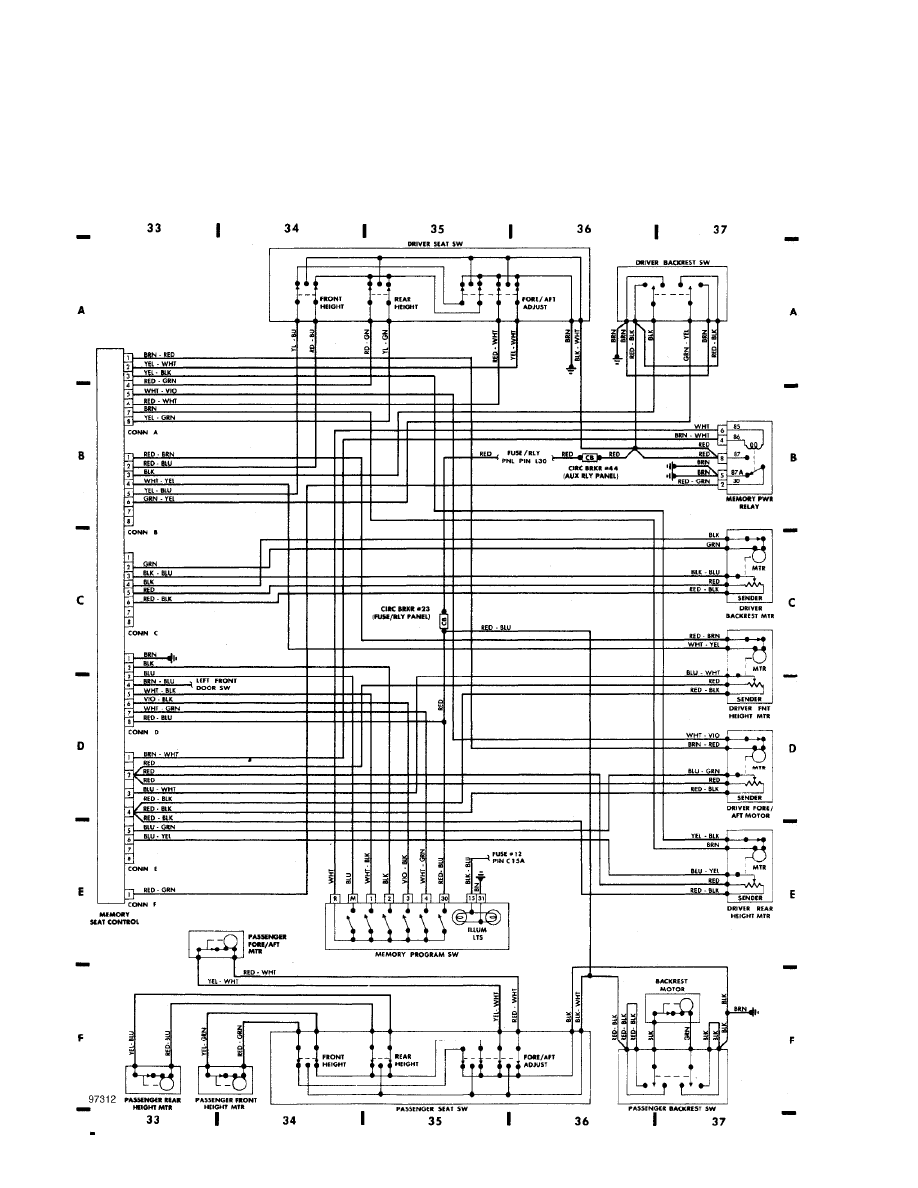

Fig. 8: Rear Compartment & Accessories

1986 Audi 5000S

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, July 19, 2004 05:47PM

background image

WIRING DIAGRAMS - EXCEPT TURBO & QUATTRO

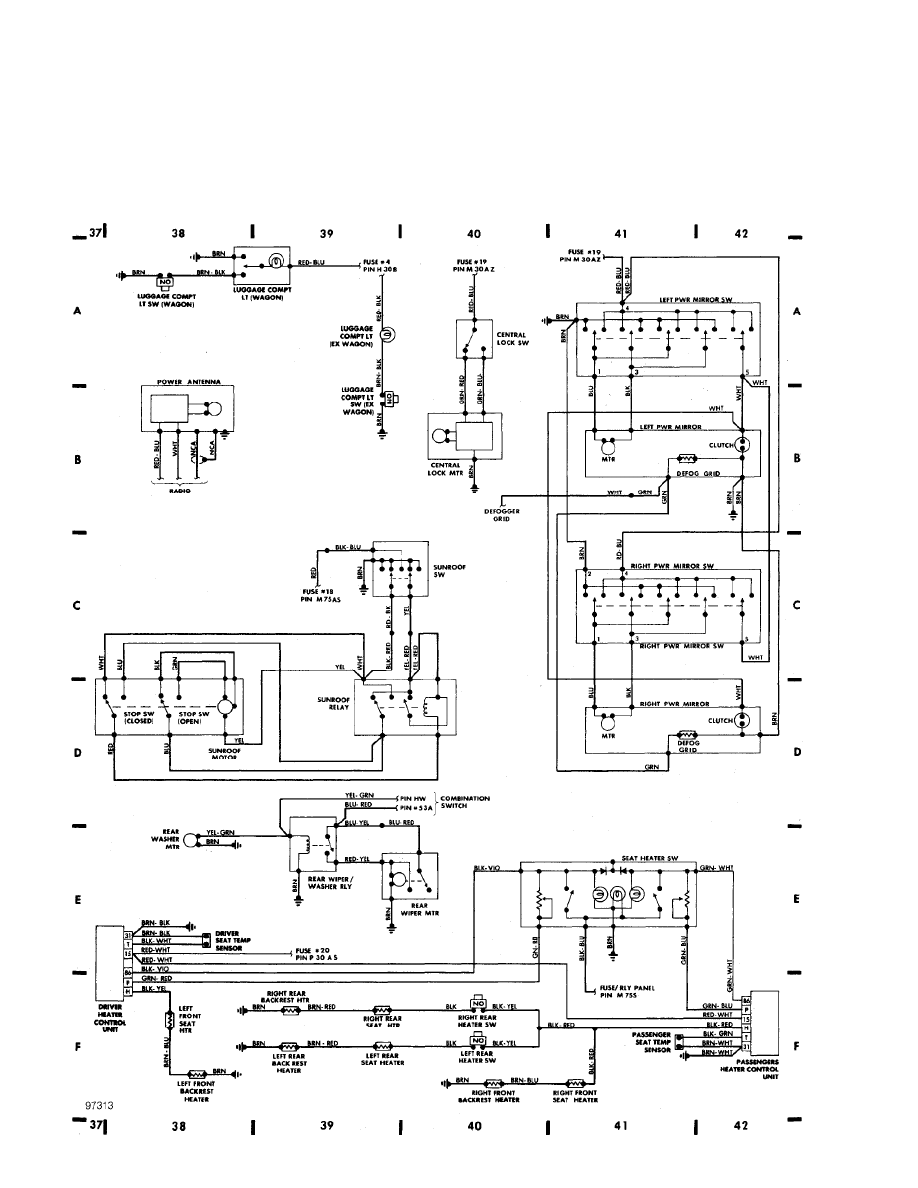

Fig. 9: Rear Compartment & Accessories

1986 Audi 5000S

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, July 19, 2004 05:47PM

background image

WIRING DIAGRAMS - EXCEPT TURBO & QUATTRO

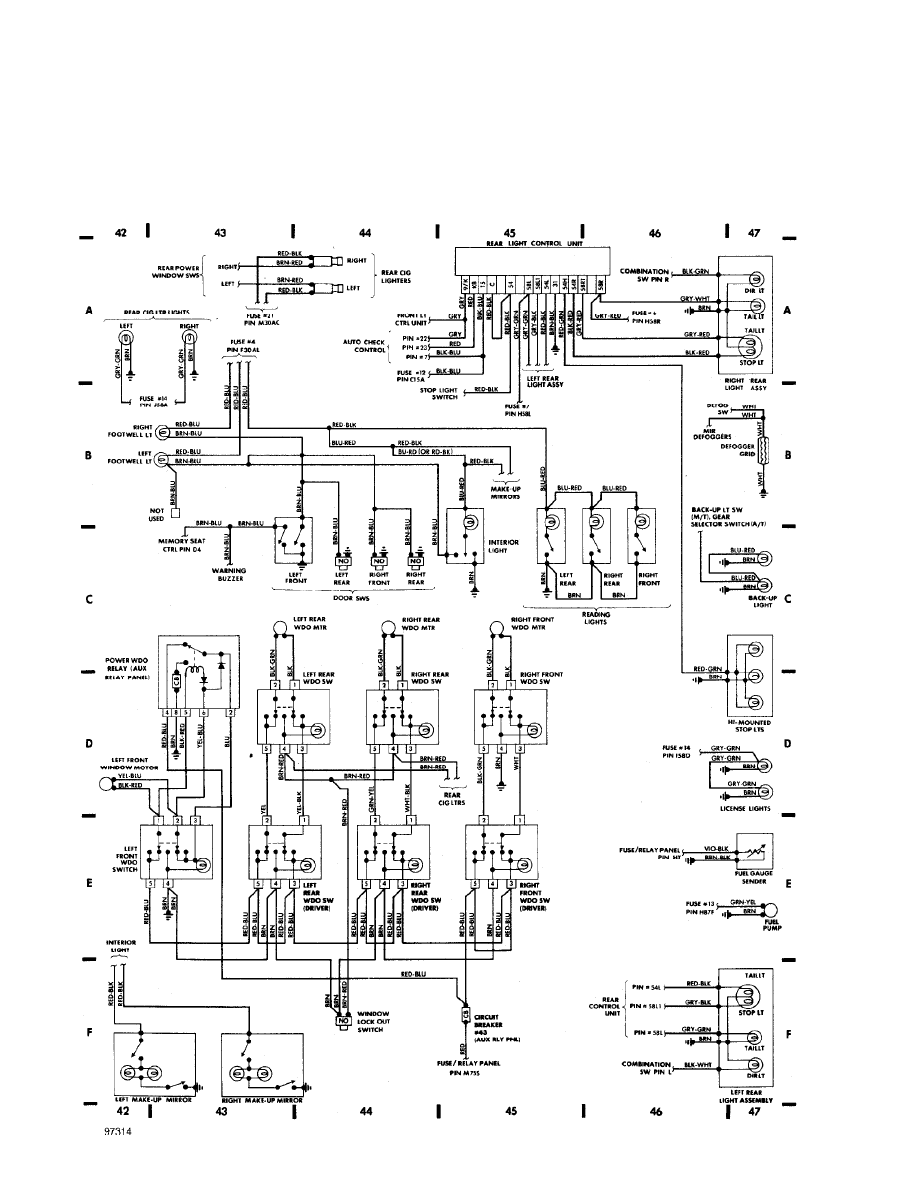

Fig. 10: Rear Compartment & Accessories

1986 Audi 5000S

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, July 19, 2004 05:47PM

background image

WIRING DIAGRAMS - EXCEPT TURBO & QUATTRO

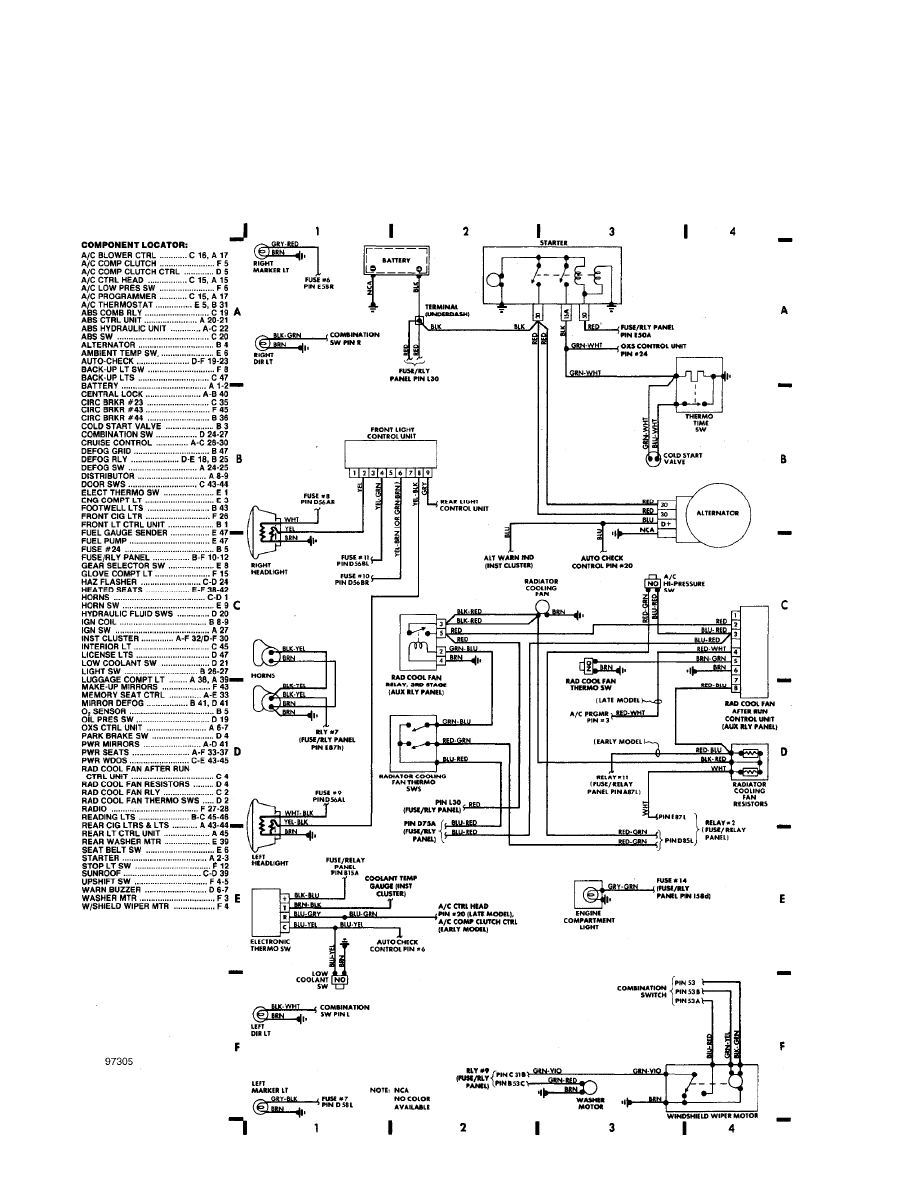

Fig. 1: Engine Compartment

1986 Audi 5000S

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, July 19, 2004 05:46PM

background image

WIRING DIAGRAMS - EXCEPT TURBO & QUATTRO

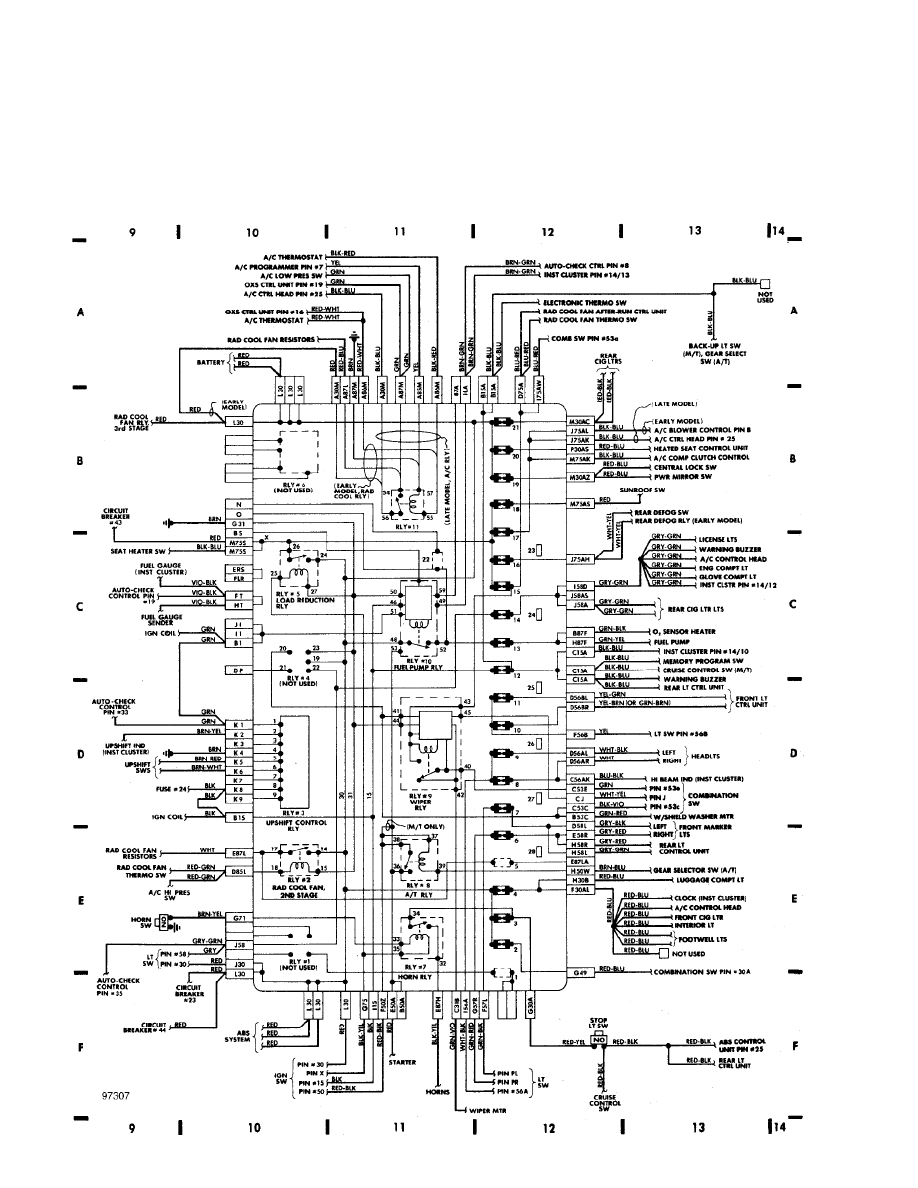

Fig. 2: Engine Compartment (Cont.) & Underdash

1986 Audi 5000S

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, July 19, 2004 05:46PM

background image

WIRING DIAGRAMS - EXCEPT TURBO & QUATTRO

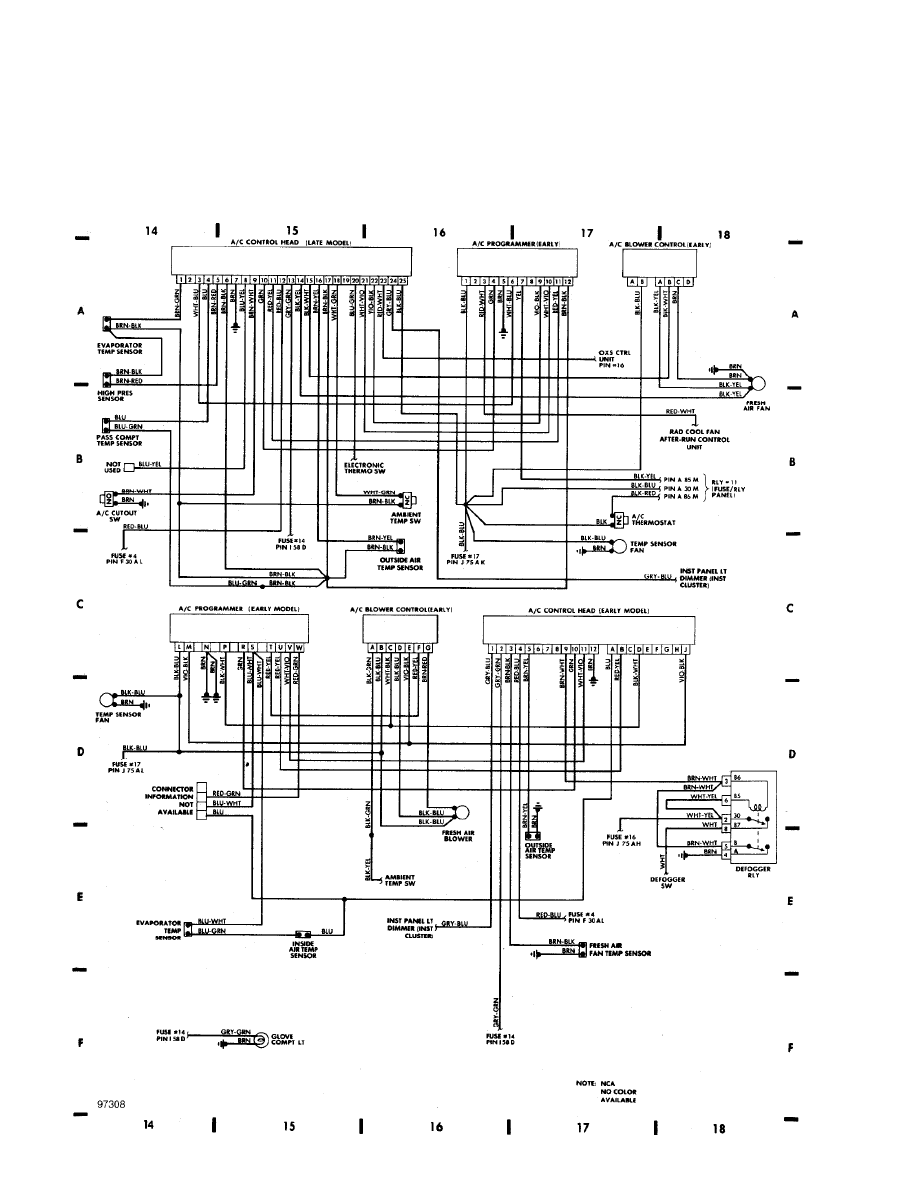

Fig. 3: Underdash (Cont.) & Fuse Block

1986 Audi 5000S

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, July 19, 2004 05:46PM

background image

WIRING DIAGRAMS - EXCEPT TURBO & QUATTRO

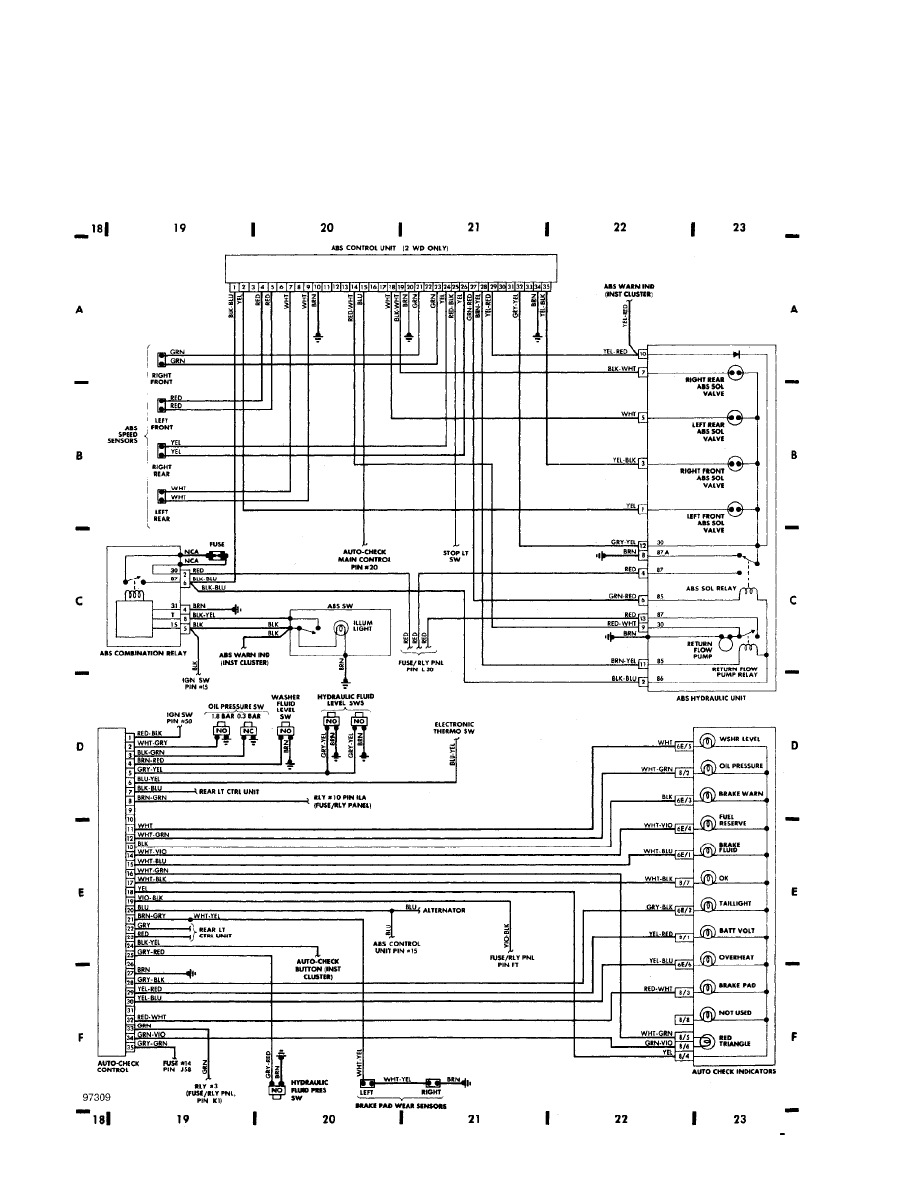

Fig. 4: Underdash (Cont.)

1986 Audi 5000S

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, July 19, 2004 05:47PM

background image

WIRING DIAGRAMS - EXCEPT TURBO & QUATTRO

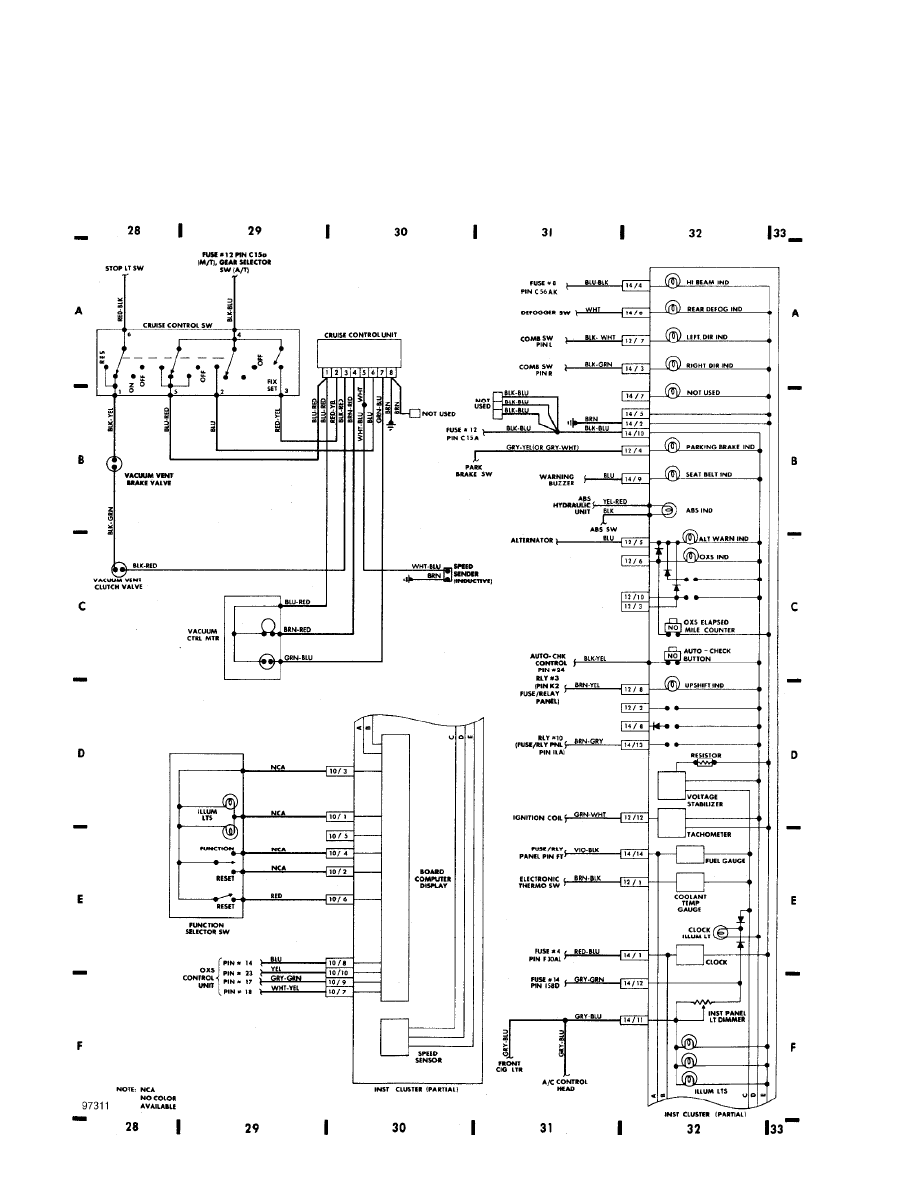

Fig. 5: Underdash (Cont.) & Instrument Panel

1986 Audi 5000S

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, July 19, 2004 05:47PM

background image

WIRING DIAGRAMS - EXCEPT TURBO & QUATTRO

Fig. 6: Instrument Panel (Cont.)

1986 Audi 5000S

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, July 19, 2004 05:47PM

background image

WIRING DIAGRAMS - EXCEPT TURBO & QUATTRO

Fig. 7: Instrument Panel (Cont.)

1986 Audi 5000S

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, July 19, 2004 05:47PM
