MERCEDES BENZ 300SD 1985

background image

SYSTEM WIRING DIAGRAMS

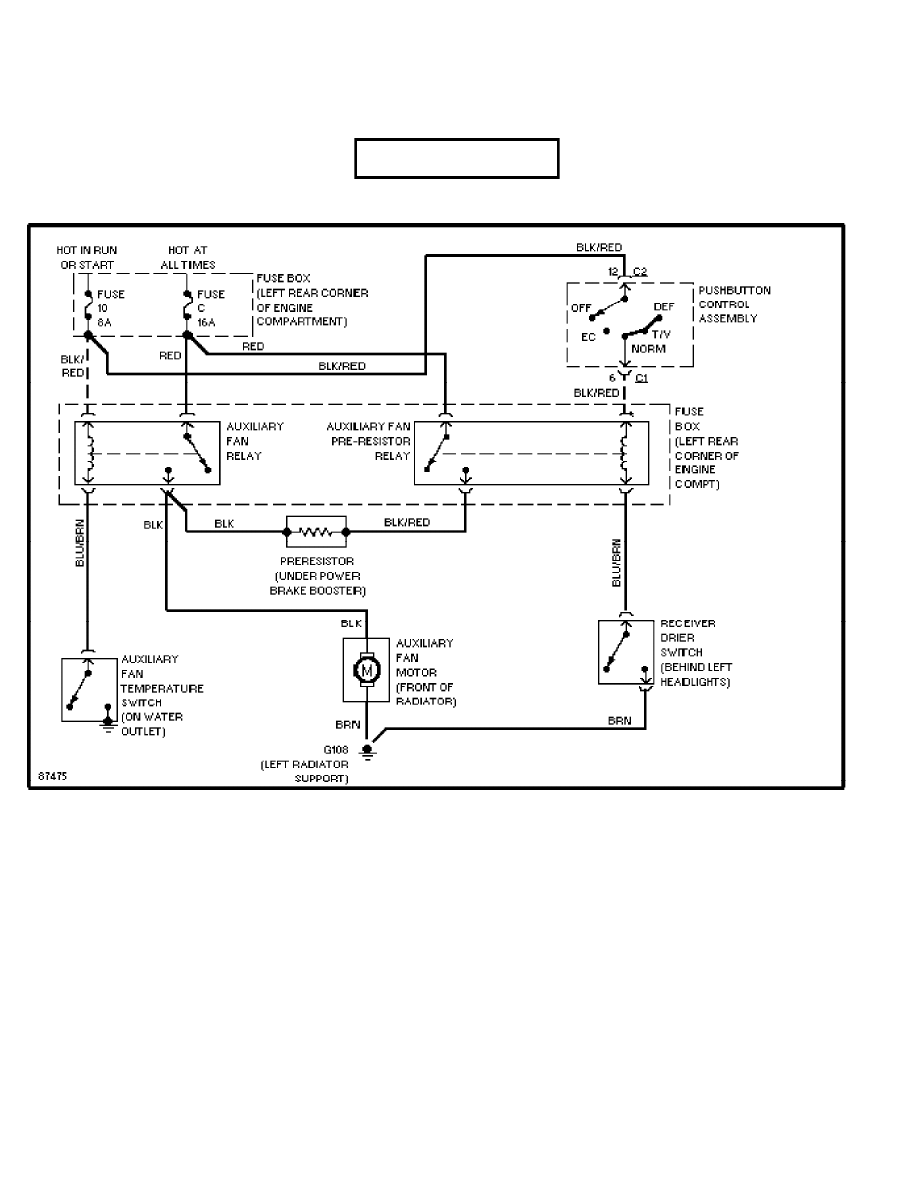

Cooling Fan Circuit

1985 Mercedes-Benz 300SD

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, July 25, 2004 05:51PM

CDR@WP.PL

background image

SYSTEM WIRING DIAGRAMS

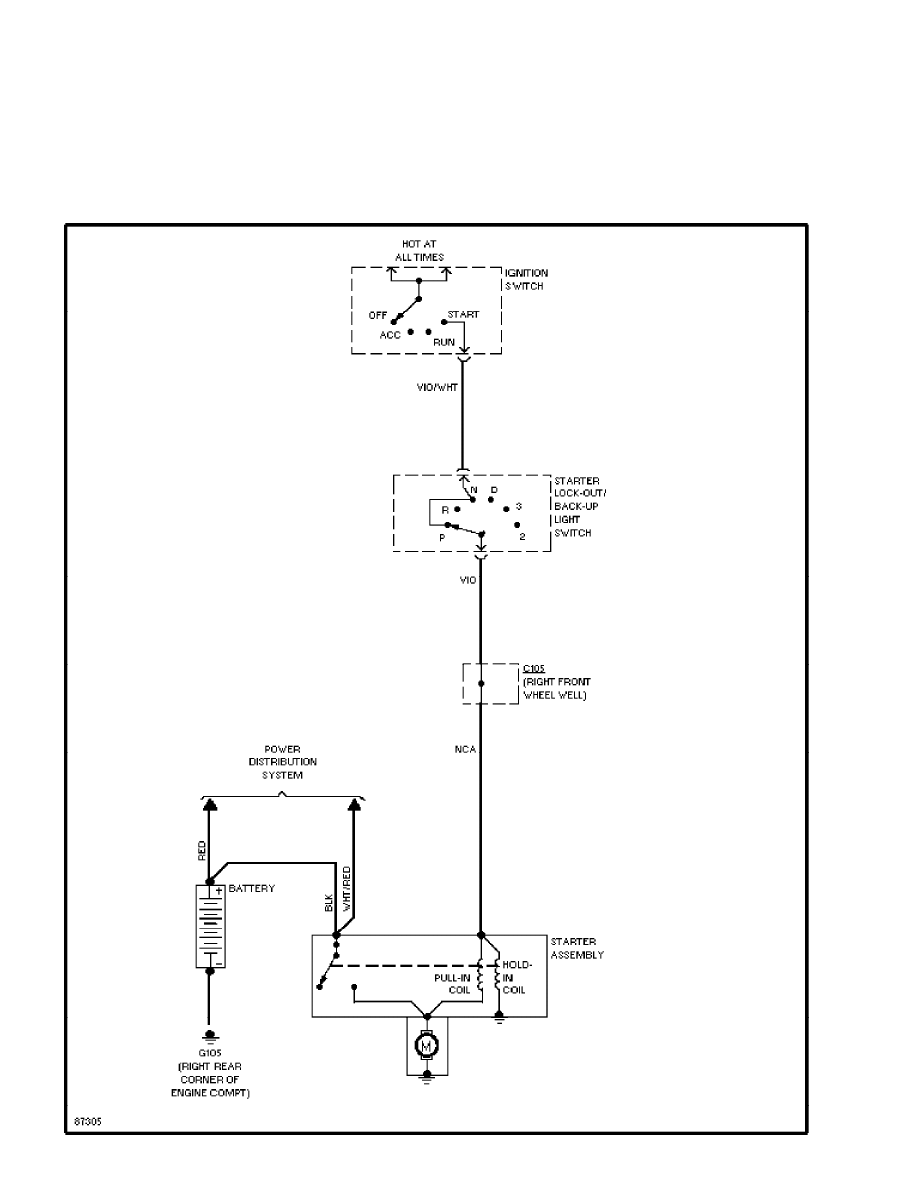

Starting Circuit

1985 Mercedes-Benz 300SD

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, July 25, 2004 05:52PM

background image

SYSTEM WIRING DIAGRAMS

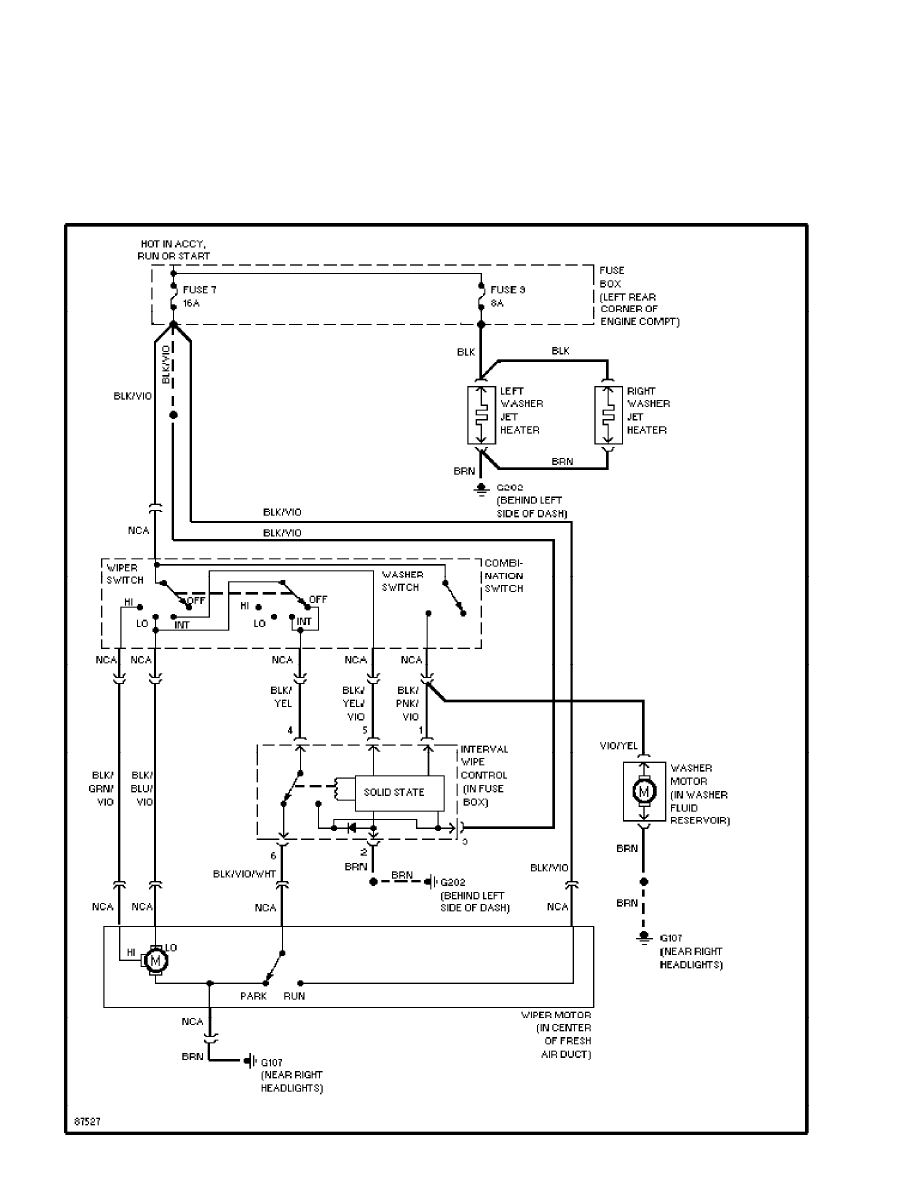

Wiper/Washer Circuit

1985 Mercedes-Benz 300SD

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, July 25, 2004 05:52PM

background image

SYSTEM WIRING DIAGRAMS

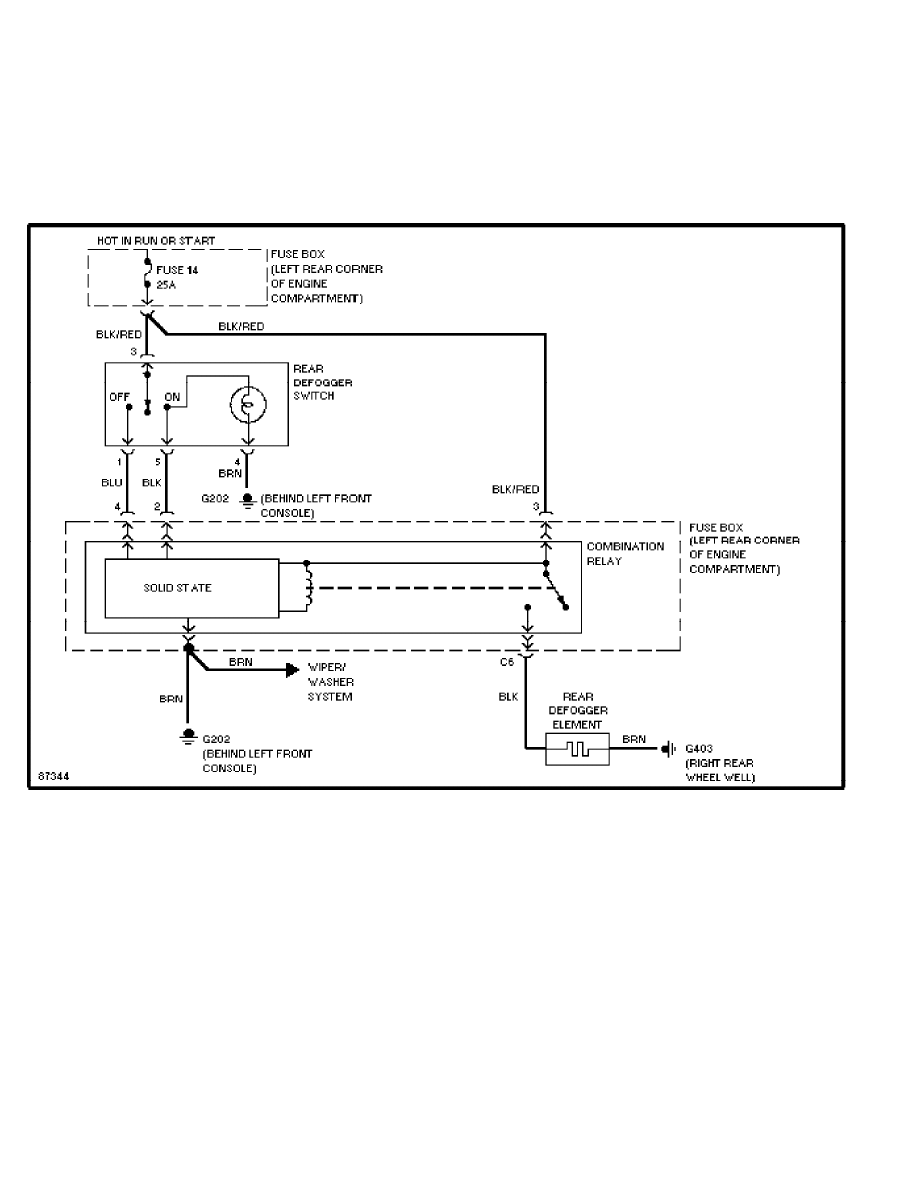

Defogger Circuit

1985 Mercedes-Benz 300SD

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, July 25, 2004 05:51PM

background image

SYSTEM WIRING DIAGRAMS

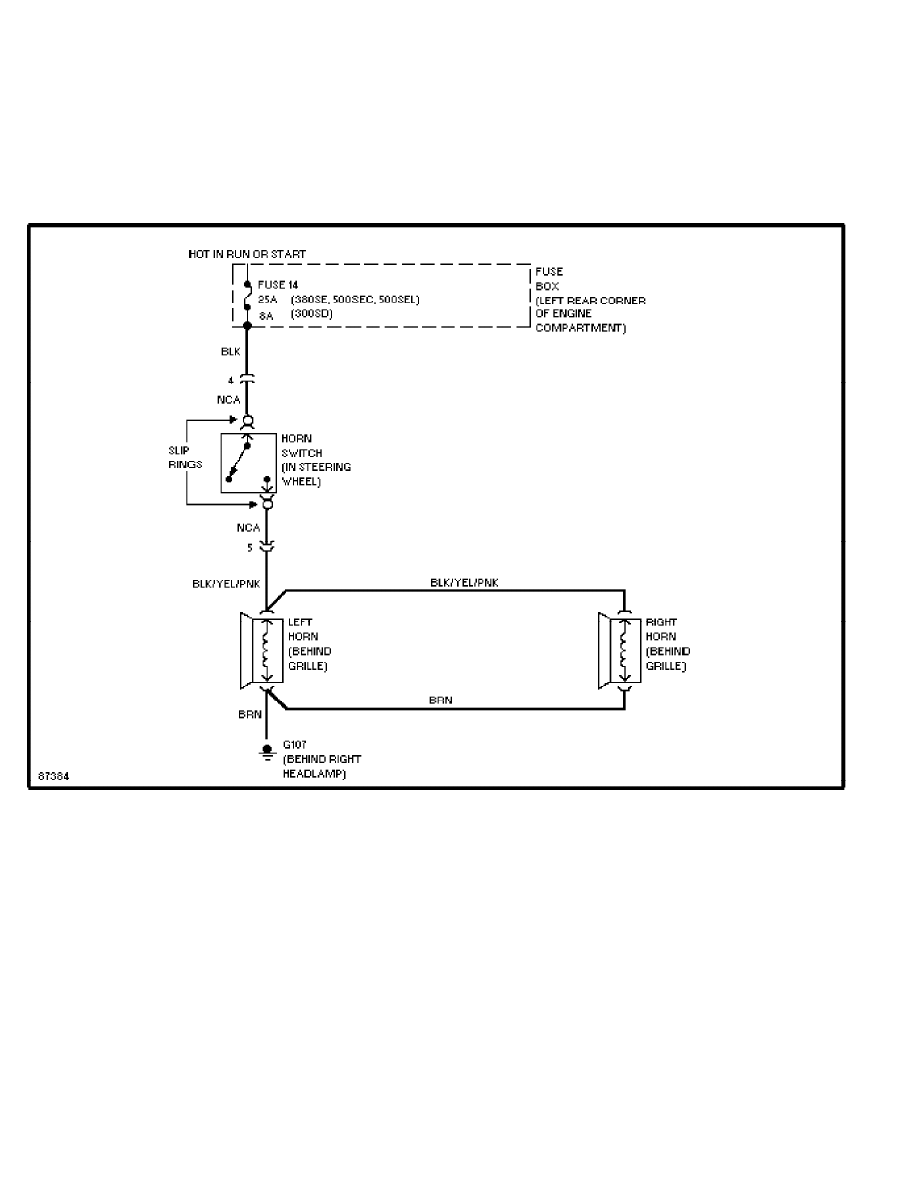

Horn Circuit

1985 Mercedes-Benz 300SD

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, July 25, 2004 05:51PM

background image

SYSTEM WIRING DIAGRAMS

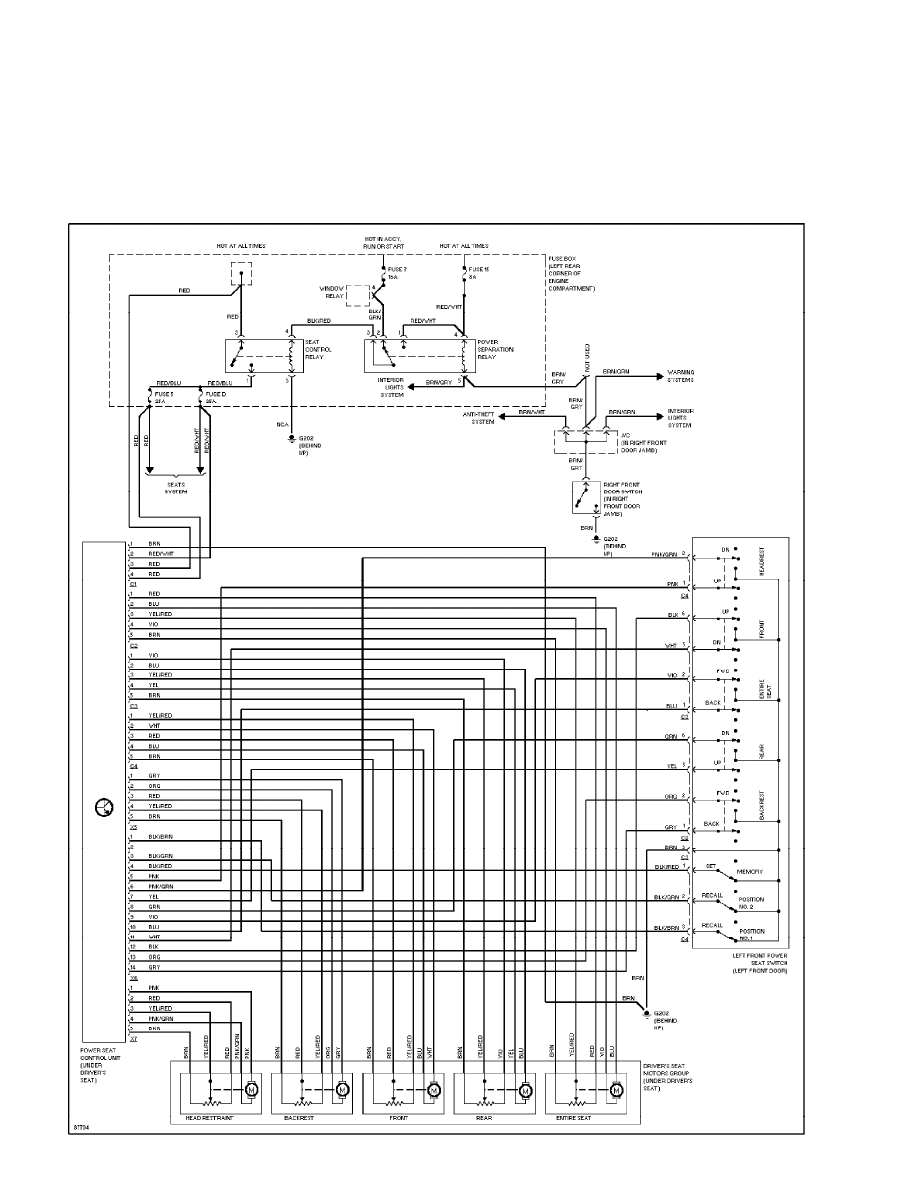

Driver's Memory Seat Circuit

1985 Mercedes-Benz 300SD

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, July 25, 2004 05:51PM

background image

SYSTEM WIRING DIAGRAMS

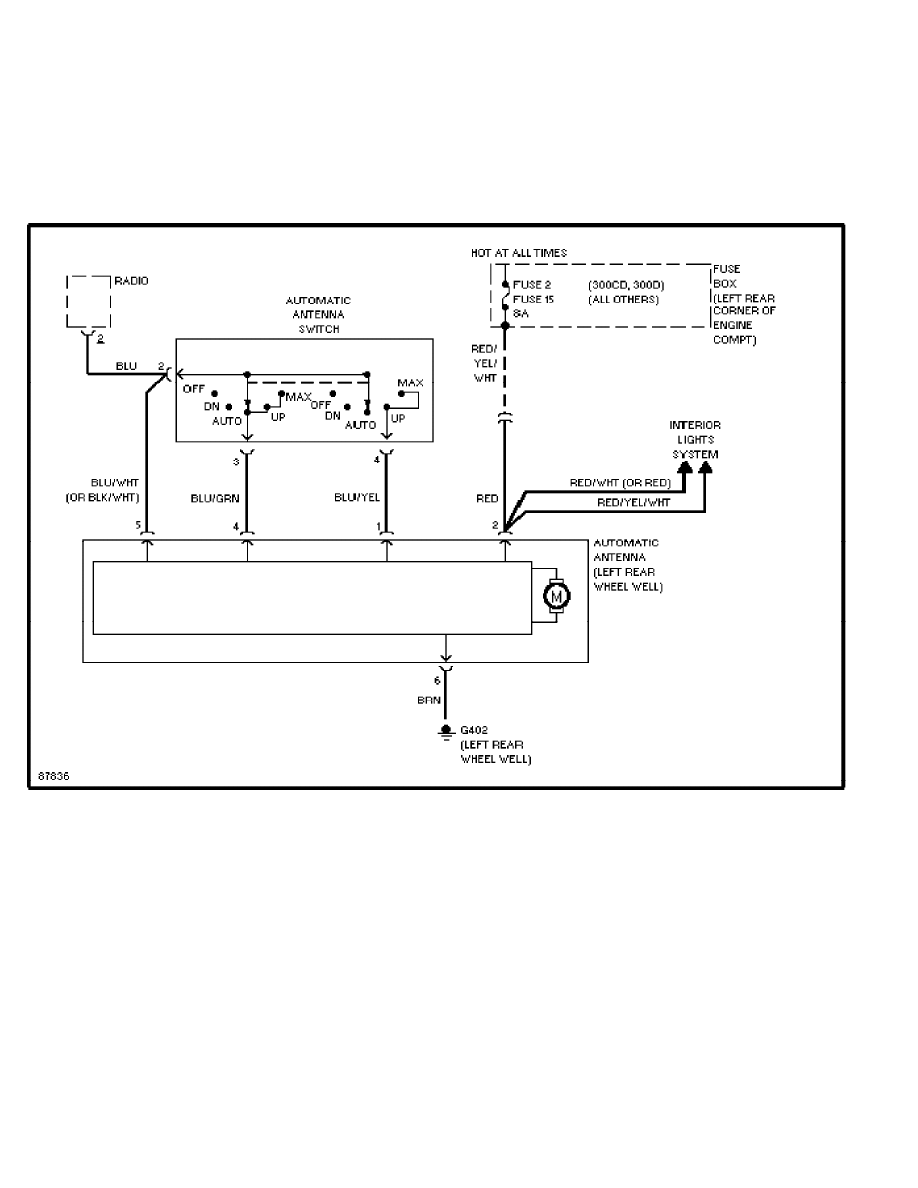

Power Antenna Circuit

1985 Mercedes-Benz 300SD

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, July 25, 2004 05:51PM

background image

SYSTEM WIRING DIAGRAMS

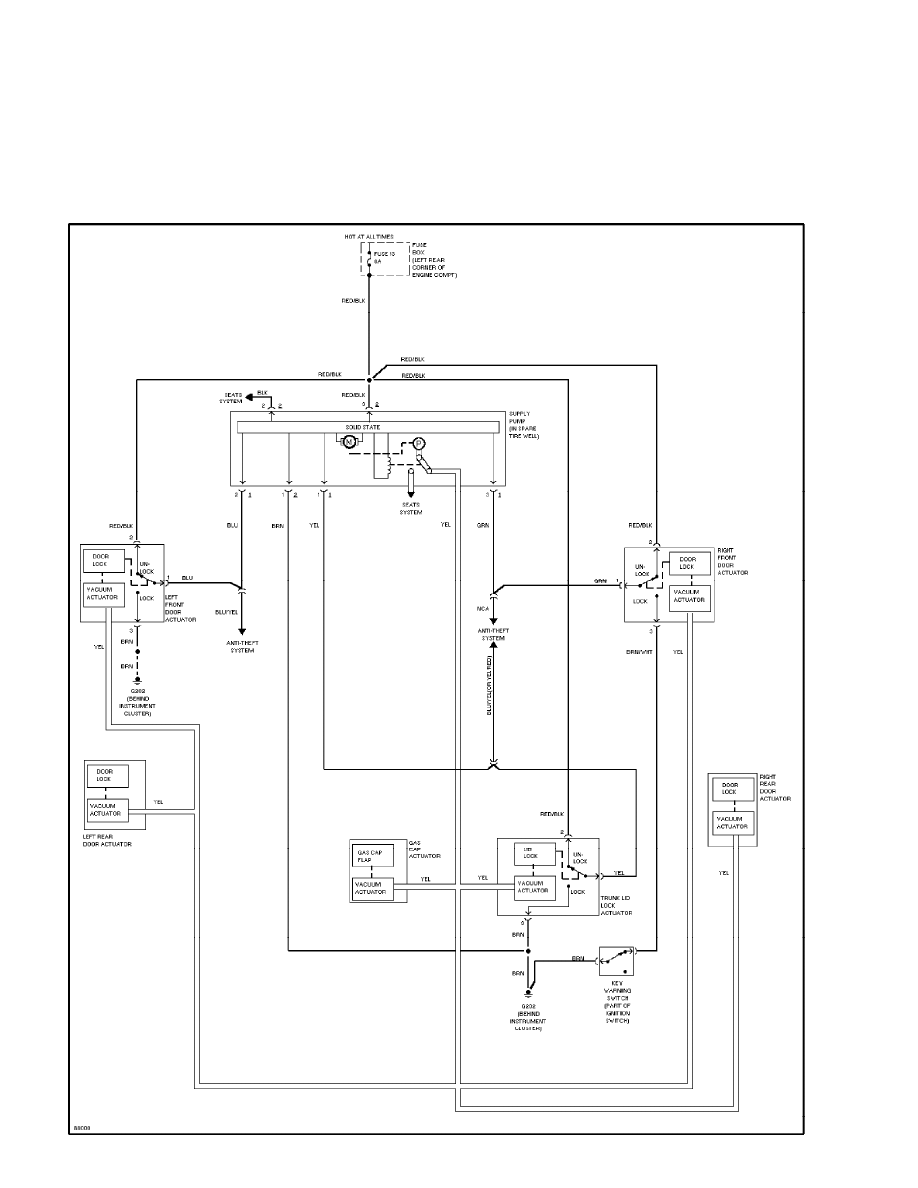

Power Door Lock Circuit

1985 Mercedes-Benz 300SD

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, July 25, 2004 05:51PM

background image

SYSTEM WIRING DIAGRAMS

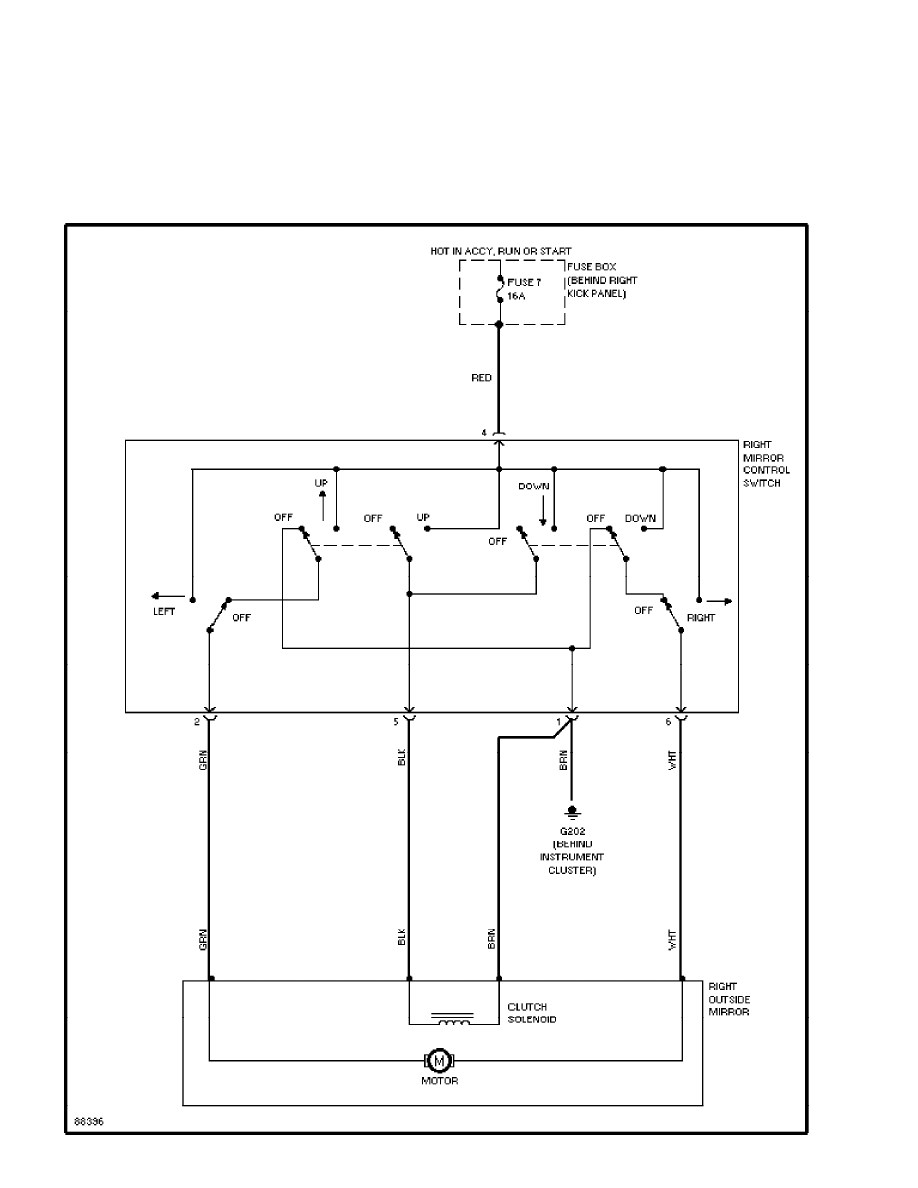

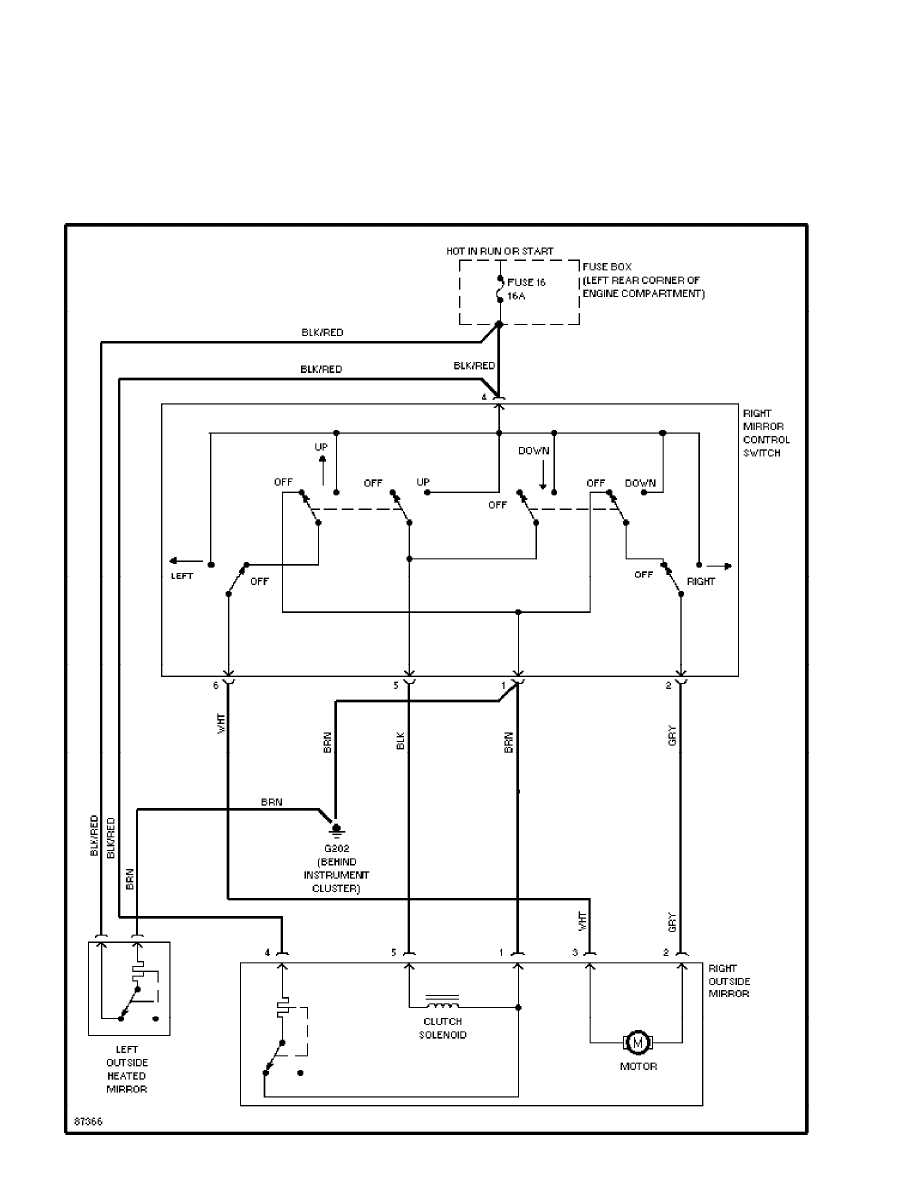

Power Mirror Circuit, Early Production

1985 Mercedes-Benz 300SD

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, July 25, 2004 05:51PM

background image

SYSTEM WIRING DIAGRAMS

Power Mirror Circuit, Late Production

1985 Mercedes-Benz 300SD

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, July 25, 2004 05:52PM

background image

SYSTEM WIRING DIAGRAMS

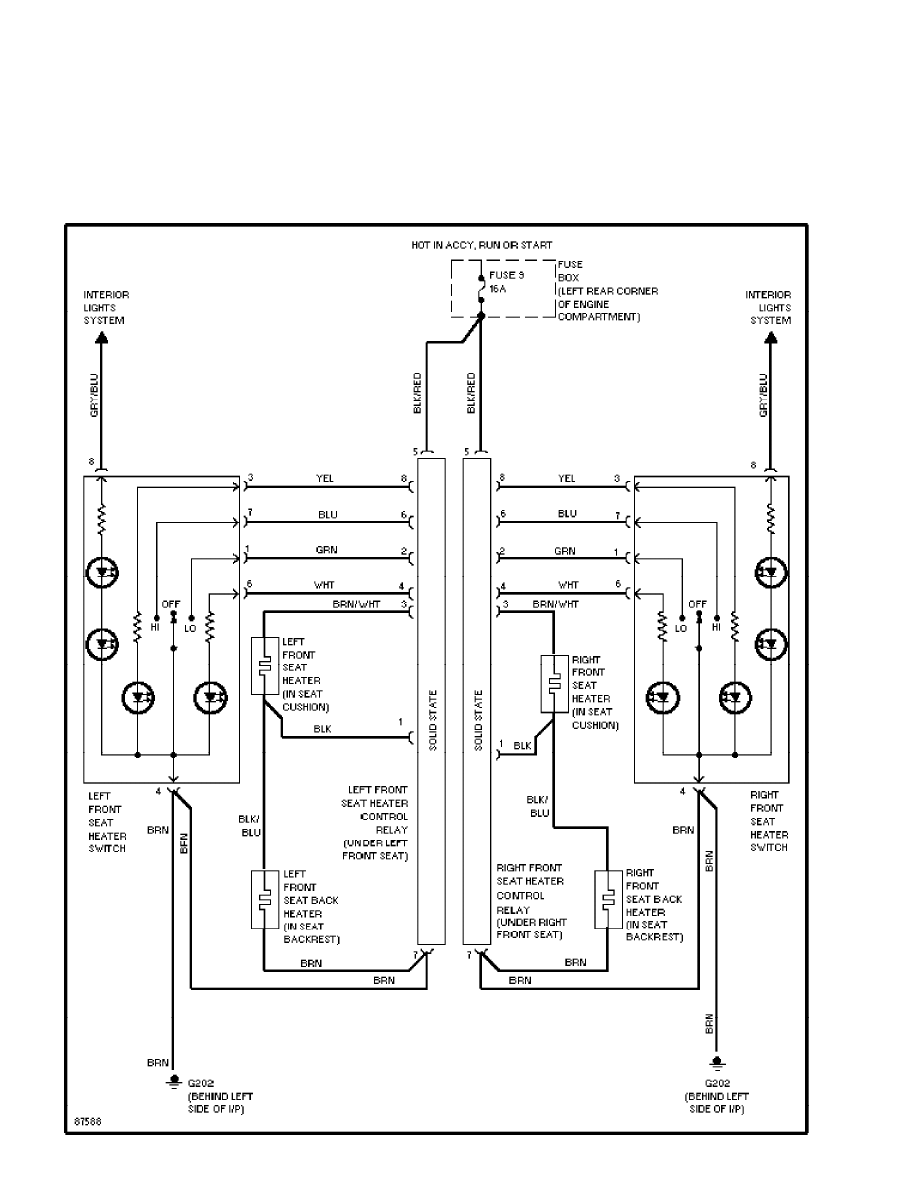

Front Seat Heater Circuit

1985 Mercedes-Benz 300SD

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, July 25, 2004 05:52PM

background image

SYSTEM WIRING DIAGRAMS

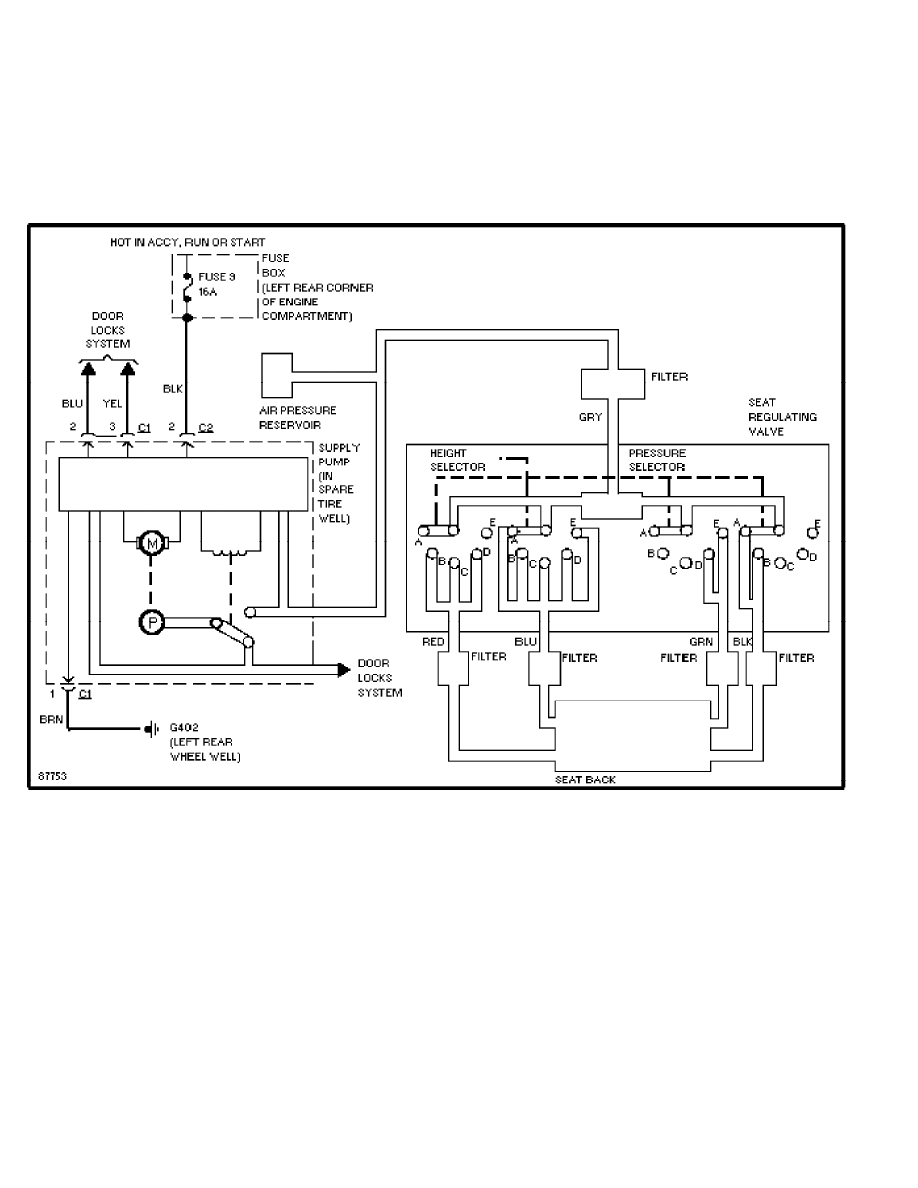

Orthopedic Seats

1985 Mercedes-Benz 300SD

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, July 25, 2004 05:52PM

background image

SYSTEM WIRING DIAGRAMS

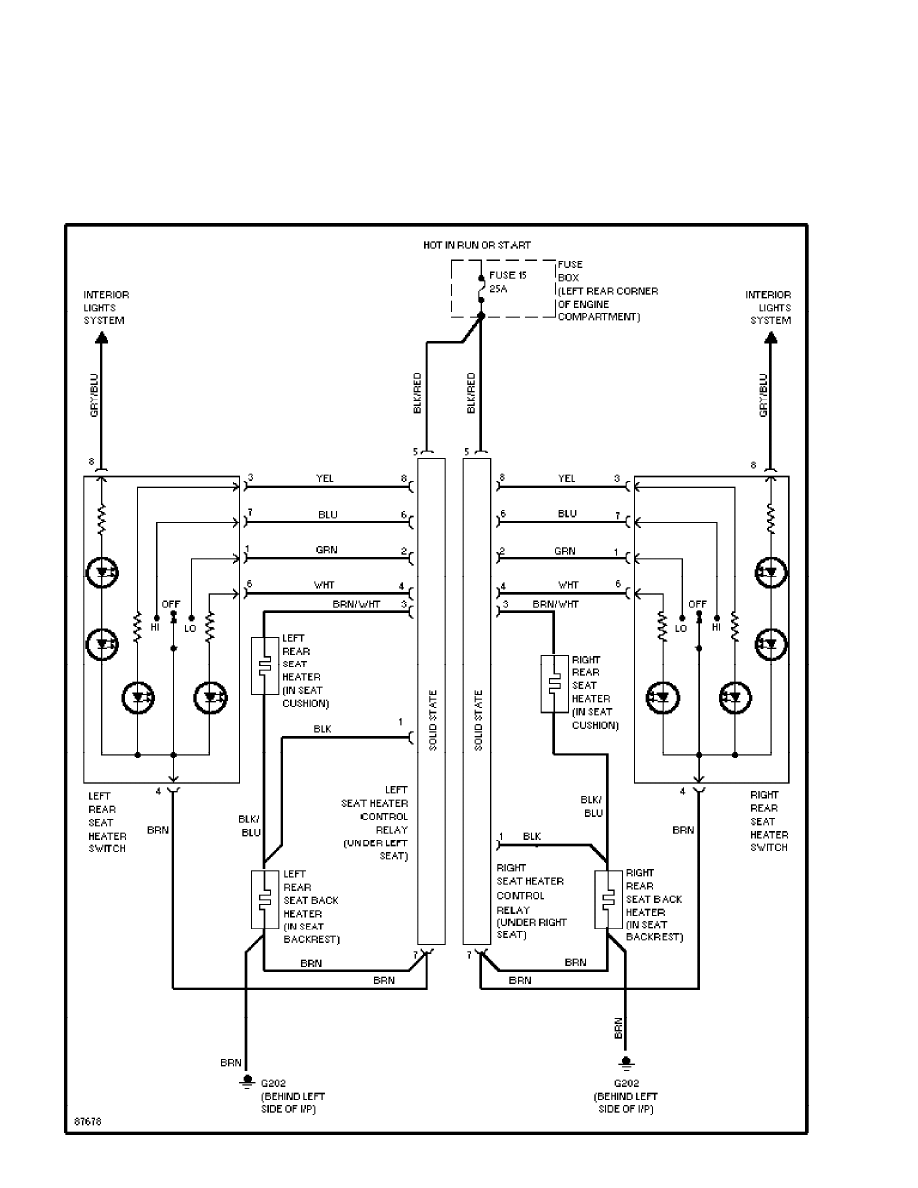

Rear Seat Heater Circuit

1985 Mercedes-Benz 300SD

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, July 25, 2004 05:52PM

background image

SYSTEM WIRING DIAGRAMS

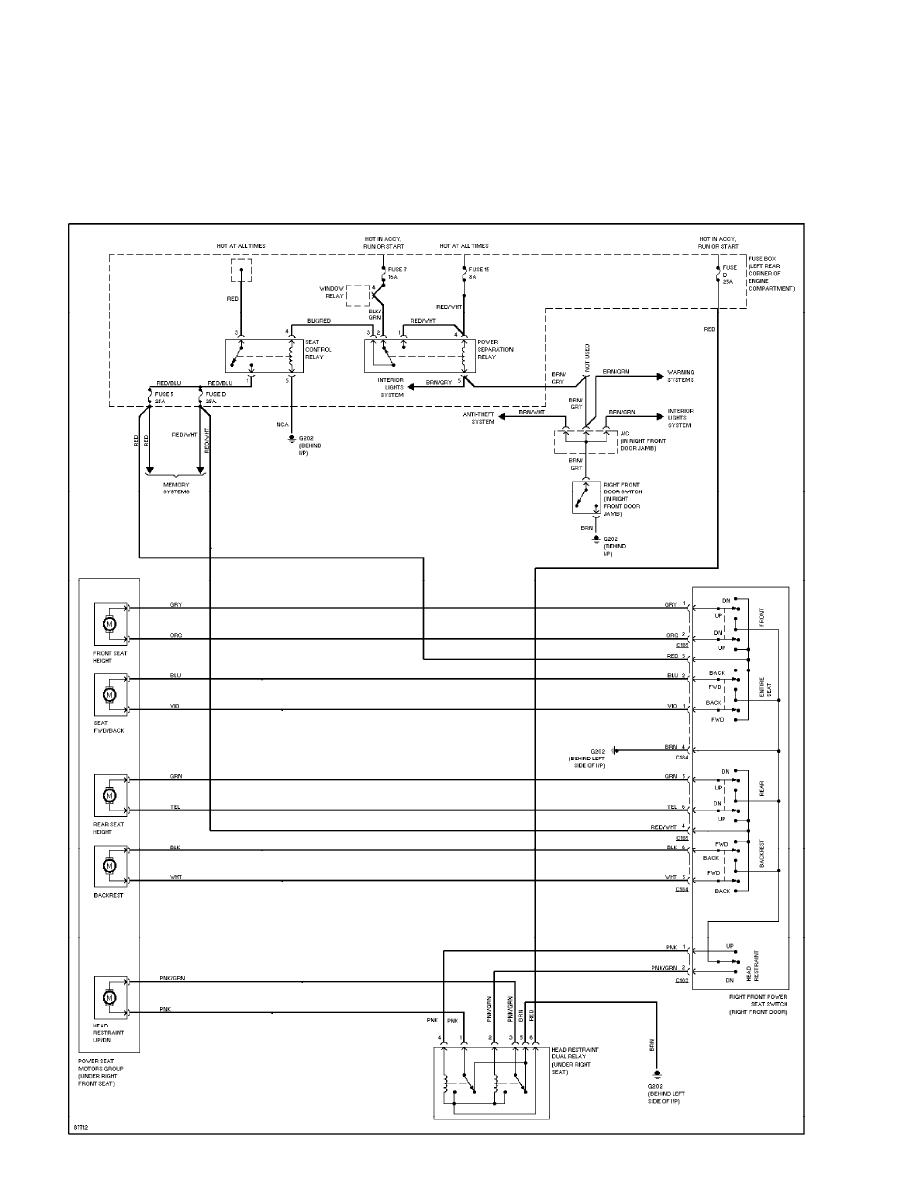

Right Power Seat Circuit

1985 Mercedes-Benz 300SD

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, July 25, 2004 05:52PM

background image

SYSTEM WIRING DIAGRAMS

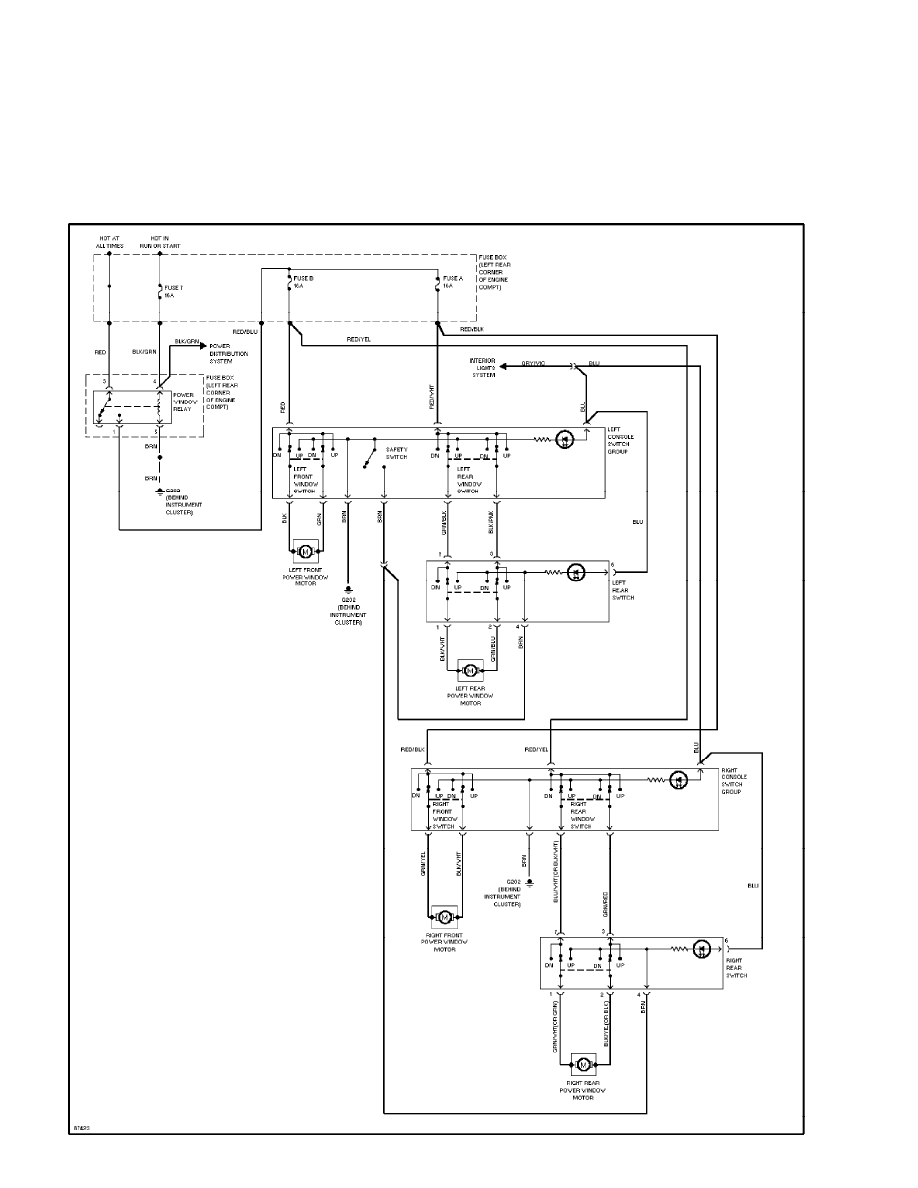

Power Window Circuit

1985 Mercedes-Benz 300SD

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, July 25, 2004 05:52PM

background image

SYSTEM WIRING DIAGRAMS

Radio Circuits

1985 Mercedes-Benz 300SD

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, July 25, 2004 05:52PM

background image

SYSTEM WIRING DIAGRAMS

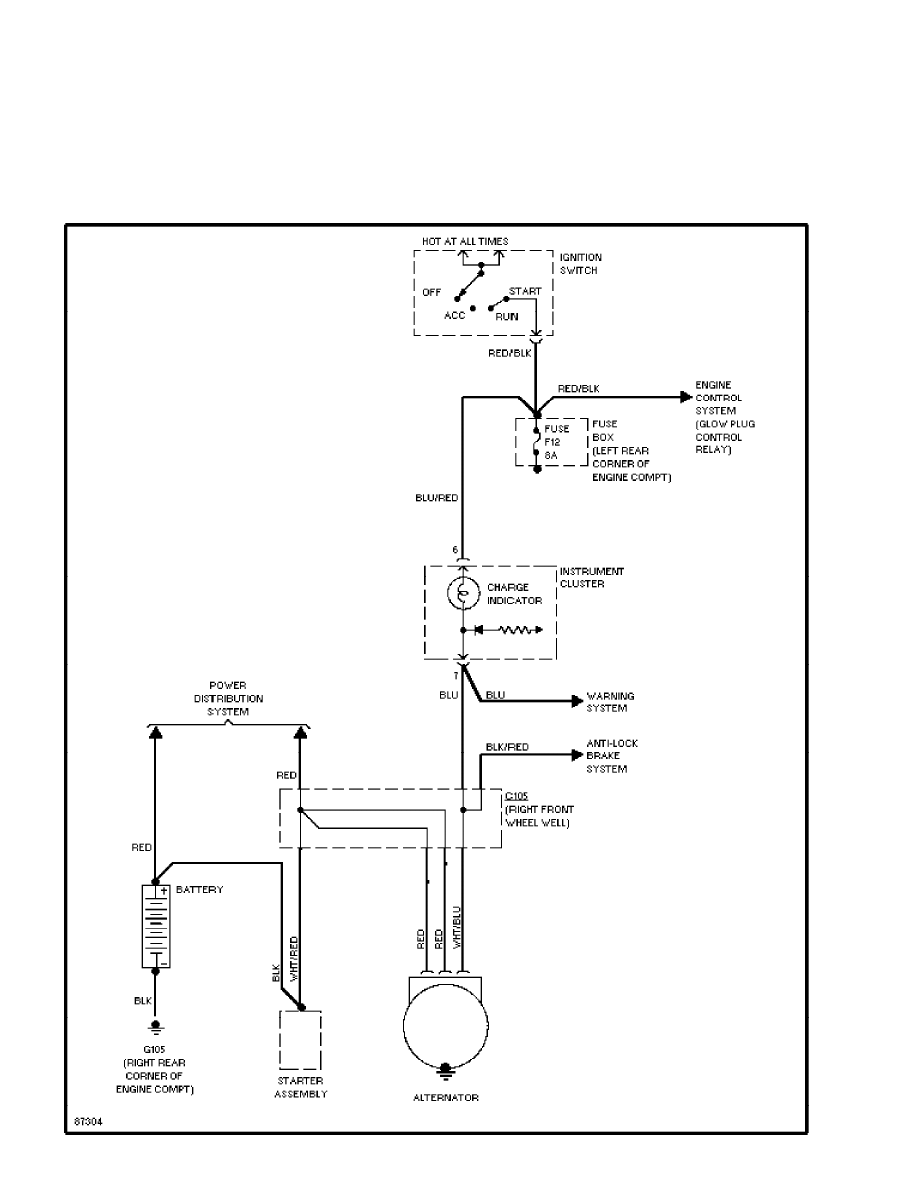

Charging Circuit

1985 Mercedes-Benz 300SD

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, July 25, 2004 05:52PM
