MAZDA 626 1986

background image

HOW TO USE SYSTEM WIRING DIAGRAMS

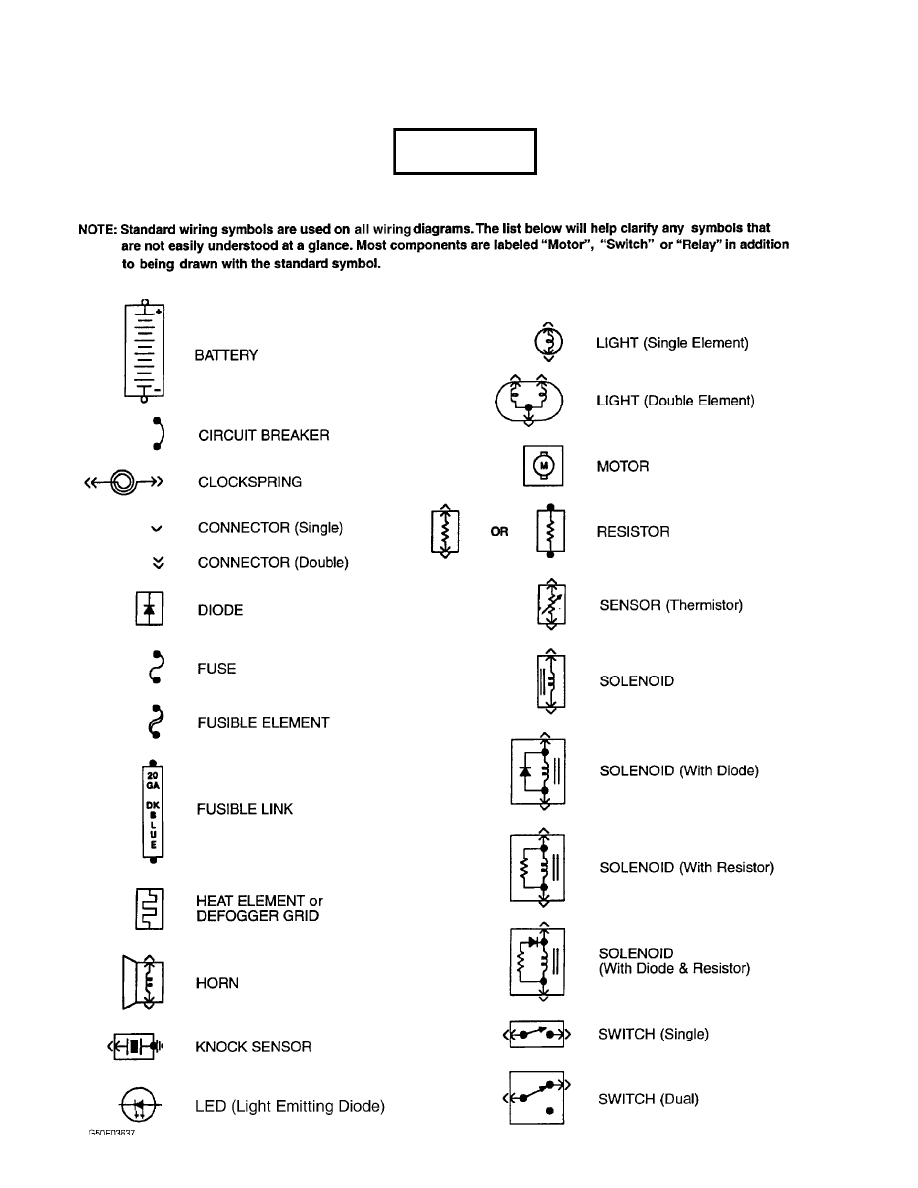

Fig. 1: Identifying Wiring Diagram Symbols

1986 Mazda 626

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, July 13, 2004 06:20PM

cdr@wp.pl

background image

SYSTEM WIRING DIAGRAMS

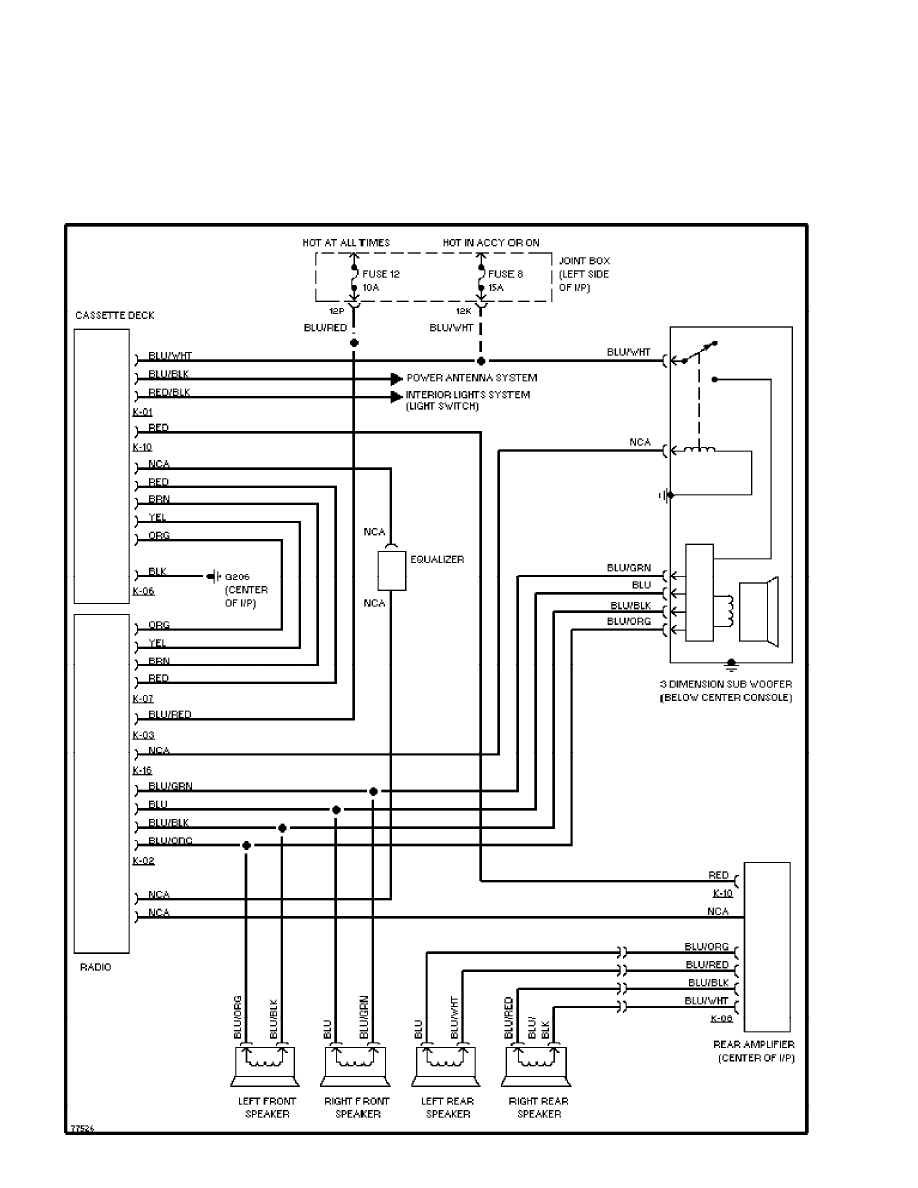

Radio Circuits, W/ Cassette Deck

1986 Mazda 626

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, July 13, 2004 06:17PM

background image

SYSTEM WIRING DIAGRAMS

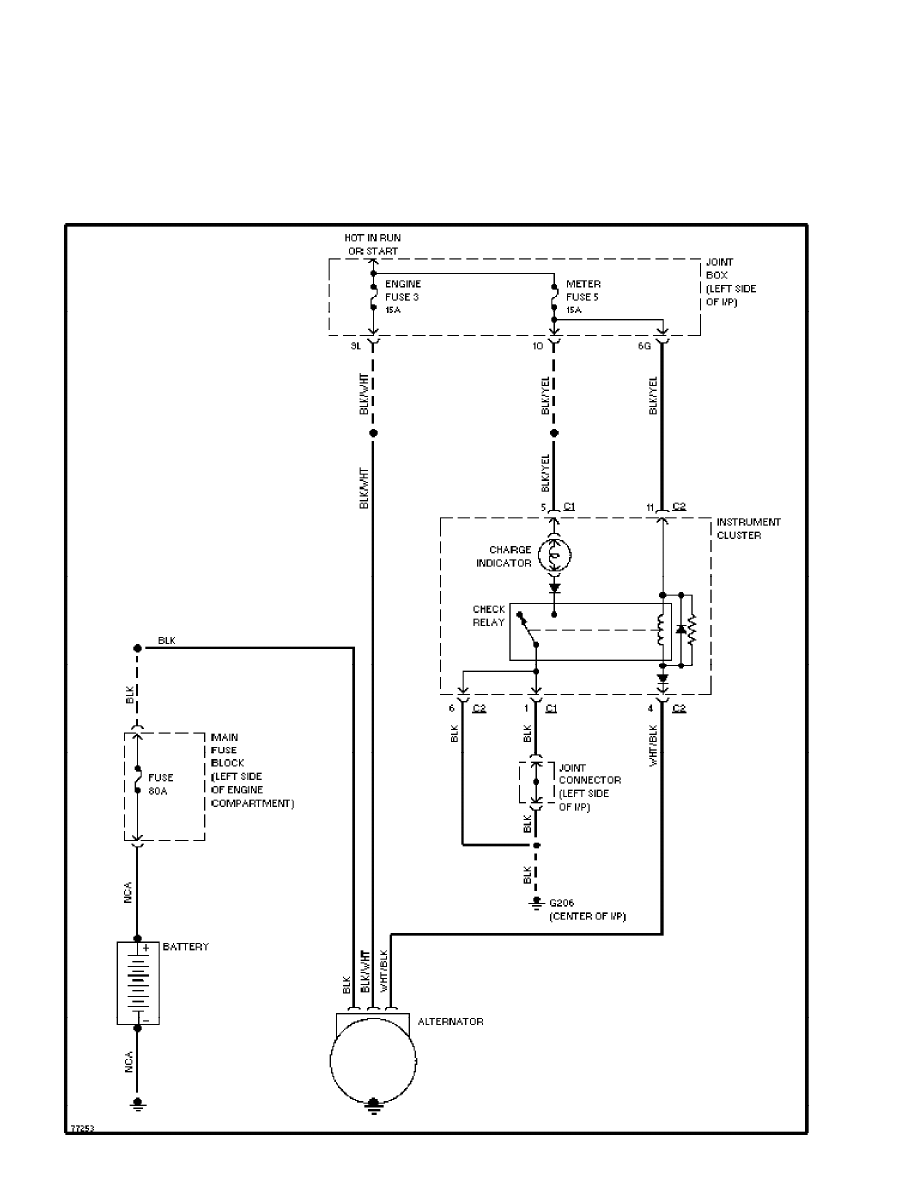

Charging Circuit

1986 Mazda 626

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, July 13, 2004 06:17PM

background image

SYSTEM WIRING DIAGRAMS

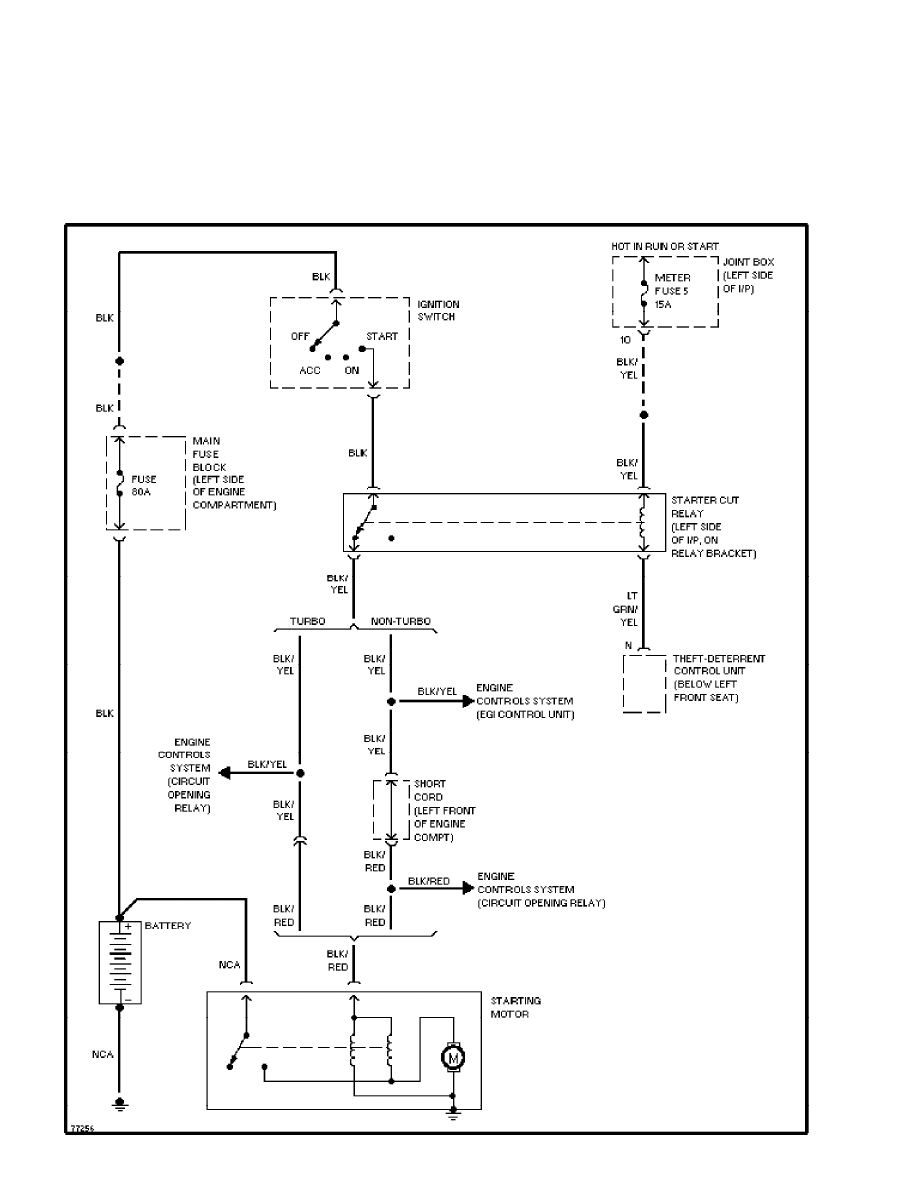

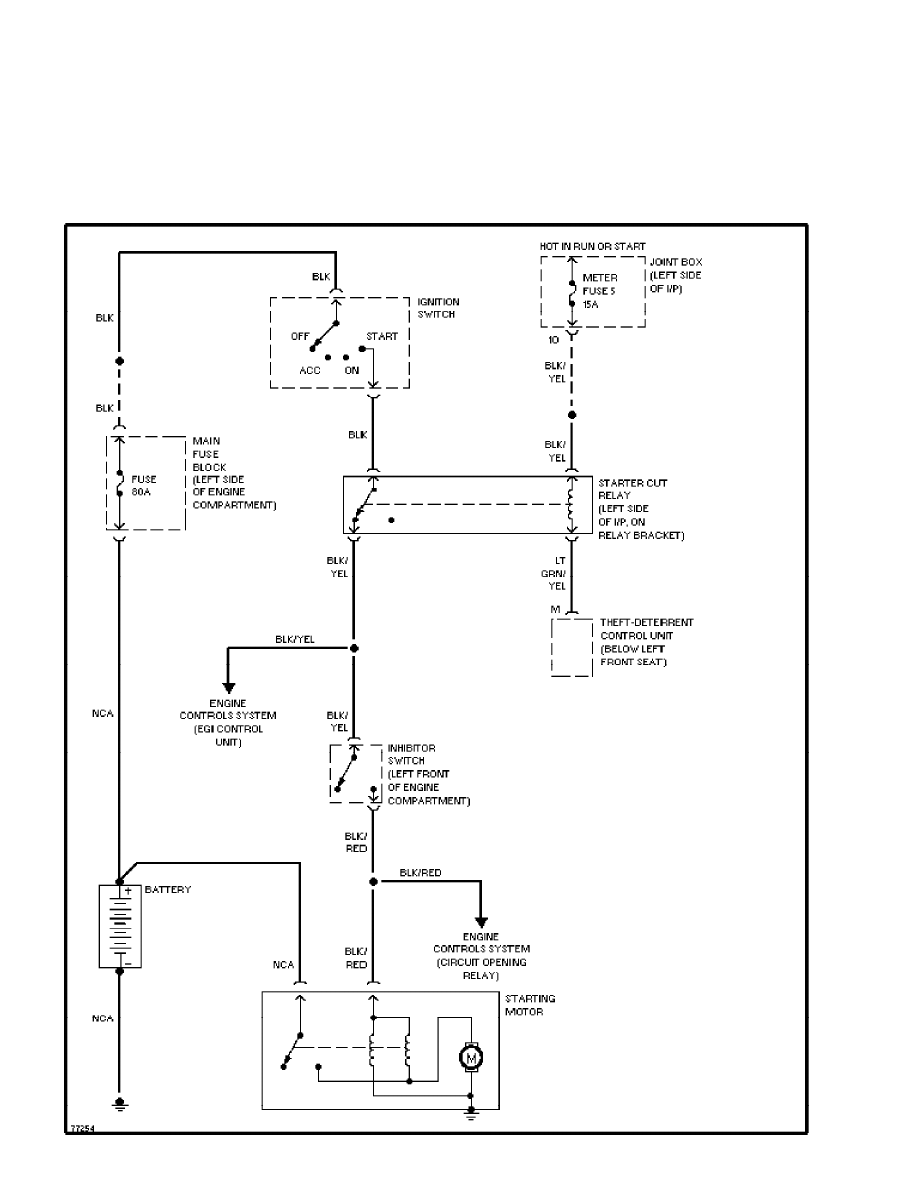

Starting Circuit, A/T

1986 Mazda 626

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, July 13, 2004 06:17PM

background image

SYSTEM WIRING DIAGRAMS

Starting Circuit, M/T

1986 Mazda 626

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, July 13, 2004 06:17PM

background image

SYSTEM WIRING DIAGRAMS

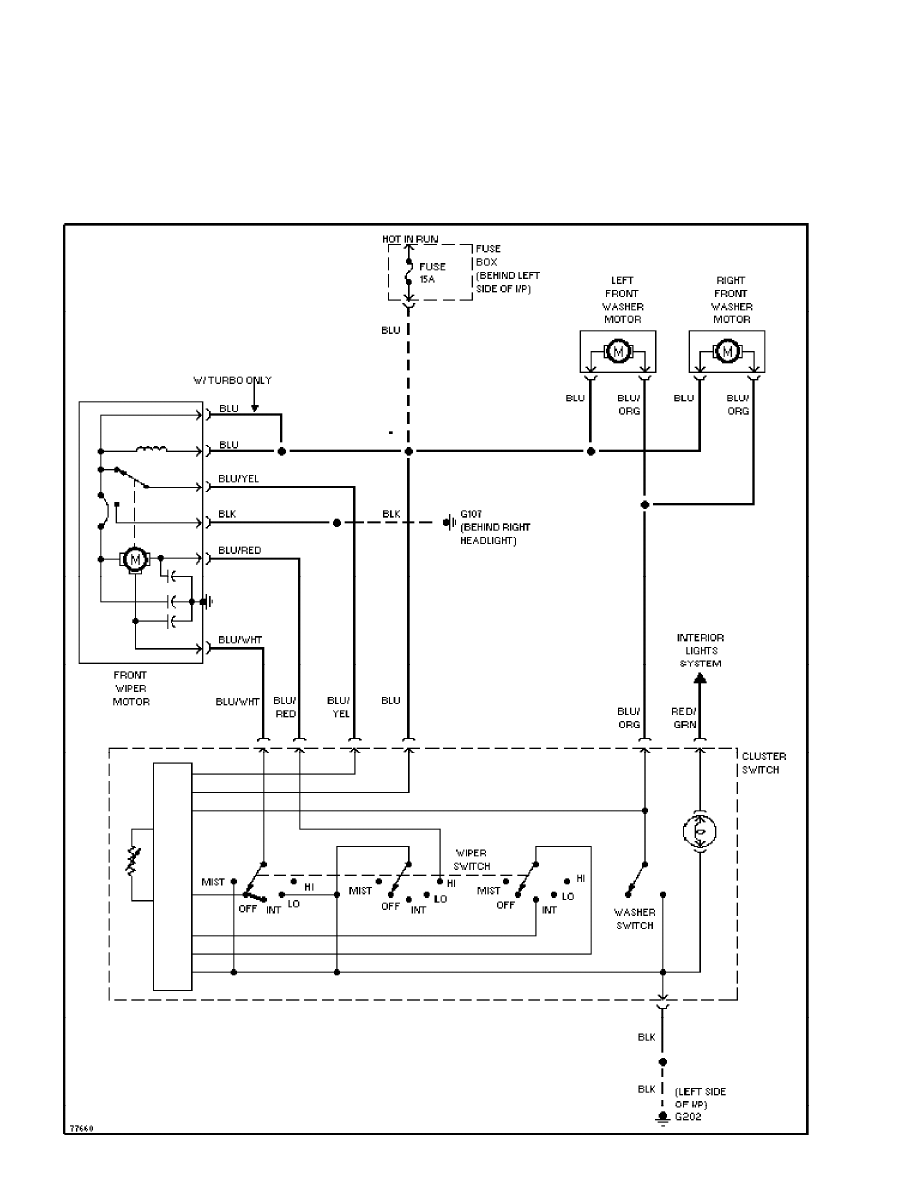

Front Washer/Wiper Circuit

1986 Mazda 626

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, July 13, 2004 06:18PM

background image

WIRING DIAGRAMS

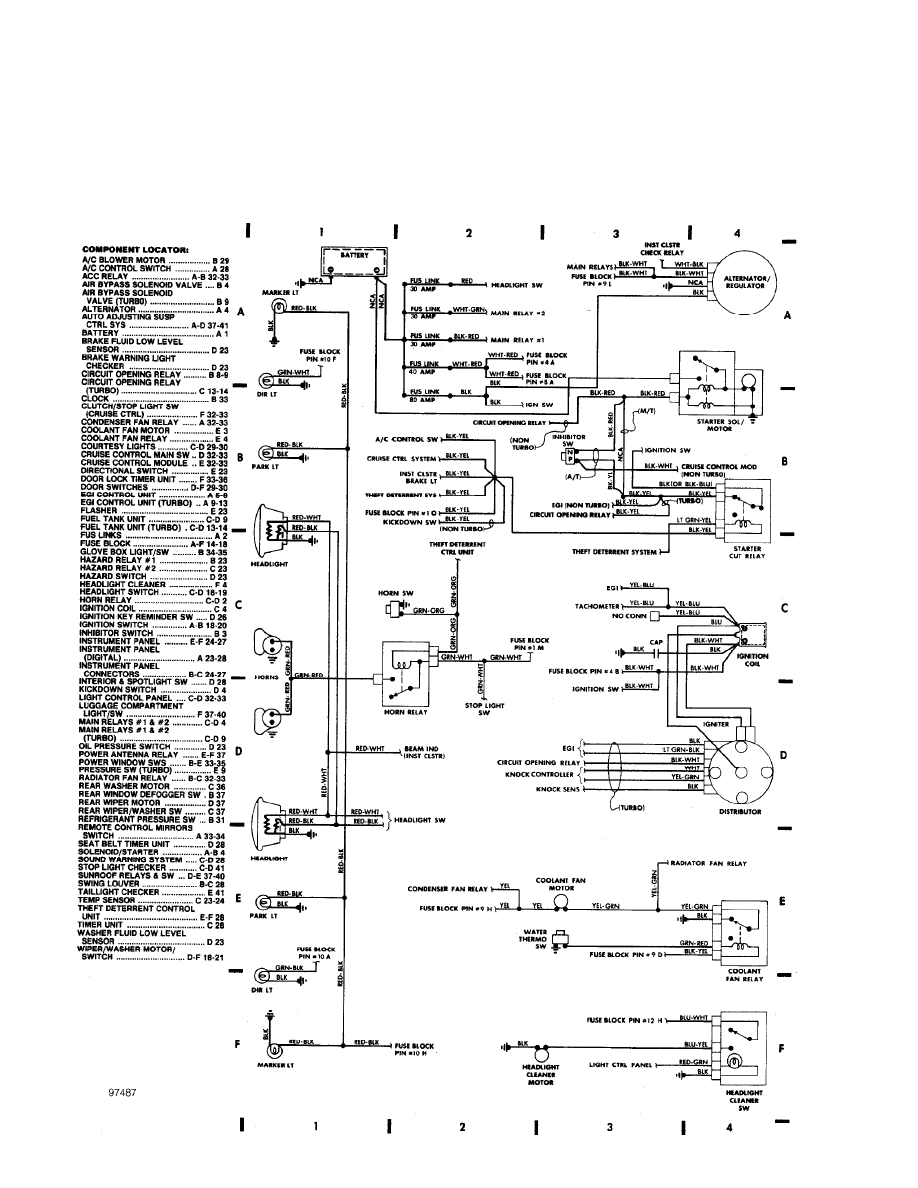

Fig. 1: Engine Compartment (Grids 1-4)

1986 Mazda 626

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, July 13, 2004 06:18PM

background image

SYSTEM WIRING DIAGRAMS

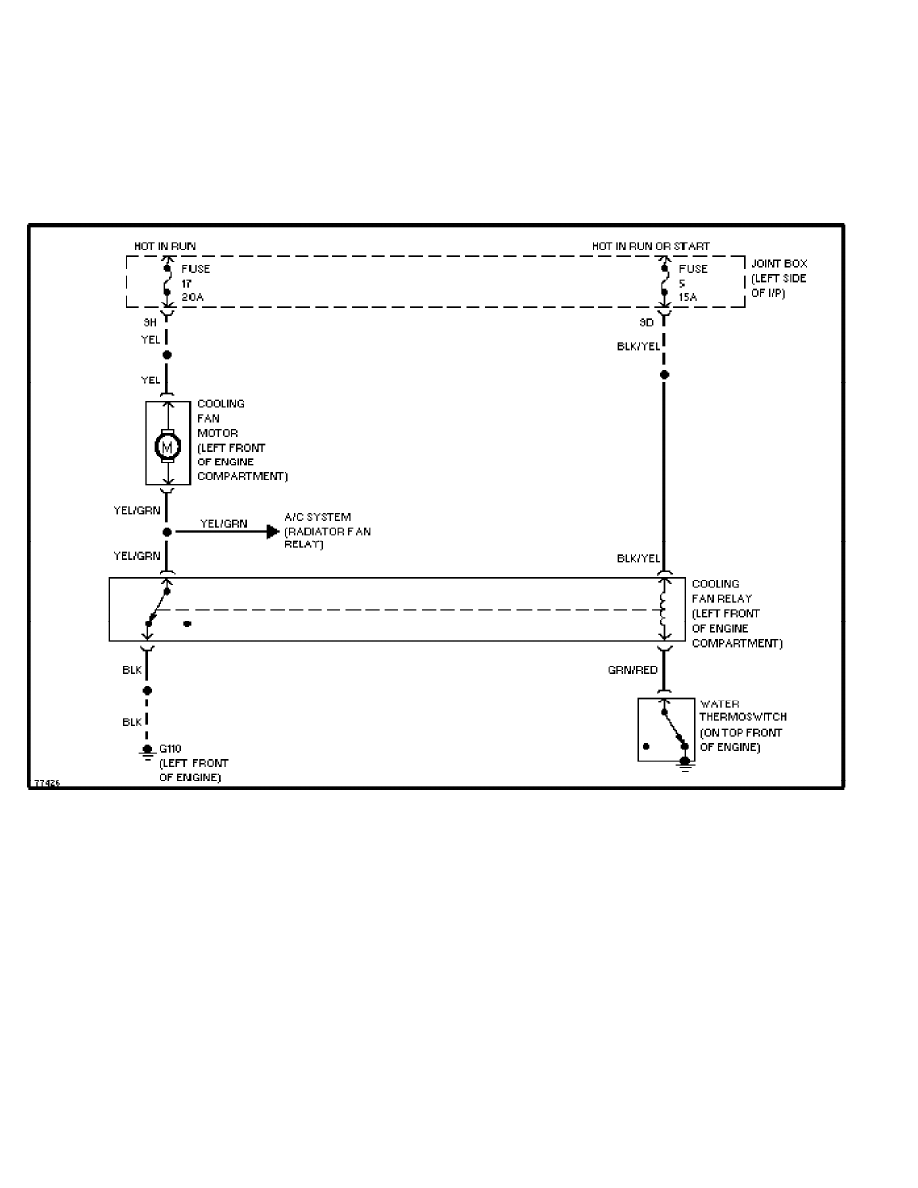

Cooling Fan Circuit

1986 Mazda 626

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, July 13, 2004 06:15PM

background image

SYSTEM WIRING DIAGRAMS

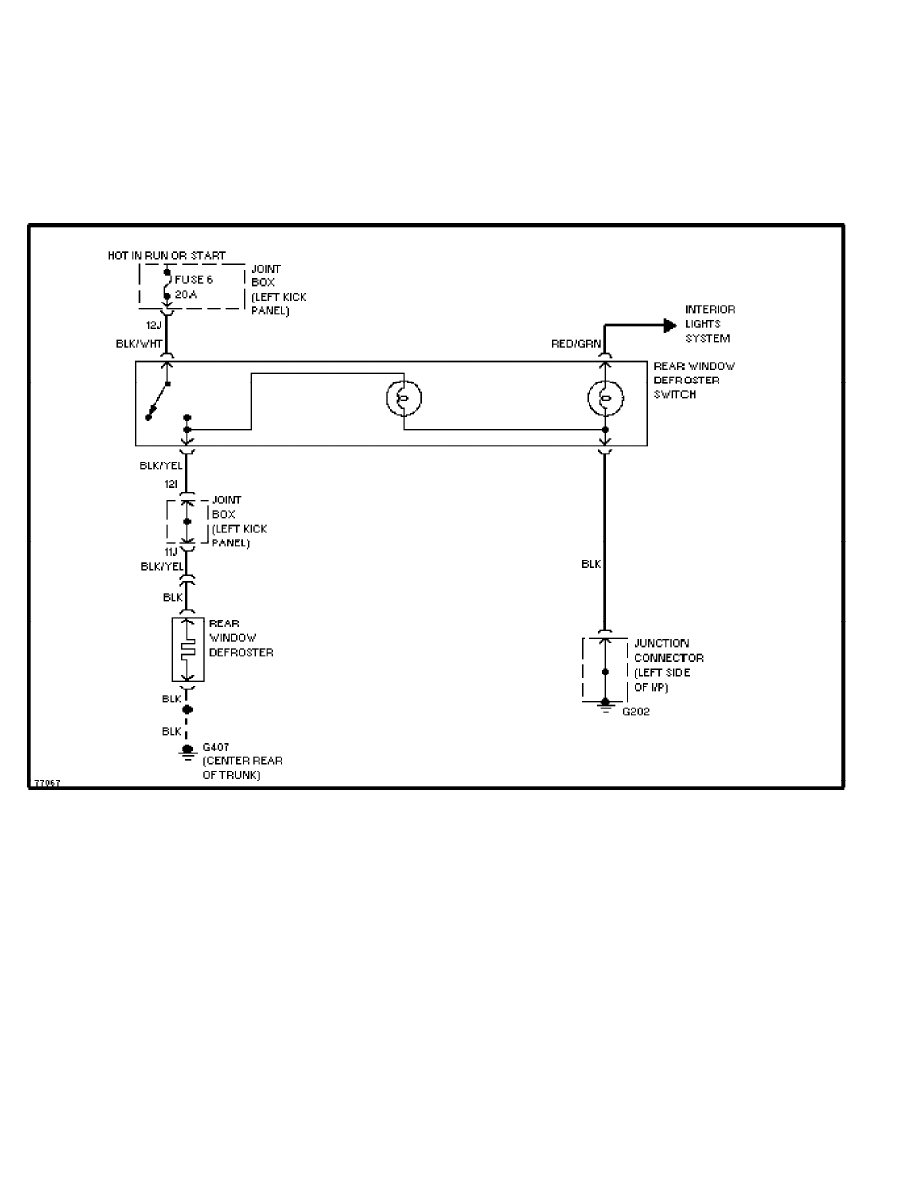

Defogger Circuit

1986 Mazda 626

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, July 13, 2004 06:16PM

background image

SYSTEM WIRING DIAGRAMS

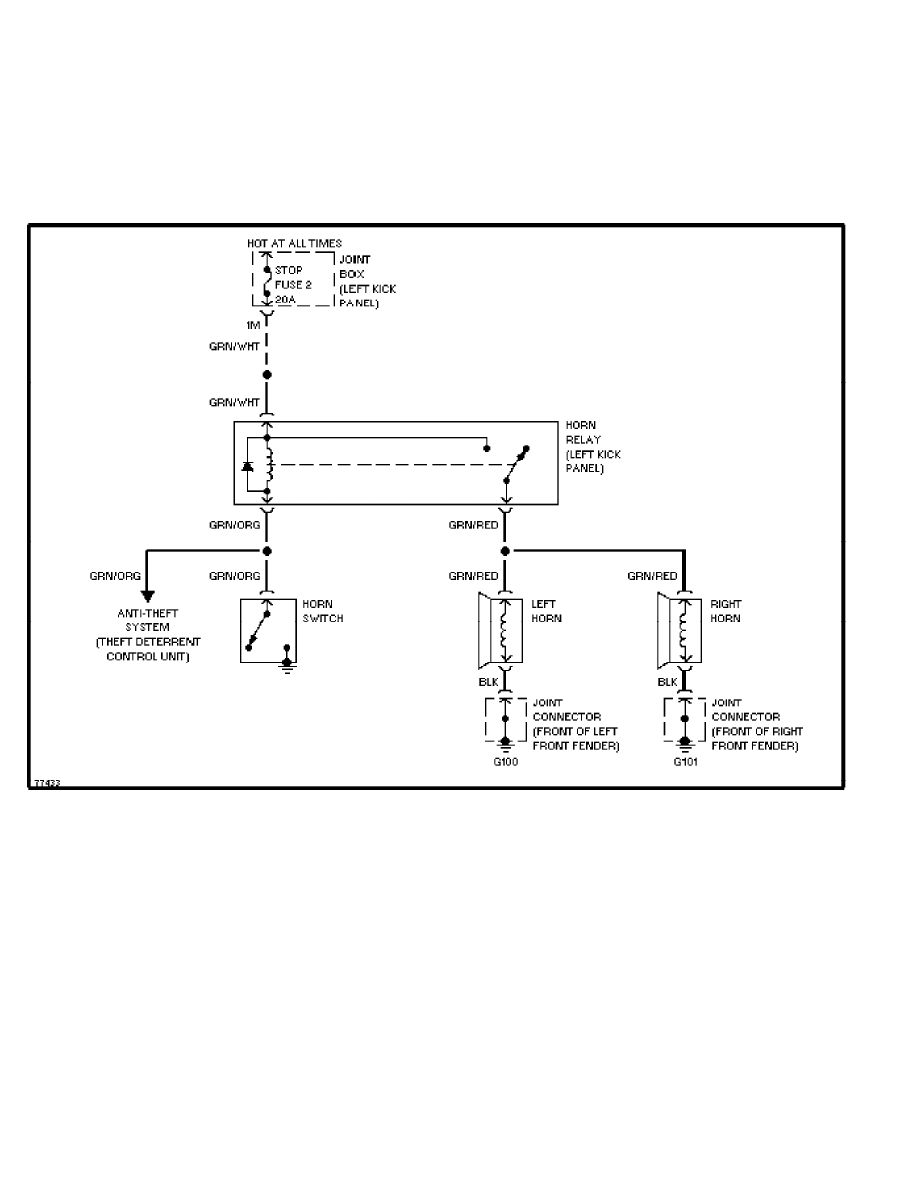

Horn Circuit

1986 Mazda 626

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, July 13, 2004 06:16PM

background image

SYSTEM WIRING DIAGRAMS

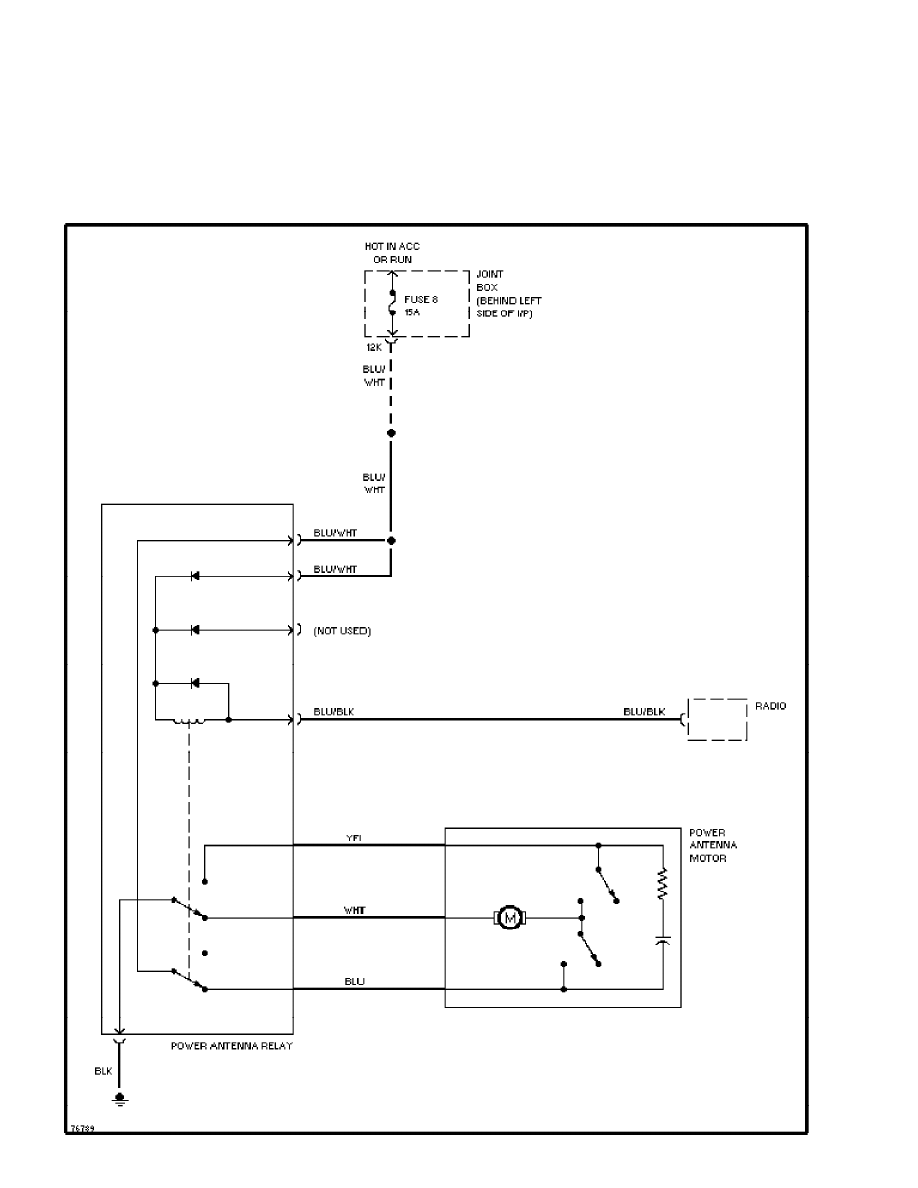

Power Antenna Circuit

1986 Mazda 626

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, July 13, 2004 06:16PM

background image

SYSTEM WIRING DIAGRAMS

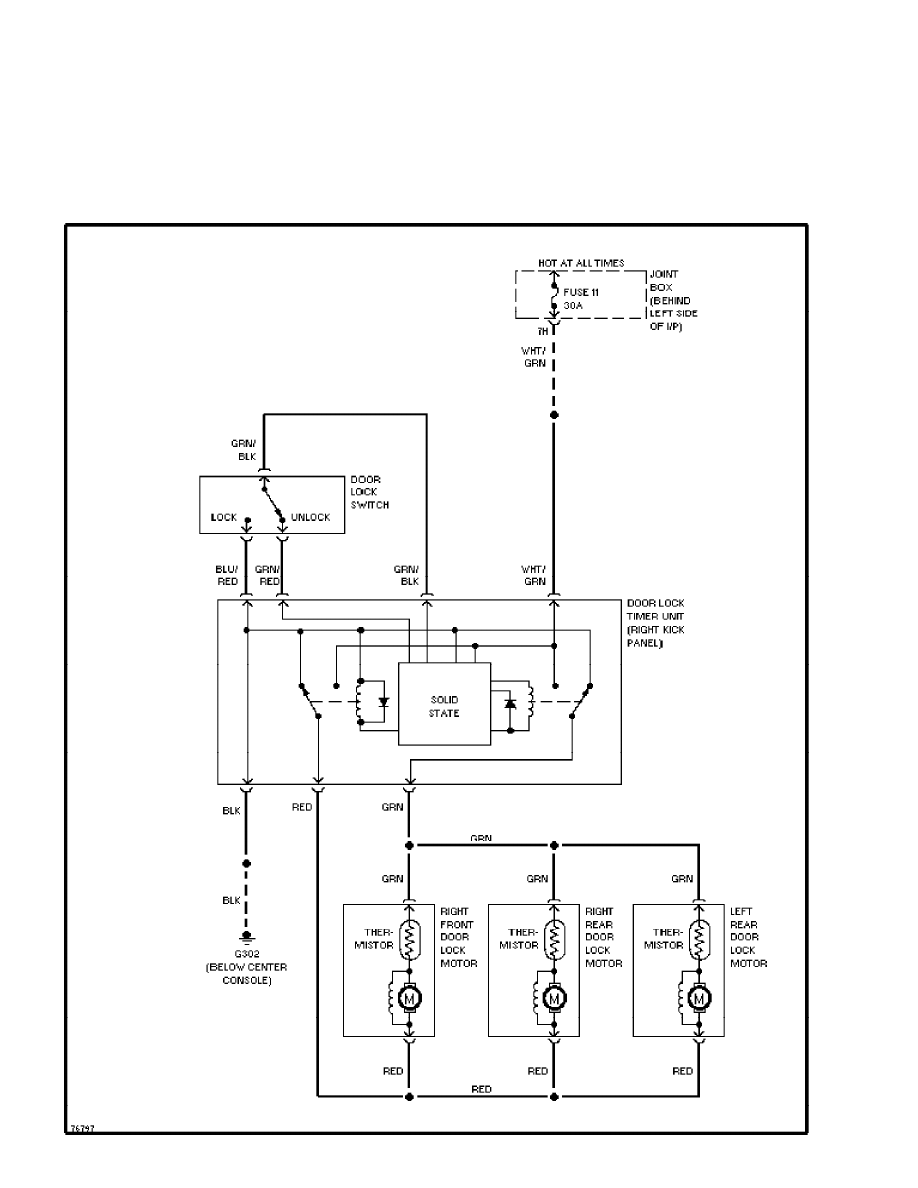

Power Door Lock Circuit

1986 Mazda 626

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, July 13, 2004 06:16PM

background image

SYSTEM WIRING DIAGRAMS

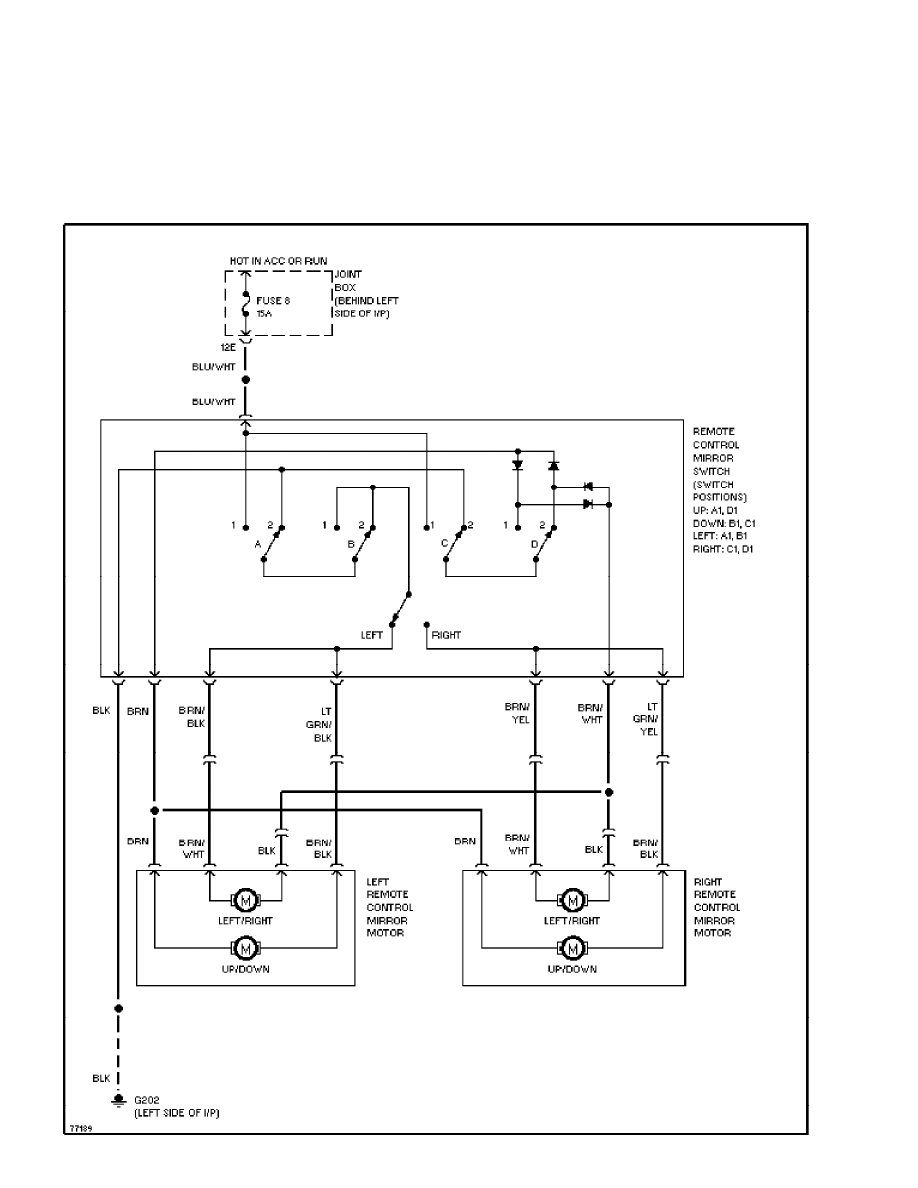

Power Mirror Circuit

1986 Mazda 626

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, July 13, 2004 06:16PM

background image

SYSTEM WIRING DIAGRAMS

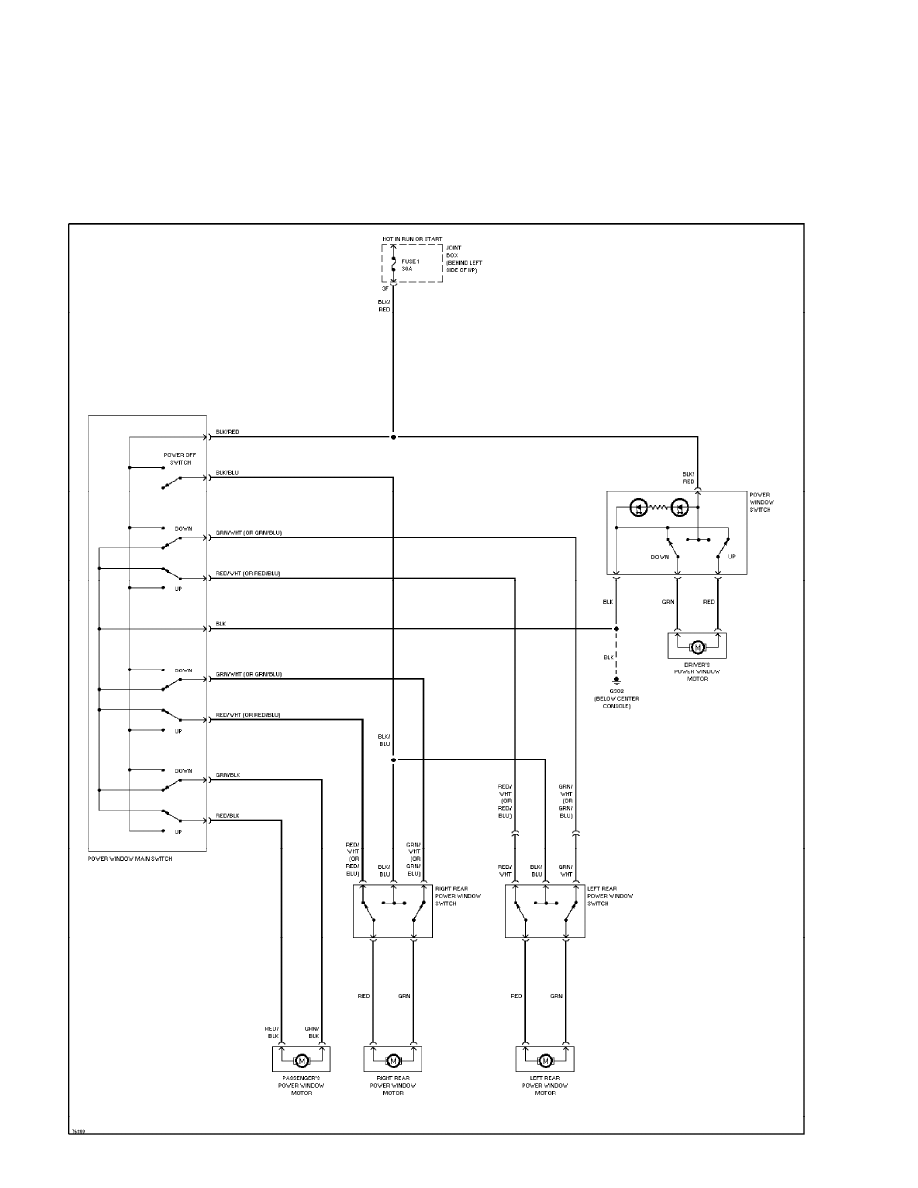

Power Window Circuit

1986 Mazda 626

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, July 13, 2004 06:16PM

background image

SYSTEM WIRING DIAGRAMS

Radio Circuits, Base

1986 Mazda 626

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, July 13, 2004 06:16PM

background image

WIRING DIAGRAMS

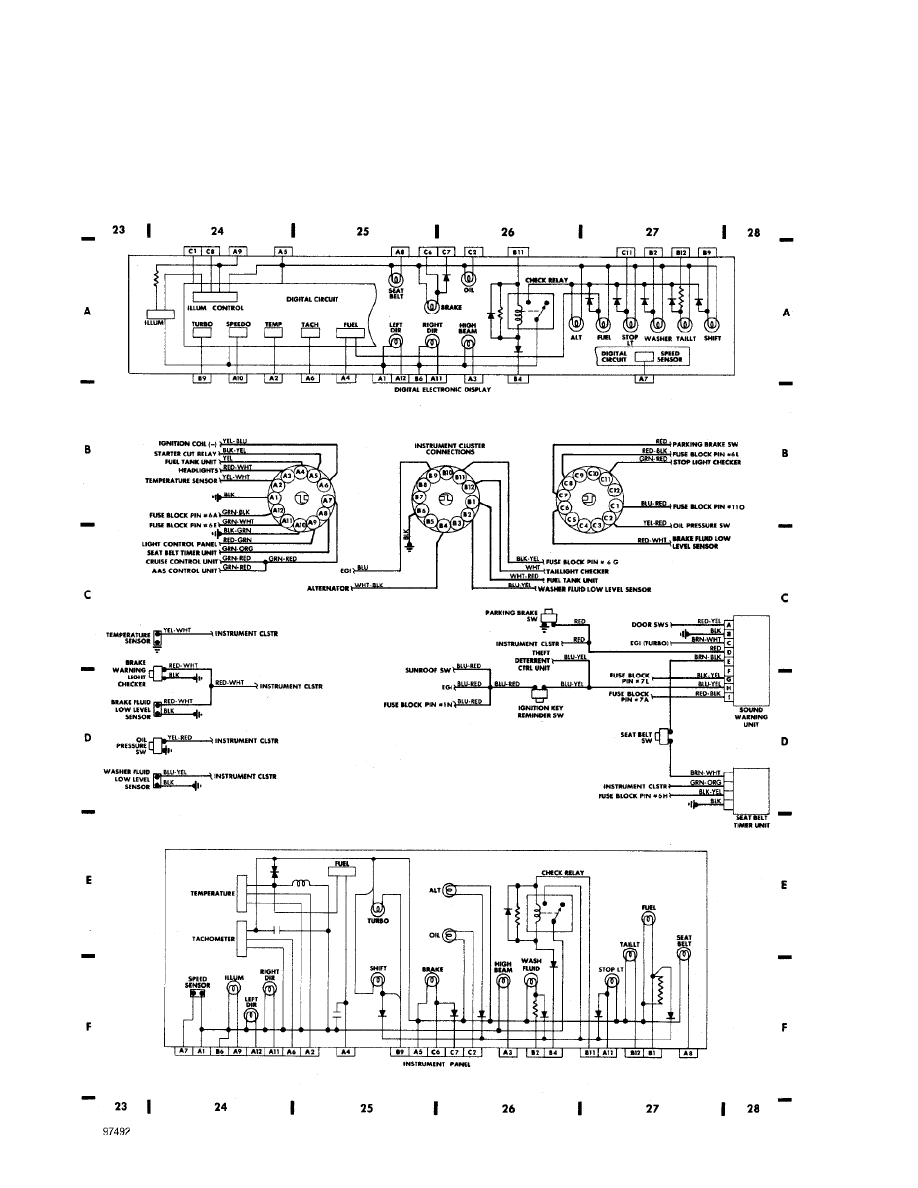

Fig. 6: Instrument Panel (Grids 23-28)

1986 Mazda 626

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, July 13, 2004 06:19PM

background image

WIRING DIAGRAMS

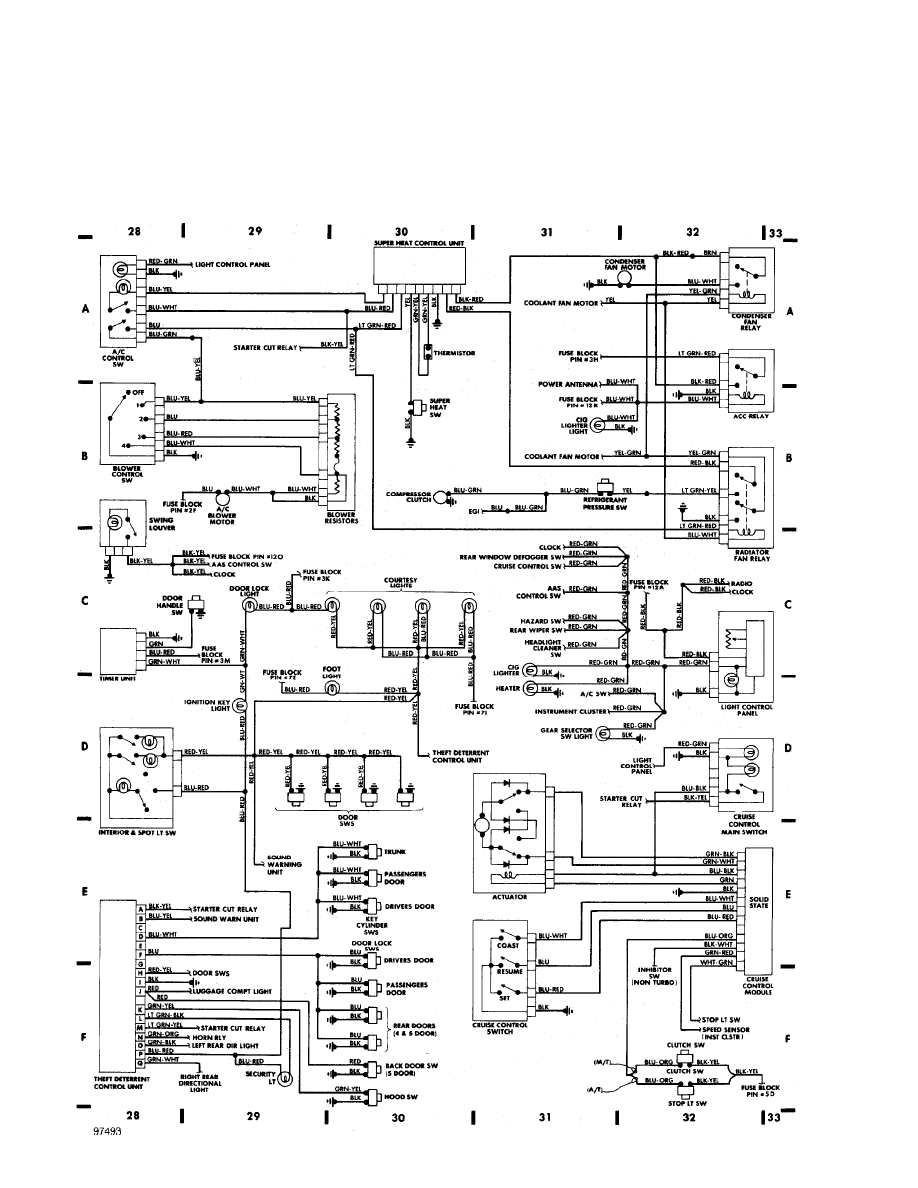

Fig. 7: Instrument Panel (Cont.) & Rear Compartment (Grids 28-33)

1986 Mazda 626

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, July 13, 2004 06:19PM

background image

WIRING DIAGRAMS

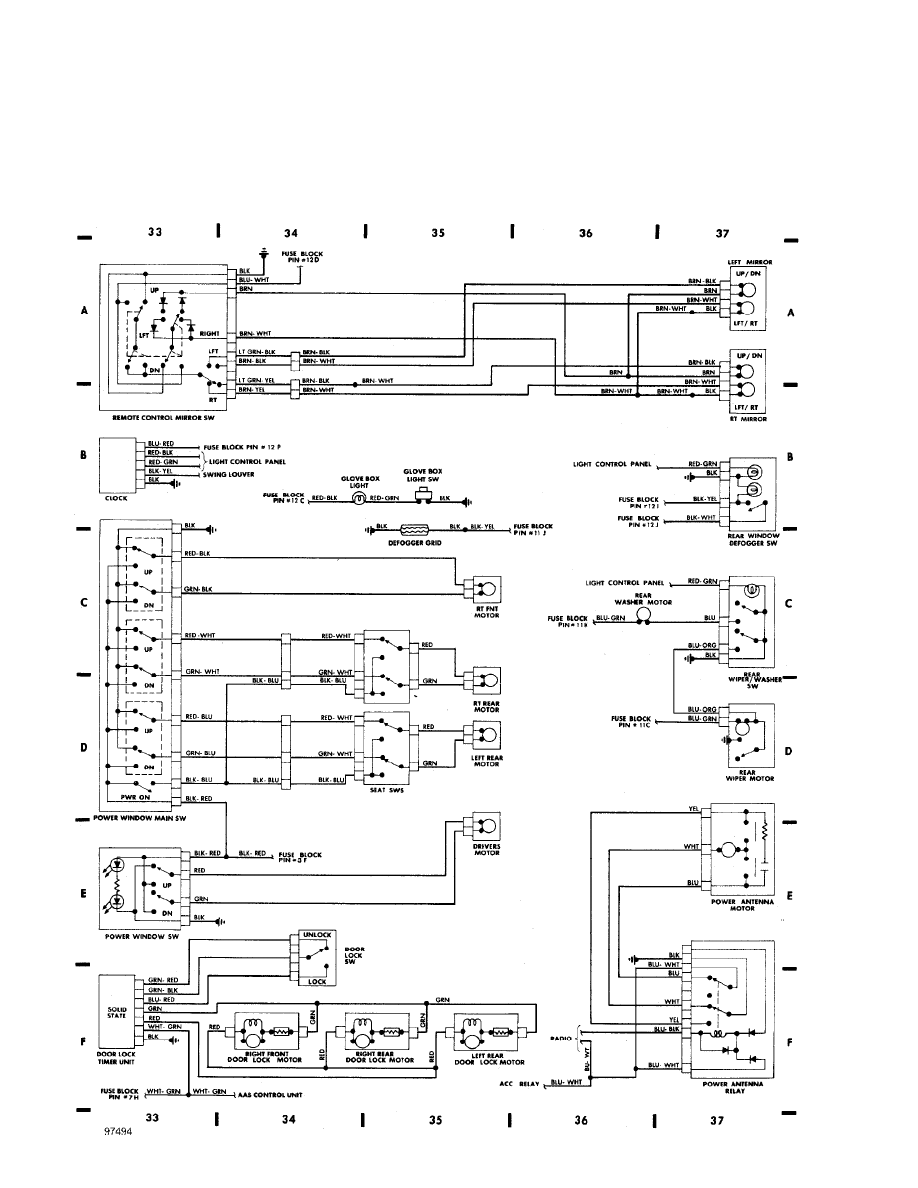

Fig. 8: Rear Compartment (Cont.) & Accessories (Grids 33-37)

1986 Mazda 626

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, July 13, 2004 06:19PM

background image

WIRING DIAGRAMS

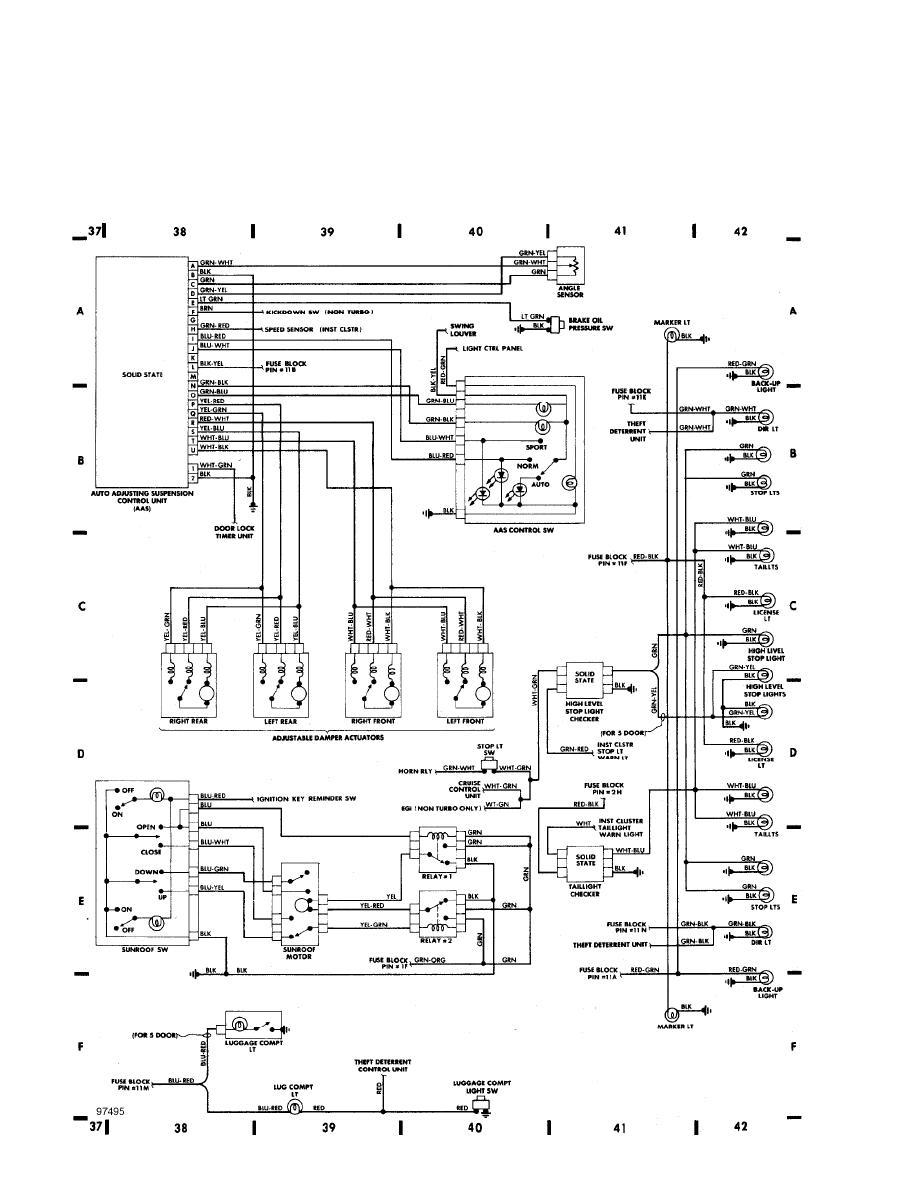

Fig. 9: Rear Compartment & Accessories (Cont.) (Grids 37-42)

1986 Mazda 626

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, July 13, 2004 06:19PM

background image

WIRING DIAGRAMS

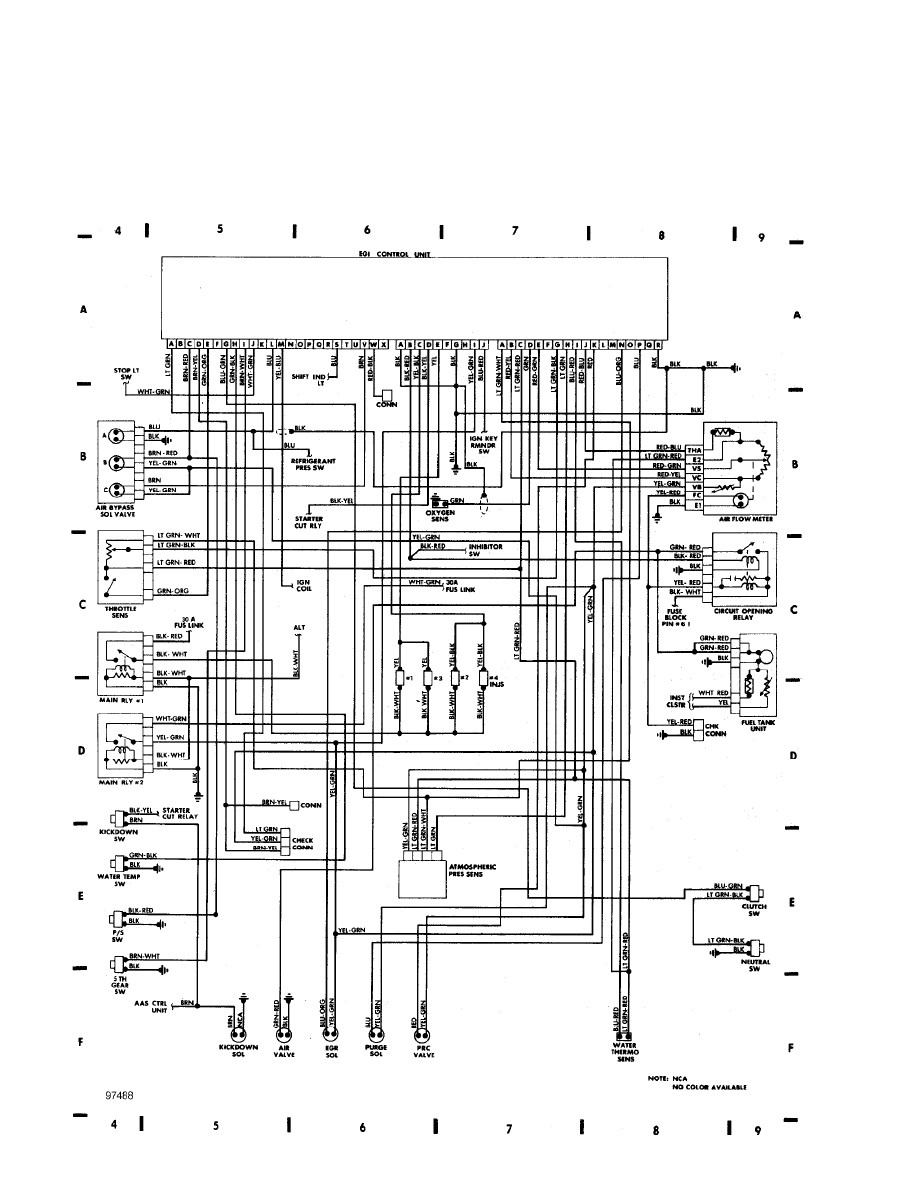

Fig. 2: Engine Compartment (Cont.) (Grids 4-9)

1986 Mazda 626

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, July 13, 2004 06:18PM

background image

WIRING DIAGRAMS

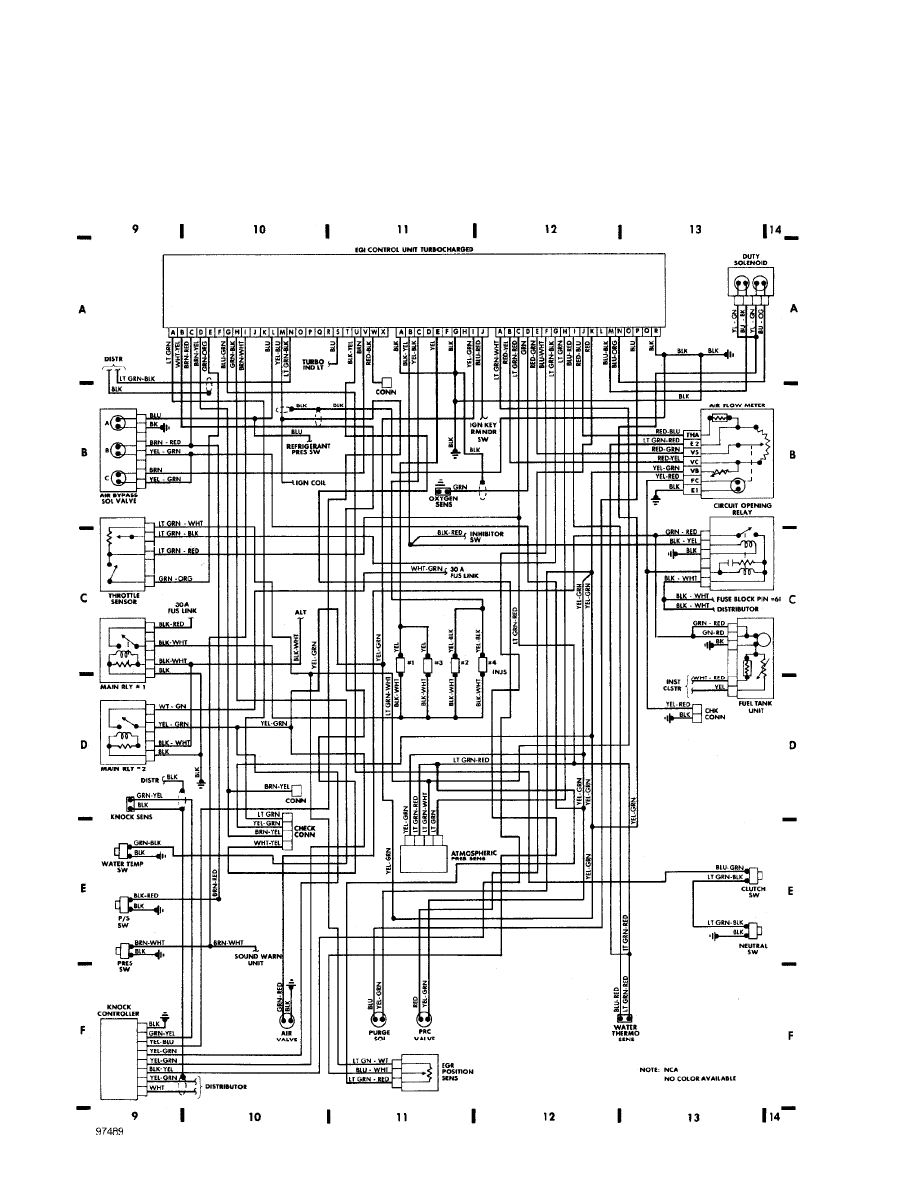

Fig. 3: Engine Compartment (Cont.) (Grids 9-14)

1986 Mazda 626

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, July 13, 2004 06:19PM

background image

WIRING DIAGRAMS

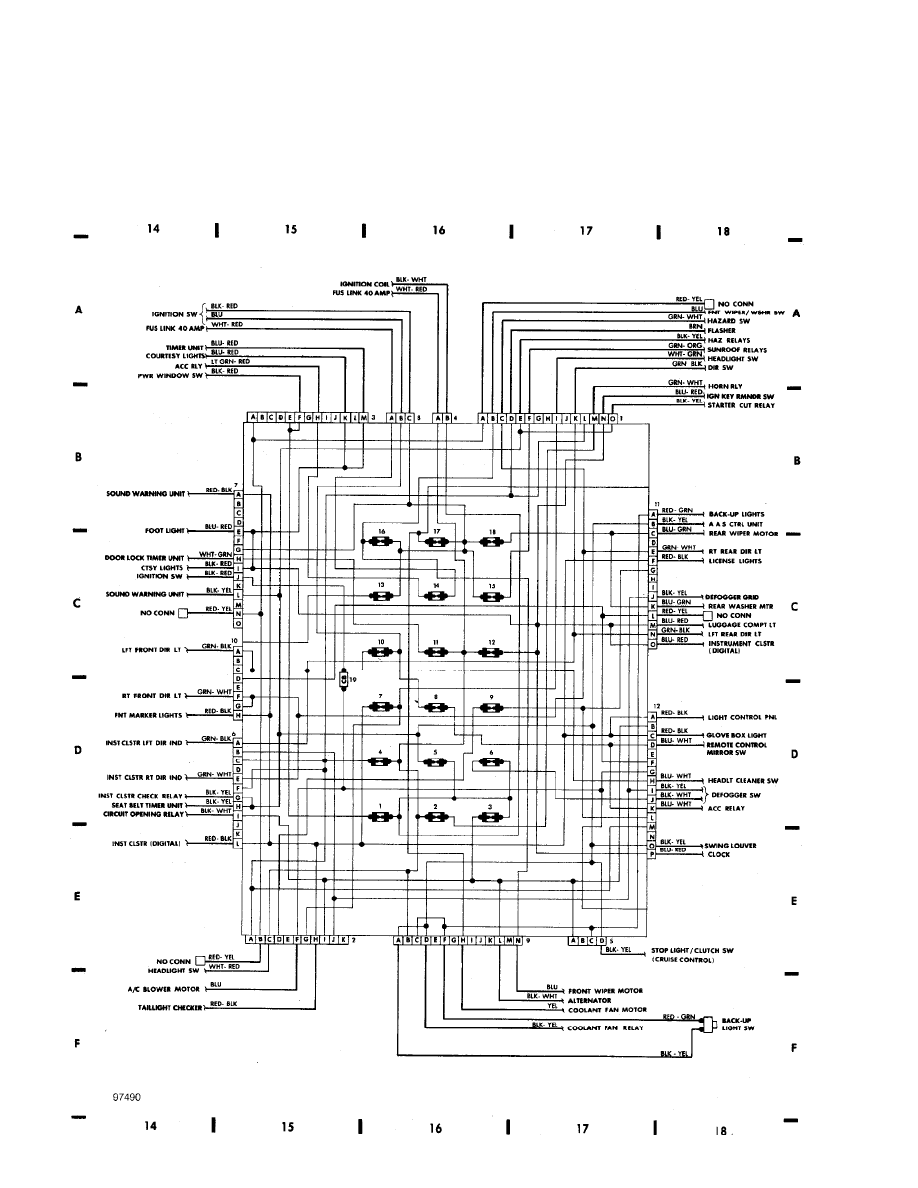

Fig. 4: Fuse Block (Grids 14-18)

1986 Mazda 626

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, July 13, 2004 06:19PM

background image

WIRING DIAGRAMS

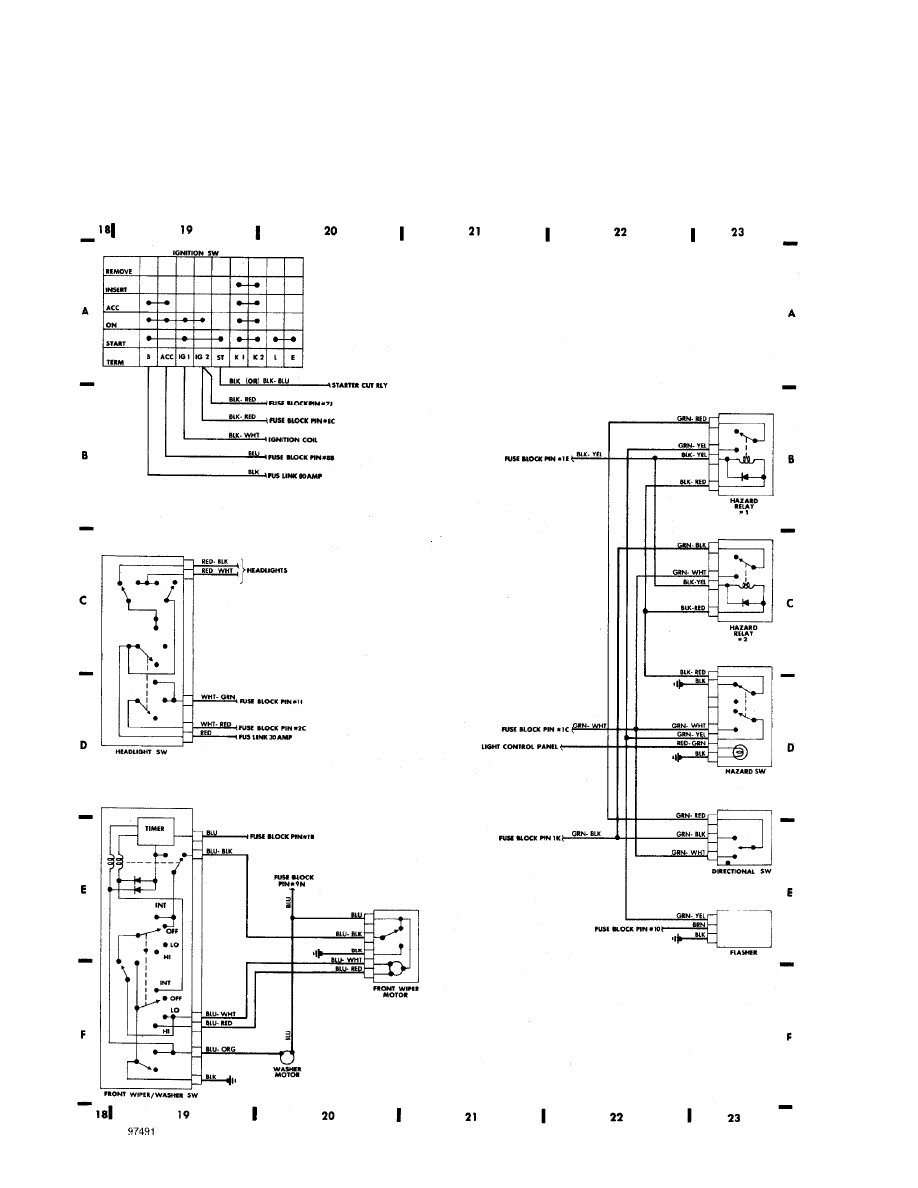

Fig. 5: Underdash (Grids 18-23)

1986 Mazda 626

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, July 13, 2004 06:19PM
