JAGUAR XJS 1993

background image

SYSTEM WIRING DIAGRAMS

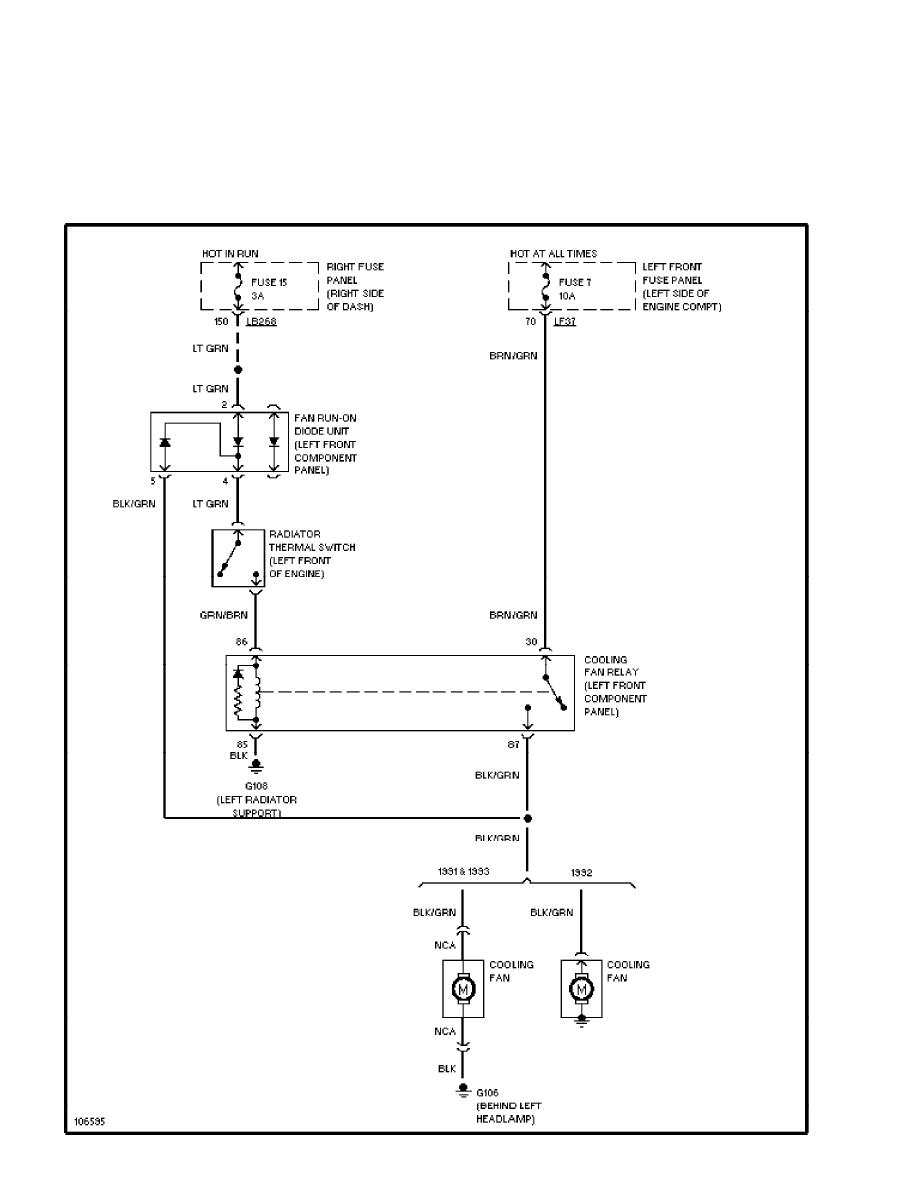

Cooling Fan Circuit

1993 Jaguar XJS

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, September 11, 2004 10:33AM

background image

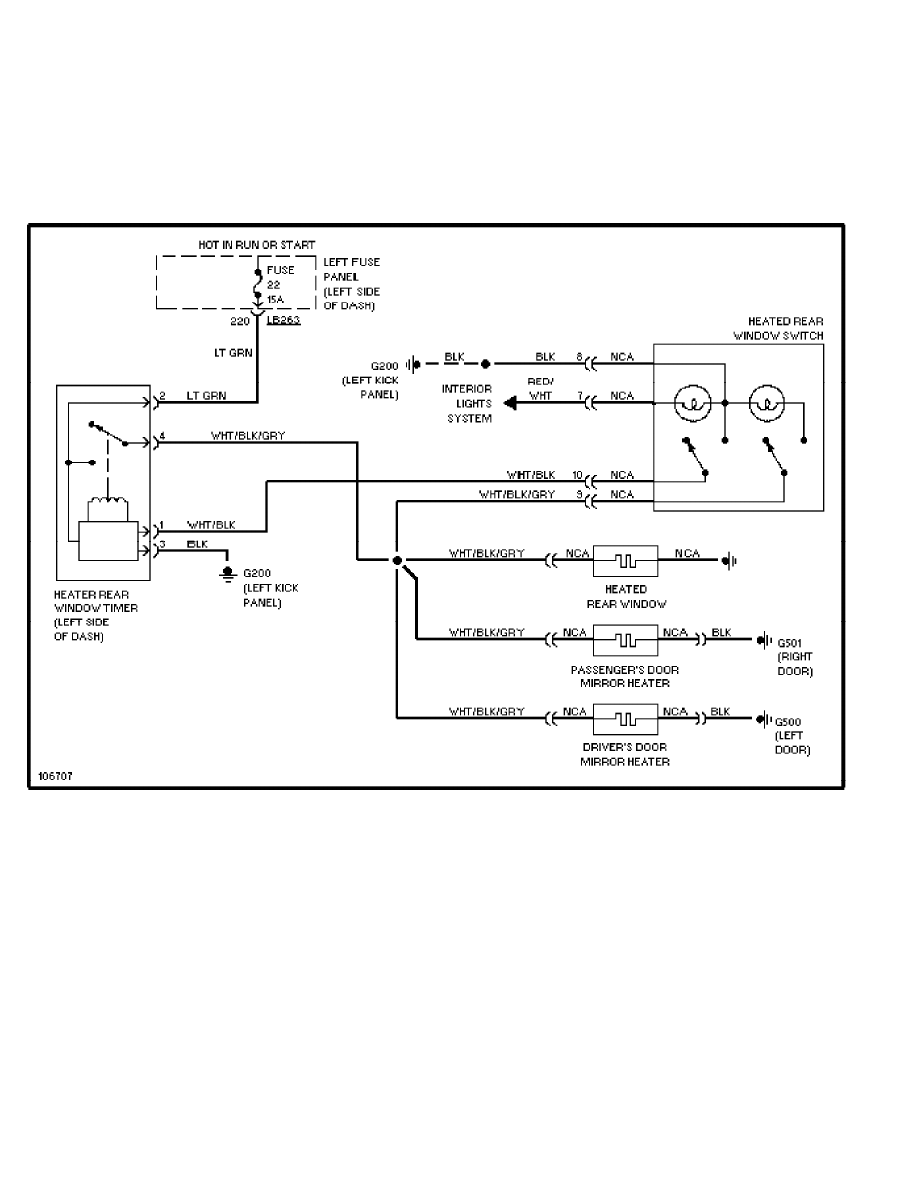

SYSTEM WIRING DIAGRAMS

Defogger Circuit (p. 2)

1993 Jaguar XJS

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, September 11, 2004 10:33AM

background image

SYSTEM WIRING DIAGRAMS

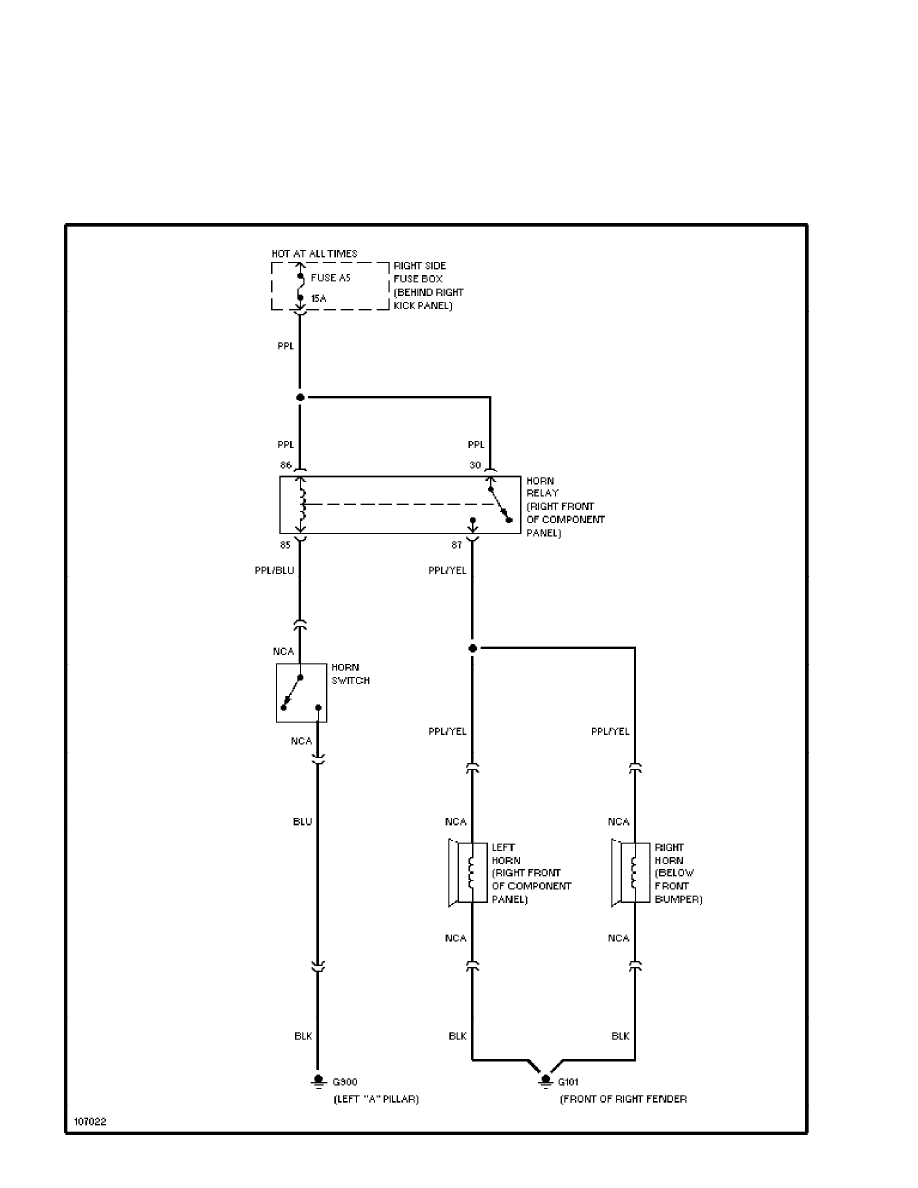

Horn Circuit (p. 3)

1993 Jaguar XJS

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, September 11, 2004 10:33AM

background image

SYSTEM WIRING DIAGRAMS

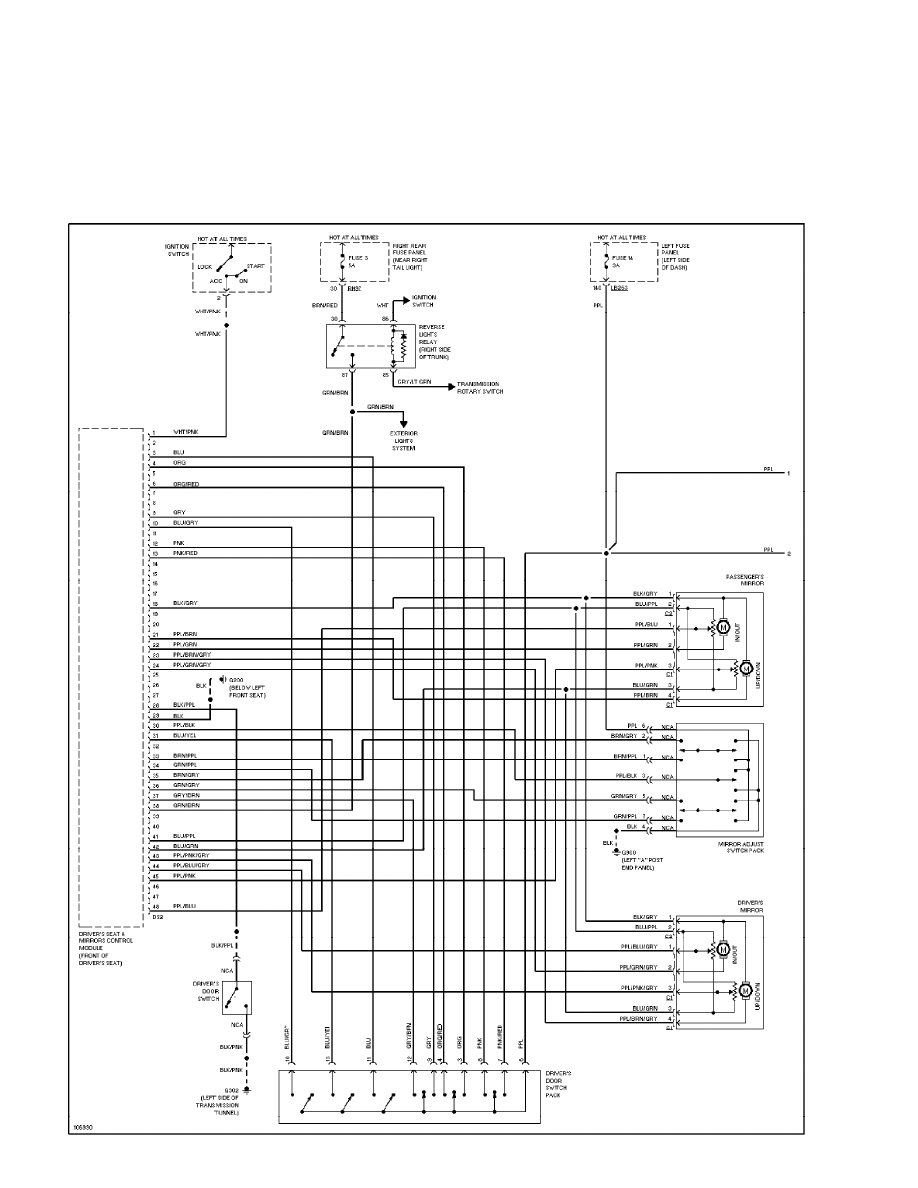

Memory Seat/Mirrors Circuit (1 of 2) (p. 4)

1993 Jaguar XJS

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, September 11, 2004 10:33AM

background image

SYSTEM WIRING DIAGRAMS

Memory Seat/Mirrors Circuit (2 of 2) (p. 5)

1993 Jaguar XJS

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, September 11, 2004 10:33AM

background image

SYSTEM WIRING DIAGRAMS

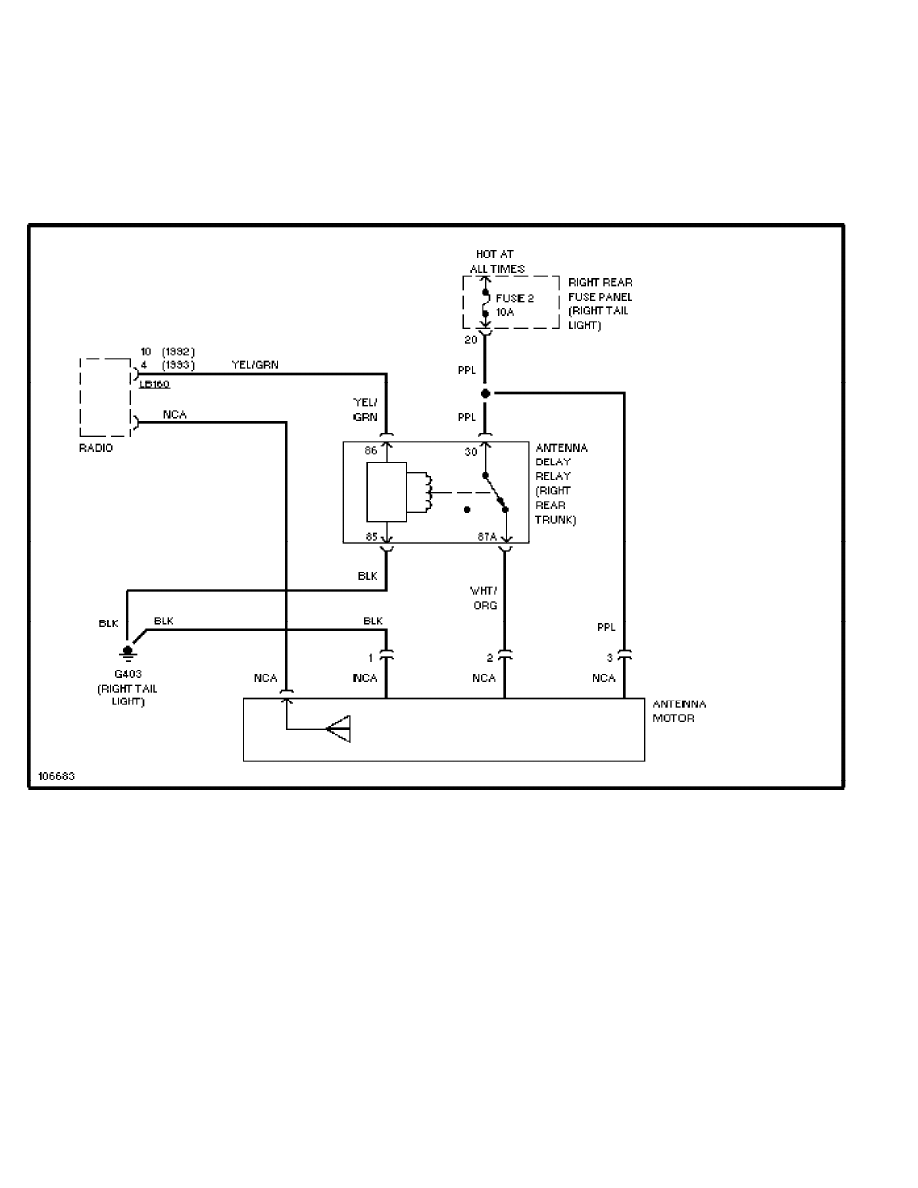

Power Antenna Circuit (p. 6)

1993 Jaguar XJS

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, September 11, 2004 10:33AM

background image

SYSTEM WIRING DIAGRAMS

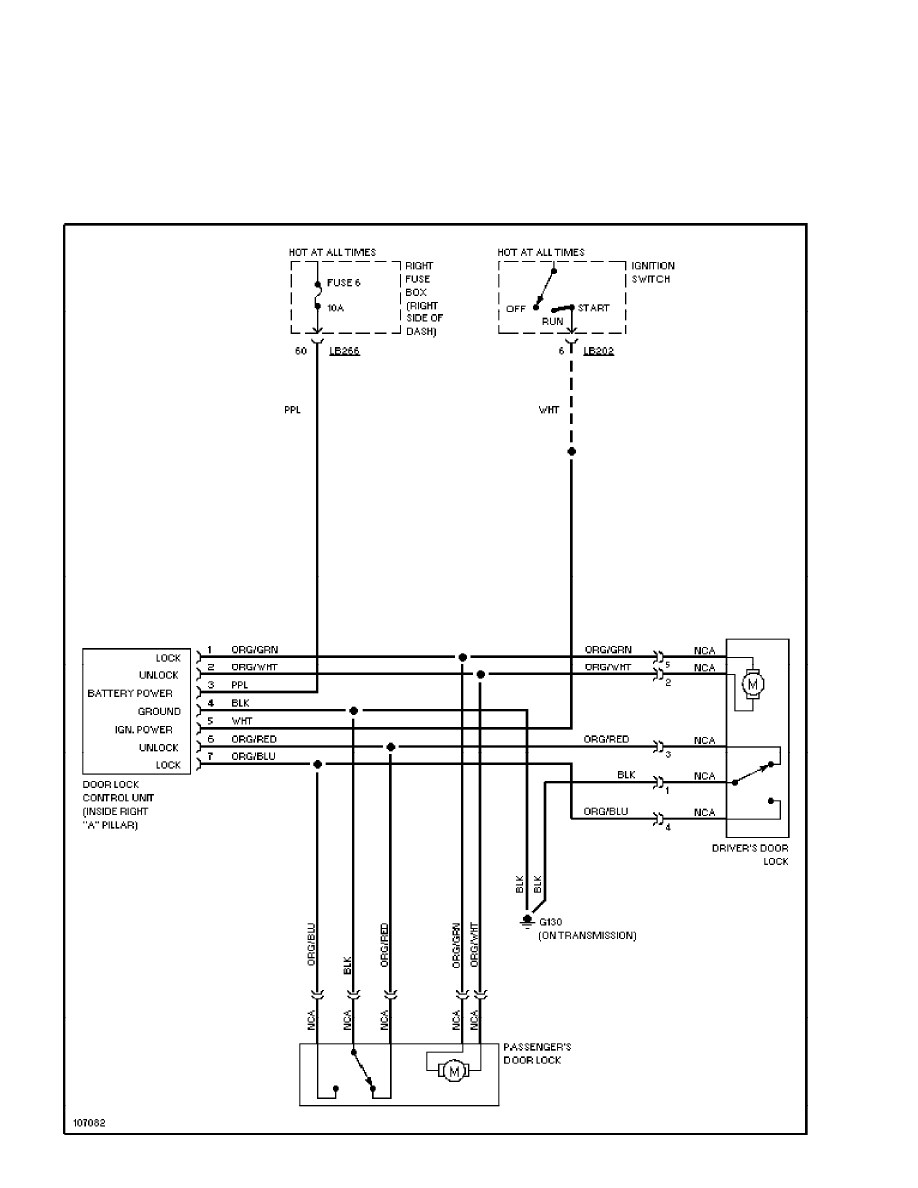

Power Door Lock Circuit (p. 7)

1993 Jaguar XJS

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, September 11, 2004 10:33AM

background image

SYSTEM WIRING DIAGRAMS

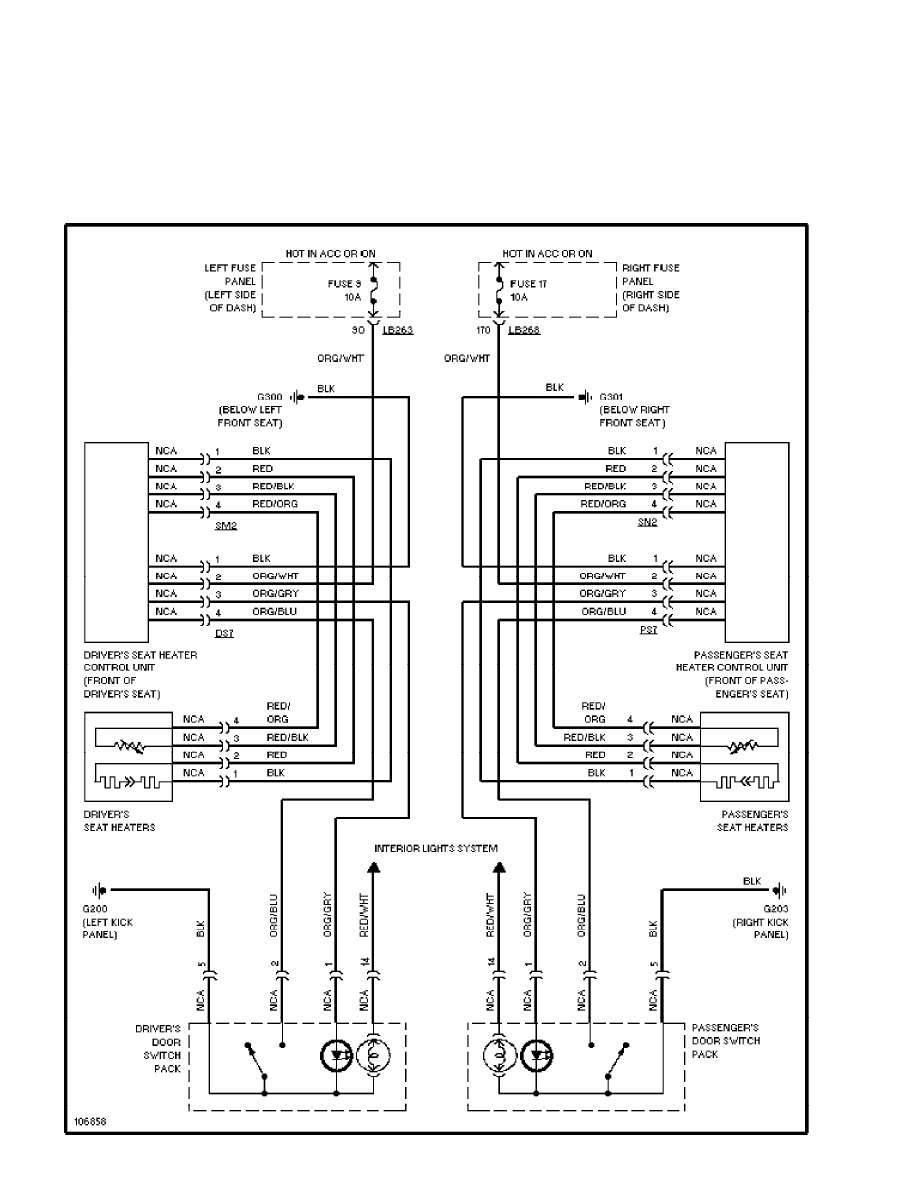

Heated Seats Circuit (p. 8)

1993 Jaguar XJS

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, September 11, 2004 10:33AM

background image

SYSTEM WIRING DIAGRAMS

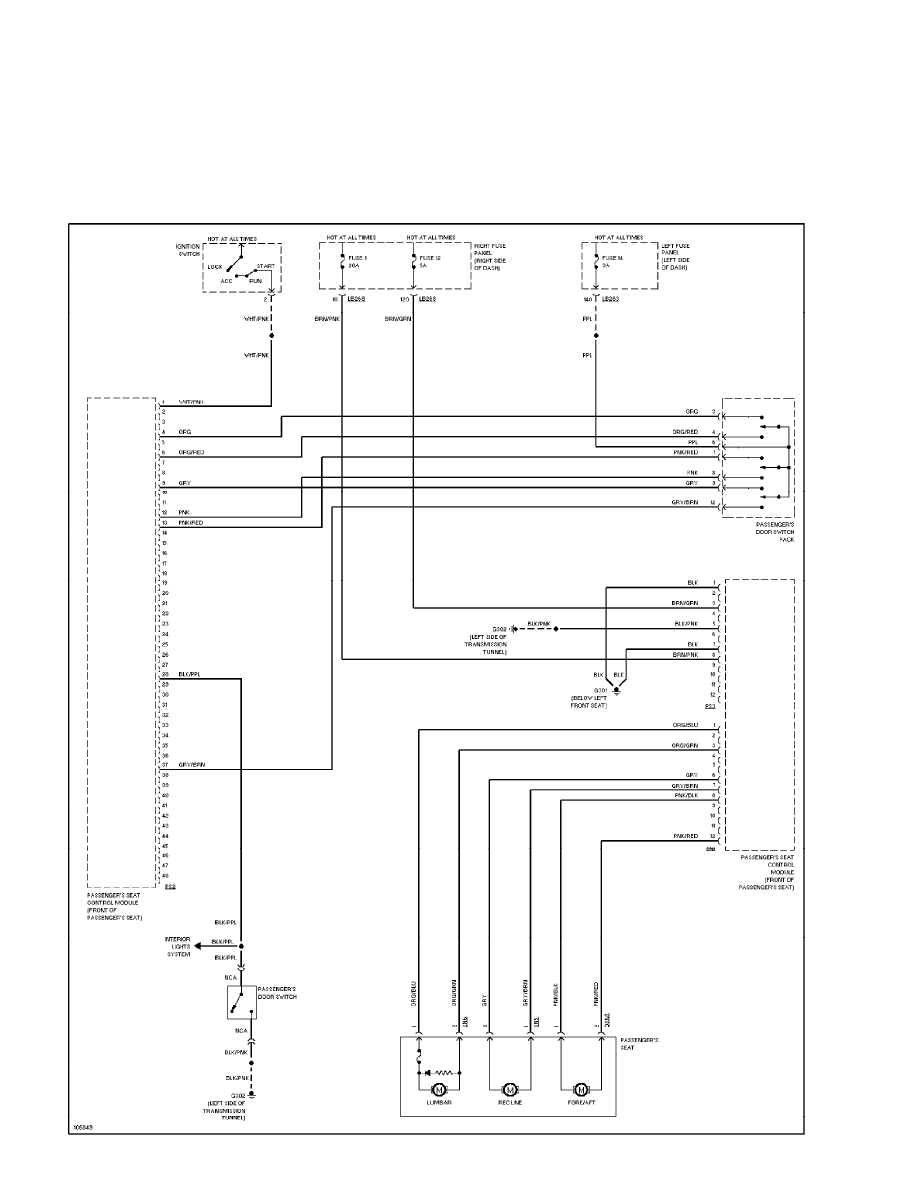

Passenger Seat Circuit (p. 9)

1993 Jaguar XJS

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, September 11, 2004 10:33AM

background image

SYSTEM WIRING DIAGRAMS

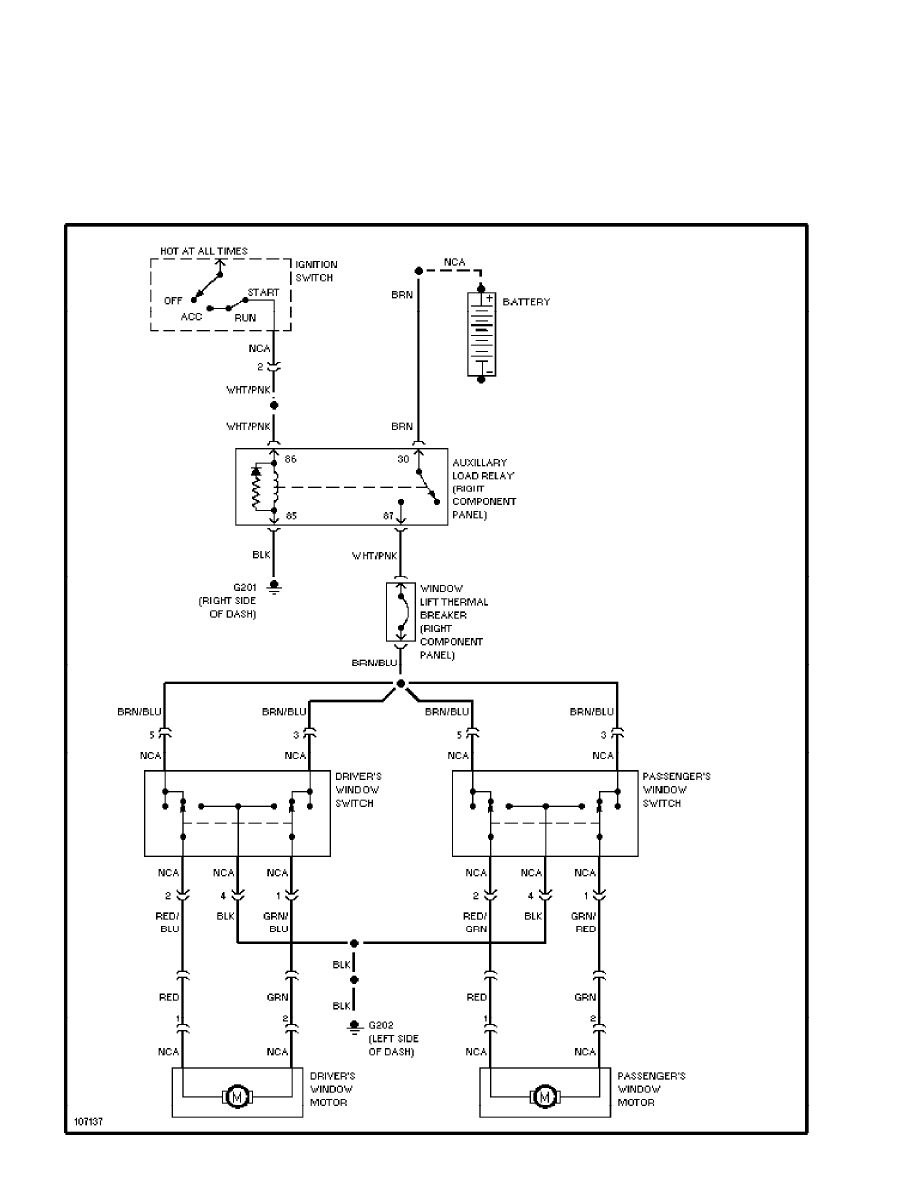

Power Window Circuit (p. 10)

1993 Jaguar XJS

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, September 11, 2004 10:33AM

background image

SYSTEM WIRING DIAGRAMS

Radio Circuits (p. 11)

1993 Jaguar XJS

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, September 11, 2004 10:33AM

background image

SYSTEM WIRING DIAGRAMS

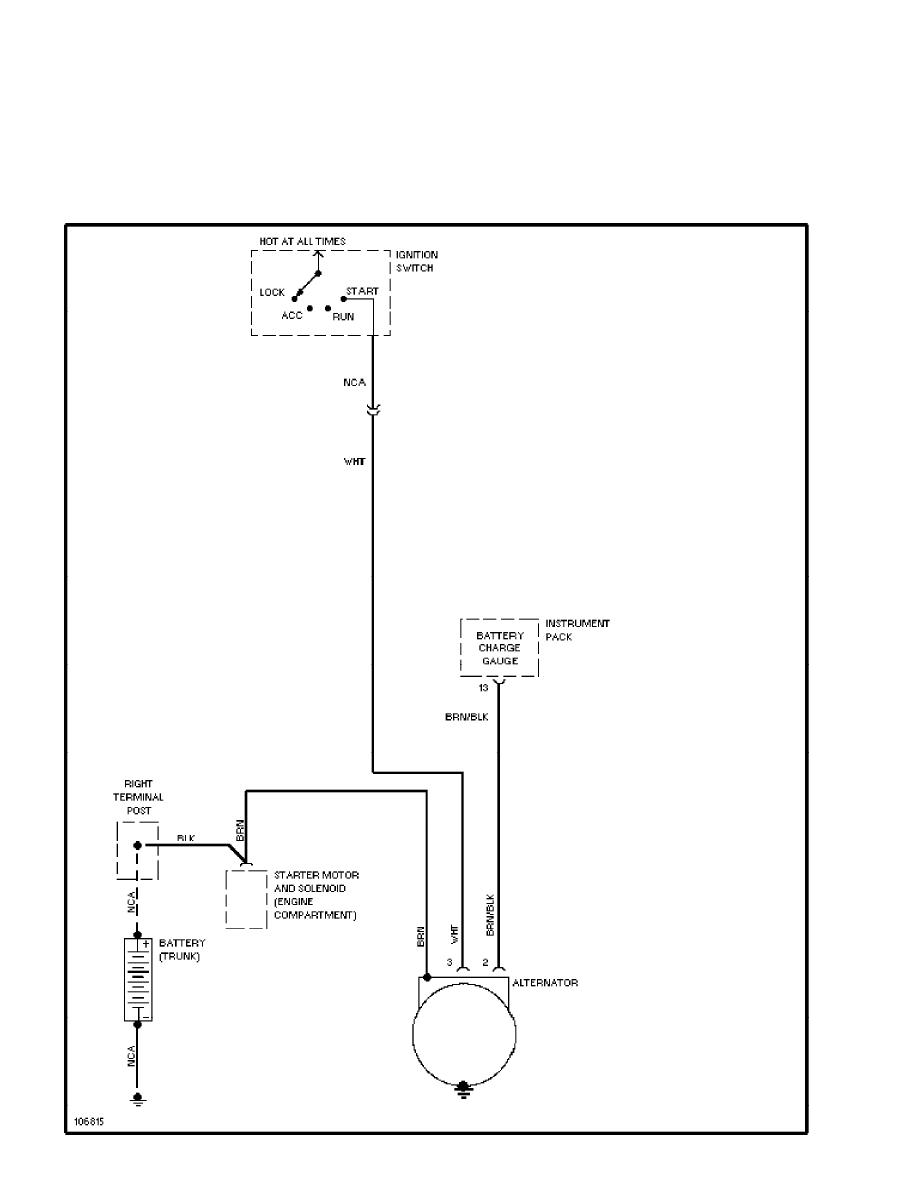

Charging Circuit (p. 12)

1993 Jaguar XJS

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, September 11, 2004 10:33AM

background image

SYSTEM WIRING DIAGRAMS

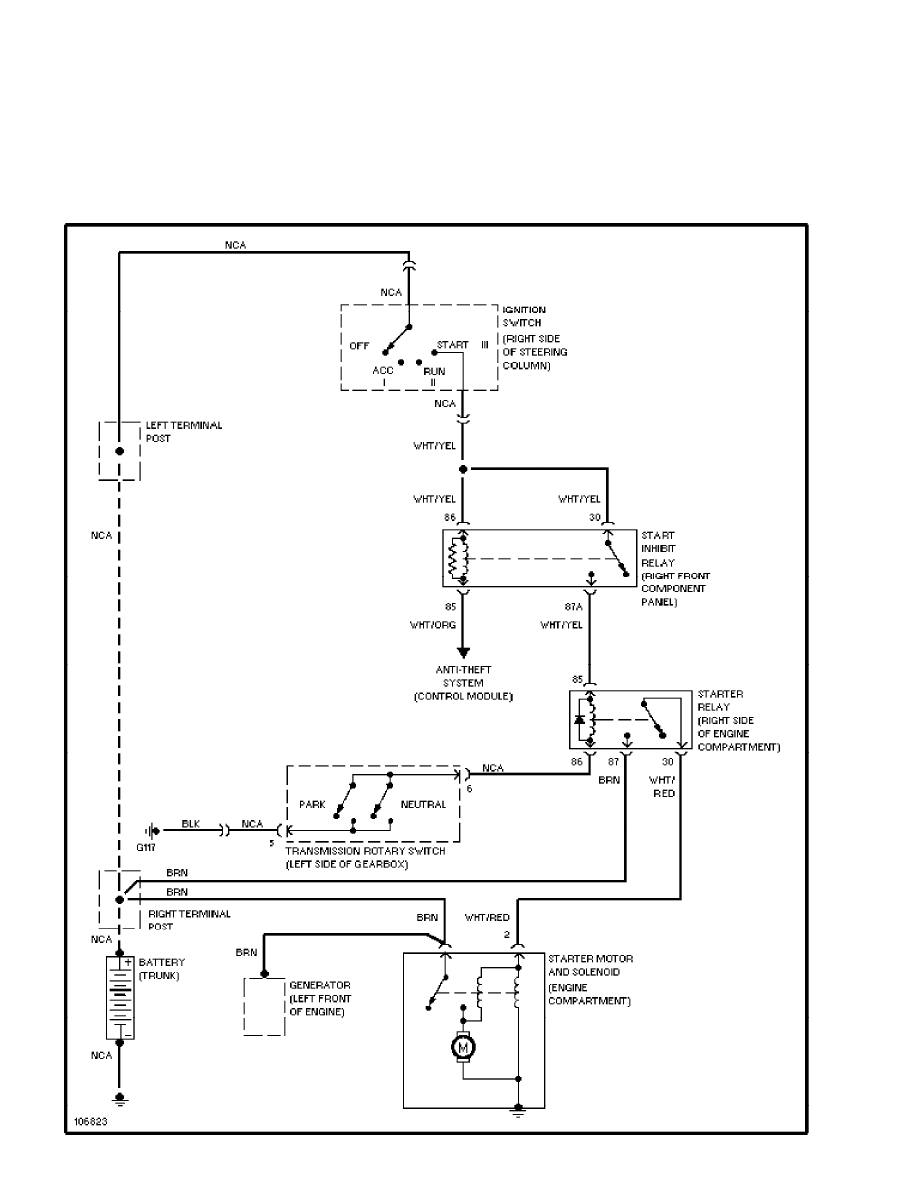

Starting Circuit (p. 13)

1993 Jaguar XJS

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, September 11, 2004 10:33AM

background image

SYSTEM WIRING DIAGRAMS

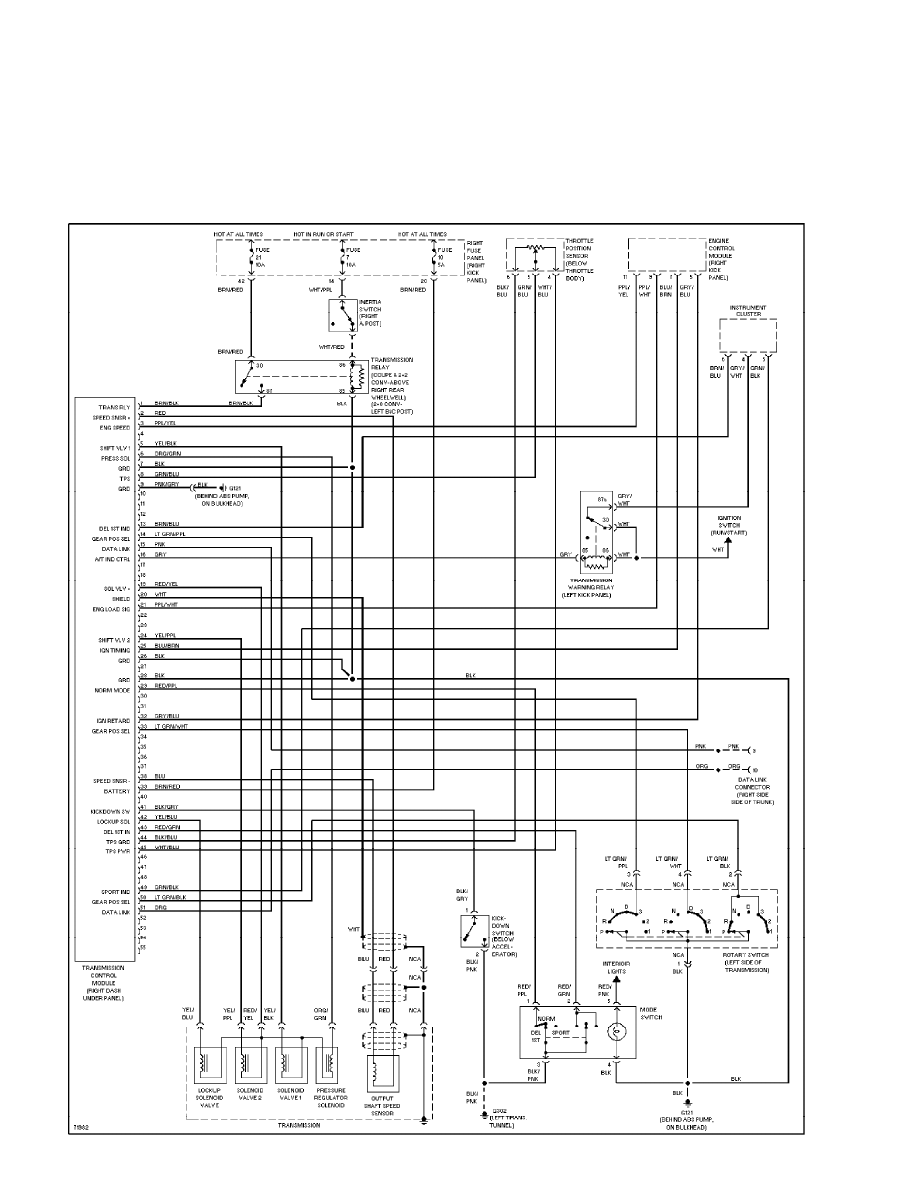

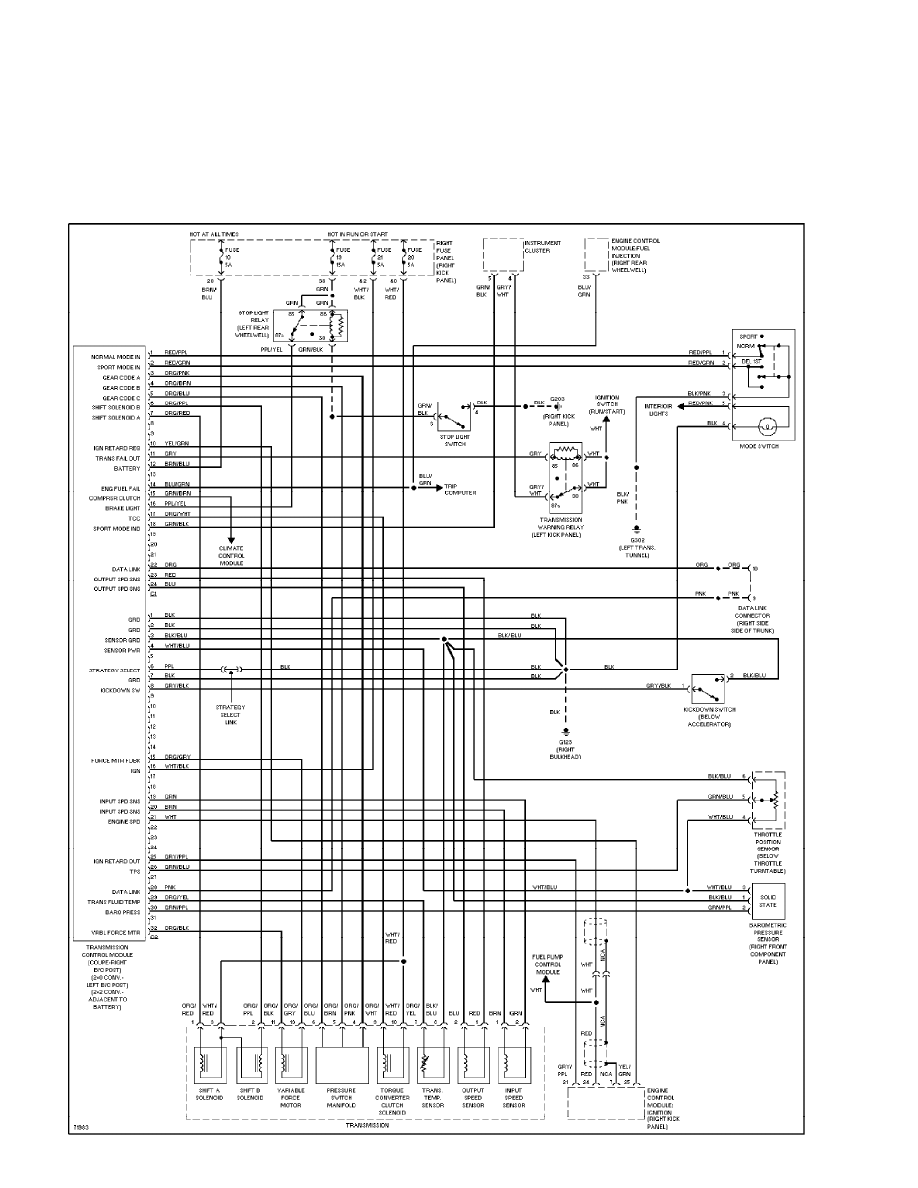

4.0L, Transmission Circuit (p. 14)

1993 Jaguar XJS

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, September 11, 2004 10:33AM

background image

SYSTEM WIRING DIAGRAMS

6.0L, Transmission Circuit (p. 15)

1993 Jaguar XJS

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, September 11, 2004 10:33AM

background image

SYSTEM WIRING DIAGRAMS

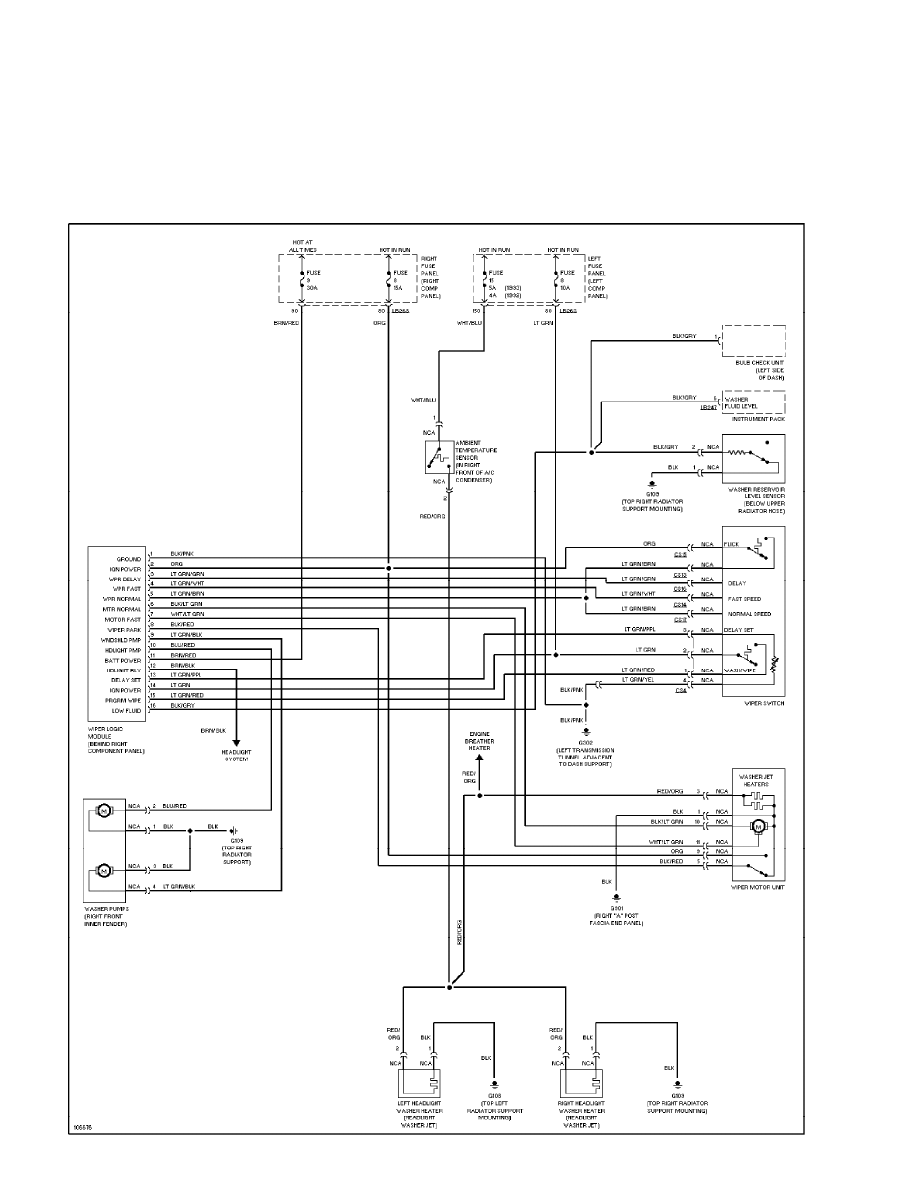

Wiper/Washer Circuit (p. 16)

1993 Jaguar XJS

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, September 11, 2004 10:33AM

background image

WIRING DIAGRAMS

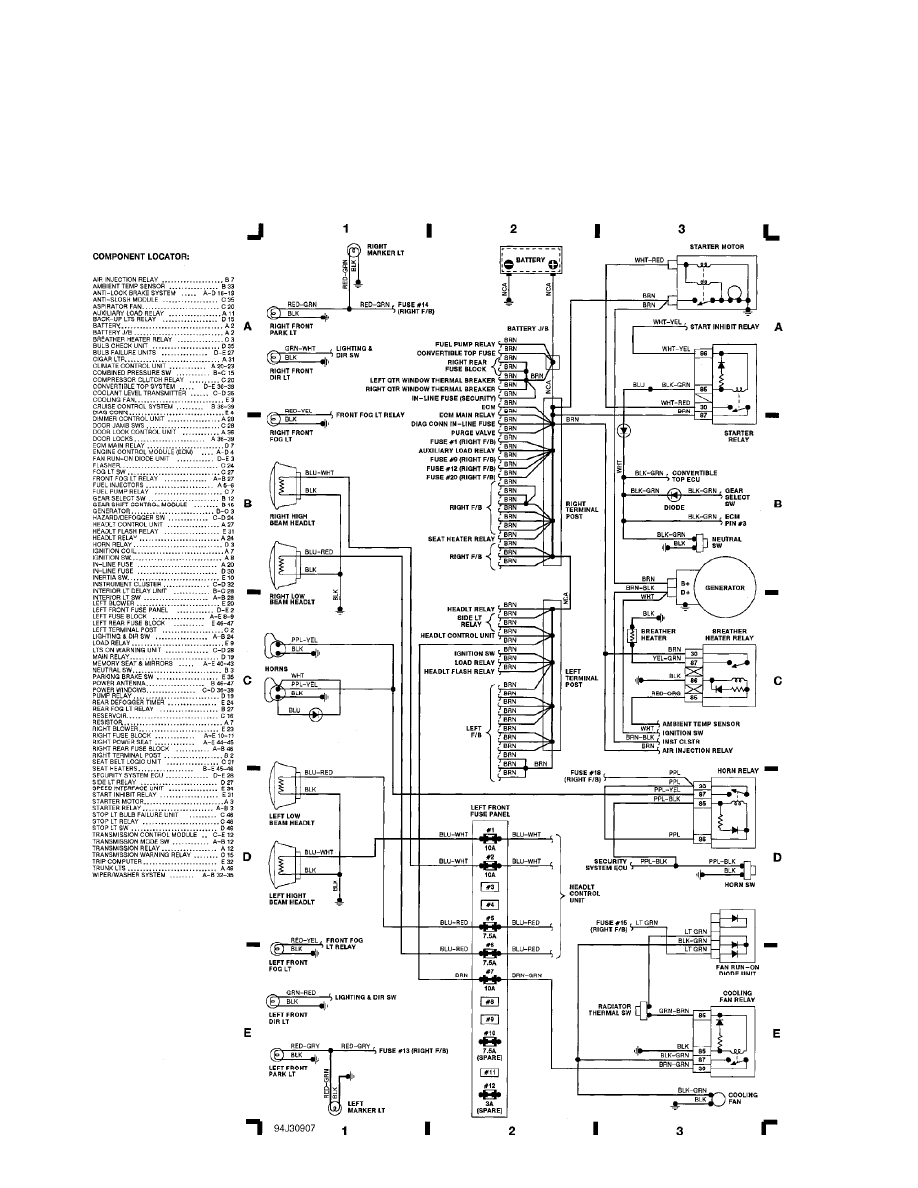

Fig. 1: Battery, Battery J/B, Left Front Fuse Panel (Grid 1-3)

1993 Jaguar XJS

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, September 11, 2004 10:33AM

background image

WIRING DIAGRAMS

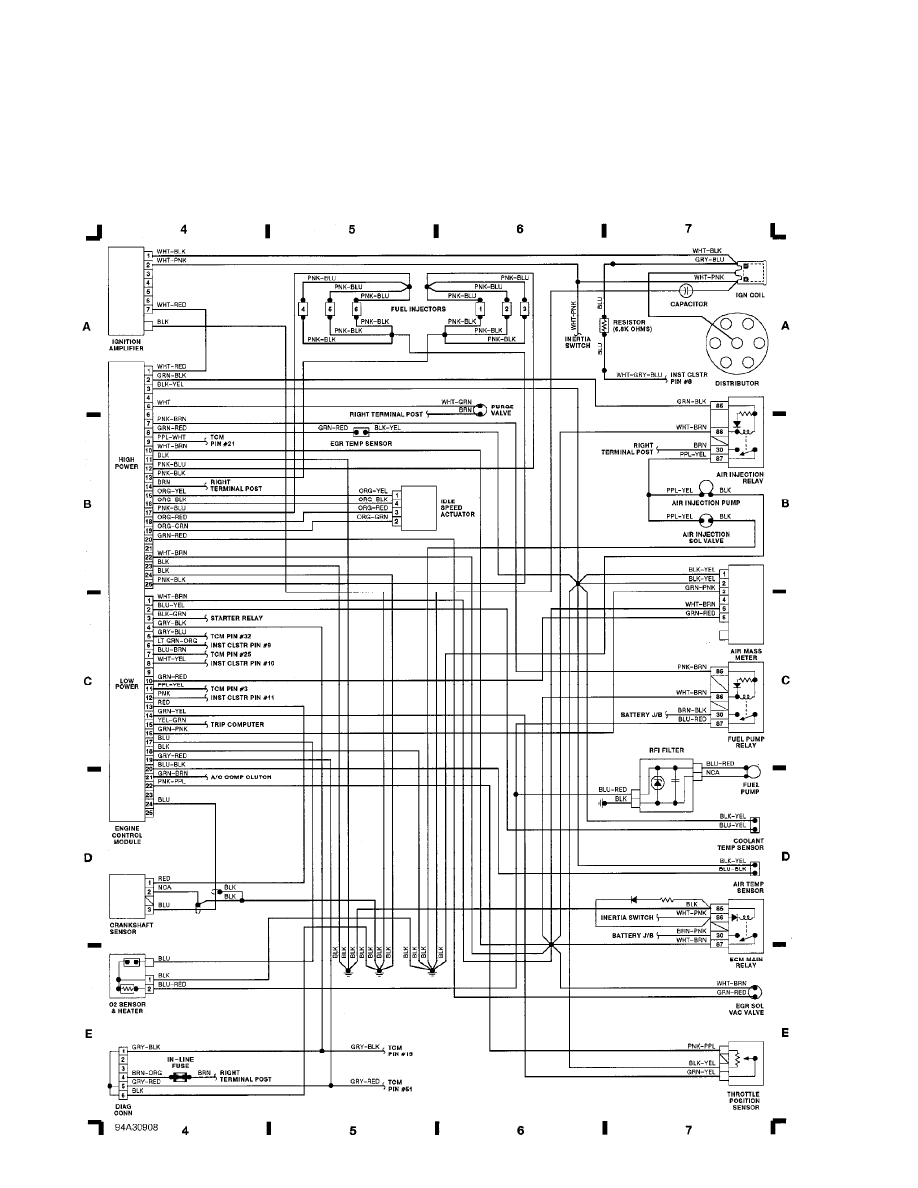

Fig. 2: Ignition Amplifier, Engine Control Module (Grid 4-7) (p. 2)

1993 Jaguar XJS

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, September 11, 2004 10:33AM

background image

WIRING DIAGRAMS

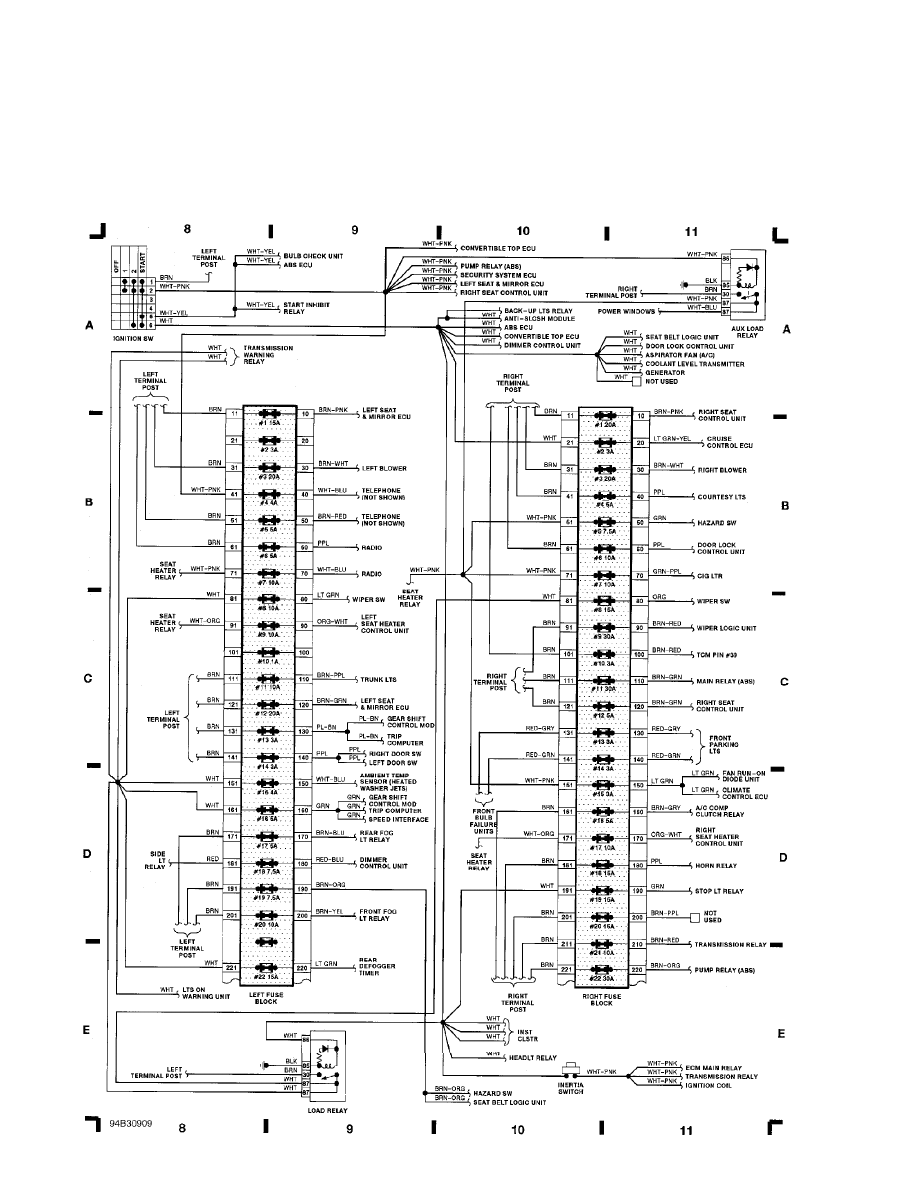

Fig. 3: Left & Right Fuse Block, Ignition SW (Grid 8-11) (p. 3)

1993 Jaguar XJS

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, September 11, 2004 10:33AM

background image

WIRING DIAGRAMS

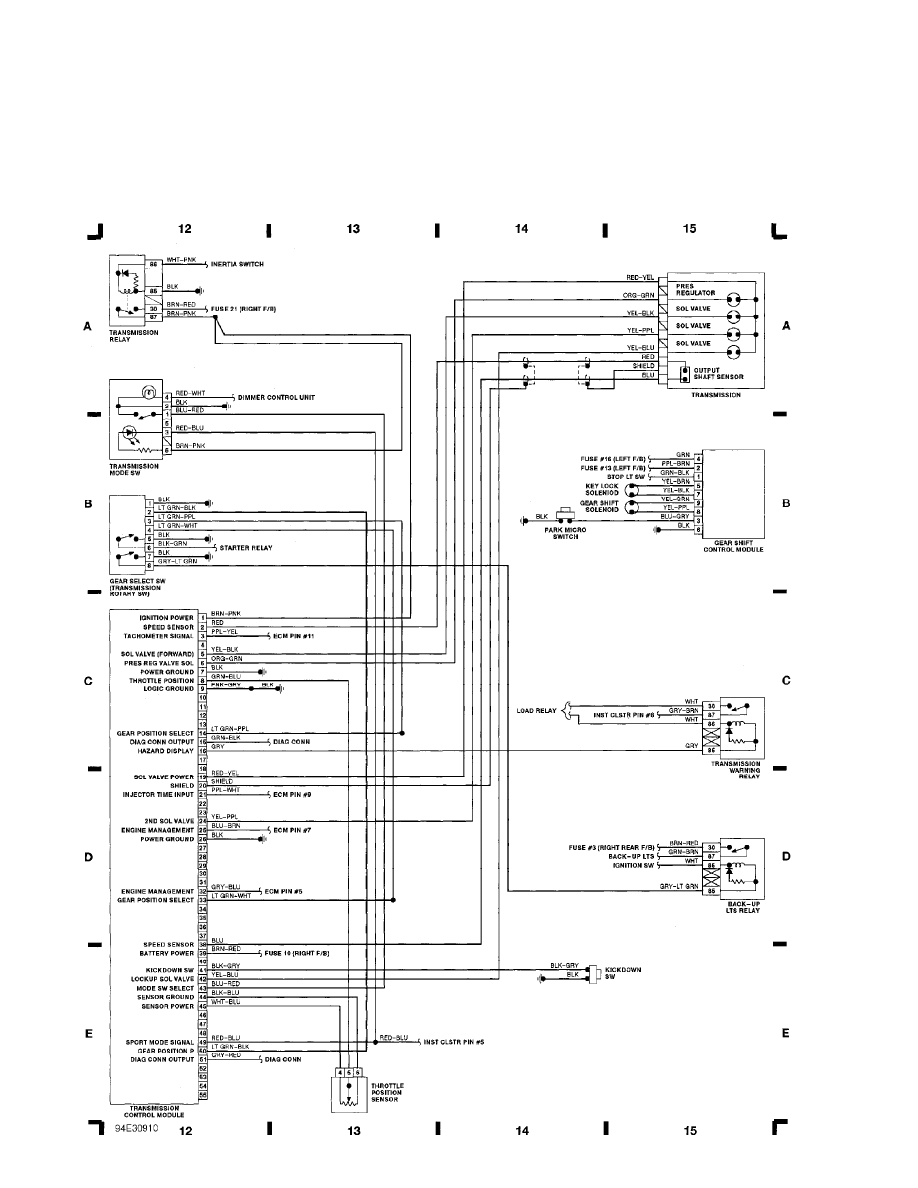

Fig. 4: Transmission Control Module & Relay (Grid 12-15) (p. 4)

1993 Jaguar XJS

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, September 11, 2004 10:33AM

background image

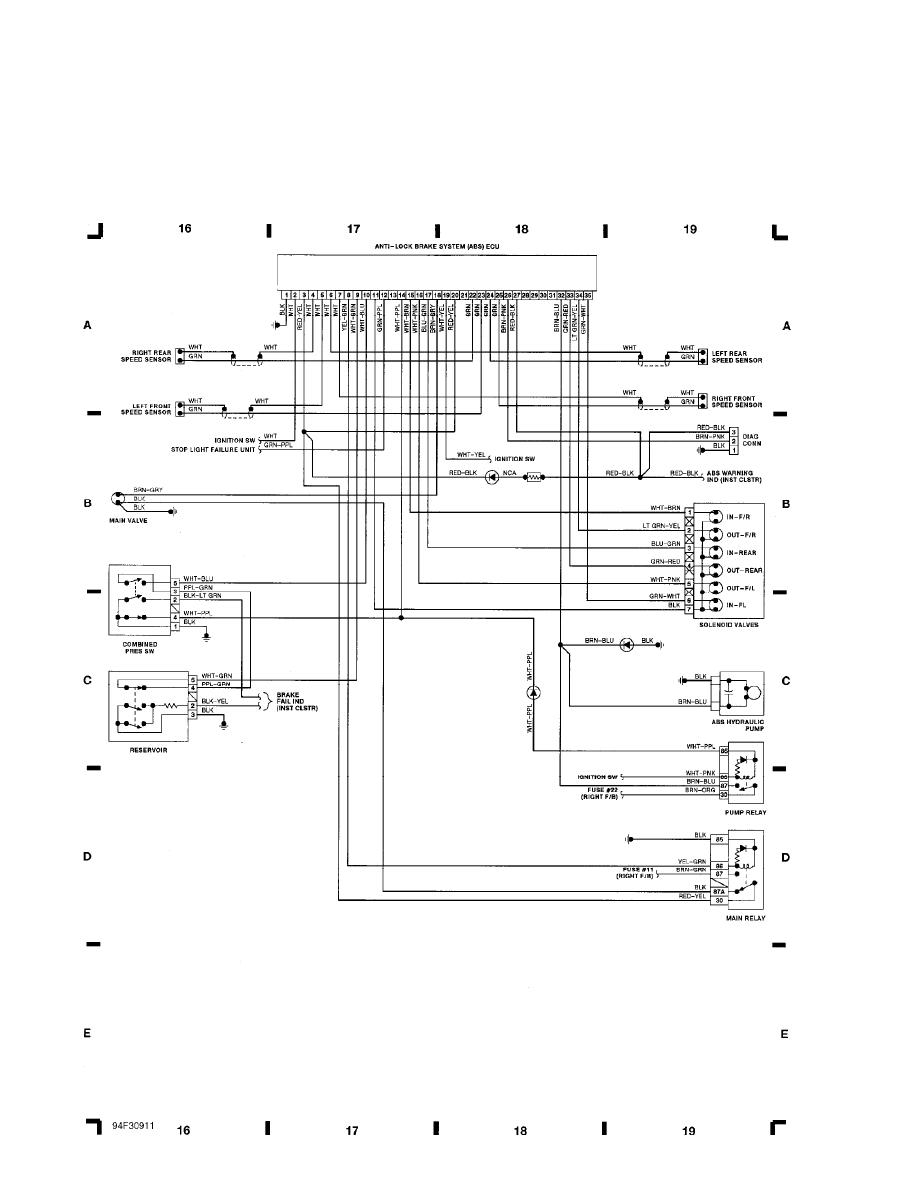

WIRING DIAGRAMS

Fig. 5: Anti-Lock Brake System, Solenoid Valves (Grid 16-19) (p. 5)

1993 Jaguar XJS

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, September 11, 2004 10:33AM

background image

WIRING DIAGRAMS

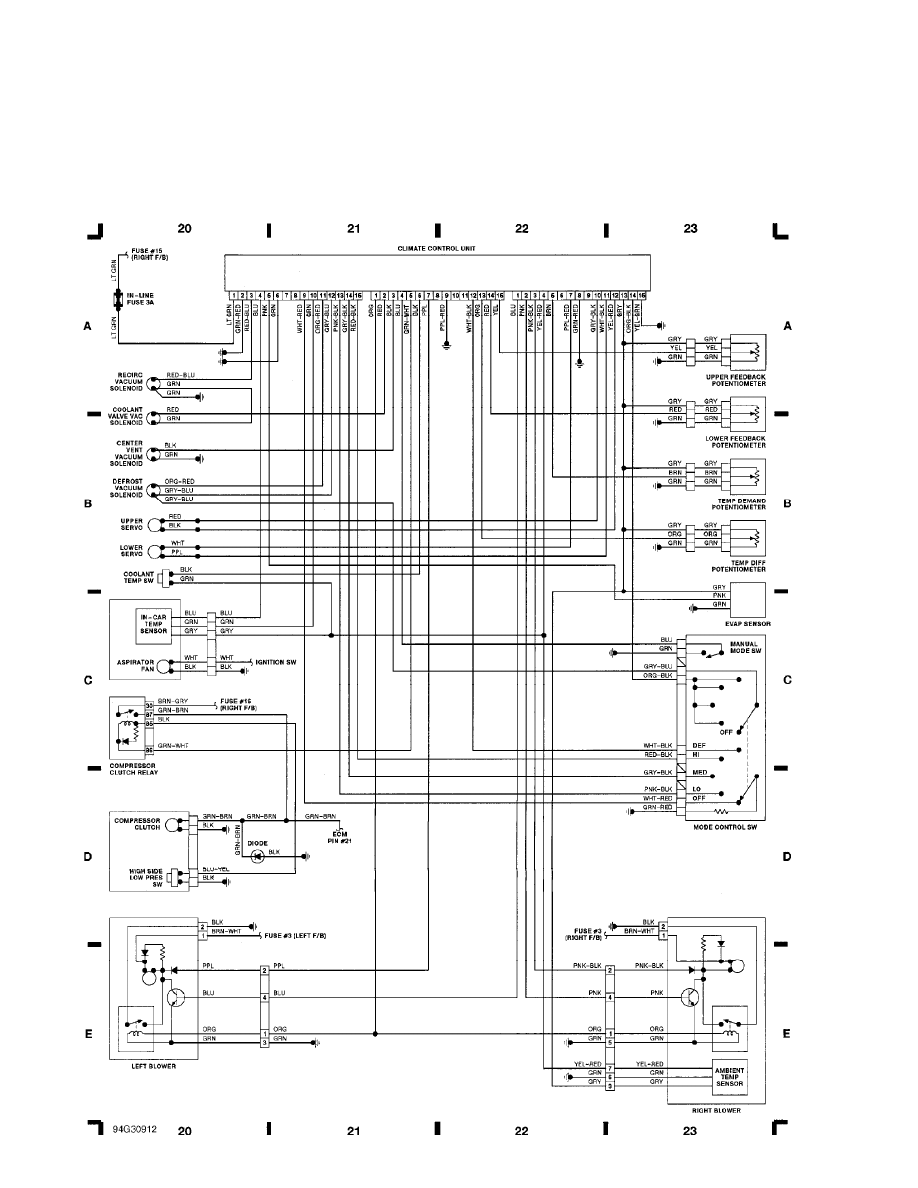

Fig. 6: Climate Control Unit, Mode Control SW (Grid 20-23) (p. 6)

1993 Jaguar XJS

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, September 11, 2004 10:33AM

background image

WIRING DIAGRAMS

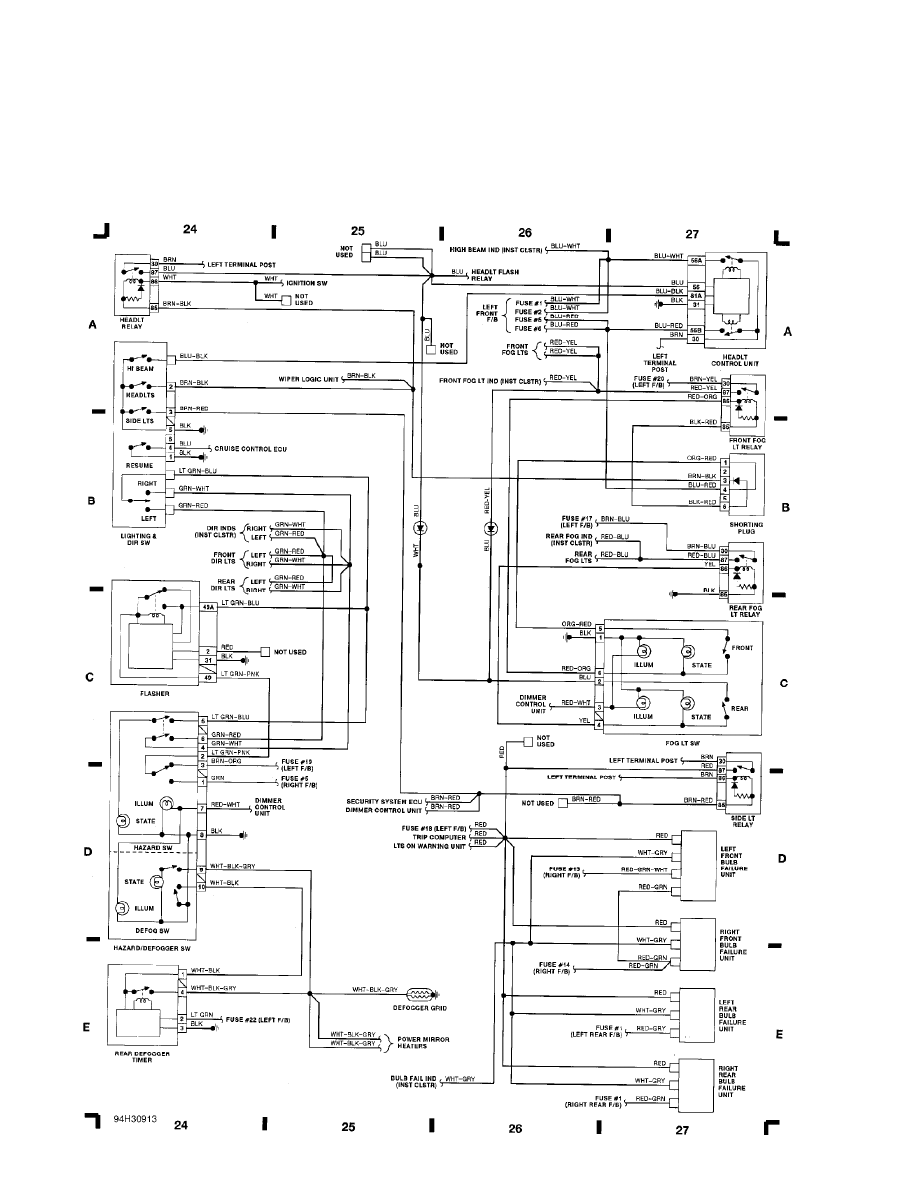

Fig. 7: Hazard/Defogger SW, Fog Light SW (Grid 24-27) (p. 7)

1993 Jaguar XJS

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, September 11, 2004 10:33AM

background image

WIRING DIAGRAMS

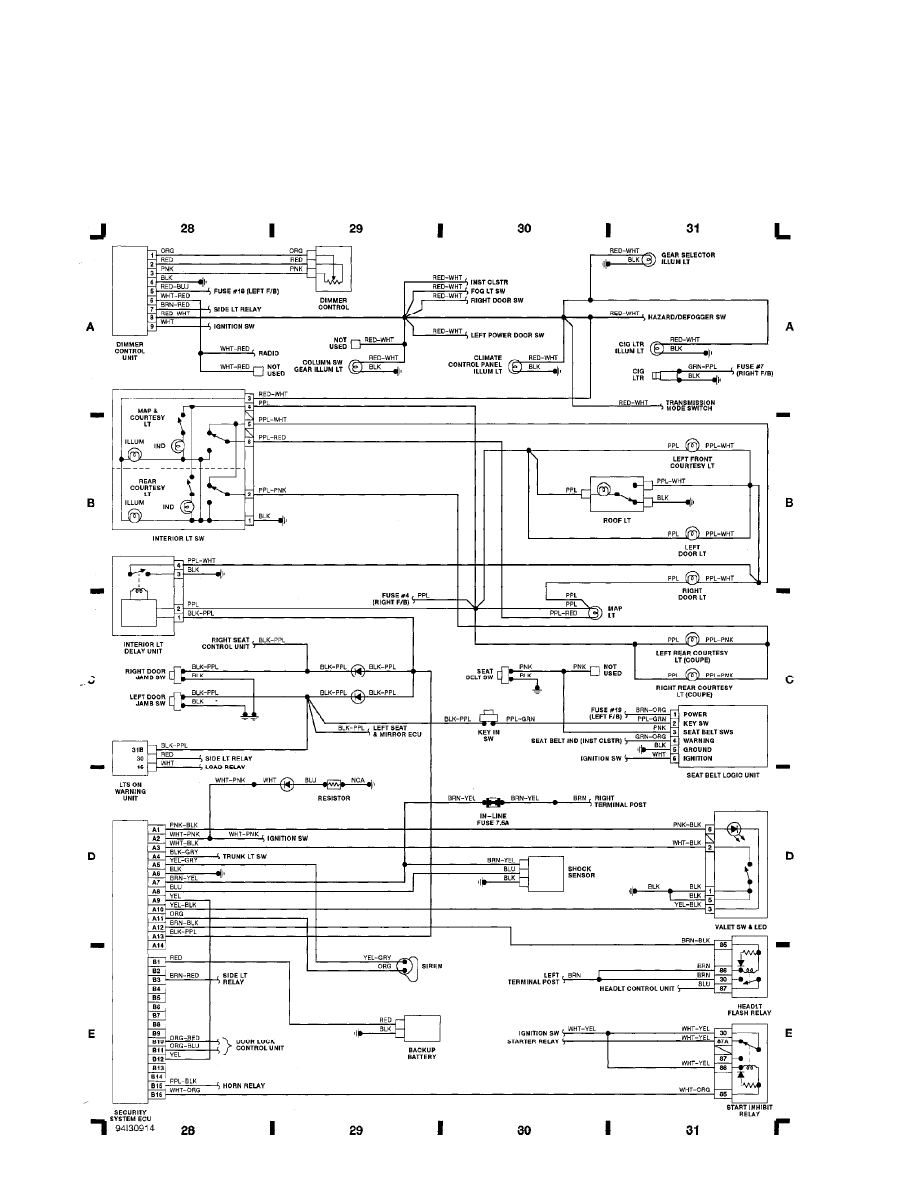

Fig. 8: Security System ECU, Interior Light SW (Grid 28-31) (p. 8)

1993 Jaguar XJS

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, September 11, 2004 10:33AM

background image

WIRING DIAGRAMS

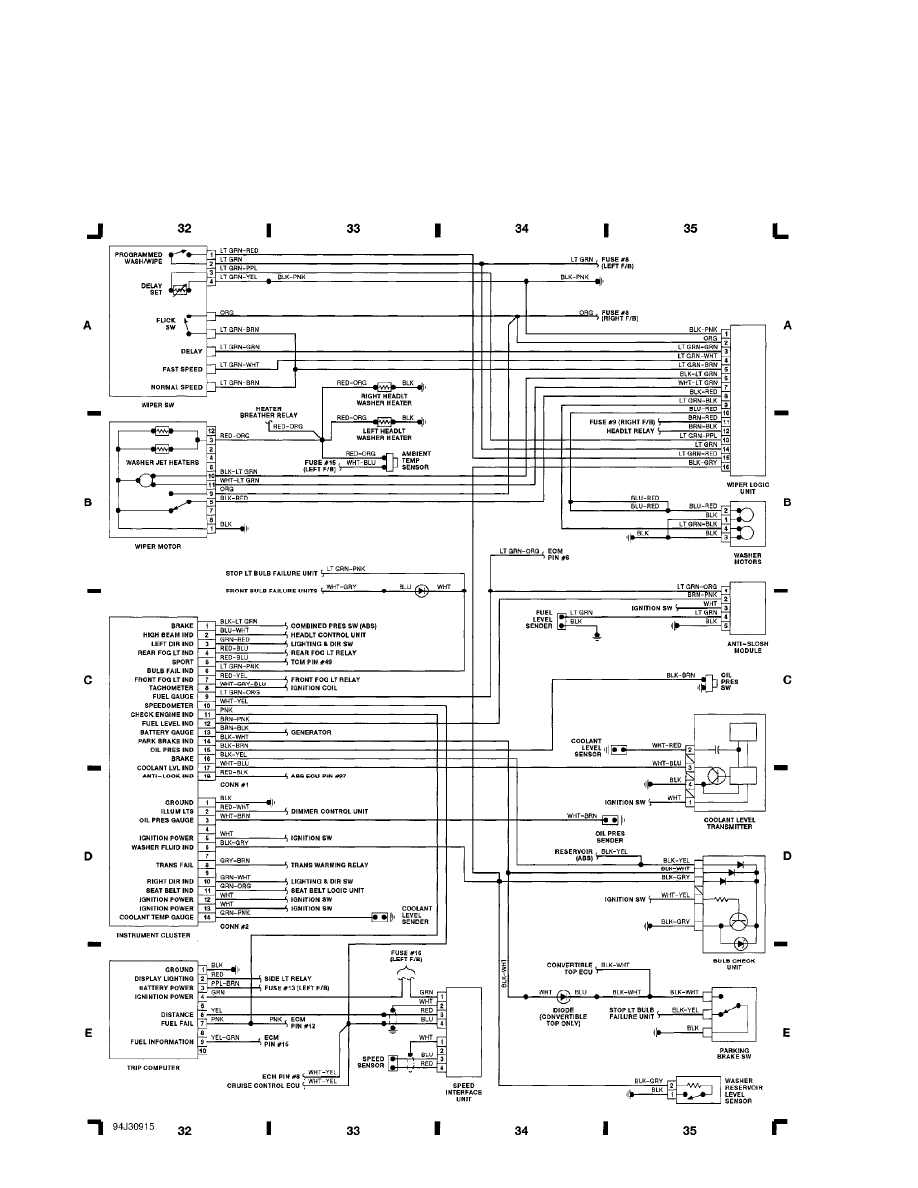

Fig. 9: Instrument Cluster, Wiper SW (Grid 32-35) (p. 9)

1993 Jaguar XJS

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, September 11, 2004 10:33AM

background image

WIRING DIAGRAMS

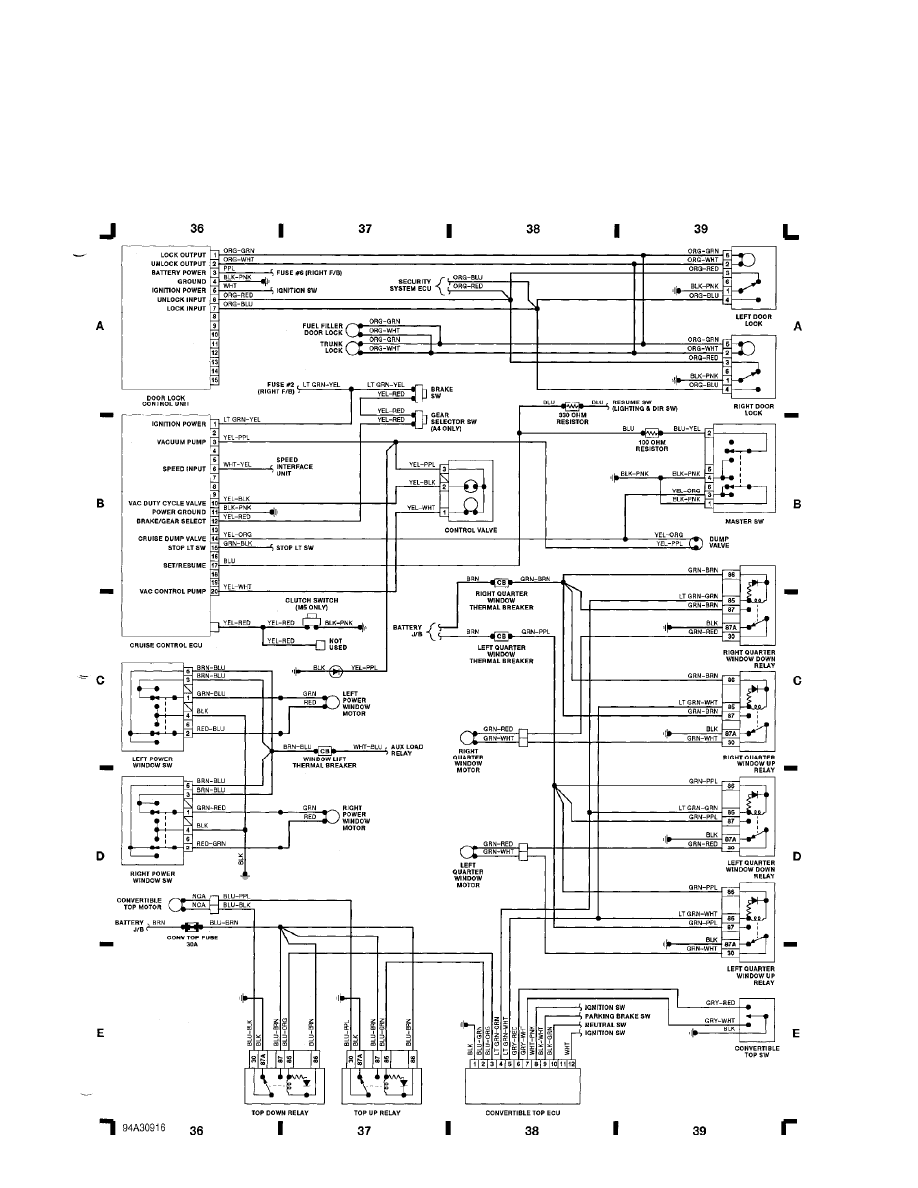

Fig. 10: Cruise Control ECU, Door Lock Control Unit (Grid 36-39) (p. 10)

1993 Jaguar XJS

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, September 11, 2004 10:33AM

background image

WIRING DIAGRAMS

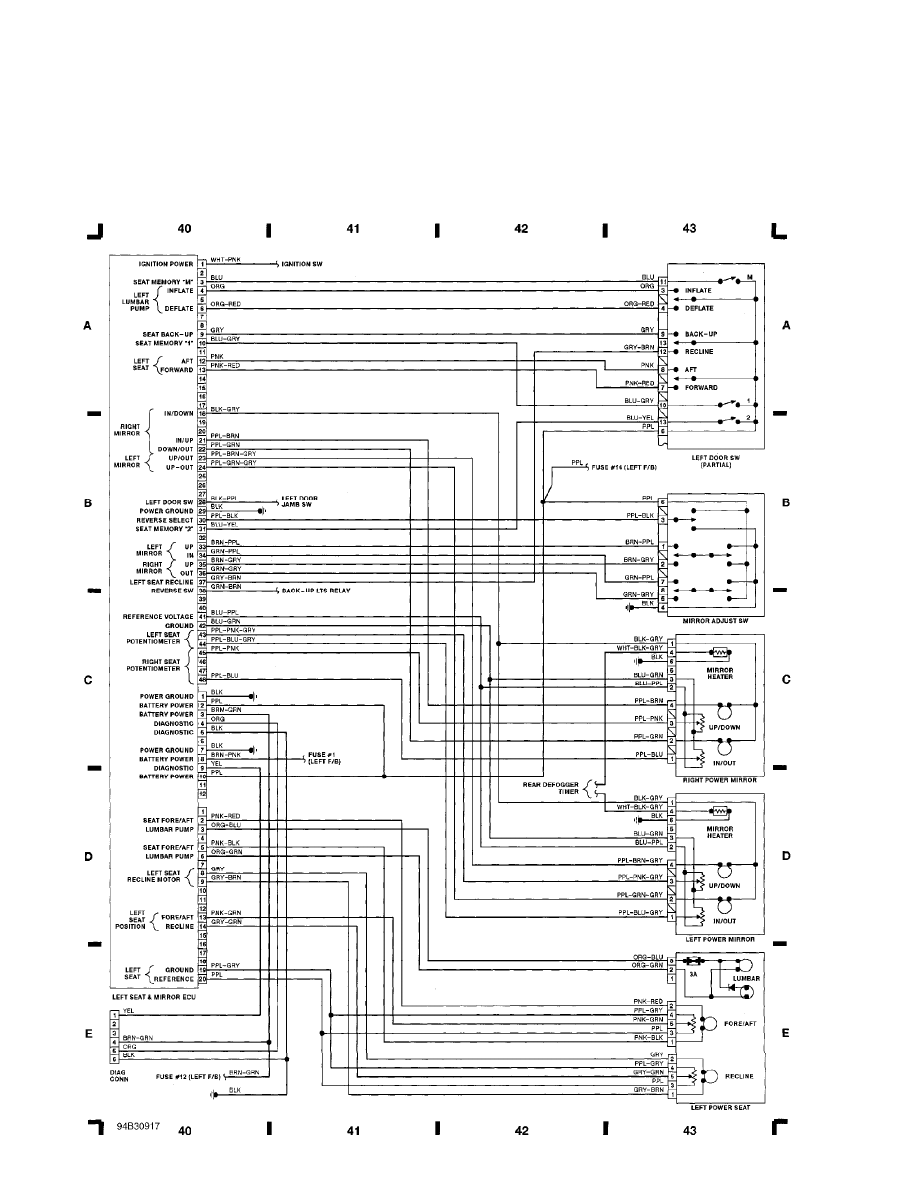

Fig. 11: Left Seat & Mirror ECU, LT & RT Pwr Mirror (Grid 40-43) (p. 11)

1993 Jaguar XJS

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, September 11, 2004 10:33AM

background image

WIRING DIAGRAMS

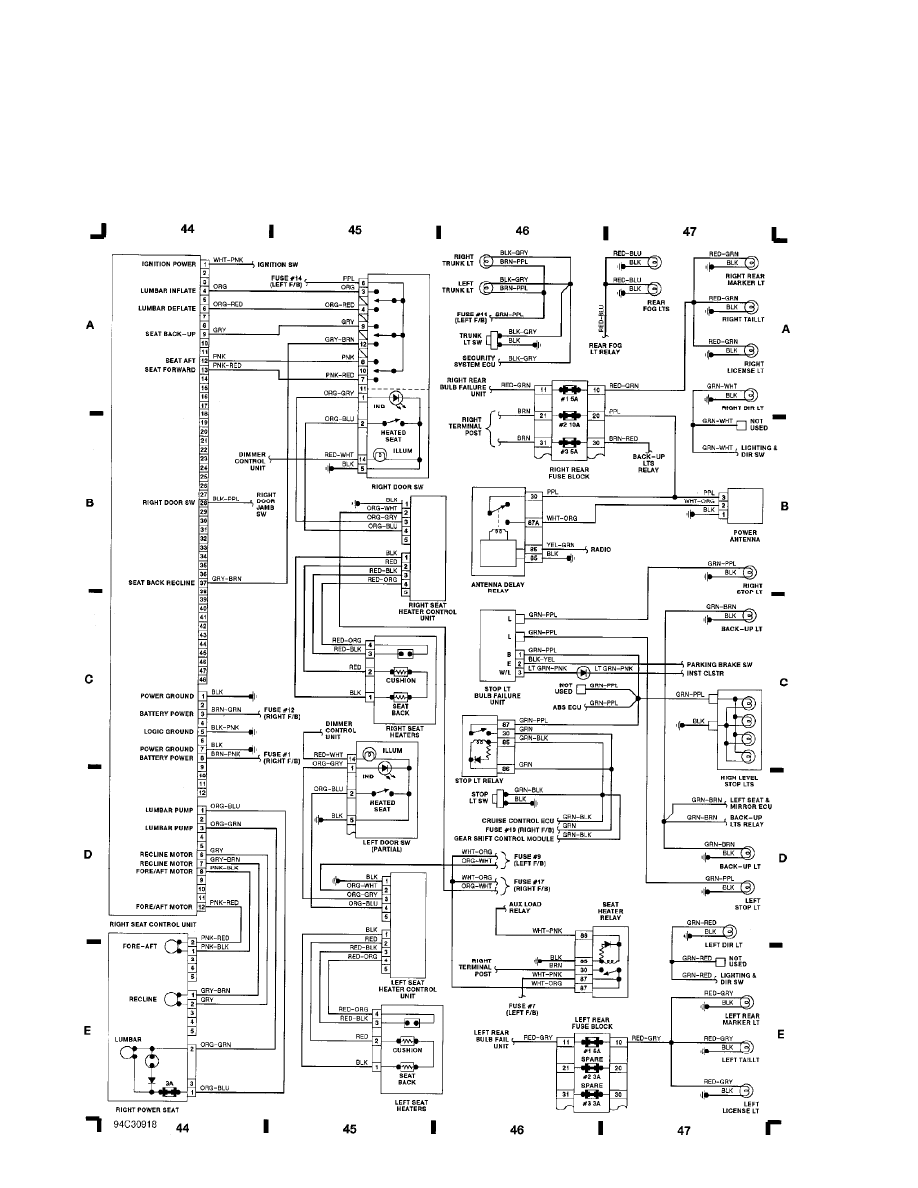

Fig. 12: Right Seat Control Unit, Right Power Seat (Grid 44-47) (p. 12)

1993 Jaguar XJS

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Saturday, September 11, 2004 10:33AM
