SYSTEM WIRING DIAGRAMS

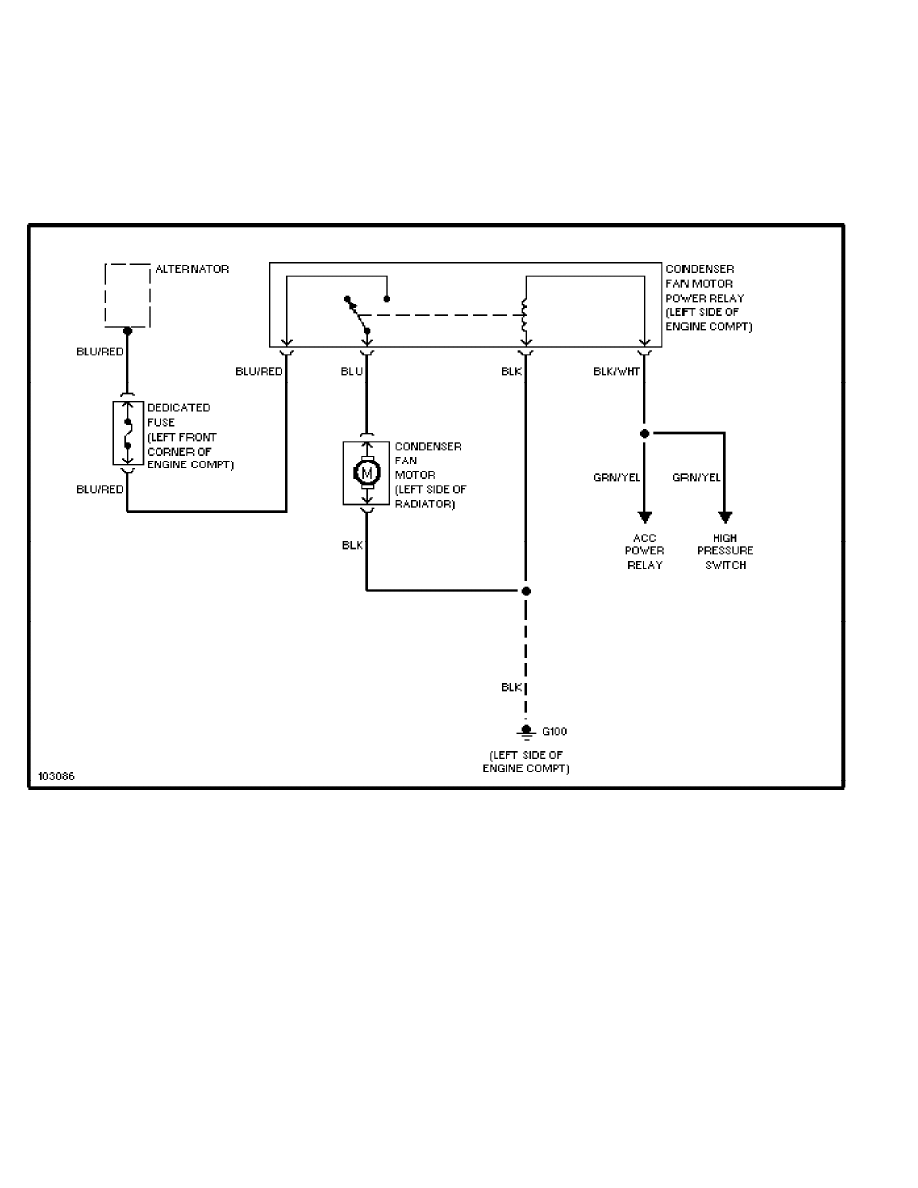

Condenser Cooling Fan Circuit
1988 Mitsubishi Cordia
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 17, 2005 12:37PM

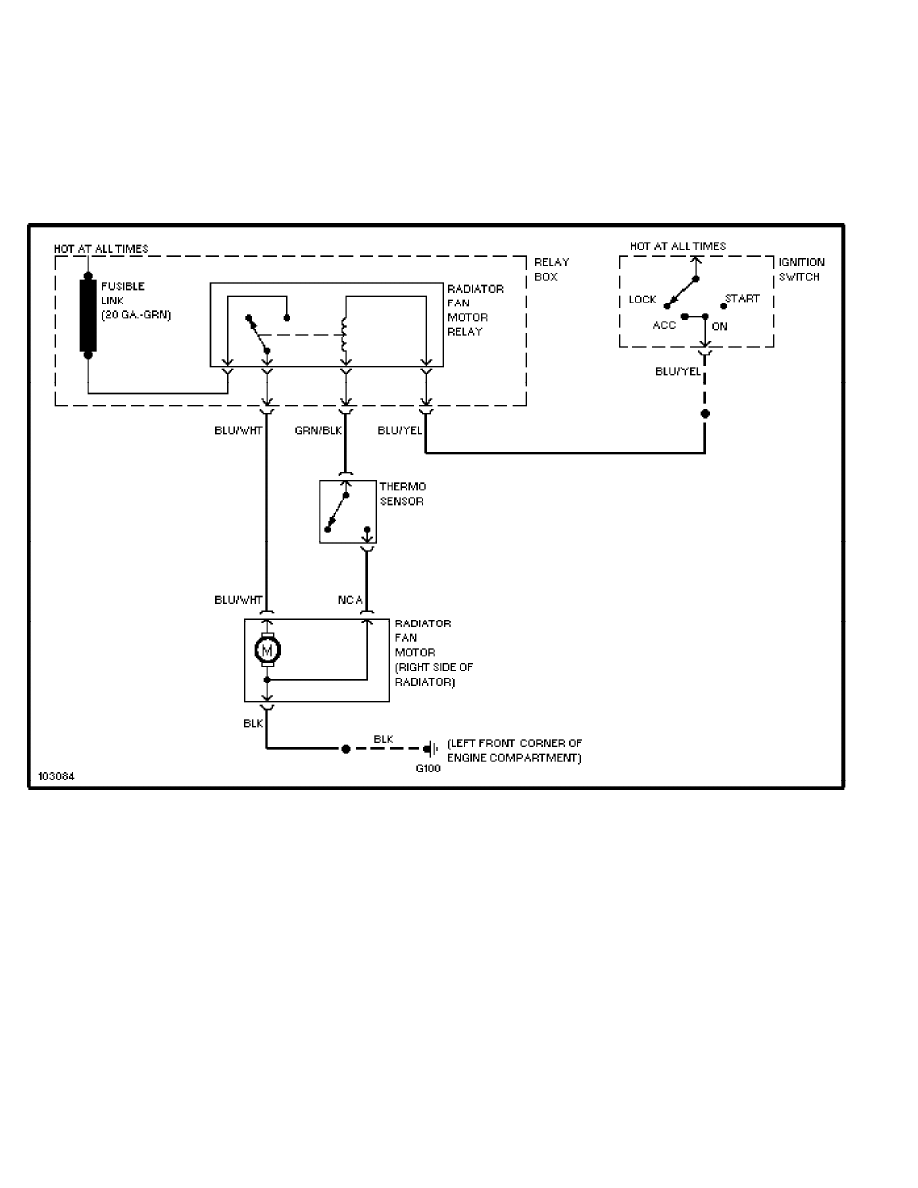

SYSTEM WIRING DIAGRAMS
Radiator Cooling Fan Circuit (p. 2)
1988 Mitsubishi Cordia
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 17, 2005 12:37PM

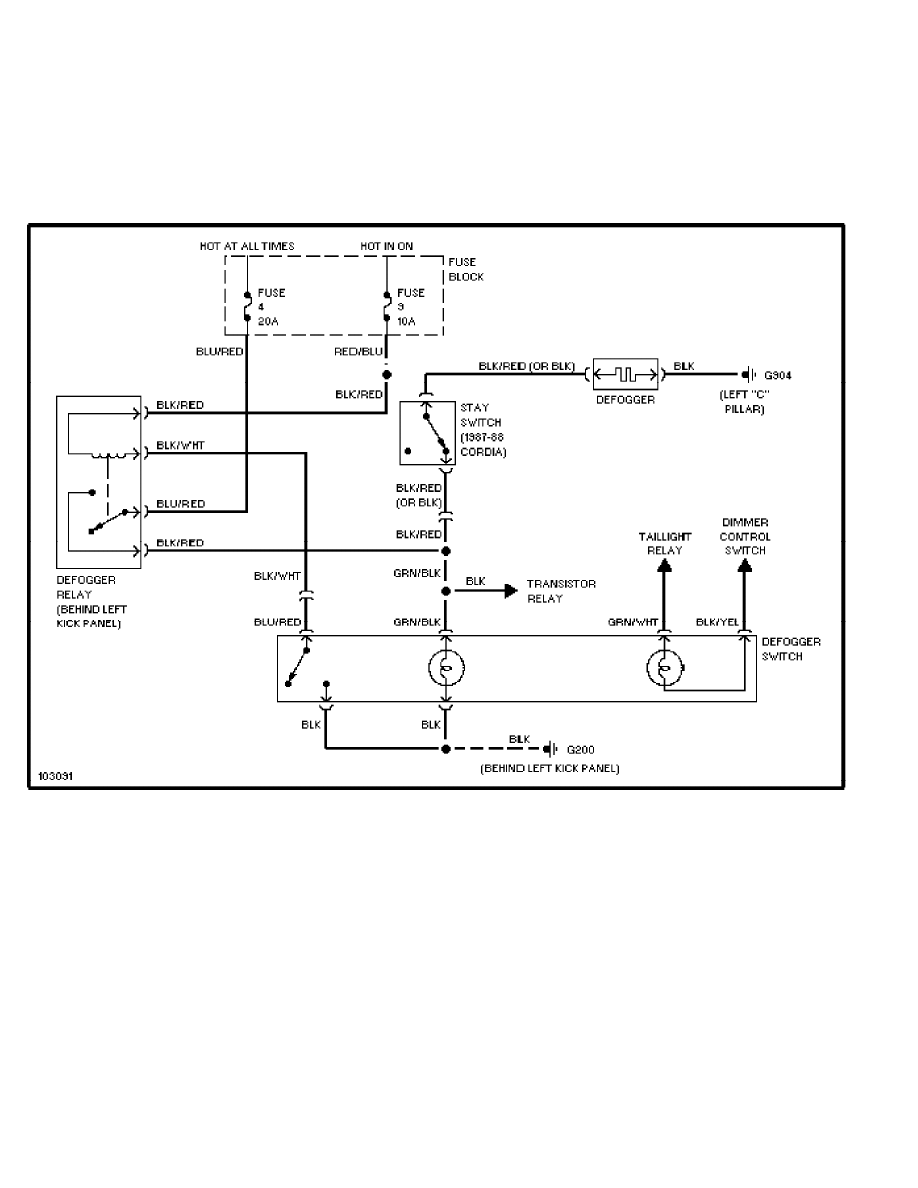

SYSTEM WIRING DIAGRAMS
Defogger Circuit (p. 3)
1988 Mitsubishi Cordia
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 17, 2005 12:37PM

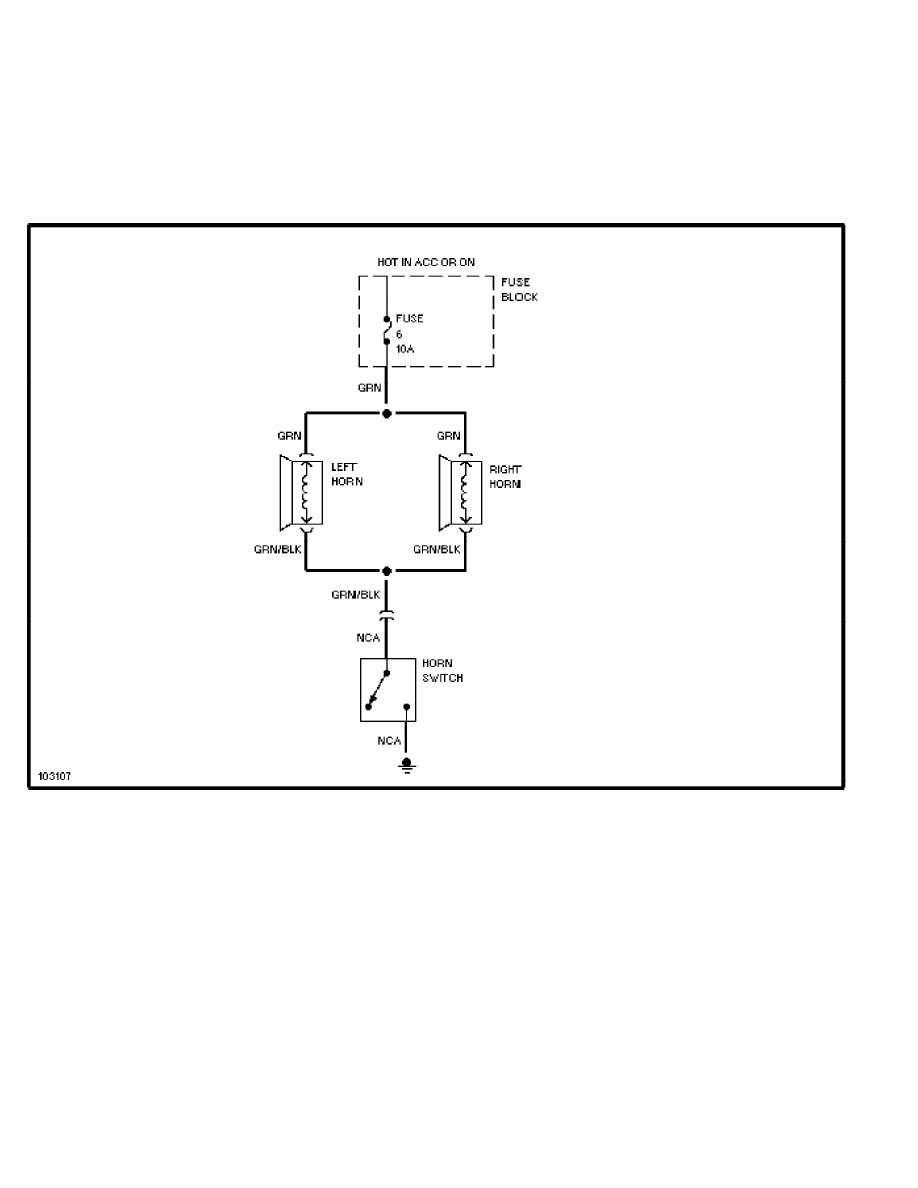

SYSTEM WIRING DIAGRAMS
Horn Circuit (p. 4)
1988 Mitsubishi Cordia
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 17, 2005 12:37PM
SYSTEM WIRING DIAGRAMS

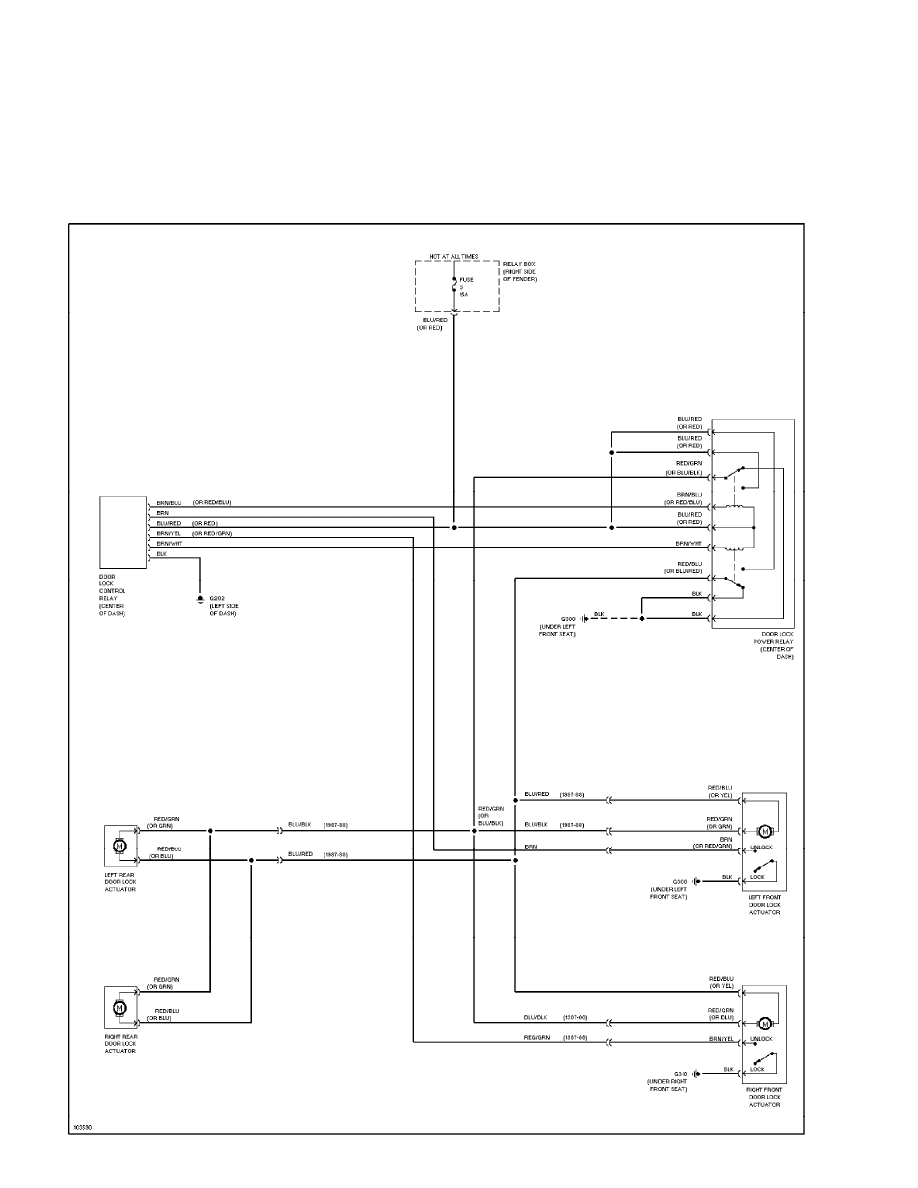

Power Door Lock Circuit (p. 5)
1988 Mitsubishi Cordia
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 17, 2005 12:37PM
SYSTEM WIRING DIAGRAMS

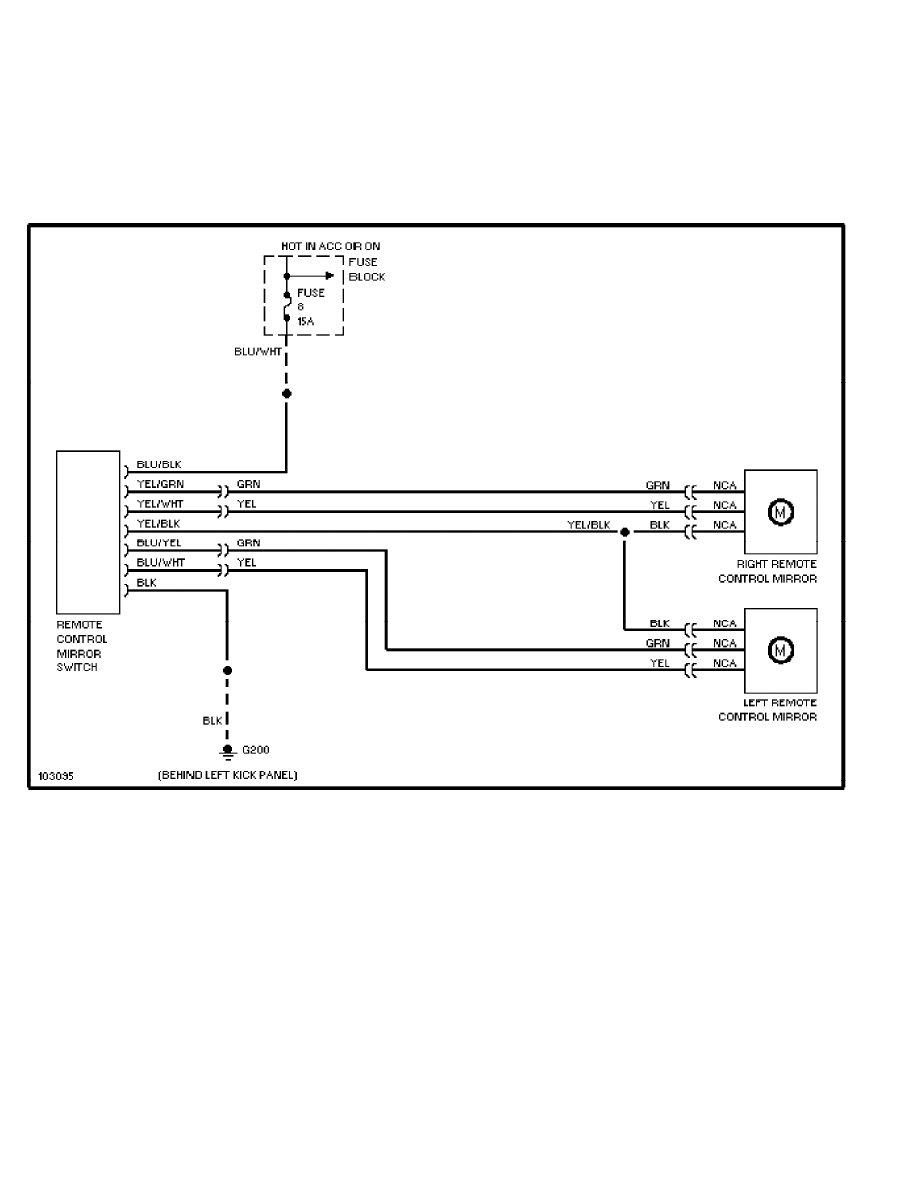

Power Mirror Circuit (p. 6)
1988 Mitsubishi Cordia
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 17, 2005 12:37PM

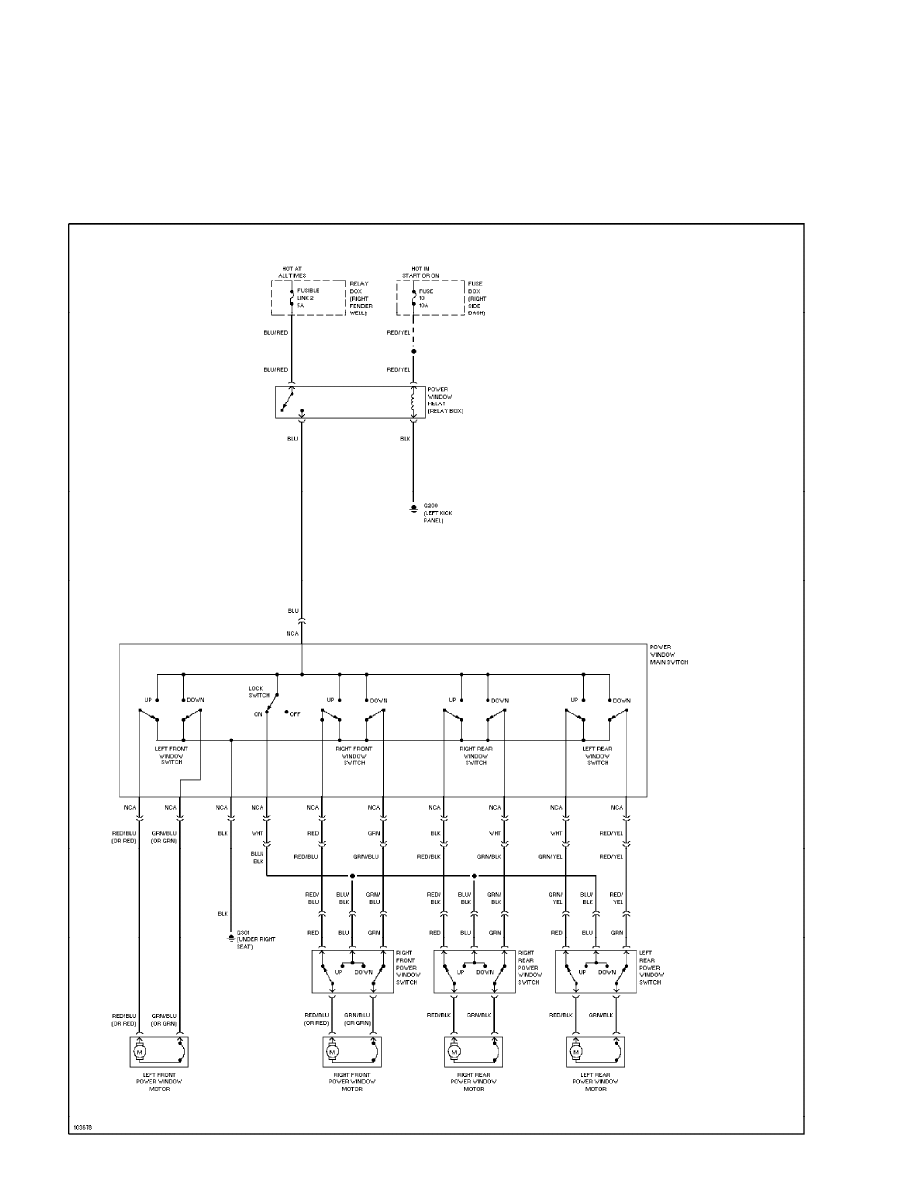

SYSTEM WIRING DIAGRAMS
Power Window Circuit (p. 7)
1988 Mitsubishi Cordia
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 17, 2005 12:37PM
SYSTEM WIRING DIAGRAMS

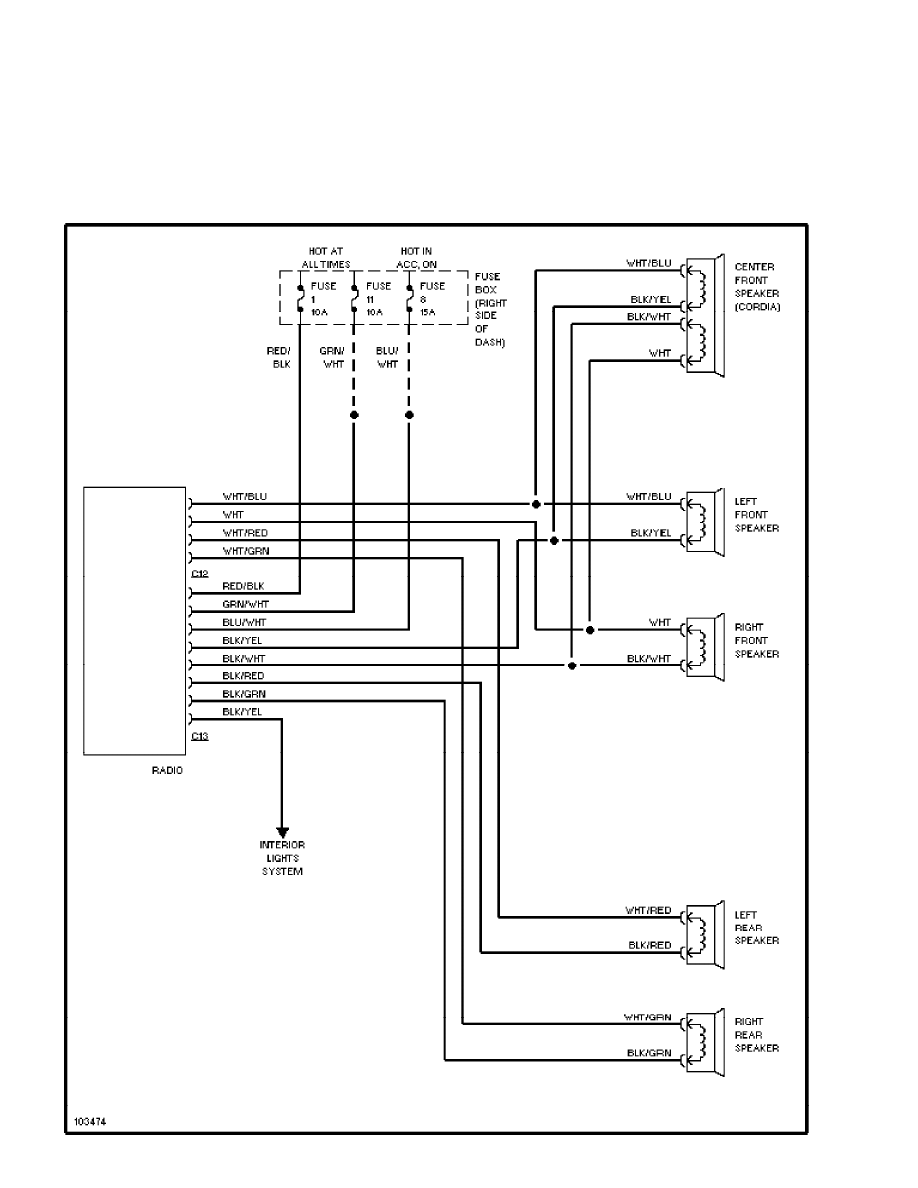

Radio Circuits (p. 8)
1988 Mitsubishi Cordia
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 17, 2005 12:37PM

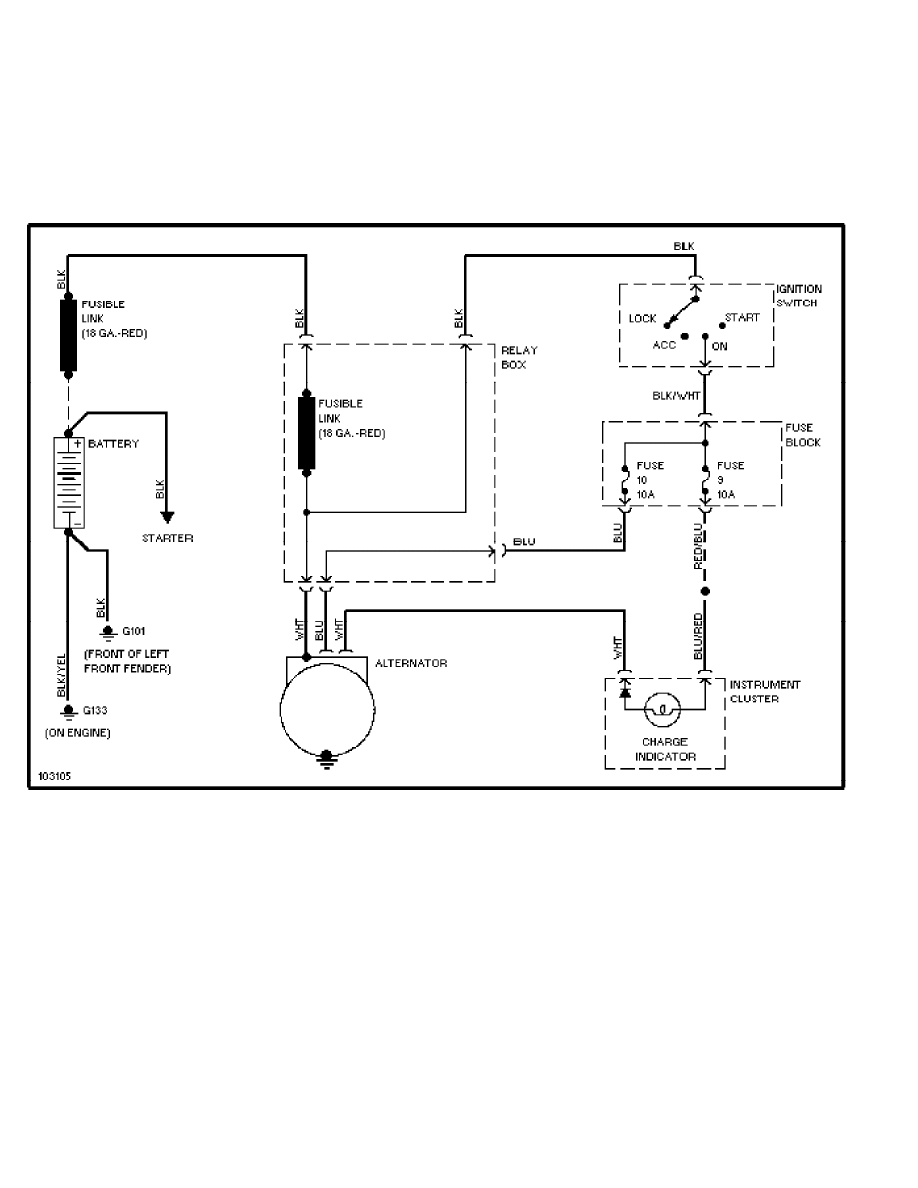

SYSTEM WIRING DIAGRAMS
Charging Circuit (p. 9)
1988 Mitsubishi Cordia
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 17, 2005 12:37PM
SYSTEM WIRING DIAGRAMS

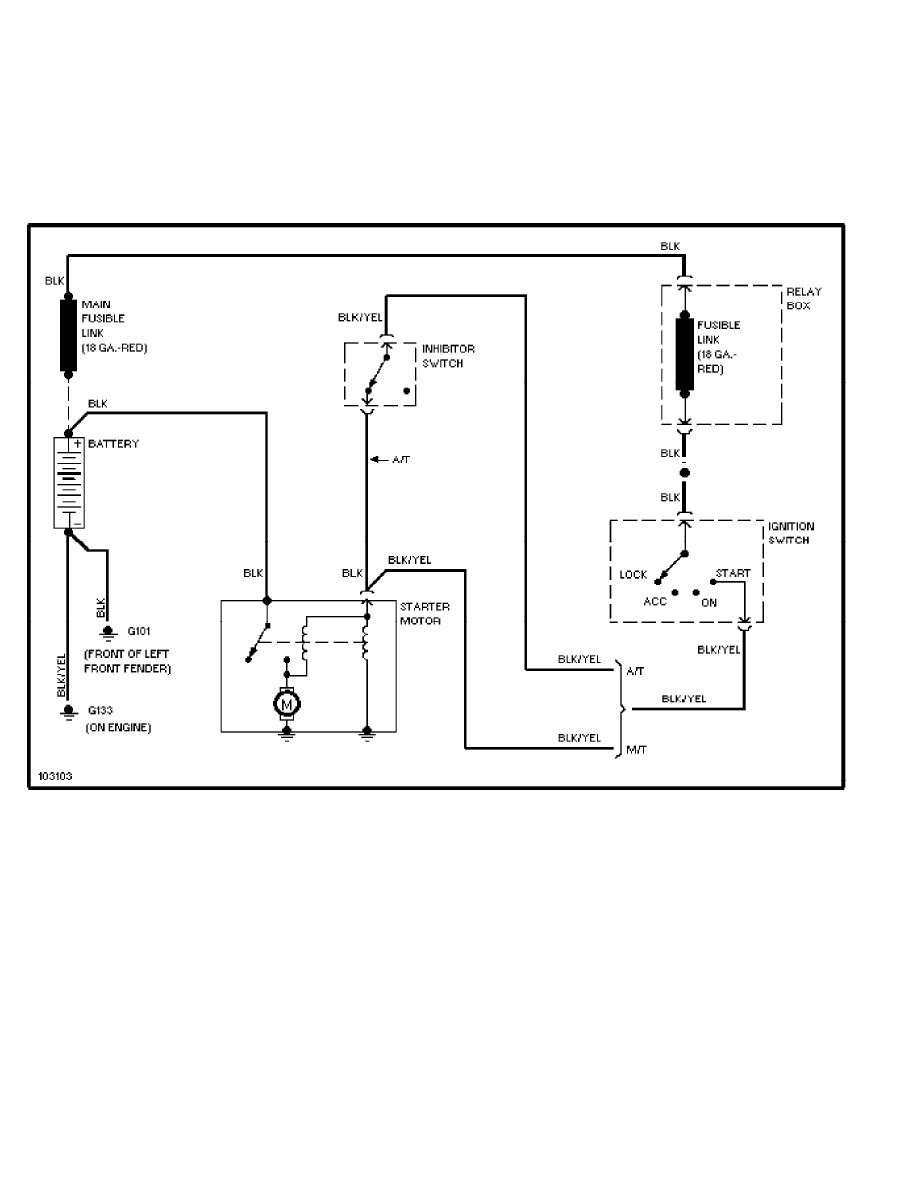

Starting Circuit (p. 10)
1988 Mitsubishi Cordia
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 17, 2005 12:37PM
SYSTEM WIRING DIAGRAMS
Front Washer/Wiper Circuit (p. 11)
1988 Mitsubishi Cordia
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 17, 2005 12:37PM
SYSTEM WIRING DIAGRAMS

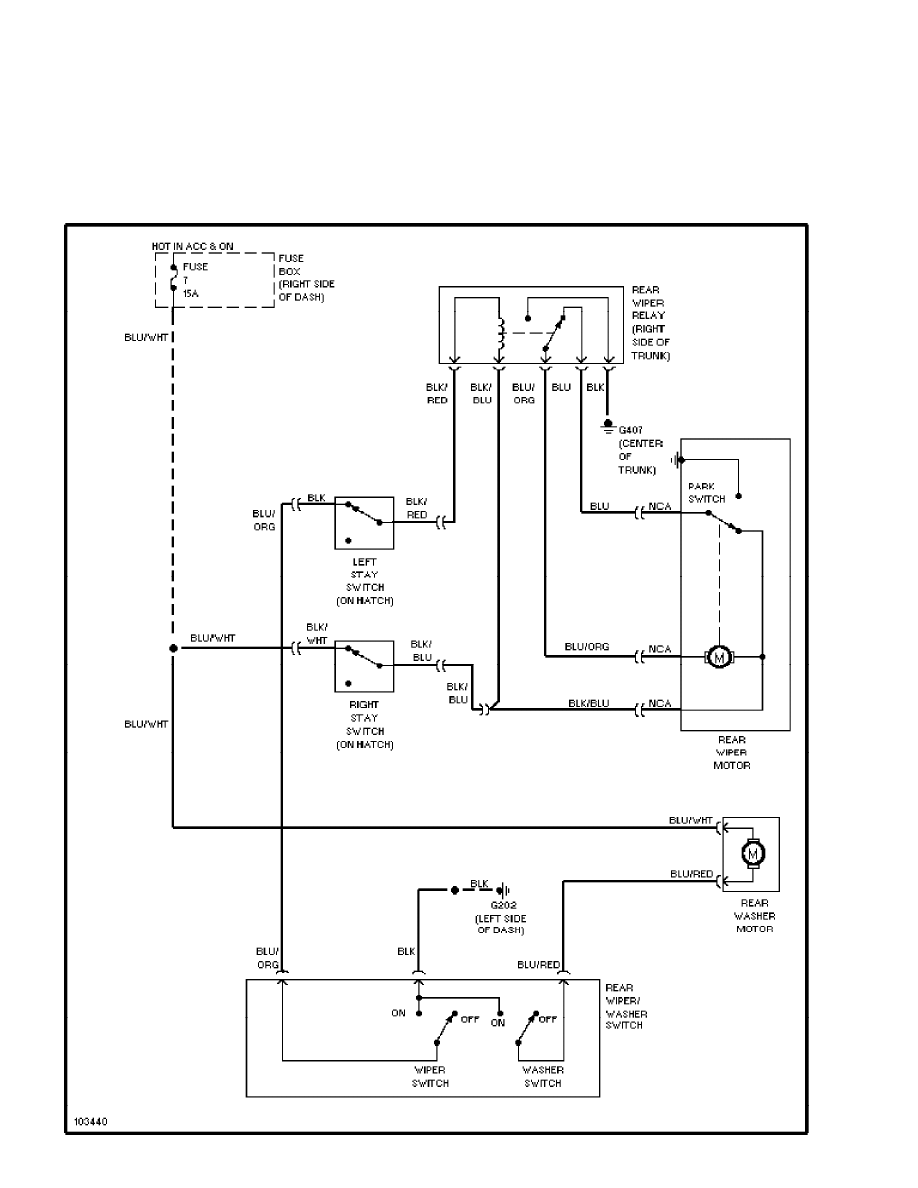

Rear Washer/Wiper Circuit (p. 12)
1988 Mitsubishi Cordia
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 17, 2005 12:37PM

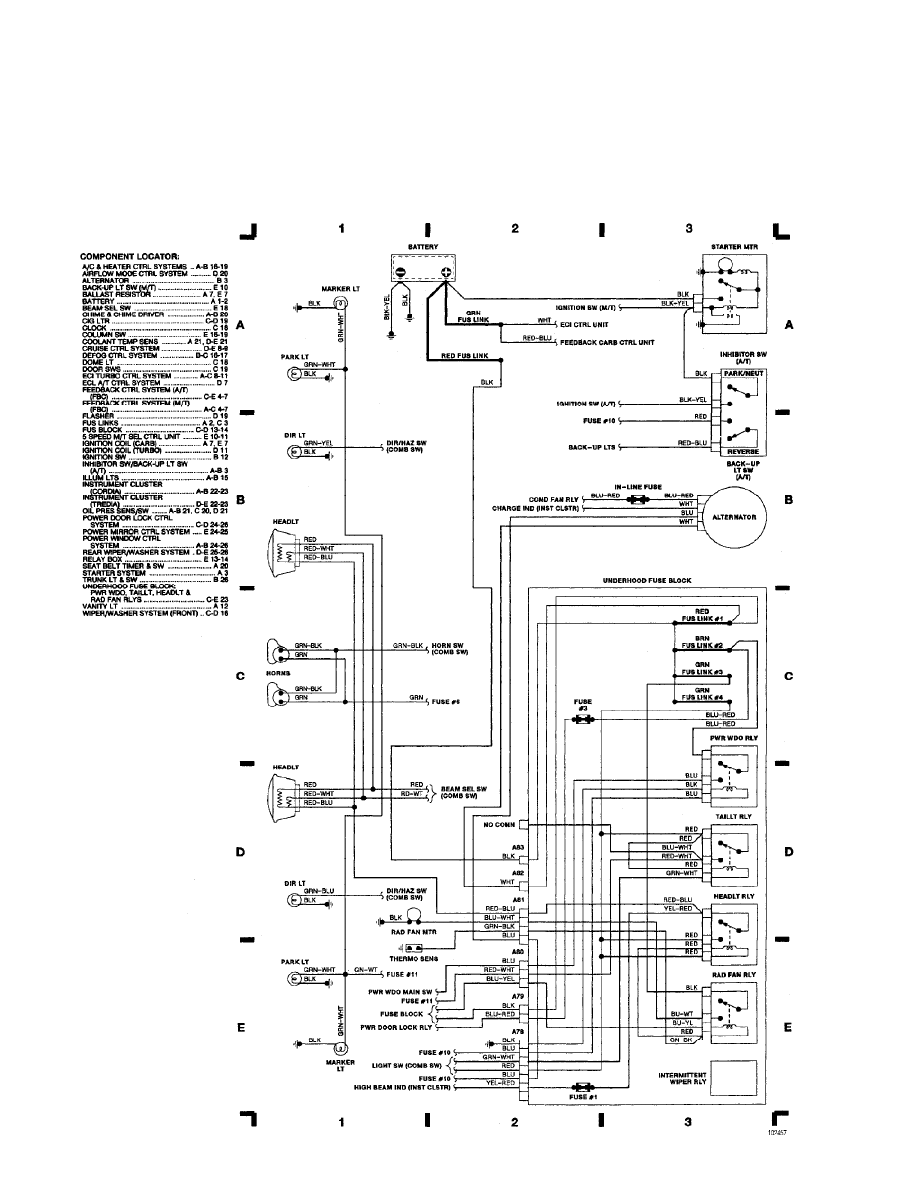

WIRING DIAGRAMS
Fig. 1: Engine Compartment & Headlights
1988 Mitsubishi Cordia
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 17, 2005 12:37PM

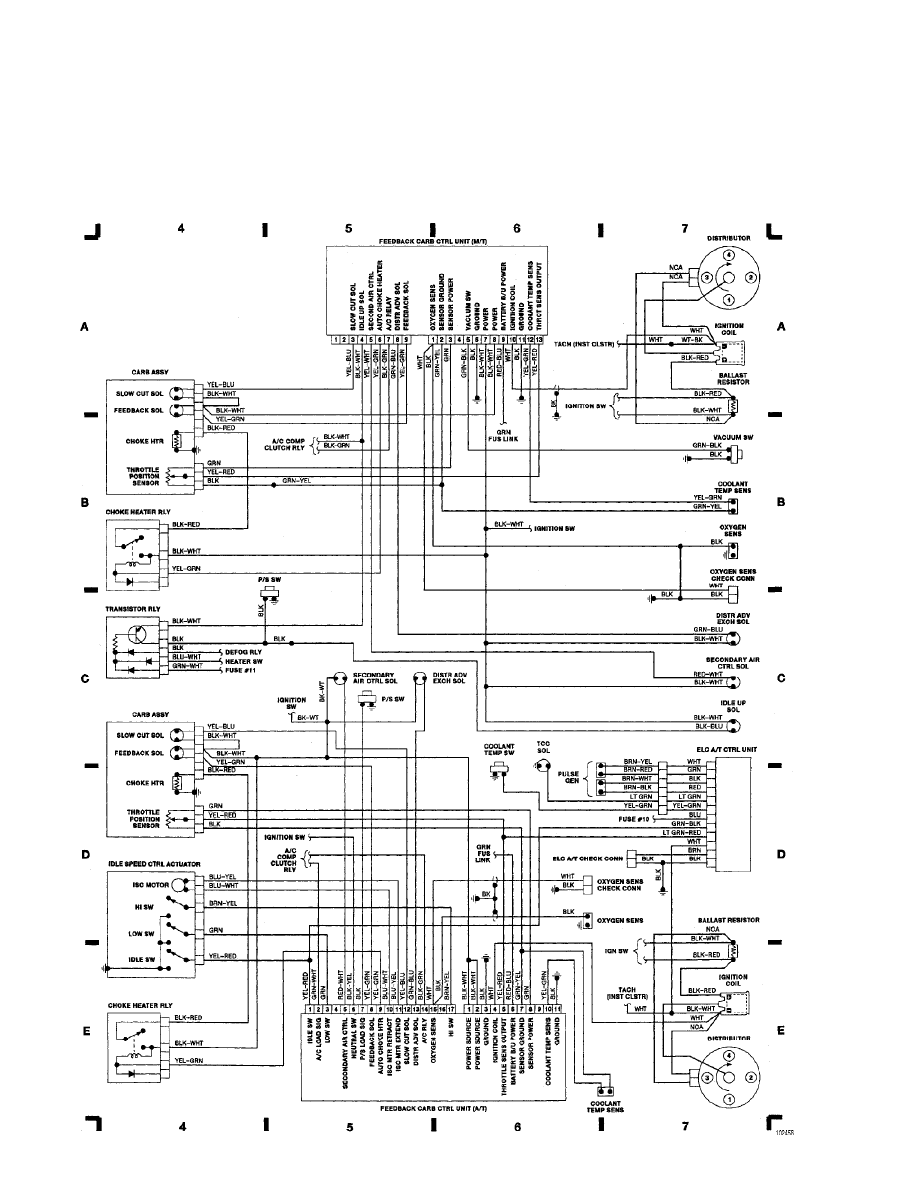

WIRING DIAGRAMS
Fig. 2: Computer Engine Control (Carbureted w/ Man. Trans.) (p. 2)
1988 Mitsubishi Cordia
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 17, 2005 12:37PM
WIRING DIAGRAMS

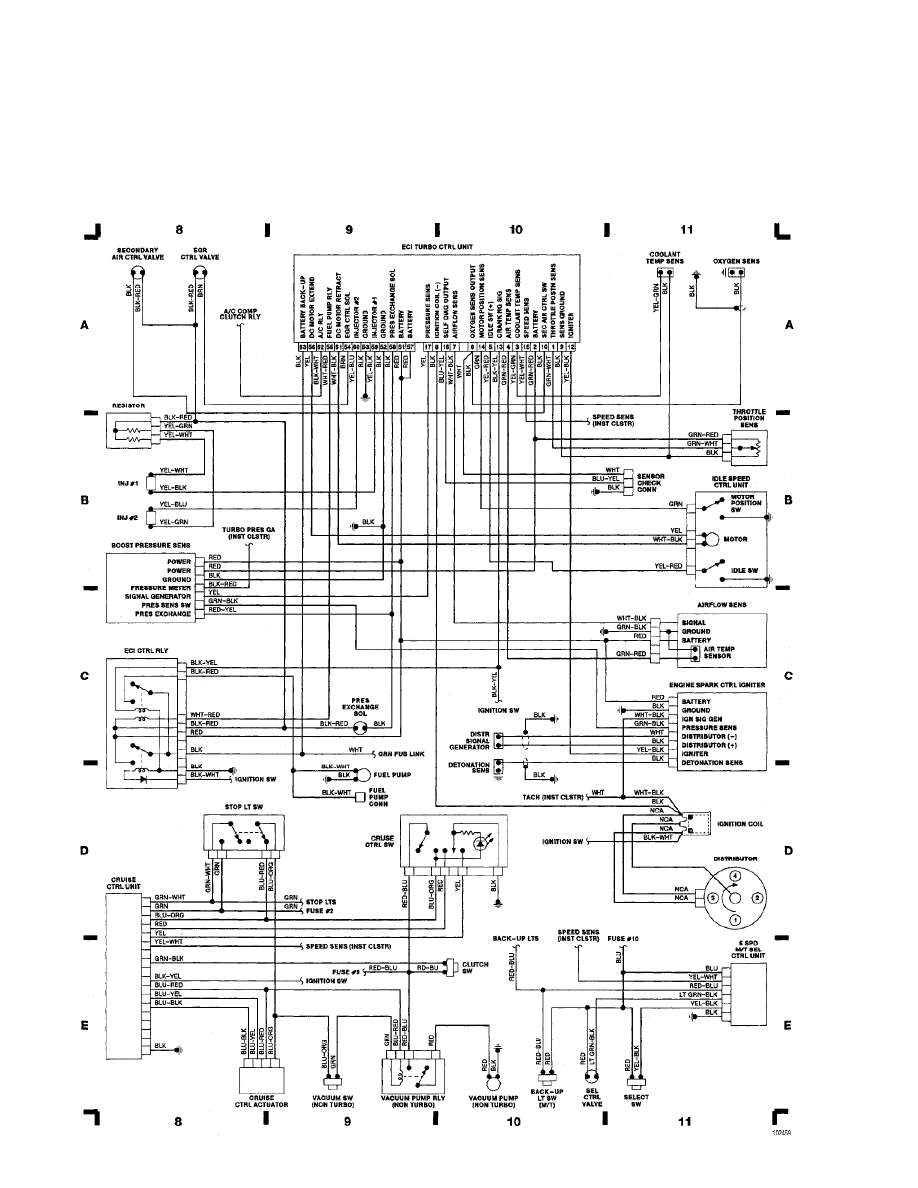

Fig. 3: Computer Engine Control (Fuel Injected Turbo) (p. 3)
1988 Mitsubishi Cordia
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 17, 2005 12:37PM
WIRING DIAGRAMS

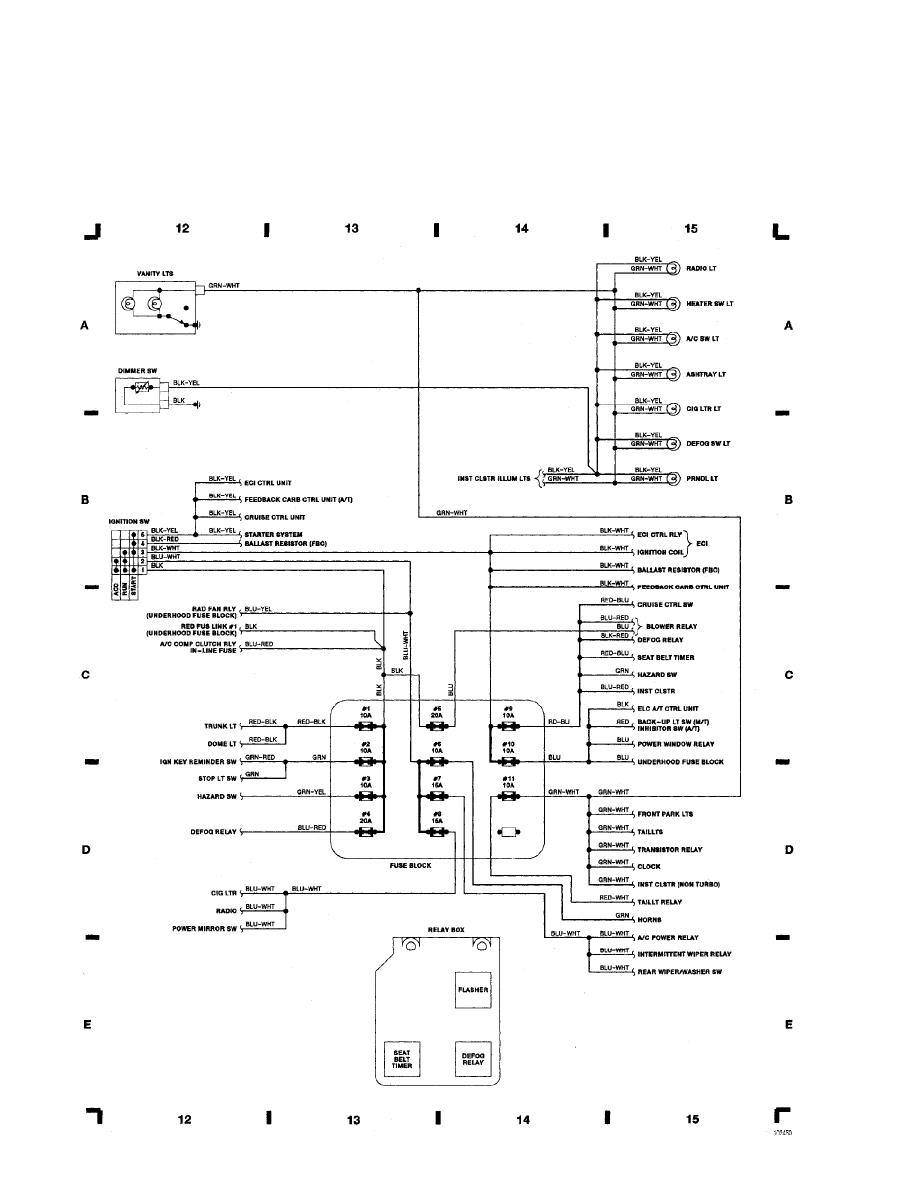

Fig. 4: Fuse Block (p. 4)
1988 Mitsubishi Cordia
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 17, 2005 12:37PM

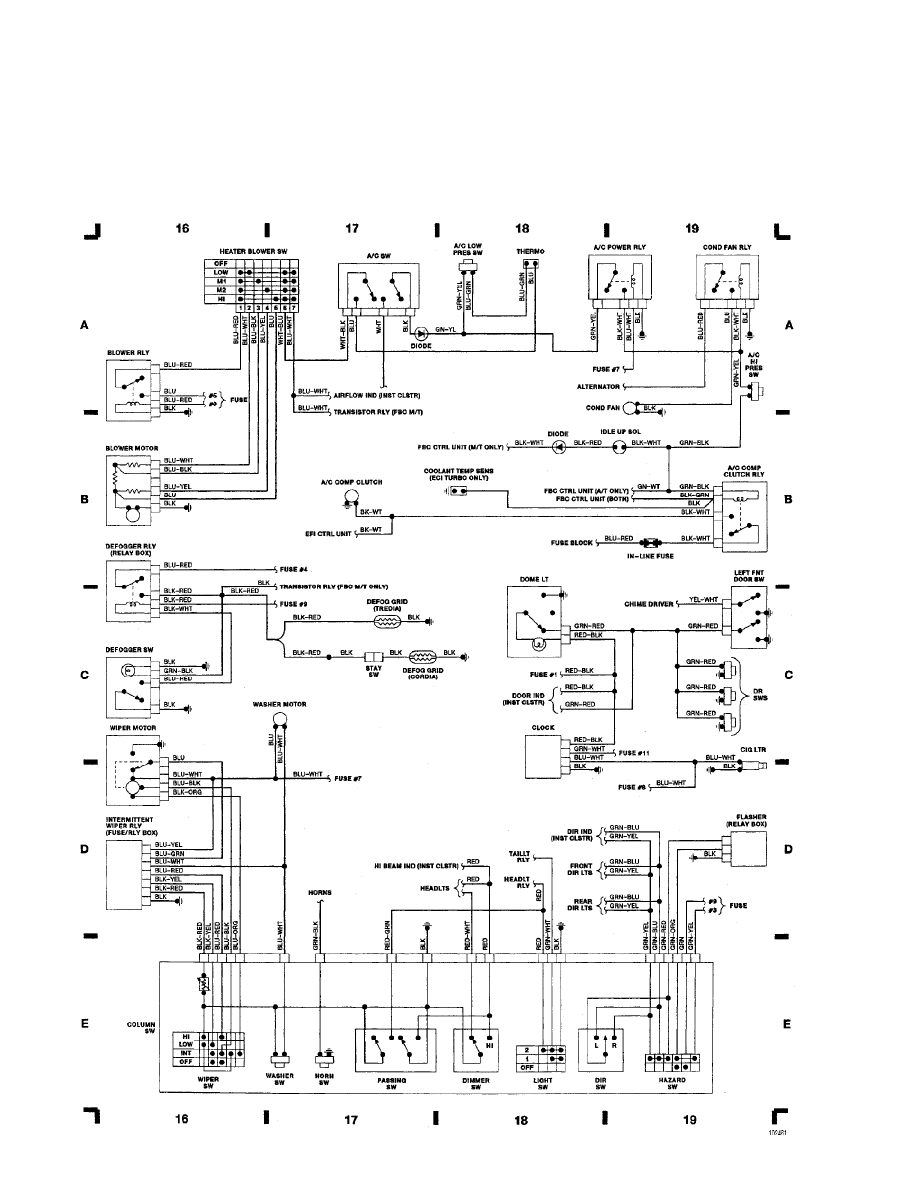

WIRING DIAGRAMS
Fig. 5: A/C & Heating, Underdash & Steering Column Switches (p. 5)
1988 Mitsubishi Cordia
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 17, 2005 12:37PM
WIRING DIAGRAMS

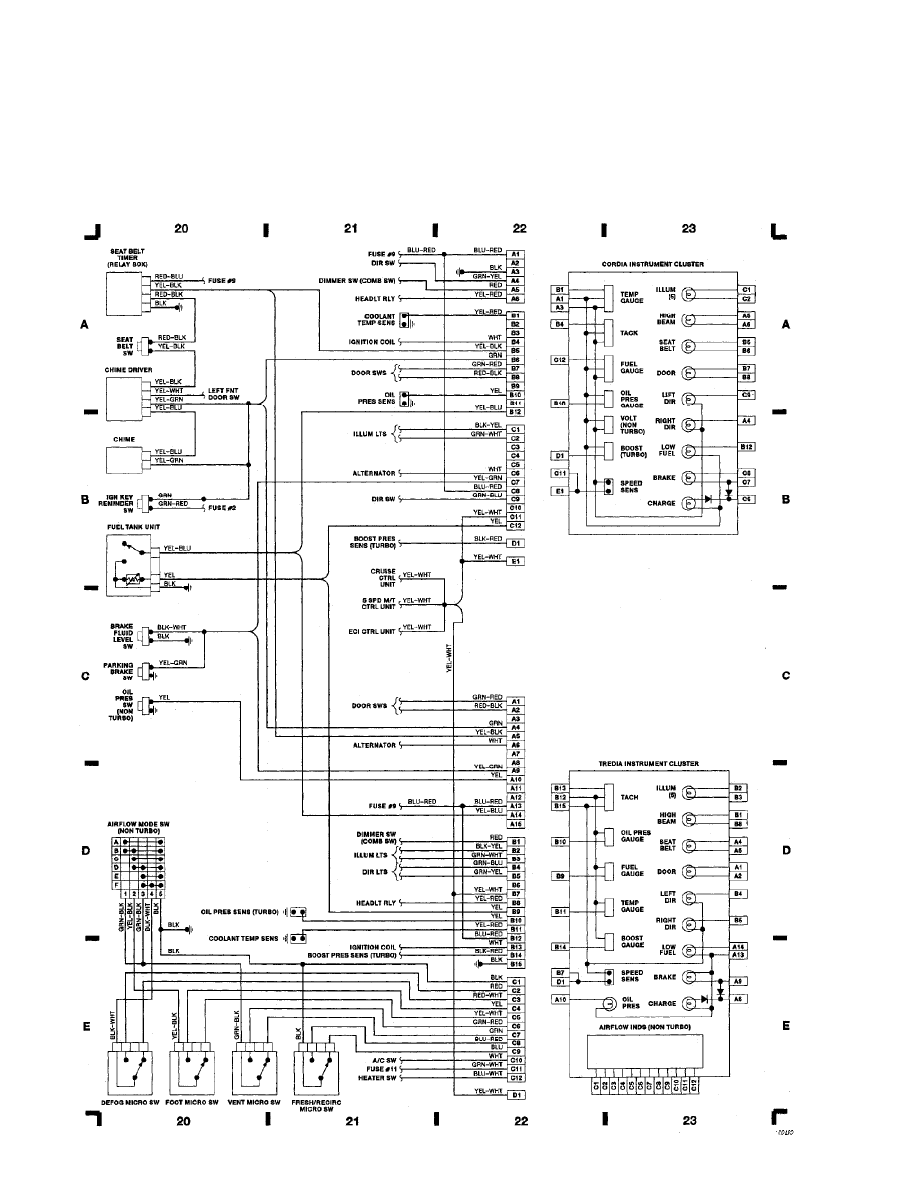

Fig. 6: Instrument Panel & Accessories (p. 6)
1988 Mitsubishi Cordia
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 17, 2005 12:37PM
WIRING DIAGRAMS

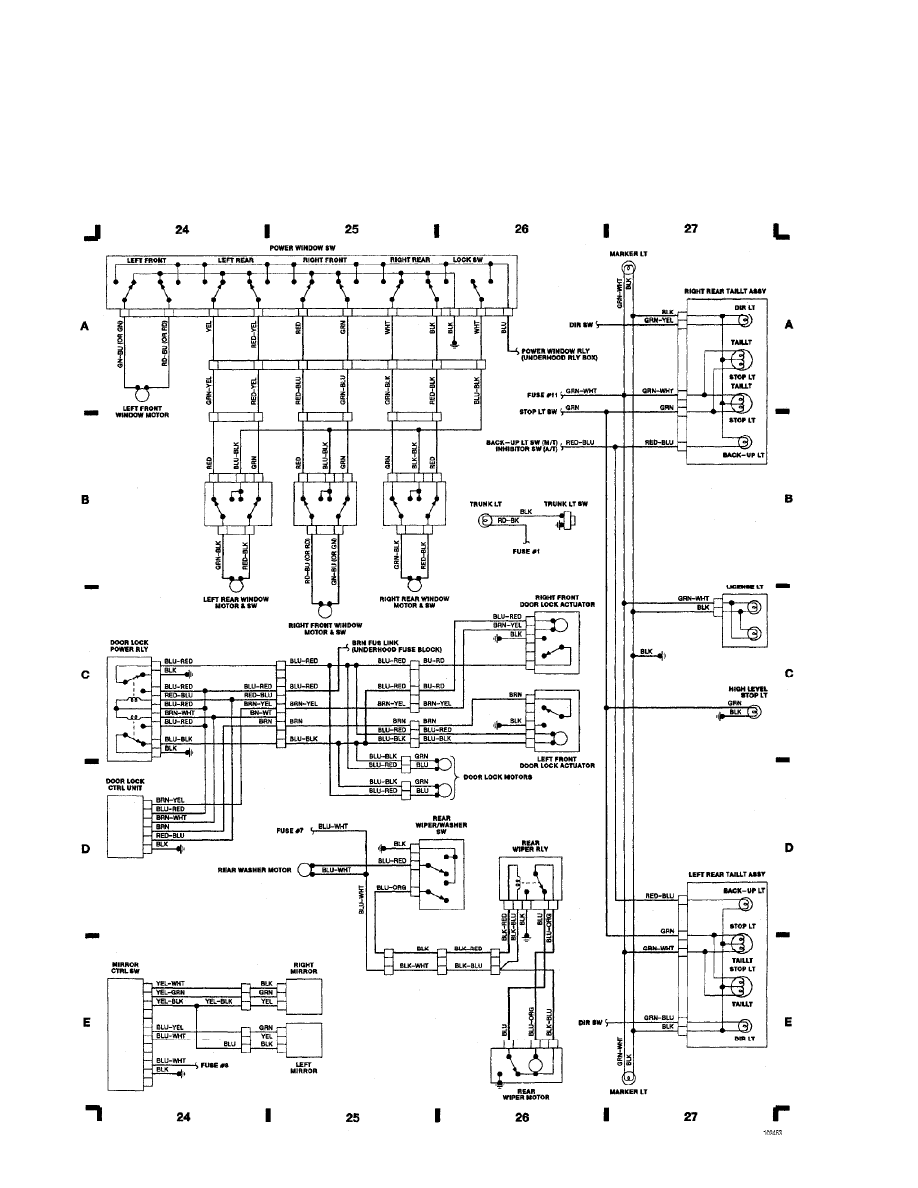

Fig. 7: Passenger Compartment & Taillights (p. 7)
1988 Mitsubishi Cordia
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 17, 2005 12:37PM
