CHRYSLER PT CRUISER 2002

SYSTEM WIRING DIAGRAMS

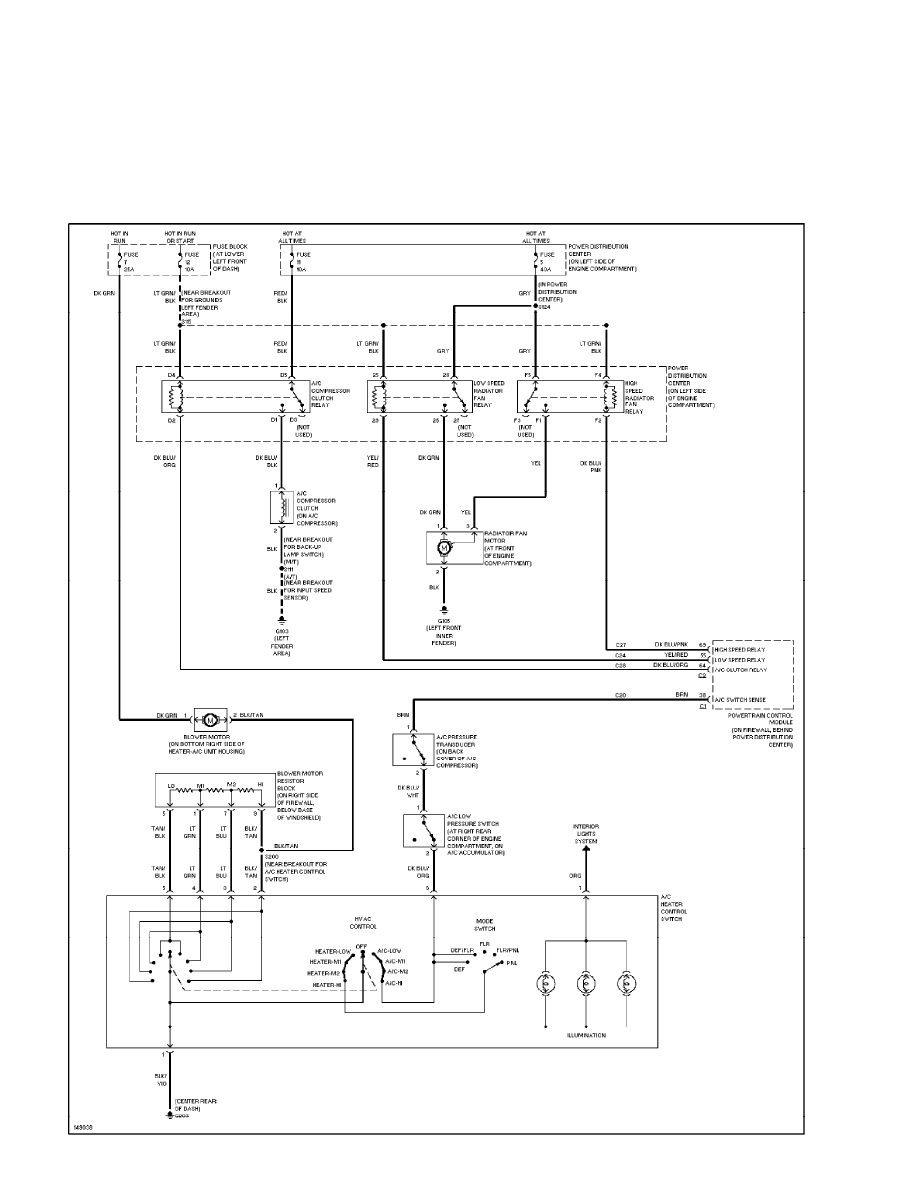

Manual A/C Circuit

2002 Chrysler PT Cruiser

For x

Thursday, January 06, 2005 07:54PM

SYSTEM WIRING DIAGRAMS

Anti-lock Brake Circuits (p. 2)

2002 Chrysler PT Cruiser

For x

Thursday, January 06, 2005 07:54PM

SYSTEM WIRING DIAGRAMS

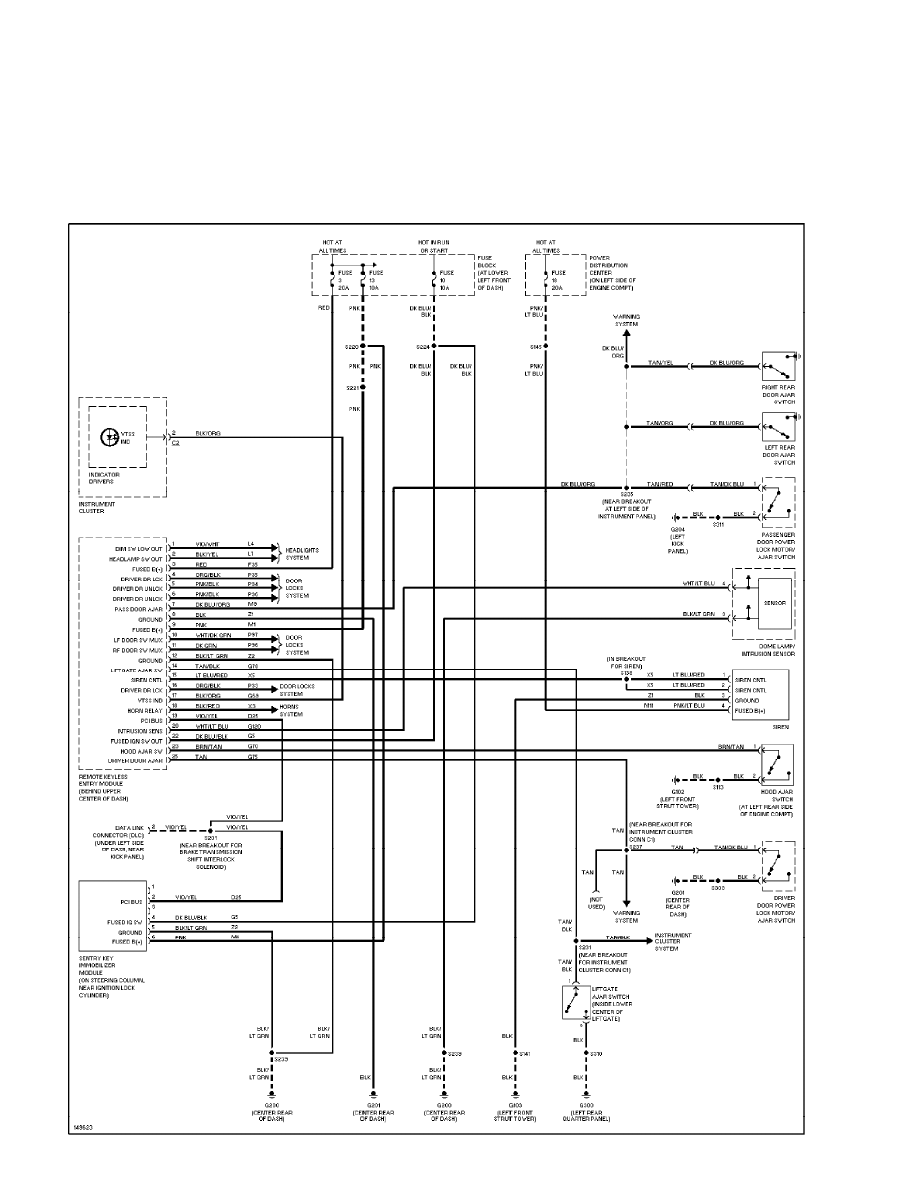

Anti-theft Circuit (p. 3)

2002 Chrysler PT Cruiser

For x

Thursday, January 06, 2005 07:54PM

SYSTEM WIRING DIAGRAMS

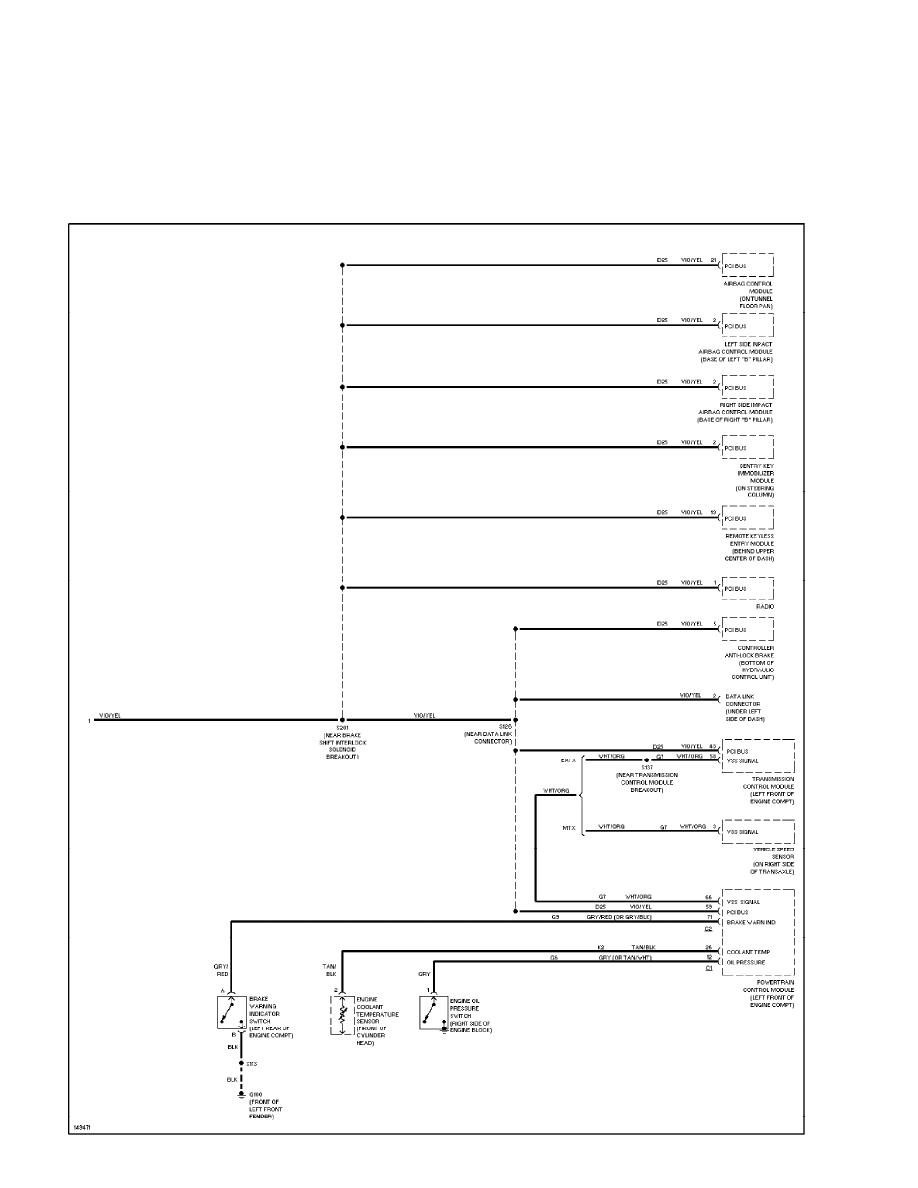

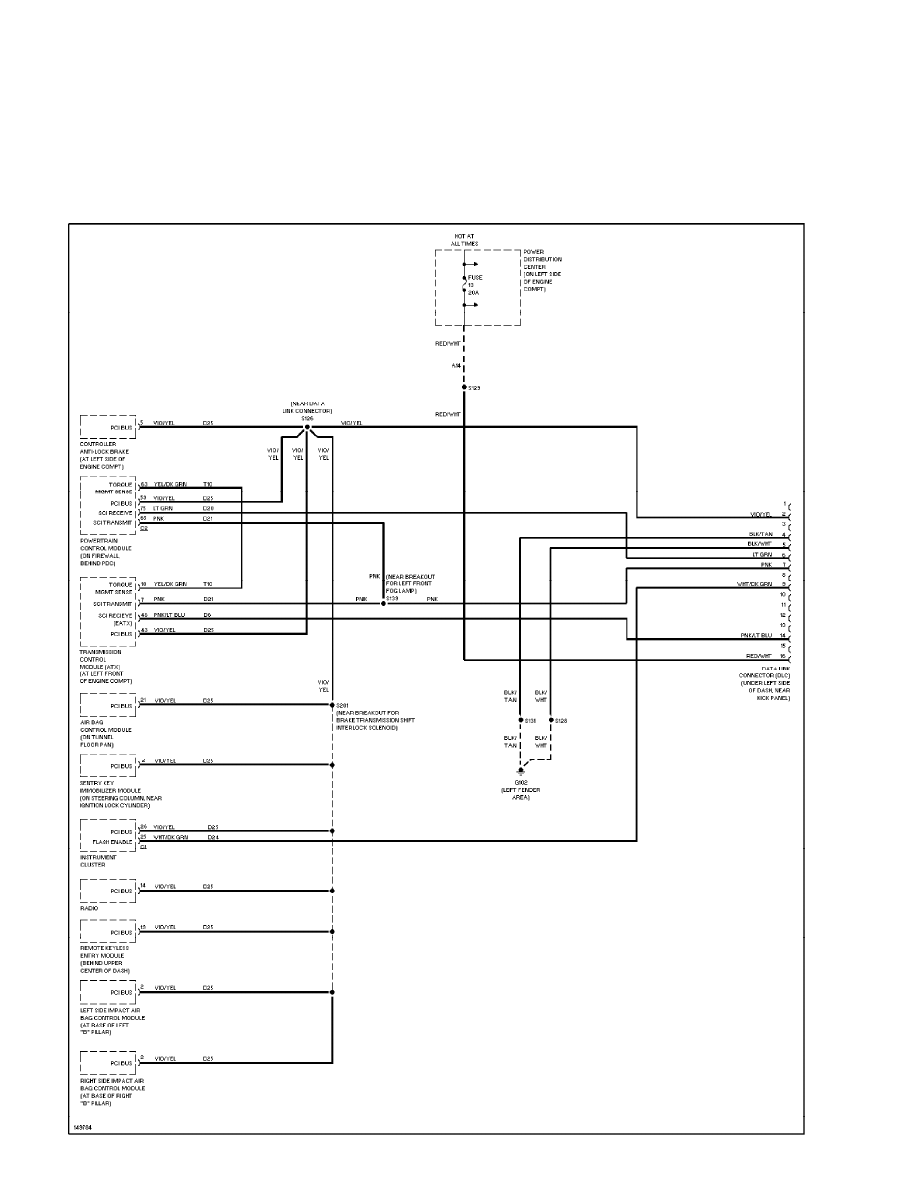

Computer Data Lines (p. 4)

2002 Chrysler PT Cruiser

For x

Thursday, January 06, 2005 07:54PM

SYSTEM WIRING DIAGRAMS

Cooling Fan Circuit (p. 5)

2002 Chrysler PT Cruiser

For x

Thursday, January 06, 2005 07:54PM

SYSTEM WIRING DIAGRAMS

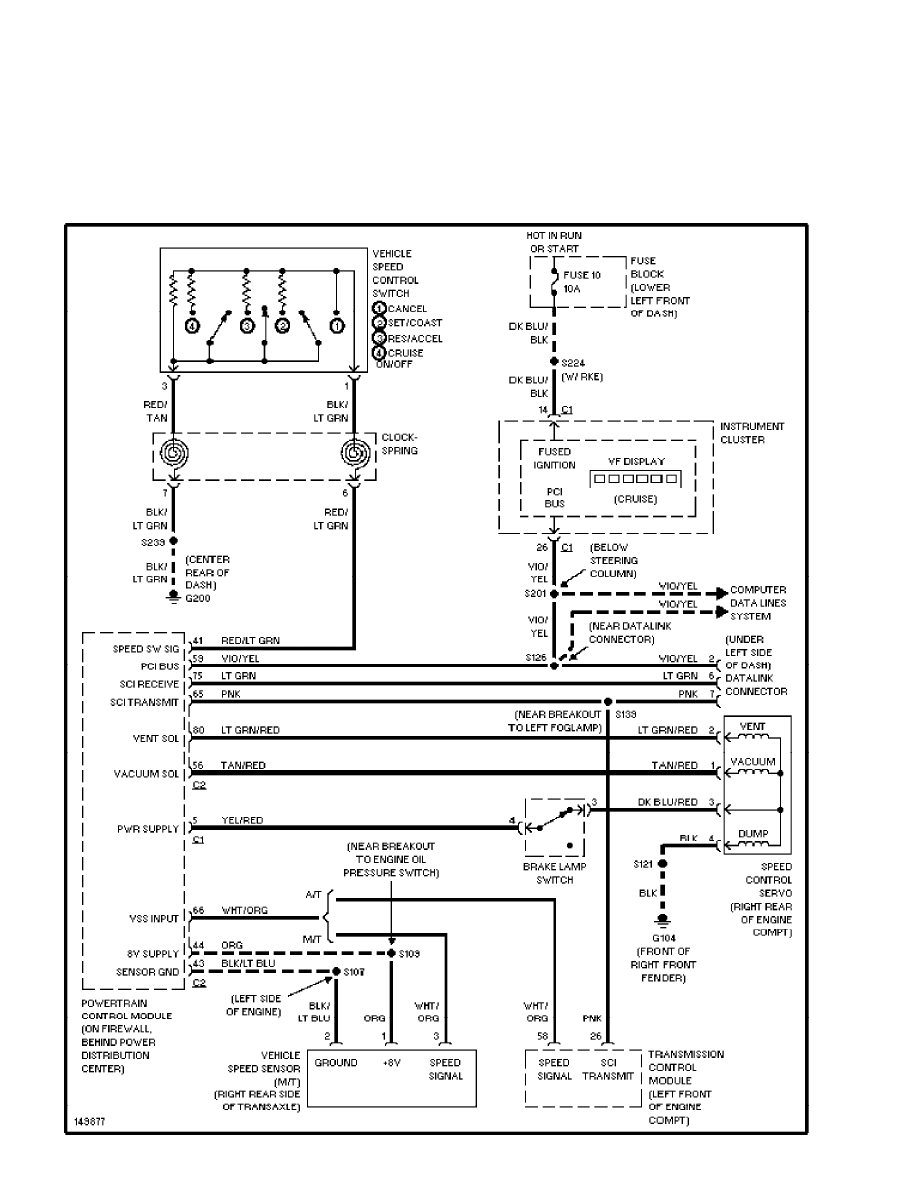

Cruise Control Circuit (p. 6)

2002 Chrysler PT Cruiser

For x

Thursday, January 06, 2005 07:54PM

SYSTEM WIRING DIAGRAMS

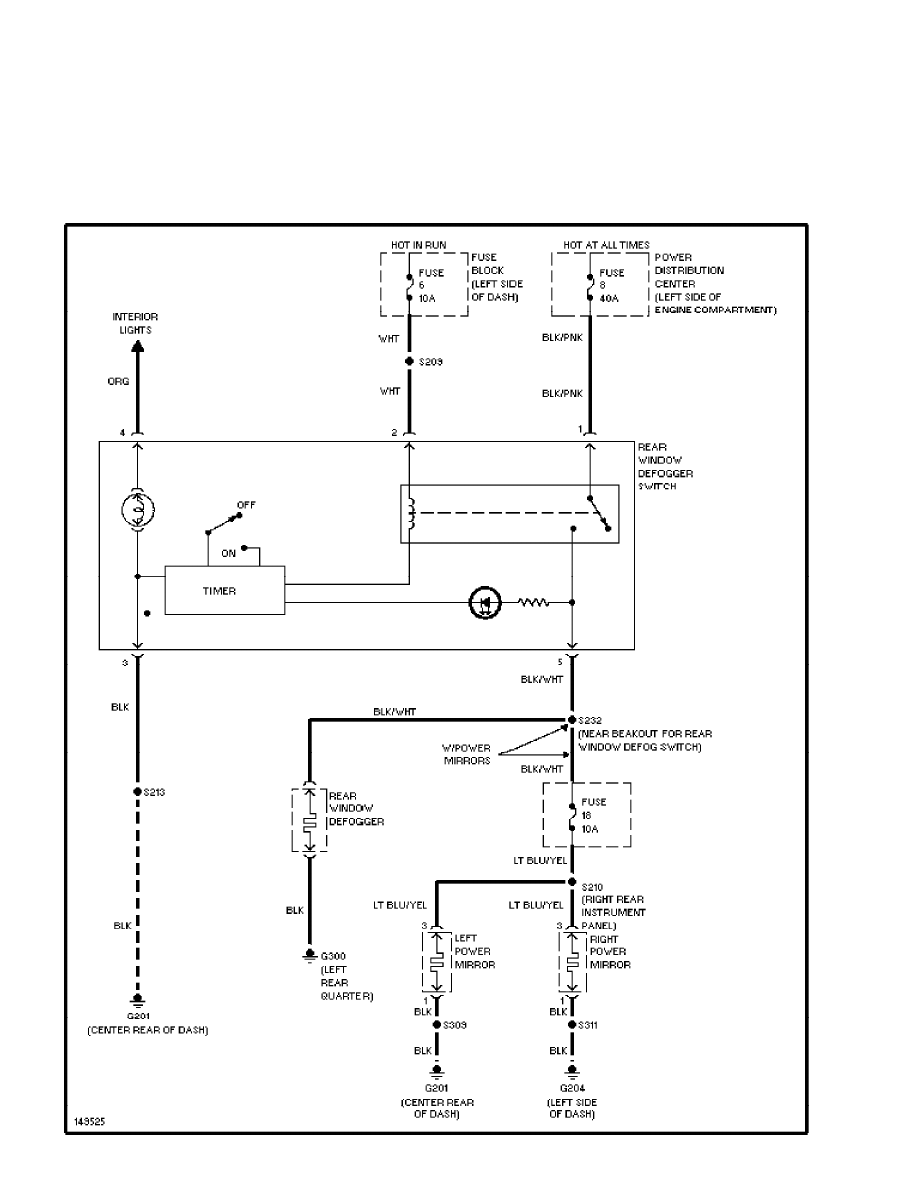

Defogger Circuit (p. 7)

2002 Chrysler PT Cruiser

For x

Thursday, January 06, 2005 07:54PM

SYSTEM WIRING DIAGRAMS

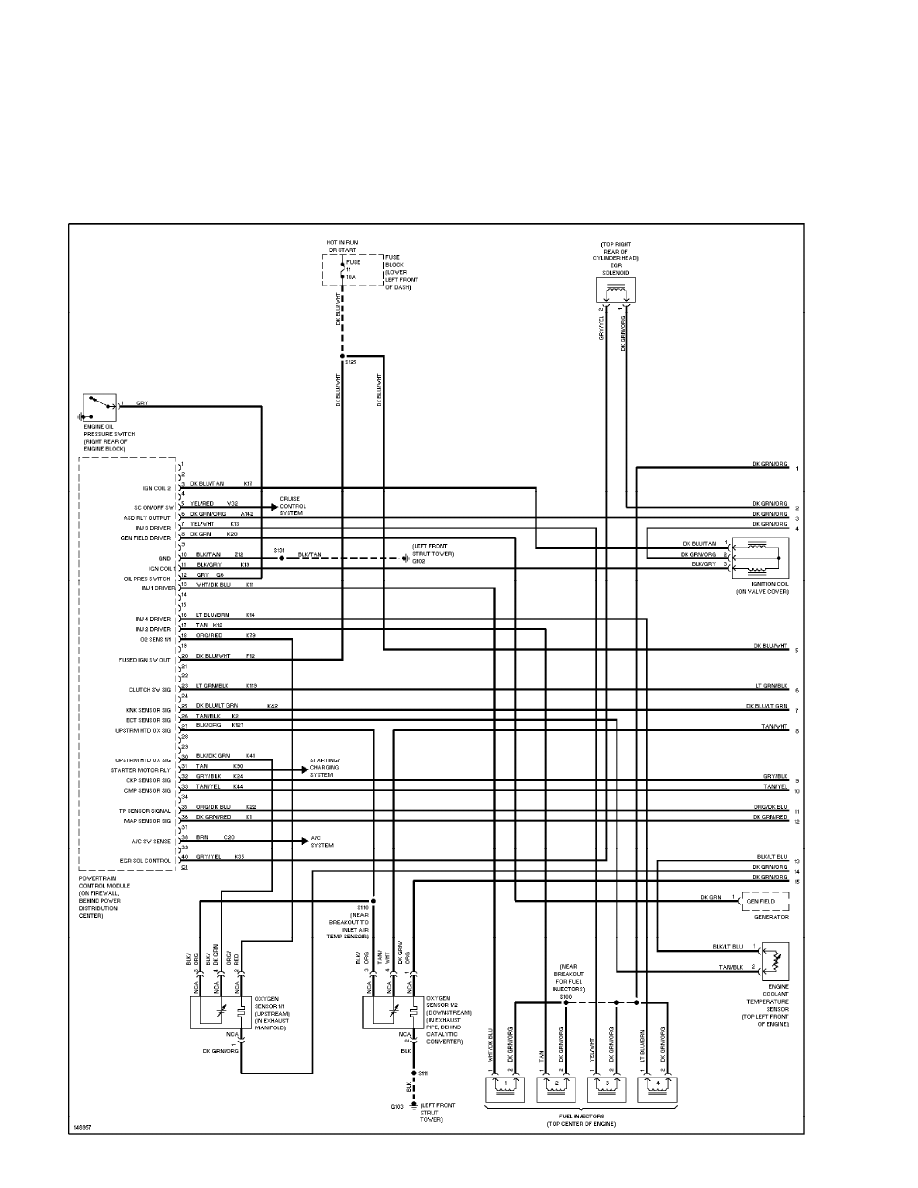

2.4L, Engine Performance Circuits (1 of 3) (p. 8)

2002 Chrysler PT Cruiser

For x

Thursday, January 06, 2005 07:54PM

SYSTEM WIRING DIAGRAMS

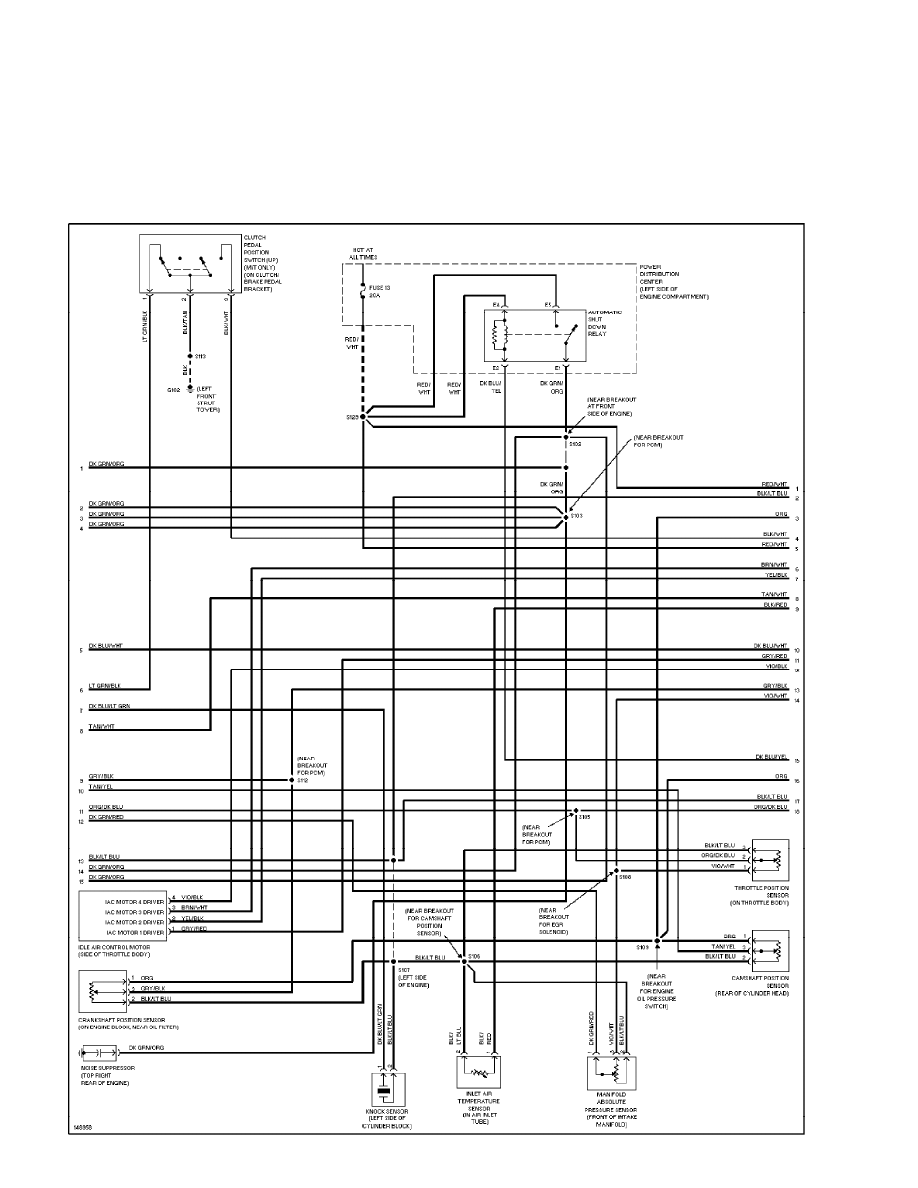

2.4L, Engine Performance Circuits (2 of 3) (p. 9)

2002 Chrysler PT Cruiser

For x

Thursday, January 06, 2005 07:54PM

SYSTEM WIRING DIAGRAMS

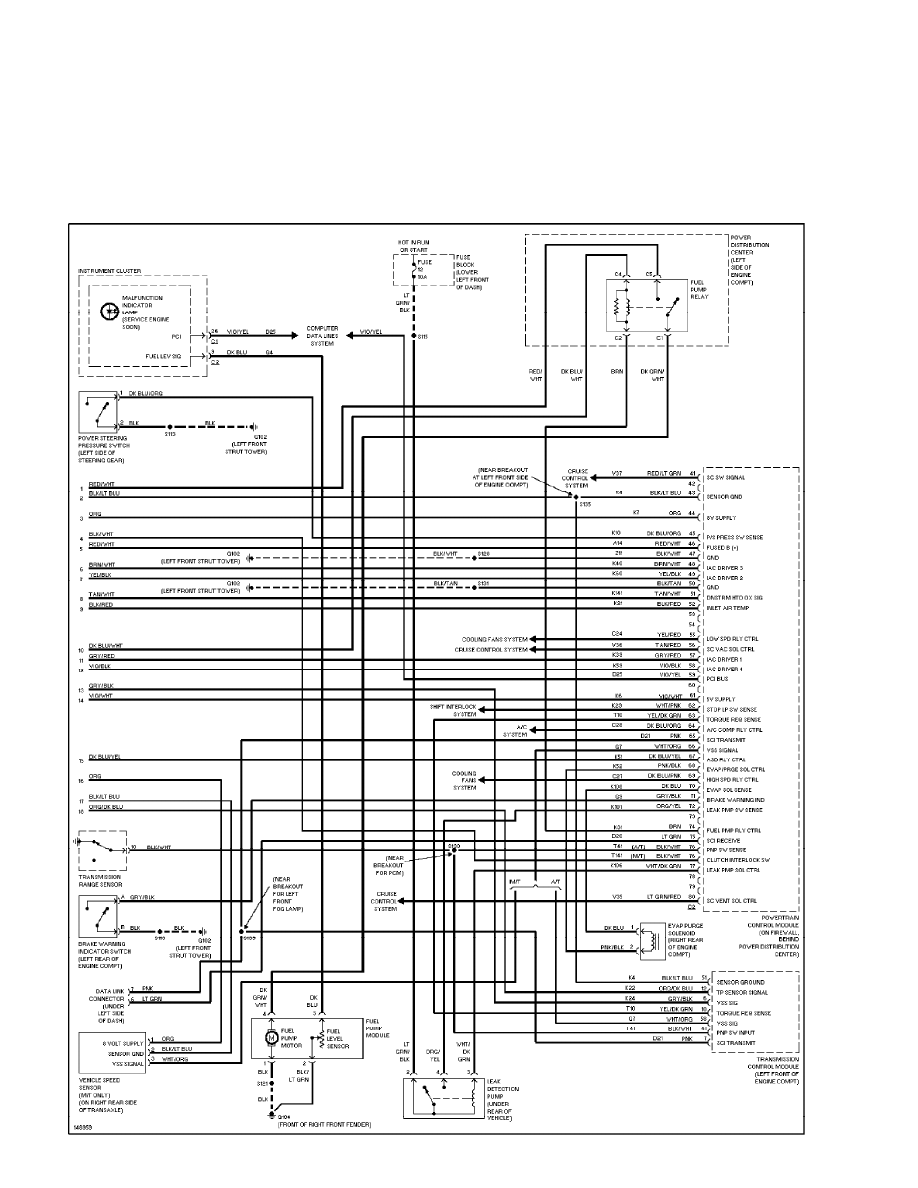

2.4L, Engine Performance Circuits (3 of 3) (p. 10)

2002 Chrysler PT Cruiser

For x

Thursday, January 06, 2005 07:54PM

SYSTEM WIRING DIAGRAMS

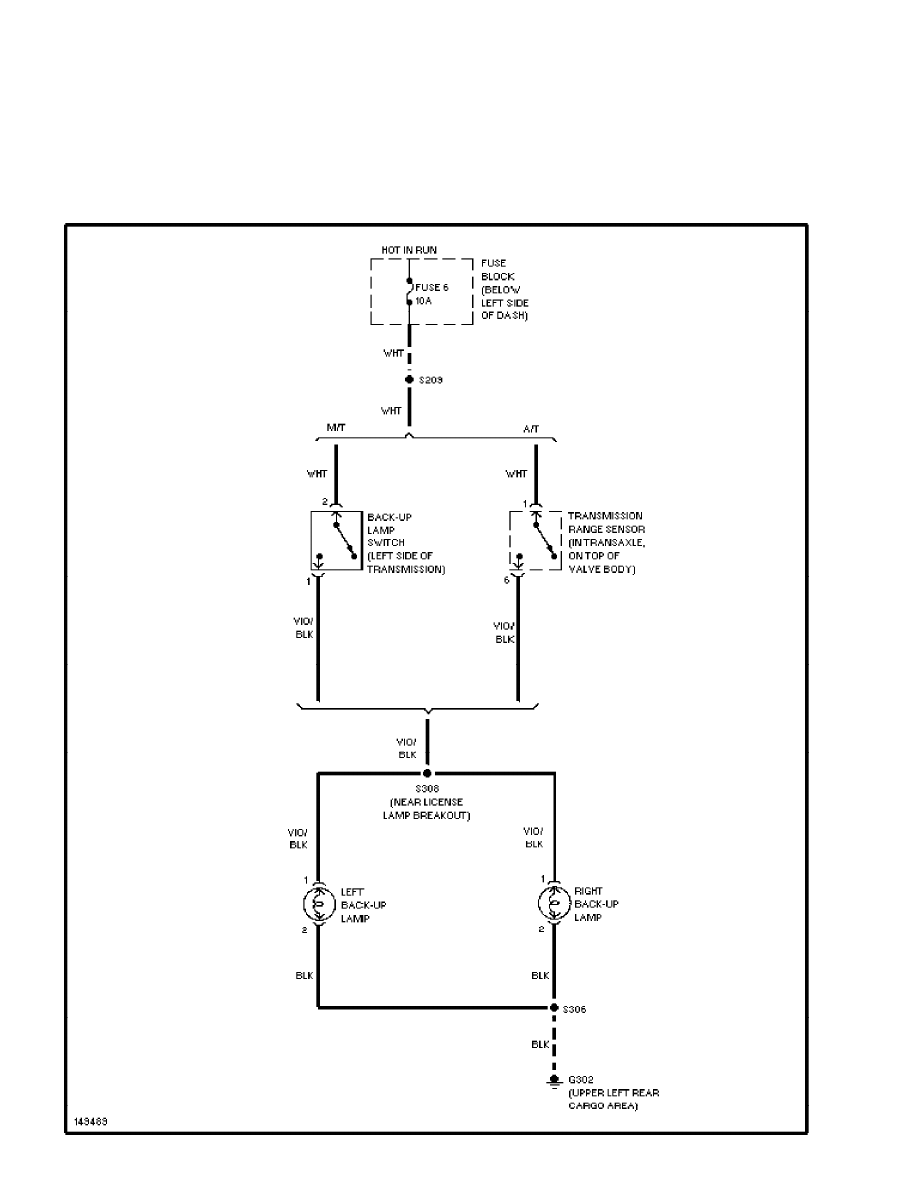

Back-up Lamps Circuit (p. 11)

2002 Chrysler PT Cruiser

For x

Thursday, January 06, 2005 07:54PM

SYSTEM WIRING DIAGRAMS

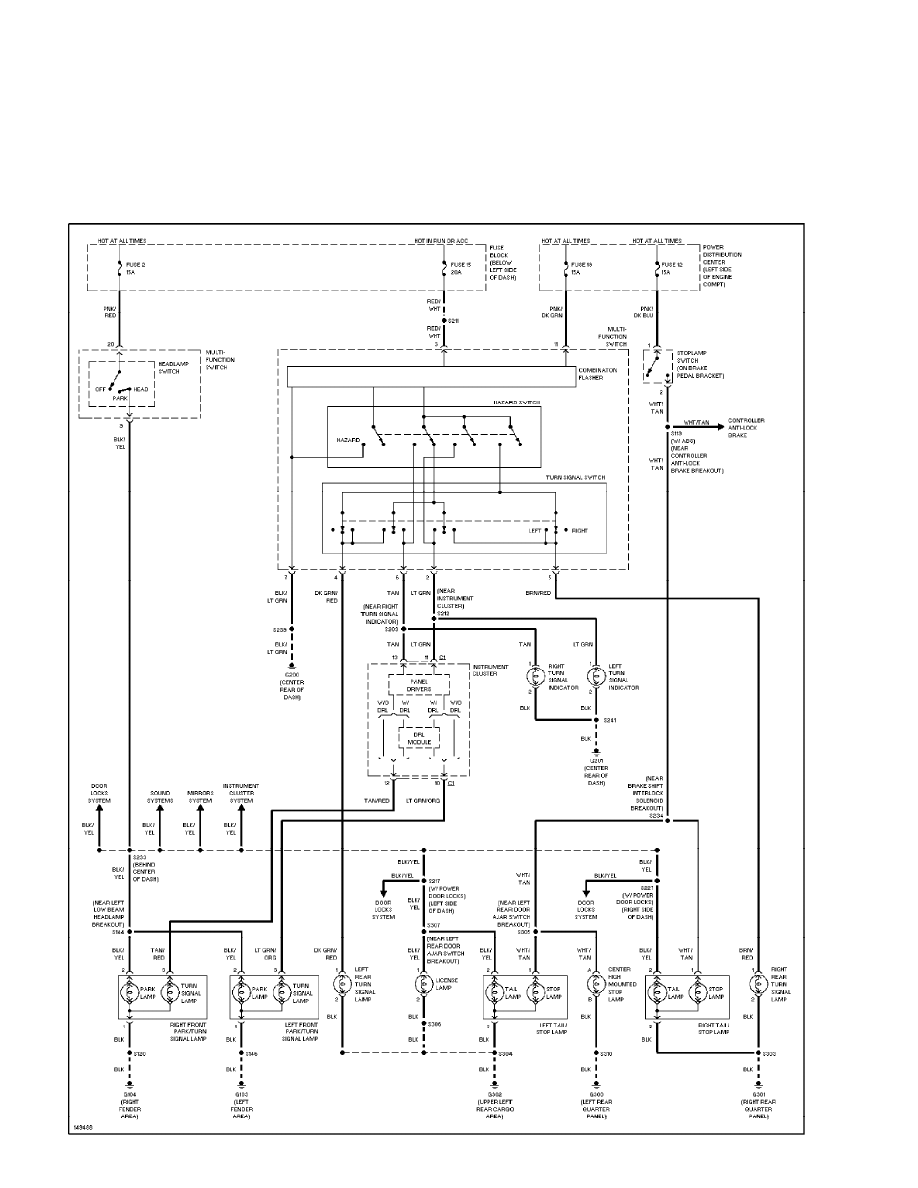

Exterior Lamps Circuit (p. 12)

2002 Chrysler PT Cruiser

For x

Thursday, January 06, 2005 07:54PM

SYSTEM WIRING DIAGRAMS

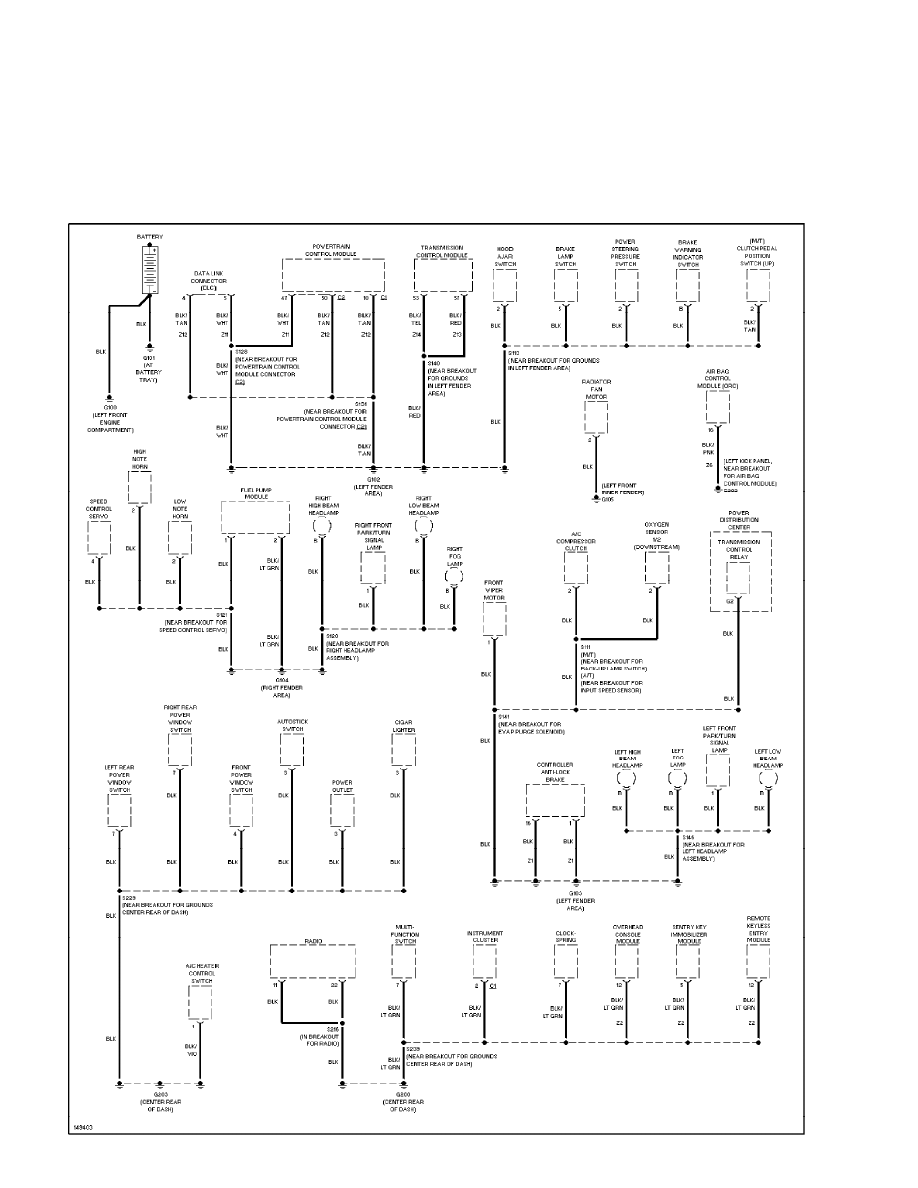

Ground Distribution Circuit (1 of 2) (p. 13)

2002 Chrysler PT Cruiser

For x

Thursday, January 06, 2005 07:54PM

SYSTEM WIRING DIAGRAMS

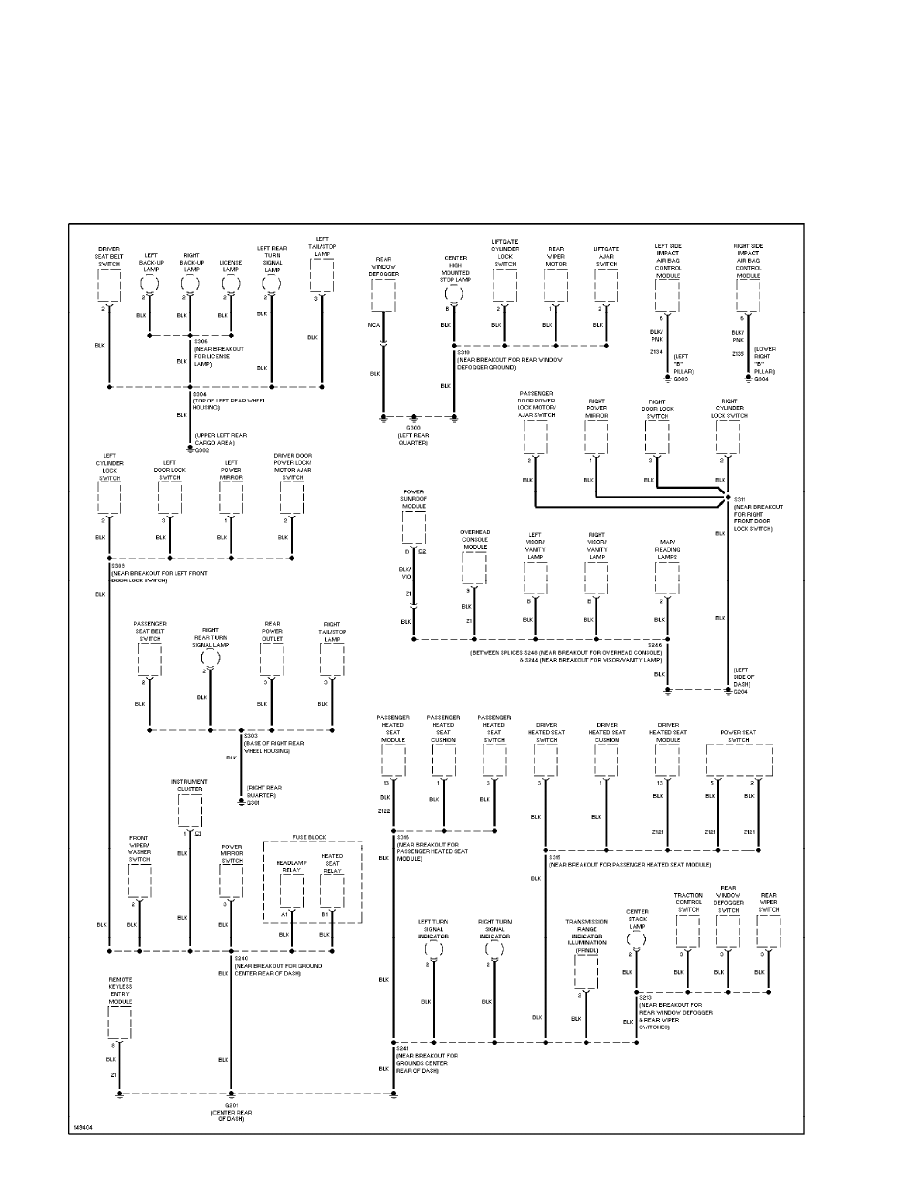

Ground Distribution Circuit (2 of 2) (p. 14)

2002 Chrysler PT Cruiser

For x

Thursday, January 06, 2005 07:54PM

SYSTEM WIRING DIAGRAMS

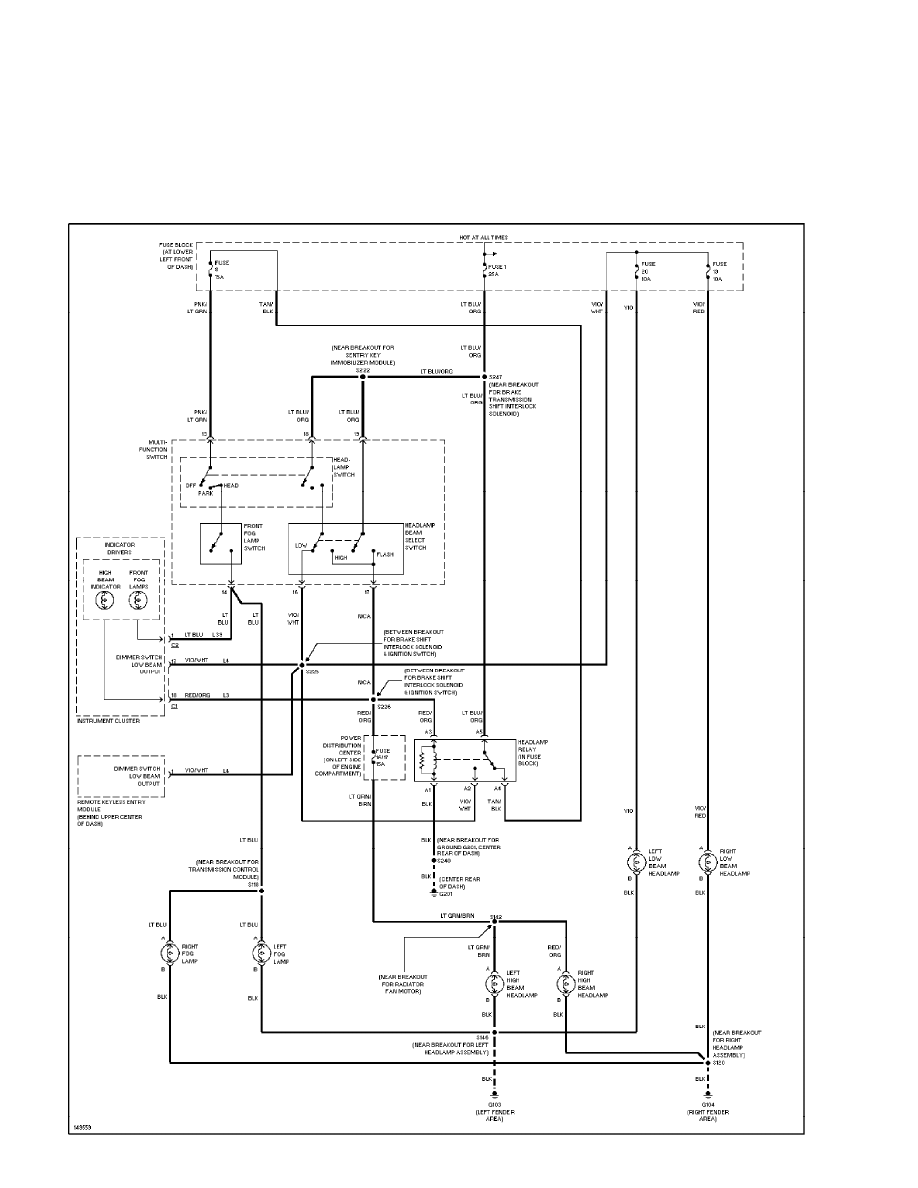

Headlight Circuit (p. 15)

2002 Chrysler PT Cruiser

For x

Thursday, January 06, 2005 07:54PM

SYSTEM WIRING DIAGRAMS

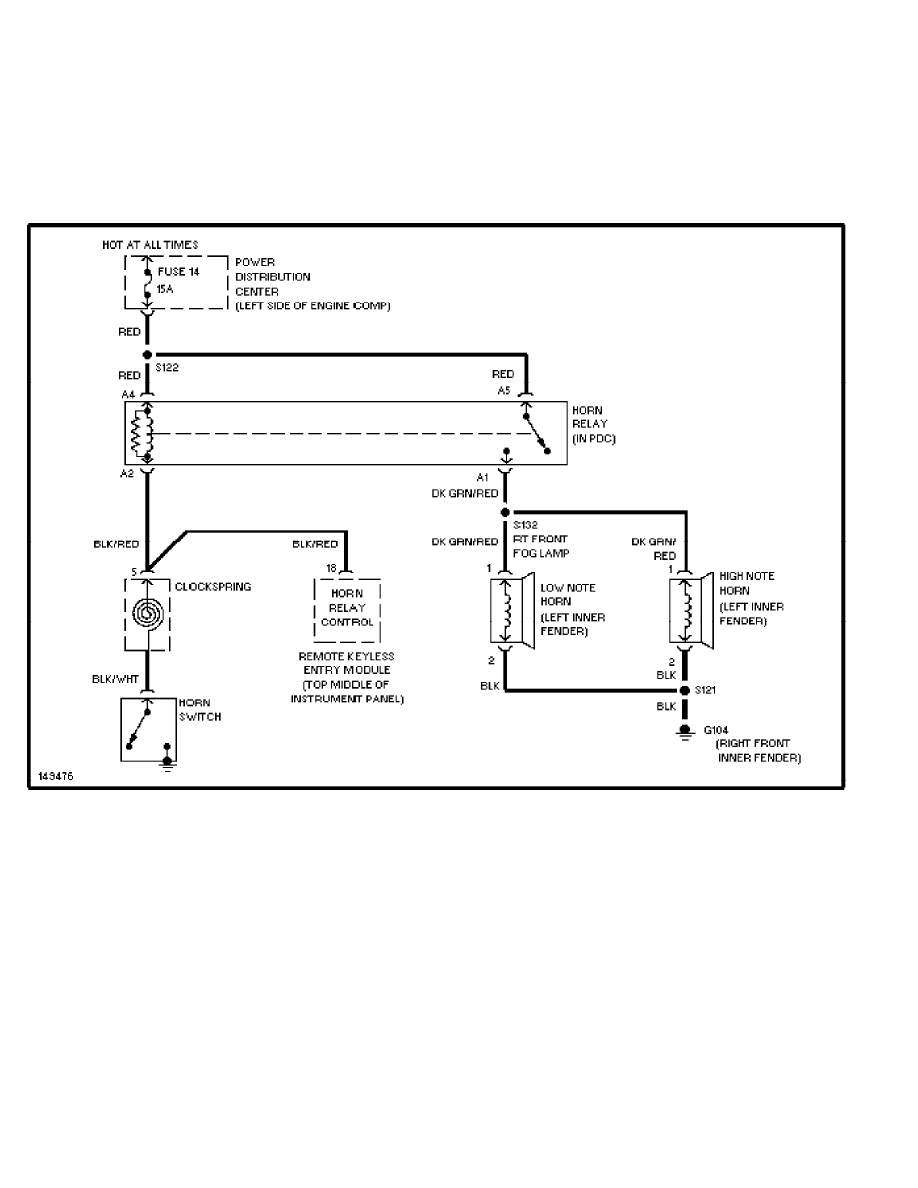

Horn Circuit (p. 16)

2002 Chrysler PT Cruiser

For x

Thursday, January 06, 2005 07:54PM

SYSTEM WIRING DIAGRAMS

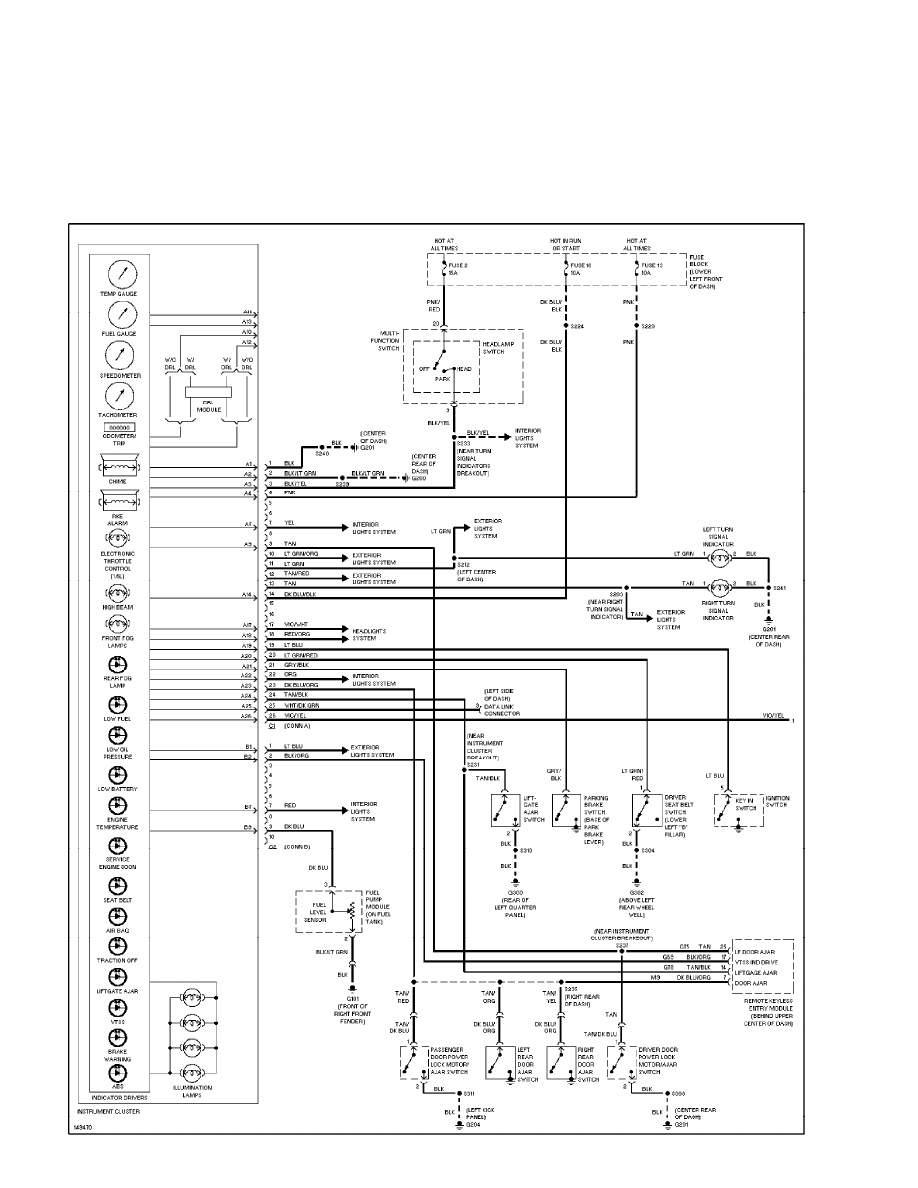

Instrument Cluster Circuit (1 of 2) (p. 17)

2002 Chrysler PT Cruiser

For x

Thursday, January 06, 2005 07:54PM

SYSTEM WIRING DIAGRAMS

Instrument Cluster Circuit (2 of 2) (p. 18)

2002 Chrysler PT Cruiser

For x

Thursday, January 06, 2005 07:54PM

SYSTEM WIRING DIAGRAMS

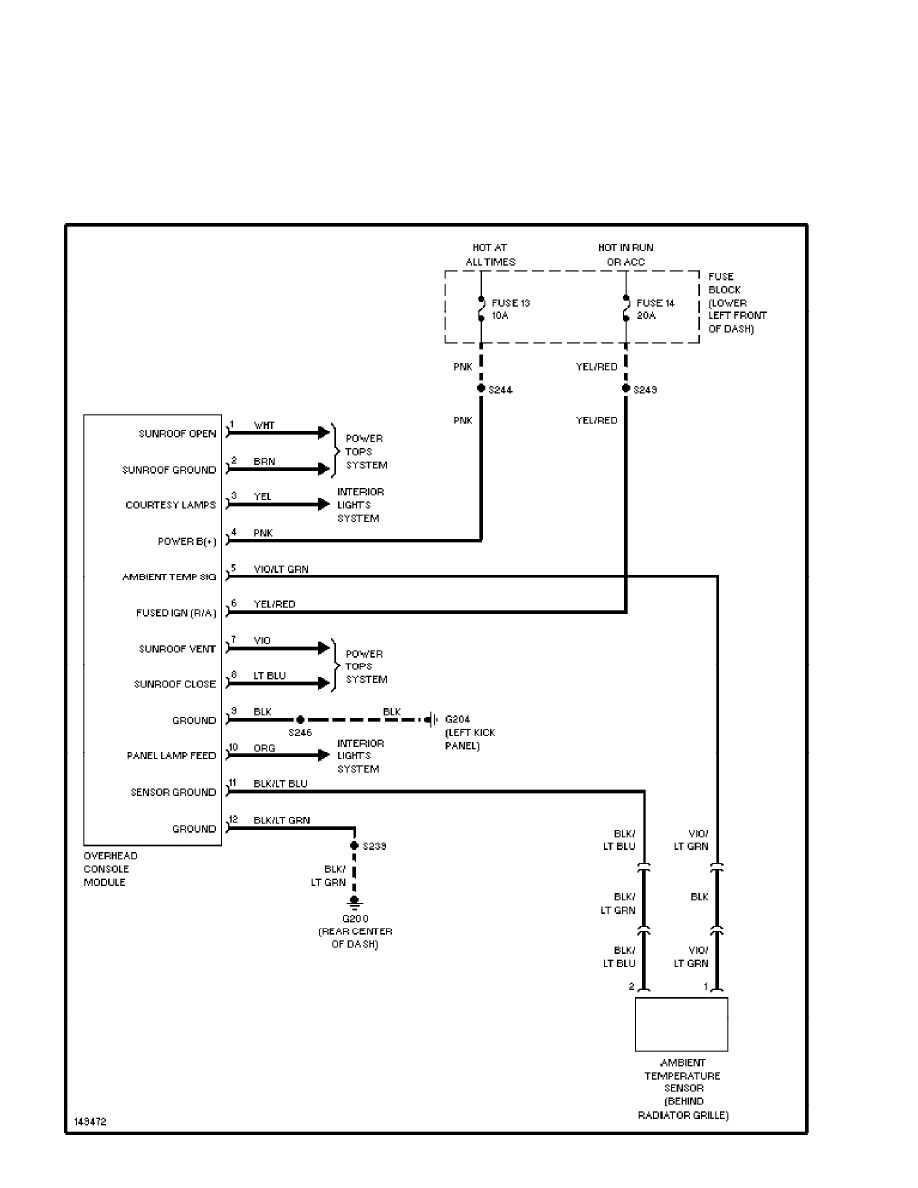

Overhead Console Circuit (p. 19)

2002 Chrysler PT Cruiser

For x

Thursday, January 06, 2005 07:54PM

SYSTEM WIRING DIAGRAMS

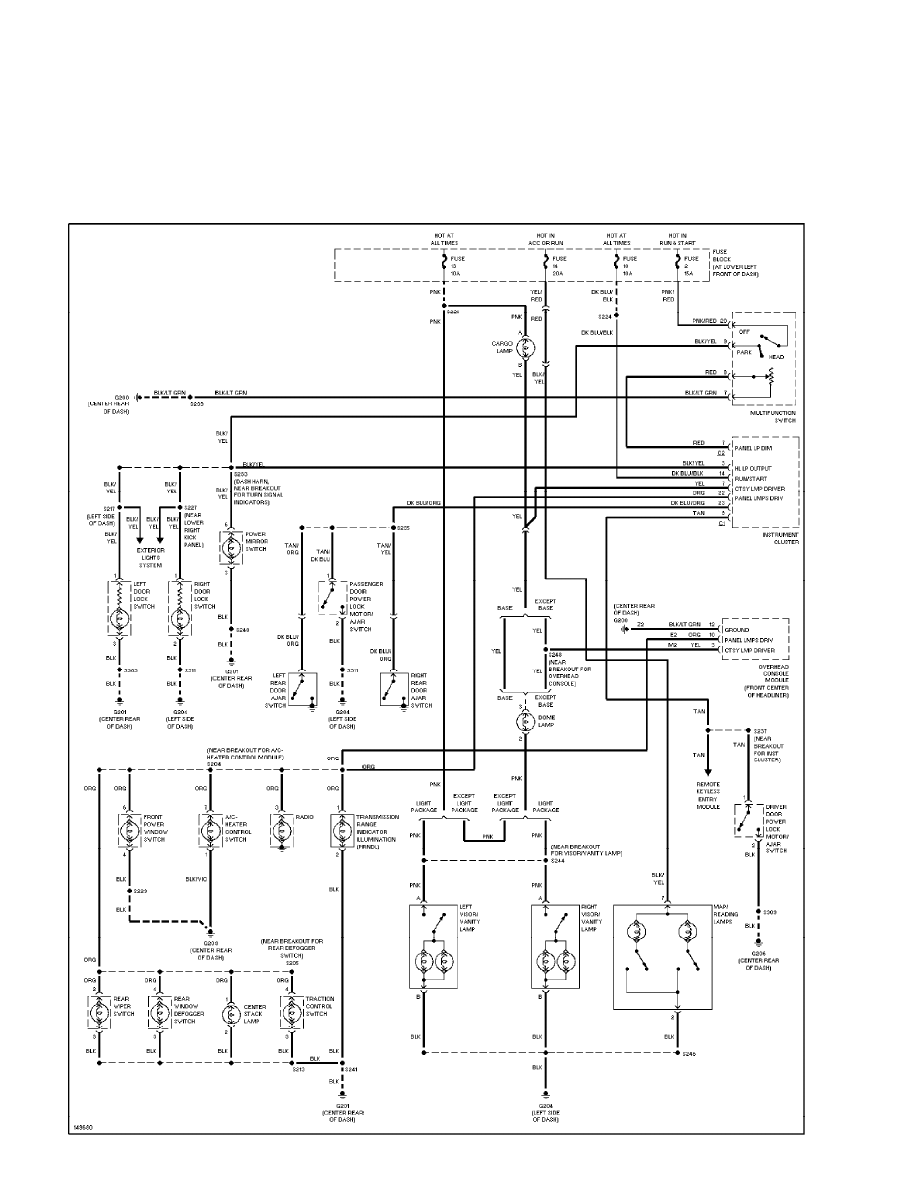

Interior Light Circuit (p. 20)

2002 Chrysler PT Cruiser

For x

Thursday, January 06, 2005 07:54PM

SYSTEM WIRING DIAGRAMS

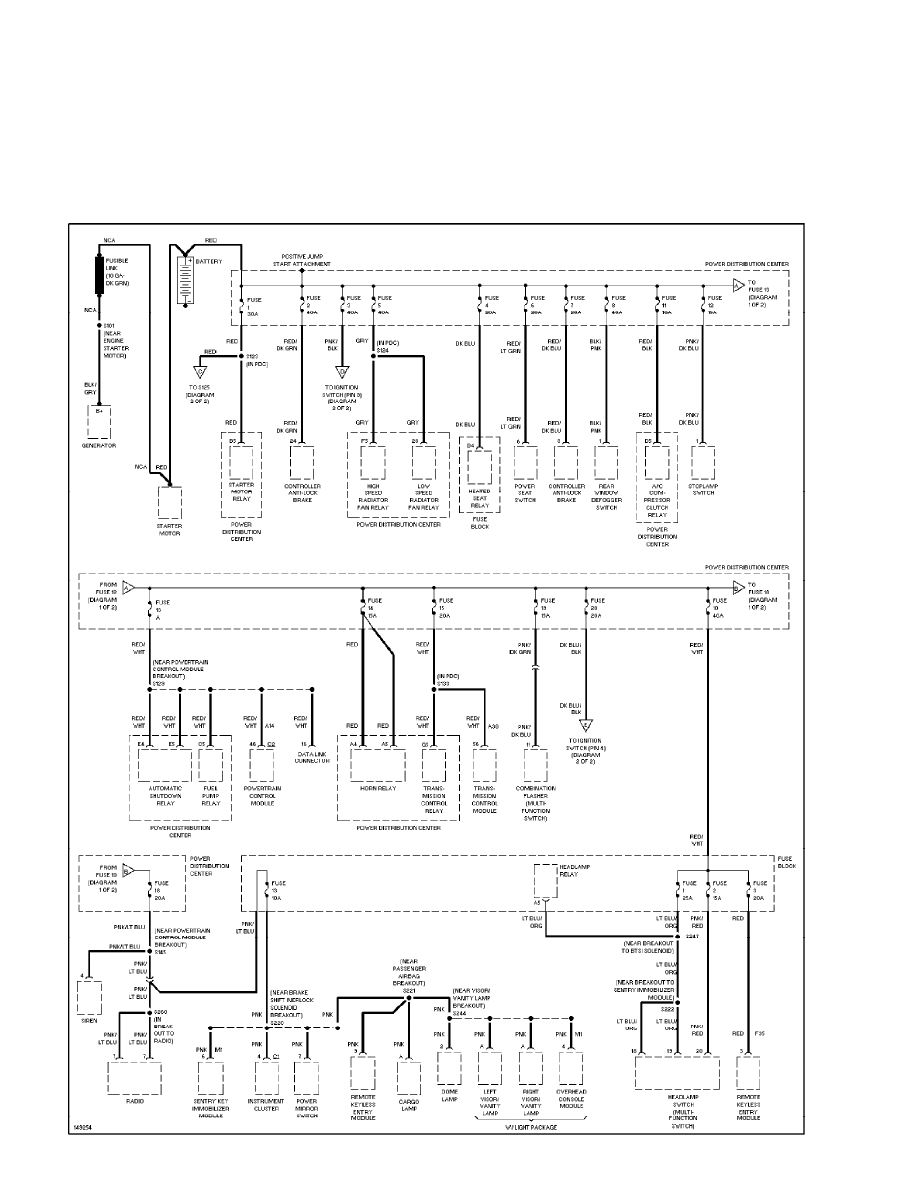

Power Distribution Circuit (1 of 2) (p. 21)

2002 Chrysler PT Cruiser

For x

Thursday, January 06, 2005 07:54PM

SYSTEM WIRING DIAGRAMS

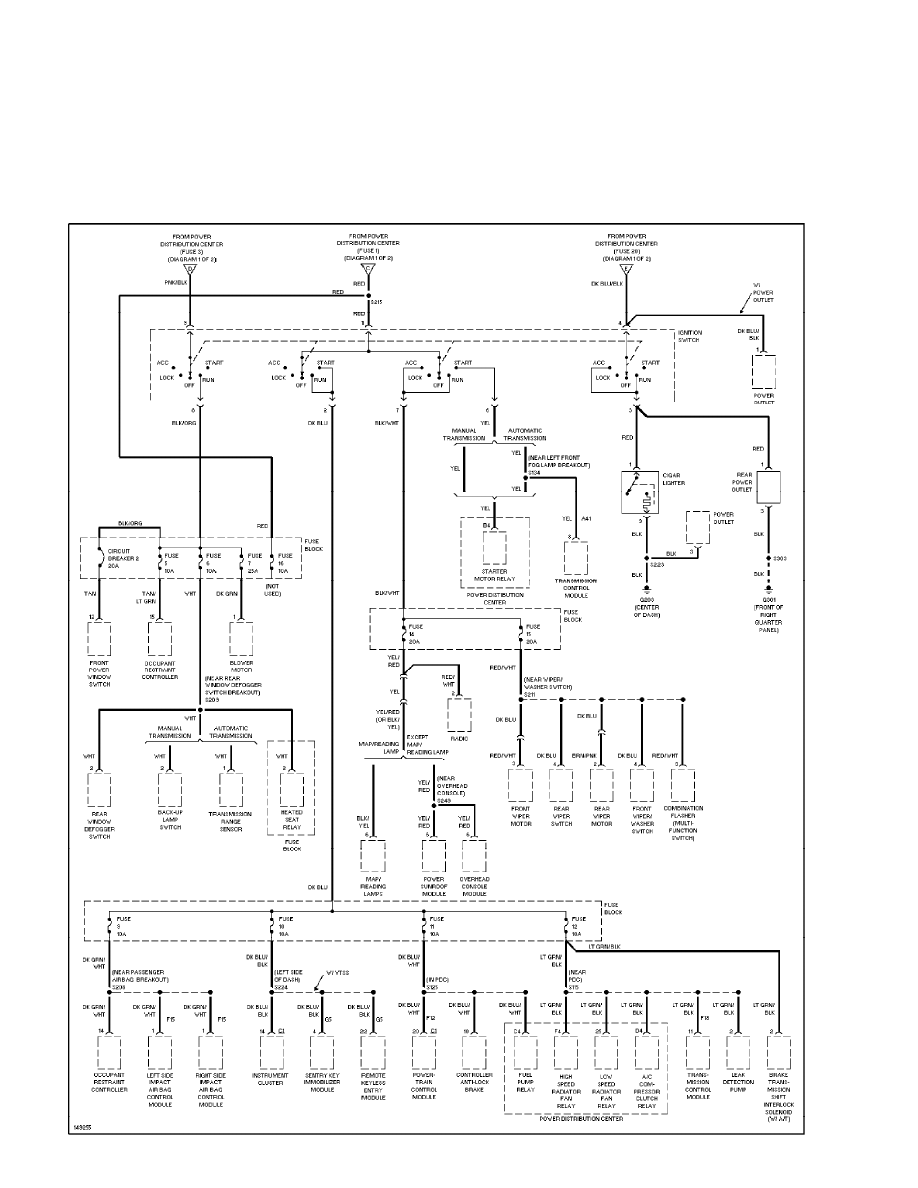

Power Distribution Circuit (2 of 2) (p. 22)

2002 Chrysler PT Cruiser

For x

Thursday, January 06, 2005 07:54PM

SYSTEM WIRING DIAGRAMS

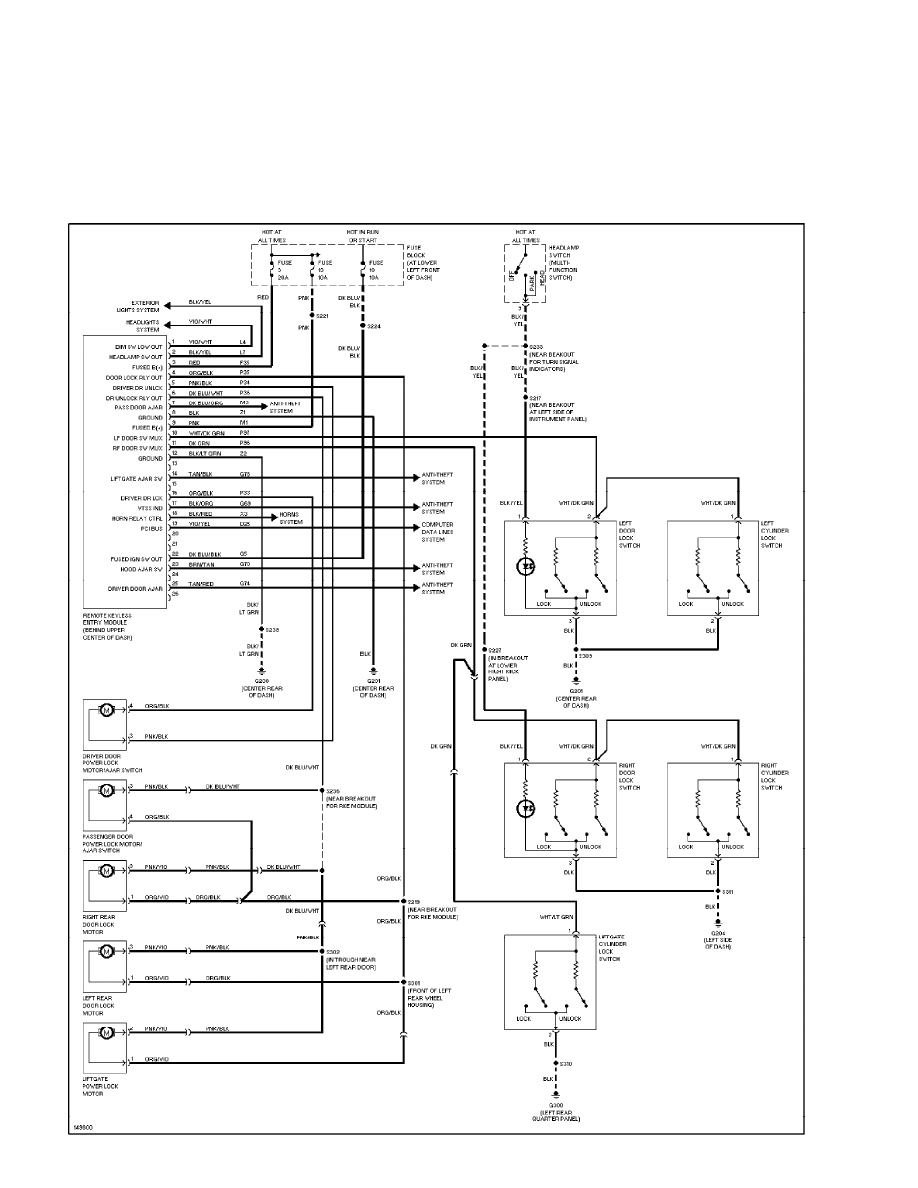

Power Door Lock Circuit (p. 23)

2002 Chrysler PT Cruiser

For x

Thursday, January 06, 2005 07:54PM

SYSTEM WIRING DIAGRAMS

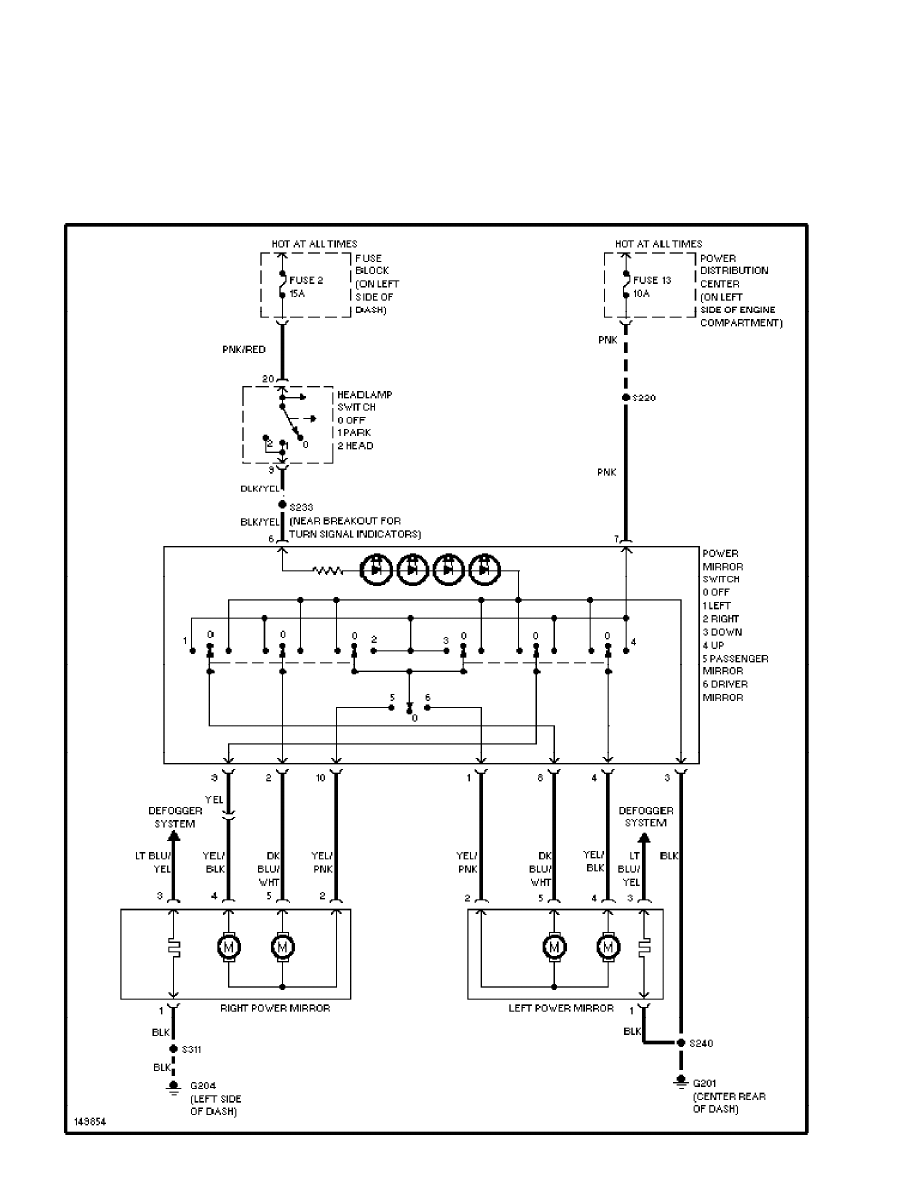

Power Mirror Circuit (p. 24)

2002 Chrysler PT Cruiser

For x

Thursday, January 06, 2005 07:54PM

SYSTEM WIRING DIAGRAMS

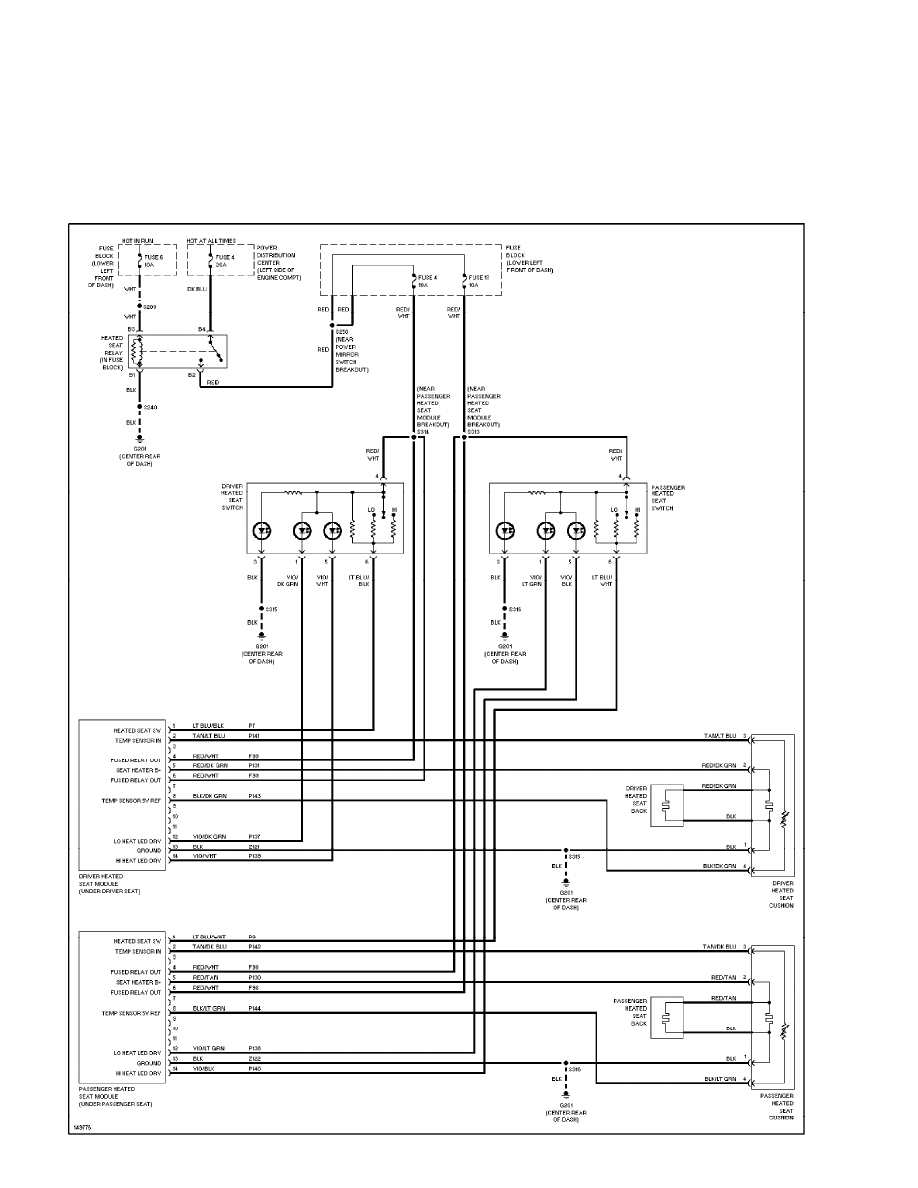

Heated Seats Circuit (p. 25)

2002 Chrysler PT Cruiser

For x

Thursday, January 06, 2005 07:54PM

SYSTEM WIRING DIAGRAMS

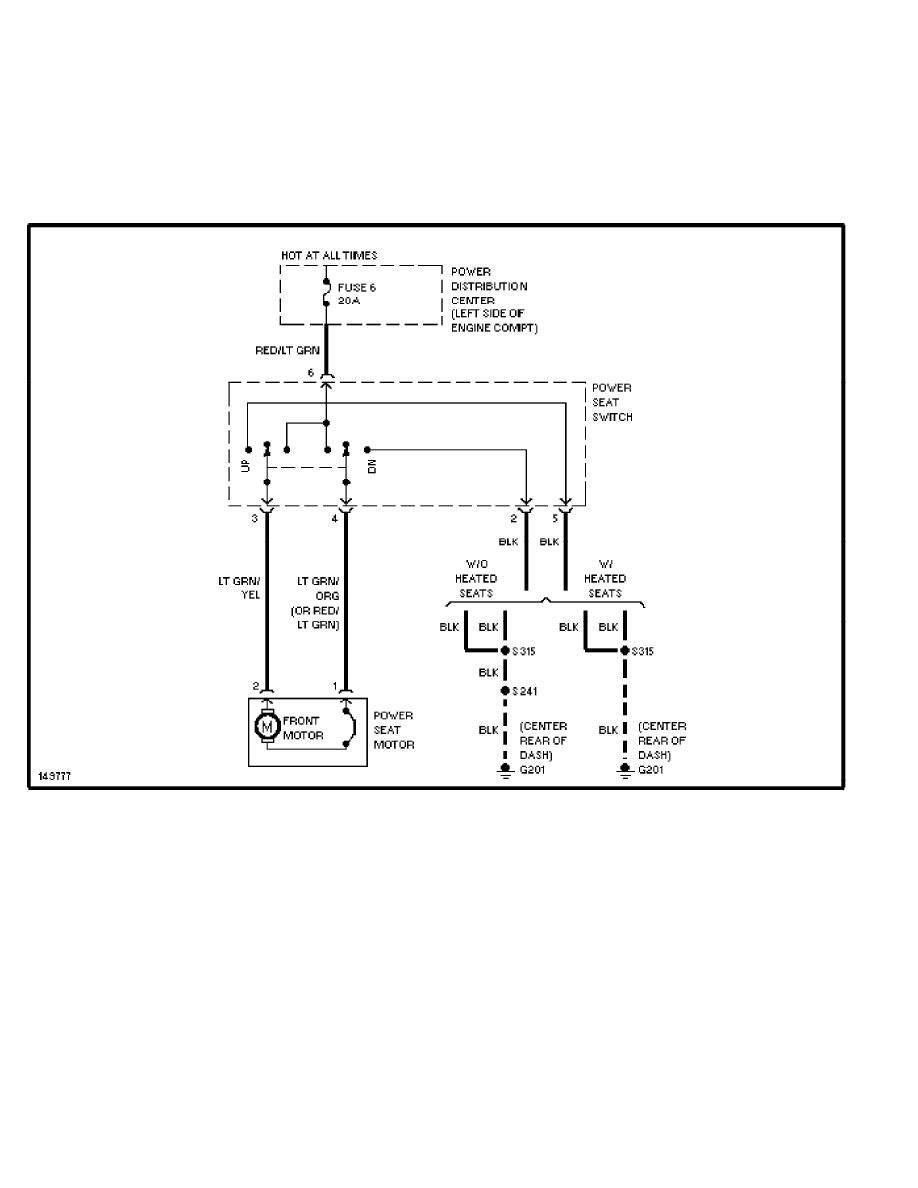

Power Seats Circuit (p. 26)

2002 Chrysler PT Cruiser

For x

Thursday, January 06, 2005 07:54PM

SYSTEM WIRING DIAGRAMS

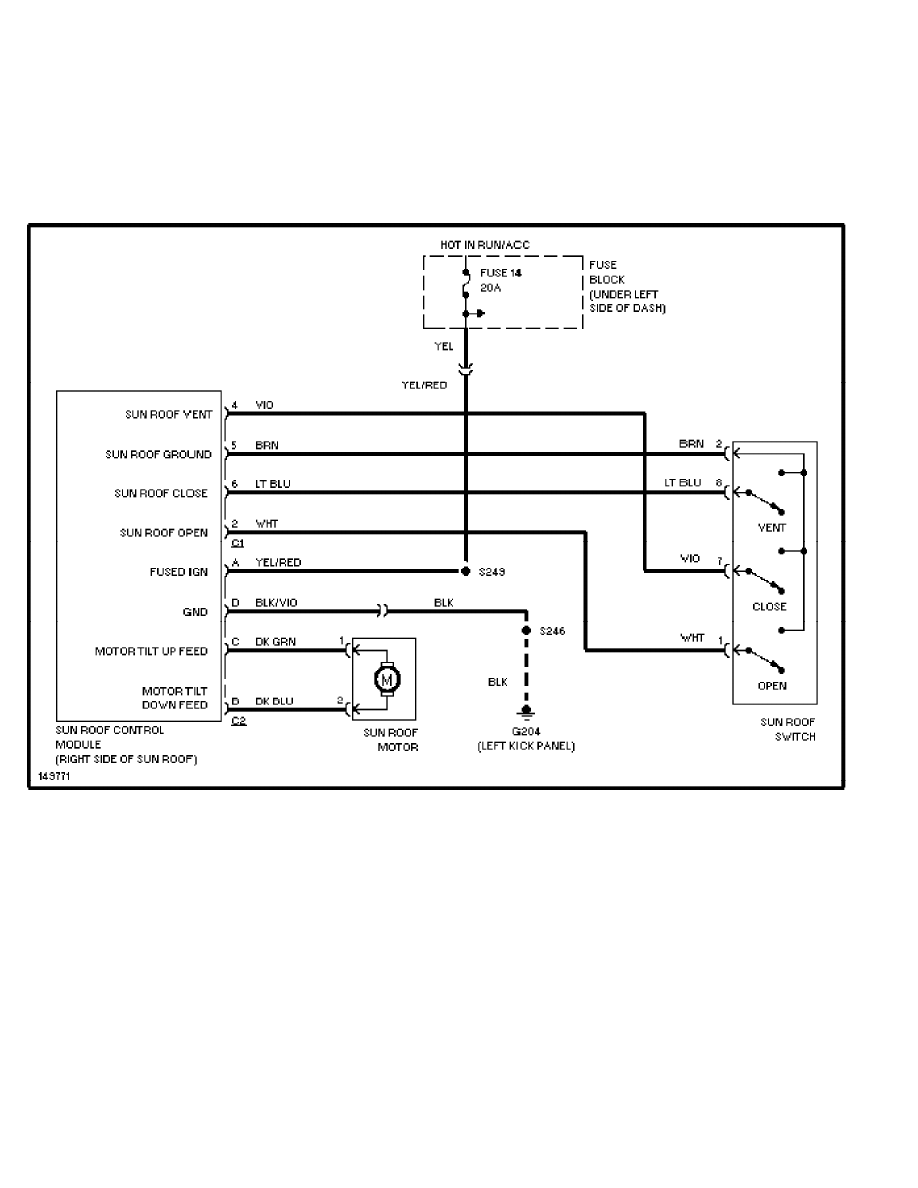

Power Top/Sunroof Circuits (p. 27)

2002 Chrysler PT Cruiser

For x

Thursday, January 06, 2005 07:54PM

SYSTEM WIRING DIAGRAMS

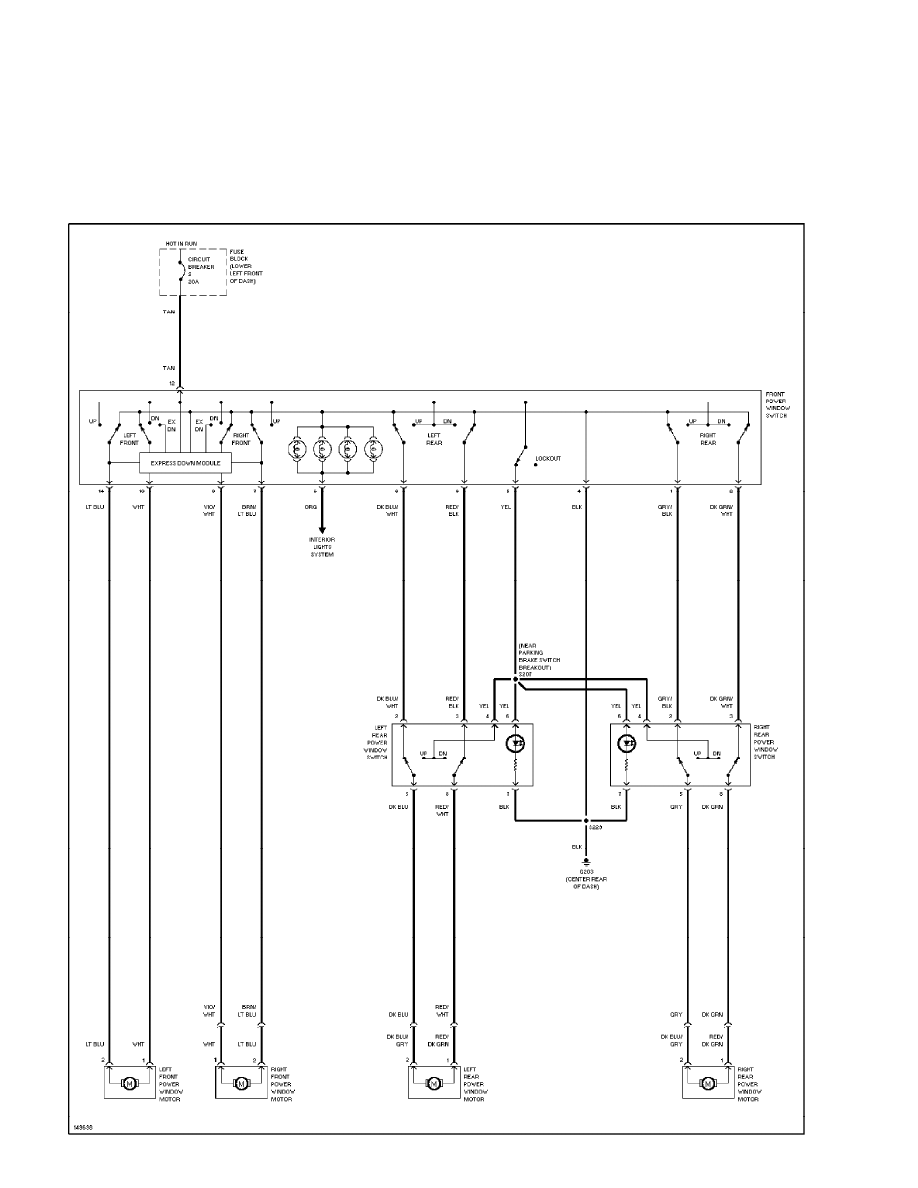

Power Window Circuit (p. 28)

2002 Chrysler PT Cruiser

For x

Thursday, January 06, 2005 07:54PM

SYSTEM WIRING DIAGRAMS

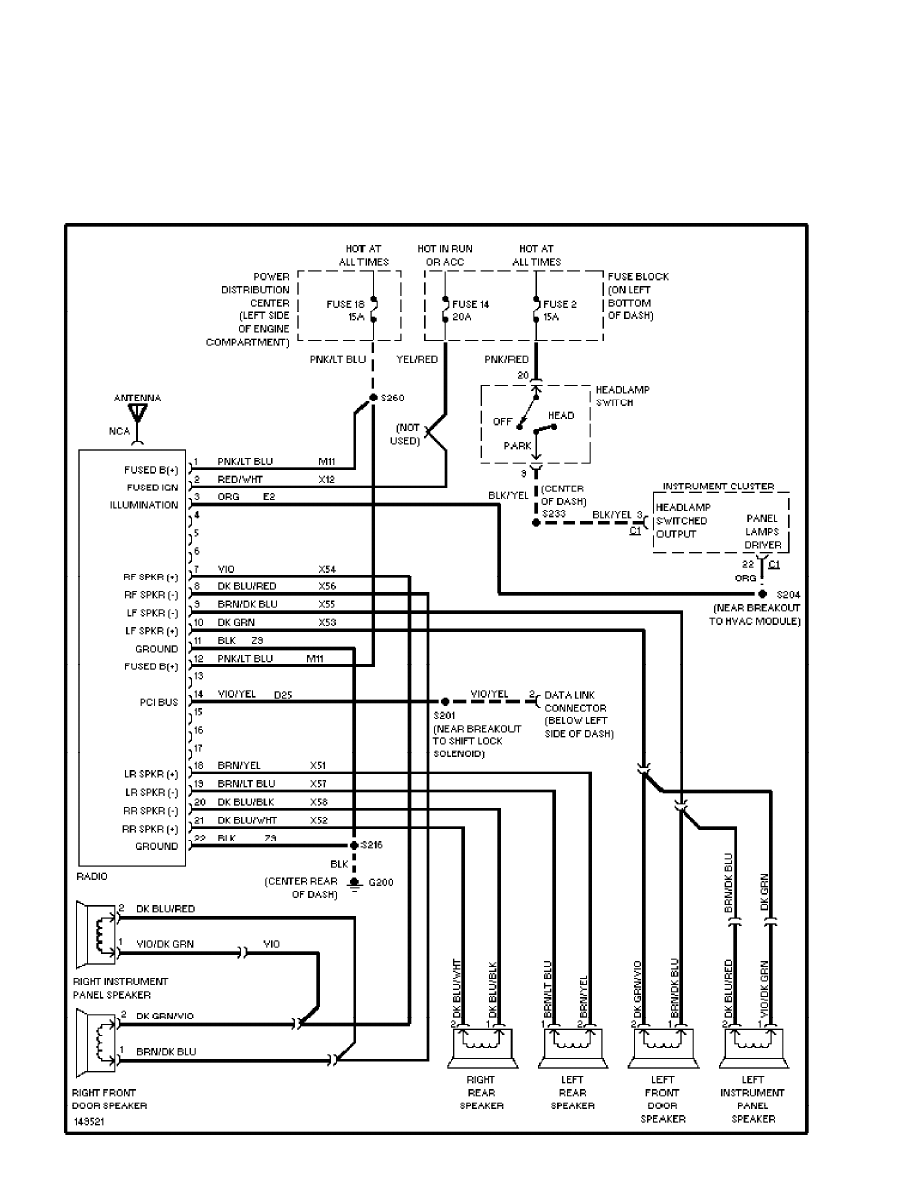

Radio Circuits (p. 29)

2002 Chrysler PT Cruiser

For x

Thursday, January 06, 2005 07:54PM

SYSTEM WIRING DIAGRAMS

Shift Interlock Circuit (p. 30)

2002 Chrysler PT Cruiser

For x

Thursday, January 06, 2005 07:54PM

SYSTEM WIRING DIAGRAMS

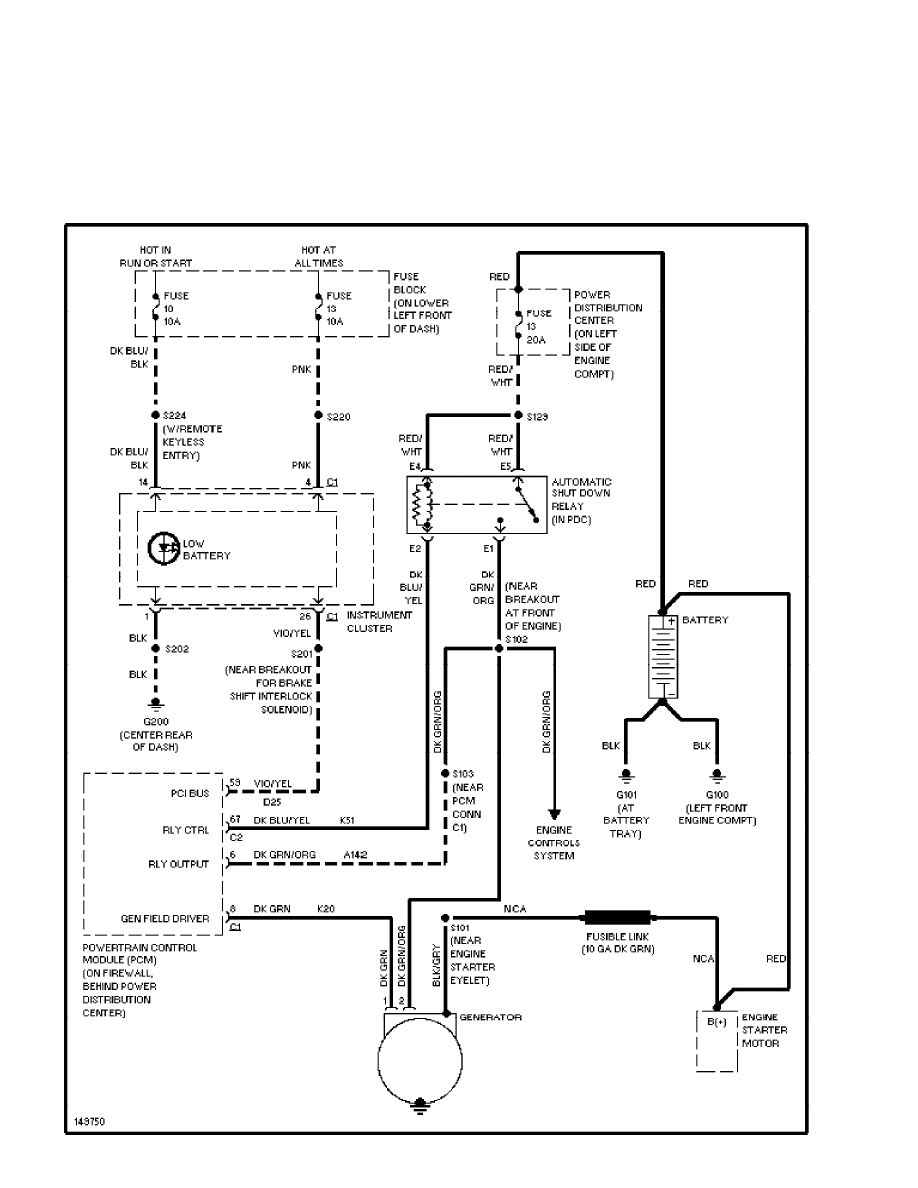

Charging Circuit (p. 31)

2002 Chrysler PT Cruiser

For x

Thursday, January 06, 2005 07:54PM

SYSTEM WIRING DIAGRAMS

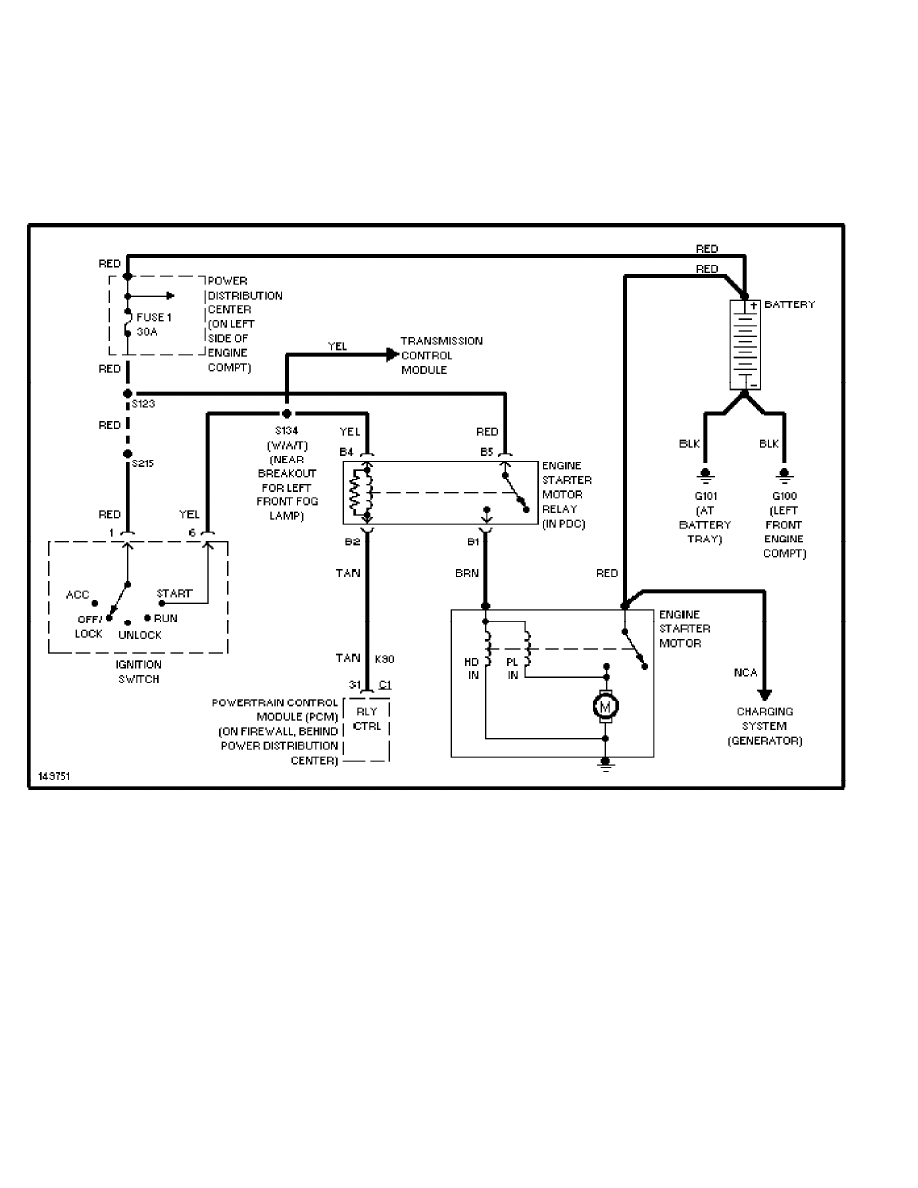

Starting Circuit (p. 32)

2002 Chrysler PT Cruiser

For x

Thursday, January 06, 2005 07:54PM

SYSTEM WIRING DIAGRAMS

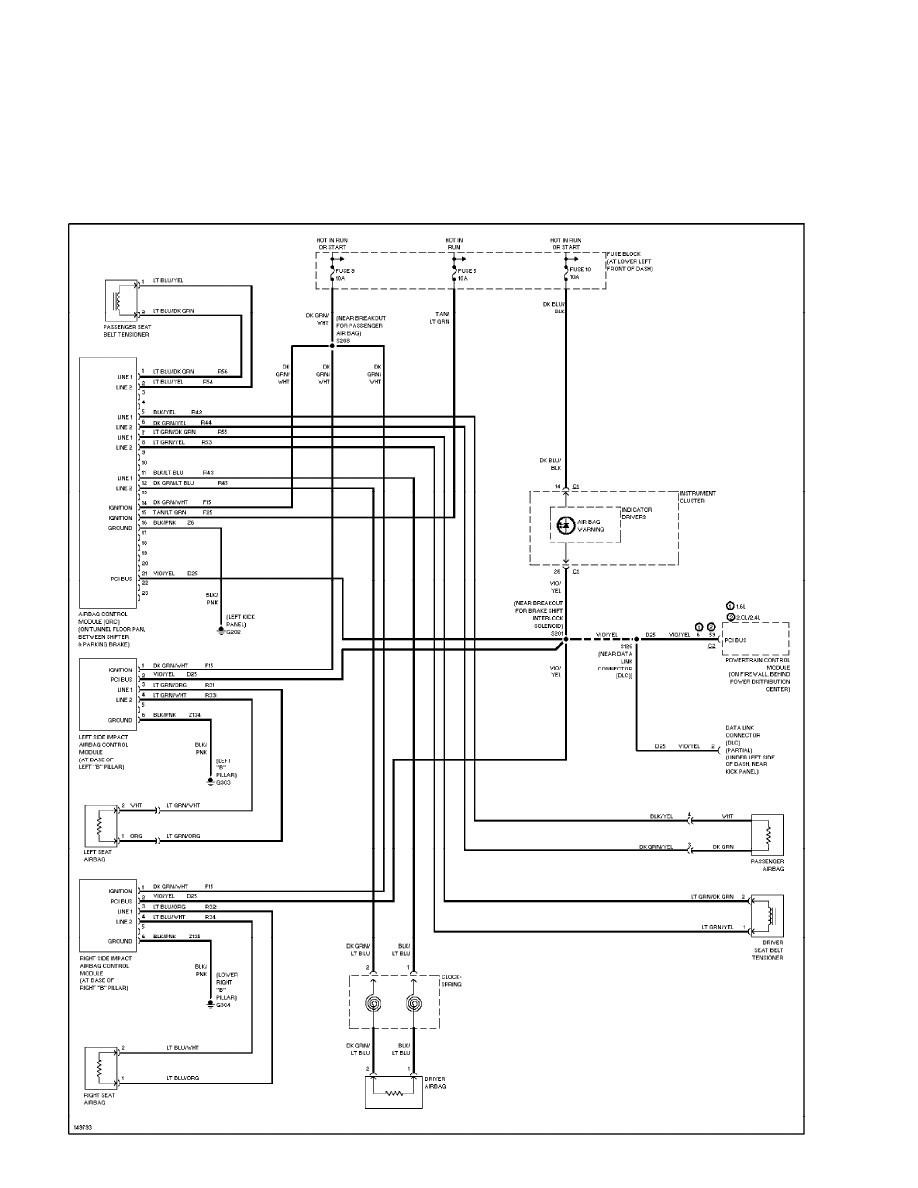

Supplemental Restraint Circuit (p. 33)

2002 Chrysler PT Cruiser

For x

Thursday, January 06, 2005 07:54PM

SYSTEM WIRING DIAGRAMS

A/T Circuit (1 of 3) (p. 34)

2002 Chrysler PT Cruiser

For x

Thursday, January 06, 2005 07:54PM

SYSTEM WIRING DIAGRAMS

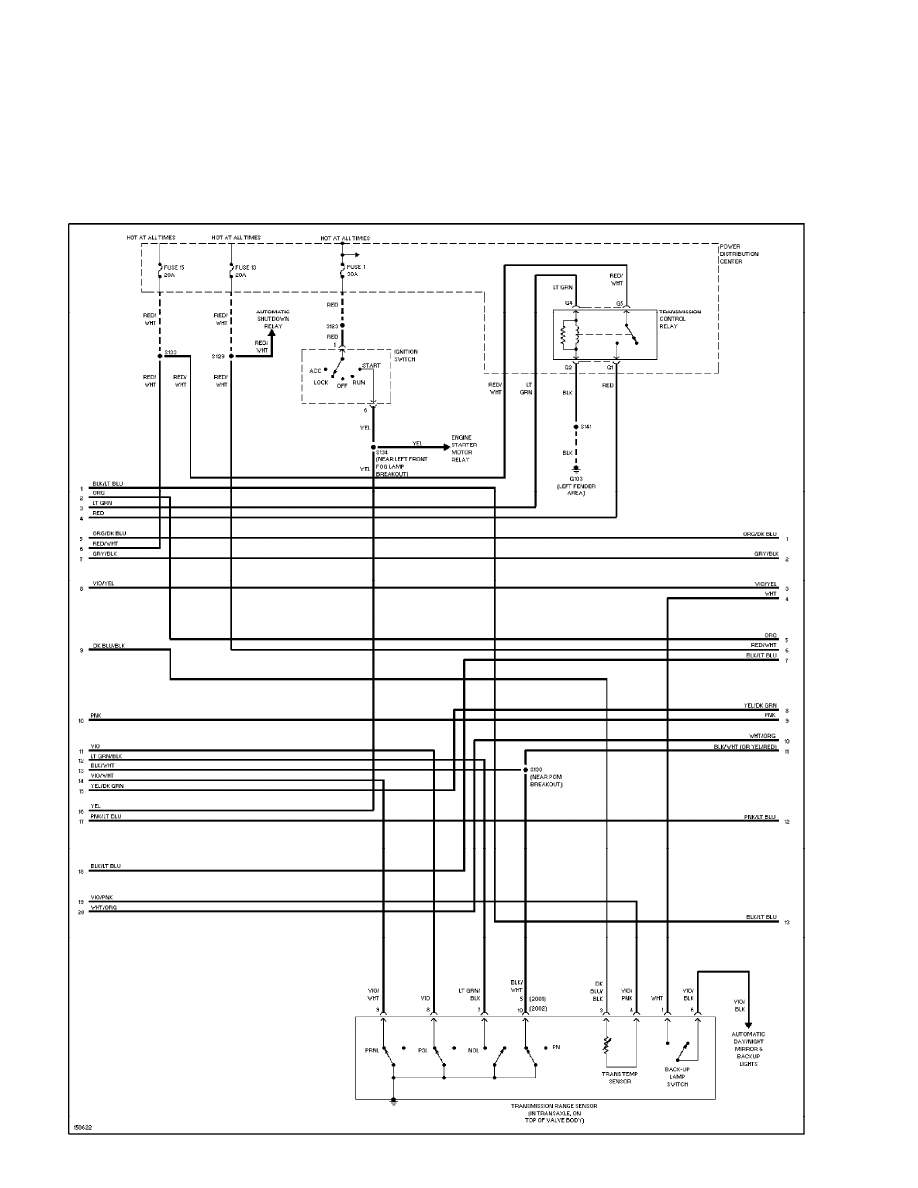

A/T Circuit (2 of 3) (p. 35)

2002 Chrysler PT Cruiser

For x

Thursday, January 06, 2005 07:54PM

SYSTEM WIRING DIAGRAMS

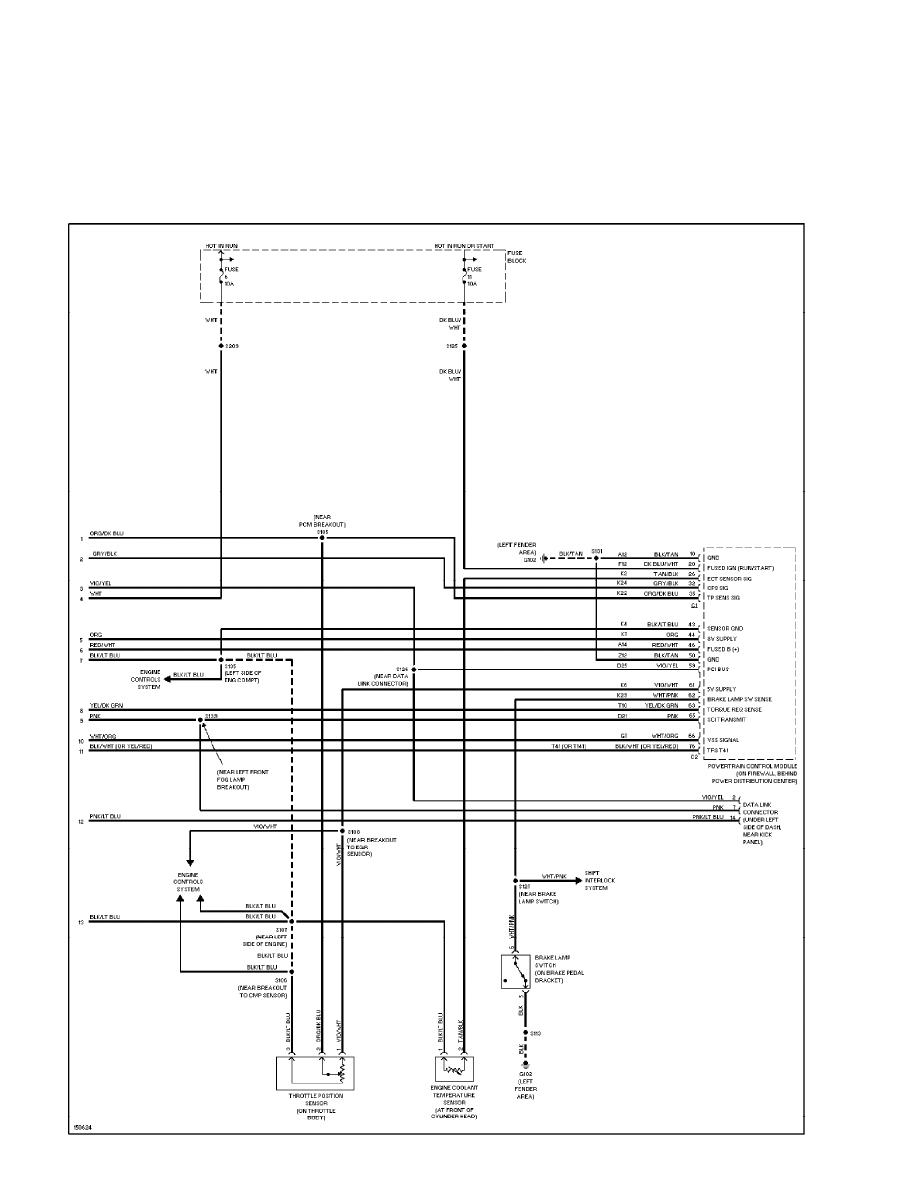

A/T Circuit (3 of 3) (p. 36)

2002 Chrysler PT Cruiser

For x

Thursday, January 06, 2005 07:54PM

SYSTEM WIRING DIAGRAMS

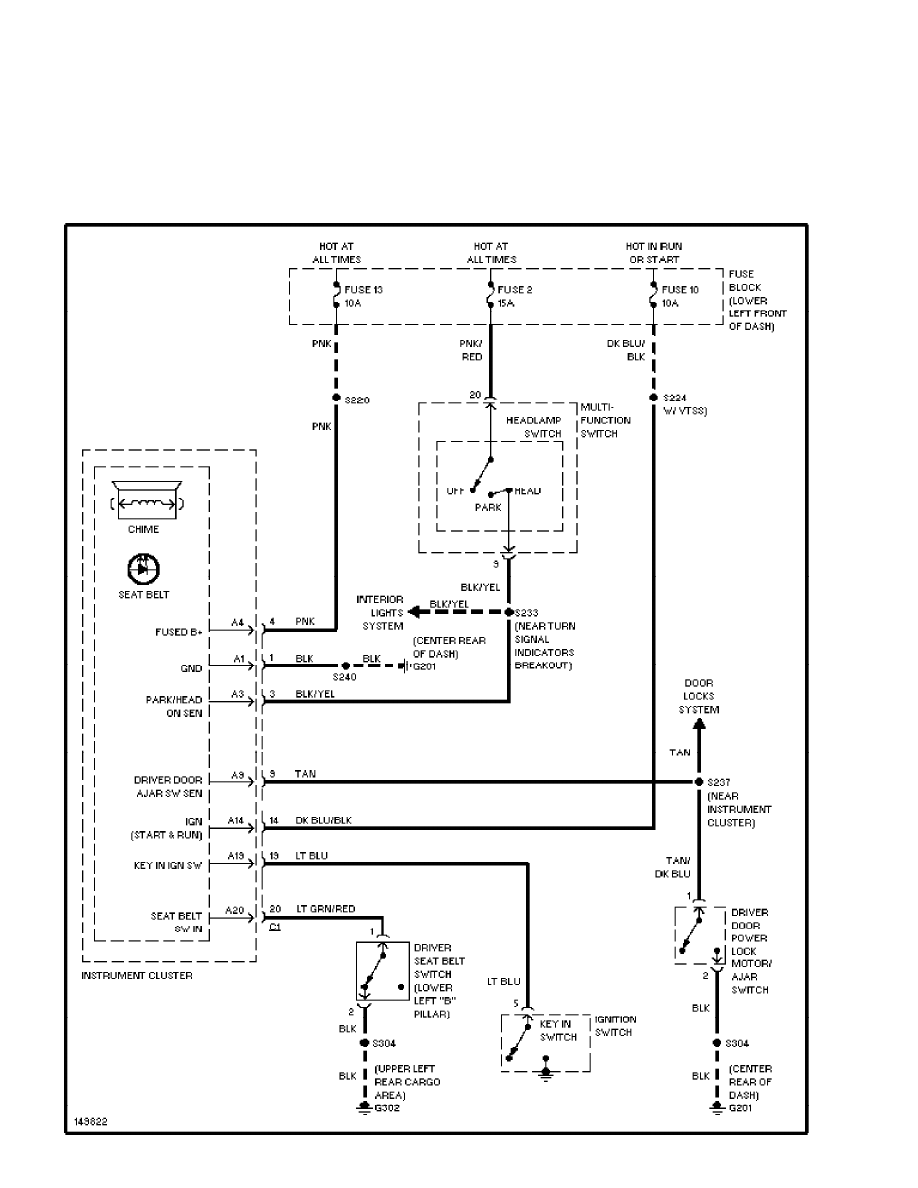

Warning System Circuits (p. 37)

2002 Chrysler PT Cruiser

For x

Thursday, January 06, 2005 07:54PM

SYSTEM WIRING DIAGRAMS

Wiper/Washer Circuit (p. 38)

2002 Chrysler PT Cruiser

For x

Thursday, January 06, 2005 07:54PM
