CATALOGUE CARD

K4-15-153

MINING INDUCTION MOTORS

Issue 1

Dąbrowa Górnicza

4SGKf 225L-4

Page 1 / 4

File No: 100 kW, 4SGKf 225L-4.doc/2005
Translated by: PTU -DAMAR- Sosnowiec

APPLICATION

The motors of type 4SGKf 225L-4 are intended for driving mining machines and equipment, especially for
driving cutting unit of heading machines.

The motors can be used in underground parts of mines and surface installations of the mines, where there are possible
explosion conditions for methane and/ or coal dust.
There is also possible to operate the motors in the surroundings where the explosion-proof equipment is not required.

CHARACTERISTIC FEATURES OF MOTORS

• The motor is executed as a set of two induction motors with squirrel-cage rotors operating on the same

shaft, supplied in parallel,

• Explosion-proof construction with flame-proof casing of motor „d” - mark

I M2 EExd I, equipment

ranked as group I of category M2 according to Directive 94/9/EC,

• The degree of protection IP 55 acc. to PN-EN 60034-5:2002U,
• The motors are cooled by water flowing through water jacket of body.
• Form of execution: flanged execution.
• Basic voltage execution: 380, 500, 550, 660, 1000; 1140V (Y) – 50Hz

After settlement it is possible to execute the motors for other voltage in the range 380 to 1140V and

frequency of 60Hz.

• Class of insulation: class F – primary execution, class H – execution against order,
• Thermal protection of motors: bimetal sensors NC or posistor PTC sensors in winding and bearing

nodes – two identical circuits basic and stand-by.

• One –inlet terminal box, equipped with cable inlet with rubber gasket,
• The motor is equipped with the final link of protection conductor continuity control circuit, mounted in the

terminal box – primary execution: final unit CK-0A produced by DAMEL
After settlement the assembly of final unit CK of other type is possible (e.g. diode + resistor, reverse

polarity, etc.) produced by DAMEL -catalogue card K4-15-121).

• Feeding and start-up: the motors are intended for feeding from power network – start-up by direct

switching on the voltage,

• The motors adapted for work in temperate climate; after settlement the adaptation for work in tropical

climate TA or TH is possible.

COMPATIBILITY WITH REQUIREMENTS OF STANDARDS

The motors meet requirements of Directive 94/9/EC (ATEX), European harmonized standards and domestic
norms:
− norms for electrical equipment in areas of explosion hazard:

EN 50014:1997 + A1:1999 + A2:1999 – Polish equivalent PN-EN 50014:2002U,
EN 50018:2000 + A1:2002 – Polish equivalent PN-EN 50018:2002U + A1:2003U,
EN 50019:2000 – Polish equivalent PN-EN 50019:2002U,

− norms for rotational electric machines:

EN 60034-1:1998 + A1: 1998 + A2:1999 + AC: 2000 – Polish equivalent PN-EN 60034-1:2001

− domestic norms for induction motors for mining machines:

PN G-38010:1997.

CERTIFICATES

The motors have the certificate EC (ATEX) issued by notified Testing Station GIG KD “BARBARA” , valid on
the area of European Union.

CATALOGUE CARD

K4-15-153

MINING INDUCTION MOTORS

Issue 1

Dąbrowa Górnicza

4SGKf 225L-4

Page 2 / 4

File No: 100 kW, 4SGKf 225L-4.doc/2005
Translated by: PTU -DAMAR- Sosnowiec

TECHNICAL DATA

Table 1

PARAMETERS VALUE

Rated power P

N

[ kW ]

100

Supply voltage U

N

[ V ]

380

500

550

660

1000

1140

Frequency f

N

[ Hz ]

50

Rated current I

N

[ A ]

194

145

134

110

72,5

63,5

Power coefficient cos

ϕ

0,87

Efficiency

η

[ %]

91,3

Rotational speed n

[min

-1

] 1450

Rated moment T

N

[Nm]

659

Multiplicity of start-up current I

k

/I

N

5,0

Multiplicity of start-up moment T

l

/T

N

2,1

Multiplicity of critical moment T

b

/T

N

2,0

Mode of operation

S6-60%

Rotor moment of inertia J

M

[kgm

2

] 1,5

Class of insulation

F or H

Mass of motor

[kg]

1100

DRAWINGS

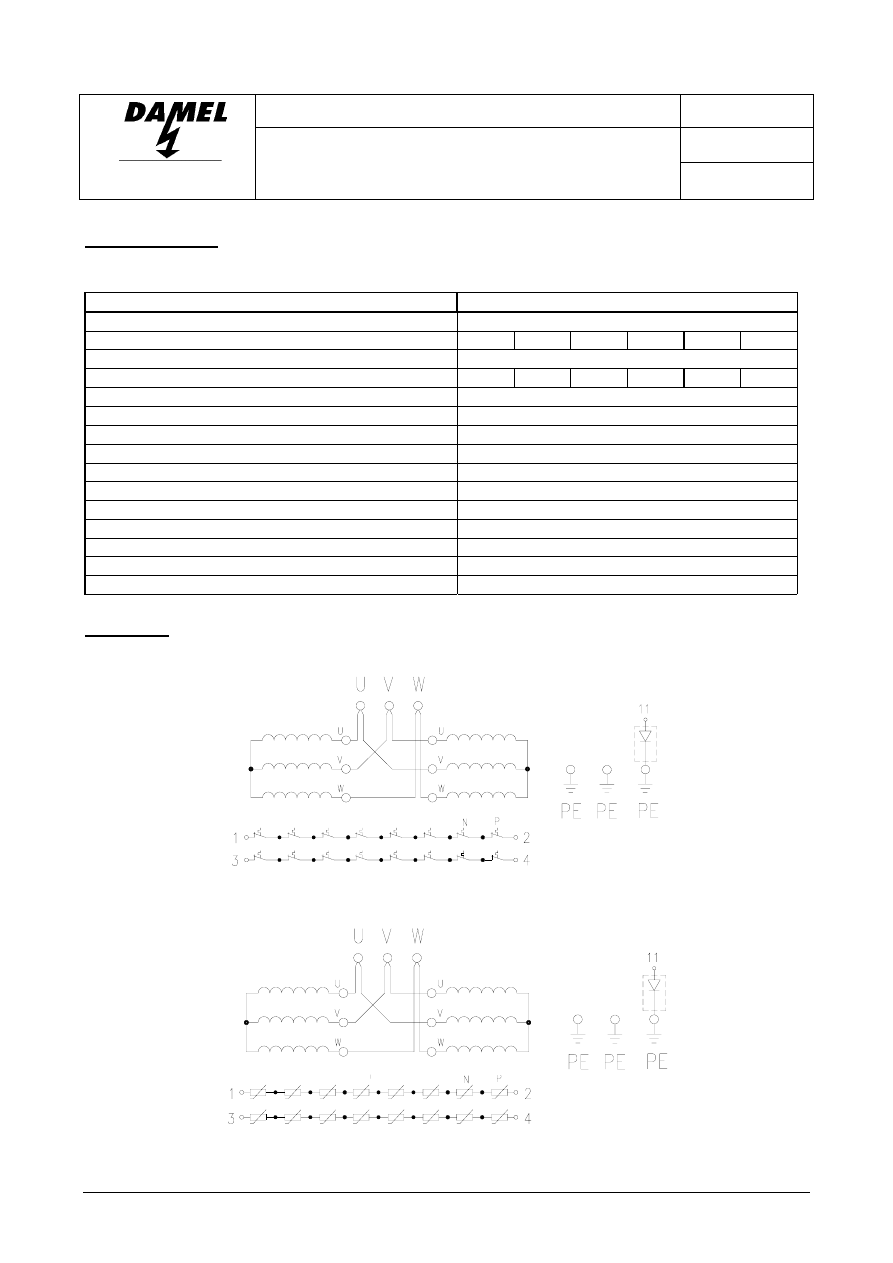

Fig. 1.1 Diagram of connections of windings, protective terminals and bimetal sensors NC of motor.

Fig. 1.2 Diagram of connections of windings, protective terminals and posistor sensors PTC of motor.

winding N

winding P

bearings

winding N

winding P

bearings

CATALOGUE CARD

K4-15-153

MINING INDUCTION MOTORS

Issue 1

Dąbrowa Górnicza

4SGKf 225L-4

Page 3 / 4

File No: 100 kW, 4SGKf 225L-4.doc/2005
Translated by: PTU -DAMAR- Sosnowiec

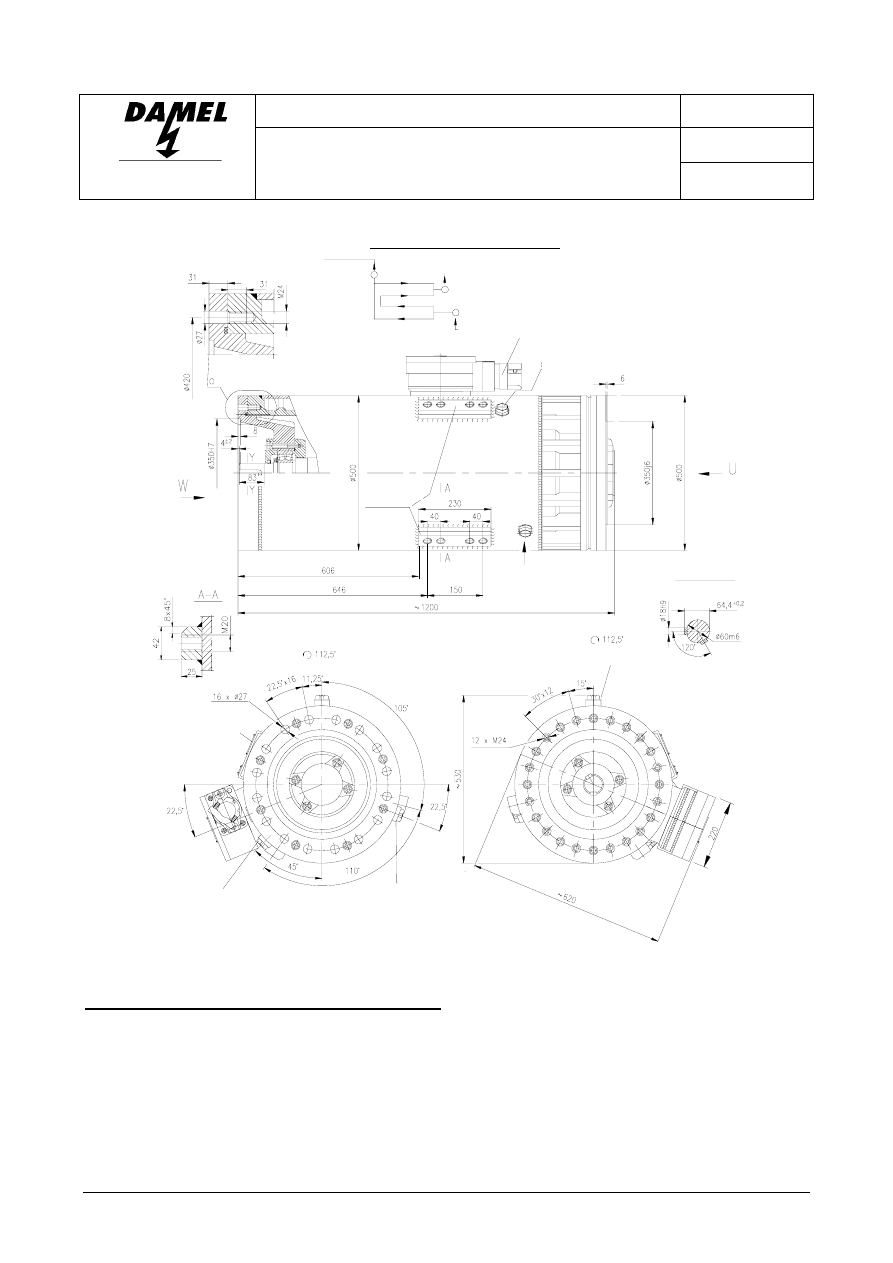

Fig. 2. Overall and assembly dimensions.

CONDITIONS OF OPERATION AND APPLICATION
• Ambient temperature

0÷40

o

C

• Relative humidity at temperature of 35

o

C

≤ 100%

• Height above the sea level

≤ 1000m

• Degree of corrosive aggressiveness C acc. to PN-71/H-04651
• Admissible inclination of the shaft axis to level

≤ 50

o

• Supply voltage

(0,95÷1,05)U

N

• Parameters of cooling water at inlet of cooling system

- maximum temperature

30

0

- maximum static pressure

3 MPa

- minimum flow

12 dm

3

/min

Diagram of cooling water circulation

Venting

Water outlet

Water inlet

Cable inlet Wk2u/d80-41-46

Water outlet G ½“

Bumper

fixing strips

Water inlet G ½“

Section Y-Y

Venting G ½“

View U

View W

Rating plate

Water outlet G ½“

Water inlet G ½“

CATALOGUE CARD

K4-15-153

MINING INDUCTION MOTORS

Issue 1

Dąbrowa Górnicza

4SGKf 225L-4

Page 4 / 4

File No: 100 kW, 4SGKf 225L-4.doc/2005
Translated by: PTU -DAMAR- Sosnowiec

• Water circulation terminal

G ½ ”

• Electrical terminal

Power supply connection – mining armor conductor with rubber armor and insulation, multicore,
screened section area of cores selected to operating conditions.
Connection of circuits of temperature sensors – auxiliary cores of feeder cable with section area of
conductors up to 4mm

2

.

•

Leading the armor conductors to terminal box through cable inlets selected according to the outer
diameter of conductors acc. to table 2

.

Table 2

Type of inlet

The range of diameters of conductors for cable inlets [mm]

Wk2u/d80...

34 ÷ 38

36 ÷ 40

40 ÷ 44

41 ÷ 46

44 ÷ 49

48 ÷ 53

52 ÷ 57

OFFER FOR DELIVERIES OF MOTORS

The producer offers motors in primary execution and in options executed against the Customer order
(additional, diversified equipment).

Table 3

1

Constructional characteristic of

motor

2

Primary execution

3

Execution against order

rated voltage

380; 500; 550; 660; 1000; 1140V

- other voltage from the range 380÷1140V
- in one voltage version

frequency 50

Hz

60Hz

Form of execution

Flanged

-

class of insulation

F

H

thermal protection – type of sensors

bimetal (NC)

posistor PTC

Cable inlets

Cable inlet Wk2u/d80-41-46
– see tab. 2

- input Wk2/d80...acc. to table 2

final link
of control circuit

CK-0A

CK … appointed by Orderer

(acc. to catalogue card K4-15-121)

climatic execution

for mild climate

for tropical climate TH or TA

constructional characteristic other than
above mentioned

–

acc. to settlements, it can require

acceptance of the unit certifying the

product

The following items are included to the delivered motor by producer:
− running-technical documentation (RTD - Service Manual of the motor).
− declaration of conformity EC.

ORDERING PROCEDURE

The following data should be stated in the order directed to the address of manufacturer given below:
-

type of motor, power

-

rated voltage and frequency

- motor execution: preliminary – see table 3 column 2 or execution against order, for which required

equipment and constructional characteristic should be determined acc. to table 3 column 3.

When ordering we recommend to fill up the questionnaire „Statement of technical data of the motor...” –
accessible at internet (web) sites and in Marketing Department of DFME DAMEL.

The producer offers additionally:
- guarantee and after guarantee service,
- delivery of spare parts,
- training of employees in the range of correct maintenance and operating the motor.

Producer reserves the right to implement to the motor changes resulting from technical progress.

Dąbrowska Fabryka Maszyn Elektrycznych DAMEL S. A.

Aleja Józefa Piłsudskiego 2, 41-300 Dąbrowa Górnicza, POLSKA, tel: [phone] do 39

Faks (32) 264-34-26, 264-10-12, http:

www.damel.com.pl

, email:

[e-mail]

Elaboration: „DAMEL” – TK/DB/11/2004
