BMW E38 schematic Ground distribution 2

background image

SYSTEM WIRING DIAGRAMS

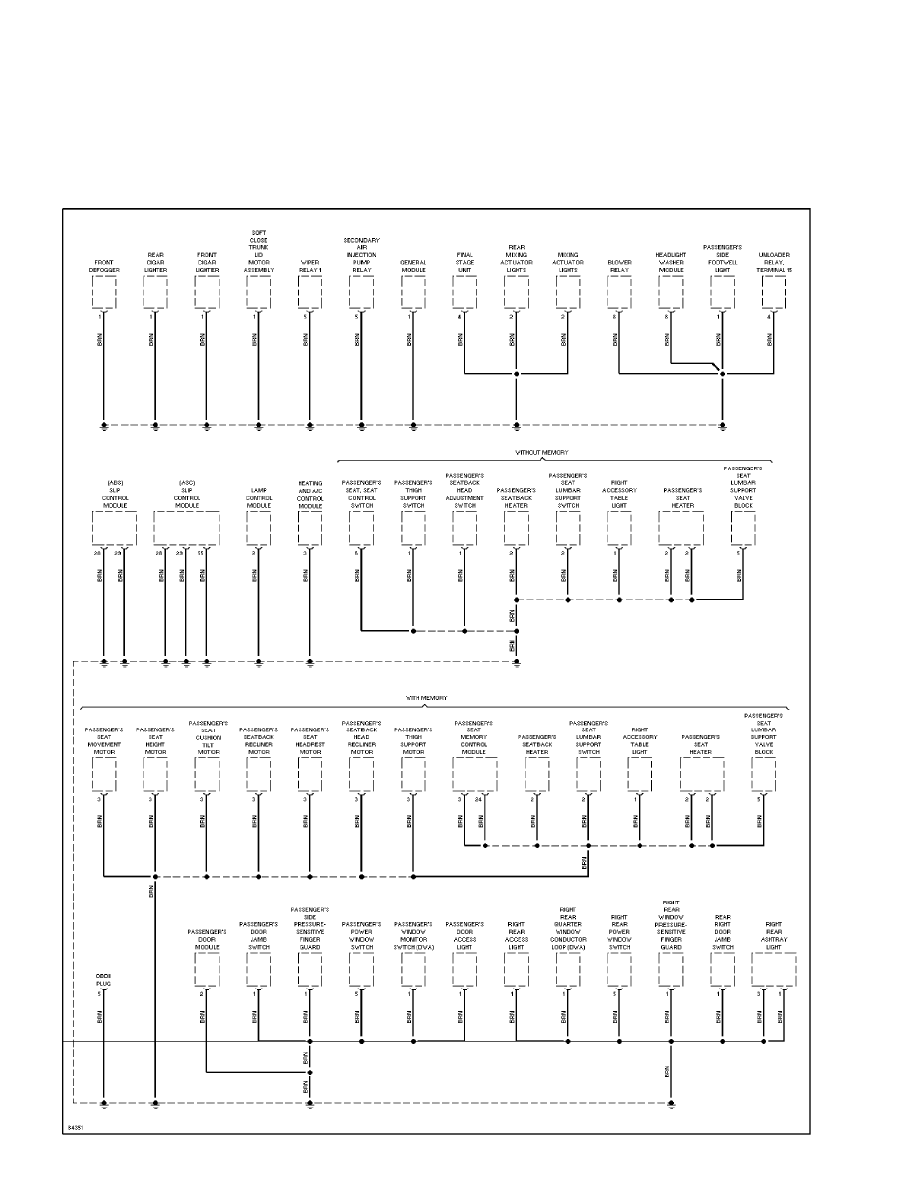

Ground Distribution Circuit (2 of 5)

1995 BMW 740iL

For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187

Copyright © 1998 Mitchell Repair Information Company, LLC

Thursday, November 23, 2000 12:43PM
