2002.25 MY NAS In-Car Telephone Handbook

background image

Foreword

In-car Telephone Handbook

Published November 2001 by Parts and Service Communications Jaguar Cars Limited Publication Part No. JJM 18 31 24/22

JAGUAR CARS LIMITED,

as manufacturer, is

dedicated to the design and production of vehicles which meet

the expectations of the world’s most discerning purchasers.
This handbook forms part of the owner literature supplied with

your vehicle. It is designed to complement the relevant features

and systems of the vehicle, and make them easy to understand

and operate.
The information contained in this handbook applies to a range

of vehicles and not to a specific vehicle. For the specification of

a particular vehicle, owners should consult their Jaguar Dealer.
The manufacturer reserves the right to vary its specifications

with or without notice, and at such times and in such manner as

it thinks fit. Major as well as minor changes may be involved in

accordance with the Manufacturer’s policy of constant product

improvement.

To cover changes, it is sometimes necessary to issue one or

more handbook supplements. When reading this handbook,

check the owner literature for possible supplements.
For full details of the owner literature originally supplied with

the vehicle, owners should consult their Jaguar Dealer.
All rights reserved. No part of this publication may be

reproduced, stored in a retrieval system or transmitted, in any

form, electronic, mechanical, photocopying, recording or other

means without prior written permission from the

Service Division of Jaguar Cars Limited.

background image

Contents

1. General information

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
To remove or install the handset. . . . . . . . . . . . . . . . . . 1-2
Safety Recommendations . . . . . . . . . . . . . . . . . . . . . . . 1-3

2. Telephone controls

Audio panel controls. . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

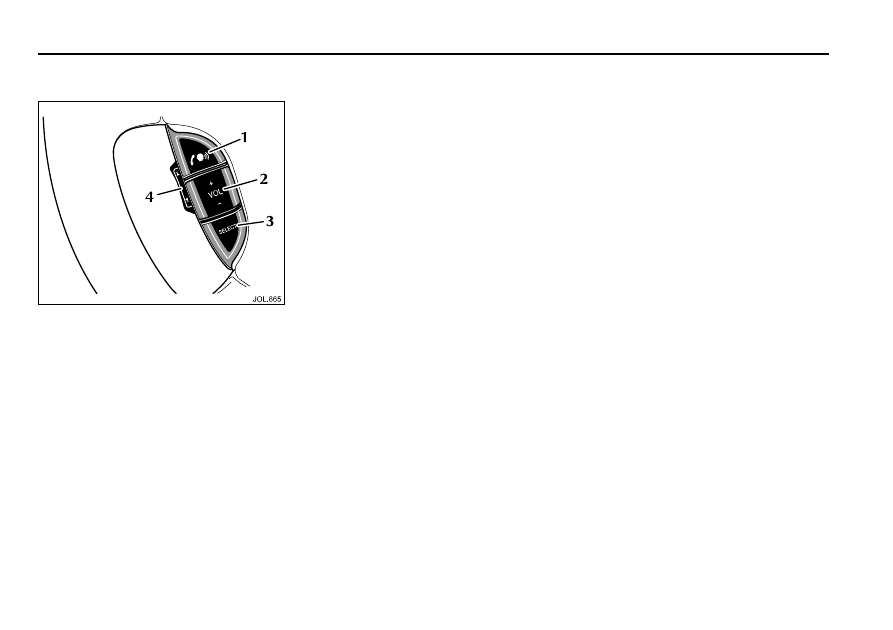

Steering wheel controls. . . . . . . . . . . . . . . . . . . . . . . . . 2-2
Audio panel control functions. . . . . . . . . . . . . . . . . . . . 2-3

3. Telephone operation

Receiving a call in handsfree . . . . . . . . . . . . . . . . . . . . . 3-1
Making a handsfree call . . . . . . . . . . . . . . . . . . . . . . . . 3-1

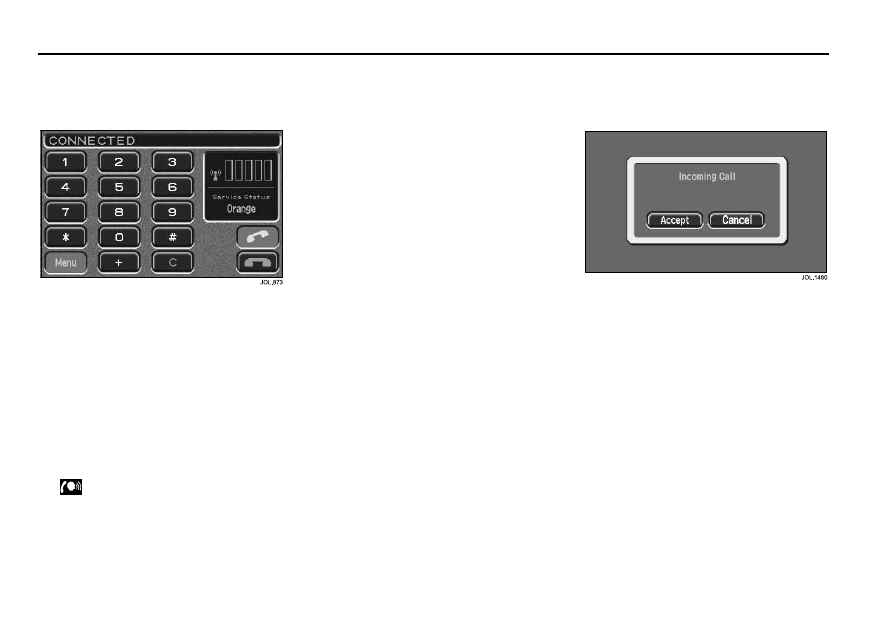

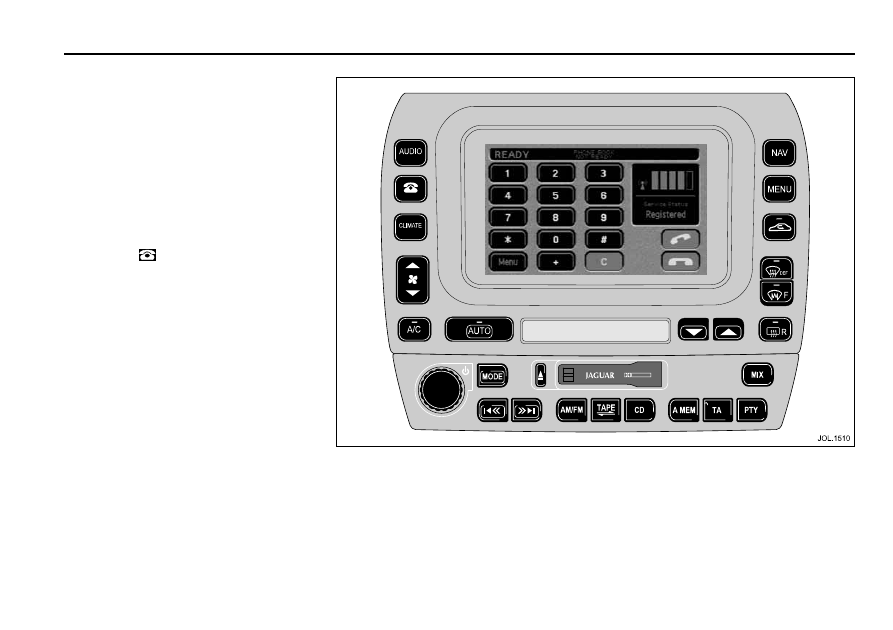

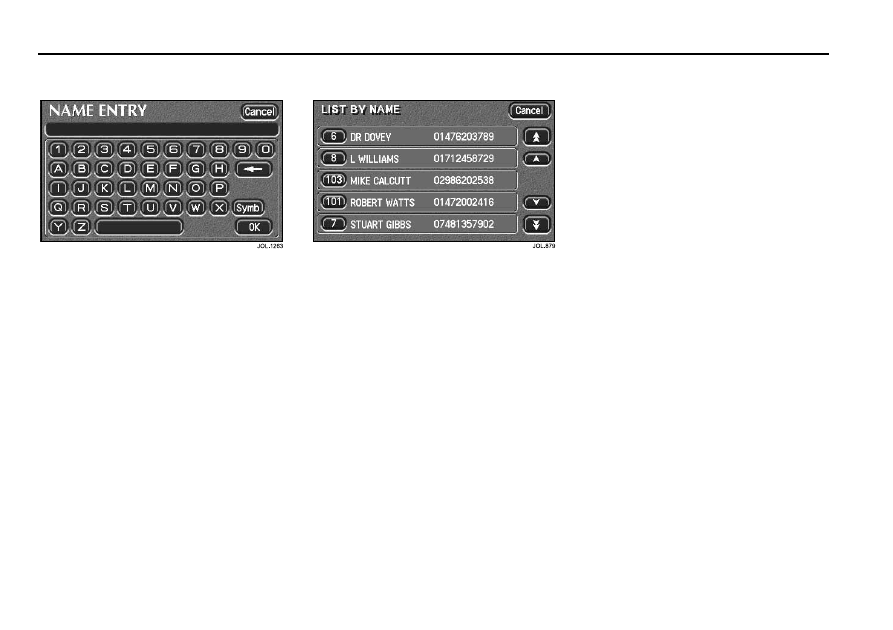

Touch-screen controls (where fitted). . . . . . . . . . . . . . . 3-5

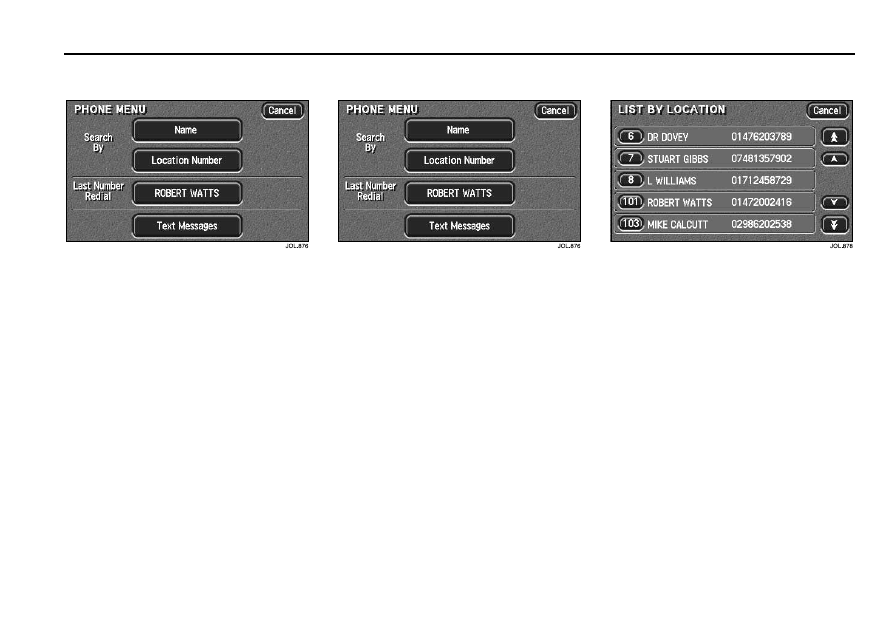

Touch-screen operation . . . . . . . . . . . . . . . . . . . . . . . . 3-6
Voice activation (where fitted). . . . . . . . . . . . . . . . . . . . 3-8

4. Additional information

Handset Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1
DTMF Tones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1
Scratch pad. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1
Changing a Phone Number . . . . . . . . . . . . . . . . . . . . . . 4-1
Caller Identity option . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

A comprehensive index is located at the back of this Handbook.

background image

General information 1-1

1

General information

Introduction

This handbook describes every option

and variant. Some of the items covered

may therefore not apply to your

particular vehicle.
Your in-car telephone can be used as a

handsfree system or as a conventional

portable handset. To enjoy optimum

performance from the system, only a

Jaguar approved and supplied Motorola

Timeport portable handset should be

used. Incorporating the latest advances in

try-band or dual-band, dual-mode

technology, this will provide your system

with superior performance under the

most demanding conditions.
Note: As with all radio frequency

operated telephones, the performance of

your in-car system is dependent upon

network availability and strength.

Handsfree system
For handsfree operation the handset must

be correctly installed in the cradle in the

centre console storage compartment.

Interfacing with an overhead, directional

microphone and the audio system

speakers, the phone can then be

operated via the keypad and phone

buttons on the audio panel, navigation

screen and/or the steering wheel

switches.
Note: It is not necessary to extend the

aerial on the handset as the vehicle

antenna is employed in handsfree mode.

Conditions for handsfree operation
Whilst your Jaguar Dealer will have

ensured that the phone system is

correctly set up for handsfree operation,

the following requirements must be

satisfied:
• The handset must be correctly

installed in the cradle.

• The handset must be connected to a

cellular network and unlocked.

• The vehicle ignition switch must be in

position I (auxiliary) or II (ignition).

Note: The radio, cassette tape or CD

player can be OFF or ON.

Handset
Handset operation is fully described in

the telephone manufacturer’s handbook.
Note: The system can only be used with

Jaguar supplied and approved portable

handsets.

Speaker volume
Speaker volume can be adjusted

independently for phone operation.

To adjust, operate the ON/OFF volume

control while the phone is in a call.
If the audio system is in use when the

phone becomes active, the audio source

is suppressed for the duration of the call.

Audio system display
Phone related messages are shown on the

audio panel display or touch-screen

(where fitted) when the phone system is

active.
Note: Messages displayed may not be in

the same language as messages on the

handset display.

background image

1-2 General information

Electronic Lock
If using the handset lock or autolock

feature, before each journey ensure that

the lock PIN code is entered as follows:
1. If not in phone mode, press

on the

audio panel or on the left of the

touch-screen (where fitted).

2. Enter PIN code on the vehicle keypad.
3. Press

on the audio panel or ENTER

on the left of the touch-screen (where

fitted).

For full details on the use of the handset

electronic lock, refer to the

manufacturer’s handbook.

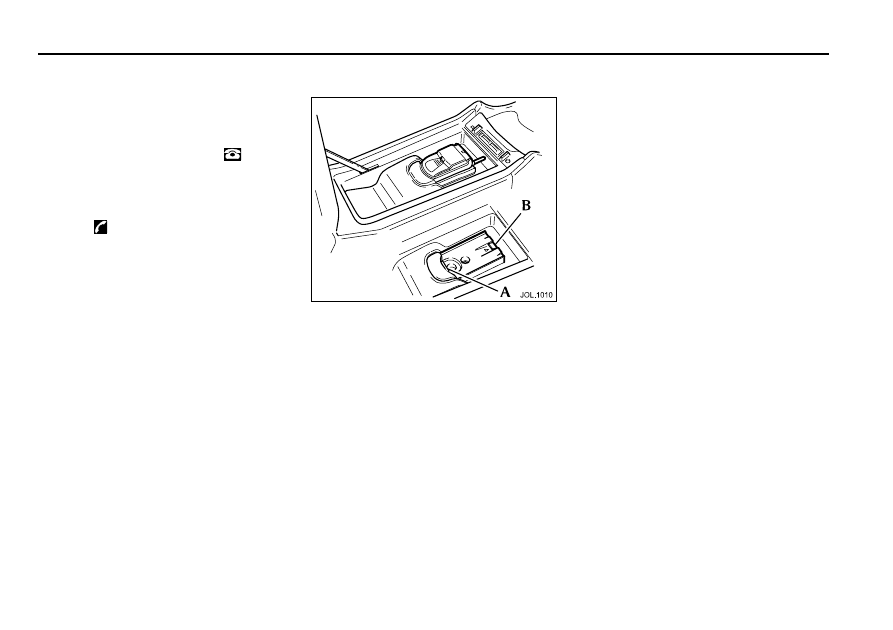

To remove or install the handset

To remove the handset from the cradle,

slide the handset forward to disconnect it

from the base connector (A). Lift the base

of the handset and remove it from the

cradle.
To install the handset in the cradle,

retract the aerial, locate the top of the

handset in the cradle and slide it forward

into the clip (B). Finally locate the

handset in the cradle by allowing it to

move rearward under spring pressure

until it is fully engaged in the base

connector (A).

Caution: Ensure the handset is folded

to the closed position before

lowering the armrest.
Note:
When changing to handsfree mode

during a call, the handset must be muted

before it is returned to the cradle.

For instructions on muting the handset,

please refer to the telephone

manufacturer’s handbook.

background image

General information 1-3

Safety Recommendations

!

WARNING:

Read this information before using

your portable phone.

Exposure to Radio Frequency Signals
Your portable telephone is a low power

radio transmitter and receiver. When it is

switched ON, it receives and sends out

radio frequency (RF) signals.
International authorities have set

standards and recommendations for

protection of the public from exposure to

RF electromagnetic energy.

Your telephone is designed to satisfy all

international requirements when used as

described in this handbook.

Antenna Care
Only approved Jaguar antennae should

be installed on the vehicle. The use of

unauthorized antennae can damage the

phone and may violate local authority

regulations.

Phone Operation
Do not operate your portable telephone

when a person is within 4 inches

(10 centimetres) of the vehicle antenna.

A person positioned within this range of

the antenna can adversely affect phone

performance and may cause the phone to

operate at abnormally high power levels

exposing that person to excessive

RF energy levels.

Driving
Check local regulations on the use of

portable telephones in the areas where

you drive and always obey them.

Observe the following guidelines when

using your phone while driving:
• Give full attention to driving – safe

driving is your first responsibility.

• Always use handsfree operation when

driving.

• When receiving a call, if driving

conditions demand, pull off the road

and park.

Electronic Devices
Most modern electronic equipment is

shielded from RF signals.

However, certain equipment may not be

shielded against the RF signals from your

portable phone.

Pacemakers
The Health Industry Manufacturers

Association recommends that a minimum

separation of 6 inches (15 centimetres)

is maintained between a wireless phone

antenna and a pacemaker to avoid

potential interference with the

pacemaker. These recommendations are

consistent with the independent research

by and recommendations of Wireless

Technology Research.
Persons with pacemakers should:
• Preferably use the vehicle handsfree

phone system.

• ALWAYS keep the phone more than

6 inches (15 centimetres) from their

pacemaker when the phone is

switched ON.

• Turn the phone OFF immediately if

there is any reason to suspect that

interference is taking place.

background image

1-4 General information

Other Medical Devices
If you use any other personal medical

device, consult the manufacturer of your

device, or your doctor, to determine that

it is adequately shielded from external

RF energy.
Turn your phone OFF in health care

facilities when any regulations posted in

such areas instruct you to do so.

Hospitals or health care facilities may be

using equipment that could be sensitive

to external RF energy.

Vehicles
RF signals may affect non-Jaguar or

improperly installed equipment.

Always consult the manufacturer of any

equipment that has been retro-fitted to

your vehicle.

Posted Facilities
Turn your phone OFF in any facility

where posted notices so require.

Blasting Areas
To avoid interfering with blasting

operations, turn your phone OFF when in

a blasting area or in areas posted: ‘Turn

off two-way radios.’ Obey all signs and

instructions.

Potentially Explosive Atmospheres
Areas with a potentially explosive

atmosphere are often but not always

clearly marked. Turn your phone OFF

when you are in such an area, as the use

of unapproved electrical equipment can

cause an explosion or fire resulting in

bodily injury or death.

Vehicles Equipped with an Airbag
Note:
Airbags inflate with great force.

Do NOT place objects, including both

installed or portable wireless equipment,

in the area over an airbag or in the airbag

deployment area. If in-vehicle wireless

equipment is improperly installed and the

airbag inflates, serious injury could result.

background image

Telephone controls 2-1

2

Telephone controls

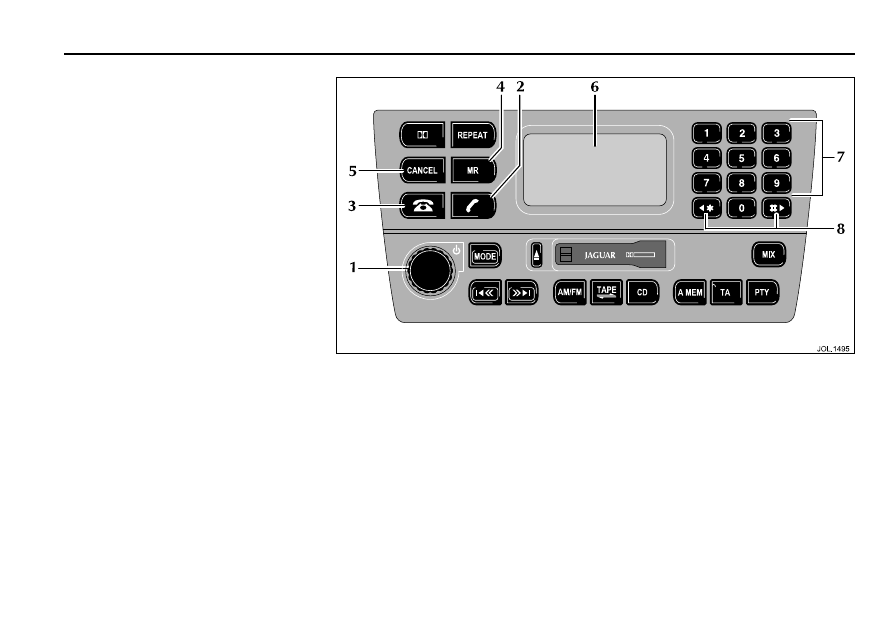

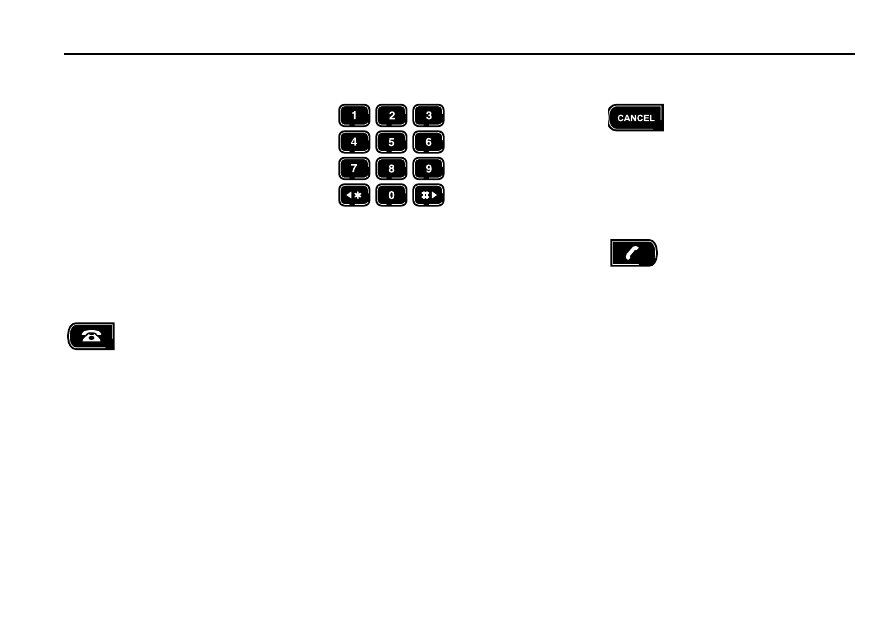

Audio panel controls

1. ON/OFF switch and volume control.
2. Phone send/end calls.
3. Phone mode button.
4. Phone memory recall button.
5. Cancel/correct telephone numbers.
6. Display.
7. Phone keypad – buttons 0 to 9

(see page 2-3).

8. Scroll memory location.
The telephone can be operated either

direct from the handset in the

conventional manner, or in handsfree

mode using the audio panel keypad or

steering wheel mounted control buttons,

and an overhead microphone.

Display messages

Messages that may be displayed:
BUSY – Dialled number that is busy.
CALL – There is an incoming call.
CALLING – A call is being established.
EMPTY – Memory location is empty.

HANDSET – Phone is in handset mode

(or not correctly installed in cradle).
LOCATION – Memory location number

or prompt for memory location number.
NO SERVICE – No cellular service

available.
PHONE – System entering phone mode.

ROAM – Phone connected to different

network from ‘home’ system.
SIG – Indication of signal strength.
Note: Messages on the radio display may

not be in the same language as messages

on the phone display.

background image

2-2 Telephone controls

Steering wheel controls

Controls situated on the left-hand side of

the steering wheel duplicate the functions

of buttons on the audio panel.

1. Press to answer/end handsfree calls.
2. In phone mode, press top or bottom to

increase or decrease volume.

3. Press and hold for 2 seconds to select

phone mode. When the button is

pressed again and released, the system

exits from phone mode and returns to

the previous audio mode.

4. In phone mode, press the upper or

lower part of the control to seek up or

down through the numbers stored in

the phone memory.

background image

Telephone controls 2-3

Audio panel control functions

Volume control and fader mode
Phone volume can be adjusted from the

radio volume control or the steering

wheel switches and the volume set is

memorised for future calls (this will not

alter the other audio volume settings).
To adjust: With the phone system in a

call, press MODE on the audio panel

repeatedly until FADE is displayed.

Using the volume control knob or the

steering wheel button, set fade to

personal preference.

Phone mode
This button will activate the phone mode,

ready to make a call and the display will

indicate that phone mode has been

selected.
This function can also be controlled from

the steering wheel (press and hold

button 3 shown on the preceeding page).

Keypad
Press digits to enter the required

telephone number. Each key press will

beep and the digits are displayed on the

audio panel.
The keypad can also be used in Memory

Recall (MR), to enter a location number,

or to scroll up/down the memory

locations.

Cancel
Press and release CANCEL to clear the

last digit of a telephone number.

Press and hold to clear all digits entered.

Send/end
Press this button to send the entered

telephone number. Also used to end a

call that is in progress.
This function can also be controlled from

the steering wheel by using button 1

shown on the preceding page.

background image

2-4 Telephone controls

Memory recall
Press to access the phone memory and

recall a number. Either a memory

location number can be entered from the

keypad, or memory locations can be

scrolled up and down from the keypad

scroll keys.
Note: Memory locations can only be

scrolled numerically.
This function can also be controlled from

steering wheel button 4 shown on

page 2-2. Press the upper or lower part

of the control to seek up or down through

the numbers stored in the phone

memory.
Last number redial may also be activated

by pressing and holding the MR button.

For instructions on entering numbers and

names into memory locations, please

refer to the telephone manufacturer’s

handbook.

Radio/CD/Tape/MiniDisc (MD)
When a call has ended, press one of these

buttons to select radio, CD, MD or Tape.
Note: These buttons are inoperative

during a ‘handsfree’ telephone call.

Band switches AM and FM
Pressing this button selects radio

operation (when a call has ended).

background image

Telephone operation 3-1

3

Telephone operation

Receiving a call in handsfree

An incoming call automatically switches the sound system into

the phone mode. The radio display will show CALL and ringing

is heard through the sound system.
If automatic answer has been programmed as described in the

telephone manufacturer’s handbook, the call will automatically

answer after two rings.

1. To answer: press the

switch on the steering wheel or

press

on the audio panel.

2. To end: press the

switch on the steering wheel or

press

on the audio panel.

3. To exit: once the call has ended the radio will automatically

leave phone mode after six seconds.
If the radio, cassette, CD or MD was OFF, the system will

return to OFF.

Receiving a call with ‘Call Line Ident’
If the caller has the ‘Call Line Identity’ (CLI) feature, CALL is

shown on the radio display followed by the caller’s phone

number. In addition, if you have previously stored the caller’s

name and phone number in your phone memory, after the

word CALL, the caller’s name will be shown for two seconds.

When the two seconds have elapsed, the phone number will be

displayed until the call is answered.
Note: The display of lengthy names may be truncated by

screen-size limitation.

Making a handsfree call

When making a call, there are four methods of dialling:
Keypad, Turbo, memory search and last number redial.

Keypad dialling:
1. To dial: press and hold the SELECT switch on the steering

wheel or press

on the audio panel.

PHONE is displayed for two seconds followed by SIG

or ROAM.

2. Key in the phone number on the audio panel keypad.

The number will be displayed.

3. To connect: press the

switch on the steering wheel or

press

on the audio panel.

The display will then show CALLING and when the call is

connected the display will show SIG or ROAM.

4. To end: press the

switch on the steering wheel or

press

on the audio panel.

5. To exit: press the SELECT switch on the steering wheel or

press audio source button, AM/FM, TAPE, CD or MD.
If the radio, cassette, CD or MD was OFF, the system will

return to OFF.

background image

3-2 Telephone operation

Turbo dialling
Note:
Turbo dialling selects the first nine locations stored in the

handset memory. To store entries in the handset refer to the

manufacturer’s handbook.
Some phones allow multiple numbers to be stored in a single

location. When dialling from the vehicle, only the first filled

number can be dialled from each location.
1. To dial: press and hold the SELECT switch on the steering

wheel or press

on the audio panel.

PHONE is displayed for two seconds followed by SIG

or ROAM.

2. On the audio panel keypad, press and hold the required

turbo dialling memory location number 1 to 9.
After three seconds CALLING will be displayed.

3. To end: press the

switch on the steering wheel or

press

on the audio panel.

4. To exit: press the SELECT switch on the steering wheel or

press audio source button, AM/FM, TAPE, MD or CD.
If the radio, cassette, CD or MD was OFF, the system will

return to OFF.

Memory recall dialling (audio panel buttons only)
1. To dial: press and hold the SELECT switch on the steering

wheel or press

on the audio panel.

PHONE will be displayed for two seconds followed by SIG

or ROAM.

2. Press the MR button.

LOCATION will be displayed.

3. On the audio panel keypad, press the required memory

number 01 to 99 or:
Press the

button (for memory recall location 1)

or the

button (for the highest stored location

number), then repeatedly press either button to scroll

through until you reach the location number you require.
Note: You can key in any number between 01 and 99 then

use the arrow keys to scroll up and down.
The memory location name is displayed followed by the

location phone number.

4. To connect: press the

switch on the steering wheel or

press

on the audio panel.

CALLING will be displayed followed by SIG or ROAM when

the call is connected.

5. To end: press the

switch on the steering wheel or

press

on the audio panel.

6. To exit: press the audio source button, AM/FM, TAPE, MD

or CD.
If the radio, cassette, CD or MD was OFF, the system will

return to OFF.

background image

Telephone operation 3-3

Memory recall dialling (Steering wheel switches only)
1. To dial: Press and hold the SELECT switch.

PHONE will be displayed for two seconds followed by SIG

or ROAM.

2. On the audio panel keypad, press the required memory

number 01 to 99 or:
Press the

button (for memory recall location 1)

or the

button (for the highest stored location number),

then repeatedly press either button to scroll through until

you reach the location number you require.
Note: You can key in any number between 01 and 99 then

use the arrow keys to scroll up and down.
The memory location name is displayed followed by the

location phone number.

3. To connect: press the

switch on the steering wheel or

press

on the audio panel.

CALLING will be displayed followed by SIG or ROAM when

the call is connected.

4. To end: press the

switch on the steering wheel or

press

on the audio panel.

5. To exit: press the SELECT switch on the steering wheel or

press audio source button, AM/FM, TAPE, MD or CD.
If the radio, cassette, CD or MD was OFF, the system will

return to OFF.

Last number redial
Note:
Last number redial recalls the phone number of the last

handsfree call made since the ignition was switched on.

When the ignition is switched off, the last number called is lost

from the system memory. The last call made on the handset

cannot be recalled during handsfree operation.
1. To dial: press and hold the SELECT switch on the steering

wheel or press

on the audio panel.

PHONE will be displayed for two seconds followed by SIG

or ROAM.

2. On the audio panel, press and hold the MR button.

The display will show the last number called.
Note: If the last number was dialled using keypad dialling,

you can change the number by pressing the CANCEL button.

3. To connect: press the

switch on the steering wheel or

press

on the audio panel.

CALLING will be displayed followed by SIG or ROAM when

the call is connected.

4. To end: press the

switch on the steering wheel or

press

on the audio panel.

5. To exit: press the SELECT switch on the steering wheel or

press audio source button, AM/FM, TAPE, MD or CD.
If the radio, cassette, CD or MD was OFF, the system will

return to OFF.

background image

3-4 Telephone operation

Continuity of calls
With a call in progress in handsfree mode or using the handset

in the cradle, the call remains connected if the vehicle ignition

switch is turned to position 0 (OFF). When the call ends,

another call cannot be made or received unless the ignition

switch is turned to position I (auxiliary) or II (ignition).
On vehicles fitted with the Navigation System, if the handset is

used in the cradle to make another call during the five minute

‘Safety Time’, while the ignition is still off, the message

COMMUNICATION FAULT Please contact your dealer

may be displayed on the screen for the duration of the call.

This message will remain displayed if the ignition switch is

turned to positions I, II or III. on terminating the call this

message can be cleared from the display by turning the ignition

switch to position II, turning it back to 0 (off), then returning it

to position II or III.
If the above procedure does not clear the message from the

navigation screen, consult your Jaguar dealer.

Call guard
Call guard warns the user that the phone is out of range of the

‘home’ network and incoming or outgoing calls must be made

using a roaming network which incurs higher call tariffs.
If call guard is active, press 1 on the handset keypad before

receiving or making a roaming call.

background image

Telephone operation 3-5

Touch-screen controls (where

fitted)

On vehicles fitted with the Navigation

System, the audio panel keyboard is

replaced by touch-screen controls.

Conventional handset and steering wheel

button operation of the phone as

described in the preceding pages are

retained.
With the ignition switch in position I or II
pressing the

button on the left of the

screen will display the screen controls.

The screen will also display READY if

the phone is correctly connected

or NO PHONE if the phone is not

properly connected.

HANDSET IN USE will be displayed if

the handset has not been correctly

returned to the cradle.

background image

3-6 Telephone operation

Touch-screen operation

Making a call

1. Press and hold the SELECT switch on

the steering wheel for two seconds,

or press the phone icon button to the

left of the touch-screen.

2. Using the touch-screen keypad, enter

the required phone number (the

memory functions on pages 3-2 and

3-3 can be used if preferred).

Erroneous digits can be deleted by

using the C touch-control.

3. To establish the call, press the

switch on the steering wheel or

the upper phone icon on the

touch-screen.

4. The number called is displayed at

the top of the screen together

with CALLING. If the ignition is

switched off, the call will be

maintained and the screen can be

manually turned off.

5. On completion of the call, press the

illuminated lower phone icon on the

touch-screen to terminate connection.

Note: Signal strength is displayed in bars

on the right. When the phone registers to

a network other than the home network,

the signal strength icon is accompanied

by ROAMING.

Receiving a call

On receipt of a call, the screen will

display INCOMING CALL regardless of

the audio system operating mode. This is

accompanied by ACCEPT and CANCEL

touch-controls. Pressing ACCEPT enables

the user to answer the call when the

system is not programmed for automatic

answering as described in the telephone

manufacturer’s handbook.

Pressing the CANCEL touch-control will

cancel the incoming call. It should be

noted that some telephone networks do

not support the CANCEL feature.
Note: On acceptance of a call, the screen

will revert to the phone display shown on

the left.

background image

Telephone operation 3-7

Using the menu

Use of the MENU touch-control will

display the above screen, providing

access to memory functions, last number

and re-dial.

Last number

The LAST NUMBER REDIAL memory

function enables the user to quickly recall

the previously used number.
Use of this touch-control automatically

calls the previous number and reverts to

the standard phone display, with the call

timer and END CALL control activated.

Location number

The LOCATION NUMBER screen

enables the user to search the phone

memory by location.
Upon pressing the location number

touch-control, a location number is

requested. A list of locations is then

displayed as above (dependent upon

those stored in the memory). The desired

location may then be dialled by touching

the location number.

background image

3-8 Telephone operation

Name entry

On the phone menu select NAME, then

with the alphabetical keyboard above

displayed, select the desired alpha entry

followed by OK.

List by name

With the memory list displayed as above,

locate the required name by scrolling

using the arrowed buttons, then touch

the name to make the call.
Use the END CALL touch-control to

terminate the call.

Voice activation (where fitted)

The in-car telephone system can be used

in conjunction with the Voice Activation

System to provide the driver with

completely handsfree communication.
Voice commands are picked up by the

same roof-mounted directional

microphone that serves the handsfree

phone system.
For the recommended techniques and

general procedures to adopt when using

the Voice Activation system, refer to the

JaguarVoice Handbook.
Note: The Voice Activation system must

not be used to call emergency numbers,

as voice patterns can change under stress,

resulting in commands becoming

unrecognisable.

background image

Additional information 4-1

4

Additional information

Handset Mode
When the portable handset is removed

from the cradle, calls can only be made

or received using the keypad and control

buttons on the handset.
Note: The audio system will remain in,

or return to the previously selected mode,

when the phone is used in handset mode.

DTMF Tones
While in a call you can transmit a DTMF

(Dual Tone Multi Frequency) tone,

to remotely control equipment such as an

answering machine, by keying in the

appropriate numbers on the radio keypad

or touch-control screen. The numbers

entered will show on the display until the

call ends. This feature can also be keyed

by using the handset keypad.

Scratch pad
During a call, the radio panel keypad may

be used to store a number to be dialled

after call termination. The number

entered will remain displayed when the

current call is ended. The new number

may then be dialled by pressing the

switch on the steering wheel or

the

button on the audio system panel.

Changing a Phone Number
When making a call, you can change the

phone number shown on the radio

display using the CANCEL button on the

audio panel or the C icon on the

touch-screen.
A momentary press erases any single

digit, a long press erases the complete

number.

Caller Identity option
The caller ID option enables the caller’s

name to be displayed on the audio panel

as the call is being received.
If the cellular provider cannot identify the

number INCOMNG CALL will be

displayed.
If the cellular provider caller ID function

recognises a number/name in the handset

‘Phone Book’, the number or name will

be displayed on the audio panel.

On answering the call, the number or

name will be replaced by SIG or ROAM.

background image
background image

Index

Audio panel controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
Audio system display . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

C

Caller identity option . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1
Changing a phone number . . . . . . . . . . . . . . . . . . . . . . . . 4-1
Continuity of calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4

D

DTMF tones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

G

General information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

H

Handset
– To remove/install . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
Handset mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1
Handsfree phone system
– Audio system display . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
– Conditions for handsfree operation . . . . . . . . . . . . . . . 1-1
– Electronic lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
– Handset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
– Speaker volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

S

Safety recommendations . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
– Antenna care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
– Blasting areas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
– Driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
– Electronic devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
– Exposure to radio frequency signals . . . . . . . . . . . . . . . 1-3
– Other medical devices . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
– Pacemakers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
– Phone operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
– Posted facilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
– Potentially explosive atmospheres . . . . . . . . . . . . . . . . 1-4
– Vehicles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
– Vehicles equipped with an airbag . . . . . . . . . . . . . . . . 1-4
Scratch pad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

T

background image

Index

Telephone controls
– Audio panel control functions . . . . . . . . . . . . . . . . . . . 2-3
– Audio panel controls . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
– Band switches AM and FM . . . . . . . . . . . . . . . . . . . . . . 2-4
– Cancel button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
– Display messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
– Keypad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
– Memory recall button . . . . . . . . . . . . . . . . . . . . . . . . . 2-4
– Phone mode button . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
– Radio/CD/Tape/MiniDisc button . . . . . . . . . . . . . . . . . . 2-4
– Send/end button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
– Steering wheel integrated phone buttons . . . . . . . . . . . 2-2
– Volume control and fader mode . . . . . . . . . . . . . . . . . 2-3
Telephone operation
– Call guard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4
– Continuity of calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4
– Last number redial . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3
– Making a handsfree call . . . . . . . . . . . . . . . . . . . . . . . . 3-1
– Memory recall dialling (audio panel buttons) . . . . . . . . 3-2
– Memory recall dialling (steering wheel) . . . . . . . . . . . . 3-3
– Receiving a call in handsfree . . . . . . . . . . . . . . . . . . . . 3-1
– Receiving a call with ‘Call Line Ident’ . . . . . . . . . . . . . . 3-1
– Turbo dialling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2

Touch-screen controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5
Touch-screen operation . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6
– Last number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7
– List by name . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-8
– Location number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7
– Making a call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6
– Name entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-8
– Receiving a call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6
– Using the menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7

V

Voice activation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-8

background image

JJM 18 31 24/22


Wyszukiwarka

Podobne podstrony:
Jaguar X TYPE 2002 25 Voice Handbook
Jaguar X TYPE 2002 25 Audio Handbook
Jaguar X TYPE 2003 Incar Telephone Handbook
Jaguar X TYPE 2002 Drivers Handbook
Jaguar X TYPE 2002 Navigation Handbook
Jaguar X TYPE 2002 Quick Guide
JAGUAR X TYPE 2002 2003
akumulator do jaguar x type estate 25 30 20d 22d
akumulator do jaguar s type ccc 25 v6 30 v6 42 v8
Jaguar X TYPE 2003 5 Drivers Handbook
Jaguar S TYPE 2000 Navigation Handbook
Jaguar X TYPE 2003 Audio Handbook
Jaguar S Type 2001 Handbook
akumulator do jaguar x type cf1 20 v6 25 v6 30 v6 20d 22d
Jaguar S TYPE 2001 Audio Handbook
Wahacz tylni jaguar X Type 2 0V6 6KM
ei 01 2002 s 25 29
JAGUAR S TYPE 2000 2003

więcej podobnych podstron
