DODGE DAKOTA 1991 2004

background image

Copyright 2002-2004 Triple S Customs

D

D

O

O

D

D

G

G

E

E

D

D

A

A

K

K

O

O

T

T

A

A

1

1

9

9

9

9

1

1

-

-

2

2

0

0

0

0

4

4

V

V

E

E

H

H

I

I

C

C

L

L

E

E

W

W

I

I

R

R

I

I

N

N

G

G










background image

Copyright 2002-2004 Triple S Customs

2

WIRING INFORMATION: 1991 Dodge Dakota

WIRE

WIRE COLOR

LOCATION

12V CONSTANT WIRE

RED or PINK/BLACK

Ignition harness

STARTER WIRE

YELLOW

Ignition harness

12V IGNITION WIRE

DARK BLUE

Ignition harness

12V ACCESSORY WIRE

BLACK/ORANGE

Ignition harness

SECOND ACCESSORY WIRE

BLACK

Ignition harness

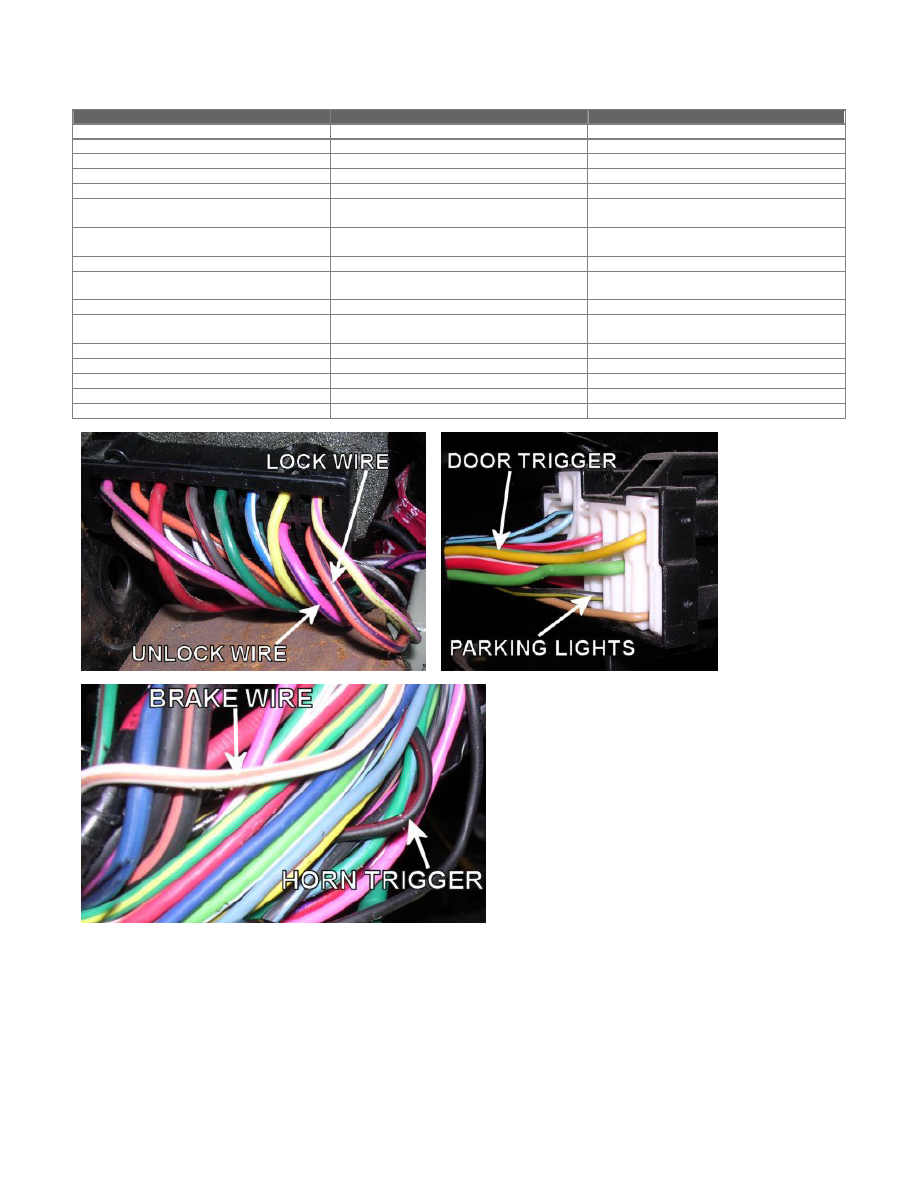

POWER DOOR LOCK (5-wire reverse
polarity)

ORANGE/PURPLE

In Large Black Connector Behind Fuse Box
On Left Side

POWER DOOR UNLOCK (5-wire reverse
polarity)

PINK/PURPLE

In Large Black Connector Behind Fuse Box
On Left Side

PARKING LIGHTS (+)

BLACK/YELLOW

Behind Headlight Switch

DOOR TRIGGER/ DOMELIGHT
SUPERVISION (-)

YELLOW

Behind Headlight Switch

TACHOMETER WIRE

GRAY

At Ignition Coil

BRAKE WIRE (+)

WHITE or WHITE/TAN

Plug At Brake Pedal Switch Or At Ignition
Harness

HORN TRIGGER (-)

BLACK/RED

At Ignition Harness

LEFT FRONT WINDOW UP

LT.BLUE

At Driver Window Motor Inside Door

LEFT FRONT WINDOW DOWN

WHITE

At Driver Window Motor Inside Door

RIGHT FRONT WINDOW UP

BROWN/WHITE

Harness In Driver’s Kick From Driver Door

RIGHT FRONT WINDOW DOWN

PURPLE/WHITE

Harness In Driver’s Kick From Driver Door

background image

Copyright 2002-2004 Triple S Customs

3


WIRING INFORMATION: 1992 Dodge Dakota

WIRE

WIRE COLOR

LOCATION

12V CONSTANT WIRE

RED or PINK/BLACK

Ignition harness

STARTER WIRE

YELLOW

Ignition harness

12V IGNITION WIRE

DARK BLUE

Ignition harness

12V ACCESSORY WIRE

BLACK/ORANGE

Ignition harness

SECOND ACCESSORY WIRE

BLACK

Ignition harness

POWER DOOR LOCK (5-wire reverse
polarity)

ORANGE/PURPLE

In Large Black Connector Behind Fuse Box
On Left Side

POWER DOOR UNLOCK (5-wire reverse
polarity)

PINK/PURPLE

In Large Black Connector Behind Fuse Box
On Left Side

PARKING LIGHTS (+)

BLACK/YELLOW

Behind Headlight Switch

DOOR TRIGGER/ DOMELIGHT
SUPERVISION (-)

YELLOW

Behind Headlight Switch

TACHOMETER WIRE

GRAY

At Ignition Coil

BRAKE WIRE (+)

WHITE or WHITE/TAN

Plug At Brake Pedal Switch Or At Ignition
Harness

HORN TRIGGER (-)

BLACK/RED

At Ignition Harness

LEFT FRONT WINDOW UP

LT.BLUE

At Driver Window Motor Inside Door

LEFT FRONT WINDOW DOWN

WHITE

At Driver Window Motor Inside Door

RIGHT FRONT WINDOW UP

BROWN/WHITE

Harness In Driver’s Kick From Driver Door

RIGHT FRONT WINDOW DOWN

PURPLE/WHITE

Harness In Driver’s Kick From Driver Door

background image

Copyright 2002-2004 Triple S Customs

4


WIRING INFORMATION: 1993 Dodge Dakota

WIRE

WIRE COLOR

LOCATION

12V CONSTANT WIRE

RED or PINK/BLACK

Ignition harness

STARTER WIRE

YELLOW

Ignition harness

12V IGNITION WIRE

DARK BLUE

Ignition harness

12V ACCESSORY WIRE

BLACK/ORANGE

Ignition harness

SECOND ACCESSORY WIRE

BLACK

Ignition harness

POWER DOOR LOCK (5-wire reverse
polarity)

ORANGE/PURPLE

In Large Black Connector Behind Fuse Box
On Left Side

POWER DOOR UNLOCK (5-wire reverse
polarity)

PINK/PURPLE

In Large Black Connector Behind Fuse Box
On Left Side

PARKING LIGHTS (+)

BLACK/YELLOW

Behind Headlight Switch

DOOR TRIGGER/ DOMELIGHT
SUPERVISION (-)

YELLOW

Behind Headlight Switch

TACHOMETER WIRE

GRAY

At Ignition Coil

BRAKE WIRE (+)

WHITE or WHITE/TAN

Plug At Brake Pedal Switch Or At Ignition
Harness

HORN TRIGGER (-)

BLACK/RED

At Ignition Harness

LEFT FRONT WINDOW UP

LT.BLUE

At Driver Window Motor Inside Door

LEFT FRONT WINDOW DOWN

WHITE

At Driver Window Motor Inside Door

RIGHT FRONT WINDOW UP

BROWN/WHITE

Harness In Driver’s Kick From Driver Door

RIGHT FRONT WINDOW DOWN

PURPLE/WHITE

Harness In Driver’s Kick From Driver Door

background image

Copyright 2002-2004 Triple S Customs

5


WIRING INFORMATION: 1994 Dodge Dakota

WIRE

WIRE COLOR

LOCATION

12V CONSTANT WIRE

RED or PINK/BLACK

Ignition harness

STARTER WIRE

YELLOW

Ignition harness

12V IGNITION WIRE

DARK BLUE

Ignition harness

12V ACCESSORY WIRE

BLACK/ORANGE

Ignition harness

SECOND ACCESSORY WIRE

BLACK

Ignition harness

POWER DOOR LOCK (5-wire reverse
polarity)

ORANGE/PURPLE

In Large Black Connector Behind Fuse Box
On Left Side

POWER DOOR UNLOCK (5-wire reverse
polarity)

PINK/PURPLE

In Large Black Connector Behind Fuse Box
On Left Side

PARKING LIGHTS (+)

BLACK/YELLOW

Behind Headlight Switch

DOOR TRIGGER/ DOMELIGHT
SUPERVISION (-)

YELLOW

Behind Headlight Switch

TACHOMETER WIRE

GRAY

At Ignition Coil

BRAKE WIRE (+)

WHITE or WHITE/TAN

Plug At Brake Pedal Switch Or At Ignition
Harness

HORN TRIGGER (-)

BLACK/RED

At Ignition Harness

LEFT FRONT WINDOW UP

LT.BLUE

At Driver Window Motor Inside Door

LEFT FRONT WINDOW DOWN

WHITE

At Driver Window Motor Inside Door

RIGHT FRONT WINDOW UP

BROWN/WHITE

Harness In Driver’s Kick From Driver Door

RIGHT FRONT WINDOW DOWN

PURPLE/WHITE

Harness In Driver’s Kick From Driver Door

background image

Copyright 2002-2004 Triple S Customs

6


WIRING INFORMATION: 1995 Dodge Dakota

WIRE

WIRE COLOR

LOCATION

12V CONSTANT WIRE

RED or PINK/BLACK

Ignition harness

STARTER WIRE

YELLOW

Ignition harness

12V IGNITION WIRE

DARK BLUE

Ignition harness

12V ACCESSORY WIRE

BLACK/ORANGE

Ignition harness

SECOND ACCESSORY WIRE

BLACK

Ignition harness

POWER DOOR LOCK (5-wire reverse
polarity)

ORANGE/PURPLE

In Large Black Connector Behind Fuse Box
On Left Side

POWER DOOR UNLOCK (5-wire reverse
polarity)

PINK/PURPLE

In Large Black Connector Behind Fuse Box
On Left Side

PARKING LIGHTS (+)

BLACK/YELLOW

Behind Headlight Switch

DOOR TRIGGER/ DOMELIGHT
SUPERVISION (-)

YELLOW

Behind Headlight Switch

TACHOMETER WIRE

GRAY

At Ignition Coil

BRAKE WIRE (+)

WHITE or WHITE/TAN

Plug At Brake Pedal Switch Or At Ignition
Harness

HORN TRIGGER (-)

BLACK/RED

At Ignition Harness

LEFT FRONT WINDOW UP

LT.BLUE

At Driver Window Motor Inside Door

LEFT FRONT WINDOW DOWN

WHITE

At Driver Window Motor Inside Door

RIGHT FRONT WINDOW UP

BROWN/WHITE

Harness In Driver’s Kick From Driver Door

RIGHT FRONT WINDOW DOWN

PURPLE/WHITE

Harness In Driver’s Kick From Driver Door

background image

Copyright 2002-2004 Triple S Customs

7


WIRING INFORMATION: 1996 Dodge Dakota

WIRE

WIRE COLOR

LOCATION

12V CONSTANT WIRE

RED or PINK/BLACK

Ignition harness

STARTER WIRE

YELLOW

Ignition harness

12V IGNITION WIRE

DARK BLUE

Ignition harness

12V ACCESSORY WIRE

BLACK/ORANGE

Ignition harness

SECOND ACCESSORY WIRE

BLACK

Ignition harness

POWER DOOR LOCK (5-wire reverse
polarity)

ORANGE/PURPLE

In Large Black Connector Behind Fuse Box
On Left Side

POWER DOOR UNLOCK (5-wire reverse
polarity)

PINK/PURPLE

In Large Black Connector Behind Fuse Box
On Left Side

PARKING LIGHTS (+)

BLACK/YELLOW

Behind Headlight Switch

DOOR TRIGGER/ DOMELIGHT
SUPERVISION (-)

YELLOW

Behind Headlight Switch

TACHOMETER WIRE

GRAY

At Ignition Coil

BRAKE WIRE (+)

WHITE or WHITE/TAN

Plug At Brake Pedal Switch Or At Ignition
Harness

HORN TRIGGER (-)

BLACK/RED

At Ignition Harness

LEFT FRONT WINDOW UP

LT.BLUE

At Driver Window Motor Inside Door

LEFT FRONT WINDOW DOWN

WHITE

At Driver Window Motor Inside Door

RIGHT FRONT WINDOW UP

BROWN/WHITE

Harness In Driver’s Kick From Driver Door

RIGHT FRONT WINDOW DOWN

PURPLE/WHITE

Harness In Driver’s Kick From Driver Door

background image

Copyright 2002-2004 Triple S Customs

8


WIRING INFORMATION: 1997 Dodge Dakota

WIRE

WIRE COLOR

LOCATION

12V CONSTANT WIRE

RED or PINK/BLACK

Ignition harness

STARTER WIRE

BLUE/YELLOW

Ignition harness

12V IGNITION WIRE

DARK BLUE

Ignition harness

12V ACCESSORY WIRE

BLACK/ORANGE

Ignition harness

SECOND 12V ACCESSORY WIRE

BLACK/WHITE

Ignition harness

POWER DOOR LOCK (+)

ORANGE/PURPLE or GREEN/BLACK

White Harness In Driver’s Kick Panel

POWER DOOR UNLOCK (Vehicles without
OEM keyless entry: positive trigger, Vehicles
with OEM keyless entry: 5-wire reverse
polarity)

PINK/PURPLE

White Harness In Driver’s Kick Panel

PARKING LIGHTS (+)

BLACK/YELLOW

At Headlight Switch

DOOR TRIGGER (-)

YELLOW

Harness Behind Fuse Box

FACTORY ALARM DISARM (-)

BLACK/ORANGE

Harness In Driver’s Kick Panel

TACHOMETER

BLACK/GRAY or GRAY/BLACK

At Ignition Coil

BRAKE WIRE (+)

WHITE/TAN

Plug At Brake Pedal Switch

HORN TRIGGER (-)

BLACK/RED

Harness At Steering Column

LEFT FRONT WINDOW UP

LT.BLUE

At Driver Window Motor Inside Door

LEFT FRONT WINDOW DOWN

WHITE

At Driver Window Motor Inside Door

RIGHT FRONT WINDOW UP

BROWN/WHITE

Harness In Driver’s Kick From Driver Door

RIGHT FRONT WINDOW DOWN

PURPLE/WHITE

Harness In Driver’s Kick From Driver Door


WIRING INFORMATION: 1998 Dodge Dakota

WIRE

WIRE COLOR

LOCATION

12V CONSTANT WIRE

RED or PINK/BLACK

Ignition harness

STARTER WIRE

BLUE/YELLOW

Ignition harness

12V IGNITION WIRE

DARK BLUE

Ignition harness

12V ACCESSORY WIRE

BLACK/ORANGE

Ignition harness

SECOND 12V ACCESSORY WIRE

BLACK/WHITE

Ignition harness

POWER DOOR LOCK (+)

ORANGE/PURPLE or GREEN/BLACK

White Harness In Driver’s Kick Panel

POWER DOOR UNLOCK (Vehicles without
OEM keyless entry: positive trigger, Vehicles
with OEM keyless entry: 5-wire reverse
polarity)

PINK/PURPLE

White Harness In Driver’s Kick Panel

PARKING LIGHTS (+)

BLACK/YELLOW

At Headlight Switch

DOOR TRIGGER (-)

YELLOW

Harness Behind Fuse Box

FACTORY ALARM DISARM (-)

BLACK/ORANGE

Harness In Driver’s Kick Panel

TACHOMETER

BLACK/GRAY or GRAY/BLACK

At Ignition Coil

BRAKE WIRE (+)

WHITE/TAN

Plug At Brake Pedal Switch

HORN TRIGGER (-)

BLACK/RED

Harness At Steering Column

LEFT FRONT WINDOW UP

LT.BLUE

At Driver Window Motor Inside Door

LEFT FRONT WINDOW DOWN

WHITE

At Driver Window Motor Inside Door

RIGHT FRONT WINDOW UP

BROWN/WHITE

Harness In Driver’s Kick From Driver Door

RIGHT FRONT WINDOW DOWN

PURPLE/WHITE

Harness In Driver’s Kick From Driver Door

background image

Copyright 2002-2004 Triple S Customs

9

WIRING INFORMATION: 1999 Dodge Dakota

WIRE

WIRE COLOR

LOCATION

12V CONSTANT WIRE

RED or PINK/BLACK

Ignition harness

STARTER WIRE

BLUE/YELLOW

Ignition harness

12V IGNITION WIRE

DARK BLUE

Ignition harness

12V ACCESSORY WIRE

BLACK/ORANGE

Ignition harness

SECOND 12V ACCESSORY WIRE

BLACK/WHITE

Ignition harness

POWER DOOR LOCK (+)

ORANGE/PURPLE or GREEN/BLACK

White Harness In Driver’s Kick Panel

POWER DOOR UNLOCK (Vehicles without
OEM keyless entry: positive trigger, Vehicles
with OEM keyless entry: 5-wire reverse
polarity)

PINK/PURPLE

White Harness In Driver’s Kick Panel

PARKING LIGHTS (+)

BLACK/YELLOW

At Headlight Switch

DOOR TRIGGER/ DOMELIGHT
SUPERVISION (-)

YELLOW

Harness Behind Fuse Box

FACTORY ALARM DISARM (-)

BLACK/ORANGE

Harness In Driver’s Kick Panel

TACHOMETER

BLACK/GRAY or GRAY/BLACK

At Ignition Coil

BRAKE WIRE (+)

WHITE/TAN

Plug At Brake Pedal Switch

HORN TRIGGER (-)

BLACK/RED

Harness At Steering Column

LEFT FRONT WINDOW UP

LT.BLUE

At Driver Window Motor Inside Door

LEFT FRONT WINDOW DOWN

WHITE

At Driver Window Motor Inside Door

RIGHT FRONT WINDOW UP

BROWN/WHITE

Harness In Driver’s Kick From Driver Door

RIGHT FRONT WINDOW DOWN

PURPLE/WHITE

Harness In Driver’s Kick From Driver Door


WIRING INFORMATION: 2000 Dodge Dakota

WIRE

WIRE COLOR

LOCATION

12V CONSTANT WIRE

RED and PINK/BLACK

Ignition harness

STARTER WIRE

YELLOW

Ignition harness

12V IGNITION WIRE

DARK BLUE

Ignition harness

SECOND 12V IGNITION WIRE

BLACK/ORANGE

Ignition harness

THIRD 12V IGNITION WIRE

GREEN/RED

Ignition harness

12V ACCESSORY WIRE

BLACK/WHITE

Ignition harness

POWER DOOR LOCK (+)

ORANGE/PURPLE or GREEN/BLACK

Harness In Driver’s Kick Panel

POWER DOOR UNLOCK (Vehicles without
OEM keyless entry: positive trigger, Vehicles
with OEM keyless entry: 5-wire reverse
polarity)

PINK/PURPLE

Harness In Driver’s Kick Panel

PARKING LIGHTS (+)

BLACK/YELLOW

Harness Behind Fuse Box Or Headlight
Switch

DOOR TRIGGER/ DOMELIGHT
SUPERVISION (-)

YELLOW

Harness Behind Fuse Box

FACTORY ALARM ARM (Negative trigger
through a 600 ohm resistor)

LT.GREEN/ORANGE Harness

Coming

Into Vehicle From Driver’s

Door

FACTORY ALARM DISARM (Negative
trigger through a 1300 ohm resistor)

Same as arm

TACHOMETER

BLACK/GRAY or GRAY/BLACK

At Ignition Coil

BRAKE WIRE (+)

WHITE/TAN

Plug At Brake Pedal Switch

HORN TRIGGER (-)

BLACK/RED

Harness At Steering Column

LEFT FRONT WINDOW UP

LT.BLUE

At Driver Window Motor Inside Door

LEFT FRONT WINDOW DOWN

WHITE

At Driver Window Motor Inside Door

RIGHT FRONT WINDOW UP

BROWN/WHITE

Harness In Driver’s Kick From Driver Door

RIGHT FRONT WINDOW DOWN

PURPLE/WHITE

Harness In Driver’s Kick From Driver Door

background image

Copyright 2002-2004 Triple S Customs

10

WIRING INFORMATION: 2001 Dodge Dakota

WIRE

WIRE COLOR

LOCATION

12V CONSTANT WIRE

RED/LT.BLUE and PINK/BLACK

Ignition harness

STARTER WIRE

YELLOW

Ignition harness

12V IGNITION WIRE

BLUE

Ignition harness

SECOND 12V IGNITION WIRE

GREEN/RED (18 gauge)

Ignition harness

12V ACCESSORY WIRE

BLACK/ORANGE

Ignition harness

SECOND ACCESSORY WIRE

GREEN

Ignition harness

POWER DOOR LOCK (Negative trigger
through a 820 ohm resistor)

WHITE/GREEN

Central Timer Module In Driver’s Kick Panel

POWER DOOR UNLOCK (Negative trigger
through a 300 ohm resistor)

Same as lock

PARKING LIGHTS (+)

BLACK/YELLOW

Headlight switch

DOOR TRIGGER/ DOMELIGHT
SUPERVISION (-)

TAN (driver door)
TAN/RED (passenger and rear doors)

Central Timer Module In Driver’s Kick Panel

FACTORY ALARM ARM (Negative trigger
through a 644 ohm resistor- will also lock
doors)

LT.GREEN/ORANGE Central

Timer

Module In Driver’s Kick Panel

FACTORY ALARM DISARM (Negative
trigger through a 1565 ohm resistor- will also
unlock doors with a double pulse)

Same as arm

TACHOMETER WIRE

2.5L/3.9L/5.9L models: BLACK/GRAY
4.7L models: any wire that is NOT
GREEN/ORANGE

Ignition coil

BRAKE WIRE (+)

WHITE/TAN

Plug At Brake Pedal Switch

HORN TRIGGER (-)

BLACK/RED

Harness At Steering Column Or Central
Timer Module In Driver’s Kick Panel

LEFT FRONT WINDOW UP

LT.BLUE

At Driver Window Motor Inside Door

LEFT FRONT WINDOW DOWN

WHITE

At Driver Window Motor Inside Door

RIGHT FRONT WINDOW UP

BROWN/WHITE

Harness In Driver’s Kick From Driver Door

RIGHT FRONT WINDOW DOWN

PURPLE/WHITE

Harness In Driver’s Kick From Driver Door

LEFT REAR WINDOW UP

BLUE/WHITE

Harness In Driver’s Kick From Driver Door

LEFT REAR WINDOW DOWN

RED/BLACK

Harness In Driver’s Kick From Driver Door

RIGHT REAR WINDOW UP

GRAY/BLACK

Harness In Driver’s Kick From Driver Door

RIGHT REAR WINDOW DOWN

GREEN/WHITE

Harness In Driver’s Kick From Driver Door

If this vehicle uses a gray ignition key it is equipped with a factory Immobilizer. This must be bypassed when installing a remote start system.

background image

Copyright 2002-2004 Triple S Customs

11

WIRING INFORMATION: 2002 Dodge Dakota

WIRE

WIRE COLOR

LOCATION

12V CONSTANT WIRE

RED/LT.BLUE and PINK/BLACK

Ignition harness

STARTER WIRE

YELLOW

Ignition harness

12V IGNITION WIRE

BLUE

Ignition harness

SECOND 12V IGNITION WIRE

GREEN/RED (18 gauge)

Ignition harness

12V ACCESSORY WIRE

BLACK/ORANGE

Ignition harness

SECOND ACCESSORY WIRE

GREEN

Ignition harness

POWER DOOR LOCK (Negative trigger
through a 820 ohm resistor)

WHITE/GREEN

Central Timer Module In Driver’s Kick Panel

POWER DOOR UNLOCK (Negative trigger
through a 300 ohm resistor)

Same as lock

PARKING LIGHTS (+)

BLACK/YELLOW

Headlight switch

DOOR TRIGGER/ DOMELIGHT
SUPERVISION (-)

TAN (driver door)
TAN/RED (passenger and rear doors)

Central Timer Module In Driver’s Kick Panel

FACTORY ALARM ARM (Negative trigger
through a 644 ohm resistor- will also lock
doors)

LT.GREEN/ORANGE Central

Timer

Module In Driver’s Kick Panel

FACTORY ALARM DISARM (Negative
trigger through a 1565 ohm resistor- will also
unlock doors with a double pulse)

Same as arm

TACHOMETER WIRE

2.5L/3.9L/5.9L models: BLACK/GRAY
4.7L models: any wire that is NOT
GREEN/ORANGE

Ignition coil

BRAKE WIRE (+)

WHITE/TAN

Plug At Brake Pedal Switch

HORN TRIGGER (-)

BLACK/RED

Harness At Steering Column Or Central
Timer Module In Driver’s Kick Panel

LEFT FRONT WINDOW UP

LT.BLUE

At Driver Window Motor Inside Door

LEFT FRONT WINDOW DOWN

WHITE

At Driver Window Motor Inside Door

RIGHT FRONT WINDOW UP

BROWN/WHITE

Harness In Driver’s Kick From Driver Door

RIGHT FRONT WINDOW DOWN

PURPLE/WHITE

Harness In Driver’s Kick From Driver Door

LEFT REAR WINDOW UP

BLUE/WHITE

Harness In Driver’s Kick From Driver Door

LEFT REAR WINDOW DOWN

RED/BLACK

Harness In Driver’s Kick From Driver Door

RIGHT REAR WINDOW UP

GRAY/BLACK

Harness In Driver’s Kick From Driver Door

RIGHT REAR WINDOW DOWN

GREEN/WHITE

Harness In Driver’s Kick From Driver Door

If this vehicle uses a gray ignition key it is equipped with a factory Immobilizer. This must be bypassed when installing a remote start system.

background image

Copyright 2002-2004 Triple S Customs

12

WIRING INFORMATION: 2003 Dodge Dakota

WIRE

WIRE COLOR

LOCATION

12V CONSTANT WIRE

RED/LT.BLUE and PINK/BLACK

Ignition harness

STARTER WIRE

YELLOW

Ignition harness

12V IGNITION WIRE

BLUE

Ignition harness

SECOND 12V IGNITION WIRE

GREEN/RED (18 gauge)

Ignition harness

12V ACCESSORY WIRE

BLACK/ORANGE

Ignition harness

SECOND ACCESSORY WIRE

GREEN

Ignition harness

POWER DOOR LOCK (Negative trigger
through a 820 ohm resistor)

WHITE/GREEN

Central Timer Module In Driver’s Kick Panel

POWER DOOR UNLOCK (Negative trigger
through a 300 ohm resistor)

Same as lock

PARKING LIGHTS (+)

BLACK/YELLOW

Headlight switch

DOOR TRIGGER/ DOMELIGHT
SUPERVISION (-)

TAN (driver door)
TAN/RED (passenger and rear doors)

Central Timer Module In Driver’s Kick Panel

FACTORY ALARM ARM (Negative trigger
through a 644 ohm resistor- will also lock
doors)

LT.GREEN/ORANGE Central

Timer

Module In Driver’s Kick Panel

FACTORY ALARM DISARM (Negative
trigger through a 1565 ohm resistor- will also
unlock doors with a double pulse)

Same as arm

TACHOMETER WIRE

2.5L/3.9L/5.9L models: BLACK/GRAY
4.7L models: any wire that is NOT
GREEN/ORANGE

Ignition coil

BRAKE WIRE (+)

WHITE/TAN

Plug At Brake Pedal Switch

HORN TRIGGER (-)

BLACK/RED

Harness At Steering Column Or Central
Timer Module In Driver’s Kick Panel

LEFT FRONT WINDOW UP

LT.BLUE

At Driver Window Motor Inside Door

LEFT FRONT WINDOW DOWN

WHITE

At Driver Window Motor Inside Door

RIGHT FRONT WINDOW UP

BROWN/WHITE

Harness In Driver’s Kick From Driver Door

RIGHT FRONT WINDOW DOWN

PURPLE/WHITE

Harness In Driver’s Kick From Driver Door

LEFT REAR WINDOW UP

BLUE/WHITE

Harness In Driver’s Kick From Driver Door

LEFT REAR WINDOW DOWN

RED/BLACK

Harness In Driver’s Kick From Driver Door

RIGHT REAR WINDOW UP

GRAY/BLACK

Harness In Driver’s Kick From Driver Door

RIGHT REAR WINDOW DOWN

GREEN/WHITE

Harness In Driver’s Kick From Driver Door

If this vehicle uses a gray ignition key it is equipped with a factory Immobilizer. This must be bypassed when installing a remote start system.

background image

Copyright 2002-2004 Triple S Customs

13

WIRING INFORMATION: 2004 Dodge Dakota

WIRE

WIRE COLOR

LOCATION

12V CONSTANT WIRE

RED/LT.BLUE and PINK/BLACK

Ignition harness

STARTER WIRE

YELLOW

Ignition harness

12V IGNITION WIRE

DARK BLUE

Ignition harness

SECOND 12V IGNITION WIRE

GREEN/RED (18 gauge)

Ignition harness

12V ACCESSORY WIRE

BLACK/ORANGE

Ignition harness

SECOND ACCESSORY WIRE

DARK GREEN

Ignition harness

POWER DOOR LOCK AND UNLOCK

WHITE/GREEN

Central Timer Module In Driver’s Kick Panel

Lock is a negative trigger through a 820 ohm resistor. Unlock is a negative trigger through a 300 ohm resistor. Relays must be used.
PARKING LIGHTS (+)

BLACK/YELLOW

Headlight switch

DRIVER DOOR TRIGGER (-)

TAN

Central Timer Module In Driver’s Kick Panel

PASSENGER DOORS TRIGGER (-)

TAN/RED

Central Timer Module In Driver’s Kick Panel

DOMELIGHT SUPERVISION (-)

YELLOW

Central Timer Module In Driver’s Kick Panel

FACTORY ALARM ARM AND DISARM

LT.GREEN/ORANGE

Central Timer Module In Driver’s Kick Panel

Arm is a negative trigger through a 644 ohm resistor- will also lock doors. Disarm is a negative trigger through a 1565 ohm resistor- will also
unlock doors with a double pulse)
TACHOMETER WIRE

2.5L/3.9L/5.9L models: BLACK/GRAY
4.7L models: any wire that is NOT
GREEN/ORANGE

Ignition coil

BRAKE WIRE (+)

WHITE/TAN

Plug At Brake Pedal Switch

HORN TRIGGER (-)

BLACK/RED

Harness At Steering Column Or Central
Timer Module In Driver’s Kick Panel

LEFT FRONT WINDOW UP

LT.BLUE

At Driver Window Motor Inside Door

LEFT FRONT WINDOW DOWN

WHITE

At Driver Window Motor Inside Door

RIGHT FRONT WINDOW UP

BROWN/WHITE

Harness In Driver’s Kick From Driver Door

RIGHT FRONT WINDOW DOWN

PURPLE/WHITE

Harness In Driver’s Kick From Driver Door

LEFT REAR WINDOW UP

BLUE/WHITE

Harness In Driver’s Kick From Driver Door

LEFT REAR WINDOW DOWN

RED/BLACK

Harness In Driver’s Kick From Driver Door

RIGHT REAR WINDOW UP

GRAY/BLACK

Harness In Driver’s Kick From Driver Door

RIGHT REAR WINDOW DOWN

GREEN/WHITE

Harness In Driver’s Kick From Driver Door

If this vehicle uses a gray ignition key it is equipped with a factory Immobilizer. This must be bypassed when installing a remote start system.


Wyszukiwarka

Podobne podstrony:
PN EN 1991 1 1 2004 Ap1 2010
Eurocod 1, 1 1 Ciężar objętościowy, ciężar własny, obciążenia użytkowe PN EN 1991 1 1 2004 a
Eurocode 1 Part 1,6 prEN 1991 1 6 2004
PN EN 1991 1 1 2004
DODGE INTREPID 1993 2004
NISSAN PATHFINDER 1991 2004
PN EN 1991 1 1 2004 Ap1 2010
PN EN 1991 1 1 2004
PN EN 1991 1 1 2004 AC 2009
Eurocode 1 Part 1,4 prEN 1991 1 4 2004
PN EN 1991 1 1 2004 AC 2009
CADILLAC SEVILLE 1991 2004
DODGE SHADOW 1991 1995
CHEVROLET CAVALIER 1991 2004
PN EN 1991 1 1 2004 Ap1 2010
Eurocod 1, 1 1 Ciężar objętościowy, ciężar własny, obciążenia użytkowe PN EN 1991 1 1 2004 a
Eurocode 1 Part 1,6 prEN 1991 1 6 2004

więcej podobnych podstron
