SAMSUNG

This Document can not be used without Samsung’s authorization

3-1

Exploded View and Parts List

3. Exploded View and Parts List

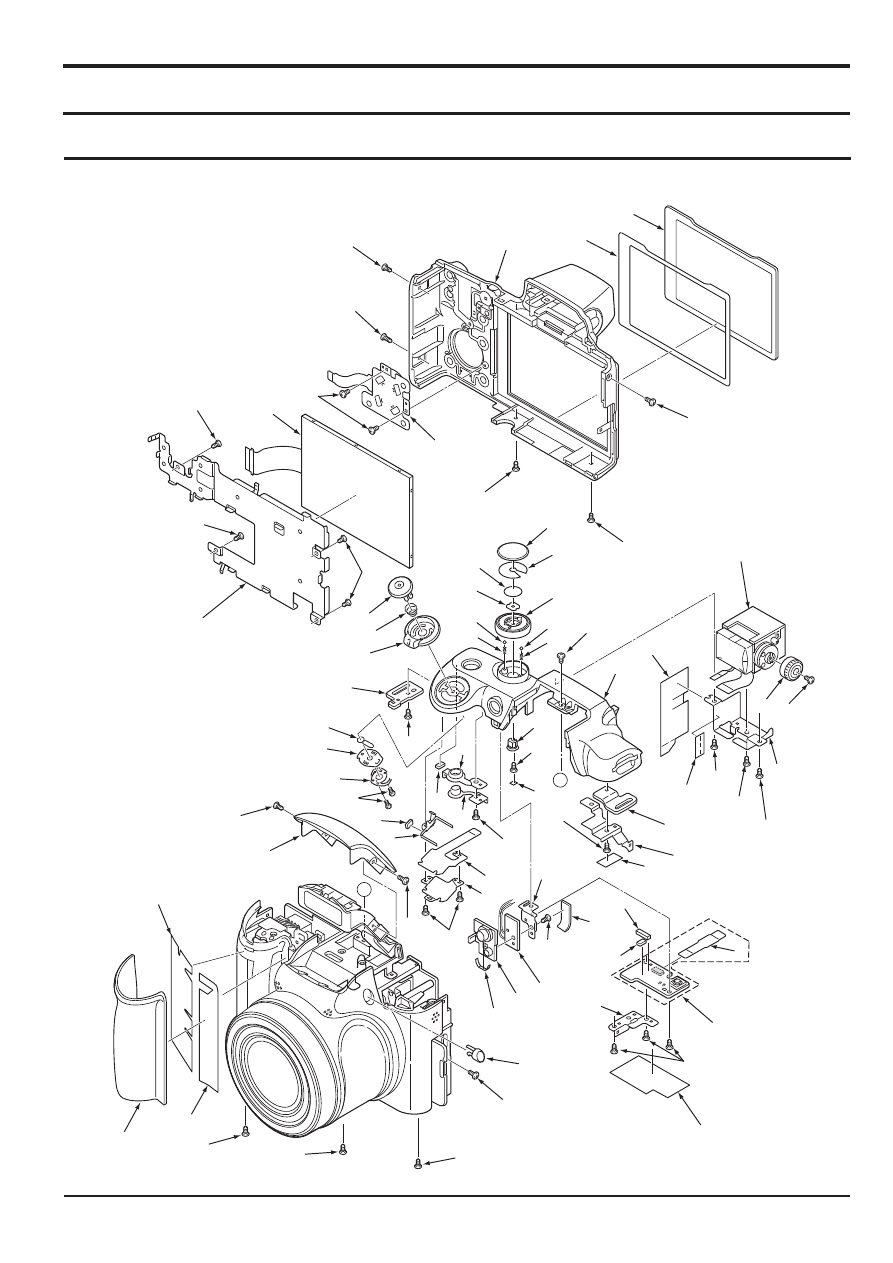

3-1 CABINET-1

5376

5370

5372

5080

5374

5084

5085

5375

5086

5086

5080

5373

5371

5375

5078

5086

5085

5077

5377

5378

5377

5378

5079

5079

5770

5082

5081

5083

6

9

11

10

12

16

33

35

39

47

89

90

48

46

45

44

43

28

27

26

25

24

23

22

20

21

29

31

30

88

32

34

31

30

38

37

36

40

41

42

35

7

8

5

2

3

4

A

A

1

18

17

13

14

15

11

19

Exploded View and Parts List

3-2

This Document can not be used without Samsung's authorization

SAMSUNG

Loc. No

Parts No

Description

Q ty

Remark

1

AD81-09370A

DEC GRIP FRONT

1

2

AD81-09329A

ADHESIVE DEC GRIP

1

3

AD81-09369A

ADHESIVE DEC GRIP

1

4

AD81-09619A

COVER ST TOP_SAMSUNG WB5500_SL

1

SILVER

AD81-09620A

COVER ST TOP_SAMSUNG WB5500_BK

1

BLACK

AD81-09621A

COVER ST TOP_VLUU WB5500_SL

1

SILVER

AD81-09622A

COVER ST TOP_VLUU WB5500_BK

1

BLACK

AD81-09623A

COVER ST TOP_SAMSUNG_HZ50W_SL

1

SILVER

AD81-09624A

COVER ST TOP_SAMSUNG_HZ50W_BK

1

BLACK

5

AD81-09382A

BUTTON ST

1

7

AD81-09368A

HOLDER STRAP

1

8

AD81-09625A

COMPL PWB,TB-1

1

13

AD81-09215A

HOLDER AF

1

14

AD81-09626A

COMPL PWB,TB-2

1

15

AD81-09213A

DEC AF4

1

17

AD81-09217A

HOLDER RELEASE

1

18

AD81-09342A

UNIT,CONTROL TOP

1

19

AD81-09227A

SPRING ZOOM PLATE

1

20

AD81-09206A

BUTTON POWER

1

21

AD81-09212A

DEC POWER RING

1

22

AD81-09228A

TERMINAL ZOOM

1

23

AD81-09219A

HOLDER ZOOM

1

24

AD81-09313A

SPRING ZOOM

1

25

AD81-09210A

DEC STRAP L

1

26

AD81-09221A

KNOB ZOOM

1

27

AD81-09314A

SPRING RELEASE

1

28

AD81-09207A

BUTTON RELEASE

1

29

AD81-09627A

HOLDER MODE DIAL

1

30

AD81-09315A

SPRING CLICK 25

2

31

AD81-09205A

BALL CLICK VF

2

32

AD81-09628A

KNOB MODE DIAL

1

34

AD81-09629A

DEC MODE DIAL

1

36

AD81-09214A

HOLDER STRAP R

1

37

AD81-09211A

DEC STRAP R

1

►

Available Parts LIST(SA)

SAMSUNG

This Document can not be used without Samsung’s authorization

3-3

Exploded View and Parts List

Loc. No

Parts No

Description

Q ty

Remark

38

AD81-09630A

CABINET TOP_SL

1

SILVER

AD81-09631A

CABINET TOP_BK

1

BLACK

40

AD81-09632A

HOLDER EVF

1

41

AD81-09222A

KNOB EVF

1

42

AD81-09353A

ASSY,UNIT EVF SV

1

43

AD81-09633A

ASSY,HOLDER LCD

1

44

AD81-09634A

LCD

1

45

AD81-09234A

UNIT,CONTROL BACK

1

46

AD81-09635A

ASSY,CABI BACK_SL

1

SILVER

AD81-09636A

ASSY,CABI BACK_BK

1

BLACK

48

AD81-09233A

DEC MONITOR

1

88

AD81-09637A

HOLDER DIAL

1

►

Available Parts LIST(SA)

Exploded View and Parts List

3-4

This Document can not be used without Samsung's authorization

SAMSUNG

Loc. No

Description

Q ty

Remark

6

SPACER TOP

1

9

FLEXIBLE PWB CP1&TB1

1

10

ADHESIVE SW ROTARY

1

11

SPACER STRAP

3

12

SPACER POWER LED

1

16

SPACER DEC AF

1

33

ADHESIVE MODE DIAL

1

35

SPACER HL EVF H

1

39

SPACER HL EVF

1

47

ADHESIVE DEC MONITOR

1

89

SPACER KNOB DIAL

1

90

SPACER HOLDER AF

1

►

Unavailable Parts LIST(SNA)

SAMSUNG

This Document can not be used without Samsung’s authorization

3-5

Exploded View and Parts List

B

B

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70_2

70_3

72

70_1

74

75

76

77

78

79

80

81

82

83

84

85

86

5170

5073

5073

5070

5075

5071

5075

5074

5072

5076

5076

5170

56

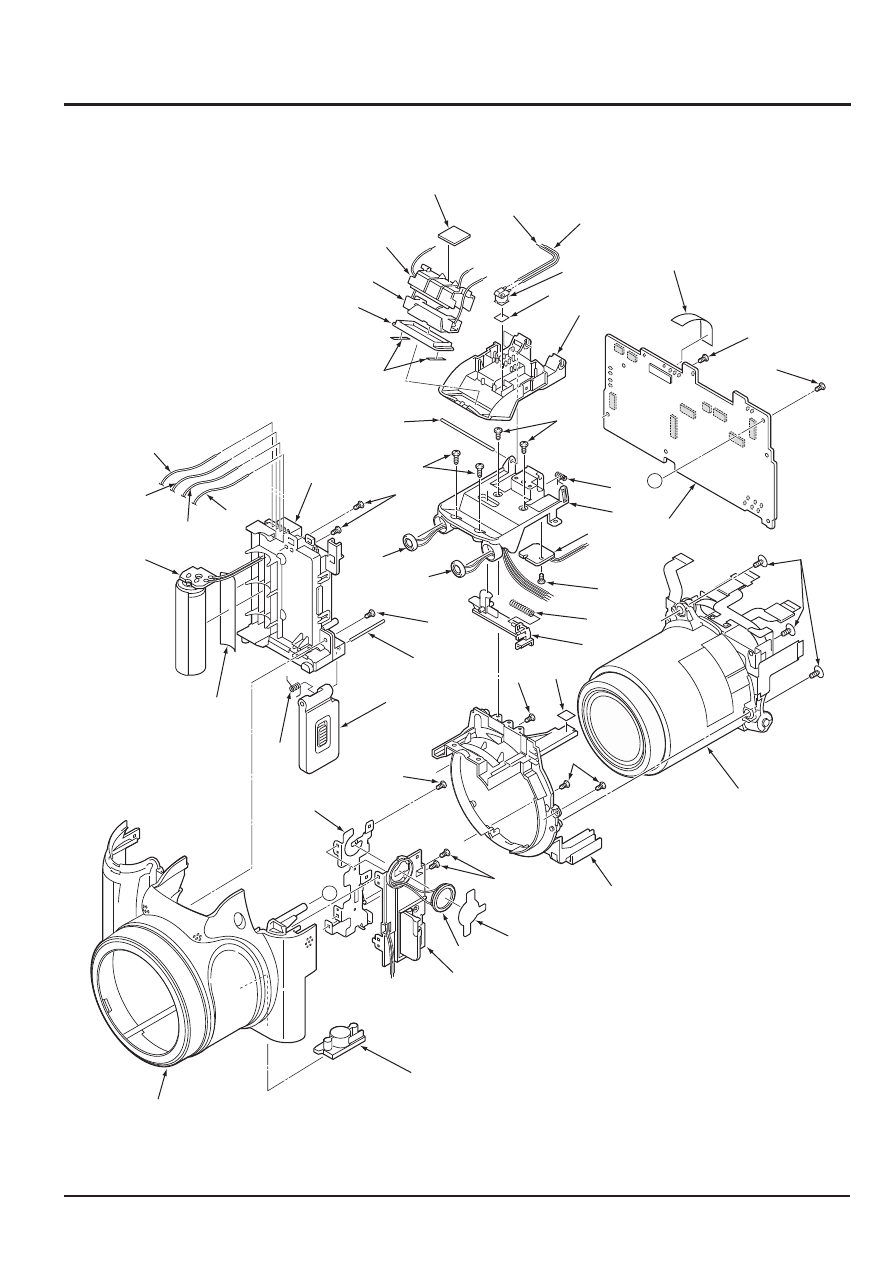

3-2 CABINET-2

Exploded View and Parts List

3-6

This Document can not be used without Samsung's authorization

SAMSUNG

Loc. No

Parts No

Description

Q ty

Remark

49

AD81-09638A

ASSY,CABI FRON_SL

1

SILVER

49

AD81-09639A

ASSY,CABI FRONT_BK

1

BLACK

50

AD81-09372A

STAND

1

51

AD81-09640A

ASSY,COVER JACK_SL

1

SILVER

51

AD81-09641A

ASSY,COVER JACK_BK

1

BLACK

53

AD81-09642A

SPEAKER

1

54

AD81-09643A

HOLDER SIDE

1

55

AD81-09367A

HOLDER CHASSIS

1

57

AD81-09644A

ASSY_BARREL

1

58

AD81-09645A

ASSY_COVER BATTERY_SL

1

SILVER

58

AD81-09646A

ASSY_COVER BATTERY_BK

1

BLACK

59

AD81-09320A

SPRING COVER BATT

1

60

AD81-09378A

SHAFT COVER BATT

1

62

AD81-09647A

COMPL PWB,ST-1

1

63

AD81-09380A

COMPL,HOLDER BATT

1

68

AD81-09376A

LEVER ST

1

69

AD81-09321A

SPRING LEVER ST

1

72

AD81-09649A

COMPL PWB,TB-3

1

74

AD81-09377A

SPRING POP ST

1

75

AD81-09334A

SHAFT ST

1

76

AD81-09373A

COVER ST BOTTOM

1

77

AD81-09650A

TRANS,STEP UP

1

81

AD81-09357A

DEC FLASH

1

82

AD81-09340A

ASSY,LAMP

1

83

AD81-09374A

HOLDER FLASH

1

85

AD81-09651A

ASSY_MAIN PCB

1

87

AD81-09652A

SPRING COVER PLATE

1

70_1

AD81-09375A

HOLDER ST BOTTOM

1

70_2

AD81-09343A

MICROPHONE1

1

70_3

AD81-09344A

MICROPHONE2

1

►

Available Parts LIST(SA)

SAMSUNG

This Document can not be used without Samsung’s authorization

3-7

Exploded View and Parts List

Loc. No

Description

Q ty

Remark

52

SPACER SPEAKER

1

56

ADHESIVE TRIG

2

61

ADHESIVE CONDENSER

1

64

ASSY,WIRE BATT

1

65

ASSY,WIRE BAT_T

1

66

ASSY,WIRE BATT+

1

67

ASSY,WIRE BAT_ID

1

78

WIRE TRIG IN

1

79

WIRE TRIG GND

1

80

ADHESIVE DEC FLASH

2

84

SPACER FLASH

1

86

SPACER CP1

1

91

SPACER DEC FLASH

1

92

SPACER HOLDER FLASH

1

►

Unavailable Parts LIST(SNA)

Exploded View and Parts List

3-8

This Document can not be used without Samsung's authorization

SAMSUNG

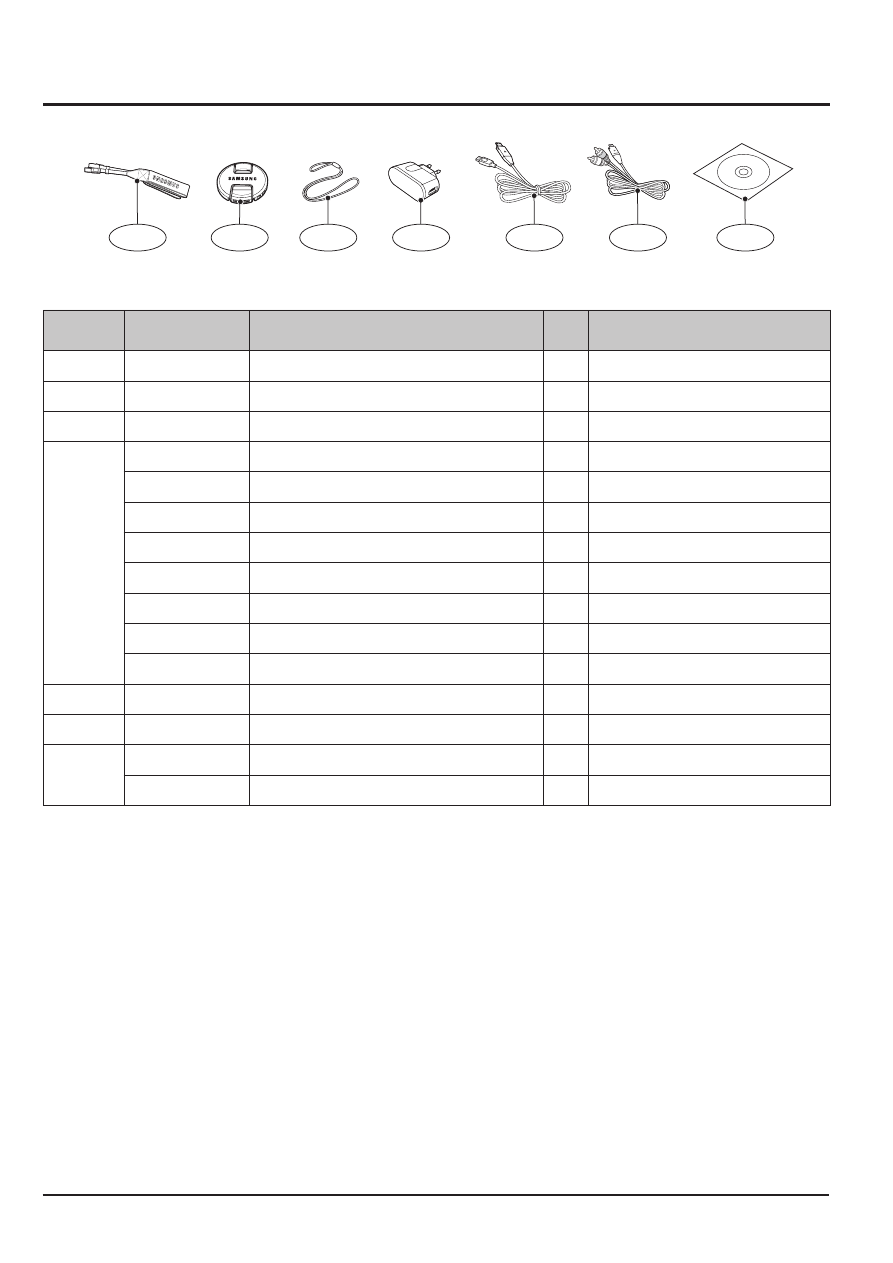

3-3 PACKING ITEM

Loc. No

Parts No

Description

Q ty

Remark

1-1

AD63-04525A

STRAP_WB5000

1

1-2

AD67-01588A

LENS CAP

1

1-3

AD63-04527A

LENS CAP_STRAP

1

1-4

4302-001226

LITHIUM-ION_SLB-11A

1

AD44-00146A

AC_ADAPTOR_4.6V_EXP(SACE)

1

AD44-00142A

AC_ADAPTOR_4.6V_KOR(SACK)

1

AD44-00147A

AC_ADAPTOR_4.2V_CHI(SACC)

1

AD44-00143A

AC_ADAPTOR_4.6V_USA(SACS)

1

AD44-00145A

AC_ADAPTOR_4.6V_UK(SACU)

1

AD44-00148A

AC_ADAPTOR_4.6V_AUS(SACA)

1

AD44-00144A

AC_ADAPTOR_4.6V_ARG(SACG)

1

1-5

AD39-00165A

20PIN_USB_Cable_CB20U05A

1

1-6

AD39-00146A

20PIN_AV_CABLE_SCC-AV20

1

1-7

AD46-00342A

SAMSUNG WB5500(KOR,CHI,EXP)

1

AD46-00343A

SAMSUNG HZ50W(USA)

1

►

Available Parts LIST(SA)

1-1

1-2

1-3

1-4

1-5

1-6

1-7
