HYUNDAI ACCENT 1995

SYSTEM WIRING DIAGRAMS

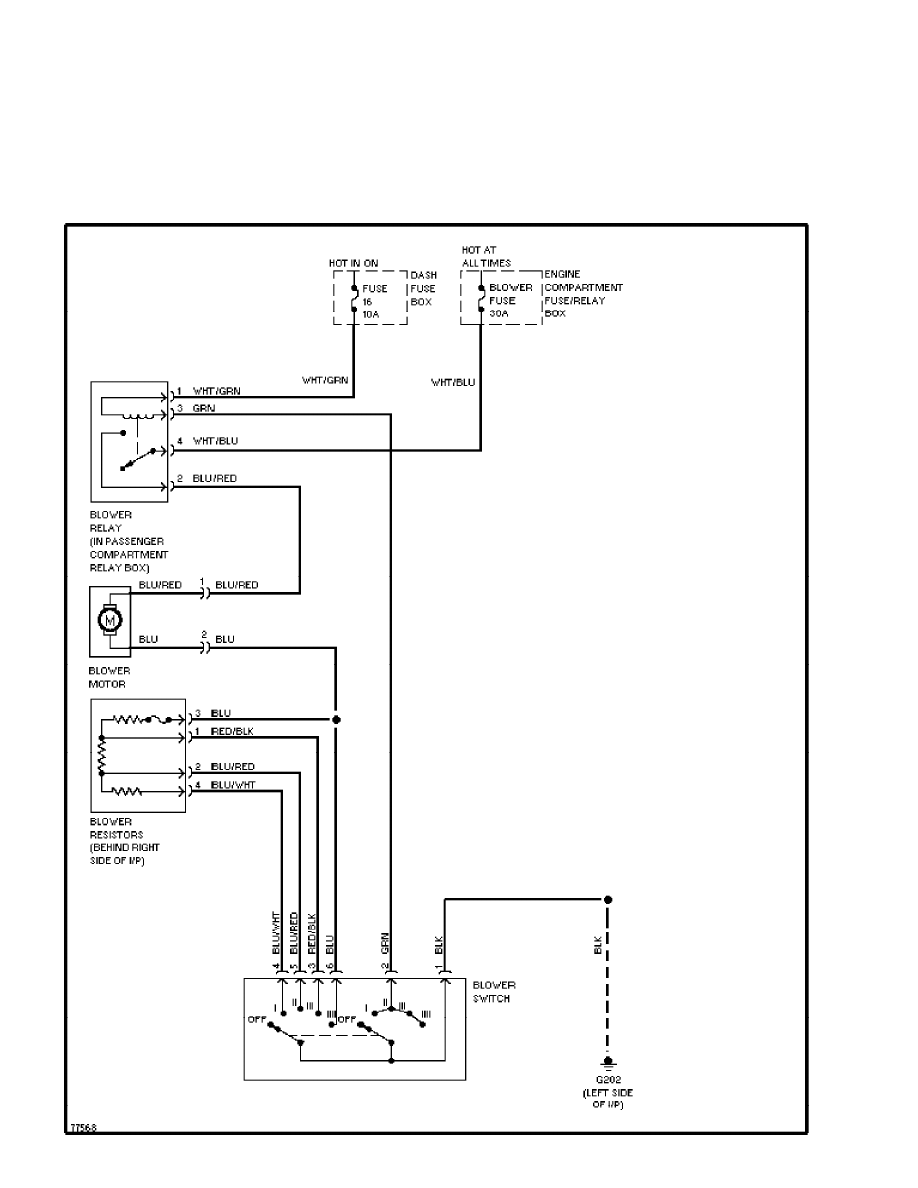

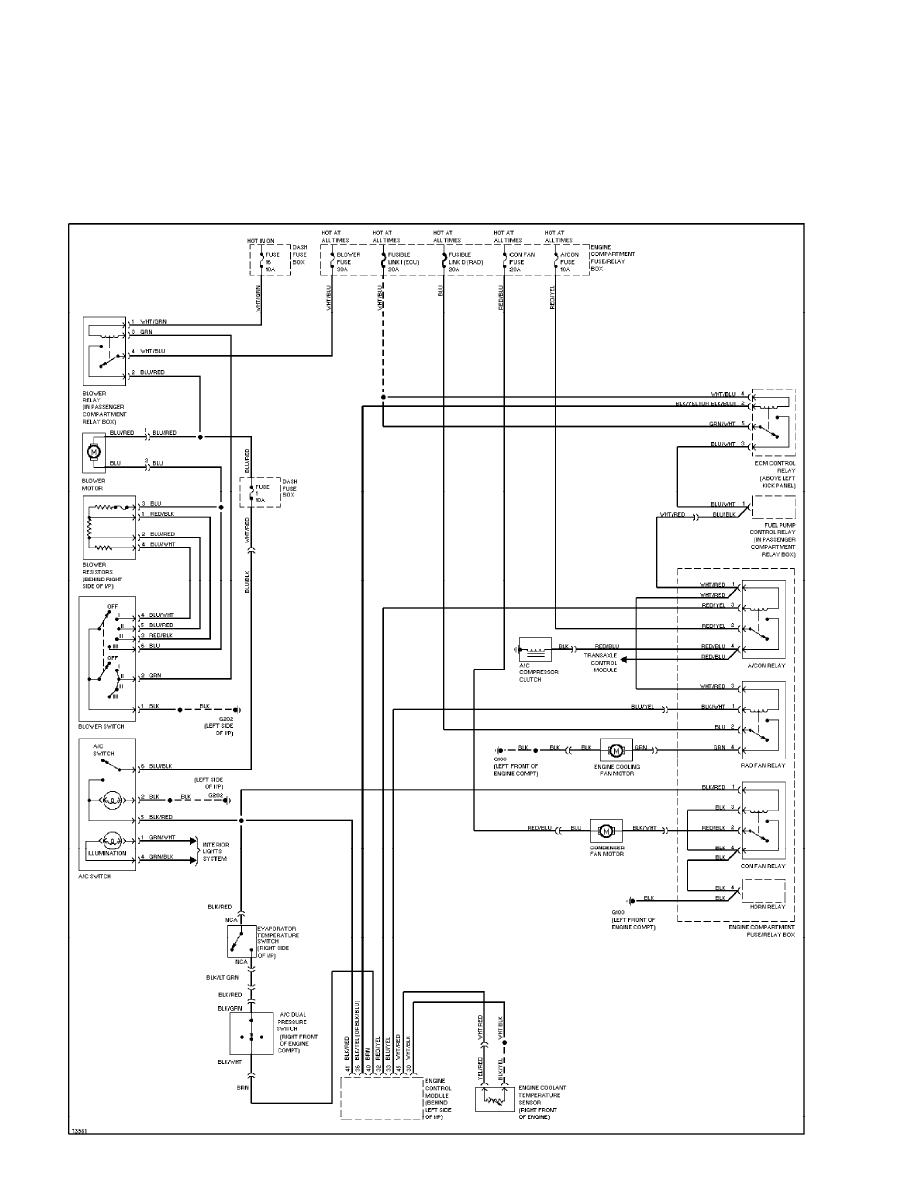

A/C Circuit

1995 Hyundai Accent

For x

Thursday, March 17, 2005 09:59AM

SYSTEM WIRING DIAGRAMS

Heater Circuit (p. 2)

1995 Hyundai Accent

For x

Thursday, March 17, 2005 09:59AM

SYSTEM WIRING DIAGRAMS

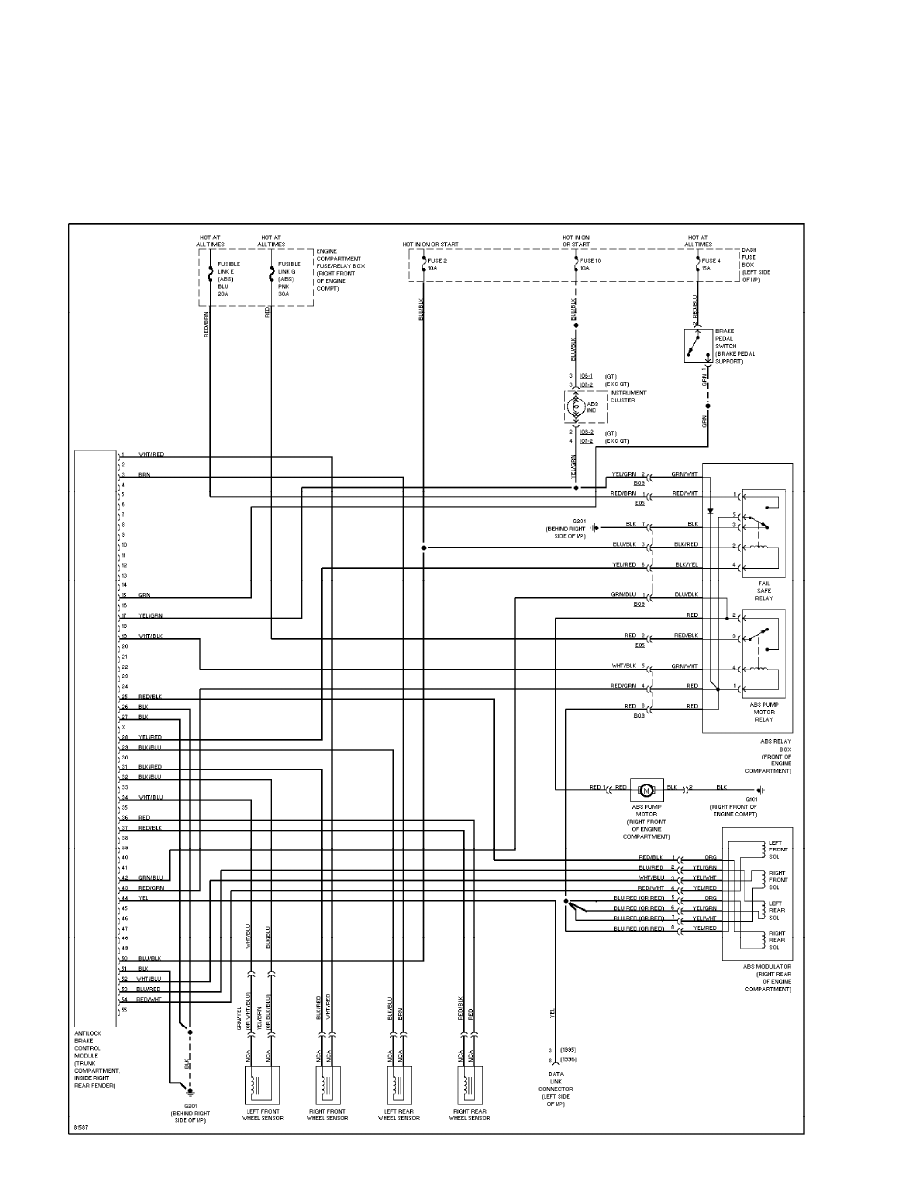

Anti-lock Brake Circuits (p. 3)

1995 Hyundai Accent

For x

Thursday, March 17, 2005 09:59AM

SYSTEM WIRING DIAGRAMS

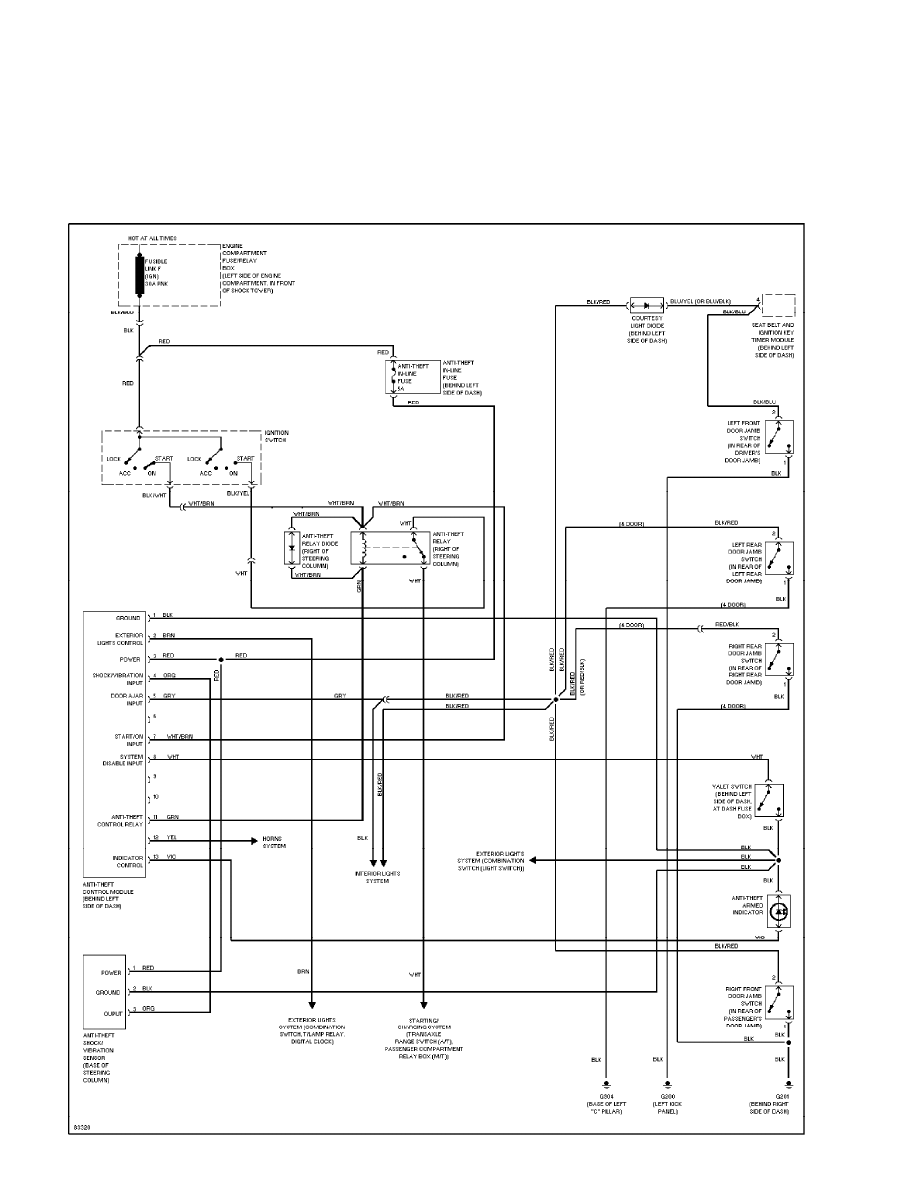

Anti-theft Circuit (p. 4)

1995 Hyundai Accent

For x

Thursday, March 17, 2005 09:59AM

SYSTEM WIRING DIAGRAMS

Computer Data Lines (p. 5)

1995 Hyundai Accent

For x

Thursday, March 17, 2005 09:59AM

SYSTEM WIRING DIAGRAMS

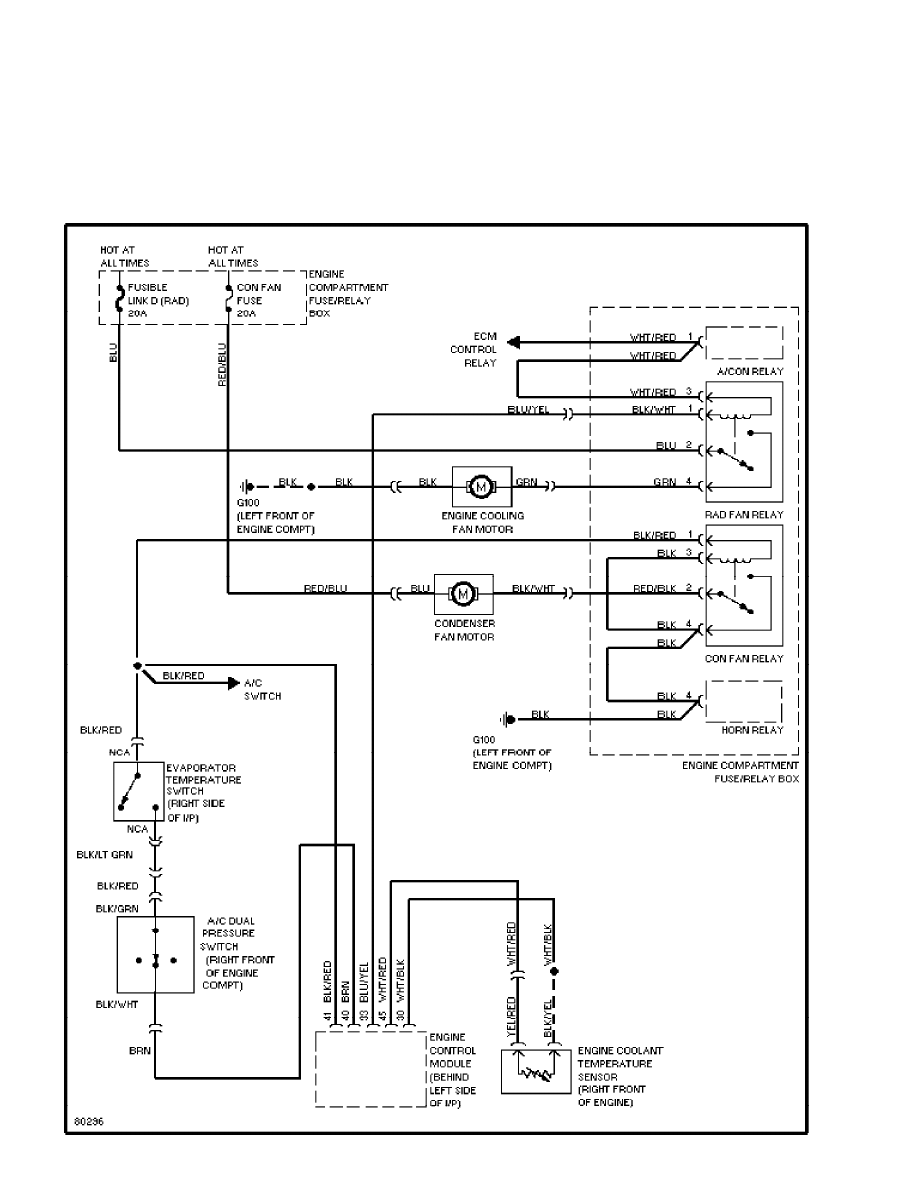

Cooling Fan Circuit (p. 6)

1995 Hyundai Accent

For x

Thursday, March 17, 2005 09:59AM

SYSTEM WIRING DIAGRAMS

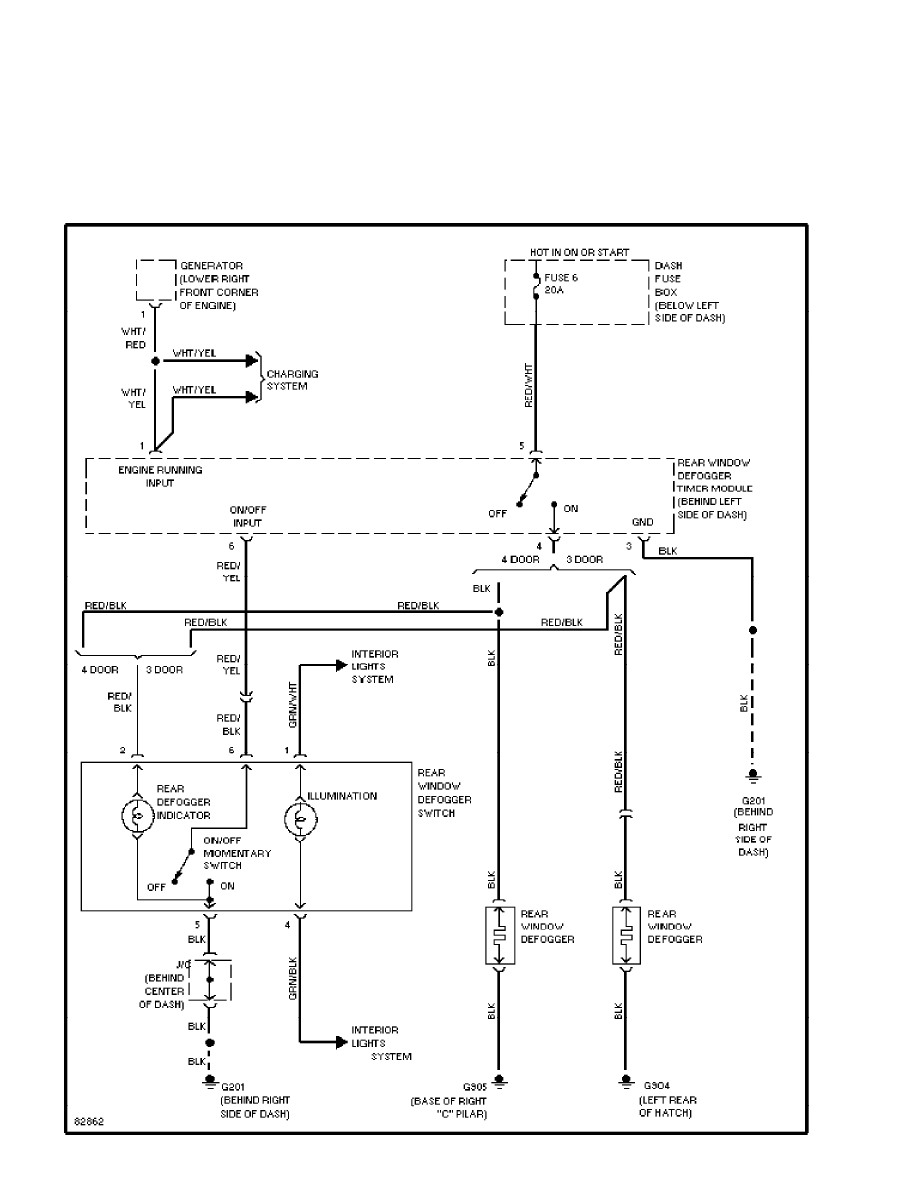

Defogger Circuit (p. 7)

1995 Hyundai Accent

For x

Thursday, March 17, 2005 09:59AM

SYSTEM WIRING DIAGRAMS

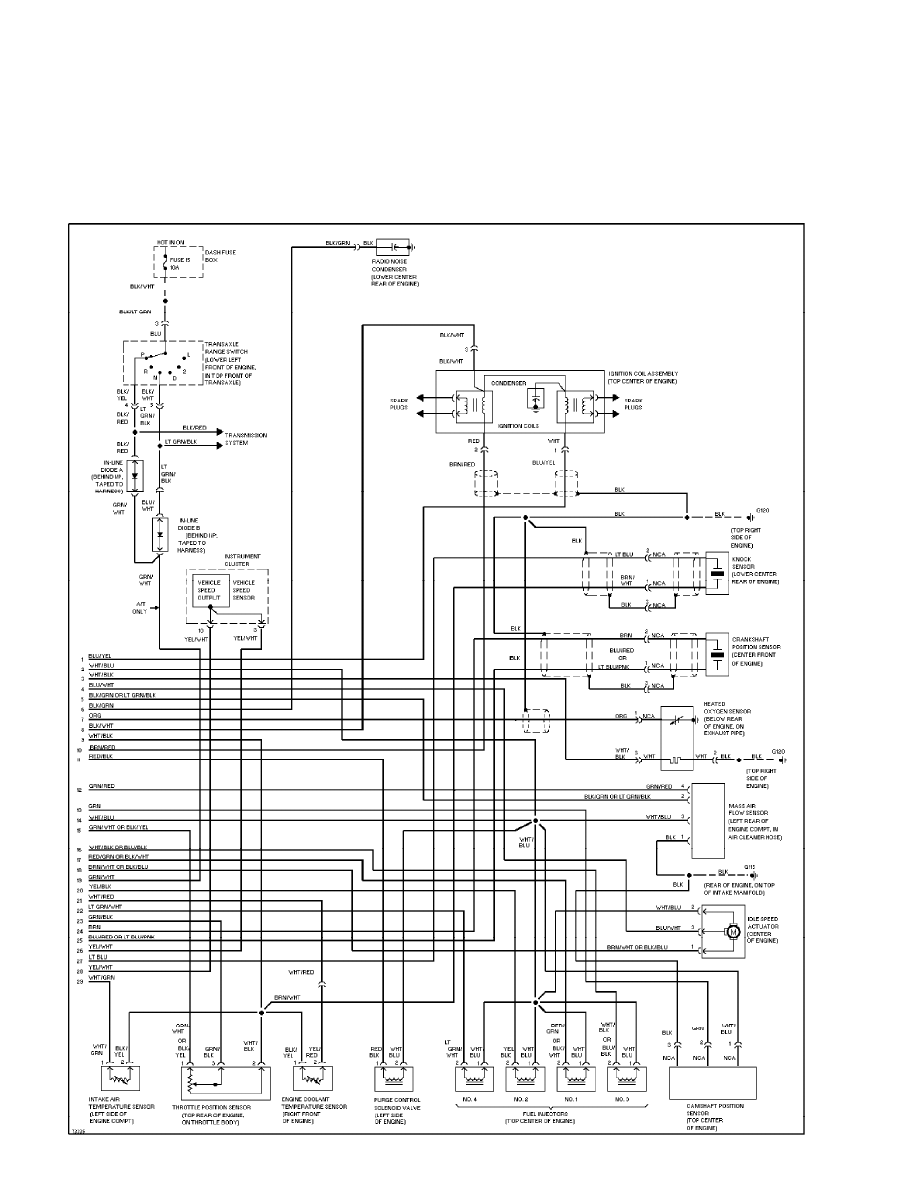

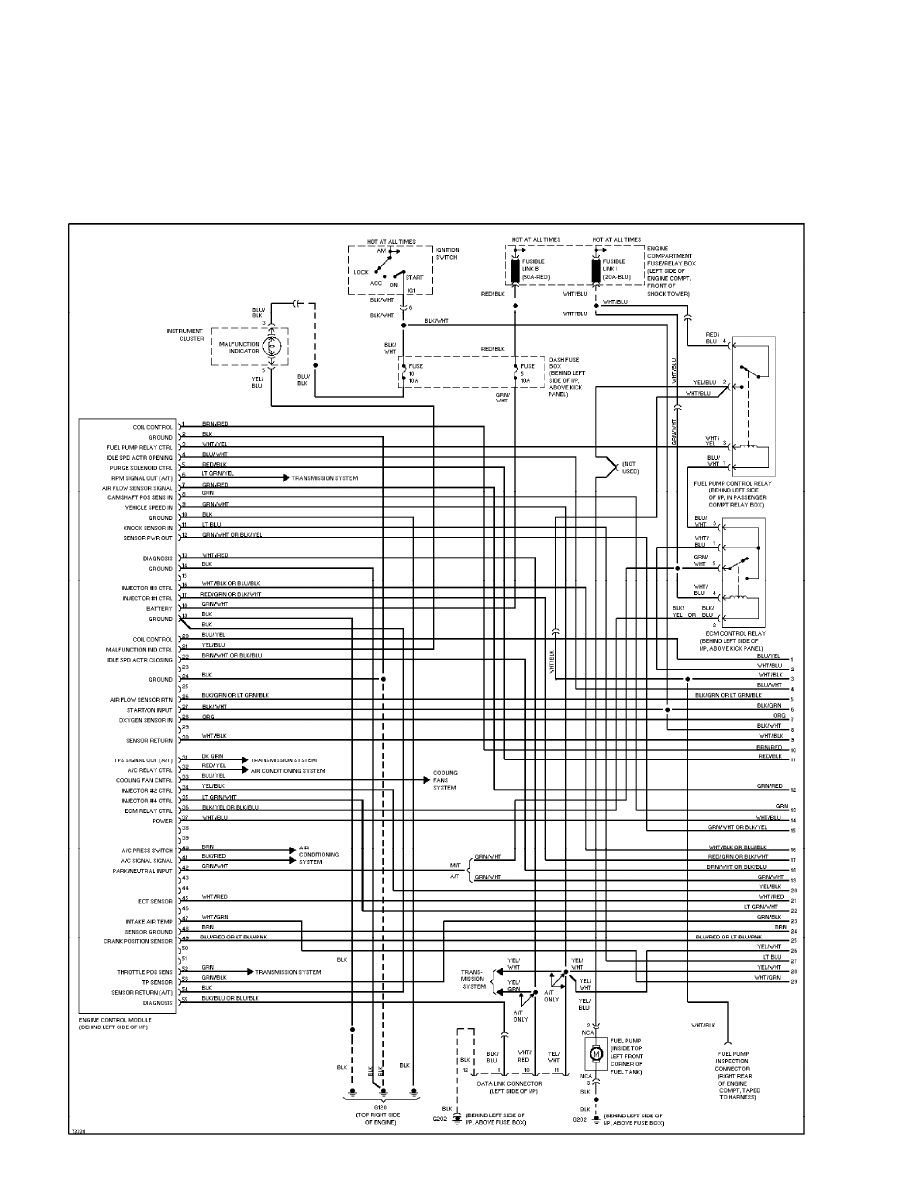

1.5L, Engine Performance Circuits (1 of 2) (p. 8)

1995 Hyundai Accent

For x

Thursday, March 17, 2005 09:59AM

SYSTEM WIRING DIAGRAMS

1.5L, Engine Performance Circuits (2 of 2) (p. 9)

1995 Hyundai Accent

For x

Thursday, March 17, 2005 09:59AM

SYSTEM WIRING DIAGRAMS

Back-up Lamps Circuit (p. 10)

1995 Hyundai Accent

For x

Thursday, March 17, 2005 09:59AM

SYSTEM WIRING DIAGRAMS

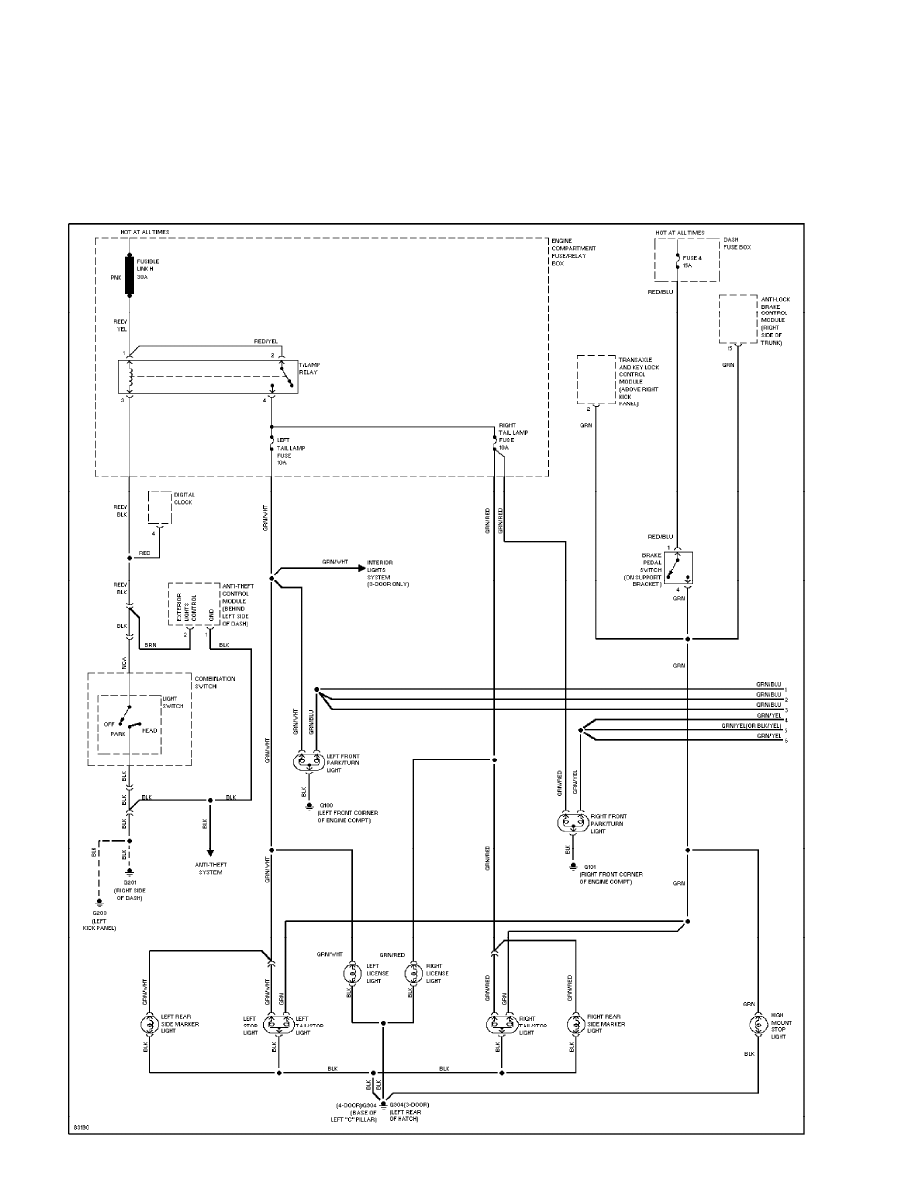

Exterior Lamps Circuit (1 of 2) (p. 11)

1995 Hyundai Accent

For x

Thursday, March 17, 2005 09:59AM

SYSTEM WIRING DIAGRAMS

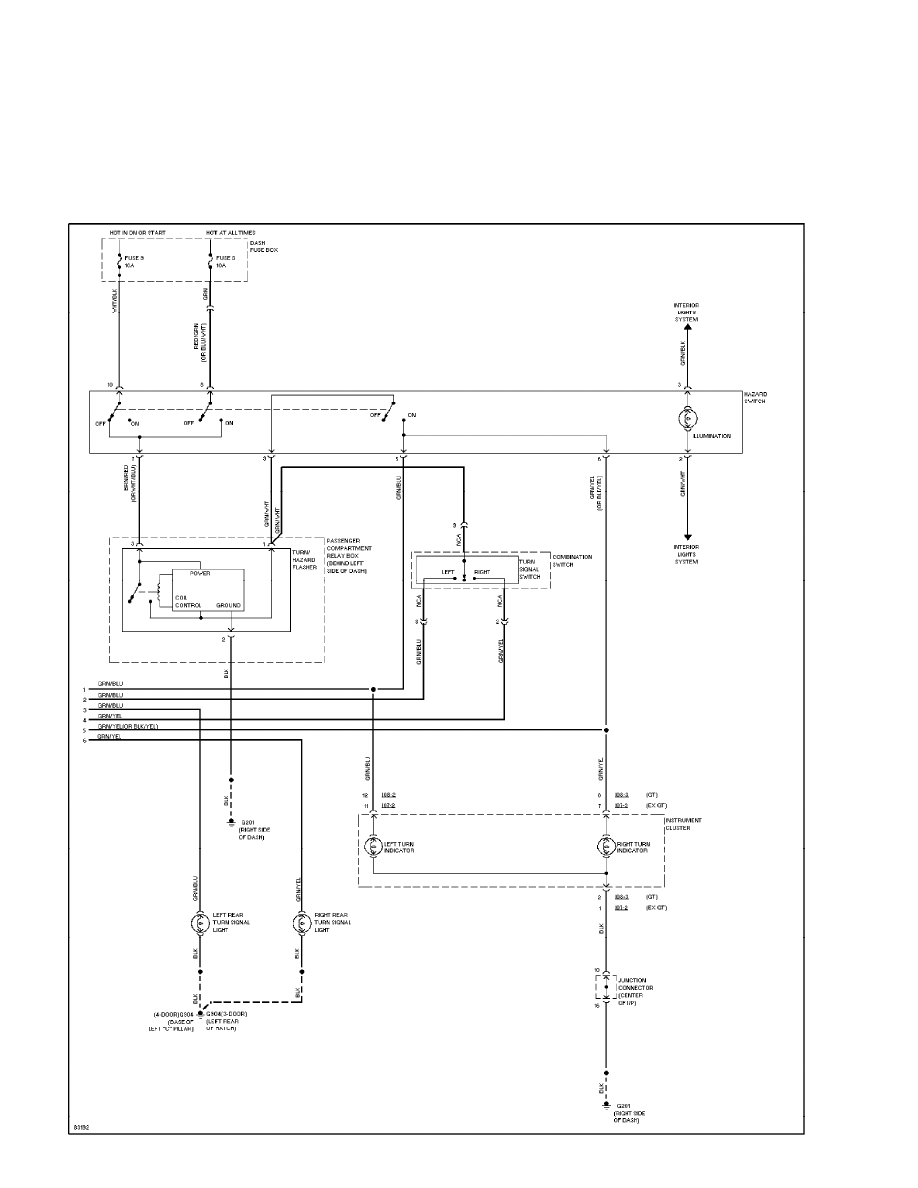

Exterior Lamps Circuit (2 of 2) (p. 12)

1995 Hyundai Accent

For x

Thursday, March 17, 2005 09:59AM

SYSTEM WIRING DIAGRAMS

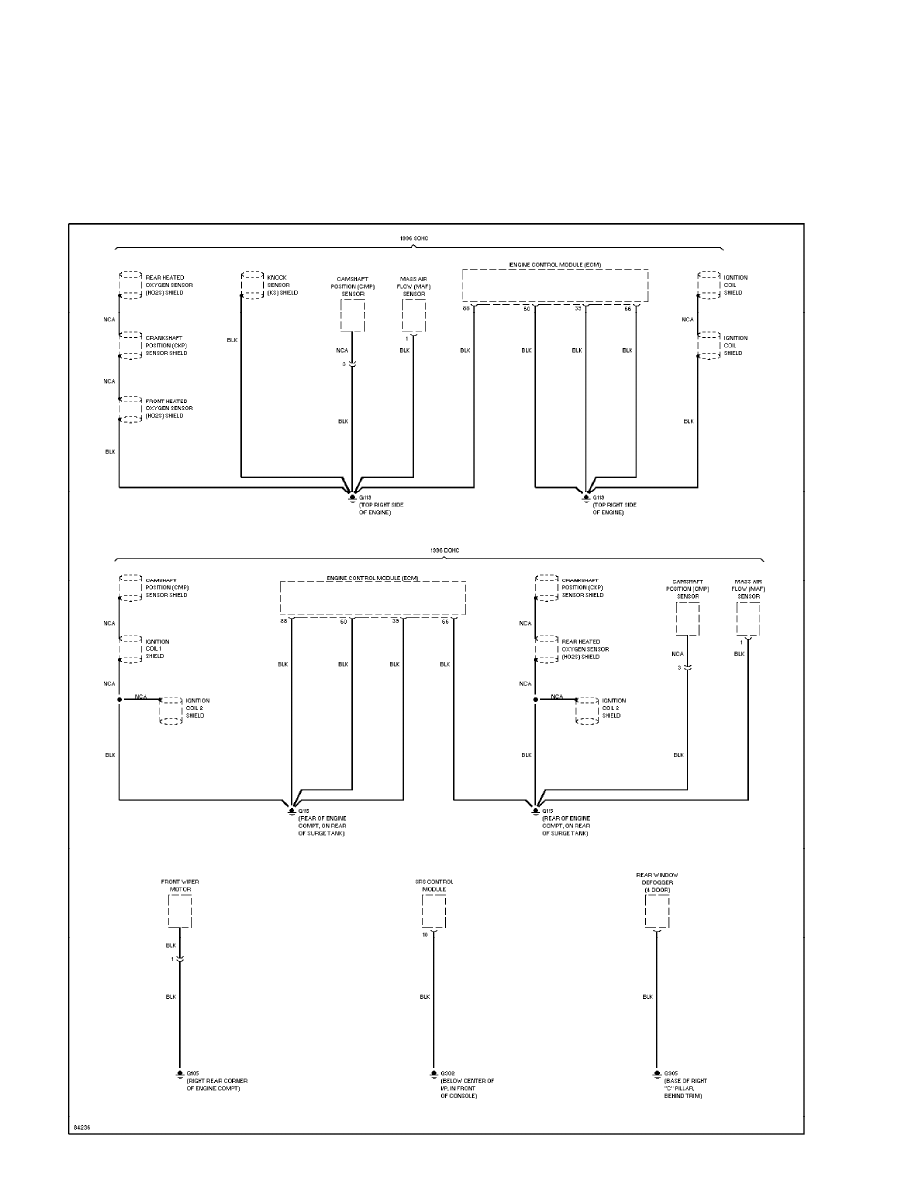

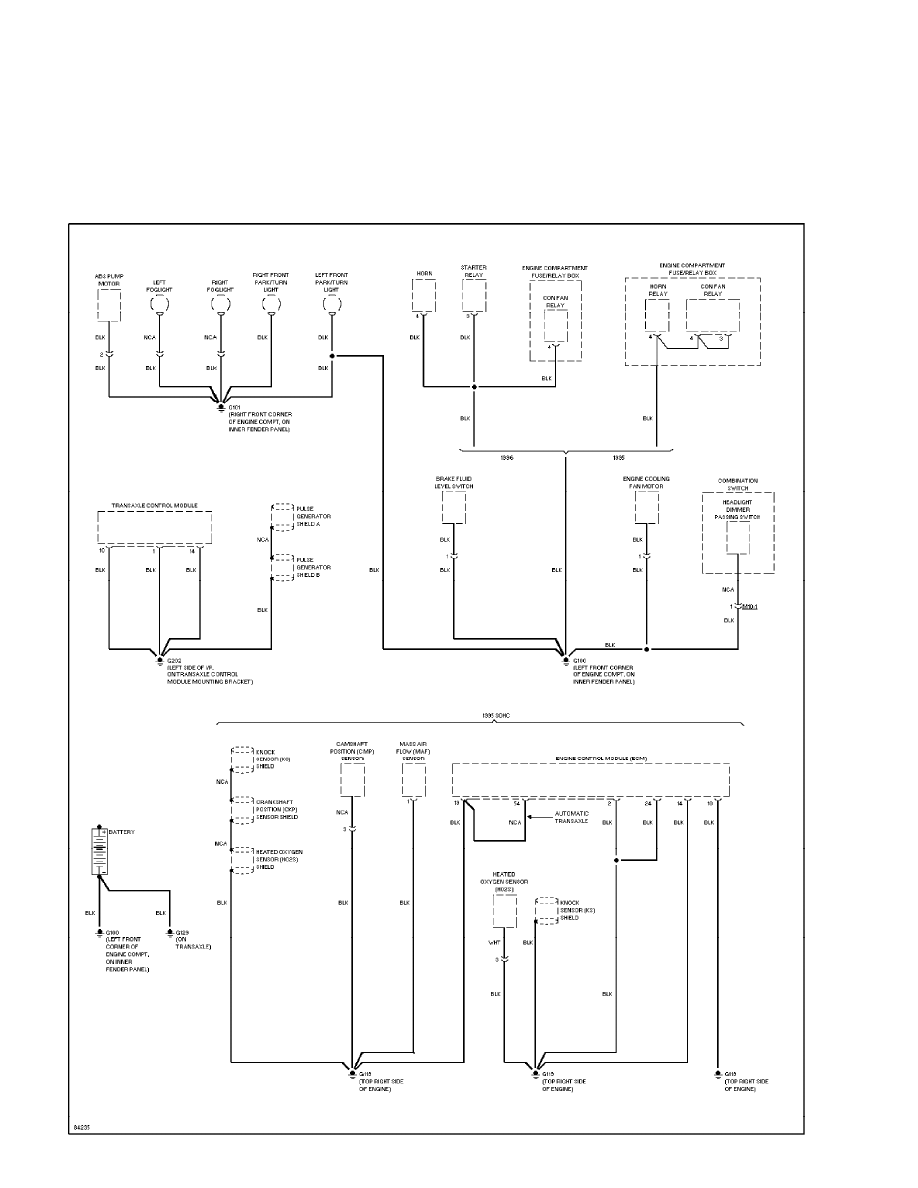

Ground Distribution Circuit (1 of 3) (p. 13)

1995 Hyundai Accent

For x

Thursday, March 17, 2005 09:59AM

SYSTEM WIRING DIAGRAMS

Ground Distribution Circuit (2 of 3) (p. 14)

1995 Hyundai Accent

For x

Thursday, March 17, 2005 09:59AM

SYSTEM WIRING DIAGRAMS

Ground Distribution Circuit (3 of 3) (p. 15)

1995 Hyundai Accent

For x

Thursday, March 17, 2005 09:59AM

SYSTEM WIRING DIAGRAMS

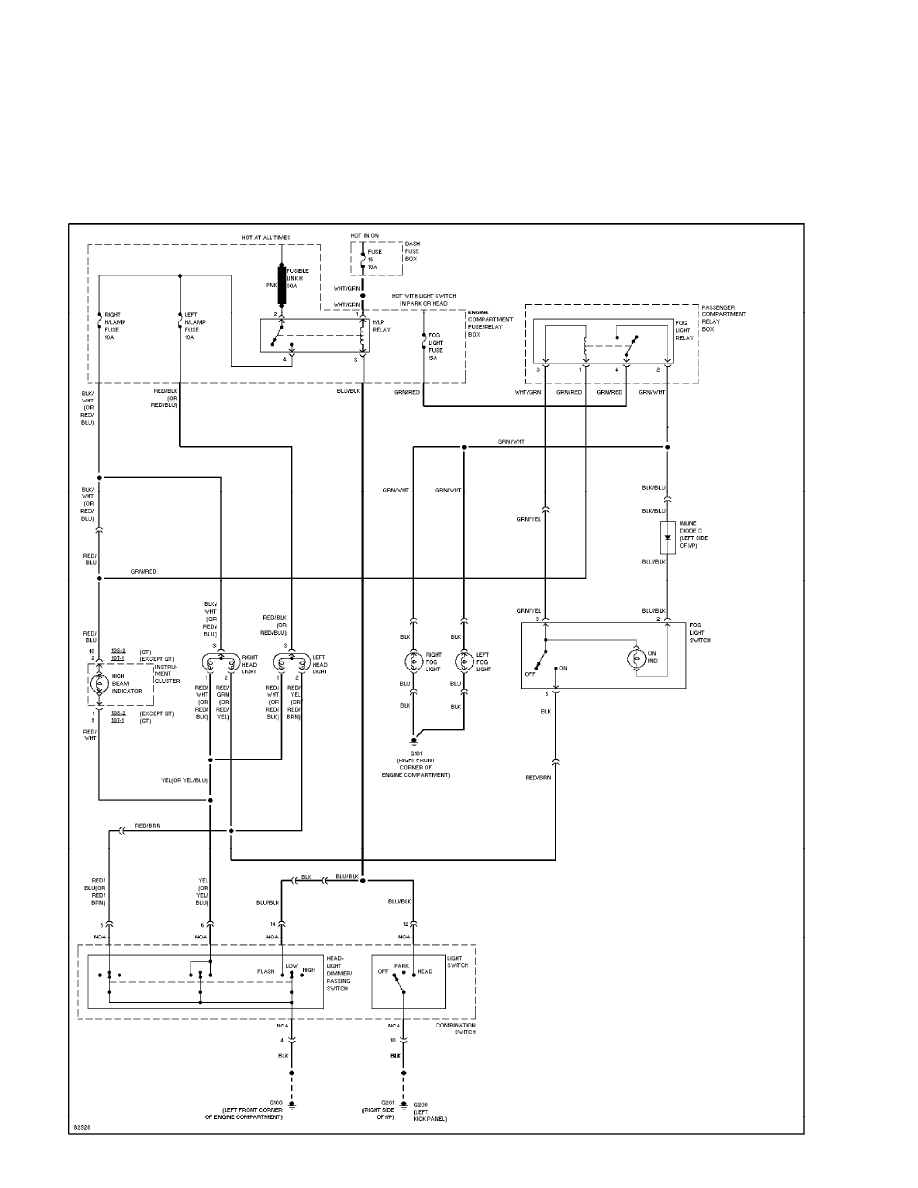

Headlight Circuit (p. 16)

1995 Hyundai Accent

For x

Thursday, March 17, 2005 09:59AM

SYSTEM WIRING DIAGRAMS

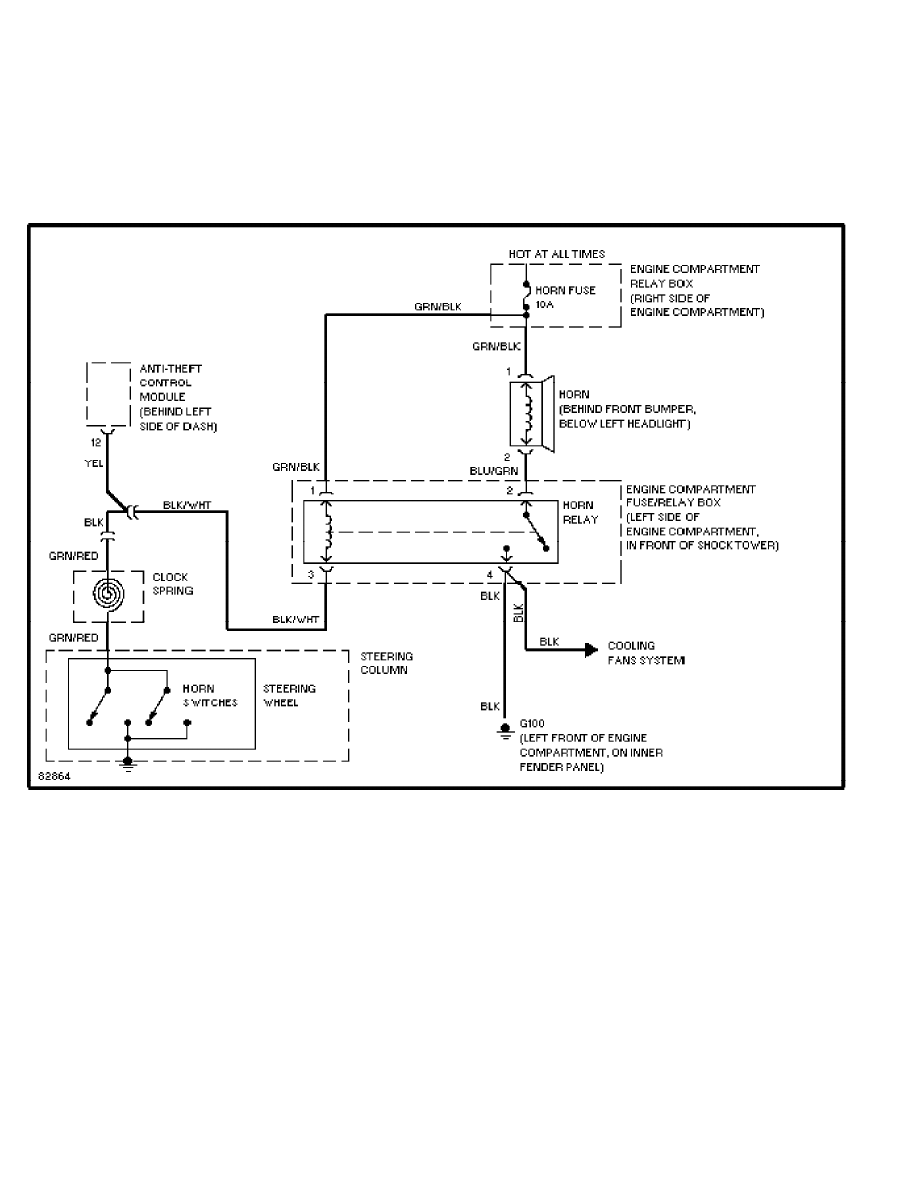

Horn Circuit (p. 17)

1995 Hyundai Accent

For x

Thursday, March 17, 2005 09:59AM

SYSTEM WIRING DIAGRAMS

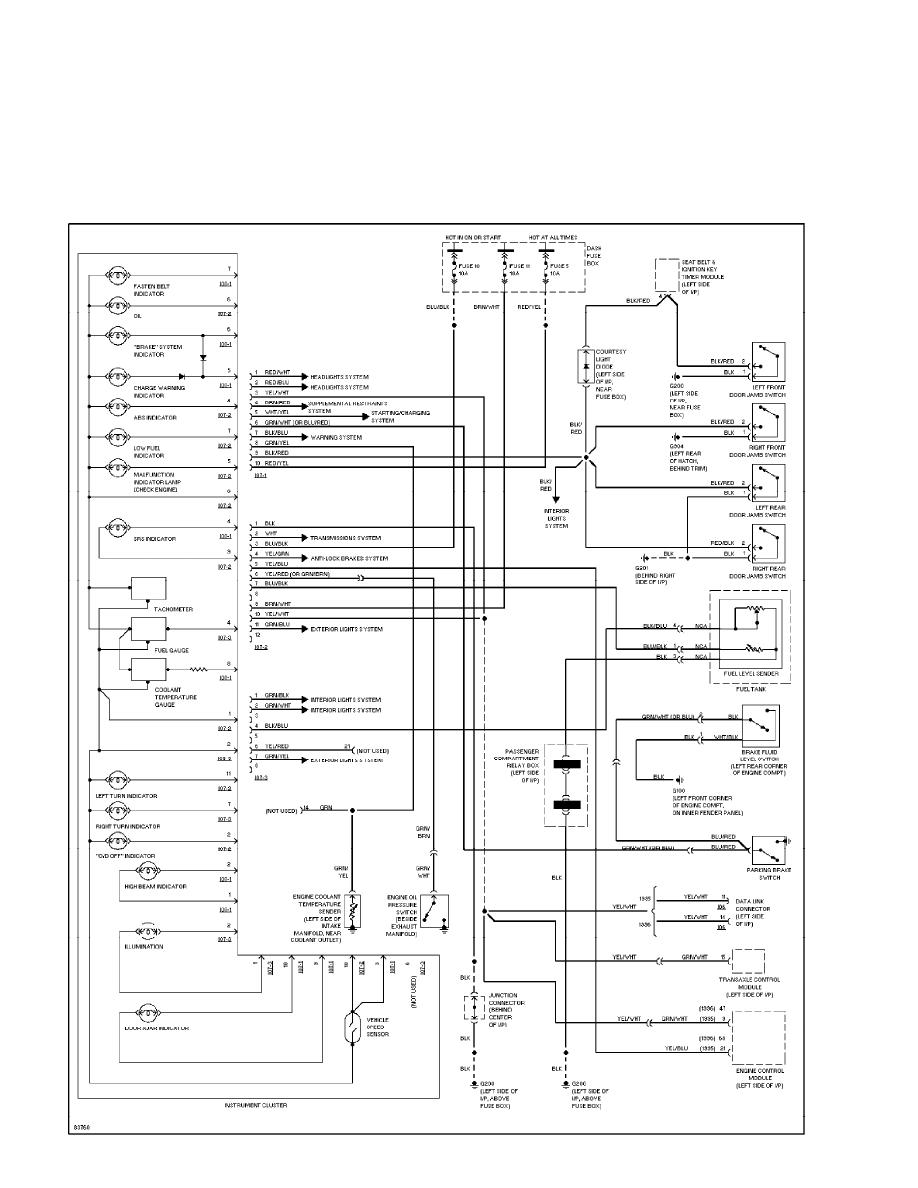

Instrument Cluster Circuit, Except GT Model (p. 18)

1995 Hyundai Accent

For x

Thursday, March 17, 2005 09:59AM

SYSTEM WIRING DIAGRAMS

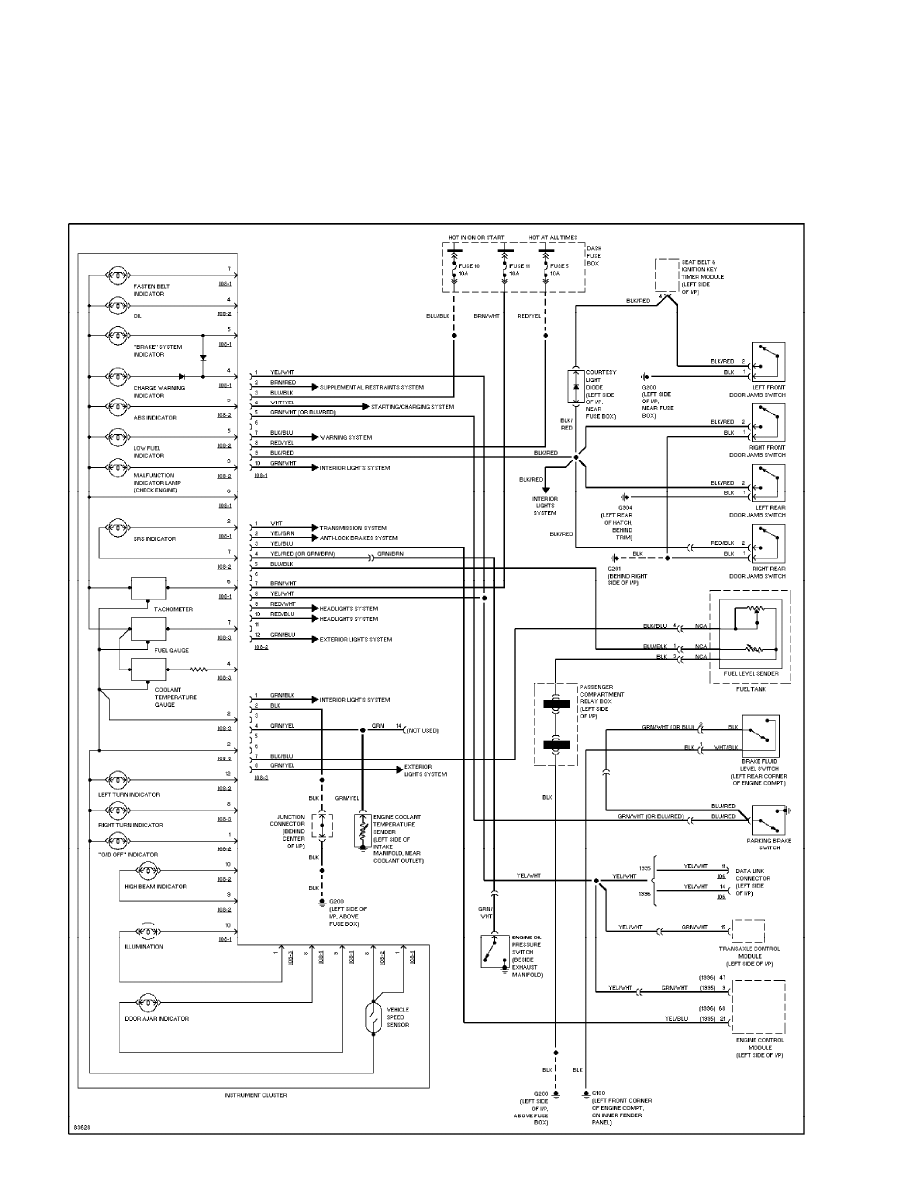

Instrument Cluster Circuit, GT Model (p. 19)

1995 Hyundai Accent

For x

Thursday, March 17, 2005 09:59AM

SYSTEM WIRING DIAGRAMS

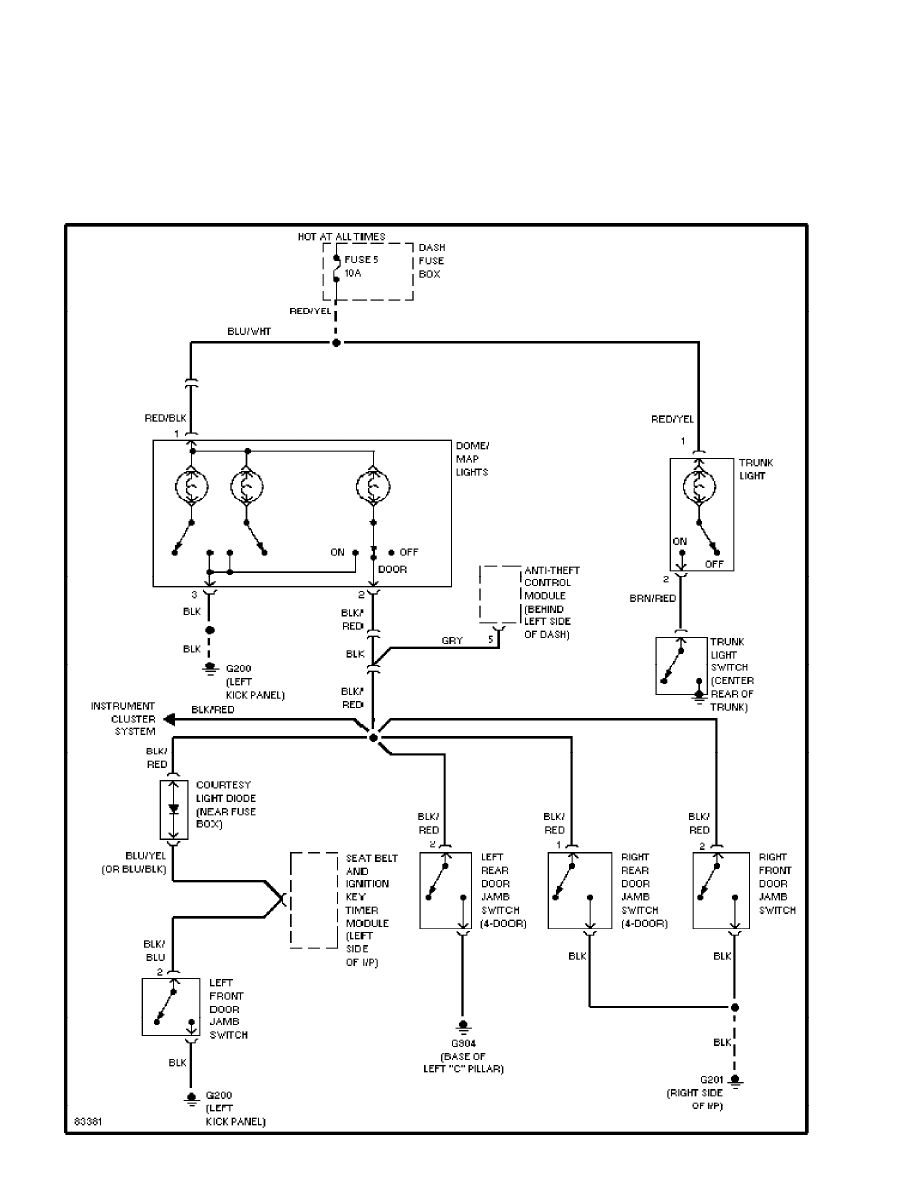

Courtesy Lamps Circuit (p. 20)

1995 Hyundai Accent

For x

Thursday, March 17, 2005 09:59AM

SYSTEM WIRING DIAGRAMS

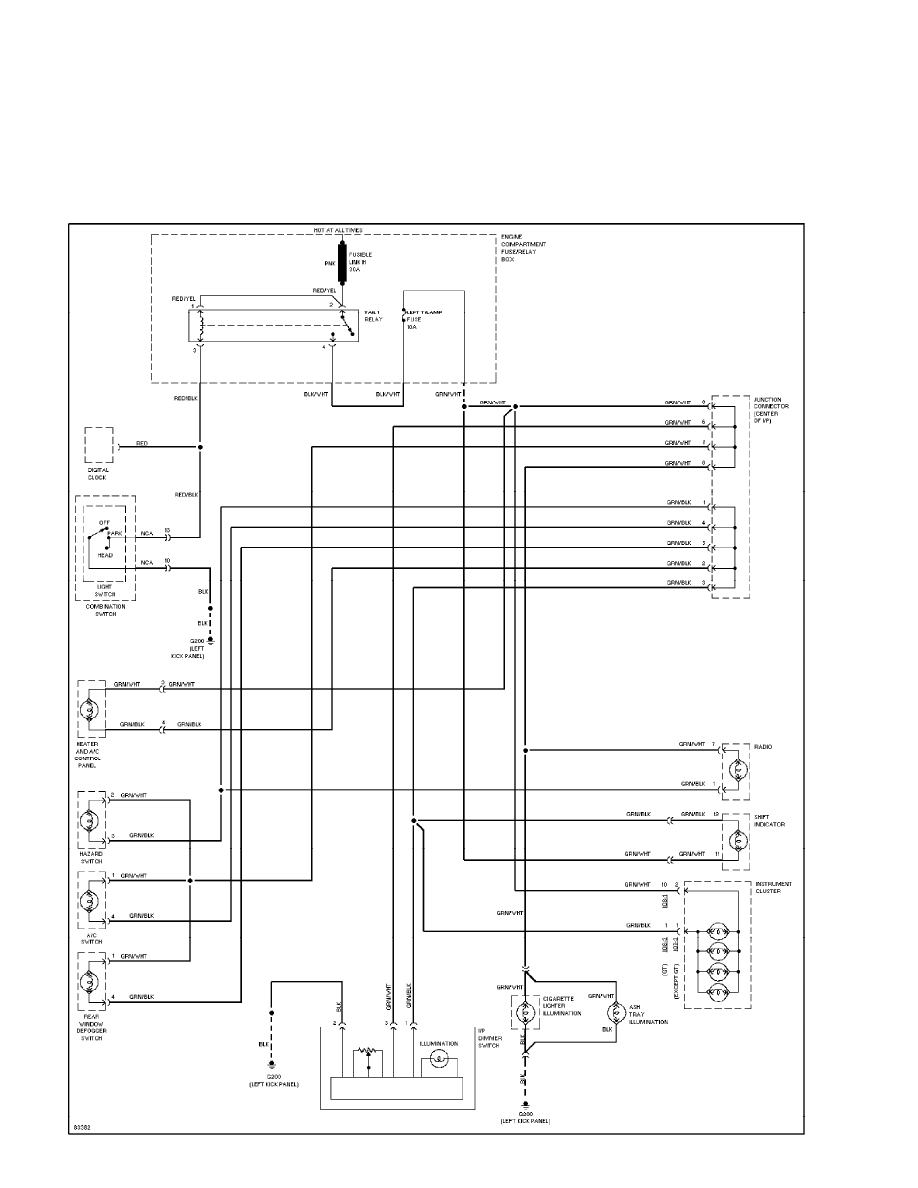

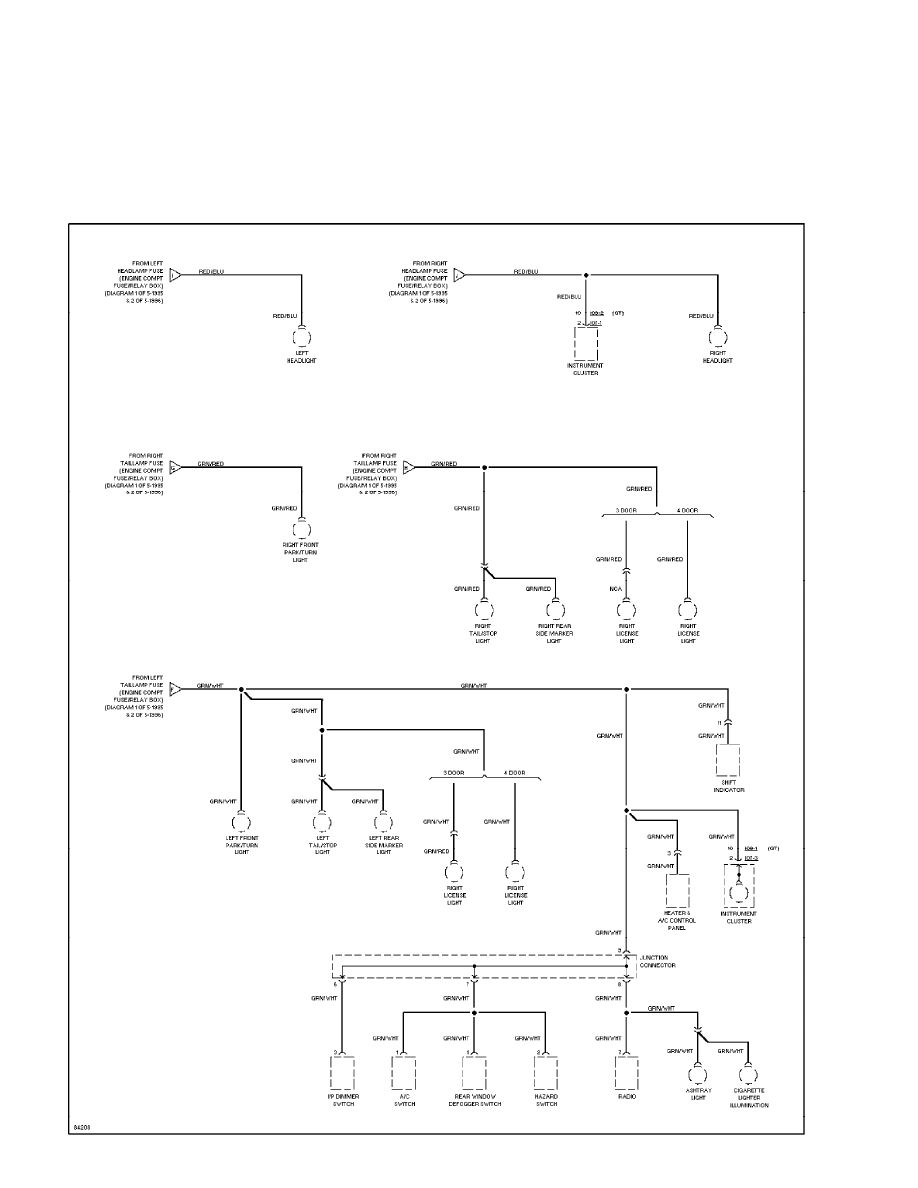

Instrument Illumination Circuit (p. 21)

1995 Hyundai Accent

For x

Thursday, March 17, 2005 09:59AM

SYSTEM WIRING DIAGRAMS

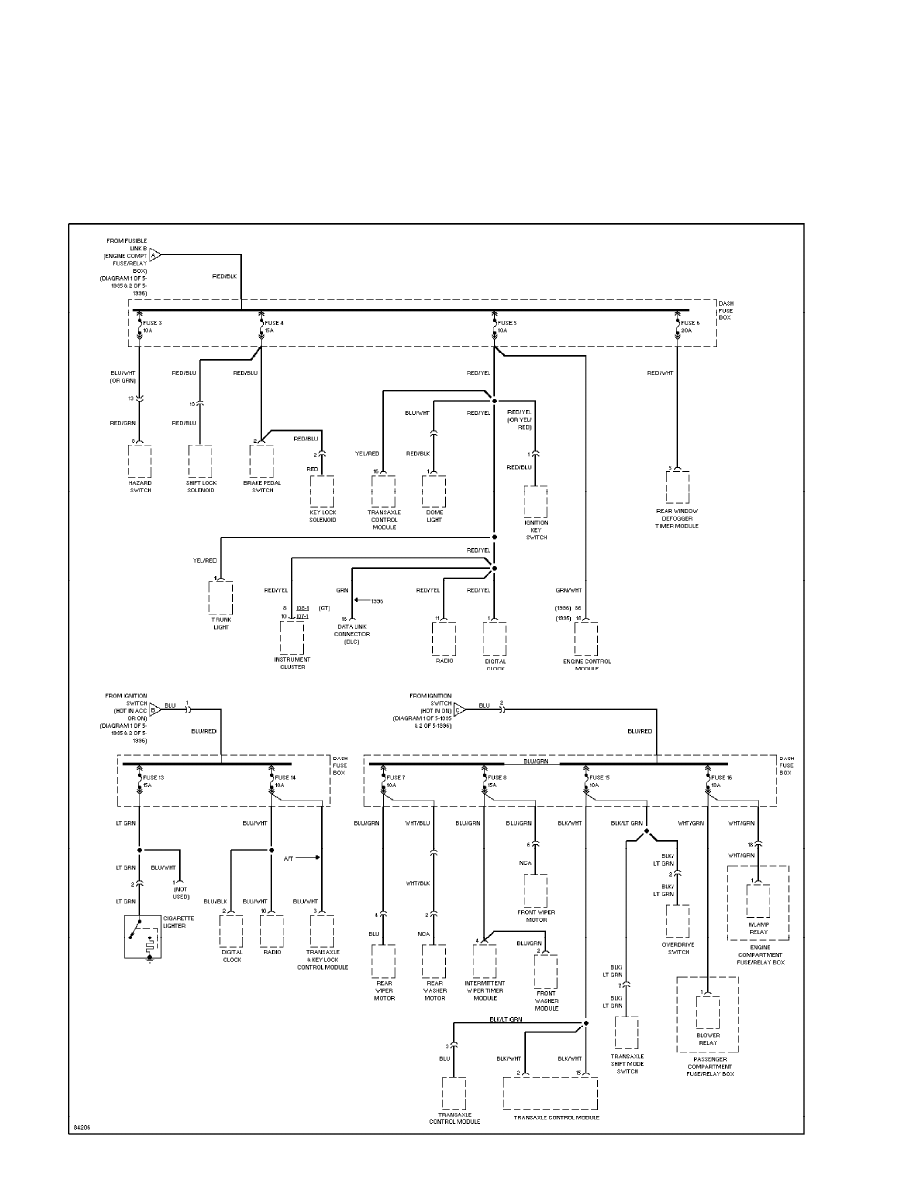

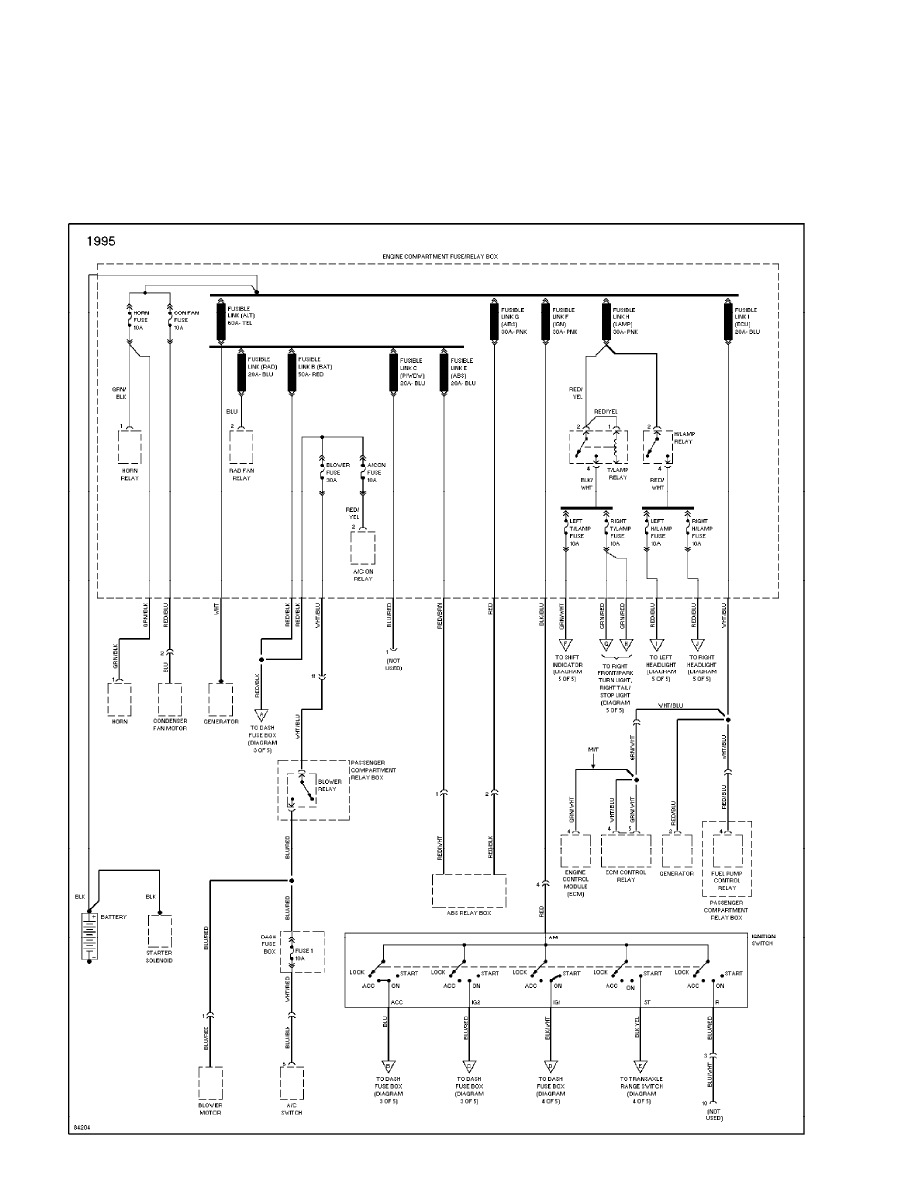

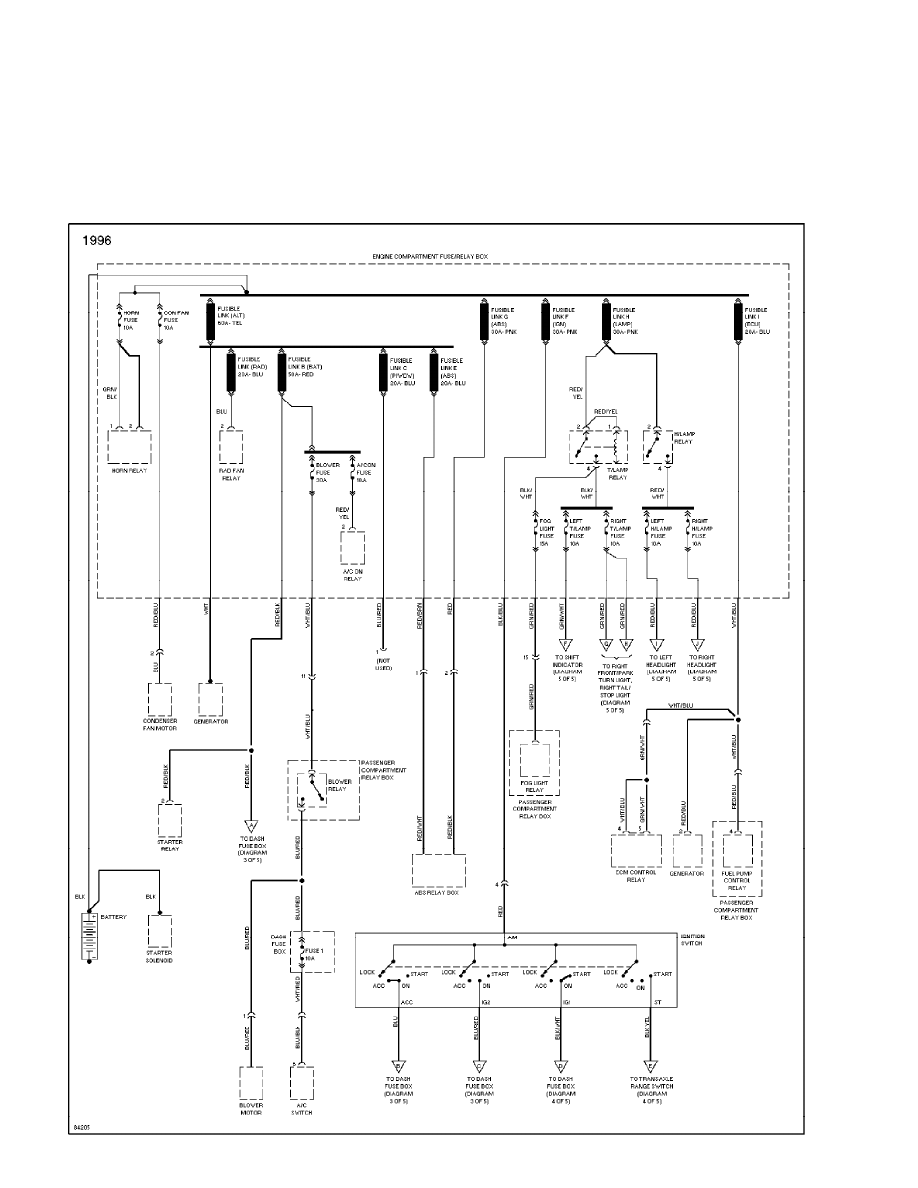

Power Distribution Circuit (1 of 5) (p. 22)

1995 Hyundai Accent

For x

Thursday, March 17, 2005 09:59AM

SYSTEM WIRING DIAGRAMS

Power Distribution Circuit (2 of 5) (p. 23)

1995 Hyundai Accent

For x

Thursday, March 17, 2005 09:59AM

SYSTEM WIRING DIAGRAMS

Power Distribution Circuit (3 of 5) (p. 24)

1995 Hyundai Accent

For x

Thursday, March 17, 2005 09:59AM

SYSTEM WIRING DIAGRAMS

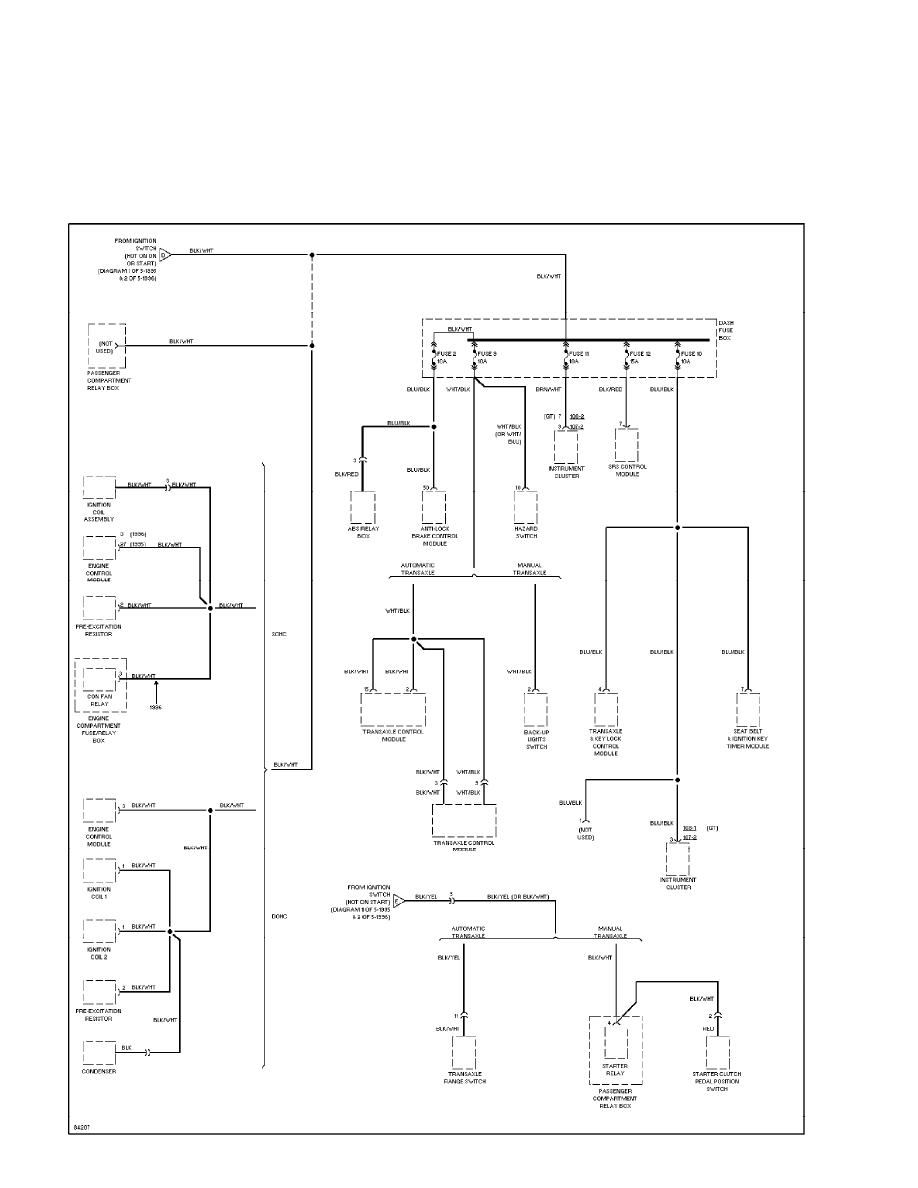

Power Distribution Circuit (4 of 5) (p. 25)

1995 Hyundai Accent

For x

Thursday, March 17, 2005 09:59AM

SYSTEM WIRING DIAGRAMS

Power Distribution Circuit (5 of 5) (p. 26)

1995 Hyundai Accent

For x

Thursday, March 17, 2005 09:59AM

SYSTEM WIRING DIAGRAMS

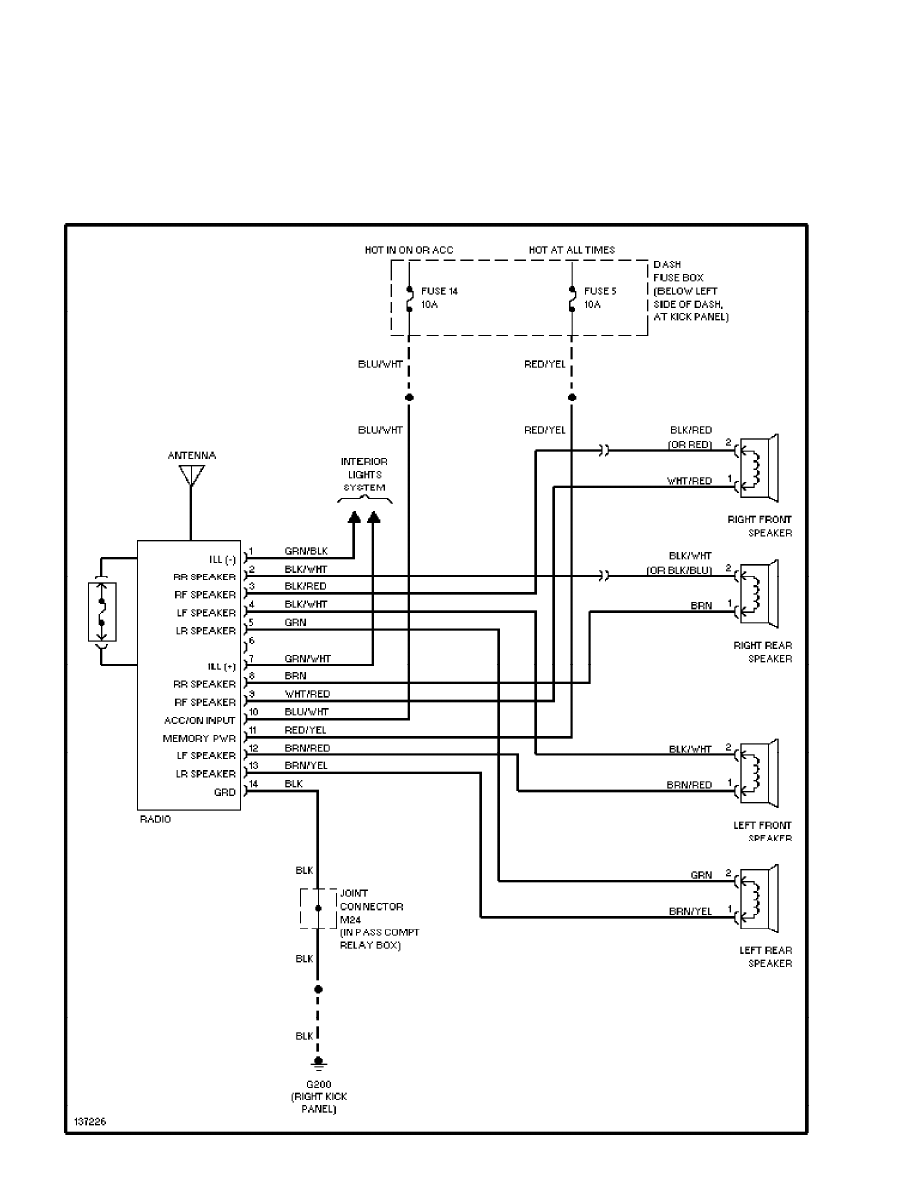

Radio Circuits, Except GT Model (p. 27)

1995 Hyundai Accent

For x

Thursday, March 17, 2005 09:59AM

SYSTEM WIRING DIAGRAMS

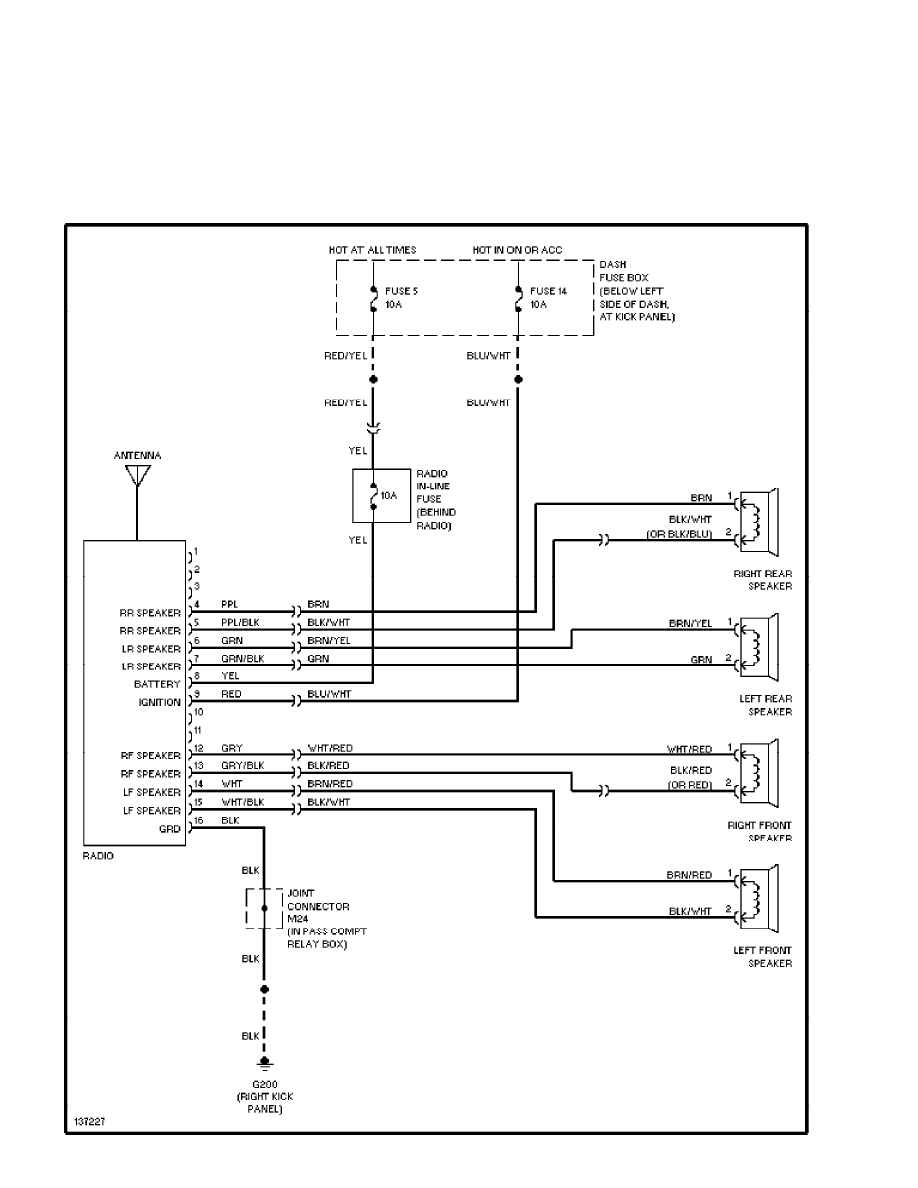

Radio Circuits, GT Model (p. 28)

1995 Hyundai Accent

For x

Thursday, March 17, 2005 09:59AM

SYSTEM WIRING DIAGRAMS

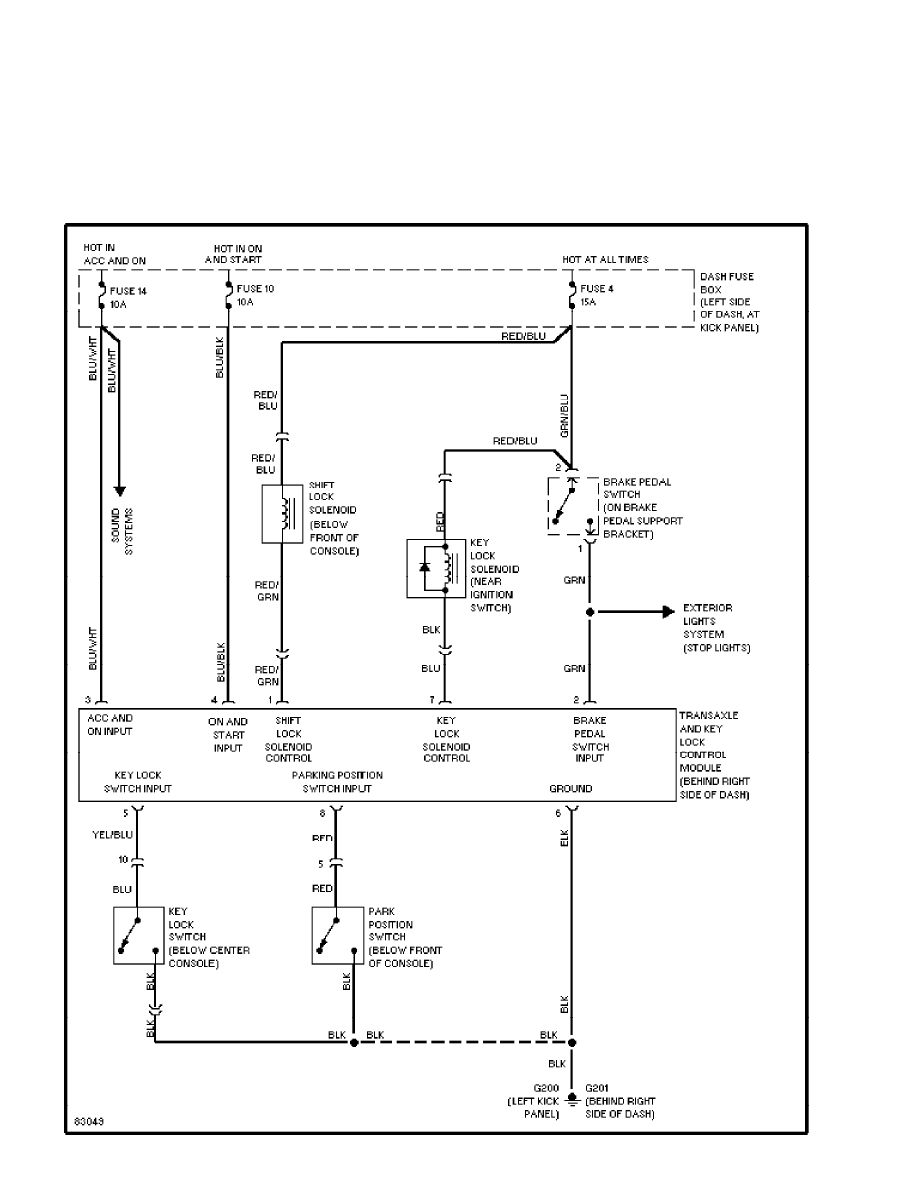

Shift Interlock Circuit (p. 29)

1995 Hyundai Accent

For x

Thursday, March 17, 2005 09:59AM

SYSTEM WIRING DIAGRAMS

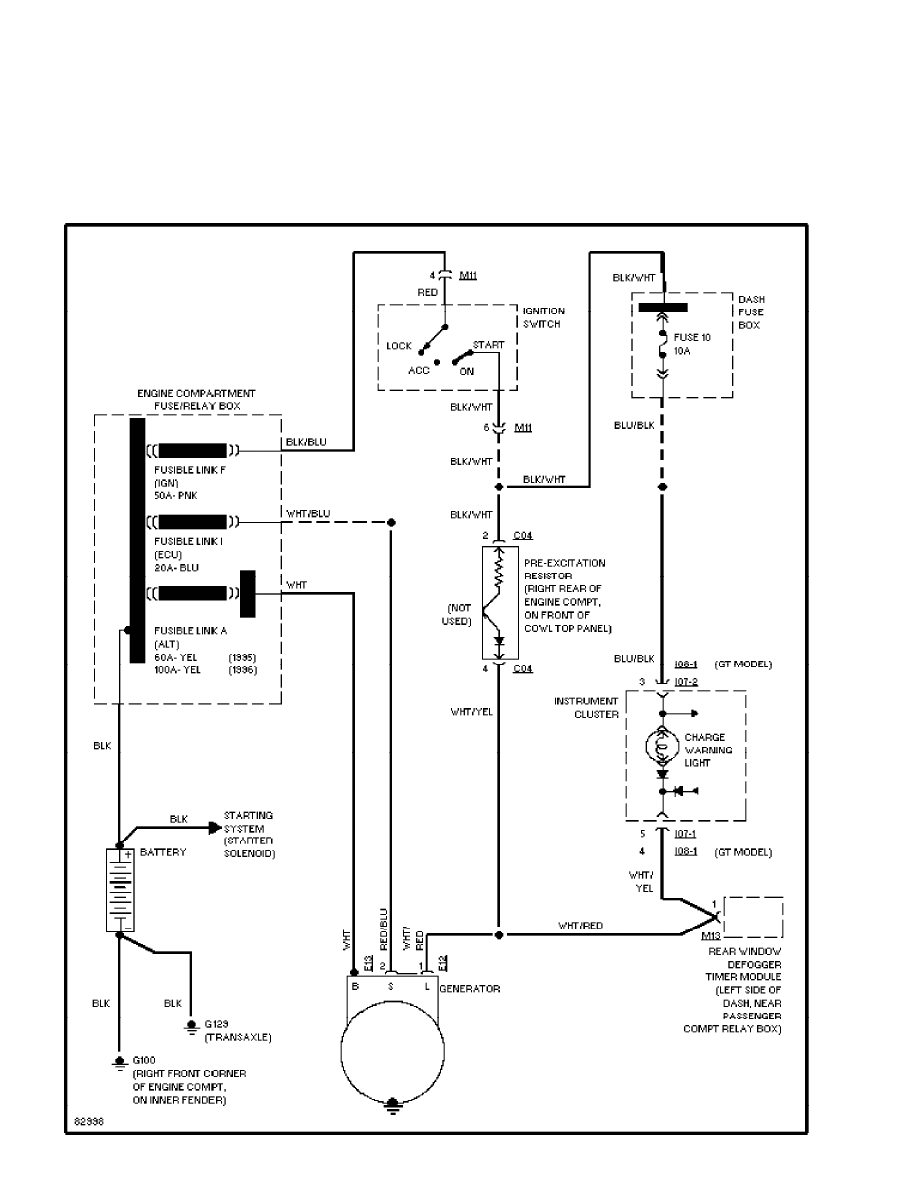

Charging Circuit (p. 30)

1995 Hyundai Accent

For x

Thursday, March 17, 2005 09:59AM

SYSTEM WIRING DIAGRAMS

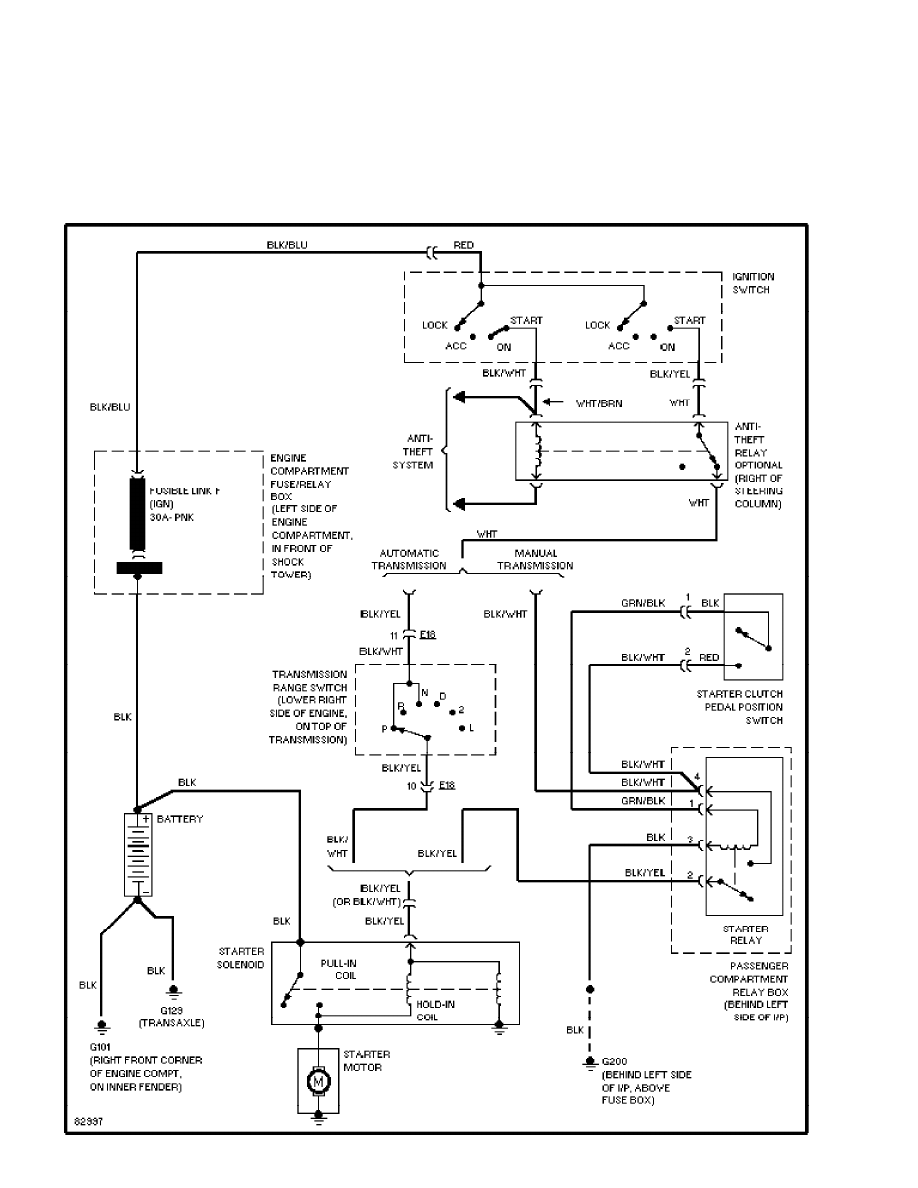

Starting Circuit (p. 31)

1995 Hyundai Accent

For x

Thursday, March 17, 2005 09:59AM

SYSTEM WIRING DIAGRAMS

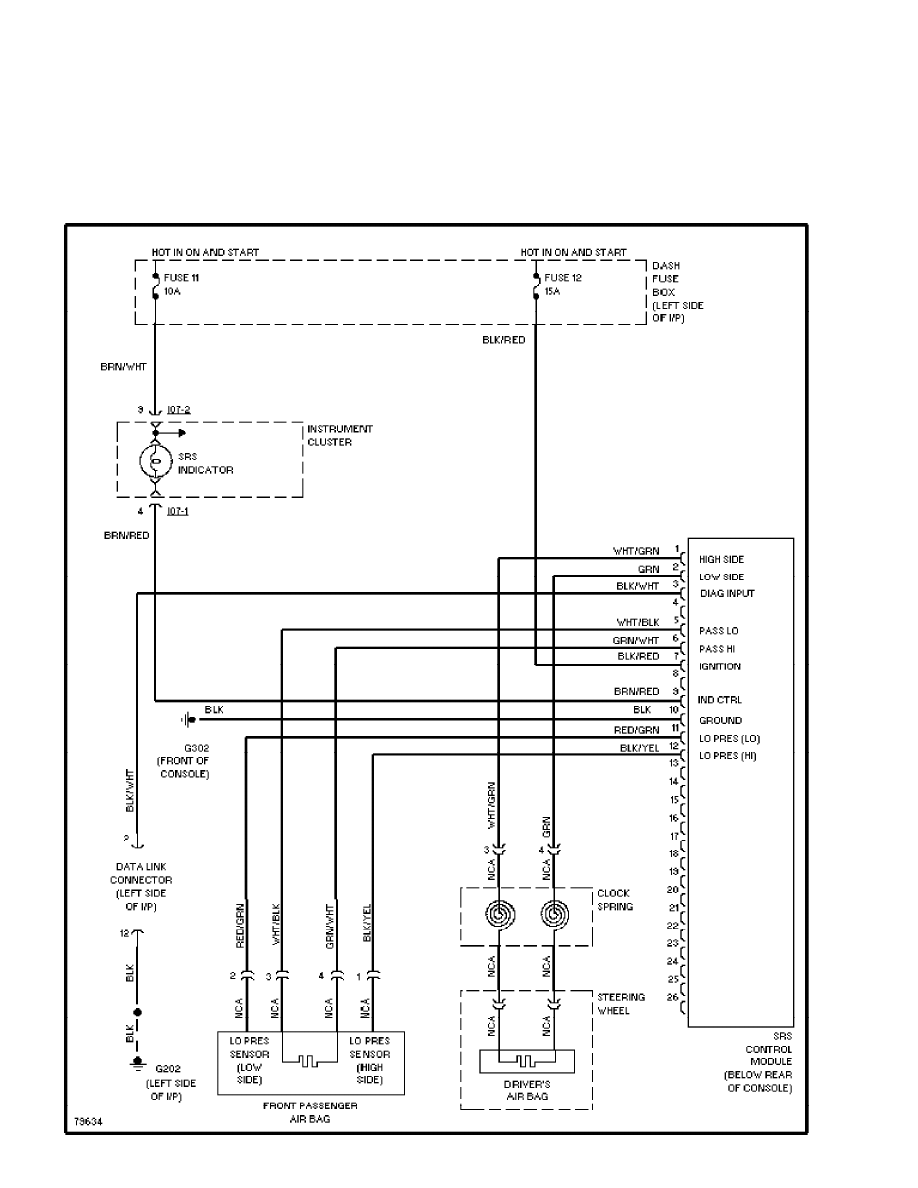

Supplemental Restraint Circuit (p. 32)

1995 Hyundai Accent

For x

Thursday, March 17, 2005 09:59AM

SYSTEM WIRING DIAGRAMS

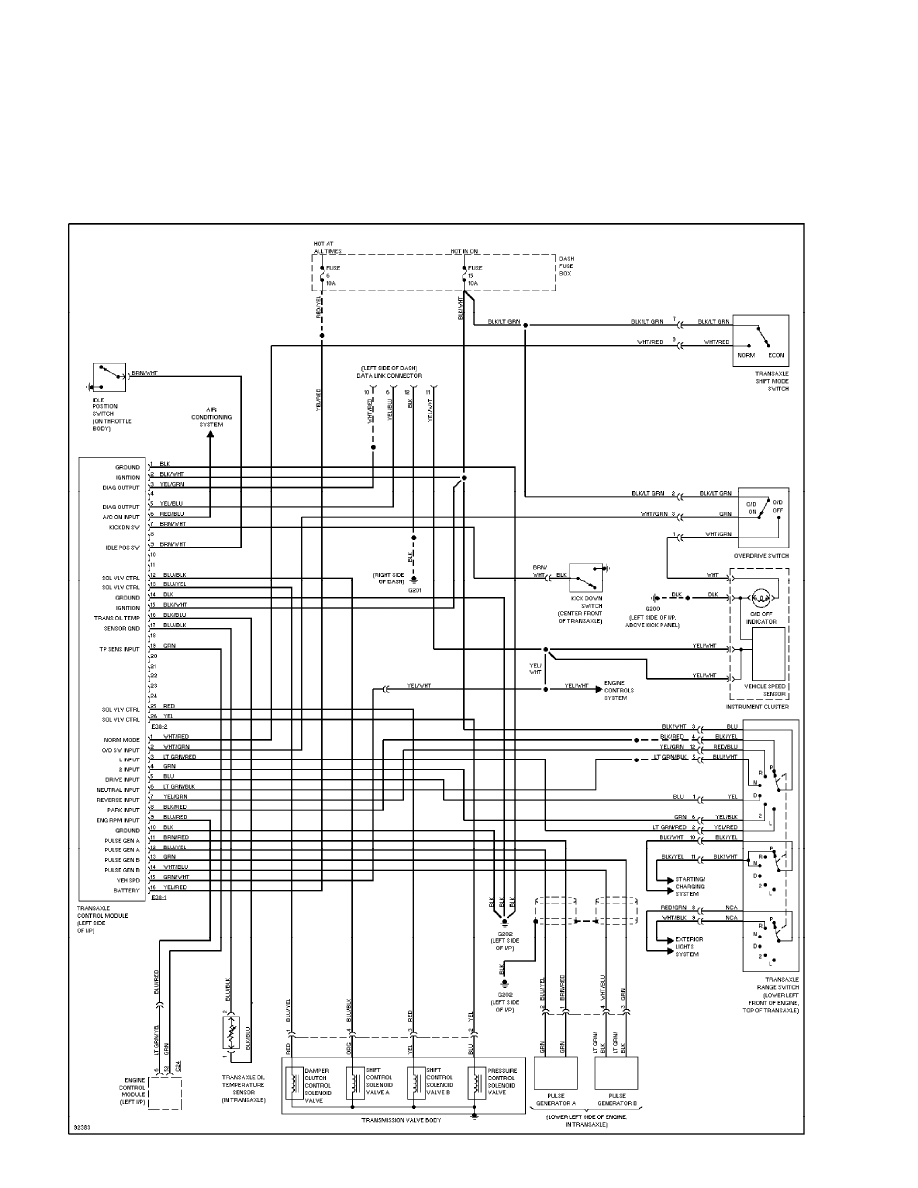

Transmission Circuit (p. 33)

1995 Hyundai Accent

For x

Thursday, March 17, 2005 09:59AM

SYSTEM WIRING DIAGRAMS

Warning System Circuits (p. 34)

1995 Hyundai Accent

For x

Thursday, March 17, 2005 09:59AM

SYSTEM WIRING DIAGRAMS

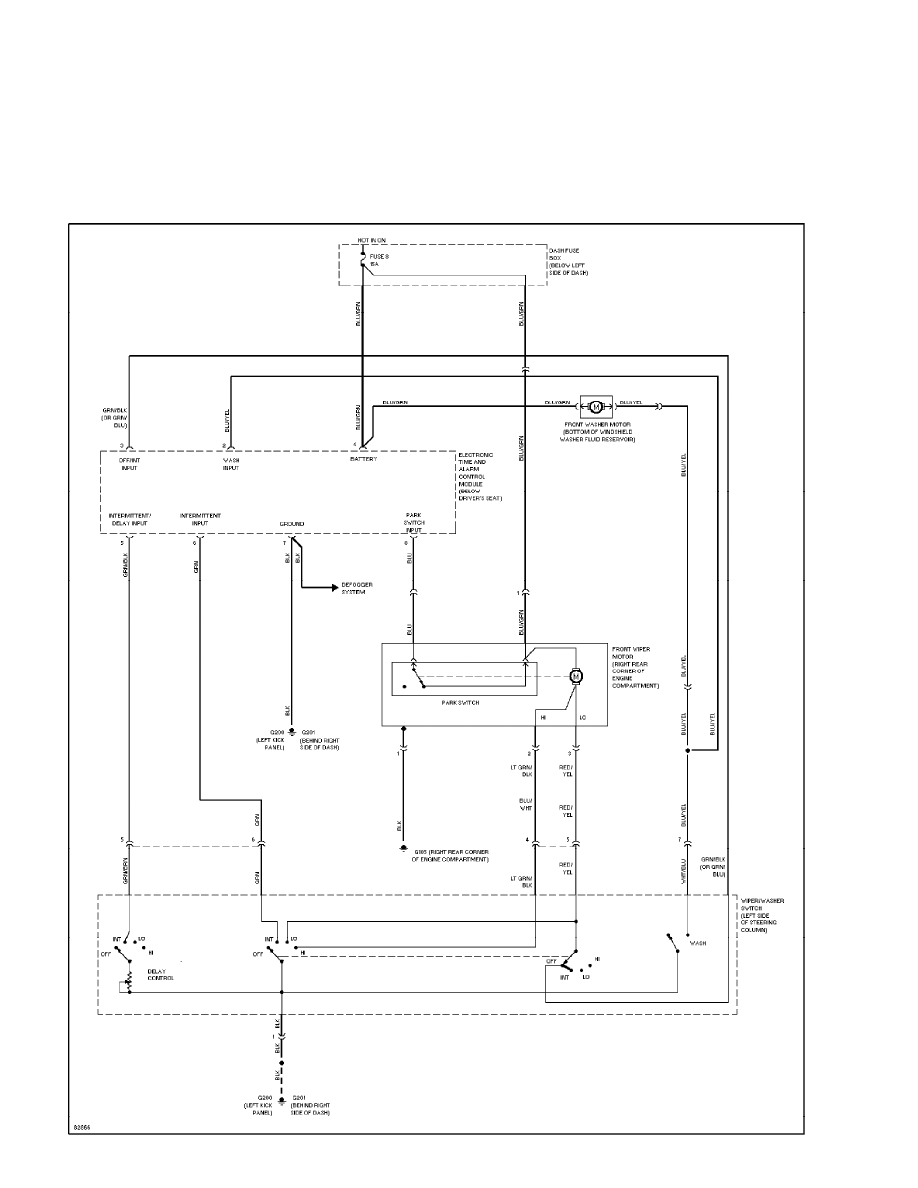

Front Wiper/Washer Circuit (p. 35)

1995 Hyundai Accent

For x

Thursday, March 17, 2005 09:59AM

SYSTEM WIRING DIAGRAMS

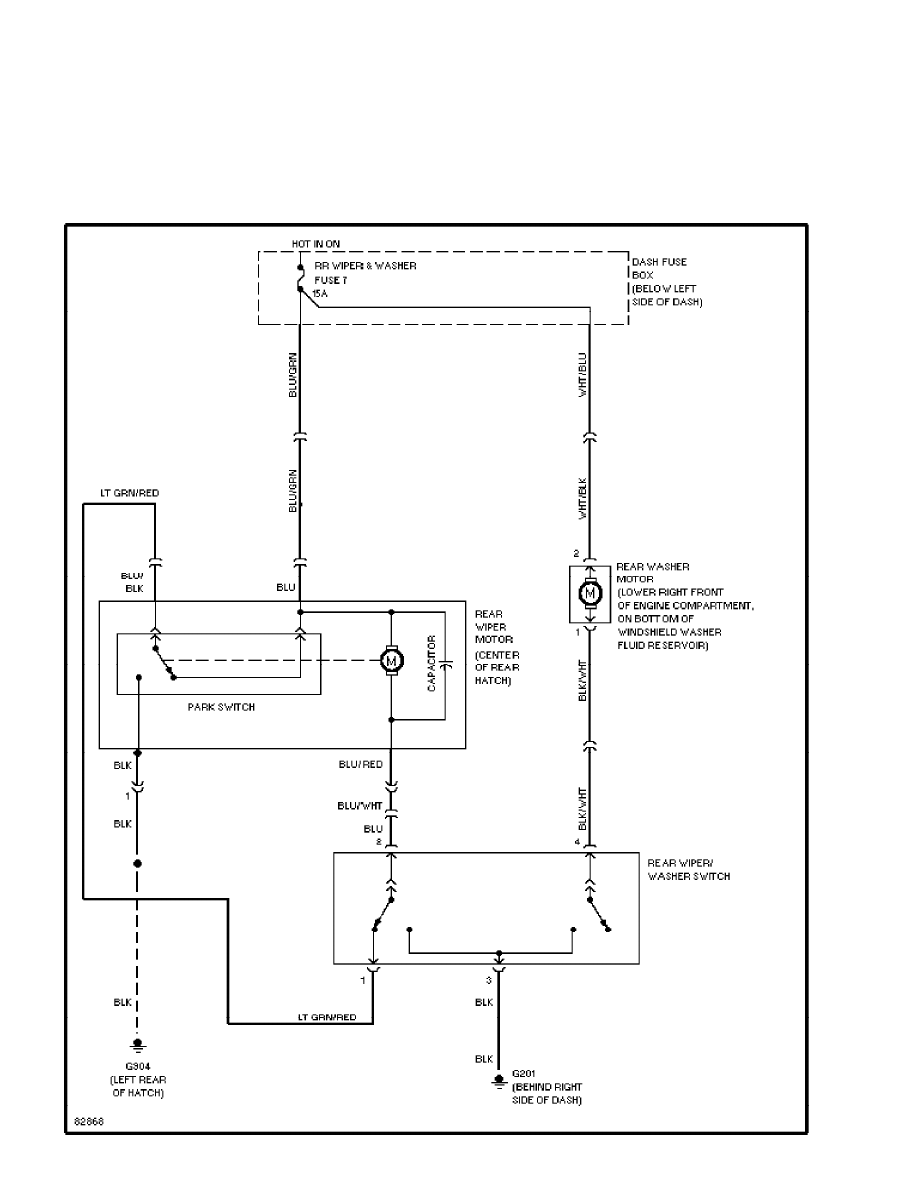

Rear Wiper/Washer Circuit (p. 36)

1995 Hyundai Accent

For x

Thursday, March 17, 2005 09:59AM
