PARTS CATALOGUE

PF-16

PRINTER OPTION

PRINTER OPTION - Parts Catalogue

KYOCERA PF-16

Page 1

PF-16 Parts Catalogue

Table of Contents

3

Main Assembly (Fig.1)

Introduction

The figures which follow depict the major assemblies of the printer or option,
broken down into components. Following each figure are the list giving the
following information:

Reference number which corresponds to the parts in the figure

’Ref No.’

Part code which identifies the part

’Part code’

A brief description of the part

’Part description’

Quantity of the part used in the printer or option

’Quantity’

Only the parts highlighted in BOLD should be ordered. All other parts are for
reference only and are not stocked.

PRINTER OPTION - Parts Catalogue

KYOCERA PF-16

Page 2

01-24M

01-24C

01-24D

01-24R

01-24L

01-24S

01-24F

01-24K

01-24E

01-24G

01-24O

01-24N

01-24A

01-24P

01-24Q

01-24B

01-24I

01-24J

01-009

01-008

01-020

01-021

01-002

01-001

01-006

01-007

01-024

01-022

01-025

01-005

01-004

01-003

01-014

01-013

01-015

01-011

01-012

01-023

01-017

01-016

01-010

01-018

01-002

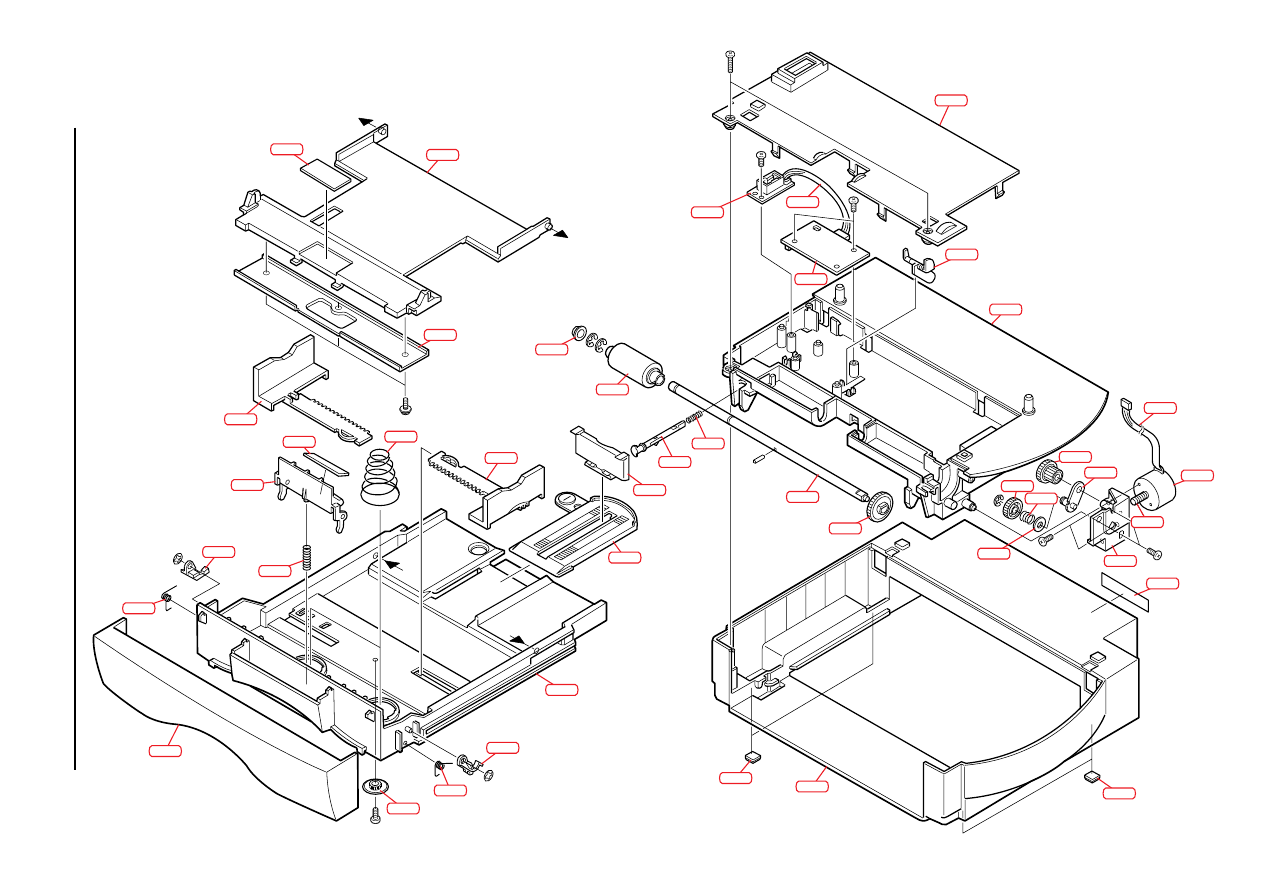

Fig.1 - Main Assembly

PRINTER OPTION - Parts Catalogue

KYOCERA PF-16

Page 3

Quantity

Description

Part Code

Ref No.

Quantity

Description

Part Code

Ref No.

1

Paper Feed Unit

PF-16

01-000

1

Base Feeder

5M

VB886SX006

01-001

1

Foot

5M

VS228RB019

01-002

1

Base Drive

5M

VB886SX017

01-003

1

Lid Feeder

5M

VS872SX002

01-004

1

Actuator Empty

5M

VX332SB018

01-005

1

Shaft Feed

5M

MT811SN002

01-006

1

Gear Z32

5M

VG148DW003

01-007

1

Roller Feed Assy

5A

AVROLL*035

01-008

1

Bush POM

5M

VM122DB003

01-009

1

Bracket Motor

5M

VL655BX001

01-010

1

Worn Wheel

5M

VG147DW001

01-011

1

Drive Motor

5M

VX322NW003

01-012

1

Gear Z20

5M

VG127DW003

01-013

1

Washer Mover

5M

MS766LD002

01-014

1

Spring Mover

5M

M111LD002

01-015

1

Gear Worn

5M

VG115DB002

01-016

1

DC Motor

5E

ZND1204001*01

01-017

1

Label Serial

01-018

1

Pin Switch

5M

VT611DN001

01-020

1

Spring Switch

5M

MW211LD003

01-021

1

Conn Cord S02213

5A

ACCNQH3GEA

01-022

1

Conn Cord S02214

5A

ACCNQH4GEA

01-023

1

Connector PWB Assy KP595

5A

APRIFR2007AH

01-024

1

Cassette Assy 5AAYPF16**03

PC-16

01-24A/S
01-24A
01-24B
01-24C
01-24D
01-24E
01-24F
01-24G
01-24H
01-24I
01-24J
01-24K
01-24L
01-24M
01-24N
01-24O
01-24P
01-24Q
01-24R
01-24S

1

Drive Motor PWB Assy

5A

APRDVC1004AH

01-025
