Headlights, Pickup with daytime running light

background image

Page 1/6

SKODA Felicia (6U) 1.9 D (AEF) 1995 until 2000

Headlights, Pickup with daytime running light

©HaynesPro B.V.

Powered by ATRis_Technik

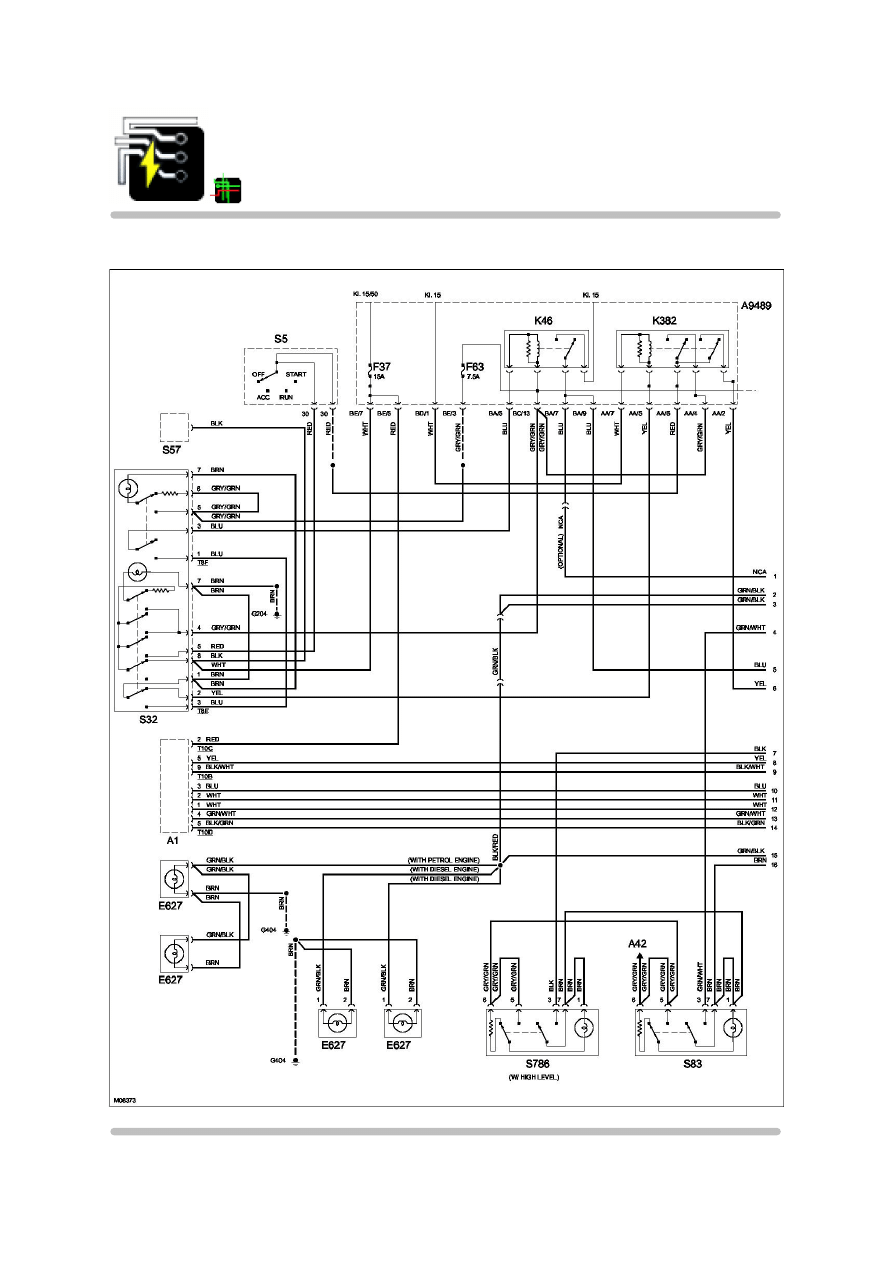

Wiring diagram 1

background image

Page 2/6

SKODA Felicia (6U) 1.9 D (AEF) 1995 until 2000

Headlights, Pickup with daytime running light

©HaynesPro B.V.

Powered by ATRis_Technik

Legend (1)

A1

Instrument cluster

A42

Interior lights system

S32

Light switch

E627

Licence light

S83

Rear fog light switch

S786

Front fog light switch

F63

Fuse 22

A9489

Generic electronic module (GEM)

S5

Ignition switch

F37

Fuse 19

K382

Main daytime running light relay

S57

Brake fluid level switch

K46

Headlight relay

background image

Page 3/6

SKODA Felicia (6U) 1.9 D (AEF) 1995 until 2000

Headlights, Pickup with daytime running light

©HaynesPro B.V.

Powered by ATRis_Technik

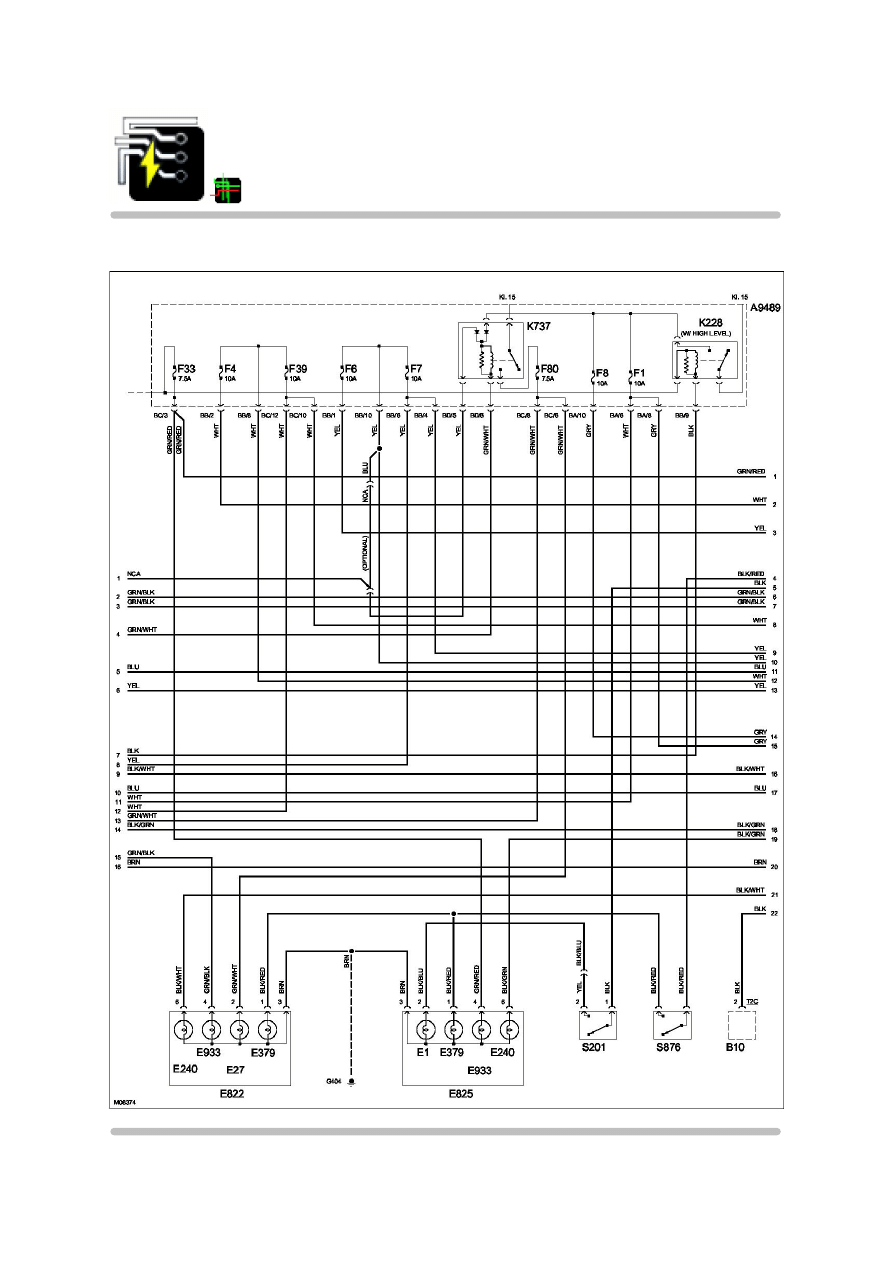

Wiring diagram 2

background image

Page 4/6

SKODA Felicia (6U) 1.9 D (AEF) 1995 until 2000

Headlights, Pickup with daytime running light

©HaynesPro B.V.

Powered by ATRis_Technik

Legend (2)

K737

Rear fog relay

F8

Fuse 5

F6

Fuse 7

K228

Front fog light relay

F7

Fuse 8

B10

Horn

E379

Stop light

E240

Turn light

F80

Fuse 12

F1

Fuse 6

A9489

Generic electronic module (GEM)

S876

Stop light switch

E1

Back-up lights

F39

Fuse 10

F4

Fuse 9

S201

Back-up light switch

E822

Left tail light

E27

Rear fog light

E933

Rear light

E825

Right tail light

F33

Fuse 11

background image

Page 5/6

SKODA Felicia (6U) 1.9 D (AEF) 1995 until 2000

Headlights, Pickup with daytime running light

©HaynesPro B.V.

Powered by ATRis_Technik

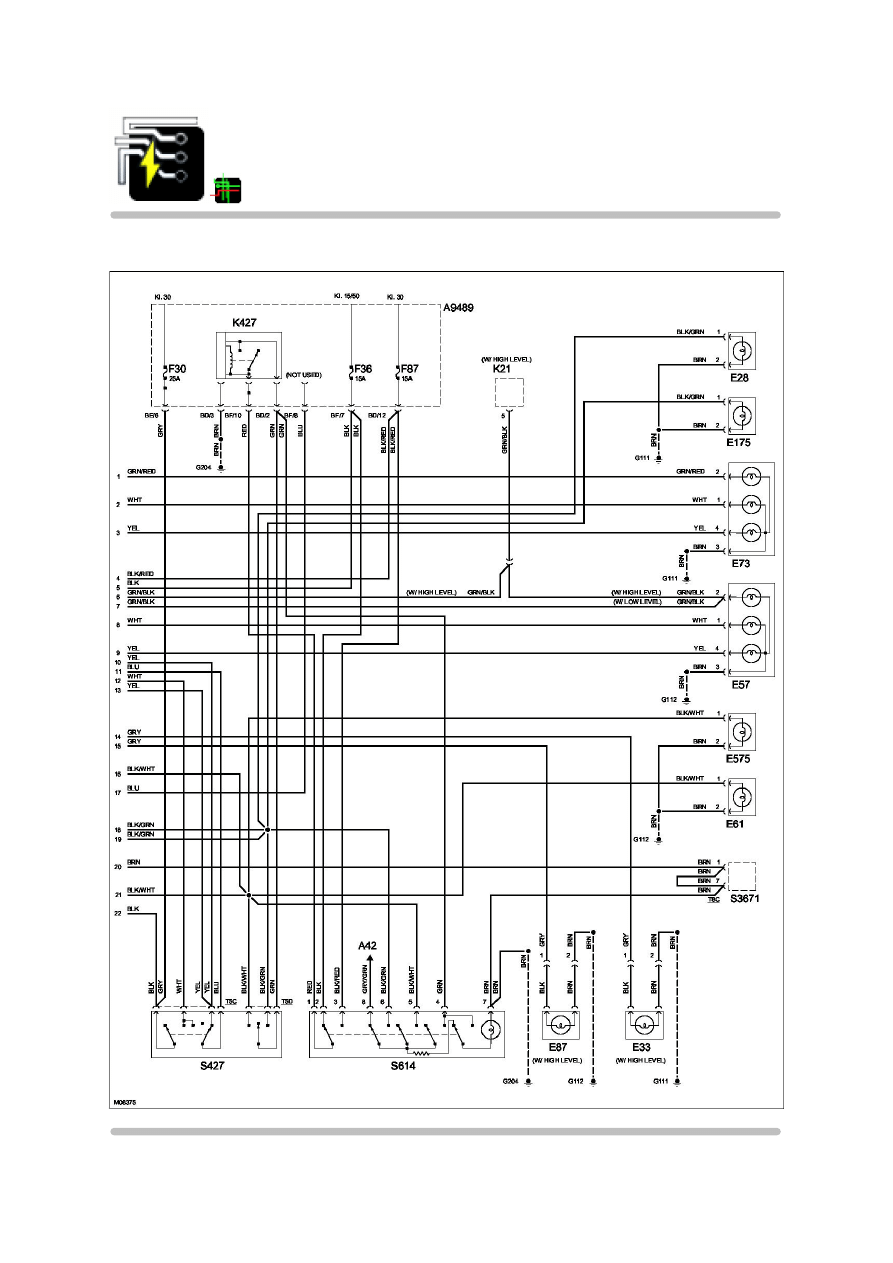

Wiring diagram 3

background image

Page 6/6

SKODA Felicia (6U) 1.9 D (AEF) 1995 until 2000

Headlights, Pickup with daytime running light

©HaynesPro B.V.

Powered by ATRis_Technik

Legend (3)

E87

Left front fog light

S427

Steering column switch

S614

Hazard warning switch

A42

Interior lights system

E575

Left side turn light

S3671

Heated rear window switch

E33

Right fog light

F36

Fuse 21

K427

Hazard flasher

A9489

Generic electronic module (GEM)

E175

Right side turn light

F87

Fuse 14

K21

Headlight washer system relay

F30

Fuse 17

E28

Right turn signal lights

E73

Right headlight

E61

Left turn lights

E57

Left headlight
