VOLVO 850 1993

SYSTEM WIRING DIAGRAMS

Cooling Fan Circuit, W/ A/C

1993 Volvo 850

For x

Friday, July 23, 2004 11:49PM

cdr@wp.pl

SYSTEM WIRING DIAGRAMS

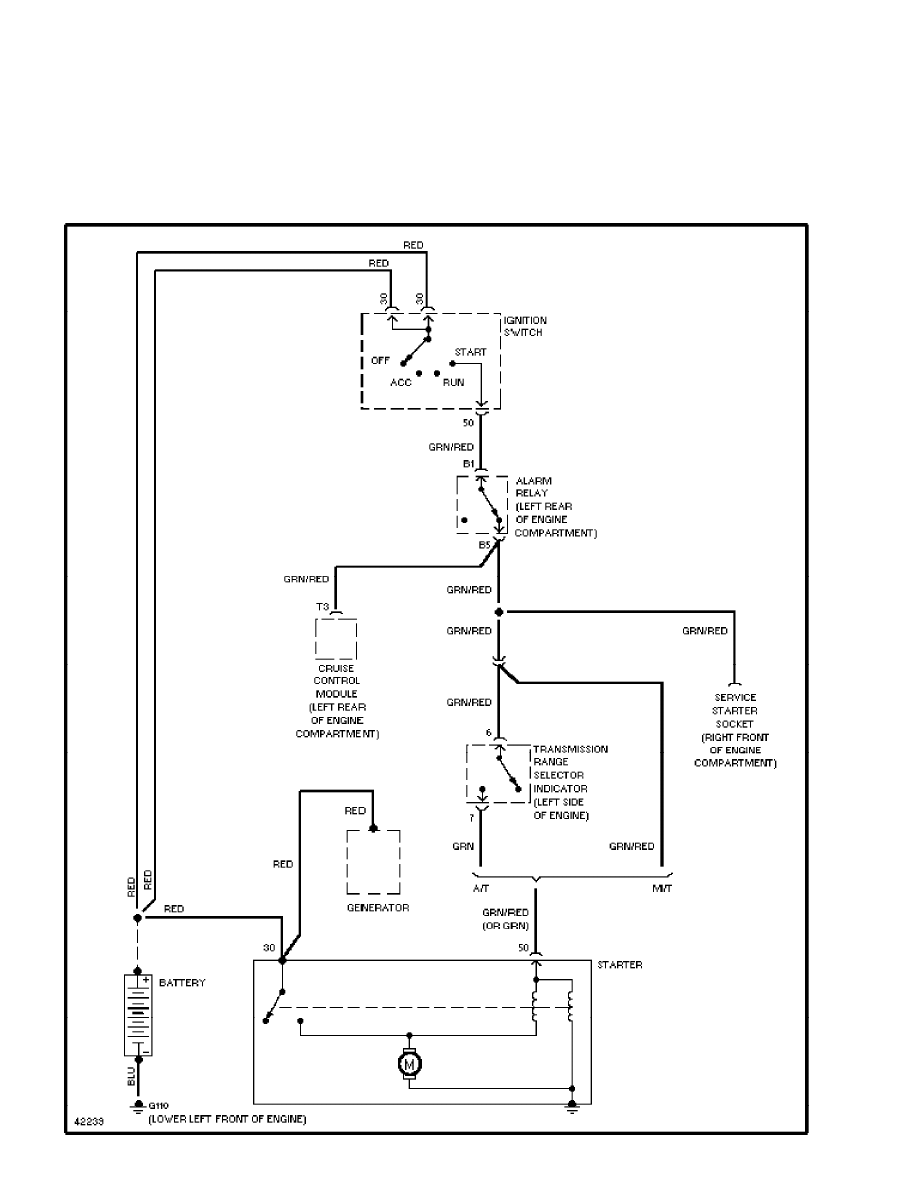

Starting Circuit

1993 Volvo 850

For x

Friday, July 23, 2004 11:50PM

SYSTEM WIRING DIAGRAMS

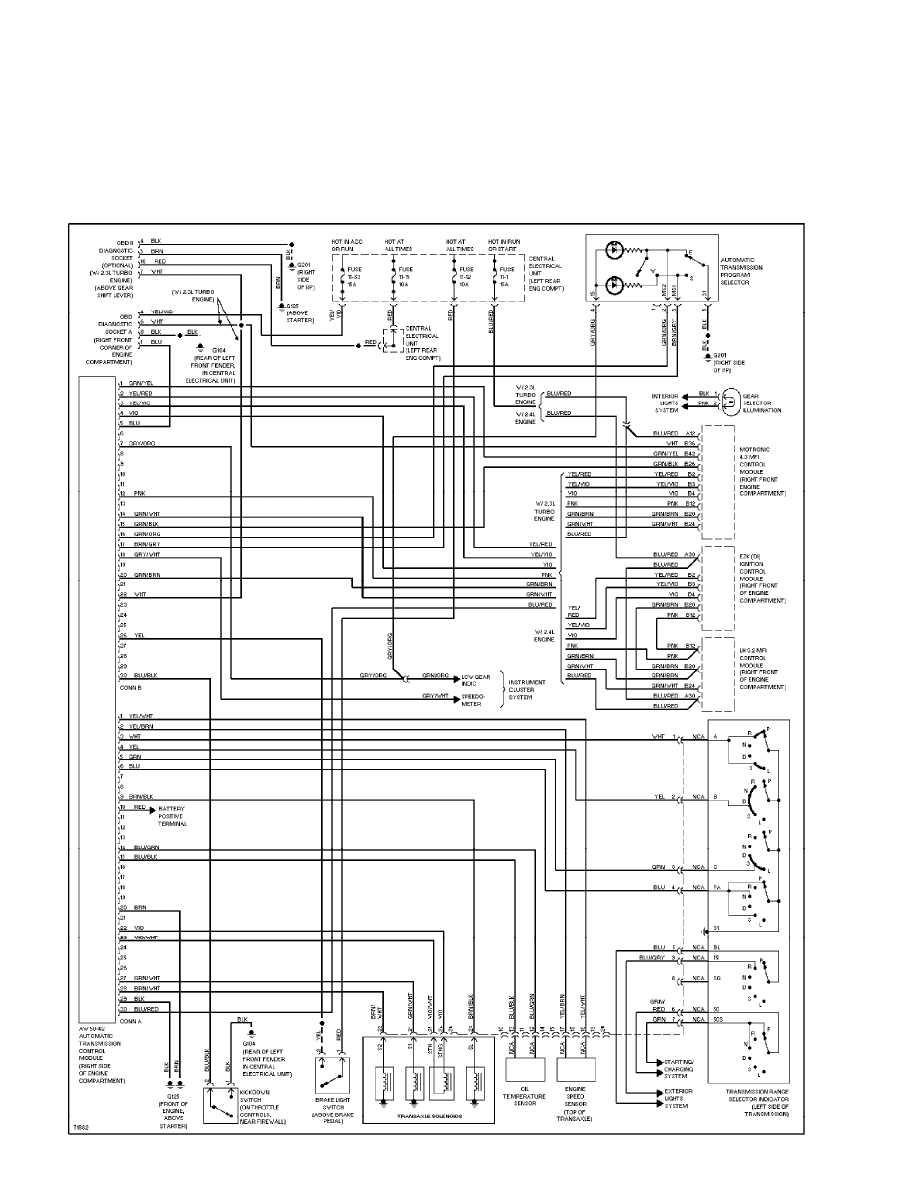

Transmission Circuit

1993 Volvo 850

For x

Friday, July 23, 2004 11:50PM

SYSTEM WIRING DIAGRAMS

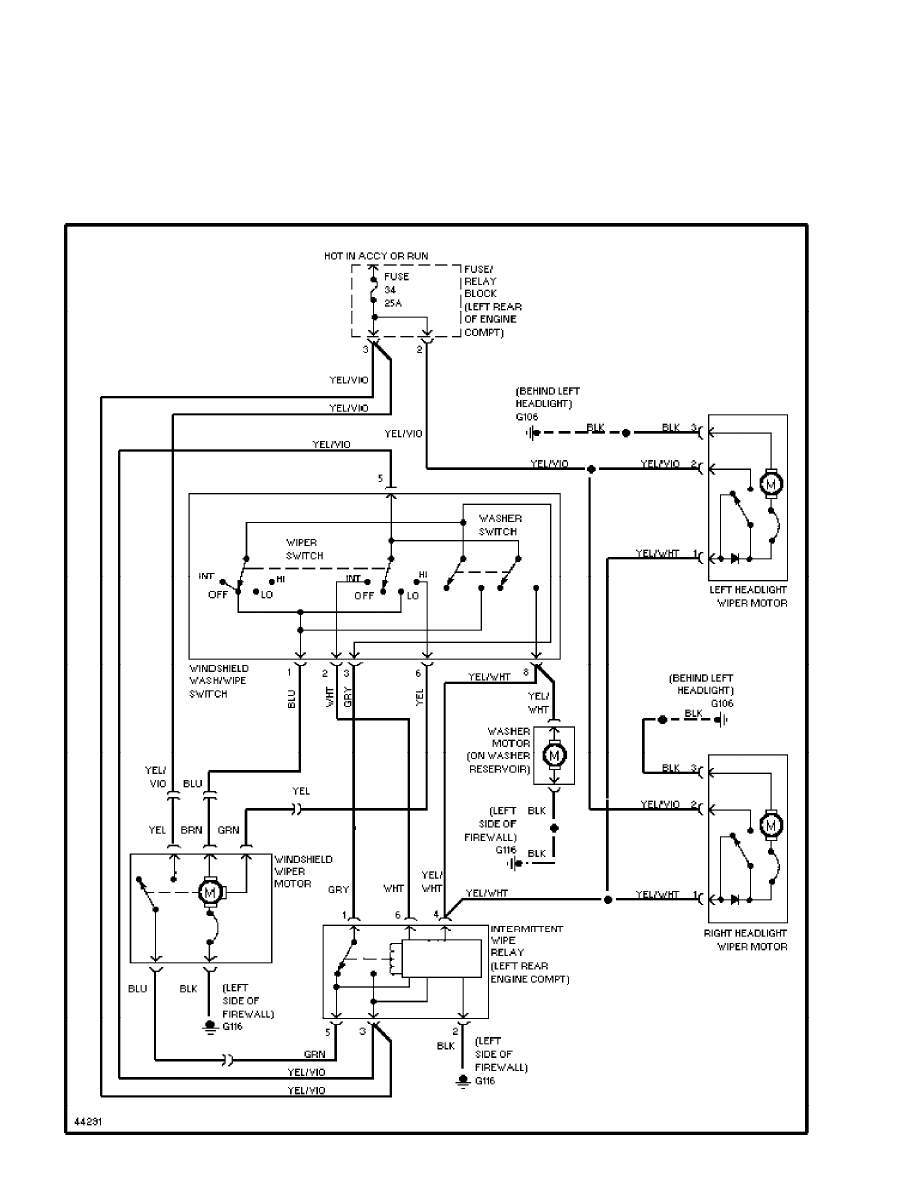

Front & Headlight Washer/Wiper Circuit

1993 Volvo 850

For x

Friday, July 23, 2004 11:50PM

SYSTEM WIRING DIAGRAMS

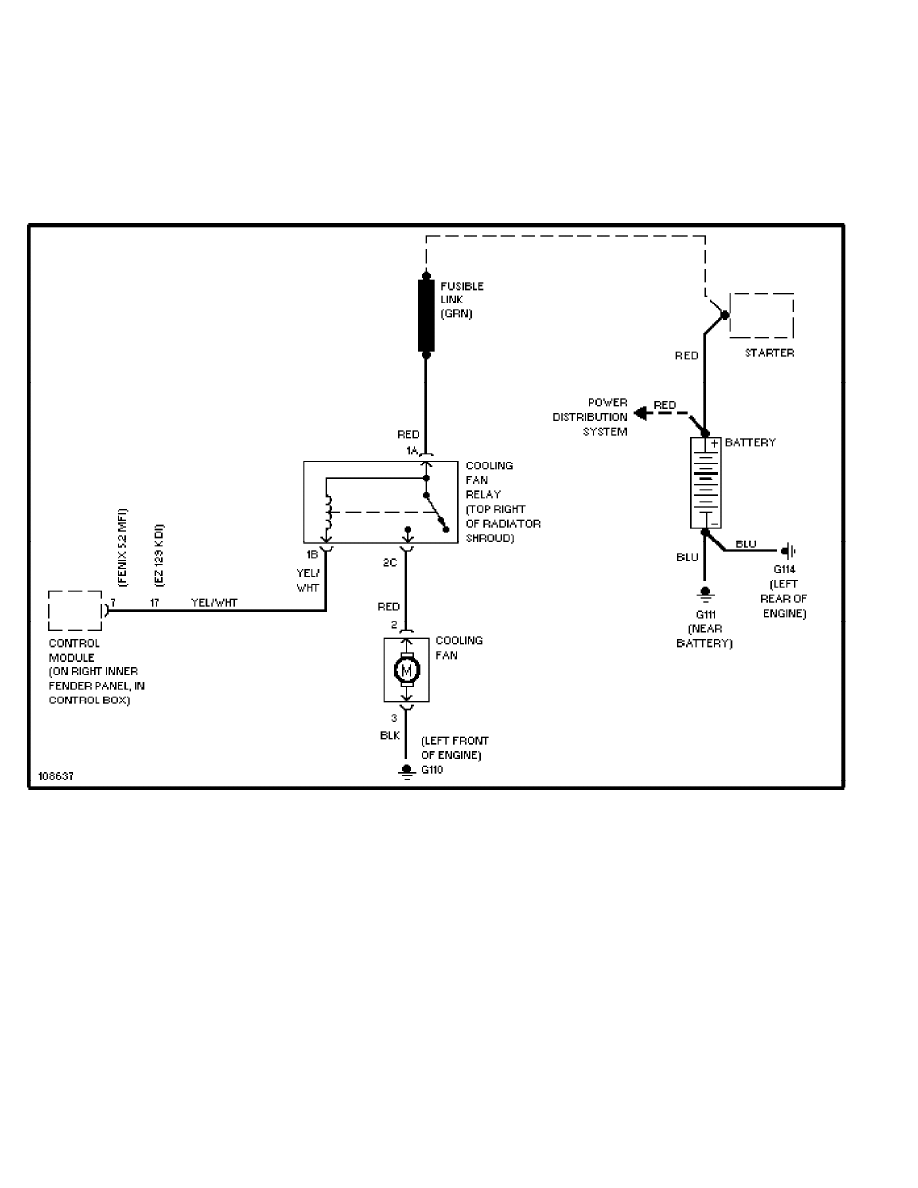

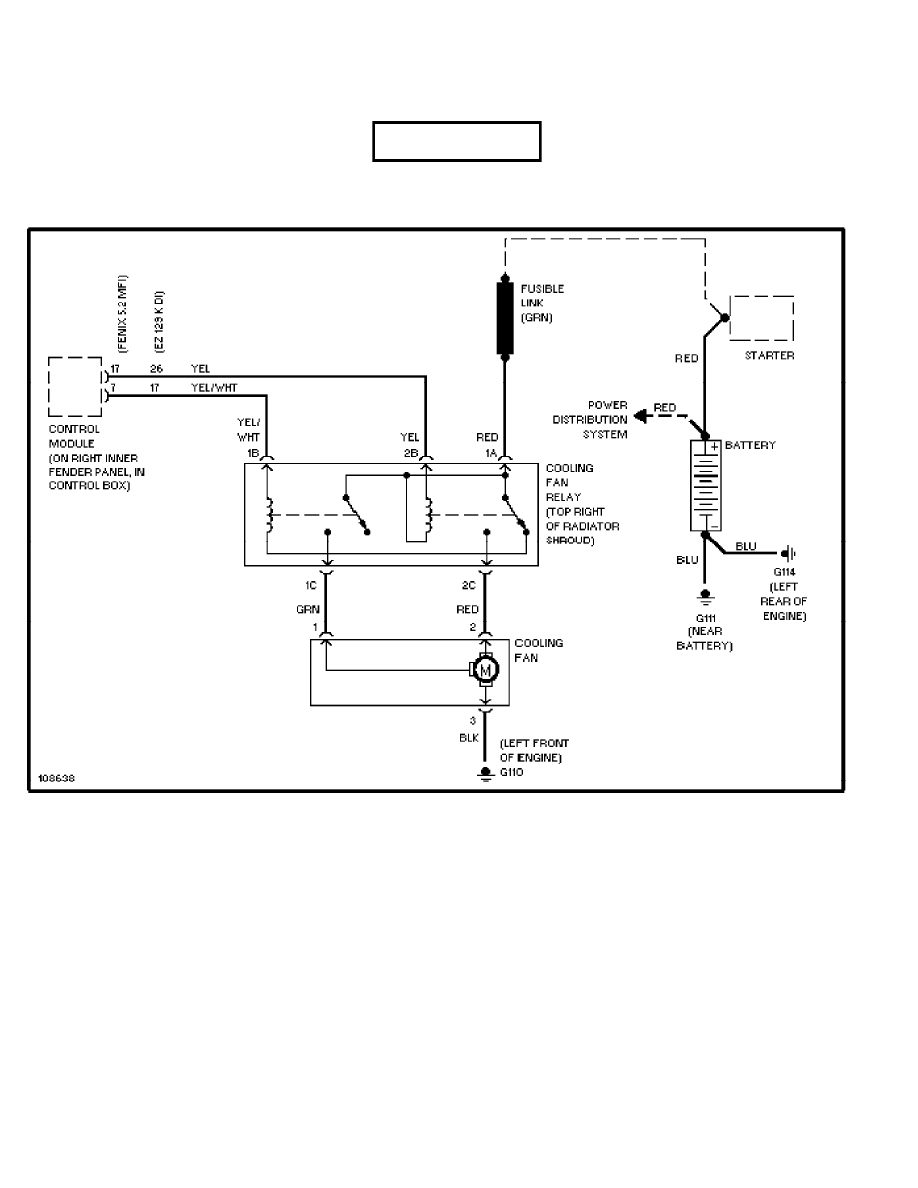

Cooling Fan Circuit, W/O A/C

1993 Volvo 850

For x

Friday, July 23, 2004 11:49PM

SYSTEM WIRING DIAGRAMS

Defogger Circuit

1993 Volvo 850

For x

Friday, July 23, 2004 11:49PM

SYSTEM WIRING DIAGRAMS

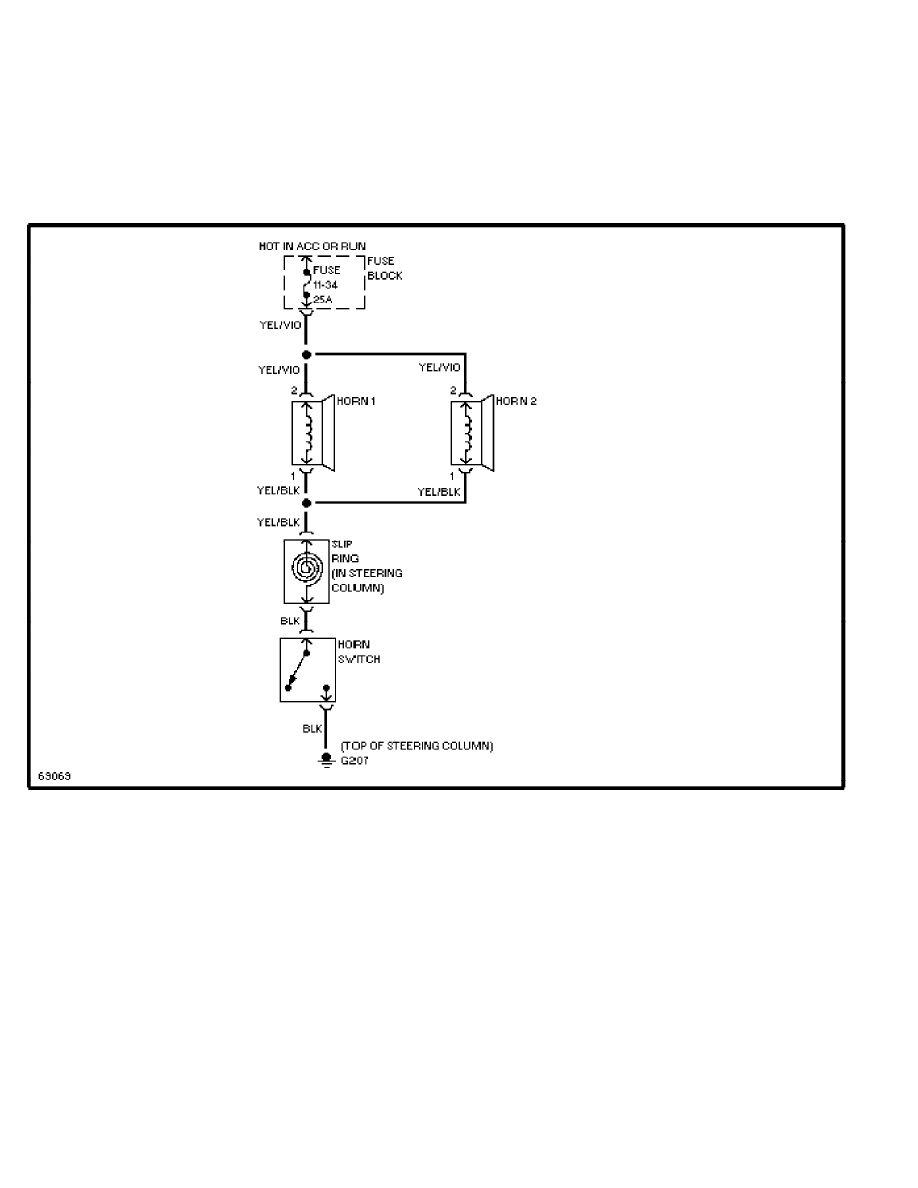

Horn Circuit

1993 Volvo 850

For x

Friday, July 23, 2004 11:49PM

SYSTEM WIRING DIAGRAMS

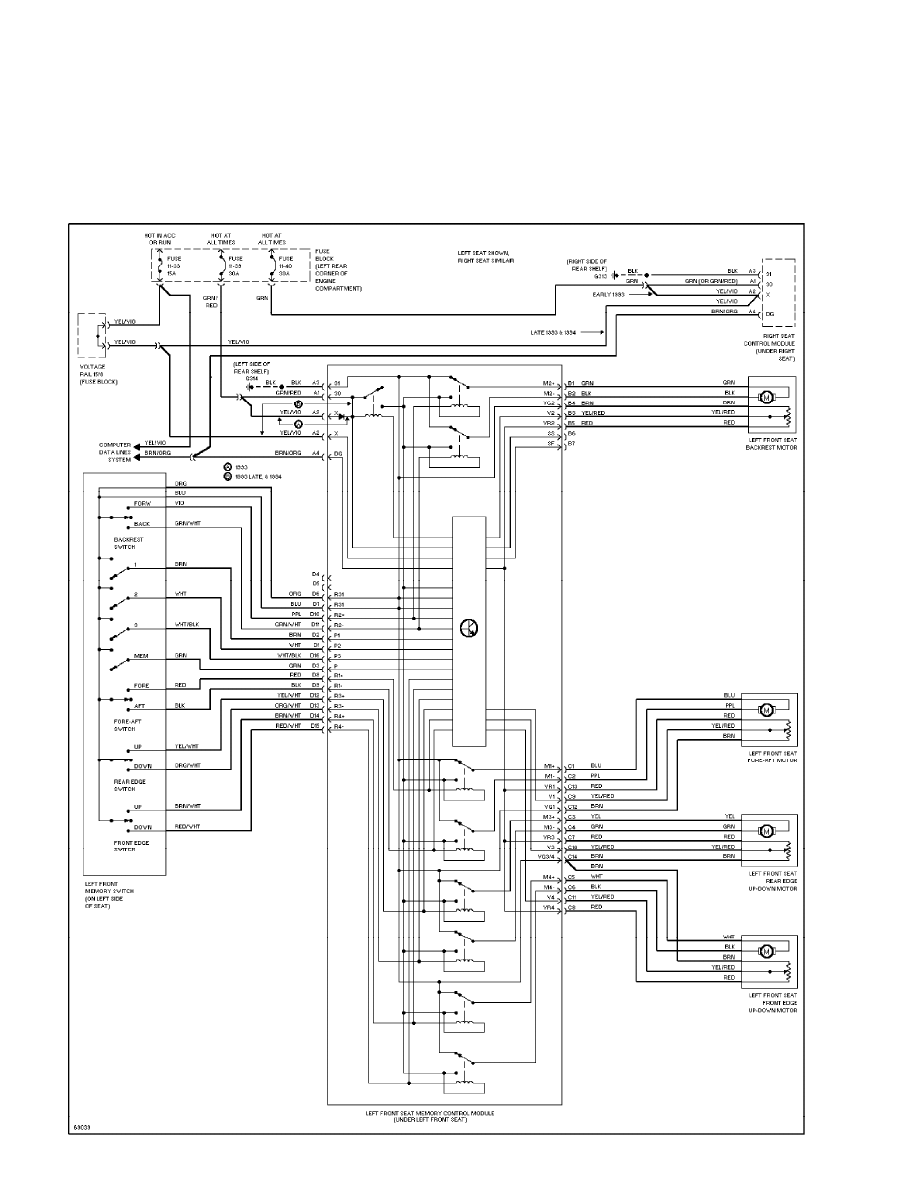

Memory Seats Circuit

1993 Volvo 850

For x

Friday, July 23, 2004 11:49PM

SYSTEM WIRING DIAGRAMS

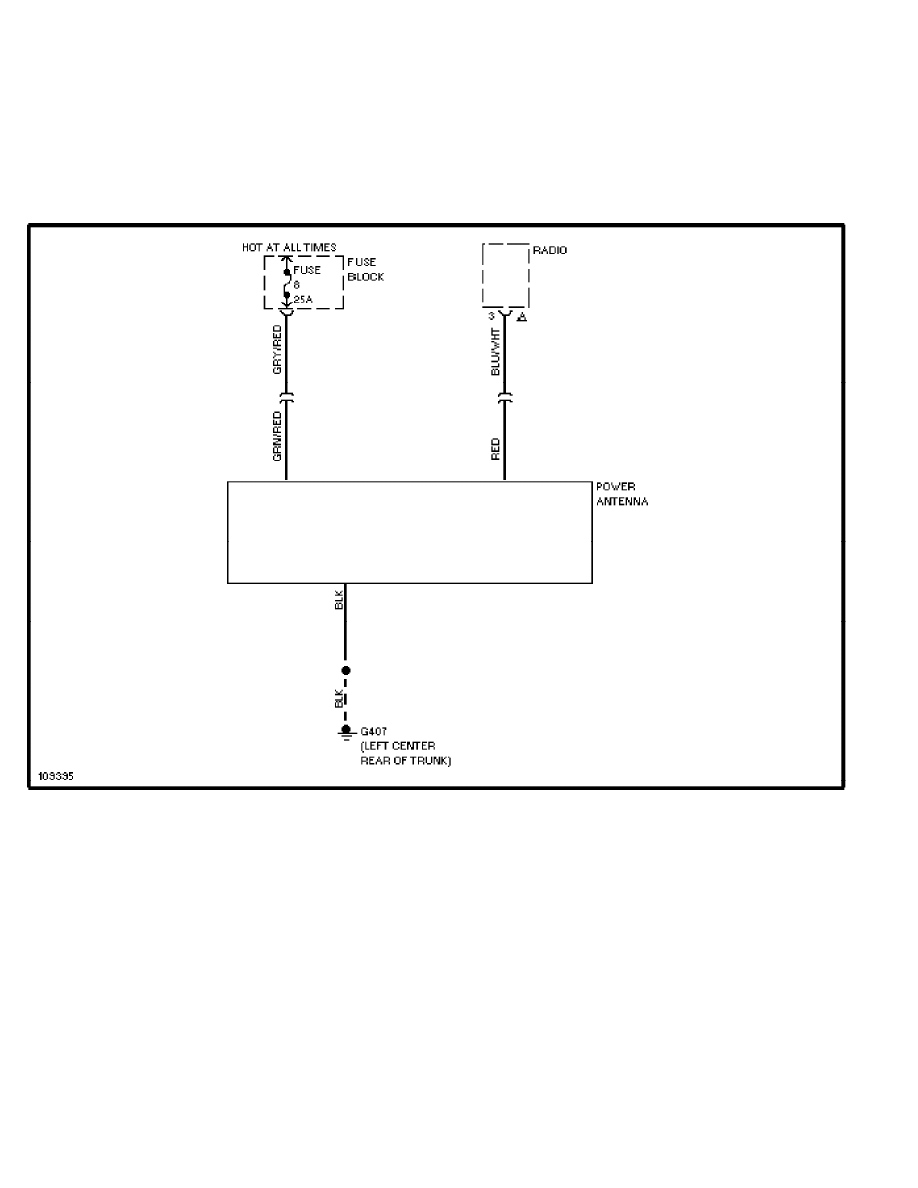

Power Antenna Circuit

1993 Volvo 850

For x

Friday, July 23, 2004 11:49PM

SYSTEM WIRING DIAGRAMS

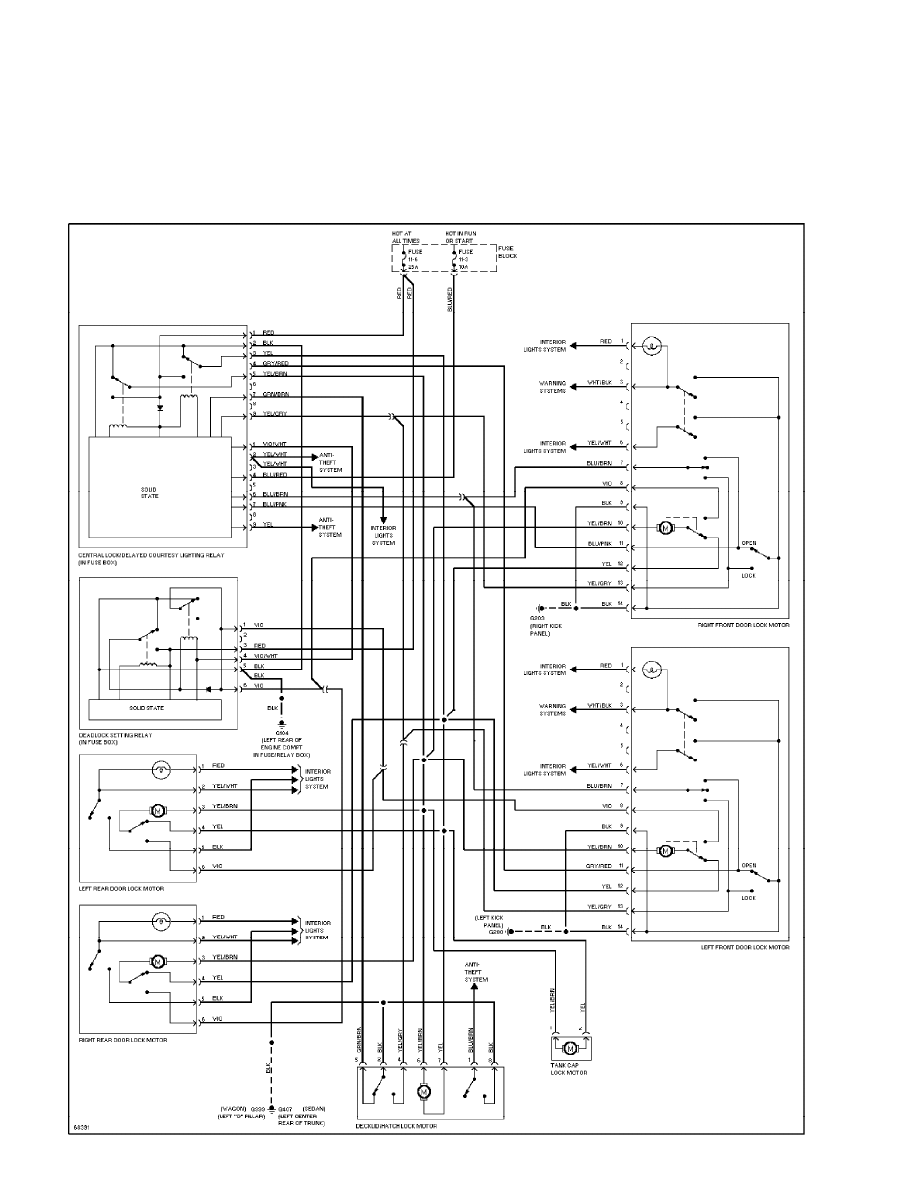

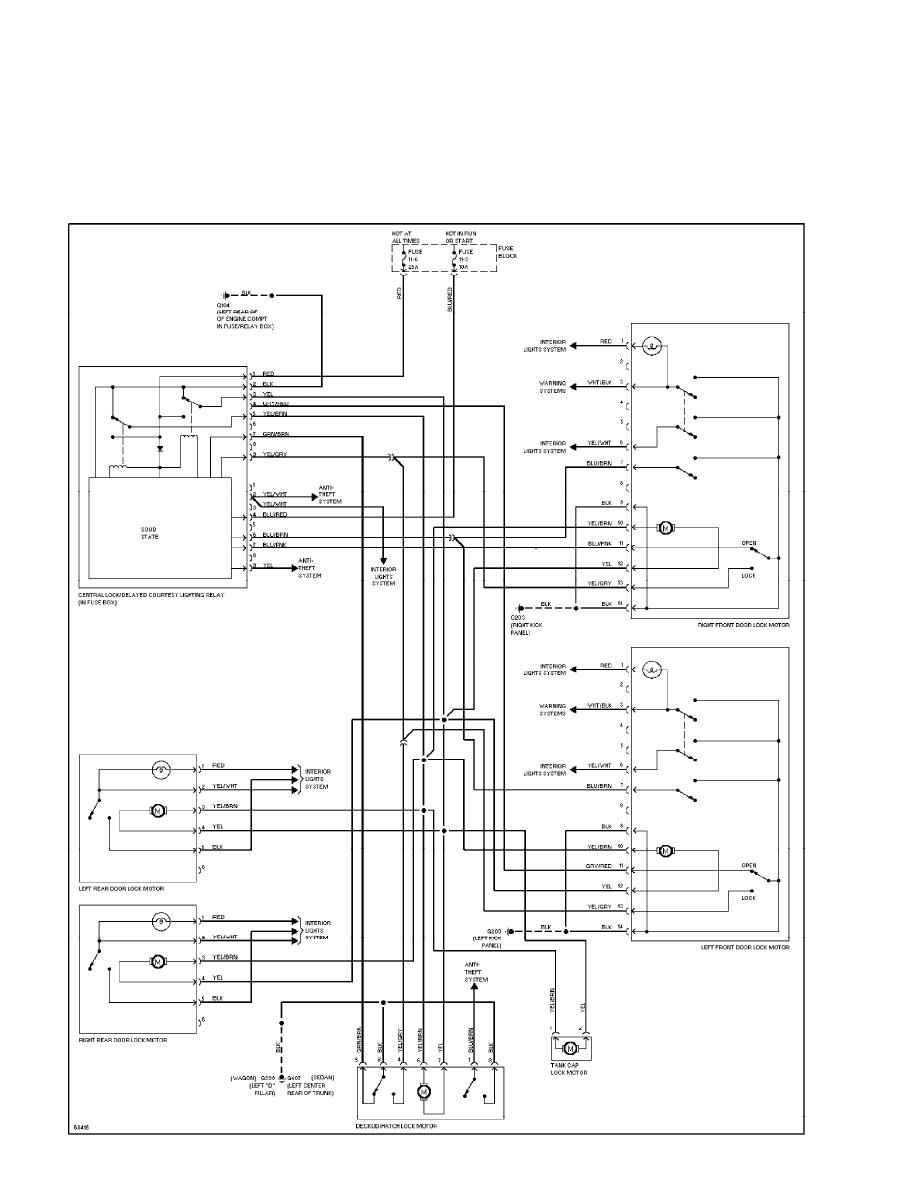

Door Lock Circuit, W/ Deadlock

1993 Volvo 850

For x

Friday, July 23, 2004 11:49PM

SYSTEM WIRING DIAGRAMS

Door Lock Circuit, W/O Deadlock

1993 Volvo 850

For x

Friday, July 23, 2004 11:49PM

SYSTEM WIRING DIAGRAMS

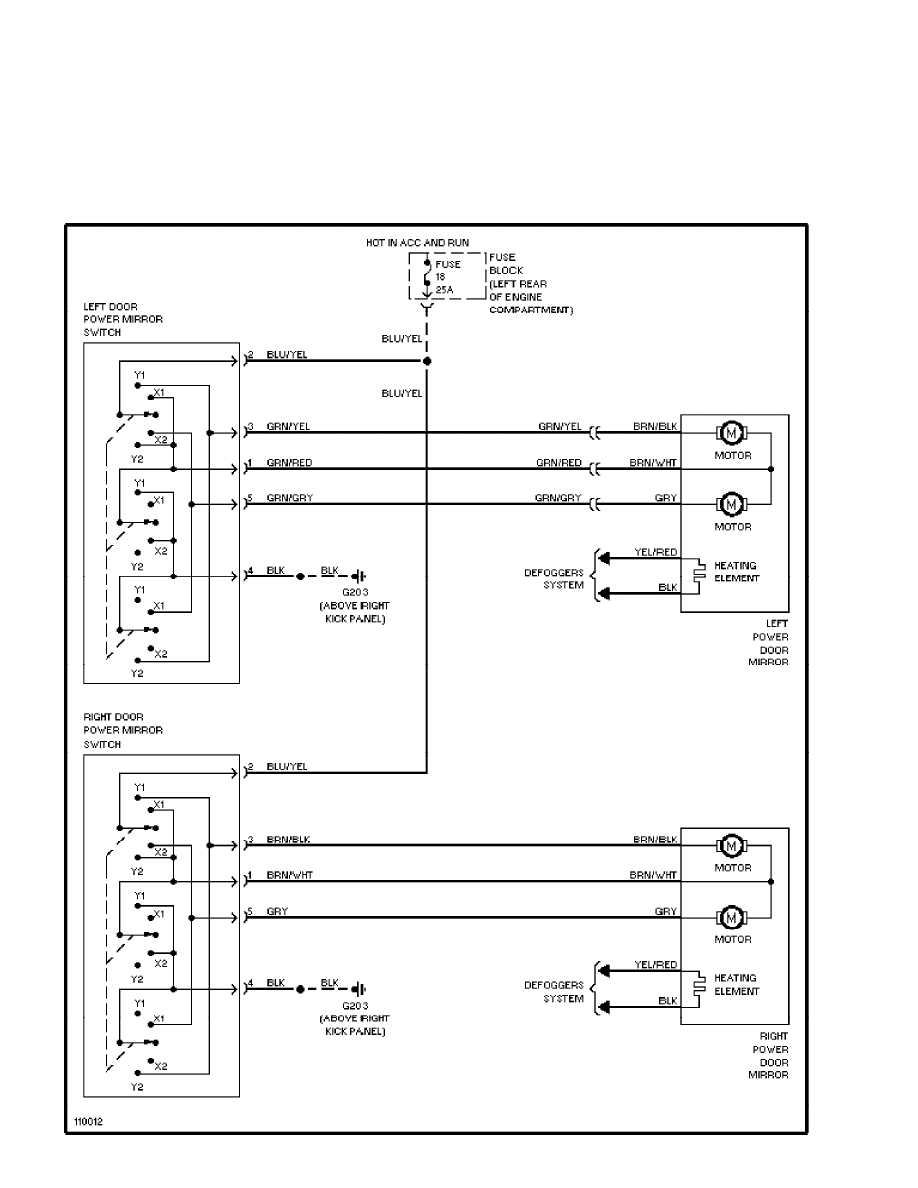

Power Mirror Circuit

1993 Volvo 850

For x

Friday, July 23, 2004 11:49PM

SYSTEM WIRING DIAGRAMS

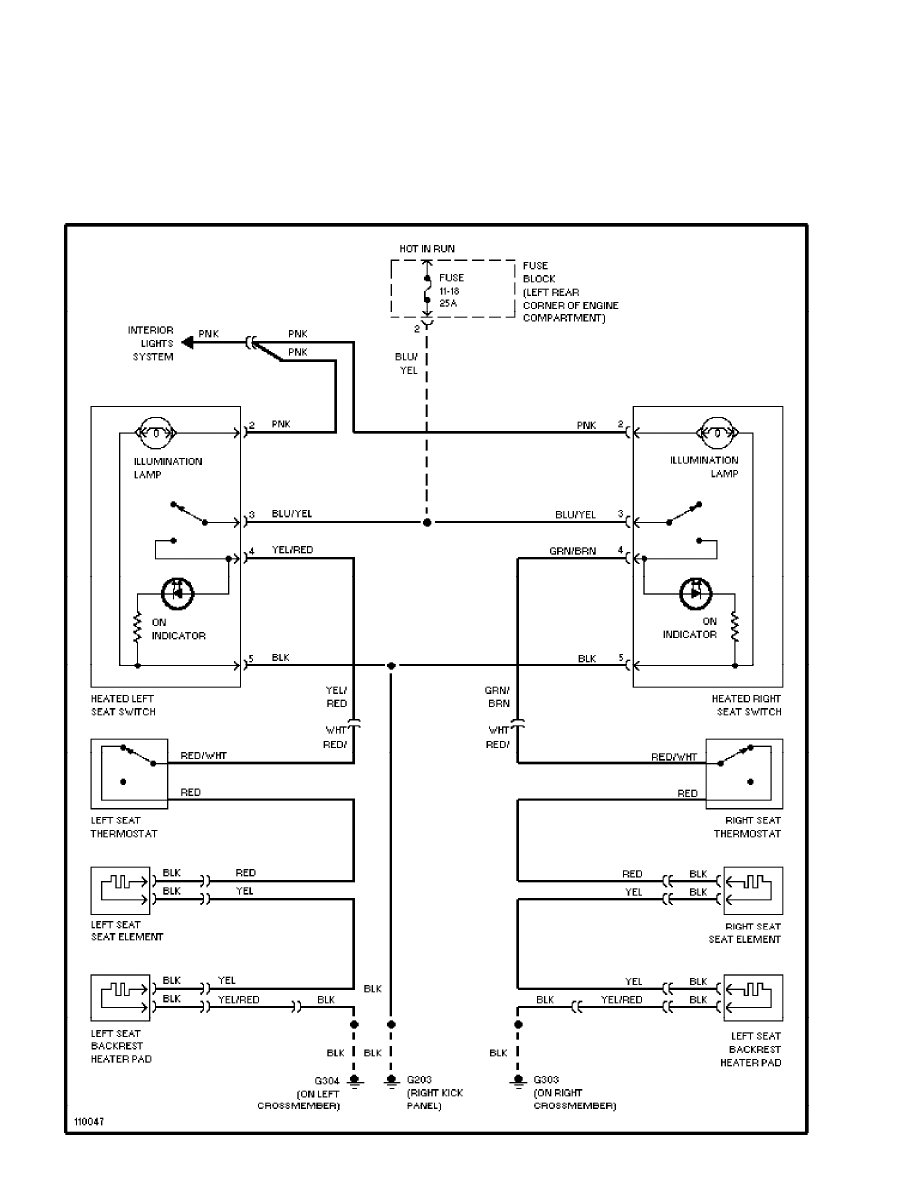

Heated Seats Circuit

1993 Volvo 850

For x

Friday, July 23, 2004 11:49PM

SYSTEM WIRING DIAGRAMS

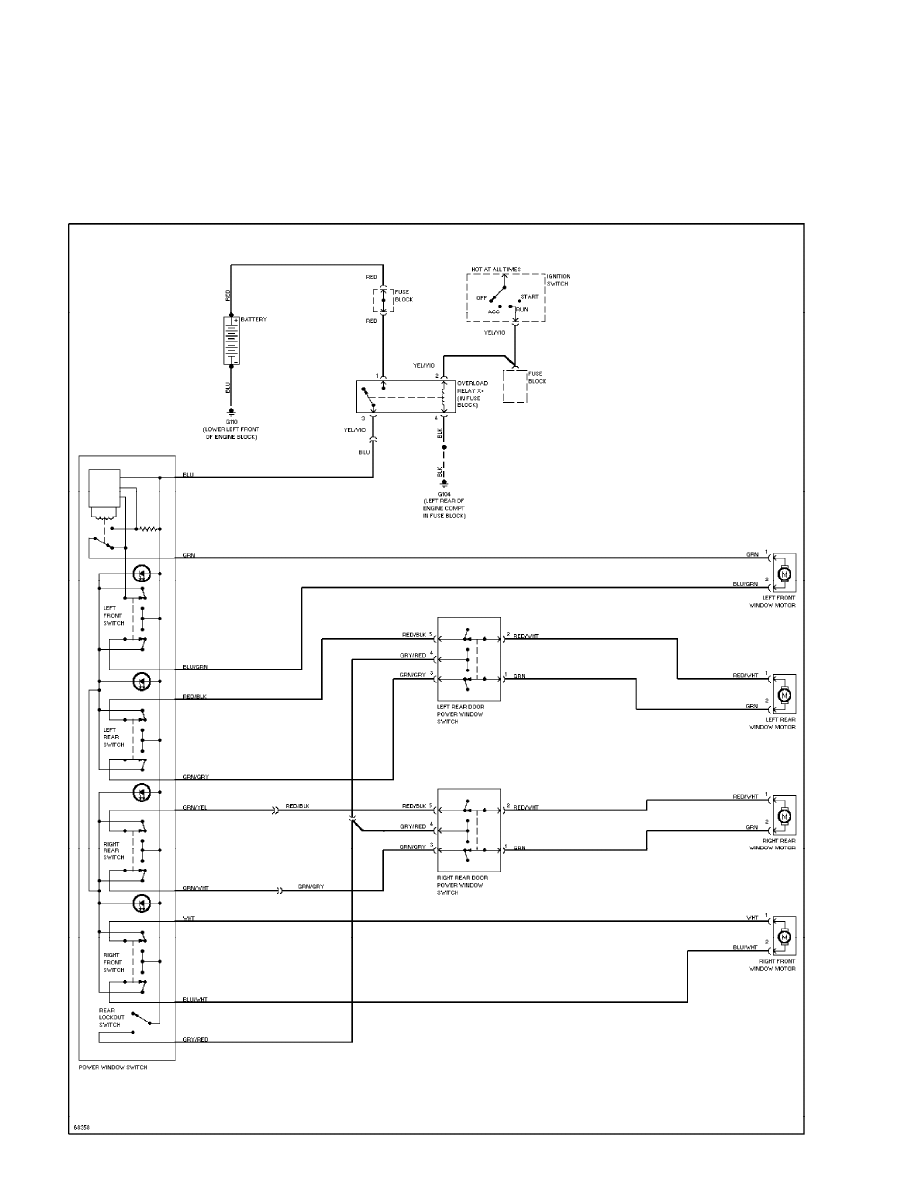

Power Window Circuit

1993 Volvo 850

For x

Friday, July 23, 2004 11:49PM

SYSTEM WIRING DIAGRAMS

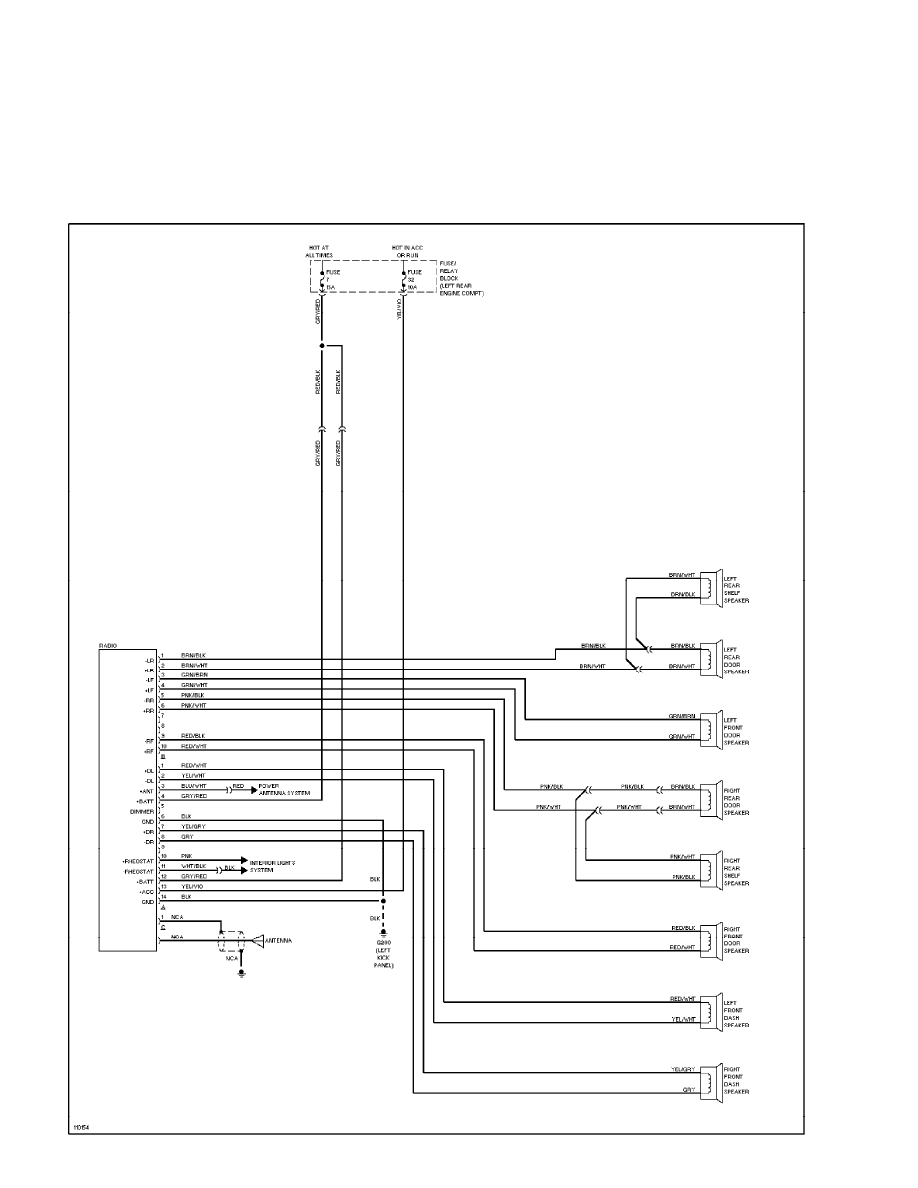

Radio Circuits, Large Front

1993 Volvo 850

For x

Friday, July 23, 2004 11:49PM

SYSTEM WIRING DIAGRAMS

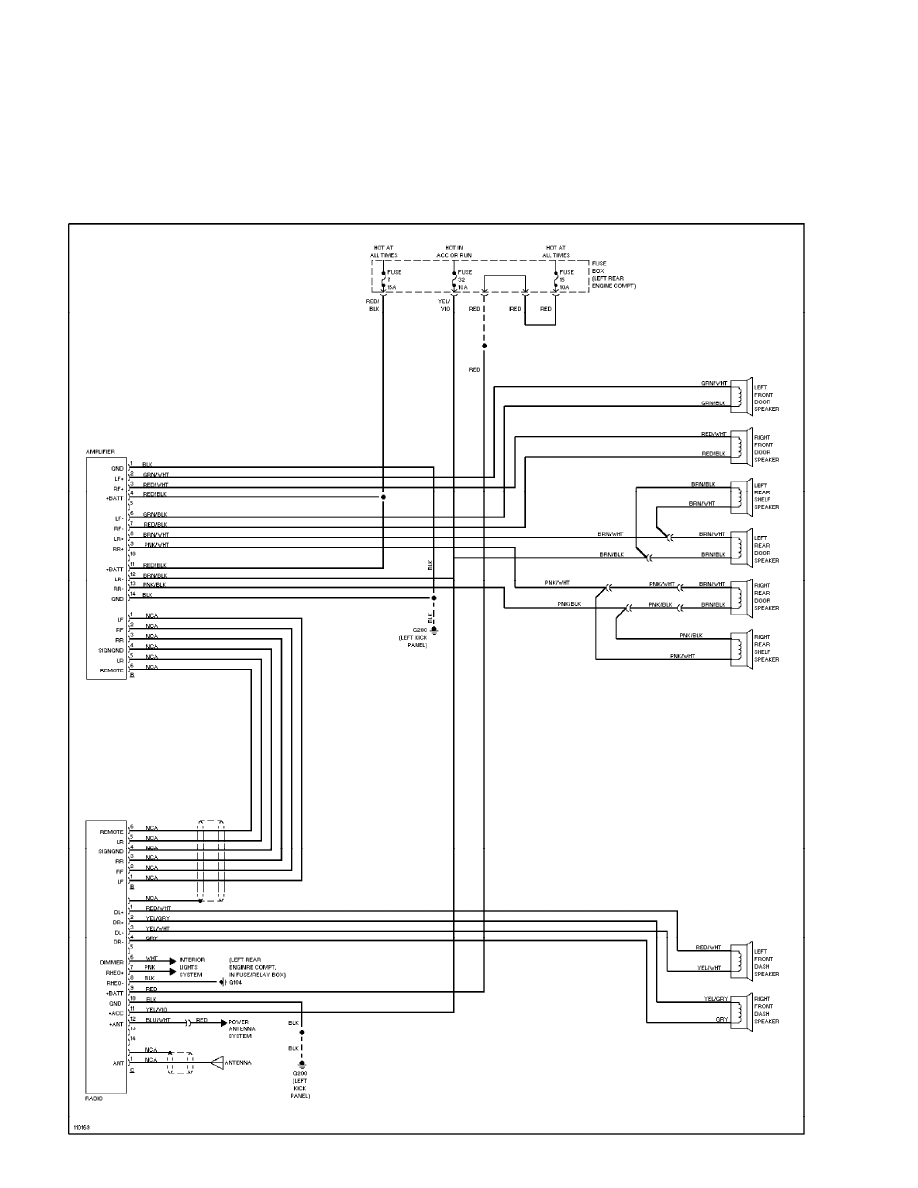

Radio Circuits, W/ Separate Amplifier

1993 Volvo 850

For x

Friday, July 23, 2004 11:49PM

SYSTEM WIRING DIAGRAMS

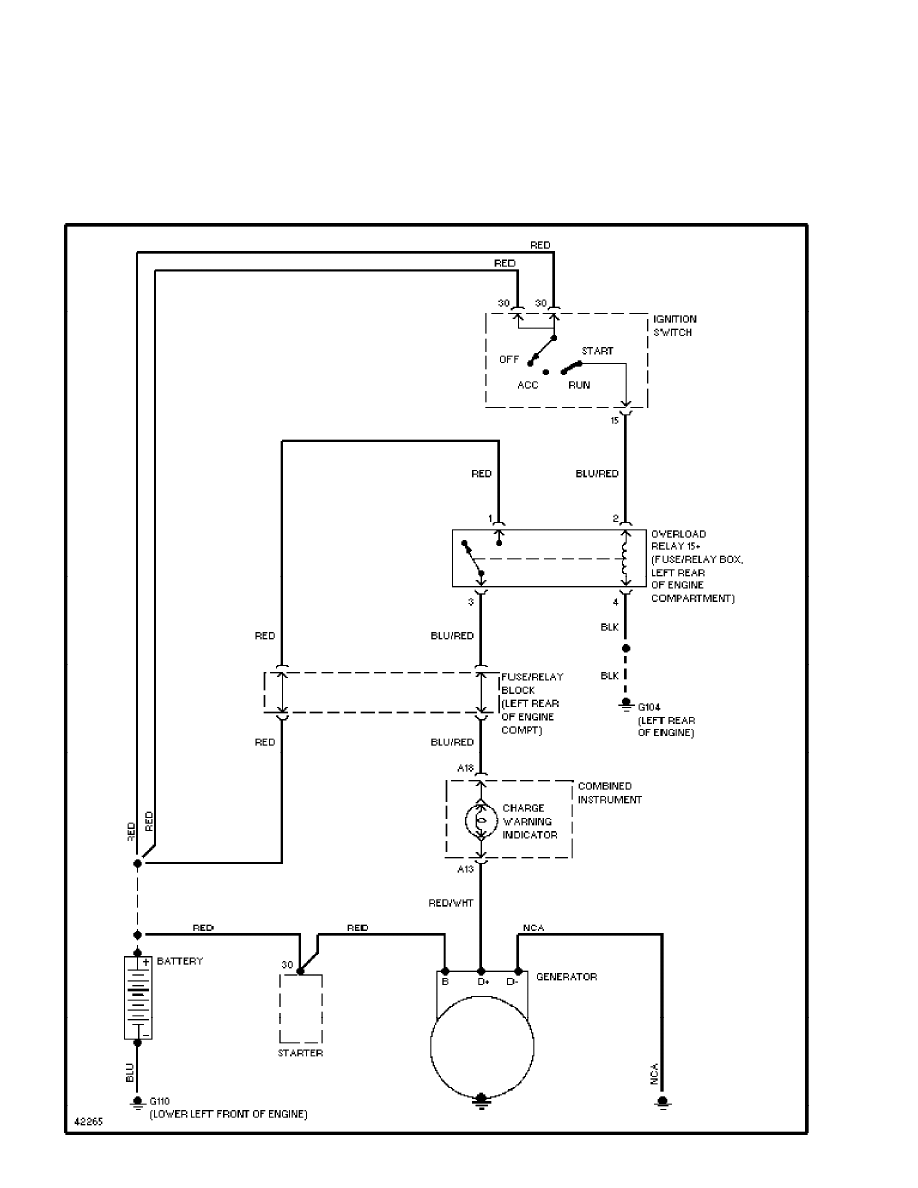

Charging Circuit

1993 Volvo 850

For x

Friday, July 23, 2004 11:50PM

WIRING DIAGRAMS

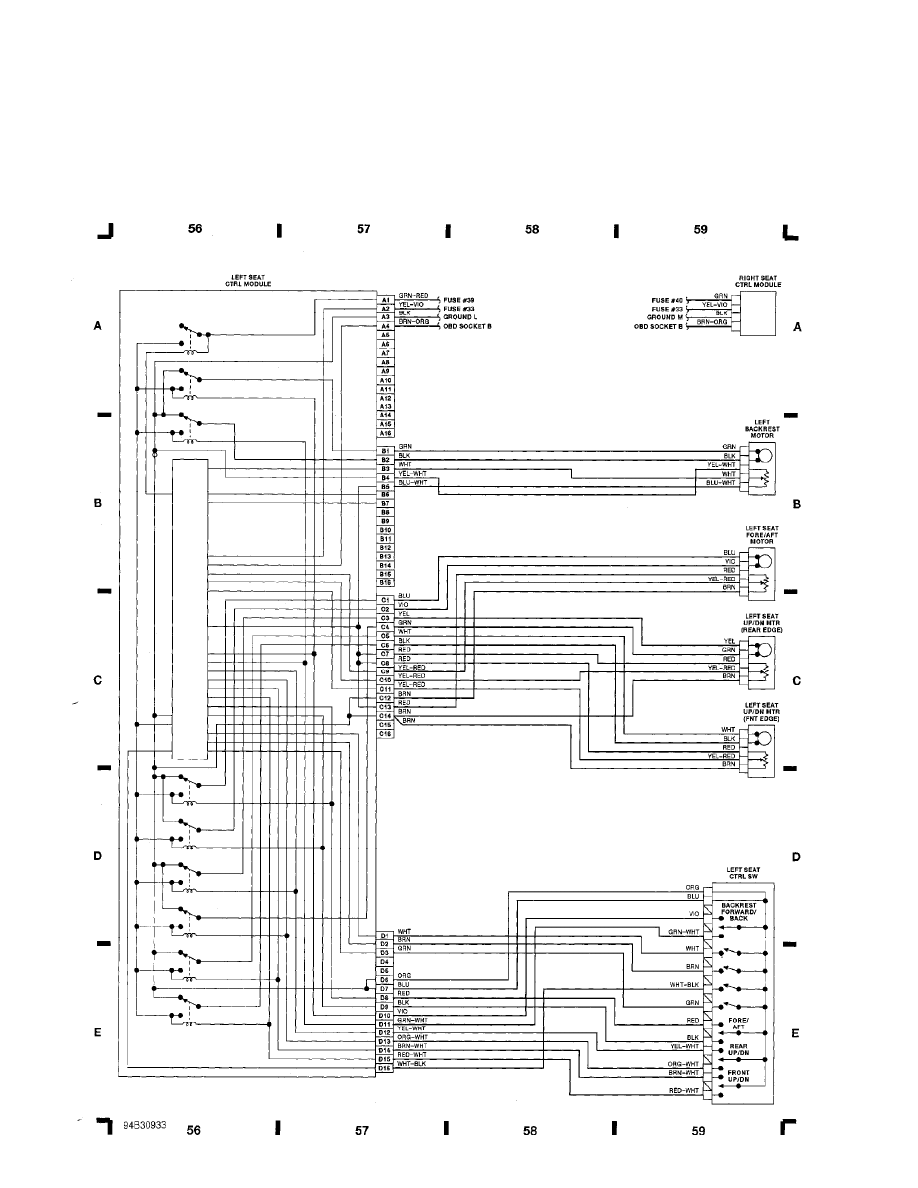

Fig. 15: Left/Right Seat Ctrl Module (Grid 56-59)

1993 Volvo 850

For x

Friday, July 23, 2004 11:52PM

WIRING DIAGRAMS

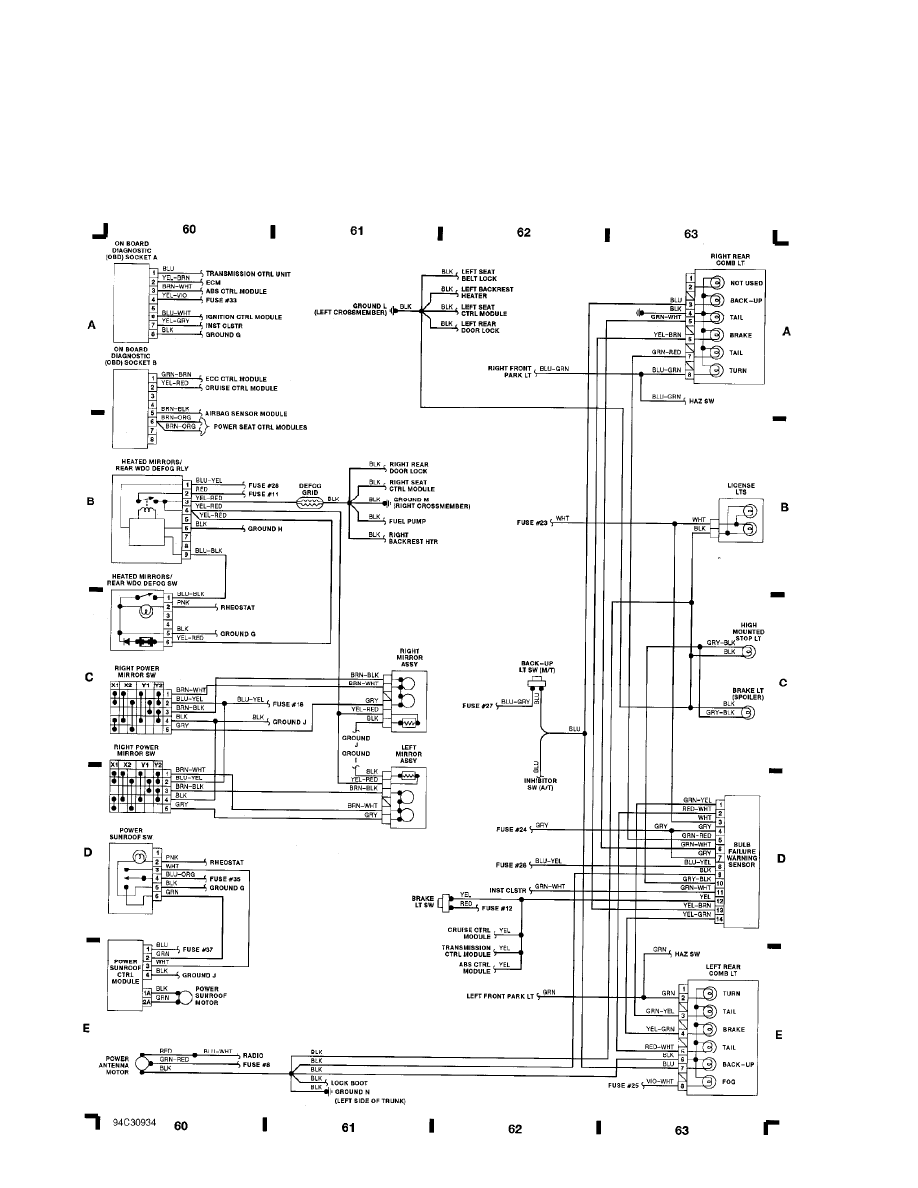

Fig. 16: Taillight, Power Sunroof Sw (Grid 60-63)

1993 Volvo 850

For x

Friday, July 23, 2004 11:52PM

WIRING DIAGRAMS

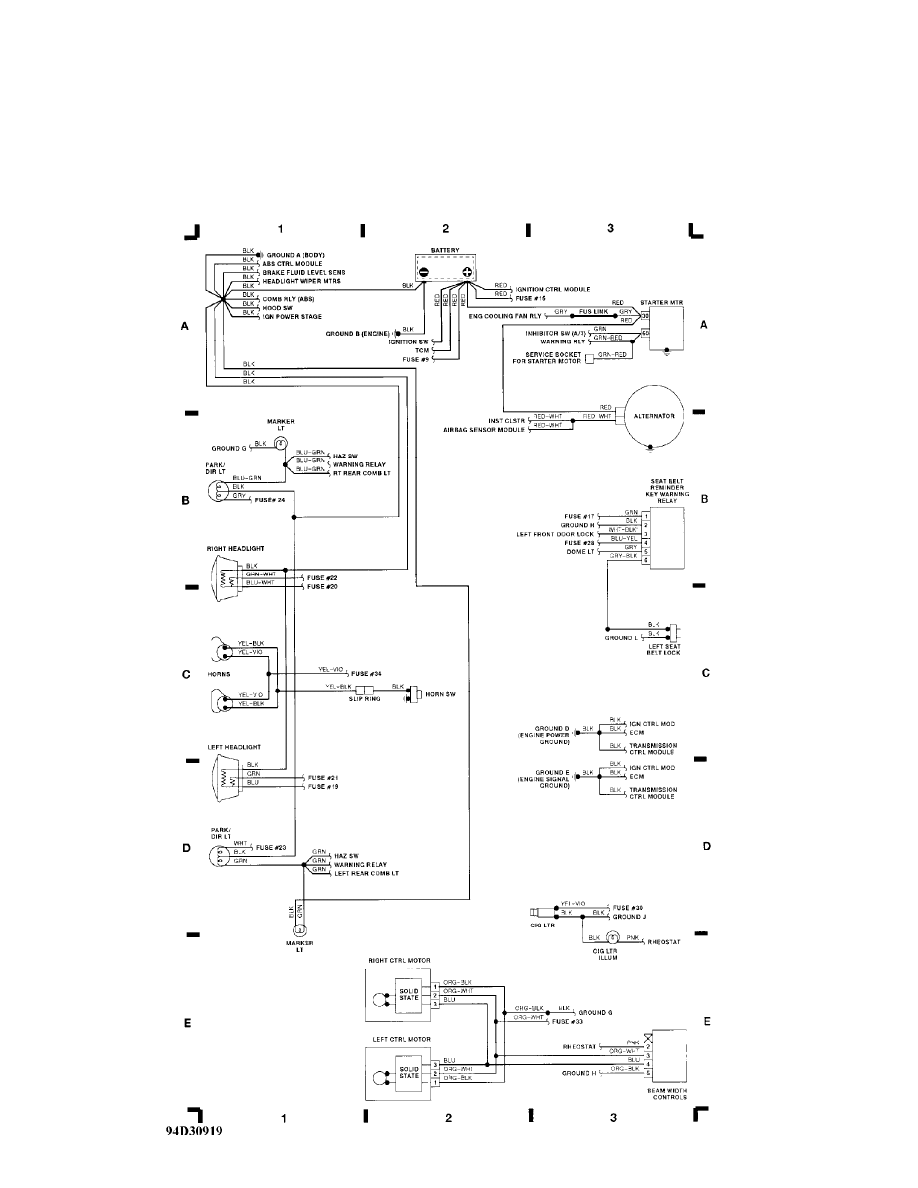

Fig. 1: Engine Compartment, Headlights (Grid 1-3)

1993 Volvo 850

For x

Friday, July 23, 2004 11:51PM

WIRING DIAGRAMS

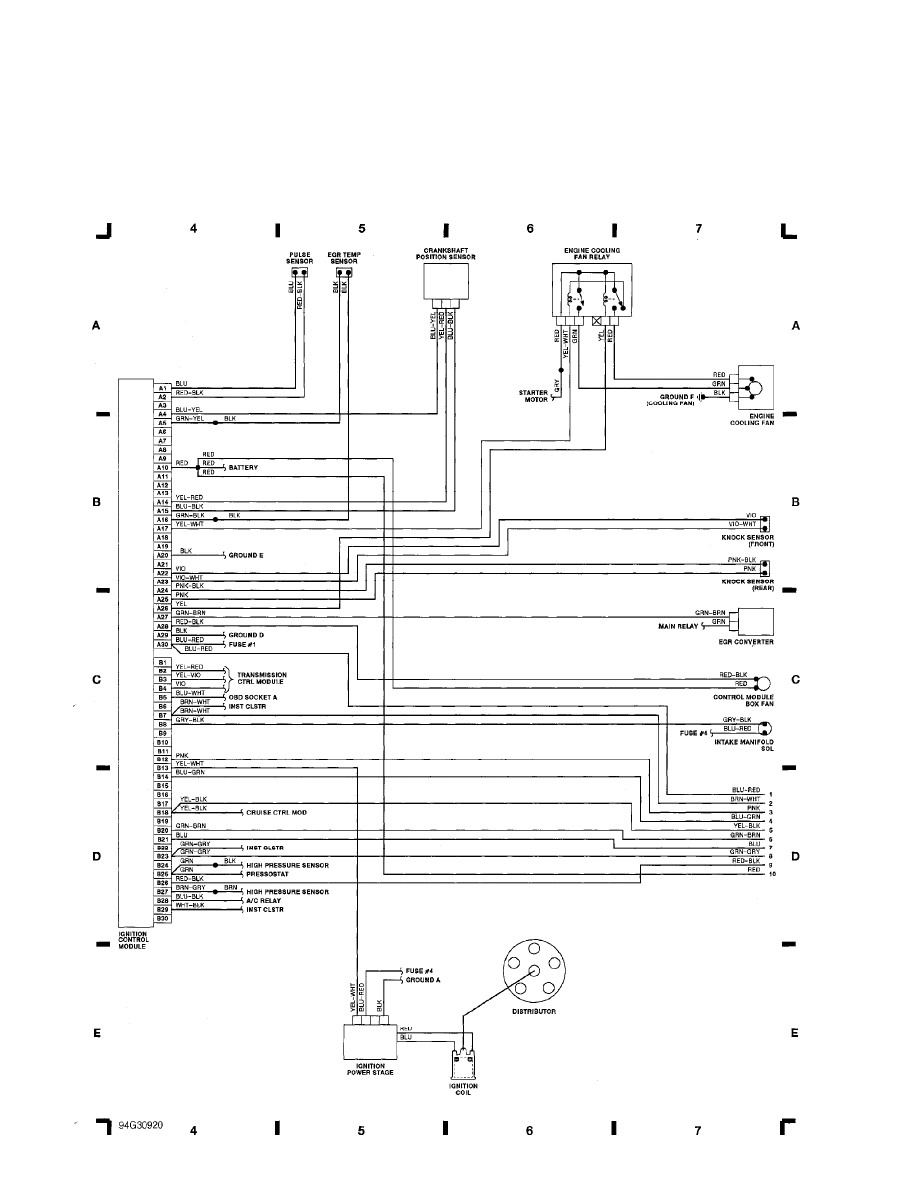

Fig. 2: Ignition Ctrl Module, Ignition Power Stage (Grid 4-7)

1993 Volvo 850

For x

Friday, July 23, 2004 11:51PM

WIRING DIAGRAMS

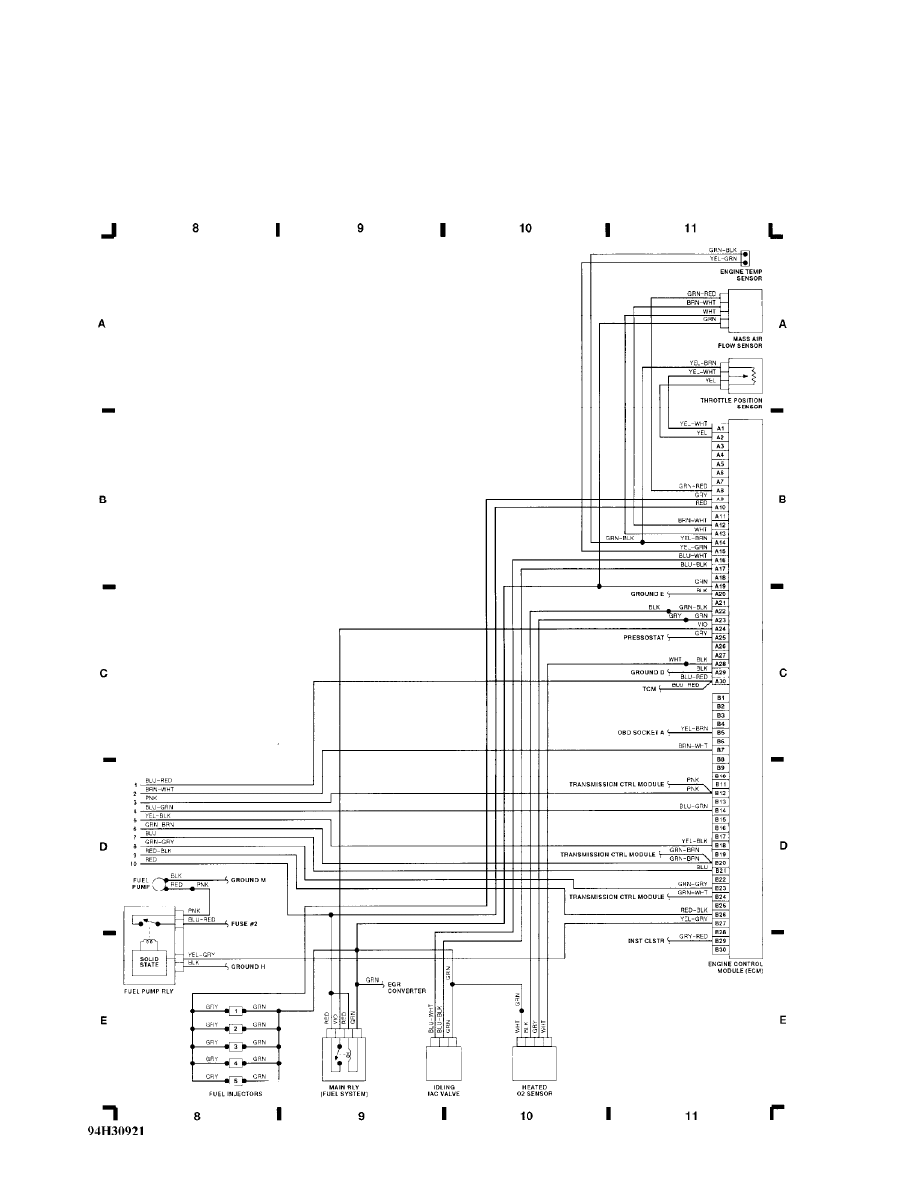

Fig. 3: Engine Ctrl Module, Fuel Pump Rly (Grid 8-11)

1993 Volvo 850

For x

Friday, July 23, 2004 11:51PM

WIRING DIAGRAMS

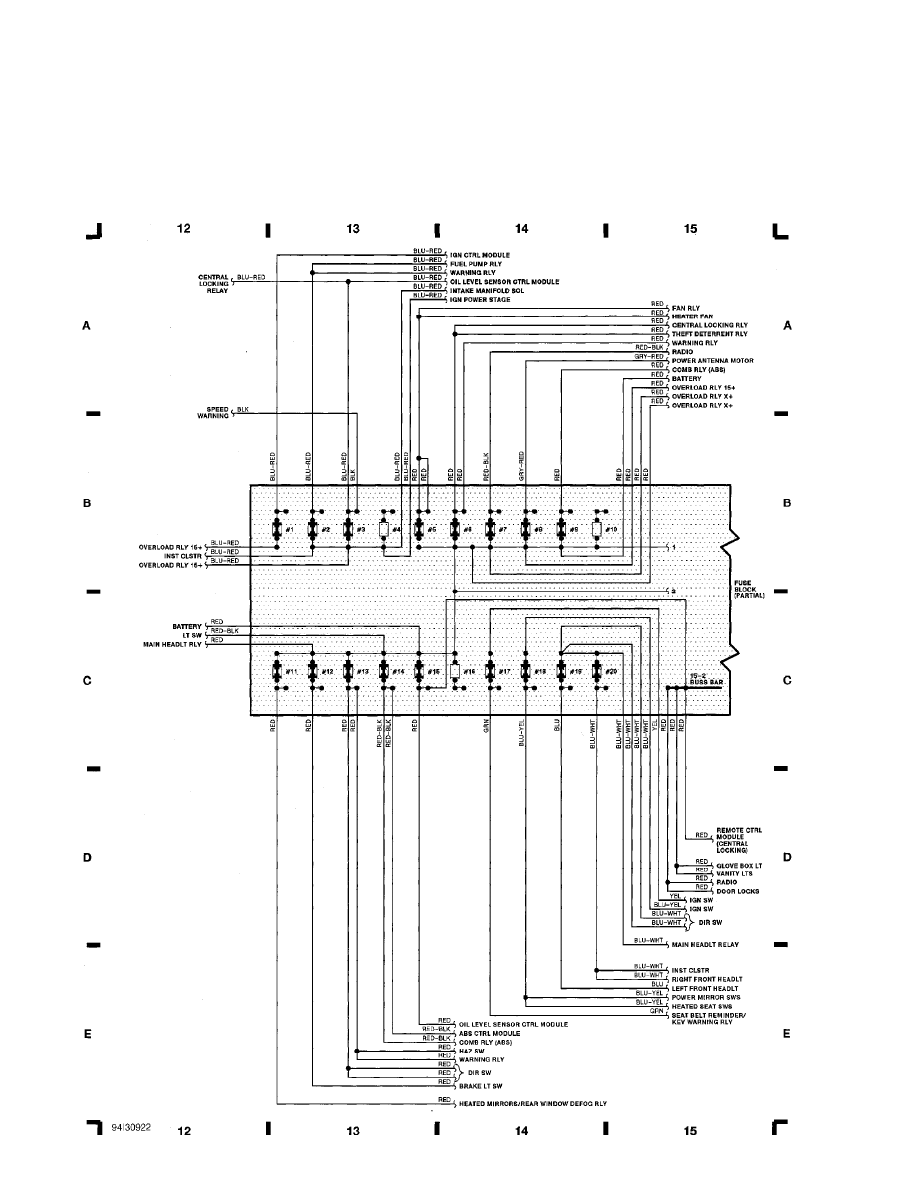

Fig. 4: Fuse Block (Partial) (Grid 12-15)

1993 Volvo 850

For x

Friday, July 23, 2004 11:51PM

WIRING DIAGRAMS

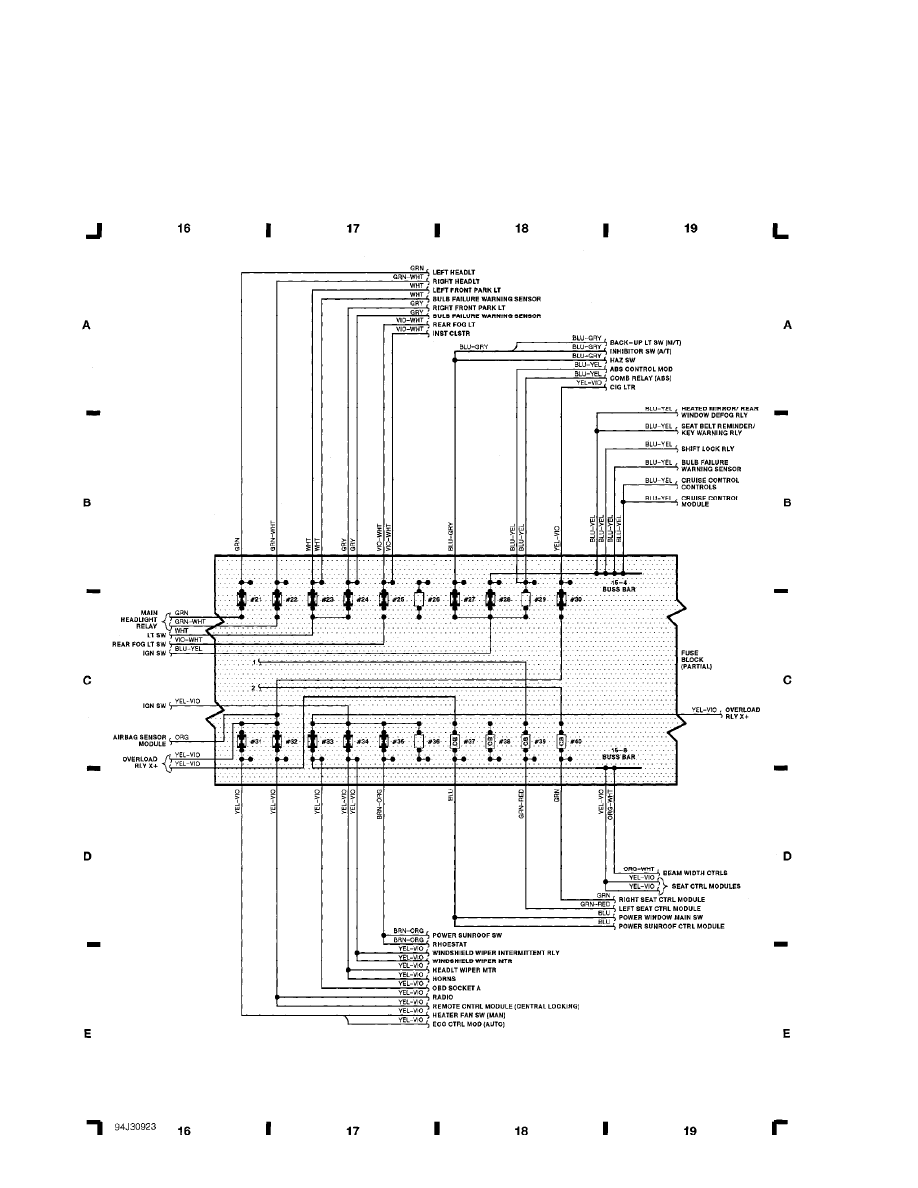

Fig. 5: Fuse Block (Partial) (Grid 16-19)

1993 Volvo 850

For x

Friday, July 23, 2004 11:51PM

WIRING DIAGRAMS

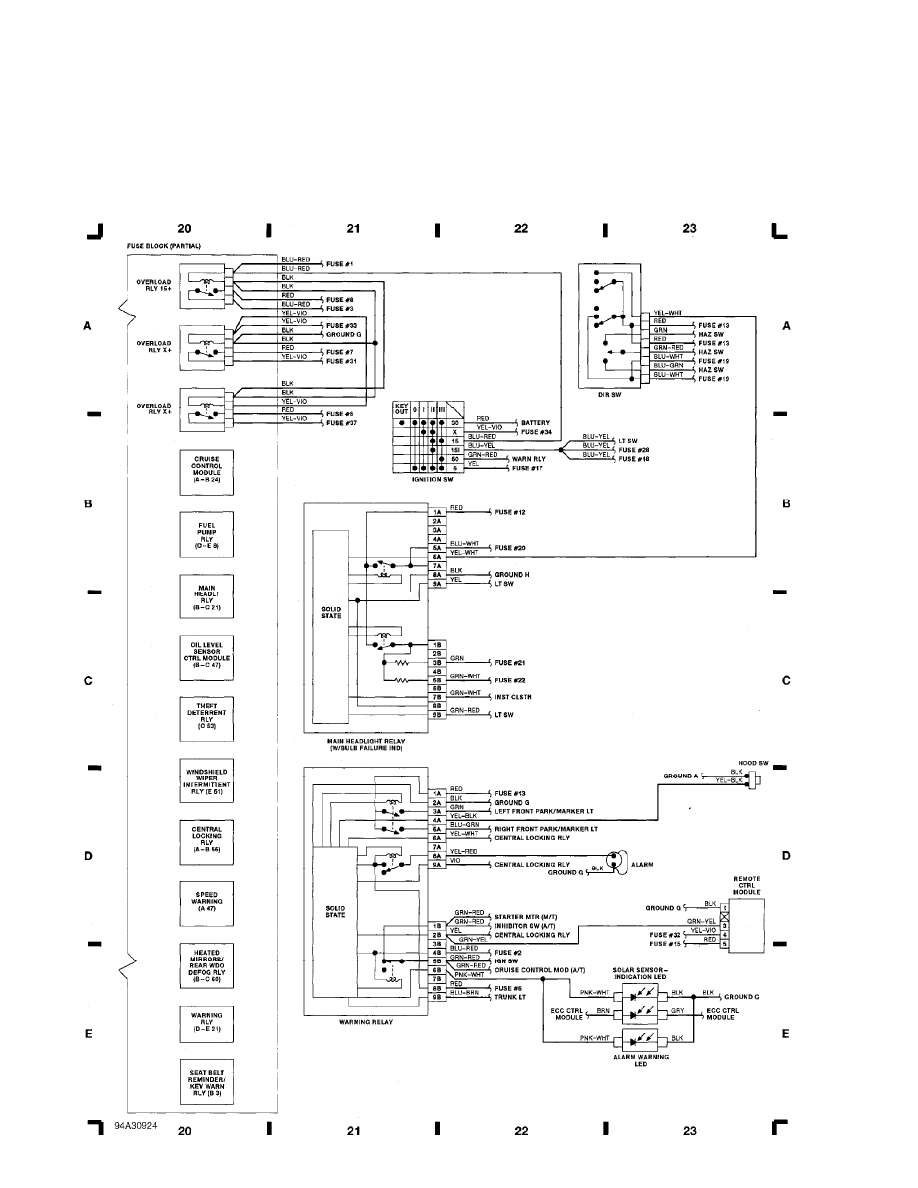

Fig. 6: Fuse Block (Partial), Dir Sw (Grid 20-23)

1993 Volvo 850

For x

Friday, July 23, 2004 11:52PM

WIRING DIAGRAMS

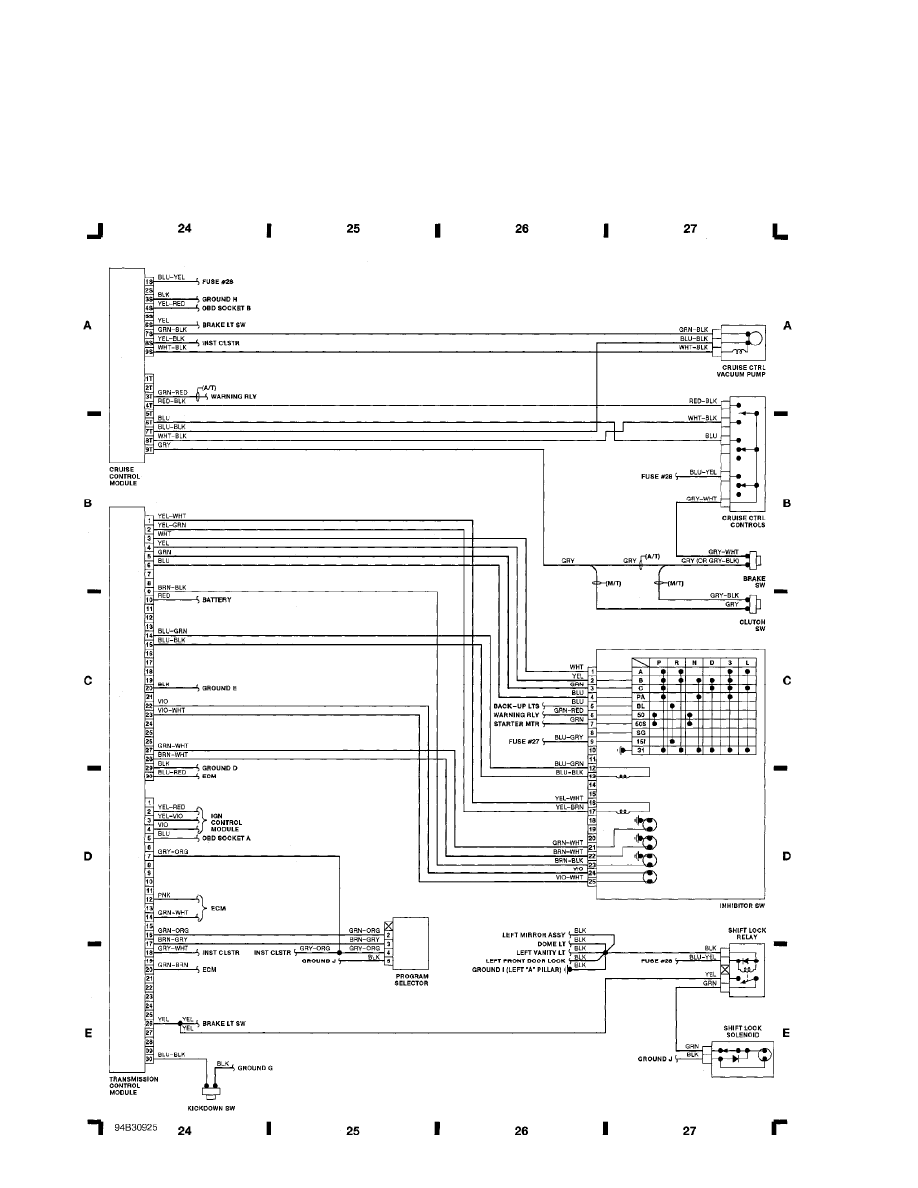

Fig. 7: Transmission/Cruise Ctrl Module (Grid 24-27)

1993 Volvo 850

For x

Friday, July 23, 2004 11:52PM

WIRING DIAGRAMS

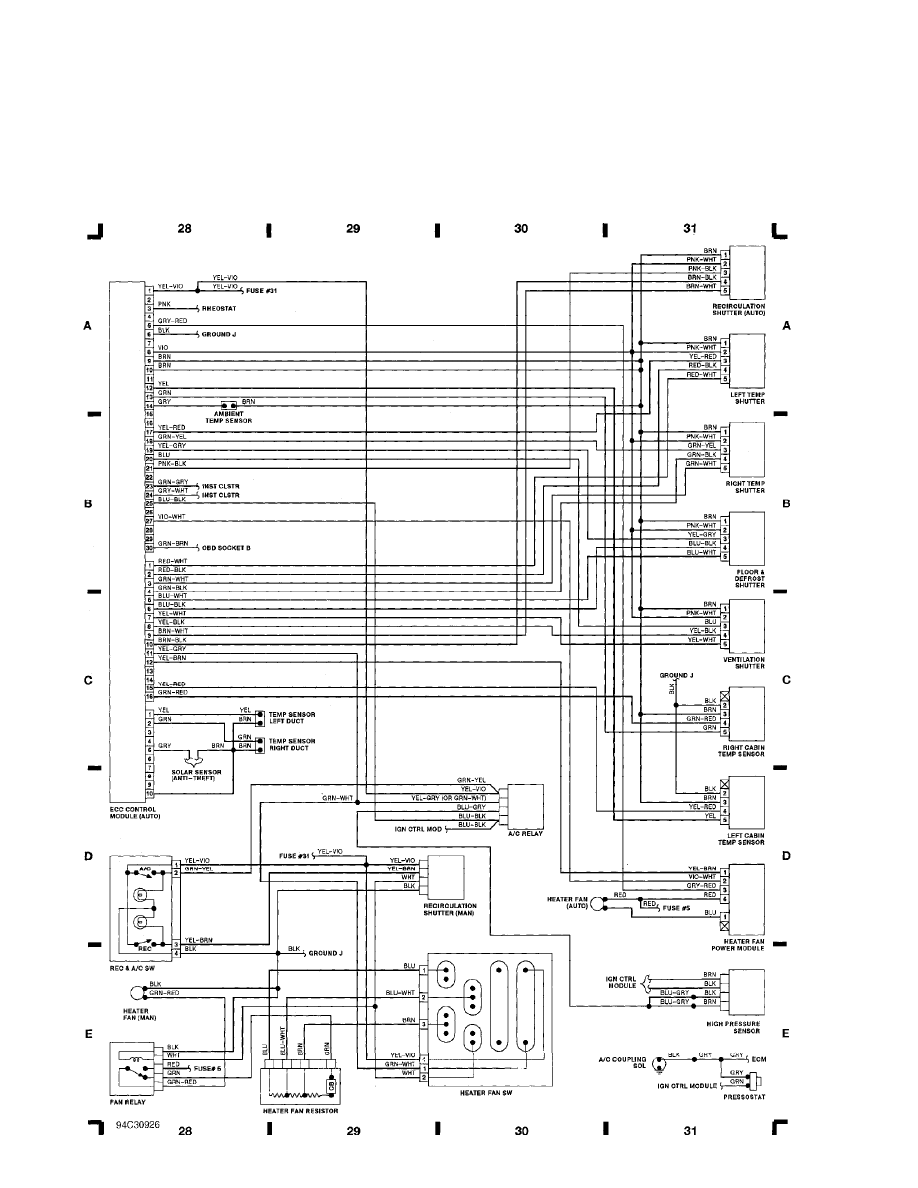

Fig. 8: ECC Control Module, Fan Relay, A/C Relay (Grid 28-31)

1993 Volvo 850

For x

Friday, July 23, 2004 11:52PM

WIRING DIAGRAMS

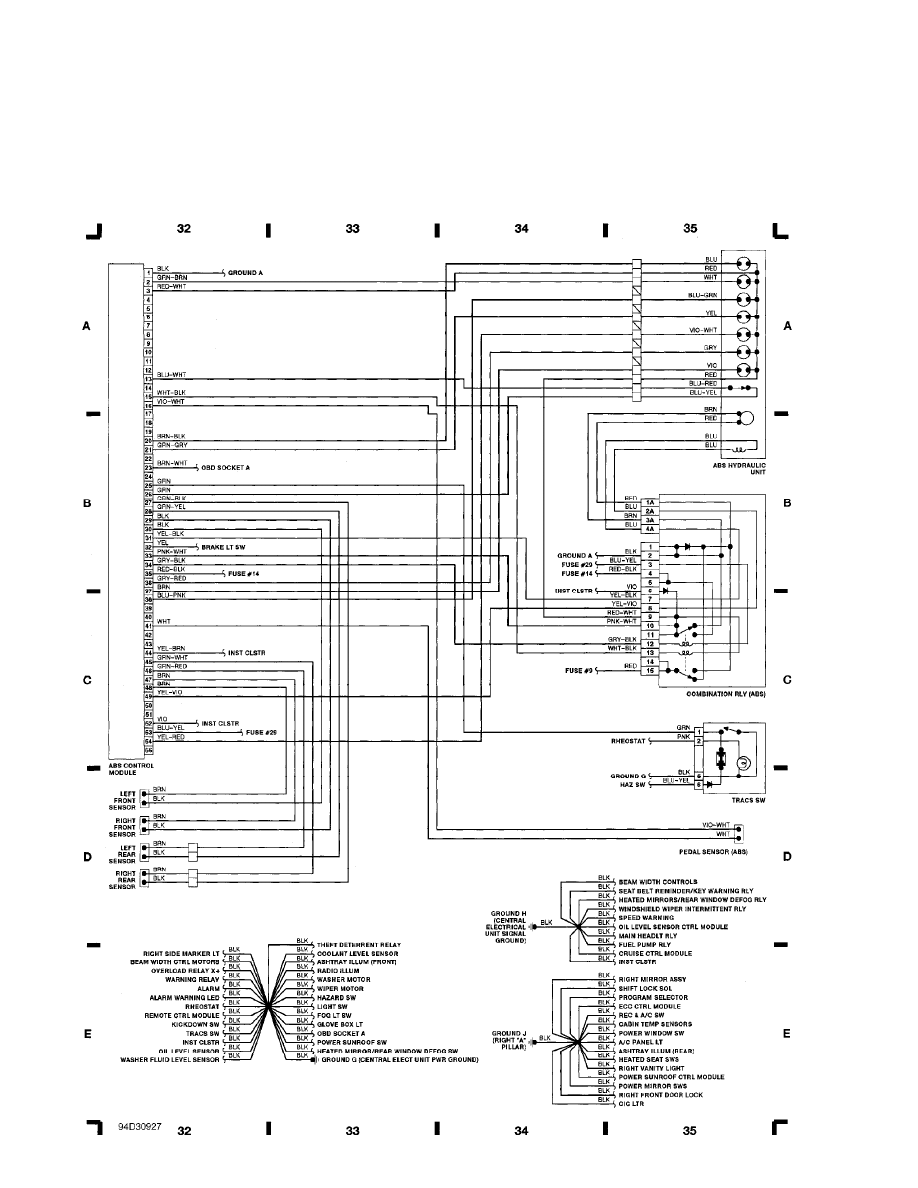

Fig. 9: ABS Control Module, Combination Rly (Grid 32-35)

1993 Volvo 850

For x

Friday, July 23, 2004 11:52PM

WIRING DIAGRAMS

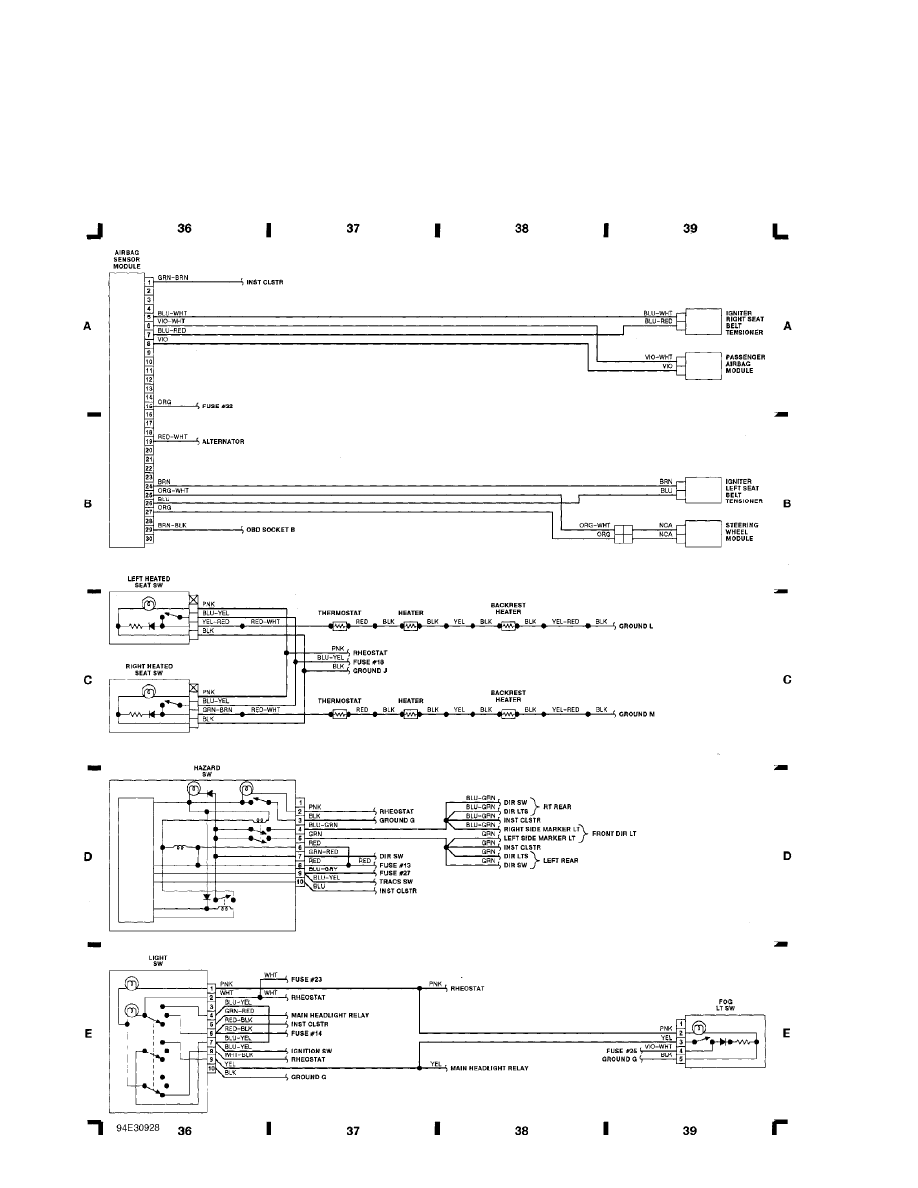

Fig. 10: Airbag Sensor Module, Hazard Sw (Grid 36-39)

1993 Volvo 850

For x

Friday, July 23, 2004 11:52PM

WIRING DIAGRAMS

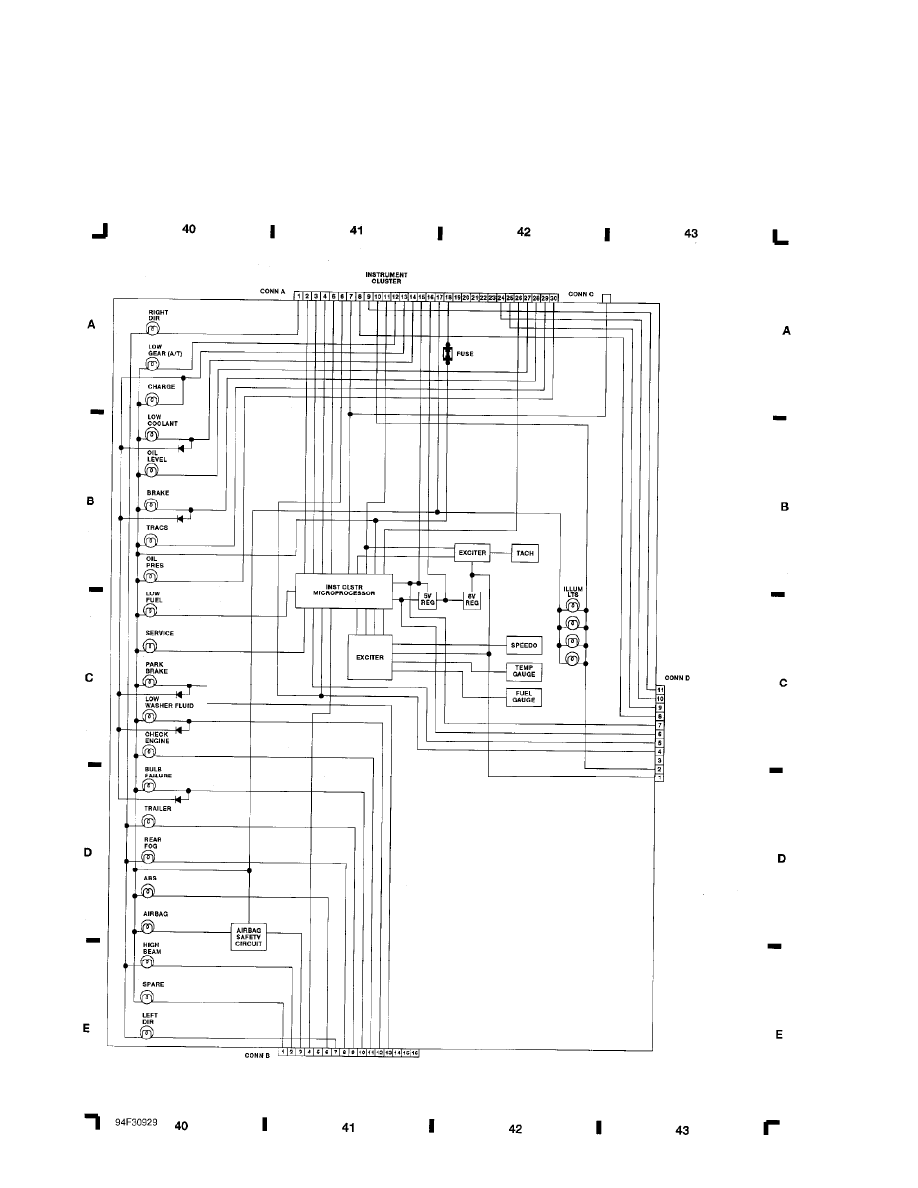

Fig. 11: Instrument Cluster (Grid 40-43)

1993 Volvo 850

For x

Friday, July 23, 2004 11:52PM

WIRING DIAGRAMS

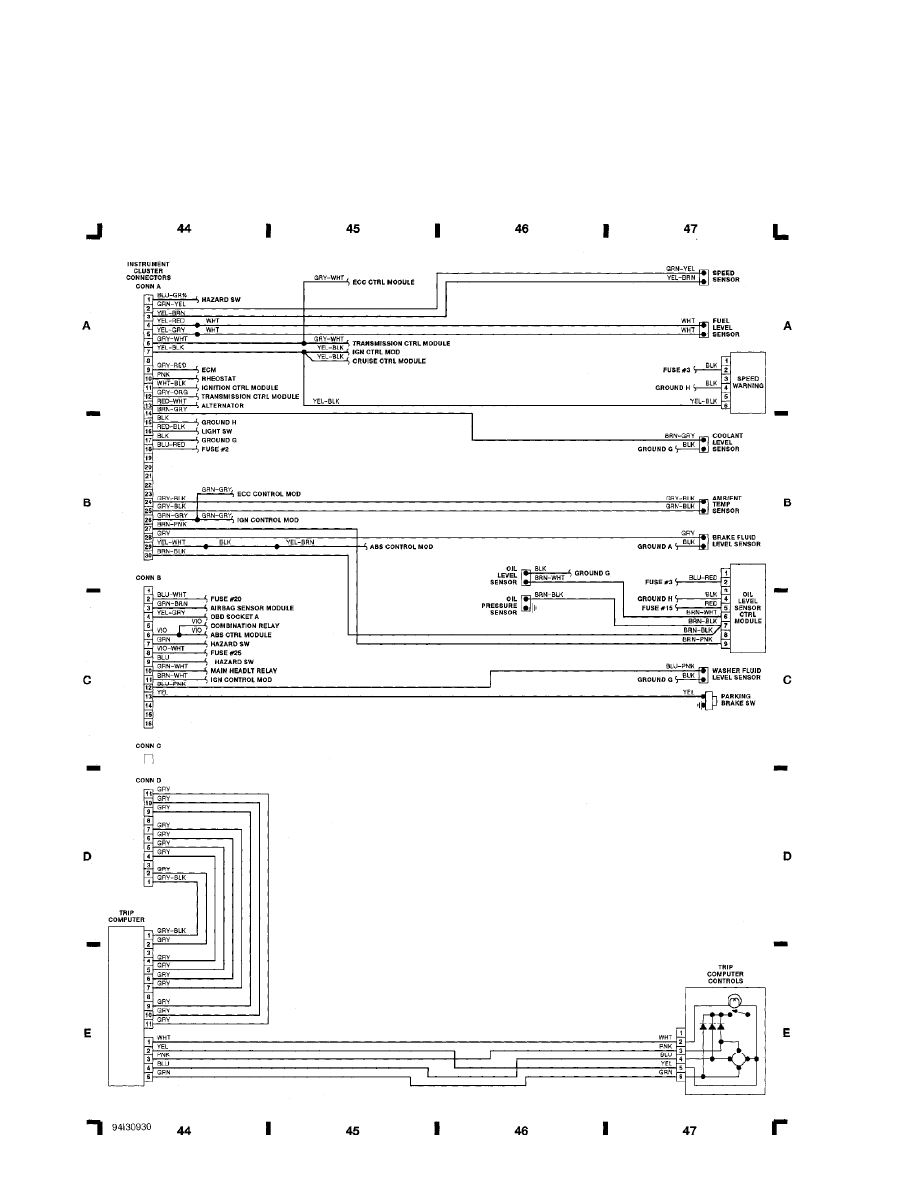

Fig. 12: Instrument Cluster Connectors (Grid 44-47)

1993 Volvo 850

For x

Friday, July 23, 2004 11:52PM

WIRING DIAGRAMS

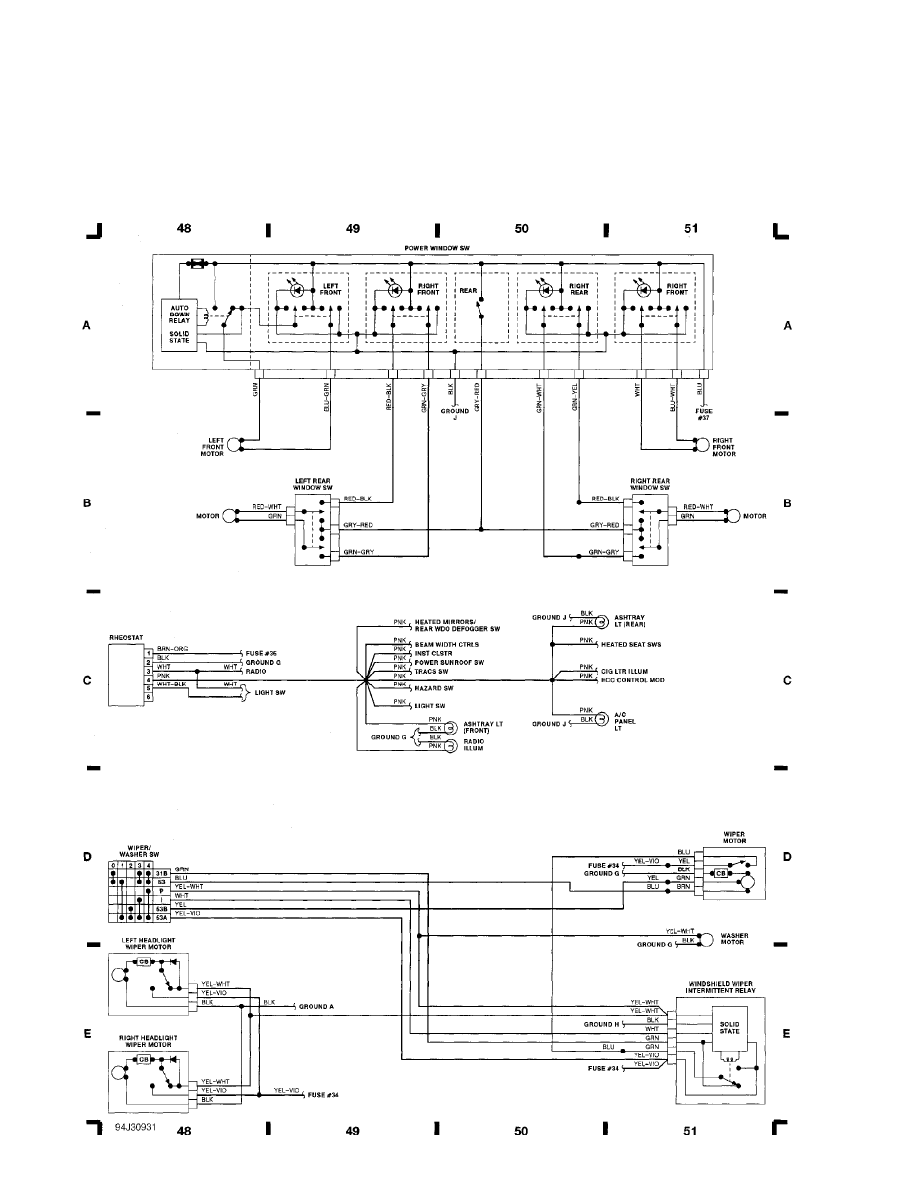

Fig. 13: Power Window Sw, Rheostat, Wiper/Washer Sw (Grid 48-51)

1993 Volvo 850

For x

Friday, July 23, 2004 11:52PM

WIRING DIAGRAMS

Fig. 14: Door Locks, Vanity Lts, Central Locking Rly (Grid 52-55)

1993 Volvo 850

For x

Friday, July 23, 2004 11:52PM
