Copyright 2002-2004 Triple S Customs
FORD F-SERIES PICKUP 1988-2004
V
V
E
E
H
H
I
I
C
C
L
L
E
E
W
W
I
I
R
R
I
I
N
N
G
G
Copyright 2002-2004 Triple S Customs
2
WIRING INFORMATION 1988 Ford F-Series
WIRE
WIRE COLOR
LOCATION
12V CONSTANT WIRE
YELLOW
Ignition Harness
12V IGNITION WIRE
RED/LT.GREEN
Ignition Harness
12V ACCESSORY WIRE
GRAY/YELLOW
Ignition Harness
STARTER WIRE
RED/LT.BLUE
Ignition Harness

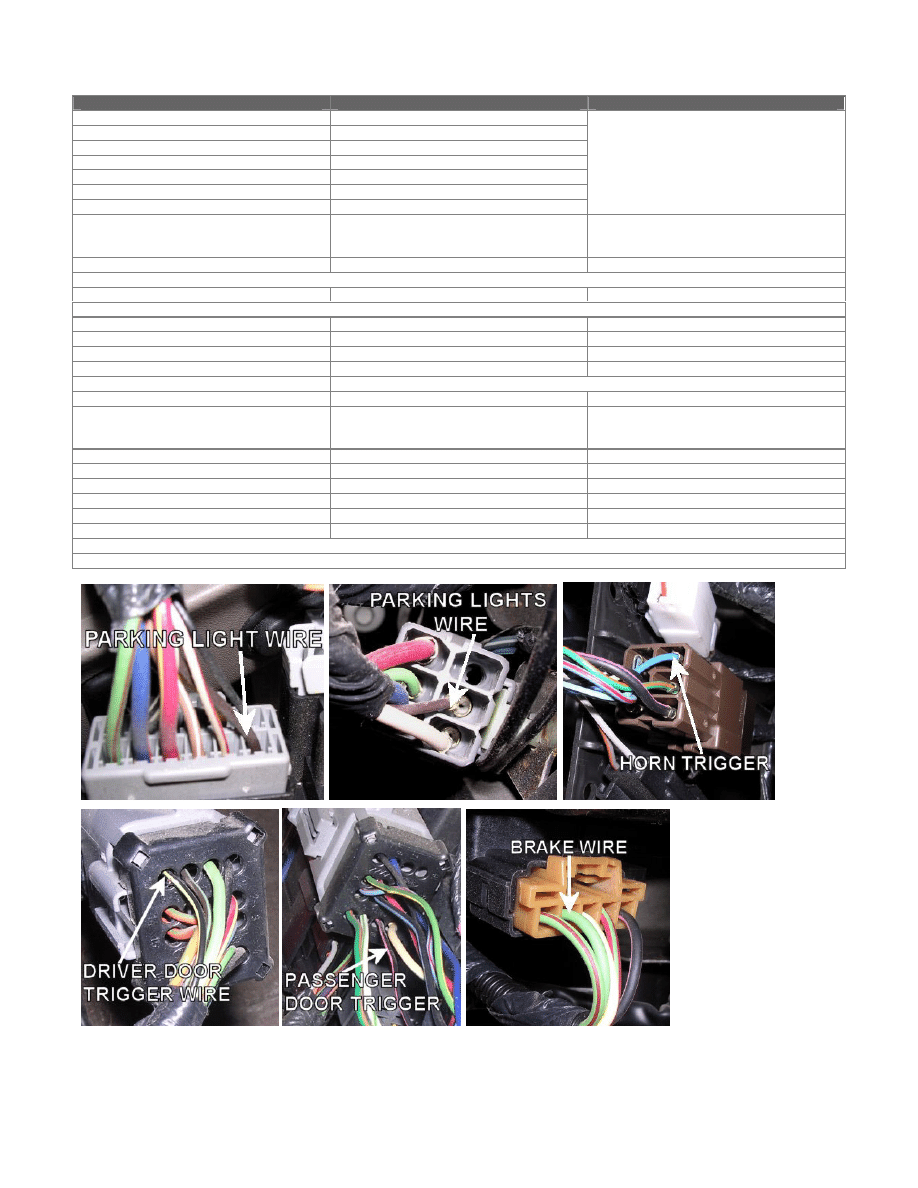

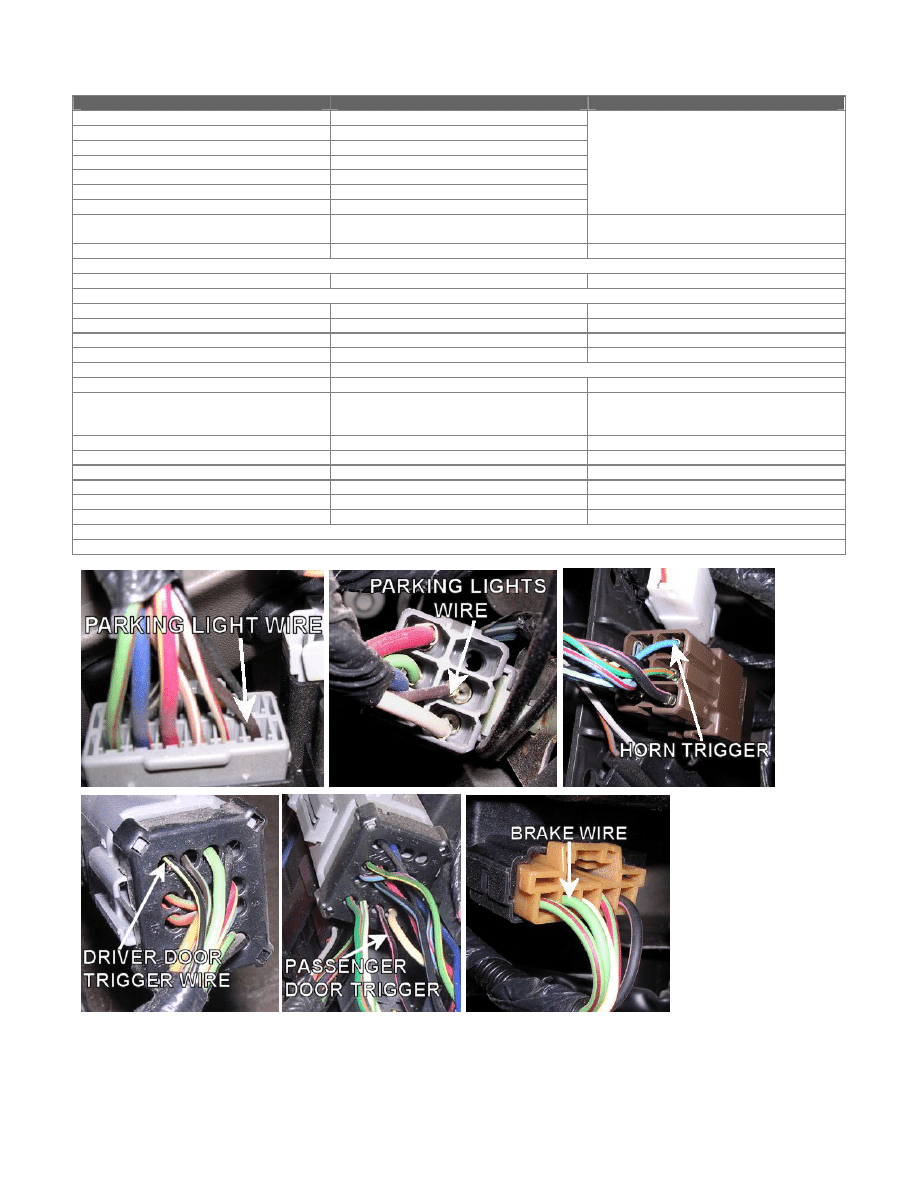

PARKING LIGHTS (+)
BROWN
At Headlight Switch
POWER DOOR LOCK (5-wire reverse
polarity, test using driver’s door lock switch)
BLACK/ORANGE
At Harness In Passenger Kick Panel
POWER DOOR UNLOCK (5-wire reverse
polarity, test using driver’s door lock switch)
PINK/GREEN
At Harness In Passenger Kick Panel
DOOR TRIGGER/DOMELIGHT
SUPERVISION (+)
BLACK/LT.BLUE
At Courtesy Light Under Dash
BRAKE WIRE (+)
LT.GREEN
Harness In Driver’s Kick Panel Or Brake Pedal
Switch
TACHOMETER WIRE
TAN/YELLOW
WHITE/BLACK (Diesels)
At Ignition Coil
At Alternator
DIESEL WAIT-TO-START (-)
BLACK/PINK
Behind Instrument Cluster
HORN TRIGGER (-)
DARK BLUE
Harness At Steering Column
LEFT FRONT WINDOW UP
RED
At Driver Window Motor Inside Door
LEFT FRONT WINDOW DOWN
YELLOW
At Driver Window Motor Inside Door
RIGHT FRONT WINDOW UP
RED/BLACK
Harness In Driver’s Kick From Driver Door
RIGHT FRONT WINDOW DOWN
YELLOW/BLACK
Harness In Driver’s Kick From Driver Door
WIRING INFORMATION 1989 Ford F-Series
WIRE
WIRE COLOR
LOCATION
12V CONSTANT WIRE
YELLOW
Ignition Harness
12V IGNITION WIRE
RED/LT.GREEN
Ignition Harness
12V ACCESSORY WIRE
GRAY/YELLOW
Ignition Harness
STARTER WIRE
RED/LT.BLUE
Ignition Harness
PARKING LIGHTS (+)
BROWN
At Headlight Switch
POWER DOOR LOCK (5-wire)
BLACK/ORANGE
At Harness In Passenger Kick Panel
POWER DOOR UNLOCK (5-wire)
PINK/GREEN
At Harness In Passenger Kick Panel
Test door lock wires using driver’s lock switch.
DOOR TRIGGER/DOMELIGHT
SUPERVISION (+)
BLACK/LT.BLUE
At Courtesy Light Under Dash
BRAKE WIRE (+)
LT.GREEN
Harness In Driver’s Kick Panel Or Brake Pedal
Switch
TACHOMETER WIRE
TAN/YELLOW
WHITE/BLACK (Diesels)
At Ignition Coil
At Alternator
DIESEL WAIT-TO-START (-)
BLACK/PINK
Behind Instrument Cluster
HORN TRIGGER (-)
DARK BLUE
Harness At Steering Column
LEFT FRONT WINDOW UP
RED
At Driver Window Motor Inside Door
LEFT FRONT WINDOW DOWN
YELLOW
At Driver Window Motor Inside Door
RIGHT FRONT WINDOW UP
RED/BLACK
Harness In Driver’s Kick From Driver Door
RIGHT FRONT WINDOW DOWN
YELLOW/BLACK
Harness In Driver’s Kick From Driver Door
WIRING INFORMATION 1990 Ford F-Series
WIRE
WIRE COLOR
LOCATION
12V CONSTANT WIRE
YELLOW
Ignition Harness
12V IGNITION WIRE
RED/LT.GREEN
Ignition Harness
12V ACCESSORY WIRE
GRAY/YELLOW
Ignition Harness
STARTER WIRE
RED/LT.BLUE
Ignition Harness
PARKING LIGHTS (+)
BROWN
At Headlight Switch
POWER DOOR LOCK (5-wire)
BLACK/ORANGE
At Harness In Passenger Kick Panel
POWER DOOR UNLOCK (5-wire)
PINK/GREEN
At Harness In Passenger Kick Panel
Test door lock wires using driver’s lock switch.
DOOR TRIGGER/DOMELIGHT
SUPERVISION (+)
BLACK/LT.BLUE
At Courtesy Light Under Dash
BRAKE WIRE (+)
LT.GREEN
Harness In Driver’s Kick Panel Or Brake Pedal
Switch
TACHOMETER WIRE
TAN/YELLOW
WHITE/BLACK (Diesels)
At Ignition Coil
At Alternator
DIESEL WAIT-TO-START (-)
BLACK/PINK
Behind Instrument Cluster
HORN TRIGGER (-)
DARK BLUE
Harness At Steering Column
LEFT FRONT WINDOW UP
RED
At Driver Window Motor Inside Door
LEFT FRONT WINDOW DOWN
YELLOW
At Driver Window Motor Inside Door
RIGHT FRONT WINDOW UP
RED/BLACK
Harness In Driver’s Kick From Driver Door
RIGHT FRONT WINDOW DOWN
YELLOW/BLACK
Harness In Driver’s Kick From Driver Door
Copyright 2002-2004 Triple S Customs
3
WIRING INFORMATION 1991 Ford F-Series
WIRE
WIRE COLOR
LOCATION
12V CONSTANT WIRE
YELLOW
Ignition Harness
12V IGNITION WIRE
RED/LT.GREEN
Ignition Harness
12V ACCESSORY WIRE
GRAY/YELLOW
Ignition Harness
STARTER WIRE
RED/LT.BLUE
Ignition Harness
PARKING LIGHTS (+)
BROWN
At Headlight Switch
POWER DOOR LOCK (5-wire)
BLACK/ORANGE
At Harness In Passenger Kick Panel
POWER DOOR UNLOCK (5-wire)
PINK/GREEN
At Harness In Passenger Kick Panel
Test door lock wires using driver’s lock switch.
DOOR TRIGGER/DOMELIGHT
SUPERVISION (+)
BLACK/LT.BLUE
At Courtesy Light Under Dash
BRAKE WIRE (+)
LT.GREEN
Harness In Driver’s Kick Panel Or Brake Pedal
Switch
TACHOMETER WIRE
TAN/YELLOW
WHITE/BLACK (Diesels)
At Ignition Coil
At Alternator
DIESEL WAIT-TO-START (-)
BLACK/PINK
Behind Instrument Cluster
HORN TRIGGER (-)
DARK BLUE
Harness At Steering Column
LEFT FRONT WINDOW UP
RED
At Driver Window Motor Inside Door
LEFT FRONT WINDOW DOWN
YELLOW
At Driver Window Motor Inside Door
RIGHT FRONT WINDOW UP
RED/BLACK
Harness In Driver’s Kick From Driver Door
RIGHT FRONT WINDOW DOWN
YELLOW/BLACK
Harness In Driver’s Kick From Driver Door
WIRING INFORMATION 1992 Ford F-Series
WIRE
WIRE COLOR
LOCATION
12V CONSTANT WIRE
YELLOW
Ignition Harness
12V IGNITION WIRE
RED/LT.GREEN
Ignition Harness
12V ACCESSORY WIRE
GRAY/YELLOW
Ignition Harness
STARTER WIRE
RED/LT.BLUE
Ignition Harness
PARKING LIGHTS (+)
BROWN
At Headlight Switch
POWER DOOR LOCK (5-wire)
PINK/YELLOW
At Harness In Passenger Kick Panel
POWER DOOR UNLOCK (5-wire)
PINK/GREEN
At Harness In Passenger Kick Panel
Test door lock wires using driver’s lock switch.
DOOR TRIGGER/DOMELIGHT
SUPERVISION (+)
BLACK/LT.BLUE
At Courtesy Light Under Dash
BRAKE WIRE (+)
LT.GREEN
Harness In Driver’s Kick Panel Or Brake Pedal
Switch
TACHOMETER WIRE
TAN/YELLOW
WHITE/BLACK (Diesels)
At Ignition Coil
At Alternator
DIESEL WAIT-TO-START (-)
BLACK/PINK
Behind Instrument Cluster
HORN TRIGGER (-)
DARK BLUE
Harness At Steering Column
LEFT FRONT WINDOW UP
YELLOW
At Driver Window Motor Inside Door
LEFT FRONT WINDOW DOWN
RED
At Driver Window Motor Inside Door
RIGHT FRONT WINDOW UP
YELLOW/BLACK
Harness In Driver’s Kick From Driver Door
RIGHT FRONT WINDOW DOWN
RED/BLACK
Harness In Driver’s Kick From Driver Door
WIRING INFORMATION 1993 Ford F-Series
WIRE
WIRE COLOR
LOCATION
12V CONSTANT WIRE
YELLOW
Ignition Harness
12V IGNITION WIRE
RED/LT.GREEN
Ignition Harness
12V ACCESSORY WIRE
GRAY/YELLOW
Ignition Harness
STARTER WIRE
RED/LT.BLUE
Ignition Harness
PARKING LIGHTS (+)
BROWN
At Headlight Switch
POWER DOOR LOCK (5-wire)
PINK/YELLOW
At Harness In Passenger Kick Panel
POWER DOOR UNLOCK (5-wire)
PINK/GREEN
At Harness In Passenger Kick Panel
Test door lock wires using driver’s lock switch.
DOOR TRIGGER/DOMELIGHT
SUPERVISION (+)
BLACK/LT.BLUE
At Courtesy Light Under Dash
BRAKE WIRE (+)
LT.GREEN
Harness In Driver’s Kick Panel Or Brake Pedal
Switch
TACHOMETER WIRE
TAN/YELLOW
WHITE/BLACK (Diesels)
At Ignition Coil
At Alternator
DIESEL WAIT-TO-START (-)
BLACK/PINK
Behind Instrument Cluster
HORN TRIGGER (-)
DARK BLUE
Harness At Steering Column
LEFT FRONT WINDOW UP
YELLOW
At Driver Window Motor Inside Door
LEFT FRONT WINDOW DOWN
RED
At Driver Window Motor Inside Door
RIGHT FRONT WINDOW UP
YELLOW/BLACK
Harness In Driver’s Kick From Driver Door
RIGHT FRONT WINDOW DOWN
RED/BLACK
Harness In Driver’s Kick From Driver Door
Copyright 2002-2004 Triple S Customs
4
WIRING INFORMATION 1994 Ford F-Series
WIRE
WIRE COLOR
LOCATION
12V CONSTANT WIRE
YELLOW
Ignition Harness
12V IGNITION WIRE
RED/LT.GREEN
Ignition Harness
12V ACCESSORY WIRE
GRAY/YELLOW
Ignition Harness
SECOND ACCESSORY WIRE
BLACK/GREEN
Ignition Harness
THIRD ACCESSORY WIRE
GRAY/YELLOW (18gauge)
Ignition Harness
STARTER WIRE
RED/LT.BLUE
Ignition Harness
PARKING LIGHTS (+)
BROWN
At Headlight Switch

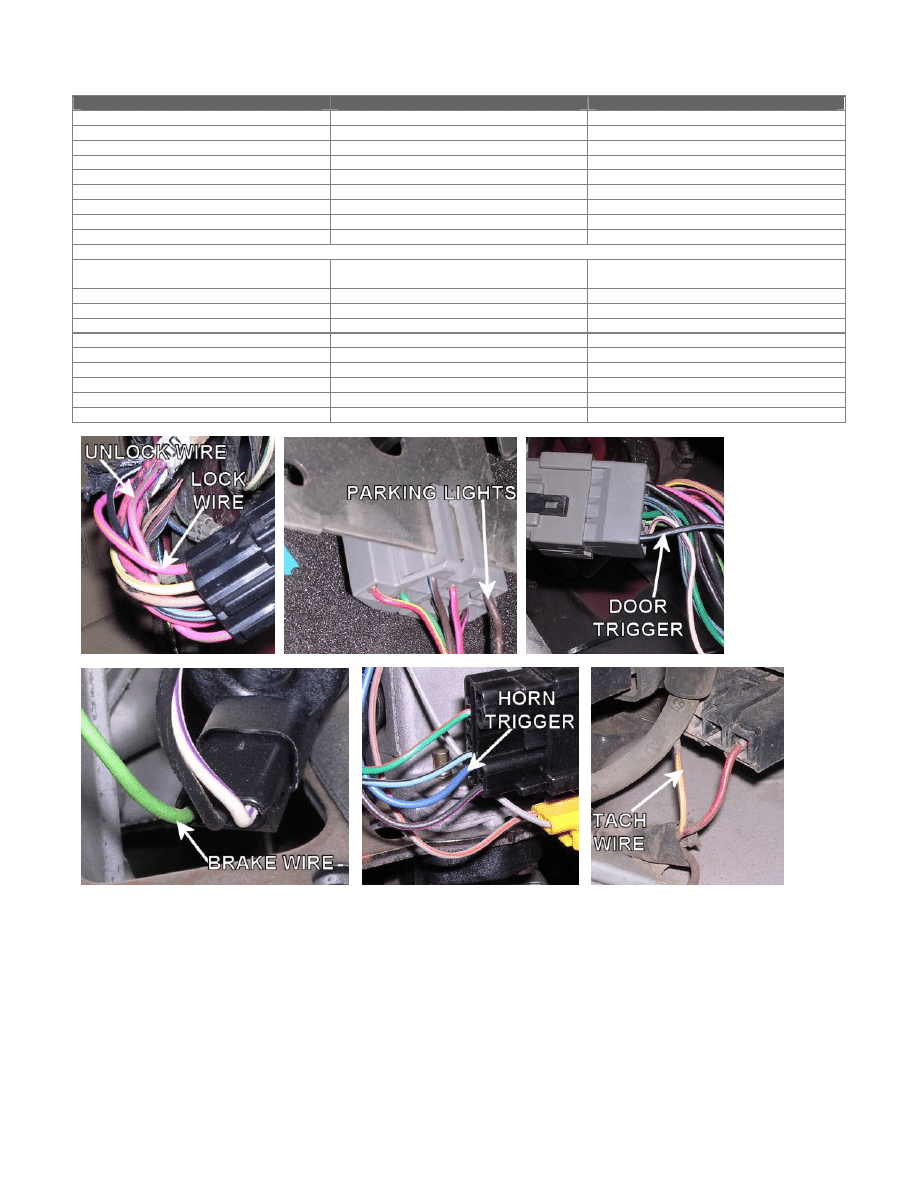

POWER DOOR LOCK
PINK/YELLOW
Black Connector In Passenger Kick Panel
POWER DOOR UNLOCK
PINK/GREEN
Black Connector In Passenger Kick Panel
Door locks on models with OEM keyless entry: negative trigger, models without OEM keyless entry: 5-wire reverse polarity
DOOR TRIGGER/DOMELIGHT
SUPERVISION (+)
BLACK/LT.BLUE
Gray Connector In Driver’s Kick Panel
BRAKE WIRE (+)
LT.GREEN
Black Connector Left Of Steering Column
TACHOMETER WIRE
TAN/YELLOW
At Ignition Coil
DIESEL TACHOMETER WIRE
WHITE/BLACK
At Harness Along Firewall By Brake Pedal
DIESEL WAIT-TO-START (-)
BLACK/PINK
Behind Instrument Cluster
HORN TRIGGER (-)
DARK BLUE
Black Connector At Steering Column
LEFT FRONT WINDOW UP
RED
At Driver Window Motor Inside Door
LEFT FRONT WINDOW DOWN
YELLOW
At Driver Window Motor Inside Door
RIGHT FRONT WINDOW UP
RED/BLACK
Harness In Driver’s Kick From Driver Door
RIGHT FRONT WINDOW DOWN
YELLOW/BLACK
Harness In Driver’s Kick From Driver Door
Copyright 2002-2004 Triple S Customs
5
WIRING INFORMATION 1995 Ford F-Series
WIRE
WIRE COLOR
LOCATION
12V CONSTANT WIRE
YELLOW
Ignition Harness
12V IGNITION WIRE
RED/LT.GREEN
Ignition Harness
12V ACCESSORY WIRE
GRAY/YELLOW
Ignition Harness
SECOND ACCESSORY WIRE
BLACK/GREEN
Ignition Harness
THIRD ACCESSORY WIRE
GRAY/YELLOW (18gauge)
Ignition Harness
STARTER WIRE
RED/LT.BLUE
Ignition Harness
PARKING LIGHTS (+)
BROWN
At Headlight Switch
POWER DOOR LOCK
PINK/YELLOW
Black Connector In Passenger Kick Panel
POWER DOOR UNLOCK
PINK/GREEN
Black Connector In Passenger Kick Panel
Door locks on models with OEM keyless entry: negative trigger, models without OEM keyless entry: 5-wire reverse polarity
DOOR TRIGGER/DOMELIGHT
SUPERVISION (+)
BLACK/LT.BLUE
Gray Connector In Driver’s Kick Panel
BRAKE WIRE (+)
LT.GREEN
Black Connector Left Of Steering Column
TACHOMETER WIRE
TAN/YELLOW
At Ignition Coil
DIESEL TACHOMETER WIRE
WHITE/BLACK
At Harness Along Firewall By Brake Pedal
DIESEL WAIT-TO-START (-)
BLACK/PINK
Behind Instrument Cluster
HORN TRIGGER (-)
DARK BLUE
Black Connector At Steering Column
LEFT FRONT WINDOW UP
RED
At Driver Window Motor Inside Door
LEFT FRONT WINDOW DOWN
YELLOW
At Driver Window Motor Inside Door
RIGHT FRONT WINDOW UP
RED/BLACK
Harness In Driver’s Kick From Driver Door
RIGHT FRONT WINDOW DOWN
YELLOW/BLACK
Harness In Driver’s Kick From Driver Door
Copyright 2002-2004 Triple S Customs
6
WIRING INFORMATION 1996 Ford F-Series
WIRE
WIRE COLOR
LOCATION
12V CONSTANT WIRE
YELLOW
Ignition Harness
12V IGNITION WIRE
RED/LT.GREEN
Ignition Harness
12V ACCESSORY WIRE
GRAY/YELLOW
Ignition Harness
SECOND ACCESSORY WIRE
BLACK/GREEN
Ignition Harness
THIRD ACCESSORY WIRE
GRAY/YELLOW (18gauge)
Ignition Harness
STARTER WIRE
RED/LT.BLUE
Ignition Harness
PARKING LIGHTS (+)
BROWN
At Headlight Switch
POWER DOOR LOCK
PINK/YELLOW
Black Connector In Passenger Kick Panel
POWER DOOR UNLOCK
PINK/GREEN
Black Connector In Passenger Kick Panel
Door locks on models with OEM keyless entry: negative trigger, models without OEM keyless entry: 5-wire reverse polarity
DOOR TRIGGER/DOMELIGHT
SUPERVISION (+)
BLACK/LT.BLUE
Gray Connector In Driver’s Kick Panel
BRAKE WIRE (+)
LT.GREEN
Black Connector Left Of Steering Column
TACHOMETER WIRE
TAN/YELLOW
At Ignition Coil
DIESEL TACHOMETER WIRE
WHITE/BLACK
At Harness Along Firewall By Brake Pedal
DIESEL WAIT-TO-START (-)
BLACK/PINK
Behind Instrument Cluster
HORN TRIGGER (-)
DARK BLUE
Black Connector At Steering Column
LEFT FRONT WINDOW UP
RED
At Driver Window Motor Inside Door
LEFT FRONT WINDOW DOWN
YELLOW
At Driver Window Motor Inside Door
RIGHT FRONT WINDOW UP
RED/BLACK
Harness In Driver’s Kick From Driver Door
RIGHT FRONT WINDOW DOWN
YELLOW/BLACK
Harness In Driver’s Kick From Driver Door
Copyright 2002-2004 Triple S Customs
7
WIRING INFORMATION 1997 Ford F-Series Light Duty
WIRE
COLOR
LOCATION
12V CONSTANT WIRE
YELLOW and LT.GREEN/PURPLE
12V IGNITION WIRE
DK.BLUE/LT.GREEN
SECOND IGNITION WIRE
GRAY/YELLOW
THIRD IGNITION WIRE
LT.BLUE/PINK
12V ACCESSORY WIRE
RED/BLACK
SECOND ACCESSORY WIRE
BLACK/GREEN
STARTER WIRE
RED/LT.BLUE
Ignition harness
PARKING LIGHTS (+)
BROWN
At Headlight Switch Or Gray Connector
Under Dash On Right Of Steering Column
POWER DOOR LOCK
PINK/YELLOW
Harness In Passenger’s Kick Panel
Models with OEM keyless entry: negative trigger, models without OEM keyless entry: 5-wire reverse polarity- test using driver’s lock switch.
POWER DOOR UNLOCK
PINK GREEN
Harness In Passenger’s Kick Panel
Models with OEM keyless entry: negative trigger, models without OEM keyless entry: 5-wire reverse polarity- test using driver’s lock switch.
DRIVER DOOR TRIGGER (-)
BLACK/YELLOW
Harness In Driver’s Kick Panel
PASSENGER DOOR TRIGGER (-)
BLACK/PINK
Harness In Pass. Kick Panel
REAR DOORS TRIGGER (-)
BLACK/LT,BLUE
Harness In Driver’s Kick Panel
DOMELIGHT SUPERVISION (+)
BLACK/LT.BLUE
Harness In Driver’s Kick Panel
FACTORY ALARM ARM (-)
Arms with lock w/ door open
FACTORY ALARM DISARM (-)
DK.GREEN/PURPLE
Harness In Driver’s Kick Panel
TACHOMETER
4.2L models: DK.BLUE/LT.GREEN
4.6L models: PINK/WHITE
5.4L models: LT.GREEN/WHITE
At Ignition Coil
BRAKE WIRE (+)
LT.GREEN
Brake switch
HORN TRIGGER (-)
DK.BLUE
Steering column
LEFT FRONT WINDOW UP
ORANGE/WHITE
At Driver Window Motor Inside Door
LEFT FRONT WINDOW DOWN
WHITE/BLACK
At Driver Window Motor Inside Door
RIGHT FRONT WINDOW UP
WHITE/YELLOW
Harness In Driver’s Kick From Driver Door
RIGHT FRONT WINDOW DOWN
TAN/BLUE
Harness In Driver’s Kick From Driver Door
Vehicles with all wheel anti-lock brakes do not have a third ignition wire
Some models are equipped with Ford’s PATS anti-theft system. This needs to be bypassed when installing a remote start system
Copyright 2002-2004 Triple S Customs
8
WIRING INFORMATION 1998 Ford F-Series Light Duty
WIRE
COLOR
LOCATION
12V CONSTANT WIRE
YELLOW and LT.GREEN/PURPLE
12V IGNITION WIRE
DK.BLUE/LT.GREEN
SECOND IGNITION WIRE
GRAY/YELLOW
THIRD IGNITION WIRE
LT.BLUE/PINK
12V ACCESSORY WIRE
RED/BLACK
SECOND ACCESSORY WIRE
BLACK/GREEN
STARTER WIRE
RED/LT.BLUE
Ignition harness
PARKING LIGHTS (+)
BROWN
At Headlight Switch Or Gray Connector
Under Dash On Driver’s Side Right Of
Steering Column
POWER DOOR LOCK
PINK/YELLOW
Harness In Passenger’s Kick Panel
Models with OEM keyless entry: negative trigger, models without OEM keyless entry: 5-wire reverse polarity- test using driver’s lock switch.
POWER DOOR UNLOCK
PINK GREEN
Harness In Passenger’s Kick Panel
Models with OEM keyless entry: negative trigger, models without OEM keyless entry: 5-wire reverse polarity- test using driver’s lock switch.
DRIVER DOOR TRIGGER (-)
BLACK/YELLOW
Harness In Driver’s Kick Panel
PASSENGER DOOR TRIGGER (-)
BLACK/PINK
Harness In Pass. Kick Panel
REAR DOORS TRIGGER (-)
BLACK/LT,BLUE
Harness In Driver’s Kick Panel
DOMELIGHT SUPERVISION (+)
BLACK/LT.BLUE
Harness In Driver’s Kick Panel
FACTORY ALARM ARM (-)
Arms with lock w/ door open
FACTORY ALARM DISARM (-)
DK.GREEN/PURPLE
Harness In Driver’s Kick Panel
TACHOMETER
4.2L models: DK.BLUE/LT.GREEN
4.6L models: PINK/WHITE
5.4L models: LT.GREEN/WHITE
At Ignition Coil
BRAKE WIRE (+)
LT.GREEN
Brake switch
HORN TRIGGER (-)
DK.BLUE
Steering column
LEFT FRONT WINDOW UP
ORANGE/WHITE
At Driver Window Motor Inside Door
LEFT FRONT WINDOW DOWN
WHITE/BLACK
At Driver Window Motor Inside Door
RIGHT FRONT WINDOW UP
WHITE/YELLOW
Harness In Driver’s Kick From Driver Door
RIGHT FRONT WINDOW DOWN
TAN/BLUE
Harness In Driver’s Kick From Driver Door
Vehicles with all wheel anti-lock brakes do not have a third ignition wire
Some models are equipped with Ford’s PATS anti-theft system. This needs to be bypassed when installing a remote start system
Copyright 2002-2004 Triple S Customs
9
WIRING INFORMATION 1999 Ford F-Series Light Duty
WIRE
COLOR
LOCATION
12V CONSTANT WIRE
YELLOW and LT.GREEN/PURPLE
12V IGNITION WIRE
DK.BLUE/LT.GREEN
SECOND IGNITION WIRE
GRAY/YELLOW
THIRD IGNITION WIRE
LT.BLUE/PINK
12V ACCESSORY WIRE
RED/BLACK
SECOND ACCESSORY WIRE
BLACK/GREEN
STARTER WIRE
RED/LT.BLUE
Ignition harness
PARKING LIGHTS (+)
BROWN
At Headlight Switch Or Gray Connector
Under Dash On Driver’s Side Right Of
Steering Column
POWER DOOR LOCK
PINK/YELLOW
Harness In Passenger’s Kick Panel
Models with OEM keyless entry: negative trigger, models without OEM keyless entry: 5-wire reverse polarity- test using driver’s lock switch.
POWER DOOR UNLOCK
PINK GREEN
Harness In Passenger’s Kick Panel
Models with OEM keyless entry: negative trigger, models without OEM keyless entry: 5-wire reverse polarity- test using driver’s lock switch.
DRIVER DOOR TRIGGER (-)
BLACK/YELLOW
Harness In Driver’s Kick Panel
PASSENGER DOOR TRIGGER (-)
BLACK/PINK
Harness In Pass. Kick Panel
REAR DOORS TRIGGER (-)
BLACK/LT,BLUE
Harness In Driver’s Kick Panel
DOMELIGHT SUPERVISION (+)
BLACK/LT.BLUE
Harness In Driver’s Kick Panel
FACTORY ALARM ARM (-)
Arms with lock w/ door open
FACTORY ALARM DISARM (-)
DK.GREEN/PURPLE
Harness In Driver’s Kick Panel
TACHOMETER
4.2L models: DK.BLUE/LT.GREEN
4.6L models: PINK/WHITE
5.4L models: LT.GREEN/WHITE
At Ignition Coil
BRAKE WIRE (+)
LT.GREEN
Brake switch
HORN TRIGGER (-)
DK.BLUE
Steering column
LEFT FRONT WINDOW UP
ORANGE/WHITE
At Driver Window Motor Inside Door
LEFT FRONT WINDOW DOWN
WHITE/BLACK
At Driver Window Motor Inside Door
RIGHT FRONT WINDOW UP
WHITE/YELLOW
Harness In Driver’s Kick From Driver Door
RIGHT FRONT WINDOW DOWN
TAN/BLUE
Harness In Driver’s Kick From Driver Door
Vehicles with all wheel anti-lock brakes do not have a third ignition wire
Some models are equipped with Ford’s PATS anti-theft system. This needs to be bypassed when installing a remote start system
Copyright 2002-2004 Triple S Customs
10
WIRING INFORMATION 2000 Ford F-Series Light Duty
WIRE
COLOR
LOCATION
12V CONSTANT WIRE
YELLOW and LT.GREEN/PURPLE
12V IGNITION WIRE
DK.BLUE/LT.GREEN
SECOND IGNITION WIRE
GRAY/YELLOW
THIRD IGNITION WIRE
LT.BLUE/PINK
12V ACCESSORY WIRE
RED/BLACK
SECOND ACCESSORY WIRE
BLACK/GREEN
STARTER WIRE
RED/LT.BLUE
Ignition harness
PARKING LIGHTS (+)
BROWN
At Headlight Switch Or Gray Connector
Under Dash On Driver’s Side Right Of
Steering Column
POWER DOOR LOCK
PINK/YELLOW
Harness In Passenger’s Kick Panel
Models with OEM keyless entry: negative trigger, models without OEM keyless entry: 5-wire reverse polarity- test using driver’s lock switch.
POWER DOOR UNLOCK
PINK GREEN
Harness In Passenger’s Kick Panel
Models with OEM keyless entry: negative trigger, models without OEM keyless entry: 5-wire reverse polarity- test using driver’s lock switch.
DRIVER DOOR TRIGGER (-)
BLACK/YELLOW
Harness In Driver’s Kick Panel
PASSENGER DOOR TRIGGER (-)
BLACK/PINK
Harness In Pass. Kick Panel
REAR DOORS TRIGGER (-)
BLACK/LT,BLUE
Harness In Driver’s Kick Panel
DOMELIGHT SUPERVISION (+)
BLACK/LT.BLUE
Harness In Driver’s Kick Panel
FACTORY ALARM ARM (-)
Arms with lock w/ door open
FACTORY ALARM DISARM (-)
DK.GREEN/PURPLE
Harness In Driver’s Kick Panel
TACHOMETER
4.2L models: DK.BLUE/LT.GREEN
4.6L models: PINK/WHITE
5.4L models: LT.GREEN/WHITE
At Ignition Coil
BRAKE WIRE (+)
LT.GREEN
Brake switch
HORN TRIGGER (-)
DK.BLUE
Steering column
LEFT FRONT WINDOW UP
ORANGE/WHITE
At Driver Window Motor Inside Door
LEFT FRONT WINDOW DOWN
WHITE/BLACK
At Driver Window Motor Inside Door
RIGHT FRONT WINDOW UP
WHITE/YELLOW
Harness In Driver’s Kick From Driver Door
RIGHT FRONT WINDOW DOWN
TAN/BLUE
Harness In Driver’s Kick From Driver Door
Vehicles with all wheel anti-lock brakes do not have a third ignition wire
Some models are equipped with Ford’s PATS anti-theft system. This needs to be bypassed when installing a remote start system
Copyright 2002-2004 Triple S Customs
11
WIRING INFORMATION 2001 Ford F-Series Light Duty
WIRE
COLOR
LOCATION
12V CONSTANT WIRE
YELLOW and LT.GREEN/PURPLE
12V IGNITION WIRE
DK.BLUE/LT.GREEN
SECOND IGNITION WIRE
GRAY/YELLOW
THIRD IGNITION WIRE
LT.BLUE/PINK
12V ACCESSORY WIRE
RED/BLACK
SECOND ACCESSORY WIRE
BLACK/GREEN
STARTER WIRE
RED/LT.BLUE
Ignition harness
PARKING LIGHTS (+)
BROWN
At Headlight Switch Or Gray Connector
Under Dash On Driver’s Side Right Of
Steering Column
POWER DOOR LOCK
PINK/YELLOW
Harness In Passenger’s Kick Panel
Models with OEM keyless entry: negative trigger, models without OEM keyless entry: 5-wire reverse polarity- test using driver’s lock switch.
POWER DOOR UNLOCK
PINK GREEN
Harness In Passenger’s Kick Panel
Models with OEM keyless entry: negative trigger, models without OEM keyless entry: 5-wire reverse polarity- test using driver’s lock switch.
DRIVER DOOR TRIGGER (-)
BLACK/YELLOW
Harness In Driver’s Kick Panel
PASSENGER DOOR TRIGGER (-)
BLACK/PINK
Harness In Pass. Kick Panel
REAR DOORS TRIGGER (-)
BLACK/LT,BLUE
Harness In Driver’s Kick Panel
DOMELIGHT SUPERVISION (+)
BLACK/LT.BLUE
Harness In Driver’s Kick Panel
FACTORY ALARM ARM (-)
Arms with lock w/ door open
FACTORY ALARM DISARM (-)
DK.GREEN/PURPLE
Harness In Driver’s Kick Panel
TACHOMETER
4.2L models: DK.BLUE/LT.GREEN
4.6L models: PINK/WHITE
5.4L models: LT.GREEN/WHITE
At Ignition Coil
BRAKE WIRE (+)
LT.GREEN
Brake switch
HORN TRIGGER (-)
DK.BLUE
Steering column
LEFT FRONT WINDOW UP
ORANGE/WHITE
At Driver Window Motor Inside Door
LEFT FRONT WINDOW DOWN
WHITE/BLACK
At Driver Window Motor Inside Door
RIGHT FRONT WINDOW UP
WHITE/YELLOW
Harness In Driver’s Kick From Driver Door
RIGHT FRONT WINDOW DOWN
TAN/BLUE
Harness In Driver’s Kick From Driver Door
Vehicles with all wheel anti-lock brakes do not have a third ignition wire
Some models are equipped with Ford’s PATS anti-theft system. This needs to be bypassed when installing a remote start system
Copyright 2002-2004 Triple S Customs
12
WIRING INFORMATION 2002 Ford F-Series Light Duty
WIRE
COLOR
LOCATION
12V CONSTANT WIRE
YELLOW and LT.GREEN/PURPLE
12V IGNITION WIRE
DK.BLUE/LT.GREEN
SECOND IGNITION WIRE
GRAY/YELLOW
THIRD IGNITION WIRE
LT.BLUE/PINK
12V ACCESSORY WIRE
RED/BLACK
SECOND ACCESSORY WIRE
BLACK/GREEN
STARTER WIRE
RED/LT.BLUE
Ignition harness
PARKING LIGHTS (+)
BROWN
At Headlight Switch Or Gray Connector
Under Dash On Driver’s Side Right Of
Steering Column
POWER DOOR LOCK
PINK/YELLOW
Harness In Passenger’s Kick Panel
Models with OEM keyless entry: negative trigger, models without OEM keyless entry: 5-wire reverse polarity- test using driver’s lock switch.
POWER DOOR UNLOCK
PINK GREEN
Harness In Passenger’s Kick Panel
Models with OEM keyless entry: negative trigger, models without OEM keyless entry: 5-wire reverse polarity- test using driver’s lock switch.
DRIVER DOOR TRIGGER (-)
BLACK/YELLOW
Harness In Driver’s Kick Panel
PASSENGER DOOR TRIGGER (-)
BLACK/PINK
Harness In Pass. Kick Panel
REAR DOORS TRIGGER (-)
BLACK/LT,BLUE
Harness In Driver’s Kick Panel
DOMELIGHT SUPERVISION (+)
BLACK/LT.BLUE
Harness In Driver’s Kick Panel
FACTORY ALARM ARM (-)
Arms with lock w/ door open
FACTORY ALARM DISARM (-)
DK.GREEN/PURPLE
Harness In Driver’s Kick Panel
TACHOMETER
4.2L models: DK.BLUE/LT.GREEN
4.6L models: PINK/WHITE
5.4L models: LT.GREEN/WHITE
At Ignition Coil
BRAKE WIRE (+)
LT.GREEN
Brake switch
HORN TRIGGER (-)
DK.BLUE
Steering column
LEFT FRONT WINDOW UP
ORANGE/WHITE
At Driver Window Motor Inside Door
LEFT FRONT WINDOW DOWN
WHITE/BLACK
At Driver Window Motor Inside Door
RIGHT FRONT WINDOW UP
WHITE/YELLOW
Harness In Driver’s Kick From Driver Door
RIGHT FRONT WINDOW DOWN
TAN/BLUE
Harness In Driver’s Kick From Driver Door
Vehicles with all wheel anti-lock brakes do not have a third ignition wire
Some models are equipped with Ford’s PATS anti-theft system. This needs to be bypassed when installing a remote start system
Copyright 2002-2004 Triple S Customs
13
WIRING INFORMATION 2003 Ford F-Series Light Duty
WIRE
COLOR
LOCATION
12V CONSTANT WIRE
YELLOW and LT.GREEN/PURPLE
12V IGNITION WIRE
DK.BLUE/LT.GREEN
SECOND IGNITION WIRE
GRAY/YELLOW
THIRD IGNITION WIRE
LT.BLUE/PINK
12V ACCESSORY WIRE
RED/BLACK
SECOND ACCESSORY WIRE
BLACK/GREEN
STARTER WIRE
RED/LT.BLUE
Ignition harness
PARKING LIGHTS (+)
BROWN
At Headlight Switch Or Gray Connector
Under Dash On Driver’s Side Right Of
Steering Column
POWER DOOR LOCK
PINK/YELLOW
Harness In Passenger’s Kick Panel
Models with OEM keyless entry: negative trigger, models without OEM keyless entry: 5-wire reverse polarity- test using driver’s lock switch.
POWER DOOR UNLOCK
PINK GREEN
Harness In Passenger’s Kick Panel
Models with OEM keyless entry: negative trigger, models without OEM keyless entry: 5-wire reverse polarity- test using driver’s lock switch.
DRIVER DOOR TRIGGER (-)
BLACK/YELLOW
Harness In Driver’s Kick Panel
PASSENGER DOOR TRIGGER (-)
BLACK/PINK
Harness In Pass. Kick Panel
REAR DOORS TRIGGER (-)
BLACK/LT,BLUE
Harness In Driver’s Kick Panel
DOMELIGHT SUPERVISION (+)
BLACK/LT.BLUE
Harness In Driver’s Kick Panel
FACTORY ALARM ARM (-)
Arms with lock w/ door open
FACTORY ALARM DISARM (-)
DK.GREEN/PURPLE
Harness In Driver’s Kick Panel
TACHOMETER
4.2L models: DK.BLUE/LT.GREEN
4.6L models: PINK/WHITE
5.4L models: LT.GREEN/WHITE
At Ignition Coil
BRAKE WIRE (+)
LT.GREEN
Brake switch
HORN TRIGGER (-)
DK.BLUE
Steering column
LEFT FRONT WINDOW UP
ORANGE/WHITE
At Driver Window Motor Inside Door
LEFT FRONT WINDOW DOWN
WHITE/BLACK
At Driver Window Motor Inside Door
RIGHT FRONT WINDOW UP
WHITE/YELLOW
Harness In Driver’s Kick From Driver Door
RIGHT FRONT WINDOW DOWN
TAN/BLUE
Harness In Driver’s Kick From Driver Door
Vehicles with all wheel anti-lock brakes do not have a third ignition wire
Some models are equipped with Ford’s PATS anti-theft system. This needs to be bypassed when installing a remote start system
Copyright 2002-2004 Triple S Customs
14
WIRING INFORMATION 2004 Ford F-Series Light Duty
WIRE
COLOR
LOCATION
12V CONSTANT WIRE
LT.GREEN/PURPLE
12V IGNITION WIRE
DK.BLUE/LT.GREEN
12V ACCESSORY WIRE
BLACK/LT.GREEN
STARTER WIRE
RED/LT.BLUE
Ignition harness
PARKING LIGHTS (+)
BROWN
Behind Headlight Or In Blue Connector At
Body Control Module On Rear Cab Wall
POWER DOOR LOCK (-)
PINK/YELLOW
Harness In Driver’s Kick Panel Or In Green
Connector At Body Control Module On Rear
Cab Wall
POWER DOOR UNLOCK (-)
PINK GREEN
Harness In Driver’s Kick Panel Or In Green
Connector At Body Control Module On Rear
Cab Wall
DRIVER DOOR TRIGGER (-)
BLACK/YELLOW
In Green Connector At Body Control Module
On Rear Cab Wall
PASSENGER DOOR TRIGGER (-)
BLACK/PINK
In Green Connector At Body Control Module
On Rear Cab Wall
DRIVER REAR DOOR TRIGGER (-)
BLACK/LT.BLUE
In Green Connector At Body Control Module
On Rear Cab Wall
PASSENGER REAR DOOR TRIGGER (-)
BLACK/WHITE
In Green Connector At Body Control Module
On Rear Cab Wall
DOMELIGHT SUPERVISION (+)
BLACK/LT.BLUE
Harness In Driver’s Kick Panel
TACHOMETER
NOT RED/LT.GREEN or RED
At Ignition Coil
BRAKE WIRE (+)
LT.GREEN
Brake switch
HORN TRIGGER (-)
DK.BLUE
Steering column
LEFT FRONT WINDOW UP
TAN/LT.BLUE
At Driver Window Motor Inside Door
LEFT FRONT WINDOW DOWN
WHITE/BLACK
At Driver Window Motor Inside Door
RIGHT FRONT WINDOW UP
TAN/LT.BLUE
Harness In Driver’s Kick From Driver Door
RIGHT FRONT WINDOW DOWN
WHITE/YELLOW
Harness In Driver’s Kick From Driver Door
LEFT REAR WINDOW UP
YELLOW/LT.BLUE
Harness In Driver’s Kick From Driver Door
LEFT REAR WINDOW DOWN
GRAY/ORANGE
Harness In Driver’s Kick From Driver Door
RIGHT REAR WINDOW UP
RED/BLACK
Harness In Driver’s Kick From Driver Door
RIGHT REAR WINDOW DOWN
YELLOW/BLACK
Harness In Driver’s Kick From Driver Door
Some models are equipped with Ford’s PATS anti-theft system. This needs to be bypassed when installing a remote start system
Copyright 2002-2004 Triple S Customs
15
WIRING INFORMATION 1997 Ford F-Series Super Duty
WIRE
COLOR
LOCATION
12V CONSTANT WIRE
YELLOW
Ignition harness
12V IGNITION WIRE
RED/LT.GREEN
Ignition harness
STARTER WIRE
RED/LT.BLUE
Ignition harness
12V ACCESSORY WIRE
GRAY/YELLOW
Ignition harness
SECOND ACCESSORY WIRE
BLACK/GREEN
Ignition harness
THIRD ACCESSORY WIRE
GRAY/YELLOW (18-gauge)
Ignition harness
PARKING LIGHTS (+)
BROWN
At Headlight Switch
POWER DOOR LOCK
PINK/YELLOW
Harness In Passenger’s Kick Panel
Models with OEM keyless entry: negative trigger, models without OEM keyless entry: 5-wire reverse polarity- test using driver’s lock switch.
POWER DOOR UNLOCK
PINK GREEN
Harness In Passenger’s Kick Panel
Models with OEM keyless entry: negative trigger, models without OEM keyless entry: 5-wire reverse polarity- test using driver’s lock switch.
DOOR TRIGGER (+)
BLACK/BLUE
Harness In Driver’s Kick Panel
DOME LIGHT SUPERVISION (+)
Use Door Trigger Wire
FACTORY ALARM ARM
Arms with lock
FACTORY ALARM DISARM (-)
DK.GREEN/PURPLE
Harness In Driver’s Kick Panel
TACHOMETER WIRE
TAN/YELLOW
WHITE/PINK (Diesels)
At Ignition Coil
Behind Instrument Cluster
BRAKE WIRE (+)
LT.GREEN
Brake switch
HORN TRIGGER (-)
DK.BLUE
Steering column
DIESEL WAIT-TO-START (-)
BLACK/PINK
Behind Instrument Cluster
LEFT FRONT WINDOW UP
RED
At Driver Window Motor Inside Door
LEFT FRONT WINDOW DOWN
YELLOW
At Driver Window Motor Inside Door
RIGHT FRONT WINDOW UP
RED/BLACK
Harness In Driver’s Kick From Driver Door
RIGHT FRONT WINDOW DOWN
YELLOW/BLACK
Harness In Driver’s Kick From Driver Door
WIRING INFORMATION 1998 Ford F-Series Super Duty
WIRE
COLOR
LOCATION
12V CONSTANT WIRE
YELLOW
Ignition harness
12V IGNITION WIRE
RED/LT.GREEN
Ignition harness
STARTER WIRE
RED/LT.BLUE
Ignition harness
12V ACCESSORY WIRE
GRAY/YELLOW
Ignition harness
SECOND ACCESSORY WIRE
BLACK/GREEN
Ignition harness
THIRD ACCESSORY WIRE
GRAY/YELLOW (18-gauge)
Ignition harness
PARKING LIGHTS (+)
BROWN
At Headlight Switch
POWER DOOR LOCK
PINK/YELLOW
Harness In Passenger’s Kick Panel
Models with OEM keyless entry: negative trigger, models without OEM keyless entry: 5-wire reverse polarity- test using driver’s lock switch.
POWER DOOR UNLOCK
PINK GREEN
Harness In Passenger’s Kick Panel
Models with OEM keyless entry: negative trigger, models without OEM keyless entry: 5-wire reverse polarity- test using driver’s lock switch.
DOOR TRIGGER (+)
BLACK/BLUE
Harness In Driver’s Kick Panel
DOME LIGHT SUPERVISION (+)
Use Door Trigger Wire
FACTORY ALARM ARM
Arms with lock
FACTORY ALARM DISARM (-)
DK.GREEN/PURPLE
Harness In Driver’s Kick Panel
TACHOMETER WIRE
TAN/YELLOW
WHITE/PINK (Diesels)
At Ignition Coil
Behind Instrument Cluster
BRAKE WIRE (+)
LT.GREEN
Brake switch
HORN TRIGGER (-)
DK.BLUE
Steering column
DIESEL WAIT-TO-START (-)
BLACK/PINK
Behind Instrument Cluster
LEFT FRONT WINDOW UP
RED
At Driver Window Motor Inside Door
LEFT FRONT WINDOW DOWN
YELLOW
At Driver Window Motor Inside Door
RIGHT FRONT WINDOW UP
RED/BLACK
Harness In Driver’s Kick From Driver Door
RIGHT FRONT WINDOW DOWN
YELLOW/BLACK
Harness In Driver’s Kick From Driver Door
Copyright 2002-2004 Triple S Customs
16
WIRING INFORMATION 1999 Ford F-Series Super Duty
WIRE
COLOR
LOCATION
12V CONSTANT WIRE
YELLOW
Ignition harness
12V IGNITION WIRE
RED/BLACK (Thicker)
Ignition harness
STARTER WIRE
RED/LT.BLUE
Ignition harness
12V ACCESSORY WIRE
BLACK/GREEN
Ignition harness
SECOND ACCESSORY WIRE
GRAY/YELLOW
Ignition harness
PARKING LIGHTS (+)
BROWN
At Headlight Switch
POWER DOOR LOCK (Models with OEM
keyless entry: negative trigger, models without
OEM keyless entry: 5-wire reverse polarity-
test using driver’s lock switch)
PINK/YELLOW
Models With OEM Keyless: Harness To The
Right Of Steering Column
Models Without OEM Keyless:
Harness Coming Into Vehicle From Driver’s
Door.
POWER DOOR UNLOCK (Models with OEM
keyless entry: negative trigger, models without
OEM keyless entry: 5-wire reverse polarity test
using driver’s lock switch)
PINK GREEN
Harness In Passenger Kick Panel
DOOR TRIGGER (+)
BLACK/BLUE
Harness Right Of Column
DOME LIGHT SUPERVISION (+)
Use Door Trigger Wire
TACHOMETER WIRE
WHITE/PINK
Behind Instrument Cluster
BRAKE WIRE (+)
LT.GREEN
Brake switch
HORN TRIGGER (-)
DK.BLUE
Steering column
DIESEL WAIT-TO-START (-)
BLACK/PINK
Behind Instrument Cluster
LEFT FRONT WINDOW UP
WHITE/BLACK
At Driver Window Motor Inside Door
LEFT FRONT WINDOW DOWN
TAN/BLUE
At Driver Window Motor Inside Door
RIGHT FRONT WINDOW UP
TAN/BLUE
Harness In Driver’s Kick From Driver Door
RIGHT FRONT WINDOW DOWN
WHITE/YELLOW
Harness In Driver’s Kick From Driver Door
LEFT REAR WINDOW UP
YELLOW/BLUE
Harness In Driver’s Kick From Driver Door
LEFT REAR WINDOW DOWN
GRAY/ORANGE
Harness In Driver’s Kick From Driver Door
RIGHT REAR WINDOW UP
YELLOW/BLACK
Harness In Driver’s Kick From Driver Door
RIGHT REAR WINDOW DOWN
RED/BLACK
Harness In Driver’s Kick From Driver Door
WIRING INFORMATION 2000 Ford F-Series Super Duty
WIRE
COLOR
LOCATION
12V CONSTANT WIRE
YELLOW
Ignition harness
12V IGNITION WIRE
RED/BLACK (Thicker)
Ignition harness
STARTER WIRE
RED/LT.BLUE
Ignition harness
12V ACCESSORY WIRE
BLACK/GREEN
Ignition harness
SECOND ACCESSORY WIRE
GRAY/YELLOW
Ignition harness
PARKING LIGHTS (+)
BROWN
At Headlight Switch
POWER DOOR LOCK (Models with OEM
keyless entry: negative trigger, models without
OEM keyless entry: 5-wire reverse polarity-
test using driver’s lock switch)
PINK/YELLOW
Models With OEM Keyless: Harness To The
Right Of Steering Column
Models Without OEM Keyless:
Harness Coming Into Vehicle From Driver’s
Door.
POWER DOOR UNLOCK (Models with OEM
keyless entry: negative trigger, models without
OEM keyless entry: 5-wire reverse polarity test
using driver’s lock switch)
PINK GREEN
Harness In Passenger Kick Panel
DOOR TRIGGER (+)
BLACK/BLUE
Harness Right Of Column
DOME LIGHT SUPERVISION (+)
Use Door Trigger Wire
TACHOMETER WIRE
WHITE/PINK
Behind Instrument Cluster
BRAKE WIRE (+)
LT.GREEN
Brake switch
HORN TRIGGER (-)
DK.BLUE
Steering column
DIESEL WAIT-TO-START (-)
BLACK/PINK
Behind Instrument Cluster
LEFT FRONT WINDOW UP
WHITE/BLACK
At Driver Window Motor Inside Door
LEFT FRONT WINDOW DOWN
TAN/BLUE
At Driver Window Motor Inside Door
RIGHT FRONT WINDOW UP
TAN/BLUE
Harness In Driver’s Kick From Driver Door
RIGHT FRONT WINDOW DOWN
WHITE/YELLOW
Harness In Driver’s Kick From Driver Door
LEFT REAR WINDOW UP
YELLOW/BLUE
Harness In Driver’s Kick From Driver Door
LEFT REAR WINDOW DOWN
GRAY/ORANGE
Harness In Driver’s Kick From Driver Door
RIGHT REAR WINDOW UP
YELLOW/BLACK
Harness In Driver’s Kick From Driver Door
RIGHT REAR WINDOW DOWN
RED/BLACK
Harness In Driver’s Kick From Driver Door
Copyright 2002-2004 Triple S Customs
17
WIRING INFORMATION 2001 Ford F-Series Super Duty
WIRE
COLOR
LOCATION
12V CONSTANT WIRE
YELLOW
Ignition harness
12V IGNITION WIRE
RED/BLACK (Thicker)
Ignition harness
STARTER WIRE
RED/LT.BLUE
Ignition harness
12V ACCESSORY WIRE
BLACK/GREEN
Ignition harness
SECOND ACCESSORY WIRE
GRAY/YELLOW
Ignition harness
PARKING LIGHTS (+)
BROWN
At Headlight Switch
POWER DOOR LOCK (Models with OEM
keyless entry: negative trigger, models without
OEM keyless entry: 5-wire reverse polarity-
test using driver’s lock switch)
PINK/YELLOW
Models With OEM Keyless: Harness To The
Right Of Steering Column
Models Without OEM Keyless:
Harness Coming Into Vehicle From Driver’s
Door.
POWER DOOR UNLOCK (Models with OEM
keyless entry: negative trigger, models without
OEM keyless entry: 5-wire reverse polarity test
using driver’s lock switch)
PINK GREEN
Harness In Passenger Kick Panel
DOOR TRIGGER (+)
BLACK/BLUE
Harness Right Of Column
DOME LIGHT SUPERVISION (+)
Use Door Trigger Wire
TACHOMETER WIRE
WHITE/PINK
Behind Instrument Cluster
BRAKE WIRE (+)
LT.GREEN
Brake switch
HORN TRIGGER (-)
DK.BLUE
Steering column
DIESEL WAIT-TO-START (-)
BLACK/PINK
Behind Instrument Cluster
LEFT FRONT WINDOW UP
WHITE/BLACK
At Driver Window Motor Inside Door
LEFT FRONT WINDOW DOWN
TAN/BLUE
At Driver Window Motor Inside Door
RIGHT FRONT WINDOW UP
TAN/BLUE
Harness In Driver’s Kick From Driver Door
RIGHT FRONT WINDOW DOWN
WHITE/YELLOW
Harness In Driver’s Kick From Driver Door
LEFT REAR WINDOW UP
YELLOW/BLUE
Harness In Driver’s Kick From Driver Door
LEFT REAR WINDOW DOWN
GRAY/ORANGE
Harness In Driver’s Kick From Driver Door
RIGHT REAR WINDOW UP
YELLOW/BLACK
Harness In Driver’s Kick From Driver Door
RIGHT REAR WINDOW DOWN
RED/BLACK
Harness In Driver’s Kick From Driver Door
Some models are equipped with Ford’s PATS anti-theft system. This needs to be bypassed when installing a remote start system
WIRING INFORMATION 2002 Ford F-Series Super Duty
WIRE
COLOR
LOCATION
12V CONSTANT WIRE
YELLOW & LT.GREEN/PURPLE
Ignition harness
12V IGNITION WIRE
RED/LT.GREEN
Ignition harness
STARTER WIRE
GREEN
Ignition harness
12V ACCESSORY WIRE
GRAY/YELLOW
Ignition harness
SECOND ACCESSORY WIRE
RED/BLACK
Ignition harness
THIRD ACCESSORY WIRE
BLUE/LT.GREEN
Ignition Harness
PARKING LIGHTS (+)
BROWN
At Headlight Switch
POWER DOOR LOCK (Models with OEM
keyless entry: negative trigger, models without
OEM keyless entry: 5-wire reverse polarity-
test using driver’s lock switch)
PINK/YELLOW (models without factory
keyless entry)
WHITE/RED (models with factory keyless
entry)
Models With OEM Keyless: Module Below
Radio
Models Without OEM Keyless:
Harness In Driver’s Kick Panel
POWER DOOR UNLOCK (Models with OEM
keyless entry: negative trigger, models without
OEM keyless entry: 5-wire reverse polarity test
using driver’s lock switch)
PINK/GREEN (models without factory keyless
entry)
BLACK/WHITE (models with factory keyless
entry)
Models With OEM Keyless: Module Below
Radio
Models Without OEM Keyless:
Harness In Driver’s Kick Panel
DOOR TRIGGER (+)
BLACK/BLUE
Harness Right Of Column
DOME LIGHT SUPERVISION (+)
Use Door Trigger Wire
TACHOMETER WIRE
Non-diesel vehicles: Use any wire that is
NOT RED/LT.GREEN
Diesel vehicles: GREEN or WHITE
Non-diesel vehicles: At Any Ignition Coil
Diesel vehicles: At Large Connector Under
Air Intake Duct
BRAKE WIRE (+)
LT.GREEN
Brake switch
HORN TRIGGER (-)
DK.BLUE
Steering column
DIESEL WAIT-TO-START
Must use pulse timer relay
See Page
LEFT FRONT WINDOW UP
WHITE/BLACK
At Driver Window Motor Inside Door
LEFT FRONT WINDOW DOWN
TAN/BLUE
At Driver Window Motor Inside Door
RIGHT FRONT WINDOW UP
WHITE/YELLOW
Harness In Driver’s Kick From Driver Door
RIGHT FRONT WINDOW DOWN
TAN/BLUE
Harness In Driver’s Kick From Driver Door
LEFT REAR WINDOW UP
GRAY/ORANGE
Harness In Driver’s Kick From Driver Door
LEFT REAR WINDOW DOWN
YELLOW/BLUE
Harness In Driver’s Kick From Driver Door
RIGHT REAR WINDOW UP
YELLOW/BLACK
Harness In Driver’s Kick From Driver Door
RIGHT REAR WINDOW DOWN
RED/BLACK
Harness In Driver’s Kick From Driver Door
Some models are equipped with Ford’s PATS anti-theft system. This needs to be bypassed when installing a remote start system
Copyright 2002-2004 Triple S Customs
18
WIRING INFORMATION 2003 Ford F-Series Super Duty
WIRE
COLOR
LOCATION
12V CONSTANT WIRE
YELLOW & LT.GREEN/PURPLE
Ignition harness
12V IGNITION WIRE
RED/LT.GREEN
Ignition harness
STARTER WIRE
GREEN
Ignition harness
12V ACCESSORY WIRE
GRAY/YELLOW
Ignition harness
SECOND ACCESSORY WIRE
RED/BLACK
Ignition harness
THIRD ACCESSORY WIRE
BLUE/LT.GREEN
Ignition Harness
PARKING LIGHTS (+)
BROWN
At Headlight Switch
POWER DOOR LOCK (Models with OEM
keyless entry: negative trigger, models without
OEM keyless entry: 5-wire reverse polarity-
test using driver’s lock switch)
PINK/YELLOW (models without factory
keyless entry)
WHITE/RED (models with factory keyless
entry)
Models With OEM Keyless: Module Below
Radio
Models Without OEM Keyless:
Harness In Driver’s Kick Panel
POWER DOOR UNLOCK (Models with OEM
keyless entry: negative trigger, models without
OEM keyless entry: 5-wire reverse polarity test
using driver’s lock switch)
PINK/GREEN (models without factory keyless
entry)
BLACK/WHITE (models with factory keyless
entry)
Models With OEM Keyless: Module Below
Radio
Models Without OEM Keyless:
Harness In Driver’s Kick Panel
DOOR TRIGGER (+)
BLACK/BLUE
Harness Right Of Column
DOME LIGHT SUPERVISION (+)
Use Door Trigger Wire
TACHOMETER WIRE
Non-diesel vehicles: Use any wire that is
NOT RED/LT.GREEN
Diesel vehicles: GREEN or WHITE
Non-diesel vehicles: At Any Ignition Coil
Diesel vehicles: At Large Connector Under
Air Intake Duct
BRAKE WIRE (+)
LT.GREEN
Brake switch
HORN TRIGGER (-)
DK.BLUE
Steering column
DIESEL WAIT-TO-START
Must use pulse timer relay
See Page
LEFT FRONT WINDOW UP
WHITE/BLACK
At Driver Window Motor Inside Door
LEFT FRONT WINDOW DOWN
TAN/BLUE
At Driver Window Motor Inside Door
RIGHT FRONT WINDOW UP
WHITE/YELLOW
Harness In Driver’s Kick From Driver Door
RIGHT FRONT WINDOW DOWN
TAN/BLUE
Harness In Driver’s Kick From Driver Door
LEFT REAR WINDOW UP
GRAY/ORANGE
Harness In Driver’s Kick From Driver Door
LEFT REAR WINDOW DOWN
YELLOW/BLUE
Harness In Driver’s Kick From Driver Door
RIGHT REAR WINDOW UP
YELLOW/BLACK
Harness In Driver’s Kick From Driver Door
RIGHT REAR WINDOW DOWN
RED/BLACK
Harness In Driver’s Kick From Driver Door
Some models are equipped with Ford’s PATS anti-theft system. This needs to be bypassed when installing a remote start system
Copyright 2002-2004 Triple S Customs
19
WIRING INFORMATION 2004 Ford F-Series Super Duty
WIRE
COLOR
LOCATION
12V CONSTANT WIRE
LT.GREEN/PURPLE and YELLOW
12V IGNITION WIRE
RED/LT.GREEN or WHITE/YELLOW
12V ACCESSORY WIRE
GRAY/YELLOW
SECOND ACCESSORY WIRE
RED/BLACK
THIRD ACCESSORY WIRE
BLUE/LT.GREEN
STARTER WIRE
GREEN
Ignition harness
PARKING LIGHTS (+)
BROWN
Behind Headlight Switch
IF VEHICLE IS EQUIPPED WITH FACTORY KEYLESS ENTRY
POWER DOOR LOCK (-)
WHITE/RED
At Vehicle Security Module Above
Transmission Hump
POWER DOOR UNLOCK (-)
BLACK/WHITE
At Vehicle Security Module Above
Transmission Hump
On vehicles equipped with factory keyless entry, the GEM shuts down a few minutes after the doors have been locked.
IF VEHICLE IS NOT EQUIPPED WITH FACTORY KEYLESS ENTRY
POWER DOOR LOCK (5-wire)
PINK/YELLOW
Harness In Driver’s Kick Panel
POWER DOOR UNLOCK (5-wire)
PINK/LT.GREEN
Harness In Driver’s Kick Panel
Door locks are mastered from the driver’s switch
DOOR TRIGGER (+)
BLACK/LT.BLUE
Harness In Driver’s Kick Panel
TACHOMETER GREEN/WHITE In
Harness Behind Parking Brake Release
WAIT-TO-START
Controlled by a databus, do not interface directly!
BRAKE WIRE (+)
LT.GREEN
Brake switch
HORN TRIGGER (-)
BLUE
Steering column
LEFT FRONT WINDOW UP
TAN/LT.BLUE
At Driver Window Motor Inside Door
LEFT FRONT WINDOW DOWN
WHITE/BLACK
At Driver Window Motor Inside Door
RIGHT FRONT WINDOW UP
TAN/LT.BLUE
Harness In Driver’s Kick From Driver Door
RIGHT FRONT WINDOW DOWN
WHITE/YELLOW
Harness In Driver’s Kick From Driver Door
LEFT REAR WINDOW UP
YELLOW/LT.BLUE
Harness In Driver’s Kick From Driver Door
LEFT REAR WINDOW DOWN
GRAY/ORANGE
Harness In Driver’s Kick From Driver Door
RIGHT REAR WINDOW UP
RED/BLACK
Harness In Driver’s Kick From Driver Door
RIGHT REAR WINDOW DOWN
YELLOW/BLACK
Harness In Driver’s Kick From Driver Door
Some models are equipped with Ford’s PATS anti-theft system. This needs to be bypassed when installing a remote start system
Wyszukiwarka
Podobne podstrony:
FORD MUSTANG 1988 2004
JEEP WRANGLER 1988 2004
FORD FOCUS 2000 2004
Ford Focus 1 6 TDCi (2004 2011)WYMIANA OLEJU KROK PO KROKU
FORD BRONCO 1988
FORD EXCURSION 2000 2004
Ford Mustang GT 2004
FORD RANGER 1993 2004
FORD ESCAPE 2001 2004
FORD AEROSTAR 1988 1997
FORD FESTIVA 1988
FORD F PICKUP 1988
FORD ESCORT 1988
FORD TAURUS 1990 2004
FORD AEROSTAR 1988
FORD EXPLORER 1991 2004
GMC SIERRA 1988 2004
MAZDA B SERIES PICKUP 1994 2004
więcej podobnych podstron
