AST TECHNICAL NOTE

CODE:

SC-033-EN

REV:

0

DATE:

15/02/2010

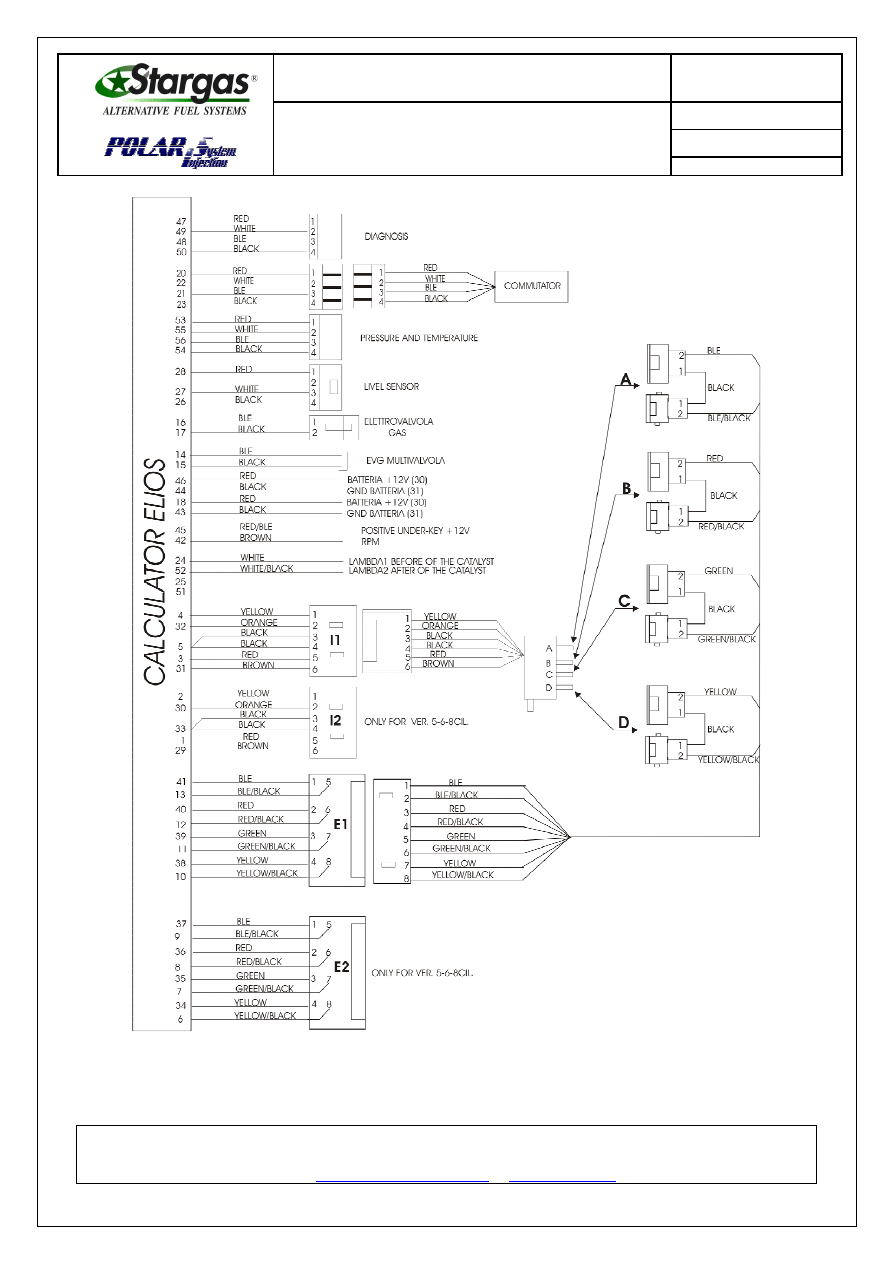

“ELIOS” ECU,

CONNECTOR WIRING DIAGRAM.

PAGE:

1

OF

1

The contents of this document could be object of future upgrade.
Before use, check that this document is the last issued revision.

COPYRIGHT STARGAS Srl – ALL RIGHTS RESERVED

STARGAS Srl – Strada Provinciale Pianura – Loc. “S. Martino” , 10 – 80078 Pozzuoli (NA) – Italy.

Tel.Uff. +39 081 52.67.978 Fax Uff. +39 081 52.64.771 Tel. Ass.+39 081 52.65.220

e-mail:

[e-mail]

–

www.stargassrl.com

SC-033-EN_R0_CONNECTOR-WIRING-DIAGRAM.doc

MOD 19-05EN Nota Tecnica AST REV. 0 -

2008/10/29
