MAZDA 323 1992(1)

SYSTEM WIRING DIAGRAMS

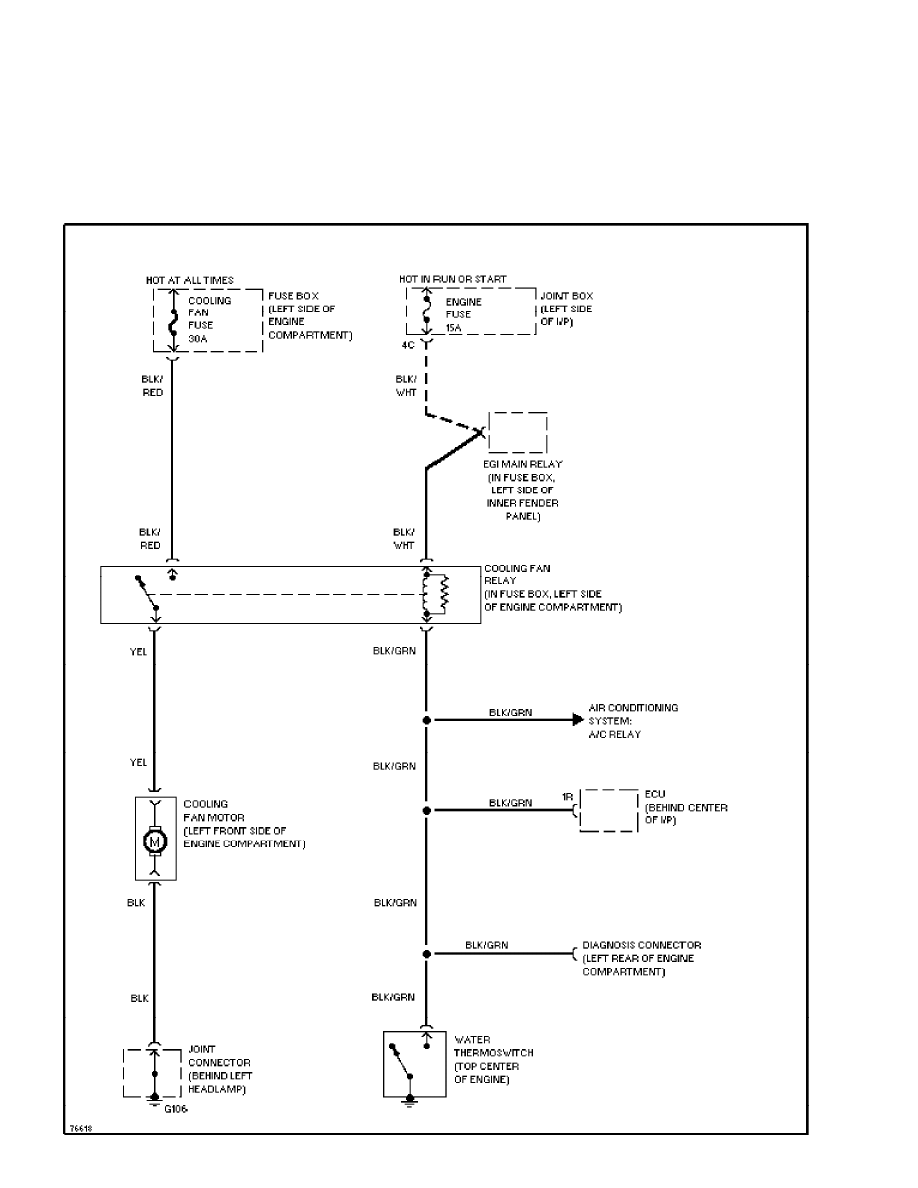

Cooling Fan Circuit (2 of 1)

1992 Mazda 323

For x

Wednesday, October 27, 2004 08:03AM

SYSTEM WIRING DIAGRAMS

Defogger Circuit (p. 2)

1992 Mazda 323

For x

Wednesday, October 27, 2004 08:03AM

SYSTEM WIRING DIAGRAMS

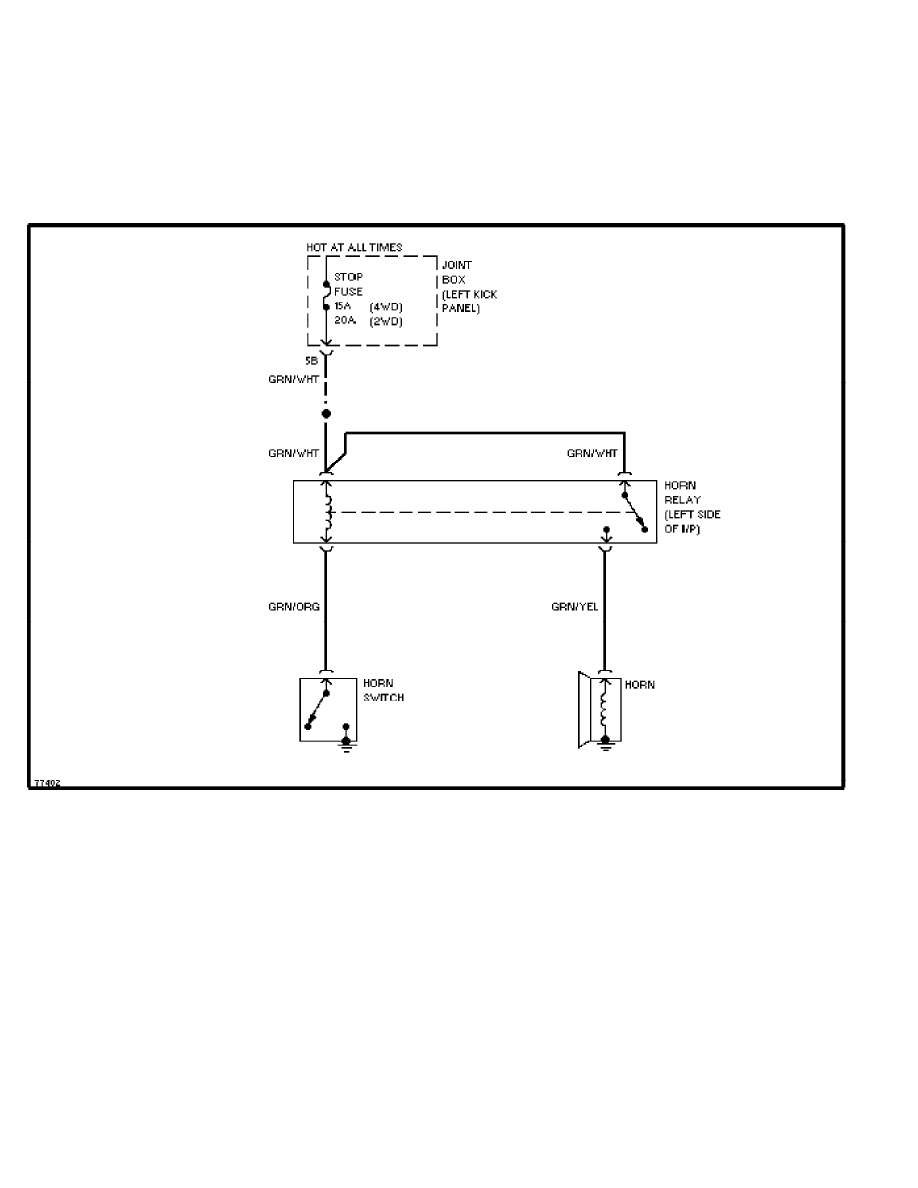

Horn Circuit (p. 3)

1992 Mazda 323

For x

Wednesday, October 27, 2004 08:03AM

SYSTEM WIRING DIAGRAMS

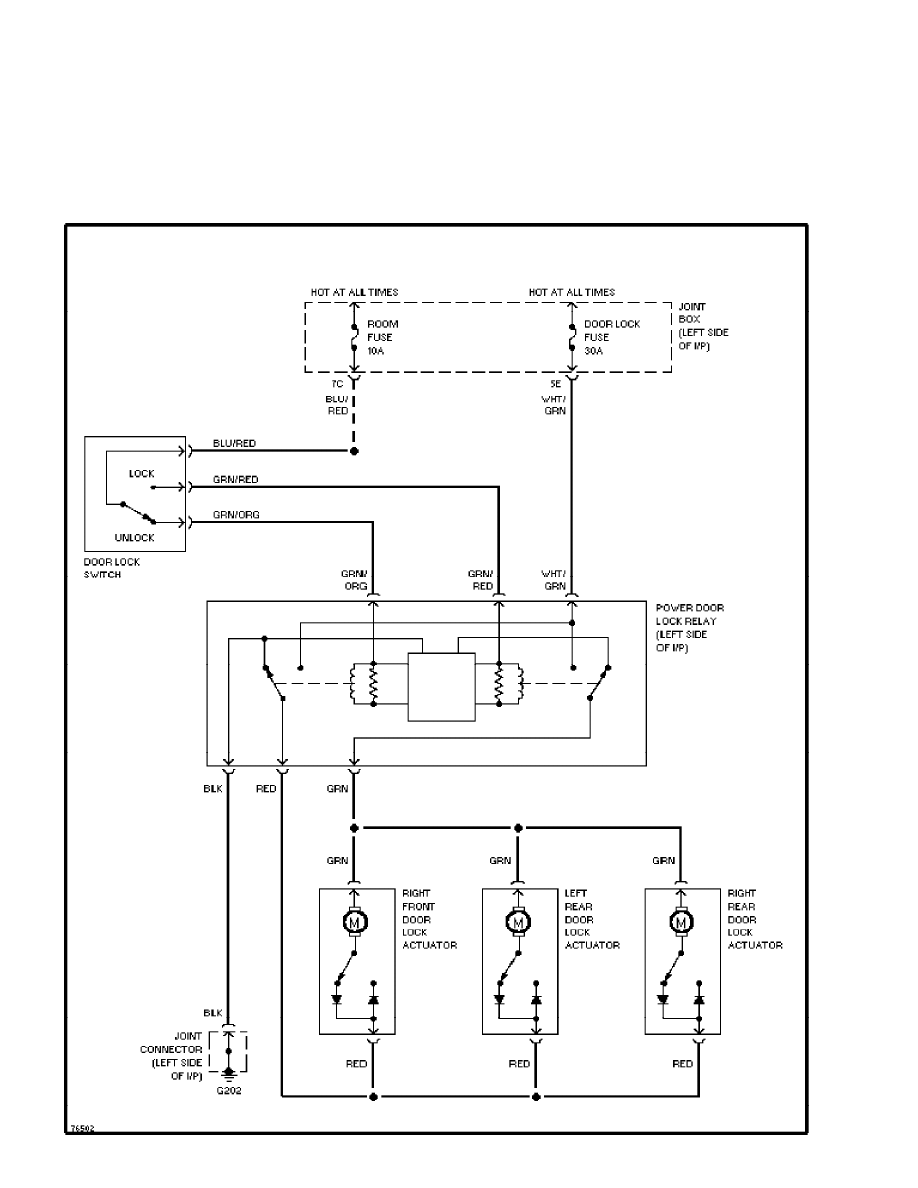

Power Door Lock Circuit (p. 4)

1992 Mazda 323

For x

Wednesday, October 27, 2004 08:03AM

SYSTEM WIRING DIAGRAMS

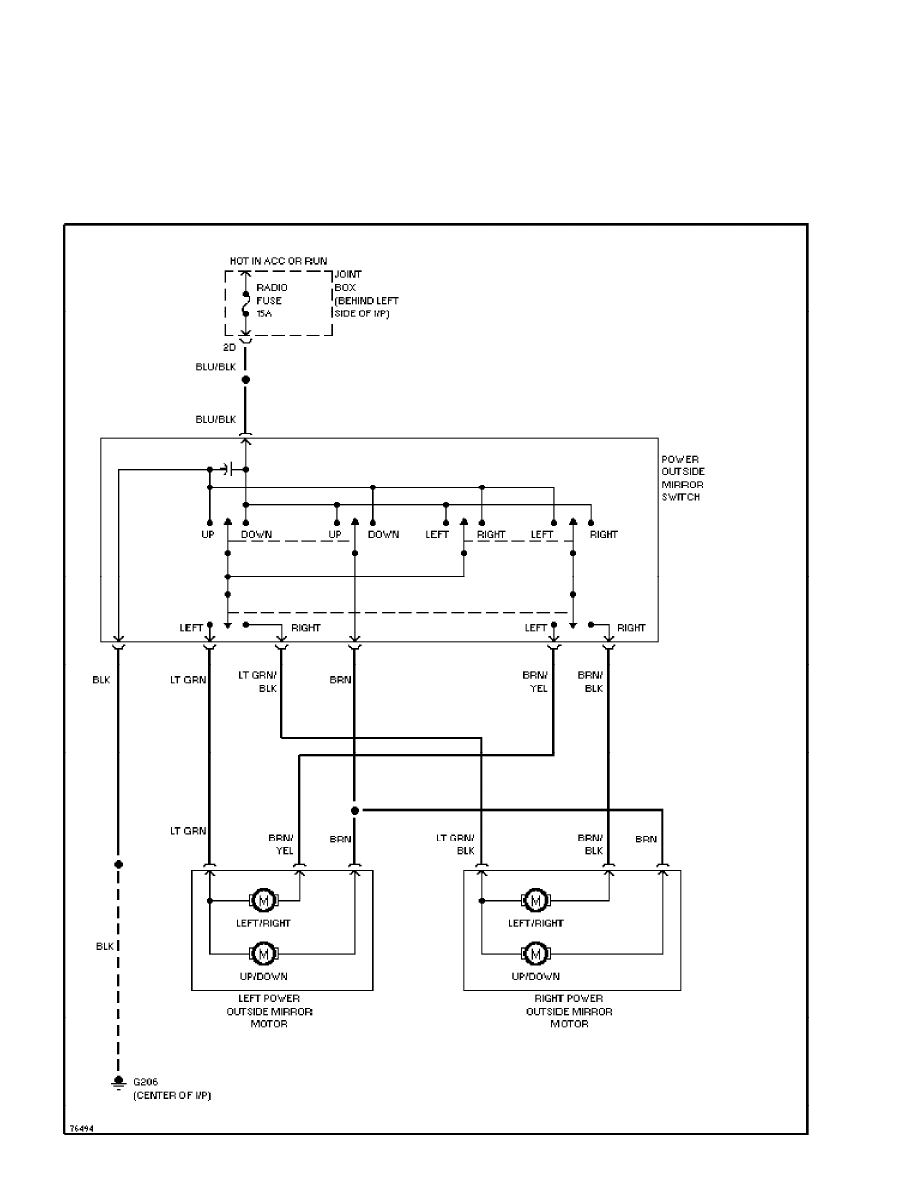

Power Mirror Circuit (p. 5)

1992 Mazda 323

For x

Wednesday, October 27, 2004 08:03AM

SYSTEM WIRING DIAGRAMS

Power Window Circuit (p. 6)

1992 Mazda 323

For x

Wednesday, October 27, 2004 08:03AM

SYSTEM WIRING DIAGRAMS

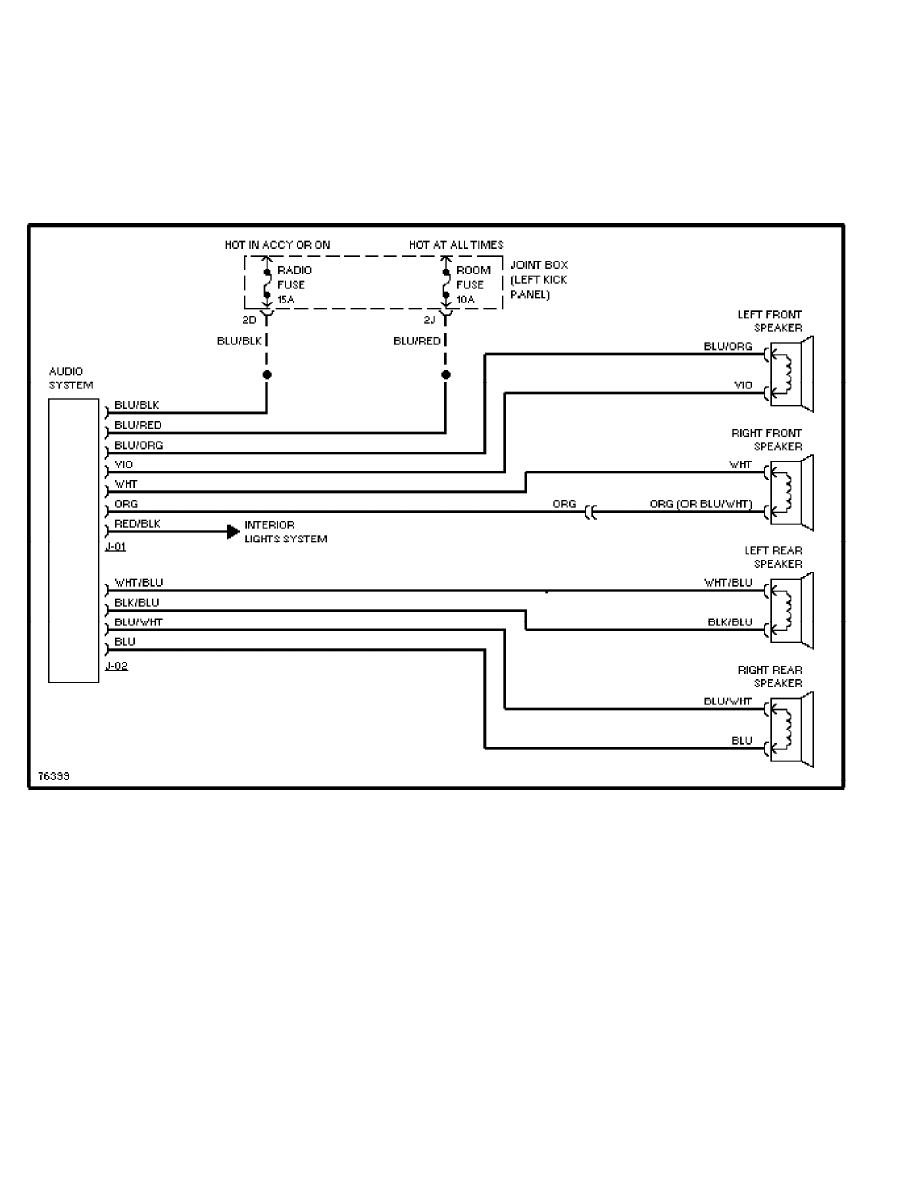

Radio Circuits (p. 7)

1992 Mazda 323

For x

Wednesday, October 27, 2004 08:03AM

SYSTEM WIRING DIAGRAMS

Charging Circuit (p. 8)

1992 Mazda 323

For x

Wednesday, October 27, 2004 08:03AM

SYSTEM WIRING DIAGRAMS

Starting Circuit, A/T (p. 9)

1992 Mazda 323

For x

Wednesday, October 27, 2004 08:03AM

SYSTEM WIRING DIAGRAMS

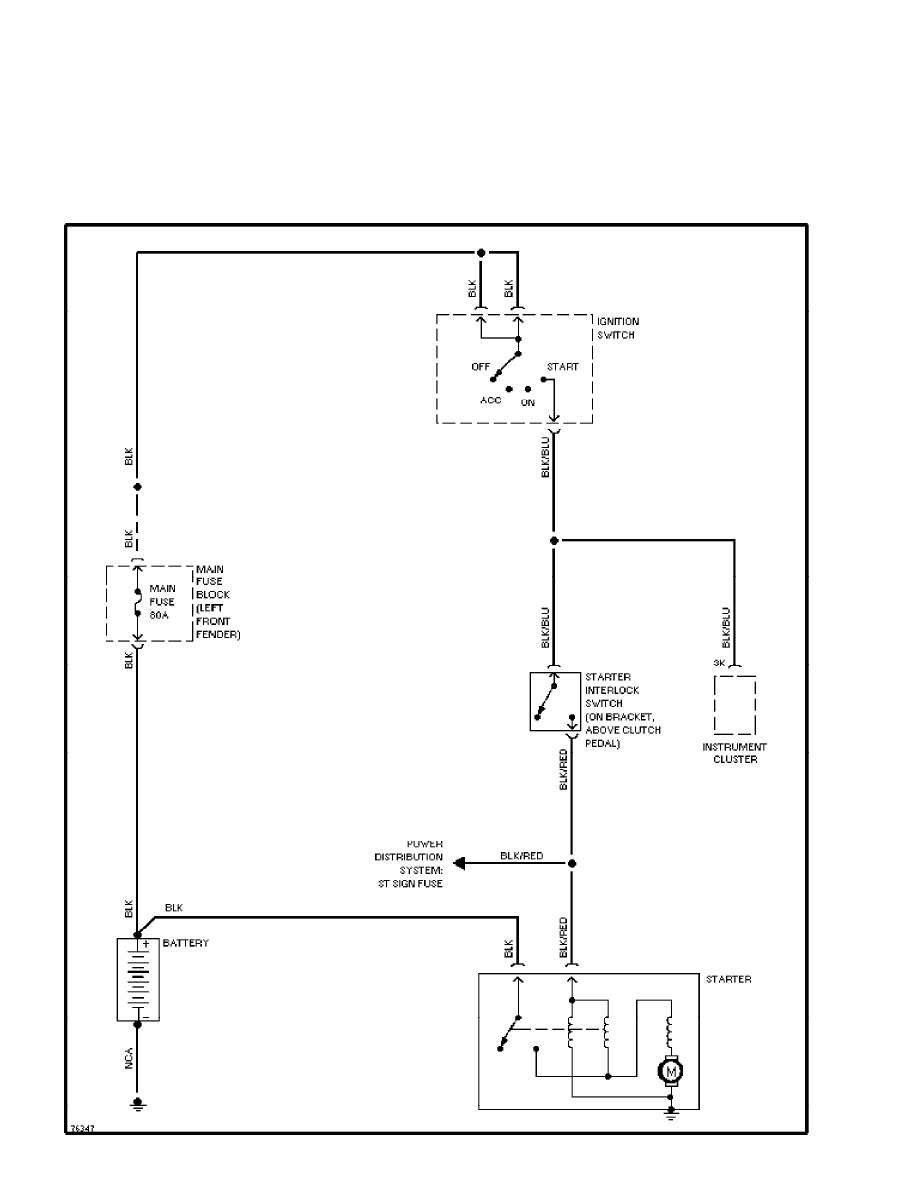

Starting Circuit, M/T (p. 10)

1992 Mazda 323

For x

Wednesday, October 27, 2004 08:03AM

SYSTEM WIRING DIAGRAMS

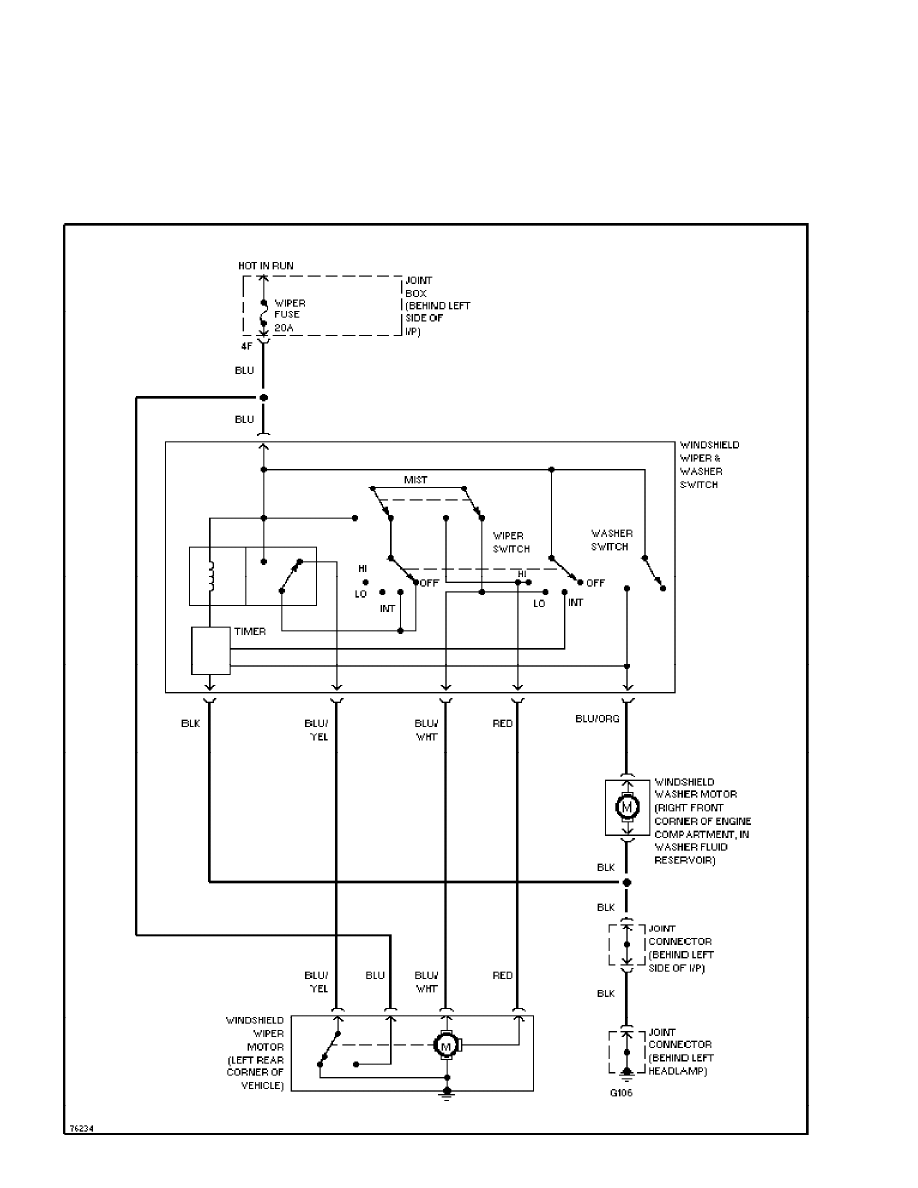

Front Washer/Wiper Circuit (p. 11)

1992 Mazda 323

For x

Wednesday, October 27, 2004 08:03AM

SYSTEM WIRING DIAGRAMS

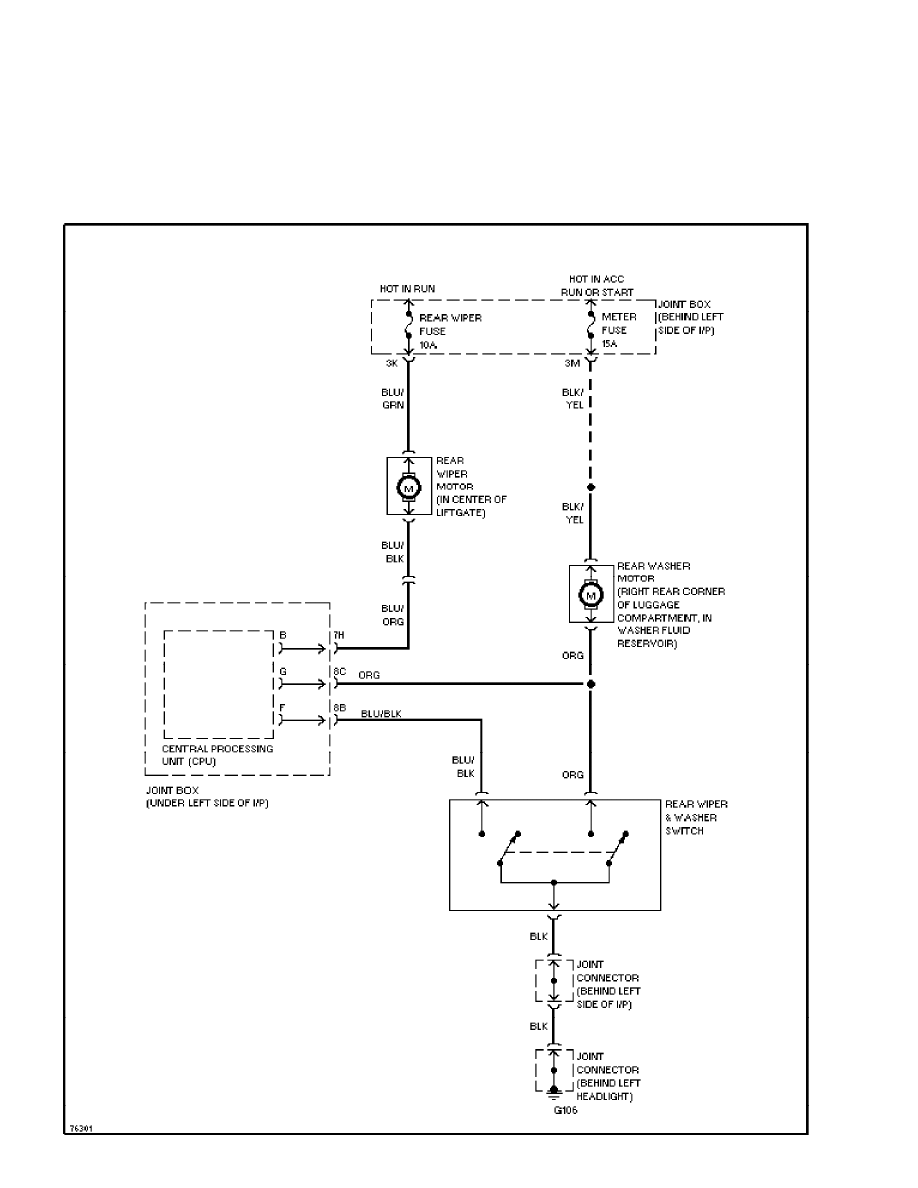

Rear Washer/Wiper Circuit (p. 12)

1992 Mazda 323

For x

Wednesday, October 27, 2004 08:03AM

WIRING DIAGRAMS

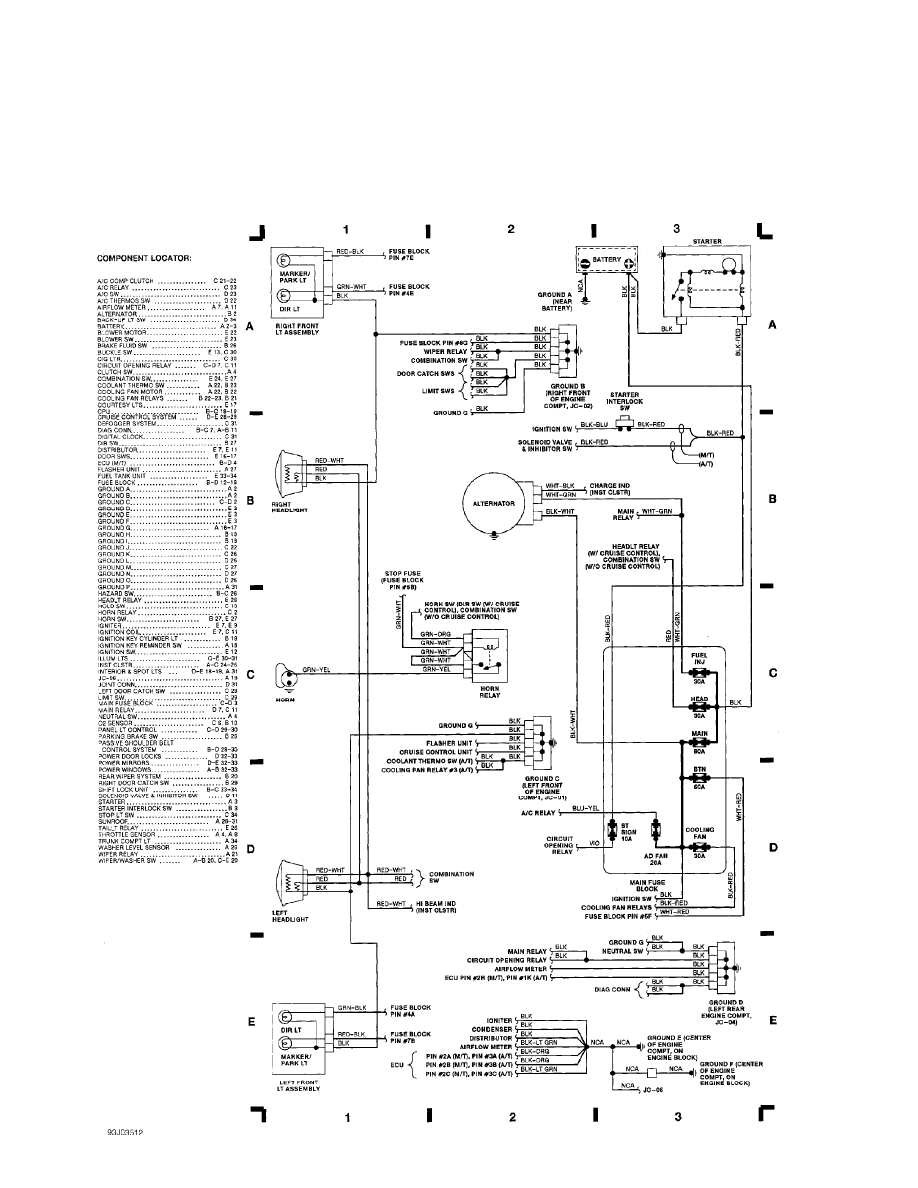

Fig. 1: Engine Compartment, Headlights (Grid 1-3)

1992 Mazda 323

For x

Wednesday, October 27, 2004 08:03AM

WIRING DIAGRAMS

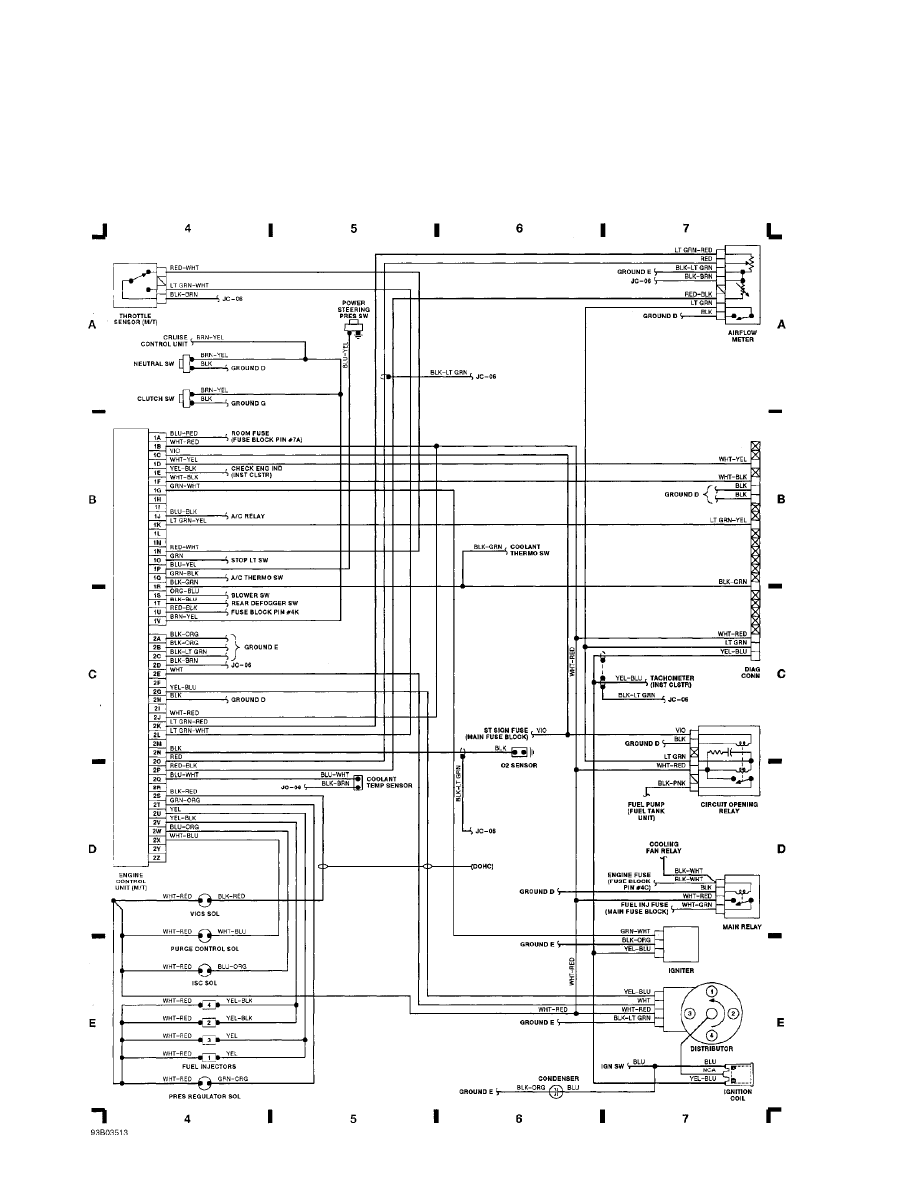

Fig. 2: Engine Control Unit (M/T), Airflow Meter (Grid 4-7) (p. 2)

1992 Mazda 323

For x

Wednesday, October 27, 2004 08:03AM

WIRING DIAGRAMS

Fig. 3: Engine Control Unit (A/T), Distributor (Grid 8-11) (p. 3)

1992 Mazda 323

For x

Wednesday, October 27, 2004 08:03AM

WIRING DIAGRAMS

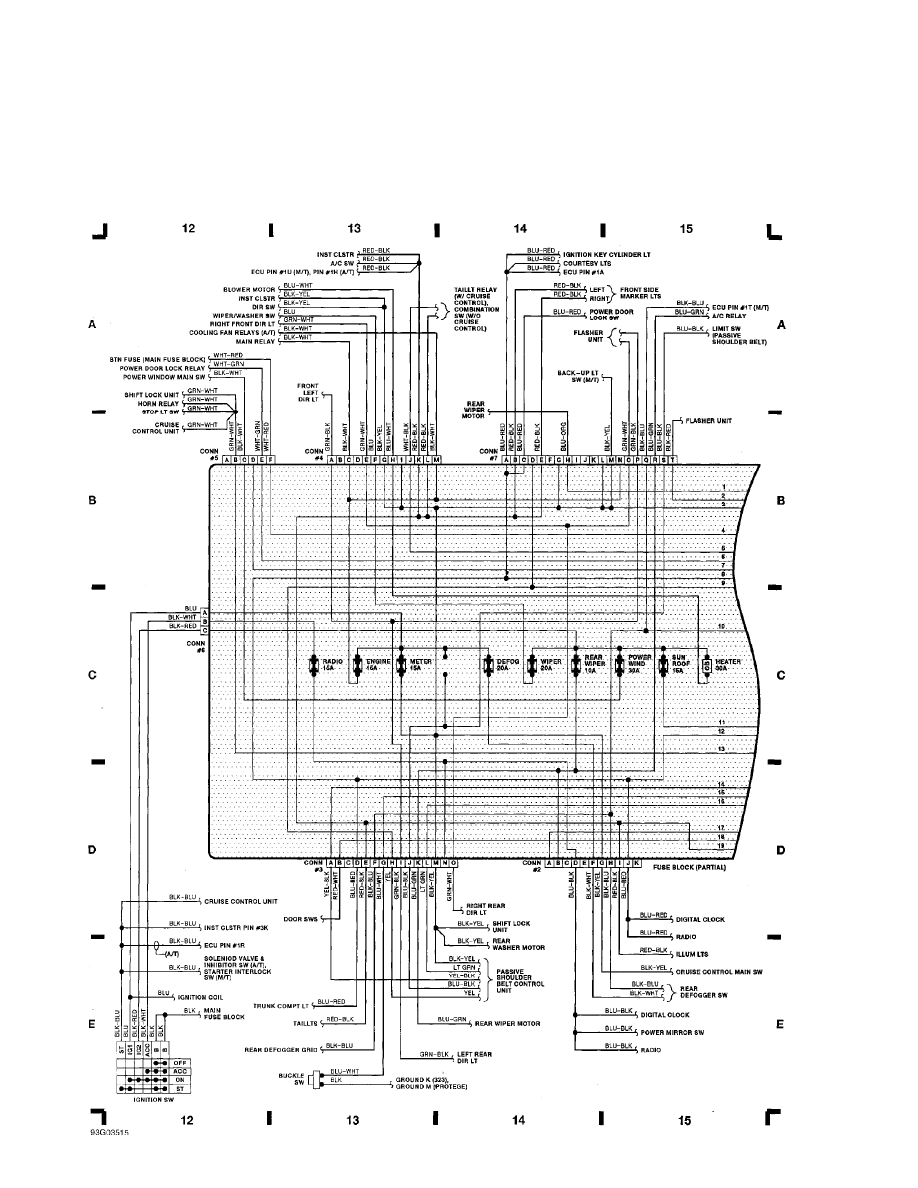

Fig. 4: Fuse Block (Panel), Ignition Switch (Grid 12-15) (p. 4)

1992 Mazda 323

For x

Wednesday, October 27, 2004 08:03AM

WIRING DIAGRAMS

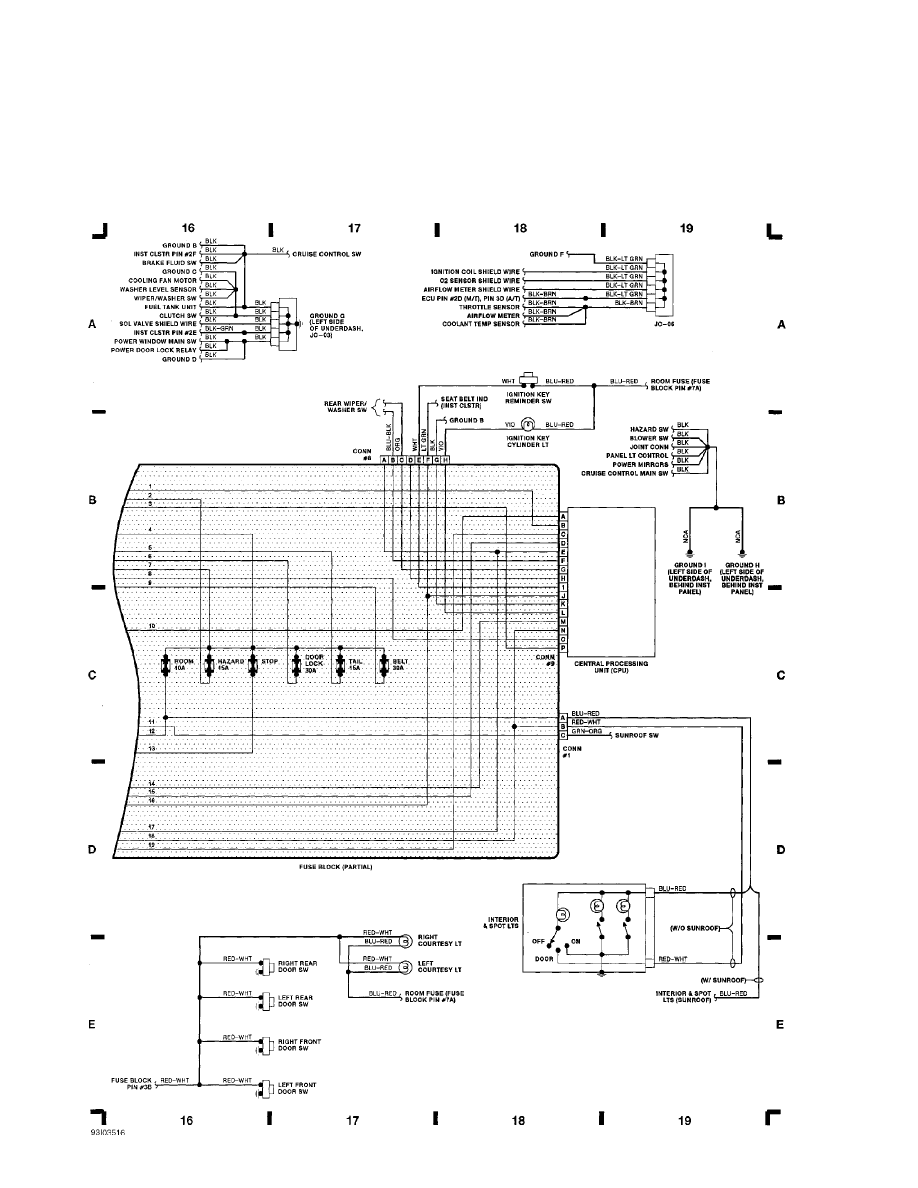

Fig. 5: Fuse Block (Panel), Central Processing Unit (Grid 16-19) (p. 5)

1992 Mazda 323

For x

Wednesday, October 27, 2004 08:03AM

WIRING DIAGRAMS

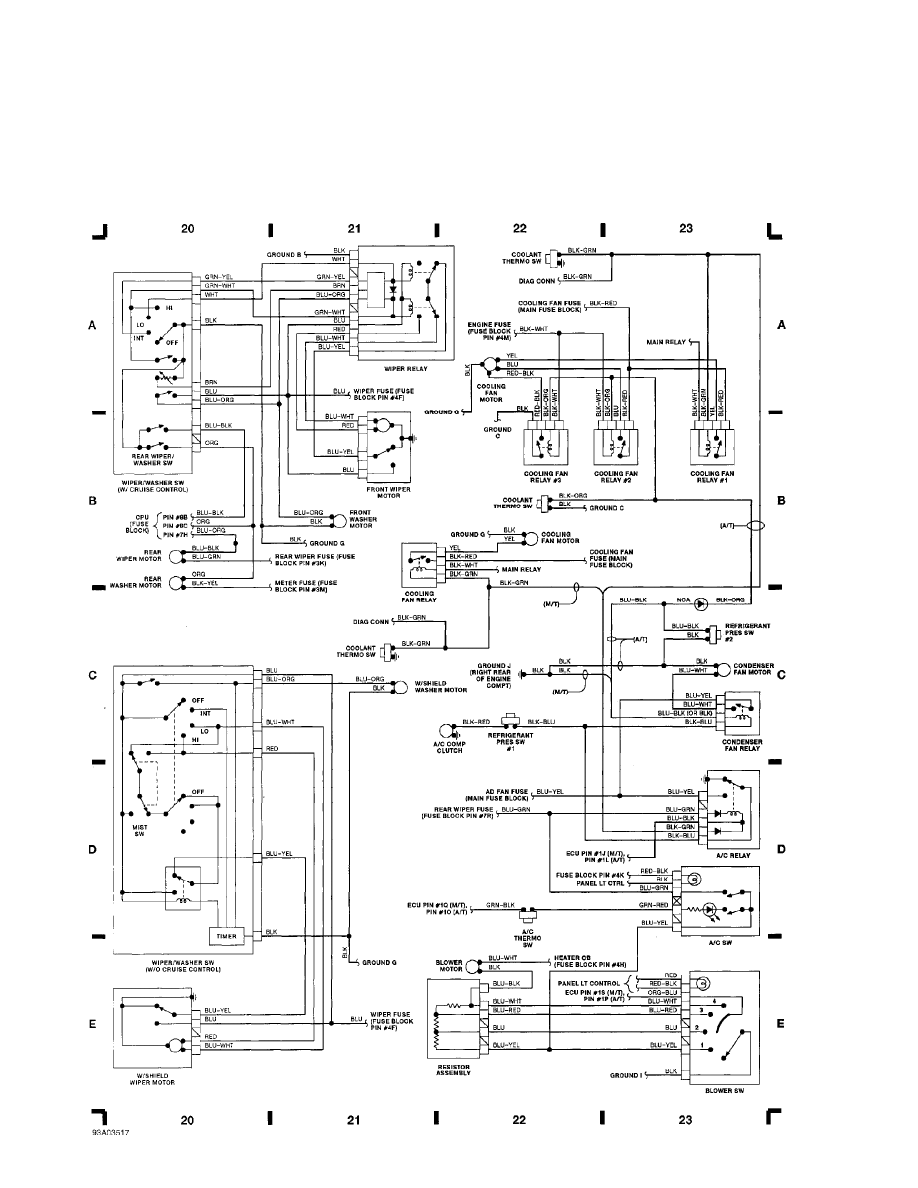

Fig. 6: Wiper/Washer Sw, Blower Sw, A/C Relay and Sw (Grid 20-23) (p. 6)

1992 Mazda 323

For x

Wednesday, October 27, 2004 08:03AM

WIRING DIAGRAMS

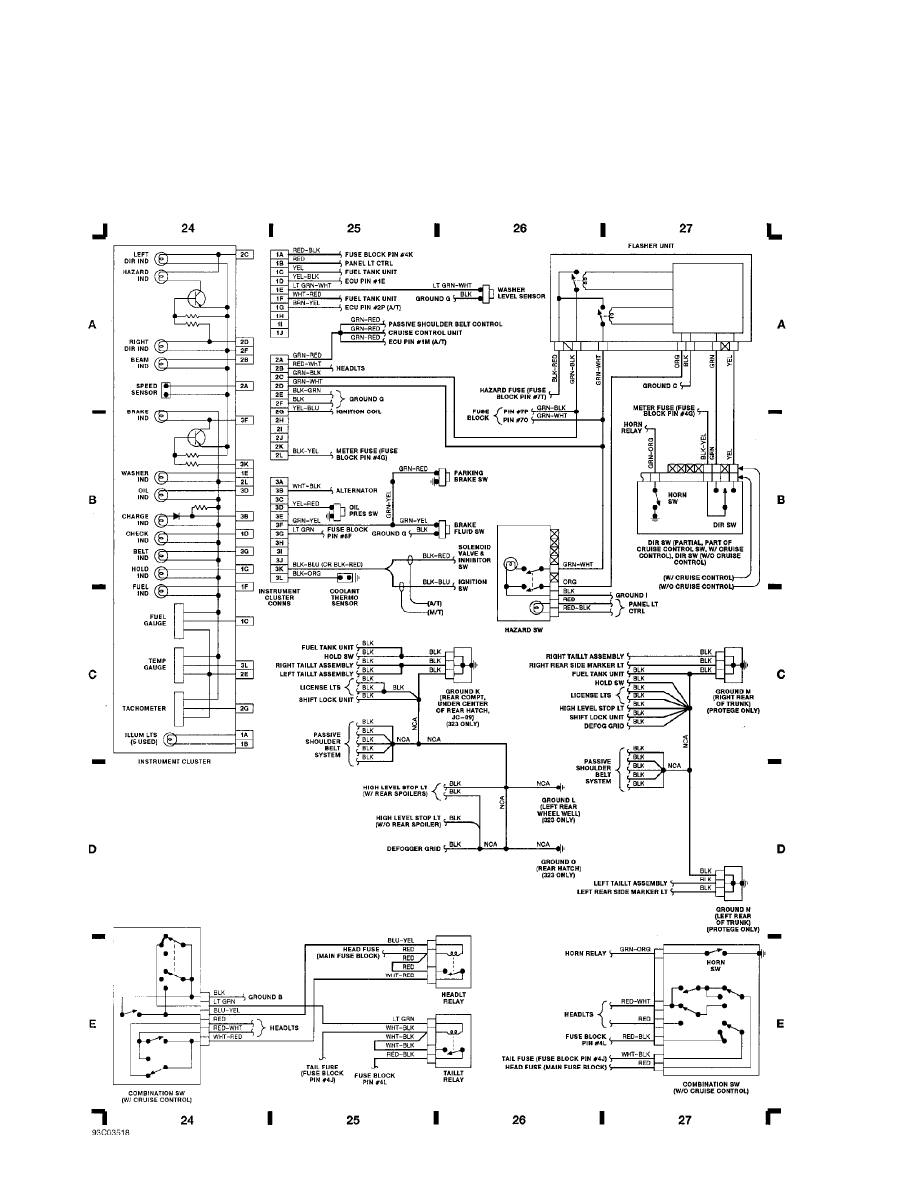

Fig. 7: Instrument Cluster, Combination Switch (Grid 24-27) (p. 7)

1992 Mazda 323

For x

Wednesday, October 27, 2004 08:03AM

WIRING DIAGRAMS

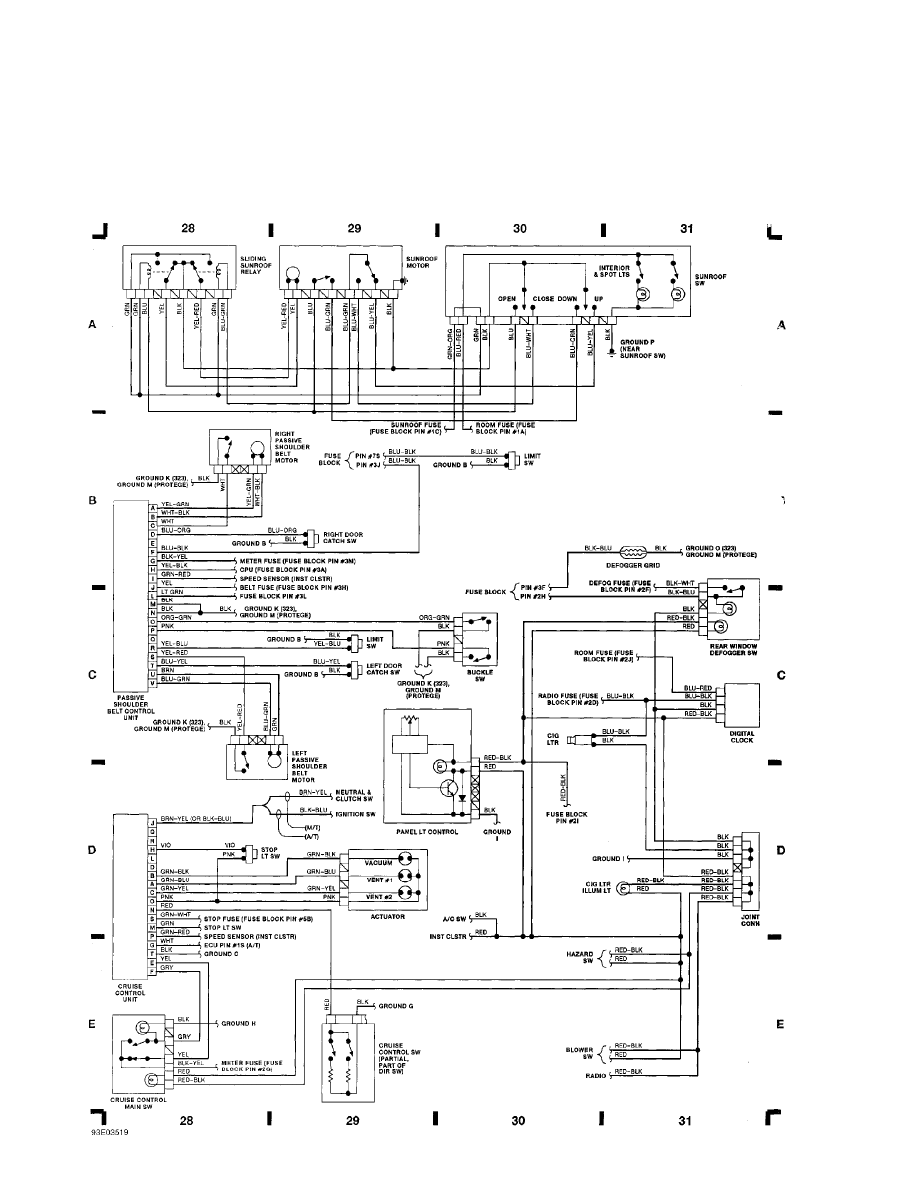

Fig. 8: Sunroof Switch, Cruise Control Unit (Grid 28-31) (p. 8)

1992 Mazda 323

For x

Wednesday, October 27, 2004 08:03AM

WIRING DIAGRAMS

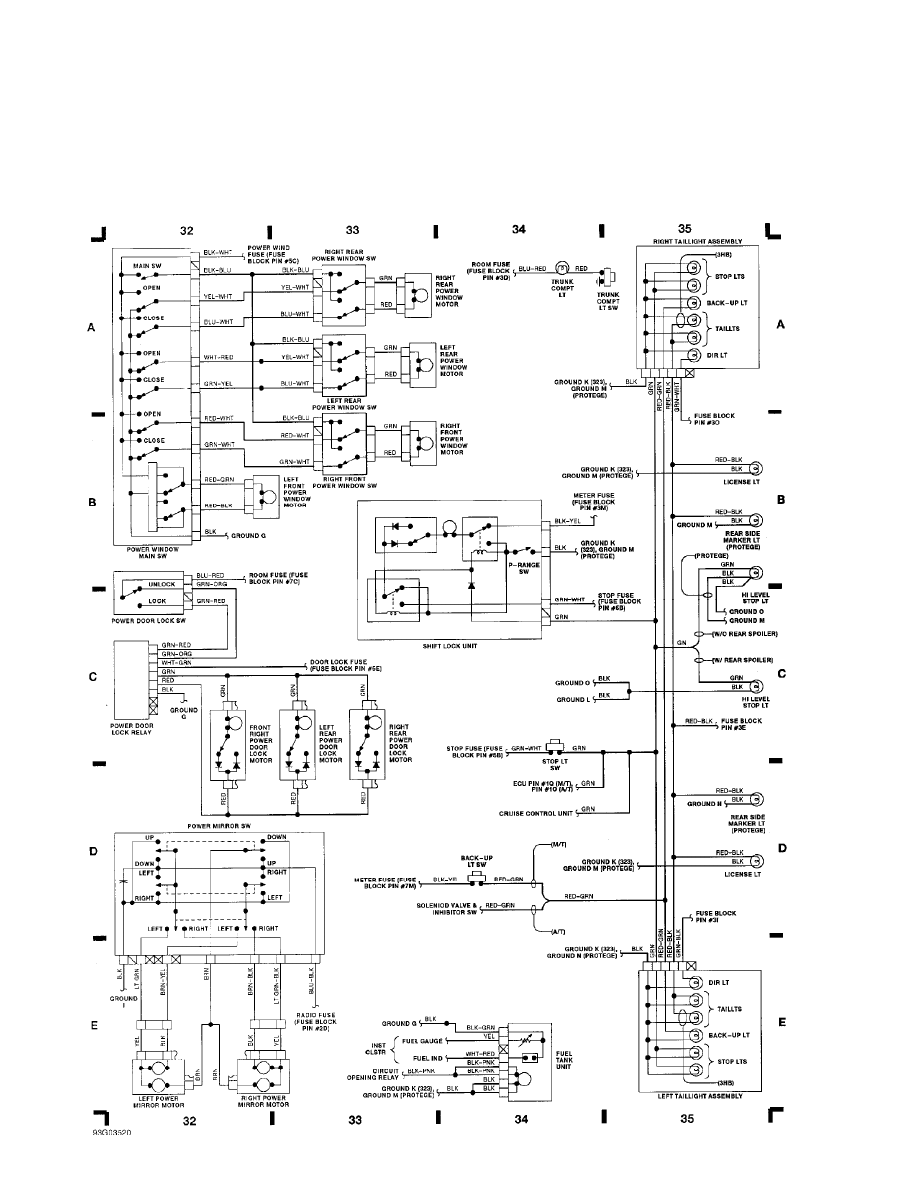

Fig. 9: Power Window/Mirror Switch, Taillight (Grid 32-35) (p. 9)

1992 Mazda 323

For x

Wednesday, October 27, 2004 08:03AM
