SYSTEM WIRING DIAGRAMS

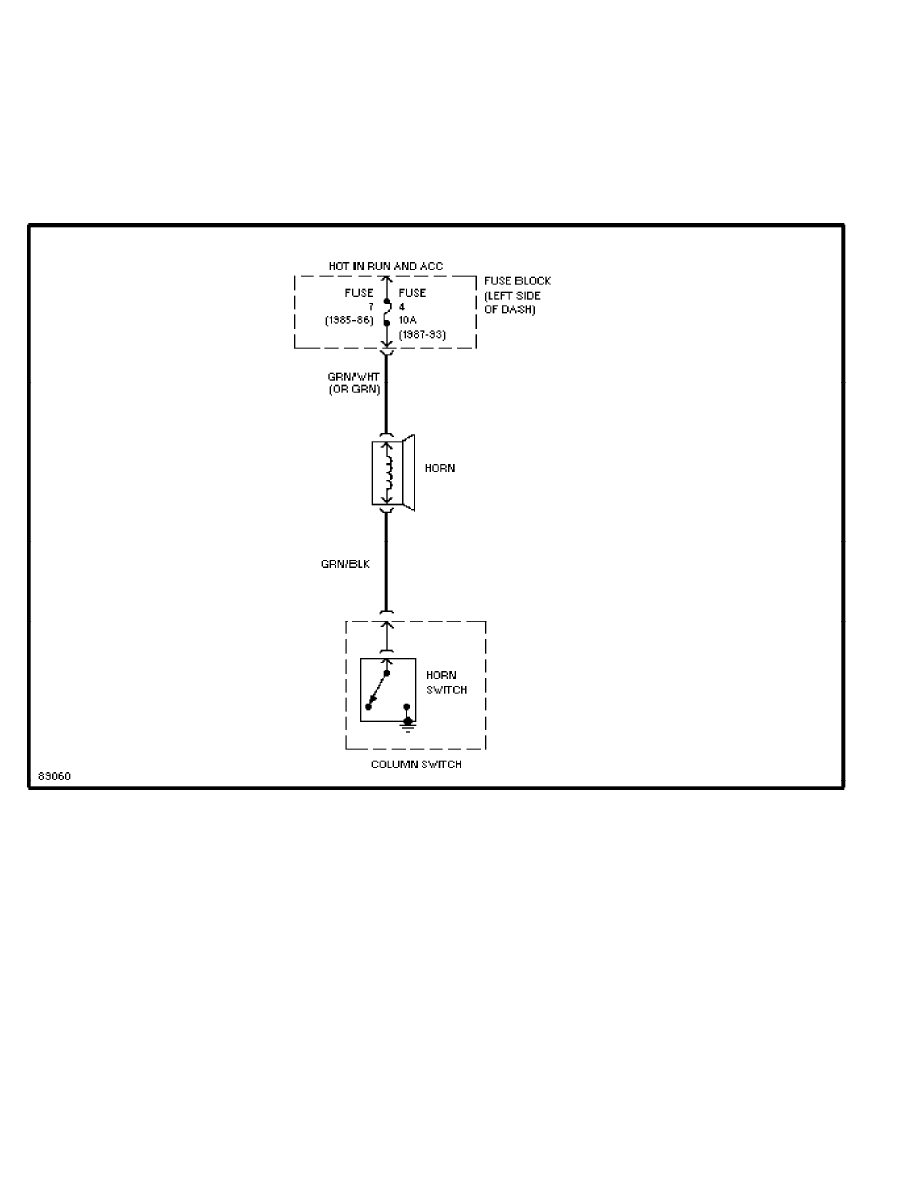

Horn Circuit
1988 Mitsubishi Pickup
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 17, 2005 12:09PM
SYSTEM WIRING DIAGRAMS

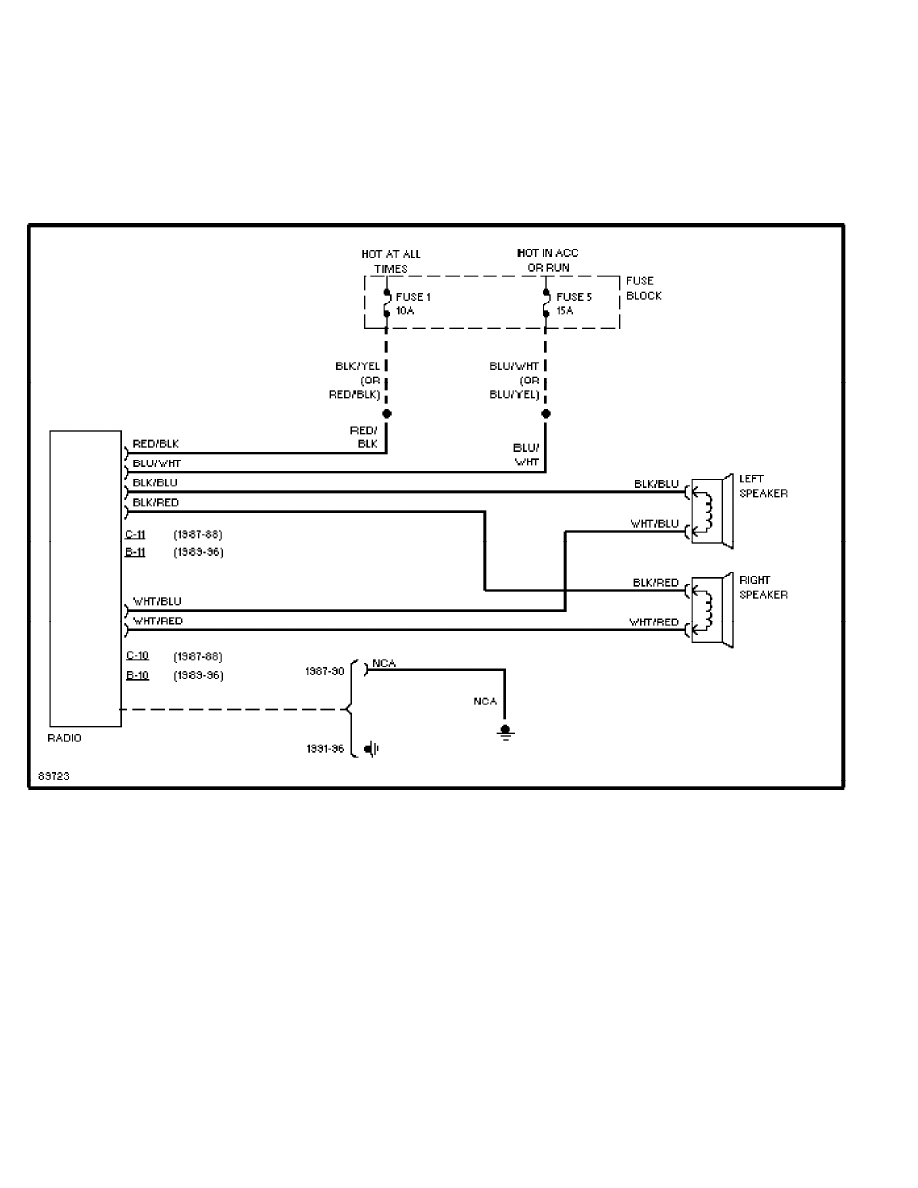

Radio Circuits, 2 Speaker System (p. 2)
1988 Mitsubishi Pickup
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 17, 2005 12:09PM
SYSTEM WIRING DIAGRAMS

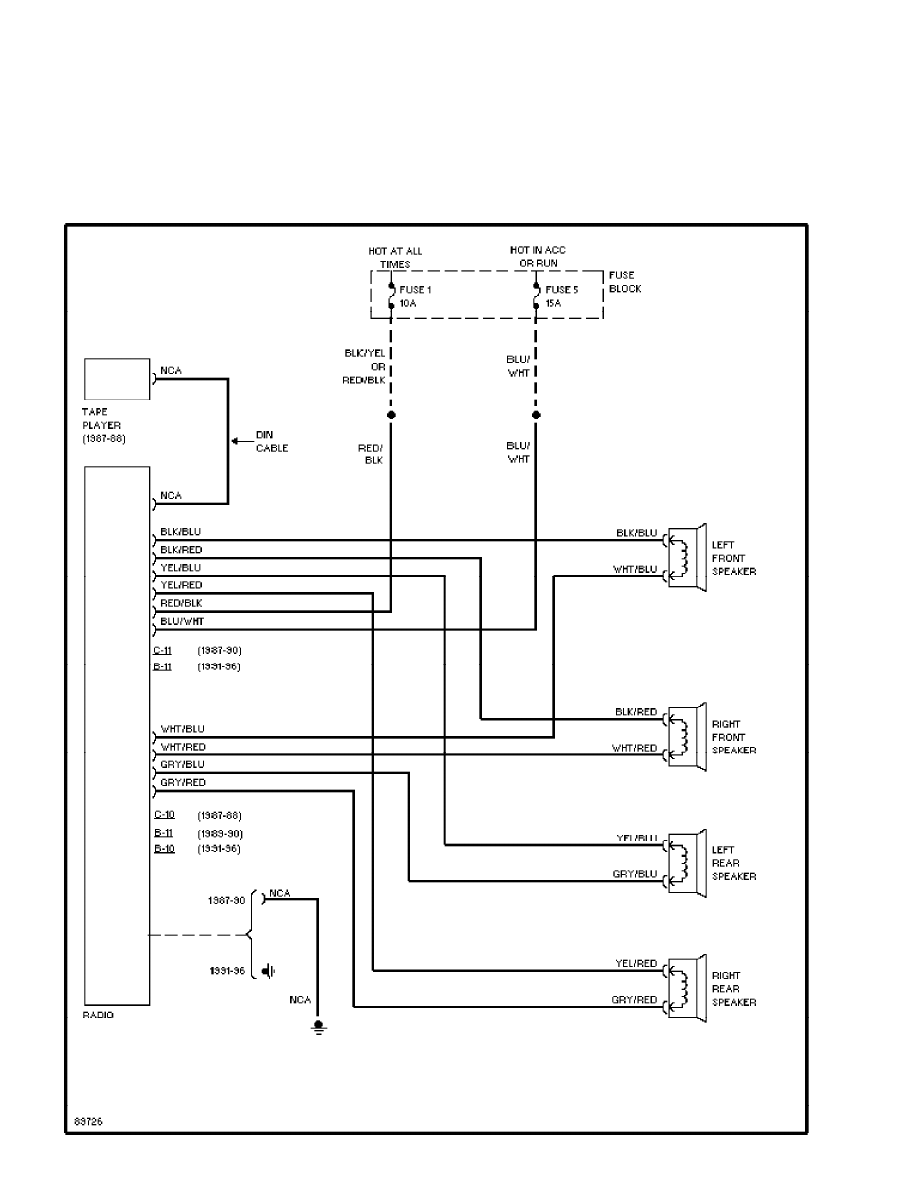

Radio Circuits, 4 Speaker System (p. 3)
1988 Mitsubishi Pickup
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 17, 2005 12:09PM

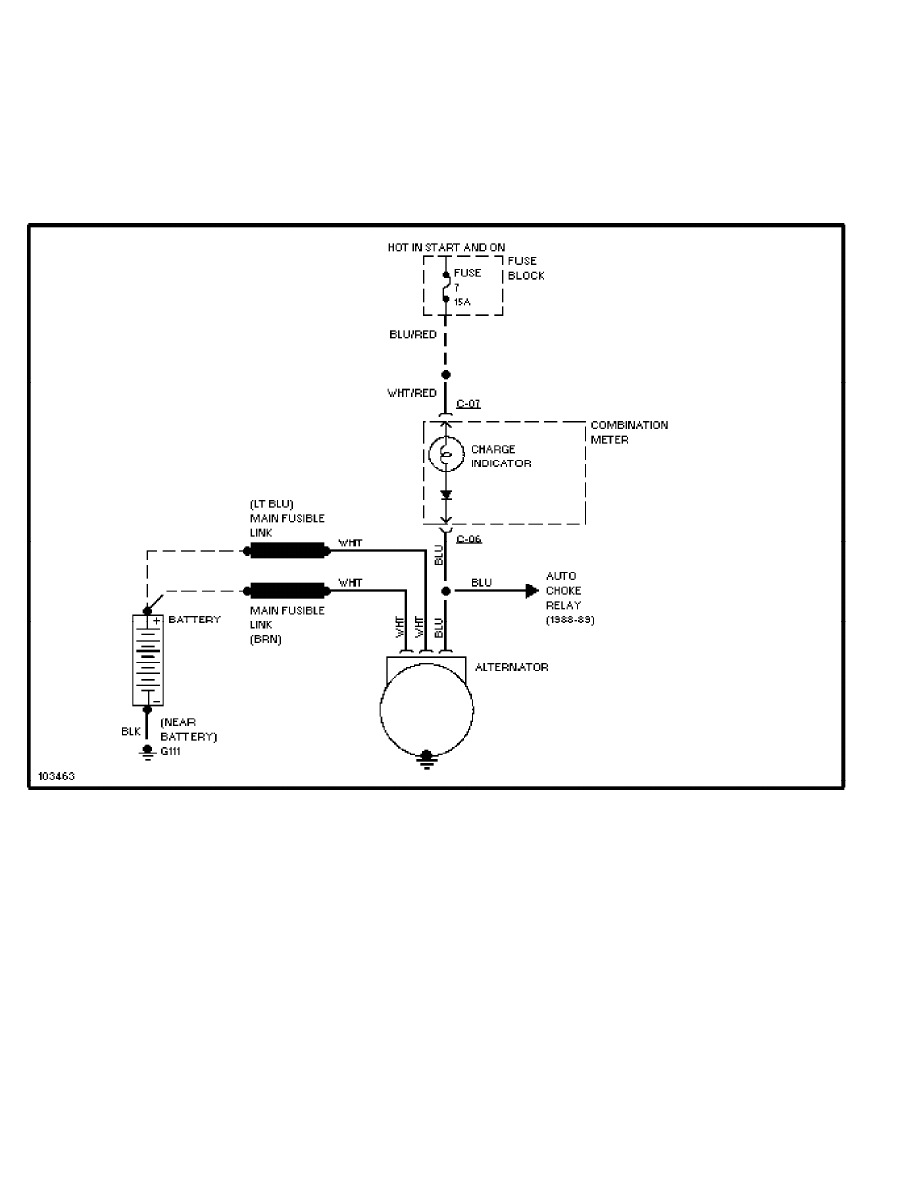

SYSTEM WIRING DIAGRAMS
Charging Circuit (p. 4)
1988 Mitsubishi Pickup
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 17, 2005 12:09PM
SYSTEM WIRING DIAGRAMS

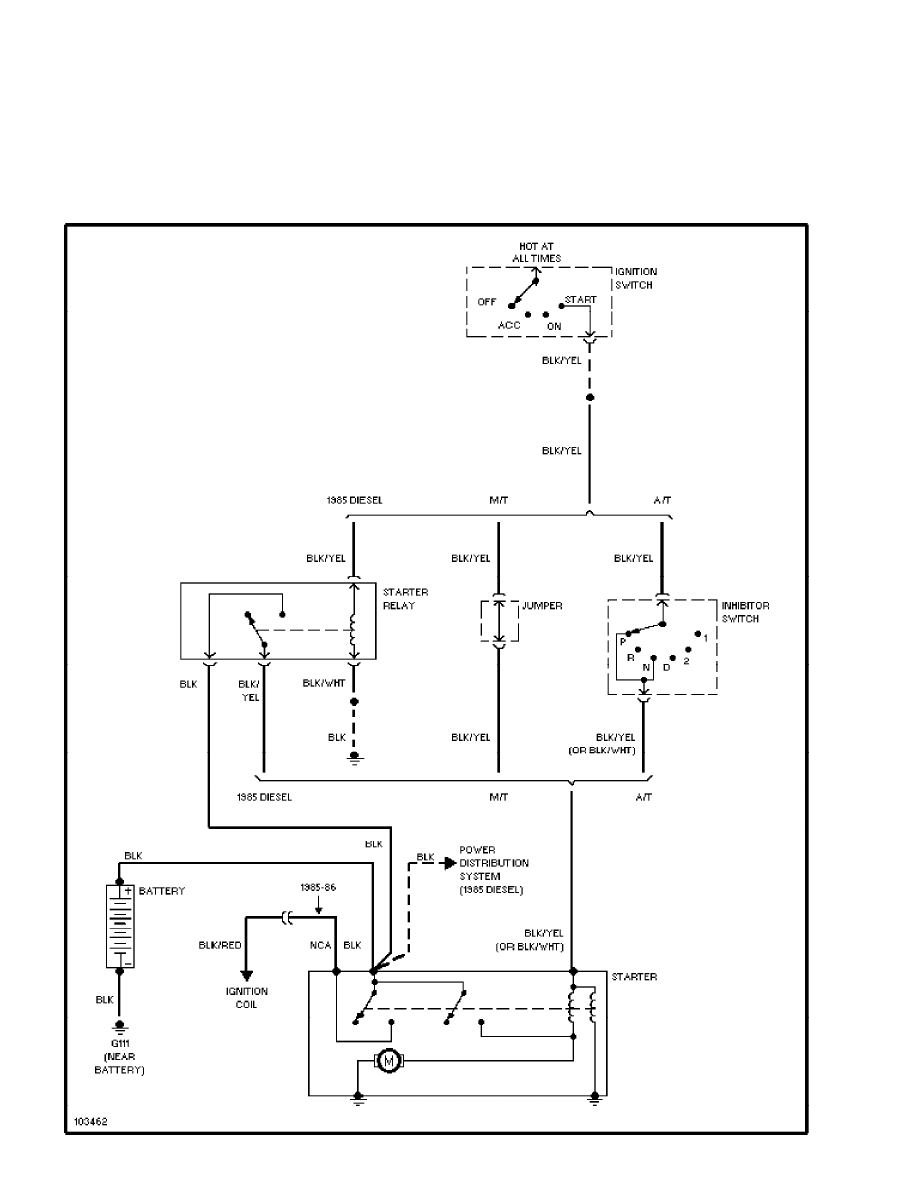

Starting Circuit (p. 5)
1988 Mitsubishi Pickup
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 17, 2005 12:09PM
SYSTEM WIRING DIAGRAMS

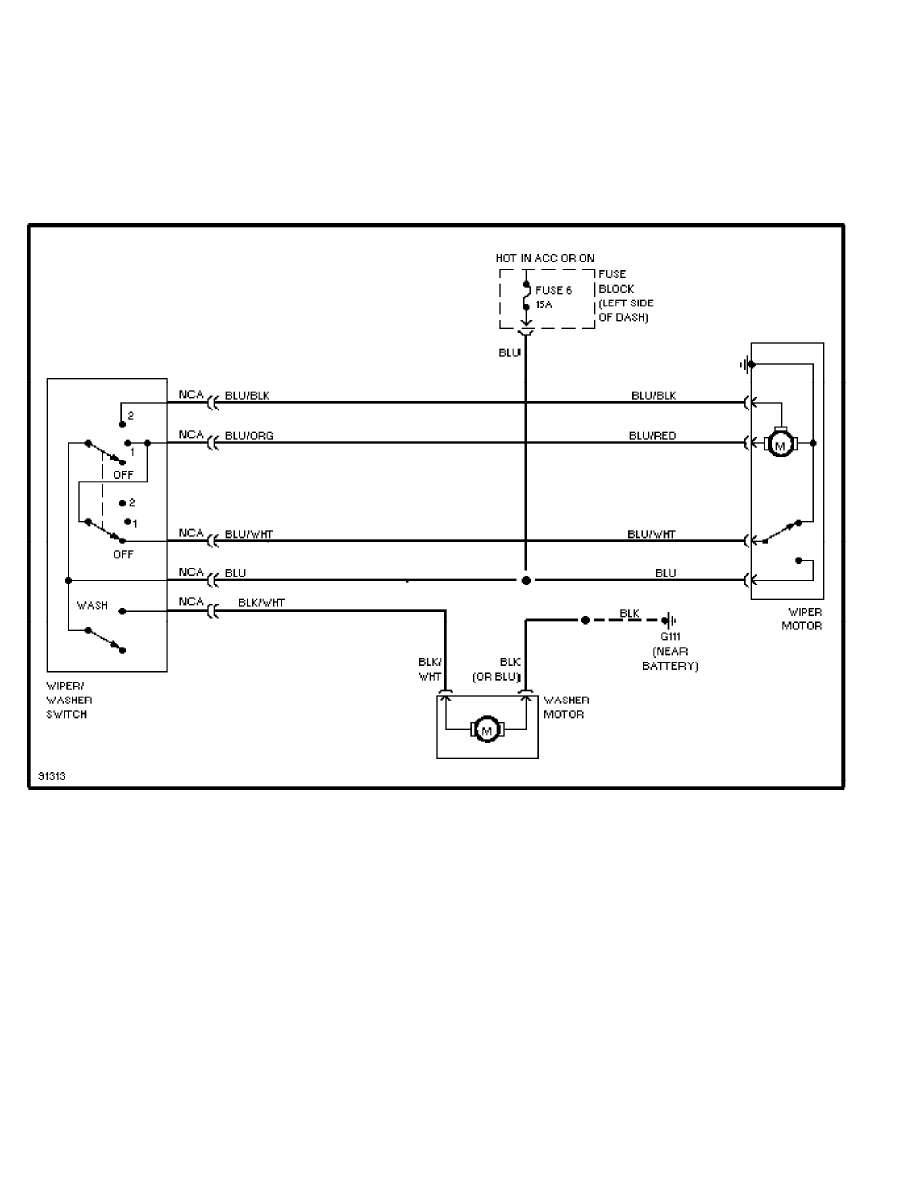

2-Speed Wiper/Washer Circuit (p. 6)
1988 Mitsubishi Pickup
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 17, 2005 12:09PM

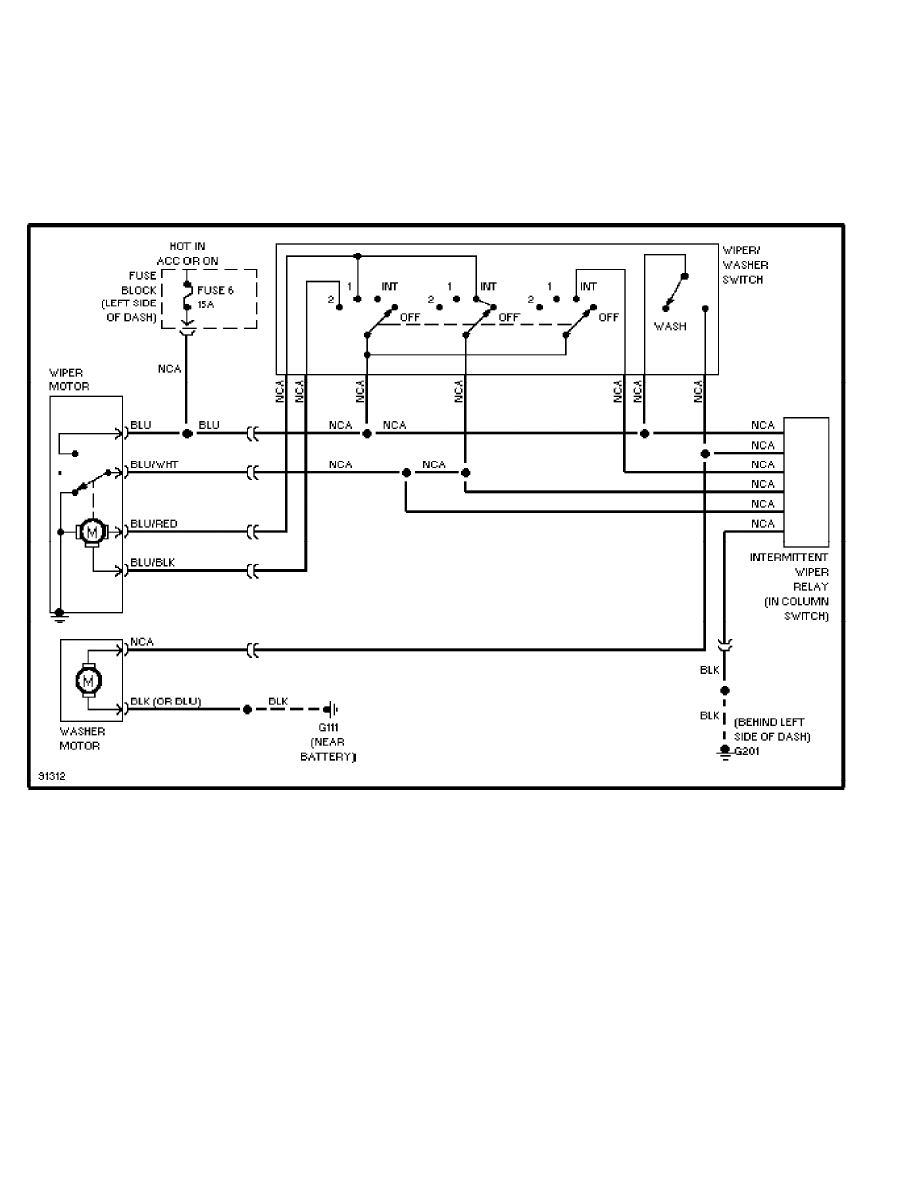

SYSTEM WIRING DIAGRAMS
Intermittent Wiper/Washer Circuit (p. 7)
1988 Mitsubishi Pickup
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 17, 2005 12:09PM
WIRING DIAGRAMS

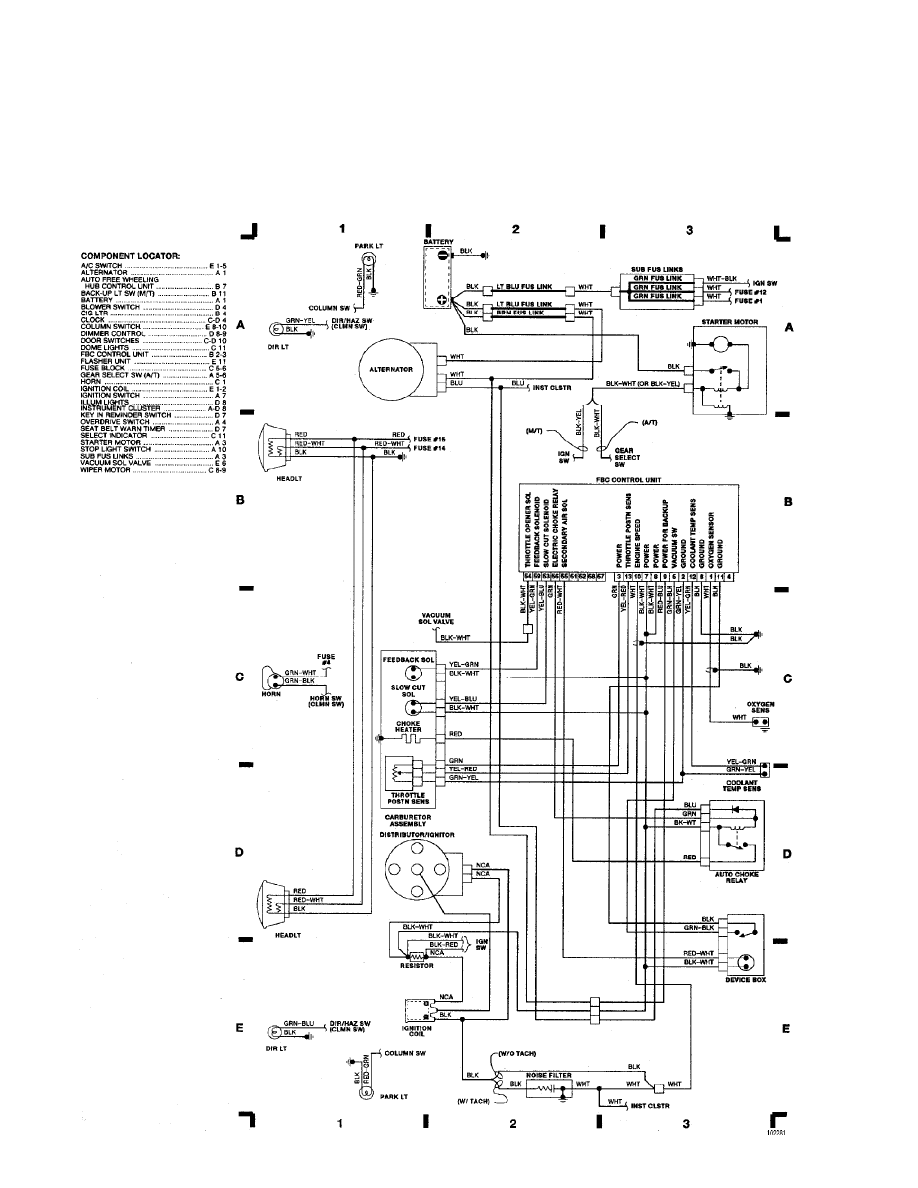

Fig. 1: Engine Compartment
1988 Mitsubishi Pickup
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 17, 2005 12:09PM
WIRING DIAGRAMS

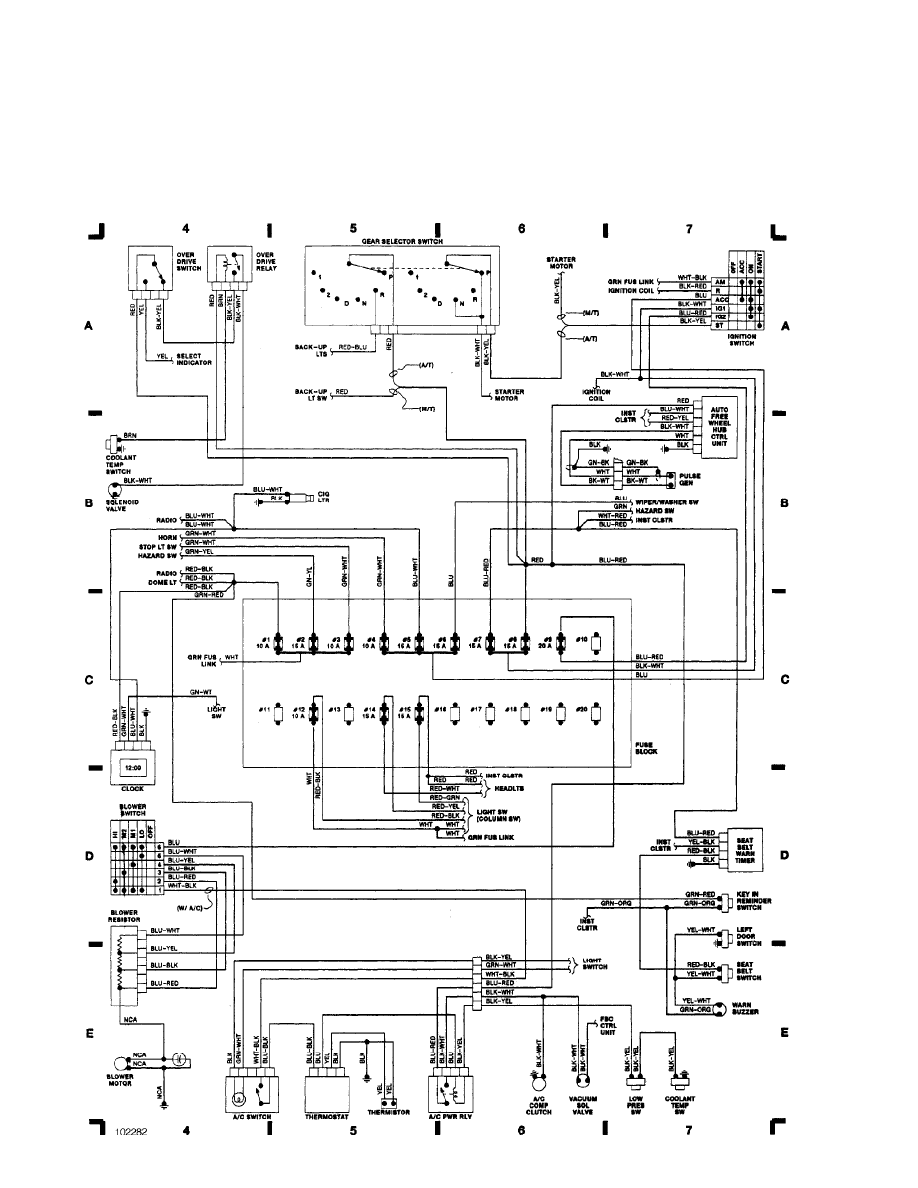

Fig. 2: Fuse Block (p. 2)
1988 Mitsubishi Pickup
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 17, 2005 12:09PM
WIRING DIAGRAMS

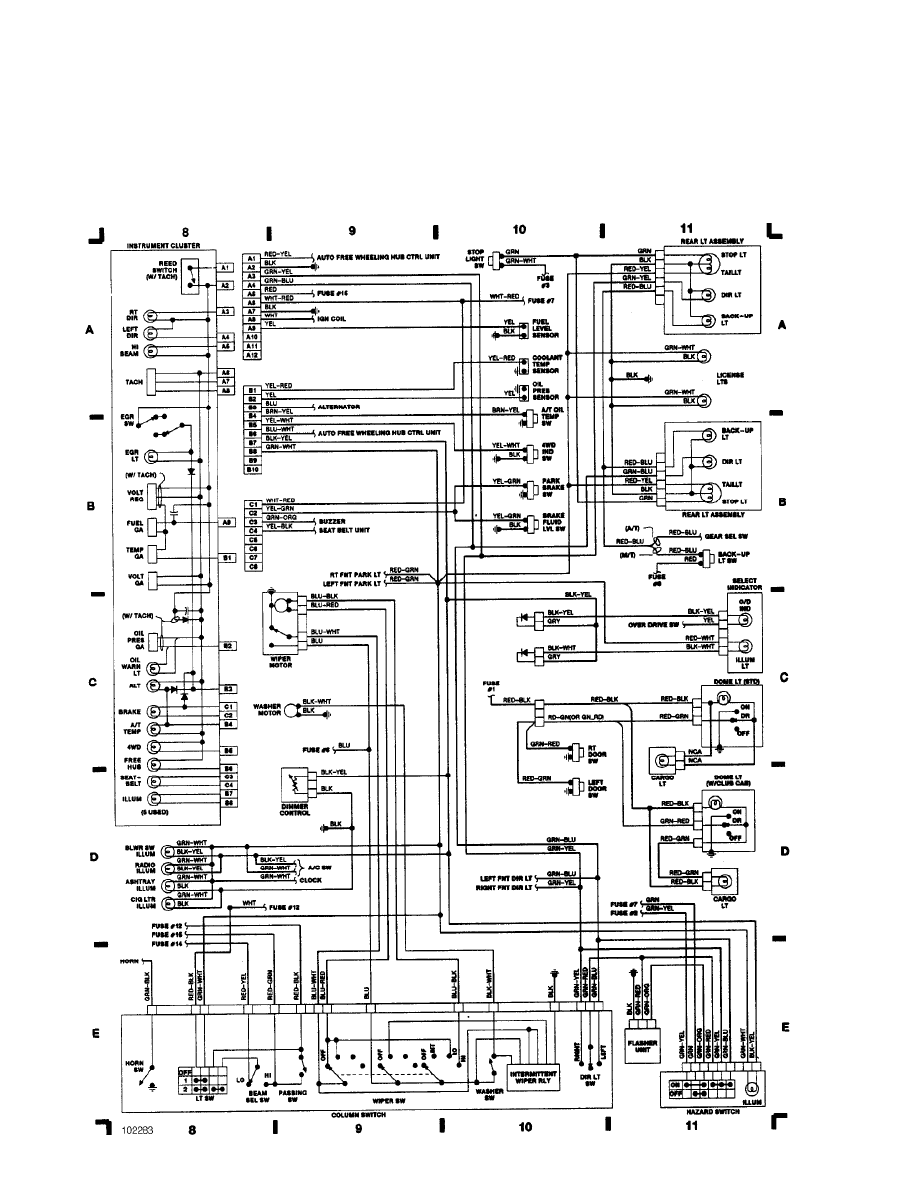

Fig. 3: Instrument Cluster & Rear Compartment (p. 3)
1988 Mitsubishi Pickup
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 17, 2005 12:09PM
