E4 oil tank exhaust muffler

EXHAUST MUFFLER

CONTENTS

m

\:ki. i f:«łitn

8 | 9

9 16

VMj4

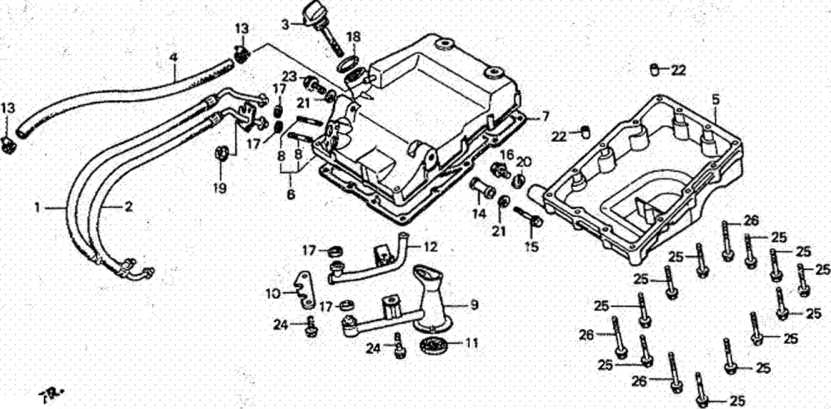

GB500 ’89

GB500 ’89

Ref.

No.

BŁOCK NO. DESCRIPTiON

F-18

FRAME

SERIAL NUMBER

HONDA

FROM

TO

21    WASHER, SPRING, 8MM.

22    PIN, DOWEL. SX14.......

23    BOLT. FLANCE. 8X18....

24    BOLT. FLANCE. 6X16....

25    BOLT, FIANGE. 6X32....

26 BOLT, FLANCE. 6X40.

Q	PART NUMBER	CODĘ
2	94111-08700	0313270
2	94301-08140	0069310
1	9570008018-07	1794411
3	96000-0601600	1113687
11	9600006032-00	0807347
3	9600006040-00	0782870

60 © HONDA MOTOR CG., LTD. 1988    E4

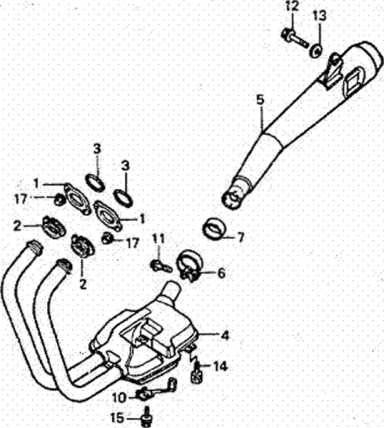

G&{K)’89A FRAME NO.: PC160 « KK000010 TO SUBSEOUENT G8JOO W FRAME NO.: PC161 ♦KK000001 TO SUBSEOUENT

flet.

No.

3L0CKN0.

DESCRIPTION

F-19

FRAME

SERIAL NUMBER

FROM

TO

1    JOINT. EX. PIPĘ..................

2    COLLARCOMP.,EX. PIPĘ JOINT.

3    GASKET. EX. PIPĘ................

4    CHAM8ER COMP.. EX............

5    MUFFLER COMP.................

6    BANO, MUFFLER (63.5)...........

7    PACKING, MUFFLER.............

8    RUBBER. MUFFLER MOUNTING.

9    COLLAR, MUFFLER MOUNTING.

10    GUIDE COMP., BREATHERTUBE.

BOLT, SPECIAL FLANCE, 8X56. BOLT. SPECIAL FIANGE. 8X45.

WASHER. 8.5X26...............

WASHER. 8.5X26...............

BOLT-WASHER, 8X14...........

BOLT-WASHER, 8X16...........

16    NUT. FIANGE, 8MM.....

17    NUT. FIANGE. 8MM.....

Q T Y R E Q	PART NUMBER	HONDA CODĘ
2	18231-KN8-000	3103710
2	18233-KN8-000	3103728
2	18291-216000	0028241
1	18300-MK6003	3103736
1	18310-MK6-670	3103744
1	18371-KN8-003	3103751
1	18391-KN8-000	3103769
1	18421-MA6-000	1401959
1	18422-MA6000	1401967
1	50736-KN8-000	3105558
2	90064-KK3-830	3106804
1	90158-MB1000	1260777
1	90504-MA6000	1771195
1	90504-ME4-000	1401983
1	934910801407	3107109
1	9349108016-07	0832022
1	9405008000	0481143
4	9405008020	2255909

© HONDA MOTOR CO., LTD. 1938 61

TITLE	GR1D PAGE
AIR CIEANER........................	.... £2	57
BALANCER...........................	... 811	22
BATORY.............................	... E1	55
CAM CHAIN..........................	.... B3	7
CAMSHAFT..........................	B2	5
CANISTER (AC).......................	.... F2	81
CARBURETOfl.......................	... C2	28
CLUTCH..............................	.... B6	12
CRANKCASE.........................	B10	20
CRANKSHAFT........................	B10	21
CYLINDER............................	.... B4	8
CYUMDER HEAD....................	.... 81	3
CYLINDER HEAD CCWER.............	.... 81	2
EXHAUST MUFFLER................	.... E4	61
FR. BRAKEMASTER CYUNOER.....	.... 04	36
FRAME BODY......................	.... E12	77
FRONT BfiAKS CAUPE7..............	.... D8	44
FRONT FEN DER.....................	.... 06	41
FRONT FORK........................	.... 07	42
FRONT WHEEL...	09	46
Flia TANK................ ......	011	51
GENERATOR.........................	.... 88	16
HANDLE PIPĘ.......................	.... 05	C8
HANDLE SWITCH...................	.... 03	34
HEADUGHT...........;.............	.... 01	30
KJCK STARTER SPINOLE............	.... C1	27
MARK................................	.... F2	80
METER...............................	.... D2	32
CML PUMP..........................	.... 67	14
OŁTANK ,,	.... E3	59
PEDAŁ...............................	E5	62
REAR BRAKE PANEL...............	.... 010	48
REAR CUSHION....................	.... E8	63
REARFENDEH....... .............	.... E8	69
REAR FORK......'..................	.... E7	66
REAR WHEEL.......................	.... 010	49
right crankcase covfr: ..	85	10
SEAT........................	.... 012	53
SHIFT CRUM........................	.... 812	25
SIOECOYSL........................	.... E1	54
STAND.............................	.... E6	65
STARTWG MOTOh..................	.... 89	18
STEERING STEM...................	..... 06	40
STEP....................,...........	.... £6	64
TA1UUGH7.........................	.... E10	73
TOOLS...............................	F1	79
TRANSMlSSlON.....................	.... B11	23
W5NKER.............................	.... E9	71
V«1R£ HARNESS.....................	E11	75
