Yamaha SRX6(4) Wiring Diagram

Yamaha SRX6(4) Wiring Diagram

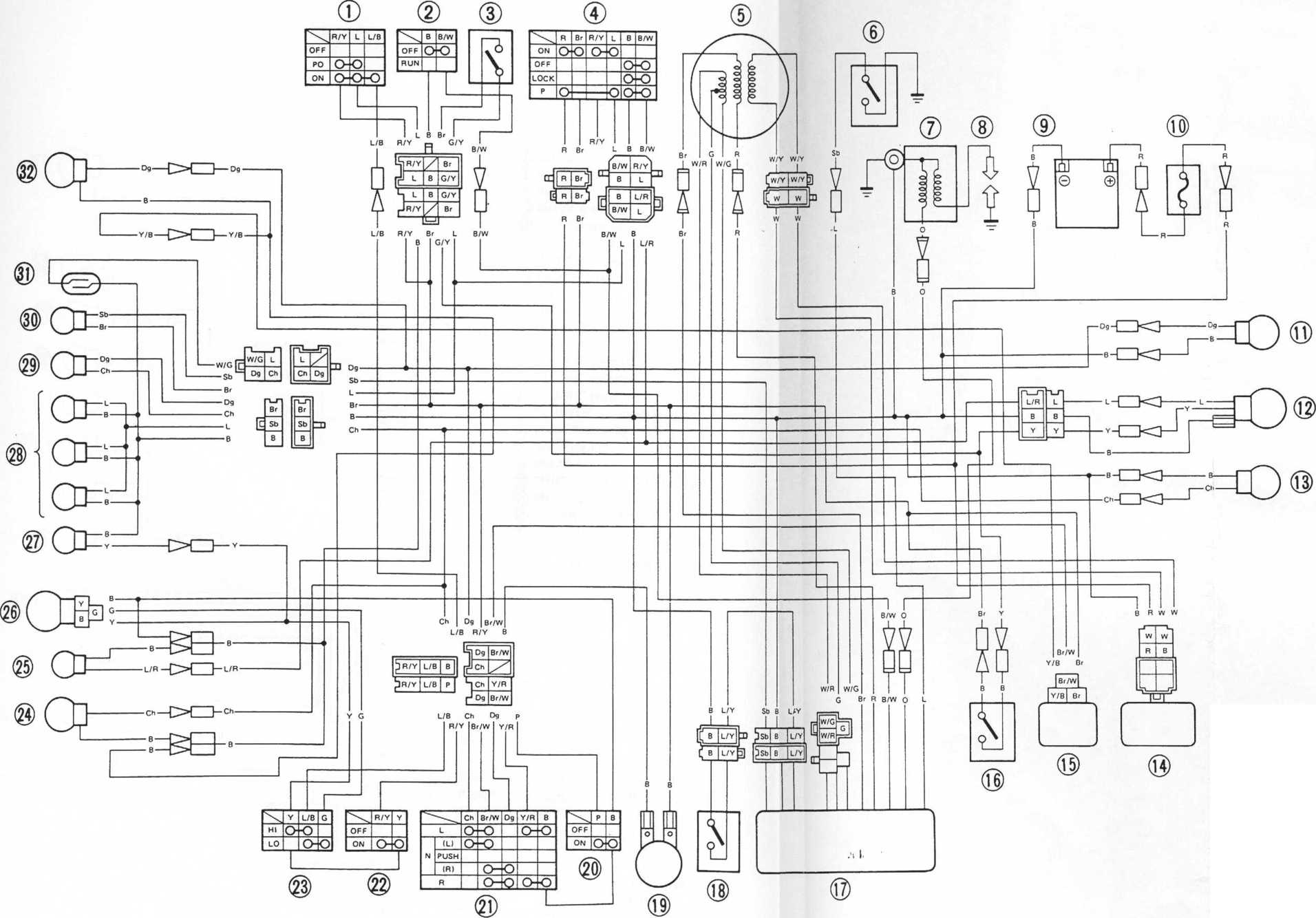

WIRING DIAGRAM

(For model with sidestand switch)



(7) "LIGHTS" switch

® "ENGINE STOP" switch

(D Front brake switch

(4) Main switch

(f) CDI Magneto

(D Neutral switch

(Z) Ignition coil

(D Spark pług

(1) Battery

© Circuit breaker

(0) Rear flasher light (R)

©Tail/Brake light

(0) Rear flasher light (L)

© Rectifier/Regulator © Flasher relay © Rear brake switch ©CDI Unit ©Sidestand switch © Horn

© "HORN” switch © "TURN" switch © "TURN" switch ©"LIGHTS" (Dimmer) switch © Front flasher light (L)

© Auxiliary light © Headlight

© "HIGH BEAM" indicator light © Meter light © "TURN" indicator light © "NEUTRAL" indicator light © Reed switch © Front flasher light (R)

COLORCODĘ

B.....

.....Black

B/W . . .

. . . .Black/White

R.....

.....Red

B/Y . . .

. . . .Black/Yellow

L.....

... .Blue

R/Y . . .

. . . .Red/Yellow

Br.....

... .Brown

L/R ...

. . . .Blue/Red

G.....

... .Green

L/Y . . .

. . . .Blue/Yellow

0.....

.....Orange

L/B. . . .

. . . .Blue/Black

Y.....

... .Yellow

Y/R ...

. . . .Yellow/Red

P.....

.....Pink

Y/G . . .

. . . .Yellow/Green

Ch . . . .

. . . . .Chocolate

Br/W. . .

. . . .Brown/White

Sb ... .

... .Sky blue

W/R . . .

. . . .Whte/Red

Dg . . . .

.....Dark green

W/G . . .

. . . .White/Green

W.....

.....White

W/Y . . .

. . . .White/Yellow
